HP LCD Monitors

The HP LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) screen. This guide discusses the following models:

■ vp15 LCD Monitor

■ vp17 LCD Monitor

■ vp19 LCD Monitor

■ FP1707 LCD Monitor

■ WF1907 LCD Monitor

■ w1707 LCD Monitor

■ w1907 LCD Monitor

■ w2007 LCD Monitor

■ w2207 LCD Monitor

■ w2216 LCD Monitor

Product Features

■ w2408 LCD Monitor

Features

■ Large diagonal viewable-area display

■ Optimum resolution:

■ Video inputs supported:

■ Fast response time, providing better experience for gaming and graphics

■ Easy viewing from a sitting or standing position, or while moving from one side of the monitor to the other

■ Tilt adjustment

❏ vp15: 1024 × 768 @ 60 Hz

❏ vp17, vp19, and FP1707: 1280 × 1024 @ 60 Hz

❏ WF1907, w1707, and w1907: 1440 × 900 @ 60 Hz

❏ w2007, w2216, and w2207: 1680 x 1050 @ 60 Hz

❏ w2408: 1920 x 1200 @ 60 Hz

Plus full-screen support for lower resolutions

❏ VGA analog signal

❏ DVI digital signal (select models only)

❏ High-definition multimedia interface (HDMI) (select models only)

■ Height adjustment (select models only)

■ Pivot adjustment, for landscape or portrait viewing (select models only)

■ Removable pedestal and Video Electronics Standards Association (VESA) standard mounting holes for flexible

mounting solutions, including wall-mounting

■ Security lock slot for a Kensington lock security cable (security cable sold separately)

■ Plug and Play capability, if supported by your computer system

User’s Guide 1–1

Product Features

■ On-screen display (OSD) adjustments for ease of setup and screen optimization (choose English, Simplified Chinese, French, German, Italian, Spanish, Dutch, or Japanese)

■ Swiveling monitor, allowing a usable range of motion (select models only)

■ Built-in stereo speakers, front- or rear-facing depending on model

■ Universal Serial Bus (USB) 2.0 ports to use with USB devices (select models only have two or four ports)

■ Ambient light sensor (select models only)

■ Keyboard parking (select models only)

■ Power Saver to reduce energy consumption

■ Quick View settings display

■ CD includes (select models only):

❏ Drivers (select models only)

❏ Auto-adjustment software

❏ My Display software (select models only)

❏ Documents

❏ Adobe

Acrobat® Reader

■ Varied monitor base designs

Base Designs

Cantilever base

Column base

Double-hinged base

1–2 User’s Guide

Safety and Maintenance Guidelines

Important Safety Information

The power cord is designed for use with your monitor. To use a different cord, use only a power source and connection compatible with this monitor.

WARNING: Always connect your monitor, the computer, and other equipment to a grounded (earthed) power

outlet. To reduce the risk of electric shock or damage to your equipment, do not disable the power cord grounding feature. The grounding plug is an important safety feature.

WARNING: For your safety, be sure that the grounded power outlet you plug the power cord into is easily

accessible to the operator and located as close to the equipment as possible. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the plug firmly. Never pull on the cord.

CAUTION: To protect your monitor, as well as your computer, connect all power cords for your computer and its

peripheral devices (such as a monitor, printer, or scanner) to a surge protection device such as a power strip with surge protection or uninterruptible power supply (UPS).

Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a damage replacement policy, so you can replace your equipment if surge protection fails.

Safety Precautions

■ Use only a power source and connection compatible with this monitor, as indicated on the label/back plate of the monitor.

■ Be sure the total ampere rating of the products connected to the outlet does not exceed the current rating of the electrical outlet, and the total ampere rating of the products connected to the power cord does not exceed the rating of the power cord. Look on the power label to determine the ampere rating (Amps or A) for each device.

■ Install your monitor near a power outlet that you can easily reach. Disconnect the monitor by grasping the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.

■ Do not allow anything to rest on the power cord. Do not walk on the cord.

User’s Guide 2–1

Safety and Maintenance Guidelines

Maintenance Guidelines

To enhance the performance and extend the life of your monitor:

■ Do not open your monitor cabinet or attempt to service this product yourself. If your monitor is not operating properly or has been dropped or damaged, contact your Hewlett-Packard authorized dealer, reseller, or service provider.

■ Adjust only those controls that are described in the operating instructions.

■ Turn your monitor off when not in use. You can substantially increase the life expectancy of the monitor by using

a screen saver program and turning off the monitor when not in use.

■ Keep your monitor in a well-ventilated area, away from excessive light, heat, or moisture.

■ Slots and openings in the cabinet are provided for ventilation. These openings must not be blocked or covered.

Never push objects of any kind into cabinet slots or other openings.

■ Unplug the monitor from the power outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

■ Do not drop the monitor or place it on an unstable surface.

■ When removing the monitor base, you must lay the monitor face down on a soft area to prevent it from getting

scratched, defaced, or broken.

Cleaning the Monitor

The monitor is a high-quality optical device that requires special care when cleaning. To clean the monitor, follow these steps:

1. Turn off the computer and the monitor.

2. Unplug your monitor from the power outlet before cleaning.

CAUTION: Do not use benzene, thinner, ammonia, or any volatile substance to clean the monitor screen or cabinet.

These chemicals may damage the monitor. Do not use liquid or aerosol cleaners. Never use water to clean an LCD screen.

3. Wipe the screen with a dry, soft, clean cloth.

If the screen requires additional cleaning, use an antistatic screen cleaner.

4. Dust the monitor housing. Use a damp cloth to clean the cabinet.

If the cabinet requires additional cleaning, use a clean cloth dampened with isopropyl alcohol.

5. Plug in the monitor.

6. Turn on the monitor and the computer.

2–2 User’s Guide

Unpacking the Monitor

1. Unpack the monitor. Make sure all contents are included. Store the packing box.

2. Turn off the computer and other attached devices.

3. Determine whether the monitor will be desktop mounted or wall-mounted. See “Installing the Monitor.”

4. Prepare a flat area to assemble the monitor. You may need a flat, soft, protected area for placing the monitor

screen-down while preparing it for installation.

5. You need a Phillips screwdriver for preparing the monitor for wall-mounting. You may need a straight-slot

screwdriver to secure some cables.

Installing the Monitor

You can install the monitor on a desktop or wall-mount it. Place the monitor in a convenient, well-ventilated location near your computer.

If the monitor will be installed on a:

Setting Up the Monitor

■ Desktop or table, see “Installing on a Desktop.”

■ Wall, swing arm, or other mounting fixture, see “Wall-Mounting the Monitor (Mounting Fixture not Supplied).”

Connect the monitor cables after you have installed the monitor.

Installing on a Desktop

Follow the instructions for your monitor type.

User’s Guide 3–1

Setting Up the Monitor

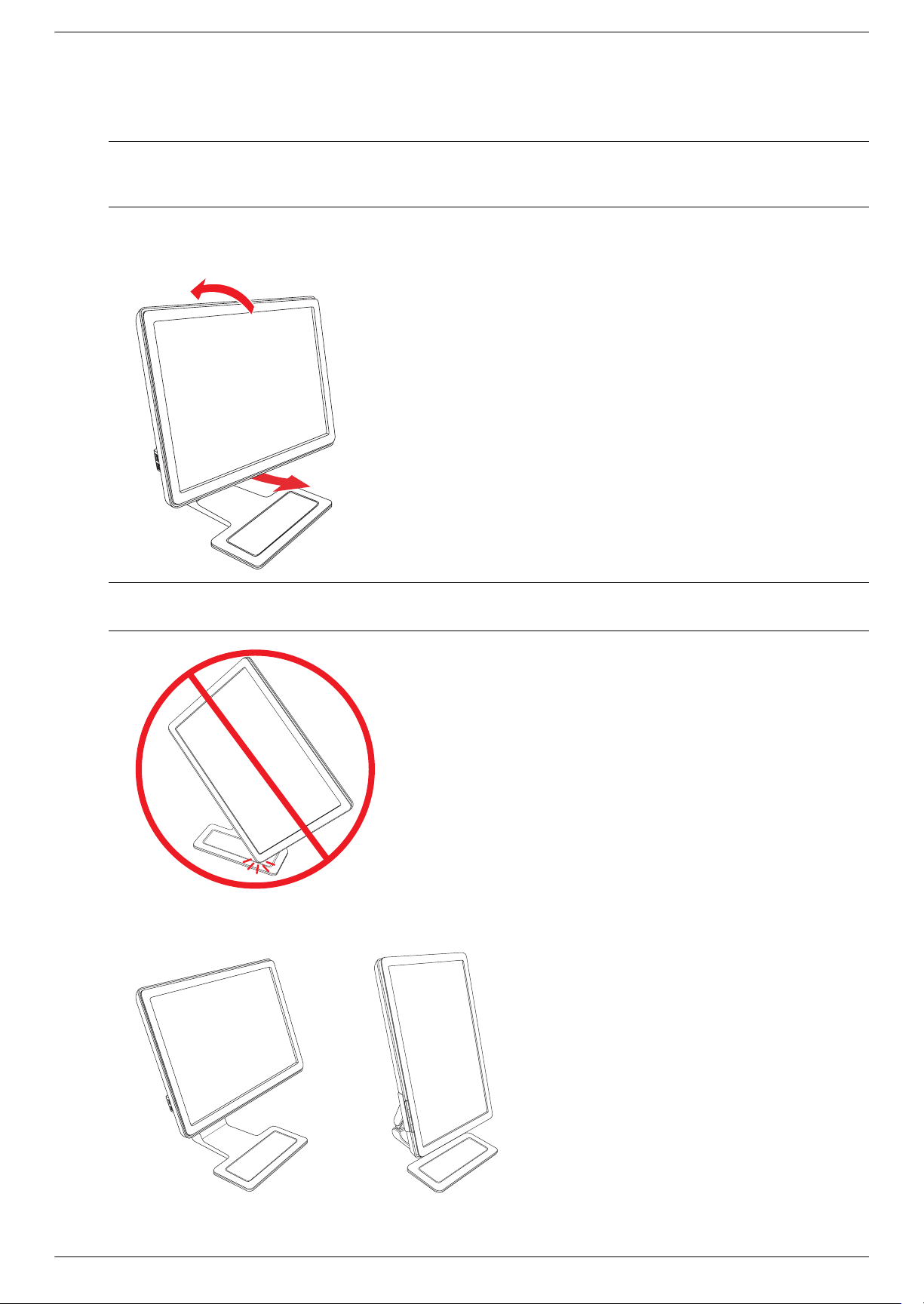

Unfolding the double-hinged monitor

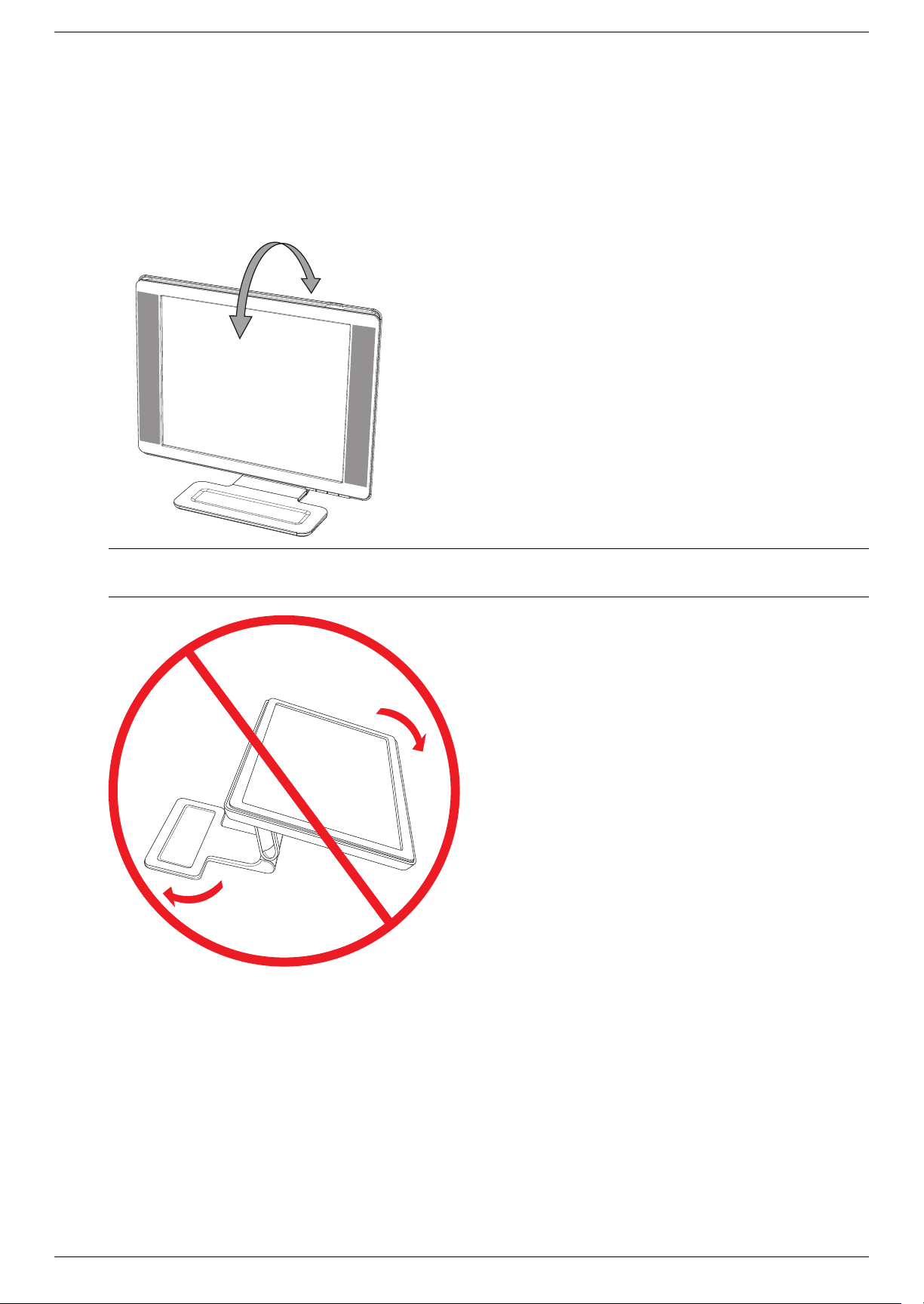

WARNING: Do not place the double-hinged monitor face down for folding. The base hinge can spring up and

cause serious injury or damage.

1. With the monitor still in its flat, folded state, set it screen-side up on a flat surface.

2. Rotate the screen to the horizontal position (in the figure, the straight arrow is your position in front of the

monitor).

3. Holding the base of the monitor, lift up the panel at its top without touching or putting pressure on the screen (3).

4. Remove the shipping strap (do not cut it) (4).

5. Put the shipping strap in a safe place, in case you need it to ship the monitor.

6. Lift and lower the base hinge for proper viewing.

3–2 User’s Guide

Assembling the cantilever base

CAUTION: The screen is fragile. Avoid touching or applying pressure to the LCD screen; doing so can cause

damage.

1. Set the monitor screen down on a flat, soft, protected surface.

2. Align the neck with the monitor base.

3. Slide the base until it snaps in place. Make sure the base is securely locked in place.

Setting Up the Monitor

Attaching the cantilever base

4. Lift the monitor to an upright position and place on a flat, stable surface.

Assembling the column base

1. Set the monitor base on a flat, stable surface.

2. Lift the monitor, and align the pedestal with the base.

3. Lower the monitor until the base snaps in place. Make sure the base is securely locked.

Attaching the column base

User’s Guide 3–3

Setting Up the Monitor

Wall-Mounting the Monitor (Mounting Fixture not Supplied)

Before you mount the monitor on a wall, a swing arm, or other mounting fixture, you must remove the monitor base and the pedestal. You will need a Phillips screwdriver. Read the following warning and caution statements before beginning the procedure.

WARNING: To reduce the risk of personal injury or of damage to the equipment, check that the wall-mounting

fixture is adequately installed and secured before attaching the monitor. Refer to the instructions supplied with the wall-mounting fixture and check that it is capable of supporting the monitor.

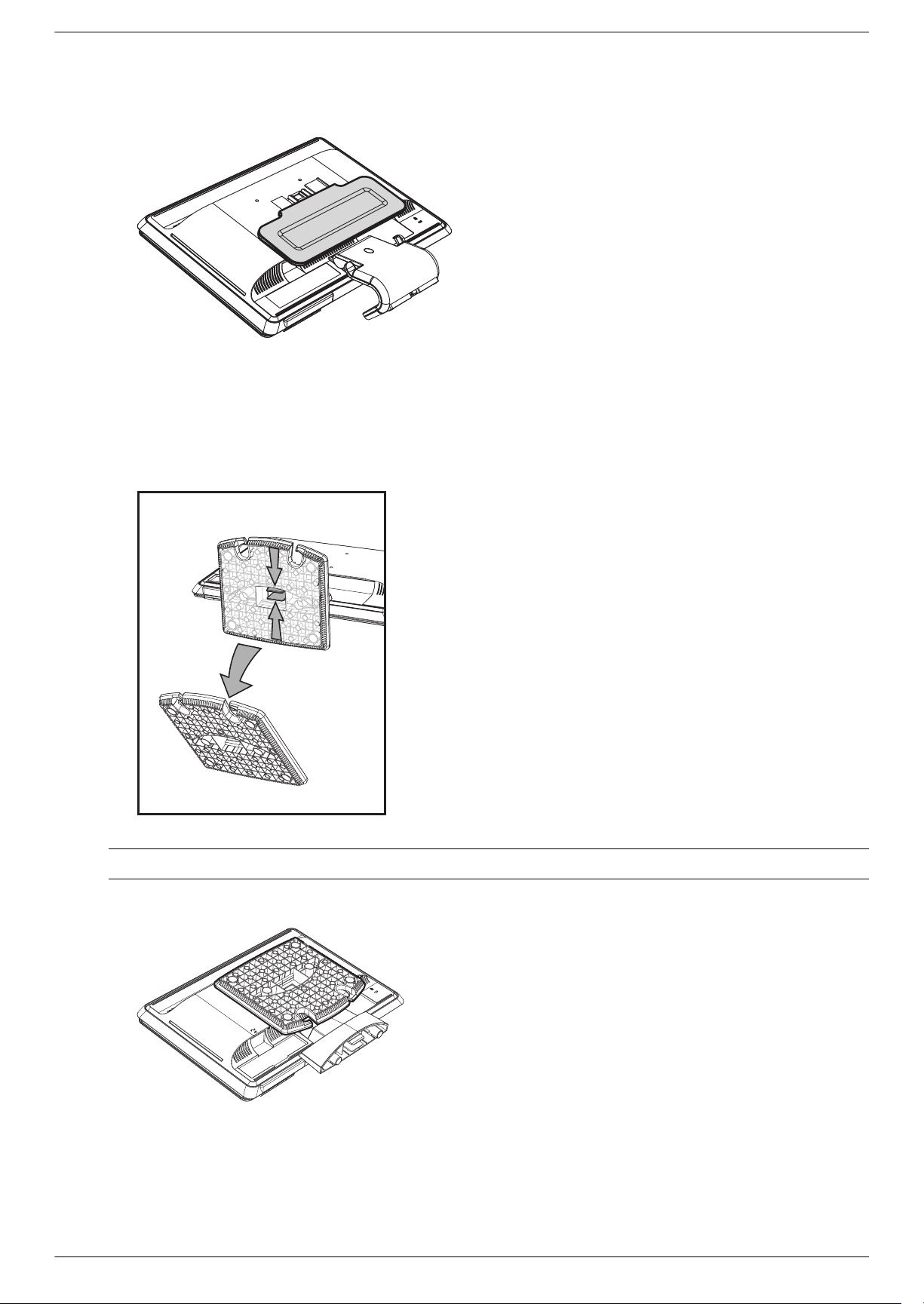

Preparing the double-hinged monitor for wall-mounting

WARNING: Do not place the double-hinged monitor face down for folding. The base hinge can spring up and

cause serious injury or damage.

1. Disconnect the power cable and any other cables from the monitor.

2. Carefully place the monitor face down on a flat, soft surface. This might entail elongating the hinge and tilting the

monitor back to ensure the monitor is flat.

3. With your fingertips, snap off the VESA cover from the back of the monitor.

4. Remove all four screws from the VESA plate.

5. Save the removed items (cover, screws, and base) for future use.

6. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.

The four-threaded mounting holes that are on the back of the panel are compliant with the VESA standard for mounting flat-panel monitors. The15-inch monitor uses the 75 mm spacing standard, while the other models use the 100 mm spacing standard.

Use the four holes to attach a swing arm or other mounting fixture.

3–4 User’s Guide

Preparing the cantilever-base monitor for wall-mounting

1. Disconnect the power cable and any other cables from the monitor.

2. Remove the monitor base. Refer to “Removing the Monitor Base.” Keep the monitor panel screen down on a flat,

soft area.

3. After the base is removed, remove the rubber plug on the neck of the monitor. You will see a screw below the

rubber plug and two additional screws on the panel.

4. Remove all three screws.

5. Remove the neck from the monitor.

6. Save the removed items (rubber plug, screws, neck, and base) for future use.

7. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.

The four-threaded mounting holes that are on the back of the panel are compliant with the VESA standard for mounting flat-panel monitors. The vp15 monitor uses the 75 mm spacing standard, while the other models use the 100 mm spacing standard.

Use the four holes to attach a swing arm or other mounting fixture.

Setting Up the Monitor

User’s Guide 3–5

Setting Up the Monitor

Preparing the column-base monitor for wall-mounting

1. Disconnect the power cable and any other cables from the monitor.

2. With the monitor screen face-down on a flat, soft surface, remove the monitor base. Refer to “Removing the

Monitor Base.”

3. Remove the hinge cover and set it aside. Three screws and the hinge are exposed.

4. Holding the pedestal so that it cannot fall, remove the single screw that is close to the hinge, and then remove the

other two screws. If necessary, move the pedestal, so that all three screws are accessible.

5. Slide the pedestal off the monitor panel.

6. Save the removed items (screws, hinge cover, pedestal, and base) for future use.

7. Follow the instructions that are included with the mounting fixture to ensure that the monitor is safely attached.

Use the four holes to attach a swing arm or other mounting fixture.

Reinstalling the desktop pedestal and base for the monitor

1. Remove the mounting fixture.

2. Reverse the preceding instructions.

3–6 User’s Guide

Connecting the VGA (Analog) or DVI-D (Digital) Cable

Use a VGA video cable or a DVI-D video cable (provided with select models). To use DVI, you must have a DVI-compliant graphic card. Connectors are located on the back of the monitor. Be sure the computer and monitor are turned off and unplugged.

Some graphic cards have both a DVI connector and a DVI-to-VGA converter included in the box (select models only). If the monitor has a VGA connector but no DVI connector, use the DVI-to-VGA converter to connect to the computer: Connect the DVI-to-VGA converter to the DVI connector on the computer graphic card, and then connect the VGA cable to the converter and the monitor.

Setting Up the Monitor

Connecting the VGA or DVI-D cable—connector locations may vary

To connect the VGA cable

Connect one end of the VGA video cable to the back of the monitor and the other end to the VGA video connector on the computer.

To connect the DVI-D cable

Connect one end of the DVI-D video cable to the back of the monitor and the other end to the DVI video connector on the computer. You can use this cable only if your compute has a DVI-compliant graphic card installed. The monitor DVI-D connector and cable are included with select models only.

NOTE: If you use a DVI-to-HDMI adapter, you must connect the green audio cable to enable the speakers. The signal

✎

from the DVI connector is for video only.

Connecting the HDMI Cable

Connect one end of the HDMI cable (select models only) to the back of the monitor and the other end to any compatible digital audio/video source, such as a set-top box, a DVD player, or a digital television.

User’s Guide 3–7

Setting Up the Monitor

Audio and Video Cables and Adapters

The following table shows the cable and adapter types that may be required to connect the monitor to the computer, TV, or set-top box.

The number and type of cables required may vary by model. Some cables and adapters are included for select models only and may be sold separately.

Cable/Adapter Name Description

HDMI cable HDMI transmits an all-digital signal. It is the

DVI cable DVI transmits an all-digital video signal.

recommended choice for playback from a DVD or DVR.

HDMI is capable of transmitting both uncompressed digital audio and digital video signals, because it has video, audio, and control signals.

VGA cable VGA transmits an analog video signal.

DVI-to-VGA adapter Connects a DVI monitor to a VGA connector on the

back of the computer, TV, or set-top box or connects a VGA monitor to a DVI connector on the back of the computer, TV, or set-top box.

DVI-to-HDMI adapter Connects a DVI monitor to an HDMI connector on

the back of the computer, TV, or set-top box or connects an HDMI monitor to a DVI connector on the back of the computer, TV, or set-top box.

NOTE: If you use a DVI-to-HDMI

✎

adapter, you must connect the green audio cable to enable the speakers.

NOTE: When using a VGA or DVI signal, you must connect your audio separately because a VGA or DVI signal

✎

converts only video data, not audio data. A separate audio connection is not necessary when you use an HDMI signal, because an HDMI signal can convert both video and audio data.

3–8 User’s Guide

Connecting the Audio Cable

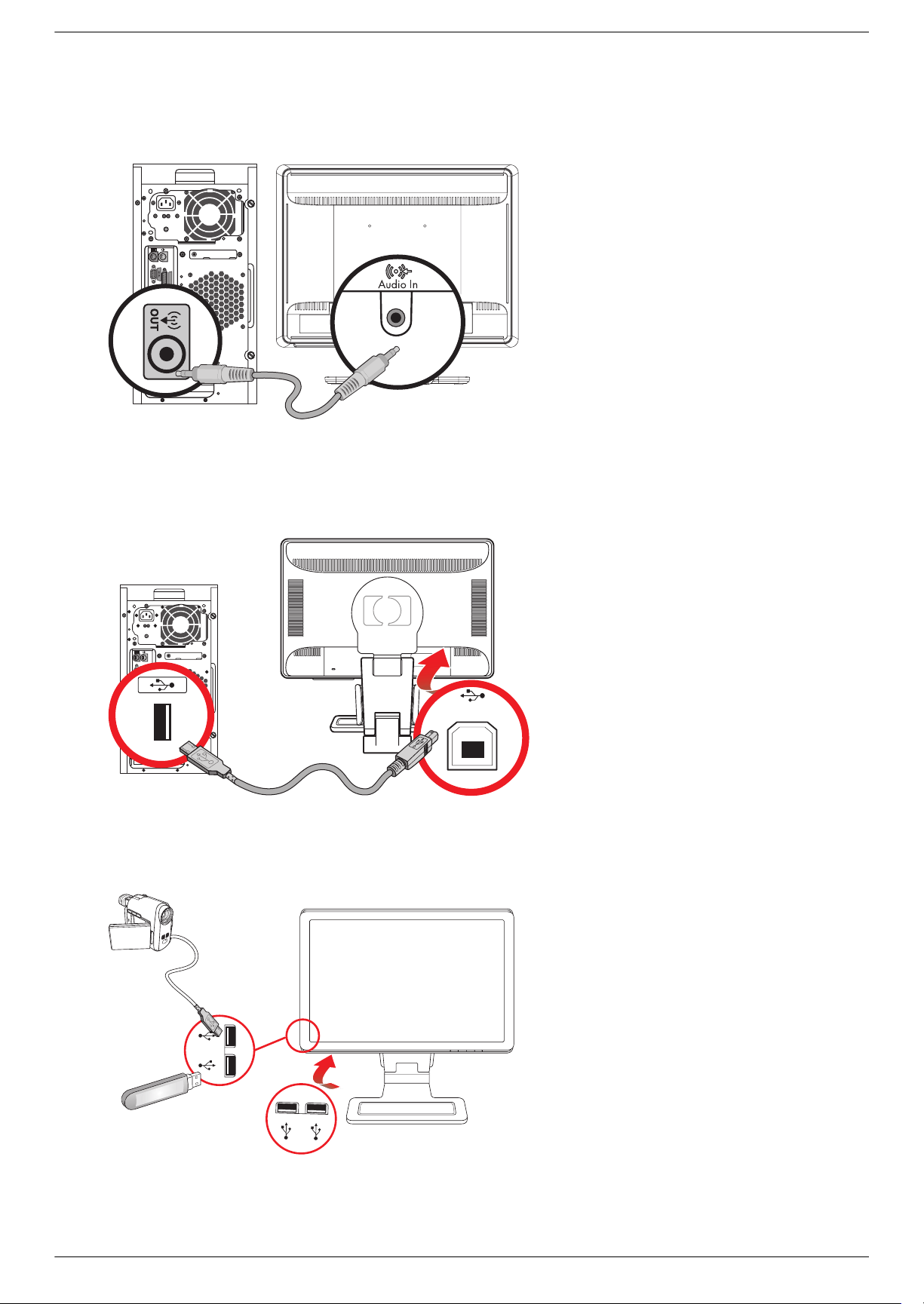

Connect the built-in monitor speakers to the computer by using the audio cable, as shown in the following illustration.

Connecting the audio cables—connector locations may vary

Setting Up the Monitor

Connecting the USB Hub Cable

Connect the USB hub cable from the computer to the USB In connector on the monitor (select models only have USB capability). This enables USB 2.0 ports on the monitor.

USB In

Connecting USB Devices to the Monitor

You can connect two or four USB devices (select models only), such as a USB flash drive or a digital camcorder, to your monitor. Do this only after you have connected the USB hub cable from the computer to the monitor.

User’s Guide 3–9

Setting Up the Monitor

Connecting the Power Cable

1. Read the warning below.

WARNING: To reduce the risk of electric shock or damage to your equipment:

■ Do not disable the power cord grounding plug. The grounding plug is an important safety feature. Plug the power cord into a grounded (earthed) electrical outlet.

■ Be sure that the grounded power outlet you plug the power cord is easily accessible to the operator and located as close to the equipment as possible. A power cord should be routed so that it is not likely to be walked on or pinched by items that are placed upon it or against it.

■ Do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable.

See “Power Cord Set Requirements” in Appendix B for additional information.

Connecting the power cable

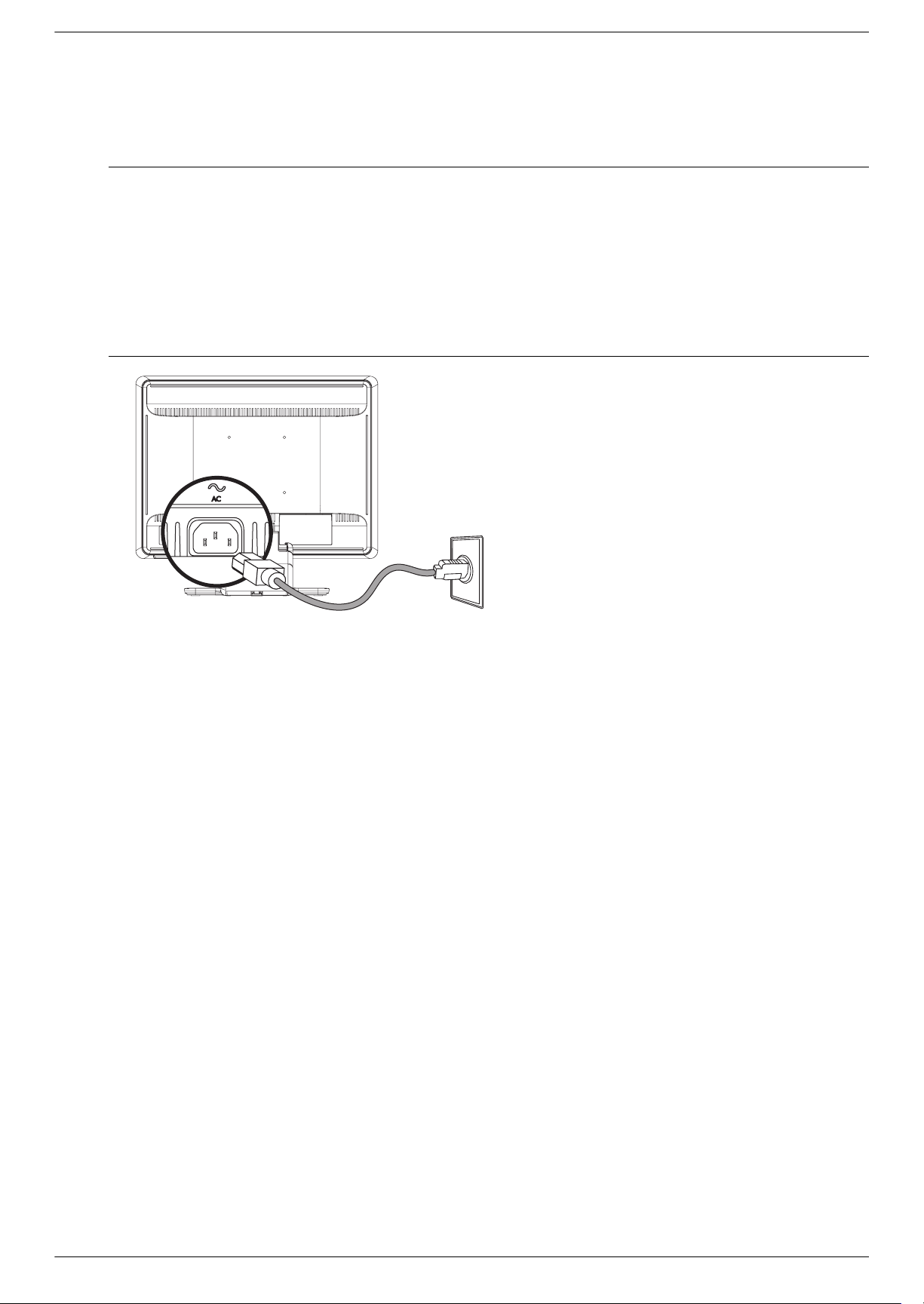

2. Connect one end of the power cable to the monitor and the other end to a grounded electrical outlet.

3–10 User’s Guide

Cable Management

The HP LCD monitors have either two hooks or two cable tunnels on either side for cable management. Cables can be easily secured and are hidden when viewed from the front.

NOTE: If your monitor has the pivot feature, make sure the cords are set loosely enough so they will not pull and

✎

disconnect when the monitor is pivoted.

Setting Up the Monitor

User’s Guide 3–11

Setting Up the Monitor

Adjusting the Tilt

For optimal viewing, adjust the screen tilt to your own preference, as follows:

1. Face the front of the monitor and hold the base so that you do not topple the monitor while changing the tilt.

2. Adjust the tilt by moving the top edge of the monitor either toward or away from you, without touching the

screen.

CAUTION: The double-hinged monitor can fall back if the hinge is extended fully and the monitor screen is tilted back

too far.

3–12 User’s Guide

Adjusting the Swivel (Select Models Only)

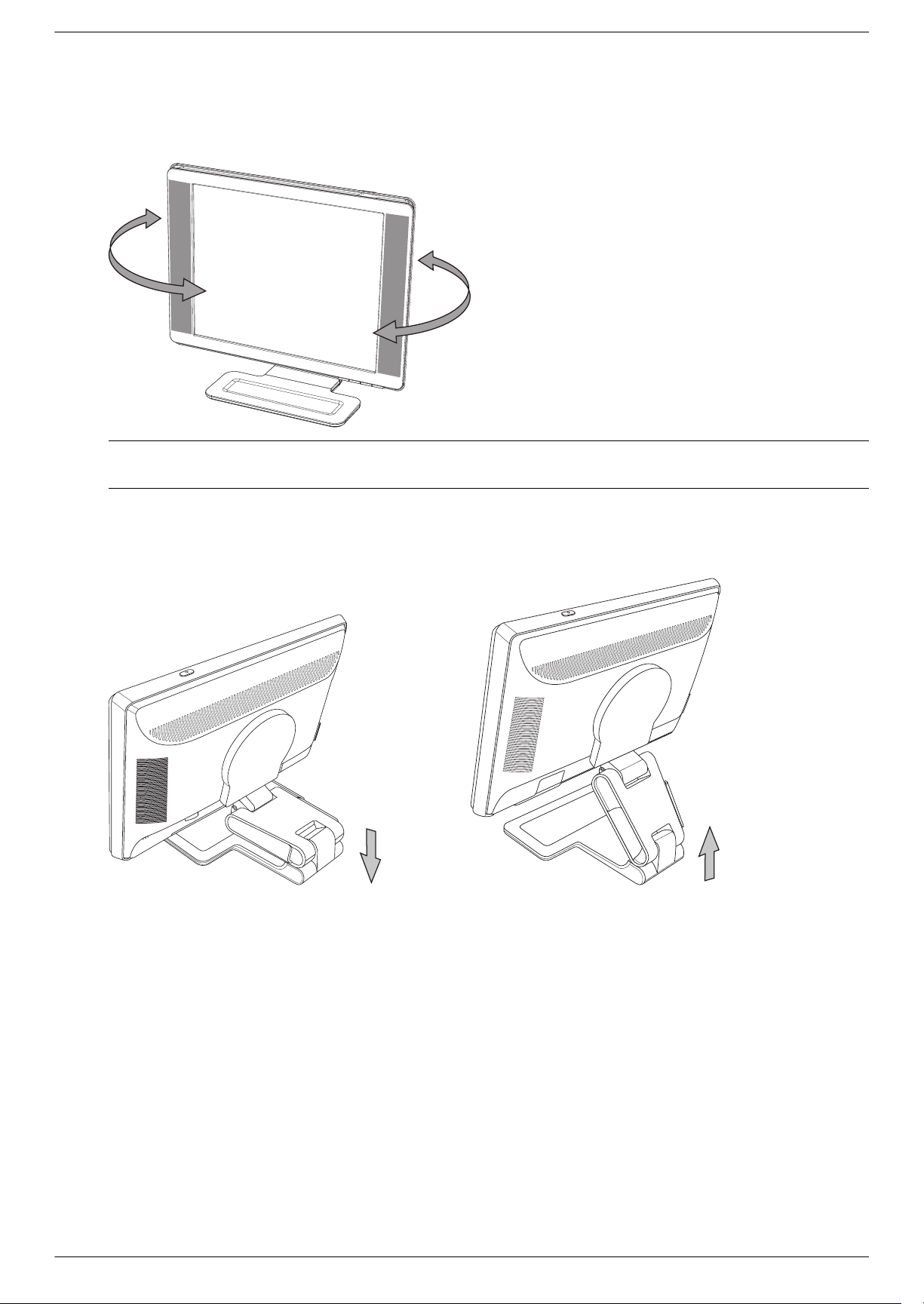

The HP LCD monitor allows a usable range of motion with the swivel feature.

CAUTION: To avoid breakage or other damage, avoid applying pressure to the LCD screen while swiveling it or

changing the tilt.

Setting Up the Monitor

Adjusting the Height (Select Models Only)

The double-hinged monitor adjusts up and down easily by extending or lowering the hinge.

User’s Guide 3–13

Setting Up the Monitor

Pivoting the Monitor (Select Models Only)

NOTE: For full functionality of this pivot feature, the My Display software may need to be installed. See “My Display

✎

Software” in the Operating the Monitor chapter for information on how to install this software. Some graphics cards support rotating the image of the display automatically.

1. Facing the monitor and holding its base down, tilt the monitor backward 10 to 30 degrees by pulling the bottom

of the screen toward you.

CAUTION: The first step is important—the double-hinged monitor can scratch the base surface if the monitor is not

tilted back enough before pivoting it.

2. If the monitor is in its landscape position, after it is tilted back, pivot it clockwise to portrait position. If it is in

portrait position, tilt it back and pivot the monitor counterclockwise to landscape orientation.

3–14 User’s Guide

Ambient Light Sensor (Select Models Only)

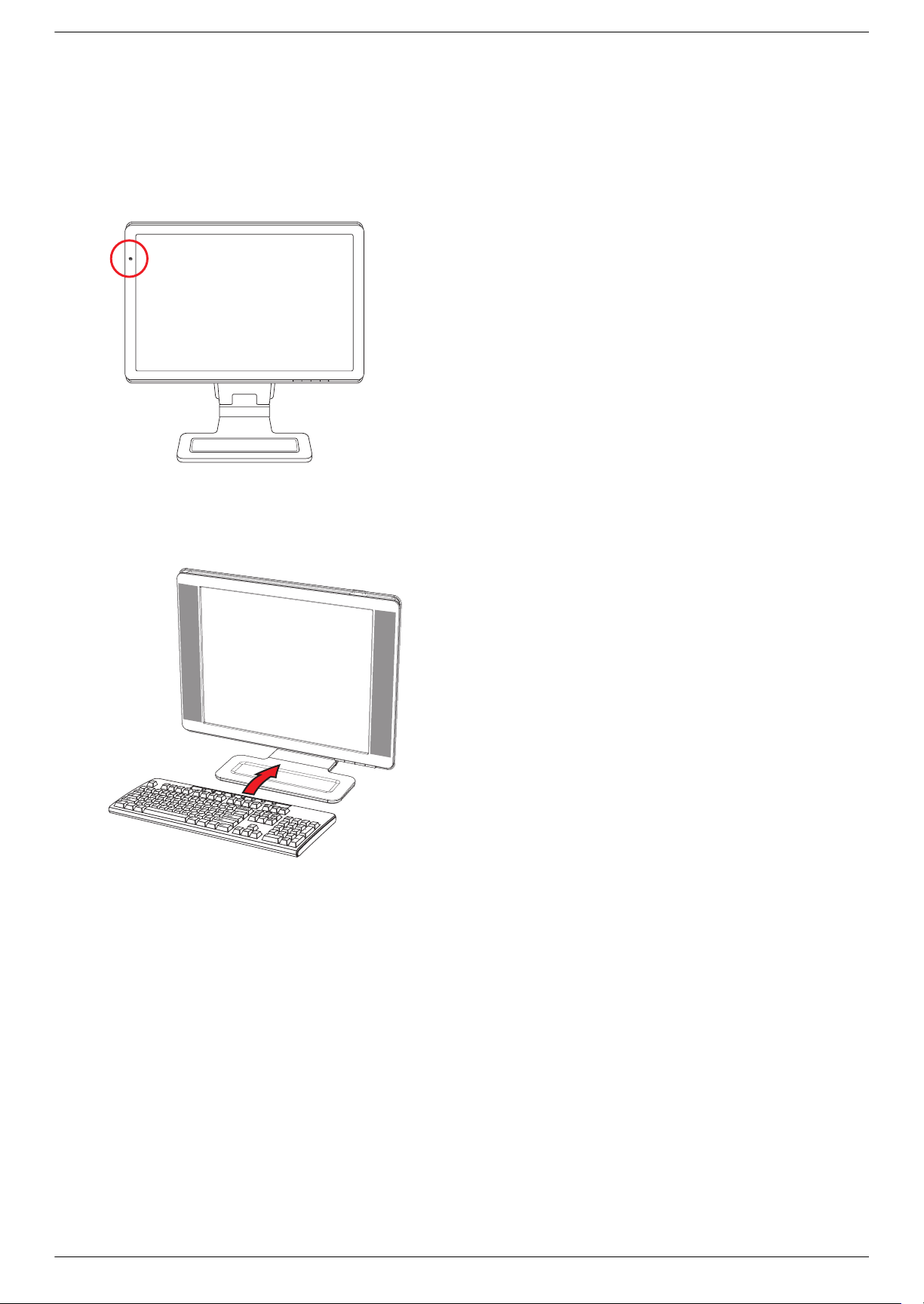

An integrated light sensor, on the left front of the monitor, adjusts the LCD backlight output to the current ambient light conditions. By default, the ambient light sensor is on. You manually enable or disable the sensor using the Image Control main menu in the OSD. If you adjust the Quick View, Brightness, Contrast, or sRGB functions in the OSD, the light sensor will automatically be disabled.

Setting Up the Monitor

Keyboard Parking

If you need more space on your desktop, place the keyboard under the monitor (select models only) when not in use.

User’s Guide 3–15

Setting Up the Monitor

3–16 User’s Guide

CD Software and Utilities

The CD that is included with this monitor contains the drivers and software that you can install on your computer.

Installing Drivers

If you determine that you need to update the drivers, you can install the monitor-driver INF and ICM files from the CD (select models only), or download them from the Internet.

To install the monitor-driver software from the CD:

1. Insert the CD in your computer CD drive. The CD menu appears.

2. Select the language.

3. Click Install Monitor Driver Software.

4. Follow the onscreen instructions.

5. Restart the computer.

6. Ensure that the proper resolutions and refresh rates appear in the Display Control Panel settings. Refer to the

Windows

operating system documentation for more information.

Operating the Monitor

NOTE: You might need to install the digitally signed monitor drivers (INF or ICM files) manually from the CD, in case

✎

of an installation error. Refer to the “Driver Software Readme” file on the CD for instructions (in English only).

Downloading Updated Drivers from the Internet

To download the latest version of drivers and software files from the HP Support site:

1. Refer to: http://www.hp.com/support

2. Select your country/region.

3. Select Download Drivers and Software.

4. Enter the model number of your monitor. The software-download pages for your monitor are displayed.

5. Download and install the driver and software files by using the instructions in the download pages.

6. Ensure that your system meets the requirements.

Using the Auto-Adjustment Function

You can easily optimize the screen performance for the VGA input by using the Auto/Select button on the monitor and the auto-adjustment pattern software on the CD provided.

Do not use this procedure if your monitor is using a DVI or HDMI input (select models only). If your monitor is using the VGA input, this procedure can correct the following image-quality conditions:

■ Fuzzy or unclear focus

■ Ghosting, streaking, or shadowing effects

■ Faint vertical bars

■ Thin, horizontal scrolling lines

■ Off-center picture

User’s Guide 4–1

Operating the Monitor

CAUTION: Burn-in image damage may occur on monitors that display the same static image on screen for a

prolonged period of time. *To avoid burn-in image damage on your monitor screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time. Image retention is a condition that may occur on all LCD screens.

* A prolonged period of time is 12 consecutive hours of non-use. To use the auto-adjustment feature:

1. Allow the monitor to warm up for 20 minutes before adjusting.

2. Press the Auto/Select button on the monitor front panel.

❏ You can also press the Menu button, and then select Image Control, followed by Auto Adjustment from

the OSD menu. See “Adjusting Screen Quality” in this chapter.

❏ If the result is not satisfactory, continue with the procedure.

3. Insert the CD in your computer CD drive. The CD menu displays.

4. Select the language.

5. Select Open Auto-Adjustment Software.

6. The setup test pattern displays.

Auto-adjustment setup test pattern

7. Press the Auto/Select button on the monitor front panel to produce a stable, centered image.

My Display Software

Use My Display (available for select models only) to choose preferences for optimum viewing. You can select settings for gaming, movies, photo editing or just working on documents and spreadsheets. My Display also provides an easy way to adjust settings such as brightness, color, and contrast.

To install the software:

1. Insert the CD in your computer CD drive. The CD menu displays.

2. Select the language.

3. Click Install My Display Software (available on select models only).

4. Follow the onscreen instructions.

5. Restart the computer.

To open the My Display software:

1. Click the HP My Display icon on the taskbar.

1. Click the Windows Vista start button™ on the taskbar.

2. Click All Programs.

3. Click HP My Display.

4. Select HP My Display.

For additional information, refer to the onscreen Help within the software.

4–2 User’s Guide

Front-Panel Controls

Control buttons are located on the front or top of the monitor:

Icon Description

Power Turns the monitor on and to standby or sleep mode.

NOTE: The power button is located on the top or front of the monitor depending on the model.

✎

Menu Opens, selects, or exits the OSD menu.

Adjusts the volume level.

Opens the Quick View menu to quickly adjust settings for gaming, video, photo, and text.

– Navigates backward through the OSD menu and decreases adjustment levels.

+ Navigates forward through the OSD menu and increases adjustment levels.

Auto Auto-adjusts the display to the ideal setting.

Select Enters the selected option.

Operating the Monitor

Using the Onscreen Display (OSD)

An onscreen display is an image superimposed on a screen picture, commonly used by monitors, televisions, VCRs, and DVD players to display information such as volume, channel, and time.

NOTE: You can use My Display OSD software (select models only) or the front-panel control buttons to adjust

✎

settings.

1. If the monitor is not already on, press the Power button to turn on the monitor.

2. To access the OSD menu, press the Menu button. The OSD Main Menu displays.

3. To navigate through the Main or Sub-Menu menu, press the + (Plus) button on the monitor’s front panel to scroll

up, or the – (Minus) button to scroll in reverse. Then press the Auto/Select button to select the highlighted function.

The menu moves to the top if you scroll down at the bottom of the selections. The menu moves to the bottom if you scroll up at the top of the selections.

4. To adjust the scale of a selected item, press the + or – button.

5. Select Save and Return.

If you don’t want to save the setting, select Cancel from the Sub-Menu or Exit from the Main Menu.

6. Press the Menu button to exit the OSD.

NOTE: When a menu is displayed, if the buttons are untouched for 30 seconds (factory default), adjustments and

✎

settings are saved and the menu closes.

User’s Guide 4–3

Operating the Monitor

OSD Menu Selections

The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions. After changing an OSD menu item, and if the menu screen has these options, you may choose to:

■ Cancel — to return to the previous menu level.

■ Save and Return — to save all changes and return to the OSD Main Menu screen. This Save and Return

option is active only if you change a menu item.

■ Reset — to change back to the previous setting.

Main Menu

Icon

Options

Submenu Options Description

Switch Video Input (select models only)

Brightness Adjusts the brightness level of the screen.

Contrast Adjusts the contrast level of the screen.

Image Control Adjusts the screen image. Also enables or disables the ambient

Auto-Adjustment Automatically adjusts the screen image (VGA Input only).

Horizontal Position Adjusts the horizontal position of the picture (VGA Input only).

Vertical Position Adjusts the vertical position of the picture (VGA Input only).

Custom Scaling (select models only)

Sharpness (select models only)

Switches the video input signal source when the monitor is connected to two active and valid video sources. Switching video input sources may take several seconds.

light sensor (select models only).

Selects the method on how displayed information on the monitor will be formatted. Select:

Fill to Screen — Image fills the entire screen and might look distorted or elongated because of non-proportional scaling of height and width.

Fill to Aspect Ratio — Image is sized to fit the screen and maintains proportional image.

On a scale of 1 to 5, adjusts the screen image to look sharper or softer.

NOTE: If the one-to-one custom scaling menu is

✎

selected, scaling is disabled and the Sharpness feature is as well.

Ambient Light Sensor (select models only)

Clock Minimizes any vertical bars or strips visible on the screen

Clock Phase Adjusts the focus of the display. This adjustment allows you to

4–4 User’s Guide

Adjusts the brightness of the screen depending on the ambient light of the environment. The sensor is on the left front of the monitor.

By default the sensor is set to On. If you adjust the Quick View, Brightness, Contrast, or sRGB functions in the OSD, the ambient light sensor will automatically be disabled.

background. Adjusting the Clock will also change the horizontal screen image (VGA Input only).

remove any horizontal noise, and clear or sharpen the image of characters (VGA Input only).

Icon

Operating the Monitor

Main Menu Options

Color Selects the screen color. The factory default is 6500 K or

Quick View Selects viewing mode.

Submenu Options Description (Continued)

Custom Color, depending on the model.

9300 K Changes to slightly blueish white.

6500 K Changes to slightly reddish white.

Custom Color Selects and adjusts your own color scales:

R — Sets your own red color levels. G — Sets your own green color levels. B — Sets your own blue color levels.

sRGB Sets your screen colors to adapt to the color standards used in

the image technology industry.

Movie Selects the movie mode.

Photo Selects the photo mode.

Gaming Selects the gaming mode.

Text Selects the text mode.

Custom Settings saved when user adjusts the Brightness, Contrast, or

Color in one of the Quick View options.

Language Selects the language in which the OSD menu is displayed. The

factory default is English.

Management Selects the power-management features of the monitor.

Volume Adjusts the volume level.

OSD Control Adjusts the position of the OSD menu on the screen.

Horizontal OSD Position — Changes the viewing position of the OSD menu to the left or right area of the screen. The factory default range is 50.

Vertical OSD Position — Changes the viewing position of the OSD menu to the top or bottom area of the screen. The factory default range is 50.

OSD Transparency — Adjust to view the background information through the OSD.

OSD Timeout — Sets the time in seconds that the OSD is visible after the last button is pressed. The factory default is 30 seconds.

Power Saver Enables the power saving feature (see “Power-Saver Feature”

on page 8. Select:

On Off

The factory default is On.

Mode Display Displays the resolution, refresh rate, and frequency information

on the screen each time the OSD Main Menu is accessed. Select:

On Off

The factory default is On or Off, depending on the model.

User’s Guide 4–5

Operating the Monitor

Icon

Main Menu Options

Submenu Options Description (Continued)

Power-On Status Display Displays the operating status of the monitor each time the

monitor is powered on. Select the location to which to display the status:

Top Middle Bottom Off

The factory default is Top or Off, depending on the model.

DDC/CI Support Allows the computer to control some OSD menu features such

as brightness, contrast, and color temperature. Set to:

On Off

The factory default is On.

Bezel Power LED (select models only)

Sleep Timer Provides the timer-adjustment menu options:

Default Video Input Selects the default video input signal when the monitor is

Information Selects and displays important information about the monitor.

Current Settings Provides the current input video mode.

Recommended Settings Provides the recommended resolution mode and refresh rate

Serial Number Reports the serial number of the monitor. The serial number is

Turns the light (LED) in the power button On and Off. When set to Off, the light will remain off at all times.

Set Current Time — Sets the current time in hours and minutes. Set Sleep Time — Sets the time you want to place the monitor

in sleep mode. Set on Time — Sets the time you want the monitor to wake up

from sleep mode. Timer — Sets the Sleep Timer feature On or Off; the default

setting is Off. Sleep Now — Immediately sets the monitor to enter

sleep mode.

connected to two active and valid video sources. The default is DVI. You must restart the computer to have the change take effect.

for the monitor.

needed if contacting HP technical support.

Version Reports the firmware version of the monitor.

Backlight Hours Reports the total hours of backlight operation.

Service Support For service support, go to: http://www.hp.com/support

Factory Reset Returns settings to factory defaults.

4–6 User’s Guide

Selecting Video Input Connectors

The input connectors are:

■ VGA connector (analog)

■ DVI-D connector (digital) for select models

■ HDMI connector for select models

The monitor automatically determines which inputs have valid video signals, and displays the image.

You can connect the VGA cable, the DVI-D cable, or both. If both cables are installed, the default input selection is DVI. The HDMI cable is in place of the DVI-D cable. The source of input can be switched using the Switch Video

Input option in the OSD menu. Switching from a VGA to an HDMI input source may take several seconds.

Identifying Monitor Conditions

Special messages appear on the monitor screen for the following monitor conditions:

■ Input Signal Out of Range — Indicates the monitor does not support the video card’s input signal because its resolution or refresh rate are set higher than the monitor supports.

Change your video card settings to a lower resolution or refresh rate. Restart your computer for the new settings to take effect.

Operating the Monitor

■ Monitor Going to Sleep — Indicates the screen display is entering a sleep mode. The speakers are turned off in sleep mode.

■ Check Video Cable — Indicates a video input cable is not properly connected to the computer or monitor.

■ OSD Lock-out — The OSD can be enabled or disabled by pressing and holding the Menu button on the front

panel for 10 seconds. If the OSD is locked, the warning message “OSD Lock-out” appears for 10 seconds.

If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD. If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.

■ No Input Signal — Indicates the monitor is not receiving a video signal from the computer on the monitor video input connector(s). Check to see if the computer or input signal source is off or in the power-saver mode.

■ Auto Adjustment in Progress — Indicates the auto-adjustment function is active. See “Adjusting Screen Quality” in this chapter.

Adjusting Screen Quality

The auto-adjustment feature automatically fine-tunes the image quality for display size, position, clock, and phase each time a new video mode is displayed. For more precise adjustments of VGA input, run the Auto-Adjustment software on the CD. See “Using the Auto-Adjustment Function” in this chapter.

If you want additional image-quality improvement, use the Clock and Clock Phase controls of the monitor to fine-tune the image. See “Optimizing Analog Video” in this chapter.

User’s Guide 4–7

Operating the Monitor

Optimizing Analog Video

This monitor contains advanced circuitry that allows the monitor to function as a standard analog monitor. Two controls in the OSD menu can be adjusted to improve analog image performance:

■ Clock — Increase or decrease the value to minimize any vertical bars or stripes visible on the screen background.

■ Clock Phase — Increase or decrease the value to minimize video distortion or video jitter.

Use these controls only when the auto-adjustment function does not provide a satisfactory monitor image in analog mode.

To obtain the best results:

1. Allow the monitor to warm up for 20 minutes before adjusting.

2. Display the adjustment-pattern application provided on the CD.

3. Access the OSD menu, then select Image Control.

4. Set the main Clock settings correctly first, because the Clock Phase settings depend on the main Clock setting.

When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears.

To restore the factory settings, access the OSD menu, select Factory Reset, and then select Yes.

Power-Saver Feature

When the monitor is in normal operating mode, the Power light is aqua-white or green (depending on model) and the monitor uses the normal watts of power. For power usage, refer to “Technical Specifications” (Appendix B).

The monitor also supports a power-saver mode that is controlled by the computer. When the monitor is in the reduced-power state, the monitor screen is blank, the backlight is off, and the Power light is amber. The monitor uses minimum power. When the monitor is “awakened,” a brief warm-up period occurs before the monitor returns to normal operating mode. The energy-saving reduced power state activates if the monitor does not detect either the horizontal sync signal or the vertical sync signal. The power-saver feature must be activated on your computer for this feature to work.

Refer to your computer documentation for instructions on setting energy-saver features (sometimes called power-management features).

NOTE: The energy-saver feature works only when the monitor is connected to computers that have energy-saver

✎

features.

High-Bandwidth Digital Content Protection (HDCP)

If your monitor supports HDCP, it can receive high-definition content. High-definition content is available in many sources, such as HD-DVD and Blu-Ray devices or HDTV air or cable broadcasts. If you do not have an HDCP-enabled monitor, you may see a black screen or a lower resolution picture when playing high-definition protected content. Your computer graphic card and monitor must both support HDCP to display protected content.

4–8 User’s Guide

Preparing the Monitor for Shipping

Keep the original packing box in a storage area. You may need it later if you move or ship your monitor. You may need to detach the monitor base when you ship the HP LCD monitor.

Removing the Monitor Base

WARNING: Do not remove the base from the pedestal while the monitor is standing in the upright position.

Attempting to remove the base from the pedestal while the monitor is upright might injure the user.

WARNING: Before disassembling or folding the monitor, turn off the monitor power, and disconnect all power,

video, and audio cables. To disconnect power from the equipment, unplug the power cord from the power outlet by grasping the power plug firmly. Never pull on the cord.

CAUTION: The screen is fragile. Placing the monitor screen down on a flat, soft area prevents scratches, defacing,

or breakage. Avoid applying pressure to the LCD screen; doing so can cause damage.

Removing the cantilever base

1. Disconnect the power, video, and audio cables from the monitor.

2. Set the monitor screen down on a flat, soft, protected surface.

3. Press the center tab in (1) and detach the base from the monitor (2).

Removing the cantilever base

User’s Guide 5–1

Preparing the Monitor for Shipping

4. Fold the monitor neck down, and place the monitor and base in the original packing box.

Removing the column base

1. Disconnect the power, video, and audio cables from the monitor.

2. Set the monitor screen down on a flat, soft, protected surface.

3. Pinch and hold the tabs with one hand; then pull the base off with the other hand to detach the base from the

monitor.

Removing the column base

WARNING: Be careful to avoid pinching or scraping your fingers when removing the base.

4. Put the monitor and base in the original packing box.

5–2 User’s Guide

Folding the Double-Hinged Monitor

You don’t have to remove this monitor base for shipping. Fold the double-hinged monitor in its original shipping position.

WARNING: Do not place the double-hinged monitor face down for folding. The base hinge can spring up and

cause serious injury or damage.

1. Turn the monitor to a horizontal position with no tilt.

2. Lower the monitor all the way until the hinge is flat.

The monitor screen should still be vertical to the desktop so you can access the hinge.

Preparing the Monitor for Shipping

3. Place the shipping strap around the base, pull it tight, and connect it by sliding the strap ends through the slips.

4. Lower the monitor screen down flat, horizontal to the desktop.

User’s Guide 5–3

Preparing the Monitor for Shipping

5. Pivot the monitor to the portrait position (in the figure, you would be facing the monitor where the straight

arrow is).

6. Place the folded monitor, screen-side up, in its original shipping box.

5–4 User’s Guide

Solving Common Problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions:

Problem Solution

Power LED is not on. Make sure the Power button is on, and the power cord is properly connected to a grounded

power outlet and to the monitor.

Select Management in the OSD menu, and then select Bezel Power LED. Check if the Bezel Power LED option is set to Off and, if so, set to On mode.

Screen is blank. Connect the power cord. Turn on the power.

Connect the video cable properly. See “Setting Up the Monitor” for more information. Press a key on the keyboard or move the mouse to turn off the screen-blanking utility.

Troubleshooting

Screen is black or displaying at a lower resolution while displaying high-definition (HD) content.

Image appears blurred, indistinct, or too dark.

Image is not centered. Press the Menu button to access the OSD menu. Select Image Control, and then select

“Check Video Cable” appears on screen.

“Input Signal Out of Range” appears on screen.

Picture is fuzzy and has ghosting, shadowing problem.

Unable to set the monitor to the optimal resolution.

Check if your monitor and computer support HDCP. Refer to “High-Bandwidth Digital Content Protection (HDCP)” or

http://www.hp.com/support for more information.

Press the Auto/Select button on the monitor front panel. If this does not correct the image, press the Menu button to open the OSD menu, and adjust the brightness and contrast scales as needed.

Horizontal Position or Ver ti c al Position to adjust the horizontal or vertical position of the image.

Connect the monitor VGA signal cable to the VGA connector on the computer, or connect the DVI-D signal cable to the DVI connector on the computer. Be sure that the computer power is off while connecting the video cable.

Restart your computer and enter Safe Mode. Change your settings to a supported setting (see the table in “Preset Video Modes” in Appendix B). Restart your computer, so that the new settings take effect.

Adjust the contrast and brightness controls. Make sure that you are not using an extension cable or switch box. We recommend plugging

the monitor directly into the graphic card output connector on the back of your computer. For VGA input, the auto-adjustment feature might fix this problem.

Make sure that the graphics card supports the optimal resolution. Make sure that the latest supported driver is installed for the graphics card. For HP and

Compaq systems, you can download the latest graphics driver for your system from:

http://www.hp.com/support

For other systems, refer to the Web site for your graphics card.

User’s Guide A–1

Troubleshooting

Problem Solution (Continued)

No Plug and Play. In order for the Plug and Play feature of the monitor to work, you need a computer and graphic

card that are compatible with Plug and Play. Check with your computer manufacturer. Check the monitor’s video cable, and make sure that none of the pins are bent. Make sure that the HP monitor drivers are installed. Refer to “Installing Drivers” for more

information. HP monitor drivers are also available at: http://www.hp.com/support

Picture bounces, flickers, or wave pattern is present in the picture.

Monitor is always in “Sleep Mode (Amber LED).”

USB 2.0 ports are not working.

Move electrical devices that may cause electrical interference as far away from the monitor as possible.

Use the maximum refresh rate that your monitor is capable of at the resolution that you are using.

The computer power switch should be in the On position. The computer graphic card should be snugly seated in its slot. Check that the monitor video cable is properly connected to the computer. Inspect the monitor video cable, and make sure that none of the pins are bent. Check that your computer is operational: Press the Caps Lock key and observe the Caps Lock

LED found on most keyboards. The LED should either turn on or off after hitting the Caps Lock key.

Make sure the USB hub cable is securely connected to the monitor and the computer.

Getting Support from hp.com

Before you contact customer service, refer to HP Technical Support at: http://www.hp.com/support Select your country/region, and then follow the links to the support page for your monitor.

Preparing to Call Technical Support

If you cannot solve a problem by using the troubleshooting tips in this section, you might have to call technical support. For technical support contact information, refer to the printed documentation included with the monitor. Have the following information available when you call:

■ Monitor model number (located on label on back of monitor)

■ Monitor serial number (located on label on back of monitor or in the OSD display in the Information menu)

■ Purchase date on invoice

■ Conditions under which the problem occurred

■ Error messages received

■ Hardware configuration

■ Name and version of hardware and software you are using

Locating the Rating Label

The rating label on the monitor provides the product number and serial number. You may need these numbers when contacting HP about your monitor model.

The rating label is on the back of the monitor.

A–2 User’s Guide

All specifications represent the typical specifications provided by HP’s component manufacturers; actual performance may vary either higher or lower.

HP LCD Monitors

Face treatment: Antiglare polarizer with hard coating (select models only)

Input Terminals:

■ VGA 15-pin D-type connector

■ DVI-D 24-pin D-type connector (select models only)

■ HDMI connector (select models only)

Specifications

model vp15

Technical Specifications

Display Type: Screen Size: Viewable Image Size: Tilt: Maximum Weight (unpacked): Dimensions (including base) (h x w x d): Maximum Graphics Resolution: Optimum Graphics Resolution: Text M ode : Dot Pitch: Horizontal Frequency (analog mode): Vertical Refresh Rate (analog mode): Environmental Requirements

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

TFT LCD active matrix

15.0 in., 38.1 cm

15.0 in. diagonal, 38.1 cm diagonal

to +25o

–5

6.8 lb, 3.1 kg

13.9 x 15.9 x 7.68 in., 354 x 405 x 195 mm 1024 × 768 @ 75 Hz analog mode 1024 × 768 @ 60 Hz analog mode 720 x 400

0.297 x 0.297 mm 24 to 63 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 20% to 80%

100–240Vv, 50/60 Hz 31 watts maximum <2 watts typical

User’s Guide B–1

Technical Specifications

Specifications (Continued)

model vp17

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

model vp19

TFT LCD active matrix

17.0 in., 43.2 cm

17.0 in., 43.2 cm diagonal

to +25o

–5

11.7 lb, 5.3 kg

15.7 x 17.3 x 7.3 in., 398 x 440 x 184 mm 1280 × 1024 @ 75 Hz analog mode 1280 × 1024 @ 60 Hz analog mode 720 x 400

0.264 x 0.264 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 20% to 80% 100–240Vv, 50/60 Hz

45 watts maximum <2 watts typical

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

TFT LCD active matrix

19.0 in., 48.3 cm

19.0 in., 48.3 cm diagonal

to +25o

–5

11.7 lb, 5.3 kg

16.8 x 19.1 x 7.3 in., 427 x 484 x 184 mm 1280 × 1024 @ 75 Hz analog mode 1280 × 1024 @ 60 Hz analog mode 720 x 400

0.294 x 0.294 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 20% to 80% 100–240Vv, 50/60 Hz

47 watts maximum <2 watts typical

B–2 User’s Guide

Specifications (Continued)

model FP1707

Technical Specifications

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

model WF1907

TFT LCD active matrix

17.0 in., 43.2 cm

17.0 in., 43.2 cm diagonal

to +25o

–5

10.1 lb, 4.6 kg

15.4 x 17.4 x 8.2 in., 392 x 441 x 207 mm 1280 × 1024 @ 75 Hz analog mode 1280 × 1024 @ 60 Hz analog mode 720 x 400

0.264 x 0.264 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29

20% to 80% 100–240Vv, 50/60 Hz 45 watts maximum <2 watts typical

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

TFT LCD active matrix

19.0 in., 48.3 cm

19.0 in., 48.3 cm diagonal

to +25o

–5

10.8 lb, 4.9 kg

14.7 x 20.1 x 8.2 in., 374 x 511 x 207 mm 1440 × 900 @ 60 Hz analog mode 1440 × 900 @ 60 Hz analog mode 720 x 400

0.294 x 0.294 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29

20% to 80% 100–240Vv, 50/60 Hz 49 watts maximum <2 watts typical

User’s Guide B–3

Technical Specifications

Specifications (Continued)

model w1707

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

model w1907

TFT LCD active matrix

17.0 in., 43.2 cm

17.0 in., 43.2 cm diagonal

to +25o

–5

8.4 lb, 3.8 kg

14.3 x 16.3 x 17.2 in., 362 x 414 x 184 mm 1440 × 900 @ 60 Hz analog mode 1440 × 900 @ 60 Hz analog mode 720 x 400

0.283 x 0.284 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 20% to 80% 100–240Vv, 50/60 Hz

49 watts maximum <2 watts typical

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

TFT LCD active matrix

19.0 in., 48.3 cm

19.0 in., 48.3 cm diagonal

to +25o

–5

11.0 lb, 5.0 kg

14.9 x 17.9 x 7.3 in., 380 x 454 x 185 mm 1440 × 900 @ 60 Hz analog mode 1440 × 900 @ 60 Hz analog mode 720 x 400

0.283 x 0.284 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 20% to 80% 100–240Vv, 50/60 Hz 49 watts maximum <2 watts typical

B–4 User’s Guide

Specifications (Continued)

model w2007

Technical Specifications

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

model w2207

TFT LCD active matrix

20.0 in., 50.8 cm

20.0 in., 50.8 cm diagonal

to +25o

–5

13.3 lb, 6.0 kg

15.6 x 19.3 x 7.3 in., 397 x 490 x 184 mm 1680 x 1050 @ 60 Hz analog mode 1680 x 1050 @ 60 Hz analog mode 720 x 400

0.282 x 0.282 mm 24 to 83 kHz 55 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29

20% to 80% 100–240Vv, 50/60 Hz 52 watts maximum <2 watts typical

Display Type: Screen Size: Viewable Image Size: Tilt: Maximum Weight (unpacked): Dimensions (h x w x d)

(high position):

(low position): Maximum Graphics Resolution: Optimum Graphics Resolution: Text M ode : Dot Pitch: Horizontal Frequency (analog mode): Vertical Refresh Rate (analog mode): Environmental Requirements

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

TFT LCD active matrix

22.0 in., 55.9 cm

22.0 in., 55.9 cm diagonal

to +25o

–5

19.8 lb, 9.0 kg

18.9 x 20.6 x 11.4 in., 481 x 523 x 289 mm

14.6 x 20.6 x 11.4 in., 371 x 523 x 289 mm 1680 x 1050 @ 60 Hz analog mode 1680 x 1050 @ 60 Hz analog mode 720 x 400

0.282 x 0.282 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 20% to 80% 100–240Vv, 50/60 Hz

65 watts maximum <2 watts typical

User’s Guide B–5

Technical Specifications

Specifications (Continued)

model w2216

Display Type: Screen Size: Viewable Image Size: Tilt: Maximum Weight (unpacked): Dimensions (h x w x d): Maximum Graphics Resolution: Optimum Graphics Resolution: Text M ode : Dot Pitch: Horizontal Frequency (analog mode): Vertical Refresh Rate (analog mode): Environmental Requirements

Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature: Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

model w2408

TFT LCD active matrix

21.6 in., 54.9 cm

21.6 in., 54.9 cm diagonal

to +25o

–5

19.6 lb, 8.9 kg

18.9 x 20.6 x 11.4 in., 481 x 523 x 289 mm 1680 x 1050 @ 60 Hz analog mode 1680 x 1050 @ 60 Hz analog mode 720 x 400

0.282 x 0.282 mm 24 to 83 kHz 50 to 76 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29 25% to 85% 100–240Vv, 50/60 Hz

65 watts maximum <2 watts typical

Display Type: Screen Size: Viewable Image Size: Tilt: Maximum Weight (unpacked): Dimensions (h x w x d)

(high position):

(low position): Maximum Graphics Resolution: Optimum Graphics Resolution: Text M ode : Dot Pitch: Horizontal Frequency (analog mode): Vertical Refresh Rate (analog mode): Environmental Requirements Temperature (independent of altitude)

Operating Temperature:

Non-operating Temperature Relative Humidity: Power Source: Power Consumption: Sleep Power Consumption:

TFT LCD active matrix

24.0 in., 61.0 cm

24.0 in., 61.0 cm diagonal

to +25o

–5

21.6 lb, 9.8 kg

19.7 x 23.1 x 11.4 in., 500 x 586 x 289 mm

16.3 x 23.1 x 11.4 in., 415 x 586 x 289 mm 1920 x 1200 @ 60 Hz analog mode 1920 x 1200 @ 60 Hz analog mode 720 x 400

0.282 x 0.282 mm 24 to 94 kHz 48 to 85 Hz

to 95o F, 5o to 35o C

to 140o F, – 2 0o to 60o C

–29

20% to 80% 100–240Vv, 50/60 Hz 130 watts maximum <2 watts typical

B–6 User’s Guide

Preset Video Modes

The monitor automatically recognizes many preset video input modes that will appear properly sized and centered on the screen. The following modes are assigned at the factory and are the most commonly used display resolutions:

■ vp15 supports preset modes 1 through 11

■ vp17, vp19, and FP1707 support preset modes 1 through 15

Factory Preset Video Input Modes, vp15, vp17, vp19, and FP1707

Technical Specifications

Horizontal

Preset Resolution

1 640 x 480 31.4 59.9

2 640 x 480 37.8 72.8

3 640 x 480 37.5 75.0

4 720 x 400 31.4 70.0

5 800 x 600 37.8 60.3

6 800 x 600 48.0 72.1

7 800 x 600 46.8 75.0

8 832 x 624 49.7 74.5

9 1024 x 768 48.3 60.0

10 1024 x 768 56.4 70.0

11 1024 x 768 60.0 75.0

12 1152 x 870 68.6 75.0

13 1152 x 900 71.7 76.1

14 1280 x 1024 63.9 60.2

Frequency (kHz)

Ver tic a l Frequency (Hz)

15 1280 x 1024 79.9 75.0

■ w1707 supports preset modes 1 through 15

Factory Preset Video Input Modes, w1707

Horizontal

Preset Resolution

1 640 x 480 31.4 59.9

2 640 x 480 37.8 72.8

3 720 x 400 31.4 70.0

4 800 x 600 37.8 60.3

5 800 x 600 46.8 75.0

6 832 x 624 49.7 74.5

7 1024 x 768 48.3 60.0

8 1024 x 768 60.0 75.0

9 1152 x 870 68.6 75.0

10 1152 x 900 61.8 65.9

Frequency (kHz)

Ver tic a l Frequency (Hz)

User’s Guide B–7

Technical Specifications

Factory Preset Video Input Modes, w1707 (Continued)

Horizontal

Preset Resolution

11 1280 x 768 47.4 60.0

12 1280 x 960 60.0 60.0

13 1280 x 1024 64.3 60.0

14 1280 x 1024 79.9 75.0

15 1440 x 900 55.9 59.8

Frequency (kHz)

Ver tic a l Frequency (Hz)

■ WF1907 and w1907 support preset modes 1 through 16

Factory Preset Video Input Modes, WF1907 and w1907

Horizontal

Preset Resolution

1 640 x 480 31.5 59.9

2 640 x 480 37.5 75.0

3 720 x 400 31.5 70.0

4 800 x 600 37.9 60.3

Frequency (kHz)

Ver tic a l Frequency (Hz)

5 800 x 600 46.9 75.0

6 832 x 624 49.7 74.5

7 1024 x 768 48.4 60.0

8 1024 x 768 60.0 75.0

9 1152 x 720 44.9 60.0

10 1152 x 870 68.7 75.1

11 1152 x 900 61.8 65.9

12 1280 x 768 47.4 60.0

13 1280 x 960 60.0 60.0

14 1280 x 1024 63.9 60.0

15 1280 x 1024 79.9 75.0

16 1440 x 900 55.9 59.9

B–8 User’s Guide

■ w2007 supports preset modes 1 through 18

Factory Preset Video Input Modes, w2007

Technical Specifications

Horizontal

Preset Resolution

1 640 x 480 31.4 59.9

2 640 x 480 37.5 75.0

3 720 x 400 31.5 70.0

4 800 x 600 37.9 60.3

5 800 x 600 46.8 75.0

6 832 x 624 49.7 74.5

7 1024 x 768 48.3 60.0

8 1024 x 768 60.0 75.0

9 1024 x 768 68.6 85.0

10 1152 x 720 44.8 60.0

11 1152 x 870 68.7 75.0

12 1152 x 900 61.8 65.9

13 1280 x 768 47.4 76.1

14 1280 x 960 60.0 60.0

Frequency (kHz)

Ver tic a l Frequency (Hz)

15 1280 x 1024 63.9 60.0

16 1280 x 1024 79.9 75.0

17 1440 x 900 59.9 59.9

18 1680 x 1050 65.2 60.0

■ w2207 supports preset modes 1 through 18

Factory Preset Video Input Modes, w2207

Horizontal

Preset Resolution

1 640 x 480 31.4 59.9

2 640 x 480 37.5 75.0

3 720 x 400 31.5 70.0

4 800 x 600 37.9 60.3

5 800 x 600 46.9 75.0

6 832 x 624 49.7 74.5

7 1024 x 768 48.4 60.0

Frequency (kHz)

Ver tic a l Frequency (Hz)

8 1024 x 768 60.0 75.0

9 1152 x 720 44.8 60.0

10 1152 x 870 68.7 75.1

11 1152 x 900 61.8 65.9

User’s Guide B–9

Technical Specifications

Factory Preset Video Input Modes, w2207 (Continued)

Horizontal

Preset Resolution

12 1280 x 768 47.4 60.0

13 1280 x 960 60.0 60.0

14 1280 x 1024 63.9 60.0

15 1280 x 1024 79.9 75.0

16 1440 x 900 55.9 59.9

17 1600 x 1000 61.6 60.0

18 1680 x 1050 65.3 60.0

Frequency (kHz)

■ w2216 supports preset modes 1 through 18

Factory Preset Video Input Modes, w2216

Horizontal

Preset Resolution

1 640 x 480 31.4 59.9

2 640 x 480 37.5 75.0

Frequency (kHz)

Ver tic a l Frequency (Hz)

3 720 x 400 31.5 70.0

4 800 x 600 37.9 60.3

5 800 x 600 46.9 75.0

6 832 x 624 49.7 74.5

7 1024 x 768 48.4 60.0

8 1024 x 768 60.0 75.0

9 1152 x 720 44.8 60.0

10 1152 x 870 68.7 75.1

11 1152 x 900 61.8 65.9

12 1280 x 768 47.4 60.0

13 1280 x 960 60.0 60.0

14 1280 x 1024 63.9 60.0

15 1280 x 1024 79.9 75.0

16 1440 x 900 55.9 59.9

17 1600 x 1000 61.6 60.0

18 1680 x 1050 65.3 60.0

B–10 User’s Guide

■ w2408 supports preset modes 1 through 20

Factory Preset Video Input Modes, w2408

Technical Specifications

Horizontal

Preset Resolution

1 640 x 480 31.5 59.9

2 640 x 480 37.5 75.0

3 720 x 400 31.5 70.0

4 800 x 600 37.9 60.3

5 800 x 600 46.9 75.0

6 832 x 624 49.7 74.5

7 1024 x 768 48.4 60.0

8 1024 x 768 60.0 75.0

9 1152 x 720 44.8 60.0

10 1152 x 870 68.7 75.1

11 1280 x 768 47.4 60.0

12 1280 x 960 60.0 60.0

13 1280 x 1024 63.9 60.0

14 1280 x 1024 79.9 75.0

Frequency (kHz)

Ver tic a l Frequency (Hz)

15 1440 x 900 55.9 59.9

16 1600 x 1000 61.6 60.0

17 1680 x 1050 65.3 60.0

18 1600 x 1200 75.0 60.0

19 1600 x 1200 93.8 75.0

20 1920 x 1200 74.0 60.0

User’s Guide B–11

Technical Specifications

LCD Monitor Quality and Pixel Policy

The HP LCD Monitor uses high-precision technology, manufactured according to high standards, to help guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD Monitor. These imperfections are caused by one or more defective pixels or subpixels.

■ A pixel consists of one red, one green, and one blue subpixel.

■ A defective whole pixel is always turned on (a bright spot on a dark background), or it is always off (a dark spot

on a bright background). The first is the more visible of the two.

■ A defective subpixel (dot defect) is less visible than a defective whole pixel, and is small and only visible on a

specific background.

To locate defective pixels, the monitor should be viewed under normal operating conditions and in normal operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (16 inches).

We expect that, over time, the industry will continue to improve its ability to produce displays with fewer cosmetic imperfections, and we will adjust guidelines as improvements are made.

For more information about your HP LCD Monitor, refer to the HP Web site at: http://www.hp.com/support

Power Cord Set Requirements

The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the monitor to operate on input voltages between 100–240V

The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use in the country/region where you purchased the equipment.

If you need to obtain a power cord for a different country/region, you should purchase a power cord that is approved for use in that country/region.

The power cord must be rated for the product and for the voltage and current marked on the product’s electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum of 0.75 mm length of the cord must be between 4.94 ft. (1.5 m) and 12 ft. (3.6 m). If you have questions about the type of power cord to use, contact your HP-authorized service provider.

A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

v, 50/60 Hz, 1.5A.

or 18AWG, and the

B–12 User’s Guide

Agency Regulatory Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and the receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■ Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett-Packard Company may void the user’s authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC rules and regulations.

Declaration of Conformity for Products Marked with FCC Logo, United States Only

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For questions regarding your product, contact:

Hewlett-Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000

Call: 1-800-474-6836

For questions regarding this FCC declaration, contact:

Hewlett-Packard Company P. O. Box 692000, Mail Stop 510101 Houston, Texas 77269-2000

Call: 1-281-514-3333

To identify this product, refer to the part, series, or model number found on the product.

User’s Guide C–1

Agency Regulatory Notices

Materials Disposal

This HP product contains mercury in the fluorescent lamp in the display LCD that might require special handling at end-of-life:

Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities or the Electronic Industries Alliance (EIA) (http://www.eiae.org).

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Regulatory Notice

This product complies with the following EU Directives:

■ Low Voltage Directive 2006/95/EC

■ EMC Directive 2004/108/EC

Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product family.

This compliance is indicated by one of the following conformity markings placed on the product:

XXXX*

This marking is valid for non-Telecom products and for EU harmonized Telecom products (for example, Bluetooth).

Hewlett-Packard GmbH, HQ-TRE, Herrenberger Straße 140, 71034 Böblingen, Germany

This marking is valid for EU non-harmonized Telecom products. *Notified body number (used only if applicable—refer to the product label).

Disposal of Waste Equipment by Users in Private Households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

C–2 User’s Guide

Japanese Notice

Japanese Power Cord Notice

Japanese Material Content Declaration

A Japanese regulatory requirement, defined by Specification JIS-C-0950, 2005, mandates that manufacturers provide Material Content Declarations for certain categories of electronic products offered for sale after July 1, 2006. To view the JIS-C-0950 material declaration for this product, visit www.hp.com/go/jisc0950.

Agency Regulatory Notices

Korean Notice

EPA ENERGY STAR

Products marked with the ENERGY STAR® logo on the packaging box qualify with the U.S. Environmental Protection Agency’s ENERGY STAR

Products with the ENERGY STAR utility bills, and help protect the environment.

ENERGY STAR

is a registered trademark owned by the U.S. government.

Compliance

HP Recycling Program

HP offers product end-of-life return programs for HP and other manufacturers’ hardware in several geographic areas. The terms and availability of these programs vary by geography because of differences in regulatory requirements

and local customer demand. For information on the HP recycling program, refer to the HP Web site at:

http://www.hp.com/recycle

guidelines for energy efficiency.

label are designed to use less energy, help you save money on

User’s Guide C–3

Agency Regulatory Notices

The Table of Toxic and Hazardous Substances/Elements and their Content

as required by China’s

Management Methods for Controlling Pollution by Electronic Information Products

Toxic and Hazardous Substances and Elements

Part Name

Liquid Crystal Display Panel

Chassis/Other X O O O O O

O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in SJ/T11363-2006. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement in SJ/T11363-2006.

All parts named in this table with an “X” are in compliance with the European Union’s RoHS Legislation – “Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment”.

Note: The referenced Environmental Protection Use Period Marking was determined according to normal operating use conditions of the product such as temperature and humidity.

Lead

(Pb)

Mercury

(Hg)

X X O O O O

Cadmium

(Cd)

Hexavalent

Chromium

(Cr(VI))

Polybrominated

biphenyls (PBB)

Polybrominated

diphenyl ethers

(PBDE)

ѻકЁ᳝↦᳝ᆇ⠽䋼៪ܗ㋴ⱘৡ⿄ঞ৿䞣

ᩮᝪ࿖ޝ⬉ሶାᕷѻຠ∵ᨴប೙▤ℂࡲᴺޞ

䚼ӊৡ⿄

⎆᱊ᰒ⼎ሣ

ᴎㆅ/݊Ҫ

O˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼SJ/T11363-2006 ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟǄ X˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎSJ/T11363-2006 ޚ㾘ᅮⱘ䰤䞣㽕∖Ǆ

⴫᦭X” ⊛ᚲ᦭ㇱઙㇺ╓ว᰷⋖ RoHS ᴺ㾘 “᰷ᵮ䆂ળ๺᰷⋖ℂળ 2003 ᐕ 1 ᦬ 27 ᣣ݇⬉ሶ⬉ེ䆒໛㒢೙૶↪ᨱ᦭ኂ‛䋼⊛ 2002/95/EC ภᜰ઎



䪙

(Pb)

X X O O O O



X O O O O O

ᳮ

(Hg)

䬝

᳝↦᳝ᆇ⠽䋼៪ܗ㋴

(Cd)

౐ચ䫀

(Cr(VI))

ᄙ⒈㘨⧶

(PBB)

໮⒈Ѡ㣃䝮



(PBDE)

ᵈ㧦⦃଻૶↪ᦼ㒢⊛ෳ⠨䆚ขಀѻຠᱜᏱᎿ૞⊛ᐲ๺Ḩᐲ╬᧦ઙ

Part number: 440143-005



C–4 User’s Guide

HP VP15, W1707, W2007, W1907, W2216 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Notational Conventions

Notes, Cautions, and Warnings

HP LCD Monitors

Product Features

Features

Base Designs

Safety and Maintenance Guidelines

Important Safety Information

Safety Precautions

Maintenance Guidelines

Cleaning the Monitor

Unpacking the Monitor

Installing the Monitor

Setting Up the Monitor

Installing on a Desktop

Unfolding the double-hinged monitor

Assembling the cantilever base

Assembling the column base

Wall-Mounting the Monitor (Mounting Fixture not Supplied)

Preparing the double-hinged monitor for wall-mounting

Preparing the cantilever-base monitor for wall-mounting

Preparing the column-base monitor for wall-mounting

Reinstalling the desktop pedestal and base for the monitor

Connecting the VGA (Analog) or DVI-D (Digital) Cable

To connect the VGA cable

To connect the DVI-D cable

Connecting the HDMI Cable

Audio and Video Cables and Adapters

Connecting the Audio Cable

Connecting the USB Hub Cable

Connecting USB Devices to the Monitor

Connecting the Power Cable

Cable Management

Adjusting the Tilt

Adjusting the Swivel (Select Models Only)

Adjusting the Height (Select Models Only)

Pivoting the Monitor (Select Models Only)

Ambient Light Sensor (Select Models Only)

Keyboard Parking

CD Software and Utilities

Installing Drivers

Operating the Monitor

Downloading Updated Drivers from the Internet

Using the Auto-Adjustment Function

My Display Software

Front-Panel Controls

Using the Onscreen Display (OSD)

OSD Menu Selections

Selecting Video Input Connectors

Identifying Monitor Conditions

Adjusting Screen Quality

Optimizing Analog Video

Power-Saver Feature

High-Bandwidth Digital Content Protection (HDCP)

Preparing the Monitor for Shipping

Removing the Monitor Base

Removing the cantilever base

Removing the column base

Folding the Double-Hinged Monitor

Solving Common Problems

Troubleshooting

Getting Support from hp.com

Preparing to Call Technical Support

Locating the Rating Label

HP LCD Monitors

Technical Specifications

Preset Video Modes

LCD Monitor Quality and Pixel Policy

Power Cord Set Requirements

Agency Regulatory Notices

Federal Communications Commission Notice

Modifications

Cables

Declaration of Conformity for Products Marked with FCC Logo, United States Only

Materials Disposal

Canadian Notice
