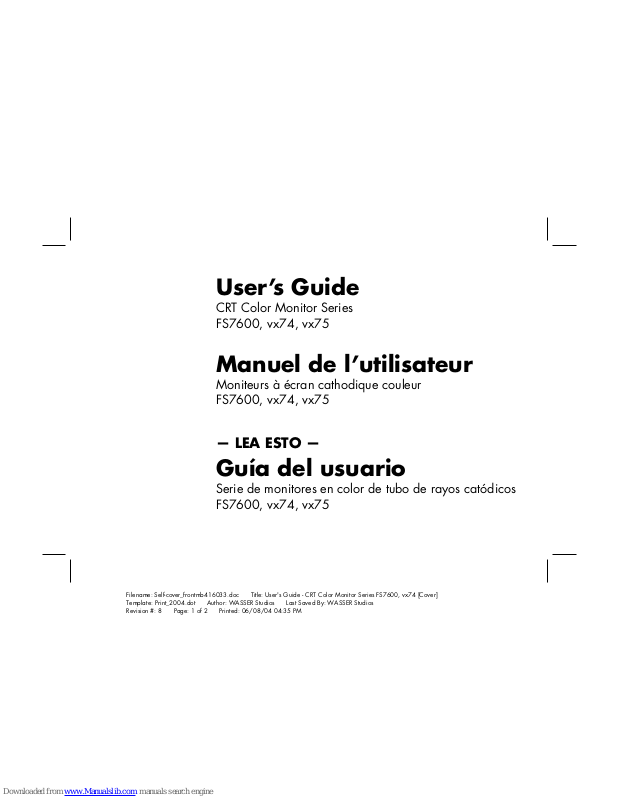

User’s Guide
CRT Color Monitor Series
FS7600, vx74, vx75
Manuel de l’utilisateur
Moniteurs à écran cathodique couleur
FS7600, vx74, vx75
— LEA ESTO —
Guía del usuario
Serie de monitores en color de tubo de rayos catódicos
FS7600, vx74, vx75
Filename: Self-cover_frontmb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [Cover]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: WASSER Studios
Revision #: 8 Page: 2 of 2 Printed: 06/08/04 04:35 PM
English
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 1 of 20 Printed: 06/03/04 10:15 AM
User’s Guide
CRT Color Monitor Series
FS7600, vx74, vx75
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 2 of 20 Printed: 06/03/04 10:15 AM
The information in this document is subject to
change without notice.
Hewlett-Packard
®
Company makes no warranty of any kind
with regard to this material, including, but not limited to,
the implied warranties of merchantability and fitness for a
particular purpose.
HP shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
THE WARRANTY TERMS CONTAINED IN THIS
STATEMENT, EXCEPT TO THE EXTENT LAWFULLY
PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY
AND ARE IN ADDITION TO ANY MANDATORY
STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS
PRODUCT OR SERVICE TO YOU.
HP assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by HP.
This document contains proprietary information that is
protected by copyright. All rights are reserved. No part of
this document may be photocopied, reproduced, or
translated to another language without the prior written
consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
© 2004 Hewlett-Packard Development Company, L.P.
All rights reserved.
Hewlett-Packard is a registered trademark of Hewlett-Packard
Company in the United States of America and other
countries/regions.
This product incorporates copyright protection technology that
is protected by method claims of certain U.S. patents and other
intellectual property rights owned by Macrovision Corporation
and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation,
and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited. Apparatus
Claims of U.S. Patent Nos. 4,631,603, 4,577,216,
4,819,098, and 4,907,093 licensed for limited viewing
uses only.
Other brand or product names are trademarks of their
respective holders.
HP supports lawful use of technology and does not endorse or
encourage the use of our products for purposes other than those
permitted by copyright law.
English
User’s Guide
iii
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 3 of 20 Printed: 06/03/04 10:15 AM
Contents
Packing Contents ..........................................1
Repacking.....................................................1
Introduction ..................................................1
Power Saving ...............................................2
Install the Monitor.........................................2
User Controls and Indicators .........................3
Using the On-Screen Menu ............................4
Individual Adjustment ...................................6
Troubleshooting ............................................9
Servicing .....................................................10
Technical Specifications............................... 11
Preset Modes.............................................. 12
Agency Regulatory Notices......................... 12
Federal Communications Commission Notice........... 12
Declaration of Conformity for Products Marked
with FCC Logo, United States Only ......................... 13
Canadian Notice.................................................. 14
European Notice ..................................................14
Japanese Notice................................................... 14
Korean Notice...................................................... 14
EPA Energy Star Compliance..................................15
Power Cord Set Requirements ................................ 15
iv User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 4 of 20 Printed: 06/03/04 10:15 AM
English
User’s Guide
1
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 1 of 20 Printed: 06/03/04 10:15 AM
Packing Contents
The package contains:
• CRT monitor
• AC power cord
• Monitor base
• Documentation packet
Repacking
Save the original box and all packing material for
future shipping needs.
NOTE: Packing materials and product are recyclable.
Introduction
This 17" CRT color monitor is a high performance
and easy to use product.
It employs the latest on-screen-menu technology. The
microprocessor capability offers 9 most commonly
used VESA timing modes preset in the factory, and
10 modes for user to adjust to the special timings that
user might have.
We hope that you will find this manual is helpful in
obtaining the fullest use of your monitor, and in
ensuring your personal safety during operation.
2 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 2 of 20 Printed: 06/03/04 10:15 AM
Power Saving
The monitor will be driven into “Power Saving” mode
by the control signal from the display controller, as
indicated by the amber-color power LED.
State Power Consumption LED Light
ON Normal Green
OFF < 4 W Amber
The power saving states will be kept until a control
signal has been detected, or the keyboard or mouse is
activated. The recovery time from Active OFF state back
to ON state is around 10 seconds.
Install the Monitor
• To connect the tilt/swivel base to the monitor, align
hooks with the sockets on bottom side of the monitor,
and gently push the base towards the front of the
monitor.
• The 15-pin D-shell signal connector on the signal
cable will connect easily to the video adapter output
on your personal computer. Lock both screws on the
connector to ensure a firm connection.
• Turn the PC power switch ON. Then turn the monitor
power switch ON by pressing the switch inward. The
green power indicator will light up.
• Allow about 30 seconds for the CRT tube to warm
up. Data will be displayed on the screen.
• If your display fails to function properly, please first
refer to the section “Troubleshooting” in this manual.
English
User’s Guide
3
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 3 of 20 Printed: 06/03/04 10:15 AM

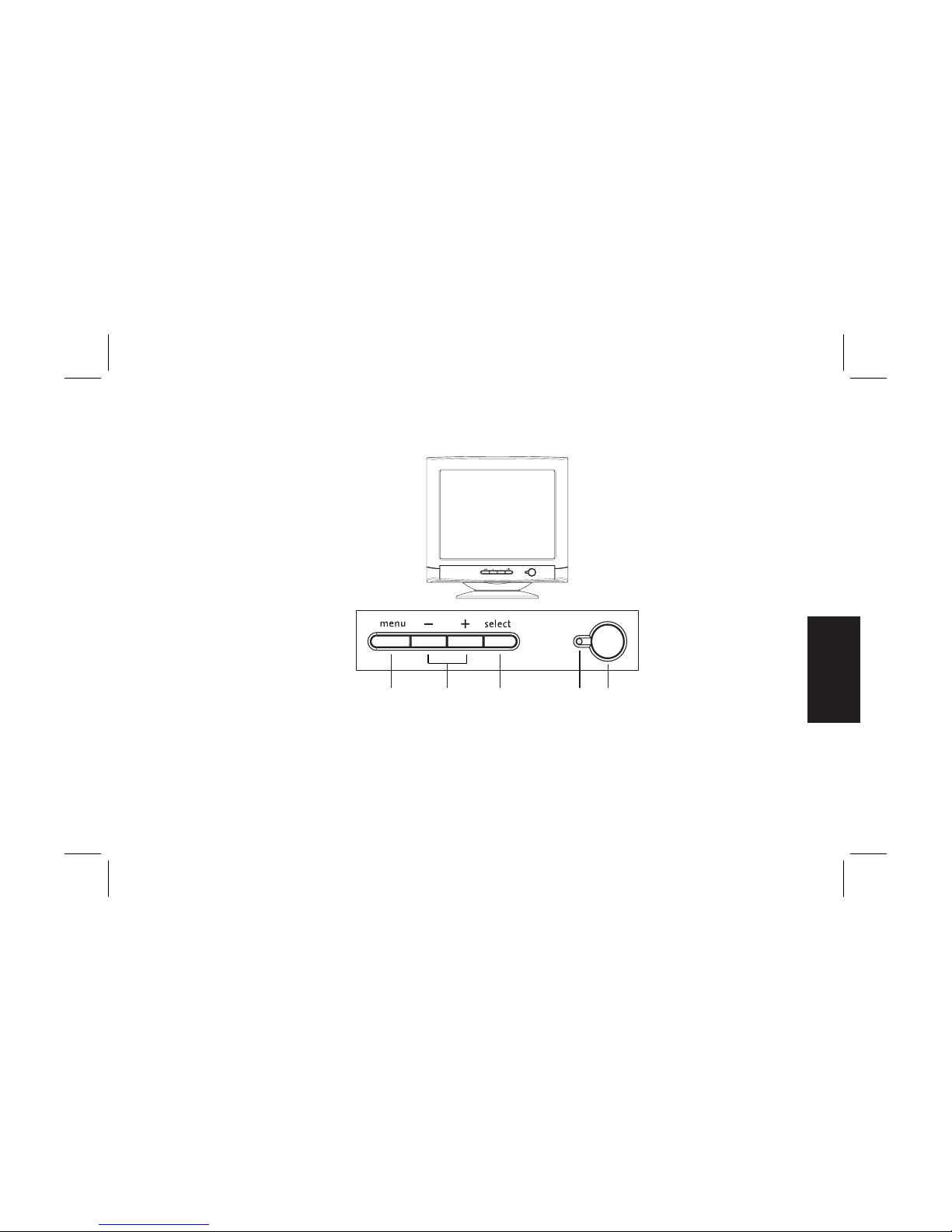

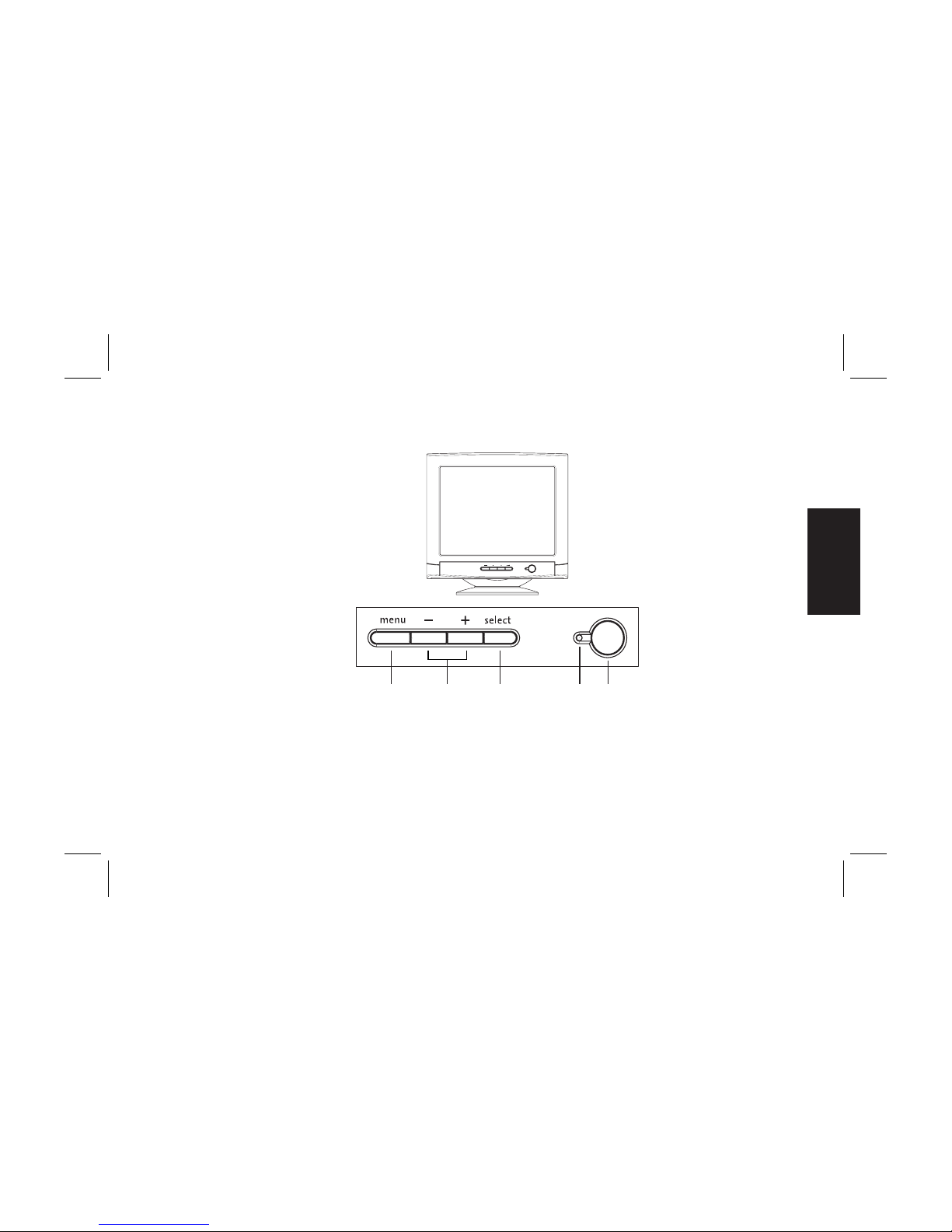

User Controls and Indicators
A B C 1 2
A Displays menu & exits menu
B Scrolls through menu to choose an icon for adjustment /
Adjusts level of selected icon
C Confirms menu selection
1 Power LED
2 Power ON/OFF switch
4 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 4 of 20 Printed: 06/03/04 10:15 AM
Using the On-Screen Menu

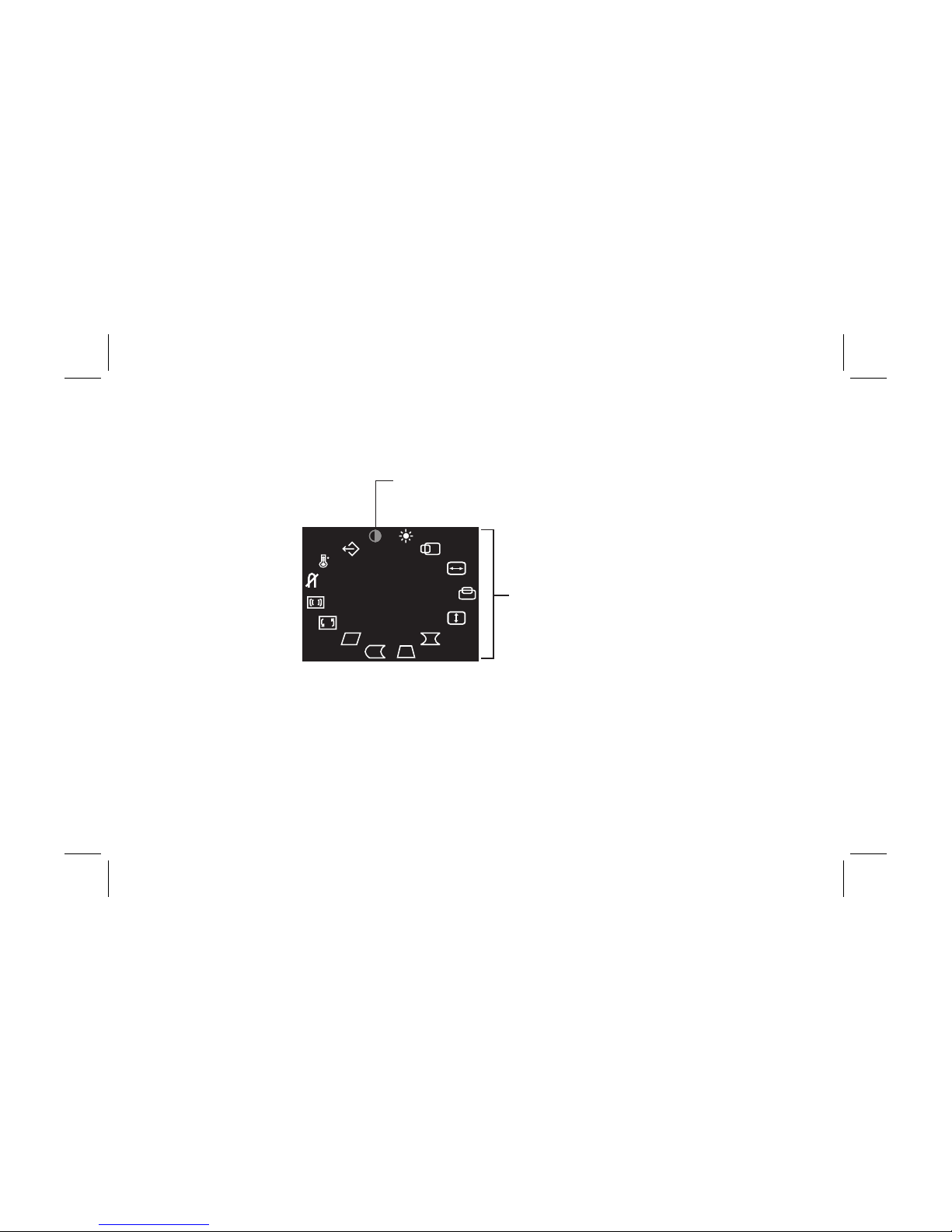

1 Menu screen — press the menu button to display the menu below and exit menus
• When the select button is pressed, the selected adjustment screen appears.
English
User’s Guide
5
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 5 of 20 Printed: 06/03/04 10:15 AM
2 Adjustment screen (example: contrast adjustment)
• When the menu button is pressed, the adjustment level is stored, the adjustment screen is ended, and the
menu screen returns.
• When the select button is pressed, the brightness adjustment screen appears.
NOTE: The amount of adjustment depends upon how long you depress the adjustment button. You may have to
tap the button to obtain the desired results.
6 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 6 of 20 Printed: 06/03/04 10:15 AM
Individual Adjustment
CONTRAST adjustment
Adjust the screen contrast to match your
personal preference.
Press the – button to decrease contrast and
press the + button to increase it.
Direct operation: You can access the
CONTRAST adjustment screen by pressing
the – or + before entering the menu screen.
Press the select key toggles between
CONTRAST and BRIGHTNESS.
BRIGHTNESS adjustment
Adjusts the brightness to get the desired
background level.
Press the + button to make the background
lighter, the – button to make it darker.
Press the select key toggles between
CONTRAST and BRIGHTNESS.
HORIZONTAL SIZE adjustment
Fills the viewable area horizontally.
Press the – button to make the image narrower,
or press + the button to make it wider.
Press the select key toggles between
HORIZONTAL SIZE and HORIZONTAL
POSITION.
HORIZONTAL POSITION adjustment
Shifts the image on the screen horizontally.
Press the – button to move the screen image to
the left, or press the + button to move it to the
right.
Press the select key toggles between
HORIZONTAL SIZE and HORIZONTAL
POSITION.
English
User’s Guide
7
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 7 of 20 Printed: 06/03/04 10:15 AM
VERTICAL SIZE adjustment
Fills the viewable area vertically.
Press the – button to make the image smaller,
or press the + button to make it larger.
Press the select key toggles between VERTICAL
SIZE and VERTICAL POSITION.
VERTICAL POSITION adjustment
Shifts the image on the screen vertically.
Press the – button to move it downward, or press
the + button to move it upward.
Press the select key toggles between VERTICAL
SIZE and VERTICAL POSITION
PINCUSHION adjustment
The image can be corrected for barrel
distortion.
Press the – button or the + button to eliminate
curved vertical lines.
Press the select key toggles between
PINCUSHION and TRAPEZOID correction.
TRAPEZOID adjustment
The image can be corrected for the trapezoidal
distortion.
Press the – button to narrow the top edge, or
press the + button to make the top edge wider.
Press the select key toggles between
PINCUSHION and TRAPEZOID correction.
ROTATION adjustment
The image can be corrected for tilted picture.
Press the – button to tilt the image to the left, or
press the + button to tilt the image to the right.
8 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 21 Page: 8 of 20 Printed: 06/09/04 02:54 PM
COLOR selection
The white of the image can be adjusted.
Use the – + button to select: (1) 9300°K,
(2) 6500°K or (3) User color.
Press the select button to display the
USER COLOR adjustment screen.
User Color
The white of the video image can be adjusted to
the user’s preferred color.
1 Use the select button to select R (red),
G (green) or B (blue).
2 Use the – + button to adjust the color as
desired.
IMPORTANT: Memory recall of the user’s color
is not possible, so take note of the initial setting
before adjusting.
When the monitor is turned OFF, user color
keeps the last adjustment.
Manual Degaussing
After moving the selector to the degauss icon,
press the select button. The degaussing action
takes place a few seconds later.
NOTE: A sharp snap noise may be heard when
degaussing occurs. This is normal.
Memory Recall
It is possible to restore adjustments to the
original factory settings. If the monitor is
operating in a user defined mode, this control
has no effect.
Horizontal Moiré
Reduce the dark wavy line Moiré pattern on the
screen.
Press the – or + button to minimize the
horizontal moiré image on the screen.
English
User’s Guide
9
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 9 of 20 Printed: 06/03/04 10:15 AM
Vertical Moiré
Reduce the dark wavy line Moiré pattern on the
screen.
Press the – or + button to minimize the vertical
moiré image on the screen.
Troubleshooting
If your monitor fails to operate functionally, it may be
possible to correct the problem by making simple
checks as follows:
Problem Check & Adjust
Blank screen
(see NOTE)
• Monitor power switch, power
cord, signal cable, or connector
• PC power switch
• Brightness & contrast controls
Display position
off-center
• Vertical centering & horizontal
phase controls
Display too small
or too large
• Vertical & horizontal size controls
Display too bright
or too dim
• Brightness & contrast controls
Refer to the operation instructions for your computer/
video adapter to ensure that you have the correct signal
output source for the monitor. Ensure that the switches
on the video adapter are set correctly for operation
with this monitor.
If the above steps fail to correct the problem contact
your dealer for servicing by qualified service personnel.
10 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 10 of 20 Printed: 06/03/04 10:15 AM
Please remember that the monitor should be returned
for servicing together with the power cord.

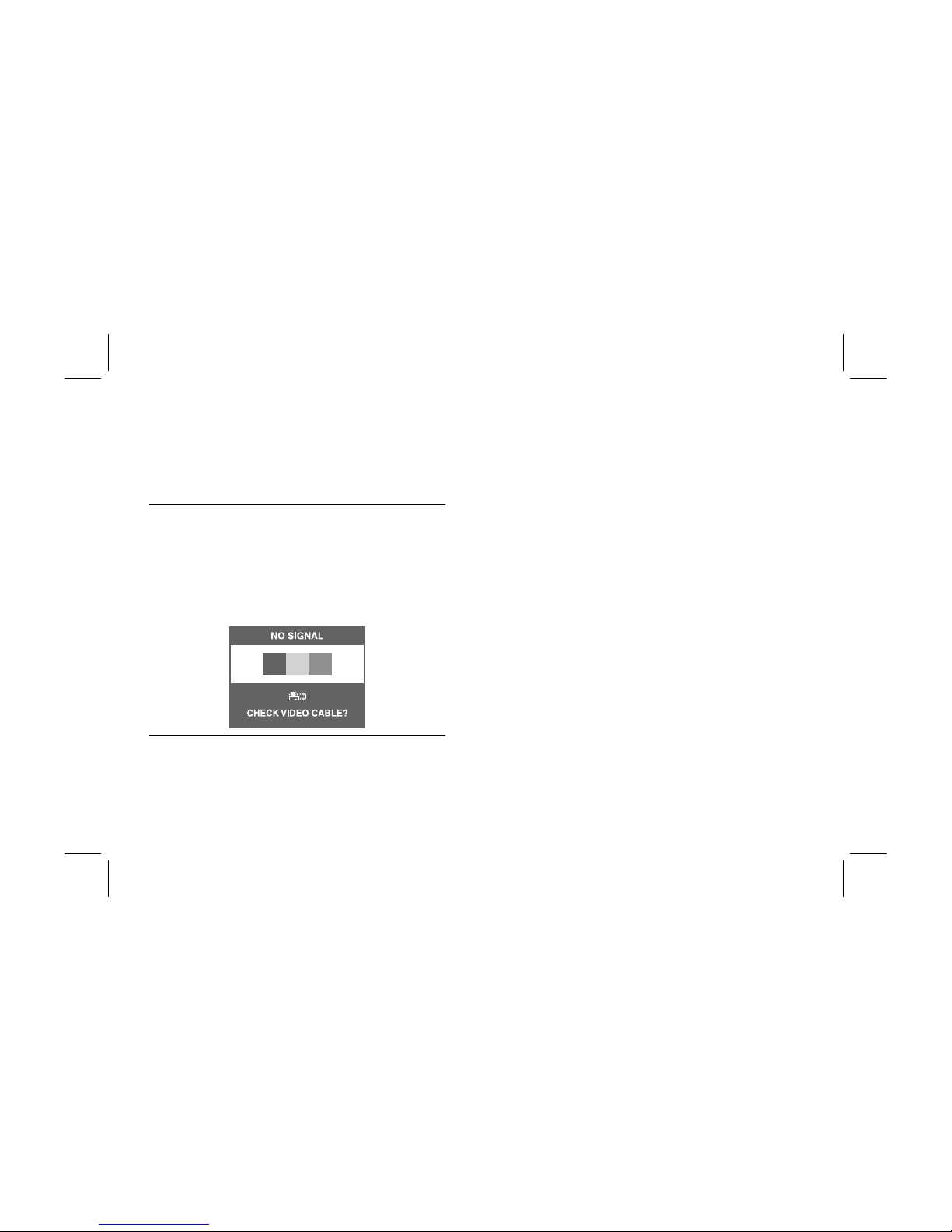

NOTE: You can easily distinguish if the problem is on
the monitor or on the computer by using the monitor’s
built-in self-test function.

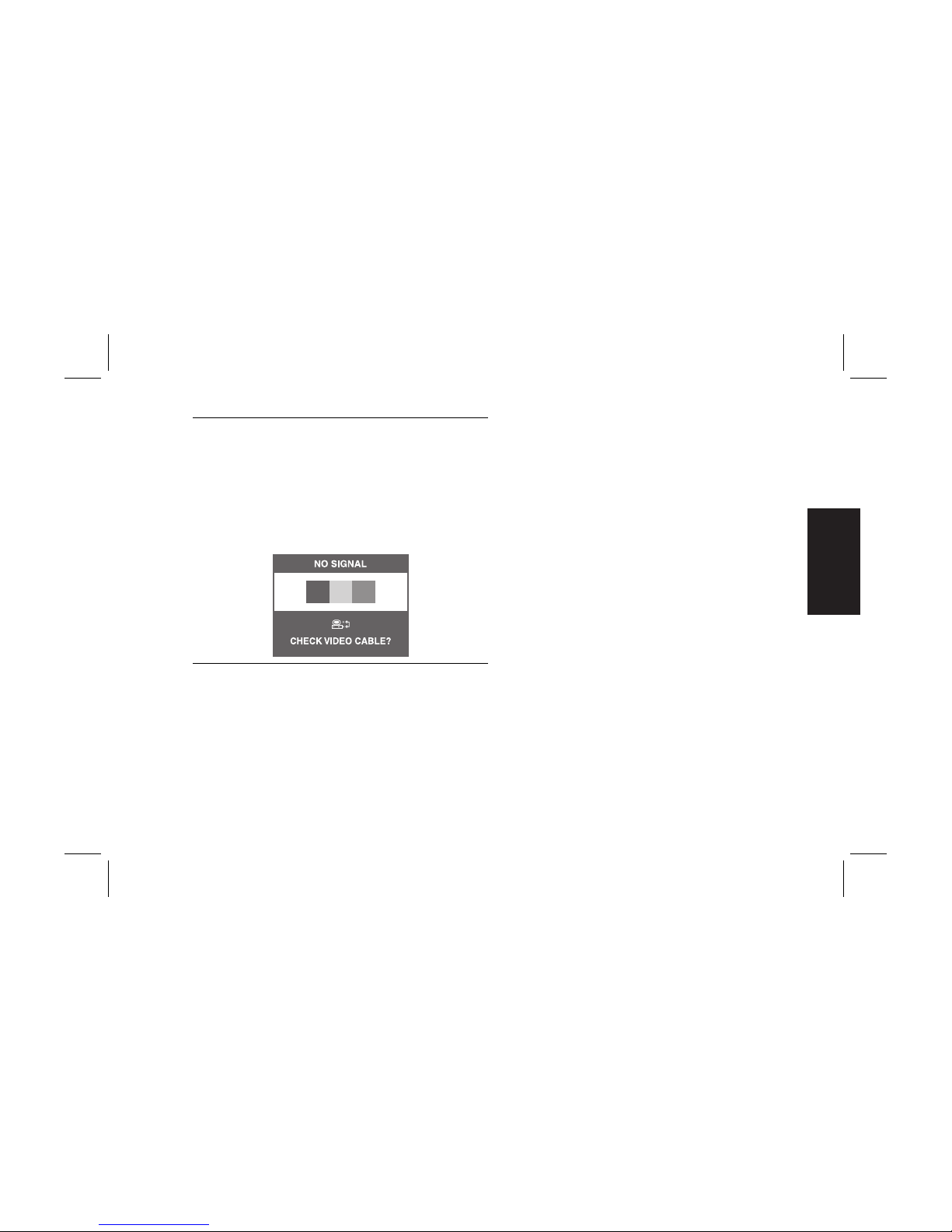

With the monitor power ON, disconnect the signal
cable from monitor. If you see a “NO SIGNAL” image
on the screen, the monitor is functioning properly, and
the problem is with the PC side or signal cable.
Servicing
Refer all servicing to qualified service personnel.
Serious shock hazards exist within the covers
of this monitor.
Do not open the covers under any
circumstances — there are no user serviceable
parts inside.
English
User’s Guide
11
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 11 of 20 Printed: 06/03/04 10:15 AM
Technical Specifications
Screen Size 17" (43 cm) visual diagonal
Viewable size 16" (40.6 cm)
Anti-Glare Coating
Dot Pitch 0.25 to 0.27mm (variable)
Display Area
Default
234 x 312 mm (typical)
Display Colors Infinite
Max. Resolution 1280 Dots x 1024 Lines
Compatibility All graphic modes with horizontal
frequencies between 30 KHz to
70 KHz
Synchronization
Horizontal:
Vertical:
30 to 70 KHz
50 to 160Hz
Bandwidth 110 MHz
Input Signal Video RGB Analog Sync.
TTL Separate
Signal Cable 15-pin D-sub connector
Power Input
Voltage/
Frequency
100 to 240V
50–60 Hz
Current Rating 1.5 A
Power
Consumption
75 W (MAX.)
Dimension
(W x H x D)
15.9 x 16.0 x 16.7 inches
(maximum)
404 x 406 x 423 mm (maximum)
Weight 37.5 lbs. (maximum)
17 kg (maximum)
Operating
Temperature
50°F to 95°F
10°C to 35°C
Storage
Temperature
–22°F to 140°F
–30°C to 60°C
Humidity 20% to 80% (non-condensing)
Altitude Up to 10,000 ft / 3,048 meters
TCO’03 Some models meet TCO’03
MPRII Some models meet MPRII
Plug and Play Ye s
* All performance specifications are provided by the component
manufacturers. Performance specifications represent the highest
specification of all HP’s component manufacturers’ typical level
specifications for performance and actual performance may vary
either higher or lower.
** TCO version has a different surface treatment.
*** This product is ERGONOMICS APPROVED.
12 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 12 of 20 Printed: 06/03/04 10:15 AM
Preset Modes
Display
Resolutions
Refresh Rates
640 x 480 60 Hz
640 x 480 75 Hz
640 x 480 85 Hz
720 x 400 70 Hz
800 x 600 75 Hz
800 x 600 85 Hz
1024 x 768 75 Hz
1024 x 768 85 Hz (preferred user resolution)
1280 x 1024 60 Hz (maximum resolution)
Agency Regulatory Notices
Federal Communications
Commission Notice
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
the receiver.
English
User’s Guide
13
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 13 of 20 Printed: 06/03/04 10:15 AM
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio or
television technician for help.
Modifications
The FCC requires the user to be notified that any
changes or modifications made to this device that are
not expressly approved by Hewlett-Packard Company
may void the user’s authority to operate the equipment.
Cables
Connections to this device must be made with shielded
cables with metallic RFI/EMI connector hoods to
maintain compliance with FCC Rules and Regulations.
Declaration of Conformity for
Products Marked with FCC Logo,
United States Only
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
For questions regarding your product, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000
Or, call
1-800-652-6672
For questions regarding this FCC declaration, contact:
Hewlett-Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call
(281) 514-3333
To identify this product, refer to the Part, Series,
or Model number found on the product.
14 User’s Guide
Filename: mb416033.doc Title: User's Guide - CRT Color Monitor Series FS7600, vx74 [English]
Template: Print_2004.dot Author: WASSER Studios Last Saved By: Kim Toy
Revision #: 22 Page: 14 of 20 Printed: 06/03/04 10:15 AM
Canadian Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations.
Avis Canadien
Cet appareil numérique de la classe B respecte toutes
les exigences du Règlement sur le matériel brouilleur du
Canada.
European Notice
Products with the CE Marking comply with both the
EMC Directive (89/336/EEC) and the Low Voltage
Directive (73/23/EEC) issued by the Commission of the
European Community.
Compliance with these directives implies conformity
to the following European Norms (in brackets are the
equivalent international standards):
• EN55022 (CISPR 22) — Electromagnetic
Interference
• EN55024 (IEC61000-4-2,3,4,5,6,8,11) —
Electromagnetic Immunity
• EN61000-3-2 (IEC61000-3-2) — Power Line
Harmonics
• EN61000-3-3 (IEC61000-3-3) — Power Line Flicker
• EN60950 (IEC950) — Product Safety
Japanese Notice
Korean Notice
Loading...
