HP vp6300 Series
Digital Projector
User’s Guide
© Copyright 2005 Hewlett-Packard Development Company, L.P.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
Hewlett-Packard Company
Digital Projection and Imaging
1000 NE Circle Blvd.
Corvallis, OR 97330
First Edition, January 2005
Contents
1 Setting Up
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
What’s in the box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Identifying common features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Projector at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Projector buttons and lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Back panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting up the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Positioning the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connecting a handheld organizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connecting a video source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Turning the projector on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Turning the projector on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Turning the projector off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Moving the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Making basic adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Aiming the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting the focus and zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
2 Showing Presentations
Showing a computer screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Selecting a different source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Hiding or showing the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3 Adjusting the Projector
Adjusting the picture and sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Choosing the best picture mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adjusting the shape of the picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Adjusting a slanted picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Adjusting the picture for best color. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Adjusting other picture settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Adjusting other sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3
Adjusting the projector setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Preventing unauthorized use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Using the on-screen menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing settings using the on-screen menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Input menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Picture menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sound menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Setup menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Help menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
4 Maintaining the Projector
Performing routine maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Getting the projector status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Cleaning the projector lens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Replacing the lamp module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Replacing the battery in the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Upgrading the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Updating the firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5 Installing Permanently
Installing the projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Choosing cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installing on a table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installing on the ceiling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Installing for rear projection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Locking the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Controlling an external accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Connecting to a room controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Serial connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Examples of room controller commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Room controller commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6 Fixing Problems
Troubleshooting suggestions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Warning light problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Start-up problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Picture problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Sound problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Interruption problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Remote control problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Testing the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Running the projector diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
4
7 Reference
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Safety information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
LED safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Mercury safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Regulatory information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Japan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Korea. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
5
6
1Setting Up
Safety precautions
WARNING! Read and observe these precautions and all others in this manual to reduce the
risk of injury and equipment damage.
• Do not look directly into the lens when the lamp is on.
• Do not expose the projector to rain or moisture, and do not use it near water.
• Keep paper, plastic, and combustible material at least 0.5 m (2 ft) away from the projector
lens and exhaust vents.
• Do not allow liquid, food, or small objects to get inside the projector. If material gets inside
the projector, contact HP for assistance.
• Do not put anything on top of the projector. Do not place any liquids where they might spill
on the projector.
• Do not block any vents on the projector. Do not place the projector near any source of heat,
such as a radiator or amplifier.
• Use only an approved power cord rated for the voltage and current marked on the product
label. Do not overload any outlet or extension cord. Do not circumvent the grounding prong
on the power cord.
• Route all cables so they are not located where people can step on them or trip on them.
• Place the projector flat on its base on a sturdy surface or on an HP ceiling mount. Do not
stand the projector on its front surface.
• Do not touch the lens with your fingers. See “Cleaning the projector lens” on page 43. Use
a soft, dry cloth to clean the projector case.
• Do not open the projector except as instructed by this manual, and only after allowing the
projector to cool down.
• If the projector is damaged in any way, contact HP for assistance.
Safety precautions 7
What’s in the box?
Before setting up your projector, be sure your shipping box includes the following items. If the
shipping box does not contain any of the following items, contact HP.
TIP: After you open the box and remove the contents, save the box in case you must ship the
projector.
Identifying the contents of the box
Item Function
Projector Displays images.
1
VGA cable Connects computer video output to the projector.
2
Power cord Connects projector to power source.
3
Remote control Controls projector.
4
Setting Up8
Identifying the contents of the box (continued)
Item Function
Literature package Contains documentation for the setup and use of
5
Quick Setup Guide Provides instructions to help get started.
6
the projector, plus support and warranty
information.
Identifying common features
Projector at a glance
Identifying major components
Item Function
Infrared port Receives signals from the remote control. Also
1
Height adjustment button Adjusts the height of the picture.
2
works as a button to adjust the height.
Identifying common features 9
Identifying major components (continued)
Item Function
Foucus and zoom rings Focus ring: focuses at distance of 1 to 10 m (3 to
3
Button panel Contains control buttons and indicator lights.
4
Lens cover Protects the lens.
5
Lens Projects the image.
6
33 ft).
Zoom ring: enlarges picture size from 100% to
116%.
Setting Up10
Projector buttons and lights
Identifying the projector buttons and lights
Item Function
Power button Turns the projector on or off.
1
Keystone adjustment Adjusts picture to eliminate slanted sides.
2
Page-up and Page-down buttons Scroll up and down through pages on a
3
Source button Displays picture from the next input port.
4
Picture mode button Selects the next picture and color combination—
5
Temperature warning light Warns if the projector is too hot.
6
Lamp warning light Warns if the lamp is bad.
7
Menu buttons Change settings using the on-screen menu.
8
Auto sync button Resynchronizes the projector to the input signal
9
connected computer.
can be customized.
from a computer.
Identifying common features 11
Back panel
12
Identifying back panel components
Item Function
S-video input port Connects S-video source.
1
Composite-video input port Connects composite-video source.
2
Audio-in ports Connect stereo audio source using either RCA
3
USB port Connects to computer and controls the mouse.
4
VGA-in port Connects video input from computer or
5
VGA-out port Sends the VGA-in signal to a monitor.
6
Main disconnect switch Disconnects power. Turn off when unplugging
7
Setting Up12
plugs or stereo mini-phone plug.
component-video source.
power cord.
CAUTION: Do not use this switch to turn off
the projector. Use the power button on top of the
projector.
Identifying back panel components (continued)
Item Function
12-Vdc trigger output Controls a motorized screen or similar accessory
8
Power cord socket Connects power cord to projector.
9
DVI input port Connects DVI-D digital video source.
:

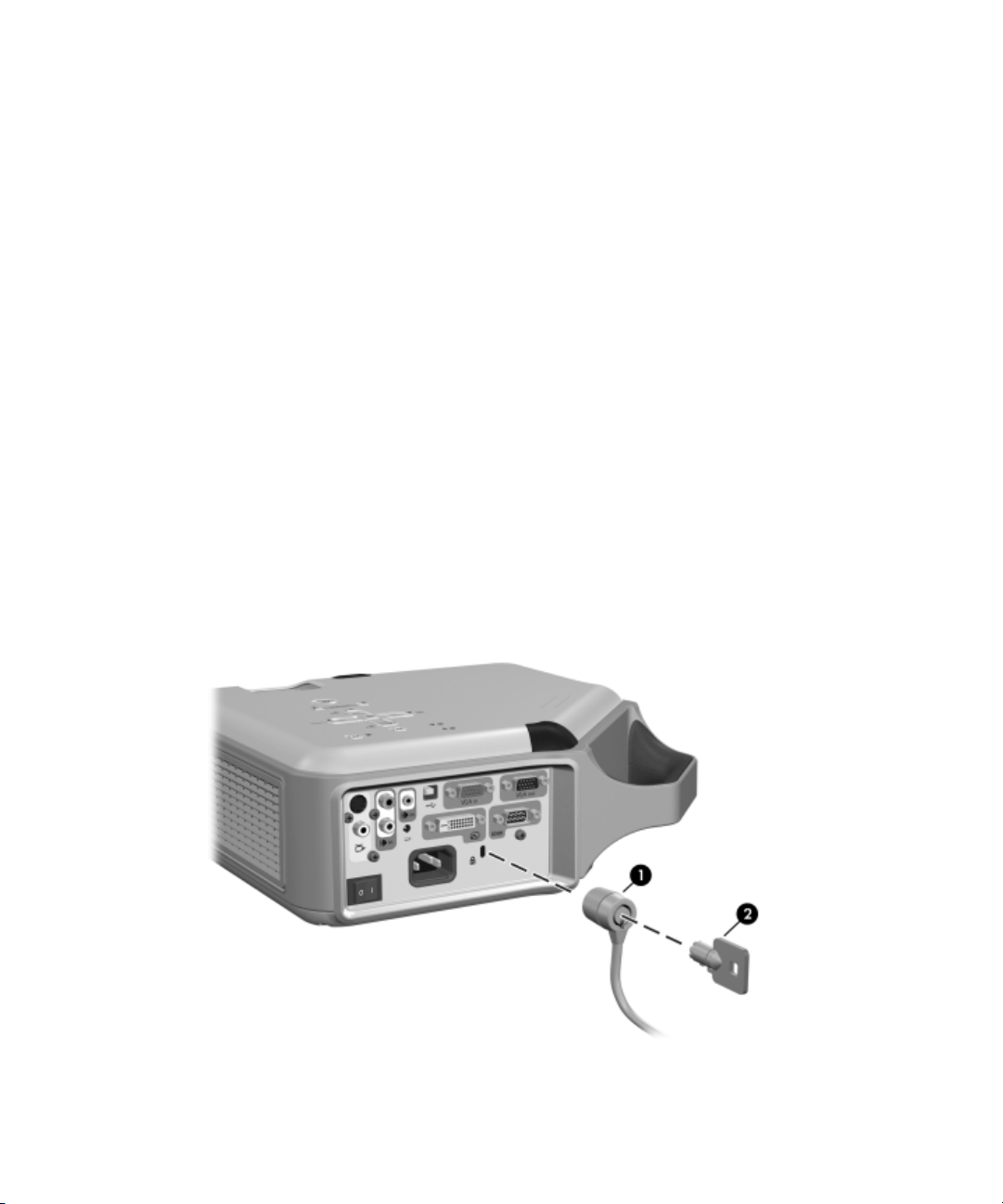

Lock slot Locks the projector to a stationary object with the
;
Serial port Connects a room controller.
<
device.
NOTE: Available only on certain models.
NOTE: Available only on certain models.
use of a cable and lock.
NOTE: Available only on certain models.
Identifying common features 13
Remote control
TIP: Before using the remote control, remove the battery protector by pulling the plastic tab
until it comes out of the remote control.
Identifying components of the remote control
Item Function
Hide button Blanks picture, mutes speaker.
1
Mouse pad Moves the mouse pointer on a connected
2
Power button Turns the projector on or off.
3
Left-click and right-click mouse buttons Perform left-click and right-click mouse functions
4
Page-up and Page-down buttons Scroll up and down through pages on a
5
Setting Up14
computer.
on a connected computer.
connected computer.
Identifying components of the remote control (continued)
Item Function
Auto sync button Resynchronizes the projector to the input signal
6
Picture mode button Selects the next picture and color combination—
7
Menu buttons Change settings using the on-screen menu.
8
Source button Displays picture from the next input port.
9
Accessories
Get more from your presentations with HP projector accessories. You can purchase accessories
at http://www.hp.com or through your projector dealer.
• HP ceiling mount kit—enables you to simply and discreetly install your projector on the
ceiling.
• HP projection screens—mobile screens that are easy to carry and set up anywhere, and
fixed screens for even greater convenience.
• HP premium remote control—allows you to control every aspect of your presentations.
from a computer.
can be customized.
• HP power cables—allow you to connect in any region.
• HP cables—allow you to connect all audio-video equipment.
• HP replacement lamp—brings your projector up to factory-fresh brightness.
Identifying common features 15
Setting up the projector
Positioning the projector
The following tables show you where to position the projector in relation to the screen.
TIP: For best picture quality, place the projector 1.5 to 5 m (5 to 16 ft) from the screen
Setting Up16
Image size relative to distance from the screen—vp6310 series
Image size (diagonal) Image size (width) Distance (lens to screen)
(inches) (meters) (inches) (meters) (inches) (meters)
30 0.8 24 0.6 41 to 48 1.1 to 1.2
40 1.0 32 0.8 55 to 64 1.4 to 1.6
60 1.5 48 1.2 83 to 96 2.1 to 2.4
80 2.0 64 1.6 110 to 128 2.8 to 3.3
100 2.5 80 2.0 138 to 160 3.5 to 4.1
120 3.0 96 2.4 166 to 192 4.2 to 4.9
150 3.8 120 3.0 207 to 240 5.3 to 6.1
180 4.6 144 3.7 248 to 288 6.3 to 7.3
200 5.1 160 4.1 276 to 320 7.0 to 8.1
240 6.1 192 4.9 331 to 384 8.4 to 9.8
270 6.9 216 5.5 372 to 396 9.5 to 10.0
Setting up the projector 17
Image size relative to distance from the screen—vp6320 series
Image size (diagonal) Image size (width) Distance (lens to screen)
(inches) (meters) (inches) (meters) (inches) (meters)
30 0.8 24 0.6 43 to 50 1.1 to 1.3
40 1.0 32 0.8 58 to 67 1.5 to 1.7
60 1.5 48 1.2 87 to 101 2.2 to 2.6
80 2.0 64 1.6 116 to 134 2.9 to 3.4
100 2.5 80 2.0 145 to 168 3.7 to 4.3
120 3.0 96 2.4 174 to 202 4.4 to 5.1
150 3.8 120 3.0 217 to 252 5.5 to 6.4
180 4.6 144 3.7 261 to 302 6.6 to 7.7
200 5.1 160 4.1 290 to 336 7.4 to 8.5
240 6.1 192 4.9 348 to 400 8.8 to 10.0
270 6.9 216 5.5 391 to 400 9.9 to 10.0
If you do not want to use the distance table, you can use the following equations to help
determine where to install the projector relative to the screen.
Calculating projection distances
distance from lens to screen = A × width of screen
minimum and maximum distance from screen = B
width of screen = 0.8 × diagonal of screen (for 3:4 screen)
projector lens below bottom of screen = C × width of screen (for 4:3 screen)
vp6310 series
A = 1.7 to 2.0
B = 1 to 10 m (3 to 33 ft)
C = 0.11 to 0.41
Setting Up18
vp6320 series
A = 1.8 to 2.1
B = 1 to 10 m (3 to 33 ft)
C = 0.11 to 0.43
Connecting power
1. Place the projector on a stable platform located 1 to 10 m (3 to 33 ft) in front of the screen.
Ideally, the platform should be lower than the bottom of the screen.
2. Connect one end of the power cord to the back of the projector 1 and the other end to a
grounded electrical outlet 2.
3. Turn on the main disconnect switch
If you want to permanently install the projector on the ceiling or behind the screen, see
“Installing the projector” on page 49.
3 on the back of the projector.
Setting up the projector 19
Connecting a computer
Requires:
• VGA cable 1
• USB cable 2 (optional)
• Audio cable, mini-phone
The optional USB connection allows you to use the mouse and page up/down features on the
remote control.
3 (optional)
See “Showing a computer screen” on page 31.
TIP: If the computer display does not appear on the projector, you might have to press a
combination of keys on the computer to turn on the computer’s VGA output. For example, on
some computers you must press FN+F4 or FN+F5. For instructions, refer to the user
documentation provided with your computer.
TIP: You can connect an external computer monitor to the VGA-out port on the projector. The
monitor displays the signal connected to the VGA-in port—even if the projector is turned off or
showing a different input.
Setting Up20
Connecting a handheld organizer
Not all handhelds come with VGA-out ports. For example, an iPAQ Pocket PC may require a
VGA-out PC Card with 15-pin connector. If necessary, install a VGA-out accessory card into the
organizer.
Requires:
• VGA cable
• VGA-out accessory card 2 (in some cases)
1
Setting up the projector 21
Connecting a video source
Many video devices have more than one type of output port. When you connect the device to
the projector, choose the connection that provides the best picture quality. This list shows video
connections in order with highest picture quality at the top:
• DVI connection (highest quality)
• Component-video connection
• S-video connection
• Composite-video connection
The video and audio cables shown in the following sections are available from HP.
If you want to connect a SCART video device to the projector, you will need a SCART adapter
(available from HP).
Connecting a DVI source
The DVI port is available only on certain models. It supports only DVI digital sources.
Examples: Cable boxes, satellite receivers, and some computers
Requires:
• DVI-D cable 1
• Audio cable, RCA 2 (optional)
Setting Up22
Connecting a component-video source
Examples: Cable boxes, DVD players, satellite receivers, and audio-video receivers
Requires:
• Component-to-VGA cable 1
• Audio cable, RCA 2 (optional)
TIP: Many DVD players and other high-quality video devices provide component video
output. The three RCA connectors might be labeled YPbPr or YCbCr.
If possible, configure the video source to use progressive scan output, such as 480p, 575p, or
720p. For additional information, refer to the user documentation provided with the video
source.
Setting up the projector 23
Connecting an S-video source
Examples: DVD players, VCRs, cable boxes, camcorders, and video gaming devices
Requires:
• S-video cable 1
• Audio cable, RCA 2 (optional)
Setting Up24
Connecting a composite-video source
Examples: VCRs, DVD players, audio-video receivers, and video gaming devices
Requires:
• Composite-video cable 1
• Audio cable, RCA 2, or combined video-audio cable (optional)
Setting up the projector 25
Turning the projector on and off
Turning the projector on
1. Be sure the power cord is connected and the main disconnect switch is on.
2. Open the lens by sliding the lens cover 1 to the left.
3. Press the power button 2 on the projector or on the remote control.
The projector takes a minute or so to warm up. The power button blinks during warm-up.
TIP: If the picture does not appear on the screen, try the following:
• If you are using a computer, press the key combination that turns on its video output. For
example, press F
• On the projector, press the source button one or more times to select the correct input port.
N+F4 or FN+F5 on some computers.
Setting Up26
NOTE: It is normal for parts of the projector and the air coming out of the projector to be very
warm. If the projector starts to overheat, the temperature warning light will turn on and the
projector will shut down.
Turning the projector off
1. Press the power button on the projector or remote control to turn off the projector. Do not
hold the button down.
The power button blinks during the cool-down period, then the projector turns off. Even
though the projector is off, it uses a small amount of power internally.
2. If you want, disconnect video and audio equipment from the projector during the cool-
down period or after the power button stops blinking.
CAUTION: Do not disconnect power or turn off the main disconnect switch until the projector
has cooled down (the fan stops) and the power button stops blinking. Otherwise, you might
shorten the life of the lamp.
3. If you must unplug or remove the projector, wait until the power light stops blinking, then
unplug the power cord.
If you try to turn on the projector again during the cool-down period, it will not turn on. Wait
until the cool-down period ends and the power button stops blinking.
Moving the projector
When moving the projector:
• Allow the projector to cool down before moving it. Then disconnect all cables.
• Avoid bumps and jolts. Use a carrying case or padded container when possible.
• Observe temperature and humidity limits (see “Specifications” on page 65). If the projector
is cold, allow it to warm gradually to avoid condensation.
Turning the projector on and off 27
Making basic adjustments
This section provides instructions for making basic adjustments to the projector.
Aiming the projector
• To raise or lower the projected picture on the screen, press the height adjustment button 1
and raise or lower the front of the projector
• To level the picture on the screen, turn the adjustable foot
2. Release the button to lock the adjustment.
3 to lengthen or shorten the foot.
Adjusting the focus and zoom
1. Rotate the focus ring until the image becomes clear. The projector can be focused at
distances of 1 to 10 m (3 to 33 ft).
2. Rotate the zoom ring to adjust the picture size from 100 to 116%.
If the picture does not fit the screen, you might have to move the projector closer to or farther
away from the screen.
Setting Up28
Using the remote control
To do this... Press this...
Hide or unhide the picture hide button
Move mouse pointer on computer Edge of the mouse pad
want the pointer to move. This feature requires a
USB connection between the projector and
computer.
Turn the projector on or off Power button
Click mouse button on computer Left-click or right-click button
requires a USB connection between the projector
and computer.
Page up or page down on computer Page-up or page-down button 5. This feature
requires a USB connection between the projector
and computer.
Readjust picture of computer screen auto sync button 6.
1.
2 in the direction you
3.
4. This feature
Using the remote control 29
To do this... Press this...
Change picture settings for different type of input
signal
Change settings using on-screen menu enter and navigation buttons
Exit from any on-screen menu or adjustment Exit button
Switch to next input source source button
Picture mode button 7 one or more times.
8. See “Using the
on-screen menu” on page 38.
8.
9 one or more times.
TIP: From within the distance of 9 m (30 ft), aim the remote control at the screen or at the
front or back of the projector.
Setting Up30
2 Showing Presentations
Showing a computer screen
1. Be sure the computer is connected to the projector and turned on. See “Connecting a
computer” on page 20.
2. Be sure the projector is set up, turned on, and adjusted. See “Making basic adjustments”
on page 28.
3. If a different input source is shown on the projector, press the source button on the projector
or remote control one or more times to select the VGA-in port.
4. If the computer display is not shown on the projector, you might have to turn on the
computer’s video output port. For example, some computers require you to press a key
combination, such as F
computer.
If you want to adjust the picture, see “Adjusting the picture and sound” on page 33.
Selecting a different source
N+F4 or FN+F5. Refer to the user documentation provided with your
If the picture from your video source does not appear on the screen, you can quickly select the
correct source.
S Press the source button one or more times—until you see the picture or you see the name of
the video port where the source is connected.
You should also be sure the video source is turned on and playing video.
Hiding or showing the picture
1. Press the hide button on the projector or remote control to blank the picture and turn off the
projector speakers. This does not affect the video source, which continues playing.
2. Press any button to show the picture again and turn on the projector speakers.
Showing a computer screen 31
Showing Presentations32
3 Adjusting the Projector
Adjusting the picture and sound
Choosing the best picture mode
You can quickly choose a different picture mode to make adjustments to the picture. Picture
modes can control properties such as color and size. They let you easily choose the best
settings for ambient lighting and the type of video content (see “Adjusting the picture and
sound” on page 33).
S Press the picture mode button one or more times to select the picture mode that gives the
best picture.
Adjusting the picture and sound 33
You can also customize the picture modes so they are best for your video sources:
1. Press the picture mode button to select the picture mode you want to adjust.
2. Press enter and go to Picture > Customize picture mode.
3. Adjust the settings until you are satisfied with the picture.
TIP: To exit from any on-screen menu or adjustment, press the exit button.
Adjusting the shape of the picture
Depending on the type of video source you are viewing, the picture might or might not always
look correct or fit on the screen:
• If the active video device sends widescreen output to the projector, press enter, go to Input,
and set Widescreen input to Yes. See
• If the video device sends standard output, set Widescreen input to No.
TIP: If you show widescreen pictures on a wide projection screen, a standard picture might
not fit on the screen. One solution is to change the current picture mode so it makes a smaller
picture. Press enter, go to Picture > Customize picture mode, and set Stretch to Reduced. See 2
in the following diagram.
1 in the following diagram.
Adjusting the Projector34
Adjusting a slanted picture
If the projector is tilted up or down, the sides of the picture on the screen might slant in or out,
even though the top and bottom are level. The keystone adjustment corrects this problem.
S Press the keystone adjustment on the projector until the picture looks correct.
You can also make the keystone adjustment in the on-screen menu. Press enter, and go to
Setup > Keystone to adjust the picture.
TIP: If the top and bottom of the picture slant in different directions, move the projector until it
is straight in front of the screen, not off to one side.
Adjusting the picture and sound 35
Adjusting the picture for best color
You can fine tune the picture settings on your projector to get the best color and image quality.
You should perform these steps for each input source device and each input port that you use.
Do them in the order shown. For some input ports, some of these settings may not be available.
1. Press the picture mode button and select the picture mode you want to use for the current
source.
2. Press enter and go to the Picture menu.
3. Go to Color settings > Brightness. Adjust to the highest setting that still gives the darkest
black for black areas. If you temporarily set a large keystone adjustment, you can view the
black areas at the sides of the picture.
4. Go to Color settings > Contrast. Adjust to the highest setting that does not wash out fine
detail in bright areas. You can view bright clouds or textured white areas.
5. Go to Customize picture mode > Picture enhancement. Adjust to the setting that gives the
best overall mid-range brightness. This should have minimal effect on blacks and whites.
6. Go to Customize picture mode > Color temperature. Adjust to the setting where whites and
colors look best.
7. Go to Color settings > Color saturation. Adjust to the setting where colors look most natural.
8. Go to Color settings > Tint. Adjust to the setting where colors look most natural.
9. Go to Customize picture mode > White intensity. Adjust this setting above 0 as needed to
brighten the picture but not affect colors.
10. Repeat all steps if necessary.
Adjusting other picture settings
The on-screen menu provides many settings that allow you to fine-tune the picture.
1. Press enter, and go to Picture.
2. Change the picture adjustments as needed.
From the Picture menu, you can change many picture options, such as brightness, contrast,
and picture shape, as well as customize the picture modes.
To get descriptions for all available picture adjustments, see “Picture menu” on page 40.
Adjusting the Projector36
Adjusting the volume
You can control the volume of the projector’s speakers:
• To change the volume of the projector’s speakers, press enter, go to Sound > Volume, and
change the setting.
• To turn the sound on or off temporarily, press enter, go to Sound > Mute, and mute the
sound.
Adjusting other sound settings
1. Press enter, and go to Sound.
2. Set the sound adjustments.
From the Sound menu, you can adjust sound settings, such as mute, volume, and speaker
operation.
To get descriptions for all available audio adjustments, see “Sound menu” on page 41.
Adjusting the projector setup
1. Press enter, and go to Setup.
2. Set the setup adjustments as needed.
From the Setup menu, you can select settings, such as menu language, projector position,
and menu timeout.
To get descriptions for all available setup adjustments, see “Setup menu” on page 41.
Preventing unauthorized use
You can prevent unauthorized people from using the projector by creating a secret button
sequence that is required for the projector to turn on. The unlock sequence is a series of 4 to 8
arrow buttons. If the buttons are not pressed in the order you specify, the projector does not
turn on. Use the following steps to set or clear an unlock sequence.
1. Press enter, go to Setup > Advanced setup > Projector lock, and press enter.
2. If an old unlock sequence is set, press the buttons according to the old sequence when
prompted, and then press enter.
3. To set a new unlock sequence, press the arrow buttons for the new sequence, and then
press enter.
To clear the unlock sequence and remove this protection, press only enter.
Adjusting the picture and sound 37
4. When prompted, confirm the new sequence and press enter.
NOTE: If you set an unlock sequence, you must press the sequence every time you turn on the
projector. The sequence protects the projector only when the projector is turning on, not at any
other time.
If you forget the unlock sequence, you must call HP support to unlock the projector. You must
have the projector and your proof of purchase.
Using the on-screen menu
Changing settings using the on-screen menu
You can change the on-screen menu settings with the buttons on either the projector or the
remote control.
1. Press enter on the projector or remote control. This displays the on-screen menu.
2. Press up or down to highlight the desired menu icon, then press right to move into
that menu.
3. Press up or down to highlight a setting, then press enter to begin adjusting the
setting.
4. Press left or right , or press up or down , to adjust the setting, as prompted.
5. Press enter to return to the menu.
6. To go to a different menu, press left and select a menu.
7. To close the on-screen menu, press the exit button.
If you do nothing for a period of time, the on-screen menu closes. To change the amount of
time until the on-screen menu closes, press enter and select Setup > Timeout for menu.
TIP: To exit from any on-screen menu or adjustment, press the exit button.
Adjusting the Projector38
Input menu
For a visual aid, see “Back panel” on page 12.
Input menu
VGA Shows the source connected to the VGA-in port.
S-video Show the source connected to the S-video port.
Composite Shows the source connected to the composite-video port.
DVI Shows the source connected to the DVI port (available only on certain
Scan inputs Sets whether the projector automatically searches for input signals and
Widescreen input Sets whether a widescreen (16:9) input device is in use. Adjusts the height
models).
displays the next one found.
of the picture accordingly.
Using the on-screen menu 39
Picture menu
Some picture adjustments are available only when certain input ports are in use. Unavailable
adjustments are shown in gray in the on-screen menu.
Picture menu
Color settings... Adjusts the picture and colors.
Brightness Brightens or darkens the picture.
Contrast Sets the difference between light and dark areas.
Sharpness Sharpens or softens the picture.
Color saturation Adjusts the intensity of colors.
Tint Shifts colors toward red or green.
Color space For certain component inputs, selects the type of color standard used by the
Reset color settings Restores these color settings to the default settings.
VGA settings... Adjusts settings for a computer input.
source.
Auto-sync Resynchronizes the projector to the input signal. This can compensate for
any change in the signal.
Frequency Adjusts the timing of the projector relative to the computer.
Tracking Adjusts the phase of the projector relative to the computer.
Vertical offset Adjusts the picture up or down within the projection area.
Horizontal offset Adjusts the picture left or right within the projection area.
Picture mode Adjusts color and picture settings to one of several combinations designed
for different types of viewing situations. You can use a different picture
mode for each source or each viewing environment. You can also customize
each picture mode.
Customize picture mode... Changes settings associated with the current picture mode.
Picture enhancement Refines the color, lightness, and other characteristics of the picture.
White intensity Increases the brightness of white areas.
Adjusting the Projector40
Picture menu (continued)
Color temperature Shifts color toward red or blue.
Stretch Selects how the picture fits on the screen:
Picture shift Moves the picture within the projection area. This is useful if you are viewing
Reset picture shift Resets the picture shift to zero (centered).
Reset this picture mode Restores the current picture mode to its default settings.
Sound menu
Sound menu
Mute Temporarily turns off the projector’s speakers.
• Best fit automatically fits the picture without stretching it.
• 1-to-1 shows each picture dot as one projected dot.
• Reduced fits a standard-shape picture onto a widescreen projection
screen.
a picture that is smaller than the full projection area, such as a widescreen
movie.
Volume Adjusts the loudness of the speakers.
Internal speakers Sets whether the internal speakers are turned on.
Reset sound settings Restores sound settings to their default settings.
Setup menu
Setup menu
Language Selects the language used by the on-screen menu.
Keystone Corrects the slanted sides of the picture. This compensates for a projector
Reset keystone Resets the keystone correction to zero (no correction).
Lamp saver Sets a lower power level for the lamp.
Timeout for menu Sets how many seconds the on-screen menu waits for input before it closes.
that is too high or low relative to the screen.
Using the on-screen menu 41
Setup menu (continued)
Advanced setup... Adjusts additional setup settings.
Power timeout Sets the length of time the projector waits for an input signal before
Projector position Adjusts the picture to match the orientation of the projector: upright or
Projector lock Sets or cancels a secret button sequence that must be entered for the
Reset lamp hours For a new lamp, resets the hours of use.
Reset all settings Restores all menu settings to factory default settings.
Help menu
Help
Diagnostics... Show tests for checking the operation of the projector and the remote
automatically shutting down.
upside-down, in front of or behind the screen. Inverts or reverses the image
accordingly.
projector to operate.
Displays information and status of the projector.
control.
Adjusting the Projector42
4 Maintaining the Projector
Performing routine maintenance
Getting the projector status
To get the projector status:
S Press the enter button on the projector or remote control and go to Help.
This screen shows information and status for the projector.
Cleaning the projector lens
You can clean the front lens of the projector using the following recommendations. You cannot
clean any of the internal surfaces.
• To minimize the risk of damaging or scratching the lens surface, blow dust particles off the
lens with clean, dry, deionized air.
• If this method does not work, use the following method:
a. Wipe the lens in a single direction with a clean, dry cloth. Do not wipe back and forth
across the lens.
b. If the cloth is dirty or smears the lens, wash the cloth. If the cloth is still dirty after
washing it or the fabric is damaged, replace it.
CAUTION: Cleaning requires special consideration:
• Do not spray any type of fluid or cleaner directly on the lens surface. Cleaners might
damage the lens.
• Do not use fabric softener when washing a cleaning cloth or softener sheets when drying
the cloth. Chemicals on the cloth might damage the surface of the lens.
• Do not store a cleaning cloth in contact with the lens for a long time because doing so
contaminates the lens with dye from the cloth. The cloth can be contaminated if left in the
open air.
Performing routine maintenance 43
Replacing the lamp module
As the projector operates over time, the brightness of the projector lamp gradually decreases
and the lamp becomes more susceptible to breakage. You can install a new lamp at any time
to bring the projector up to factory-fresh brightness. We recommend replacing the lamp if a
warning message is displayed.
WARNING! Replacing the lamp module requires special consideration:
• To reduce the risk of injury, be careful when removing the lamp module as broken glass
might be present. For a ceiling installation, wear goggles and gloves when removing the
lamp module. If the lamp is broken, contact HP about repairs that might be required due to
glass fragments.
• The lamp contains a small amount of mercury. If the lamp breaks, adequately ventilate the
area where the breakage occurred. Disposal of this lamp might be regulated due to
environmental considerations. For disposal or recycling information, contact your local
authorities or the Electronic Industries Alliance at http://www.eiae.org.
• Because the lamp assembly operates at a very high temperature, wait 30 minutes before
removing the lamp module.
1. Turn off the projector and allow it to cool for 30 minutes.
2. Unplug the power cord.
3. Press the release latch
4. Press the release latch on the lamp connector and unplug the connector 3.
Maintaining the Projector44
1 on the lamp cover and remove the cover 2.
5. Loosen the two screws 4 on the lamp module, and pull out the module 5.
6. Insert the new lamp module into the projector and tighten the two screws.
7. Plug in the lamp connector.
8. Snap the lamp cover into place.
9. Turn on the projector. If the lamp does not turn on after the warm-up period, try reinstalling
the lamp.
10.Press enter, go to Setup > Advanced setup > Reset lamp hours, and press enter.
Performing routine maintenance 45
Replacing the battery in the remote control
1. Use a ballpoint pen to hold the battery latch toward the center, then pull out the battery
holder 1.
2. Insert the new battery 2 in the holder.
3. Push the holder
When discarding old batteries, contact your local waste-disposal provider regarding local
restrictions on the disposal or recycling of batteries.
3 into the remote control.
Maintaining the Projector46
Upgrading the projector
Updating the firmware
HP might periodically release updated versions of the projector firmware to enhance the
projector performance. The projector firmware version is shown in the on-screen menu at Help.
Check for updated versions at http://www.hp.com/go/proj_firmware.
USB method
1. On a computer with a USB port, go to the HP projector upgrade website (see introduction
for this section) and download the latest file intended for a USB upgrade.
2. Connect a USB cable (available from HP) between the USB port on the projector and the
USB port on the computer.
3. On the computer, run the file you downloaded by double-clicking the file. Follow the on-
screen instructions.
Upgrading the projector 47
Maintaining the Projector48
5Installing Permanently
Installing the projector
Choosing cables
If you are permanently installing the projector or using it with long cables, consider the
following suggestions when planning the installation:
• Use high-quality cables. Use only video cables that are made with 75-ohm coaxial cable
and connectors. For high-resolution video, use low-loss video cables. For standard audio,
use audio cables that are shielded. For digital audio, use 75-ohm coaxial cables.
• Minimize cable length as much as possible. For video cables longer than 6 m (20 ft), use
low-loss coaxial cables. For standard audio cables longer than 6 m (20 ft), use 12-gauge
wire.
• Do not run audio or video cables next to power or network cables. If they must cross, cross
them at 90 degrees.
• If you are installing cables in walls, use cables with necessary approvals, such as
Underwriters Laboratories (UL) approval.
• If you are running cables above a dropped ceiling, you must use plenum-rated cables if the
space above the ceiling is open to the space above other rooms. You must use plenumrated cables if you are running cables in a duct.
• Before installing cables permanently, check the setup with the final cables in the open.
Installing on a table
This installation is covered in detail in Chapter 1. See “Setting up the projector” on page 16
for more information.
Installing on the ceiling
WARNING! To minimize the risk of injury from improperly installed equipment, it is
recommended that a professional installer performs the ceiling installation.
Installing the projector 49
1. Attach the projector to the ceiling using an HP ceiling mount kit. Refer to the installation
instructions provided with the ceiling mount kit.
2. After the projector is mounted on the ceiling, adjust the projector settings to match this
setup. Press enter, go to Setup > Advanced setup > Projector position, and select Front
Ceiling.
Installing for rear projection
1. Place the projector 1 to 10 m (3 to 33 ft) behind a translucent screen that is designed for
rear projection.
See “Setting up the projector” on page 16 or “Installing on the ceiling” on page 49 for
more instructions.
2. Press enter, go to Setup > Advanced setup > Projector position. Then select Rear Table or
Rear Ceiling.
Locking the projector
The projector includes a built in slot to secure the projector with a cable and lock (such as the
Kensington MicroSaver lock system, available at many computer stores).
1. Wrap the cable around a secure object, such as a table leg. Loop the cable to create a slip
knot around the stationary object, and be sure it cannot slip off.
2. Insert the lock
Installing Permanently50
1 into the hole and twist the key 2.
TIP: As an alternative, you can loop a cable or bracket around the projector handle to secure
the projector in place.
Controlling an external accessory
If your projector has a 12-volt trigger output port, the projector can automatically control one or
more accessories. Certain types of accessories can use a 12-volt signal to trigger their actions,
such as a motorized screen lowering and raising the screen. The output provides a 12-volt dc
signal whenever the projector is on (200 mA maximum current output).
Requires:
• Two-wire cable with 3.5-mm × 1.3-mm barrel connector (12 V on inner contact)
Installing the projector 51
Connecting to a room controller
If your projector has a serial port, you can connect the projector to a room controller using a
serial (RS-232) cable. After you program the room controller using the following commands,
you can use the room controller to operate the projector and other components of your
installation.
Serial connections
The serial port on the projector uses a standard serial (RS-232) cable:
• Pin 2: data sent to the projector (RxD)
• Pin 3: data sent from the projector (TxD)
• Pin 5: ground
The room controller must use the following serial (RS-232) settings:
• 9600 baud
• 1 start bit + 8 data bits (D0=LSB, D7=MSB) + 1 stop bit
• No parity
• Full duplex communication channels (no flow control)
• No handshaking
Examples of room controller commands
In the following examples, “<CR>” and “<LF>” represent a carriage return and line feed,
respectively.
Commands are sent to the projector as "requests" which consist of an asterisk (*) prefix, the
command name, any needed parameter, and a carriage return <CR> as a terminator:
* command = parameter <CR>
Requests can contain only ASCII alphanumeric characters. Blanks (spaces) are allowed, except
within keywords and numbers. Line feeds <LF> are ignored.
Installing Permanently52
The following table shows the specific syntax to use for various requested tasks.
To perform this task... Use this request syntax...
Change a setting to a specified value *command=value<CR>
Ask the current setting *command=?<CR>
Increment a setting *command=+<CR>
Decrement a setting *command=–<CR>
Invoke an action (no parameter needed) *command<CR>
In general, every request sent to the projector generates one or more notification messages,
which are sent to the room controller. Actions initiated by the projector can also generate
notifications.
The projector always sends notifications whenever a setting changes, whether as the result of a
request from a controller, or as the result of an action, such as a button press or menu change.
Some requested setting changes take time to perform, or are carried out in stages. Because of
this, requests might produce delayed notifications.
The following table lists the types of notifications generated in various situations.
This type of request... Generates this type of notification...
Modify a setting Echoes the request command and shows the resulting value:
Request: *BRT=65<CR>
Notification: *BRT=65<CR><LF>
Query a setting Echoes the request command and shows the resulting value:
Request: *CON=?<CR>
Notification: *CON=40<CR><LF>
Execute an action Echoes the request command:
Request: *NXT<CR>
Notification: *NXT<CR><LF>
Incorrect commands cause the following types of notifications:
• No asterisk at start of command—no response
• Unrecognized command name—command with “?” added
Connecting to a room controller 53
• Command that is currently unavailable—command with “?” added
• Invalid parameter—command with current value
• Action command with unnecessary parameter—action command
• Action command that is unavailable—action command
The following simplified example shows how the projector typically responds to a request to
change the active input source. Note that the three latter notifications are delayed.
Request: *RSRC=4<CR>
Notification: *RSRC=4<CR><LF> (acknowledges request)
*SRC=0<CR><LF> (projector is attempting to acquire source 4, and in the interim
has no valid source)
*SRC=4<CR><LF> (source 4 is now active)
*BRT=60<CR><LF> (brightness has been modified for source 4)
*CSPC=?<CR><LF> (color space is not supported for this input)
Room controller commands
In the following tables, if the parameter listing for a particular command is “None,” that
command requires no parameter. Some commands are valid only when the projector is turned
on, STAT=1. Some commands are available only when specific input sources are active.
Source function
Command Parameters Description
SRC ? Queries the current active input source: 0=no active
source,1=VGA-in, 3=composite video, 4=S-video, 8=DVI.
RSRC 1, 3, 4, 8, ? Attempts to use the specified source as the active input source,
or queries the last source requested: 1=VGA-in, 3=composite
video, 4=S-video, 8=DVI.
NXT None Switches to the next input source.
AUTO 0, 1, ? Sets or queries automatic searching inputs for signal: 0=no
searching, 1=searching.
Installing Permanently54
Video functions
Command Parameters Description
CSPC 0 to 2, ? Sets or queries the active color space: 0=RGB, 1=YPbPr,
2=YCbCr.
PMOD 0,1,5,? Sets or queries the picture mode: 0=graphics, 1=video,
5=custom.
VSHF value, +, –, ? Sets or queries the vertical shift of the projected image: usable
range is determined by the active input source.
HSHF value, +, –, ? Sets or queries the horizontal shift of the projected image:
usable range is determined by the active input source.
WHIT 0 to 10, +, –, ? Sets or queries the white intensity.
BRT 0 to 100, +, –, ? Sets or queries the brightness.
CON 0 to 100, +, –-, ? Sets or queries the contrast.
SAT 0 to 100, +, –, ? Sets or queries the color saturation.
TNT -45 to 45, +, –, ? Sets or queries the tint.
CTMP 0 to 2, ? Sets or queries the color temperature: 0=warm, 1=neutral,
2=cool.
SHRP 0 to 12, +, –, ? Sets or queries the sharpness.
PENH 0 to 6, +, –, ? Sets or queries the picture enhancement setting.
KEYV -50 to 50, +, –, ? Sets or queries the vertical keystone: 0=no keystone adjustment,
1 to 50=shrinks the top of the display, -1 to -50=shrinks the
bottom of the display.
ASPT 0, 1, 4, ? Sets or queries the aspect ratio: 0=1-to-1, 1=Best Fit,
4=Reduced.
SYNC None Automatically resynchronizes the projector to the active
computer input source.
FREQ -50 to 50, +, –, ? Sets or queries the projector’s timing relative to the active
computer input source.
TRK value, +, –, ? Sets or queries the synchronization of the projector to the active
computer input source.
Connecting to a room controller 55
Video functions (continued)
Command Parameters Description
VPOS value, +, –, ? Sets or queries the vertical positioning of the projected image:
usable range is the maximum and minimum allowed by the
active computer input source.
HPOS value, +, –, ? Sets or queries the horizontal positioning of the projected
image: usable range is the maximum and minimum allowed by
the active computer input source.
HIDE 0, 1, ? Sets or queries picture blanking: 0=not hidden, 1=hidden.
WIDE 0, 1, ? Sets or queries wide screen mode: 0=normal, 1=wide.
KEYR None Resets keystone to zero.
Audio functions
Command Parameters Description
MUTE 0, 1, ? Sets or queries audio muting: 0=not muted, 1=muted.
VOL 0 to 31, +, –, ? Sets or queries audio volume: 0=off, 31=maximum.
INTSP 0, 1, ? Sets or queries usage of the internal speakers: 0=disabled,
1=enabled.
Setup functions
Command Parameters Description
LANG 0 to 10, ? Sets or queries the language used by the projector: 0=English,
1=French, 2=Italian, 3=German, 4=Portuguese, 5=Spanish,
6=Traditional Chinese, 7=Simplified Chinese, 8=Korean,
9=Japanese, 10=Czech.
LSAV 0, 1, ? Sets or queries low-power operating mode: 0=normal power,
1=low power.
LHRS ? Queries the time (in tenths of hours) that the lamp has been in
use.
Installing Permanently56
Setup functions (continued)
Command Parameters Description
THRS ? Queries the total time (in tenths of hours) that the projector has
been in use.
POS 0 to 3, ? Sets or queries the projector’s position: 0=front table, 1=front
ceiling, 2=rear table, 3=rear ceiling.
TMO 5 to 20, ? Sets or queries the menu timeout setting (seconds)
PTMO 0, 3 to 6, ? Sets or queries the power timeout: 0=never, 3=15 min, 4=30
min, 5=60 min, 6=120 min.
VERS ? Queries the projector model number and firmware version. The
notification takes this form:
*VERS=”proj_model:proj_fw”
SNUM ? Queries the projector's serial number.
Power and status functions
Command Parameters Description
SHDN None Puts the projector into cool-down state, and later into standby
state. The projector sends a notification when it enters cooldown state (STAT=3), and another when it enters standby state
(STAT=0). This keyword requires the projector to be in its on
state (STAT=1).
Do not send any requests other than STAT in the time between
the cool-down and standby state notifications. Otherwise,
unexpected results can occur.
W or WAKE None Puts the projector into warm-up state, and later into on state.
The projector sends a notification when it enters warm-up state
(STAT=2), and another when it enters the on state (STAT=1).
This keyword requires the projector to be in standby state
(STAT=0).
Do not send any requests other than STAT in the time between
the warm-up and on state notifications. Otherwise, unexpected
results can occur.
Connecting to a room controller 57
Power and status functions (continued)
Command Parameters Description
STAT ? Queries the projector's current state: 0=standby state (off),
1=on, 2=warm-up state, 3=cool-down state.
ALERT Not a request Notifies when a system alert condition occurs: 0=lamp life
warning, 1=lamp life reached, 2=lamp faulty, 3=lamp
problem, 4=internal temperature too high, 5=fan problem,
6=ambient temperature too high, 7=color wheel problem,
8=lamp cover open.
ALERT is sent only by the projector, and cannot be used in
requests.
Simulated key presses
Command Parameters Description
BACK None Simulates pressing the Exit Arrow key on keypad
ENTER None Simulates pressing the ENTER key on keypad
LEFT None Simulates pressing the Left Arrow key on keypad
RIGHT None Simulates pressing the Right Arrow key on keypad
UP None Simulates pressing the Up Arrow key on keypad
DOWN None Simulates pressing the Down Arrow key on keypad
Installing Permanently58
6 Fixing Problems
Troubleshooting suggestions
If you have a problem with your projector, check the following statement that most closely
matches the nature of the problem, then look in that section of this chapter:
• “Warning light problems” on page 59
• “Start-up problems” on page 60
• “Picture problems” on page 60
• “Sound problems” on page 63
• “Interruption problems” on page 63
• “Remote control problems” on page 63
TIP: If these suggestions do not solve your problem, go to http://www.hp.com/support for
additional information. To contact HP, refer to the support guide included with the projector.
Warning light problems
If both red warning lights are blinking:
• Allow the projector to cool down after it turns off. If this condition occurs after you
restart the projector, an internal component has failed. Contact HP for assistance.
If the red temperature light is on or blinking:
• Allow the projector to cool down after it turns off. Be sure that nothing is near or
blocking the vents on the projector, and that the vents are free of lint and other objects.
Remove any sources of excess heat in the room. Observe temperature and altitude limits
(see “Specifications” on page 65). If the warning light turns on or blinks after you
restart the projector, contact HP for assistance.
If the red lamp light is on or blinking:
• Allow the projector to cool down after it turns off. If the warning light turns on or blinks
after you restart the projector, install a new lamp. If this occurs after you install a new
lamp module, remove and reinstall the lamp module. If a new lamp does not fix the
problem, contact HP for assistance.
Troubleshooting suggestions 59
If the red lamp light is flickering quickly:
• Check that the cover over the lamp at the side of the projector is correctly installed and
fully attached. Check the tab at the top of the cover and latch at the bottom.
Start-up problems
If no lights or sounds turn on:
• Be sure that the power cable is securely connected to the projector and the other end is
plugged into an outlet with power.
• Be sure the main disconnect switch is turned on.
• Press the power button again.
• Unplug the power cord for 15 seconds, then plug it in and press the power button
again.
Picture problems
If a “scanning” or “waiting” message is displayed on a blank screen:
• Press the source button on the projector or remote control one or more times until the
correct source name is selected.
• Be sure the external source is turned on and connected.
• For a computer connection, ensure your notebook computer’s external video port is
turned on. Refer to the computer manual. On some notebooks, for example, press the
F
N+F4 or FN+F5 function keys to turn on the external video port.
If the wrong input source is displayed:
• Press the source button on the projector or the remote control one or more times to select
another active input source.
If the image is out of focus:
• Be sure the lens cover is open.
• While displaying the on-screen menu, adjust the focus ring. (The image size should not
change; if it does, you are adjusting the zoom, not the focus.)
• Ensure the projection screen is 1 to 10 m (3 to 33 ft) from the projector.
• Check the projection lens to see if it needs cleaning.
Fixing Problems60
• For a computer connection, set the display resolution as the computer to the same
resolution as the projector, 800 × 600 or 1024 × 768 (see “Specifications” on
page 65). If the computer has multiple monitors, adjust the resolution of the monitor
assigned to the projector.
• For a computer connected to the S-video port, the picture cannot be as high resolution
as what you see on the computer display.
If an upside-down or reversed image is displayed:
• The projector has been set to the wrong position setting. Press enter, go to Setup >
Advanced Setup > Projector position, and select the correct setting.
If the image is too small or too large:
• Adjust the zoom ring on top of the projector.
• Move the projector closer to or farther from the screen.
• On the projector or remote control, press the picture mode button one or more times
to see if one of the picture modes makes the image the correct size.
•Press enter, go to Picture > Customize picture mode > Stretch. Try the different settings.
• If the source device sends wide-screen output, press enter, go to Input, and try setting
Widescreen input to Yes. Otherwise, set it to No.
If the image has slanted sides:
• As much as possible, reposition the projector so that it is centered on the screen and
below the bottom or above the top of the screen.
• On the projector, press the keystone button until the sides are vertical.
If the image is stretched:
• On the projector or remote control, press the picture mode button one or more times
to see if one of the picture modes makes the image the correct size.
•Press enter, go to Picture > Customize picture mode > Stretch. Try the different settings.
• If the source device sends wide-screen output, press enter, go to Input, and try setting
Widescreen input to Yes. Otherwise, set it to No.
If the projected colors seem slightly wrong:
• See “Adjusting the picture for best color” on page 36.
•Press enter, go to Help > Diagnostics, and run the color test.
If the projected colors seem completely wrong:
• Be sure the pins on the cable connectors are not bent or broken.
•Press enter, go to Picture > Color settings > Color space. Try the different settings.
Troubleshooting suggestions 61
•Press enter, go to Help > Diagnostics, and run the color test.
•Press enter, go to Picture > Color settings > Reset color settings, and press enter.
•Press enter, go to Setup > Reset all settings, and press enter.
If the picture is not clear (ghost images, smearing, poor quality):
• Be sure the video cable you are using is coaxial cable rated at 75 ohms. Any other
cable or impedance rating can reduce picture quality.
• The video cable connecting the video source to the projector probably must be higher
quality. See “Choosing cables” on page 49.
If several picture settings seem completely wrong and you cannot fix them:
•Press enter, go to Picture > Color settings > Reset color settings, and press enter.
•Press enter, go to Setup > Reset all settings, and press enter.
If a scrolling or cut-off image is displayed for a computer connection:
• Press the auto sync button on the projector or remote control.
• Turn everything off. Then power on the projector first and power on the notebook or
desktop computer second.
• If the previous steps do not correct the display image, adjust the resolution of the
notebook or desktop computer to the same resolution as the projector, 800 × 600 or
1024 × 768 (see “Specifications” on page 65). If the computer has multiple monitors,
adjust the resolution of the monitor assigned to the projector.
If the image is flickering or unstable for a computer connection:
• Press the auto sync butto on the projector or remote control.
•Press enter, go to Picture > VGA settings, and adjust Frequency or Tracking.
If the image disappears from the computer screen:
• For a notebook computer, you might be able to turn on both the external VGA port and
the built-in screen. Refer to the computer manual.
• Connect a monitor to the VGA-out port.
If text or lines from a computer display seem rough or uneven:
• Check the focus adjustment.
•Press enter, go to Setup > Reset keystone, and press enter.
Fixing Problems62
Sound problems
If no sound is coming out of the projector:
• Be sure you have an audio cable securely connected between the projector and the
source device.
•Press enter, go to Sound, and check that Mute is turned off and Volume is correct.
•Press enter, go to Sound > Internal speakers, and be sure the speakers are turned on.
•Press enter, go to Help > Diagnostics, and run the sound test.
• Be sure that the mute and volume settings are correct on the source device, such as a
VCR, camcorder, or computer.
Interruption problems
If the projector stops responding to all controls:
• If possible, turn off the projector, then unplug the power cord and wait at least 15
seconds before reconnecting power.
If the lamp shuts off during a show:
• A minor power surge might cause the lamp to shut off. This is normal. Wait a few
minutes, then power on the projector.
• If a red warning light is on or blinking, see “Warning light problems” on page 59.
If the lamp burns out or makes a popping sound:
• If the lamp burns out and makes a popping sound, the projector will not turn back on
until the lamp module has been replaced.
• If the lamp breaks, contact HP about repairs that might be required due to glass
fragments.
Remote control problems
If the remote control does not operate:
• Be sure nothing is blocking the remote control receiver on the front or back of the
projector. Move to within 9 m (30 ft) of the projector.
• Aim the remote control at the screen or at the front or back of the projector.
• Move the remote control so it is more directly in front of or behind the projector and not
as far to the side.
•Press enter, go to Help > Diagnostics, and run the remote control test.
• Replace the battery in the remote control.
Troubleshooting suggestions 63
Testing the projector
Running the projector diagnostics
The on-screen menu contains diagnostic tests you can use to verify the proper operation of the
projector and the remote control.
1. Press enter and go to Help > Diagnostics.
2. Select a test and press enter.
3. Follow the displayed instructions.
Fixing Problems64
7Reference
This chapter lists the specifications, safety information, and regulatory information for the
projector.
Specifications
Because HP continually improves its products, the following specifications are subject to
change. For the latest specifications, visit the HP website at http://www.hp.com.
Projector Specifications
Size 280 × 255 × 102 mm (11.0 × 10.1 × 4.0 in.)
Weight 3.5 kg (7.7 lb)
Resolution vp6310 series: SVGA (800 × 600)
vp6320 series: XGA (1024 × 768)
Technology DLP
Video connectors VGA-in (D-sub) with optional cable for component-video input
VGA-out (D-sub)
S-video (mini-DIN)
Composite video (RCA)
DVI-D (vp6320 series)
Audio connectors Stereo-in (2 RCA and mini-phone)
Other connectors USB 1.1 type B
RS-232 control (vp6320 series)
12-Vdc trigger output (vp6320 series)
Video compatibility NTSC 3.58 MHz and 4.43 MHz
PAL B, D, G, H, I, M, N
SECAM B, D, G, K, K1, L
HDTV (480i/p, 575i/p, 720p, 1080i)
DVI with HDCP (vp6320 series)
PC video up to SXGA
Specifications 65
Projector Specifications (continued)
IR receivers Front and back of projector
Lamp 210-watt lamp
4000-hour average lamp life (to half of original brightness)
Lamp saver mode reduces lamp power to 168 watts
Replacement lamp: L1695A
Optics 1 to 10 m (3 to 33 ft) focus range
1.16:1 optical zoom
vp6310 series:
1.7 to 2.0 throw ratio (distance/width)
128% offset (relative to half-height)
vp6320 series:
1.8 to 2.1 throw ratio (distance/width)
125% offset (relative to half-height)
Light engine vp6310 series: 0.55-in. 12° DDR DMD
vp6320 series: 0.7-in. 12° DDR DMD
Audio Monaural speaker, 6-watt peak output
Noise level less than 36 dBA
Vertical tilt 0° to 9°
Vertical keystone
correction
Remote control USB mouse
Mounting options Ceiling and tabletop, front and rear projection
Security Kensington lock compatible
Power 100 to 240 V at 50 to 60 Hz
Reference66
±20%
Unlock sequence protects against unauthorized use
Projector Specifications (continued)
Environment Operating:
Temperature: 10 to 35 °C (50 to 95 °F)
Humidity: 80% RH max, non-condensing
Altitude: up to 3,000 m (10,000 ft), up to 25 °C (77 °F)
Storage:
Temperature: –20 to 55 °C (–4 to 131 °F)
Humidity: 80% RH max, non-condensing
Altitude: up to 12,000 m (40,000 ft)
Video mode compatibility
Compatibility Resolution Refresh rates (Hz)
Analog
VGA 640 × 350 70, 85
640 × 400 85
640 × 480 60, 66.66, 66.68, 72, 75, 85
720 × 400 70, 85
SVGA 800 × 600 56, 60, 72, 75, 85
832 × 624 74.55
XGA 1024 × 768 60, 70, 75, 85
1152 × 870 75, 75.06
1280 × 960 75
SXGA 1280 × 1024 60, 75
SXGA+ 1400 × 1050 60
Digital (vp6320 series)
VGA 640 × 350 70, 85
640 × 400 85
Specifications 67
Video mode compatibility (continued)
Compatibility Resolution Refresh rates (Hz)
640 × 480 60, 72, 75, 85
720 × 400 70, 85
SVGA 800 × 600 56, 60, 72, 75, 85
XGA 1024 × 768 60, 70, 75
SXGA 1280 × 1024 60, 75
SXGA+ 1400 × 1050 60
Safety information
LED safety
The infrared ports located on the digital projector and remote control are classified as Class 1
LED devices according to International Standard IEC 825-1 (EN60825-1). This device is not
considered harmful, but the following precautions are recommended:
• If the unit requires service, contact an authorized HP service center.
• Do not attempt to make any adjustment to the unit.
• Avoid direct eye exposure to the infrared LED beam. Be aware that the beam is invisible
light and cannot be seen.
• Do not attempt to view the infrared LED beam with any type of optical device.
Mercury safety
WARNING! This digital projector lamp contains a small amount of mercury. If the lamp
breaks, adequately ventilate the area where the breakage occurred. Disposal of the lamp
might be regulated due to environmental considerations. For disposal or recycling information,
contact your local authorities or the Electronic Industries Alliance at http://www.eiae.org.
Reference68
Regulatory information
This section presents information that shows how your digital projector complies with
regulations in certain regions. Any modifications to your digital projector not expressly
approved by HP could void the authority to operate the digital projector in these regions.
U.S.A.
This digital projector has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This digital projector generates, uses, and can radiate radio frequency energy. If not installed
and used in accordance with the instructions, it can cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this digital projector does cause harmful interference to radio or television
reception (which can be determined by unplugging the unit), try the following:
• Reorienting or relocating the receiving antenna.
• Relocating the digital projector with respect to the receiver.
• Connecting the digital projector’s power cord to another power outlet.
Connections to peripheral devices
To maintain compliance with FCC Rules and Regulations, use properly shielded cables with
this device.
For more information, consult your dealer, an experienced radio/television technician, or,
prepared by the Federal Communications Commission, How to Identify and Resolve Radio-TV
Interference Problems. This booklet is available from the U.S. Government Printing Office,
Washington, DC 20402, Stock Number 004-000-00345-4. At the first printing of this manual,
the telephone number was 202-512-1800.
Canada
This Class B digital apparatus complies with Canadian ICES-003.
Regulatory information 69
Japan
Korea
International
For regulatory identification purposes, your product is assigned a regulatory model number.
The regulatory model number for your product is listed in the declaration of conformity. This
regulatory number is different from the marketing name and product number.
Regulatory model number: CRVSB-05CE
Reference70
Declaration of conformity
Manufacturer's name: Hewlett Packard Company
Manufacturer's address: Hewlett Packard Company
Declares, that the product(s):
Product name: Digital Projector
Model numbers: vp6310/vp6320 series
Regulatory model: CRVSB-05CE
Conforms to the following product specifications:
Safety:
IEC 60950:1999/ EN 60950:2000
IEC 60825-1:1993 +A1 / EN 60825-1:1994 +A11 Class 1 LED
GB4943-1995
EMC:
EN 55022 +A1 Class B: 1998 [1]
CISPR 24:1997 / EN 55024 +A1:2001
IEC 61000-3-2:1995 / EN 61000-3-2:2000
IEC 61000-3-3:1994 / EN 61000-3-3:1995+A1:2001
GB9254-1998
FCC Title 47 CFR, Part 15 Class B/ANSI C63.4:1992
AS/NZS 3548:1995 Rules and Regulations of Class B
VCCI
Supplementary information:
The product herewith complies with the requirements of following Directives and carries the CE marking accordingly:
–Low Voltage Directive: 73/23/EEC
–EMC Directive: 89/336/EEC
[1] The product was tested in a typical configuration with Hewlett Packard Personal Computer peripherals.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Corvallis, Oregon, January 15, 2005
According to ISO/IEC Guide 22 and EN 45014
Digital Projection & Imaging
1000 NE Circle Blvd.
Corvallis, OR 97330- 4239
Steve Brown, General Manager
European Contact for regulatory topics only: Hewlett Packard GmbH, HQ-TRE, Herrenberger Straße 140, 71034
Boeblingen, Germany. (FAX:+49-7031-143143).
USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA
94304. Phone: (650) 857-1501.
Regulatory information 71
Reference72
Index
A
accessories 15
adjusting
color 36
picture 33
setup 37
shape of picture 34
slanted picture 35
sound 33
aiming projector 28
analog video mode
compatibility 67
audio
adjusting 33
ports 12
troubleshooting 63
B
buttons
location 11
opening menu 38
C
cables
choosing 49
connections 22
ceiling installation 49
choosing cables 49
cleaning 7, 43
component-video
connecting source 23
port 12
composite-video
connecting source 25
port 12
computer screen, showing
31
computer, connecting 20
connecting
component-video source
23
composite-video source
25
computer 20
DVI source 22
external accessory 51
handheld organizer 21
power 19
SCART source 22
S-video source 24
controlling external
accessory 51
D
diagnostics 64
digital video mode
compatibility 67
DVI video
connecting source 22
port 12
E
external accessory 51
F
firmware, updating 47
focus 28
H
handheld organizer,
connecting 21
hiding picture 31
I
image. See picture
installing projector 16, 49
L
lamp, replacing 44
LED safety 68
lens, cleaning 43
lights. See lamp; warning
lights
locking projector 37, 50
M
menu
language 41
listing 38
using 38
mercury safety 68
moving projector 27
O
on-screen menu. See menu
P
PC. See computer
focus 28
hiding and showing 31
quality of 16, 22, 62
troubleshooting 60
zoom 28
picture mode, choosing 33
power
connecting 19
turning off 27
turning on 26
presentations, showing 31
projector, locking 37
Q
quality of picture 16, 22,
62
Index 73
R
rear projection installation
50
regulatory information 69
remote control
buttons 14
installing batteries 46
opening menu 38
troubleshooting 63
using 29
replacing lamp 44
room controller 52
room layout 16
RS-232 52
S
safety information 7, 68
SCART 22
screen
controlling 51
positioning 17
security
locking cable 50
security code 37
selecting video source 31
serial port 52
setting up 16
shape, adjusting 34
showing picture 31
showing presentations 31
slanted picture, adjusting
35
specifications 65
S-video
connecting source 24
port 12
T
table installation 16, 49
triggering external
accessory 51
troubleshooting
audio 63
interruptions 63
picture 60
remote control 63
start-up 60
warning lights 59
turning on and off 26
U
unlocking projector 37
updating firmware 47
upgrading projector 47
USB, connecting 20
using remote control 29
V
VGA
connecting source 20,
21
port 12
video mode compatibility
67
video source, selecting 31
W
warning lights
location 11
meanings 59
troubleshooting 59
Y
YPbPr. See component-
video
Z
zoom 28
Index74
Mercury Safety
WARNING: This digital projector lamp contains a small amount of mercury. If the
lamp breaks, adequately ventilate the area where the breakage occurred, discard any
nearby food and drink, and thoroughly clean the table surface around the projector.
Wash your hands after cleaning the area or handling a broken lamp. Disposal of this
lamp may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the Electronic
Industries Alliance (www.eiae.org). You can find safety information about the lamp
at www.hp.com/hpinfo/globalcitizenship/environment/productdata.
Loading...
