Page 1
QuickSpecs
HP V222 21.5-inch Monitor
Overview
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 1

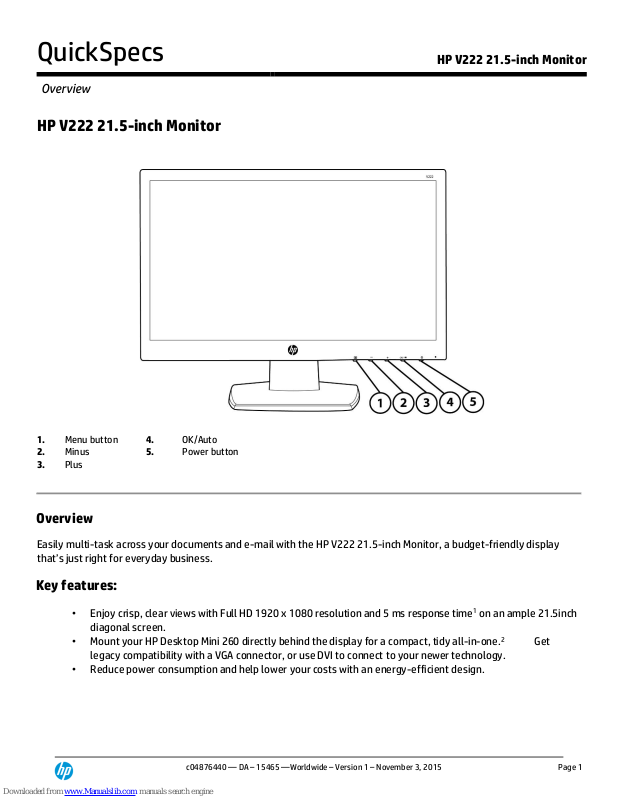

HP V222 21.5-inch Monitor
1. Menu button 4. OK/Auto
2. Minus 5. Power button
3. Plus
Overview
Easily multi-task across your documents and e-mail with the HP V222 21.5-inch Monitor, a budget-friendly display
that’s just right for everyday business.
Key features:
• Enjoy crisp, clear views with Full HD 1920 x 1080 resolution and 5 ms response time
1
on an ample 21.5inch
diagonal screen.
• Mount your HP Desktop Mini 260 directly behind the display for a compact, tidy all-in-one.
2
Get
legacy compatibility with a VGA connector, or use DVI to connect to your newer technology.
• Reduce power consumption and help lower your costs with an energy-efficient design.
Page 2
QuickSpecs
HP V222 21.5-inch Monitor
Technical Specifications
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 2
Models: M1T37AA
Panel
Type
TN (Twisted Nematic) LED Backlit LCD
Viewable Image Area
(diagonal)
54,6 cm (21.5-inch) widescreen; diagonally measured
Panel Active Area
(W×H)
476.64 x 268.11 mm
Resolution
1920 x 1080 @60Hz
Aspect Ratio
16:9
Viewing Angle
Up to 90° horizontal/65° vertical typical
Brightness
200 cd/m2
Contrast Ratio (Typical)
600:1 Static; 5,000,000:1 Dynamic (DCR)
Response Times*
5 ms typical (on/off)
Pixel Pitch
0.248 x 0.248 mm
Pixels Per Inch (PPI)
102.3
Backlight Lamp Life
(to half brightness)
30,000 hours minimum
Color Gamut
Up to 16.7 million colors with the use of FRC technology
Color Gamut (Typical)
72% NTSC
* Performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
User Controls
Buttons or Switches
Menu, Minus (“-”), Plus (“+”), OK, Power
User Programmable Modes
20
Languages
10 (English, Spanish, German, French, Italian, Netherlands,
Portuguese, Japanese, T-Chinese and S-Chinese)
On Screen Display
(OSD) User Controls
Brightness, Contrast, Color, Image Control, OSD control,
Management, Language, Information, Factory Reset
Audio Controls
N/A
Signal Interface/
Performance
Horizontal Frequency
24 - 80 kHz
Vertical Frequency
50 - 60 Hz
Native Resolution
1920 x 1080 @ 60Hz
Page 3
QuickSpecs
HP V222 21.5-inch Monitor
Technical Specifications
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 3
Preset Graphic Modes (noninterlaced)
640 x 480 @ 60Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1280 x 720 @ 60 Hz
1280 x 800 @ 60 Hz
1280 x 1024 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 900 @ 60 Hz
1680 x 1050 @ 60 Hz
1920 x 1080 @ 60 Hz
Maximum Pixel Clock Speed
170 MHz
Anti-Glare
Yes
Video/Other Inputs
Plug and Play
Yes
Input/Output Connectors
(1) VGA
(1) DVI-D(HDCP support)
USB
N/A
Video Cables Included
(1) VGA cable 1,5 m (4.9 ft)
Audio
N/A
Multimedia
Speakers
N/A
Power
Power Supply
Internal
Input Power
100 - 240 VAC 50/60 Hz
Maximum Power
25 W
Typical Power
15 W
Sleep Power
0.5 W
Power Cable Length
1,5 m (4.9 ft)
Mechanical
Dimensions (W × D × H)
Unpacked w/stand
50,92 x 20,7 x 38,98 cm
(20.04 x 8.15 x 15.35 in)
Unpacked w/o stand
(head only)
50,92 x 4,54 x 31,80 cm
(20.05 x 1.78 x 12.52 in)
Packaged
56,7 x 12,6 x 39,6 cm
(22.32 x 4.96 x 15.59 in)
Weight
Head Only
3 kg (6.6 lbs)
Unpacked
3,3 kg (7.28 lbs)
Packaged
4,5 kg (9.92 lbs)
Page 4
QuickSpecs
HP V222 21.5-inch Monitor
Technical Specifications
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 4
Ergonomic Features
Detachable Stand
Height Adjustment
Yes, ships detached
N/A
Tilt Range
-5° to + 22° vertical
Swivel
N/A
Pivot
N/A
Environmental
Temperature - Operating
5° to 35° C (41° to 95° F)
Temperature –
Non-operating
–20° to 60° C (-4° to 140° F)
Humidity - Operating
20% to 80% non-condensing
Humidity - Non-operating
5% to 95%, 38.7° C max wet-bulb
Altitude - Operating
0 to 5,000 m (0 to 16,400 ft)
Altitude – Non-operating
0 to 12,192 m (0 to 40,000 ft)
White LED Backlights
Yes
Arsenic-Free Display Glass
Yes
Low Halogen2
Yes
Mercury-Free Display Backlights
Yes, Mercury-free backlights
Options
HP Quick Release Bracket
— Part number EM870AA4
An easy-to-use, VESA-compliant, LCD monitor mounting
solution that allows you to quickly and securely attach an LCD
monitor to a variety of stands, brackets, arms or wall mounts.
For more information, refer to this product's QuickSpecs
document.
HP USB Graphics Adapter
— Part number NL571AA
Enables connection of up to six simultaneous displays to help
you boost productivity and multi-task across several open
applications. Use one Adapter to bridge between a notebook
or desktop PC and second monitor or use multiple Adapters to
connect several displays to each other.
HP Adjustable
Dual Display Stand
— Part Number AW664AA
Premium space-saving dual screen solution provides access to
more monitor real estate and makes it possible to manage
multiple applications simultaneously. Weight adjustable for
dual monitors from 17-24”. Rotate displays into
portrait/landscape positions.
HP Business PC Security Lock Kit
— Part number PV606AA
Attaches to the rear of the PC with a six-foot steel cable that
can be used to secure a PC or peripherals such as mice,
keyboards, monitors or USB security devices to protect them
against unauthorized removal by physically connecting the
system to an anchor point.
Page 5
QuickSpecs
HP V222 21.5-inch Monitor
Technical Specifications
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 5
What’s in the box?
Monitor and Accessories
HP V222 21.5-inch diagonal monitor
AC power cord 1,5 m (4.9 ft)
VGA cable 1,5 m (4.9 ft)
Documentation
N/A
Software
N/A
User Guide Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch,
Finnish, French, German, Greek, Hungarian, Italian, Japanese,
Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese,
Russian, Slovenian, Spanish, Swedish and Turkish.
Other
Warranty Languages
English, Arabic, S. Chinese, T. Chinese, Czech, Danish, Dutch,
Finnish, French, German, Greek, Hungarian, Italian, Japanese,
Kazakh, Korean, Norwegian, Polish, Brazilian Portuguese,
Russian, Slovenian, Spanish, Swedish and Turkish.
Color
Black
VESA Mounting
Yes
Security Lock-Ready
Yes
Country of Origin
China
Certification and
Compliance
CEL Grade 1, ENERGY STAR® Qualified, EPEAT® Silver3 registered, CE, CB, KC, KCC, NOM, PSB, ICES,
TUV-S, CCC, CEL, CECP, SEPA, EPA, ISC, VCCI, FCC, ETL, TUV-GS, TUV, MEPS, BSMI, EAC,
ISO 9241-307, Microsoft WHQL Certification (Windows 8.1 and Windows 7)
Compatibility
Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.
Service and Warranty
Protected by HP, including a 3 year standard limited warranty. Optional HP Care Pack Services are
extended service contracts that extend your protection beyond the standard limited warranties.5
© Copyright 2015 HP Development Company, L.P.
ENERGY STAR is a registered trademark owned by the U.S. Environmental Protection Agency.
The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Microsoft and Windows are registered
trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.
1. All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher
or lower.
2. HP Desktop Mini 260 sold separately. HP Quick Release required and sold separately. Mounting hardware sold separately. Options sold separately.
3. EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status in your country.
Page 6
QuickSpecs
HP V222 21.5-inch Monitor
Technical Specifications
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 6
4. The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting surfaces vary widely
and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP recommends
that you consult with a qualified engineering, architectural or construction professional to determine the appropriate type and quantity of mounting
fasteners required for your application and to ensure that your mounting solution is properly installed to support applied loads.
5. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase.
Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP Services are governed by the applicable HP terms and conditions of service
provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such
rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
Page 7
QuickSpecs
HP V222 21.5-inch Monitor
Change Log
c04876440 — DA – 15465 —Worldwide – Version 1 – November 3, 2015
Page 7
Change Log
