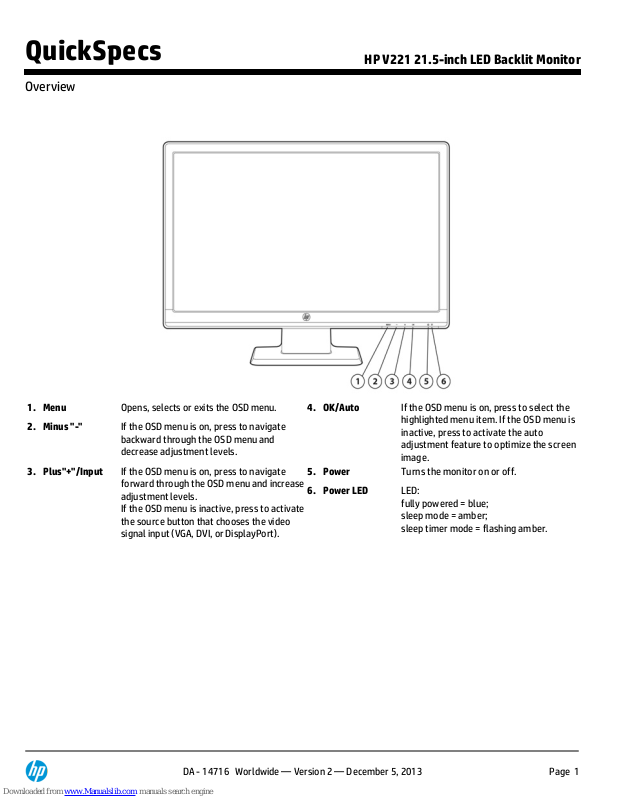

HP V221 Quickspecs
1.
Menu
Opens, selects or exits the OSD menu.
4.
OK/Auto
If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu is
inactive, press to activate the auto
adjustment feature to optimize the screen
image.
2.
Minus "-"
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
3.
Plus"+"/Input
If the OSD menu is on, press to navigate
forward through the OSD menu and increase
adjustment levels.
If the OSD menu is inactive, press to activate
the source button that chooses the video
signal input (VGA, DVI, or DisplayPort).
5.
Power
Turns the monitor on or off.
6.
Power LED
LED:
fully powered = blue;
sleep mode = amber;
sleep timer mode = flashing amber.
QuickSpecs
HP V221 21.5-inch LED Backlit Monitor
Overview
DA - 14716 Worldwide — Version 2 — December 5, 2013
Page 1
Boost Productivity with Dual Monitor Work Solution
(Multi-monitor support depends on your PC capability. Monitors and stands are sold separately.)
Model
: E2T08AA
QuickSpecs
HP V221 21.5-inch LED Backlit Monitor
Overview
DA - 14716 Worldwide — Version 2 — December 5, 2013
Page 2
Panel
Type
TN w/LED backlight
Viewable Image Area
(diagonal)
54,6 cm
(21.5 in) diagonally measured
Active Area (W x H)
47,66 x 26,81 cm
(18.76 x 10.56 in)
Aspect Ratio
16:9
Viewing Angle (typical)*Up to 90° horizontal/50° vertical (10:1 minimum contrast ratio)
Brightness (typical)
*
200 (cd/m2)
Static Contrast Ratio
(typical)
*
600:1
Dynamic Contrast Ratio
(typical)
*
1,000,000:1
Response Time (typical)*5 ms (on/off)
Pixel Pitch
0.248 mm
Backlight Lamp Life
(to half brightness)
30,000 hours minimum
Color Gamut (typical)*
72%
Color Support**
Can display up to 16.7 million colors
*All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
** With the use of FRC technology.
On Screen Display
(OSD)
Controls
Buttons or Switches
Menu, Minus ("-"), Plus ("+"), OK/Auto, Power
Languages
9 (English, French, Brazilian Portuguese, Spanish, S. Chinese, T. Chinese,
Basaha Indonesia, Japanese, Korean)
User Controls
Brightness, Contrast, Color, Image Control, OSD Control, Management,
Language, Information, Factory Reset, Source Control, Exit
Signal Interface/
Performance
Horizontal Frequency
24 to 94 kHz
Vertical Frequency
50 to 76 Hz
Native Resolution
1920 x 1080 @ 60 Hz
Preset VESA Graphic
Modes
(non-interlaced)
1920 x 1080 @ 60 Hz
1680 x 1050 @ 60 Hz
1600 x 900 @ 60 Hz
1440 x 900 @ 60 Hz
1280 x 1024 @ 60 Hz
1280 x 720 @ 60 Hz
1024 x 768 @ 60 Hz
800 x 600 @ 60 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60Hz
Maximum Pixel Clock
Speed
170 MHz
User Programmable
Modes
N/A
Anti-Glare
No
QuickSpecs
HP V221 21.5-inch LED Backlit Monitor
Technical Specifications
DA - 14716 Worldwide — Version 2 — December 5, 2013
Page 3
