HP TSMT506, KQ437AA, KQ436AA-NOOS User Manual

Welcome to the next generation of computers.

The only warranties for Hewlett-Packard products and services are set forth in the express statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

HP assumes no responsibility for the use or reliability of its software on equipment that is not furnished by HP.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of HP.

Hewlett-Packard Company P.O. Box 4010 Cupertino, CA 95015-4010 USA

May be licensed in the United States by one or both of U.S. Patents Nos. 4,930,158 and 4,930,160 until August 28, 2008.

Microsoft and Windows Vista are U.S. registered trademarks of Microsoft Corporation. The Windows logo and Windows Vista are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries/regions.

HP supports lawful use of technology and does not endorse or encourage the use of our products for purposes other than those permitted by copyright law. The information in this document is subject to change without notice.

Finding HP TouchSmart PC Information ........................................................................................... vi

Getting to Know the HP TouchSmart PC ........................................................................1

Features of the HP TouchSmart PC...................................................................................................1

Front and right side of the HP TouchSmart PC ..............................................................................2

Left side of the HP TouchSmart PC ..............................................................................................4

Removing the Connector Cover..................................................................................................5

Back of the HP TouchSmart PC...................................................................................................5

Activity LED indicator lights........................................................................................................7

Connecting the power source .........................................................................................................8

Cable Management.......................................................................................................................8

Adjust the Angle of the Computer Stand.........................................................................................10

Using the Wireless Keyboard or Mouse .........................................................................................10

Synchronizing the wireless keyboard or mouse ..........................................................................11

Turning the HP TouchSmart PC On and Off ....................................................................................12

Turning on the HP TouchSmart PC ............................................................................................12

Turning off the HP TouchSmart PC ............................................................................................13

Changing power settings.........................................................................................................13

Connecting to the Internet.............................................................................................................13

Setting up a wireless home network..........................................................................................14

Setting up a wired home network ............................................................................................. 15

Using Bluetooth Devices ........................................................................................................

Adjusting the Ambient Light ..........................................................................................................16

Adding Hardware and Software ...................................................................................................17

Upgrading your HP TouchSmart PC hardware ...........................................................................17

Updating your HP TouchSmart software ....................................................................................17

Using the CD/DVD Drive .............................................................................................................17

Using the TV Tuner to Watch and Record TV Programs on the HP TouchSmart PC ............................... 18

Connecting the TV signal source to the computer........................................................................18

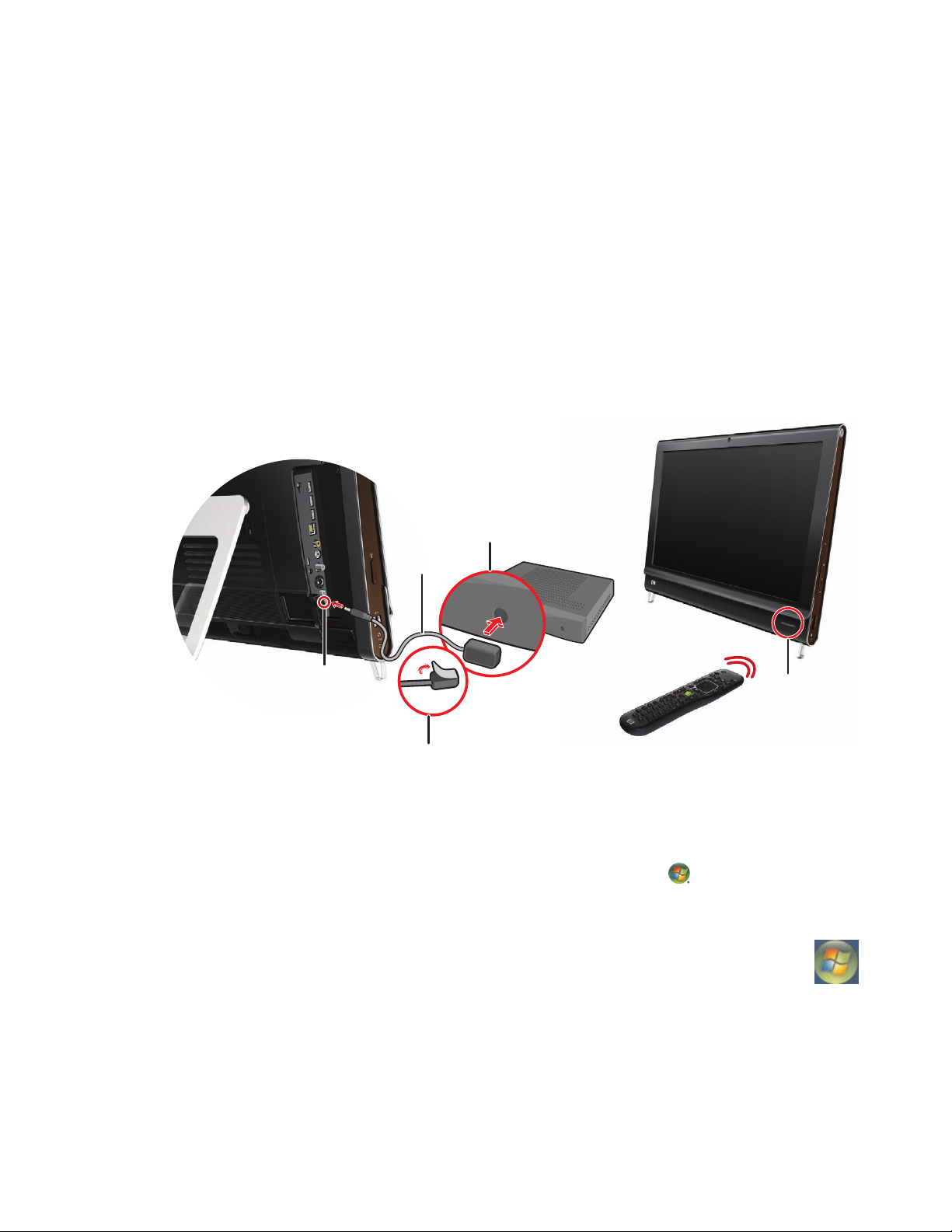

Setting up the HP TouchSmart PC with a set-top box ...................................................................20

Completing the Windows Media Center setup wizard ................................................................20

Using the remote control with Windows Media Center................................................................ 21

.......16

Table of Contents iii

Sound Options............................................................................................................................22

Connecting analog speakers ...................................................................................................22

Connecting and enabling digital speakers or an audio receiver ................................................... 23

Adjusting speaker volume........................................................................................................24

Configuring sound for Windows Media Center..........................................................................25

Using headphones..................................................................................................................25

Using the microphone array ....................................................................................................25

Using a headset .....................................................................................................................25

Connecting MP3 players .........................................................................................................25

Connecting a Printer....................................................................................................................25

Installing a Security Lock ..............................................................................................................26

Cleaning the HP TouchSmart PC Screen.........................................................................................27

Using the Computer with Safety and Comfort..................................................................................28

Recycling Your Old Computer Hardware .......................................................................................28

Using the HP TouchSmart Software.............................................................................29

What is HP TouchSmart software?............................................................................................29

Opening the HP TouchSmart software.......................................................................................29

Navigating in HP TouchSmart ..................................................................................................30

Using the onscreen keyboard...................................................................................................32

Personalizing your HP TouchSmart Software...................................................................................33

Moving tiles around................................................................................................................ 33

Adding a software program shortcut to HP TouchSmart...............................................................33

Adding a Web site link to HP TouchSmart .................................................................................34

Selecting tiles to view or hide...................................................................................................34

Editing or deleting an added tile ..............................................................................................35

Opening HP TouchSmart Faster.....................................................................................................35

HP TouchSmart Photo...................................................................................................................35

Adding photos to your photo library .........................................................................................36

Viewing your photo collection..................................................................................................36

Viewing a photo slideshow......................................................................................................36

Uploading your photos to Snapfish...........................................................................................37

Printing your photos................................................................................................................37

Editing your photos.................................................................................................................38

Creating a CD or DVD of your photos.......................................................................................39

HP TouchSmart Music ..................................................................................................................39

Selecting a music library .........................................................................................................40

Playing your CDs ...................................................................................................................40

Media controls.......................................................................................................................41

Creating a playlist of your favorite songs ..................................................................................42

Playing your playlist ...............................................................................................................42

Deleting a playlist...................................................................................................................42

Deleting songs from your music library......................................................................................43

Creating music CDs................................................................................................................43

iv Getting Started

HP TouchSmart Video ..................................................................................................................44

Adding your videos to the computer .........................................................................................44

Watching your videos.............................................................................................................44

Creating videos with the webcam.............................................................................................45

Uploading your videos to YouTube...........................................................................................45

Capturing, editing, and recording videos ..................................................................................46

Playing your DVDs..................................................................................................................47

Webcam and Microphone ...........................................................................................................47

Capturing webcam video and snapshots...................................................................................48

Having a video chat or making conference calls ........................................................................48

HP TouchSmart Calendar .............................................................................................................49

Scheduling a calendar event and setting a reminder...................................................................49

Viewing calendar events .........................................................................................................50

Deleting a calendar event........................................................................................................50

Synchronizing your HP TouchSmart Calendar with your

Microsoft Windows Vista Calendar ..........................................................................................50

HP TouchSmart Notes .................................................................................................................. 50

Creating a handwritten or typed note .......................................................................................51

Creating a voice note .............................................................................................................52

Deleting text and voice notes ...................................................................................................52

HP TouchSmart Weather ..............................................................................................................53

Displaying the temperature and forecast for a city ...................................................................... 53

HP TouchSmart Clock ..................................................................................................................54

Displaying the time for up to three places ..................................................................................54

HP TouchSmart RSS Reader ..........................................................................................................55

Setting up RSS feeds...............................................................................................................55

Importing a list of RSS feeds ....................................................................................................55

HP TouchSmart Browser ............................................................................................................... 56

Selecting Items on the Windows Desktop and in Other Software.......................................................58

Software Quick Reference Table ...................................................................................................59

Index .........................................................................................................................61

Table of Contents v

Finding HP TouchSmart PC Information

Type of information Where to find

 Set up your HP TouchSmart PC. Setup poster

 Find features of the computer

hardware.

 Connect to the Internet.

 Learn about HP TouchSmart and other

software.

 Connect a television signal.

 Upgrade or replace components of

your computer.

 Watch and record TV programs on the

computer.

 Use the Windows Media Center remote

control (select models only).

 Recover factory settings.

 Find computer warranty information.

HP TouchSmart PC Getting Started guide (this guide)

Upgrading and Servicing Guide

NOTE: If this guide is not included with your printed documentation, tap the

™

Windows Vista start button

tap Help and Support, and then tap the User Guides icon.

Watching and Recording TV guide

Tap th e Windows Vista start button , tap Help and Support, and then tap the User Guides icon.

Limited Warranty, Support, and System Recovery Guide

 Get technical support.

 Learn how to use the Microsoft

Windows Vista

 Troubleshoot the most common

operating system.

computer hardware and software issues.

 Find electronic user guides and

specifications for your computer model.

 Order parts and find additional

troubleshooting help.

vi Getting Started

Help and Support

Tap th e Windows Vista start

button , and then tap Help and Support.

HP Support Web site:

http://www.hp.com/support

Tap th e Windows Vista start button , tap Help and Support, and then tap the Online Help icon.

Getting to Know the HP TouchSmart PC

Features of the HP TouchSmart PC

The HP TouchSmart PC is a fun and engaging touch-enabled high performance computer built into a high-definition experience, along with exciting built-in features like webcam, CD/DVD player and burner, ambient lighting, USB ports, FireWire

The HP TouchSmart PC features an exceptional touch software suite that brings your digital life to your fingertips. With one touch you can listen to your favorite music, edit your digital photos, or watch your favorite home video. See the “Using the HP TouchSmart Software” section on page 29 for more detailed information.

Features and configurations vary by model. Your computer may not exactly match the illustrations and descriptions in this guide.

22" diagonal widescreen display. The slim and stylish computer offers an engaging touch

(IEEE 1394), media card reader, and high quality speakers.

* High definition (HD) content is required to view HD images. Most current DVDs do not provide HD images.

Getting to Know the HP TouchSmart PC 1

Front and right side of the HP TouchSmart PC

Features and configurations vary by model

Item Description

I J

A LCD display optimized

for Touch

B Bluetooth

(select models only)

C Webcam Create videos and snapshots that you can view, send by e-mail, and upload to

The HP TouchSmart PC integrates a state-of-the-art 22-in (56-cm) diagonal widescreen high-definition display with HP BrightView technology.* The HP BrightView technology improves the contrast and clarity of your display, so that colors are brighter and images come to life. In addition, it boasts a high resolution of 1680 x 1050 and a fast response time of 5 ms.**

The display is optimized for an elegant touch experience. Your fingertip is all you need to interact with the HP TouchSmart. The durable glass panel is sturdy and delightfully responsive. Experience the ease of managing your digital life by touch with the HP TouchSmart software.

* High definition (HD) content is required to view HD images. Most current DVDs do not

provide HD images.

**All specifications represent the typical specifications provided by Hewlett-Packard’s

component manufacturers; actual performance may vary either higher or lower.

Use Bluetooth to connect to Bluetooth-enabled devices. The diagram shows the internal location of Bluetooth (not visible externally).

video sharing sites. Use the built-in webcam and microphone array to have video chats with friends and family.*

* Internet access required.

2 Getting Started

Item Description (continued)

D Microphone array Use the built-in digital microphone array to record sound for your webcam

videos, and to use instant messenger or chat software to have video chats online. The microphone is designed to filter out ambient noise in your environment, to provide a cleaner sound. It is designed to record from a distance of up to 2 feet (one-half meter) away from the computer.

E Built-in wireless LAN Use the built-in wireless LAN to connect to the Internet through your existing

wireless network. The diagram shows the internal location of the wireless LAN (top left and right, not visible externally).

The wireless LAN supports IEEE 802.11 b/g/n (pre-n).

F Power/Sleep button Press the Power/Sleep button to turn on your HP TouchSmart PC,

or put it in Sleep mode. To turn off your computer, tap the Windows Vista start button , tap the Arrow button

next to the Lock icon, and then select Shut Down.

G Slot-loading

CD/DVD drive (located on back side panel)

Watch your favorite DVD or listen to your CD collection. Burn CDs and DVDs.*

Read and write DVD-RAM, CD-R/RW, and DVD+/-R/RW.

Read and play CD-ROM, DVD-ROM, CD Audio, DVD+/-R dual layer (DL), DVD-Video, and Video CD.

* HP supports the lawful use of technology and does not endorse or encourage the use of

our products for purposes other than those permitted by copyright law.

H Volume, and mute

Adjust the sound level up or down, or mute.

controls

I HP TouchSmart button Turn your HP TouchSmart PC on and open your HP TouchSmart software. Or, if

the computer is already turned on, press the button to open the HP TouchSmart software for quick access to your music, photos, videos, or the Web. The HP TouchSmart button cannot turn the computer off.

J Memory card reader Use the built-in memory card reader to easily access photos and other files

directly from a memory card.

Supported formats include xD media (xD), Secure Digital (SD), Secure Digital High Capacity (SDHC), MultiMediaCard (MMC), Memory Stick (MS), and Memory Stick Pro (MS-Pro) memory cards.

Your memory card reader also supports adapters for the following memory cards: Mini SD, RS MMC, Micro SD, MS-Duo, and MS Duo Pro.

K FireWire (IEEE 1394) Transfer videos from your digital video camcorder (4-pin connector).

L IR receiver window Infrared (IR) receiver window, located on the lower-right side of the computer.

Works with a remote control and TV tuner (select models only).

M Remote control

(select models only)

Point the remote control at the lower right-side of the computer, where the IR receiver is located, and then navigate to all of your Windows Media Center options, such as watching and recording your favorite TV shows. A remote control is included with select models only.

Refer to the Watching and Recording TV guide. Tap the Windows Vista start button , tap Help and Support, and then tap User Guides.

Getting to Know the HP TouchSmart PC 3

Item Description (continued)

N Wireless keyboard

and mouse

O Internal Speakers Use the built-in, high-quality stereo speakers for a powerful media experience

Sleek wireless keyboard and mouse fit under the HP TouchSmart PC.

when listening to music, or when watching your home videos and DVDs.

Left side of the HP TouchSmart PC

Features and configurations vary by model

Connector Function

A Ambient Light

button

B USB 2.0 Connect USB devices (USB 2.0) such as printers, external hard disk drives, digital

C Audio line in Connect MP3 players or other audio players.

D Headphones Listen to music without disturbing anyone, by connecting your headphones to

The HP TouchSmart Ambient Light casts a cool white glow from the base of the computer.

cameras, and MP3 players.

the port.

4 Getting Started

Removing the Connector Cover

To remove the connector cover on the back of the computer, insert your finger under the gap on the bottom-left side of the cover, and pull gently. Replace the connector cover by aligning the hooks on the right edge of the cover with the slots on the computer, and then pressing it until it snaps into place.

Back of the HP TouchSmart PC

Features and configurations vary by model

A B

C D E

F G

Connector Function

A USB 2.0 Connect USB devices (USB 2.0) such as printers, external hard disk drives, digital

cameras, and MP3 players.

B Gigabit

Ethernet LAN (10/100/1G)

Connect to the Internet through your wired network.

Getting to Know the HP TouchSmart PC 5

Connector Function (continued)

C Digital Audio port

(SPDIF Out)

Connect to your home theater system or your surround sound digital speakers. Supports 4.1 and 5.1 speakers.

D Audio line out Connect external 2.0 and 2.1 powered speakers.

E TV In

(select models only)

F S-Video In

(select models only)

G Stereo Audio In

(select models only)

H IR Emitter (Blaster)

(select models only)

Connect your TV signal source to watch, record, and pause live TV. This is an F-type coaxial (ATSC/NTSC) TV input signal connector.

Capture analog video from a video camera, or connect to a set-top box for TV input.

Connect audio for A/V input from a set-top box, digital video camera, or other video device.

Adhere to your TV set-top box IR receiver area to receive the remote control signal for watching and recording TV programs. This is not required if you do not use a set-top box. A remote control is included with select models only.

I Computer stand Slide stand for stability and best viewing angle. The stand supports an adjustable

tilt angle between 10 and 40 degrees from the vertical.

To assure that the computer is in a stable position on your desktop, pull the computer stand open until you hear it snap into place.

J Security lock slot Insert a security lock (sold separately), which enables you to secure your

computer from theft and unwanted changes.

K Power connector Plug the power adapter into the computer.

L Wireless keyboard

Preinstalled receiver for using a wireless keyboard and mouse.

and mouse receiver

M Cable clip Route your cables through the clip, close the connector cover, and then route the

cables through the notch in the computer stand.

6 Getting Started

Activity LED indicator lights

E F

The following are the activity indicator light-emitting diodes (LEDs) on your HP TouchSmart PC:

LED What it does

A Event Indicates an event reminder notification has been set from a software

application. Setting of the event reminder is available in select software applications only.

B Webcam Indicates webcam activity.

C Power Indicates the power state; blue indicates power on, and amber indicates

Sleep mode.

D Hard disk drive Indicates hard disk drive activity.

E Memory card reader Indicates memory card reader activity. When the LED is flashing, do not

remove your memory card.

When the LED is off, no card is inserted. A solid LED indicates that a card is inserted with no read or write capacity. A flashing LED indicates that there is memory card activity, and that a card has read/write capacity.

F Remote control IR receiver Indicates that your computer is working with your remote control to

navigate windows, record TV shows, and perform other activities in Windows Media Center. A remote control is included with select models only.

G Wireless keyboard and

mouse receiver

H Optical Disc Drive Activity Indicates Optical Disc Drive is in use.

Indicates wireless signals received from the wireless keyboard and mouse. The LED is visible from the back of the computer.

Getting to Know the HP TouchSmart PC 7

Connecting the power source

Plug the power cord into the AC adapter (brick), and the power adapter cord into the back of the computer. Route the power cord through the notch in the computer stand, and then plug the power cord into an AC power source through a surge protector/uninterruptible power supply (UPS).

Cable Management

The HP TouchSmart PC includes a cable-management feature that is located behind the back connector cover. To use the cable routing clip feature:

1 To remove the connector cover on the back of the computer, insert your finger under the gap on the

bottom-left side of the cover, and pull gently.

8 Getting Started

2 Route your cables through the cable routing clip (A), and out of the back of the computer.

3 Replace the connector cover by aligning the hooks on the right edge of the cover with the slots on the

computer, and then pressing it until it snaps into place. Then, route the cables through the notch (B) in the computer stand.

Getting to Know the HP TouchSmart PC 9

Adjust the Angle of the Computer Stand

The HP TouchSmart PC is shipped with the computer stand collapsed against the back of the computer. To assure that the computer is in a stable position on your desktop, pull the computer stand open until it snaps into place. Then, if you want to change the angle of HP TouchSmart PC, hold each side of the computer, and tilt it back to an angle of between 10 and 40 degrees from the vertical.

10° min.

CAUTION: Make sure the angle of the computer is at least 10 degrees from the vertical; otherwise the computer will be unstable and could fall over.

40°

max

Using the Wireless Keyboard or Mouse

Your wireless keyboard and mouse are easy to set up. All you need to do is remove the battery tabs on both the keyboard and the mouse. Also, make sure the Power switch on the bottom of the mouse is in the On position (the keyboard does not have a power switch). Then, turn on the computer. If you have trouble using the keyboard and mouse, manually synchronize them as explained in the next procedure.

10 Getting Started

Synchronizing the wireless keyboard or mouse

The wireless keyboard and mouse are pre-synchronized for your convenience, to work with your HP TouchSmart PC. They should work immediately after pulling the battery tabs, which activate the pre-installed batteries, and turning the mouse switch on (B).

You may need to manually synchronize the wireless keyboard or mouse if they are not functioning.

To synchronize them:

 Make sure the keyboard and mouse are next to the HP TouchSmart PC, within 1 foot (30 cm) and

away from interference from other devices.

 Keyboard: Press the connect button on the bottom of the keyboard (A) for five seconds. The blue

activity LED in the bottom rear of the HP TouchSmart PC will illuminate when the synchronization command has been received and will go off when synchronization is complete.

 Mouse: Press the connect button on the bottom of the mouse (C) for five seconds. The blue activity LED

in the bottom rear of the HP TouchSmart PC will illuminate when the synchronization command has been received and will go off when synchronization is complete.

A B C

If this does not work, remove and then re-insert the wireless keyboard and mouse receiver from the back of the computer and then synchronize the keyboard and mouse again.

Towel

Getting to Know the HP TouchSmart PC 11

Turning the HP TouchSmart PC On and Off

Turning on the HP TouchSmart PC

After you finish setting up your HP TouchSmart PC, press the Power/Sleep button (A) on the top-right side of the computer to turn it on. Complete the initial setup by following the onscreen instructions. Please be patient while the setup process completes, it may take several minutes.

You can also turn on the HP TouchSmart PC or put it into Sleep mode by pressing the Power/Sleep button on the keyboard or the remote control. A remote control is included with select models only.

After you have turned on the computer for the first time, and gone through all the setup wizards, you can use the HP TouchSmart button (B) to turn on the computer and open the HP TouchSmart software. If the computer is already turned on, you can press this button to open the TouchSmart window.

12 Getting Started

Turning off the HP TouchSmart PC

Tap the Windows Vista start button , tap the Arrow button next to the Lock icon, and then select Shut Down.

Changing power settings

You can choose basic power settings that can help conserve energy or enhance computer performance. You can also customize power settings for your computer hardware. For example, you can set your computer to go to sleep after a specified period of inactivity.

What used to be called Standby is now called Sleep in Microsoft Windows Vista. In Sleep mode, your work is saved to memory, and then the computer enters a power-saving state. In Hibernate mode, your work is saved to the hard disk drive, and then the computer enters a power-saving state.

To put the computer into Sleep mode, tap the Windows Vista start button , tap the Arrow button next to the Lock icon, and then select Sleep.

To change power settings:

1 Tap th e Windows Vista start button .

2 Tap Control Panel, and make sure Classic View is selected.

3 Tap Power Options.

4 Select a power plan.

5 Select Change plan settings.

6 Use the drop-down arrows to select your power settings, and then tap Save Changes.

7 You can also select Change advanced power settings, select your options, and then tap OK.

Connecting to the Internet

Your HP TouchSmart PC is designed to support a wireless or wired LAN that connects your computer to other devices, such as printers and other PCs. The network connection to the Internet is usually through a broadband modem (digital subscriber line [DSL] or cable), which requires a separate subscription.

 For a wireless LAN, the HP TouchSmart PC includes a built-in wireless LAN antenna, which you

can use to access your wireless home network.

 For a wired LAN, connect an Ethernet cable (sold separately) to the Ethernet connector on the back

of the computer, and then connect the other end to the network router or broadband modem.

Getting to Know the HP TouchSmart PC 13

Setting up a wireless home network

First-time wireless network installation requires that you:

1 Purchase high-speed Internet service from an Internet service provider (ISP).

2 Purchase a broadband modem (DSL or cable). This may be provided by the ISP.

3 Purchase and install a wireless router (sold separately), if one is required.

NOTE: Broadband modem and router installation procedures vary, depending on the manufacturer.

Follow the manufacturer’s instructions.

4 Connect your computer to the network.

NOTE: A DSL wall connection is shown here. If you have a cable modem, the connection from the

wall to the modem will be with a coaxial cable.

Broadband

modem

Internet

Wall plug

(DSL/cable)

Wireless router

5 Configure the HP TouchSmart PC to connect to the wireless network.

a Turn on your HP TouchSmart PC.

b Connect your HP TouchSmart PC to the wireless network:

 Right-click the Network icon on the taskbar, and then select Connect to a

network. When the window opens, select the network, and then click Connect.

 Right-click the Network icon on the taskbar, and then select Network and Sharing

Center. When the window opens, select Setup a wireless router or access point, and then follow the onscreen instructions.

c Test the wireless network by opening your Web browser and accessing any Web site.

6 Add wireless devices to the network (optional).

14 Getting Started

Setting up a wired home network

First-time wired network installation requires that you:

1 Purchase high-speed Internet service from an Internet service provider (ISP).

2 Purchase a broadband modem (DSL or cable). This may be provided by the ISP.

3 Purchase and install a wired router (sold separately), if one is required.

NOTE: Broadband modem and router installation procedures vary, depending on the manufacturer.

Follow the manufacturer’s instructions.

4 Connect the DSL cable (shown) or coaxial cable (not shown) from the wall to the modem.

5 Connect the modem to the computer Ethernet port with an Ethernet cable. If you want to connect

multiple devices to the network, connect a router or hub (not shown) to the modem with an Ethernet cable, and then connect the computer to the router with an Ethernet cable.

If you have an actual wired network in your home with Ethernet connectors in the wall, connect directly from your computer Ethernet port to the Ethernet wall connector with an Ethernet cable.

The Ethernet port on the HP TouchSmart PC is located on the back of the computer, behind the connector cover. For clean cable management, route the cable through the cable router clip on the back of the PC (shown), then route the cable through the notch in the back stand (not shown), then close the back connector cover.

Internet

Wall plug

Wired router

Broadband

modem

(DSL/cable)

Configurations

vary by model

Getting to Know the HP TouchSmart PC 15
