HP t617k User guide

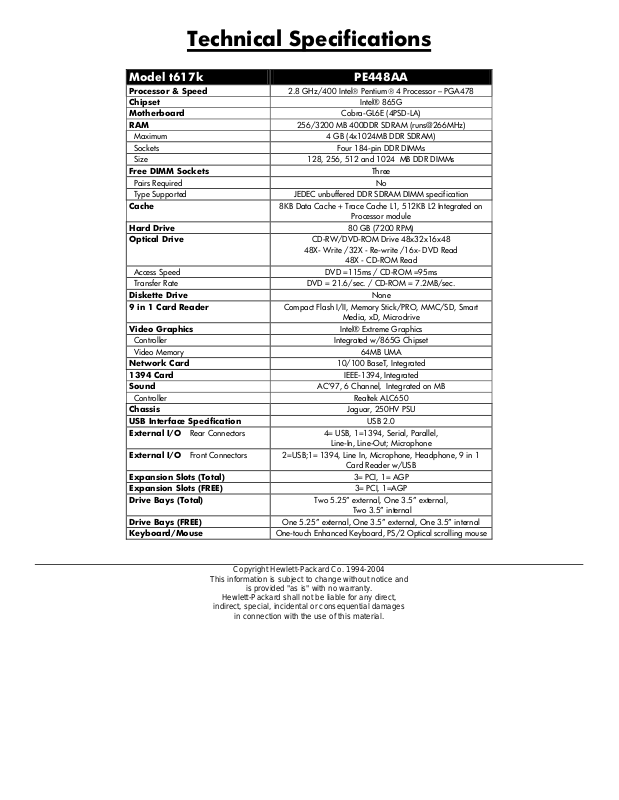

Technical Specifications

Model t617k PE448AA

Processor & Speed 2.8 GHz/400 Intel® Pentium® 4 Processor – PGA478 Chipset Intel® 865G Motherboard Cobra-GL6E (4PSD-LA) RAM 256/3200 MB 400DDR SDRAM (runs@266MHz)

Maximum 4 GB (4x1024MB DDR SDRAM) Sockets Four 184-pin DDR DIMMs Size 128, 256, 512 and 1024 MB DDR DIMMs Free DIMM Sockets Three Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 8KB Data Cache + Trace Cache L1, 512KB L2 Integrated on

Processor module

Hard Drive 80 GB (7200 RPM) Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read Access Speed DVD =115ms / CD-ROM =95ms Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None 9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive Video Graphics Intel® Extreme Graphics Controller Integrated w/865G Chipset Video Memory 64MB UMA

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650 Chassis Jaguar, 250HV PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2=USB;1= 1394, Line In, Microphone, Headphone, 9 in 1

Card Reader w/USB

Expansion Slots (Total) 3= PCI, 1= AGP Expansion Slots (FREE) 3= PCI, 1=AGP Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling mouse

This information is subject to change without notice and

indirect, special, incidental or consequential damages

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

in connection with the use of this material.
