Windows Server 2003
HP StorageWorks EVA
Fast Recovery Solution
administration guide
EVA3000
EVA4000
EVA5000
EVA6000
EVA8000
product version: 2.02.02
second edition (March 2006)
part number: B9552-96013
This guide describes how to use the fast recovery solution with Microsoft Exchange 2003.
© Copyright 2005, 2006 Hewlett-Packard Development Company, L.P. All rights reserved.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR
12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for
Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
Intel, Itanium, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United States and other countries.
Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated.
Java is a US trademark of Sun Microsystems, Inc.
Oracle is a registered US trademark of Oracle Corporation, Redwood City, California.
Linux is a U.S. registered trademark of Linus Torvalds.UNIX is a registered trademark of The Open Group.
Printed in the U.S.
HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
second edition (March 2006)
part number: B9552-96013
2 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
About this guide 7
IMPORTANT: firmware and software dependencies 7
Prerequisite information 8
HP storage web site 8
Helpful web sites 8
HP technical support 9
HP sales and authorized resellers 9
Document conventions and symbols 10
1Overview 11
FRS feature summary 12
High availability using FRS 12
FRS overview 13
Additional FRS capabilities 14
FRS functional description 15
Functional components 15
Exchange 16
FRS 16
Volume Shadow Copy Service (VSS) 17
HP VDS/VSS Hardware Providers 19
HP disk arrays 19
Contents
Contents 3
2Configuration 21
Typical FRS server configuration 22
Required hardware components 23
Required software components 24
Important limitations 25
Important general configuration notes 25
Important performance issues 26
Important Exchange 2003 configuration notes 26
Configuration summary 28
Configuration details 29
Configuring the Command View workstation and software 29
Configure production and recovery servers 30
Configuring the EVA disk array 31
3 Installation 37
Installing HP VSS HWP 38
Installing FRS on recovery and production servers 39
Installing integrity checking components 41
Enabling the FRS license using AutoPass 42
Installing a permanent license before trial expiration 42
Installing a permanent license after trial expiration 42
Permanent license installation 43
Instance count check 45
Recovery server XML files 46
Setting Eseutil consistency checking and throttling 47
Uninstalling FRS 48
4 Using FRS 51
Using FRS 52
Opening FRS 52

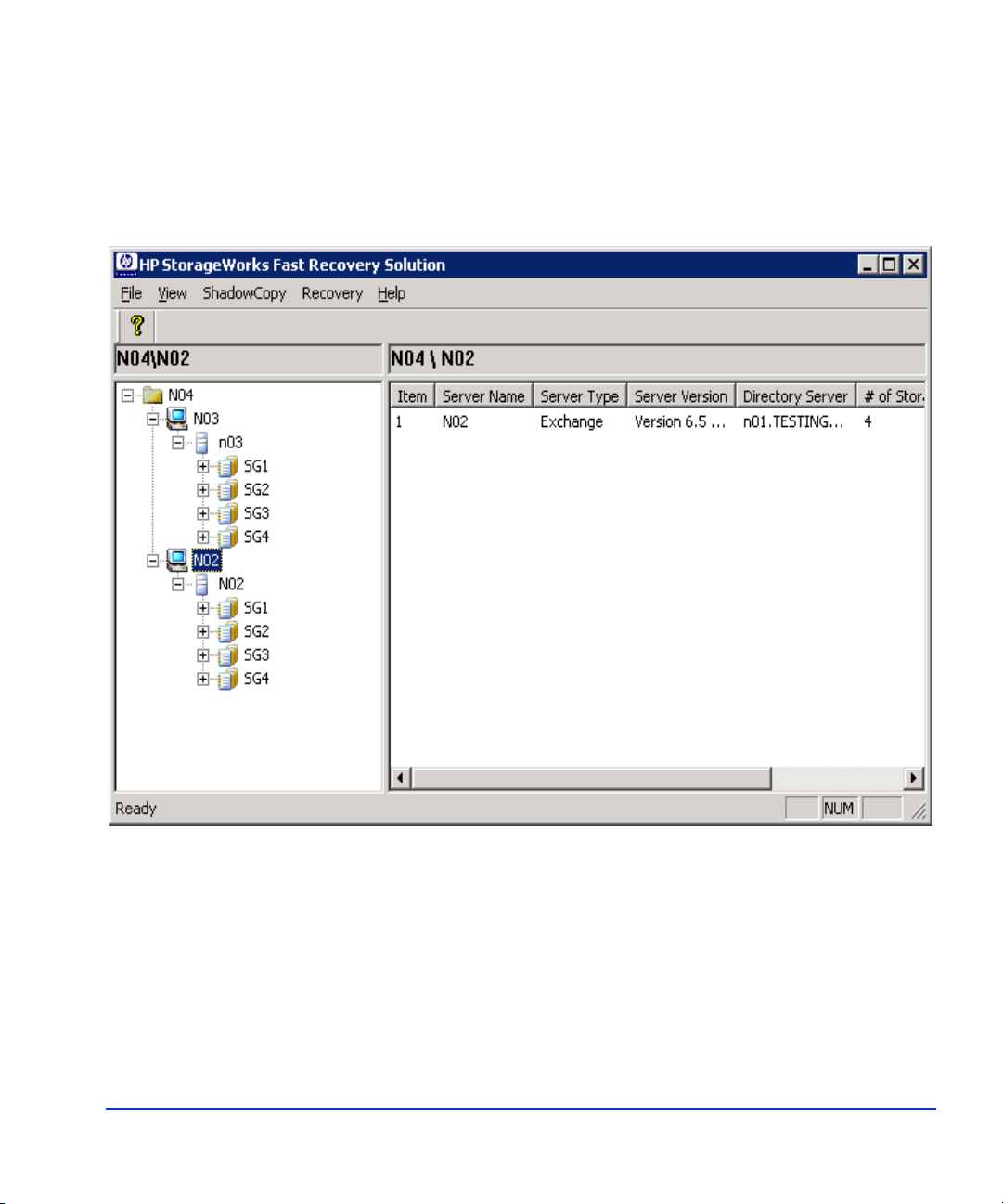

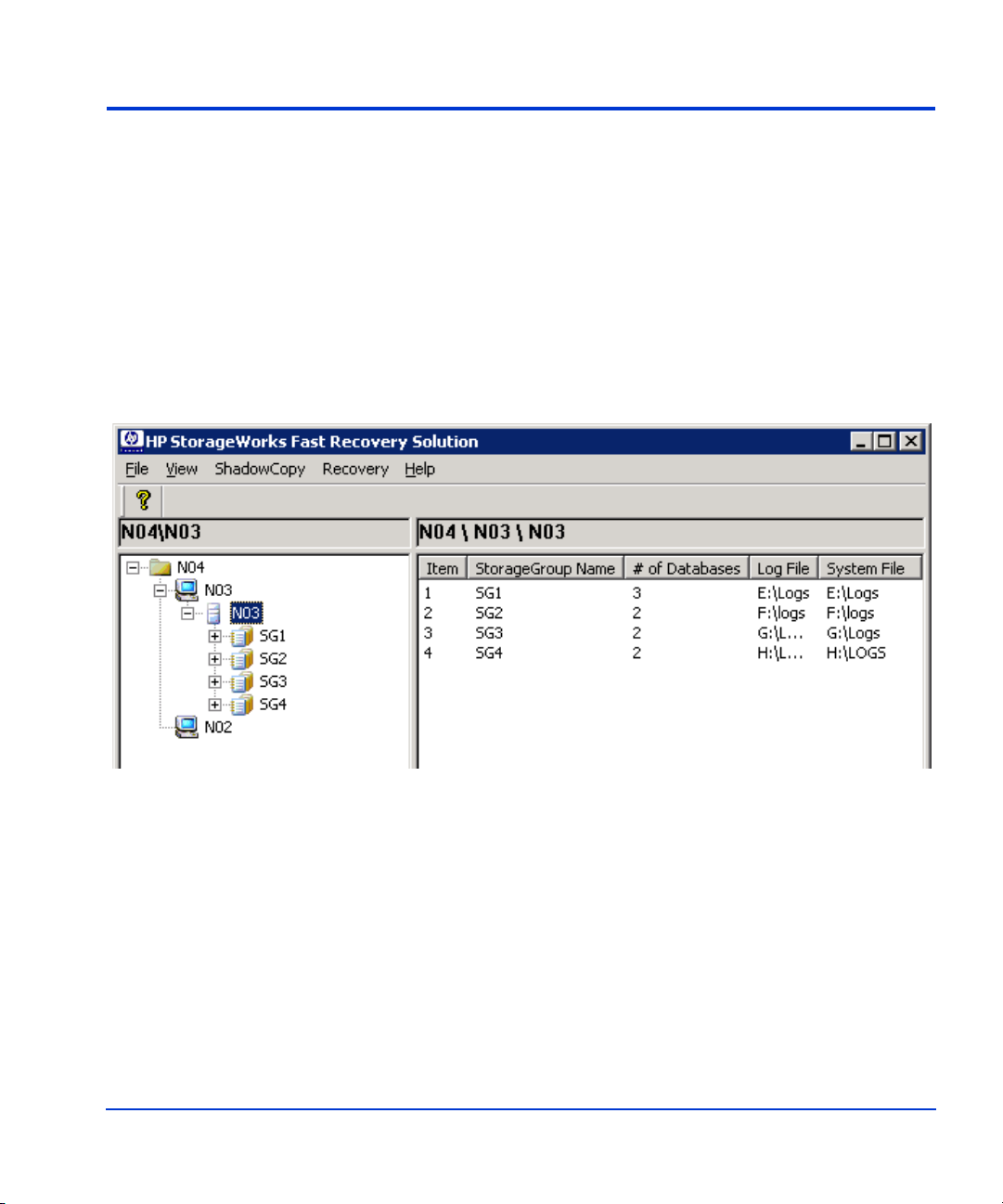

Using the main window 53
Adding server instances 55
Deleting server instances 5 6
Creating shadow copies 57
Troubleshooting copy failures: 59

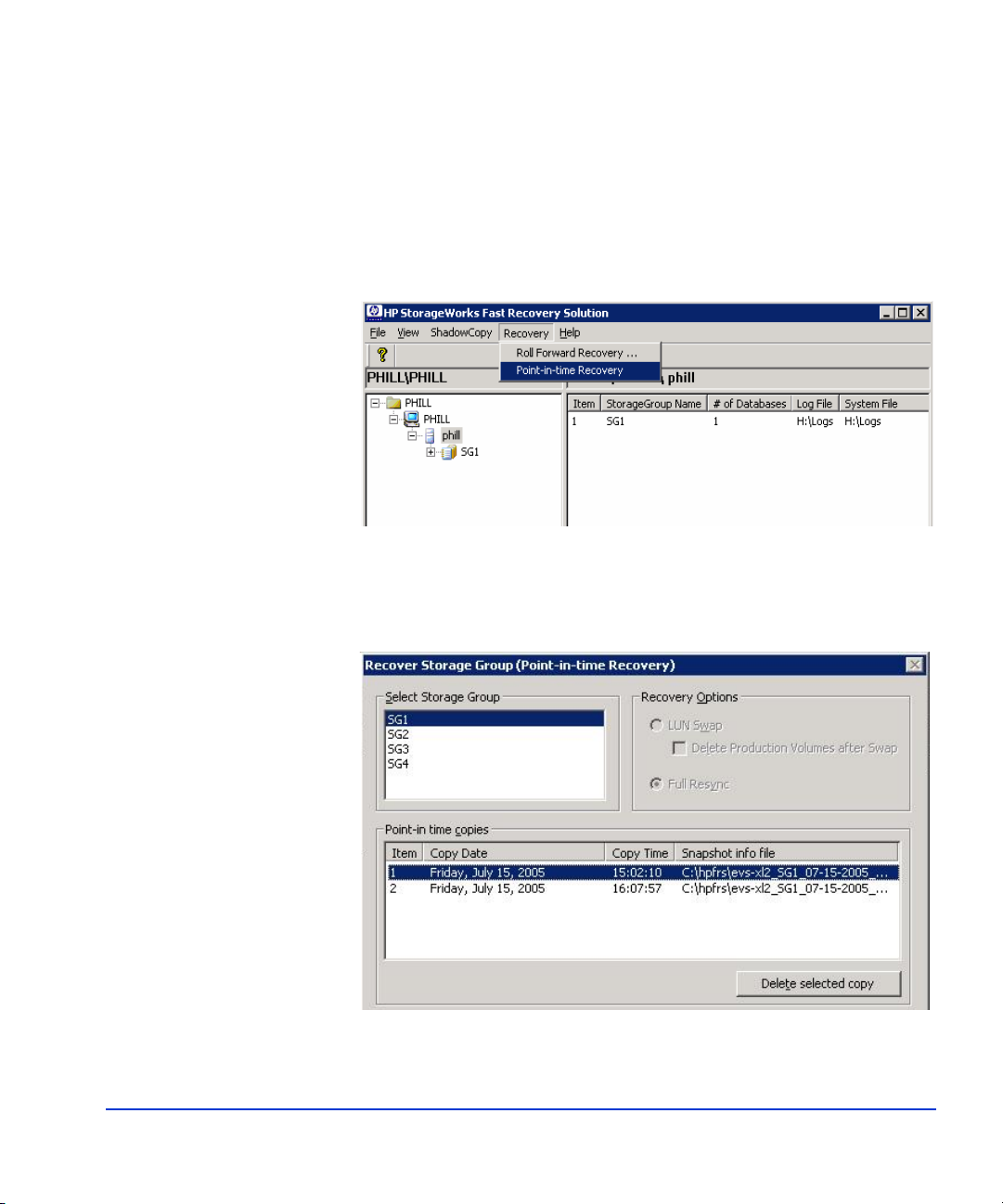

Executing an FRS recovery 61
Deleting old point-in-time copies 65
Recovery troubleshooting 66
4 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide

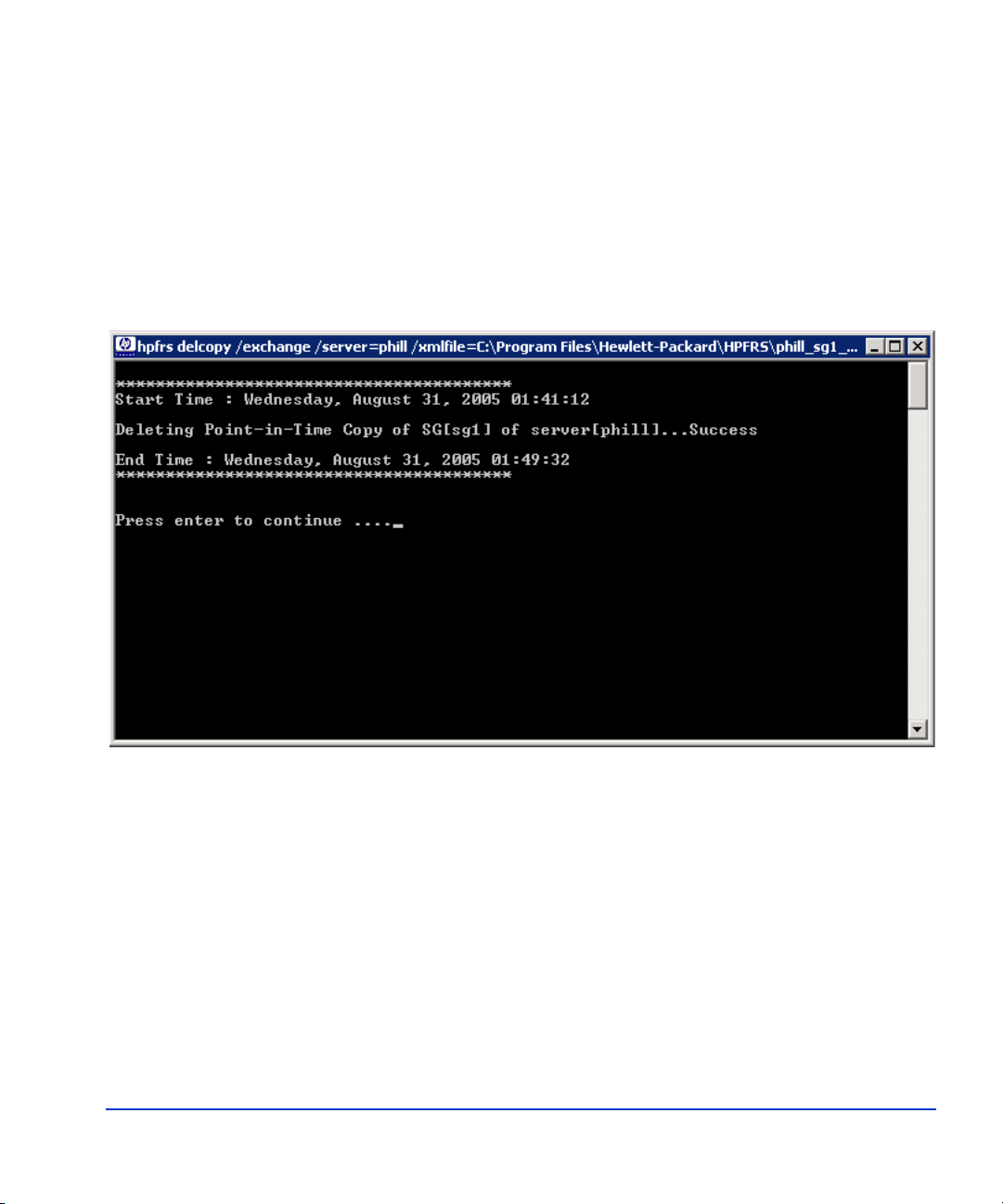

Command line interface 67
Available commands 68
Example commands 71
Command line error codes 73
5Troubleshooting 75
Troubleshooting 76
Checking logs 76
Troubleshooting checks 76
Miscellane ous issues and solutions 77
FRS error messages 79
Maintenance 79
Recovery 80
Terminating processes 81
Glossary 83
Index 87
Contents 5
6 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
About this guide
This guide provides information about configuring and using HP
StorageWorks EVA Fast Recovery Solutions (FRS) in a Microsoft
Windows Server 2003 environment running Exchange 2003. FRS enables
quick recovery of Exchange storage groups.
FRS combines LUN copy creation and database recovery features for use
with HP StorageWorks EVA disk arrays. Using the Microsoft VSS
(Volume Shadow Copy Service), FRS creates and manage s rec overy-ready
copies of the production Exchange 2003 storage groups to be used in the
event of a disaster. FRS allows you to recover storage groups in minutes
rather than the hours typically required for a conventional restore from
backup.
Unless otherwise noted, the term disk array refers to the disk arrays listed
on the front cover of this guide.
Related in formation
For information about the disk arrays, please refer to the owner’s manuals.
IMPORTANT: firmware and software dependencies
This guide describes FRS behavior based on features implemented in the
latest disk array firmware and software versions. FRS may not work if
incompatible software versions are used. Check the Readme file to verify
that you have the correct versions.
About this guide 7
Prerequisite information
The instructions in this guide are intended for system administrators who
have the following skills and knowledge:
• A background in direct access storage device subsystems and their
• Familiarity with EVA and related disk array management software
• An understanding of VSS installation and configuration of the
• Familiarity with the Windows Server 2003 operating system
• Familiarity with Exchange 2003 administration
HP storage web site
For the most current information about HP StorageWorks products, visit:
http://h18006.www1.hp.com/storage/enterprisestorage.html
For information about product availa bili ty, configuration, and connectivi ty,
contact your HP support representative.
basic functions
such as CommandView EVA
recovery volumes within VSS
.
Helpful web sites
For third party product information, see the following web sites:
http://www.hp.com/go/storage
http://www.hp.com/support
8 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003:
HP technical support
In North America, call technical support at 1-800-633-3600, available 24
hours a day, 7 days a week.
Outside North America, call technical support at the location nearest you.
The HP web site lists telephone numbers for worldwide technical support
at:
Collect the following information before calling:
For continuous quality improvement, calls may be recorded or monitored.
HP strongly recommends that customers sign up online using the
Subscriber’s choice web site at
Subscribing to this service provides you with email updates on the latest
product enhancements, newest drivers, and firmware documentation
updates as well as instant access to numerous other product resources.
http://www.hp.com/support
• Technical support registration number (if applicable)
• Product serial numbers
• Product model names and numbers
• Applicable error message s
• Operating system type and revision level
• Detailed questions
. From this web site, select your country.
http://www.hp.com/go/e-updates
.
HP sales and authorized resellers
To reach HP sales or find a local authorized reseller of HP products, call
1-800-282-6672 or visit the HP How To Buy web site:
http://welcome.hp.com/country/us/en/howtobuy.html
You can also find HP sales and resellers at
Contact HP.
About this guide 9
http://www.hp.com
. Click
Document conventions and symbols
Convention Element
Blue text (Figure 1) Cross-reference links
Bold Menu items, button names, key names, tab names, and group box names
Italics Text emphasis and document titles
Blue underlined sans serif
font (www.hp.com
)
Caution Indicates that failure to follow directions could result in damage to
Web site addresses
equipment or data.
Warning
Indicates that failure to follow directions could result in bodily harm or
death.
10 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003:
1
Overview
This chapter presents a technical overview of the HP StorageWorks Fast
Recovery Solution (FRS).
When you have read this chapter, you should have a functional
understanding of FRS that will prepare you to install it and use it.
Overview 11
FRS feature summary
HP StorageWorks FRS provides these features:
• Supports HP StorageWorks EVA disk arrays
• Provides fast recovery of large Microsoft Exchange 2003 storage
groups
• Minimizes downtime from an Exchange corruption
• Independently recove rs Excha nge storage groups
• Supports multiple instances of production Exchange 2003 servers
from a single FRS server (and a single Command View workstation)
• Supports Microsoft Cluster Services
• Includes Command Line Inter face (CLI) fe ature for FRS co py creation
and deletion of point-in-time copies
• Creates and maintains multiple point-in-time recovery LUNs
High availability using FRS
HP provides a total high-availability solution package from high-end
storage to software and support. Fast Recovery Solutions is part of the
high-availability offering, which includes:
• Servers and software
• Disk arrays
• HP StorageWorks Business Copy EVA
• CommandView EVA
• Fast Recovery Solutions for EVA
• Storage consulting services and post-sales total solution support
12 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
FRS overview
FRS is a Windows server tool designed to enable fast recovery when an
Exchange storage group maintained on an HP disk array becomes
damaged.
The FRS life cycle can be summ arized as follows:
• (1) The production server maintains production storage groups or
databases on specified production volumes of the disk array.
• (2) The FRS GUI runs on the recovery se rver. It captures copies of the
Exchange storage groups from the production volumes and stores
them on recovery volumes of the array. FRS creates, maintains, and
manages these “recovery-ready” copies.
• (3) When a data corruption occurs, the administrator uses the FRS
graphical user interface to replace the damaged storage group or
database with the most recent known good recovery-ready copy.
Overview 13
Additional FRS capabilities
FRS can create and maintain copies of storage groups for multiple
production servers. The FRS user interf ace allows Exch ange instance s to be
added or deleted from FRS management at will.
FRS supports Microsoft clustering. Without compromising the cluster or
taking it offline, FRS provides quick database recovery.
Database integrity checking is included in FR S. FRS interacts with the
Microsoft Exchange eseutil integrity checking tool for Exchange to check
database copies and recovered databases, ensuring they are free of logical
and physical corruption.
FRS performs both point-in-time and roll-forward recovery.
14 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
FRS functional description
Functional components
The process of creating and managing recovery copies on the disk array
using FRS involves the following components:
• Exchange
• HP FRS
• Windows VSS Service
• HP VSS Hardware Provider
• HP Disk Array System
Production Server
Management
MS Exchange
Application(s)
Microsoft Volume
Shadow C opy Service
Hardware Provider(s)
HP VSS
Hardware Provider
Management
HP FRS
Application(s)
Disk Array
Recovery Server
Management
HP FRS
Appli cation(s)
Microsoft Volume
Shadow Copy Service
Hardware Provider(s)
HP VSS
Hardw a re P ro vid e r
Overview 15
Exchange
FRS
Exchange runs on the Producton Server and writes data to primary disk
array volumes. FRS protects Exchange by creating and managing shadow
copies of Exchange storage groups.
Software components called “writers” interface with Exchange to
coordinate volume shadow copy creation. Some operating system writers
come with W ind ows, whi le ot her s, s uch as t he Exchange writer, come with
the application software.
Upon request from FRS for a shadow copy, the writer flushes the
application buf fers and hol ds I/O to th e applicat ion. It th en notifies t he VSS
hardware provider that it is ready for a shadow copy, and the VSS HWP
copies the production volume to a recovery volume. When the copy is
complete, VSS releases the application to resume normal operation. This
process ensures c ons istent data even though the application is still running.
FRS consists of two sets of components: one set of production server
components, and a separate se t of re cove ry server components, includin g a
graphical user interface. FRS as a whole is referred to by Microsoft as a
“requestor” application that requests service from VSS.
The FRS GUI runs on the r ecover y ser ver a nd prov ide s use r cont rol o f FRS
on the production server. Y ou ca n use the FRS GUI to make sha dow copies
of the data on the production LUNs, and use the GUI to recover the
complete dataset from a copy on the recovery LUNs.
FRS on the production server interacts with the Windows VSS service and
HP Hardware Provider (HWP). When FRS requests it, this service and
provider combination coordinates with the writ er and applicat ion to crea te a
volume shadow copy of t he pr oduction data on the p rod uct ion array LUNs.
The complete recovery-ready copy is placed on recovery array volumes.
FRS presents the recovery volumes to the recovery server through VSS.
This enables you to use the recovery server to archive the recovery data to
backup tapes at any time. In the event of production data corruption, you
16 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
can use the FRS GUI to restore the production volumes from the most
recent data copy or another point-in-time copy on the recovery volumes.
Volume Shadow Copy Service (VSS)
Microsoft’s VSS manages creation and maintenance of shadow copies of
production data for backup and recovery. This service works under the
control of the FRS interface and the Windows OS file system services.
When requested by FRS, VSS coordinates with the writer and hardware
providers to perform shadow copying of production data to the recovery
volumes. The shadow copies contain static copies of all files, such as
databases, transaction logs, and checkpoint files.
Copy terminology
Understanding how Micros oft VS S terminology correspo nds to st andard I T
industry terms for data copying makes it easier to understand what VSS
does. The following paragraphs explain the terminology.
Microsoft generally refers to a VSS copy as a “volume shadow copy.”
When created using HP FRS and HWP, this type of copy is a static replica
of an original volume’s contents. It is keyed with a GUID to allow
identification of the parts of a shadow copy s et tha t s pan mul t ipl e volumes.
Microsoft also refe rs to a VSS copy as a “plex,” c ommonly known in the I T
industry as a “split mirror.”
When you use an EVA array to make the shadow copy, the array makes
what is known as a “snapclone.” An EVA Snapclone is a complete clone
copy of a specified Virtual Disk (LUN). EVA snapclones are available
almost immediately. This is accomplished by creating a point-in-time copy
and making it immediately available by pointing to data on the original
volume while continuing to copy data to a secondary volume in the
background. When copying is complete, the snapclone is a static
point-in-tim e copy of the original.
The shadow copies made on the EVA array using VSS, FRS, and HWP are
always static, point-in-time copies.
Overview 17
VSS process flow
The following steps show the VSS process flow:
1. A Requestor application (FRS) initiates a Volume Shadow Copy.
2. FRS requests that the Volume Shadow Copy service create a shadow
copy of a selected set of storage groups.
3. VSS tells the W riter and applicati on to prepar e for a shadow cop y. The
Writer reports which LUNs to copy, flushes cache, and holds I/O.
4. VSS tells the disk array through HP HWP to create a shadow copy of
the production storage volume.
5. VSS releases the writer application to resume normal operations.
6. The Requestor (FRS) pres ents the recovery LUNs to t he recovery server
using VSS, waits for normalization, runs integrity checking, verifies
backup integrity, truncates logs upon success, and tells the writer that
the backup was successful.
VSS Process F low
Applic a tio n
(Exchange)
and Writer
Requestor
(FRS)
Virtual Disk Service
18 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
VSS Service
HP HWP
Disk Array
HP VDS/VSS Hardware Providers
Windows Server 2003 sees, partitions, mounts, and manages file systems
on the disk array using its own software providers. HP’s Hardware
Providers extend the array management capabilities of Windows and its
applications to i n cl ude f unc ti ons normally perfor med us ing the disk arr ay’s
proprietary control software. These functions include managing disk array
LUNs and ports and performing volume copy operations.
HP’s Business Copy (BC) application, which resides on the disk array and
is licensed in Command View, works with the VSS and the HP HWP
components to enable the arr ay to make VSS shadow co pies. For functio nal
purposes, you can think of BC as a part of the hardware providers, even
though it is installed separately.
For more information about the HP Hardware Providers, refer to the HP
EVA Hardware Providers Administration Guide.
HP disk arrays
The HP EVA array works with FRS, Microsoft VSS, and HP VSS HWP to
perform snapclone creation, storage, and management. FRS takes
advantage of the many advanced capabilities of the EVA disk array to
provide multiple recovery options.
Overview 19
20 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
2
Configuration
This chapter ex plains h ow to conf igure t he serve rs an d the di sk arra y before
you install FRS.
If you have not read Chapter 1 Overview to understand how FRS works,
HP recommends that you do so before attempting to install and use FRS.
Configuration 21
Typical FRS server configuration
The following figure shows a typical FRS configuration.
Note that any firewall must be open between the FRS servers and the
Command View server. Anything that slows down access to the CV server
will cause VSS timeout failures.
Corporate LAN (TCP/IP)
DCOM/RPC (servers in same domain)
FRS
Production
Server
FC SAN
FC Switch
PRODUCTION SERVER S/W:
Windows 2003 Server
MS Exchange
HP VSS HWP
HP FRS
HP MPIO FF
FC SAN
Optional Firewall
(open between CV and servers)
CV Workstation
BC License
HP MPIO FF
EVA
Disk Array
FC SAN
DCOM/RPC
FRS
Recovery
Server
FC SAN
FC Switch
RECOVERY SERVER S/W:
Windows 2003 Server
HP VSS HWP
HP FRS (GUI included)
HP MPIO FF
eseutil.exe
ese.dll
22 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Required hardware components
• HP StorageWorks Disk Array: EVA disk array with a Windows
workstation running Command View EVA.
• Production Server with Windows Server 2003 Enterprise Edition.
This server runs Exchange and manages storage and retrieval of
application data on the production volumes of the array. Server
specifications must meet minimum Microsoft OS requirements.
• Recovery Server with Windows Server 2003 Enterprise Edition. The
recovery server conta ins the FRS GUI a nd manages the array rec overy
volumes and recovery adminis tratio n. Serve r spec ifica tions must meet
minimum Microsoft OS requirements.
• Fibre Channel Host Bus Adapters (HBAs) in each server for
connecting to the disk array via a Fibre Channel SAN.
• Fiber cables and fabric switches to connect the hosts to the arra y.
• Ethernet Network Interface Cards or available network interface
port in each server for connecting to Ethernet LAN.
Important: The Windows Network Connections control panel
Advanced Settings must be set to list first the network that provides
communication between the FRS servers and the CV server.
Configuration 23
Required software components
IMPORTANT NOTE: The right combination of software versions is
crucial to configuring a working system. Refer to the README file
accompanying FRS for information about compatible software versions.
EVA Disk Array with CV Workstation:
• Command View EVA
• Business Copy EVA license
• HP MPIO Full Featured Failover Software and Manager for EVA
arrays (if multipathing is desired)
Production Server
• Windows Server 2003 Enterprise Edition with SP1 and QFEs
• MS Exchange 2003 with SP1
• HP MPIO Full Featured Failover Software and Manager for EVA
arrays (if multipathing is desired)
• HP VSS HWP
• HP FRS
Recovery Server
• Windows Server 2003 Enterprise Edition with SP1 and QFEs
• Java Runtime Environment 1.4.2 or later from Sun Microsystems
• HP MPIO Full Featured Failover Software and Manager for EVA
arrays (if multipathing is desired)
• HP VSS HWP
• HP FRS
• Exchange eseutil.exe and ese.dll copied to c:\hpfrs directory
Required Microsoft quick fixes (QFEs) for FRS servers
The following list of QFEs (also called “hotfixes”) is subject to change;
check the README file or contact HP Support for the latest list of QFEs
required for FRS. QFEs must be obtained by downloading f rom Mic ros oft .
For QFEs not available on the Microsoft web site, contact Microsoft
support:
24 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
http://support.microsoft.com/contactus/?ws=support
.
• KB903650 Extended maintenance mode fix for clusters
Important limitations
• KB831112 VDS update
• KB887827 VSS update 2
• KB891957 VSS hotfix
• KB892514 Exchange hotfix
http://support.microsoft.com/?kbid=892514
• KB898790 Volume mount point hotfix for clusters
http://support.microsoft.com/?kbid=898790
• FRS supports only basic disk configuration, not dynamic disks.
• Only one FRS command is supported at a given time on an FRS
recovery or production server, regardless of how the command is
initiated (GUI or CLI). To prevent execution of conc urrent c ommands,
HP recommends that you run FRS from only one management console
or command line interface.
• FRS supports only a homogeneous disk array solution. If you want to
run FRS on an XP1024 and an EVA6000 disk array, for example, you
will need two mutually exclusi ve recovery serve rs—one per disk array
with no shared components.
http://support.microsoft.com/kb/831112
http://support.microsoft.com/?kbid=887827
http://support.microsoft.com/?kbid=891957
• FRS supports multi ple arrays of the same mod el, but all ar rays mu st be
managed using the same Command View workstation.
Important general configuration notes
The following notes will help ensure a successful configuration:
• Production and recovery se rvers must be in the same Ethernet doma in
so that the DCOM communication process works between servers.
• Administrator privileges are required for all devices and software. If
you do not have administrator privileges, the software and hardware
will not communicate properly.
Configuration 25
Important performance issues
Take steps to prevent these issues which can affect FRS performance:
• Excessive traffic on the Ethernet LAN.
• Viruses that slow down network traffic.
• A firewall that slows traffic between the servers hosting FRS and the
CV server. Any firewall must be open between these systems.
Important Exchange 2003 configuration notes
FRS works within the limits of Exchange 2003. The following
configuration rules apply.
• FRS supports no more than five databases per storage group and no
more than four storage groups per Exchange instance.
• Use a separate LUN for each storage group.
• All databases within a storage group must reside on one LUN of the
HP disk array. Databases cannot be separated onto different LUNs.
• Use a separate LUN on the HP disk array for the logs and checkpoint
file for each storage group.
• The LUN that a storage group resides on and the LUN that the logs for
that storage group reside on must NOT be the same LUN.
• FRS requires that a copy of the MS Exchange eseutil.exe and ese.dll
utilities be placed in the installation directory (c:\hpfrs) on the
recovery server.
FRS in CA EVA and/or CLX EVA environments
A restore operation of FRS EVA or any snapshot and snapclone of
Business Copy (BC) EVA will fail if the destination volume for the restore
operation is a part of a DR group. A DR group is a group of remotely
mirrored vdisks (copy sets) between two EVA subsystems.
In order to successfully restore a vdisk from a disk-based shadow copy
(SnapClone) you must first check whether the vdisks that will be restored
are part of a DR group and then remove the vdisk from the DR group. If
26 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
you have only one vdisk in the DR group you must delete the DR group.
After the restore from the shado w co py usi ng FRS, you sh oul d rec re ate the
copy set in the DR group or recreate the DR group. This can be done using
Command View EVA, Replication Solution Manager or the scripting tool
SSSU. Refer to the manuals for these products for details.
If there is a Cluster Extension EVA geographically dispersed cluster
solution installed, set the read-only attribute for the recreated copy set or
copy sets in the DR group. Then refresh the Cluster Extension EVA
resource information by clicking the "Connection Test" button in the
resource's property wi ndow in the Clust er Administrat or GUI. This updat es
the DR Group ID info rmatio n which is s tored as part of t he clu ster resour ce
information with the newly created DR Group's ID. Refer to the Cluster
Extension EVA User Guide for details.
Configuration 27
Configuration summary
Before you install FRS a s explain ed in the n ext chapte r , yo u must confi gure
the Exchange production server(s) the FRS recovery server(s), and the
array as fol lows:
• Install and configure production server(s) and recovery server(s) with
Microsoft Windows Server 2003 Enterprise Edition with SP1. Install
any required Microsoft quick fixes (QFEs) also.
• Download JRE 1.4.2 or later from Sun and install on all FRS servers.
• Install HP MPIO Full Featured Failover Software on production and
recovery servers if high availability multipathing is desired.
• Install HBAs and NICs as required, and establish SAN and LAN
connectivity between all servers and the array as shown in the
preceding FRS configuration diagram.
• Install and configure Exchange on the production server(s).
• You may use a firewall between the servers and the corporate LAN,
but the firewall must be open between all FRS servers and the EVA
CV workstation. If VSS times out, the firewall may be the problem.
• On the CV station, ensure the Network Connections control panel
Advanced Settings window lists the FRS network first.
• In Command View, add a license for Business Copy.
• On the Command View station, install HP MPIO Full Featured
Failover Software and Manager if high availability multipath ing is
desired.
• On the array, add hosts and add a snapclone disk group. Depending on
your application, you may also ne ed to add other disk groups for data,
logs, etc.
• On the production server, ensure databases or mailboxes within a
given storage group all reside on the same LUN.
• After FRS installation, copy Exchange eseutil.exe and ese.dll files to
the c:\hpfrs directory on the recovery server.
28 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Configuration details
Configuring the Command View workstation and software
Configure the Command View workstation as explained below:
1. Ensure an ethernet LAN connect s the FRS servers to the CV station. I f
you use a firewall, make sure it is open between the CV and FRS server s.
Important: Ensure this network is listed first in the Network
Connections control panel Advanced Settings window. If you
change settings i n this pa nel, reboo t the CV station so they ta ke ef fect.
2. Ensure an FC SAN connection exists between the CV station and the
disk array.
3. Log into the CV station and launch Command View EVA.
4. Click Agent Options>Licensing options to display the Licensing
Options page.
5. Click V iew pr evious ly enter ed license keys to see if a Business Copy
license is a lready installed. Click Cancel if you need to install the
license.
6. Click Enter new license key and type or paste the license key in the
Add a License dialog box. The key comes by email from the HP License
Key Retrieval website:
http://h18000.www1.hp.com/products/software/softwarekeys/index.html
.
7. Click Add License to s ave the license key. Repeat for the next licens e.
8. Install HP MPIO Full Featured Failover Software and Manager if you
plan to use multipathing.
Configuration 29
Configure production and recovery servers
The production server hosts Exchange and manages the production
volumes on the disk array where production data is stored. The recovery
server hosts the FRS GUI and manages the array recovery volumes where
snapclones are stored. Configure the servers as follows:
Install Windows OS and Microsoft quick fixes
1. If it is not already present, install the Windows Server 2003 OS with
SP1 on the host according to Microsoft’s installation instructions. Be
sure to install any required Microsoft quick fixes (QFEs) also.
Install Java Runtime Environment 1.4.2 or later
2. Download JRE from Sun Microsystems and install it on all FRS server s.
Install HP MPIO software
3. Install the HP MPIO Full Featured Failover Software.
Make SAN and LAN connections
4. Install a NIC if needed, and connect th e server s to an ether net LAN. If
you use a firewall, it must be open bet ween the CV stat ion and the FRS
servers. Set Network control panel Advanced Settings to give this
network priority. Use a ping command to test communication.
5. Install a Fibre Channel host bus adapter (HBA) card into the servers
according to the HBA manufacturer’s instructions.
6. Install the HBA driver and utility software onto the servers according
to the HBA manufacturer’ s instructions. HP test ed drivers are availab le
by searching
7. Connect the server to the disk array, either via FC direct-connect or
through a fabric switch and SAN topology. If you use a switch,
configure it according to the manufacturer’s instructions.
Install Exchange software
8. Install Microsoft Exchange on the production server according to
Microsoft’s instructions. Exchange is not required on the recovery
server; however, after you install FRS, copy the Exchange eseutil.exe
and ese.dll files to the recovery se rver FRS c:\hpfrs directory. If these
files are not copied to c:\hpfrs, integrity checking and copying fails.
30 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
hp.com; follow the README file for installation.
Configuring the EVA disk array
The following confi gurati on ste ps are r equir ed in or der fo r the di sk arr ay to
recognize the FRS production and recovery servers. This procedure also
explains how to create disk groups for the recovery snapclones.
1. Log into Command V iew as an a dministrator (t he default administ rator
user name and password is administrator).
Adding FRS production and recovery hosts
2. Click the + symbol next to the EVA disk arr ay in the left panel t o expand
the contents of the array and begin configuration.
3. Click the Hosts folder in the left panel. The Host Folder Properties
window displays. Click Add Host and fill in t he host characteris tics for
the FRS production server. Click Save Changes to save the new host
information. Repeat for additional production servers (if present) and
for the FRS recovery server.
Configuration 31
Adding disk groups
Add a snapclone disk group using the steps below. Exchange also requires
separate disk groups for data and logs.
4. Click the Disk Groups folder in the left panel. The Disk Groups
Properties window displays.
5. Select the + next to the Disk Groups folder to expand Disk Groups.
32 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
6. Click Create disk group to begin creating a new disk group.
7. Enter a name for the new disk group, and click Advanced options.
Configuration 33
8. Select a disk type, enter the numbe r of disks to use for th is disk group,
and click Next step.
9. Select a drive failure protection level, and click Next step.
34 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
10. Accept the occupancy alarm level and select Finish.
11. A message indicates the disk group was added, and the new group
appears in the left panel. Click OK.
12. Repeat the previou s steps as required to add the data and log disk groups.
Configuration 35
36 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
3
Installation
This chapter covers installing, uninstalling, and licensing FRS. You must
use Administrator privileges for all hardware and software to perform
these tasks.
Before you install FRS, you must complete the server and array
configuration tasks presented in Chapter 2. If you have not yet done so,
go to Chapter 2 and complete t hose tasks now. Then return to this chapter
and follow the installation instructions.
Installation 37
Installing HP VSS HWP
Install HP’s VSS Hardware Provider on each production and recovery
server according to the HP StorageWorks HWP Administration Guide.
38 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Installing FRS on recovery and production servers
FRS is required on all servers participating in F RS. This includes the
recovery server and all production servers. For example, if one FRS
recovery server will hos t two Excha nge 20 03 serve rs, you mu st instal l FRS
on all three servers.
The installation steps for each production or recovery server are nearly
identical, except for the Custom Setup window:
1. Download FRS from the hp.com web site or open the FRS CD and
launch the ISScript8.Msi file. This will ensure that a script engine is
available for the installation process.
2. Click Next and read the license agreement.
3. Click “I accept” and click Next.
4. Click Install to install ISScript on the server.
5. When ISScript installation completes, click Finish.
Installation 39
6. Launch the HP StorageWorks Fast Recovery Solution.msi file. The
installation wizard opens.
7. Click Next. The Custom Setup window opens.
8. Choose Change... to select a directory where the program will be
installed, or use the default location shown under Install to:.
9. Select the type of server software you want to install:
To install on a PRODUCTION server: Click the Production
Server drop down menu, and select “This feature will be installed on
local hard drive”. Then click the Recovery Server drop down menu
and select “This feature will not be available.” The recovery server
icon is marked with an “X”, which means it is NOT being installed.
To install on a RECOVERY server: Click the Recovery Server
drop down menu, and select “This feature will be installed on local
hard drive”. Then click th e Pr oduct i on Server drop down menu and
select “This feature will not be available.” The production server
icon is marked with an “X”, which means it is NOT being installed.
40 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
10. Click Next.
11. Click Install. Installation begins.
12. When inst allation complete s, click Finish.
13. Repeat the inst allation on all additiona l servers participati ng in FRS. Be
sure to select the correct server icon each time and to deselect the
unwanted ic on so that it is marked with an “X”.
Installing integrity checking components
For Exchange integrity checking to work, you must copy the Exchange
eseutil.exe and ese.dll files to t he c:\hpfrs di rect ory on th e re covery serv er.
These files are located in the Exchange directory: c:\program
files\exchsrvr\bin. If these files are not present in th e FRS directo ry on the
recovery server, copying will fail.
Installation 41
Enabling the FRS license using AutoPass
FRS offers a free trial license pe riod of 60 days. Wh en the trial period is
over, you must install a permanent license using AutoPass within the FRS
GUI in order to continue using FRS. The procedure for starting the
permanent licensing process is different depending on whether your trial
license has already expired or not. Use one of the two procedures below to
install the permanent license.
Installing a permanent license before trial expiration
If you are installing a permanent license before the trial license expires, a
command line application called ImportLicense.exe allows you to install
the license:
1. Locate and double click the ImportLicense.exe executable file to run
it. The path to this file is Start>Programs>Hewlett-Packard>HP
Stor ageW orks Fast Recovery Sol ution>Import Permanent License .
The AutoPass: Import Passwords screen displays.
2. Follow the procedure for “Permanent license installation” on page 43.
Installing a permanent license after trial expiration
When you start the FRS GUI, a window notifies you how many days
remain before your trial version of the software expires.
If your AutoPass trial version license has expired, this message appears:
1. Click Yes to install the license (or click No to exit FRS).
2. Follow the procedure for “Permanent license installation” on page 43.
42 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Permanent license installation
Important: If you have multiple FRS instances, be ready to import all
license passwords for all instances in one session. If you quit AutoPass
while some licenses are still without passwor ds, all licenses will fail, and
AutoPass will have been o ver written a nd d isabled b y th e part ial l icens e fil e.
Use the following procedure to install the permanent license(s):
1. When you click Yes on one of the preceding license notification
windows, the AutoPass: Import passwords window opens.
2. Click the Browse button to locate the lic ense password file. The file
path shows in the file path text entry box.
3. Click the View file contents button to display the license passwords
stored in the file.
Installation 43
4. Click the password file in the display to highlight it (as shown above).
5. Click Import to import the selected password fil e.
The message below indicates a successful password import.
44 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Instance count check
If you are running too many instances of FRS for the license you own, you
may receive a wa rni ng mess age. This message appears under the fol lo wi ng
conditions:
6. Click OK. This completes installation of the license password.
Important: If you need to install multiple licenses, you must repeat
this process for each license password. It is not possible to import
multiple passwords at one time.
Also, be sure you have imported all licenses before closing AutoPass.
If some licenses are left without passwords, all licenses will fail.
• The recovery server is connected to a production server running more
than the licensed number of instances.
• A recovery server is connected to multiple production servers and the
total number of Exchang e instances r unning are more than t he licensed
capacity.
• The product is already running the maximum number of instances
when you try to add another instance by clicking Add Exchange
Server Instance from the File menu.
Contact HP if you need to add more instances to your license.
Installation 45
Recovery server XML files
FRS stores the recovery volume information in the form of XML files. By
default these files are created in the install directory. It is not necessary to
change the location of the XML file s, but shou ld you wish t o do so, you ca n
place these files in a different directory.
Important: If you change the location of the XML files after snapclones
have already been created, the FRS GUI will not be able to find them, so
HP recommends changing the location before you create any snapclones.
The following procedure explains how to change the location of this
directory:
1. Start FRS on the recovery server by clicking
Start>Programs>Hewlett-Packard>HP StorageWorks Fast
Recovery Solution>FRS GUI.
2. Click the ShadowCopy menu and click Options.
The Options window containing the default location appears.
3. Click Browse, browse to a directory of your choice, and click OK.
4. Click OK in the Options window to change the default XML file path.
46 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Setting Eseutil consistency checking and throttling
1. With the Options wi ndow still open, click t he drop down arrow to select
when Eseutil.exe performs consistency checks:
Disabled: Eseutil does not perform a consistency check
During Normalization: Eseutil performs the consistency check while
the disk array normalizes the data copy. This option provides the
fastest copy completion time.
After Normalization: Eseutil performs the consistency check after
the disk array finishes normalizing the data copy.
2. In the Options window, click and move the Throttling: Max/Min
slider to set the n umber of I/ O operat ions allowed in IOPS b efo re eac h
one second pause. The default setting is 100,000. The range is 1
(minimum) to 100,000 (maximum).
3. Click OK to confirm your settings and close the window, or click
Cancel to cancel your settings and close the window.
Installation 47
Uninstalling FRS
You can uninstall FRS in one of three ways: by using the FRS CD, by using
the Uninstall FRS shortcut, or by using the Windows Add/Remove
Programs feature in the Control Panel.
With each method, the uninstall script prompts you to remove FRS.
To uninstall FRS with the CD:
Open the FRS CD. Click setup.exe to launch the uninstall script and follow
the prompts.
To uninstall using the Uninstall FRS shortcut:
Click Start>Programs>Hewlett-Packard>HP StorageWorks Fast
Recovery Solution>Uninstall FRS, and follow the prompts.
To uninstall using Add/Remove Programs:
1. Click the Start menu, click Settings, click Control Panels.
2. Open Add/Remove Programs.
3. Find the HP S torageW orks Fast Recovery Solution entry and select it.
48 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
4. Click Remove to launch the uninstall script.
A confirmation window asks “Are you sure...”
5. Click Yes to remove FRS from the server. The removal process takes a
few minutes.
Installation 49
50 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
The following items are explained in this chapter:
• Using FRS
• Creating shadow copies
• Executing an FRS recovery
• Using the command line interface
4
Using FRS
Using FRS 51
Using FRS
Opening FRS
You operate FRS from the graphica l user interface t hat was i n st al led on the
recovery server when you installed FRS. The following pages explain how
to open and use the FRS GUI to add and delete servers, make shadow
copies of production storage groups and restore production storage groups
and databases from shadow copies.
1. On the recovery server, click Windows Start, and select Programs.
2. Click Hewlett-Packard, click HP StorageWorks Fast Recovery
Solution, and click HP FRS GUI.
The FRS main window opens.
52 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Using the main window
The following example shows the FRS main window after two Exchange
2003 server instances have been added. Adding server instances is
explained later in this chapt er.
Using FRS 53
To expand a server instance:
1. Click the plus symbol (+) next to a server instance in the left panel of
the main window. This displays the detail views of the production
storage groups and/or databases associated with that server instance.
2. Click a storage group o r database to di splay the locat ion and path of th e
LUN where it is stored in the right panel of the main window.
54 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Adding server instances
Add Exchange production server instances whose storage groups or
databases you want FRS to be able to copy and restore. The servers must
have FRS installed on them for the GUI to recognize them:
1. On the FRS main window, click the File pulldown menu and click Add
2. Enter the instance name in the “Enter Server Instance” box and cl ick OK.
Exchange Server Instance.
The Add Server Instance window opens.
The FRS main window opens and shows the new server instance.
Using FRS 55
Deleting server instances
If you no longer need to use FRS with a particular server, you can delete it
from the FRS GUI. This does not affect the server itse lf but only remove s it
from the list of servers available in the FRS main window.
1. Click the server instance to highlight it.
2. Click File and click Delete Server Instance. A confirmation window
opens.
3. Click Yes to confirm your choice.
56 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Creating shadow copies
The primary featur e of FRS is creat ing shadow c opies of p roduct ion LUNs.
FRS then manages these copies. If a production database is lost because of
a failure or catas tr ophic e vent, FRS resto res th e produ cti on dat abase f rom a
shadow copy.
To create shadow copies of production LUNs:
1. Click the production server instance, storage group, or database you
want to copy . The example below sho ws Exchange 2003 Ser ver “N03”
selected.
2. Click ShadowCopy in the menu bar , and select Cr eate S hadow Copy .
The Create shadow copy window opens.
Using FRS 57
3. Select the storag e grou p to be c opied a nd cli ck Add. Repeat as needed.
The storage group to be copied appears in the “Selected for shadow
copy” list, and the associated databases appear in the “Files/Volumes
selected for shadow copy” list.
58 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
4. Click Create at the bottom of t he Create shadow copy window . Storage
group copying begins. The copy is pla ced on a volume in the re cove ry
storage group you identified when you installed FRS.
The Activity Log shows the stages of copying and their success or
failure, ending with a completion message.
5. When copying ends, click Close to close the window. FRS now has a
recovery-ready LUN con ta ini ng the shadow copy of the storage group
or database. You can create shadow copies as often as needed.
Troubleshooting copy failures:
If a copy fails, ex amine the c opy act ivit ies s hown in the Activit y Log to see
which activities failed. Failed Exchange copies can often be traced to a
failed storage gr oup int egrit y chec k by the eseutil.exe utility. This typically
indicates physical file or page damage in the production storage group.
Required wait time after backup
Microsoft currently requires that you wait ten minutes after a successful
Exchange backup before you att empt another backup. If a backup fails after
the ten minute wait time, check the state of the Exchange VSS Writer by
typing “Vssadmin list writers” at the command li ne. If the Exchange VSS
Writer state is unstable or crashed, restart the Volume Shadow Copy
Service and the Microsoft Exchange Information Store service (this will
momentarily disable all user mailbox access to that Exchange instance).
Using FRS 59
Deleting snapclones after a backup fails
When a backup fails, you may need to delete failed snapclone volumes as
follows to prevent them from taking up space on the disk array:
1. Immediately after a fa iled backup, open the "Event V iewer" on the FRS
recovery server. Search for information event logs (event id:2049) of
the VSS EVA hardware provider. The eventlog description starts with
[CHPEvaDeviceInterface::PresentEvaLun]:. The description
contains the shadow copy (snapclone) virtual-disk name that was
presented to the local server. The Snapclone virtual-disk name is
prefixed with hpVSS-LUN-, foll owed by the time stamp during which
the snapclone was created. There will be two entries in sequence, one
for the database LUN and the other for the transaction log LUN.
2. From the Command View EVA management station, open the
Command View EVA GUI. Using the GUI, select the Virtual Disk
folder and browse to the folder c ontaining the shad ow copy virtual-dis k
name that was retrieved in th e previous step.
3. Confirm that the se lec te d virtual disk is the shadow copy to be de le ted
by verifying the t ime sta mp and t he comment s sect ion, wh ich conta ins
the source virtual-disk name.
4. From the Command V iew EVA management st ation, delete t he virtu al
disk using the Command View EVA GUI interface.
5. At the FRS recovery server command prompt, type the following
commands to refresh all disk information:
C:\>Diskpart
DISKPART>rescan
DISKPART>exit
60 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Executing an FRS recovery
Use the Recovery feature to restore a production storage group from an
FRS shadow copy.
1. Click Recovery on the main window menu bar, and select
Roll-Forward Recovery or Point-i n-Time Recovery.
Roll Forward Recovery
Use Roll Forward Recovery if the production storage group's
database(s) becomes damag ed but the storage group's transacti on logs
are known to be unaffected. This recovery method replaces the
production storage group's database LUN with the latest known-good
shadow copy but does not re place the production transaction log LUN.
During the recovery, Exchange replays the production logs to fully
restore the prod uct ion dat aba ses up to the last log ged transaction prior
to the point of failure. A Roll Forward Recovery only works with the
most recent Point-in-Time shadow copy.
Point-in-Time Recov ery
Use Point-in-Time recovery if the production storage group's
transaction logs are damaged. This recovery method replaces the
production storage group and production logs with the point-in-time
copy that you select. A Point-in-Time recovery will cause you to lose
Using FRS 61
all data created after the Copy Date and Copy Time of the selected
shadow copy.
After you select a recovery method, the Recover Storage Group
window opens and indica tes t he typ e of r eco very in t he window na me.
The copies available for selection differ in this window depending on
whether you selected Roll Forward or Point-in-Time.
62 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
2. Click on the production s torage group you want t o recover in the Selec t
Storage Group panel.
A list of point-in-time shadow copies display s in the Point-in-Time
copies panel. The contents of the l is t depe nds on whether you sel ec ted
Roll Forwar d or Point-in-Time.
3. Click the point-in-time cop y you want to use to res to re th e production
storage group.
Note: The point-in-time recovery dialog shows only the point-in-time
copies residing in the user specified xml file path. If you want to see
the point-in-time copies in other directories you must change the xml
file path to point to those directories.
4. Select LUN Swap or Full Resync. (These are grayed out for PIT.)
Full Resync replaces th e produc tion d ata on t he pro ductio n LUN with
the most recent co py fr om the re covery LUN by c opying the d ata b ack
to its original location. For servers in a cluster, only Full Resync is
allowed.
LUN Swap reverses roles of the LUNs and turns the recovery LUN
into the production LUN, and the production LUN into a recovery
LUN. This is the fastest option, producing almost immediate results.
After a swap, you may need to create ad ditional recover y LUNs before
you can make new shadow copies. For se rvers in a clu ster, LUN Swap
is not allowed.
Caution When you select LUN Swap, the Delete Production Volumes after swap
checkbox is selected. Selecting this checkbox deletes the production
volumes after the swap, which irreversibly deletes your production data.
Important: Use swap only temporarily if your recovery LUNs reside
on less reliable externa l sto ra ge d isk s beca use these less reliable disks
become the production LUNs. To swap disks back again, us e Busin ess
Copy within Command View to create copies of the current
production LUNs in the original production disk group. Then present
the copied LUNs to the production server, assign drive letters, and
update the database and log path within Exchange.
Delete Selected Copy deletes the selected point-in-time copy without
waiting until after the recovery.
Using FRS 63
5. Click Start Recovery. The recovery process begins.
Progress of the recovery displays in the Activity Log panel.
6. When the log panel s hows the reco very is fi nished, clic k Close to close
the window. Your recovered production LUN should now be ready to
use again.
64 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Deleting old point-in-time copies
Using the procedure below, you can delete old point-in-time copies any
time your pool of Point-In-Time copies grows too large. HP recommends
you delete the oldest copy first, followed by the next oldest, and so on.
1. Click Recovery on the main window menu bar, and select
Point-in-Time Recovery.
2. Click on a production storage gro up in the Select S torage Group panel .
A list of point-in-time shadow copies display s in the Point-in-Time
copies panel.
Using FRS 65
3. Click the point-in-time copy you want to delete, and click Delete
Selected Copy. FRS deletes the copy immediately.
4. Click Close when copy deletion is finished.
Recovery troubleshooting
If a recovery fails, analyze the Activity Log in the FRS GUI for any failed
activities.
Required wait time after restore
Microsoft currently requires that you wait three minutes after a successful
Exchange restore before you attempt another restore. If a restore fails after
the three minute wait time, check the state of the Exchange VSS Writer by
typing “Vssadmin list writers” at the command li ne. If t he Exchange VSS
Writer state is unstable or crashed, restart the Volume Shadow Copy
Service and the Microsoft Exchange Information Store service (this will
momentarily disable all user mailbox access to that Exchange instance).
For additional troubleshooting information, see Chapter 5, Troubeshooting.
66 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Command line interface
The following pages describe the FRS command line interface.
1. Change to the director y (cd) where FRS is installed. The de fault location
is c:\hpfrs.
2. Type this command, and press Enter:
dir
A list of files and subdirectories in the 'hpfrs' directory is presented.
Using FRS 67
Available commands
Type C :\hpfrs>hpfrscli /? to see a listing of available FRS commands.
68 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Command usage
hpfrscli.exe <operation> <operation specific parameters>
Microsoft Exchange Server:
<operation>
addcopy Create a point-in-time copy
delcopy Delete a point-in-time copy
listcopy List all point-in-time copies
/? Displays the current usage screen
Creating a point-in-time co py:
hpfrscli addcopy
/EXCHANGE
/SERVER=<Exchange Server Instance>
/SG=<Storage Group1, Storage Group2,...>
[/AUTOCLOSE={ON|OFF}]
[/OUTPUT=<Filename with path>]
Deleting a point-in-time copy:
hpfrscli delcopy
/EXCHANGE
/SERVER=<Exchange Server Instance>
/XMLFILE=<Filename with path>
[/AUTOCLOSE={ON|OFF}]
[/OUTPUT=<Filename with path>]
Using FRS 69
Listing the point-in-time copies:
hpfrscli listcopy
/EXCHANGE
/SERVER=<Exchange Server Instance>
/SG=<Storage Group1, Storage Group2,...>
[/AUTOCLOSE={ON|OFF}]
[/OUTPUT=<Filename with path>]
/EXCHANGE: Connect to an Exchange Server Instance
/SERVER: Specifies the Server Instance name to be connected to
/SG: Specifies the list of Exchange storage groups separated
by a comma
/XMLFILE: Specifies the XML filename (with path) of the
point-in-tim e copy
/AUTOCLOSE: If set to ON, automatically closes the activity window
on task completion. The default value is OFF. If set to
OFF, press Enter to close the activity window
/OUTPUT: [drive:][path] filename. Specifies the filename to save
the activity log
70 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Example commands
Three examples follow to demonstrate the addcopy, listcopy, and delcopy
commands.
Creating a copy
The following command creates a point-in-time copy of a storage group
(sg1) on a selected Exchange server instance (evs1).
C:\hpfrs>hpfrscli addcopy /exchange /server=evs1 /sg=sg1
The screen displays progress as the copy is made.
Using FRS 71
Listing copies
The following command lists point-in-time copies of a storage group (sg1)
on a selected Exchange instance (evs1).
C:\hpfrs>hpfrscli listcopy /exchange /server=evs1 /sg=sg1
The following example list s the point-i n-time copies of storage group “s g1”
on selected Exchange instance “evs1.”
72 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Deleting a copy
The following command deletes a copy of a selected XML file
(evs1_sg1_07-26-2005_09-20-31.xml):
C:\hpfrs>hpfrscli delcopy /exchange /server=evs1
/xmlfile=C:\hpfrs\evs1_sg1_07-26-2005_09-20-31.xml
The figure shows the deletion in progress.
Command line error codes
FRS CLI issues a return code indicating success or failure of the operation
performed. Upon failure, error codes are returned indicating the type of
Using FRS 73
failure. The followi ng ex ampl e shows a 0 code being retur ned , indicating a
successful operation.
The return codes for the supported operations are:
[0] The operation displayed in the usage screen (create
shadow copy, delete point-in-time copy or listcopy)
succeeded.
[1] The specified operations failed with a win32 error
[1001] Incorrect command line parameter entered by the user
[1002] Missing command line parameter entered by the user
[1003] Create shadow copy operation failed.
[1004] Delete point-in-time copy operation failed.
[1005] Listcopy operation failed.
74 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
5
Troubleshooting
This chapter explains how to maintain Fast Recovery Solution s (FRS) on
an EVA disk array and troubleshoot problems or error messages.
Troubleshooting 75
Troubleshooting
The following pages present typical problems and solutions as well as
suggested testing methods.
Checking logs
Checking event logs is often t he first st ep when trying to ide ntify probl ems.
Error messages in the logs may indicate the problem.
• Check application event logs associated with Exchange, FRS, and HP
• Check Windows system event logs.
Common problems and solutions are also listed below.
Troubleshooting checks
The following checks may help you isolate and resolve issues with FRS or
associated systems and software.
1. Ensure the HP Business Copy license and the HP VSS Hardware
VSS Hardware Provider.
Provider were installed and correctly configured.
A simple way to verify the HP VSS HWP is installed correctly, is to
see if it is running. At the command line, enter:
vssadmin list providers
Look for the HP VSS HWP in the resulting list.
2. In order for the p rod uct ion and recovery server s a nd their application s
to communicate, the Windows DCOM distributed communication
process must be able to communicate among all FRS servers. This
requires that you be lo gged into all FRS-related appli cations and all FRS
servers (including Command View) as an administrator and requires
connectivity without a firewall between servers. You can check for
DCOM errors in the system event logs.
3. Check that the Exchange server is online.
76 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
4. Check Cluster administrator and verify resources are online.
5. Check the Command V iew server f or errors associ ated with the storage
system.
6. Check that the Exchange server can access the data LUNs via My
Computer.
7. Check for mount points found under the FRS directory.
8. If Exchange copies fail because of a failed integrity check, verify that
eseutil.exe and ese.dll are installed on the recovery server. Integrity
checks will not work wit hout t hem, and a fa iled i ntegr ity che ck cause s
a failed copy.
9. The VSS Hardware Provid er may not be able to make the copy because
it has run out of copy space. Return to the disk array and the HP VSS
Hardware Provider Configuration Utility (in Windows
Start/Programs/Hewlett-Packard) to create more shadow copy LUNs
and then re-populate the configuration utility.
10. Bypass FRS and test VSS, HWP, and the array by using the Micr osof t
vshadow utility availabl e in the Micr os oft VSS Software Developer’s
Kit to create snapshots. See the Microsoft documentation for
instructions. If you can creat e snapshots without FRS, FRS may not be
properly installed or configured.
Miscellaneous issues and solutions
FRS does not recognize storage groups
1. Storage groups are not pro perly set up. See “Chapte r 2 Configu ration”
page 31 to correctly set up production and recovery storage groups.
Restore fails in CA EVA and/or CLX EVA environments
A restore operation of FRS EVA or any snapshot and snapclone of
Business Copy (BC) EVA will fail if the destination volume for the restore
operation is a part of a DR group. In order to successfully restore a vdisk
from a disk-based shadow copy (SnapClone) you must first check whether
the vdisks that will be restored are part of a DR group and then remove the
vdisk from the DR group. After the restore from the shadow copy using
FRS, recreate the copy set in the DR group or recreate the DR group. In a
Troubleshooting 77
Cluster Extension EVA geographically dispersed cluster solution, set the
read-only attribute for the recreated copy set(s) in the DR group.
Failure after successful backup or restore
Microsoft currently requires that you wait ten minutes after a successful
Exchange backup and three minutes after a successful restore before you
attempt another backup or r est or e. If a backup or restore fails aft er t he wai t
time, check the state of the Excha nge VSS W rit er by typi ng “Vssadmin list
writers” at the command l ine. I f the Exchange VSS Writer state is unstable
or crashed, restart the Volume Shadow Copy Service and the Microsoft
Exchange Information Store service (this will momentarily disable all user
mailbox access to that Exchange instance).
Backup fails because logs could not be truncated
A backup operation may fail because logs could not be truncated, possibly
because of low disk space on the transaction log LUN or some other error.
If this occurs, the Excha nge VSS Writer reports a log truncation failure. To
resolve the failure if low disk space is the suspected cause, increase log
LUN space. If another error is the cause, try the backup again after a few
minutes, and if it fails again, restart the Volume Shadow Copy Service and
the Microsoft Exchange Information Store service (this will momentarily
disable all user mailbox access to that Exchange instance).
78 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
FRS error messages
The following text explains FRS error messages.
Maintenance
Error:
Dismounting the local/remote drive failed. Please close any open files on
that drive and select retry to try again, select ignore to ignore the error and
continue, or select abort to cancel the operation.
Explanation:
FRS cannot dismount any file system drive if it sees any activity on the
drive. This co uld ca use corruption, so FRS waits until all f i les on that drive
are closed before dismounting the drive. Confirm that all files are closed
and select retry.
If the problem is with the remote drive, confirm that all connectivity to the
remote machine is intact and that there are no network issues preventing
FRS from communicating with the remote server.
Error:
Mounting the remote drive failed. Please select retry to try again, select
ignore to ignore and continue, or select abort to cancel the operation.
Explanation:
If FRS was able to dismount a drive, there should be no problem
re-mounting it unless FRS has lost connection to the production server.
Confirm that all connectio ns are intact and th at the recovery server can ping
the production server. Then retry.
Troubleshooting 79
Recovery
Error:
Extended maintenance mode fix (for clusters) is not installed on node
[production server name].
Explanation:
Before installing HP StorageWorks Fast Recovery Solution (FRS) on a
Microsoft cluster node, Microsoft hot fix KB903650 must be installed on
the cluster node. This hot fix is required on Windows Server 2003 systems
to support the cluster extended maintenance mode.
During recovery, FRS inspects the cluster configuration to check whether
the above hot fix is installed on the production servers. If the hot fix is
installed, the recovery operation proceeds normally. Otherwise the
recovery operation is terminated and the error message above is displayed
in the recovery activity log window and also in the application event log.
Error:
Failure setting the database restore flag. Please select retry to try again.
Explanation:
If FRS cannot reach the exchange server, it cannot manipulate the restore
flag. Check connectivity and network to the production server. Confirm
that all Microsoft services are online.
Error:
This operation cannot be completed, no recovery LUN available.
Explanation:
The recovery button will only be enabled if a split mirror backup has been
done in the past and the pair has been created using FRS. However, if
someone goes into the disk array and manually deletes a pair which was
80 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
being managed by FRS, and then a recover y is att empt ed, th is error will be
given.
Error:
Are you sure you want to continue with a recovery?
Explanation:
Once a recovery is started, it cannot be cancelled until the recovery is
complete. The production database will be replaced by the recovery-ready
database and there is no going back to the original if this was not the
intended action.
Terminating processes
Message:
Operation cannot be cancelled…
Explanation:
Closing either the GUI or the progress window for a split mirror backup or
a recovery causes FRS to leave the database in an unknown state. For this
reason, FRS does not allow windows to be closed while an action is in
progress. If the process is forcibly closed through the use of “task
manager,” the integrity of the database cannot be guaranteed, and FRS and
the disk array may have conflicting information about the databases.
Troubleshooting 81
82 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Glossary
This glossary defines acronyms and terms used in this guide or related to
this product and is not a comprehensive glossary of computer terms.
API Application Programming Interface, an interface that allows a software
application to connect to and work with a third party software application.
BC HP StorageWorks Business Copy EVA. Software that creates and
maintains local copies of data stored on the disk array. The copies can be
used for data duplication, backup, and local disaster recovery.
clone A full copy of a volume, usable by an application.
cluster The concept of linking individual servers physically and programmatically
and coordinating communication between them so they can perform
common tasks.
CV HP StorageWorks CommandView, a browser-based interface that allows
management of an HP disk array.
differential copy A copy of a database consis ting only of the di ffere nces in the data base since
the last full copy.
disk array A RAID. A collection of disk drives within a cabinet or multiple cabinets
and including a controller and sof tware allowing drives t o be ganged together
in various configurations to create virtual drives (LUNs).
EVA HP StorageWorks Enterprise Virtual Array.
Glossary 83
failover Process that automatically shifts the workload from one server in a cluster
to another server in the event of a failure.
FC Fibre Channel, a fiber optic interconnection standard commonly used for
storage area networks.
FRS HP StorageWorks Fast Recovery Solution.
FRS server The server where copies of the production database are staged and
managed. The FRS server runs the FRS GUI. Also known as the recovery
server.
GUI Graphical User Interface.
HBA Host bus adapter . The FC int erface car d that inst alls in a host t o conne ct the
host to a fabric SAN.
HWP Hardware Providers. A collection of software that executes on the host, a bu s
adapter, and the disk array to enable manag ing and/or copying of array LUNs
through the Wi ndows OS and applications.
LDEV Logical device. An LDEV is created when a RAID group is divided into
pieces according to a selected host emulation mode (that is, OPEN-3,
OPEN-8, OPEN-9, etc.). The number of resulting LDEVs depends on the
selected emulation mode. The term LDEV is often used synonymously
with the term volume.
LUN Logical unit number. A LUN results from mapping a SCSI logical unit
number, port ID, and LDEV ID to a RAID group. The size of the LUN is
determined by the emulation mode of the LDEV, and the number of
LDEVs associated with the LUN. For example , a LUN associ ated wi th two
OPEN-3 LDEVs has a size of 4,693 MB.
mirror Synonymous with “clone.”
MSA HP StorageWorks Modular Smart Array.
online backup Backup while Exchange services are still running. There is no interruption
in services for backup.
84 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
production server Exchange 2003 server.
plex A Microsoft term den oting a full co py of data that has been spli t off fr om the
original and is no longer being updated. Synonymous with “split mirror.”
production LUN The volume containing the active applicatio n d at abas e. Known to Business
Copy as a P-VOL.
P-VOL Primary volume. Typically the volume where application data is stored.
RAID Redundant array of independent disks.
recovery LUN The volume containing the data copies used for recovery . Known to Business
Copy as an S-VOL.
recovery server FRS server. The server where copies of the production database are
managed.
SAN fabric The Fibre Channel hardware and cabling that connects servers to storage
devices in a Storage Are a Network (SAN) is referred to as a “fabric.” A fabric
switch provides automatically-switched connectivity between servers and
storage in the fabric.
shadow copy A Microsoft term descri bing a point-in-time copy of an original volume. The
original volume continues to change as the process continues, but the shadow
copy of the volume remains constant.
SMA Storage Management Appliance. A PC built into the EVA Disk Array. The
SMA provides a direct interface into t he disk array . Some EVA arrays do not
have an SMA but use a Command View server instead.
snapclone An HP EVA disk array term denoting a fu ll copy of a volume that becomes
immediately usable by an application. Created much faster than ordinary
clones by taking a snapshot and updating to a full copy in the background.
snapshot A generic term meaning a static point-in-time copy of a volume, typically
used for backup.
SNMP Simple Network Management Protocol.
Glossary 85
split mirror A full copy of data that has been split o ff from the original and is no longer
being updated.
subsystem Synonym for “disk array” or “RAID.”
S-VOL Secondary volume. The volume that receives copies of data.
SVP Service processor. A laptop PC built into the HP XP Disk Array. The SVP
provides a direct interface into t he di sk array, and is used by the HP servi ce
representative only.
volume Generic term for a number of physical disks or portions of disks logically
bound together as a virtual disk containing contiguous logical blocks.
Volume can also be software shorthand for a mapped volume (Windows
drive letter or mount point).
VDS Microsoft Virtual Disk Service, the Windows service that manages storage
through hardware providers.
volume shadow copy See “shadow copy.”
VSC Volume Size Con figur ation, a fe ature of HP dis k arr ays that all ows cre ation
of logical volumes custom-sized according to user requirements.
VSS Microsoft Volume Shadow Copy Service, the Windo ws servic e that cr eates
data copies. Works through HP HWP to make copies of disk array volume s.
86 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Index
A
addcopy command 69, 71
adding server instances 55
architecture
Fast Recovery 22
authorized resellers 9
Autopass license 42
B
Business Copy 24, 26
C
checking, integrity 41
Cluster Exte nsion 26
command line 67
addcopy 69, 71
available commands 68
delcopy 69, 73
error codes 73
examples 71
listcopy 70, 72
Command View 24
Command View management station 23
components 15
hardware 23
software 24
conceptual overview, FRS 13
configuration
detailed steps 29
disk array 31
Exchange 26
important notes 25
servers 30
consistency checking 47
Continuous Access 26
copy terminology 17
creating shadow copies 57
D
deinstallation
FRS 48
delcopy command 69, 73
deleting copies 65
deleting snapclones 60
disk array 23
configuring 31
overview 19
disk arrays
requirements 7
supported 7
documentation
related products 7
Index 87
E
error codes , command line 73
error messages 75, 79
ese.dll 24
eseutil.exe 24, 47
ethernet 23
Exchange configuration 26
F
fabric switch 23
failure
copy 59
recovery 66
features, FRS 12
fibre cables 23
firmware
required 7
FRS
adding servers 55
creating shadow copies 57
expanding server instance 54
installing 39
main window 53
opening 52
overview 16
recovery 61
starting 52
using 52
functional components 15
G
glossary 83
HWP overview 19
I
important limitations 25
Installation 37
installation
FRS 39
integrity checking 41
VSS HWP 38
instance count check 45
integrity checking 41
ISScript8.msi file 39
J
Java Runtime Environment 24
L
license warning 45
licensing F RS 42
limitations 25
listcopy command 70, 72
logs 76
M
main window, FRS 53
maintenance 75
messages, error 79
Microsoft quick fixes 24
MPIO 24
N
network interface cards 23
normalization 47
H
hardware components 23
HBAs 23
hot fixes 24
O
opening FRS 52
operating system 24
options window 46, 47
HWP 24
88 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
overview
components 15
disk array 19
FRS conceptual 13
HWP 19
VSS 17
P
performance issues 26
production server 23
installing FRS 39
T
technical support 9
terminology 17
throttling, I/O 47
troubleshooting 75, 76
copy failures 59
recovery failure 66
U
uninstalling FRS 48
using FRS 52
Q
QFEs (See "quick fixes") 24
quick fixes 24
R
recovery 61
recovery server 23
resellers, authorized 9
S
Secure Path 24
server, adding instances 55
servers 23
configuration 30
shadow copies 57
SMA
configuration for FRS 29
software
components 24
licensing 42
requirements 24
solutions
high availability 12
system administrator
prerequisite knowledge 8
V
VDS/VSS server 23
VSS
overview 17
VSS process flow 17
W
wait time
backup 59
restore 66
warning, license 45
web site
HP storage 8
HP support 9
X
XML file path 46
Index 89
90 HP StorageWorks EVA Fast Recovery Solution for Windows Server 2003: Administration Guide
Loading...
