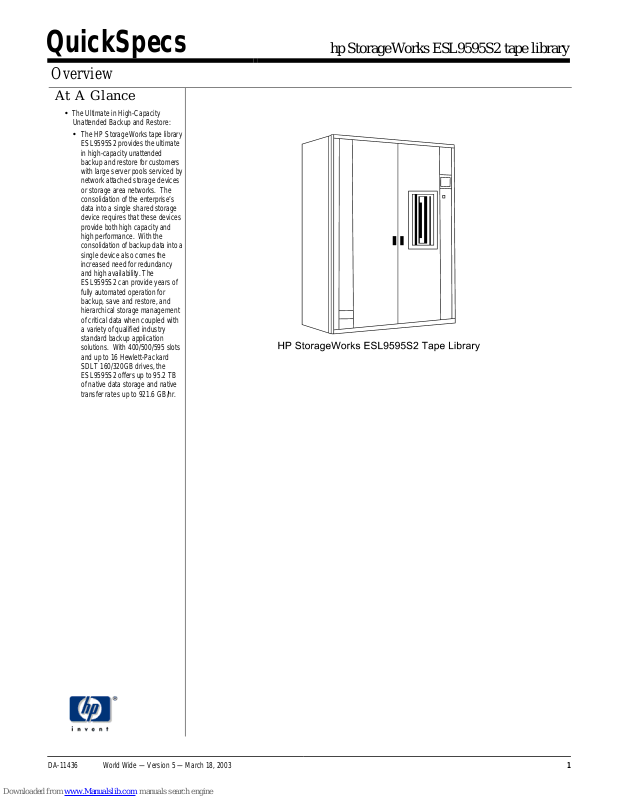

HP StorageWorks ESL9595S2 Specification

QuickSpecs

Overview

hp StorageWorks ESL9595S2 tap e library

At A Glance

• The Ultimate in High-Capacity
Unattended Back u p and Res tore:

• The HP Storag eWorks tape library
ESL9595S2 provides the ult imate
in high-capacity unattended
backup and restore for customers
with large server pools s erviced by
network attached storage devices
or storage area networks. The
consolidati on of the enterprise’s
data into a single shared storage
device requires that these devices
provide both high capacity and
high performance. With the
consolidati on of backup data into a
single devic e also comes th e
increased need for redundancy
and high availability. The
ESL9595S2 can provide years of
fully automated operation for
backup, save and restore, and
hierarchic al storage management
of critical data when coupled with
a variety of qualified industry
standard backu p appl ic at io n
solutions. With 400/500/595 slots
and up to 16 Hewlett-Packard
SDLT 160/320GB dr iv es , the
ESL9595S2 offers up to 95.2 TB
of native data storage and native
transfer rates up to 921.6 GB/hr.

DA-11436 World Wide — Version 5 — March 18, 2003 1

QuickSpecs

Standard Features

HP StorageWorks ESL9595S2
Tape Library Models

The ESL9000 Enterprise Library
Family

High Availability

Hot Pluggable Drives

Proven Reliability

hp StorageWorks ESL9595S2 tap e library

HP StorageWorks ESL9595S2 Tape Library comes with up to 16 SDLT 160/320

The
GB tape drives (number of drives determined by SKU chosen) and has three models
with 400, 500 and 595 slots respectively.

ESL9595S2, 400 slot, 2 SDLT 160/320 Drive, Enterprise Library 293411-B22
ESL9595S2, 400 slot, 16 SDLT 160/320 Drive, Enterprise Library 293411-B28
ESL9595S2, 500 slot, 2 SDLT 160/320 Drive, Enterprise Library 293412-B22
ESL9595S2, 500 slot, 16 SDLT 160/320 Drive, Enterprise Library 293412-B28
ESL9595S2, 595 slot, 2 SDLT 160/320 Drive, Enterprise Library 293413-B22
ESL9595S2, 595 slot, 16 SDLT 160/320 Drive, Enterprise Library 293413-B28
The ESL9595S2 comes as either a 400, 500 or 595 slot library system configured with the associated number of

drives, installation and user’s manual, one-piece SDLT media, a copy of the Hewlett-Packard Storage
Management Solutions CD. Customers are required to also purchase the necessary number of host bus
adapters, SCSI cables, SDLT media, country specific power cords (pair), and applications software licenses in
order to complete the library solution.

Due to the size and weight of the unit, a pre- sales site survey is required. The pre- sales site survey document is
on http://www.compaq.com/support/techpubs/installation_guides/146587-001.html.

NOTE: The ESL9595S2 is three inches wider than the ESL9326.

Installation services can be ordered separately on Hewlett-Packard Services as part of each library order (requires
scheduling with local Hewlett-Packard Services provider).

NOTE: Does not include special site work, which may be required as a result of not meeting minimum site survey

requirements.

The tape libraryESL9595S2 is part of the Hewlett-Packard ESL9000 class enterprise library family. With its high
availability feature set, the ESL9000 family provides for maximum uptime. Based on PCI backplane architecture,
the ESL9000 series libraries also provide a simple upgrade path for future “plug-in” feature upgrades.

As data becomes more and more mission critical and downtime becomes more costly to the enterprise, customers
are requiring high availability consolidated storage solutions which offer hot swappable components and
redundancies of key operating sub-systems (tape drives, controllers, power supplies).
distribution, power supplies, and cooling fans, coupled with hot pluggable drive carriers, hot swap power supplies
and cooling fan modules, the ESL9595S2 offers the best in high availability for continuous operation.

The ESL9595S2 uses hot pluggable drive carriers, allowing drives replacement and additional drives to be added
for capacity expansion without interrupting backup and restore functions. These hot pluggable drive trays allow for
easy scalability of per formance, as well as provide an easy upgrade p ath towards future drive technologies.

NOTE: The ESL9595S2 accepts only library ready drives specifically modified for use in the ESL9000 series

libraries.

Using SDLT 160/320 GB tape drives, and proven library robotics with a rating of 2,000,000 load/unload cycles, the
ESL9595S2 provides the necessary high reliability.

With redundant power

DA-11436 World Wide — Version 5 — March 18, 2003 2

QuickSpecs

Standard Features

hp StorageWorks ESL9595S2 tap e library

SDLT Technology

Manageability

Warranty

Server Support

Digital Linear Tape uses a proven linear recording technology, a highly accurate tape guide system, and a read
after write correction system to provide high-capacity, high reliability data backup and restoration. DLT has fast
become the industry standard secondary storage tape format for departmental and enterprise backup. The new
generation SDLT tape drive, in addition to enhanced capacity and backup performance provides advantages
several new features such as Laser Guided Magnetic Recording (LGMR™) technology, Pivoting Optical Servo
(POS), Magneto-Resistive Cluster Heads (MRC), Partial Response Maximum Likelihood (PRML) channel
technology and Backward Read Compatible with earlier generation of DLT drives, to be able to read media written
in DLT IV format.

The ESL9595S2 configurations are fully supported through Insight Manager, providing information to
administrators for both robotic, tape status changes, and fault status of redundant components (high availability
fault status requires use of Insight Manager v7.0. HP TSMC (tape storage management console) software
provides diagnostics and easy firmware upgrade capabilities. Other data and automation manageability features,
including multi-host direct connectivity, are provided via specific third-party applications software packages.

One year parts exchange, one year on-site next day service
Additional Warranty protection can be purchased for all ESL9595 library products at the following URL:

http://h18006.www1.hp.com/products/storageworks/warranty.html

High-End ProLiant Servers ProLiant DL760

ProLiant ML750

Departmental ProLiant
Servers

AlphaServer Systems AlphaServer GS320, GS160, GS 80

SCSI controller supported
ProLiant servers

ProLiant DL580G2
ProLiant ML570G2

AlphaServer ES45
AlphaServer ES40
AlphaServer DS20E
66 MHz Ultra3 LVD, dual channel controller 129803-B21

Ultra3 LVD, single channel controller 154457-B21

.

AlphaServer systems Ultra2 LVD, single channel 3X-KZPCA-AA
FC Routers Supported Network Storage Router m2402

DA-11436 World Wide — Version 5 — March 18, 2003 3

Network Storage Router e2400 (FC embedded router for the ESL9000 libraries)

QuickSpecs

Standard Features

hp StorageWorks ESL9595S2 tap e library

Application Support

Device/ISV/OS ESL

SDLT160/320 Models

Direct Attach

VERITAS NetBackup 4.5 9 9
VERITAS NetBackup 3.4.3 9 9
Legato NetWorker 6.1.2 9 9
VERITAS Backup Exec 8.6 9 9
CA BrightStor ARCServe 2000 9 9
CA BrightStor ARCServe 7

HP/EBS SAN

HP Omniback 4.x 9 9
HP Data Protector 9 9
VERITAS NetBackup 4.5 9 9 9 9
VERITAS NetBackup 3.4.3 9 9 9 9
Legato NetWorker 6.1.2 9 9 9 9
VERITAS Backup Exec 8.6 9 9
VERITAS Backup Exec 9.0
CA BrightStor ARCServe 2000 9 9
* HP-UX commands fbackup\frecover and backups launched using HP-UX Site Area Manager are not supported

For the latest updated compatibility matrix for ISV backup software supported go to:

http://www.compaq.com/products/storageworks/ebs/EBScompatmatrix.html

Automation and Network
Utilities

Windows

NT 4.0

SP6a

Windows

2000 SP2

Insight Manager v7.0
HP Tape Storage Management Console v2.3
MRU (media robot utility) v1.4

Tru64

UNIX

4.0g

5.1a

HP-UX*

11i,

11.0,

10.2,

NetWare

5.1 SP3

9 9

9 9

9 9

9 9

9

NetWare

6.0

Linux RH

7.1, 7.2
Linux

SuSe 7.0

9

9 9

Sun

Solaris

2.6, 2.7,

2.8

9 9

9 9

AIX 4.3.3

9

9

DA-11436 World Wide — Version 5 — March 18, 2003 4

QuickSpecs

hp StorageWorks ESL9595S2 tap e library

HP Service & Support, CarePaq and Warranty Information

Hewlett-Packard Installation and
CarePaq Information

Software Product Services

Hardware Product Services

Warranty Upgrade Options

Installation Services

Hewlett-Packard Global Services provides a three-year, limited warranty, fully supported by a worldwide
network of resellers and service providers toll-free 7 x 24 hardware technical phone support for the duration of
the warranty. In addition, available service offerings include a full range of CarePaq packaged hardware and
software services:

• Installation and start up

• Extended coverage hours and enhanced response times

• System management and performance services

Additional Warranty protection and/or Hewlett-Packard Installation packages can be purchased for the
ESL9595S2 Library products:

• Stand-alone telephone support

• Rights to a new license

• Media and documentation updates

• Installation services

• On-site Maintenance (includes warranty support)

• Response time upgrades during the warranty period

• Post-warranty coverage

For additional hardware installation and maintenance information please refer to the URLs listed below:

http://www.compaq.com/services/CarePaq/us/hardware/cp_storage.html
http://www.compaq.com/services/CarePaq/us/install/cp_storage.html

• Response - Upgrade on-site response from next business day to same day 4-hours

• Coverage - Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours

• Duration - Select duration of coverage for a minimum period of 1year or multiple years

Additional Warranty protection and/or Hewlett-Packard Installation packages can be purchased for the
ESL9595S2 library products:

24x7, 4-Hour Response On-Site Coverage -1 Year
Hardware Installation
ESL 9000 Enterprise Library 0-8 Drives

ESL 9000 Enterprise Library 9-16 Drives

NOTE: Certain restrictions and exclusions apply. Consult the Hewlett-Packard Customer Support Center for

details.

CarePaq is defined as an upgrade to the product warranty attribute, available for a specific duration and hours
of coverage.

CarePaq is not available for less than the products warranty duration.
CarePaq is available for sale anytime during the warranty period for most products, but the commencement

date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase
may be required.

CarePaq services are prepaid
For additional CarePaq (hardware & software) information, as well as orderable part numbers, please refer to

the URL listed below:

http://www.compaq.com/services/CarePaq/index.html

.

163460-002
163463-002

FM-T6INS-IN

163470-002
163473-002

FM-T7INS-IN

DA-11436 World Wide — Version 5 — March 18, 2003 5

QuickSpecs

hp StorageWorks ESL9595S2 tap e library

HP Service & Support, CarePaq and Warranty Information

CarePaq Information for EMEA

CarePaq PS Information for EMEA

Additional CarePaq services are being developed to cover a broader range of HP StorageWorks hardware
and software. Ask your local CarePaq Business Manager for the latest details.

CarePaq Priority Services brings a totally new approach that removes the complexity from evaluating,
planning and purchasing services on Hewlett-Packard Alpha and Storage platforms.

CarePaq Priority Services are easy to purchase and easy to use and cover all external storage products not
covered under Server based CarePaq services.

Standard Offerings:

• CarePaq Priority Services provide an integrated hardware and software support that ensure consistent
coverage across storage configurations.

• CarePaq Priority Service offers a rapid four-hour response with guaranteed work-through to completion
for three years.

• CarePaq Priority Services have a standard call window of Monday to Friday 08:00 − 17:00 with uplifts
to full 24x7 over three years with four-hour response time and work through to completion.

• CarePaq Priority Services also provide software support, with a two-hour response time for telephone
access to highly trained support personnel.

For more information on how to order CarePaq Priority Services in EMEA please contact you local Certified
Integration

• CarePaq is defined as an upgrade to the product warranty attribute, available for a specific duration

• CarePaq is not available for less than the product’s warranty duration.

• CarePaq is available for sale anytime during the warranty period for most products, but the

• CarePaq services are prepaid.

Customized Services are also available. Contact your local Global Services Department.

Partner or Authorized Reseller.

and hours of coverage.

commencement date will be the same as the Warranty Start Date (delivery date to end user customer).
Proof of purchase may be required.

DA-11436 World Wide — Version 5 — March 18, 2003 6

QuickSpecs

Related Options

hp StorageWorks ESL9595S2 tap e library

ESL9322S2 Library System

Supplied with each Library Unit

Supplied with each library
2 Line Cords (IEC 320 C19), US/Canada

Power Cord (Pair Required)

NOTE: Shipped with all units. Order Local power cords.

ESL9595S2 400 slot 2 SDLT 160/320 Drive Enterprise Library 613326517598 293411-B22
ESL9595S2 400 slot 16 SDLT 160/320 Drive Enterprise Library 613326584873 293411- B28
ESL9595S2 500 slot 2 SDLT 160/320 Drive Enterprise Library 613326517604 293412-B22
ESL9595S2 500 slot 16 SDLT 160/320 Drive Enterprise Library 613326584897 293412-B28
ESL9595S2 595 slot 2 SDLT 160/320 Drive Enterprise Library 613326517635 293413-B22
ESL9595S2 595 slot 16 SDLT 160/320 Drive Enterprise Library 613326584910 293413-B28

Library unit (pre-configured with drives)
Documentation kit
SODL Translation CD
Users Guide
Unpacking and Installation Guide
Pre-Installation Site Survey
Diagnostic CD
Diagnostic Software Guide
Warranty Card
Safety Card
Quality Insert
Software Applications CD
(1) SDLT 160/320 Media Cartridge
Bar Code Labels
Cleaning Labels
(2) Keys
SCSI terminators (1 per drive, less those installed)
Diagnostic cable (for PC attach)

ESL9000 POWER CORDS 2X, US/CANADA/MEX* 743172935649 146210-001
ESL9000 POWER CORDS 2X, SE ASIA/INDIA 743172935625 146210-AR1
ESL9000 POWER CORDS 2X, CENTRAL EUROPE 743172935632 146210-021
ESL9000 POWER CORDS 2X, AUS/CHINA/NZL 743172935670 146210-011
ESL9000 POWER CORDS 2X, SWITZERLAND 743172935656 146210-111
ESL9000 POWER CORDS 2X, UK/HONG KONG 743172935663 146210-031
ESL9000 POWER CORDS 2X, ITALY 743172935687 146210-061
ESL9000 POWER CORDS 2X, DENMARK 743172935694 146210-081
ESL9000 POWER CORDS 2X, JAPAN 743172935700 146210-291

UPC Code Part Number

DA-11436 World Wide — Version 5 — March 18, 2003 7

QuickSpecs

Related Options

hp StorageWorks ESL9595S2 tap e library

Drive, capacity, and memory
upgrade kits

Media and Bar Code Labels

Supplied with each Power Cord

SCSI Cables

*requires LVD extender 221249-B21

ESL9000 field upgrade SDLT 160/320 LVD drive in hot plug canister 613326517642 293414-B21
ESL9595S2 400 to 500 Slot Upgrade 613326380222 274674-B21
ESL9595S2 500 to 595 Slot Upgrade 613326380239 274674-B22
ESL9595S2 400 to 595 Slot Upgrade 613326408926 274674-B23
ESL9000 5 MB Memory Module for ESL9198 and ESL9326 libraries,

(required to support firmware versions 3.00 and later)

NOTE: *Serial number of your existing library is required when ordering these capacity upgrade SKUs, please

enter the serial number in the comments section of the purchase order, and inform your Secondary
Storage Product Manager.

SDLT Media 5-Pack 720591390273 188527-B21
SDLT Media 10-Pack 720591390587 188527-B22
SDLT Media 20-Pack 720591433208 188527-B26

Additional media
Additional magazines
Bar Code Labels

Wide/Wide SCSI cable, 5 m 743172633910 328215-001
Wide/Wide SCSI cable, 10 m 743172633927 328215-002
Wide/Wide SCSI cable, 15 m 743172633934 328215-003
Wide/Wide SCSI cable, 20 m* 743172633941 328215-004
SCSI Cable, VHDCI/Wide, 6 ft 743172660831 341176-B21
SCSI Cable, VHDCI/Wide, 12 ft 743172660848 341177-B21
SCSI Cable, VHDCI/Wide, 10 m 720591469108 201160-B21
SCSI Cable, VHDCI/Wide, 20 m* 720591624491 201160-B23

NOTE: Check the cable-adapter matrix for tape libraries on:

ftp://ftp.compaq.com/pub/products/storageworks/tape-and-optical-storage/adapter-cable-matrix.pdf

UPC Code Part Number

613326380215 274673-B21

DA-11436 World Wide — Version 5 — March 18, 2003 8

QuickSpecs

A

Related Options

hp StorageWorks ESL9595S2 tap e library

SCSI Host Bus Adapter/Hewlett­Packard Fibre Channel to SCSI
Router (optional)

LVD Extender Kit

ESL9000 magazine

Host Bus adapter for SCSI connectivity from server to tape library in
direct SCSI environment

Network Storage Router, Embedded FC Router to connect SCSI
Library to Fibre Channel Hub/Switch

ProLiant Controllers

64-bit/66 MHz PCI dual channel Wide Ultra3 SCSI adapter

Alpha Controllers

Single Channel Ultra LVD Controller

Network Storage Router (required for SAN configuration)

Network Storage Router m2402 (2FC X 4 LVD SCSI)
Embedded Data Router, ESL 9000embedded fibre option e2400 –
Base 2 FC X 4 LVD SCSI ports (Includes card cage for installation of
embedded router which is required for configuration) (Includes two
router cards each with 1 FC X 2 LVD SCSI ports, 4 VHDCI-WIDE
SCSI cable, user guide CD, and the ESL9000 cPCI card cage).

It is recommended that the installation CarePaq be ordered with this
SKU.

Embedded Data Router, ESL 9000embedded fibre option e2400 –
Upgrade 2 FC X 4 LVD SCSI ports (Includes: two 1FC x 2LVD SCSI
router cards, four VHDCI-WIDE SCSI cables, User Guide CD.) This
SKU does not include a card cage; it is an upgrade SKU and
requires 262665-B21 to be configured first, when configured it
increases the number of SCSI ports available to connect drives in an
ESL9000 library to the SAN, to a total of eight).

It is recommended that the installation CarePaq be ordered with this
SKU.

LVD Extender kit (Required for HBA to Library SCSI cable lengths
exceeding 10 m)

ESL9000 UNIVERSAL LOAD PORT (2x4 slot fixed)

UPC Code Part Number

743172876379 129803-B21

3X-KZPCA-

613326254516 262653-B21
613326254752 262665-B21

613326254998 262664-B21

720591597658 221249-B21

613326572603 302254-B21

A

DA-11436 World Wide — Version 5 — March 18, 2003 9

QuickSpecs

Related Options

hp StorageWorks ESL9595S2 tap e library

HP Openview Omniback Software

Data Protection Suites for
Backup and Restores

DP Suite, SAN standard − Entry level SAN kit that contains:

DP Suite, SAN advanced − Data center SAN kit that contains:

Part Number
HP OpenView Omniback II 4.1

Starter Packs

Cell Manager B6961AA/B6951AA
Required once as starter pack; includes license-to-use, unlimited number of disk

agents and media agents, one drive extension, libraries with up to 60 slots, CD­ROM media, manuals, and more; for Windows NT, 2000, XP/HP-UX

Drive Extensions

Drive License

License-to-use for one concurrently used backup drive; for Windows NT, 2000,

XP/Novell

Drive License
License-to-use for one concurrently used backup drive; for UNIX, NAS, SAN
For the most up-to-date information, visit:

http://openview.hp.com/products/omniback/specifications/

CommVault Galaxy
Phan Kit, CommVault Galaxy 281593-B21
DP Suite, single server 281577-B21
DP Suite, SAN standard 281585-B21
DP Suite, SAN advanced 281588-B21
DP Suite, Network 281582-B21
Additional CommVault Galaxy Suite Descripitions
Phan Kit, CommVault Galaxy − Media Kit that contains live trial software
DP Suite, single server − Designed for backing up a single server, with no server

clients, using a single internal or external tape drive.

ISV application software for six servers on the SAN
Two server clients for backing up over the LAN
Each SAN server has a choice of a database agent or open file systems option
Support for up to eight shared automated, tape drives

ISV application software for fourteen servers on the SAN
Two server clients for backing up over the LAN
Each SAN server has a choice of a database agent or open file systems option
Support of up to sixteen shared, automated tape drives
DP Suite, Network − Designed for backing up a single server and server clients over the

network using a tape drive, an autoloader or business class automation. Includes choice
of one database agent or open file systems option.



Netware/Linux

B963AA

B6953AA

DA-11436 World Wide — Version 5 — March 18, 2003 10

QuickSpecs

Related Options

hp StorageWorks ESL9595S2 tap e library

Data Protection Suites for
Backup and Restores (continued)

DP Suite, SAN standard − Entry level SAN kit that contains:

DP Suite, SAN advanced − Data center SAN kit that contains:

DP Suite, single server − Designed for backing up a single server, with no server

DP Suite, SAN standard − Entry level SAN kit that contains:

DP Suite, SAN advanced − Data center SAN kit that contains:

Part Number

CA BrightStor ARCserve
Phan Kit, CA ARCserve 283915-B21
DP Suite, single server 281576-B21
DP Suite, SAN standard 281583-B21
DP Suite, SAN advanced 281586-B21
DP Suite, Network 281581-B21
Additional CA BrightStor ARCserve Suite Descripitions
Phan Kit, CA ARCserve − Media Kit that contains live trial software
DP Suite, single server − Designed for backing up a single server, with no server

clients, using a single internal or external tape drive.

ISV application software for six servers on the SAN
Two server clients for backing up over the LAN
Each SAN server has a choice of a database agent or open file systems option
Support for up to eight shared automated, tape drives

ISV application software for fourteen servers on the SAN
Two server clients for backing up over the LAN
Each SAN server has a choice of a database agent or open file systems option
Support of up to sixteen shared, automated tape drives
DP Suite, Network − Designed for backing up a single server and server clients over the

network using a tape drive, an autoloader or business class automation. Includes choice
of one database agent or open file systems option.

VERITAS Backup Exec
Phan Kit, VERITAS Backup Exec 283914-B21
DP Suite, single server 281578-B21
DP Suite, SAN standard 281584-B21
DP Suite, SAN advanced 281587-B21
DP Suite, Network 281580-B21
Additional VERITAS Backup Exec Suite Descripitions
Phan Kit, VERITAS Backup Exec − Media Kit that contains live trial software

clients, using a single internal or external tape drive

ISV application software for six servers on the SAN
Two server clients for backing up over the LAN
Each SAN server has a choice of a database agent or open file systems option
Support for up to eight shared automated, tape drives

ISV application software for fourteen servers on the SAN
DP Suite, Network − Designed for backing up a single server and server clients over the

network using a tape drive, an autoloader or business class automation. Includes choice
of one database agent or open file systems option.

DA-11436 World Wide — Version 5 — March 18, 2003 11

QuickSpecs

Related Options

hp StorageWorks ESL9595S2 tap e library

Data Protection Suites for
Backup and Restores (continued)

DP Suite, single server edition of Legato NetWorker D1 − Designed for backing up a

DP Suite, EL SAN edition of Legato NetWorker S1 − Entry level SAN kit that contains:

DP Suite, Corp SAN edition of Legato NetWorker S2− Data center SAN kit that

Part Number

Legato NetWorker

Phan Kit, VERITAS Backup Exec 293599-B21
DP Suite, single server edition of Legato NetWorker D1 293600-B21
DP Suite, EL SAN edition of Legato NetWorker S1 293602-B21
DP Suite, Corp SAN edition of Legato NetWorker S2 293603-B21
DP Suite, Network edition of Legato NetWorker D2 293601-B21
Additional Legato NetWorker Suite Descripitions
Phan Kit, Legato NetWorker − Media Kit that contains live trial software

single server, with no server clients, using a single internal or external tape drive

ISV application software for six servers on the SAN
Two server clients for backing up over the LAN
Each SAN server has a choice of a database agent or open file systems option
Support for up to eight shared automated, tape drives

contains:
ISV application software for fourteen servers on the SAN
DP Suite, Network edition of Legato NetWorker D2− Designed for backing up a single

server and server clients over the network using a tape drive, an autoloader or business
class automation. Includes choice of one database agent or open file systems option.

DA-11436 World Wide — Version 5 — March 18, 2003 12

QuickSpecs

Technical Specifications

hp StorageWorks ESL9595S2 tap e library

SCSI Identification

Control Panel

SCSI Interface

Form Factor

Dimensions

Unit Weight

Performance (native)

Storage Capacity

Product ID ESL9000 Series
Vendor ID HP
Library and Drive Status
Move tape cartridges
Load/Unload tape drives

Maintenance (drive cleaning, diagnostics)
Library Configuration
Statistics
Ultra2 SCSI LVD, 68HD Interconnect

(External cable length between library and HBA, limited to 10 m without LVD extender, extends up to 25 m when
using the LVD extender)

Free Standing

Unit Packaged

Height 75 in/191 cm 80 in/203.2 cm
Width 60 in/152 cm 71 in/180.3 cm

Depth 29 in/75 cm 48 in/121.9 cm
Without data cartridges, 0 drives 1444 lb/655 kg
SDLT drive in Hot Plug canister 13.5 lb/6.12 kg per drive
Without data cartridges, 2 drives 1471 lb/667.24 kg 1654 lb/750 kg
Without data cartridges, 16

drives

Minimum configuration

Maximum configuration

Supports 400/500/595 SDLT cartridges for native capacity of:
400 slots – 64 TB (128 TB at 2:1 compression)
500 slots – 80 TB (160 TB at 2:1 compression)

1660 lb/752.92 kg 1822 lb/826 kg

2 Hewlett-Packard SDLT 160/320 drives, 400/500/595 slots
Native transfer rates up to 115.2 GB/hr
16 Hewlett-Packard SDLT drives, 400/500/595 cartridge slots
Native backup performance up to 921.6 GB/hr

595 slots – 95.2 TB (190.4 TB at 2:1 compression)

Input/Output Port
Initialization (cartridge inventory)

time
Cartridge Swap Time
Cartridge Swap Rate
Cartridge Passthrough time -

end to end
Electrical Specifications

DA-11436 World Wide — Version 5 — March 18, 2003 13

Two 4 slot fixed

< 5 minutes

28 seconds average
>135 swap/hour
78 seconds average

AC Voltage Auto-range to domestic and international AC voltages
AC Voltage Range: 90 to 132 VAC or 180 to 264 VAC, single phase

Nominal: 100 to 120 VAC or 220 to 240 VAC
Line Frequency Range: 47 to 63Hz
AC Receptacle: IEC-320 C19 Type 100-120V/200-240V, 50/60 Hz, 20A/16A (5-

Power Consumption VA Maximum 1,600W 5500 BTU/hr or 1400 Kcal/hr

20P plug for U.S. and Canada)

QuickSpecs

Technical Specifications

hp StorageWorks ESL9595S2 tap e library

Acoustic Noise

Reliability (Library Only)

Regulatory Compliance

Noise Power Emission Level Idle 7.8 bels
Operating 8.1 bels

MTBF 250,000 hours
MSBF 2,000,000 load/unload cycles
Safety

Emissions

UL1950, CSA C22.2 950, EN 60950:1992/A11, IEC
60950:1992/A11, DHHS/FDA (US CFR21 part 1040, Class 1 laser),
EN 60825:1994/A11, Nemko
FCC Part 15 Class A, CE Marking directive (93/68/EEC) (Class A), CISPR

Publication 22 Class A, ICES-003 Class A, VCCI Class 1, C-Tick SMA AZ/NZS
3548 Class A BCIQ

EN6100-3-2, EN50082-1:1992, EN55022: 1994, EMC Directive [89/336/EEC],
Low Voltage Directive [73/23/EEC]

© 2003 Hewlett-Packard Company
Hewlett-Packard, the Hewlett-Packard logo, AlphaServer, CarePaq, Insight Manager, ProLiant, StorageWorks and Tru64 are trademarks of Hewlett-Packard
Company in the U.S. and/or other countries. Windows NT is a registered trademark or trademark of Microsoft Corporation in the U.S. and/or other countries.
NetWare is a registered trademark or trademark of Novell, Inc. Sun and Solaris are registered trademarks or trademarks of Sun Microsystems, Inc., in the
U.S. and/or other countries. Linux is a registered trademark or trademark of Linus Torvalds in the U.S. and/or other countries. SuSE and its logo are
registered trademarks or trademarks of SuSE AG in the U.S. and/or other countries. UNIX is a registered trademark of The Open Group in the U.S. and other
countries. All other product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any
kind and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements
accompanying such products. Nothing herein should be construed as constituting an additional warranty.

DA-11436 World Wide — Version 5 — March 18, 2003 14
