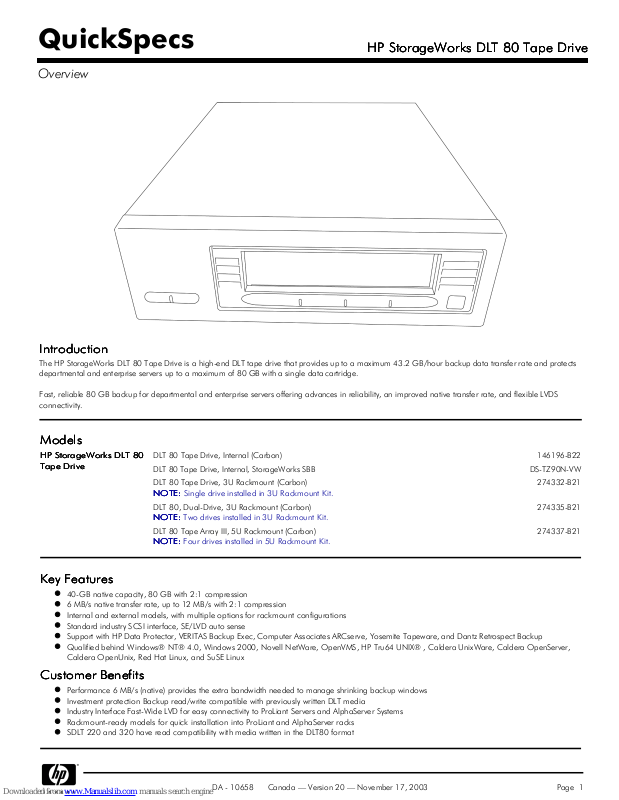

The HP StorageWorks DLT 80 Tape Drive is a high-end DLT tape drive that provides up to a maximum 43.2 GB/hour backup data transfer rate and protects
departmental and enterprise servers up to a maximum of 80 GB with a single data cartridge.
Fast, reliable 80 GB backup for departmental and enterprise servers offering advances in reliability, an improved native transfer rate, and flexible LVDS
connectivity.
Models
ModelsModels
Models
HP StorageWorks DLT 80
HP StorageWorks DLT 80HP StorageWorks DLT 80
HP StorageWorks DLT 80
Tape Drive
Tape DriveTape Drive
Tape Drive
DLT 80 Tape Drive, Internal (Carbon)
146196-B22
DLT 80 Tape Drive, Internal, StorageWorks SBB
DS-TZ90N-VW
DLT 80 Tape Drive, 3U Rackmount (Carbon)
NOTE:
NOTE: NOTE:
NOTE:
Single drive installed in 3U Rackmount Kit.
274332-B21
DLT 80, Dual-Drive, 3U Rackmount (Carbon)
NOTE:
NOTE:NOTE:
NOTE:
Two drives installed in 3U Rackmount Kit.
274335-B21
DLT 80 Tape Array III, 5U Rackmount (Carbon)
NOTE:
NOTE:NOTE:
NOTE:
Four drives installed in 5U Rackmount Kit.
274337-B21
Key Features
Key FeaturesKey Features
Key Features
40-GB native capacity, 80 GB with 2:1 compression
6 MB/s native transfer rate, up to 12 MB/s with 2:1 compression
Internal and external models, with multiple options for rackmount configurations
Standard industry SCSI interface, SE/LVD auto sense
Support with HP Data Protector, VERITAS Backup Exec, Computer Associates ARCserve, Yosemite Tapeware, and Dantz Retrospect Backup
Qualified behind Windows® NT® 4.0, Windows 2000, Novell NetWare, OpenVMS, HP Tru64 UNIX® , Caldera UnixWare, Caldera OpenServer,
Caldera OpenUnix, Red Hat Linux, and SuSE Linux
Customer Benefits
Customer BenefitsCustomer Benefits
Customer Benefits
Performance 6 MB/s (native) provides the extra bandwidth needed to manage shrinking backup windows
Investment protection Backup read/write compatible with previously written DLT media
Industry Interface Fast-Wide LVD for easy connectivity to ProLiant Servers and AlphaServer Systems
Rackmount-ready models for quick installation into ProLiant and AlphaServer racks
SDLT 220 and 320 have read compatibility with media written in the DLT80 format
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Overview
DA - 10658 Canada — Version 20 — November 17, 2003
Page 1
Page 2
Family Comparison
Family ComparisonFamily Comparison
Family Comparison
DLT 40
DLT 40DLT 40
DLT 40 DLT 80
DLT 80DLT 80
DLT 80
SDLT 220
SDLT 220SDLT 220
SDLT 220
Announce Date
Announce DateAnnounce Date
Announce Date
Transfer Rate
2000
March 2001
Capacity
CapacityCapacity
Capacity
(native)
20 GB 40 GB
110 GB
SCSI Interface
SCSI InterfaceSCSI Interface
SCSI Interface
Fast SE
Fast-Wide SE/LVD
Ultra2, LVD
Buffer
BufferBuffer
Buffer
4 MB 8 MB
32 MB
Firmware Upgradeable
Firmware UpgradeableFirmware Upgradeable
Firmware Upgradeable
Yes, with LTT Yes, with LTT Yes, with LTT
Maximum Drives per bus
Maximum Drives per busMaximum Drives per bus
Maximum Drives per bus
2 2 2
MTBF
MTBFMTBF
MTBF
200,000 @ 80%
250,000 @ 100% 250,000 @ 100%
Transfer Rate
Transfer RateTransfer Rate
Transfer Rate
1.5 MB/s
6 MB/s
11 MB/s
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Overview
DA - 10658 Canada — Version 20 — November 17, 2003
Page 2
Page 3
Improved Speed and
Improved Speed andImproved Speed and
Improved Speed and
Capacity
CapacityCapacity
Capacity
Performance and capacity enhancements of 6 MB/sec and 40-GB native capacity provides customers with the extra
bandwidth and capacity needed to manage ever-shrinking backup windows without giving up the superior reliability that
DLT technology has historically provided at high duty cycles.
Tape Format
Tape FormatTape Format
Tape Format
Utilizes industry-standard DLT tape format.
Compression
CompressionCompression
Compression
Built-in LZ hardware compression for improved performance (2:1 compression typical).
Compatibility and
Compatibility andCompatibility and
Compatibility and
Integration Testing
Integration TestingIntegration Testing
Integration Testing
Fully tested on a variety of ProLiant Servers and AlphaServer systems from the new HP.
Rackmount Tape Options
Rackmount Tape OptionsRackmount Tape Options
Rackmount Tape Options
Supported in 3U and 5U Rackmount Kits, allowing customer to install up to 2 internal DLT or SDLT drives in a 3U
rackmount space or up to 4 internal DLT or SDLT drives in a 5U rackmount space, respectively. Standard configuration for
3U Rackmount Kit provides two internal SCSI buses (channels) supporting one DLT or SDLT drive per bus. Standard
configuration for 5U Rackmount Kit provides two internal SCSI buses (channels) supporting up to 2 DLT or SDLT drives per
bus. Optional cable kit permits user to extend from two to four internal SCSI buses in 5U Rackmount Kit, increasing the
performance (data transfer rate) by allowing the customer to stream data to all four drives simultaneously. Please refer to
"Rackmount Tape Drive Kits" QuickSpec for further information.
HP Data Protection Tools
HP Data Protection ToolsHP Data Protection Tools
HP Data Protection Tools
Each HP tape drive is supported with multiple software applications and utilities that allow users to easily integrate and
maintain their HP backup solutions. Software tools such as Library Tape Tools (LTT) and Insight Manager are available via
web download from the HP.com Web site. Additional product information tools such as technology White Papers and
Service Advisories can also be accessed through the HP.com Web site.
DRTape Disaster Recovery
DRTape Disaster RecoveryDRTape Disaster Recovery
DRTape Disaster Recovery
Utility
UtilityUtility
Utility
HP DRTape Disaster Recovery Utility is a data recovery tool which replaces the traditional recovery methods associated with
manual downloads from floppy or CD-ROM. DRTape is a firmware driven software utility that provides a disaster recovery
solution for ProLiant servers. Embedded in the firmware of each supported tape device, DRTape uses HP tape drives to
emulate bootable drive devices, similar to floppy and CD-ROM drives. When implemented, DRTape can provide for the
complete recovery of server software and data. The recovery process requires the use of only one tape cartridge, in
conjunction with the SmartStart CD, and can typically be completed in less than an hour.
**NOTE: DRTape does not support HP Smart Array Controllers. Please see "HP DRTape Compatibility Matrix" at:
http://h18006.www1.hp.com/products/storageworks/drtape/compatibility.html
.
HP StorageWorks Library
HP StorageWorks LibraryHP StorageWorks Library
HP StorageWorks Library
and Tape Tools
and Tape Toolsand Tape Tools
and Tape Tools
(L&TT)
The HP StorageWorks DLT 80 Tape Drive is supported on HP's industry-leading diagnostic tool - HP StorageWorks Library
and Tape Tools (L&TT). L&TT is a single, convenient program that's a snap to install and simple to operate. L&TT's intuitive
user interface eliminates the need for training and deploys in less than five minutes. This robust diagnostic tool is designed
for both the experienced professional and the untrained administrator. It ensures product integrity through self-diagnostics
and fast resolution to device concerns. Additional information on L&TT plus download information can be found at
http://www.hp.com/support/tapetools
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Product Highlights
DA - 10658 Canada — Version 20 — November 17, 2003
Page 3
Page 4
HP's extensive compatibility testing program assures that your HP StorageWorks DLT 80 tape drive works with leading servers, operating systems, and backup
applications - and not just those sold by HP. HP DLT tape drives work seamlessly in many environments, making them especially suitable if you have a
mixed system environment. For the latest list of servers, workstations, operating systems, and backup software that support HP DLT tape drives, check the tape
backup compatibility pages on our web site at:
http://www.hp.com/go/connect
.
HP Server Compatibility
HP Server CompatibilityHP Server Compatibility
HP Server Compatibility
The HP StorageWorks DLT 80 tape drives are supported on the following classes of HP systems:
HP ProLiant DL servers
HP ProLiant ML servers
HP AlphaServers
For details of which tape drive models work with which systems, including third-party systems, visit
http://www.hp.com/go/connect
for the latest hardware compatibility information.
OS Support
OS SupportOS Support
OS Support
Native Operating System Backup Applications:
Microsoft Windows NT 4.0 & Windows 2000
Novell NetWare
HP Tru64 UNIX
OpenVMS
Linux - Red Had, SuSE
Caldera OpenUnix, OpenServer, UnixWare
NOTE:
NOTE:NOTE:
NOTE:
Please visit
http://www.hp.com/products1/storage/compatibility/tapebackup/software/index.html
for the latest compatibility information.
Backup Software Support
Backup Software SupportBackup Software Support
Backup Software Support
ISV Backup Software Platforms
ISV Backup Software PlatformsISV Backup Software Platforms
ISV Backup Software Platforms
VERITAS Backup Exec v8.5-9.0 for Windows NT/2000
VERITAS Backup Exec v8.5-9.0 for NetWare
Computer Associates ARCserve v2000- 9.0 for Windows NT/2000
Computer Associates ARCserveIT v6.6-7.0 for NetWare
Dantz Retrospect Backup v5.6-6.0 for Windows NT/2000 (Server & Workgroup version)
HP Data Protector 5.0
Yosemite Tapeware 7.0
NOTE:
NOTE: NOTE:
NOTE:
Please visit
http://www.hp.com/go/connect
for the latest compatibility information
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Compatibility
DA - 10658 Canada — Version 20 — November 17, 2003
Page 4
Page 5
Warranty
WarrantyWarranty
Warranty
The warranty for this product consists of 3 years parts, 0 year labour, 0 year on-site.
Warranty Upgrade
Warranty UpgradeWarranty Upgrade
Warranty Upgrade
Options
OptionsOptions
Options
Response – Upgrade on-site response from next business day to same day 4-hours
Coverage – Extend hours of coverage from 5 days x 9 hours to 7 days x 24 hours
HP Care Pack Information
HP Care Pack InformationHP Care Pack Information
HP Care Pack Information
HP Care Pack is defined as an upgrade to the product warranty attribute, available for a specific duration and hours of
coverage
HP Care Pack is not available for less than the product's warranty duration
HP Care Pack is available for sale anytime during the warranty period for most products, but the commencement
date will be the same as the Warranty Start Date (delivery date to end user customer). Proof of purchase may be
required
HP Care Pack services are prepaid
For additional HP Care Pack (hardware & software) information, as well as orderable part numbers, please refer to
one of the URL's listed below:
English:
English:English:
English: http://www.compaq.ca/English/productinfo/storage/storageworks.htm
French:
French: French:
French:
http://www.compaq.ca/Francais/Produits/stockage/Storageworksf.htm
Software Product Services
Software Product ServicesSoftware Product Services
Software Product Services
Stand-alone telephone support
Rights to a new license
Media and documentation updates
Hardware Product Services
Hardware Product ServicesHardware Product Services
Hardware Product Services
Installation services
On-site Maintenance (includes warranty support)
Response time upgrades during the warranty period
Post-warranty coverage
RAID setup and performance consulting via statement of work
For additional hardware installation and maintenance information please refer to the URLs listed below:
English:
English: English:
English:
http://www.compaq.ca/English/service/cusserv/carepaq/carepaq.htm
French:
French:French:
French: http://www.compaq.ca/Francais/service/ccs/carepaqf/carepaqf.htm
Support Services
Support ServicesSupport Services
Support Services
HP Services provides a three-year, limited warranty, fully supported by a worldwide network of resellers and service providers
and 9x5 hardware technical phone support during the warranty period. In addition, available service offerings include a full
range of optional packaged hardware and software services:
Installation and start up
Extended coverage hours and enhanced response times
System management and performance services
Availability and recovery services
Components
ComponentsComponents
Components
The following brick level options/components do not have individual HP Care Pack Services. These items will be included
in product HP Care Pack Services into which they are installed.
Disk Drives
Tape Drives
CD/DVD ROM
SCSI Hubs in SBBs
Adapters
Bus Converters
Backplane RAID
Controllers
Power Supplies
Cabling
Fans
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Service and Support, HP Care Pack and Warranty Information
DA - 10658 Canada — Version 20 — November 17, 2003
Page 5
Page 6
Related Options
Related OptionsRelated Options
Related Options
Media
MediaMedia
Media
HP DLT IV data cartridge (single cartridge)
C5141F
HP DLT cleaning cartridge (single cartridge)
C5142A
Host Bus Adapters and
Host Bus Adapters andHost Bus Adapters and
Host Bus Adapters and
Controllers for ProLiant
Controllers for ProLiantControllers for ProLiant
Controllers for ProLiant
Servers
ServersServers
Servers
NOTE:
NOTE: NOTE:
NOTE:
This is a list of supported controllers and adapters. Some may be discontinued.
Integrated Smart Array 5i Controller
NOTE:
NOTE:NOTE:
NOTE:
This controller ships standard on the HP ProLiant DL380 G2 and DL380 G3 servers.
N/A
Smart Array 5i Controller
226593-B21
Smart Array 5i Plus Controller
264030-B21
64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter
268351-B21
64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter
154457-B21
64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter
129803-B21
64-Bit Dual Channel Wide Ultra2 SCSI Adapter
348757-B21
Host Bus Adapters and
Host Bus Adapters andHost Bus Adapters and
Host Bus Adapters and
Controllers for Alpha
Controllers for AlphaControllers for Alpha
Controllers for Alpha
Servers
ServersServers
Servers
32-bit Single Channel
KZPBA-CA
32-bit to LVD Single Channel SCSI LSI SYM 8952Uia
SN-KZPCA-AA
32-bit to LVD Single Channel SCSI LSI SYM 8952Uia
3X-KZPCA-AA
32-bit Single Channel LSI SYM 8951Uia
30-56041-01
Comb SCSI/Ether Dual Channel
KZPCM-DA
64-bit Dual Channel
3X-KZPEA-DB
Combo SCSI/Video/Ethernet
3X-DEPVZ-AA
Rackmount Options
Rackmount OptionsRackmount Options
Rackmount Options
3U Rackmount Kit
NOTE:
NOTE: NOTE:
NOTE:
Please refer to web page for further information:
http://h18006.www1.hp.com/products/storageworks/3urackmount/index.html
274338-B21
5U Rackmount Kit
NOTE:
NOTE:NOTE:
NOTE:
Please refer to web page for further information:
http://h18006.www1.hp.com/products/storageworks/5urackmount/index.html
274339-B21
Alpha Rail Kit
NOTE:
NOTE:NOTE:
NOTE:
Rail Kit is required for installation of 5U Rackmount Kit or DLT 80 Tape Array III into
AlphaServer rack.
254795-001
3U Alpha Rail Kit (6-3)
NOTE:
NOTE: NOTE:
NOTE:
Rail Kit is required for installation of 3U Rackmount Kit, single-drive rackmount, or dual-
drive rackmount configuration into AlphaServer rack.
280571-001
3U Alpha Rail Kit (2-5-2)
NOTE:
NOTE:NOTE:
NOTE:
Rail Kit is required for installation of 3U Rackmount Kit, single-drive rackmount, or dual-
drive rackmount configuration into AlphaServer rack.
3R-A3804-AA
Cable Kits
Cable KitsCable Kits
Cable Kits
LVD Cable Kit, 68-pin HD/VHDCI
NOTE:
NOTE:NOTE:
NOTE:
Internal and external cables.
168048-B21
LVD Cable Kit, 68-pin HD/68-pin HD
NOTE:
NOTE:NOTE:
NOTE:
Internal and external cables.
242381-B21
68-pin HD/VHDCI, 12 ft/3.66 m
NOTE:
NOTE:NOTE:
NOTE:
External Cable only.
341177-B21
68-pin HD/VHDCI, 16.40 ft/5 m
NOTE:
NOTE:NOTE:
NOTE:
External Cable only.
328215-001
68-pin HD/VHDCI, 12 ft/3.66 m
NOTE:
NOTE:NOTE:
NOTE:
External Cable only.
328215-002
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Options
DA - 10658 Canada — Version 20 — November 17, 2003
Page 6
Page 7
Kit Contents
Kit ContentsKit Contents
Kit Contents
Model
ModelModel
Model
Kit Contents Description
Kit Contents DescriptionKit Contents Description
Kit Contents Description
Part Number
Part NumberPart Number
Part Number
DLT 80 Internal
DLT 80 InternalDLT 80 Internal
DLT 80 Internal
Contains one DLT 80 tape drive, one DLT IV data cartridge, one DLT Cleaning Cartridge, one
internal 2-Device Ribbon Cable, Terminator, User's Guide on CD, Warranty Card, and Native Drivers
CD.
146196-B22
DLT 80 SBB
DLT 80 SBBDLT 80 SBB
DLT 80 SBB
Contains one DLT 80 tape drive enclosed in a StorageWorks SBB Top Gun Blue housing, one DLT IV
data cartridge, one DLT Cleaning Cartridge, and SBB User's Guide.
DS-TZ90N-VW
DLT 80, 3U Rackmount
DLT 80, 3U RackmountDLT 80, 3U Rackmount
DLT 80, 3U Rackmount
Wide SCSI LVD rack-mountable enclosure (3U) with power supply and fan, one internal DLT 80 tape
drive, one DLT IV data cartridge, one DLT cleaning cartridge, Power Cord, Native Drivers on CD,
User's Guide on CD, and Documentation.
274332-B21
DLT 80, Dual-Drive,
DLT 80, Dual-Drive,DLT 80, Dual-Drive,
DLT 80, Dual-Drive,
3U Rackmount
3U Rackmount3U Rackmount
3U Rackmount
Wide SCSI LVD rack-mountable enclosure (3U) with power supply and fan, two internal DLT 80 tape
drives, two DLT IV data cassettes, one DLT cleaning cassette, Power Cord, Native Drivers on CD,
User's Guide on CD, and Documentation.
274335-B21
DLT 80 Tape Array III, 5U
DLT 80 Tape Array III, 5UDLT 80 Tape Array III, 5U
DLT 80 Tape Array III, 5U
Rackmount
RackmountRackmount
Rackmount
Wide SCSI LVD rack-mountable enclosure (5U) with power supply and fan, four DLT 80 tape drives,
four DLT IV data cassettes, one DLT cleaning cassette, two SCSI cables, Power Cord, Native Drivers on
CD, User's Guide on CD, and Documentation.
274337-B21
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Options
DA - 10658 Canada — Version 20 — November 17, 2003
Page 7
Page 8
Protocol Support
Protocol SupportProtocol Support
Protocol Support
Fast-Wide, SE/LVD, auto sensing interface
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
Physical
Physical Physical
Physical
(HxWxD)
Internal
3.4 x 5.87 x 9.8 in/ 8.64 x 14.91 x 24.89 cm
External
6.48 x 6.8 x 12.62 in/16.46 x 17.27 x 32.05 cm
Rackmount (1 and 2-Drive)
5.2 x 16.8 x 23 in/13.2 x 42.7 x 58.4 cm
Rackmount (4 Drive)
8.75 x 19 x 18.125 in/22.2 x 48.26 x 46 cm
Shipping
ShippingShipping
Shipping
(LxWxH)
Internal
15.25 x 13.25 x 12 in/38.7 x 33.6 x 30.5 cm
External
19.6 x 17.25 x 13.25 in/49.7 x 43.8 x 33.6 cm
Rackmount (1 and 2-Drive)
15.75 x 23.75 x 33.50 in/40.005 x 60.325 x 85.09 cm
Rackmount (4 Drive)
32.25 x 15.38 x 31 in/81.92 x 39.07 x 78.74 cm
Weight
WeightWeight
Weight
Out of box
Out of boxOut of box
Out of box
Internal
6.4 lb (2.9 kg )
External
14 lb (6.7 kg)
Rackmount (1 Drive)
33.6 lb (15.3 kg)
Rackmount (2 Drive)
40 lb (18.2 kg)
Rackmount (4 Drive)
56.6 lb (25.7 kg)
Shipping
ShippingShipping
Shipping
Internal
12 lb (5.44 kg)
External
18 lb (8.16 kg)
Rackmount (1 Drive)
53.6 lb (24.4 kg)
Rackmount (2 Drive)
60 lb (27.3 kg)
Rackmount (4 Drive)
85.6 lb (38.82 kg)
Internal Cables
Internal CablesInternal Cables
Internal Cables
Internal Options contain:
Internal Options contain:Internal Options contain:
Internal Options contain:
2-Device ribbon cable with LVD/SE terminator.
External Cables
External CablesExternal Cables
External Cables
External Options contain:
External Options contain:External Options contain:
External Options contain:
6 ft 68-pin HD to VHDCI External Cable, 6 ft 68-pin HD to 68-pin HD External Cable, 3 FT
68-pin HD to 68-pin HD External Cable.
Rackmount Models Only
Rackmount Models OnlyRackmount Models Only
Rackmount Models Only
- must be ordered separately: LVD Cable Kit, 68-pin HD/VHDCI, LVD Cable Kit, 68-pin
HD/68-pin HD, 68-pin HD/VHDCI, 12 ft, 68-pin HD/68-pin HD, 5 m, 68-pin HD/68-pin HD, 10 m
Transfer Rates
Transfer RatesTransfer Rates
Transfer Rates
Without Compression
Without CompressionWithout Compression
Without Compression
(maximum)
6 MB/s
Without Compression
Without CompressionWithout Compression
Without Compression
(typical)
4.5 MB/s
2:1 Compression Ratio
2:1 Compression Ratio2:1 Compression Ratio
2:1 Compression Ratio
(maximum)
43.2 GB/hr
2:1 Compression Ratio
2:1 Compression Ratio2:1 Compression Ratio
2:1 Compression Ratio
(typical)
32.4 GB/hr
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Technical Specifications
DA - 10658 Canada — Version 20 — November 17, 2003
Page 8
Page 9
Data Access Time
Data Access TimeData Access Time
Data Access Time
Average file access
Average file accessAverage file access
Average file access
60 seconds
Average load time
Average load timeAverage load time
Average load time
37 seconds
Mean Time to Data
Mean Time to DataMean Time to Data
Mean Time to Data
97 seconds
Reliability
ReliabilityReliability
Reliability
MTBF
MTBFMTBF
MTBF
250,000 hours @ 100% duty cycle
Head Life
Head LifeHead Life
Head Life
30,000 Hours
Tape Format
Tape FormatTape Format
Tape Format
Recording Method
Recording MethodRecording Method
Recording Method
Serpentine
Recording Format
Recording FormatRecording Format
Recording Format
ECMA-236, DDS3
Data Compression
Data CompressionData Compression
Data Compression
Lempel-Ziv (LZ)
Error Detection/
Error Detection/Error Detection/
Error Detection/
Correction
CorrectionCorrection
Correction
Reed Solomon (3 Levels)
Input Requirements
Input RequirementsInput Requirements
Input Requirements
Power-Internal
Power-InternalPower-Internal
Power-Internal
typical/maximum state
typical/maximum statetypical/maximum state
typical/maximum state
28 Watts steady
Power-External
Power-ExternalPower-External
Power-External
typical/maximum
typical/maximumtypical/maximum
typical/maximum
56 Watts
Voltage
VoltageVoltage
Voltage
100 to 240 VAC
Frequency
FrequencyFrequency
Frequency
50 to 60 Hz
Power
PowerPower
Power
+5V±5%/+12V±10%
Maximum Number of
Maximum Number ofMaximum Number of
Maximum Number of
Drives
DrivesDrives
Drives
For best performance only 2 drives per bus
Media
MediaMedia
Media
DLT Type IV
Load/Unload Time
Load/Unload TimeLoad/Unload Time
Load/Unload Time
40 Sec/12 Sec
Error Detection/
Error Detection/Error Detection/
Error Detection/
Correction
CorrectionCorrection
Correction
Reed Solomon
Maximum Number of
Maximum Number ofMaximum Number of
Maximum Number of
Drives
DrivesDrives
Drives
2 Per Server
Relative Humidity
Relative HumidityRelative Humidity
Relative Humidity
(non-condensing)
Operating
OperatingOperating
Operating
20% to 80%
Shipping
ShippingShipping
Shipping
5% to 95%
Temperature Range
Temperature RangeTemperature Range
Temperature Range
Operating
OperatingOperating
Operating
50° to 104° F (10° to 40° C)
Shipping
ShippingShipping
Shipping
-32° to 150.8° F (-40° to 66° C)
DLT 80 Rackmount Models Specifications
DLT 80 Rackmount Models SpecificationsDLT 80 Rackmount Models Specifications
DLT 80 Rackmount Models Specifications
Single/Dual-Drive Models
Single/Dual-Drive ModelsSingle/Dual-Drive Models
Single/Dual-Drive Models
DLT 80 Tape Array III
DLT 80 Tape Array IIIDLT 80 Tape Array III
DLT 80 Tape Array III
Protocol Support
Protocol SupportProtocol Support
Protocol Support
Wide SCSI LVD/SE Wide SCSI LVD/SE
Form Factor
Form FactorForm Factor
Form Factor
3U, Rackmount 5U, Rackmount
LED Indicators
LED IndicatorsLED Indicators
LED Indicators
(On Front
Panel)
(1) Power Supply LED
(1) Power Supply LED, (1) Service Required LED
Cable Type
Cable Type Cable Type
Cable Type
(External)
Not Included
(Please refer to section entitled
"Related Options")
(2) 12ft. 68-pin HD-to-VHDCI
External Connector
External ConnectorExternal Connector
External Connector
Type/Quantity
Type/QuantityType/Quantity
Type/Quantity
68-pin High-Density (HD)/2
Wide SCSI Connectors
68-pin High-Density (HD)/2 Wide SCSI Connectors (Can increase to 4 connectors with
Optional LVD Cable Kit)
Maximum Number of
Maximum Number ofMaximum Number of
Maximum Number of
Devices/Ports
Devices/PortsDevices/Ports
Devices/Ports
2 internal SCSI buses (channels)
supporting 1 drive per SCSI bus
2 internal SCSI buses with up to 2 drives per SCSI bus;
Optional LVD cable kit can increase unit to 4 internal SCSI buses with 1 drive per bus
Maximum Number of
Maximum Number ofMaximum Number of
Maximum Number of
Drives
DrivesDrives
Drives
2 Full-Height (DLT & SDLT) 4 Full-Height (DLT & SDLT)
Tape Drive
Tape DriveTape Drive
Tape Drive
(Installed)
DLT 80 (1 or 2 drives installed)
DLT 80 (4 drives installed)
Capacity
CapacityCapacity
Capacity
Up to 80 GB Native Capacity
160 GB Native Capacity
Transfer Rate
Transfer Rate Transfer Rate
Transfer Rate
(maximum)
Up to 12 MB/s
24 MB/s
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Technical Specifications
DA - 10658 Canada — Version 20 — November 17, 2003
Page 9
Page 10
© Copyright 2003 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Windows NT is a US registered trademark of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. Unix is a registered trademark of
The Open Group.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
QuickSpecs
HP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape DriveHP StorageWorks DLT 80 Tape Drive
HP StorageWorks DLT 80 Tape Drive
Technical Specifications
DA - 10658 Canada — Version 20 — November 17, 2003
Page 10
Loading...
