HP StorageWorks D2D, StorageWorks D2D4112 User Manual

Page 1
HP StorageWorks
D2D Backup System
nl
HP D2D4112
User Guide
Part number: EH993-90919 Second edition: June 2009
Page 2
© Copyright 2009 Hewlett-Packard Development Company, L.P.
Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under vendor's standard commercial license.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
WARRANTY STATEMENT: To obtain a copy of the warranty for this product, see the warranty information website:
h
ttp://www.hp.com/go/storagewarranty
Linear Tape-Open, LTO, LTO Logo, Ultrium and Ultrium Logo are trademarks of Quantum Corp, HP and IBM in the US, other countries or both.
Patented under one or more of U.S. Patents Nos. 5,003,307; 5,016,009; 5,463,390; 5,506,580; held by Hi/fn, Inc.
Microsoft, Windows, Windows NT, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
Intel and Itanium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
AMD is a registered trademark of Advanced Micro Devices, Inc.
Page 3
Contents
About this guide ................................................................................. 15
Intended audience .................................................................................................................... 15
Related documentation .............................................................................................................. 15
Document conventions and symbols ............................................................................................. 15
HP technical support ................................................................................................................. 16
Customer self repair .................................................................................................................. 17
Registering your HP D2D Backup System ...................................................................................... 17
Subscription service .................................................................................................................. 17
HP websites ............................................................................................................................. 17
Documentation feedback ........................................................................................................... 17
1 Before you start ................................................................................ 19
Overview ................................................................................................................................. 19
Optional tape attach ................................................................................................................. 21
Software and hardware requirements .......................................................................................... 21
Terminology ............................................................................................................................. 21
Autoloaders ....................................................................................................................... 21
Backup devices and slots ..................................................................................................... 22
Deduplication .................................................................................................................... 22
Emulation types .................................................................................................................. 22
Fibre Channel .................................................................................................................... 22
Hosts ................................................................................................................................ 22

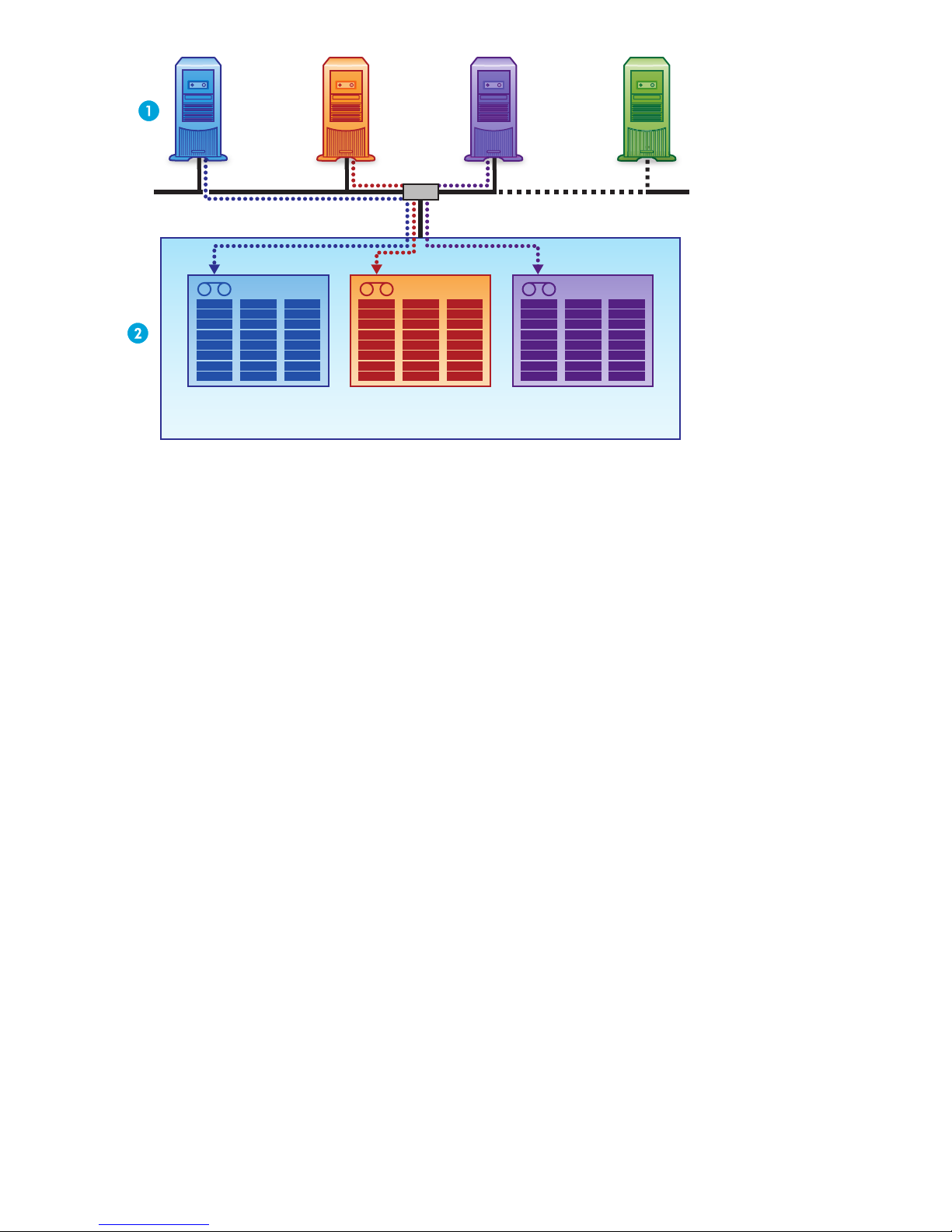

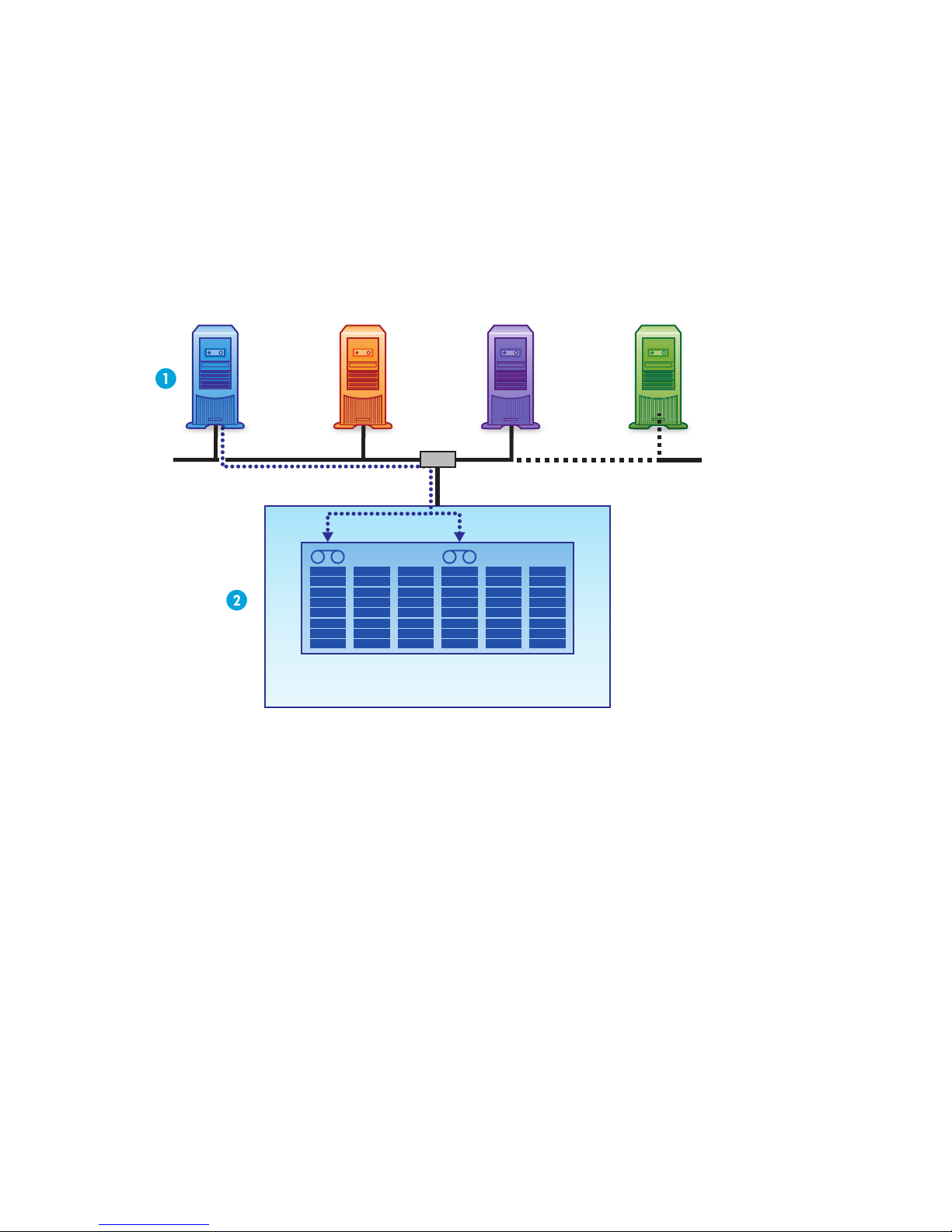

Hosts on an Ethernet network ............................................................................................... 23
Hosts on an FC network ...................................................................................................... 24
iSCSI ................................................................................................................................ 24
Libraries ............................................................................................................................ 24
Mail slots (import/export elements) ....................................................................................... 25
Physical tape drives ............................................................................................................25
RAID ................................................................................................................................ 25
Replication ........................................................................................................................ 25
Tape Attach ....................................................................................................................... 25
Storage capacity ...................................................................................................................... 25
Physical storage ................................................................................................................. 25
Tape rotation strategies ....................................................................................................... 26

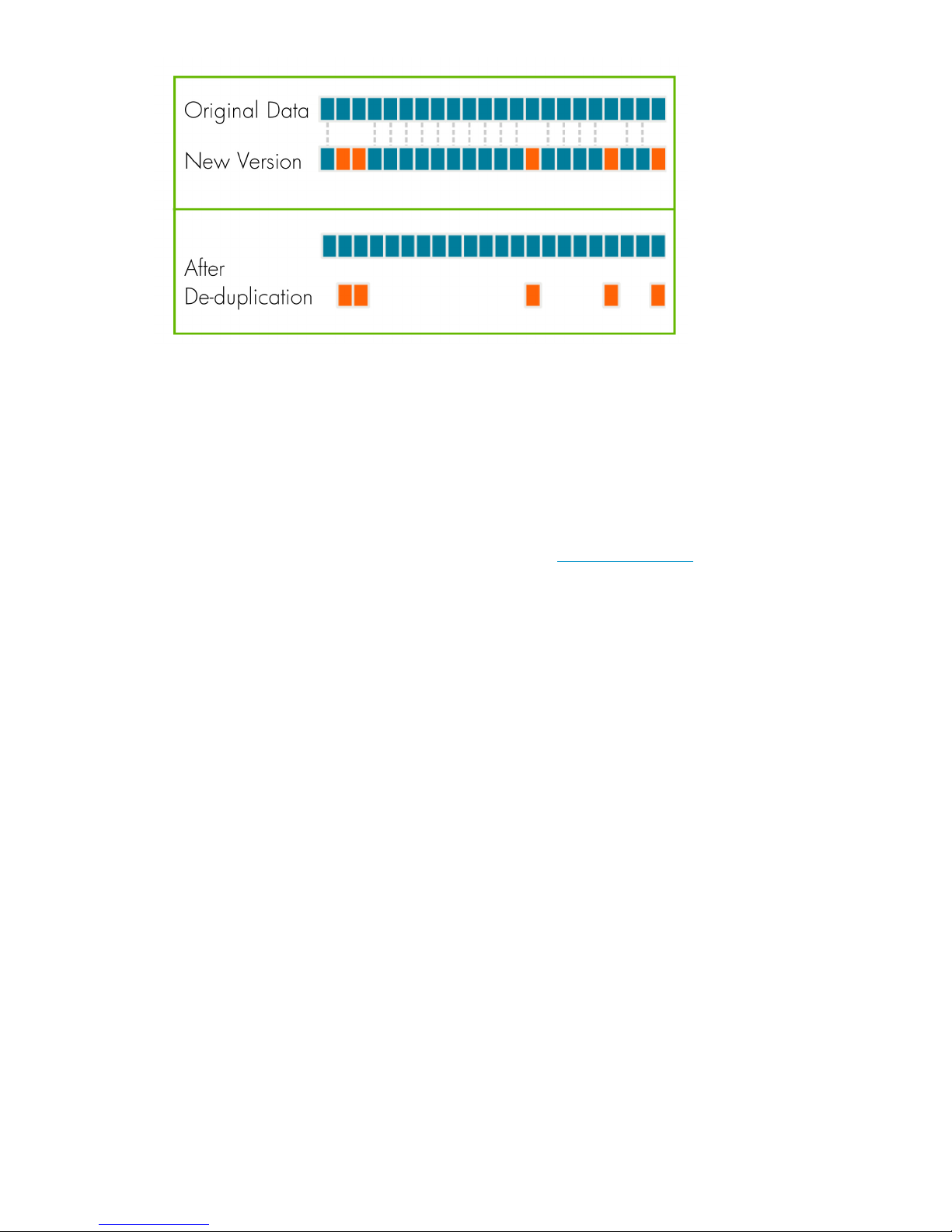

Data deduplication ................................................................................................................... 26
Technology types ............................................................................................................... 27
Data deduplication and the HP D2D ..................................................................................... 27
Benefits of HP D2D deduplication ......................................................................................... 27
Deduplication and compression ........................................................................................... 28
Tape rotation example with data deduplication ..................................................................... 28
Retention policy ........................................................................................................... 28
Data parameters .......................................................................................................... 28
Typical savings ............................................................................................................ 28
D2D Backup System HP D2D4112 3
Page 4
2 Connecting and installing the HP D2D Backup System .......................... 31
Installing the rail kit ................................................................................................................... 31
Overview .......................................................................................................................... 31
Kit contents ........................................................................................................................ 31
Important safety information ................................................................................................ 31
Installation guidelines .........................................................................................................32

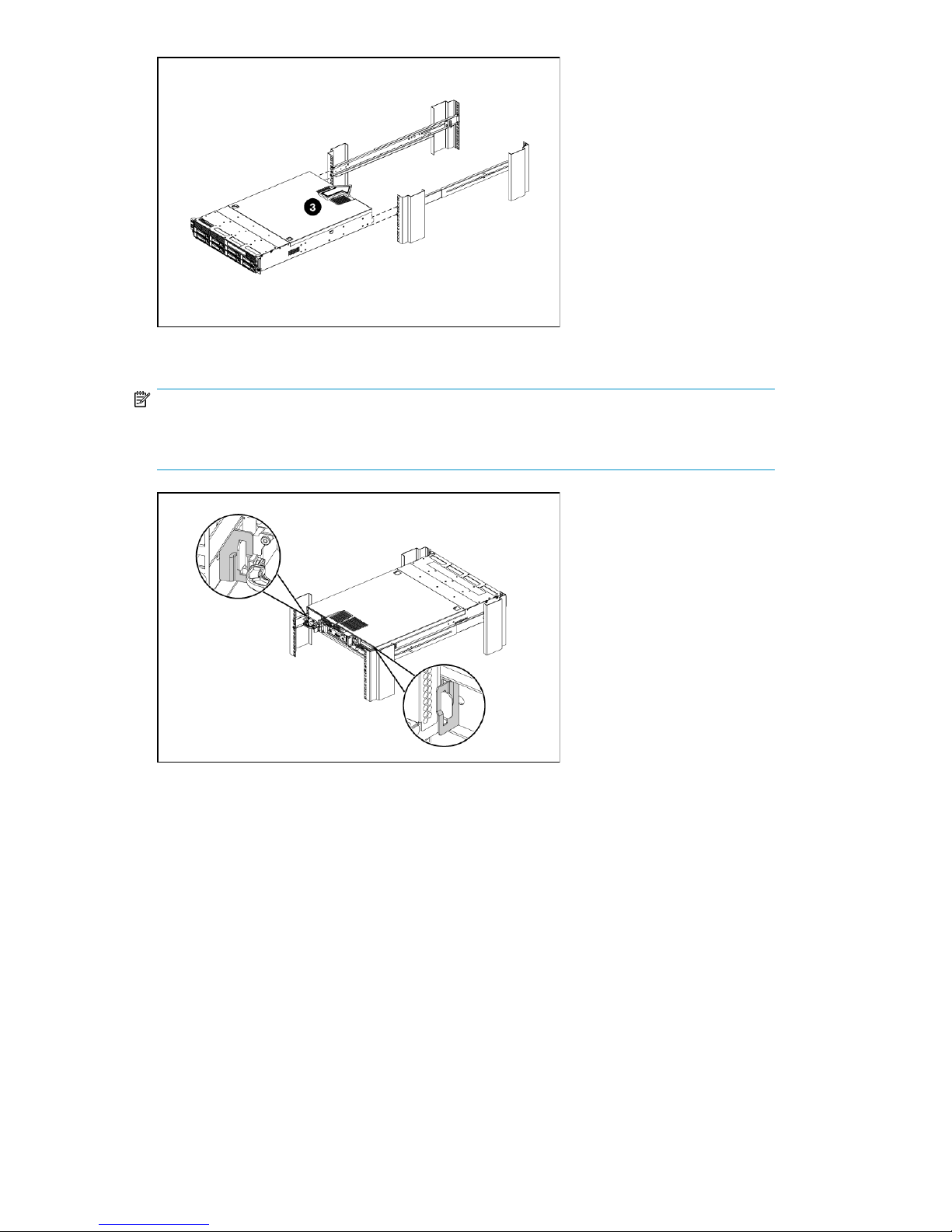

Mounting the server ............................................................................................................ 32
Connecting the hardware .......................................................................................................... 35

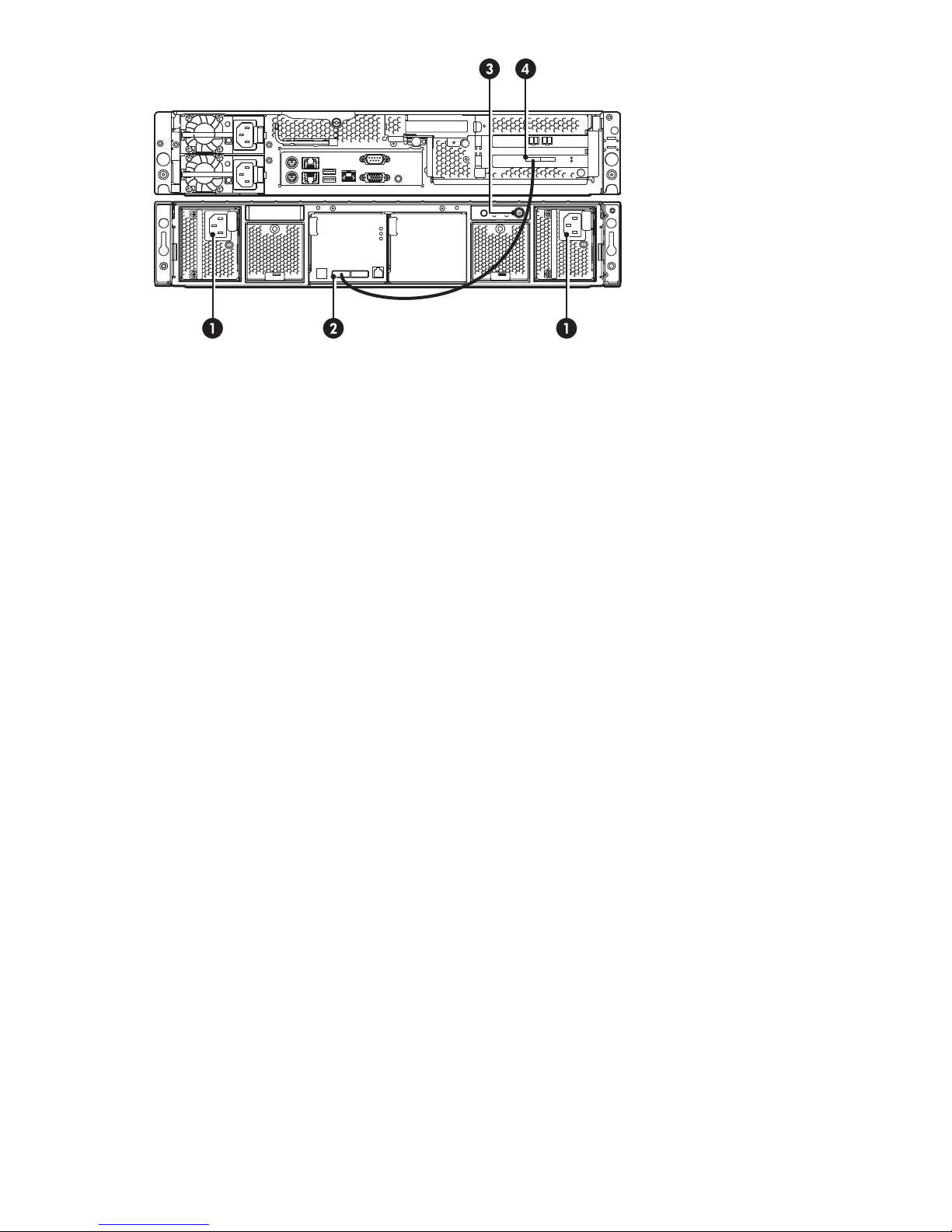

Connecting to the Capacity Upgrade Kit (optional) ....................................................................... 36
Supported Ethernet configurations ...............................................................................................37
Ethernet network connection ................................................................................................ 37
IPv4 and IPv6 network protocols .................................................................................... 37

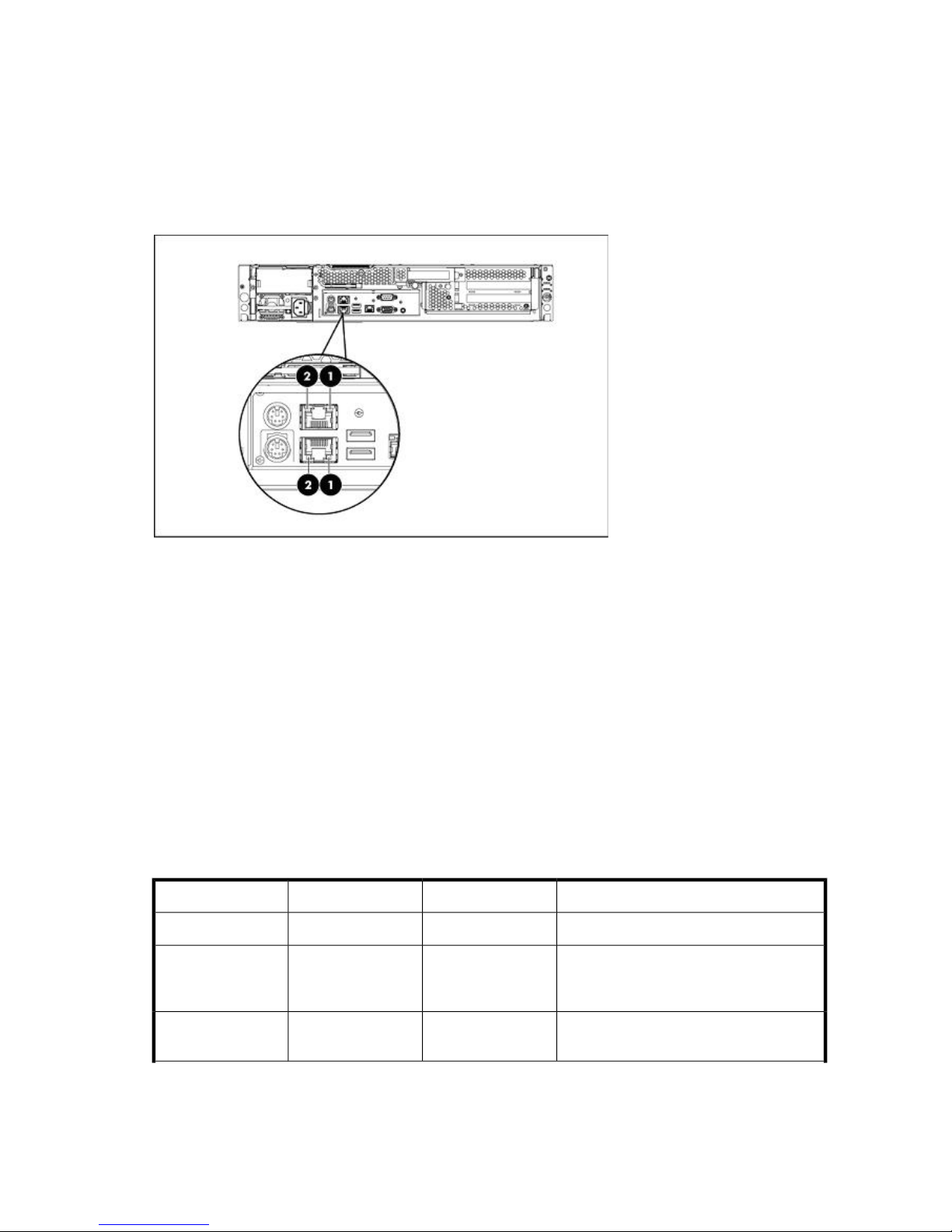

Dual network ports ....................................................................................................... 37
DHCP and static IP addressing ...................................................................................... 38

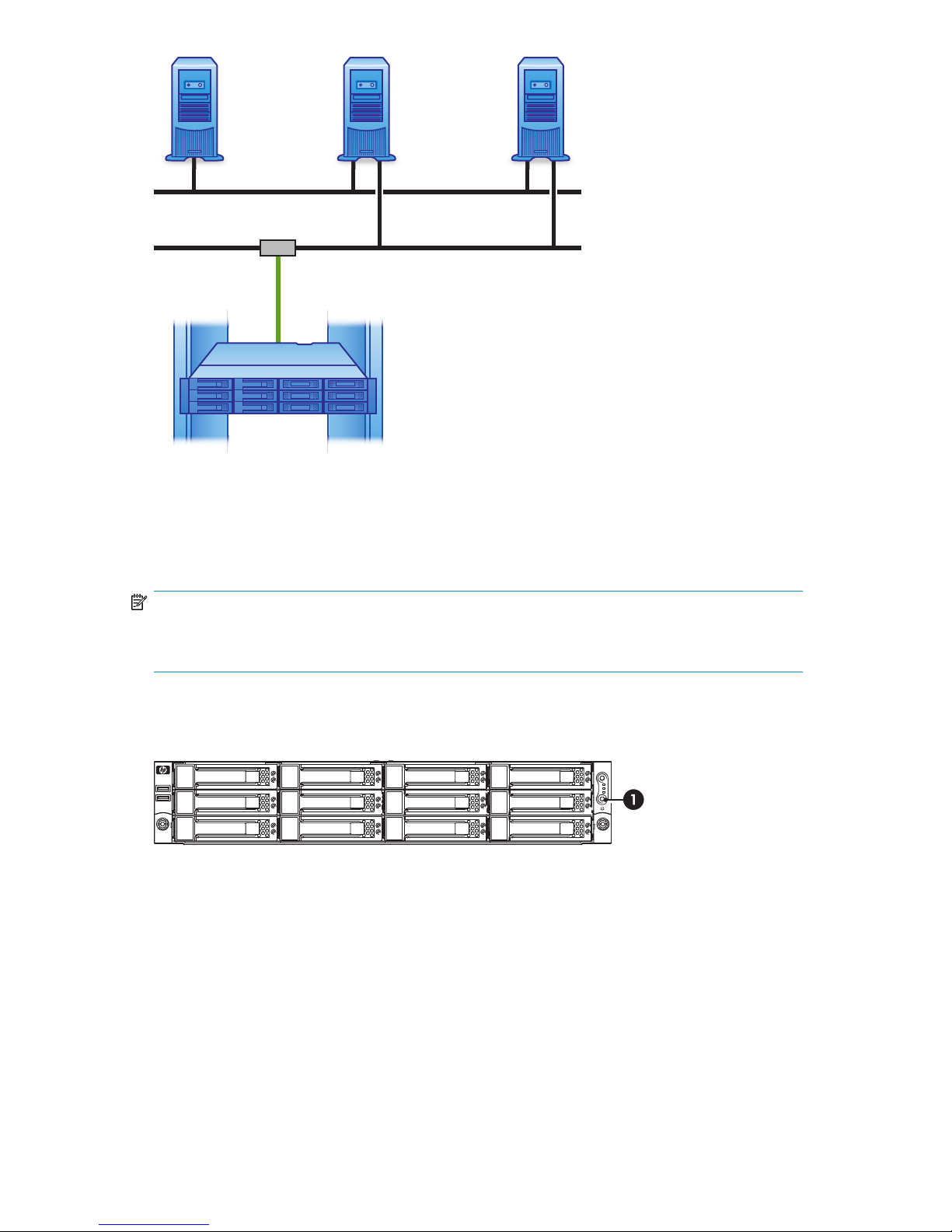

HP D2D on a Gigabit Ethernet network .......................................................................... 38
Powering on the HP D2D ........................................................................................................... 39
Software installation, discovery and configuration ......................................................................... 39
Installation wizard for Windows users ................................................................................... 40

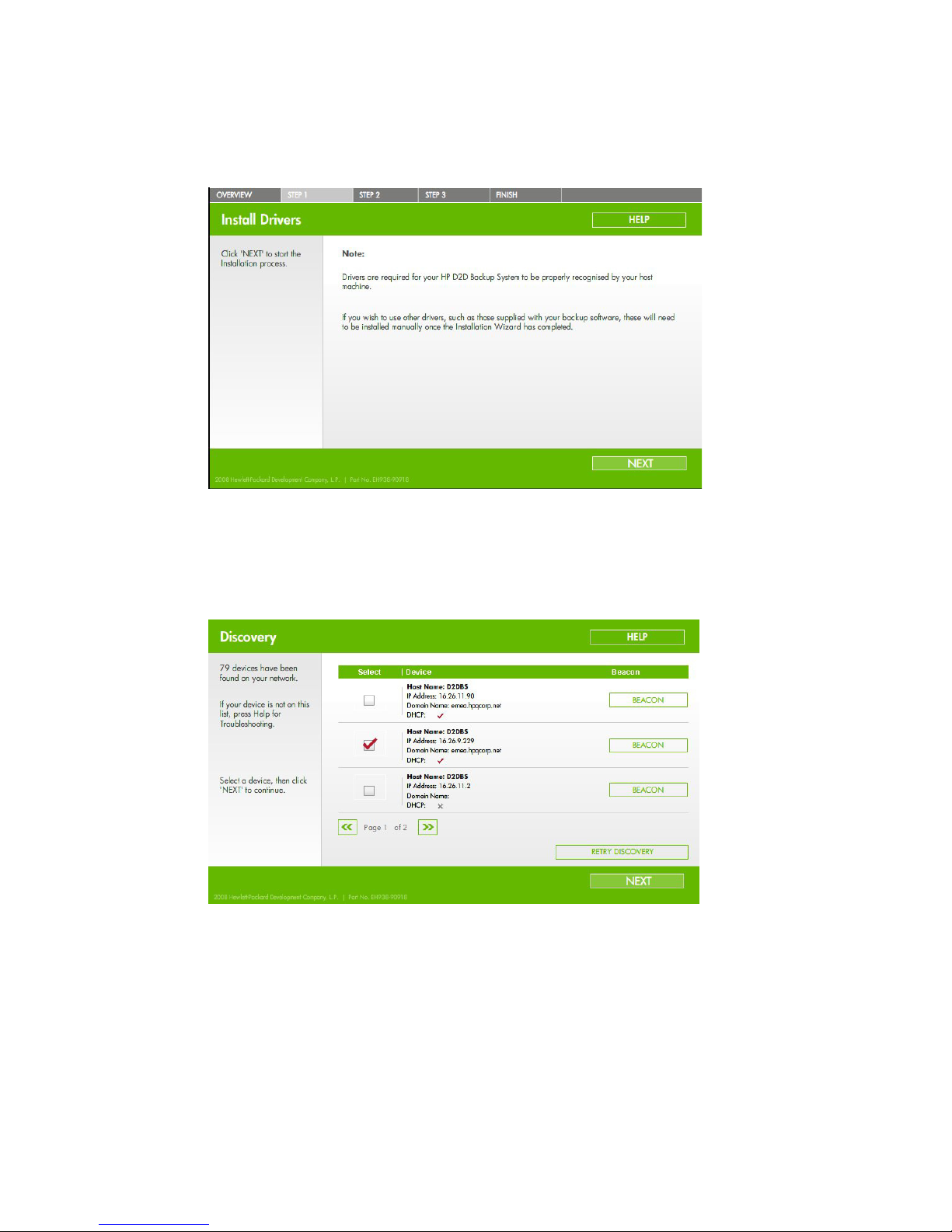

Running the Installation wizard ...................................................................................... 40
Recommended web browser settings ........................................................................................... 44
Internet Explorer 7.X ..........................................................................................................44
Internet Explorer 6.X ...........................................................................................................44
Mozilla Firefox 1.5, Firefox 2.X and Firefox 3.X ...................................................................... 44
3 Attaching a physical tape library or tape drive (optional) ...................... 45
Hardware requirements for Tape Attach ....................................................................................... 45
Supported devices .............................................................................................................. 45
Tape device installation overview ................................................................................................ 46
Removing the top cover ............................................................................................................. 46
Installing the HBA ..................................................................................................................... 47
Removing the PCI Cage ...................................................................................................... 47
Removing the slot cover ....................................................................................................... 48
Installing the PCIe Card ...................................................................................................... 49
Reinstalling the PCI Cage .................................................................................................... 50
Replacing the top cover ............................................................................................................. 51
Connecting an external or rackmount storage device ..................................................................... 51
4 Advanced installation ....................................................................... 53
Manual driver installation .......................................................................................................... 53
HP LTO Tape driver ............................................................................................................. 53
Medium changer driver ....................................................................................................... 53
Using DHCP to discover the HP D2D Backup System (IPv4 only) ...................................................... 54
Using the Discovery Engine to discover the HP D2D Backup System (IPv4 only) ................................. 54
Beacon mode .................................................................................................................... 55
If the HP D2D Backup System is new and not yet configured .................................................... 55
If the HP D2D Backup System has been configured incorrectly .................................................. 55
If the network setup has been changed ................................................................................. 55
Using the console to discover the HP D2D Backup System (IPv4 and IPv6) ........................................ 56
To connect the system console .............................................................................................. 56

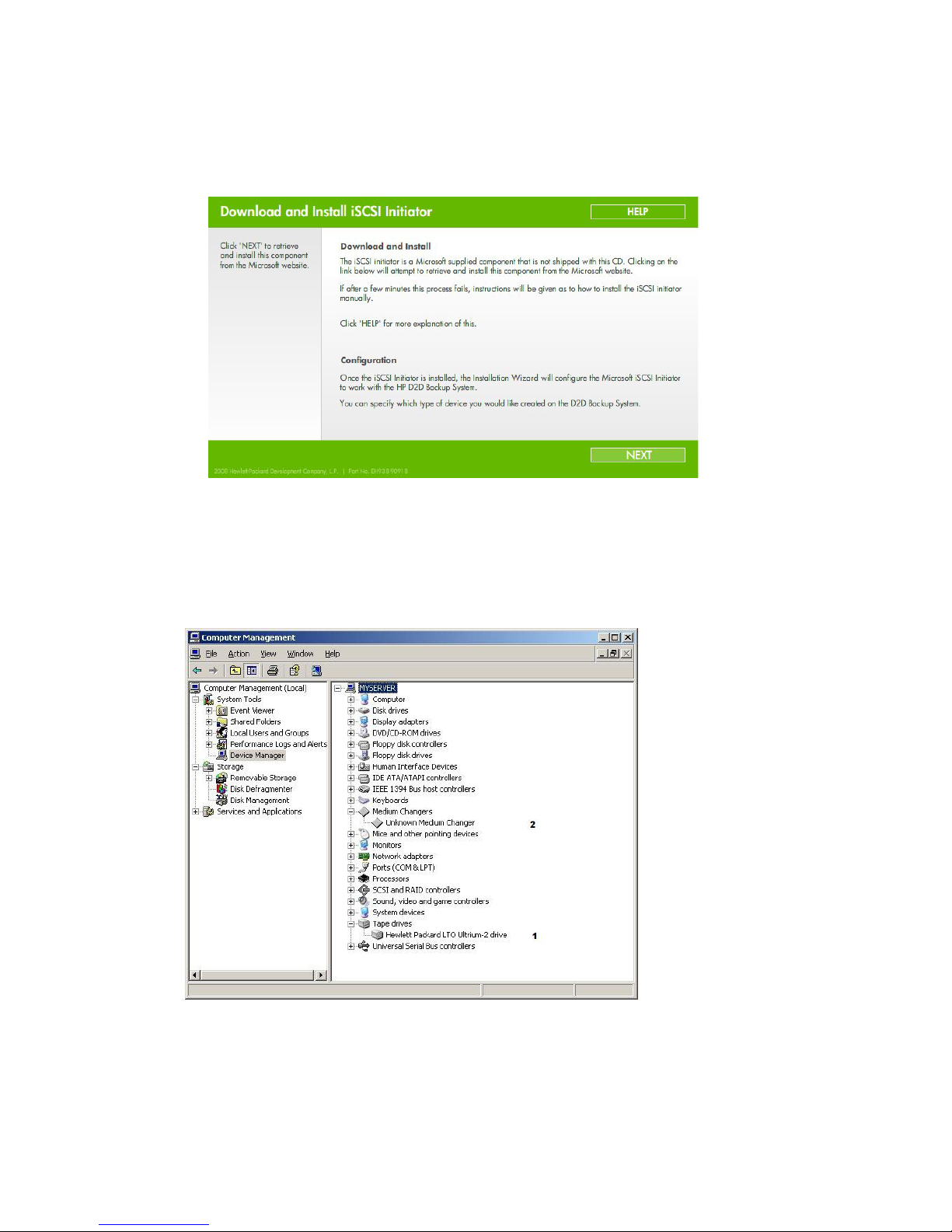

iSCSI Initiator ........................................................................................................................... 57
Manual iSCSI initiator installation ......................................................................................... 58
The iSCSI Initiator and Authentication ................................................................................... 59

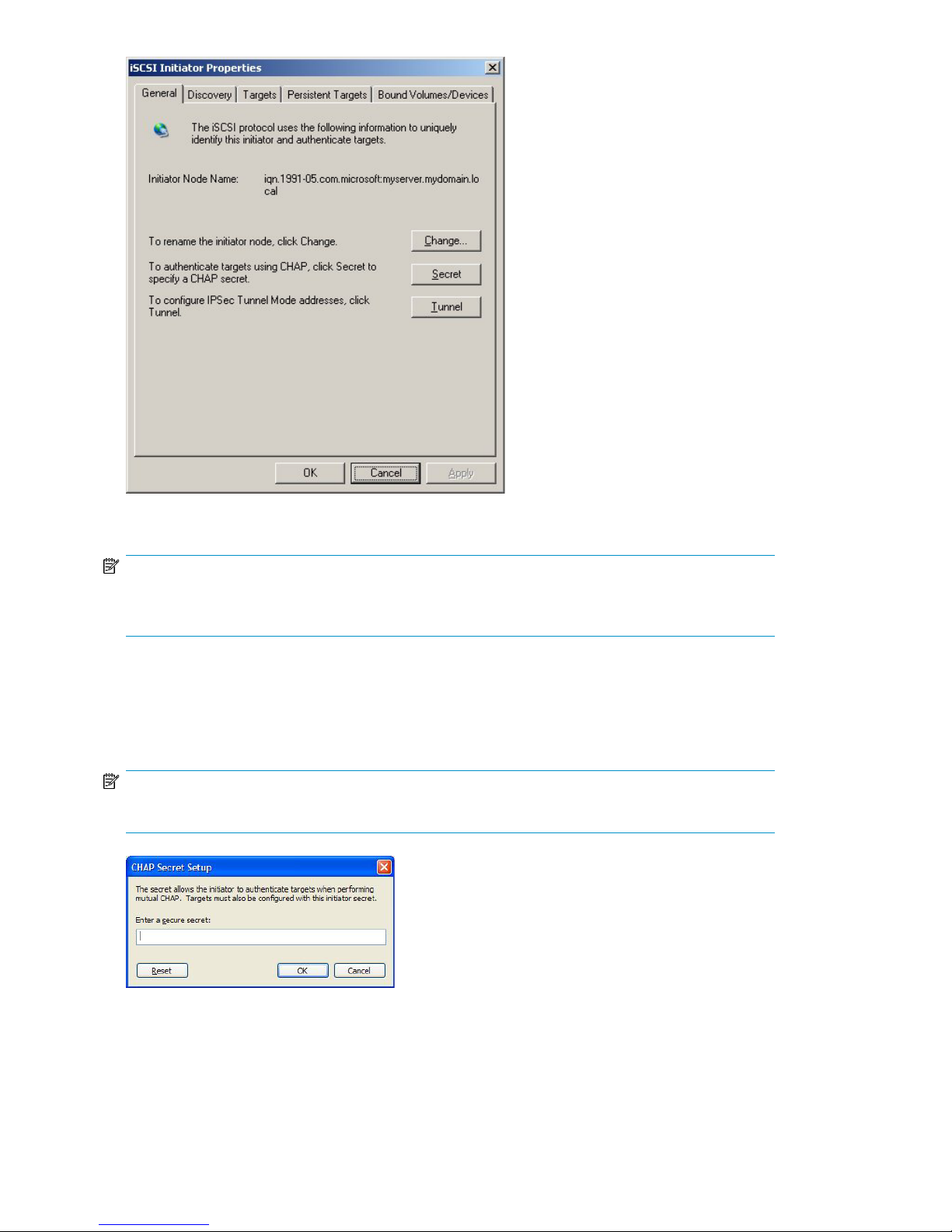

The Microsoft iSCSI Initiator ................................................................................................. 59
4
Page 5
General tab ................................................................................................................ 59

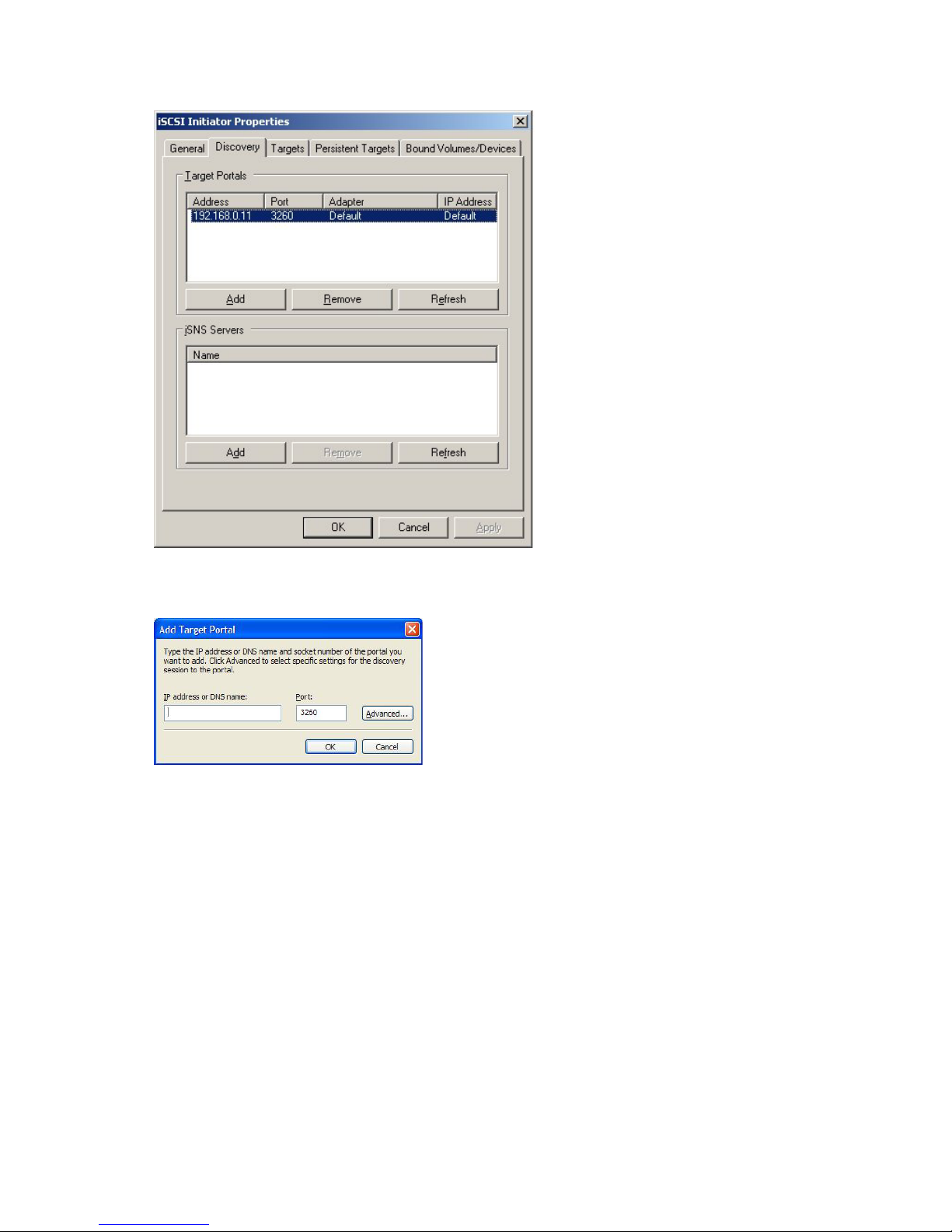

Discovery tab .............................................................................................................. 61

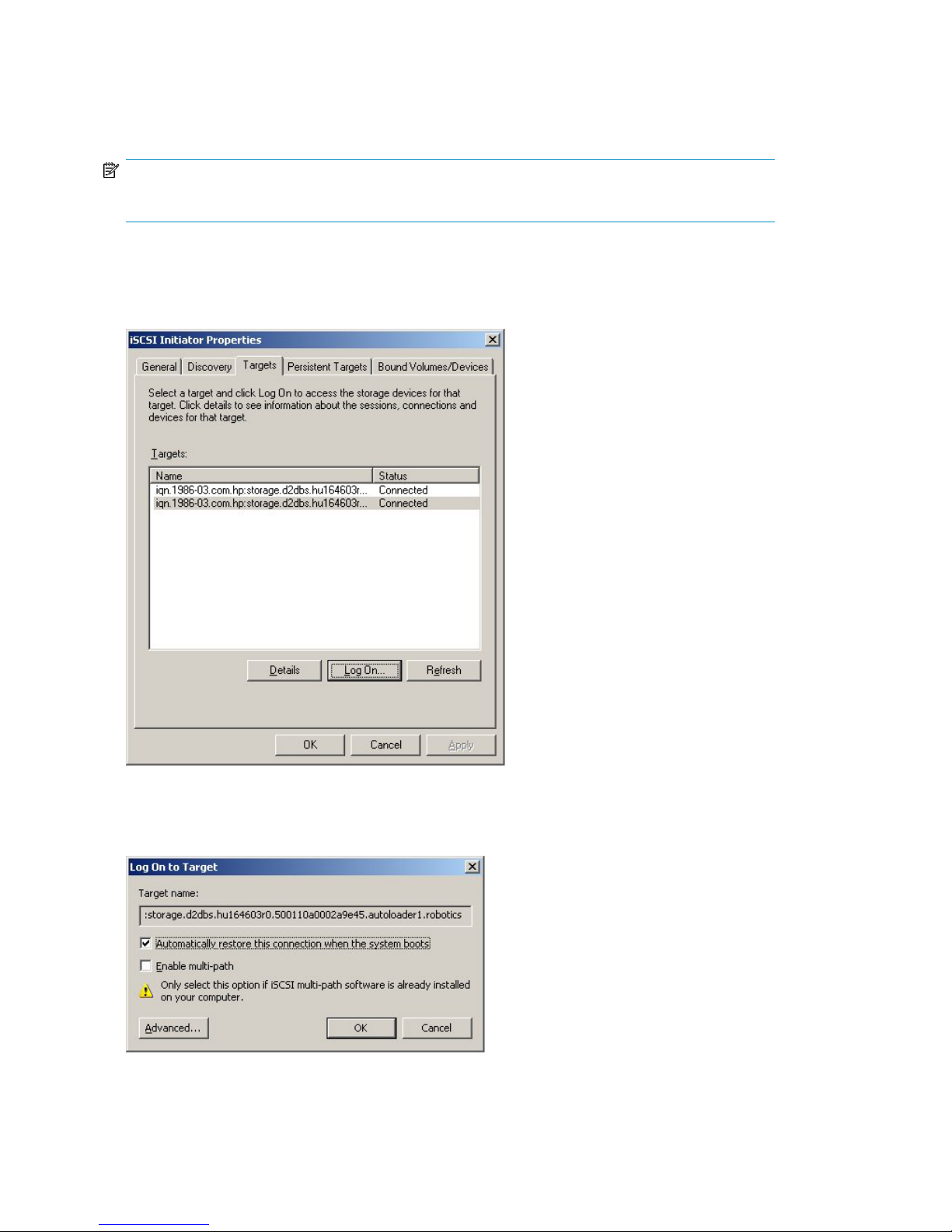

Targets tab .................................................................................................................. 61

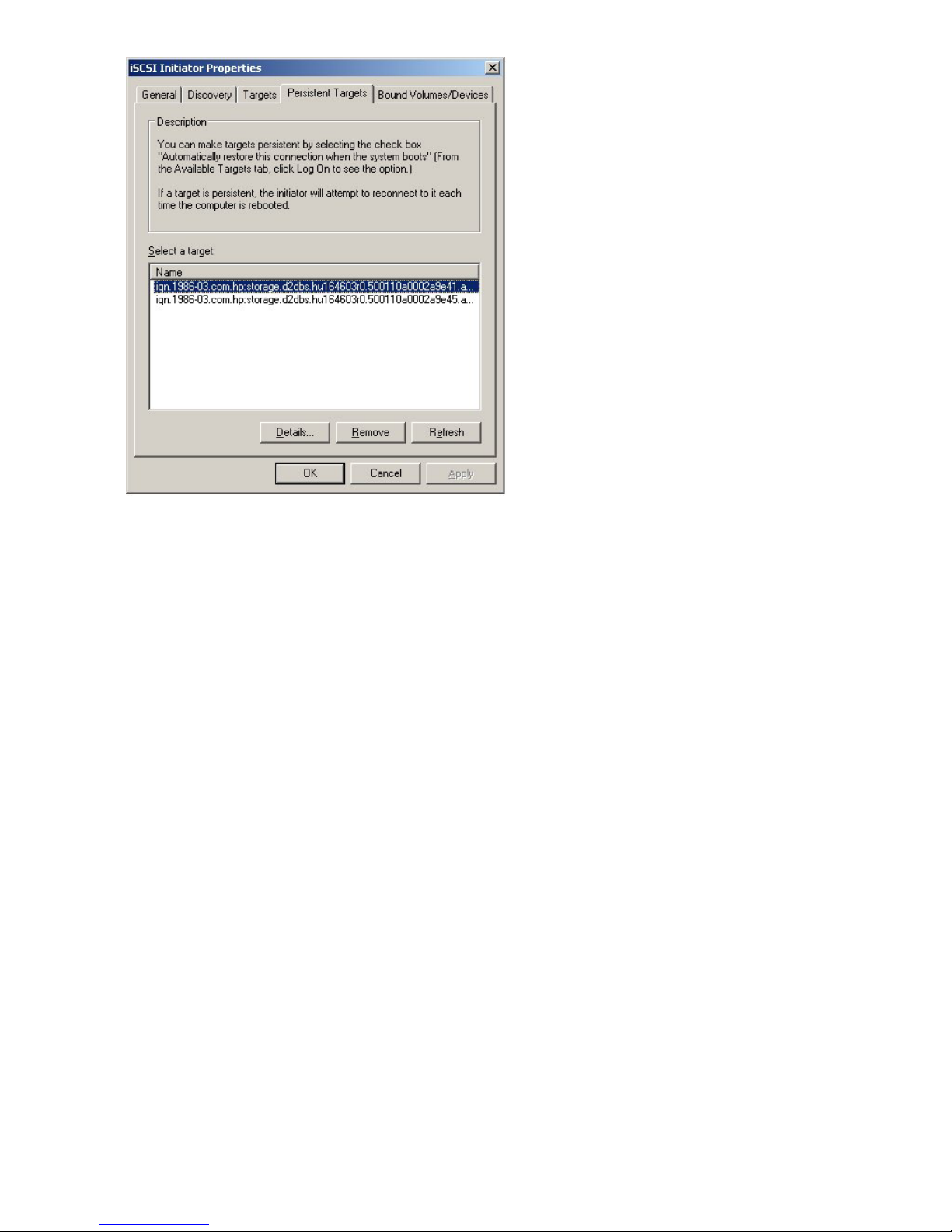

Persistent Targets tab .................................................................................................... 63
Bound Volumes/Devices tab .......................................................................................... 64
Linux and UNIX iSCSI initiators ................................................................................................... 64
5 HP D2D Backup Systems and Fibre Channel ........................................ 65
Fibre Channel topologies ........................................................................................................... 65
Zoning .................................................................................................................................... 65
Fibre Channel connection .......................................................................................................... 66

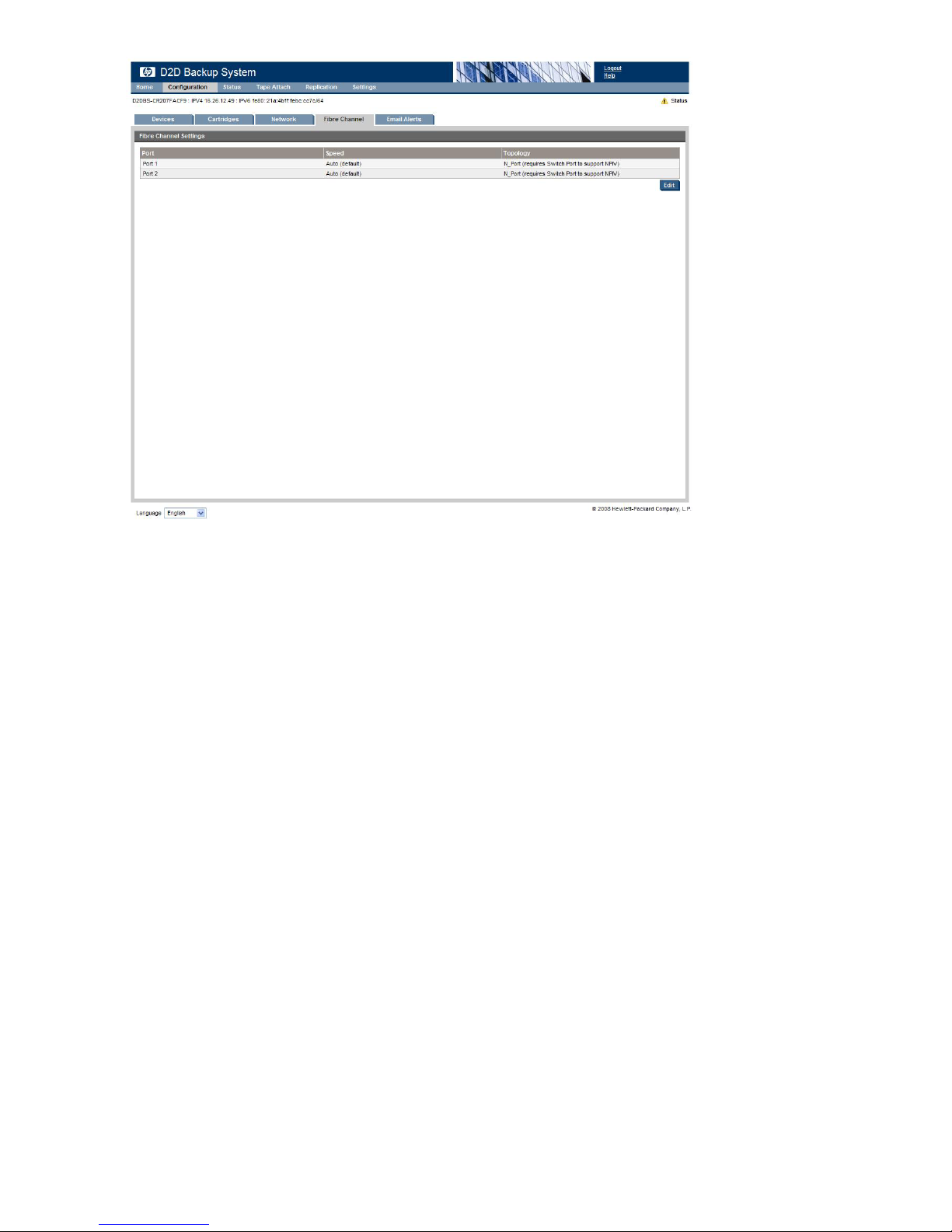

Fibre Channel (Configuration) ..................................................................................................... 67
To edit the FC configuration ................................................................................................. 68
Fibre Channel (Status) ............................................................................................................... 68
Devices section .................................................................................................................. 69
Library section ................................................................................................................... 69
6 LEDs ............................................................................................... 71

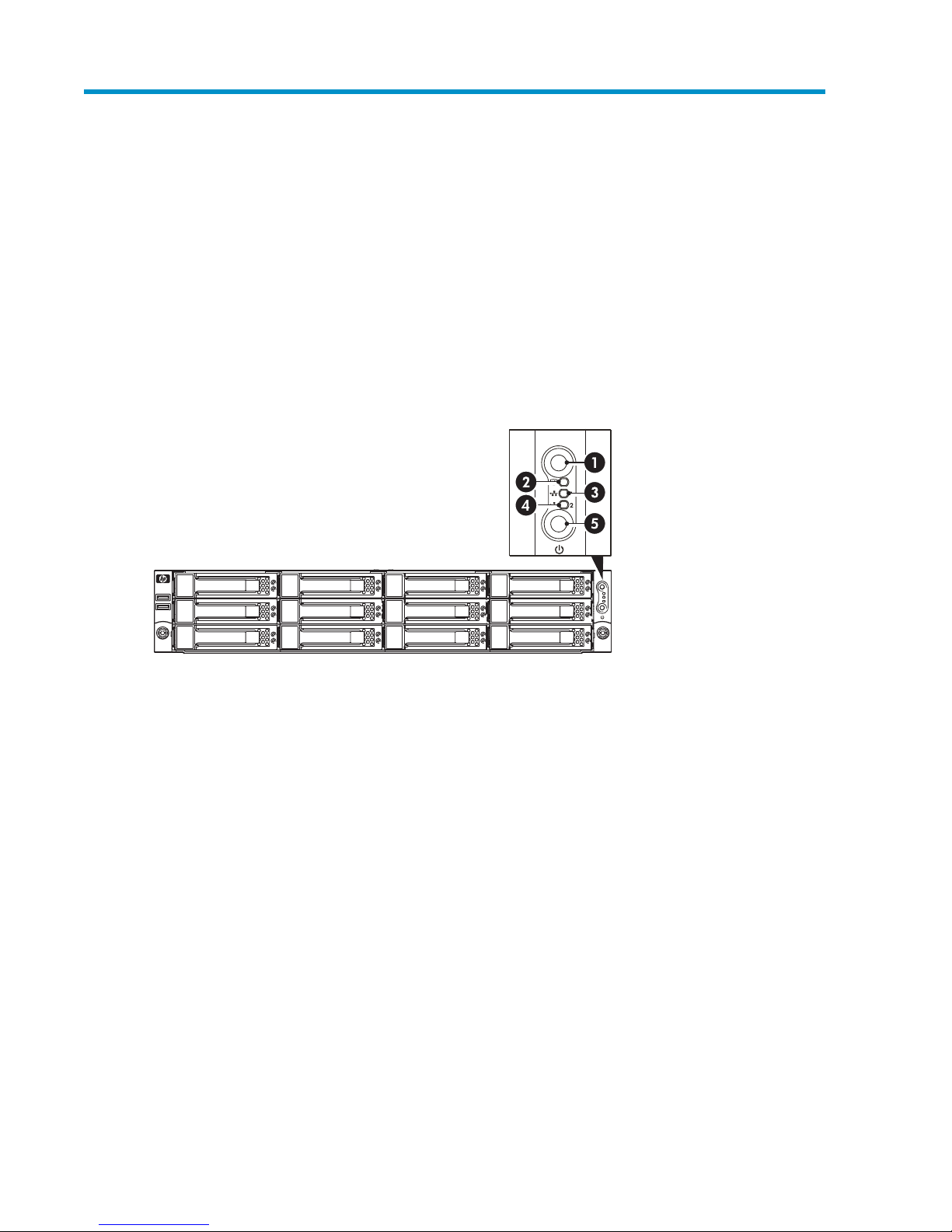

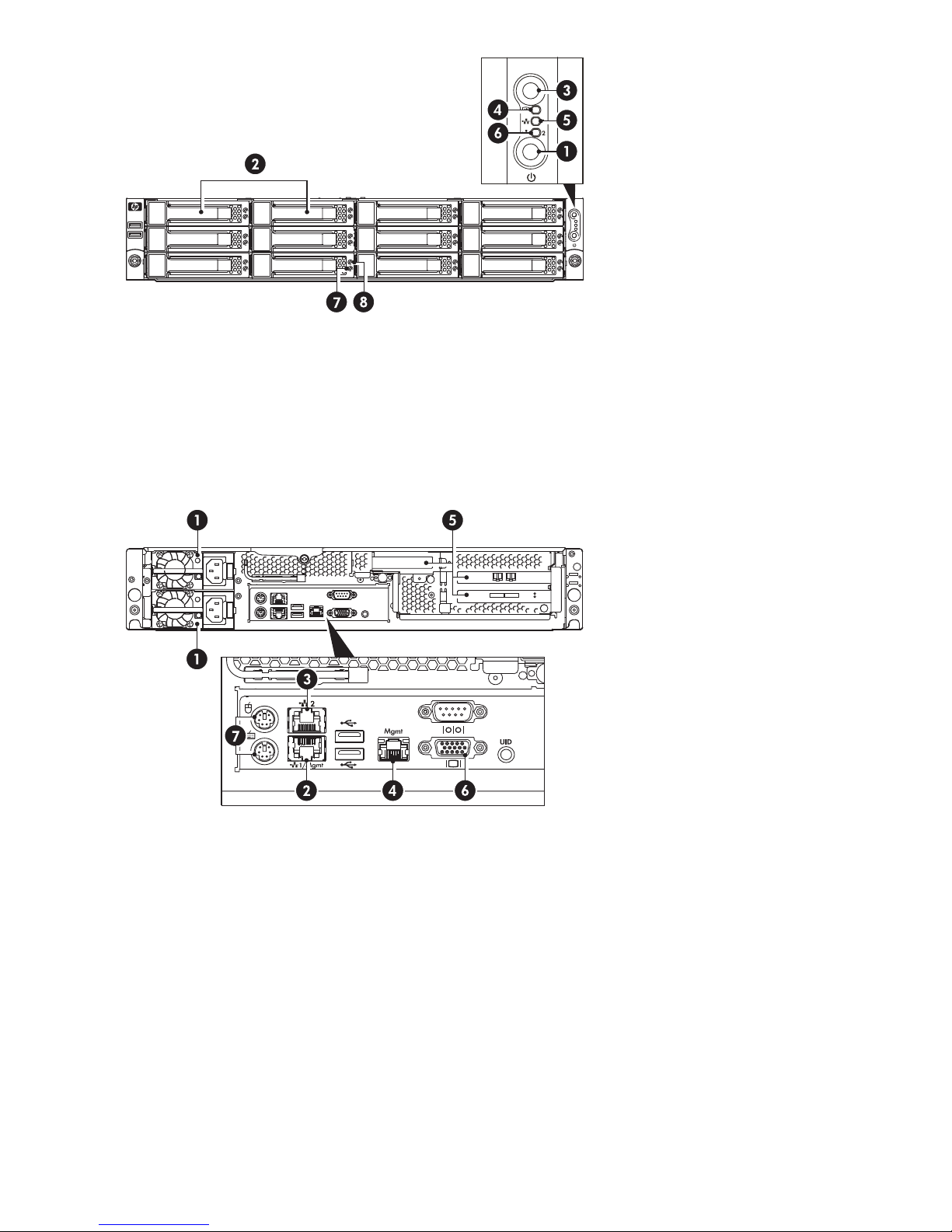

Front panel LEDs ....................................................................................................................... 71

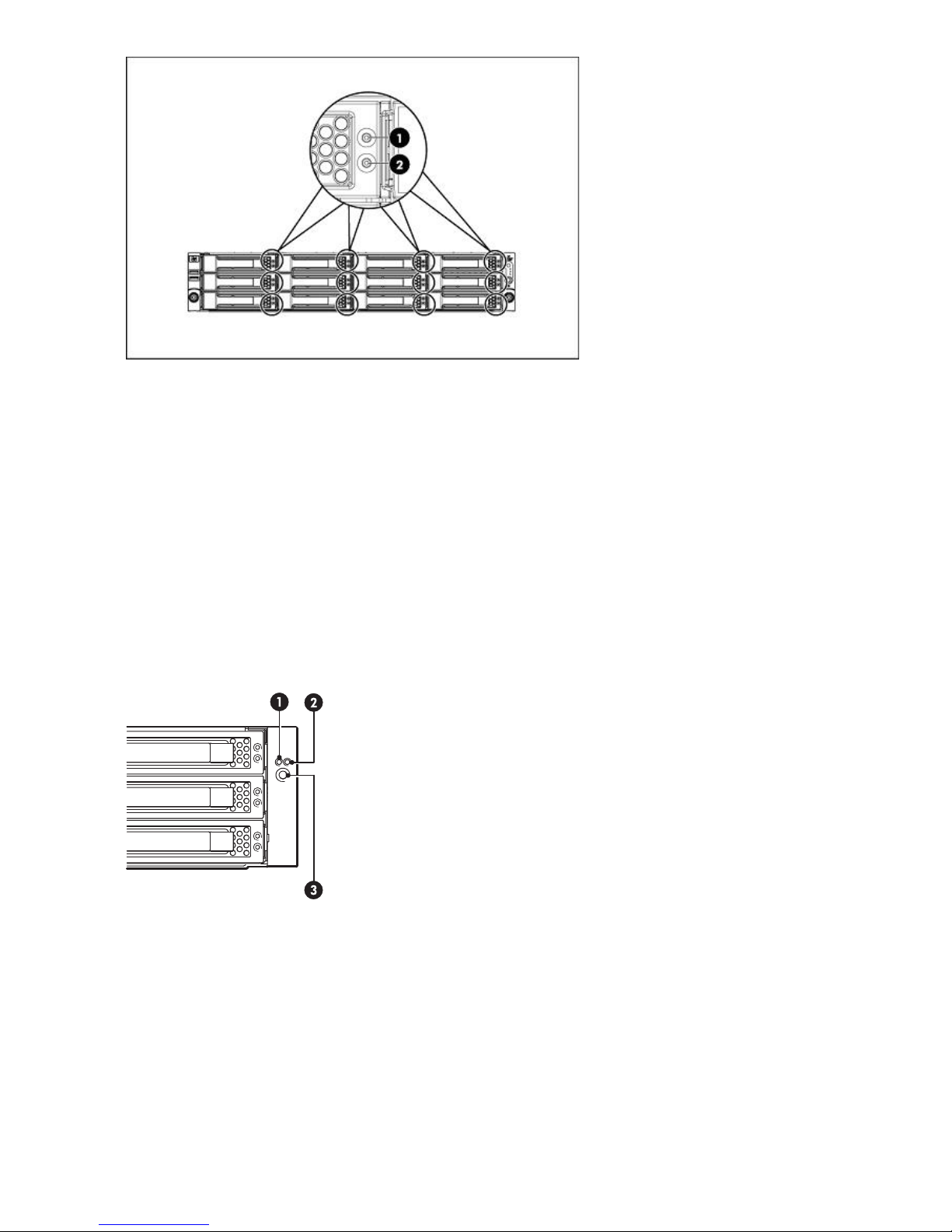

Hot-plug drive LEDs ............................................................................................................ 71
Capacity upgrade kit LEDs ......................................................................................................... 72
Rear panel LEDs ....................................................................................................................... 73
Fibre Channel card LEDs ............................................................................................................ 73
Beacon mode ........................................................................................................................... 74
7 Configuring and using replication ...................................................... 75

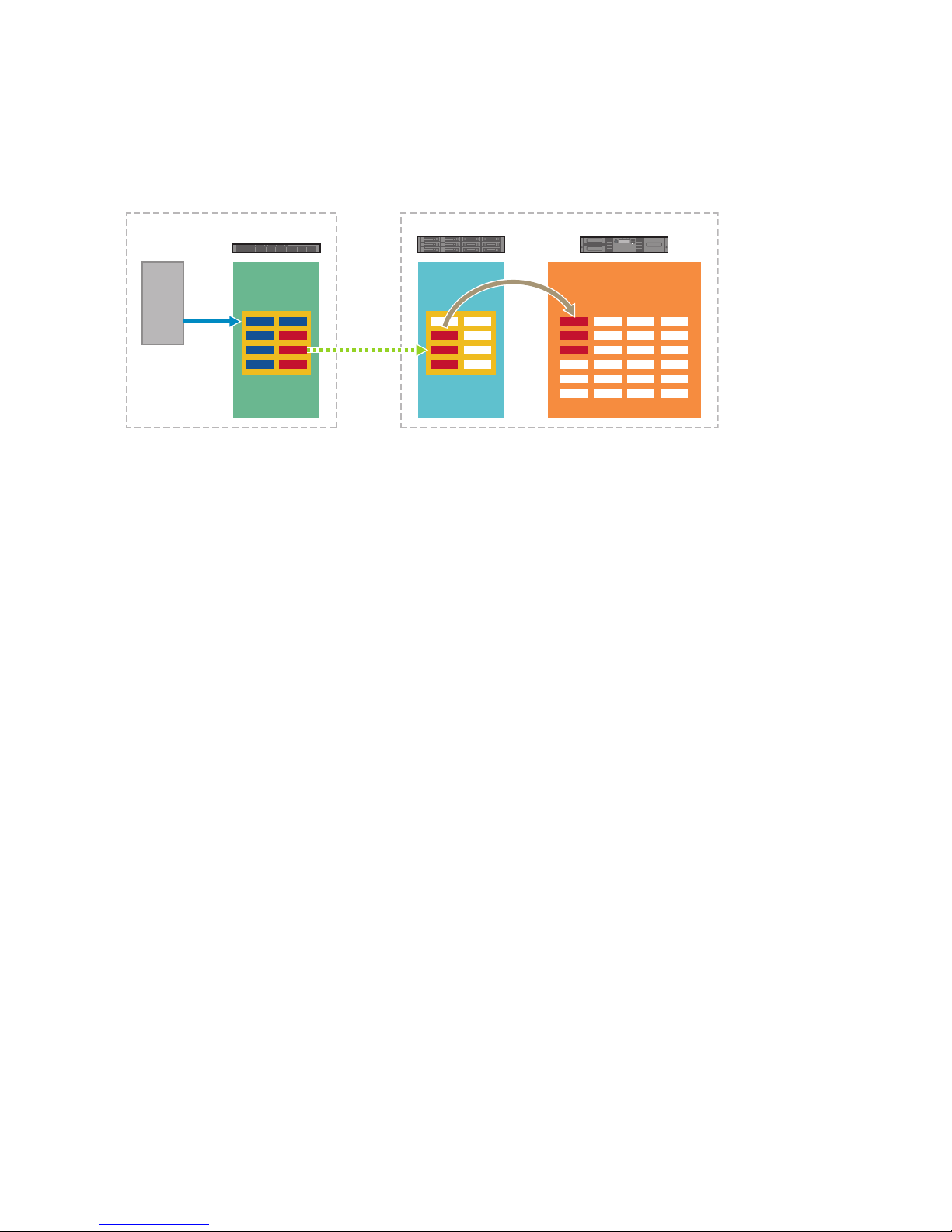

Replication overview ................................................................................................................. 75
How is replication initiated? ................................................................................................ 75
Replication and Tape Attach ................................................................................................ 76
Preparing for replication ............................................................................................................ 76
Replication concepts and terminology .......................................................................................... 76
Replication elements ........................................................................................................... 76

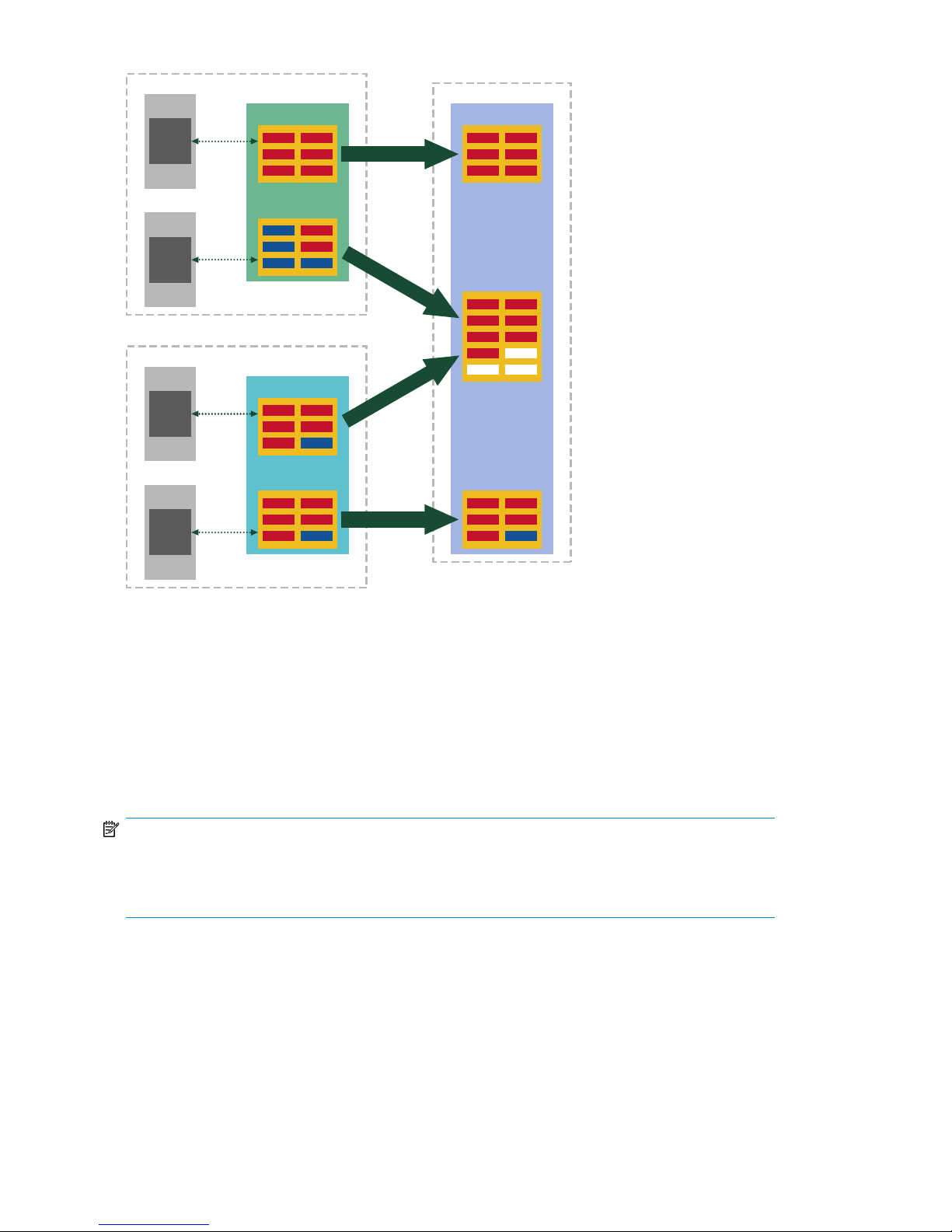

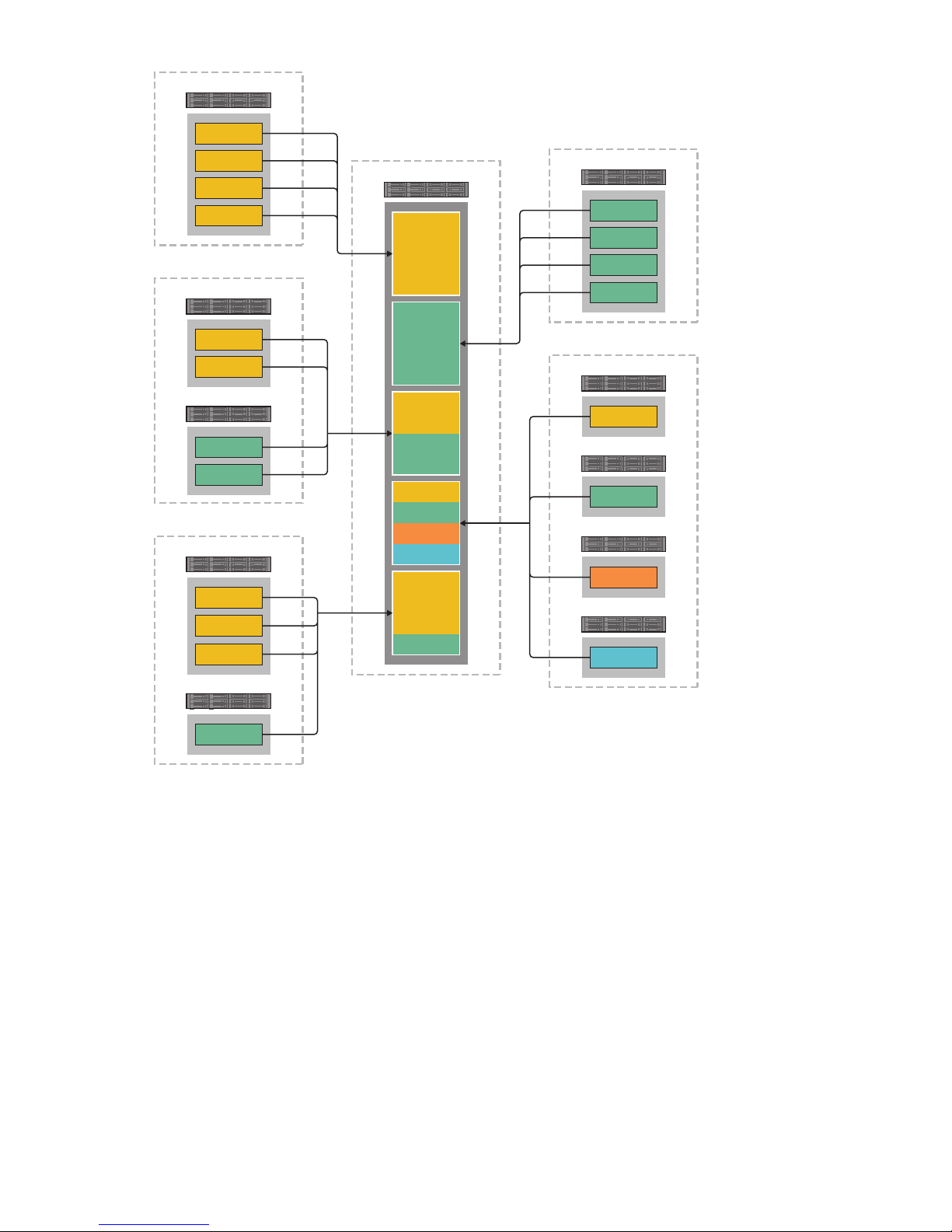

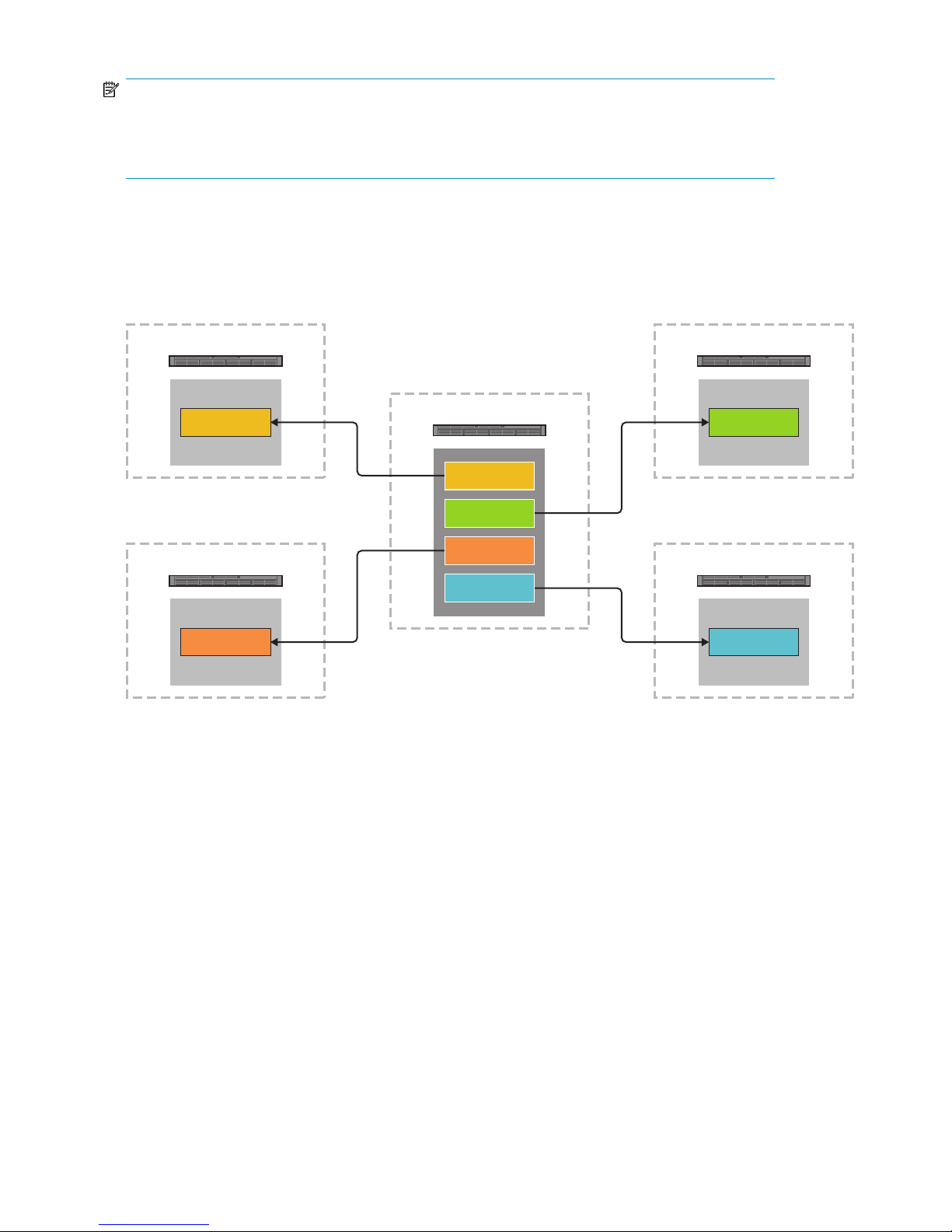

Fan In, Fan Out and job concurrency .................................................................................... 77
Fan OUT .................................................................................................................... 77
Fan IN ....................................................................................................................... 79
Job concurrency .......................................................................................................... 81
Backup applications and target libraries ...................................................................................... 82
Why make target libraries visible? ........................................................................................ 82
Best practices for using this feature ....................................................................................... 83
How is a target library made visible? .................................................................................... 83

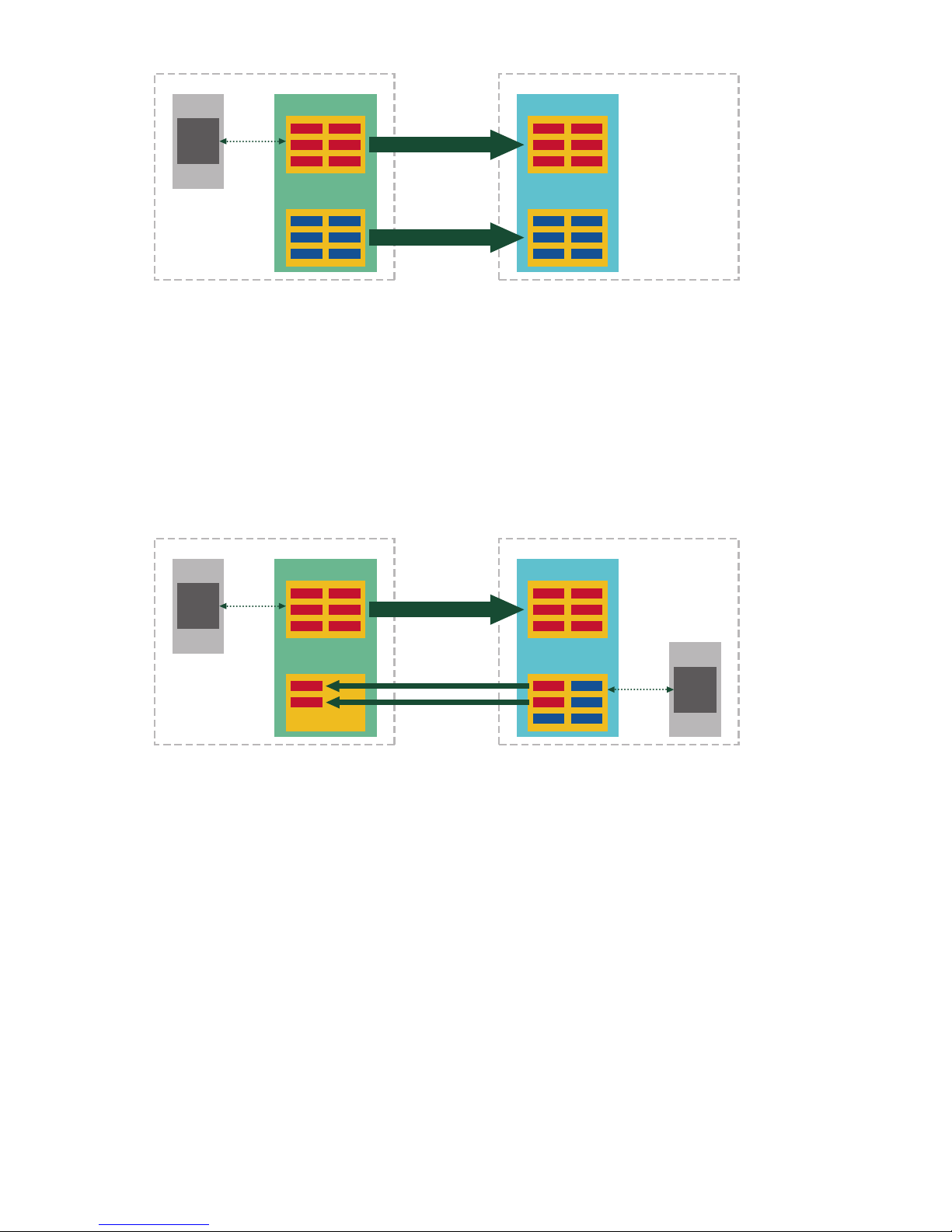

Replication deployment strategies ...............................................................................................84
Active to Passive example .................................................................................................... 84
Active to Active example ..................................................................................................... 85

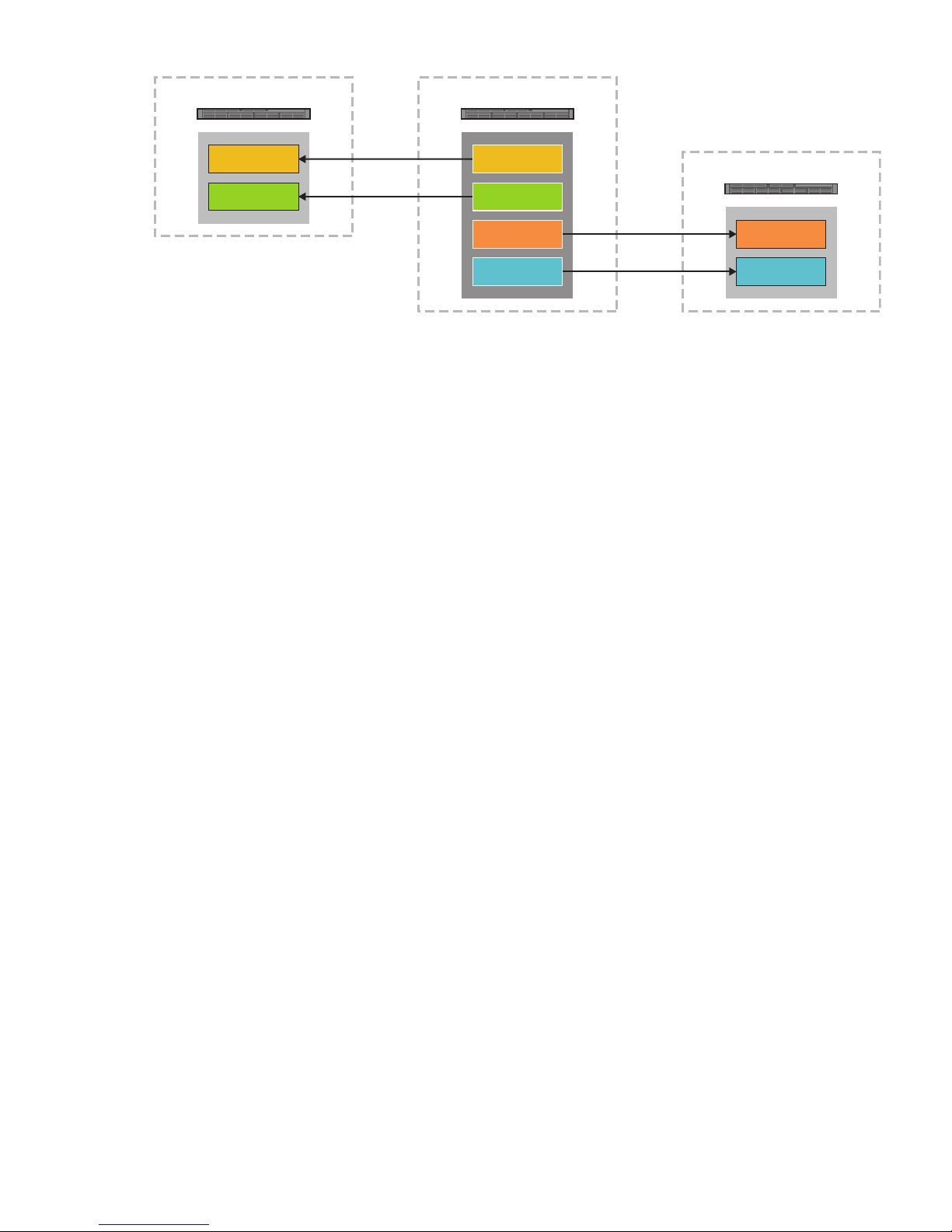

Many to One example ........................................................................................................ 85
Replication Licensing ................................................................................................................. 86
Before you start .................................................................................................................. 86
Creating the LTU ................................................................................................................87
Applying the LTU ................................................................................................................87

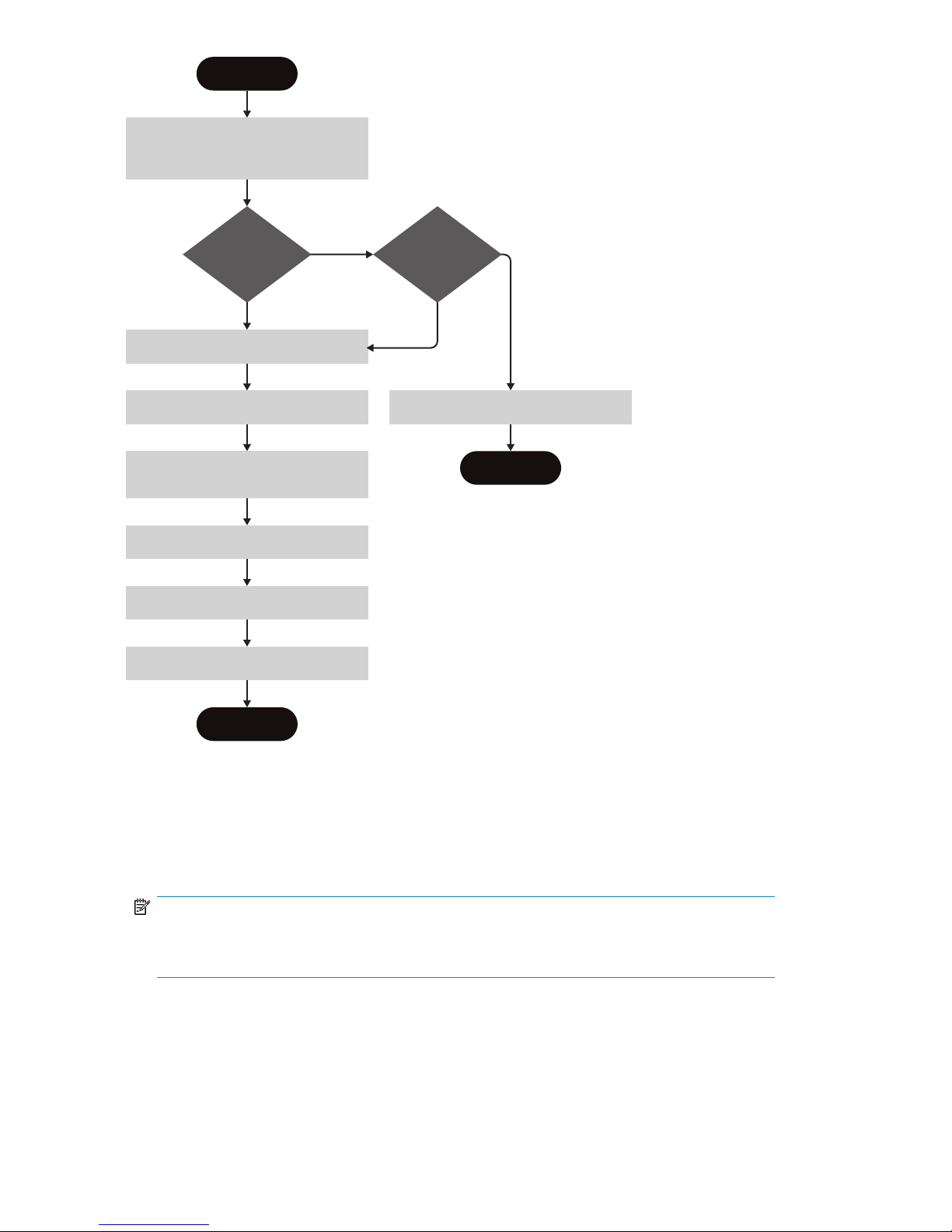

The Replication process ............................................................................................................. 88
Seeding the Replication Target Appliance .............................................................................. 88

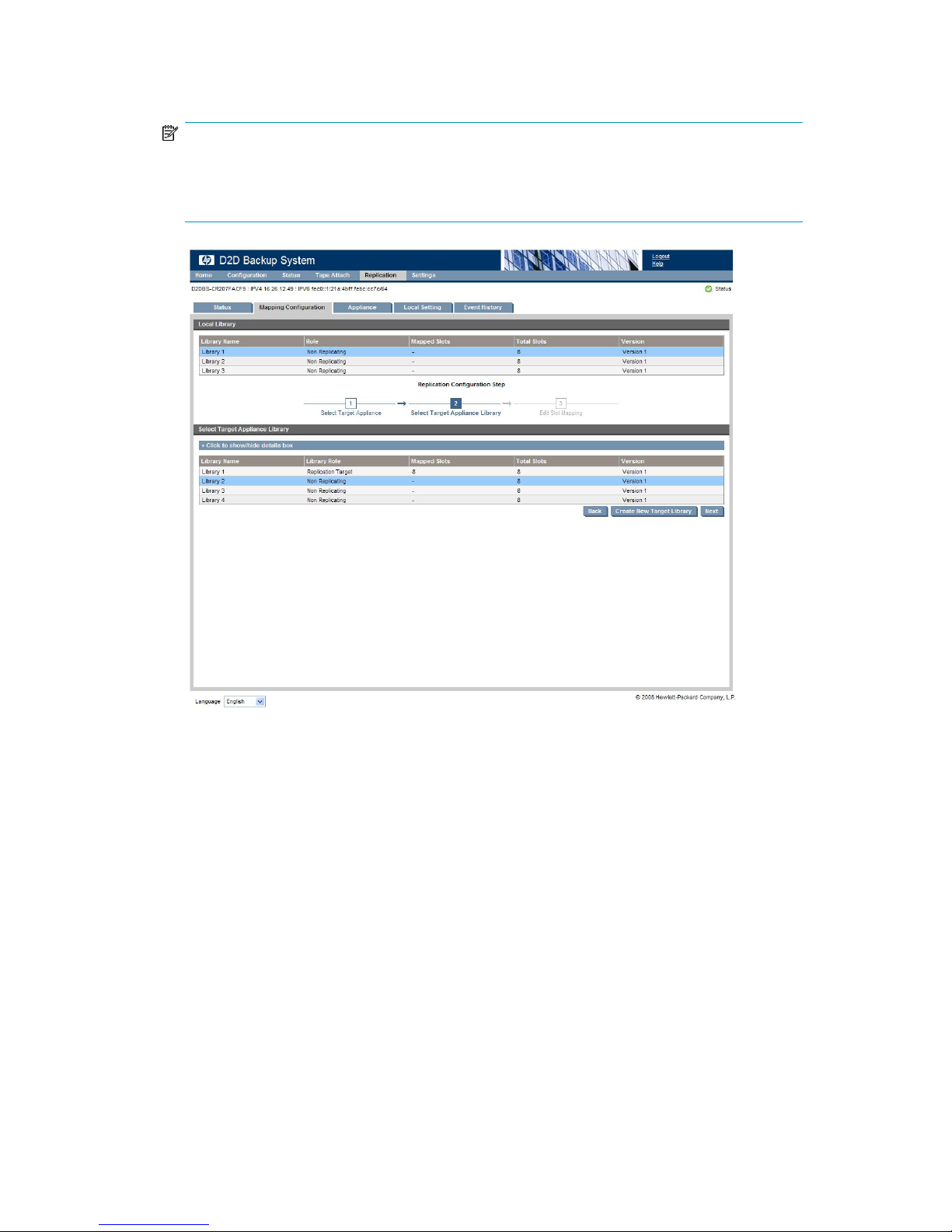

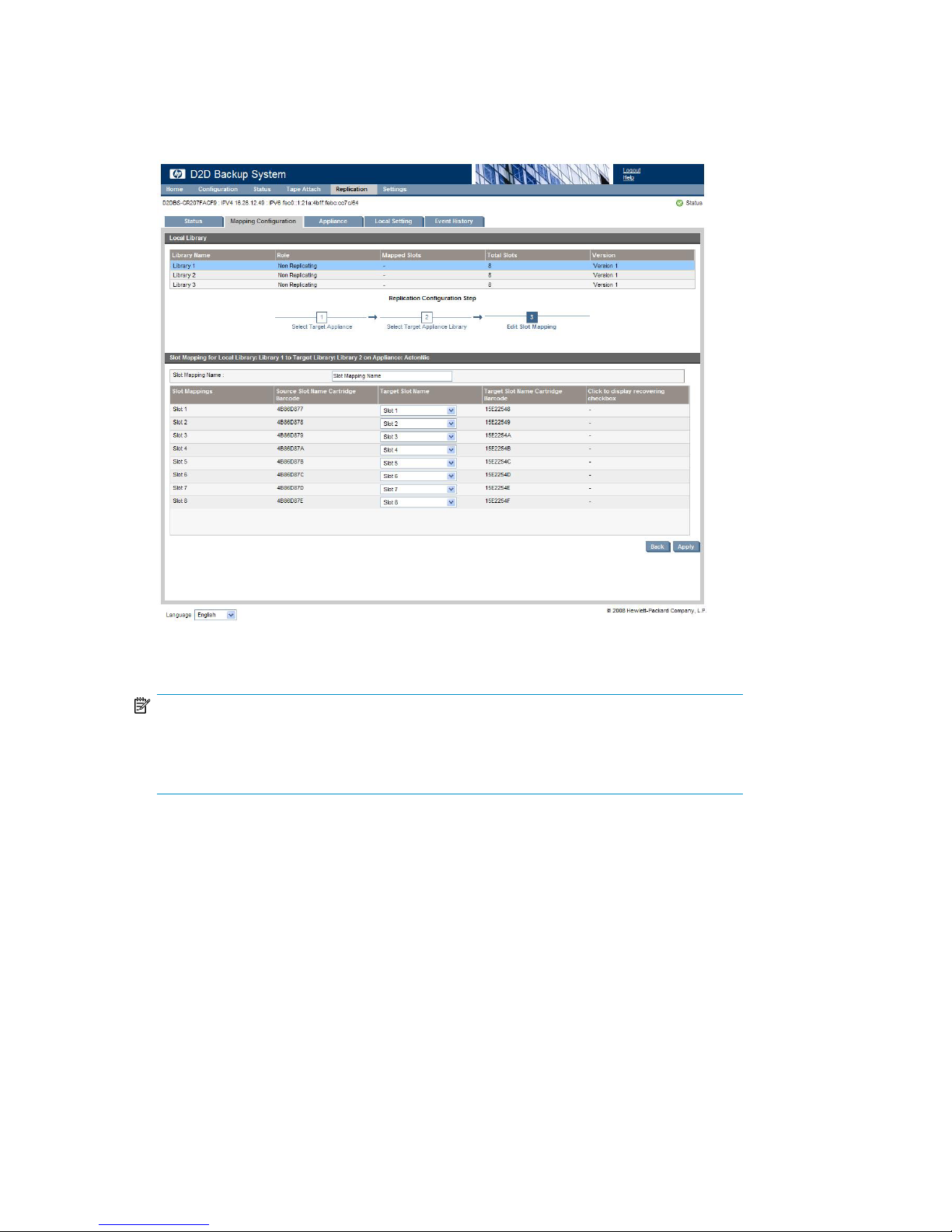

Running the replication wizard ............................................................................................. 90
Recovering a Source Appliance .................................................................................................. 94
Reverse replication using the wizard ..................................................................................... 95
D2D Backup System HP D2D4112 5
Page 6
Reverse replication, source lost and mapping deleted .............................................................. 97
Promoting a Target Library over the WAN using SCSI ............................................................. 99
Promoting a Target Library using colocation ......................................................................... 101
Recovery from physical media direct to host ......................................................................... 103
8 The Web Management Interface ...................................................... 107
What is the Web Management interface? .................................................................................. 107
To run the Web Management Interface ...................................................................................... 107
Summary (Home) .................................................................................................................... 108
Status icons ..................................................................................................................... 110
Initial Logon .................................................................................................................... 110
Devices (Configuration) ............................................................................................................ 110
Emulation types for tape devices ......................................................................................... 112
Libraries, slots and storage capacity ................................................................................... 112
User recommendations ............................................................................................... 113
Source and target libraries .......................................................................................... 113
To view device details ....................................................................................................... 113
To edit device details ........................................................................................................ 113
To create a new device ..................................................................................................... 113
To delete a device ............................................................................................................ 116
Cartridges (Configuration) ....................................................................................................... 116
Empty slots ...................................................................................................................... 118
To delete a cartridge ........................................................................................................ 118
To write protect a cartridge ................................................................................................ 118
To edit maximum size ....................................................................................................... 119
To create a cartridge ........................................................................................................ 119
To move or unload cartridges ............................................................................................ 120
Network (Configuration) .......................................................................................................... 120
Network configuration ...................................................................................................... 120
To edit network settings .............................................................................................. 120
Resetting network settings to factory defaults ........................................................................ 121
Beacon mode .................................................................................................................. 122
Fibre Channel (Configuration) ................................................................................................... 122
Email Alerts (Configuration) ...................................................................................................... 122
To configure Microsoft Exchange Server .............................................................................. 123
Storage (Status) ...................................................................................................................... 124
Storage pool ................................................................................................................... 125
Storage Pool ............................................................................................................. 125
Configured shelves ..................................................................................................... 126
Storage usage ........................................................................................................... 126
Device storage usage ................................................................................................. 126
RAID .............................................................................................................................. 127
RAID controllers ......................................................................................................... 127
Logical units .............................................................................................................. 127
Shelves ........................................................................................................................... 128
Shelves ..................................................................................................................... 128
Physical disks ............................................................................................................ 128
iSCSI (Status) .......................................................................................................................... 129
Fibre Channel (Status) ............................................................................................................. 130
Log (Status) ............................................................................................................................ 130
Sorting and searching the log ............................................................................................ 131
Tape Attach pages .................................................................................................................. 131
Replication pages ................................................................................................................... 131
Status (Replication) .................................................................................................................. 131
6
Page 7
Mapping Configuration (Replication) ......................................................................................... 132
Local library .................................................................................................................... 133
The replication wizards ..................................................................................................... 135
Appliance (Replication) ........................................................................................................... 135
To add a target appliance ................................................................................................. 136
To edit or remove a Target Appliance ................................................................................. 136
Target and Source Appliance parameters ............................................................................ 136
Local Settings (Replication) ....................................................................................................... 137
Configure blackout windows .............................................................................................. 137
Configure replication ports ................................................................................................ 138
Enable bandwidth limiting ................................................................................................. 138
Event History (Replication) ........................................................................................................ 138
Sorting and searching the event history .............................................................................. 139
Admin (Settings) ..................................................................................................................... 139
Resetting the password ...................................................................................................... 140
Date & Time (Settings) ............................................................................................................. 140
Shutdown (Settings) ................................................................................................................. 141
Firmware (Settings) .................................................................................................................. 142
What is the Language and Help Text Pack? ......................................................................... 142
Upgrading the firmware .................................................................................................... 142
Upgrading the language and help text pack ........................................................................ 143
Support (Settings) ................................................................................................................... 144
License (Settings) .................................................................................................................... 145
More about replication licensing ....................................................................................... 145
More about capacity upgrade licensing ............................................................................. 145
To apply the license key .................................................................................................... 146
9 Using Tape Attach .......................................................................... 147
Options for archiving to tape .................................................................................................... 147
A note about terminology .................................................................................................. 147
Archiving methods .................................................................................................................. 148
Cartridge copy ................................................................................................................ 148
Why use the Copy functionality? .................................................................................. 149
When would Copy be used? ....................................................................................... 149
When is it necessary to restore from a copied cartridge? ................................................ 149
Disadvantages of Copy ............................................................................................. 150
Cartridge export .............................................................................................................. 150
Why use the Export functionality? ................................................................................ 151
When would Export be used? ..................................................................................... 151
When would I restore from an exported cartridge? ......................................................... 151
Disadvantages of Export ............................................................................................ 152
Compression ................................................................................................................... 152
Cartridge import .............................................................................................................. 152
Tape spanning ................................................................................................................ 153
Tape Attach and replication ..................................................................................................... 153
Using the Tape Attach web pages ............................................................................................. 154
Configuration (Tape Attach) ............................................................................................... 154
Adding tape storage devices to the list ........................................................................ 155
Viewing and editing tape device details ....................................................................... 155
Viewing cartridge details ........................................................................................... 155
Obtaining support .................................................................................................... 155
Upgrading tape storage device firmware ...................................................................... 156
Manual jobs (Tape Attach) ................................................................................................ 157
To select cartridges on the HP D2D library .................................................................... 158
D2D Backup System HP D2D4112 7
Page 8
To copy to attached tape storage device ....................................................................... 158
To export to attached tape storage device ..................................................................... 160
To import from attached tape storage device ................................................................. 161
Scheduled jobs (Tape Attach) ............................................................................................. 162
To create a scheduled job ........................................................................................... 163
Sorting and searching scheduled jobs ......................................................................... 167
To view, edit or delete existing schedules ...................................................................... 167
Status (Tape Attach) .......................................................................................................... 168
To cancel a job ......................................................................................................... 169
If an error occurs ....................................................................................................... 169
Job History (Tape Attach) .................................................................................................. 170
Sorting and searching the job history .......................................................................... 170
10 Copy using a tape drive attached to the host ................................... 171
Requirements .......................................................................................................................... 171
Tape drives supported ....................................................................................................... 171
Archive from host to tape process .............................................................................................. 172
Further information ........................................................................................................... 172
Compression .......................................................................................................................... 172
11 Restore processes without replication .............................................. 173
Restore scenarios .................................................................................................................... 173
Basic file restore ............................................................................................................... 173
Restore after host failure .................................................................................................... 173
Restore after site failure ..................................................................................................... 173
Restoring from the HP D2D Backup System ................................................................................. 174
Restore and deduplication ........................................................................................................ 174
Reconnecting to the HP D2D after host failure ............................................................................. 174
12 Troubleshooting ........................................................................... 179
Connecting the hardware ........................................................................................................ 179
Connecting to the HP D2D from the backup application ............................................................... 179
Connecting to the network ....................................................................................................... 179
Performance ........................................................................................................................... 180
Network ......................................................................................................................... 180
Web Management Interface errors and warnings ....................................................................... 180
Disk RAID errors and warnings .......................................................................................... 181
Network warnings ............................................................................................................ 181
System state ..................................................................................................................... 181
Storage Pool messages ..................................................................................................... 181
Power On/Off Problems .......................................................................................................... 182
HP D2D shuts down automatically ...................................................................................... 182
HP D2D does not boot up correctly ..................................................................................... 182
HP D2D System Health LED is flashing RED .......................................................................... 182
HP D2D boots up correctly, but cannot be seen on the network .............................................. 183
Cannot connect to Web Management Interface .......................................................................... 183
HP D2D is not visible on the network .................................................................................. 183
Cannot log in to the Web Management Interface ................................................................. 183
Cannot authenticate an iSCSI session ........................................................................................ 183
If the HP D2D Backup System runs out of disk space .................................................................... 183
HP D2D configuration problems ................................................................................................ 183
I cannot see a newly created device ................................................................................... 183
I cannot see additional slots from the backup application ...................................................... 184
8
Page 9
Upgrade licenses .................................................................................................................... 184
Can I transfer the License To Use to a different HP D2D? ........................................................ 184
More disks present than are licensed .................................................................................. 184
Replacement of hardware ........................................................................................................ 184
Event log displays ‘Invalid BIOS Assembly name’ ................................................................. 184
RAID battery backup status ................................................................................................ 184
If the RAID battery fails ..................................................................................................... 184
13 Hard disk replacement ................................................................. 185
RAID 6 .................................................................................................................................. 185
How do I know a disk has failed? ............................................................................................. 185
If you have email alerts ..................................................................................................... 187
The Event Log .................................................................................................................. 188
Replacing a hot-plug hard disk ................................................................................................. 188
After replacing the failed disk ................................................................................................... 190
Email alerts and Log ......................................................................................................... 190
If several disks fail .................................................................................................................. 190
Replacing the disks ........................................................................................................... 192
Restoring the storage pool ................................................................................................. 193
Creating cartridges .......................................................................................................... 195
14 Capacity Upgrade ....................................................................... 197
Introduction ............................................................................................................................ 197
Planning for the Capacity Upgrade ........................................................................................... 198
An overview of the capacity upgrade process ...................................................................... 198
Installing the rails and the Capacity Upgrade Kit ........................................................................ 198
Connecting the Capacity Upgrade Kit to the HP D2D .................................................................. 199
Applying the LTU .................................................................................................................... 200
Completing the RAID expansion ............................................................................................... 201
What happens during the expansion process? ..................................................................... 202
Index ............................................................................................... 205
D2D Backup System HP D2D4112 9
Page 10
Figures
Front view of the HP D2D Backup System ................................................................... 201
Rear view of the HP D2D Backup System .................................................................... 202
Device configuration with one host ............................................................................ 233
Device configuration with multiple hosts ..................................................................... 244
Data stored after deduplication ................................................................................. 275

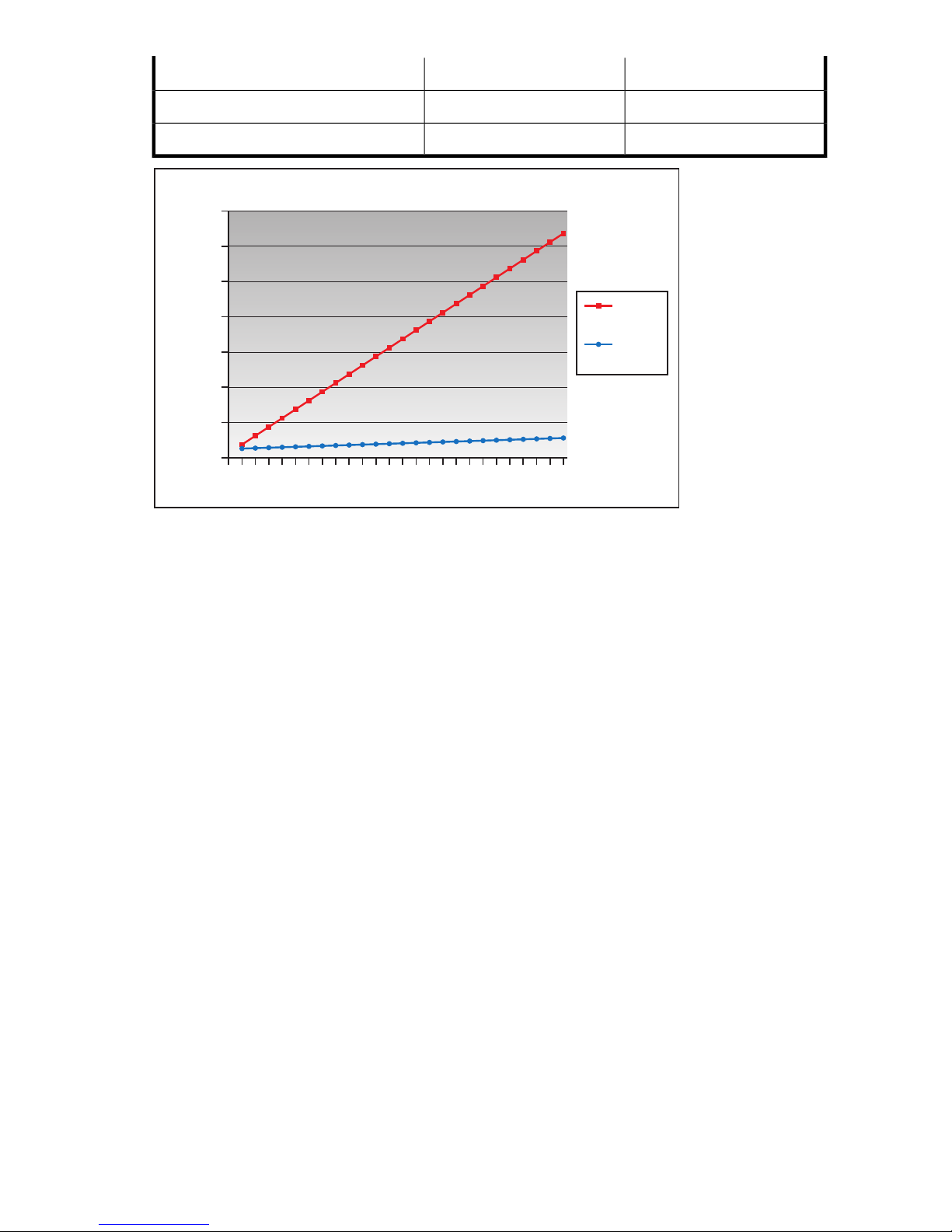

Space saving with deduplication ............................................................................... 296

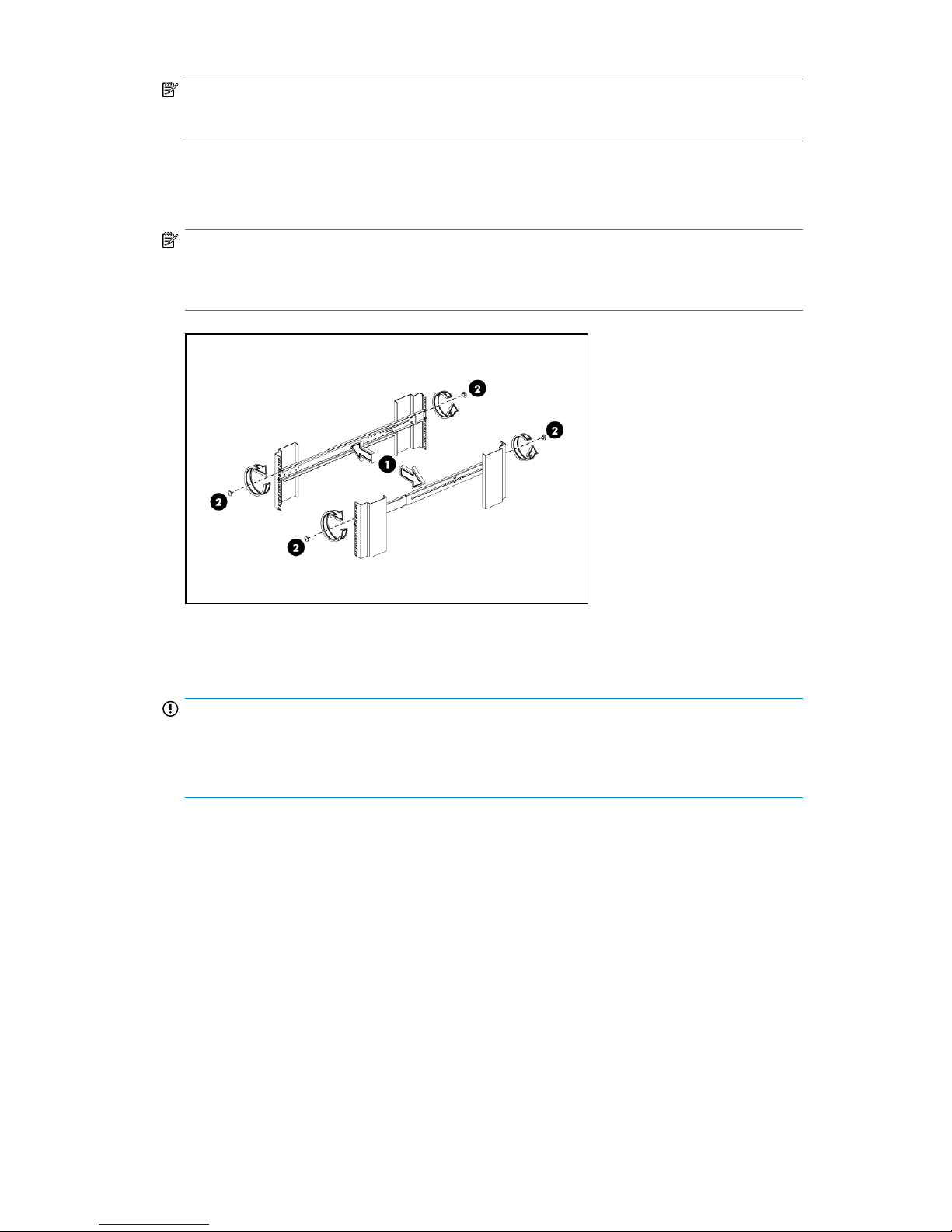

Attach the rails to the rack columns ........................................................................... 337
Insert the HP D2D server into the rack ........................................................................ 348
CTO bracket location .............................................................................................. 349
Secure the HP D2D to the rack .................................................................................. 3510
Network and power connectors ................................................................................ 3511
Cabling the Capacity Upgrade Kit ............................................................................ 3712

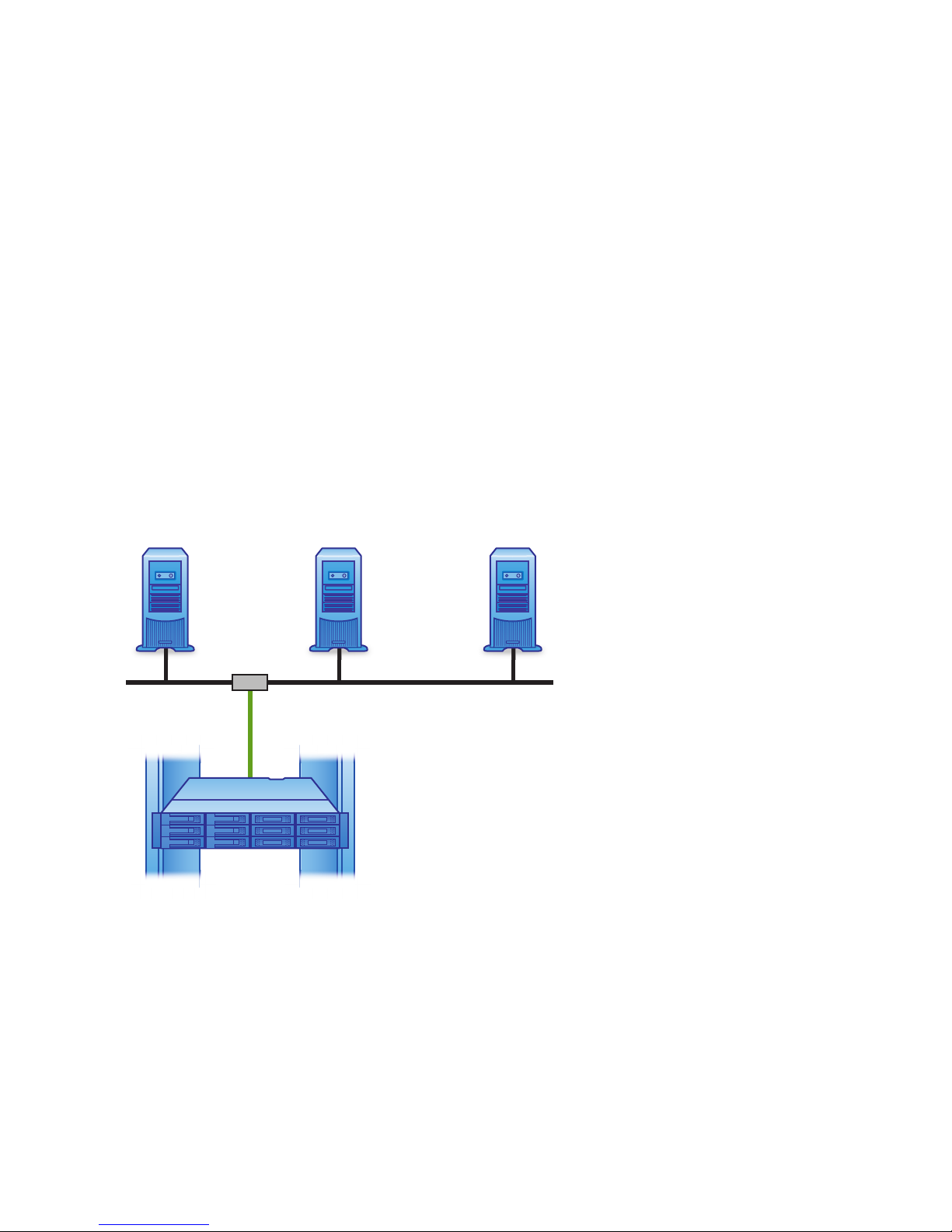

Connecting to a business server on the main network .................................................. 3813
Connecting to a dedicated backup network ................................................................ 3914
Powering on the HP D2D Backup System .................................................................... 3915

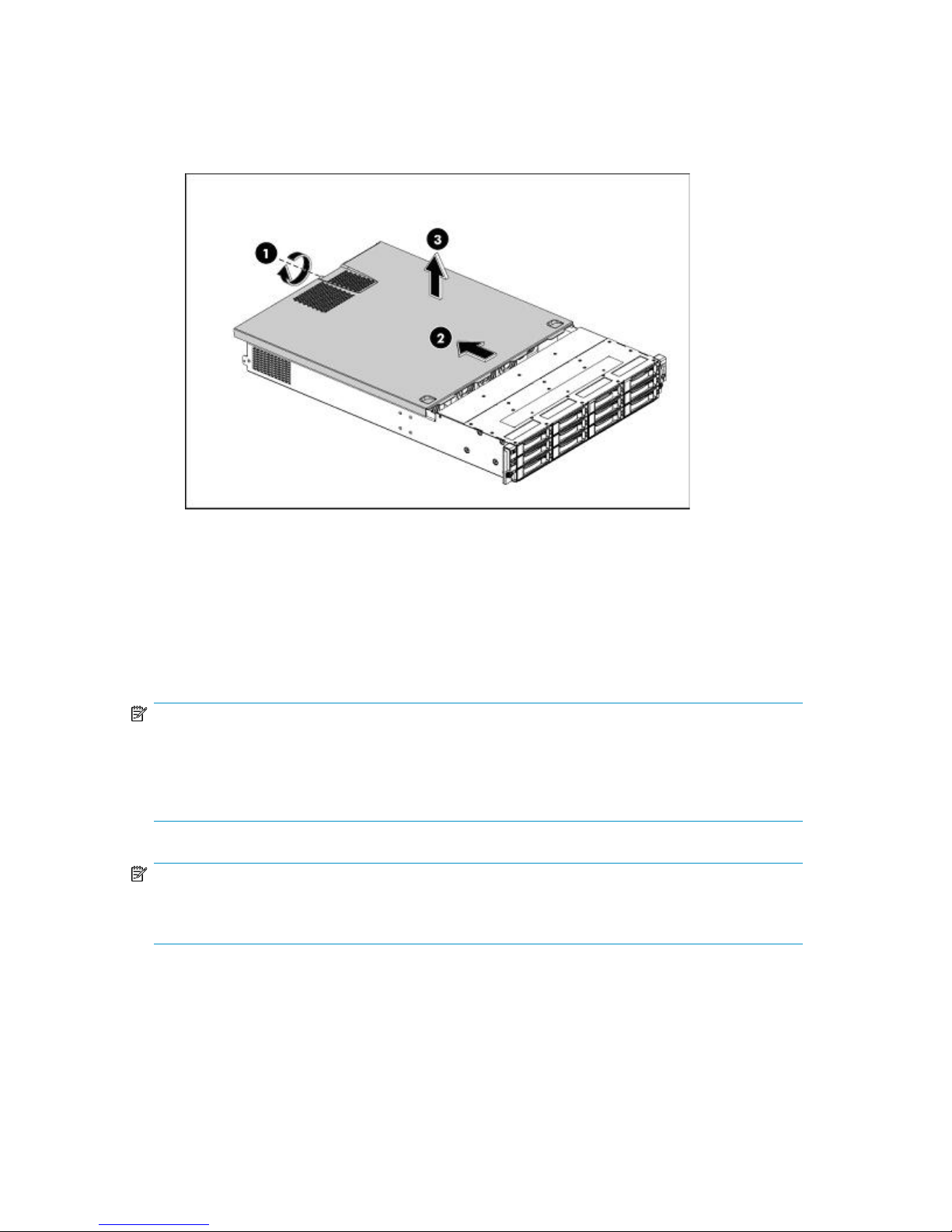

Removing the top cover ........................................................................................... 4716

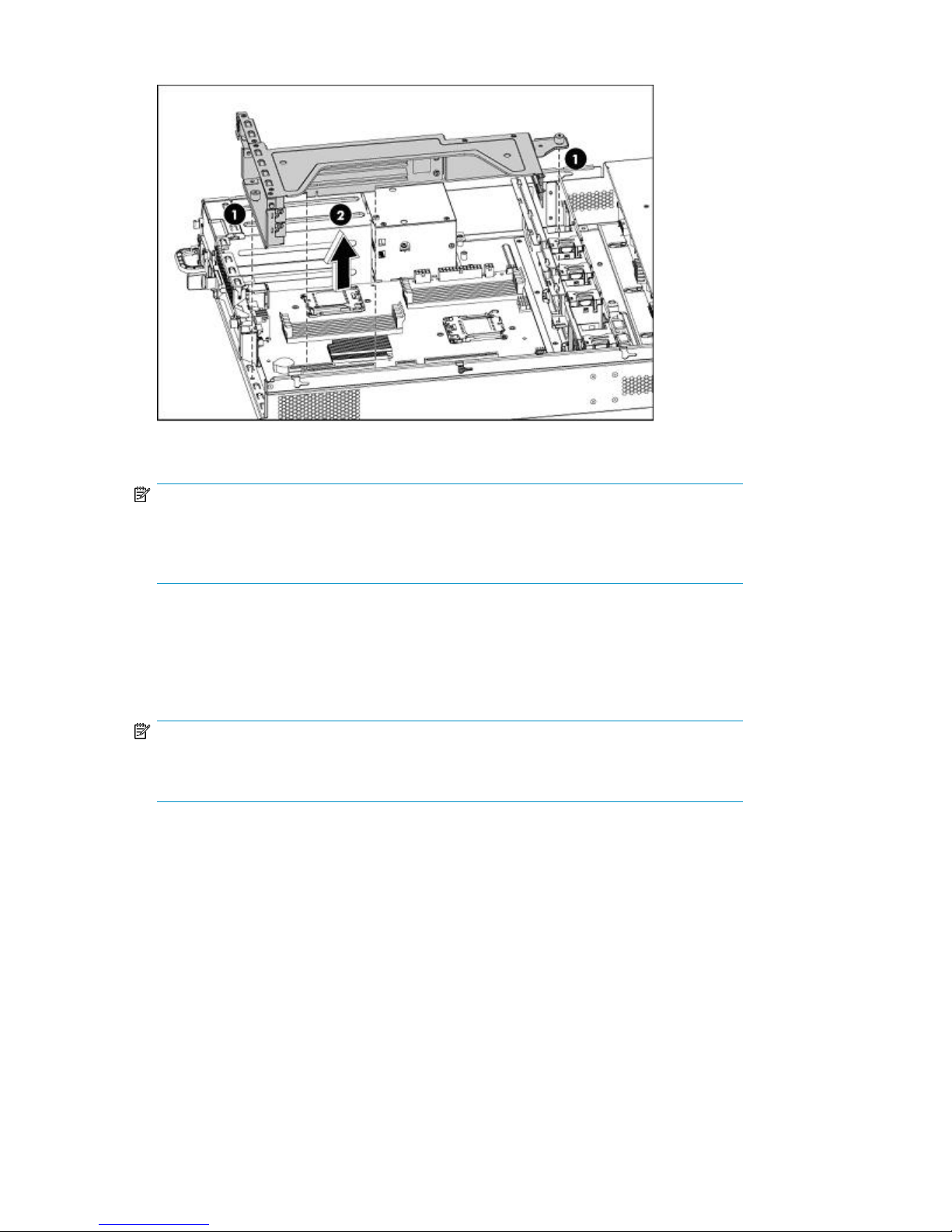

Removing the PCI cage ............................................................................................ 4817

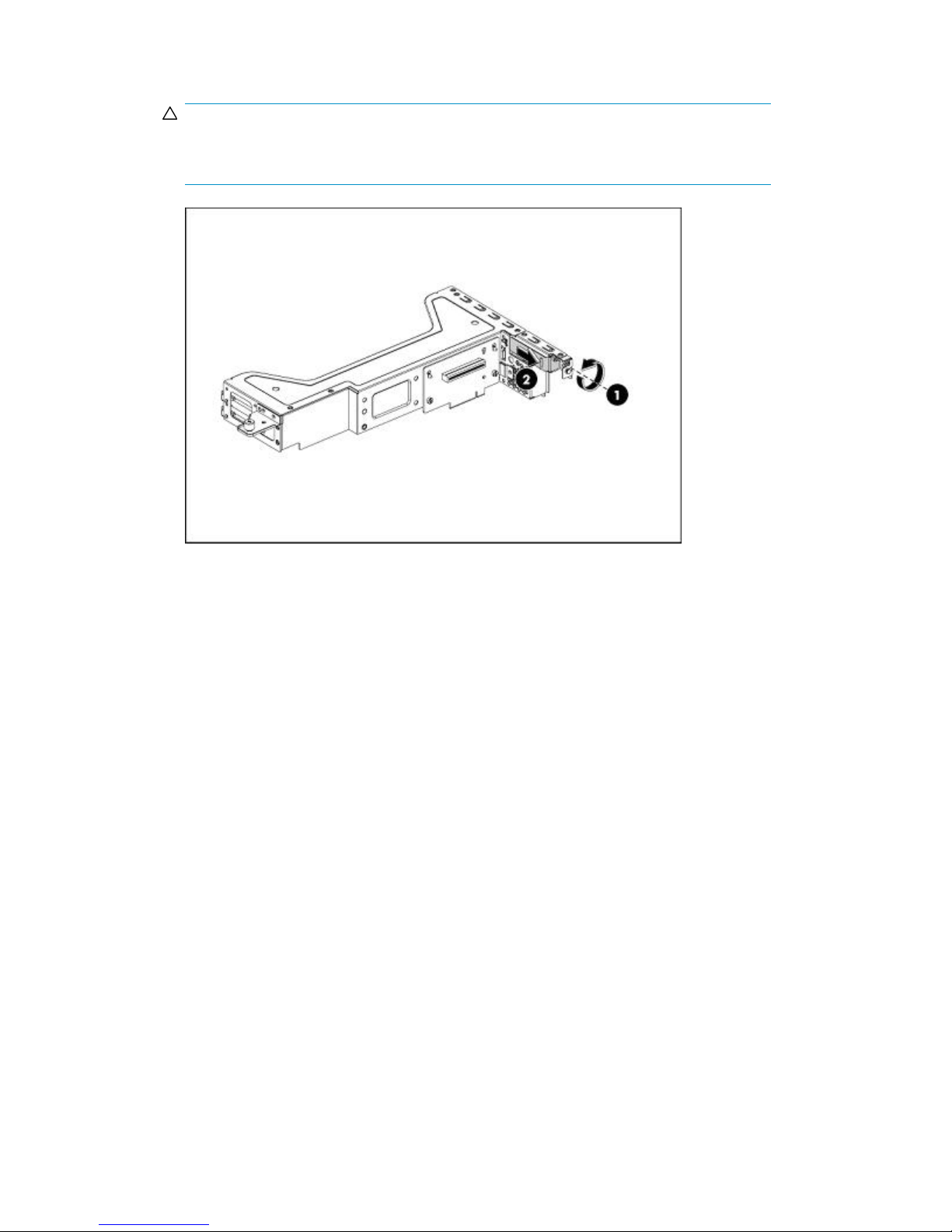

Removing the slot cover (low profile) .......................................................................... 4918

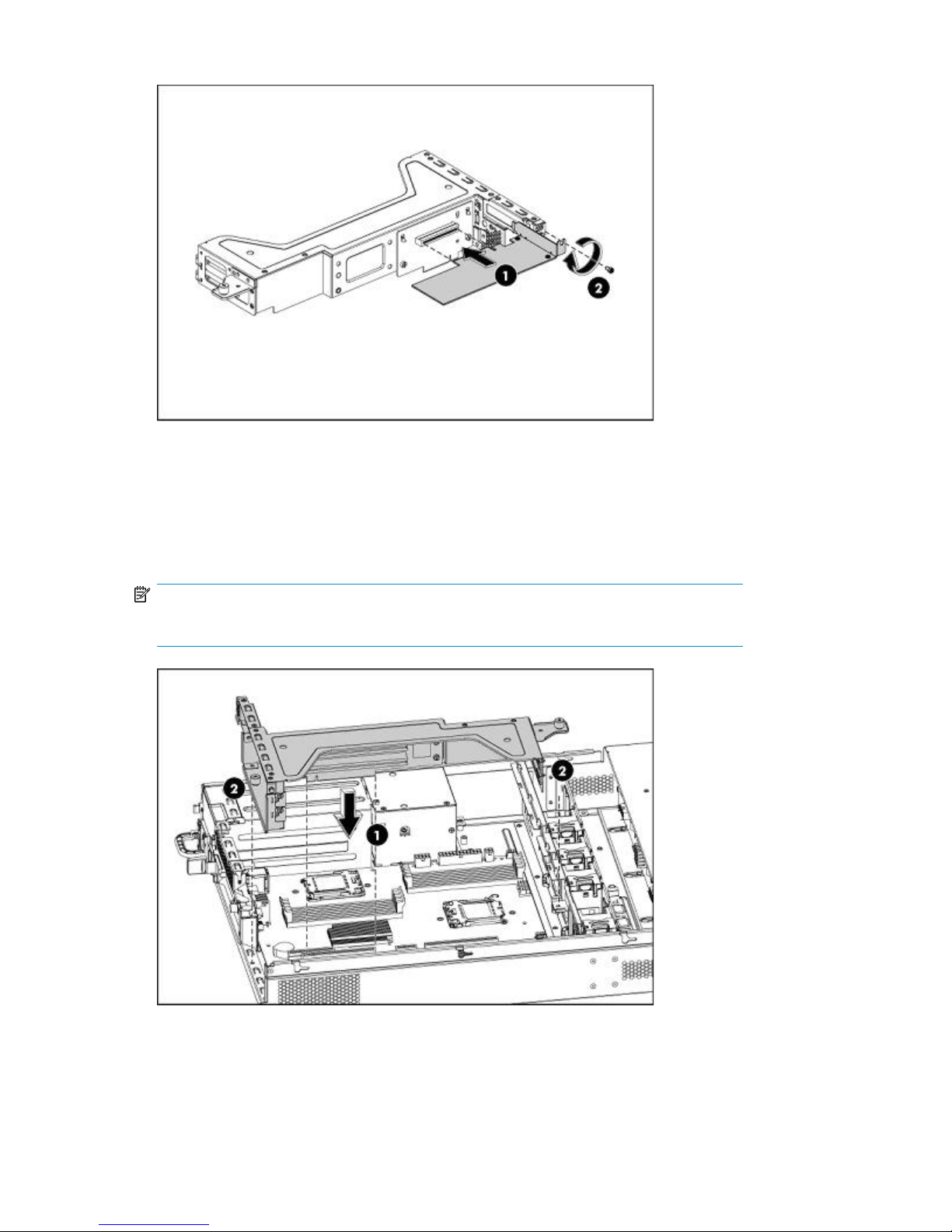

Installing the PCIe card (in the low profile slot) ............................................................ 5019
Reinstalling the PCI cage ......................................................................................... 5020

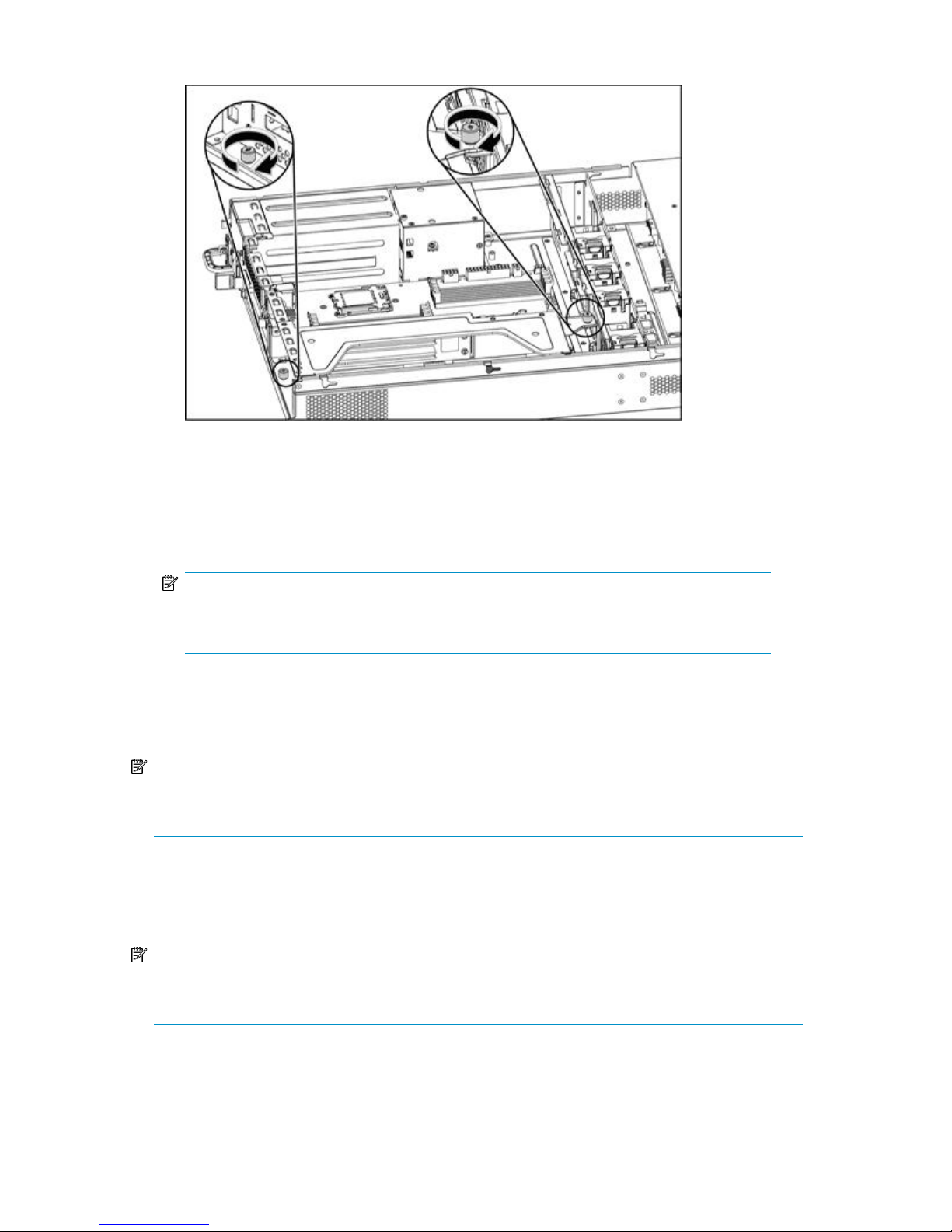

Securing the PCI cage ............................................................................................. 5121
System console connections on the HP D2D ................................................................ 5622
System console screen ............................................................................................. 5723

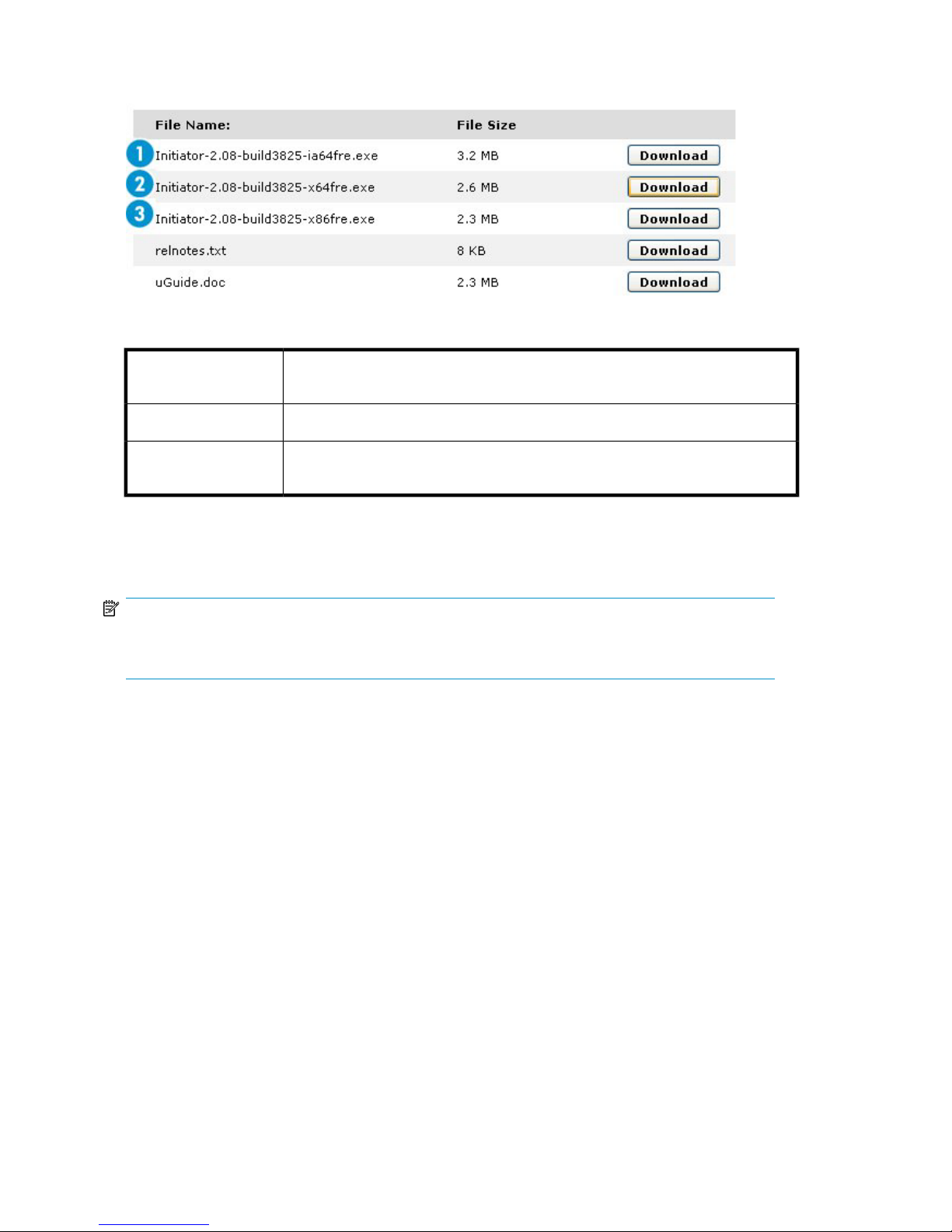

iSCSI Initiator download page .................................................................................. 5824
General tab (iSCSI) ................................................................................................. 6025
CHAP secret ........................................................................................................... 6026
Discovery tab (iSCSI) ............................................................................................... 6127
Add target portal .................................................................................................... 6128
Targets tab (iSCSI) .................................................................................................. 6229

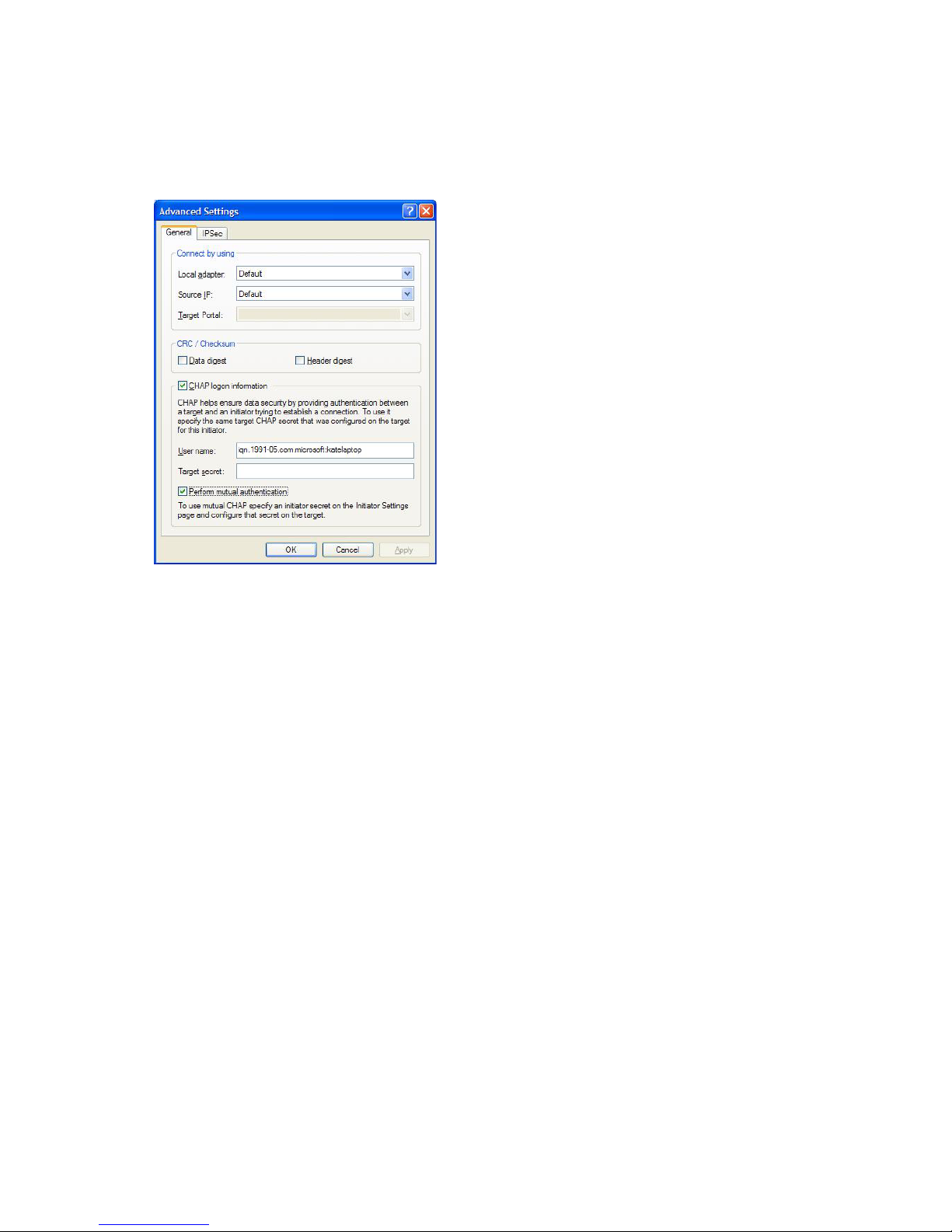

Advanced settings CHAP ......................................................................................... 6330
Persistent Targets tab (iSCSI) ..................................................................................... 6431
Front view of the HP D2D Backup System ................................................................... 7132
10
Page 11
Drive LEDs ............................................................................................................. 7233
Capacity Upgrade LEDs ........................................................................................... 7234
Rear panel LEDs ..................................................................................................... 7335
Replication and Tape attach ..................................................................................... 7636
Replication elements ................................................................................................ 7737
Fan OUT example for HP D2D400x and D2D41xx .................................................... 7838
HP D2D 2500 Fan OUT example .............................................................................. 7939
HP D2D250x Series Fan IN example ......................................................................... 8040
HP D2D400x and 41xx Series Fan IN example .......................................................... 8141
Active to Passive replication example ......................................................................... 8542
Active to active replication example ........................................................................... 8543
Many to one replication example .............................................................................. 8644

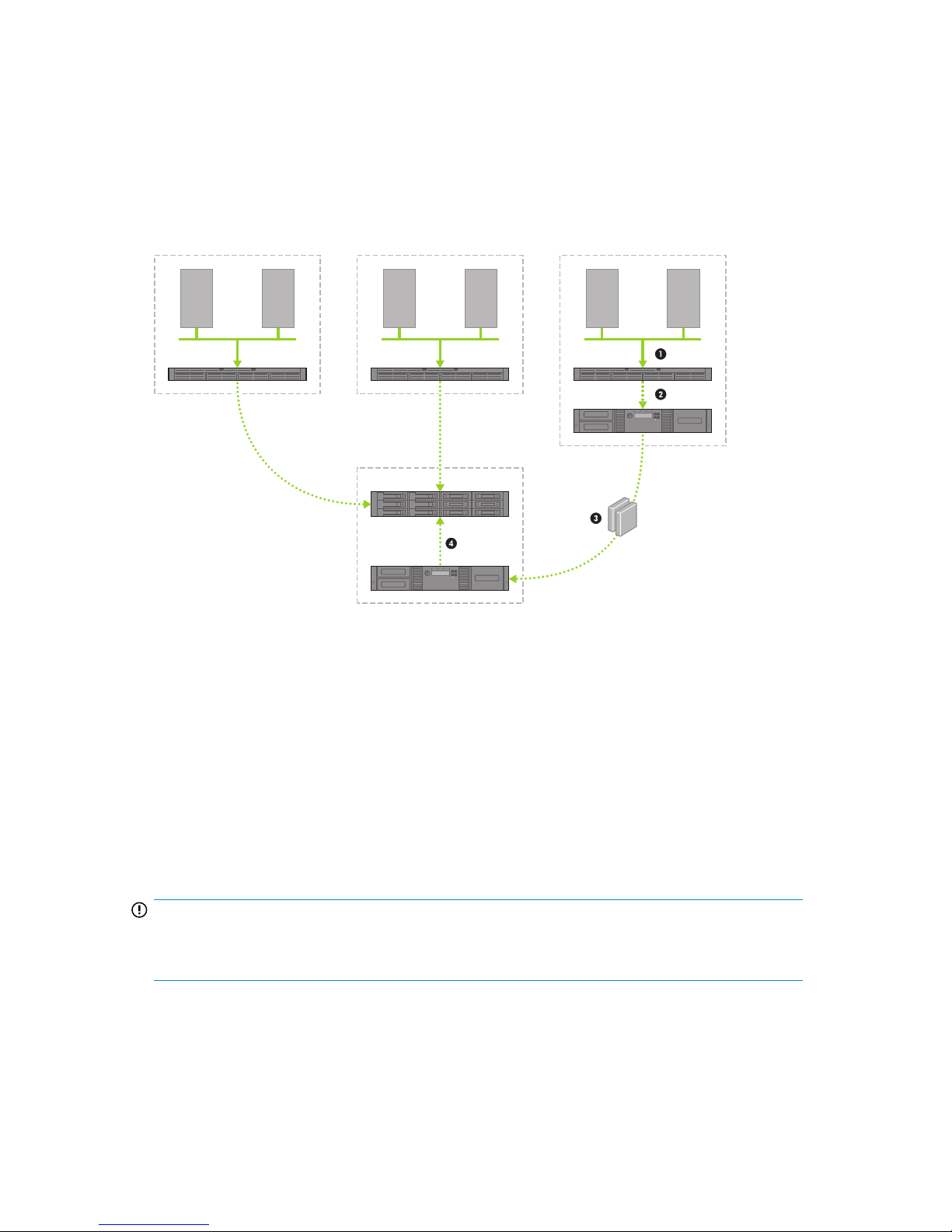

Seeding initial data using Tape Attach ....................................................................... 8945
Replication creation process ..................................................................................... 9046
Recovery by repopulating a replacement source appliance ........................................... 9547
Reverse replication process: source lost, mapping intact ............................................... 9648
Reverse replication process: source lost, mapping deleted ............................................ 9849
Recovery process: promoting a target library over the WAN ....................................... 10050
Recovery by relocating the Target Appliance ............................................................ 10151
Recovery process: promoting a target library using colocation .................................... 10252

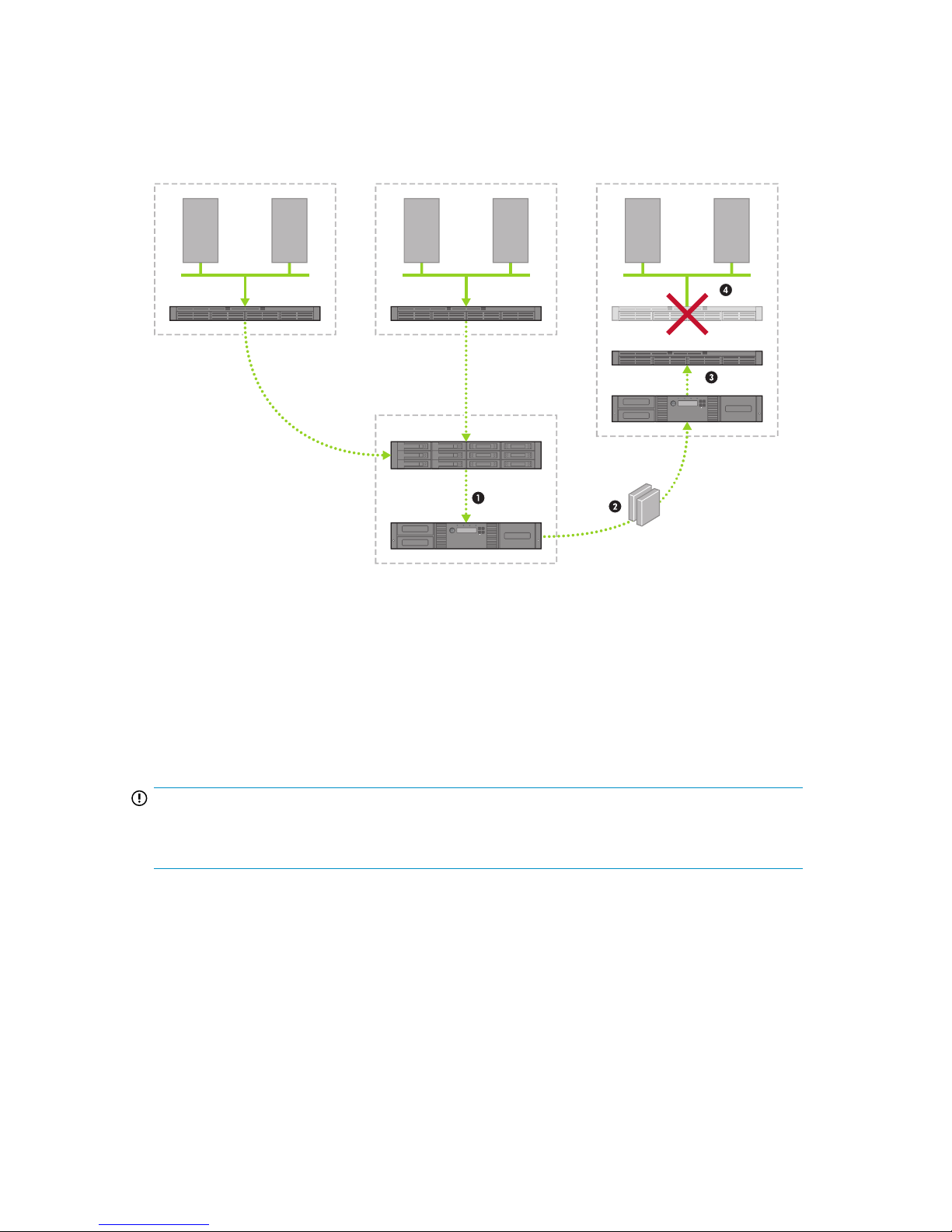

Recovery process: using physical tape ..................................................................... 10453
Create new target appliance .................................................................................. 13654
Cartridge copy ..................................................................................................... 14955
Cartridge export ................................................................................................... 15156
Cartridge import ................................................................................................... 15357
Archiving to tape .................................................................................................. 17258
Drive LEDs ........................................................................................................... 18559
Summary page with RAID status warning ................................................................. 18660
Storage Pool tab with RAID status warning ............................................................... 18761
RAID tab with RAID status warning .......................................................................... 18762
Identifying the failed disk(s) .................................................................................... 18763
Log showing disk failure ........................................................................................ 18864
Disk numbering .................................................................................................... 18965
Removing the hard drive ........................................................................................ 18966
Installing a replacement hard disk ........................................................................... 19067
Status showing multiple disk failure on one shelf ....................................................... 19168
Storage—Shelves showing three disk failures ............................................................ 19269
D2D Backup System HP D2D4112 11
Page 12
Storage—Shelves page after replacing disks ............................................................ 19370
Storage-Storage Pool tab, deleting the storage pool ................................................... 19471
Summary page while storage is deleted ................................................................... 19472
Summary page after storage is deleted .................................................................... 19473
Storage-Storage Pool tab, creating the storage pool ................................................... 19474
Summary page while storage is created .................................................................. 19575
Summary page after storage is created .................................................................... 19576
Status—Storage page after storage is created ........................................................... 19577
12
Page 13
Tables
Document conventions ............................................................................................. 151
Data deduplication savings, example 1 ..................................................................... 282
FC card LEDs ......................................................................................................... 733
Fan In, Fan Out and job concurrency rules ................................................................. 824
Summary page layout ........................................................................................... 1095
Device parameters (top half of the page) ................................................................. 1116
Device parameters ................................................................................................ 1147
Cartridge parameters ............................................................................................ 1178
Network parameters .............................................................................................. 1219
Network port parameters ....................................................................................... 12110
Email parameters .................................................................................................. 12311
Local library parameters ........................................................................................ 13312
Replication source for local library parameters .......................................................... 13413
Slot mapping for local library to source library parameters ......................................... 13414
Target appliance parameters .................................................................................. 13615
Source appliance parameters ................................................................................. 13716
Job schedule parameters ........................................................................................ 16617
Scheduled job details ............................................................................................ 16718
D2D Backup System HP D2D4112 13
Page 14
14
Page 15
About this guide
This guide provides information about:
Installing the HP StorageWorks D2D Backup System
Using the HP StorageWorks D2D Backup System
Troubleshooting the HP StorageWorks D2D Backup System
Intended audience
This guide is intended for users who install, operate and maintain the HP StorageWorks D2D Backup System.
Related documentation
In addition to this guide, the following document provides related information:
‘Start here' poster for an overview of the installation information in this guide (available in English,
French, German and Japanese)
You can find these documents from the Manuals page of the HP Business Support Center website:
http://www.hp.com/support/manuals
In the Storage section, click Storage Solutions and then select your product.
http://www.hp.com/support/manuals
Document conventions and symbols
Table 1 Document conventions
ElementConvention
Cross-reference links and e-mail addressesBlue text: Table 1
ttp://www.hp.com
Bold text
website addressesBlue, underlined text: h
Keys that are pressed
Text typed into a GUI element, such as a box
GUI elements that are clicked or selected, such as menu
and list items, buttons, tabs, and check boxes
Text emphasisItalic text
D2D Backup System HP D2D4112 15
Page 16
Monospace text
ElementConvention
File and directory names
System output
Code
Commands, their arguments, and argument values
Monospace, italic text
Monospace, bold text
Code variables
Command variables
Emphasized monospace text
WARNING!
Indicates that failure to follow directions could result in bodily harm or death.
CAUTION:
Indicates that failure to follow directions could result in damage to equipment or data.
IMPORTANT:
Provides clarifying information or specific instructions.
NOTE:
Provides additional information.
HP technical support
For worldwide technical support information, see the HP support website:
http://www.hp.com/support
Before contacting HP, collect the following information:
Product model names and numbers
Technical support registration number (if applicable)
Product serial numbers
Error messages
Operating system type and revision level
Detailed questions
About this guide16
Page 17
Customer self repair
HP customer self repair (CSR) programs allow you to repair your StorageWorks product. If a CSR part needs replacing, HP ships the part directly to you so that you can install it at your convenience. Some parts do not qualify for CSR. Your HP-authorized service provider will determine whether a repair can be accomplished by CSR.
For more information about CSR, contact your local service provider. For North America, see the CSR website:
http://www.hp.com/go/selfrepair
Registering your HP D2D Backup System
Once you have installed and tested your HP D2D Backup System please take a few minutes to register your product. You can register via the web (http://www.register.hp.com).
To ensure your registration is complete, there are a number of questions on the electronic form that are mandatory. Other questions are optional. However, the more you feel able to complete, the better HP can meet your needs.
Subscription service
HP recommends that you register your product at the Subscriber's Choice for Business website:
http://www.hp.com/go/e-updates
After registering, you will receive e-mail notification of product enhancements, new driver versions, firmware updates, and other product resources.
HP websites
For additional information, see the following HP websites:
•http://www.hp.com
•http://www.hp.com/go/ebs
•http://www.hp.com/go/connect
•http://www.hp.com/go/storage
•http://www.hp.com/service_locator
•http://www.hp.com/support/manuals
•http://www.hp.com/support/downloads
Documentation feedback
HP welcomes your feedback.
To make comments and suggestions about product documentation, please send a message to
storagedocs.feedback@hp.com. All submissions become the property of HP.
D2D Backup System HP D2D4112 17
Page 18
About this guide18
Page 19
1 Before you start
In this chapter:
Overview” on page 19
Optional tape attach” on page 21
Software and hardware requirements” on page 21
Terminology” on page 21
Storage capacity” on page 25
Overview
The HP StorageWorks D2D Backup System is an iSCSI and Fibre Channel disk-based storage appliance that emulates up to 24 tape devices, which can be used to back up host network servers or PCs. Each tape device is configured as an Ultrium Tape Library or Autoloader. An emulation type is selected during initial configuration and this determines the maximum number of drives and the maximum number of slots that may be configured for the device. The default configuration emulates the HP StorageWorks MSL2024 Tape Library.
D2D Backup System HP D2D4112 19
Page 20
Figure 1 Front view of the HP D2D Backup System
5. LAN Port 1 LED1. Power On button/LED
6. LAN Port 2 LED2. Hot plug drives
7. Disk Online LED3. HP D2D Beacon LED
8. Disk Beacon LED4. System Health LED
4. Management LAN port (Do not connect to this port)
Figure 2 Rear view of the HP D2D Backup System
Before you start20
5. PCIe slots (two full and one low profile)1. Power supply cable sockets (two)
6. VGA port for system console monitor2. LAN port 1
7. PS/2 ports for system console keyboard and mouse3. LAN port 2
Page 21
NOTE:
One full PCIe slot has a SmartArray RAID controller card pre-installed. The other full PCIe slot is used for the FC card. You must install the Tape Attach card in the low profile slot.
Optional tape attach
NOTE:
Always refer to http://www.hp.com/go/connect or http://www.hp.com/go/ebs to find out which tape library and tape drive models are supported.
An external or rackmount Ultrium tape device may be attached directly to the HP D2D Backup System, allowing the user to store backups offsite. Both SAS and SCSI tape devices are supported. SCSI tape devices always require installation of a host bus adapter (HBA); SAS tape devices require installation of a host bus adapter, if the RAID card in the HP D2D Backup System does not have an external SAS connector (this depends on the model). External tape drives may be half-height or full-height. Rackmount tape drives are installed in a rackmount enclosure, such as a 1U Rack, 3U Rack or a TapeArray.
Software and hardware requirements
Refer to http://www.hp.com/go/connect or http://www.hp.com/go/ebs for the latest connectivity and compatibility information.
If connecting to a Fibre Channel network, the HP D2D Backup System is supplied with the correct
FC card pre-installed. Cables are not supplied.
If connecting to an Ethernet network, the HP D2D Backup System should be connected to a Gigabit
Ethernet network. 100 Base-T Ethernet will limit performance; 10 Base-T Ethernet will severely limit performance.
For backup and restore you need software that supports tape autoloaders and libraries. This soft-
ware resides on the host, not the HP D2D Backup System. The device may be used with the major backup applications from HP, Symantec, EMC, Computer Associates and others.
Terminology
Autoloaders
An autoloader is a backup device that has a single tape drive and multiple storage slots. (A library has multiple tape drives, see “Libraries” on page 24.) Each storage slot contains a cartridge that can be allocated to a specific backup task; for example, one cartridge can hold Monday's data, another can hold Tuesday's data, and so on. In this way, backup applications are able to implement tape rotation strategies that accommodate differing backup requirements for daily, weekly, monthly, yearly backups.
D2D Backup System HP D2D4112 21
Page 22
Backup devices and slots
Backup devices appear to the host as locally-attached tape devices, but physically, they use disk space on the HP D2D Backup System which, as in tape terminology, is referred to as slots or cartridges.
The HP D2D supports the following emulation types: HP G2 Autoloader (1x8), HP MSL Library (2x24), HP MSL Library (4x24). and D2DBS Generic Library (8 up to 144 slots). The emulation type determines how many embedded drives and cartridge slots are available. For example, if you select HP MSL G3 Series (2x24), the device will emulate an MSL Library with two embedded tape drives and a possible total of 96 cartridge slots. See also “Devices (Configuration)” on page 110.
When you configure your HP D2D Backup System with a tape library, the drive emulation type that you select determines the amount of physical disk space that is made available for each configured slot. LTO-2 defaults to 200 GB, LTO-3 defaults to 400 GB and LTO-4 defaults to 800 GB. This is the equivalent of a tape library with multiple slots, each containing a 200, 400 or 800 GB cartridge. Both tape spanning and, more importantly, flexible tape rotation strategies are possible.
Deduplication
Data deduplication compares blocks of data being written to the backup device with data blocks previously stored on the device. If duplicate data is found, a pointer is established to the original data, rather than storing the duplicate data sets. This removes, or “deduplicates,” the redundant blocks. See also “Data deduplication” on page 26.
Emulation types
HP D2D products emulate a range of physical Tape Autoloaders or Tape Libraries. Supported emulation types are listed below:
HP 1x8 G2 Autoloader
HP MSL2024 Library
HP MSL4048 Library
HP D2DBS Library
If it is supported by your backup application, HP D2DBS Library is the preferred emulation type to be used because it does not emulate any physical library types in existence and is clearly identifiable as a D2D device. It is the most flexible emulation type available; however, backup application support varies by software vendor. See also “Emulation types for tape devices” on page 112.
Fibre Channel
Fibre Channel (FC) supports network connectivity over fibre optic cabling or copper wiring. FC has a different set of standards and network connection protocol to Ethernet and different configuration requirements. FC HP D2D Backup Systems may be connected to both a Fibre Channel SAN and an Ethernet (as an iSCSI device) network. The FC connection is used only to transfer backup data from the host to the HP D2D. Access to the HP D2D Web Management interface is always across an Ethernet connection. See also “HP D2D Backup Systems and Fibre Channel” on page 65.
Hosts
A server that is being used to back up directly to the D2D system via iSCSI or Fibre Channel, this may also be a backup application media server which can back up other servers on the network that do not have a direct iSCSI or Fibre Channel connection to the D2D.
Before you start22
Page 23
Hosts on an Ethernet network
Each emulated backup device is uniquely mapped to an individual host; this is the network server or PC that you wish to back up.
The backup device appears to the host as a locally-attached tape autoloader or library.
The backup device is accessed and managed from the backup software running on the host.
The backup device is not visible to other devices on the network.
Multiple servers may not back up to a single backup device.
Figure 3 on page 23 shows a configuration with a single host. The Installation wizard has been run
on Host 1. The HP D2D Backup System automatically generates a library for the host. The user may specify the number of slots during installation.
Host3Host2 Host4 onwardsHost1
LAN
Library 1
HP StorageWorks D2D Backup System
Figure 3 Device configuration with one host
By default, only one device is visible to the host, the library that has been configured for it during
installation. Data from each host goes to its corresponding library.
Each backup device is visible only to the host for which it has been configured.
A host may have multiple devices configured for it on the HP D2D Backup System, but this means
fewer hosts may be connected (not illustrated).
Figure 4 on page 24 shows a configuration with three hosts. The HP D2D Backup System can be
used to back up a maximum of 24 hosts. The Installation wizard automatically generates a library for each host. The user may specify the number of slots during installation.
D2D Backup System HP D2D4112 23
Page 24
Library 1 Library 2 Library 3
Figure 4 Device configuration with multiple hosts
Hosts on an FC network
The host is the network server or PC that you wish to back up.
Host4 onwardsHost1 Host2 Host3
LAN
HP StorageWorks D2D Backup System
iSCSI
Libraries
Library devices on the HP D2D cannot be created for a specific host during installation; they must be created using the Web Management interface. When you assign a library to a FC port (port 1 or port 2) it becomes visible on the FC SAN. When you log in, you log in to the switch to which the host is connected, which means that the library is visible to all other devices on the SAN. You can zone your network so that only specific devices have access to it, but generally it is visible to all. See also “HP D2D Backup Systems and Fibre Channel” on page 65.
On an Ethernet network the HP D2D Backup System is configured as an iSCSI device. This means that the HP D2D Backup System plugs directly into the network, but it presents devices as directly-attached SCSI autoloaders to host machines. In order to function, it requires an iSCSI initiator. On Windows systems, this is normally downloaded by the Installation wizard, as described in “Connecting and installing the HP D2D Backup System” on page 31. For more information about iSCSI, see “Advanced installation” on page 53. Linux and UNIX users should also refer to the “Linux and UNIX Configuration Guide” on the HP StorageWorks D2D Backup System CD-ROM for more information.
A tape library is a backup device that has multiple drives and multiple storage slots. Each storage slot contains a cartridge. The difference between an autoloader and a library is that a library can support multiple tape drives whereas an autoloader only has one tape drive. This provides considerable storage capacity and full support for tape rotation strategies. (It may be necessary to upgrade your backup application to support libraries.)
Before you start24
Page 25
Mail slots (import/export elements)
A mail slot is a term borrowed from tape terminology to identify a dedicated slot that is used specifically to import and export cartridges. They are sometimes called import/export elements by backup applications. Backup applications that support this feature move cartridges from the mail slot when the user runs an Export job, and look for cartridges in the mail slot when the user runs an Import job.
Physical tape drives
A physical tape drive is a tape drive that is attached to the HP D2D Backup System or the host computer, so that data can be moved from the HP D2D Backup System and stored offsite. (It should not be confused with the tape drive device that is attached to the library device on the HP D2D Backup System (see “Devices (Configuration)” on page 110.)
RAID
RAID stands for Redundant Array of Inexpensive (or Independent) Devices, which is a data storage scheme that divides data among multiple hard drives, increasing data reliability and throughput. The HP D2D Backup System is a RAID 6 device, which offers the best combination of data protection and capacity for disk arrays. It provides protection against double disk failures and failures while a single disk is rebuilding.The unit also has an online spare disk in bay 12, which further enhances the reliability of the product. If one disk fails, the online spare disk immediately takes its place. The failed disk should always be replaced as soon as possible.
Replication
Replication is a standard term used to describe a way of synchronizing data between hardware in two physical locations. HP D2D Replication allows users to replicate data from cartridges on one HP D2D Backup System to mapped slots on another HP D2D Backup System on a remote site or the same system. Once configured (using the simple-to-use wizard), replication occurs automatically, ensuring data is mirrored from the source to the target HP D2Ds. Deduplication ensures that network traffic is minimized. See also “Configuring and using replication” on page 75.
Tape Attach
If you attach a supported, physical tape library or tape drive directly to your HP D2D Backup System, you will be able to copy or export data to the physical tape library or tape drive so that backups can be stored offsite. This is an important requirement for Disaster Recovery strategies. The main difference between copy and export is that copied data remains on the HP D2D Backup System; exported data is removed from it, but can be imported easily when required. These functions are grouped under the Tape Attach section of the Web Interface. Please see “Using Tape Attach” on page 147 for more details about working with Tape Attach.
Storage capacity
Physical storage
The physical storage capacity of the HP D2D Backup System is 12 TB (12 x 1 TB) or 24 TB (24 x 1 TB).
D2D Backup System HP D2D4112 25
Page 26
However, in order to ensure a high level of data integrity, the disks use RAID 6 protection. This reduces the available capacity but ensures that, in the event of a disk failure in the device, there will be no data loss.
The 12th disk is a hot spare disk. If a disk fails, the hot spare disk will immediately be used to replace it. The RAID rebuild process occurs automatically. The failed disk should be replaced as soon as possible.
Actual storage capacity is approximately:
9 TB for the HP D2D Backup System
18 TB for the HP D2D Backup System with Capacity Upgrade Kit
Data deduplication is enabled by default for each library device. This eliminates duplicate data from backups and means that more histories of data can be stored and retained for longer on each library. See also “Data deduplication” on page 26.
If you have the 12–disk model, it is possible to extend disk space by purchasing and installing the 12–disk Capacity Ugrade Kit. This doubles the storage capacity. Other options for creating space are:
Review your backup jobs to see if you can reduce the size of backup or retention time.
Use the backup application job settings to overwrite or erase data.
Export cartridges to physical tape.
Tape rotation strategies
Tape rotation strategies determine when backups are run, the number of cartridges that are required and how they are reused. The HP D2D Backup System is a very flexible device that can easily be incorporated into most tape rotation strategies. If your organization does not yet have a tape rotation strategy in place, see for example configurations.
Data deduplication
Data deduplication compares blocks of data being written to the backup device with data blocks previously stored on the device. If duplicate data is found, a pointer is established to the original data, rather than storing the duplicate data sets. This removes, or “deduplicates,” the redundant blocks. The key part of this is that the data deduplication is being done at the block level and not at the file level which reduces the volume of data stored significantly.
Before you start26
Page 27
Figure 5 Data stored after deduplication
In actual practice, data deduplication is often used in conjunction with other forms of data reduction such as conventional data compression to offer the greatest reduction in data volume stored.
Technology types
There are a number of technology types that use different deduplication algorithms. The HP D2D applies on-the-fly deduplication to chunks of backup data as they are written to the unit. It does not matter which application was used to create the backup. For further information about deduplication techniques and relative benefits, refer to the white papers at http://www.hp.com.
Data deduplication and the HP D2D
Data deduplication is applied per library device. When you configure the library, it defaults to deduplication enabled. If you disable it, deduplication cannot be selectively applied to any data on the library device. Compression is also disabled, if deduplication is disabled.
A library is associated with a host server and deduplication allows a greater amount of backup history to be stored for that host. A larger number of full backups can be achieved, which makes possible a rotation strategy with a longer retention history. It does not increase the number of host servers that may be connected. The deduplication factor that has been applied to a library device is calculated and displayed on the Web Interface. This figure is dynamic, it updates automatically as more data is written to the library.
Benefits of HP D2D deduplication
The main benefit is that it is possible to store more data and retain data for longer on each cartridge within a library. The host using the library device has access to a greater depth of historical data that would otherwise have been archived offline.
Deduplication:
Provides efficient use of storage capacity by eliminating duplicate data
Reduces disk expenditures by reducing storage space required. You can get more backups for
each host on the same size of storage (HP D2D device)
Prolongs disk data retention periods
Reduces the volume of data that must be sent across a WAN for remote backups, replication, and
disaster recovery – reducing both risk and operational costs
D2D Backup System HP D2D4112 27
Page 28
See “Configuring and using replication” on page 75 for more information about replication.
Deduplication and compression
Compression is applied as part of deduplication. You can expect 1.6:1 compression even on the first backup where no (or only a small amount of) deduplication can occur. If you disable deduplication, see “Devices (Configuration)” on page 110, no compression is applied to data on that device.
Tape rotation example with data deduplication
The two most significant factors affecting the deduplication ratio for backup are:
How long do you retain the data?
How much data changes between backups?
The following example shows projected savings for a 1 TB file server backup.
Retention policy
1 week, daily incrementals (5)
6 months, weekly fulls (25)
Data parameters
Data compression rate = 2:1
Daily change rate = 1% (10% of data in 10% of files)
Typical savings
The following table illustrates a reduction of approximately 11:1 in data stored. In practice, assuming
1.25 TB is available for backup for this library, this means:
Without data deduplication: only two weeks of data retention is possible before it is necessary to
archive data offline.
With data deduplication: even after six months less than 1.25 TB of disk space has been used.
The following table illustrates how this affects the space required to store the data over 25 weeks. The figures are used to generate the graph shown after the table.
Table 2 Data deduplication savings, example 1
Data stored with deduplicationData stored normally
500 GB500 GB1st daily full backup
5 GB50 GB1st daily incremental backup
5 GB50 GB2nd daily incremental backup
5 GB50 GB3rd daily incremental backup
5 GB50 GB4th daily incremental backup
5 GB50 GB5th daily incremental backup
Before you start28
25 GB500 GB2nd weekly full backup
Page 29
14000
12000
10000
8000
6000
Space in GB
4000
2000
0
25 GB500 GB3rd weekly full backup
25 GB500 GB25th weekly full backup
1,125 GB12,750 GBTOTAL
Space saving with deduplication
Without Dedupe
With Dedupe
12345678910111213141516171819202122232425
End of week
Figure 6 Space saving with deduplication
D2D Backup System HP D2D4112 29
Page 30
Before you start30
Page 31
2 Connecting and installing the HP D2D Backup System
In this chapter:
Installing the rail kit” on page 31
Connecting the hardware” on page 35
Supported network configurations” on page 37
Powering on the HP D2D” on page 39
Software installation, discovery and configuration” on page 39
Web browser settings” on page 44
Installing the rail kit
Overview
This section contains instructions for installing HP rack rails into square and round hole racks for the HP D2D (1U) and HP D2D (2U) Backup Systems.
Kit contents
Two rack rails (left and right)
Mounting hardware for square and round hole racks
Two tie wraps
NOTE:
If mounting the HP D2D into threaded hole or telco racks, please see http://www.racksolutions.com to purchase mounting hardware.
Important safety information
See also the Safety Booklet on the HP StorageWorks D2D Backup System CD-ROM.
CAUTION:
Electrostatic discharge (ESD) can damage electronic components. Be sure you are properly grounded (earthed) before beginning any installation procedure.
D2D Backup System HP D2D4112 31
Page 32
Installation guidelines
This installation is to be performed by qualified individuals who have knowledge of the procedures, precautions, and hazards associated with equipment containing hazardous electrical circuits.
WARNING!
These rails, when installed, form only a shelf for the server to rest on. The server is not attached to the rail by any other means. Use extreme caution when pulling the server out from the rack; it can slip and fall, causing damage to the server or injury. HP is not responsible for any damage or injury caused by the mishandling of the server.
WARNING!
Ensure that the rack is level and stable before working on the rack. Be sure the leveling jacks (feet) extend to the floor and that the full weight of the rack rests firmly on the floor.
WARNING!
Ensure that the rack has anti-tip measures in place. Such measures may include floor-bolting, anti-tip feet, ballast, or a combination of these as specified by the rack manufacturer and applicable codes.
WARNING!
Ensure that sufficient personnel are on hand to support the product(s) during the installation process. Use of the appropriate lifting device is recommended as an installation aid.
WARNING!
Always load the rack from the bottom up. Load the heaviest items in the rack first. This makes the rack bottom-heavy and helps prevent it from becoming unstable.
WARNING!
Do not overload the branch circuit that provides power to the rack. The total rack load should not exceed 80 percent of the branch circuit rating.
Mounting the server
1. Position left and right rack rails at the desired 'U' position in the rack.
Connecting and installing the HP D2D Backup System32
Page 33
NOTE:
The rails can be adjusted to fit the rack.
2. Secure rack rails to the front and back rack columns using screws. Make sure that the shoulders
of the screws fit inside the square or round holes of the rack.
NOTE:
If installing rails into a square hole rack, use larger-sized shoulder screws and pins for mounting. If installing rails into a round hole rack, use smaller-sized shoulder screws and pins for mounting.
Figure 7 Attach the rails to the rack columns
3. Slide the HP D2D into position on the rails.
IMPORTANT:
The label on the top of the HP D2D contains useful identity information, such as the MAC address and default network name. Make a note of this information before you install the HP D2D in the rack.
D2D Backup System HP D2D4112 33
Page 34
Figure 8 Insert the HP D2D server into the rack
NOTE:
The rear ends of the rails have a CTO bracket that must overlap the chassis tab in order to secure the HP D2D to the rails.

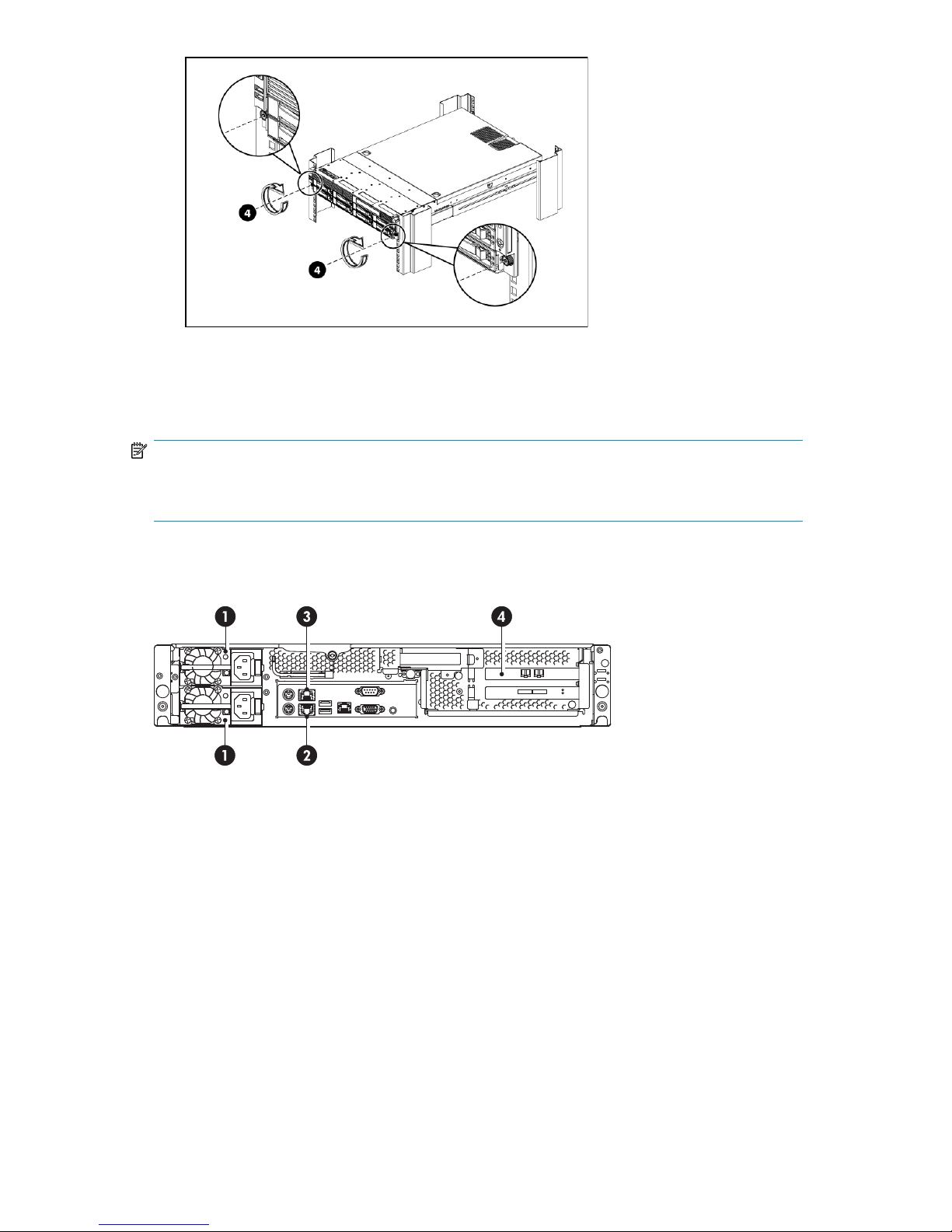

Figure 9 CTO bracket location
4. Secure the HP D2D to the rack rails using thumbscrews on the front bezel.
Connecting and installing the HP D2D Backup System34
Page 35
Figure 10 Secure the HP D2D to the rack
5. Using the holes provided in the rear rack rails, install tie wraps and route external cable as re-
quired.
NOTE:
For instructions on installing the Capacity Upgrade Kit, refer to the separate printed guide, supplied with the product.
Connecting the hardware
Figure 11 Network and power connectors
1. Use the supplied power cords to connect the HP D2D Backup System to the main power supply.
This HP-approved cord is appropriate for your specific geographic region.
The HP D2D Backup System has a redundant power supply. Make sure that both power cords are connected.
For detailed safety information, see the Safety Guide on the HP StorageWorks D2D Backup System CD-ROM.
2. LAN port 1 connector, must be connected1. Power connectors
4. Fibre Channel card with optical ports3. LAN port 2 connector
D2D Backup System HP D2D4112 35
Page 36
2. Use any CAT-5E network cable (also supplied with the product) to connect to a Gigabit network
switch. 100 Base-T Ethernet will limit performance; 10 Base-T Ethernet will severely limit performance. See also “Dual network ports” on page 37.
NOTE:
The Web Management Interface is used to configure devices and it requires an Ethernet connection. LAN Port 1 (the lower LAN port on the rear of the HP D2D) must always be connected, even if you are using the FC ports to back up and restore data to the HP D2D.
NOTE:
The HP D2D also supports direct connection of a monitor and keyboard. Please refer to “Using the system console to discover the HP D2D” on page 56 for more information about this.
Connecting to the Capacity Upgrade Kit (optional)
Install the rail kit and expansion module immediately below or above the HP D2D Backup System, as described in “Capacity upgrade” on page 197.
1. To ensure correct keying, first connect the supplied cable to the IN connector on the rear of the
Capacity Upgrade Kit.
2. Connect the other end of the cable to the port labeled “Port 2E” on the SmartArray RAID PCI-e
card on the rear of the HP D2D Backup System.
3. Use the supplied power cords to connect the Capacity Upgrade Kit to the mains power supply.
Connecting and installing the HP D2D Backup System36
Page 37
Figure 12 Cabling the Capacity Upgrade Kit
Supported Ethernet configurations
Ethernet network connection
IPv4 and IPv6 network protocols
The HP D2D supports both IPv4 and IPv6. Setup and configuration will default to IPv4, if the network is configured to support it. On an IPv6–only network, it is normally sufficient to enter the IPv6 MAC Address (found on the label on the top of the unit) when running the Installation Wizard. However, if this does not work, you can use the system console, as described in “Using the system console to discover the HP D2D” on page 56.
Dual network ports
The two physical network ports provide three network configuration modes:
Single Port Configuration: The HP D2D is connected to one network only; only one network port
is used (Port 1).
Dual Port Configuration: The HP D2D is connected to two different networks. Both network ports
are used.
High Availability Dual Port Configuration: Both network ports are used, but the two ports are bound
together.
2. IN connector1. Power connectors
4. Port 2E connector3. Power on/off button
Single port configuration is the default mode, but it may easily be changed from the Web Management Interface. If dual port configuration is required, the networks must be on different sub-nets.
The High Availability mode provides increased bandwidth, but both network ports must be connected to the same switch, which must support port bonding.
D2D Backup System HP D2D4112 37
Page 38
DHCP and static IP addressing
r
DHCP network addressing is enabled by default as long as you are connecting the HP D2D as an IPv4 device; this means that an IP address and other network settings are assigned automatically when you connect the HP D2D Backup System to an IPv4 network that has a DHCP server. If preferred, you can use static IP addressing and assign settings manually during the installation process. If you are connecting to an IPv6–only network, it is normally sufficient to enter the IPv6 MAC Address (found on the label on the top of the unit) when running the Installation Wizard.
The HP D2D Backup System should be on the same logical and physical network as the host machine connecting to it. This is normally the case because, typically, the HP D2D Backup System is connected to the same Gigabit network switch as the host machines backing up to it.
HP D2D on a Gigabit Ethernet network
The HP D2D Backup System is connected to a spare port on an existing Gigabit network switch.
This may be your main network, which is also used to connect a number of different types of devices, such as PCs, servers, workstations and printers, or a dedicated backup network that is used solely for clients that need to be backed up.
The configuration, illustrated in Figure 13 on page 38, is the simplest and most common configuration, assuming that Gigabit networking is already in place, and requires no additional hardware. The only disadvantage to the configuration is that a high volume of traffic may impact network performance during backup and backups may take longer to complete. However, if backups are scheduled to run outside of normal business hours, the volume of data traffic is unlikely to be a problem.
Server
Supplied cable
Server
Switch
LAN
Serve
HP StorageWorks D2D Backup System
Figure 13 Connecting to a business server on the main network
In some environments, backup data is kept separate from day-to-day office network traffic, as illustrated in Figure 14 on page 39. There is a separate, dedicated IP network for all hosts that need data to be backed up.
Connecting and installing the HP D2D Backup System38
Page 39
Switch
r
ServerServer
LAN
Serve
Supplied cable
Figure 14 Connecting to a dedicated backup network
Powering on the HP D2D
NOTE:
If you have installed the Capacity Upgrade Kit, power it on first. You may need to hold down the power on button (on the rear of the unit) for a few seconds.
Press the Power on button on the front of your HP D2D Backup System. The normal boot sequence takes approximately 2 minutes. On power up the HP D2D Backup System runs its fans at high speed for approximately 10 seconds before returning to normal speed.
Storage Network
HP StorageWorks D2D Backup System
Figure 15 Powering on the HP D2D Backup System
1. Power On button
Software installation, discovery and configuration
There are three stages to installation:
Install all the required drivers
Discover and configure the HP D2D Backup System on the network
D2D Backup System HP D2D4112 39
Page 40
Create a base configuration to get started (This is not possible if you are configuring only FC
devices on the HP D2D Backup System)
UNIX and Linux users should download the latest patches for their operating system and refer to the “Linux and UNIX Configuration Guide” on the HP StorageWorks D2D Backup System CD-ROM for configuration instructions.
Installation wizard for Windows users
For Windows users, the recommended way to set up the HP D2D Backup System network is to run the Installation wizard from the HP StorageWorks D2D Backup System CD-ROM, particularly if you are configuring the host for the first time.
The HP D2D Backup System can be used to back up a maximum of 24 hosts. You should run the Installation wizard on each host that will provide a source of data for backup. The wizard configures the software components needed to connect from the host and use the HP D2D Backup System. The host may be a server, workstation or PC.
Running the Installation wizard
NOTE:
You must have the necessary administrative rights on the host to run the Installation wizard successfully and the host should be connected to the Internet in case it is necessary to download the Microsoft iSCSI Initiator.
The host server on which you are installing the D2D must be on the same subnet in order for Discovery to work. If it is on a different subnet, refer to “Advanced installation” on page 53 for instructions on manually configuring it.
1. Insert the CD-ROM supplied with your HP D2D Backup System into the host machine. It should
launch automatically. If it does not, locate the D2DInstallationWizard.exe file and run it manually.
Connecting and installing the HP D2D Backup System40
Page 41
2. Select Start the wizard and follow the onscreen instructions to step through the installation,
normally by pressing Next.
The Installation wizard will, if possible, configure all the software components required for setup and use of the HP D2D Backup System. Use the Wizard help if you need more information.
Install drivers: These allow your system to recognize the tape medium changer and drive
devices created on the HP D2D Backup System.
Discover network devices: This allows you to locate your HP D2D Backup System on the network
and configure network settings. If you have multiple devices on your network, a list is displayed so that you can select the required HP D2D Backup System.
If the Discovery process does not find your appliance and you are accessing through a firewall, you may need to temporarily disable the firewall or open UDP ports 8105 and 8106 and retry.
When the configuration page for the device is displayed, DHCP is enabled by default for IPv4 networks. If you wish to use static IP addressing, disable DHCP and enter the IP address details.
D2D Backup System HP D2D4112 41
Page 42
TIP:
If more than one HP D2D Backup System is being configured at the same time, it may be useful to physically identify a D2D device. Use Beacon mode to flash the LED on the selected device.
For IPv6–only networks you must enter the MAC address of the HP D2D. You will find the MAC address on the label on the top of the unit. The wizard translates the MAC address into a valid IPv6 address for your network. If it is unable to do this, refer to “Using the system console to discover the HP D2D” on page 56.
Create desktop shortcut to the Web Management Interface.
Connecting and installing the HP D2D Backup System42
Page 43
Create base library device on the HP D2D:
If you are configuring the HP D2D as an iSCSI device, this step retrieves and installs the Mi­crosoft iSCSI initiator, connects this host to the HP D2D Backup System and creates and con­figures a library. If you are configuring the HP D2D as an FC device, this step is not relevant and is omitted. This means that no base library device is created for the host; you must do this after installation from the Web Management Interface, see “To create a new device” on page 113.
3. Run the Installation wizard on any other hosts that are to be backed up—24 is the maximum.
On running the wizard on subsequent hosts, you only need to select the HP D2D Backup System; its network settings have already been assigned.
The HP D2D Backup System does not appear as a device under My Computer and it is not mapped to a drive letter (although it can be seen as a tape drive (1) and medium changer (2) from Device Manager). Use a backup application on the host machine to back up and restore data.
D2D Backup System HP D2D4112 43
Page 44
Recommended web browser settings
The web browser used to communicate with the D2D Backup System must have Active Scripting or JavaScript enabled. If it does not, some of the browser buttons may not be displayed.
Internet Explorer 7.X
1. Click on the Tools button located in the upper right part of the screen (next to the gear icon).
2. Select Internet Options.
3. Click on the Security tab.
4. Click on the Custom Level... button.
5. Set the option Active scripting to Enable and click OK.
6. Click Yes.
7. Refresh the page.
Internet Explorer 6.X
1. Select Tools from the top menu.
2. Select Internet Options.
3. Click on the Security tab.
4. Click on the Custom Level.
5. Scroll down until you see the section labeled Scripting.
6. Under Active scripting select Enable and click OK.
Mozilla Firefox 1.5, Firefox 2.X and Firefox 3.X
1. Select Options from the Tools menu.
2. Click on Content.
3. Check the box next to Enable JavaScript.
4. Click OK.
5. Refresh the page.
Connecting and installing the HP D2D Backup System44
Page 45
3 Attaching a physical tape library or tape drive (optional)
In this chapter:
Hardware requirements” on page 45
Tape device installation overview” on page 46
Removing the covers” on page 46
Installing the HBA” on page 47
Replacing the cover” on page 51
Connecting an external or rackmount tape device” on page 51
Hardware requirements for Tape Attach
A tape storage device may be attached directly to your HP D2D Backup System, allowing you to store backups offsite.
To use this facility you need:
An HP StorageWorks Ultrium tape storage device, such as a tape library or tape drive. This should
be an external device or a 1U or 3U rackmount enclosure for internal devices. The appropriate cables for the rackmount shelf must be used. Both SAS and SCSI half-height and full-height tape storage devices are supported.
A host bus adapter, HBA, for the tape device connection (because there are no embedded SAS
or SCSI ports). You must purchase and install the HBA before connecting the tape storage device.
NOTE:
Physical tape storage devices attached to the HP D2D Backup System can only be accessed by the HP D2D Backup System, using the Tape Attach pages. They do not appear as attached network devices to the host system.
Supported devices
The following tape storage devices are supported:
HP 1x8 G2 Autoloader (1 drive, 8 slots, 1 mail slot)
HP MSL 2024 Tape Library (2 drives, 24 slots, 1 mail slot)
HP MSL 4048 Tape Library (4 drives, 48 slots, 1 mail slot)
Library-embedded or standalone HP StorageWorks Ultrium Tape Drives (LTO-2, LTO-3 and LTO-
4)
Please refer to http://www.hp.com/go/connect or http://www.hp.com/go/ebs for a list of all supported host bus adapters and tape storage devices. Please refer to “Using Tape Attach” on page 147 for more information about transferring data to the storage device.
D2D Backup System HP D2D4112 45
Page 46
Tape device installation overview
Before connecting a storage device, you must install an HBA. The instructions in this chapter provide the following information that is specific to the HP D2D Backup System.
1. If you have already powered up the HP D2D Backup System, power it down and disconnect the
cables before you start; each step is expanded in separate sections after the summary below.
2. Remove the top cover from the HP D2D Backup System.
3. Install the HBA.
4. Replace the top cover on the HP D2D Backup System.
5. Connect an external or rackmount storage device.
Removing the top cover
1. If you are installing the storage device as part of the initial installation, go to step 3. If you have
already powered on the HP D2D Backup System, it must be shut down before you start. Make sure there are no backup or restore jobs in progress and that no future jobs are scheduled to start whilst the system is shut down. Select Shutdown on the Web Management interface and click Power Off to power down the HP D2D Backup System safely.
2. Disconnect the network cable(s) and the power cord(s) from the HP D2D Backup System.
NOTE:
If you are using the FC interface, disconnect all cables connecting the FC card to the Fibre Channel Switch.
Attaching a physical tape library or tape drive (optional)46
Page 47
3. You need to remove the top cover before you can remove or replace a server component.
• Loosen the captive screw (1) on the rear panel with a T-15 screwdriver.
• Slide the cover (2) approximately 1.25 cm (0.5 in) toward the rear of the unit and then lift the cover to detach it from the chassis.
• Lift the top cover away from the chassis. (3)
Figure 16 Removing the top cover
Installing the HBA
There are three PCIe expansion slots on the system board; two full height and one low profile slot. One full height PCIe slot already has the RAID controller card installed. If no FC card is installed, you may purchase and install either a full-height or low profile PCIe card for Tape Attach.
NOTE:
FC products have the FC card in the other full-height PCIe slot. There is only one spare low profile slot. This is the slot into which you must install the HBA for Tape Attach. If the HBA that you purchase has a full-height bracket, you must first replace it with a half-height bracket (supplied with the recommended HBA).
NOTE:
The drawings illustrate how to install the Tape Attach HBA only; the pre-installed RAID card is not shown.
Removing the PCI Cage
1. Loosen the two captive screws that secure the PCI cage to the chassis with a T-15 screwdriver.
D2D Backup System HP D2D4112 47
Page 48
2. Lift the PCI cage away from the chassis.
Figure 17 Removing the PCI cage
NOTE:
The pre-installed RAID card has a cable connecting it to the system board. It may be easier to disconnect this cable while you are installing the new HBA. It may also be easier to disconnect the FC card.
Removing the slot cover
1. Loosen the screw that secures the slot cover to the chassis. The HBA must be installed in the low
profile slot.
NOTE:
Before installing in the low profile slot ensure that the HBA is fitted with a low profile bracket (supplied with the recommended HBA, if not already fitted).
Attaching a physical tape library or tape drive (optional)48
Page 49
2. Remove the slot cover on the PCI cage.
CAUTION:
Do not discard the slot cover. If the expansion board is removed in the future, the slot cover must be reinstalled to maintain proper cooling.
Figure 18 Removing the slot cover (low profile)
Installing the PCIe Card
1. Slide the expansion board into the slot, aligning the board with its matching connector. Firmly
press the board to seat it properly in the slot.
D2D Backup System HP D2D4112 49
Page 50
2. Tighten the screw that secures the card to the PCI cage.
Figure 19 Installing the PCIe card (in the low profile slot)
Reinstalling the PCI Cage
1. Align the PCI cage to the system board expansion slot, and then press it down to ensure full
connection to the system board.
NOTE:
Be sure to reconnect any cables that you disconnected when you removed the PCI cage.
Figure 20 Reinstalling the PCI cage
Attaching a physical tape library or tape drive (optional)50
Page 51
2. Tighten the two captive screws to secure the PCI cage to the chassis.
Figure 21 Securing the PCI cage
Replacing the top cover
Reconnect the network cable(s) and the power cord(s).
NOTE:
If you are using the FC interface, reconnect all cables connecting the FC card to the Fibre Channel switch.
Connecting an external or rackmount storage device
NOTE:
You can only connect an external or rackmount storage device, if you have already installed a recommended HBA.
Connect the external or rackmount storage device, as described in the documentation accompanying the storage device. Refer to the “User Guide” that is supplied with the storage device for more detailed information about device usage and LED troubleshooting.
NOTE:
If you are connecting to a 1U or 3U rackmount enclosure for internal storage devices, the appropriate cables for the rackmount shelf must be used. Please refer to the rack documentation for further details.
D2D Backup System HP D2D4112 51
Page 52
Attaching a physical tape library or tape drive (optional)52
Page 53
4 Advanced installation
The Installation wizard is the recommended way to install the HP D2D Backup System, but it is possible to install it manually. You may also need to run phases independently when troubleshooting. This chapter describes:
Manual driver installation” on page 53
Using DHCP to discover the HP D2D (IPv4 only)” on page 54
Using the Discovery Engine to discover the HP D2D (IPv4 only)” on page 54
Using the system console to discover the HP D2D” on page 56
The Microsoft iSCSI Initiator” on page 59
Linux and UNIX iSCSI initiators” on page 64
Manual driver installation
Two drivers are required; an HP LTO Tape driver and a medium changer driver.
NOTE:
Certain backup applications require you to use their own drivers for both the tape device and medium changer. For many applications these will be installed automatically during the software installation process. If the backup software is already installed, you may need to manually update the drivers after installing the HP D2D Backup System.
HP LTO Tape driver
The HP LTO Tape driver must be installed to allow your system to recognize the Ultrium tape devices created by the HP D2D Backup System.
Tape drivers can be installed from the drivers directory on the HP StorageWorks D2D Backup System CD-ROM, where they are supplied as an installer application and as driver files for manual installation. Also check the HP website for driver updates at http://www.hp.com/support.
The tape drive is configurable as an LTO-2, LTO-3 or LTO-4 device. This is the default behavior of the tape drive and there is no need and no way to change it on the HP D2D Backup System. It is important not to confuse emulation type with cartridge size. Emulation type is totally independent from cartridge size. The HP D2D Backup System allows you to pick whatever cartridge size you like (up to 1.6 TB).
Medium changer driver
No additional medium changer driver is required because Microsoft Windows provides a suitable generic driver and all backup applications provide their own changer drivers.
D2D Backup System HP D2D4112 53
Page 54
Using DHCP to discover the HP D2D Backup System (IPv4 only)
NOTE:
DHCP discovery is only supported if you are installing the HP D2D as an IPv4 iSCSI network device. If you are installing the unit as an IPv6–only iSCSI network device, DHCP discovery is not supported.
If you are connecting the HP D2D Backup System to an IPv4 network that has a DHCP server, DHCP addressing is enabled by default. The IP address and other network settings are assigned automatically when you connect the HP D2D Backup System to the network. You only need to know the name of the HP D2D Backup System to complete the installation and create a base library configuration. The name is in the format D2DBS-<serial number> and can be found on the label on the front of the unit.
In the web browser type in: D2DBS-<serial number>
NOTE:
Depending on network settings, you may need to enter the full domain path.
Once the HP D2D Backup System has been discovered on the network, you must configure an iSCSI Initiator on the host, so that the library devices on the HP D2D are visible to the backup application. See also“The Microsoft iSCSI Initiator” on page 59.
Using the Discovery Engine to discover the HP D2D Backup System (IPv4 only)
If your network does not have a DHCP server, the Discovery Engine allows you to locate the HP D2D Backup System on your network and assign network settings, such as the IP address. It is the recommended way to locate and configure the HP D2D Backup System on your network, if you are using static IP addressing for an IPv4 iSCSI network device. It also allows you to select your required base configuration and specify the number of slots for a library.
The Discovery Engine can be run as part of the Installation wizard or as a standalone utility from the HP StorageWorks D2D Backup System CD-ROM.
Advanced installation54
Page 55
NOTE:
If the Discovery process does not find your appliance and you are accessing through a firewall, you may need to temporarily disable the firewall or open UDP ports 8105 and 8106 and retry.
Beacon mode
The HP D2D Backup System supports a Beacon LED sequence, which helps a user identify which unit is being configured, if several are connected to the network. See also “LEDs” on page 71.
If the HP D2D Backup System is new and not yet configured
When installing the HP D2D Backup System for the first time, this step must be completed successfully before you can connect from your host. Select the appropriate HP D2D Backup System from the list and make a note of its IP address because you will need this when you configure the iSCSI Initiator, see also “Discovery tab” on page 61.
If the HP D2D Backup System has been configured incorrectly
If you cannot connect to the HP D2D Backup System using the Web Management interface, it may have been configured incorrectly. Run the Discovery Engine to check the IP address of the HP D2D Backup System and, if necessary, select it again from the list of available HP D2D Backup Systems. If you still cannot connect to it, check that you have configured the iSCSI Initiator correctly, see also “Discovery tab” on page 61.
If the network setup has been changed
If the network infrastructure changes, you may need to update the HP D2D Backup System network settings to allow hosts to continue to connect. Run the Discovery Engine and change the network settings in accordance with your new infrastructure.
D2D Backup System HP D2D4112 55
Page 56
You can also use the Web Management Interface to modify these settings directly on the HP D2D Backup System, as long as this is done before the infrastructure changes are made.
Once the network settings of the HP D2D Backup System have been changed, you must also change the iSCSI Initiator for each host.
Using the console to discover the HP D2D Backup System (IPv4 and IPv6)
If you do not use the Installation Wizard or it fails, you can connect the system console directly to the unit in order to find out the IP address.
To connect the system console
1. Connect the monitor cable to the VGA port on the rear of the unit.
2. Connect the keyboard cable to the PS/2 ports on the rear of the unit. Do not connect anything
to the USB ports.
Figure 22 System console connections on the HP D2D
1 and 2. PS/2 ports for system console keyboard and mouse
3. VGA port for system console monitor
Advanced installation56
Page 57
3. Power on the HP D2D and allow it to boot up until the console screen is displayed (see example
below). Select the Network... option from the left-hand Menu.
Figure 23 System console screen
4. Locate the IP address for the port(s) and make a note of it.
5. Use an iSCSI Initiator to enable the host to connect to devices on the HP D2D, see also
iSCSI Initiator” on page 57. In the web browser on the host machine, type in the IP address of the HP D2D to connect to it.
iSCSI Initiator
NOTE:
FC products may be configured with a mixture of FC and iSCSI attached devices. If you are configuring your HP D2D to have iSCSI devices (for hosts attached via the LAN ports), this section is relevant. However, if you are configuring it to have only FC network devices (attached via the FC ports), it is not necessary; you must use the Web Management interface to create FC devices, see “To create a new device” on page 113.
iSCSI is a protocol for sending SCSI commands via Ethernet. It defines how SCSI packets are translated to Ethernet packets and connects to the required devices. An iSCSI initiator may be hardware or software and should be running on each host. If the host does not have an iSCSI initiator, it will not be able to connect to the library configured on the HP D2D Backup System and will not be able to perform backups.
D2D Backup System HP D2D4112 57
Page 58
The HP D2D Backup System supports the Microsoft software iSCSI initiator which can be retrieved from the Microsoft website.
Figure 24 iSCSI Initiator download page
1, amd 64
2, ia 64
3, x86
Use with amd ® 64-bit processors and with Intel ® em64t processors, when running a 64-bit version of the Windows operating system.
Use with ia-64 processors, such as Itanium and HP Integrity.
Use with 32-bit processors or 64-bit processors running 32-bit Windows, such as Windows XP and Server 2003.
If you download the wrong version, it will not install. The simplest way of ensuring you download the correct version is to run the Installation wizard from the HP StorageWorks D2D Backup System CD-ROM because it automatically checks which is the appropriate version for your host.
NOTE:
The Microsoft Vista operating system includes the Microsoft iSCSI Initiator. It can be run from the Control Panel in Classic Mode.
Manual iSCSI initiator installation
The Installation wizard could fail for the following reasons:
The host machine does not have an internet connection
Firewall restrictions prevent this process
Microsoft has relocated the iSCSI initiator files to a different address on its website.
The process times out due to a slow connection
The maximum number of drives/libraries have been configured on the HP D2D
If the process fails:
1. On a machine that supports an external internet connection, go to the Microsoft website and
search on "iSCSI initiator"
2. Select the result that takes you to the Download page and choose the download that is appropriate
for your host.
3. Download the iSCSI initiator and install it on the host, accepting all the default settings.
Advanced installation58
Page 59
The iSCSI Initiator and Authentication
Authentication is not required for the HP D2D, but it is supported for those companies that have an IT policy that requires them to use authentication. If this is the case, you will need to configure the necessary fields on the iSCSI Initiator and also ensure that the corresponding information is supplied in the Web Management Interface. This enables the Initiator to log into the target device on the HP D2D and the target device to log into the Initiator.
The authentication method supported on D2D products is CHAP. It relies on a "secret" known only to the target and initiator. The size of the CHAP secret is between 12 and 16 characters, and must be entered in exactly the same format in both the Web Management Interface and the iSCSI initiator. An 'Authentication Failure' message will occur if the same 'secret' and 'user name' information are not entered into the iSCSI Initiator screen and the Web Management Interface. Further details on authentication and CHAP can be found within standard iSCSI protocol documentation.
The recommended process if you wish to enable authentication is:
1. Create the devices on the Web Management Interface.
2. Set up the Targets in the iSCSI Initiator.
3. Connect to the devices using the CHAP user name and secret that you configured on the Targets
tab.
The Microsoft iSCSI Initiator
The Microsoft iSCSI initiator contains a number of tabs. This section describes the information that must be provided in order to connect the host to a device on the HP D2D Backup System. It does not provide a comprehensive description of all the tabs; please download the “User Guide” from the Microsoft website for more information.
General tab
You do not normally need to make any changes on the General tab. The Initiator Node Name is generated automatically, which guarantees that it will be unique on your network.
D2D Backup System HP D2D4112 59
Page 60
Figure 25 General tab (iSCSI)
NOTE:
When you use the Web Management Interface to create an additional device for your host, you must provide the iSCSI Initiator Name. This is the Initiator Node Name found on the General tab.
Authentication
If you wish to use mutual authentication (where target authentication is also required), click Secret on the General tab and enter the appropriate string at the prompt.
NOTE:
IPSec Tunnel Mode is not currently supported on HP D2D products.
Figure 26 CHAP secret
The CHAP secret may be between 12 and 16 alphanumeric characters and should be exactly the same string as you enter on the Web Management interface in the Target CHAP Secret field on the Devices page. (See “Device parameters” on page 114.)
Advanced installation60
Page 61
Discovery tab
Figure 27 Discovery tab (iSCSI)
Click Add to enter target portals that will enable discovery of the device.
Figure 28 Add target portal
You must enter the IP address or fully qualified domain name of the HP D2D Backup System (for example, myhpd2d.mydomain.com) to add it as a target portal for the host on the Discovery tab. Do not change the Port; it should be 3260.
Targets tab
This tab contains a list of all available devices.
If this is the first time that the iSCSI Initiator has been configured and the Installation wizard has
If target devices have already been configured for the host in the past, they appear in the list; no
not been run, it will automatically create a library with the appropriate number of target devices (the default is one loader and one tape drive).
more are created.
D2D Backup System HP D2D4112 61
Page 62
When you run the iSCSI Initiator manually, new devices have a status of Inactive. You must log on to the appropriate targets for your host. Remember that each library has at least two devices and you must log onto each one separately. If the emulation type you have selected allows more drives, there will be a target device for each drive.
NOTE:
If you are using mutual CHAP authentication, you set up the details when you log on to the target.
If you are using a dual port configuration, there will be two IP addresses in separate subnets for each device. The iSCSI initiator will return both IP addresses as possible login addresses. If the default choice does not work you can select a specific port. High Availability dual ports return a single IP address. See also “Dual network ports” on page 37.
Figure 29 Targets tab (iSCSI)
We recommend that you also select the Automatically restore this connection when the system boots option in the Log On... dialog.
Advanced installation62
Page 63
Authentication
When the Log On to Target prompt is displayed click on Advanced...
Enable CHAP logon information and enter the secret in the Target Secret box. This should be the same string as you entered for the Initiator CHAP Secret on the Devices page of the Web Management Interface. The User Name should match the Initiator CHAP User Name on the Devices page.
Figure 30 Advanced settings CHAP
If you want to use mutual authentication, which means that the target must also log on to the Initiator, make sure that the Perform mutual authentication box is checked. You must also provide the Target User Name and Secret on the Devices page in the Web Management Interface. See also “Devices (Configuration)” on page 110.
Persistent Targets tab
The Persistent Targets tab shows the targets that have been configured to restore automatically on reboot. During initial configuration, it is for information only. However, if you want to stop the host automatically connecting to a device, you must select the device on this tab and Remove it. To disconnect the device without rebooting, go back to the Targets tab, select the device, click Details and log off.
D2D Backup System HP D2D4112 63
Page 64
Figure 31 Persistent Targets tab (iSCSI)
Bound Volumes/Devices tab
No configuration is required on the Bound Volumes/Devices tab.
Linux and UNIX iSCSI initiators
An iSCSI initiator is embedded in the operating system. Please refer to the “Linux and UNIX Configuration Guide” on the HP StorageWorks D2D Backup System CD-ROM for further information. Make sure that you have downloaded the latest operating system patches before you configure your system.
Advanced installation64
Page 65
5 HP D2D Backup Systems and Fibre Channel
In this chapter:
Fibre Channel topologies” on page 65
Zoning” on page 65
Fibre Channel connection” on page 66
Fibre Channel (Configuration)” on page 67
Fibre Channel (Status)” on page 68
Fibre Channel topologies
The HP D2D Backup System supports a switched fabric fibre channel topology.
A switched fabric topology utilises one or more fabric switches to provide a flexible configuration between several Fibre Channel hosts and Fibre Channel targets such as HP D2D Backup Systems.
Switched fabric configurations are implemented with Fibre Channel switches. Switches may be cascaded or meshed together to form larger fabrics.
NOTE:
Other topologies will be supported at a later date. Please refer to http://www.hp.com/go/connect or http://www.hp.com/go/ebs for the latest information.
Zoning
Due to complexities in multi-hosting tape devices on SANs, it is best to make use of zoning tools to help keep the backup/restore environment simple and less susceptible to the effects of changing or problematic SANs.
Zoning provides a way for servers, disk arrays, and tape libraries to only see what hosts and targets they need to see and use. The benefits of zoning include but are not limited to:
Limiting unnecessary discoveries on the HP D2D Backup System
Reducing stress on the HP D2D Backup System and its library devices by polling agents
Reducing the time it takes to debug and resolve anomalies in the backup/restore environment
Reducing the potential for conflict with untested third-party products
Zoning may not always be required for configurations that are already small or simple. Typically the bigger the SAN is, the more zoning is needed. HP recommends the following for determining how and when to use zoning.
Small fabric (16 ports or less)—may not need zoning.
D2D Backup System HP D2D4112 65
Page 66
Small to medium fabric (16 - 128 ports)—use host-centric zoning. Host-centric zoning is implemented
by creating a specific zone for each server or host, and adding only those storage elements to be utilized by that host. Host-centric zoning prevents a server from detecting any other devices on the SAN or including other servers, and it simplifies the device discovery process.
Disk and tape on the same pair of HBAs is supported along with the coexistence of array multipath
software (no multipath to tape or library devices on the HP D2D Backup System, but coexistence of the multipath software and tape devices).
Large fabric (128 ports or more)—use host-centric zoning and split disk and tape targets. Splitting
disk and tape targets from being in the same zone together will help to keep the HP D2D Backup System free from discovering disk controllers which it doesn't need to see. For optimal performance, where practical, dedicate HBAs for disk and tape.
NOTE:
Overlapping zones are supported.
Fibre Channel connection
Backup and restore is supported over both Ethernet networks and Fibre Channel SAN. However, the Web Management Interface always requires an Ethernet connection. When using FC to back up hosts, you must still connect to LAN port 1 and should run the Installation wizard to connect to and discover your HP D2D Backup System. The HP D2D is supplied with the correct FC card pre-installed. It does not include FC cables.
1. Connect to LAN Port 1, as described in “Ethernet connection” on page 37.
2. Use a FC Multimode 50/125 (preferred) or 62.5/125 cable to connect the port(s) on the FC
card in the HP D2D to the Fibre Channel Switch.
3. The switch must have a multi-mode transceiver that supports speeds of 4Gbs (preferred) or 2Gbs.
4. Run the Installation wizard, as described in “Software installation, discovery and
configuration” on page 39.
HP D2D Backup Systems and Fibre Channel66
Page 67
5. Run the Web Management Interface and create at least one library device. Be sure to select one
of the FC ports in the Port drop-down. For information about the other fields, see “To create a new device” on page 113.
6. Configure zones on the FC Fabric/Switch.
7. The library device(s) should now be visible to the host. It may be necessary to perform a system
re-scan.
Fibre Channel (Configuration)
There is a page on the Web Management Interface that allows you to view and edit Fibre Channel SAN settings, if necessary. It shows FC settings for each port on the FC card.
D2D Backup System HP D2D4112 67
Page 68
To edit the FC configuration
Click Edit to make the fields editable for each port. Make the required changes and click Update.
Speed: The default is Auto, which is the recommended option. For users who wish to fix the speed,
other available values are 4Gbs (preferred), 2Gbs or1Gbs (not recommended).
Topology: The default is Auto, which is the recommended option. Loop, where the HP D2D Backup
System simulates a large number of FC devices, and N_Port, when a single target device creates many virtual devices on a fabric attach port, are also supported. N_Port requires the switch port to support NPIV (N_Port ID Virtualisation).
Fibre Channel (Status)
This page shows the details for all the FC devices that are configured on the HP D2D Backup System. Select a library in the Devices list to view the connection details for the library's media changer and drive(s).
This page is mainly for information and is useful in troubleshooting. It cannot be edited.
HP D2D Backup Systems and Fibre Channel68
Page 69
Devices section
The details in this section reflect settings that were configured for this library when it was created on the Devices page or when the Fibre Channel was configured. These settings can only be edited on the appropriate Configuration page. If the Connection field for all devices on the same port is showing Not Connected, check the physical FC connection. Examine the FC switch for visibility of the devices. Some configuration changes may be necessary or the configuration may not be supported.
Library section
There is a row for each device associated with the library. The Device Type determines the number of drives.
The Port ID is three hexadecimal numbers and is known as the FC address by some manufacturers.
If the device is not connected, this field will be blank.
The Port Type describes the nature of the connection and should match the Topology details.
The Number of logins is the number of hosts currently with an active logical connection to this
device. To be used at least one active connection is required. Too large a number indicates that the device has been zoned inappropriately and could cause issues.
D2D Backup System HP D2D4112 69
Page 70
HP D2D Backup Systems and Fibre Channel70
Page 71
6 LEDs
