HP DY058A, SR1070KR Specifications

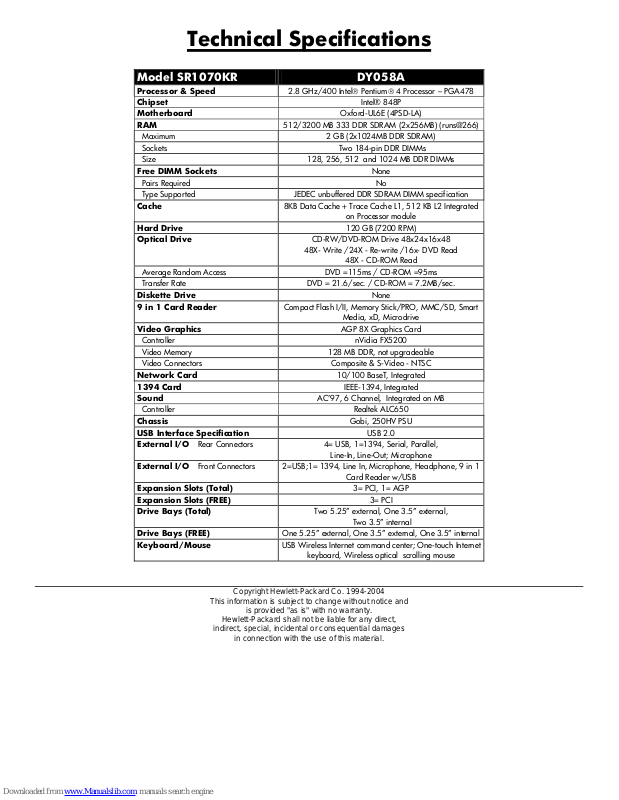

Technical Specifications

Model SR1070KR DY058A

Processor & Speed 2.8 GHz/400 Intel® Pentium® 4 Processor – PGA478
Chipset Intel® 848P
Motherboard Oxford-UL6E (4PSD-LA)
RAM 512/3200 MB 333 DDR SDRAM (2x256MB) (runs@266)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 and 1024 MB DDR DIMMs
Free DIMM Sockets None
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated

on Processor module

Hard Drive 120 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

48X- Write /24X - Re-write /16x- DVD Read

48X - CD-ROM Read
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Gobi, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2=USB;1= 1394, Line In, Microphone, Headphone, 9 in 1

Card Reader w/USB

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal
Keyboard/Mouse USB Wireless Internet command center; One-touch Internet

keyboard, Wireless optical scrolling mouse
