1 Scanner overview
This User Guide covers what you need to know about using your scanner.
Scanner hardware
•
•
Scanner software
Scanner hardware
1 Front panel
2 Power save button
3 Document feeder
4 Latch to open scanner
5 Power switch
6 Power supply input
7 USB input
See also
•
Scanner front panel buttons
Scanner lamp setting
•
Scanner front panel buttons
Use the buttons on the scanner front panel to start a scan and to configure some scanner
settings.
Scanner overview 3
Chapter 1
Icon Button name Description
1 LCD
2 OK/Select Allows you to scroll the list of scan profiles, view
3 Scan Simplex Starts a one-sided scan or copy.
4 Scan Duplex Starts a two-sided scan or copy.
5 Tools Opens the HP Scanner Tools Utility where you
6 Cancel Cancels a scan or copy in progress.
Displays available scan profiles and status
•
and error messages.
Displays the number of copies you
•
specified for copying.
their details, and specify the number of
copies.
•
Press and to scroll through profiles
or specify number of copies.
Press OK to view scan profile details,
•
return to the list of profiles when viewing
scan profile details, and to specify the
number of copies for a copy profile.
can perform the following tasks:
Configure the list of profiles on the scanner
•
front panel
Create scan profiles that use third-party
•
scanning software
View information about scanner settings,
•
status, and maintenance
7 Back Returns you to the list of profiles when you are
See also
•
Scanner error codes
Useful scanner features
•
Scanner lamp setting
The scanner supports two modes of lamp operation:
• In Power Save mode, the scanner lamp times out and turns off automatically after
about 15 minutes of inactivity. If the scanner lamp has turned off and you want to
scan, either press the Power Save button or load originals into the document feeder.
• In Instant Lamp On mode, the scanner lamp times out and turns off automatically
after about 15 minutes of inactivity, but it remains warm and ready to scan.
4 Scanner overview
viewing profile details or specifying number of
copies for a copy profile. Pressing
specifying number of copies cancels your
selection.
when
To switch from Power Save mode to Instant Lamp On mode, select the Enable Instant
Lamp On check box on the Settings tab of the HP Scanner Tools Utility. To switch back
to Power Save mode, clear the Enable Instant Lamp On check box.
Scanner software
The scanner comes with an assortment of scanning and document-management
programs, including:
•
HP Smart Document Scan Software
HP Scanner Tools Utility
•
HP Smart Document Scan Software
HP Smart Document Scan Software guides you through the scanning process. To
open the software, double-click the HP Smart Document Scan Software icon on
the desktop. For more information, see the HP Smart Document Scan Software Help.
Main Window
The Main Window is displayed when you open the HP Smart Document Scan software.
Use this window to complete the following tasks:
• Start a scan: Load the original in the document feeder, select a profile, and then click
Scan. The scan will be completed using the settings associated with the selected
profile.
• Work with profiles: Create and modify profiles to specify the scanner settings and
the actions to take on your scanned documents.
Scan Progress Window
The Scan Progress Window opens when you start a scan. Use this window to complete
the following tasks:
• View thumbnails of the pages as they are scanned
• Scan more pages
• Rescan pages individually
• Edit pages individually to crop, rotate, and deskew the images.
• Reorganize or delete pages
• Complete the scan and process the document
For more information, click Help on the HP Smart Document Scan Software menu bar.
Scanner software 5
Chapter 1
HP Scanner Tools Utility
Use the HP Scanner Tools Utility to configure the list of scan profiles on the scanner front
panel, to create scan profiles that use third-party scanning software, and to find
information about scanner settings, status, and maintenance.
To open the utility, do one of the following:
Double-click the HP Scanner Tools Utility icon on the desktop.
•
•
Press the Tools ( ) button on the scanner front panel.
Click Start, point to Programs or All Programs, point to HP, point to Scanjet,
•
point to 7000 or 5000, and then click HP Scanner Tools Utility.
For more information, see the HP Scanner Tools Utility Help.
6 Scanner overview
2 Use the scanner
The following topics describe the HP Scanjet scanner as well as how to scan or copy
original documents.
•
Load originals
Scan and copy
•
Load originals
For helpful information on loading your documents properly, refer to the following topics.
Document loading tips
•
Load documents
•
Load cards into the document feeder
•
Document loading tips
• The maximum capacity of the document feeder is 50 sheets of 75 g/m2 (20 lb) paper.
When using heavier paper, the maximum capacity is decreased.
• The card capacity of the document feeder is 10 cards.
• Be sure that your documents are within these guidelines:
Width: 52 mm to 216 mm (2.1 in to 8.5 in)
Length: 74 mm to 864 mm (2.9 in to 34 in)
Weight: 50 g/m2 to 120 g/m2 (13.3 lb to 32 lb)
• In the scanning software, set the page size to match the width and length of the paper
that you are scanning.
• The scanner document feeder can process cards that meet the following
specifications:
Minimum size: 52 mm x 74 mm (2.1 in x 2.9 in)
Maximum size: 210 mm x 269 mm (8.3 in x 10.6 in)
Minimum weight: 253 g/m2 (12 points or 102 lb)
Maximum weight: 326 g/m2 (15 points or 120 lb)
Use the scanner 7
Chapter 2
• Scanning the following types of documents might result in paper jams or damage to
the documents.
Wrinkled or creased
documents
Torn documents Documents with paper clips
Carbon paper Coated paper
Extremely thin, translucent
paper
Photos Overhead transparencies
Papers that are stuck
together
Curled documents
or staples
Paper with adhesive notes or
flags attached
Paper with wet substances
such as glue or correction
fluid
• Smooth out any folds or curls in your documents before placing them into the feeder.
If the leading edge of a document is curled or folded, it may cause a paper jam.
• When loading paper that is smaller than 74 mm (2.9 in) in one dimension (such as
business cards), place the pages with the long side parallel to the paper guides.
• To scan fragile documents (such as photos or documents on wrinkled or very
lightweight paper), place the document in a clear, heavyweight document sleeve no
wider than 216 mm (8.5 in) before loading them into the document feeder.
TIP: If you do not have an appropriately-sized document sleeve, consider using
a sleeve intended for use in a ring binder. Trim the ring-side edge so the sleeve
is no more than 216 mm (8.5 in) wide.
• Make sure that the hatch on the document feeder is securely latched. To properly
close the hatch, press until you hear a click.
• Adjust the paper guides to the width of the documents. Make sure that the paper
guides touch the edges of the original. If there is any clearance between the paper
guides and the edges of the documents, the scanned image might be skewed.
• When placing a stack of documents into the feeder, gently set the stack in the
document feeder. Do not drop the stack into the feeder and do not tap the top edge
of the stack after you have placed the stack in the document feeder.
• Clean the scanning rollers if the rollers are visibly dirty or after scanning a document
that has pencil writing on it.
See also
Clean the paper path
Clean the rollers
Scanner paper path problems
8 Use the scanner
Load documents

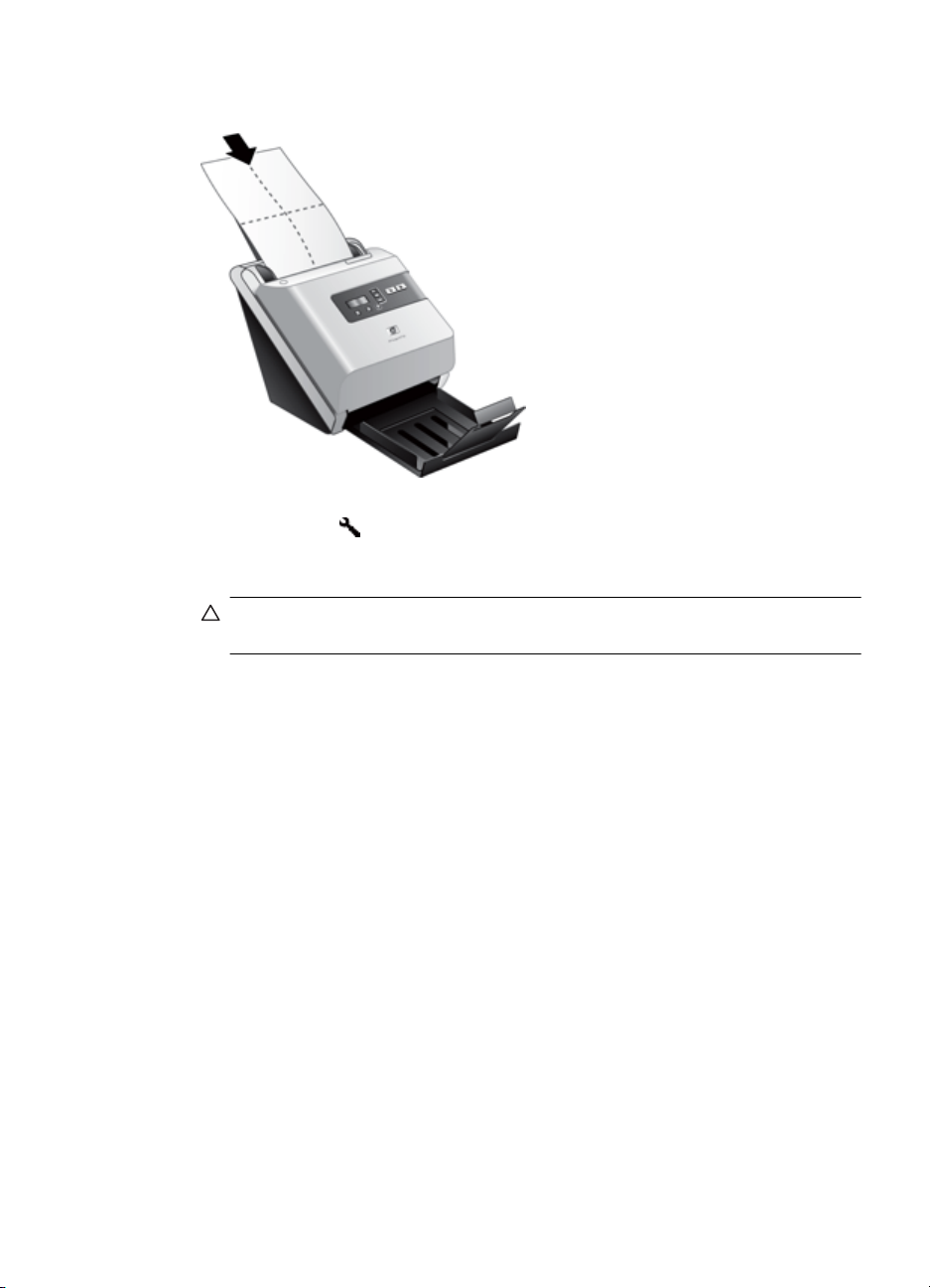

1. Pull up the document feeder extension and adjust the output tray.
2. Adjust the paper guides to the width of the documents. Take care not to overtighten
the guides, which can restrict paper feeding.
When scanning small originals such as checks, it is especially important that the
paper guides fit snugly against the edges of the original.
Load originals 9
Chapter 2
3. Fan the stack of document pages to ensure that the pages do not stick together. Fan
the edge that will be pointing into the feeder in one direction, and then fan that same
edge in the opposite direction.
4. Align the edges of the documents by tapping the bottom of the stack against the table
top. Rotate the stack 90 degrees and repeat.
5. Gently set the stack in the document feeder. Load the pages face down with the top
of the pages pointing into the feeder.
For best results, do not drop the stack into the feeder and do not tap the top edge of
the stack after you have placed it in the document feeder.
6. Verify that the paper guides are aligned with the edges of the stack.
10 Use the scanner
Load cards into the document feeder
To load cards into the document feeder, follow these steps:
1. Place the stack of cards face down with the long dimension parallel to the paper
guides.
2. Adjust the paper guides to center the original. Make sure the paper guides touch the
edges of the original.
Scan and copy
The following topics describe how to scan or copy originals using the scanner and the
scanner software.
•
Tips on scanning and copying
Scan from the scanner buttons
•
Scan from HP Smart Document Scan Software
•
Scan from ISIS- or TWAIN-compliant scanning software
•
Tips on scanning and copying
• If the scanner LCD does not display any scan or copy profiles, open the HP Scanner
Tools Utility to load the profiles onto the scanner.
• To reduce paper jams, use scan settings that specify the actual dimensions of the
pages that you are scanning.
• To cancel a scan or copy, press Cancel (
• If you press Scan Duplex (
regardless of the scan profile setting. If you press Scan Simplex (
processes only one side of the original.
).
), the scanner processes both sides of the original
), the scanner
Scan and copy 11
Chapter 2
• If you want to change the copy settings, select Start copy software and then press
either the Scan Simplex (
on the connected computer where you can modify copy settings.
• You can create scan profiles that use third-party scanning software. For more
information, see the HP Scanning Tools Utility Help.
) or Scan Duplex ( ) button. The HP Copy software starts
Scan from the scanner buttons
To scan using the scanner buttons, follow these steps:
1. Load the originals.
2.
Use
3.
If you selected a copy profile, press OK, use
copies you want, and then press OK.
4. Press either Scan Simplex ( ) for one-sided scans or Scan Duplex ( ) for two-sided
scans.
and to select the scan or copy profile you want.
TIP: If you selected a scan profile, pressing OK displays the scan profile's file
type, color mode, and resolution. To return to the profiles list, press
Scan from HP Smart Document Scan Software
You can start a scan from the HP Smart Document Scan Software.
1. Do one of the following:
• Double-click the HP Smart Document Scan Software icon on the computer
desktop.
and to specify the number of
.
• Click Start, point to Programs or All Programs, point to HP, point to Scanjet,
and then click HP Smart Document Scan Software.
2. Select a profile, and then click Scan.
TIP: A description of the selected profile is displayed below the list.
3. Follow the onscreen instructions to complete the scan.
For more information, see the HP Smart Document Scan Software Help.
Scan from ISIS- or TWAIN-compliant scanning software
You can scan an image or document directly into a software program if the program is
ISIS or TWAIN compliant. Generally, the program is compliant if it has a menu option
such as Acquire, Scan, Import New Object, or Insert. If you are unsure whether the
program is compliant or what the option is, see the documentation for that program.
1. Start the scanning software, and then select the ISIS or TWAIN data source.
2. Select the settings that are appropriate for the documents that you are scanning.
3. Carry out the appropriate actions to complete the scan.
12 Use the scanner
Loading...
