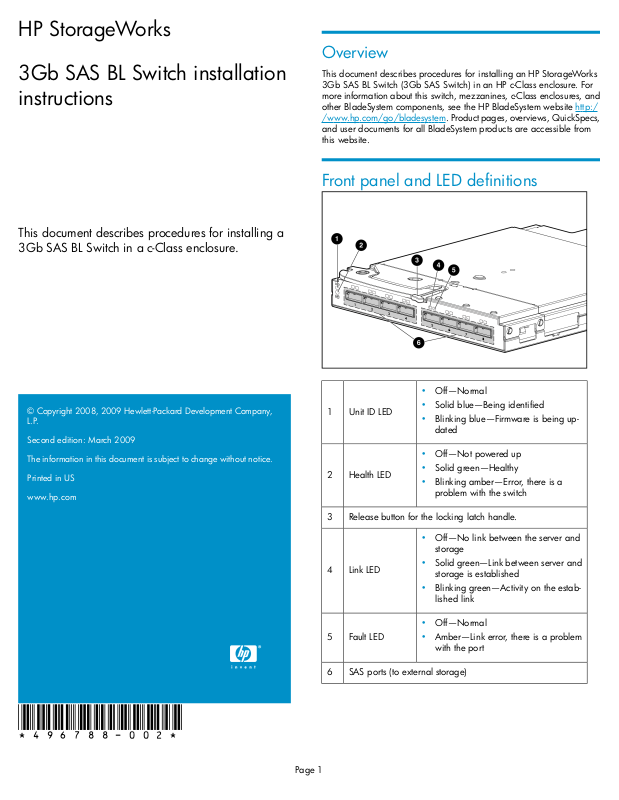

HP StorageWorks
Overview
3Gb SAS BL Switch installation
instructions
This document describes procedures for installing a
3Gb SAS BL Switch in a c-Class enclosure.
This document describes procedures for installing an HP StorageWorks
3Gb SAS BL Switch (3Gb SAS Switch) in an HP c-Class enclosure. For
more information about this switch, mezzanines, c-Class enclosures, and
other BladeSystem components, see the HP BladeSystem website h
/www.hp.com/go/bladesystem. Product pages, overviews, QuickSpecs,
and user documents for all BladeSystem products are accessible from
this website.
ttp:/
Front panel and LED definitions
© Copyright 2008, 2009 Hewlett-Packard Development Company,
L.P.
Second edition: March 2009
The information in this document is subject to change without notice.
Printed in US
www.hp.com
• Off—Normal
Unit ID LED1
Health LED2
Release button for the locking latch handle.3
Link LED4
Fault LED5
SAS ports (to external storage)6
• Solid blue—Being identified
• Blinking blue—Firmware is being up-
dated
• Off—Not powered up
• Solid green—Healthy
• Blinking amber—Error, there is a
problem with the switch
• Off—No link between the server and
storage
• Solid green—Link between server and
storage is established
• Blinking green—Activity on the estab-
lished link
• Off—Normal
• Amber—Link error, there is a problem
with the port
*496788-002*
Page 1
Planning the configuration
Before installing the switch, analyze the servers and storage and develop
a plan for controlling access to the storage. After installing the switch,
configure the switch and the storage per the plan (“Configuring the
switch ” on page 3).
Selecting the interconnect bay
Each c3000 and c7000 interconnect bay maps to servers via the slot
in which the mezzanine cards are installed in the server blades. When
selecting interconnect bays for switches, make sure that the selected
bays map to the desired server blades. For information about mappings,
see the user documents for your c-Class enclosure model. For information
about supported mezzanines, see the 3Gb SAS Switch QuickSpecs.
IMPORTANT:
This switch is supported for use in both single- and dual-domain
environments. When used in dual-domain configurations, the
two switches must be installed in the same row of the c-Class
enclosure.
1. Remove the air baffle from the selected interconnect bay.
2. Prepare the switch.
Installing the switch
NOTE:
• The 3Gb SAS Switch may be hot-installed in an operational
enclosure.
• Make sure that the mezzanine cards are installed in server
mezzanine slots that map to the selected c-Class enclosure interconnect bay.
• The 3Gb SAS Switch does not have a power on/off button.
Power is automatically applied or removed when the switch
is installed or removed from the enclosure. Alternatively, power
can be applied or removed through the Onboard Administrator
application.
• Connect SAS cables to external storage enclosures only after
confirming that the desired firmware version is installed on the
switch.
For illustration purposes, the following images demonstrate installing a
3Gb SAS Switch in interconnect bay 5 of a BladeSystem c7000
enclosure.
3. Install the switch in the open interconnect bay.
When installed in an operational enclosure, the switch automatically
powers up and performs a series of Power On Self Tests.
A successful installation is indicated by a green Health LED (“Front
panel and LED definitions” on page 1). If the Health LED is amber
or there is no power to the switch, see the "Troubleshooting" section
of the HP BladeSystem enclosure setup and installation guide.
