HP SA3150 User Manual
Hewlett-Packard Company
HP: 5971-0871
P/N: A55305-001
March 2001
hewlett-packard
vpn server appliance sa3150
regulatory information,
hardware installation,
and safety notices
Disclaimer
Information in this document is provided in connection
with Hewlett-Packard Company products. No license,
express or implied, by estoppel or otherwise, to any
intellectual property rights is granted by this document.
Except as provided in Hewlett-Packard Company’s Terms
and Conditions of Sale for such products, Hewlett-Packard
Company assumes no liability whatsoever, and HewlettPackard Company disclaims any express or implied
warranty, relating to sale and/or use of Hewlett-Packard
Company products including liability or warranties relating
to fitness for a particular purpose, merchantability, or
infringement of any patent, copyright or other intellectual
property right. Hewlett-Packard Company products are not
intended for use in medical, life saving, or life sustaining
applications.
Hewlett-Packard Company may make changes to
specifications and product descriptions at any time,
without notice.
This Hewlett-Packard VPN Server Appliance SA3150
Regulatory Information, Hardware Installation, and
Safety Notices document, as well as the software described
in it, is furnished under license and may only be used or
copied in accordance with the terms of the license. The
information in this manual is furnished for informational
use only, is subject to change without notice, and should
not be construed as a commitment by Hewlett-Packard
Company. Hewlett-Packard Company assumes no
responsibility or liability for any errors or inaccuracies that
may appear in this document or any software that may be
provided in association with this document.
Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information i
Except as permitted by such license, no part of this
document may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means without the
express written consent of Hewlett-Packard Company.
Copyright © Hewlett-Packard Company 2001.
ii Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information
Contents
INTRODUCTION..........................................................................................................1
SPECIFICATIONS.................................................................................................................1
HARDWARE INSTALLATION..............................................................................................1
REGULATORY AND SAFETY ..............................................................................................1
PHYSICAL SPECIFICATIONS....................................................................................2
ENVIRONMENTAL SPECIFICATIONS......................................................................3
ELECTRONIC AND ELECTRICAL SPECIFICATIONS.............................................4
VAC ELECTRICAL AND CONNECTOR SPECIFICATIONS...............................................4
LITHIUM BATTERY USAGE STATEMENT........................................................................4
COOLING REQUIREMENTS.......................................................................................5
HARDWARE INSTALLATION.....................................................................................6
MOUNTING OPTIONS..........................................................................................................6
CABLING REQUIREMENTS................................................................................................7
INSTALLING A PCI ADD-IN CARD.....................................................................................8
REGULATORY STATEMENTS FOR THE HP VPN SERVER APPLIANCE SA315011
FEDERAL COMMUNICATIONS COMMISSION WARNINGS AND SERVICE
REQUIREMENTS.......................................................................................................12
FCC WARNINGS ................................................................................................................. 12
SERVICE REQUIREMENTS...............................................................................................13
CANADIAN REGULATIONS .....................................................................................14
CANADIAN EQUIPMENT IDENTIFICATION REQUIREMENTS....................................14
EUROPEAN REGULATIONS.....................................................................................15
EUROPEAN COMMUNITY (CE) MARK OF CONFORMITY STATEMENT....................15
EUROPEAN POWER NOTICES......................................................................................... 16
EUROPEAN REGULATORY INFORMATION...................................................................17
NOTICE TO UNITED KINGDOM USERS.......................................................................... 17
Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information iii
JAPANESE REGULATIONS......................................................................................18
JAPANESE VOLUNTARY CONTROL COUNCIL FOR INTERFERENCE (VCCI)
STATEMENT.......................................................................................................................18
GERMAN REGULATIONS.........................................................................................19
WARNUNGEN.....................................................................................................................19
ELEKTROSTATISCHE ENTLADUNG...............................................................................19
UMGANG MIT KABELN ..................................................................................................... 20
INTERAKTION MIT ANDEREN GERÄTEN .....................................................................20
VENTILATION IM INSTALLATIONSUMFELD.................................................................20
SAFETY NOTICES.....................................................................................................21
iv Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information
Introduction
This guide contains safety and regulatory information for
the HP VPN Server Appliance SA3150 as well as hardware
installation instructions. Read through this information
before installing the HP VPN Server Appliance SA3150.
Specifications
This guide contains the following specifications:
• Physical Specifications
• Environmental Specifications
• Electronic and Electrical Specifications
• Cooling Requirements
Hardware Installation
This guide contains the following hardware installation
topics:
• Mounting Options
• Installing a PCI Add-in Card
• Cabling Requirements
• Connecting the Cables
Regulatory and Safety
This guide contains the following regulatory and safety
information:
• Regulatory Statements
• Safety Notices
Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information 1

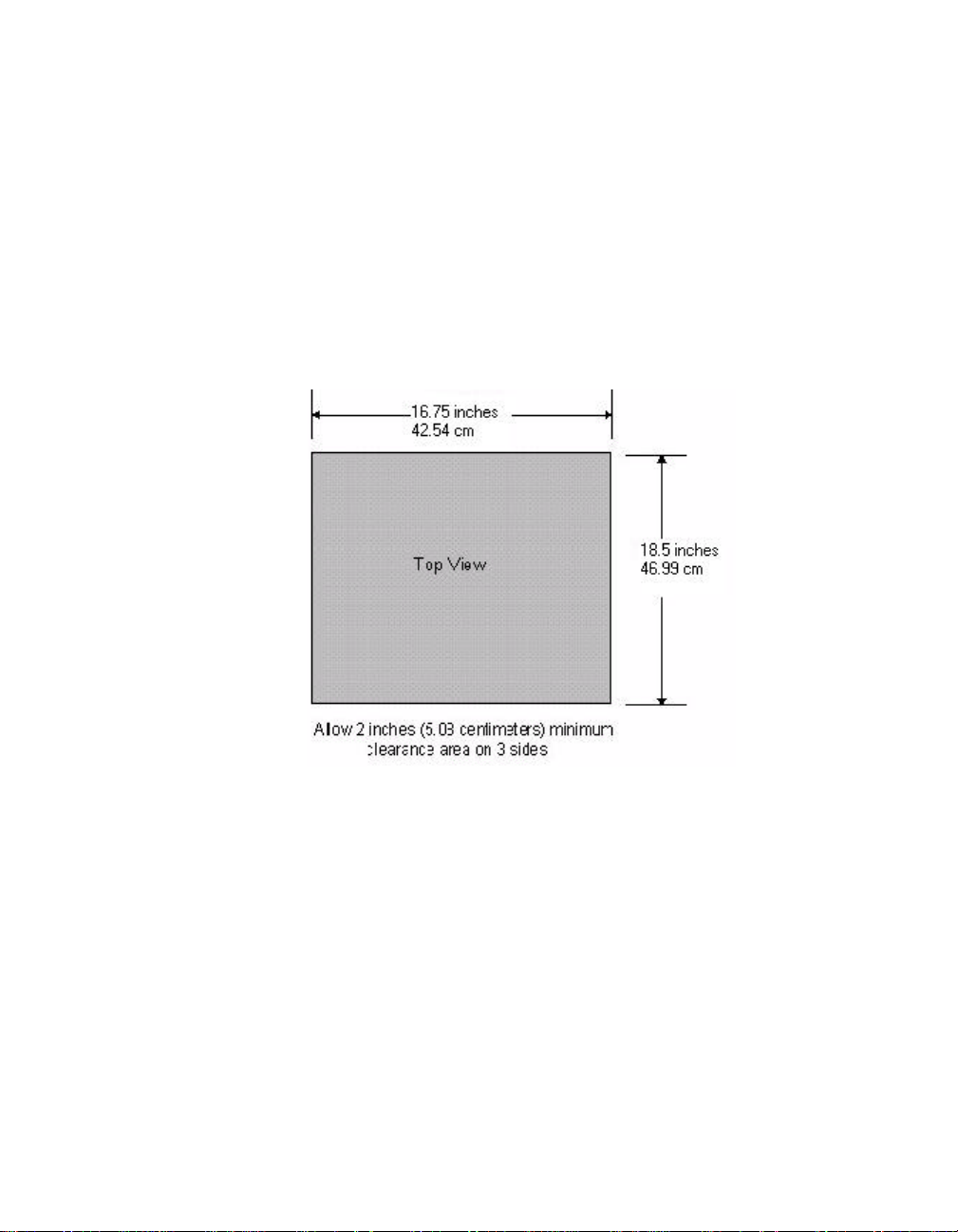

Physical Specifications
The following table contains the physical specifications for
the HP VPN Server Appliance SA3150.
Feature Measurement
U.S. or Imperial
Units
Width 16.8 in. 42.67 cm
Length 20.5 in. 52.07 cm
Height 1.7 in. 4.32 cm
Weight
(maximum
configuration)
16 lbs. 7.26 kg
Metric Units
2 Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information
Environmental Specifications
The following table contains the environmental
specifications for the HP VPN Server Appliance SA3150.
Feature Measurement
U.S. or Imperial
Units
Altitude Up to 15,000 ft. Up to 4,572 m
External operating
temperature
Relative humidity 20% to 80%,
Storage
temperature
° to 104° F 10 ° to 40° C
5
noncondensing
° to 122° F 0° C to 50° C
32
Metric Units
20% to 80%,
noncondensing
Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information 3
Electronic and Electrical
Specifications
VAC Electrical and Connector Specifications
The following table contains the VAC electrical and
connector specifications for the HP VPN Server Appliance
SA3150.
Feature Specifications
Power
requirements
Connectors 1 power cord connector
100 – 240 VAC
2.0 – 1.0 amps, 125 watts (max), 50/60 Hz
CAUTION: When installing multiple units
in a rack, do not overload the power circuit
to the rack.
1 or 2 twisted-pair (10BaseT, 100BaseTX,
RJ-45) Ethernet connectors
The front panel has one RS232 DB-9 male
connector for a serial cable to a terminal
(console)
The rear panel has one asynchronous
(Comm) module RS232 DB-9 male
connector for a modem with rates up to
115.2 Kbps
Lithium Battery Usage Statement
There is danger of explosion if the battery is incorrectly
replaced. Replace only with the same or equivalent type of
battery, as recommended by the manufacturer. Discard
used batteries according to the manufacturer's
instructions.
4 Hewlett-Packard VPN Server Appliance SA3150 Regulatory Information
