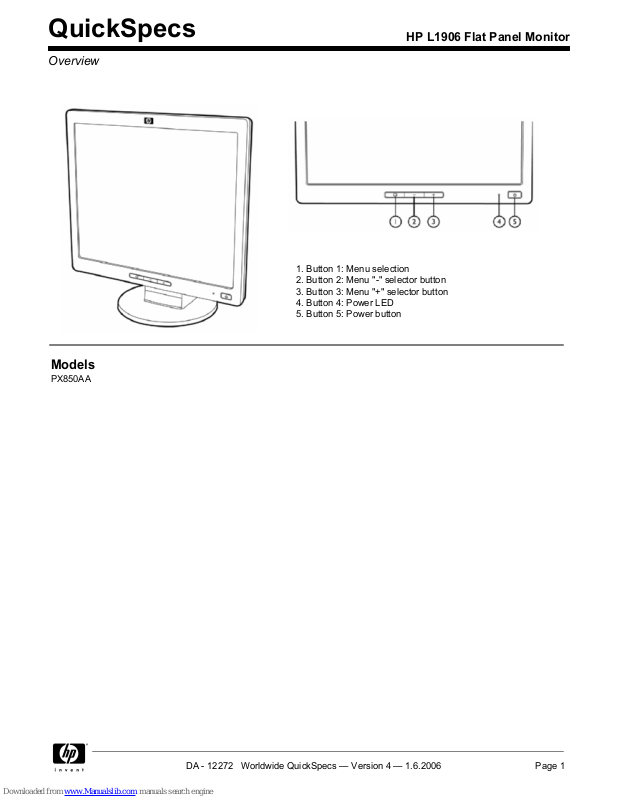

Page 1
1. Button 1: Menu selection
2. Button 2: Menu "-" selector button
3. Button 3: Menu "+" selector button
4. Button 4: Power LED
5. Button 5: Power button
Models
PX850AA
QuickSpecs
HP L1906 Flat Panel Monitor
Overview
DA - 12272 Worldwide QuickSpecs — Version 4 — 1.6.2006
Page 1
Page 2
Panel
Type
19-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
19 in (48.26 cm)
Screen Opening
(W x H)
14.8 x 11.9 in (37.6 x 30.1 cm)
Viewing Angle
(typical)*140 degrees horizontal/130 degrees vertical (10:1 minimum contrast
ratio)
Brightness
(typical)
*
250 nits (cd/m2)
Contrast Ratio
(typical)*500:1
Pixel Pitch
0.294 mm
Color Depth Support
> 16 million colors
*
NOTE:
All performance specifications represent the typical specifications provided by HP's
component manufacturers; actual performance may vary either higher or lower.
On Screen Display
(OSD) Controls
Buttons or Switches
3-button OSD (menu, minus, plus); power on/off
Languages
English, French, German, Spanish, Italian, Dutch, Simplified Chinese
User Controls
Image Control (auto, horizontal, vertical)
Positioning (vertical and horizontal)
Color Temperature (6500k, 9300k, Custom)
Brightness
Contrast
Clock, Clock Phase
Monitor Management (power saver, sleep)
Factory Reset
Signal Interface/
Performance
Horizontal Frequency
30 to 83 kHz
Vertical Frequency
50 to 76 Hz
Graphics Controller
Genesis, MStar
Native Resolution
1280 x 1024 @ 60 Hz (recommended)
Maximum Resolution
(Digital)
N/A
Preset VESA Graphic
Modes
(non-interlaced)
1280 x 1024 @ 60 Hz and 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, and 75 Hz
1152 x 870 @ 75 Hz (Mac)
1152 x 900 @ 76 Hz (Sun)
832 x 624 @ 75 Hz (Mac)
800 x 600 @ 60 Hz, 72 Hz, and 75 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60 Hz, 72 Hz, and 75 Hz
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 degrees Kelvin
Video Input
Plug and Play
Yes
Input Signal
15 pin D-sub (Analog VGA)
QuickSpecs
HP L1906 Flat Panel Monitor
Technical Specifications
DA - 12272 Worldwide QuickSpecs — Version 4 — 1.6.2006
Page 2
Page 3
Input Impedance
75 ohms (2 % value change allowed)
Sync Input
TTL separate synch
Video Cable
Detachable 15-pin D-sub mini connector
Video Cable Length
70.8 in (1.8 m)
Power
Input Power
100 ~ 240 VAC
Nominal Current
< 0.50 Ampere
Frequency
50 ~ 60 Hz
Typical Power
Consumption
33 watts
Maximum
< 37 watts
Power Saving
< 2 watts
Power Cable Length
74.8 in (1.9 m); detachable
Mechanical
Dimensions
(H x W x D)
Unpacked with stand
16.8 x 16.6 x 8.0 in (42.7 x 42.2 x 20.3 cm)
Display Head only
14.3 x 16.6 x 2.3 in (36.2 x 42.2 x 5.9 cm)
Packaged
19.1 x 19.4 x 6.9 in (48.4 x 49.2 x 17.6 cm)
Weight
Unpacked
11.7 lb (5.3 kg)
Packaged
15.4 lb (7.0 kg)
Tilt Range
-5 to +30 degrees vertical tilt
Swivel Range
None
Height Adjustable
No
Pivot Rotation
No
Base and Stand
Detachable
Environmental
Temperature –
Operating
50° to 95° F (10° to 35° C) non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity –
Non-operating
5% to 90%
Altitude – Operating
0 to 12,000 ft (0 to 3,658 m)
Altitude –
Non-operating
0 to 40,000 ft (0 to 12,100 m)
Environmental Data
Eco-Label
Certifications and
Declarations
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) Directive, 2002/95/EC.
This product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive, 2002/96/EC.
Options
HP Flat Panel Speaker
Bar – Part number:
EE418AA
Powered directly by the monitor, the Speaker Bar seamlessly attaches
to the monitor's lower bezel to bring full audio support to select HP flat
panel monitors. Features dual speakers with full sound range and
external jack for headphones. Sold separately. For more information,
refer to the HP Flat Panel Speaker Bar QuickSpec.
HP Compaq 7000
Series Ultra-slim
Desktop Integrated
Work Center Stand –
Part number: DL641B
Allows mounting of a 15-, 17- or 19-inch HP flat panel monitor and an
HP Compaq dc7100 or dc7600 Ultra-slim Desktop PC on a single stand
for the convenience of an "all-in-one" form factor. Sold separately. For
more information, refer to this product's QuickSpec document.
Other
Accessories Included
Detachable VGA cable, detachable AC power cord, documentation kit,
and user CD.
QuickSpecs
HP L1906 Flat Panel Monitor
Technical Specifications
DA - 12272 Worldwide QuickSpecs — Version 4 — 1.6.2006
Page 3
Page 4
Software
HP Display LiteSaver feature allows you to schedule Sleep mode at
preset times to help protect the monitor against image retention,
drastically lower power consumption and energy costs, and extend the
lifespan of the monitor.
User Guide Languages
English, Brazilian Portuguese, French, LA Spanish, Korean, Simplified
Chinese, Traditional Chinese, Japanese, Danish, Dutch, Finnish,
German, Italian, Norwegian, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
Americas
English, Canadian French
LA
Spanish, Brazilian Portuguese
EMEA
English, Danish, Dutch, Finnish, European
French, German, Italian, Norwegian, Castilian
Spanish, Swedish
Asia/Pacific
English, Bahasa, S. Chinese, T. Chinese,
Korean, Japanese, Chinese
Color
Carbonite/Silver
VESA External
Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Certification and
Compliance
9241-3,7,8 VDT guidelines, ISO 13406-2 pixel defect guidelines, MPR-II, CISPR, VCCI, CSA
(Canada), ACA (Australia), TUV and GS Mark (German ergonomic), BSMI (Taiwan), CCC
(China), MIC (South Korea), NOM (Mexico), Eastern European approvals, CE Marking, FCC
approval, Energy Star, TCO '03 (emissions, ergonomics, environment), Microsoft® Windows®
certified (Microsoft Windows 2000 and Microsoft Windows XP), UL listed, GOST (Russia), SASO
(Saudi Arabia)
Compatibility
Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.
Service and Warranty
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support.
Replacement options may include second business day on-site service, or next business day
direct replacement, at HP's sole discretion. With direct replacement, HP will ship a replacement
display product directly to you. Using the prepaid shipping labels provided, return your failed
display to HP in the same packaging as the replacement. Certain restrictions and exclusions
apply. For details see your product warranty or contact HP Customer Support.
© 2006 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.
HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without
warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express
limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional
warranty. All performance specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower.
