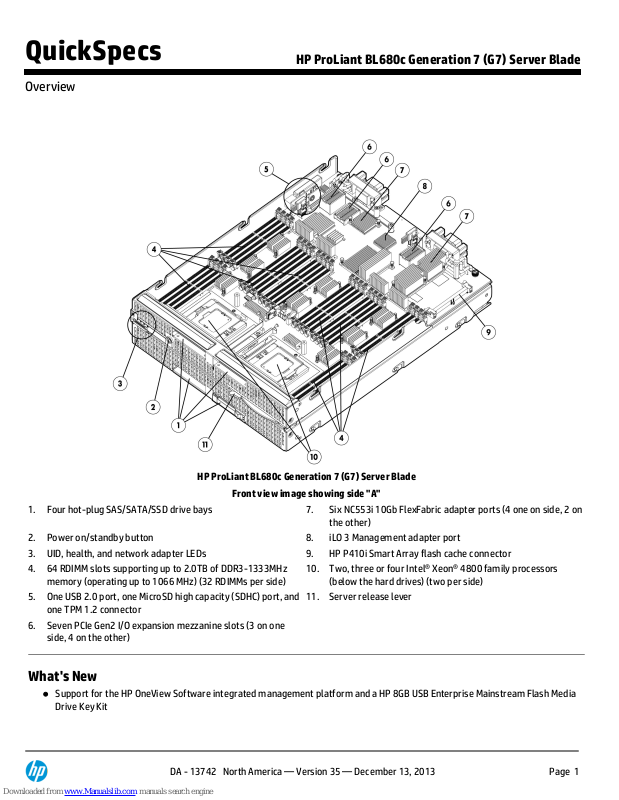

HP ProLiant BL680c G7 Specification
HP ProLiant BL680c Generation 7 (G7) Server Blade
Front view image showing side "A"
1.
Four hot-plug SAS/SATA/SSD drive bays
7.
Six NC553i 10Gb FlexFabric adapter ports (4 one on side, 2 on
the other)
2.
Power on/standby button
8.
iLO 3 Management adapter port
3.
UID, health, and network adapter LEDs
9.
HP P410i Smart Array flash cache connector
4.
64 RDIMM slots supporting up to 2.0TB of DDR3-1333MHz
memory (operating up to 1066 MHz) (32 RDIMMs per side)
10.
Two, three or four Intel® Xeon® 4800 family processors
(below the hard drives) (two per side)
5.
One USB 2.0 port, one MicroSD high capacity (SDHC) port, and
one TPM 1.2 connector
11.
Server release lever
6.
Seven PCIe Gen2 I/O expansion mezzanine slots (3 on one
side, 4 on the other)
What's New
Support for the HP OneView Software integrated management platform and a HP 8GB USB Enterprise Mainstream Flash Media
Drive Key Kit
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Overview
DA - 13742 North America — Version 35 — December 13, 2013
Page 1
This document covers the HP ProLiant BL680c G7 server blade only. For more information on the HP BladeSystem c-Class Enclosure
and HP BladeSystem c-Class Interconnect and Mezzanine components, please see the following:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
NOTE: The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the
new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
NOTE: The c7000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the
new enclosures and any future server blades will be supported in the existing enclosures.
HP BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html
NOTE:
For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processors
One or more of the
following depending on
model
NOTE:
All processors within the server must be identical.
NOTE:
The server supports two, three, or four processors. One processor is not supported.
NOTE:
The minimum processor configuration is two processors that must be installed in socket CPU1 and
CPU3.
NOTE:
If upgrading an existing BL680c G7 server to a different processor, the server's ROM must be
flashed to the latest BIOS prior to the upgrade.
NOTE:
All processors support Intel® Hyper-threading.
NOTE:
All processors support Intel® Turbo Boost Technology except the E7-4807.
NOTE:
Intel® Xeon® E7-4800/8867L series processors cannot be used to upgrade a ProLiant BL680c G7
server blade with Intel® Xeon® 6500/7500 series processors.
Ten-Core Processors
Intel® Xeon® E7-4870 (2.40GHz/10-core/30MB, 6.40GT/s QPI, 130W) Processor
NOTE:
Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
Intel® Xeon® E7-4860 (2.26GHz/10-core/24MB, 6.40GT/s QPI, 130W) Processor
Intel® Xeon® E7-4850 (2.00GHz/10-core/24MB, 6.40GT/s QPI, 130W) Processor
Intel® Xeon® E7-8867L (2.13GHz/10-core/30MB, 6.40GT/s QPI, 105W) Processor
NOTE:
Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
Eight-Core Processors
Intel® Xeon® E7-4830 (2.13GHz/8-core/24MB, 6.40GT/s QPI, 105W) Processor
Intel® Xeon® E7-4820 (2.0GHz/8-core/18MB, 5.86GT/s QPI, 105W) Processor
NOTE:
Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
Six-Core Processors
Intel® Xeon® E7-4807 (1.86GHz/6-core/18MB, 4.80GT/s QPI, 95W) Processor
NOTE:
Offered as Configure-To-Order. See the Factory Integrated Models section for more details.
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 2
Cache Memory
Up to 30MB level 3 cache memory
Chipset
Intel® 7500 chipset
Upgradeability
Upgradeable to three and four processors
NOTE:
All processors within the server must be identical.
NOTE:
All servers support two, thee, or four processors. One processor is not supported.
NOTE:
The minimum processor configuration is two processors that must be installed in socket CPU1 and
CPU3.
NOTE:
If upgrading an existing BL680c G7 server to a different processor, the server's ROM must be
flashed to the latest BIOS prior to the upgrade.
NOTE:
Intel® Xeon® E7-4800/8867L series processors cannot be used to upgrade a ProLiant BL680c G7
server blade with Intel® Xeon® 6500/7500 series processors.
Integrated Manageability
HP Integrated Lights-Out 3 (iLO 3)
Memory
Type
DDR3-1333 and DDR3-1066 Registered (RDIMM) (operating up to 1066 MHz)
Standard
64GB (8 x 8GB)
Maximum
2.0TB (64 x 32GB RDIMMs)
DDR3 memory options part number decoder
NOTE:
See the "Memory" section for memory guidelines, installation rules, and additional general
information.
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 3
Network Controllers
Six (6) embedded HP NC553i 10Gb FlexFabric adapter ports supporting autosensing 10Gb/1Gb Ethernet,
FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, and iSCSI boot
One Ethernet-specific slot (mezzanine slot 6) supporting a dual-port mezzanine card for a total of eight (8)
"embedded" Ethernet adapter ports
NOTE:
Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric
10Gb/24-port Module or HP 10GbE Pass-Thru Module.
NOTE:
The Flex-10 capability requires the use of an HP Virtual Connect Flex-10 10Gb Ethernet module or
HP 10GbE Pass-Thru Module.
One (1) 10/100 network adapter port dedicated to iLO 3 Management
I/O Expansion Slots
Seven (7) mezzanine expansion slots as follows:
Four (4) Type II (25 watts) x8 PCIe Gen2, mezzanine slots 2, 3, 4, 7 supporting QDR IB, 4Gb and 8Gb
FC, 10Gb FlexFabric, 10Gb Flex10, 10GbE, 1GbE, and the Smart Array RAID controllers.
Mezzanine slots 2 and 7 ports are routed to interconnect bays 5,6,7,8 (c7000 Enclosure) and
3,4,3,4 (c3000 Enclosure)
Mezzanine slots 3 and 4 ports are routed to interconnect bays 7,8,5,6 (c7000 Enclosure) and
3,4,3,4 (c3000 Enclosure
Two (2) Type I (15 watts) x4 PCIe Gen2, mezzanine slots 1 and 5 supporting 4Gb and 8Gb FC,10Gb
FlexFabric, 10Gb Flex10, 10GbE , and 1GbE
Mezzanine slots 1 and 5 ports are routed to interconnect bays 3, 4, 3, 4 (c7000 Enclosure) and
2,2,2,2 (c3000 Enclosure)
One (1) Type I (15 watts) x8 PCI Gen 2 dual-port Ethernet-specific slot (mezzanine slot 6)
Mezzanine slots 6 ports are routed to interconnect bays 1, 2 (c7000 Enclosure) and 1, 1
(c3000 Enclosure)
NOTE:
This Ethernet-specific mezzanine slot allows the customer to decide if the additional
7th and 8th "embedded" Ethernet ports are desired and allows them to choose between
dual-port 10Gb FlexFabric, 10GbFlex-10, 10GbE, or 1GbE per the Ethernet mezzanine
adapters listed in the "Additional Options" section.
NOTE:
HP recommends 10Gb adapters be installed in a x8 PCIe slot for optimal performance.
NOTE:
Type II slots accept both Type I or Type II cards. Type I slots accepted Type I cards only.
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 4
Storage Controller
Integrated SAS version 2.0 (6Gb) HP Smart Array P410i Controller with RAID 0, 1 and 1+0.
NOTE:
The P410i is configured with no cache allowing the end user to select the desired cache option (if
cache is desired in the first place). This provides RAID 0, 1 and 1+0 in the standard configuration. However,
options are available to add RAID 5 and 6.
NOTE:
RAID 0, 1, and 1+0 are supported on the P410i without the need for a cache option.
P410i 512MB and 1GB flash backed write cache (FBWC) and Smart Array Advanced Pack (SAAP) options.
NOTE:
RAID 5 is supported on the P410i with the addition of any FBWC option.
NOTE:
RAID 6 support on the P410i may be added with addition of any FBWC option and the Smart Array
Advanced Pack (SAAP) option.
Optional Smart Array RAID mezzanine controllers (with BBWC and FBWC) for connection to external
storage
NOTE:
The server supports up to a combined total of four (4) battery cache options for the P410i and/or
optional Smart Array RAID controllers.
Maximum Internal
Storage
One or more of the
following depending on
model
Hot-plug SAS
4.8TB
4 x 1.2TB drives
Hot-plug SATA
4.0TB
4 x 1.0TB drives
Hot-plug SAS SSD
3.2TB
4 x 800GB drives
Hot-plug SATA SSD
3.2TB
4 x 800GB drives
NOTE:
SAS, SATA, and/or SSD drives cannot be mixed within the server.
Industry Standard
Compliance
ACPI 2.0 Compliant
PCI 2.2 Compliant
Microsoft® Logo certifications
USB 2.0
Secure Digital 2.0
TMP 1.2
IEEE (see the NC553i Technical Specifications section)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
Active Directory v1.0 (Windows 2003)
IPMI 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 5
Operating Systems and
Virtualization Software
Support for ProLiant
Servers
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Solaris
VMware Server
Citrix XenServer
NOTE:
For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, including how to purchase from
HP, please visit our OS Support Site at:
http://www.hp.com/go/ossupport
and our driver download page:
http://www.hp.com/support/BL680cG7
.
Enclosures
HP offers two different c-Class server blade enclosures to meet your individual needs:
The HP BladeSystem c7000 rack enclosure is 10U high and holds up to 8 HP ProLiant BL620c G7
servers plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds up to 4 HP ProLiant BL620c G7
servers plugged horizontally.
Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000
enclosures.
For additional enclosure information, please see:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html
Graphics
Integrated ATI RN-50 1280 x 1024 x 16M color
Resolution Color Depths
1280 x 1024, 16.7M , 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16
Form Factor
Full height, double wide server blade that plugs into the HP BladeSystem c3000 and c7000 enclosures
HP Insight management
software
HP Service Pack for
ProLiant
HP Service Pack for ProLiant (SPP) and HP Smart Update Manager (HP SUM)
version 5 provide a new, comprehensive approach to firmware and system
software maintenance. Together they provide better operating stability and
ensure maximum uptime. The SPP will be updated at a predictable cadence,
typically coinciding with new HP server hardware launches. By enabling
firmware to be updated online and integrating firmware and system software
updates in one operation HP SUM and the SPP offer faster updates of
individual servers and dramatically faster updates of entire BladeSystem
enclosures. Further improving system uptime and stability is the fact that HP
provides 12 months of support on each Service Pack for ProLiant.
The user experience around HP SUM and the SPP has been improved in several
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of HP SUM version 5 and
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 6
the latest SPP. Optional smaller subsets with only specific types of servers or
specific operating systems are offered to save on download time. The HP SUM
application has been re-written to provide a more straightforward, intuitive
user interface that guides the user through the steps of discovery, analyses
and update, providing comprehensive information on available updates,
criticality and interdependencies. This information is also available in reports.
By providing the option of multiple local or shared repositories which can be
easily updated from hp.com, HP SUM provides the tools to optimize stability
and consistency throughout the company. While HP SUM and the SPP will
recommend the combinations of firmware and system software that HP has
found to be the best practice, the application gives customers the flexibility to
set their own specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific
attention for interaction between firmware, drivers and agents both within the
server as well as in interaction with the BladeSystem enclosure components
(Onboard Administrator and Virtual Connect). This testing ensures the highest
quality as well as providing the input for HP SUM to deploy updates taking into
account all interdepencies, when determining the correct updates and order of
update deployment.
The Service Pack for ProLiant (which includes HP SUM 5) can be downloaded
from
www.hp.com/go/spp/download
. More information can be found:
www.hp.com/go/spp
and
http://www.hp.com/go/hpsum
HP Insight Foundation
Insight Foundation is being baselined at version v8.70 which means the
following:
Its Media Kit (contains 2 SmartStart CDs, the Firmware DVD, and the
Management DVD) will continue to ship with all supported ProLiant G7
or earlier BTO servers until the last supported server is no longer
shipping.
The Media Kit will not be updated past version 8.70.
ProLiant G7 or earlier CTO servers are able to order the Media Kit with
the understanding that the media is not updated. Please check specific
server QuickSpecs for availability of CTO Kit.
PSP and Firmware DVD downloads will be updated through 2Q 2012 at
the HP Insight Foundation Suite for ProLiant downloads tab:
http://www.hp.com/go/foundation
.
Customers are urged to use the replacement product, HP Service Pack for
ProLiant, instead of Insight Foundation Suite which is found at these location:
www.hp.com/go/spp
www.hp.com/go/spp/download
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 7
Security
Intel® AES-NI
Power-on password
Administrator's password
Integrated Lights-Out 3 with:
12 customizable user accounts
SSL encryption
Secure Shell version 2
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser,
CLP and XML scripting interface
AES and RC4 encryption of video
Disable via a global setting
Keyboard password
External USB port enable/disable
Network server mode
Serial interface control
TPM (Trusted Platform Module) 1.2 option
Availability
Memory
HP Memory Quarantine (based on Intel MCA Recovery technology). In conjunction with the operating
system support, allows a server to recover from uncorrectable memory errors which would have
otherwise caused a system crash.
Double Device Data Correction (DDDC). DDDC provides the ability to save a DIMM from being
replaced due to a bad dram device.
Data Bus ECC protection for automatic correction from a single data bit error and detection of
double data error bits.
Advanced ECC / SDDC provides continued memory operation in the event of a single memory device
failure and allows removal of a single DRAM from the memory map if it exhibits a failure and
recovers its data into a new device.
Supports for both x4 and x8 Intel® SDDC.
Demand Scrubbing writes corrected data back to the memory once a correctable error is detected
on a read transaction.
DIMM Address/Control Bus Parity Protection provides a means to detect and protect command and
address errors.
Memory Failover uses a mirrored DIMM once a failed DIMM in a mirrored set is detected.
Memory Mirroring provides a copy of memory stored with dynamic failover in case of failure within
socket (intra-socket) memory mirroring.
The system will operate in non-hemisphere mode when mirroring is enabled.
Rank Sparring (On Line Spare) provides dynamic failover to a spare DIMM rank or spare rank pair
behind the same memory controller. Cannot be enabled concurrently with memory mirroring.
NOTE:
HP offers the rank sparing rather than DIMM sparing as rank sparing uses less spare memory
resulting in less overhead.
Failed DIMM Isolation identifies a specific failing DIMM lockstep pair thereby enabling the user to
replace only the failed DIMM pair. Identifies a single DIMM for correctable errors and DIMM pair for
uncorrectable errors.
Virtualization
Intel® VT-x (FlexMigration, FlexPriority, and Extended Page Tables) provides:
Platform control between the VMM and guest OSs for faster, more reliable and secure
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 8
transfers.
VM migration features that enhance flexibility for failover, load balancing, disaster recovery,
and maintenance.
Intel® VT-x Real Mode & Pause Loop Exiting:
Real Mode allows guests to operate in real mode, removing the performance overhead and
complexity of an emulator.
Pause Loop Exiting provides detection of spin locks in guest software and helps avoid lock-
holder preemption to reduce overhead and improve performance
Intel® VT-d (Intel® Virtualization Technology for Directed I/O) enables the VMM to assign specific I/O
devices to specific guest OSs improving security and availability.
Mezzanine options and I/O
Optional dual-port Fibre Channel mezzanine cards for redundant SAN connections.
Optional dual-port InfiniBand mezzanine cards for redundant high performance connections.
Six embedded Ethernet adapter ports for redundant LAN connections.
Multiple mezzanine I/O expansion slots each supported multiple data paths routed to redundant
interconnect modules.
Network Adapter Teaming (Bonding) provides network fault tolerance, transmit load balancing, and
switch-assisted load balancing.
Processor/Chipset
Processor Internal Sensors & Thermal Control protection against over-temperature conditions.
Cache parity/ECC protects cache data from accidental data corruption due to particle hits.
Machine Check Architecture (MCA) detects and captures hardware errors such as system bus, ECC,
parity, cache, other.
Enhanced MCA handling & error logging builds upon the original Machine Check Architecture to:
offers more "banks" and increased "resolution" for reporting errors that cause MCA events and 2)
sets check flags for the OS to poll.
External Bus Error Recovery (ECC) enables automatic correction from a single data bit error and
detection of double data error bits on the memory data bus.
Corrupt Data Containment tags faulty data before it is consumed (often called data poisoning) to
limit the impact to the currently running program and to greatly reduce the need to reset the
system.
On-Die Error Protection protects registers from particle hits.
Storage
Four hot-plug SAS/SATA/SSD drive bays.
Integrated HP Smart Array P410i Controller with RAID 0 and 1 standard; optional RAID 1+0, 5, and 6.
Integrated HP Smart Array P410i Controller upgradeable firmware with recovery ROM capability.
HP Smart Array P410i flash backed write cache (FBWC) options to 1GB.
Optional multiple Smart Array RAID mezzanine controllers (with BBWC and FBWC) for direct attach
and shared SAS storage external to the c-Class enclosure.
Intel® QuickPath Interconnect
(QPI)
QPI Link Retry restarts as cycle when a failure is detected on the link.
QPI Clock Failover redirects the forwarded clock to one of the two failover clock lanes in the event of
a forwarded clock failure.
QPI Self-Healing enables a QPI link to map a failed lane and downshift from full to ½ width (or ½
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 9
width to ¼ width) QPI link if there are errors on the link.
QPI Cycle Redundancy Checking (CRC) automatically detects data errors using a checksum of either
8 bits or 16 bits.
QPI Poisoning tags an erroneous packet with a "poisoned bit" on the QPI fabric.
QPI Lane Failover identifies a faulty lane within data paths removing them from operation reducing
command/address errors.
Server Blade Enclosure Infrastructure
Up to 10 hot-plug redundant Active Cool fans per enclosure.
Up to 6 hot-plug high efficiency redundant power supplies per enclosure.
Dual grid power providing redundant rack enclosure power feeds to the enclosure.
Up to eight interconnect modules per enclosure providing four simultaneous redundant fabrics for
FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, iSCSI, SAS, etc.
Optional enclosure redundant Onboard Administrator system management module.
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide
network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available
for three years from date of purchase. Support for software and initial setup is available for 90 days from
date of purchase. Enhancements to warranty services are available through HP Care Pack services or
customized service agreements. Hard drives have either a one year or three year warranty; refer to the
specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3 year Parts, 3 year Labor, 3-year on-site support. Warranty repairs may
be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories:
1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy
replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR
parts at no charge. Additional information regarding worldwide limited warranty and technical support is
available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Standard Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 10
Fibre Channel
Up to six (6) optional 4Gb and/or 8Gb Fibre Channel HBA mezzanine adapters (Brocade, Emulex and QLogic
options)
Compatible SAN
HP ProLiant BL680c G7 server blades are optimized for HP MSA, EVA, and XPHP and are compatible with
select third party SANs. Se blade storage page for more details at:
http://h18004.www1.hp.com/products/blades/components/c-class-sans.html
.
HP Insight management
software
HP Insight Control
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to deploy,
monitor, remote control, and optimize your IT infrastructure through a single,
simple management console. For more information about this service, please
visit:
http://www.hp.com/services/insight
.
HP Matrix Operating
Environment
The HP Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to
dynamic business demands. This advanced infrastructure management
software lets you reduce the cost of common data center tasks by up to 40
percent while keeping pace with your changing business.
The HP Matrix OE includes the automated provisioning, optimization, and
recovery management capabilities for HP CloudSystem Matrix, the ideal
platform for private cloud and Infrastructure as a Service (IaaS).
NOTE:
For more information, visit:
http://www.hp.com/go/matrixoe
.
HP Integrated Lights-Out
(iLO)
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and can
be accessed from any location via a web browser. HP iLO works hand-in-hand
with HP Systems Insight Manager, Insight Control, and Matrix Operating
Environment for ProLiant, helping customers unleash the value of the
ProLiant platform and deliver the highest possible quality of IT service. For
more information, visit:
www.hp.com/go/iLO
.
HP OneView
The HP OneView architecture combines server, storage, and networking with control of datacenter
environmentals into a single, integrated management platform. Architected to deliver lifecycle
management for the complete Converged Infrastructure, it facilitates collaboration, removes friction,
collapses cycle times, eliminates error-prone work, and accelerates time to value. HP OneView v1.0
combines management of servers and virtual connect with open integration to automate and customize
existing tools and processes. With OneView, you'll work smarter-with greater visibility and control-and
fully capitalize on the benefits of a Converged Infrastructure.
For more information on HP OneView management, see:
http://www.hp.com/go/oneview
.
QuickSpecs
HP ProLiant BL680c Generation 7 (G7) Server Blade
Additional Features
DA - 13742 North America — Version 35 — December 13, 2013
Page 11
Loading...
