ProCurve Switch 1400-24G

Installation and Getting
Started Guide

www.procurve.com

ProCurve Switch 1400-24G

Installation and Getting Started Guide

© Copyright 2007 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied,
reproduced, or translated into another language without prior written consent of Hewlett-Packard.

Publication Number

5991-6219
February 2007

Applicable Product

ProCurve Switch 1400-24G (J9078A)

Safety

Before inst alling and operating t his product, please r ead the “Installation Precautions” in Chapt er 2, “Ins talling the Switch”, a nd the safety
statements in Appendix B, “Safety and EMC Regulatory Statements”.

Disclaimer

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in
connection with the furnishing, performance, or use of this material.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors
or omissions contained herein.

Hewlett-Packard assumes no responsibility for the use or reliability of its software on equipment that is not furnished by Hewlett-Packard.

Warra nty

See the Customer Support/Warranty booklet included with the product.

A copy of the specific warranty terms applicable to your Hewlett-Packard products and replacement parts can be obtained from your HP
Sales and Service Office or authorized dealer.

Contents

1 Switch Overview

Switch Hardware Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . 1-2

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 Installing the Switch

Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

2. Verify the Switch Passes Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

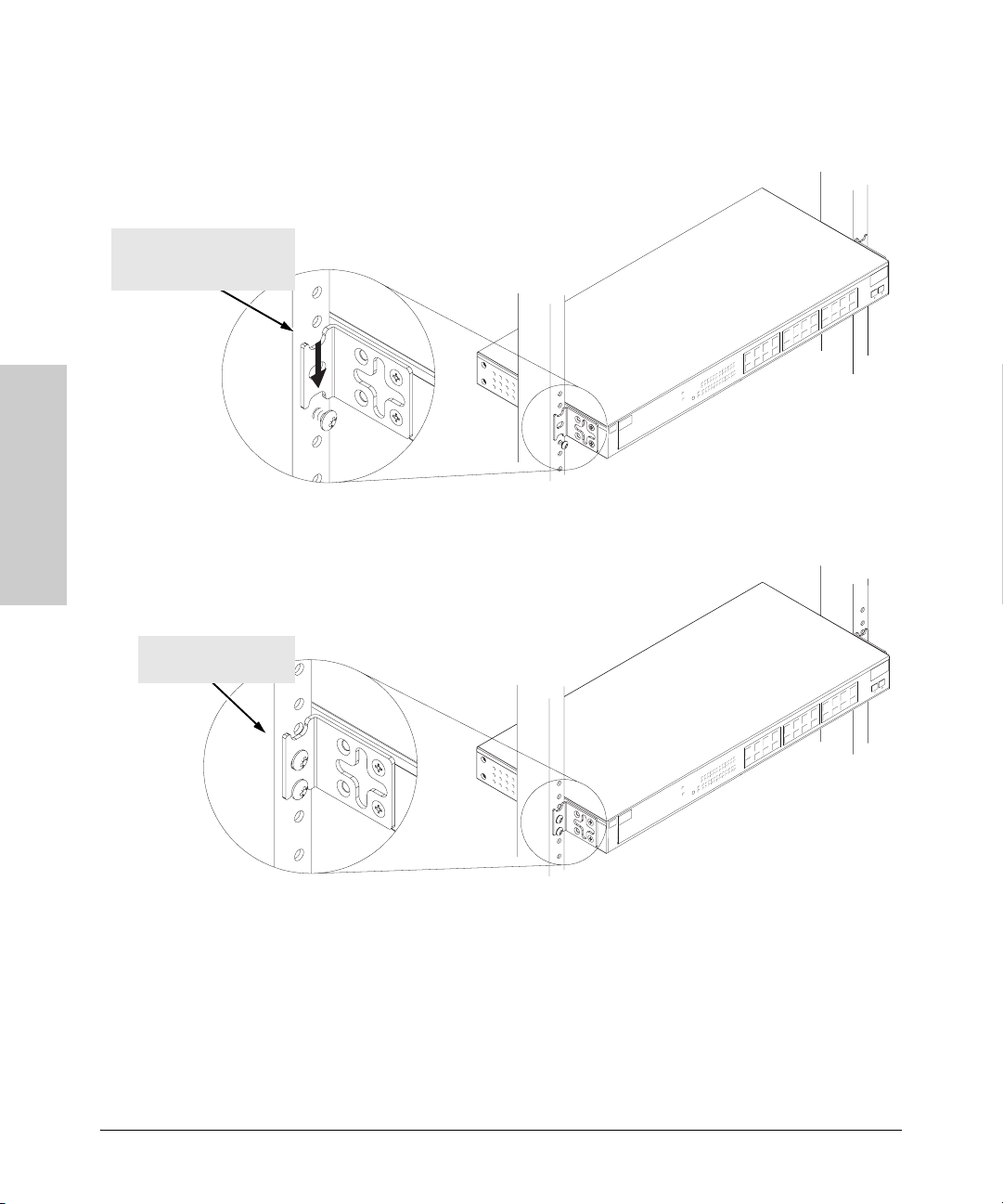

3. Mount the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

4. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-10

5. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

6. Installing or Removing mini-GBICs . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

3 Troubleshooting

Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Diagnosing with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Diagnostic Tips: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

ProCurve Networking Customer Support Services . . . . . . . . . . . . . . . . . . . 3-3

Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

A Switch Specifications

Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

v

Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Lasers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

B Safety and EMC Regulatory Statements

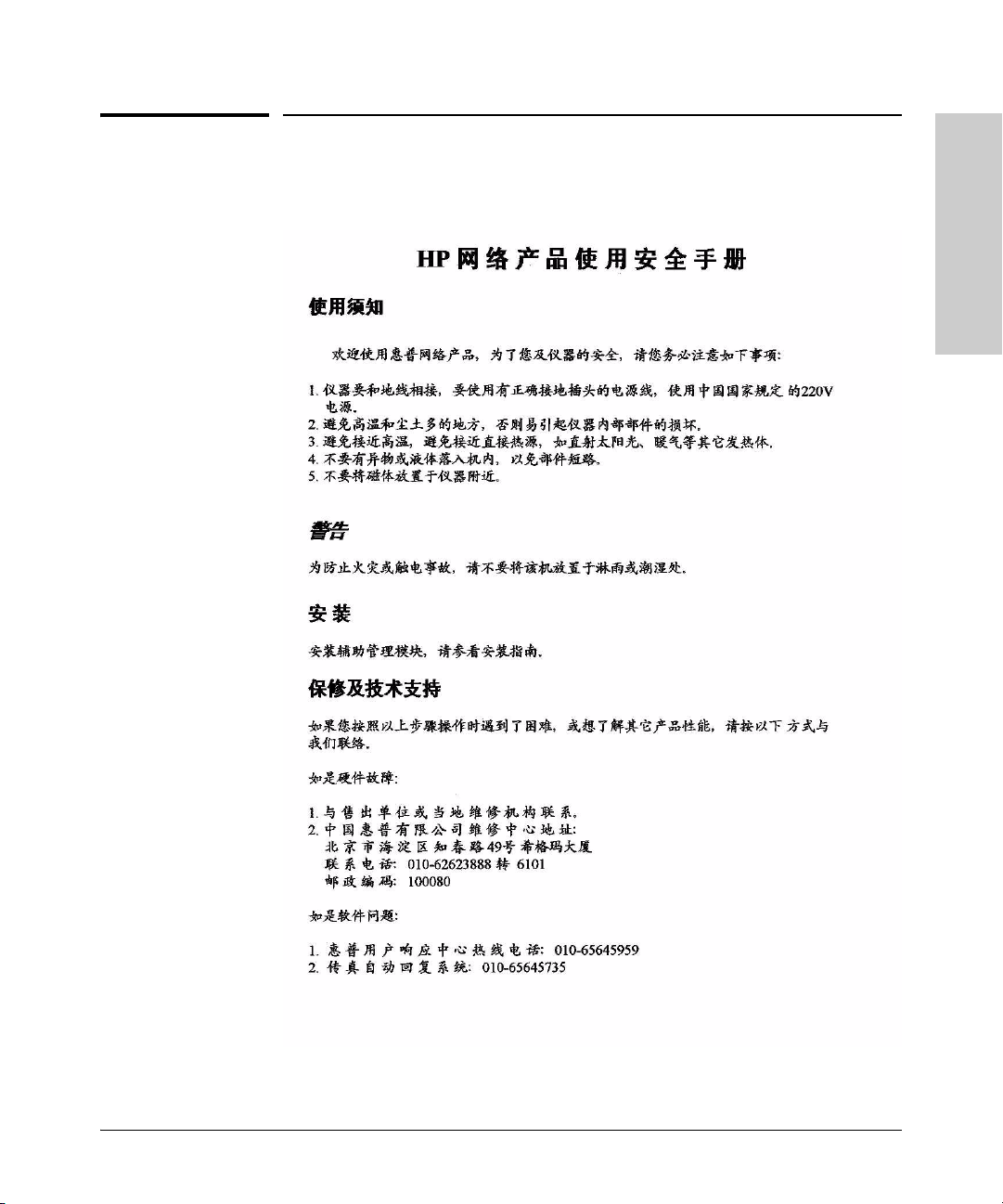

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1

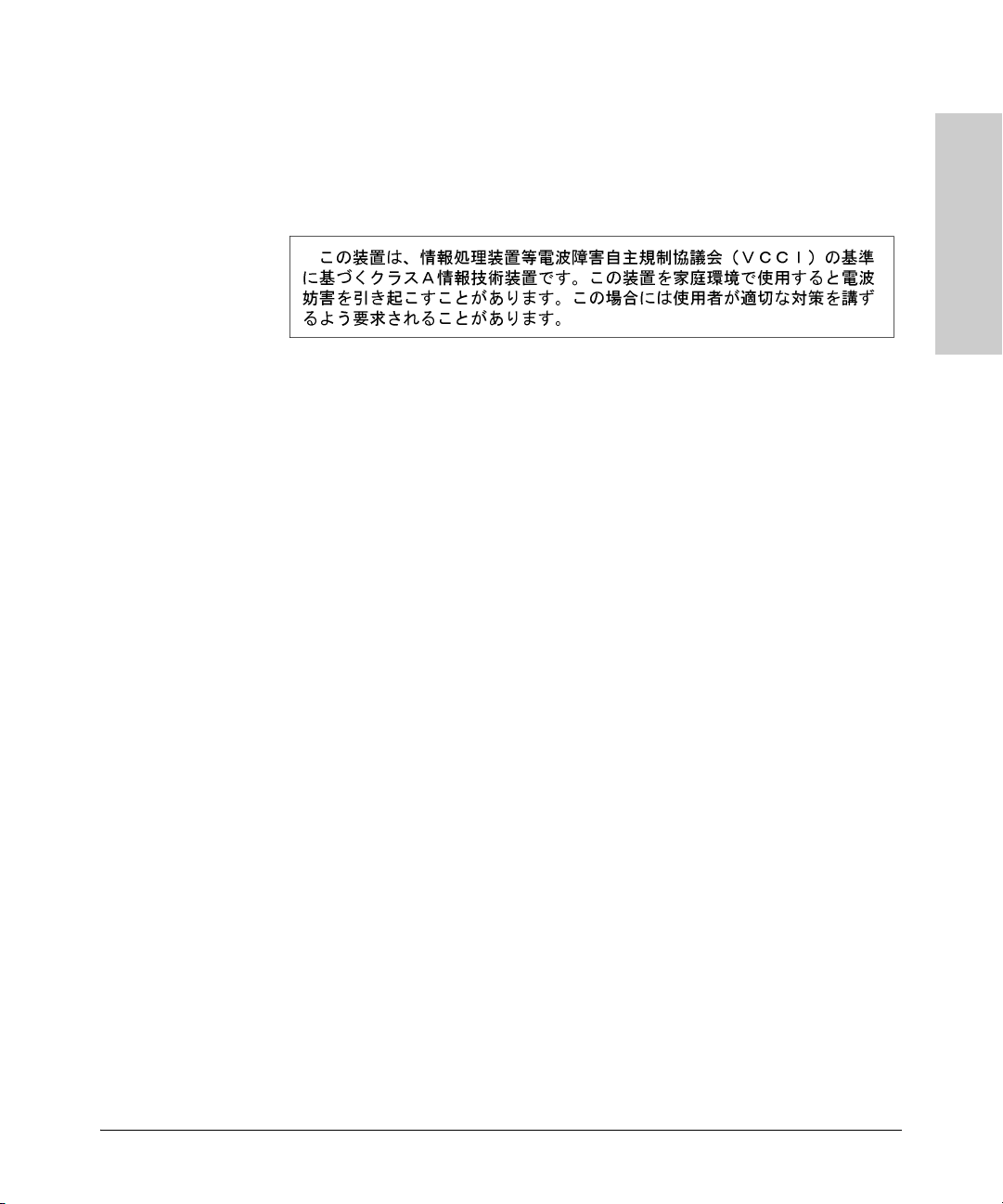

EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

C Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . C-1

Index

vi

1

Switch Overview

Power LED

Switch Hardware Features

The ProCurve Switch 1400-24G (J9078A) is a multiport switch that can be used
to build high-performance switched workgroup networks. This switch is a
store-and-forward device that offers low latency for high-speed networking.

Port Link/Act and

Mode LEDs

LED Mode Select button

and indicator LEDs

10/100/1000Base-T

RJ-45 ports

Switch Overview

ProCurve Switch 1400-24G

Dual-personality ports
(10/100/1000Base-T or

mini-GBIC)

Switch Ports

The switch has 24 auto-sensing 10/100/1000Base-T RJ-45 ports and two dual­personality ports (ports 23 and 24). Because the RJ-45 ports support automatic
MDI/MDI-X operation, you can use straight-through cables for all network
connections to PCs or servers, or to other switches or hubs.

Dual-personality ports use either the 10/100/1000Base-T RJ-45 connector, or a
supported ProCurve mini-GBIC for fiber-optic connections. By default, the
RJ-45 connectors are enabled.

This switch is designed to be used primarily as a high-density wiring closet or
desktop switch. With this switch you can directly connect computers, printers,
and servers to provide dedicated bandwidth to those devices, and you can
build a switched network infrastructure by connecting the switch to hubs,
other switches, or routers.

1-1

Switch Overview

Switch Hardware Features

LEDs

The front panel of the switch provides status LEDs for system monitoring. The
following table details the functions of the various indicators.

System LED State Meaning

Power

Switch Overview

(green)

LED Mode
Select
(2 green LEDs)

Port LED State Meaning

Link/Act On The port is enabled and receiving a link indication from the connected device.

Mode Depending on the mode selected, displays if the port is configured for full-duplex operation or

On The switch is receiving power.

Off The switch is NOT receiving power.

FDx Indicates the port Mode LEDs are lit for ports that are in full-duplex mode.

Speed Ports 1-24: Indicates the port Mode LEDs are lit for ports that are in 1000 Mbps mode.

The port Mode LEDs are off for ports operating at 10 or 100 Mbps.

Off The port has no active network cable connected, or is not receiving link signal.

Flashing Indicates that there is network activity on the port.

indicates the operating speed. See “LED Mode Select Button and Indicator LEDs” below for more
information.

LED Mode Select Button and Indicator LEDs

To optimize the amount of information that can be displayed for each of the
switch ports, the ProCurve Switch 1400-24G uses a Mode LED for each port.
The operation of this LED is controlled by the LED Mode Select button on the
switch panel, and the current selection is indicated by the mode indicator
LEDs near the button. Press the button to change from one mode to the next.

1-2

Mode LEDs

LED Mode Select button

and indicator LEDs

Switch Hardware Features

Switch Overview

■ When the FDx (full duplex) indicator LED is on, the port Mode LEDs turn

on for those ports that are operating at full duplex.

■ When the Speed indicator LED is on, the port Mode LEDs turn on for ports

operating at 1000 Mbps. The port Mode LEDs are off for ports operating
at 10 Mbps or 100 Mbps.

Switch Features

The features of the ProCurve Switch 1400-24G include:

■ 24 auto-sensing 10/100/1000Base-T RJ-45 ports.

■ plug-and-play networking—all ports are enabled—just connect the

network cables to active network devices and your switched network is
operational.

■ IEEE 802.3ab Auto MDI /MDI-X on all twisted-pair ports, meaning that all

connections can be made using straight-through twisted-pair cables.
Cross-over cables are not required, although they will also work. The pin
operation of each port is automatically adjusted for the attached device:
if the switch detects that a 10/100 Mbps switch or hub is connected to the
port, it configures the port as MDI; if the switch detects that a 10/100 Mbps
end-node device is connected to the port, it configures the port as MDI-X.

■ automatic learning of the network addresses in each switch’s 8000-

address forwarding table.

■ automatically negotiated full-duplex operation for all 10/100/1000Base-T

RJ-45 ports when connected to other auto-negotiating devices

■ the mini-GBIC ports always operate at full duplex. (1400-24G)

■ supports pass through (flooding) of spanning tree BPDUs so that

upstream devices on the network which support Spanning Tree Protocol
can detect loops that exist on the ProCurve Switch 1400 interface.

Switch Overview

1-3

Installing the Switch

The ProCurve Switch 1400-24G device is easy to install. It comes with an
accessory kit that includes the brackets for mounting the switch in a standard
19-inch telco rack, in an equipment cabinet, and with rubber feet that can be
attached so the switch can be securely located on a horizontal surface. The
brackets are designed to allow mounting the switch in a variety of locations
and orientations. This chapter shows how to install the switch.

Included Parts

The following components ship with a ProCurve Switch 1400-24G:

■ ProCurve Switch 1400-24G Installation and Getting Started Guide

(5991-6219), this manual

■ Customer Support/Warranty booklet

■ Accessory kit (5064-2085)

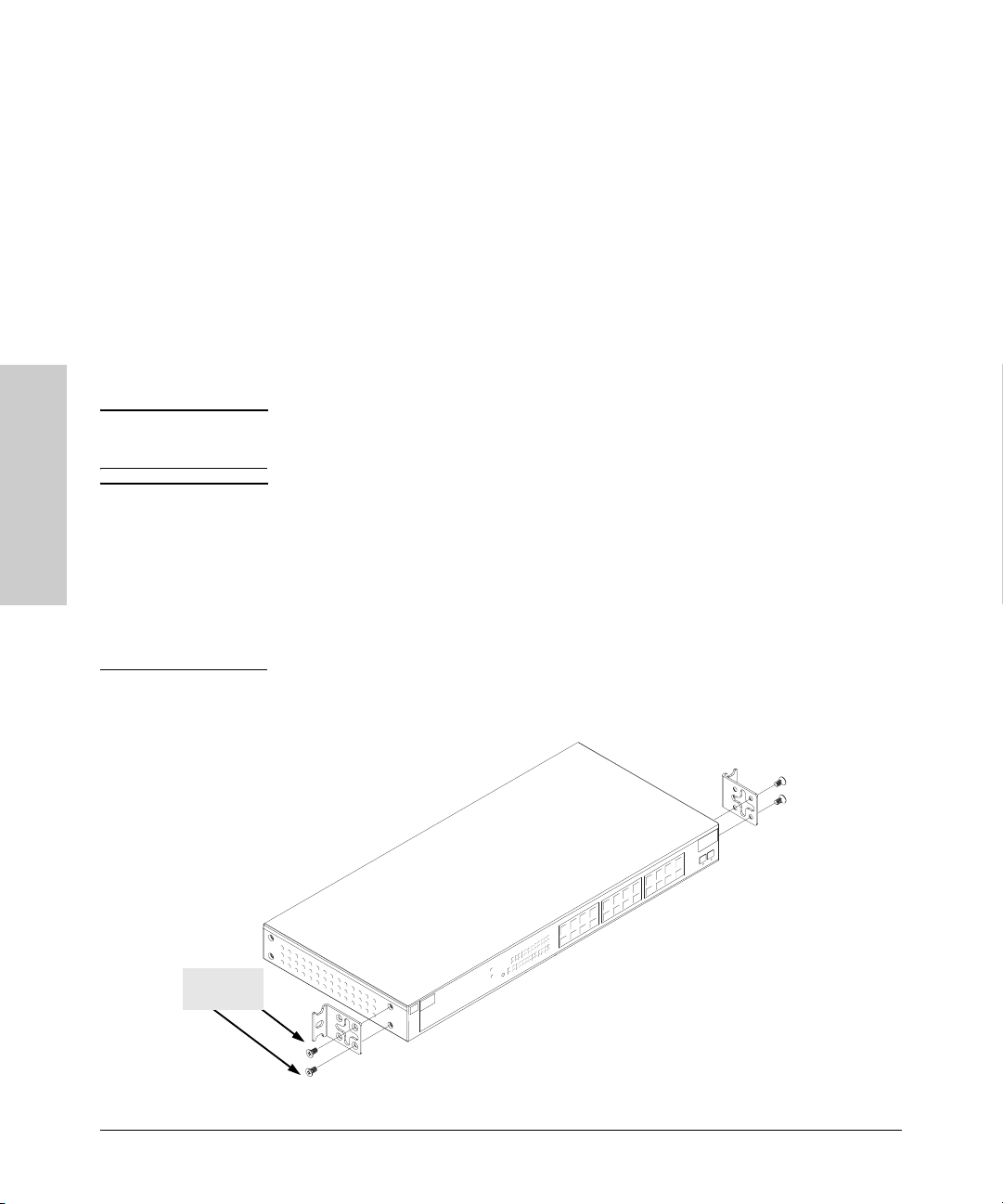

• two mounting brackets

• eight 8-mm M4 screws to attach the mounting brackets to the switch

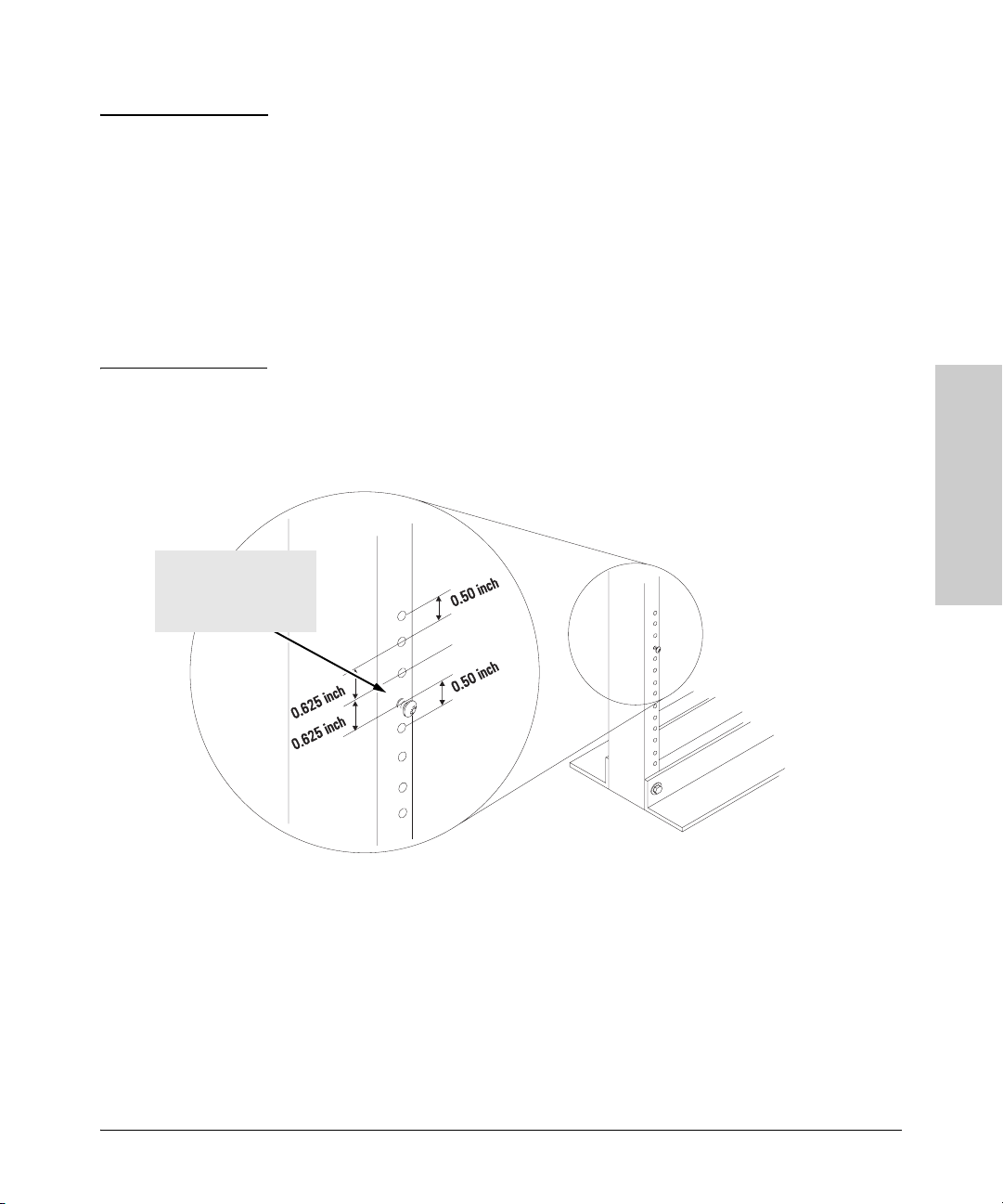

• four 5/8-inch number 12-24 screws to attach the switch to a rack

• four rubber feet

2

Installing the Switch

Japan Power Cord
Warning

■ Power cord, one of the following:

Australia/New Zealand
China
Continental Europe
Denmark
Japan
Switzerland
United Kingdom/Hong Kong/Singapore
United States/Canada/Mexico
South Africa
Israel
Thailand
Ta iw a n

8121-0833
8120-8377
8120-6802
8120-6806
8120-6804
8120-6807
8120-8709
8120-6805
8120-8929
8121-1009
8121-0673
8121-0964

2-1

Installing the Switch

Installation Procedure

Installation Procedure

1. Prepare the installation site (page 2-3). Please see below for some
installation precautions.

2. Verify the switch passes self test (page 2-4).

3. Mount the switch (page 2-6).

4. Connect power to the switch (page 2-10).

5. Connect the network cables (page 2-10).

Installation Precautions

Follow these precautions when installing the switch.

WARNING

Installing the Switch

■ The rack or cabinet should be adequately secured to prevent it

from becoming unstable and/or falling over.

Devices installed in a rack or cabinet should be mounted as low
as possible, with the heaviest devices at the bottom and progres­sively lighter devices installed above.

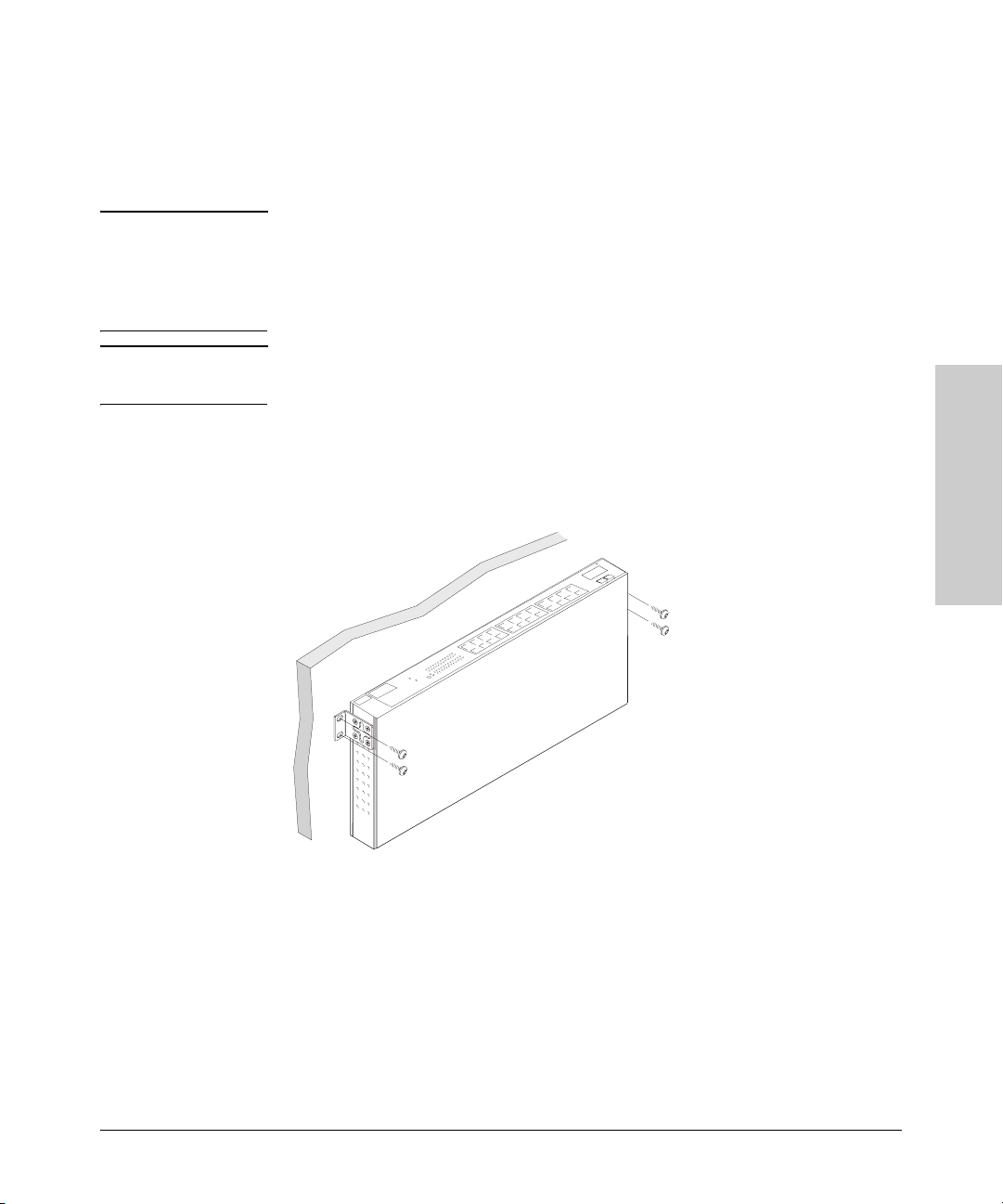

■ When wall mounting, to meet national and international safety

requirements, wall mount either with the front facing up or down.
The side vents cannot be placed up or downward.

2-2

Installation Precautions (Continued)

Installing the Switch

Installation Procedure

Cautions

■ Ensure the power source circuits are properly grounded, then use the

power cord supplied with the switch to connect it to the power source.

■ If your installation requires a different power cord than the one supplied

with the switch, be sure to use a power cord displaying the mark of the
safety agency that defines the regulations for power cords in your
country. The mark is your assurance that the power cord can be used
safely with the switch.

■ When installing the switch, the AC outlet should be near the switch and

should be easily accessible in case the switch must be powered off.

■ Ensure the switch does not overload the power circuits, wiring, and over-

current protection. To determine the possibility of overloading the supply
circuits, add together the ampere ratings of all devices installed on the
same circuit as the switch and compare the total with the rating limit for
the circuit. The maximum ampere ratings are usually printed on the
devices near the AC power connectors.

■ Do not install the switch in an environment where the operating ambient

temperature might exceed 40 ° C (104 ° F).

■ Ensure the air flow around the sides of the switch is not restricted.

1. Prepare the Installation Site

Installing the Switch

Be sure to follow the guidelines below to ensure proper operation when
installing the switch into a network:

■ Ethernet cable type: Unshielded twisted pair (UTP) or shielded twisted

pair (STP) cables with RJ-45 connectors, maximum length 100 meters
(328 ft); Category 3 or better for 10Base-T, Category 5 or better for
100Base-TX, and Category 5, 5e, or 6 for 1000Base-T.

■ Fiber cable type: For 1000Base-SX mini-GBIC, 62.5/125 µm or 50/125 µm

core/cladding diameter, graded-index, multimode fiber-optic cables that
are fitted with LC connectors. For 1000Base-LX and 1000Base-LH mini­GBICs, single-mode cables fitted with LC connectors.

■ Protect the switch from radio frequency interference emissions.

■ Use electrical surge suppression.

■ Use safe connections with no damaged cables, connectors or shields.

2-3

Installing the Switch

Installation Procedure

Installation Space Requirements

Switch
Orientation

Front

Back

Sides At least 7.6 cm (3 inches) for cooling, except if the switch is installed in an

Clearance Requirements

At least 7.6 cm (3 inches) of space for the twisted-pair and fiber-optic
cabling.

At least 3.8 cm (1 1/2 inches) of space for the power cord and switch cooling.

open EIA/TIA rack.

2. Verify the Switch Passes Self Test

Before mounting the switch, verify it is working properly by plugging it into a
power source and confirming that it passes self test.

Note The switch does not have a power switch. It is powered on when the power

cord is connected to the switch and to a power source. For safety, the power

Installing the Switch

outlet should be located near the switch installation.

The switch automatically adjusts to any voltage between 100-127 volts for 0.75
amps, 200-240 volts for 0.4 amps, and either 50 or 60 Hz. No voltage range
settings are required.

If your installation requires a different power cord than the one supplied with
the switch, be sure to use a power cord displaying the mark of the safety
agency that defines the regulations for power cords in your country. The mark
is your assurance that the power cord can be used safely with the switch.

2-4

1. Connect the power cord supplied with the switch to the power socket on
the back of the switch, and then into a properly grounded electrical outlet.

Connect power cord to

the power socket

Installing the Switch

Installation Procedure

2. Check the LEDs on the switch as described below.

Port Link/Act and

Mode LED

Power LED

When the switch is powered on, it performs its diagnostic self test. The
self test takes approximately 15 seconds to complete.

Self Test LED Behavior:

During the self test:

•The Power LED will go on, followed by all LEDs turning on for 4

seconds, and finally the Port LEDs will turn on and off in a sequence
from port 1 to 24.

Installing the Switch

When the self test completes successfully:

•The Power LED remains on.

•The Speed LED remains on indicating the default LED mode.

• The port LEDs on the front of the switch go into their normal opera-

tional mode:
– If the ports are connected to active network devices, the Link

LEDs stay on and the Mode LEDs behave according to the mode
selected. In the default mode (Speed), the Mode LEDs should be
on for ports operating at 1000 Mbps and off for ports operating at
10 or 100 Mbps.

– If the ports are not connected to active network devices, the Link

and Mode LEDs will stay off.

If the LED display is different than what is described above the self test
has not completed correctly. Refer to “Troubleshooting” for diagnostic
help.

2-5

Installing the Switch

Installation Procedure

3. Mount the Switch

The switch can be mounted in these ways:

■ in a rack or cabinet

■ on a horizontal surface

■ on a wall

Rack or Cabinet Mounting

The switch is designed to be mounted in any EIA-standard 19-inch telco rack
or communication equipment cabinet. Note that the mounting brackets have
multiple mounting holes and can be rotated allowing for a wide variety of
mounting options.

WARNING For safe operation, please read the “Installation Precautions” on

page 2-2 and page 2-3, before mounting the switch.

Equipment
Cabinet

Installing the Switch

Note

The screws supplied with the switch are the correct threading for standard
EIA/TIA open 19-inch racks. If you are installing the switch in an equipment
cabinet such as a server cabinet, use the clips and screws that came with the
cabinet in place of the screws that are supplied with the switch.

Complete step 1. Then, plan which four holes you will be using in the cabinet
and install all four clips and partially install the two bottom screws, as
described in step 2. Then proceed to step 3.

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.

8 mm

M4 screws

2-6

Installing the Switch

Installation Procedure

Note The mounting brackets have multiple mounting holes and can be rotated

allowing for a wide variety of mounting options. These include mounting the
switch so its front face is flush with the face of the rack, or mounting it in a
more balanced position as shown in the illustration.

Steps 2, 3, and 4 on the next page describe a convenient method of mounting
the switch in a rack by placing it on two screws that you first install in the
rack. You may, instead, just hold the switch with attached brackets up to the
rack and move it vertically until rack holes line up with the bracket holes and
notches, then insert and tighten the four screws holding the brackets to the
rack.

2. Partially install a screw (5/8-inch number 12-24) into the top hole of a pair

Partially install a screw

into the top hole of a close

(0.5-inch) pair on both

sides of the rack

of holes that are 0.5 inches apart in each rack/cabinet upright as shown
in the illustration below. Ensure that the screws are at the same level in
each upright.

Installing the Switch

2-7

Installing the Switch

Installation Procedure

3. Place the switch in the rack and lower it so the notches in the bottom of
the bracket slide onto the screws, then tighten these screws.

Lower switch with mounting

brackets onto the partially

installed screw

4. Install the other number 12-24 screw into the upper hole in each bracket.

Installing the Switch

Tighten these screws.

2-8

Install additional

screw

Installing the Switch

Installation Procedure

Wall Mounting

You can mount the switch on a wall with either the front or rear panel facing
up.

WARNING For safe operation, please read the “Installation Precautions” on

page 2-2 and page 2-3, before mounting the switch.

It is recommended the switch be mounted with the ports facing up or
downward.

Caution The switch should be mounted only to a wall or wood surface that is at least

1/2-inch (12.7 mm) plywood or its equivalent.

1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.

2. Attach the switch to the wall or wood surface with two 5/8-inch
(15.875 mm) number 12 wood screws (not included).

Installing the Switch

2-9

Installing the Switch

Installation Procedure

Horizontal Surface Mounting

Place the switch on a table or other horizontal surface. The switch comes with
rubber feet in the accessory kit that can be used to help keep the switch from
sliding on the surface.

Attach the rubber feet to the four corners on the bottom of the switch within
the embossed angled lines. Use a sturdy surface in an uncluttered area. You
may want to secure the networking cables and switch power cord to the table
leg or other part of the surface structure to help prevent tripping over the
cords.

4. Connect the Switch to a Power Source

1.) Plug the included power cord into the switch’s power socket and into a
nearby AC power source.

2.) Re-check the LEDs during self test. See “Self Test LED Behavior” on

page 2-5.

Installing the Switch

5. Connect the Network Cables

Connect the network cables, from the network devices or your patch panels,
to the fixed RJ-45 ports on the switch or to any mini-GBICs you have installed
in the switch.

Note Each of the two mini-GBIC slots is shared with the associated 10/100/

1000Base-T RJ-45 port. If a mini-GBIC is installed in a slot, the associated
RJ-45 port is disabled.

When a network cable from an active network device is connected to the port,
the port LED for that port should go on. If the port LED does not go on when
the network cable is connected to the port, see “Diagnosing with the LEDs”

on page 3-2.

2-10

Installing the Switch

Installation Procedure

6. Installing or Removing mini-GBICs

You can install or remove a mini-GBIC from a mini-GBIC slot without having
to power off the switch. Use only ProCurve mini-GBICs.

Note ■ The mini-GBIC slots are shared with 10/100/1000Base-T RJ-45 ports 23 and

24. If a mini-GBIC is installed in a slot, the associated RJ-45 port is disabled
and cannot be used.

■ The mini-GBIC ports operate only at full duplex. Half duplex operation is

not supported.

■ Ensure the network cable is NOT connected when you install or remove

a mini-GBIC.

The current supported mini-GBICs include the following:

■ ProCurve Gigabit-SX-LC mini-GBIC (J4858B)

■ ProCurve Gigabit-LX-LC mini-GBIC (J4859B)

■ ProCurve Gigabit-LH-LC mini-GBIC (J4860B)

Caution Use only supported genuine ProCurve mini-GBICs with your switch. Non-

ProCurve mini-GBICs are not supported, and their use may result in product
malfunction. Should you require additional ProCurve mini-GBICs, contact
your ProCurve Networking Sales and Service Office or authorized dealer.

Installing the Switch

Installing the mini-GBICs:

Remove the protective plastic cover and retain it for later use. Hold the mini­GBIC by its sides and gently insert it into either of the slots on the switch until
the mini-GBIC clicks into place.

WARNING The ProCurve mini-GBICs are Class 1 and 1M laser devices. Avoid

direct eye exposure to the beam coming from the transmit port.

2-11

Installing the Switch

Installation Procedure

Removing the mini-GBICs:

Note You should disconnect the network cable from the mini-GBIC before

removing it from the switch.

Depending on when you purchased your ProCurve mini-GBIC, it may have
either of three different release mechanisms: a plastic tab on the bottom of
the mini-GBIC, a plastic collar around the mini-GBIC, or a wire bail.

To remove the mini-GBICs that have the plastic tab or plastic collar, push the
tab or collar toward the switch until you see the mini-GBIC release from the
switch (you can see it move outward slightly), and then pull it from the slot.

To remove the mini-GBICs that have the wire bail, lower the bail until it is
approximately horizontal, and then using the bail, pull the mini-GBIC from the
slot.

Replace the protective plastic cover on the mini-GBIC.

Installing the Switch

2-12

Troubleshooting

This section describes how to troubleshoot the switch.

This chapter describes the following:

■ basic troubleshooting tips (page 3-1)

■ diagnosing with the LEDs (page 3-2)

■ testing the switch by resetting It (page 3-3)

■ ProCurve Networking Customer Support Services (page 3-3)

Basic Troubleshooting Tips

Common problems and their solutions are listed in the following table.

For more information on possible network problems and their solutions, refer
to the technical note “Troubleshooting LAN Performance and Intermittent
Connectivity Problems”, which can be found on the ProCurve Networking
Web site,

3

http://www.procurve.com, in the Information Library section.

Problem Resolution

Switch fails Power On Self
Test (POST)

Link light does not light when
a cable is connected.

Troubleshoot using the LEDs. See “Diagnosing with the
LEDs” on page 3-2

Look for loose or obviously faulty connections. If they
appear to be OK, make sure the connections are snug. If
that does not correct the problem, try a different cable.

Troubleshooting

3-1

Troubleshooting

Diagnosing with the LEDs

Diagnosing with the LEDs

LED patterns on the switch may indicate a problem condition.

1. Check in the table below for the LED pattern you see on your switch.

2. Refer to the corresponding diagnostic tip on the next few pages.

LED Pattern Indicating Problems

Power Port LED

(in Link view mode)

Off with power cord plugged in *

On Off with cable connected

* This LED is not important for the diagnosis.

Diagnostic Tips

➊

➋

Diagnostic Tips:

Tip Problem Solution

The switch is not

➊

plugged into an
active AC power
source, or the
switch’s power
supply may have
failed.

Troubleshooting

The network

➋

connection is not
working
properly.

1. Verify the power cord is plugged into an active power source and to the switch. Make
sure these connections are snug.

2. Try power cycling the switch by unplugging and plugging the power cord back in.

3. If the Power LED is still not on, verify that the AC power source works by plugging
another device into the outlet. Or try plugging the switch into a different outlet or try a
different power cord.

If the power source and power cord are OK and this condition persists, the switch power
supply may have failed. Call your ProCurve Networking authorized network reseller, or
use the electronic support services from ProCurve Networking to get assistance. See the
Customer Support/Warranty booklet for more information.

Try the following procedures:

• For the indicated port, verify that both ends of the cabling, at the switch and the
connected device, are secure.

• Verify the connected device and switch are both powered on and operating correctly.

• Verify that the connected devices comply with the appropriate IEEE 802.3 standard,
including transmission of the Link signal.

If the other procedures don’t resolve the problem, try using a different port or a different
cable.

3-2

Testing the Switch by Resetting It

Troubleshooting

Testing the Switch by Resetting It

If you believe the switch is not operating correctly, you can reset the switch
to test its circuitry and operating code. To reset a switch:

■ Unplug and plug in the power cord (power cycling)

Power cycling the switch cause the switch to perform its power-on self test,
which almost always will resolve any temporary operational problems. These
reset processes also cause any network traffic counters to be reset to zero,
and cause the System Up Time timer to reset to zero.

ProCurve Networking Customer Support Services

If you are still having trouble with your switch, ProCurve Networking offers
support 24 hours a day, seven days a week through the use of a number of
automated electronic services. See the Customer Support/Warranty booklet
that came with your switch for information on how to use these services to
get technical support. The ProCurve Networking Web site,

www.procurve.com

also provides up-to-date support information.

http://

Additionally, your ProCurve Networking authorized network reseller can
provide you with assistance, both with services they offer and with services
offered by ProCurve Networking.

Before Calling Support

Before calling your networking dealer or ProCurve Networking Support, to
make the support process most efficient, you first should have retrieved the
following information:

Information Item Information Location

• product identification, including mini­GBICs

• copy of your network topology map, in­cluding network addresses assigned to
the relevant devices

the front of the switch, and on labels on the
mini-GBICs

your network records

3-3

Troubleshooting

Switch Specifications

Physical

Width: 44.2 cm (17.4 in)

Depth: 17.4 cm (6.9 in)

Height: 4.4 cm (1.7 in)

Weight: 1.97 kg (4.32 lbs)

A

Electrical

The switch automatically adjusts to any voltage between 100-127 volts,
200-240 volts and either 50 or 60 Hz.

AC voltage: 100-127 volts, 200-240 volts

Maximum current: 0.75 A, 0.4 A

Frequency range: 50-60 Hz

Environmental

Operating Non-Operating

Temperature: 0 ° C to 40 ° C (32 ° F to 104 ° F) -40 ° C to 70 ° C (-40 ° F to 158 ° F)

Relative humidity:
(non-condensing)

Maximum altitude: 3048 m (10,000 ft) 3048 m (10,000 ft)

10% to 90% at 40 ° C (104 ° F) 10% to 90% at 65 ° C (149 ° F)

Switch Specifications

A-1

Switch Specifications

Connectors

■ The 10/100/1000 Mbps RJ-45 twisted-pair ports are compatible with the

following standards:

• IEEE 802.3ab 1000Base-T

• IEEE 802.3u 100Base-TX

• IEEE 802.3 10Base-T

■ The 1000 Mbps LC fiber-optic ports on the Gigabit-SX and Gigabit-LX mini-

GBIC transceivers are compatible with the IEEE 802.3z Gigabit-SX and
Gigabit-LX standards.

Safety

Complies with:

■ EN60950-1 / IEC 60950-1

■ CSA 22.2 No. 60950-1

■ UL 60950-1

Lasers

Switch Specifications

The Gigabit-SX-LC mini-GBIC, the Gigabit-LX-LC mini-GBIC, and the Gigabit­LH-LC mini-GBIC, all of which can be installed in the ProCurve Series 1400
switches, are Class 1 or Class 1M Laser Products.

Laser Klasse 1
These mini-GBICs comply with IEC 825-2: 1993.

A-2

Safety and EMC Regulatory Statements

Safety Information

Documentation r eference symbol. If the product is marked with this

!

symbol, refer to the product documentation to get more information
about the product.

B

Safety and EMC Regulatory

Statements

WARNING A WARNING in the manual denotes a hazard that can cause injury

CAUTION A CAUTION in the manual denotes a hazard that can damage

Grounding

These are safety class I products and have protective earthing terminals. There
must be an uninterruptible safety earth ground from the main power source
to the product's input wiring terminals, power cord, or supplied power cord
set. Whenever it is likely that the protection has been impaired, disconnect
the power cord until the ground has been restored.

For LAN cable grounding:

■ If your LAN covers an area served by more than one power distribu-

tion system, be sure their safety grounds are securely interconnected.

■ LAN cables may occasionally be subject to hazardous transient volt-

ages (such as lightning or disturbances in the electrical utilities power
grid). Handle exposed metal components of the network with caution.

Servicing

There are no user-serviceable parts inside these products. Any servicing,
adjustment, maintenance, or repair must be performed only by service-trained
personnel.

or death.

equipment.

Do not proceed beyond a WARNING or CAUTION notice until you
have understood the hazardous conditions and have taken appro­priate steps.

These products do not have a power switch; they are powered on when the
power cord is plugged in.

B-1

Safety and EMC Regulatory Statements

Safety Information

Informations concernant la sécurité

Symbole de référence à la documentation. Si le produit est marqué de

Statements

!

WARNING Dans la documentation, un WARNING indique un danger susceptible

Safety and EMC Regulatory

CAUTION Un texte de mise en garde intitulé CAUTION indique un danger suscep-

Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source
d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux
bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement
fourni avec le produit. Lorsque cette protection semble avoir été endommagée,
débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.

ce symbole, report ez-vous à la documentation du p roduit afin d'obtenir
des informations plus détaillées.

d'entraîner des dommages corporels ou la mort.

tible de causer des dommages à l'équipement.

Ne continuez pas au-delà d'une rubrique WARNING ou CAUTION
avant d'avoir bien compris les conditions présentant un danger et pris
les mesures appropriées.

Mise à la terre du câble de réseau local:

■ si votre réseau local s'étend sur une zone desservie par plus d'un système de

distribution de puissance, assurez-vous que les prises de terre de sécurité
soient convenablement interconnectées.

■ Les câbles de réseaux locaux peuvent occasionnellement être soumis à des

surtensions transitoires dangereuses (telles que la foudre ou des perturba­tions dans le réseau d'alimentation public). Manipulez les composants
métalliques du réseau avec précautions.

Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.
Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un
personnel qualifié.

Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est
effectuée par branchement du cordon d'alimentation.

B-2

Hinweise zur Sicherheit

Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem

!

Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.

Safety and EMC Regulatory Statements

Safety Information

Safety and EMC Regulatory

Statements

WARNING Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die

CAUTION CAUTION in der Dokumentation symbolisiert eine Gefahr, die dis

Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdung­sterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung
von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem
mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß
der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose herausz­iehen, bis die Erdung wiederhergestellt ist.

Für LAN-Kabelerdung:

■ Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungs-

system beliefert wird, müssen Sie sich vergewissern, daß die
Sicherheitserdungen fest untereinander verbunden sind.

■ LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen aus-

gesetzt werden (beispielsweise durch Blitz oder Störungen in dem
Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter
Metallbestandteile des Netzwerkes Vorsicht walten lassen.

Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,
Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem
Bedienungspersonal durchgeführt werden.

Verletzungen oder sogar Todesfälle verursachen kann.

Gerät beschädigen kann.

Fahren Sie nach dem Hinweis WARNING oder CAUTION erst fort,
nachdem Sie den Gefahrenzustand verstanden und die entsprech­enden Maßnahmen ergriffen haben.

Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels
eingeschaltet.

B-3

Safety and EMC Regulatory Statements

Safety Information

Considerazioni sulla sicurezza

Simbolo di riferimento alla documentazione. Se il prodotto è contras-

Statements

!

WARNING La dicitura WARNING denota un pericolo che può causare lesioni o

Safety and EMC Regulatory

CAUTION La dicitura CAUTION denota un pericolo che può danneggiare le

Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo
di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non
interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata,
al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.
Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo
d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.

segnato da questo simbolo, fare riferimento alla documentazione sul
prodotto per ulteriori informazioni su di esso.

morte.

attrezzature.

Non procedere oltre un avviso di WARNING o di CAUTION prima di
aver compreso le condizioni di rischio e aver provveduto alle misure
del caso.

B-4

Per la messa a terra dei cavi LAN:

■ se la vostra LAN copre un'area servita da più di un sistema di distribuzione

elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati
fra loro;

■ i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni

transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimen­tazione della società elettrica); siate cauti nel toccare parti esposte in metallo
della rete.

Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi
lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusi­vamente da personale specializzato.

Questo apparato non possiede un commutatore principale; si mette scotto tensione
all'inserirsi il cavo d'alimentazione.

Safety and EMC Regulatory Statements

Consideraciones sobre seguridad

Símbolo de referencia a la documentación. Si el producto va

!

marcado con este símbolo, consultar la documentación del
producto a fin de obtener mayor información sobre el producto.

Safety Information

Safety and EMC Regulatory

Statements

WARNING Una WARNING en la documentación señala un riesgo que podría

CAUTION Una CAUTION en la documentación señala un riesgo que podría

Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por
una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde
la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato,
el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la
probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el
cable de alimentación hasta haberse subsanado el problema.

Puesta a tierra del cable de la red local (LAN):

■ Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una

red de distribución de electricidad, cerciorarse de que las puestas a tierra
estén conectadas entre sí de modo seguro.

■ Es posible que los cables de la LAN se vean sometidos de vez en cuando a

voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red
de energía eléctrica). Manejar con precaución los componentes de metal de
la LAN que estén al descubierto.

Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.
Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos sola­mente el técnico.

resultar en lesiones o la muerte.

resultar en averías al equipo.

No proseguir d espués de un símbolo de WARNING o CAUTION hasta
no haber entendido las condiciones peligrosas y haber tomado las
medidas apropiadas.

Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable
de alimentación.

B-5

Safety and EMC Regulatory Statements

Safety Information

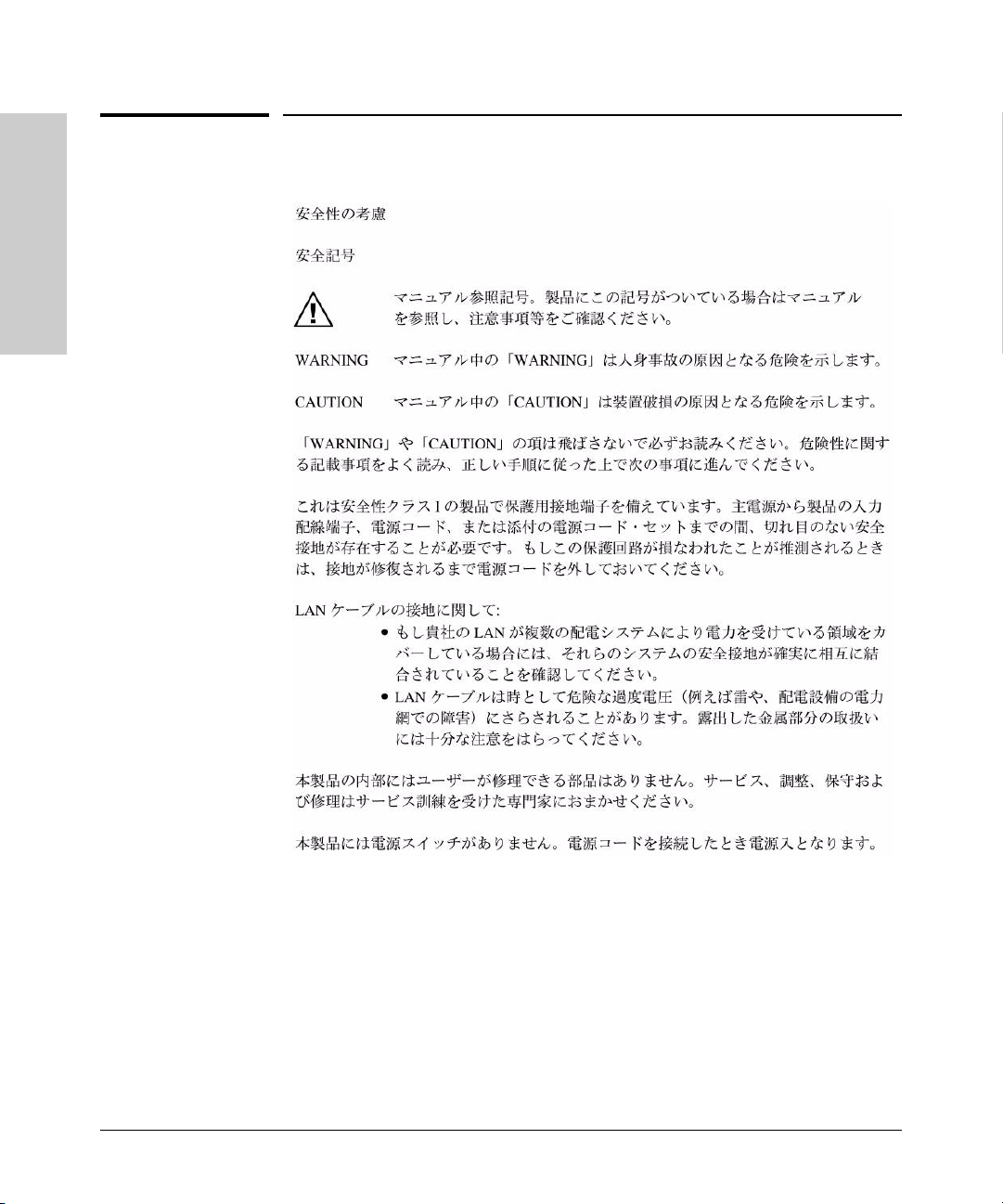

Safety Information (Japan)

Statements

Safety and EMC Regulatory

B-6

Safety and EMC Regulatory Statements

Safety Information (China)

Safety Information

Safety and EMC Regulatory

Statements

B-7

Safety and EMC Regulatory Statements

EMC Regulatory Statements

EMC Regulatory Statements

U.S.A.

Statements

Safety and EMC Regulatory

FCC Class A

This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.

You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate the
equipment.

Canada

This product complies with Class A Canadian EMC requirements.

Australia/New Zealand

This product complies with Australia/New Zealand EMC Class A
requirements.

B-8

Safety and EMC Regulatory Statements

EMC Regulatory Statements

Japan

VCCI Class A

Safety and EMC Regulatory

Statements

B-9

Safety and EMC Regulatory Statements

EMC Regulatory Statements

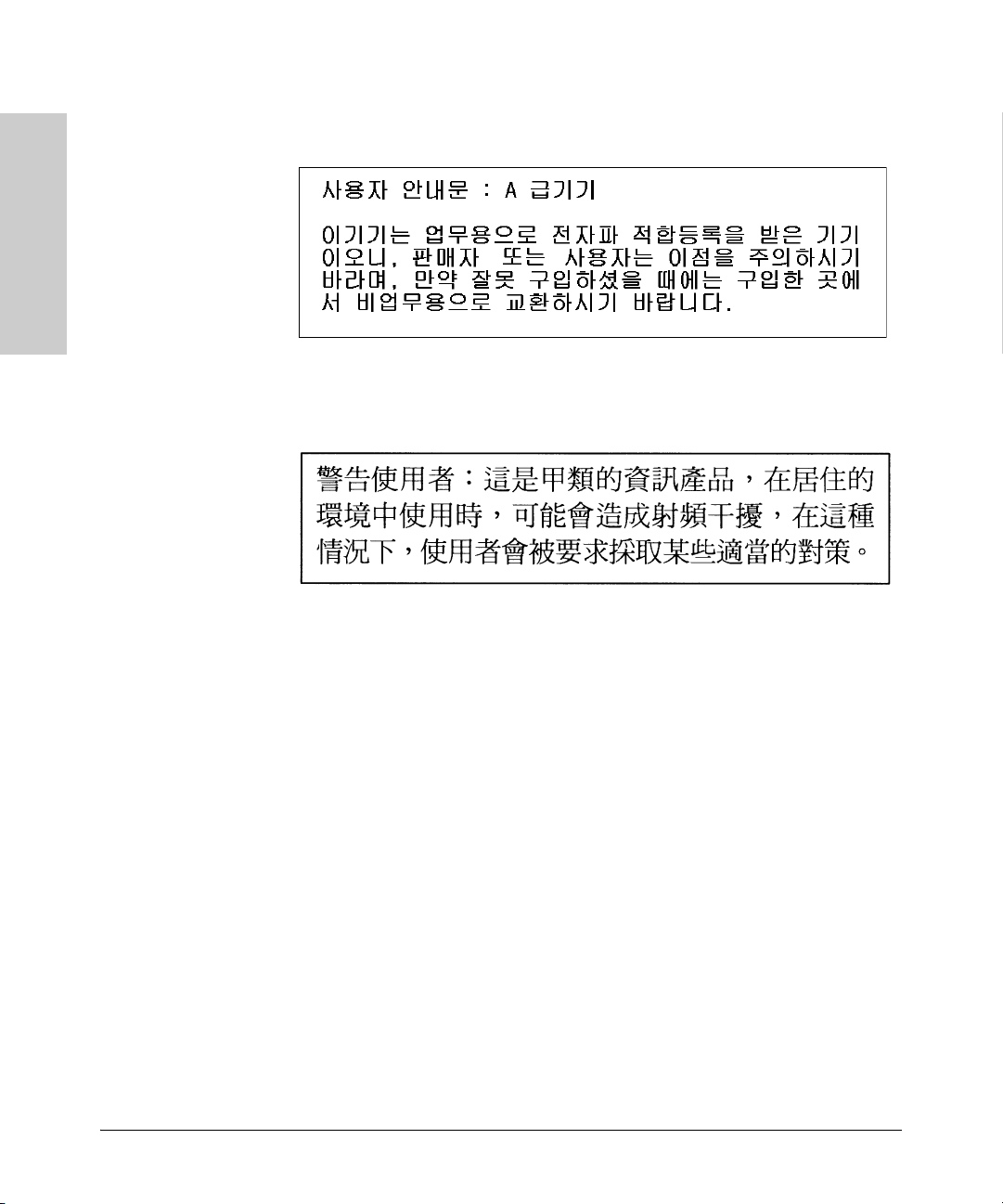

Korea

Statements

Safety and EMC Regulatory

Taiwan

B-10

Safety and EMC Regulatory Statements

DECLARATION OF CONFORMITY

according to ISO/IEC Guide 22 and EN45014

Manufacturer's Name: Hewlett-Packard Company

Manufacturer's Address: 8000 Foothills Blvd

Roseville, CA 95747-5502
U.S.A.

declares that the product:

Product Name: ProCurve Switch 1800-24G, 1400-24G, and 1700-24

Model Number: J9028A, J9078A, and J9080A

Accessories: J4858B, J4859B, and J4860B

Regulatory Model Number: RSVLC-0510

conforms to the following Product Specifications:

Safety: EN 60950:2001

IEC 60950:2001

EMC: EN 55022:1998 +A1:2000+A2:2003 / CISPR-22:1997 Class A +A1:2000 +A2:2002
EN 55024: 1998 +A1:2001 +A2:2003
EN 61000-3-2:2000 - Harmonics
EN 61000-3-3:1995 +A1:2001 +A2:2003 - Flicker

Supplementary Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC

and the EMC Directive 89/336/EEC and carries the CE marking accordingly.

Tested with Hewlett-Packard Co. products only.

Roseville, 08-December-2006

Michael E. Avery,
Regulatory Engineering Manager

European Contact: Your local Hewlett-Packard Sales and Service Office or Hewlett-Packard GmbH, Department TRE,

Herrenberger Strasse 140, D-71034 Böblingen (FAX:[phone]).

EMC Regulatory Statements

European Community

Safety and EMC Regulatory

Statements

B-11

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

C

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with
your other household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is re cycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.

Likvidace zařízení soukromými domácími uživateli v Evropské unii

Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním
domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné
místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu
pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní
prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na
příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v
obchodě, kde jste produkt zakoupili.

Bortskaffelse af affald fra husstande i den Europæiske Union

Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må
bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret
udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret
elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse
med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en
måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret
udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte
produktet.

Recycle Statements

Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus

See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäät­metega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja elektrooni­kaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi
kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et ringlussev­õtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle kohta, kuhu
oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei,
majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.

C-1

Recycle Statements

Έ

A

A

Waste Electrical and Electronic Equipment (WEEE) Statements

Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella

Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana.
Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.
Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja
varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja
paikoista, joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai
liikkeeseen, josta tuote on ostettu.

Élimination des appareils mis au rebut par les ménages dans l'Union européenne

Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec
les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les
déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques
et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste
des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront
recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations
sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités
locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous
avez acheté ce produit.

Entsorgung von Altgeräten aus privaten Haushalten in der EU

Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den
normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknah-

Recycle Statements

mestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungs­gemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert
eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu,
wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen
Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben

Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή

νωση

Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν
πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να
απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την
ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού
ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των
φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την
ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να
παραδώσετε τον άχρηστο εξοπλισμό σας
γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το
προϊόν.

Készülékek magánháztartásban történő selejtezése az Európai Unió területén

készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál,
hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A
vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és
elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori
begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint
biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.

begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az
illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.

για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό

. Η ξεχωριστή συλλογή και

C-2

Waste Electrical and Electronic Equipment (WEEE) Statements

A

V

Recycle Statements

Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea

Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere
smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnan­dole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed
elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di
proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta
delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il
quale è stato acquistato il prodotto.

Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās
mājsaimniecībās

Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar
citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos
punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.

tsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un
garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību.
Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas
pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.

artotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje

Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio
atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir
elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos
padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių
sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos
atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje
įsigijote gaminį.

Recycle Statements

Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie

Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij
het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte
apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur.
Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden
behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het
milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel
waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur
kunt aanbieden voor recycling.

Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach
domowych w Unii Europejskiej

Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych
pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów
naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka
i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do
recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem,
w którym zakupiono produkt.

C-3

Recycle Statements

Waste Electrical and Electronic Equipment (WEEE) Statements

Descarte de Lixo Elétrico na Comunidade Européia

Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado
no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico),
encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse
tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma
forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais
que reciclam ess e tipo de material, entre e m contato com o escritório da HP em sua cidade, com o s erviço
de coleta de lixo ou com a loja em que o produto foi adquirido.

Likvidácia vyradených zariadení v domácnostiach v Európskej únii

Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým
odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je
určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a
recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia
sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných
miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť
zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.

Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji

Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje
odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme

Recycle Statements

prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv
način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se
obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.

C-4

Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la
Unión Europea

Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios
generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos
en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado
selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a
conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja
el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos
eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de
eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.

Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen

Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får
slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att
överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska
produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och
gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala
kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten
för att få mer information om var du kan lämna ditt avfall för återvinning.

Index

B

basic troubleshooting tips … 3-1
blinking LEDs

error indications … 3-2

C

cabinet

mounting the switch in … 2-6, 2-9

cables

connecting cables to switch ports … 2-10–2-11

infrastructure requirements … 2-3
cabling infrastructure … 2-3
connecting the switch to a power source … 2-10
connector specifications … A-2

D

description

LEDs … 1-2

switch … 1-1

E

electrical specifications, switch … A-1
EMC regulatory statements … B-8
environmental specifications, switch … A-1

L

LEDs

behavior during self test … 2-5
descriptions of … 1-2
error indications … 3-2
LED Mode View select indicators … 1-2
Power … 1-2

behavior during self test … 2-5

location for the switch, considerations … 2-4

M

mounting the switch

in a rack or cabinet … 2-6, 2-9

precautions … 2-2

on a horizontal surface … 2-10

N

network cables

required types … 2-3

network devices

connecting to the switch … 2-10–2-11

network ports

connecting to … 2-10–2-11
standards compliance … A-2

Index

H

horizontal surface

mounting switch on … 2-10

I

included parts … 2-1
installation

connecting the switch to a power source … 2-10

horizontal surface mounting … 2-10

location considerations … 2-4

network cable requirements … 2-3

precautions … 2-2

rack or cabinet mounting … 2-6, 2-9

site preparation … 2-3

P

parts, included with the switch … 2-1
physical specifications, switch … A-1
port LEDs

normal operation … 2-5

ports

10/100Base-TX, location on switch … 1-1
connecting to … 2-10–2-11
network connections … 2-10–2-11

Power LED … 1-2

behavior during self test … 2-5
behaviors … 1-2

power source

connecting the switch to … 2-10

Index-1

precautions

mounting the switch … 2-2

power requirements … 2-2
preparing the installation site … 2-3

R

rack

mounting precautions … 2-2

mounting the switch in … 2-6, 2-9
recycle statements … C-1
regulatory statements … B-8

S

safety and regulatory statements … B-1
safety specifications … A-2
self test

LED behavior during … 2-5

Power LED behavior … 2-5
specifications

connectors … A-2

electrical … A-1

environmental … A-1

physical … A-1

safety … A-2
switch

connecting to a power source … 2-10

description … 1-1

electrical specifications … A-1

environmental specifications … A-1

Index

included parts … 2-1

mounting in a rack or cabinet … 2-6, 2-9

mounting on horizontal surface … 2-10

physical specifications … A-1
switch operation

verifying after installation … 2-4

T

tips for troubleshooting … 3-1
troubleshooting … 3-1

basic tips … 3-1

common network problems … 3-1

Index-2

Technical information in this document
is subject to change without notice.

© Copyright 2007 Hewlett-Packard
Development Company, L.P.

Reproduction, adaptation, or translation
without prior written permission is prohibited
except as allowed under the copyright laws.

Printed in China
February 2007

Manual Part Number

5991-6219

*5991-6219*
