HP ProBook x360 440 G1 Maintenance And Service Manual

HP ProBook x360 440 G1 Notebook PC

Maintenance and Service Guide

© Copyright 2018 HP Development Company,
L.P.

AMD is a trademark of Advanced Micro Devices,
Inc. Bluetooth is a trademark owned by its
proprietor and used by HP Inc. under license.
Intel is a trademark of Intel Corporation in the
U.S. and other countries. Microsoft and
Windows are trademarks of the Microsoft
group of companies.

The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in the
express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.

First Edition: June 2018

Document Part Number: L25622-001

Product notice

This user guide describes features that are
common to most models. Some features may
not be available on your computer.

Not all features are available in all editions of
Windows. This computer may require upgraded
and/or separately purchased hardware, drivers
and/or software to take full advantage of
Windows functionality. Go to

http://www.microsoft.com for details.

Software terms

By installing, copying, downloading, or
otherwise using any software product
preinstalled on this computer, you agree to be
bound by the terms of the HP End User License
Agreement (EULA). If you do not accept these
license terms, your sole remedy is to return the
entire unused product (hardware and software)
within 14 days for a full refund subject to the
refund policy of your seller.

For any further information or to request a full
refund of the price of the computer, please
contact your seller.

Important Notice about Customer Self-Repair Parts

CAUTION: Your computer includes Customer Self-Repair parts and parts that should only be accessed by an

authorized service provider. See Chapter 5, "Removal and replacement procedures for Customer Self-Repair
parts," for details. Accessing parts described in Chapter 6, "Removal and replacement procedures for
Authorized Service Provider only parts," can damage the computer or void your warranty.

iii

iv Important Notice about Customer Self-Repair Parts

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place

the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, at
surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as
pillows or rugs or clothing, to block airow. Also, do not allow the AC adapter to contact the skin or a soft
surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with
the user-accessible surface temperature limits dened by the International Standard for Safety of
Information Technology Equipment (IEC 60950-1).

v

vi Safety warning notice

Table of contents

1 Product description ....................................................................................................................................... 1

2 Components .................................................................................................................................................. 6

Right ....................................................................................................................................................................... 6

Left ......................................................................................................................................................................... 7

Display .................................................................................................................................................................... 9

Keyboard area ...................................................................................................................................................... 10

TouchPad ........................................................................................................................................... 10

Lights ................................................................................................................................................. 11

Speakers and ngerprint reader ....................................................................................................... 12

Special keys ....................................................................................................................................... 13

Action keys ........................................................................................................................................ 14

Bottom ................................................................................................................................................................. 15

Labels ................................................................................................................................................................... 16

3 Illustrated parts catalog .............................................................................................................................. 18

Computer major components .............................................................................................................................. 18

Display components ............................................................................................................................................ 21

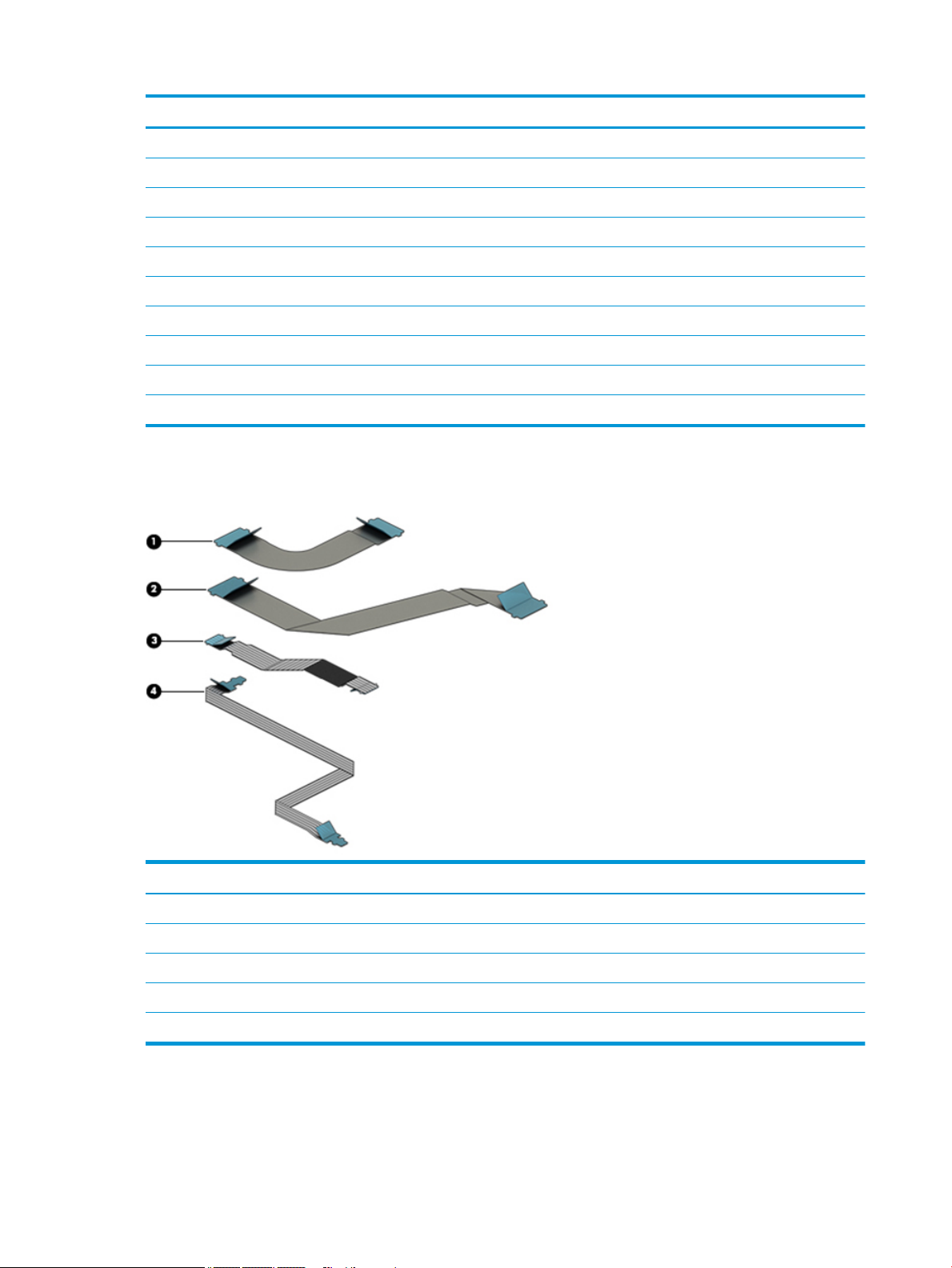

Cable Kit ............................................................................................................................................................... 22

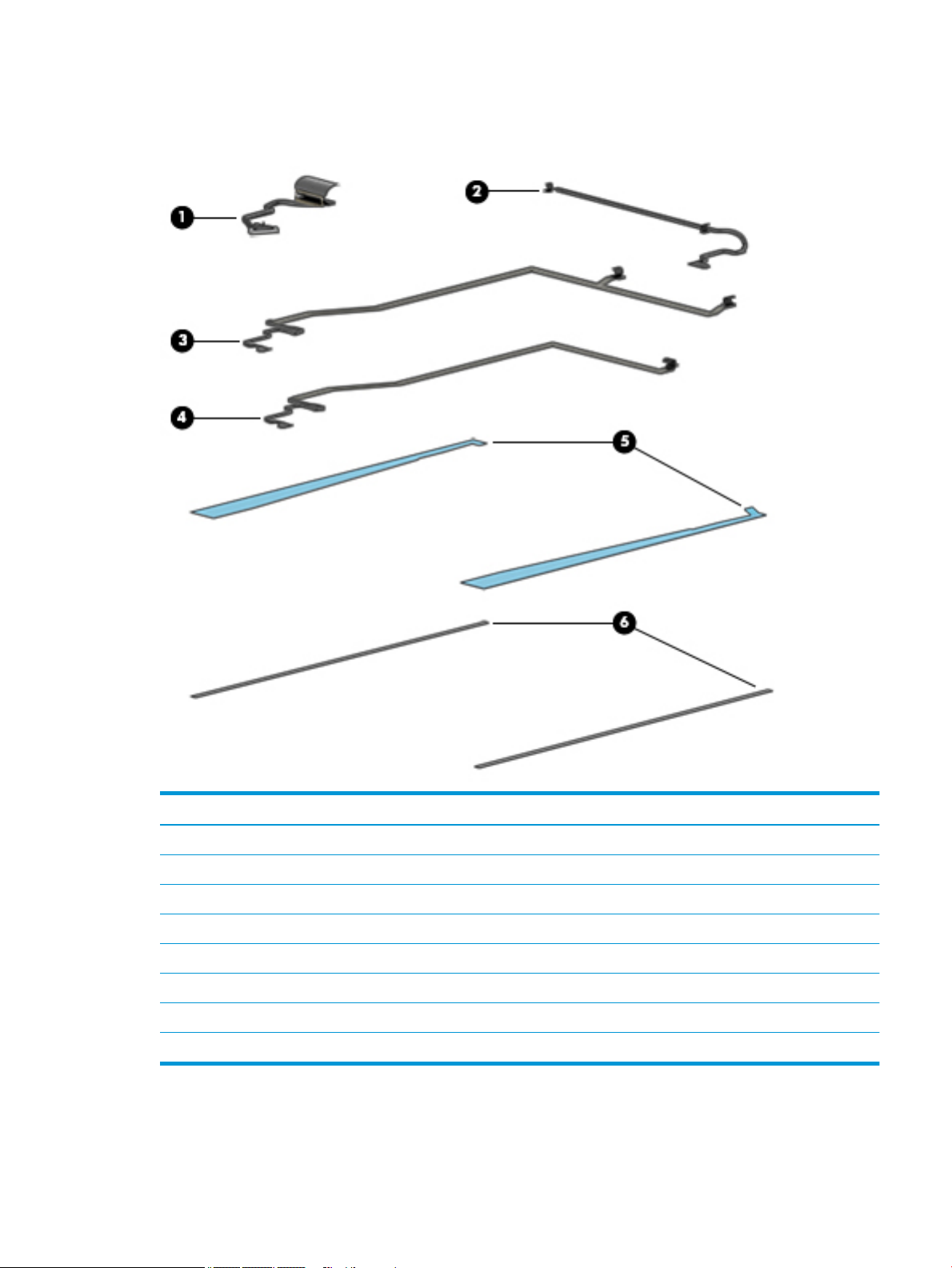

Display Cable Kit .................................................................................................................................................. 23

Display Rubber Kit ............................................................................................................................................... 24

Plastics Kit ........................................................................................................................................................... 25

Bracket Kit ............................................................................................................................................................ 25

Miscellaneous parts ............................................................................................................................................. 26

4 Removal and replacement procedures preliminary requirements .................................................................... 27

Tools required ...................................................................................................................................................... 27

Service considerations ......................................................................................................................................... 27

Plastic parts ....................................................................................................................................... 27

Cables and connectors ...................................................................................................................... 27

Drive handling ................................................................................................................................... 28

Electrostatic discharge damage ........................................................................................................ 28

Packaging and transporting guidelines ............................................................................................ 29

Workstation guidelines ..................................................................................................................... 29

Equipment guidelines ....................................................................................................................... 30

vii

5 Removal and replacement procedures for Customer Self-Repair parts ............................................................. 31

Component replacement procedures .................................................................................................................. 31

Battery Safe mode ............................................................................................................................ 31

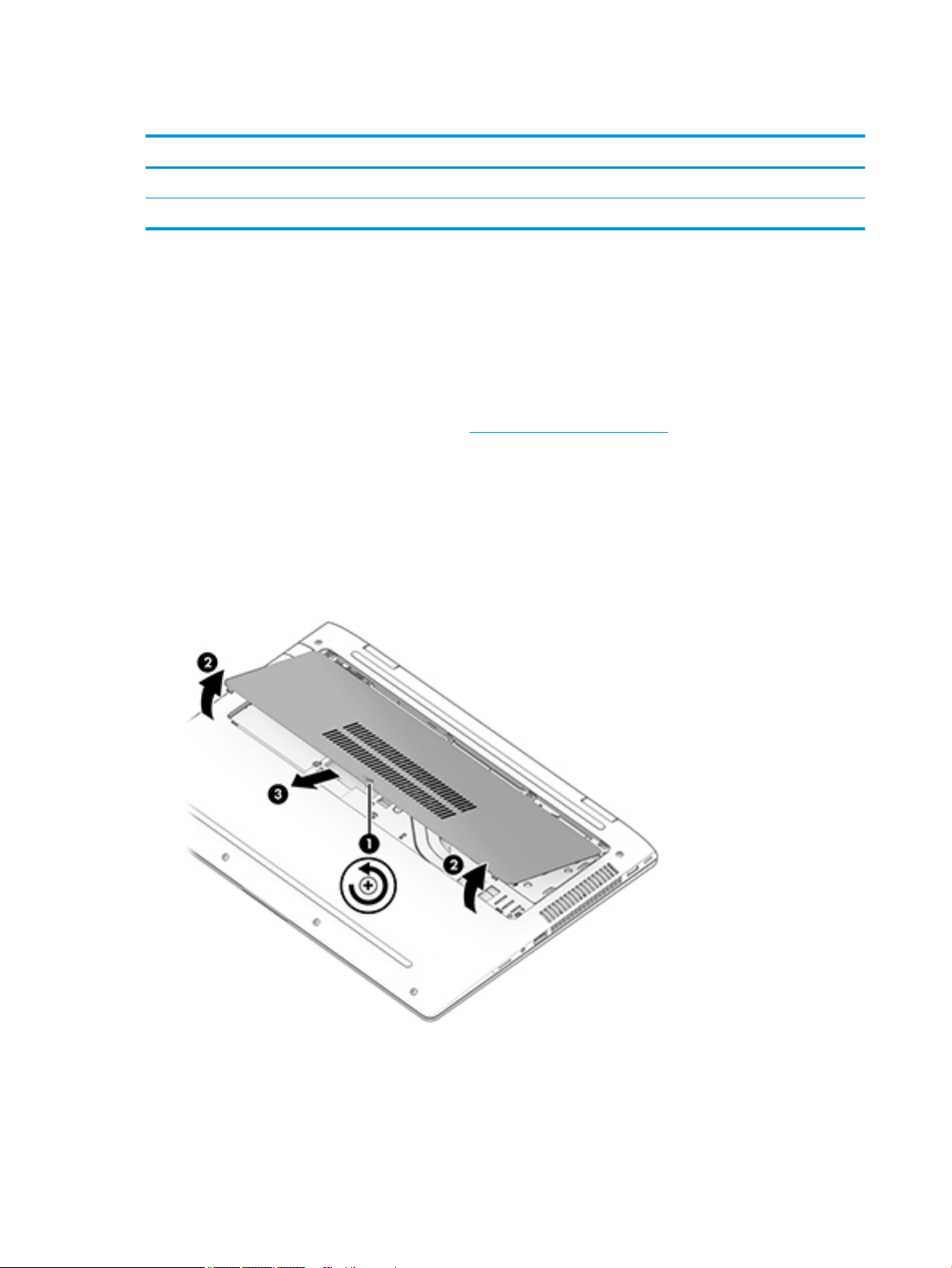

Service doors ..................................................................................................................................... 32

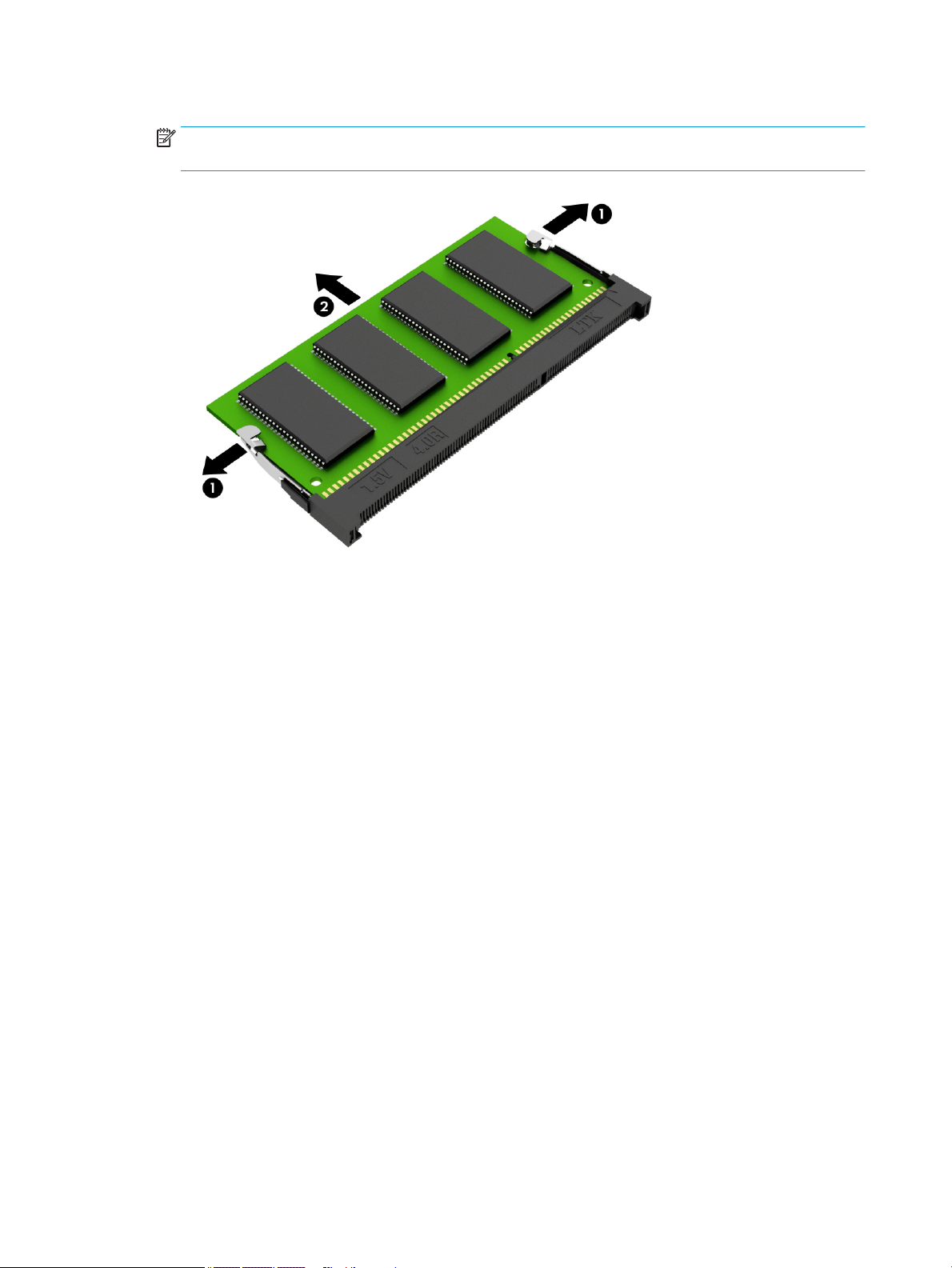

Memory modules ............................................................................................................................... 33

WLAN/Bluetooth combo card ............................................................................................................ 35

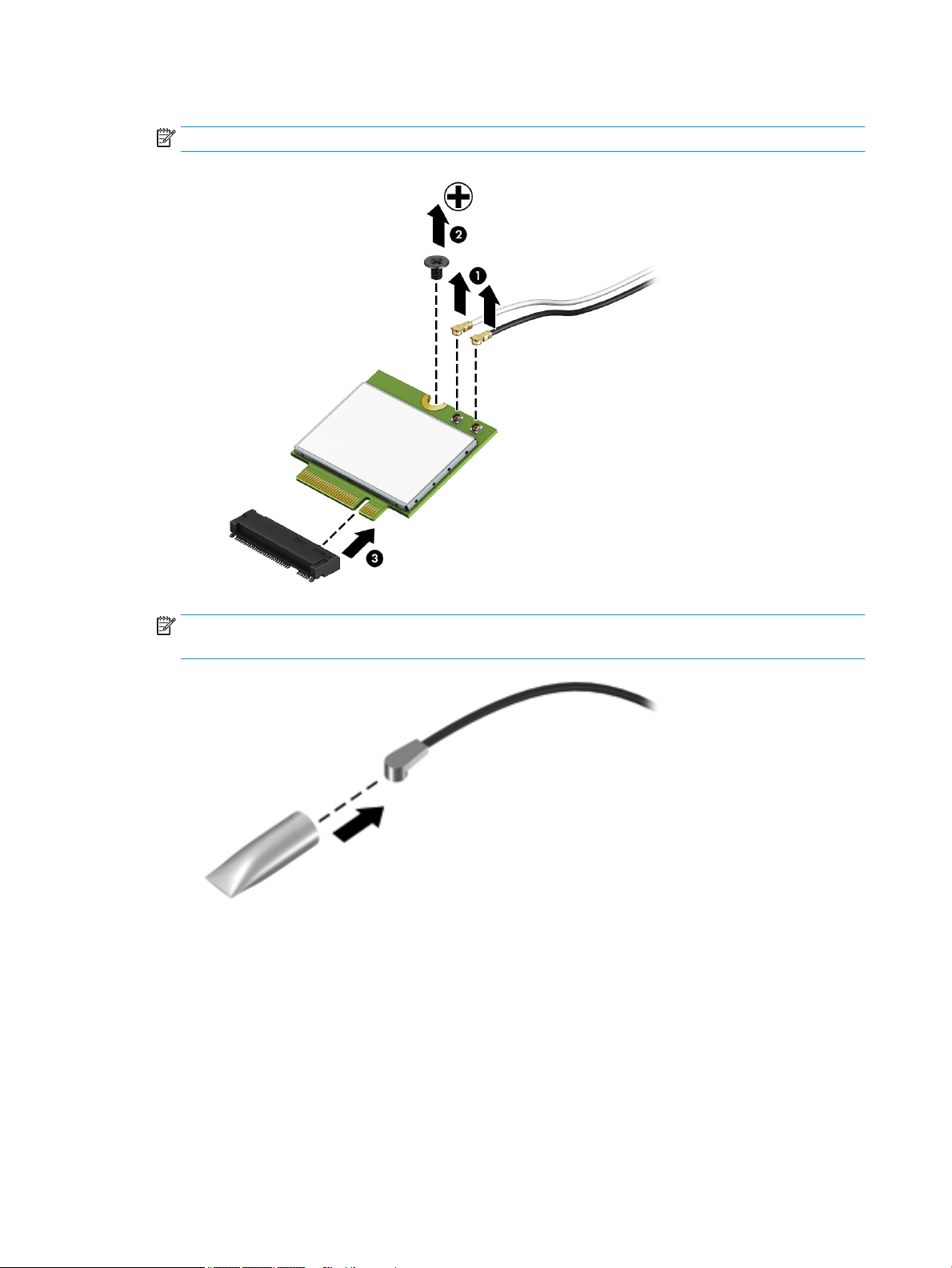

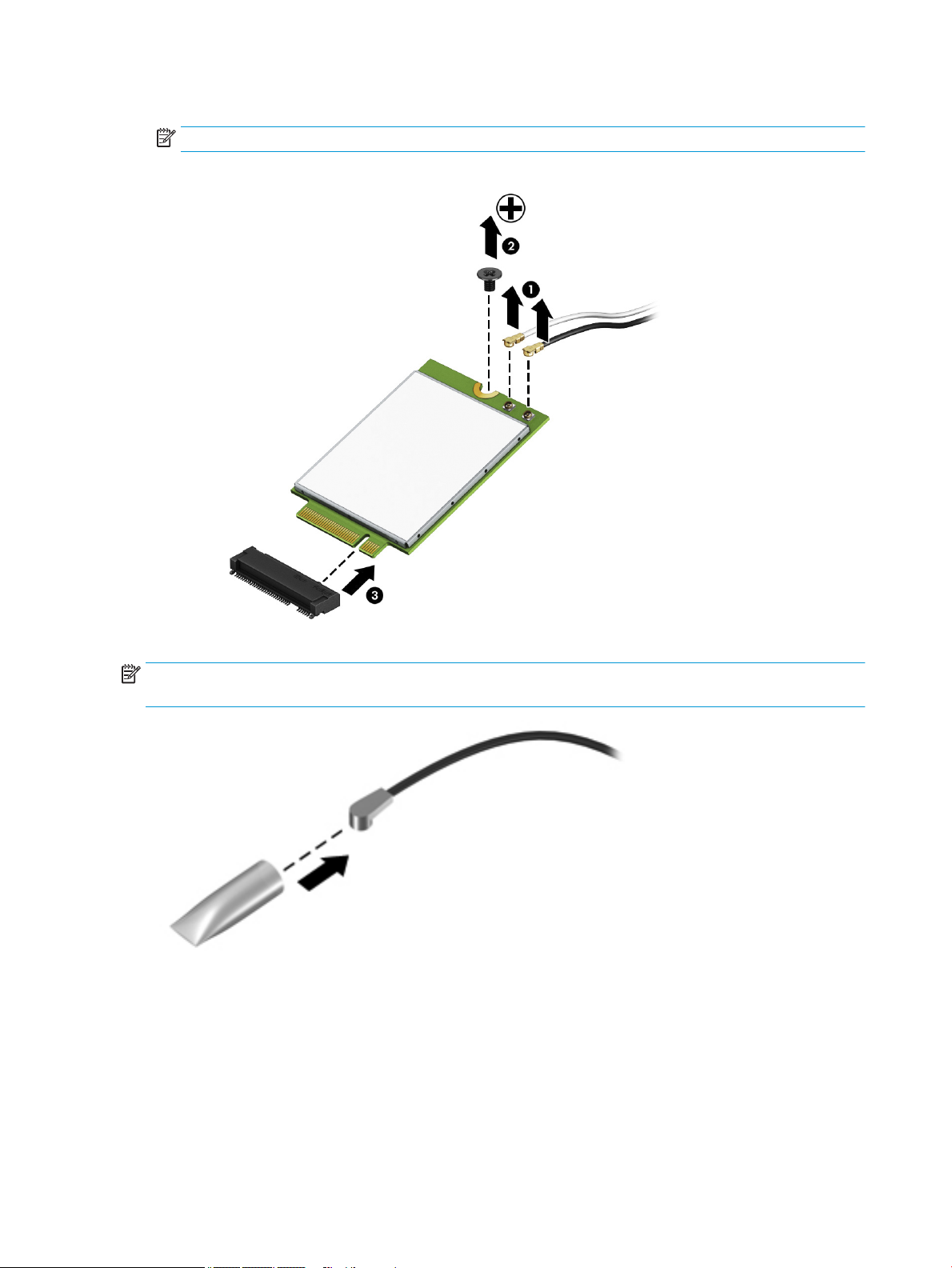

WWAN module ................................................................................................................................... 37

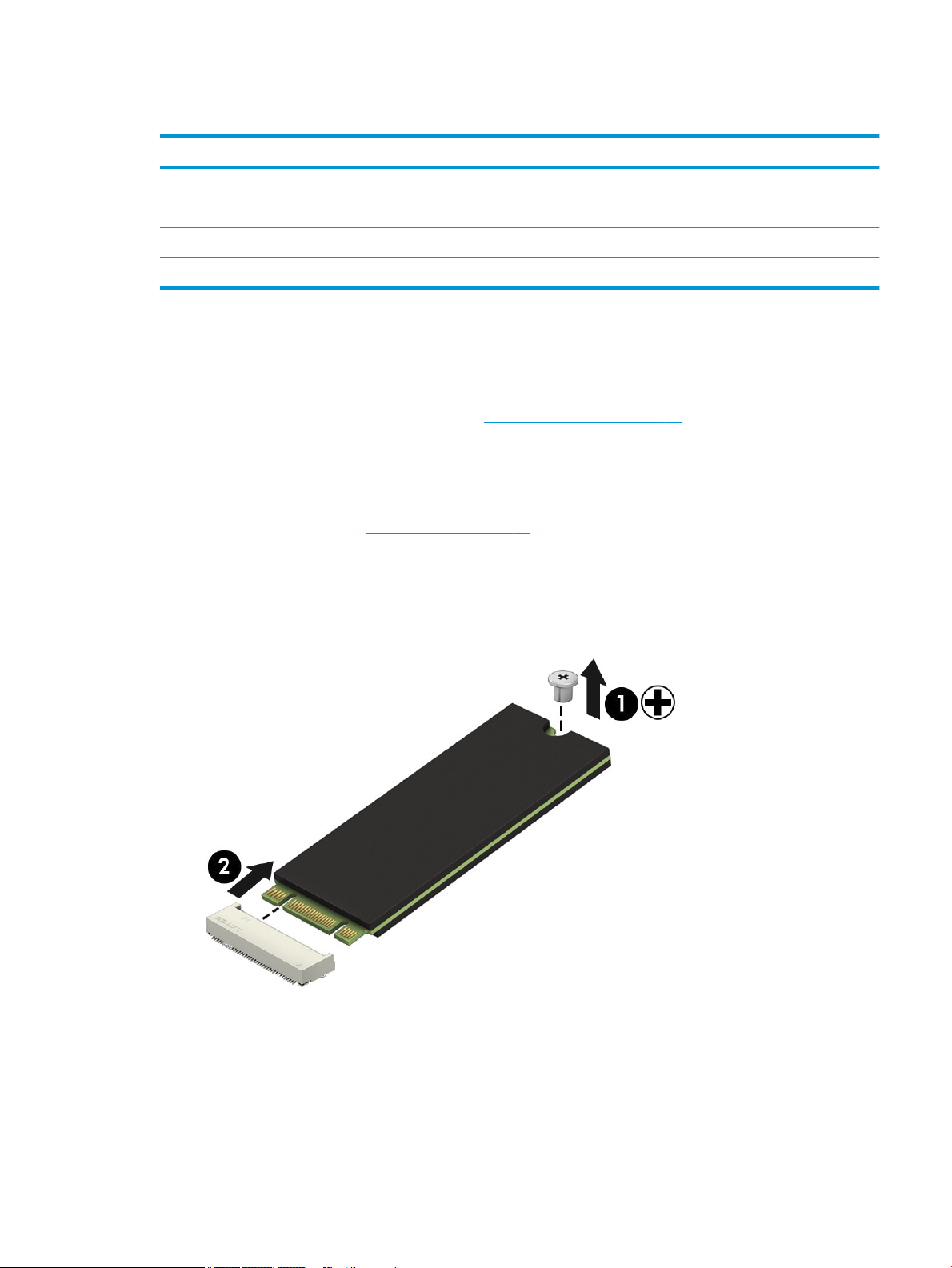

M.2 solid-state drive ......................................................................................................................... 39

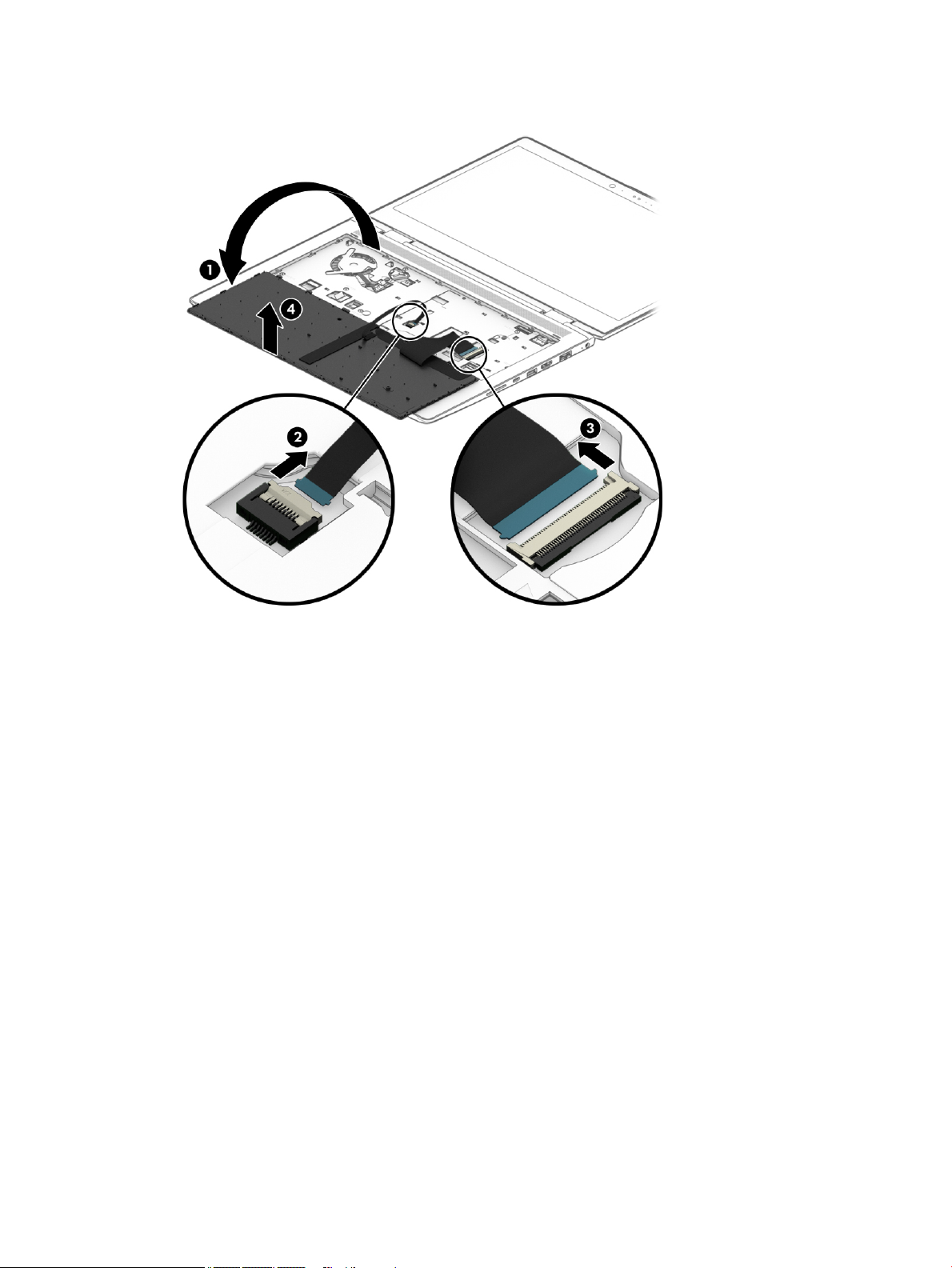

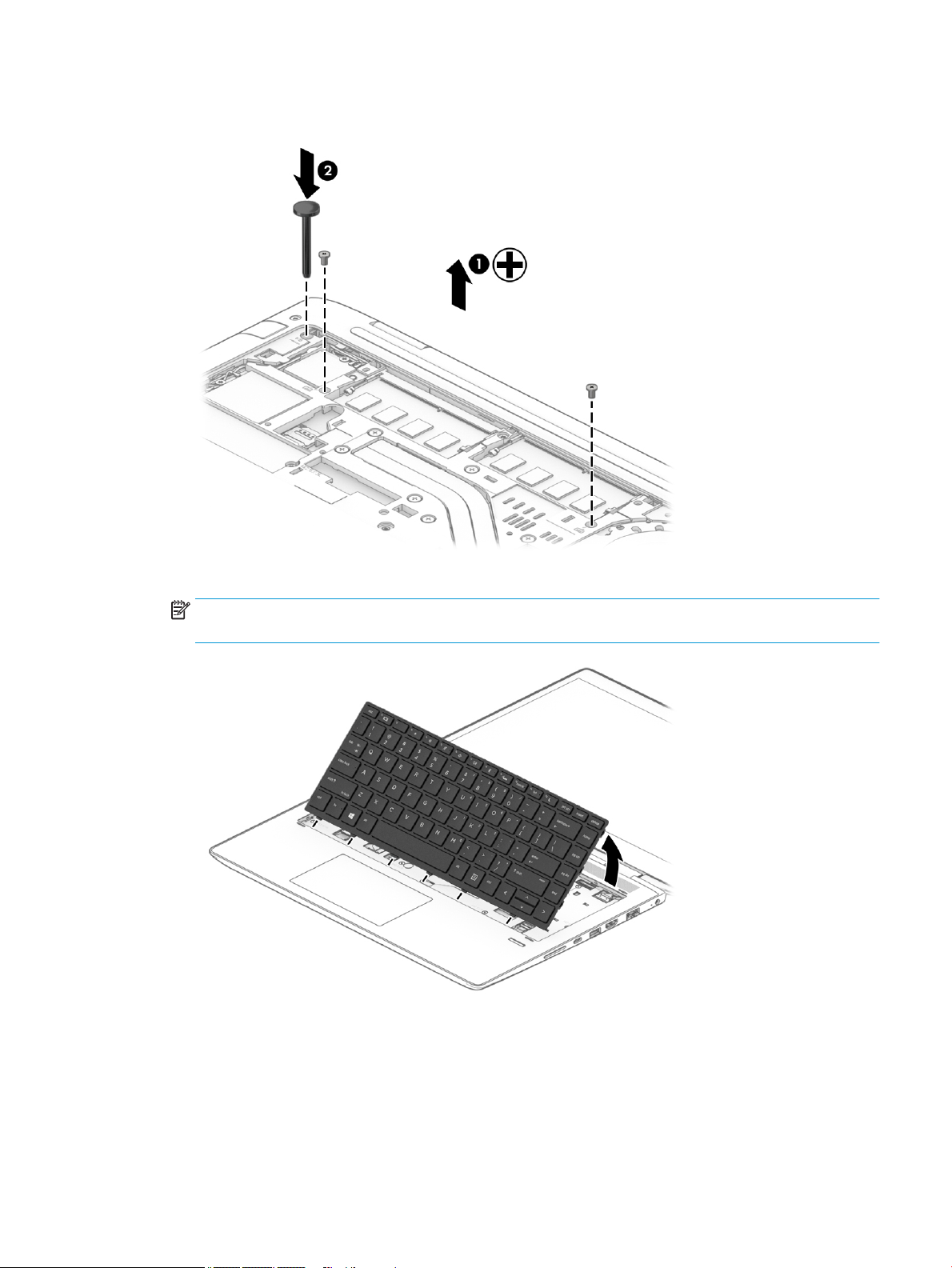

Keyboard ........................................................................................................................................... 40

6 Removal and replacement procedures for Authorized Service Provider parts ................................................... 43

Component replacement procedures .................................................................................................................. 43

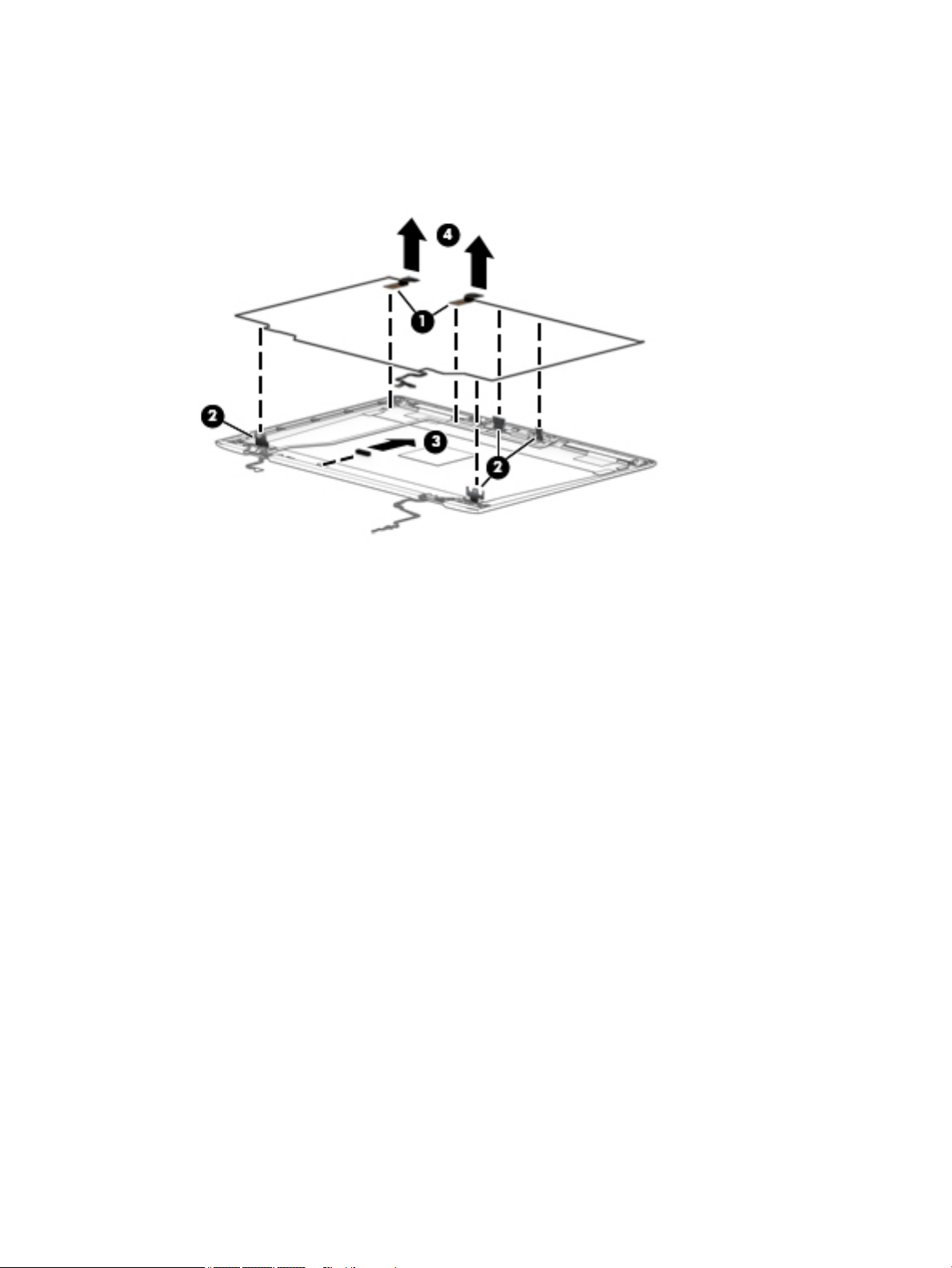

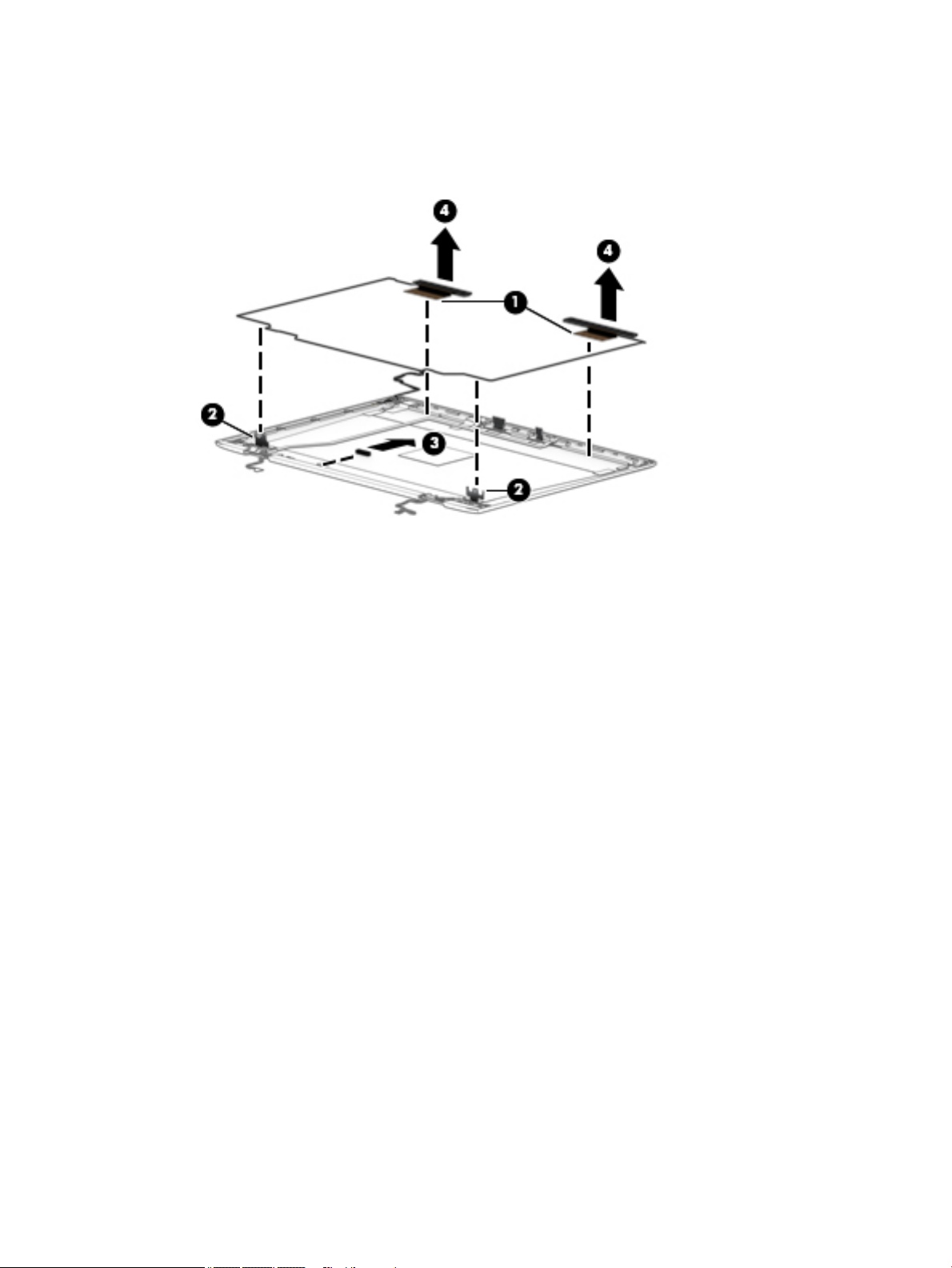

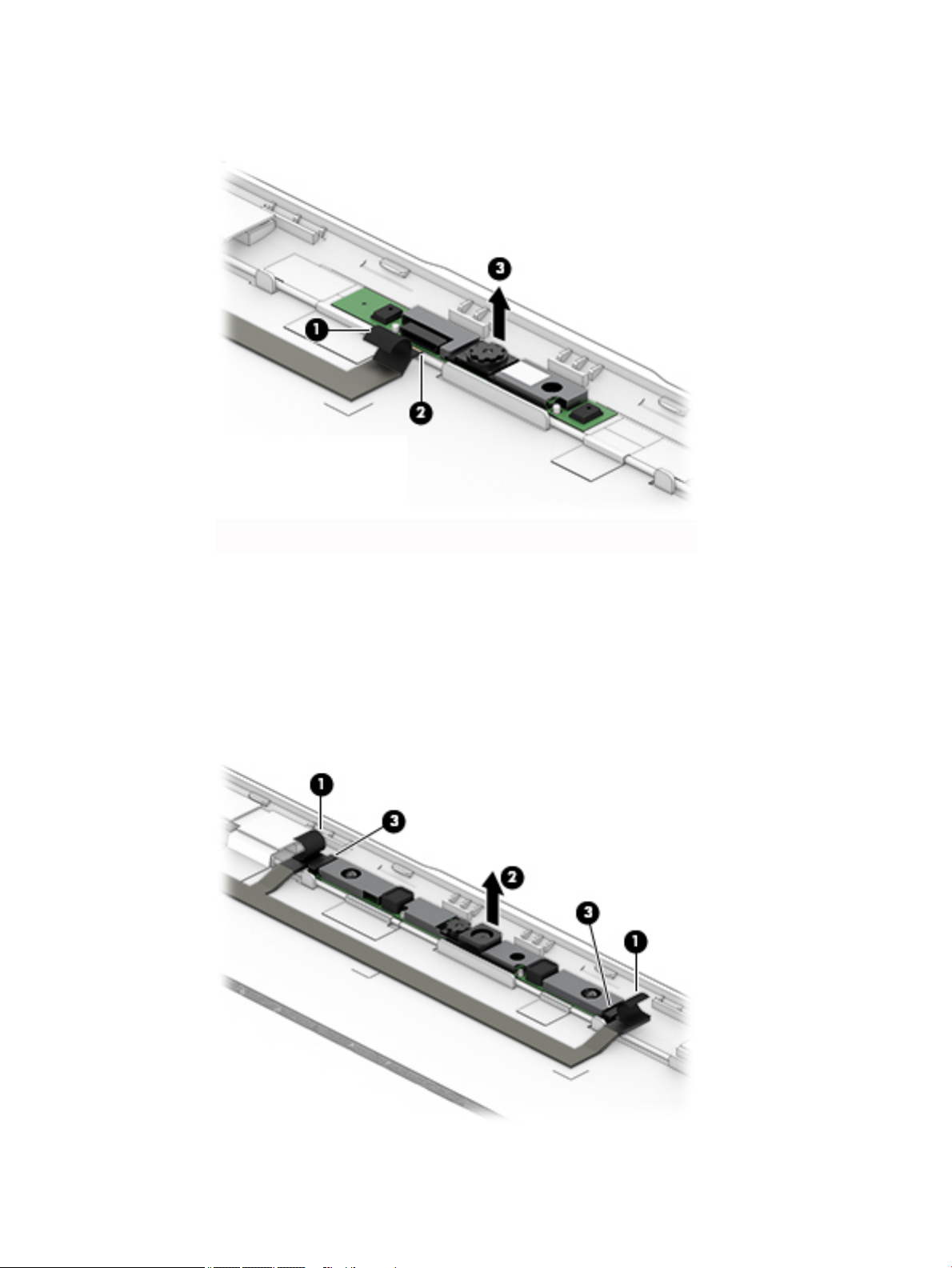

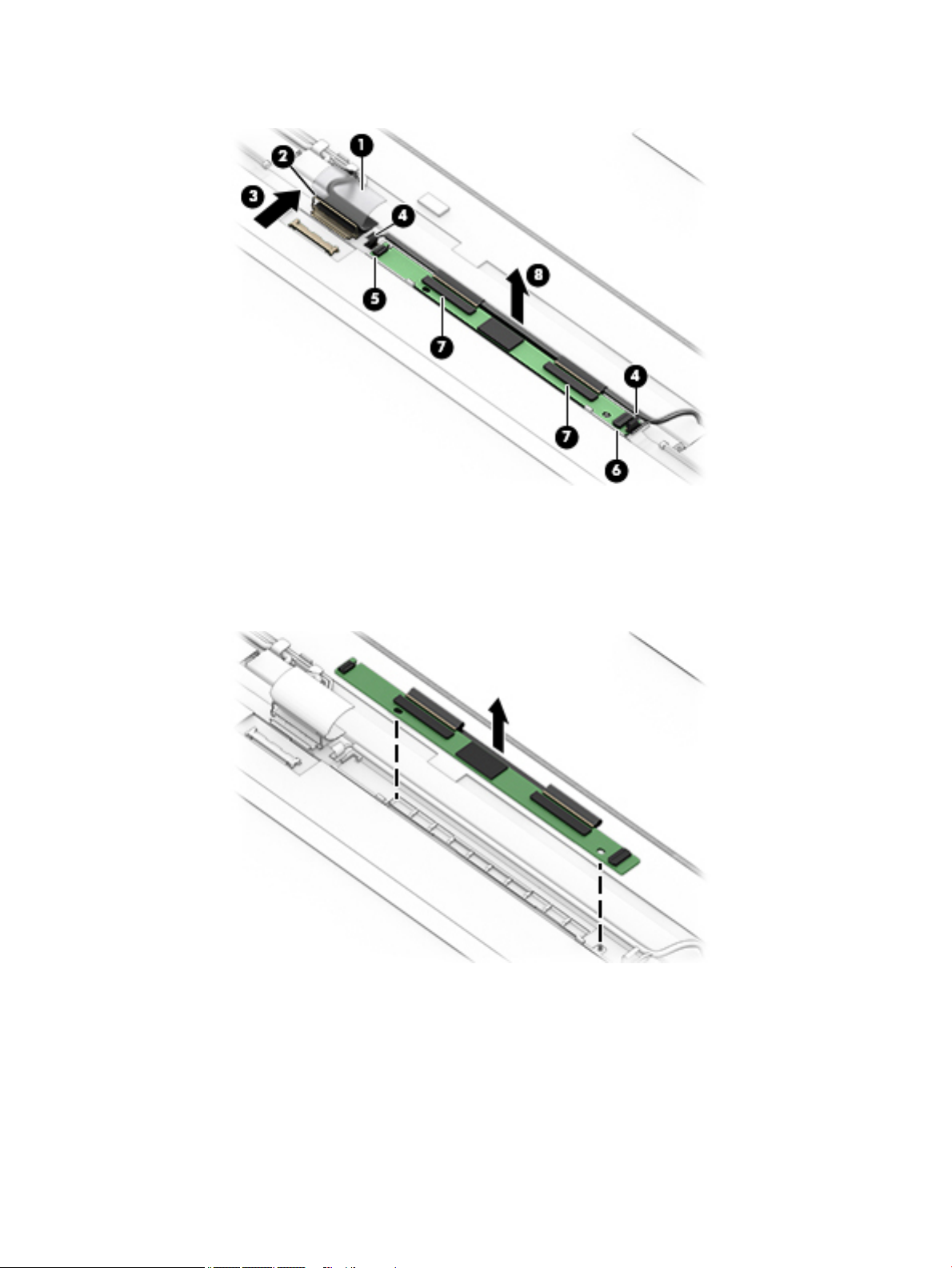

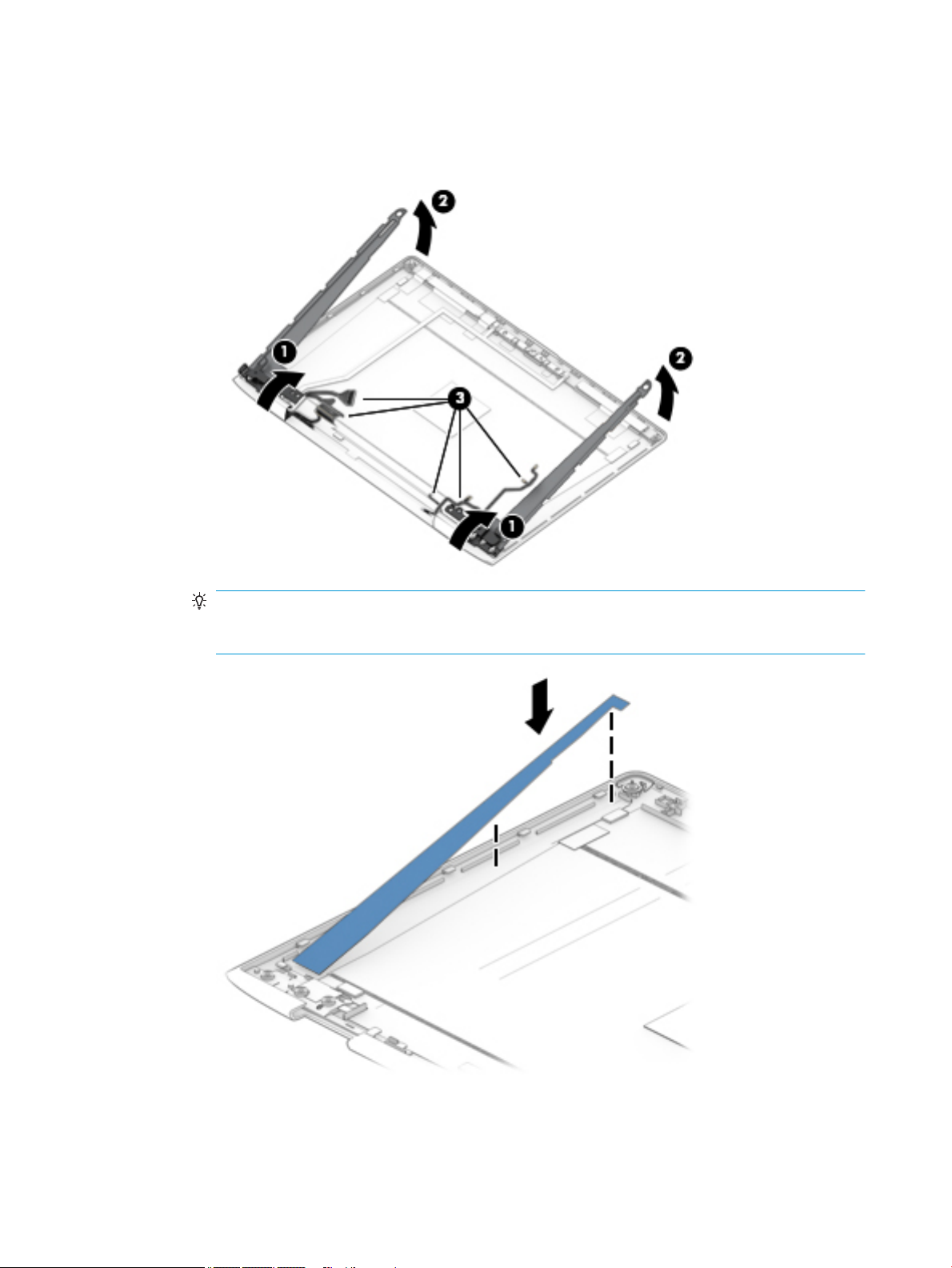

Display subcomponents (panel, cameras, touch control board) ...................................................... 43

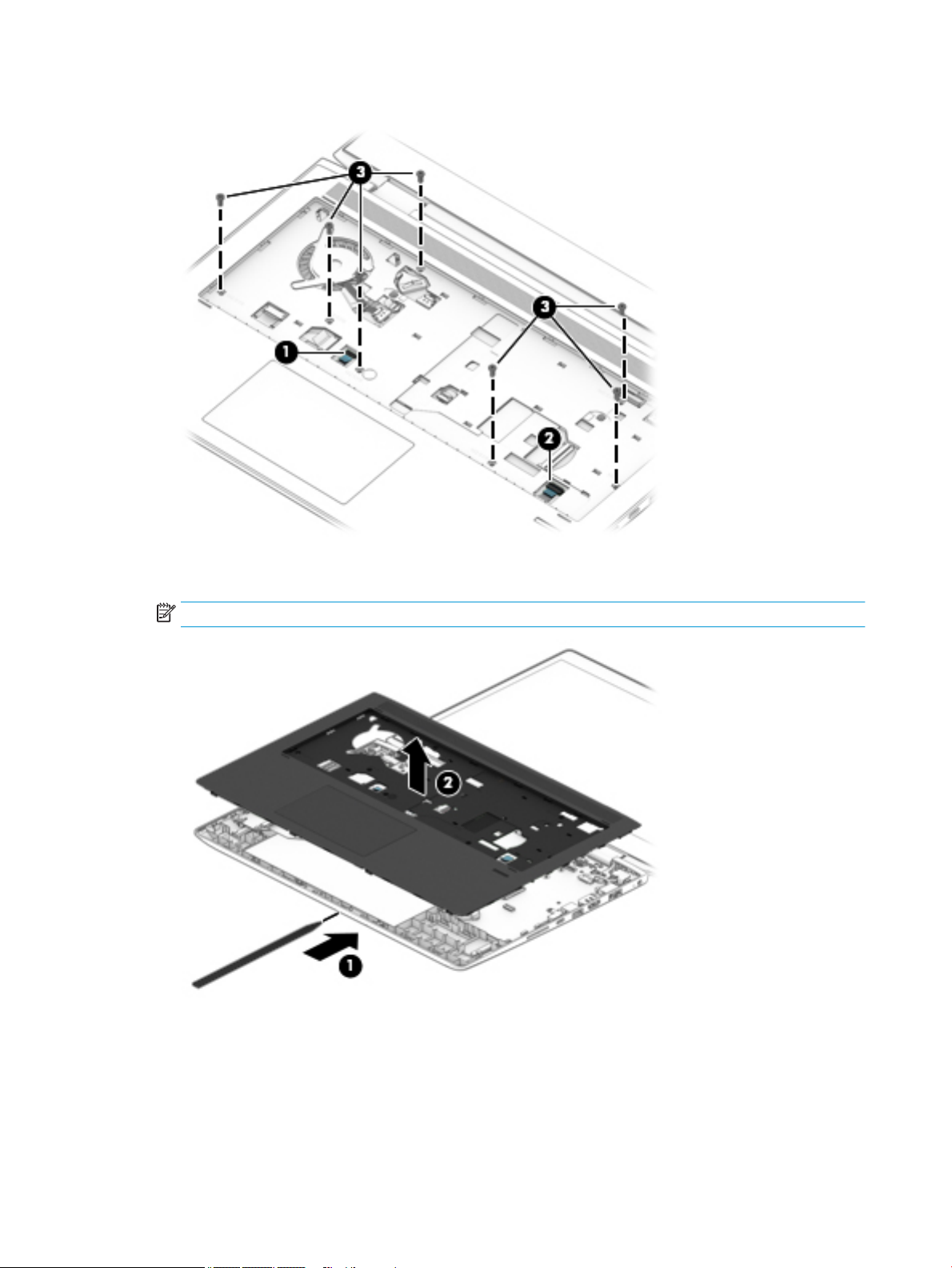

Top cover ........................................................................................................................................... 47

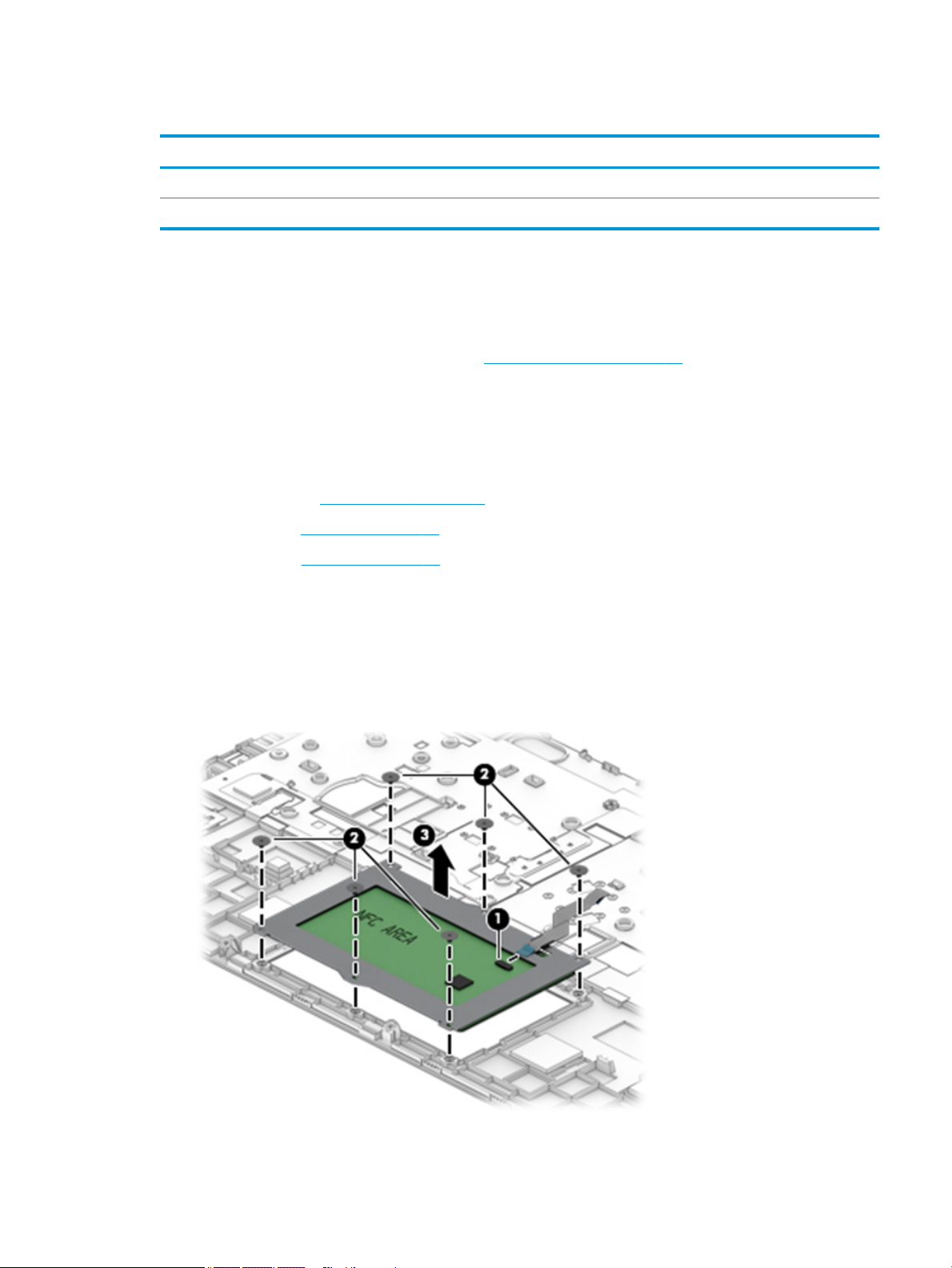

TouchPad assembly ........................................................................................................................... 49

Fingerprint reader assembly ............................................................................................................. 50

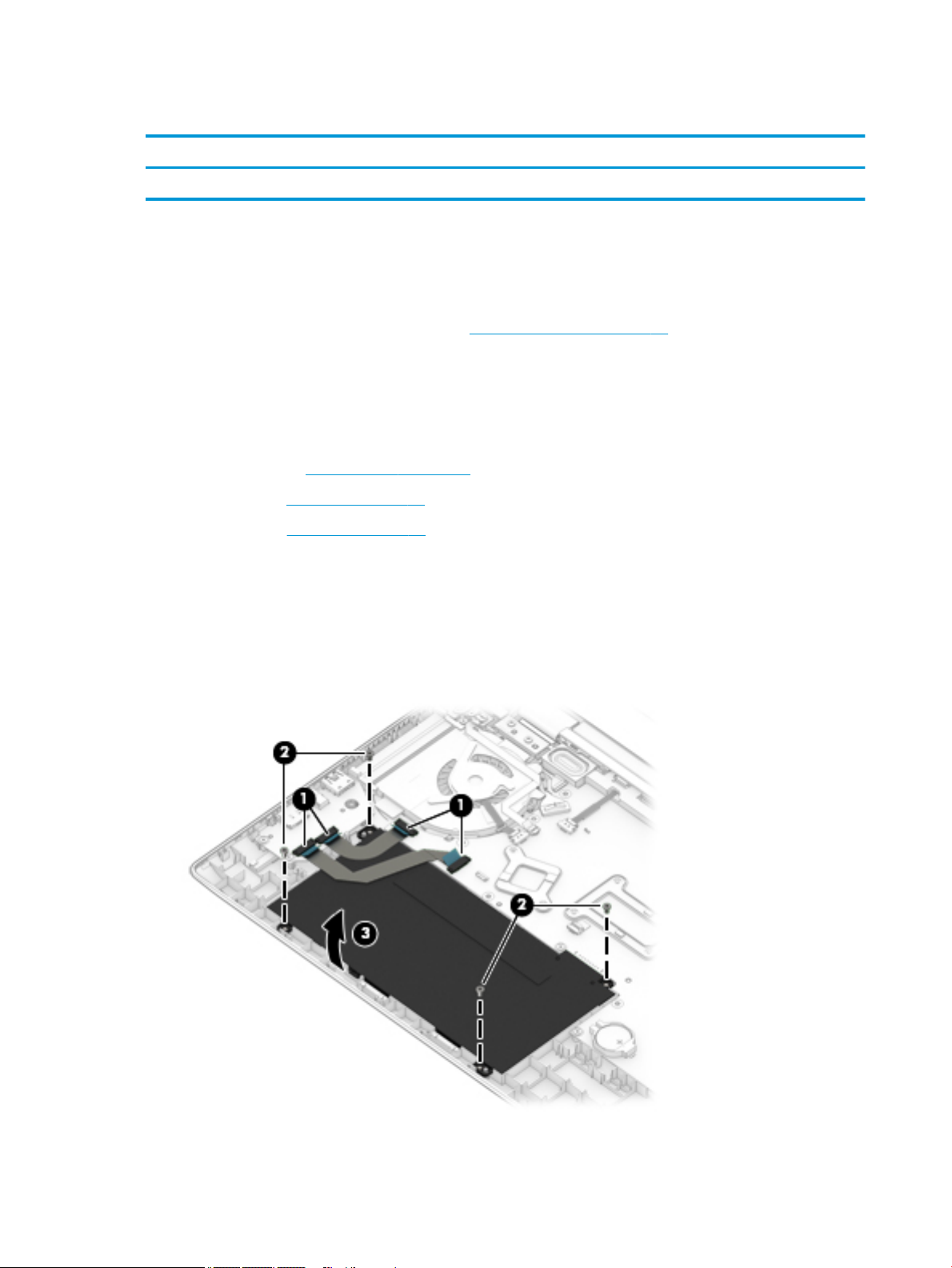

Battery ............................................................................................................................................... 52

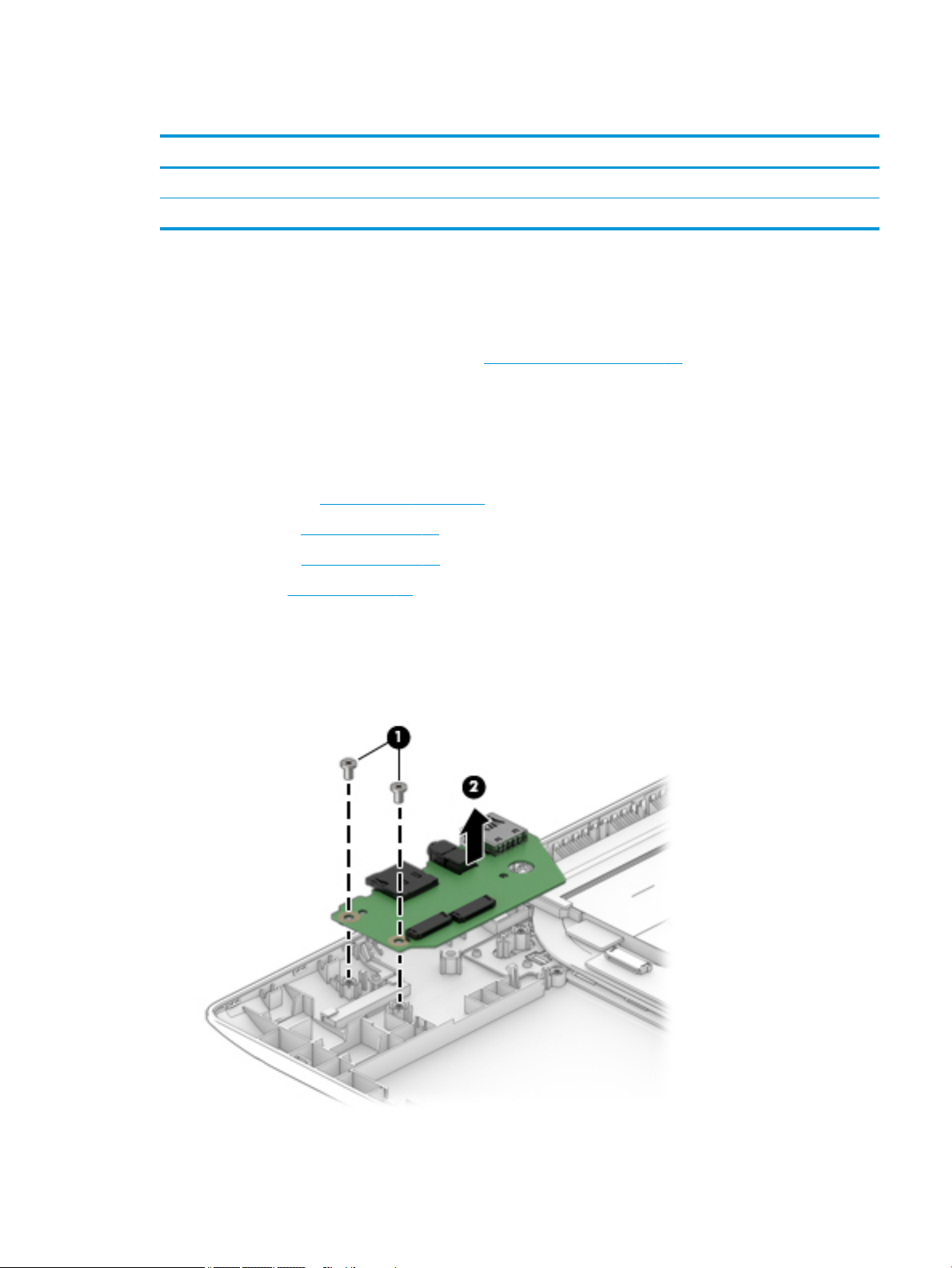

I/O board ............................................................................................................................................ 53

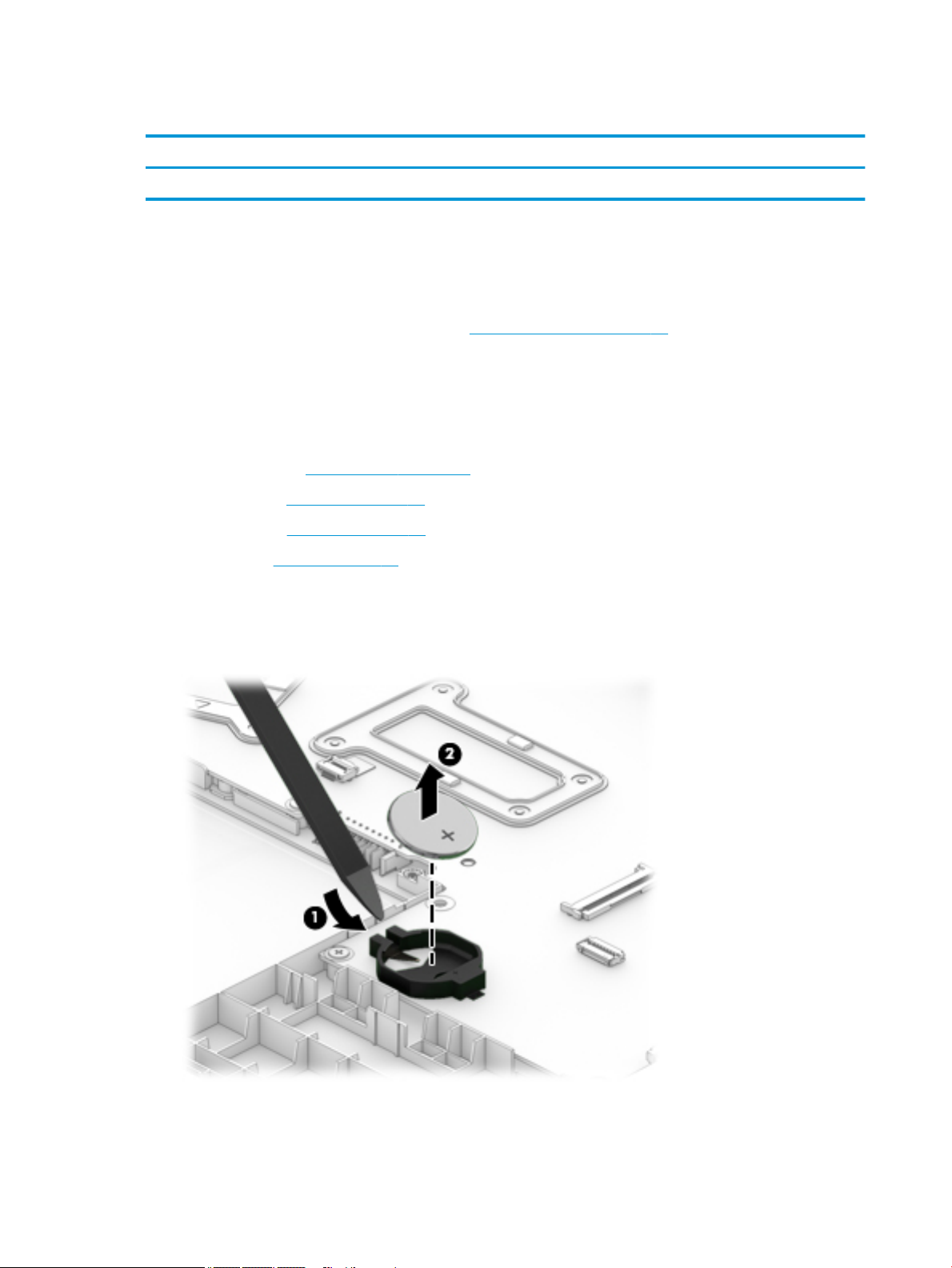

RTC battery ........................................................................................................................................ 54

System board .................................................................................................................................... 55

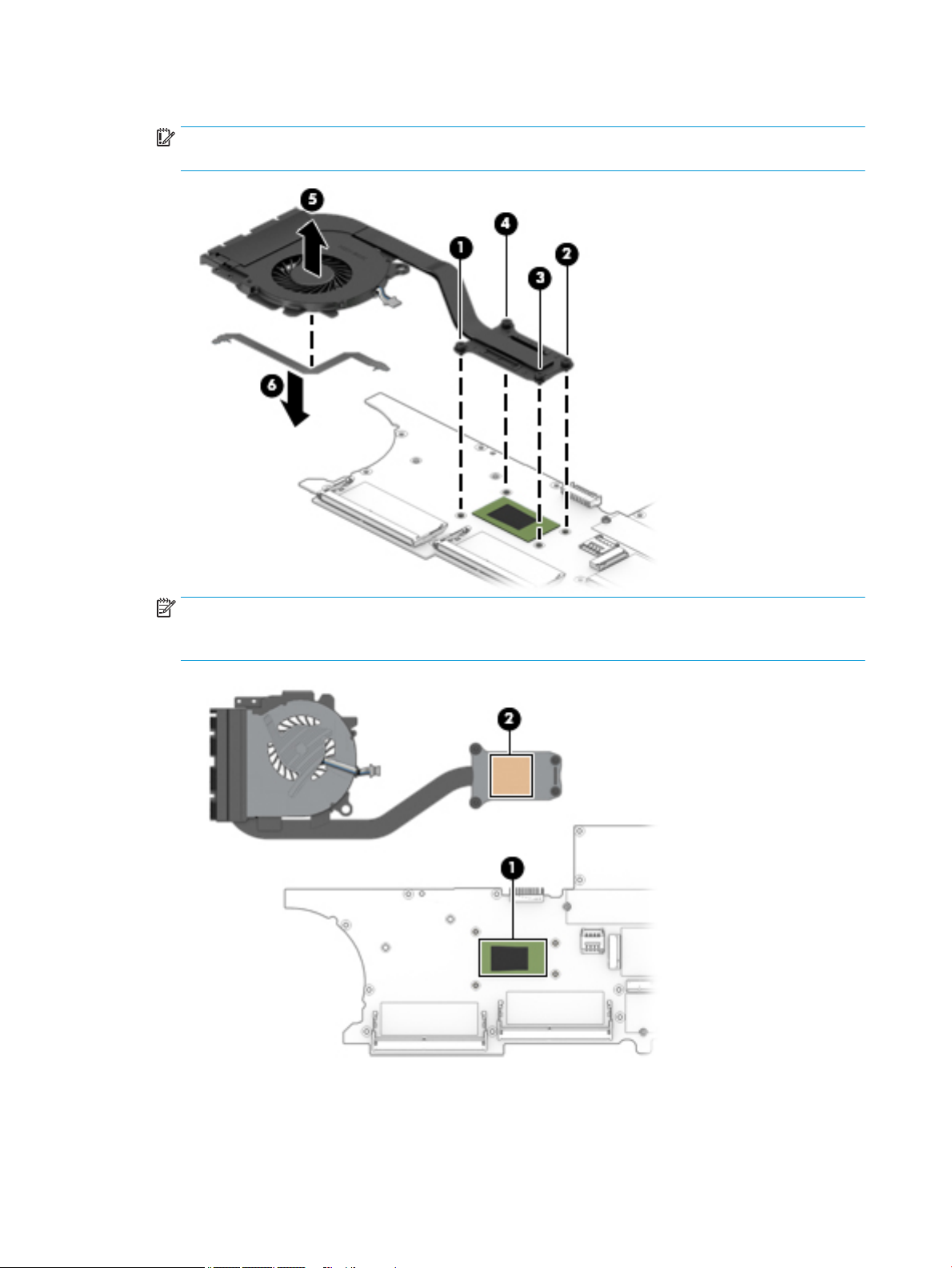

Fan/heat sink assembly .................................................................................................................... 58

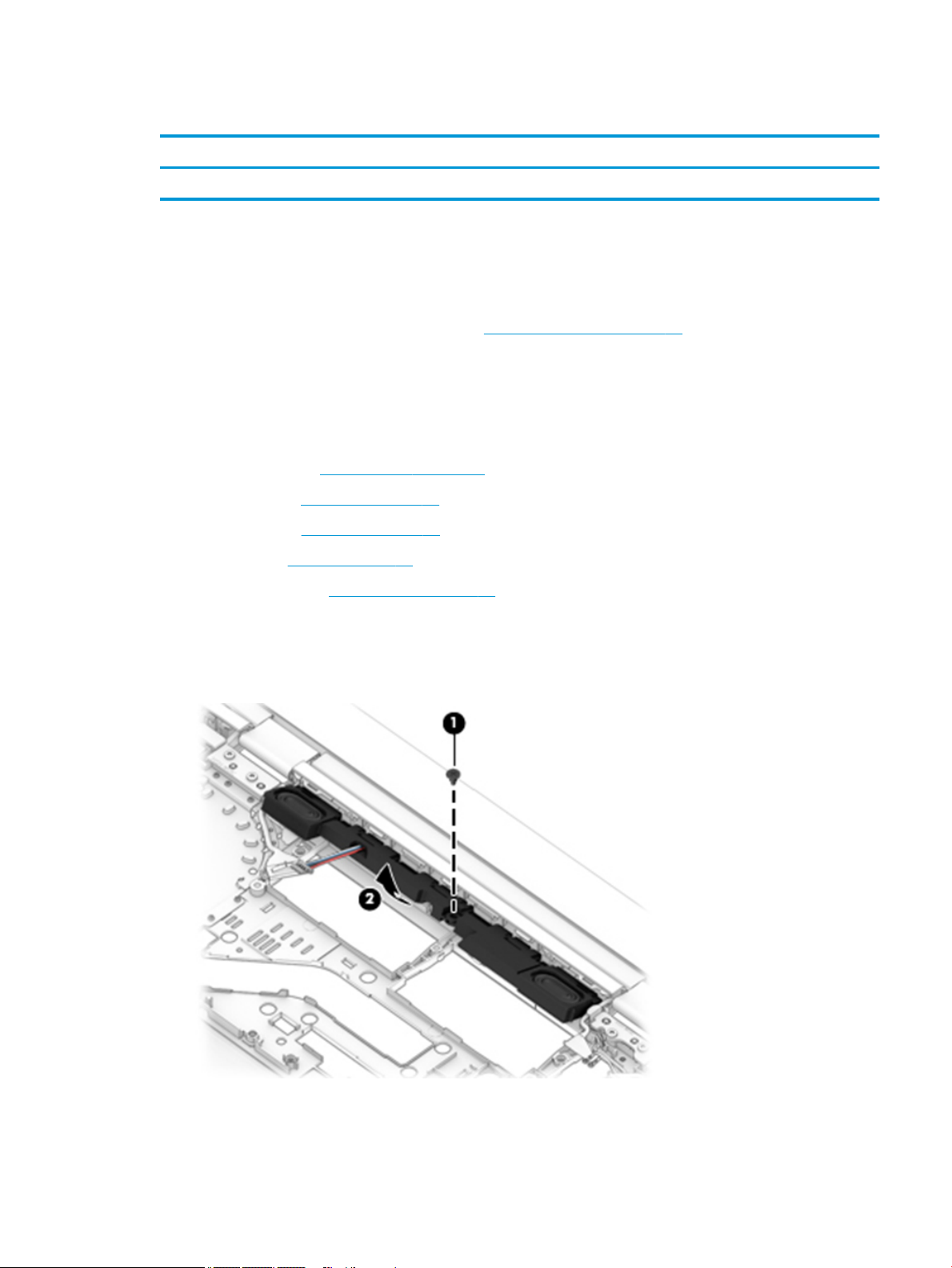

Speaker assembly ............................................................................................................................. 61

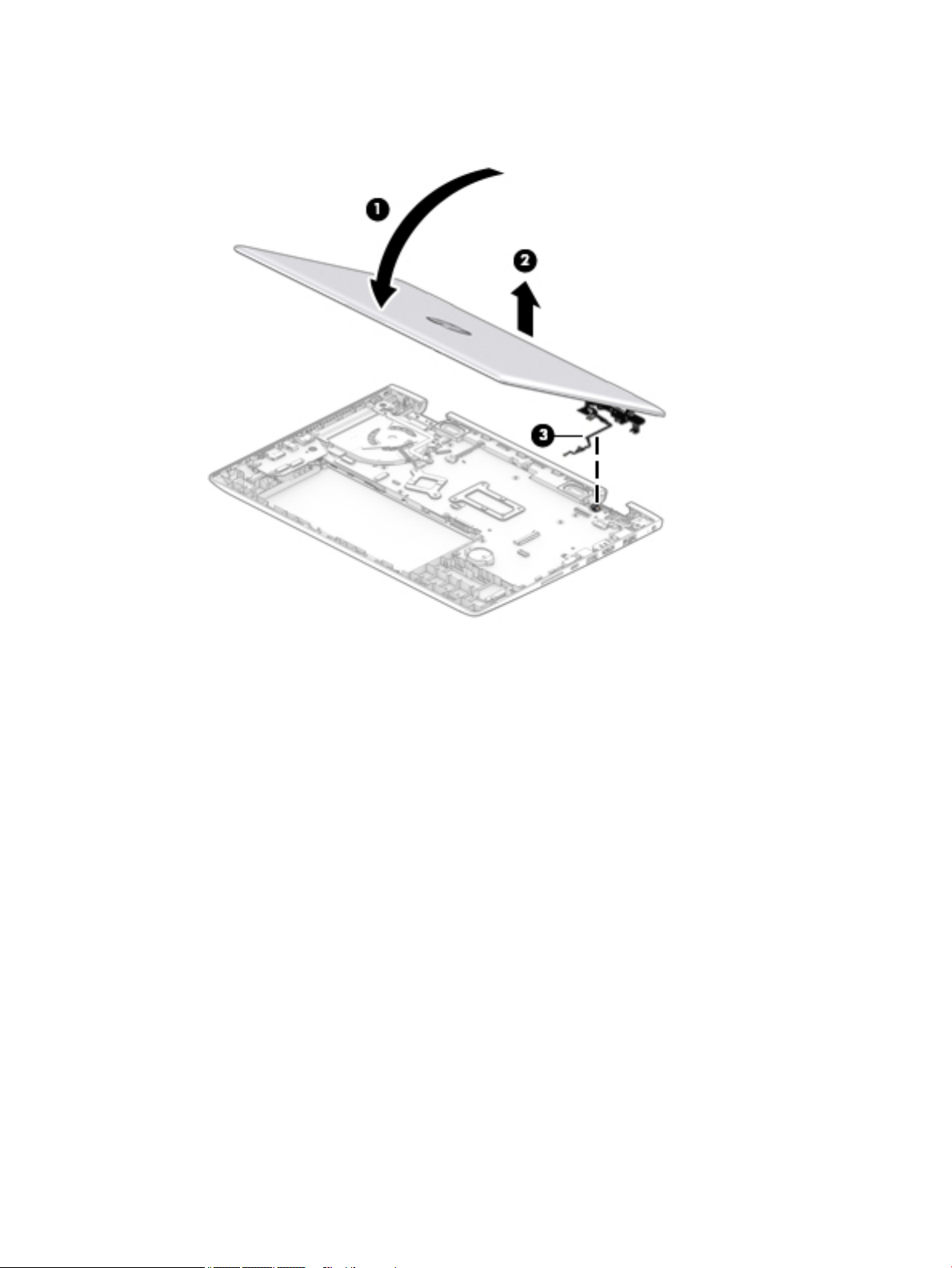

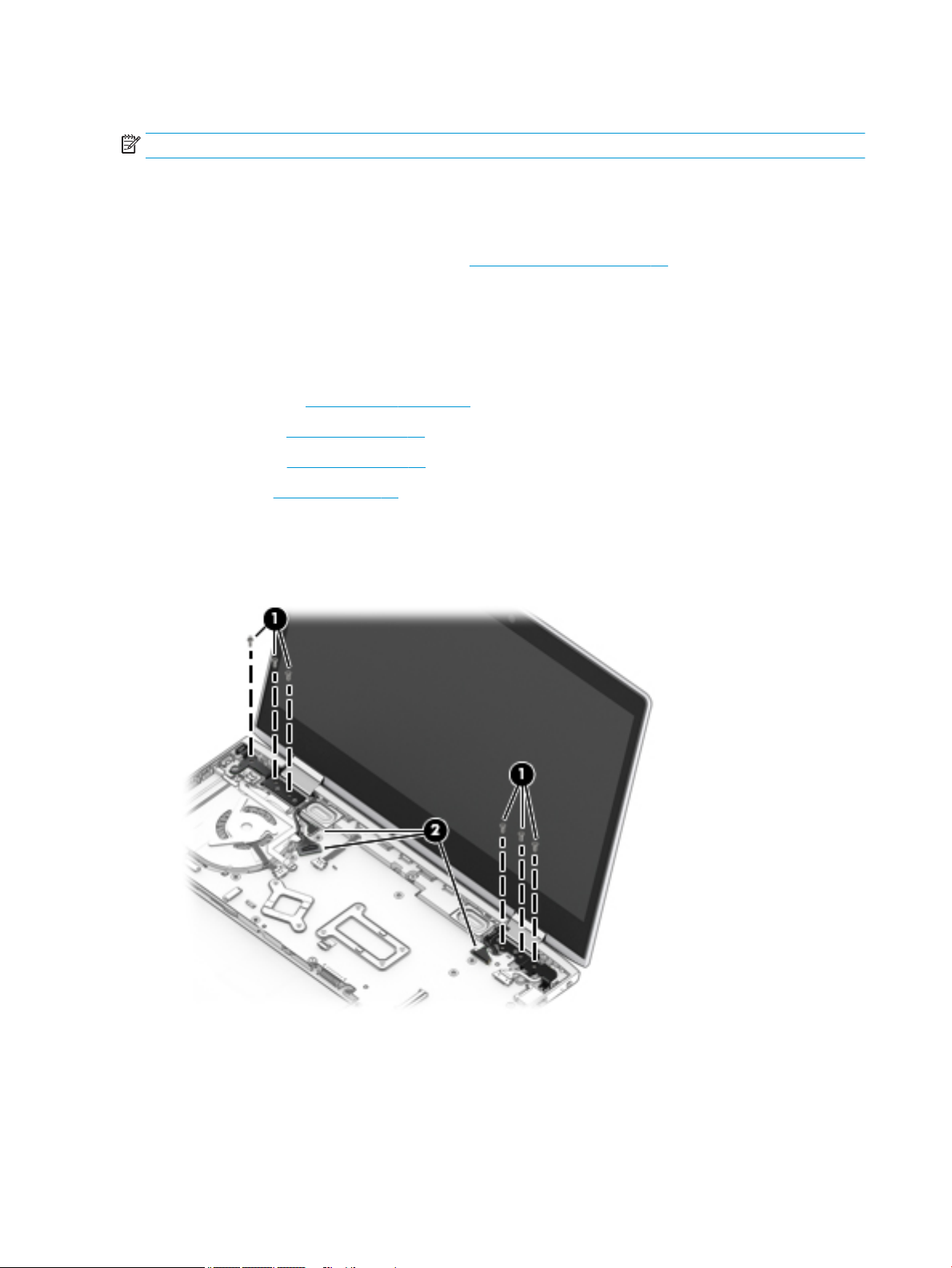

Display assembly ............................................................................................................................... 62

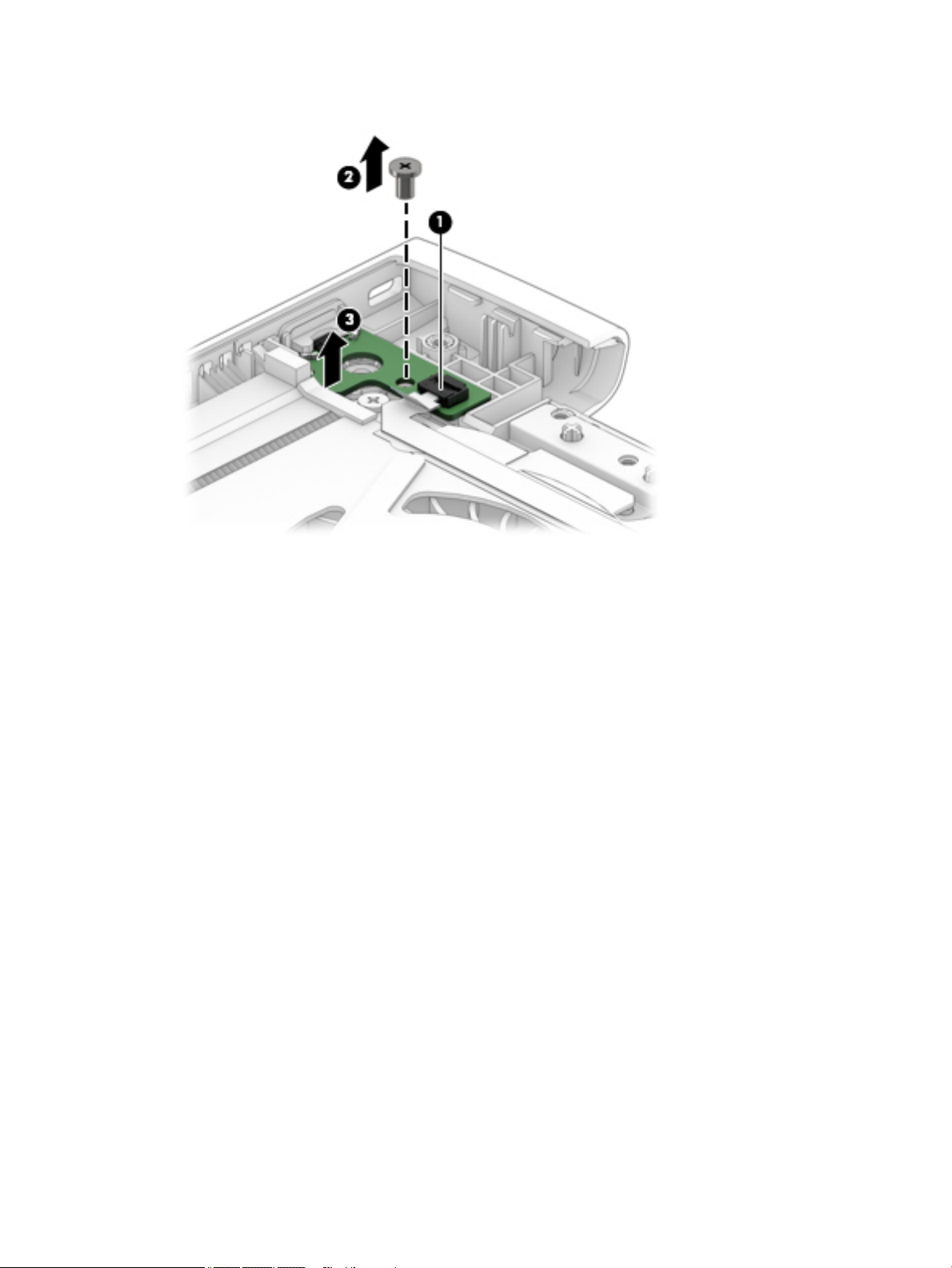

Power button board .......................................................................................................................... 77

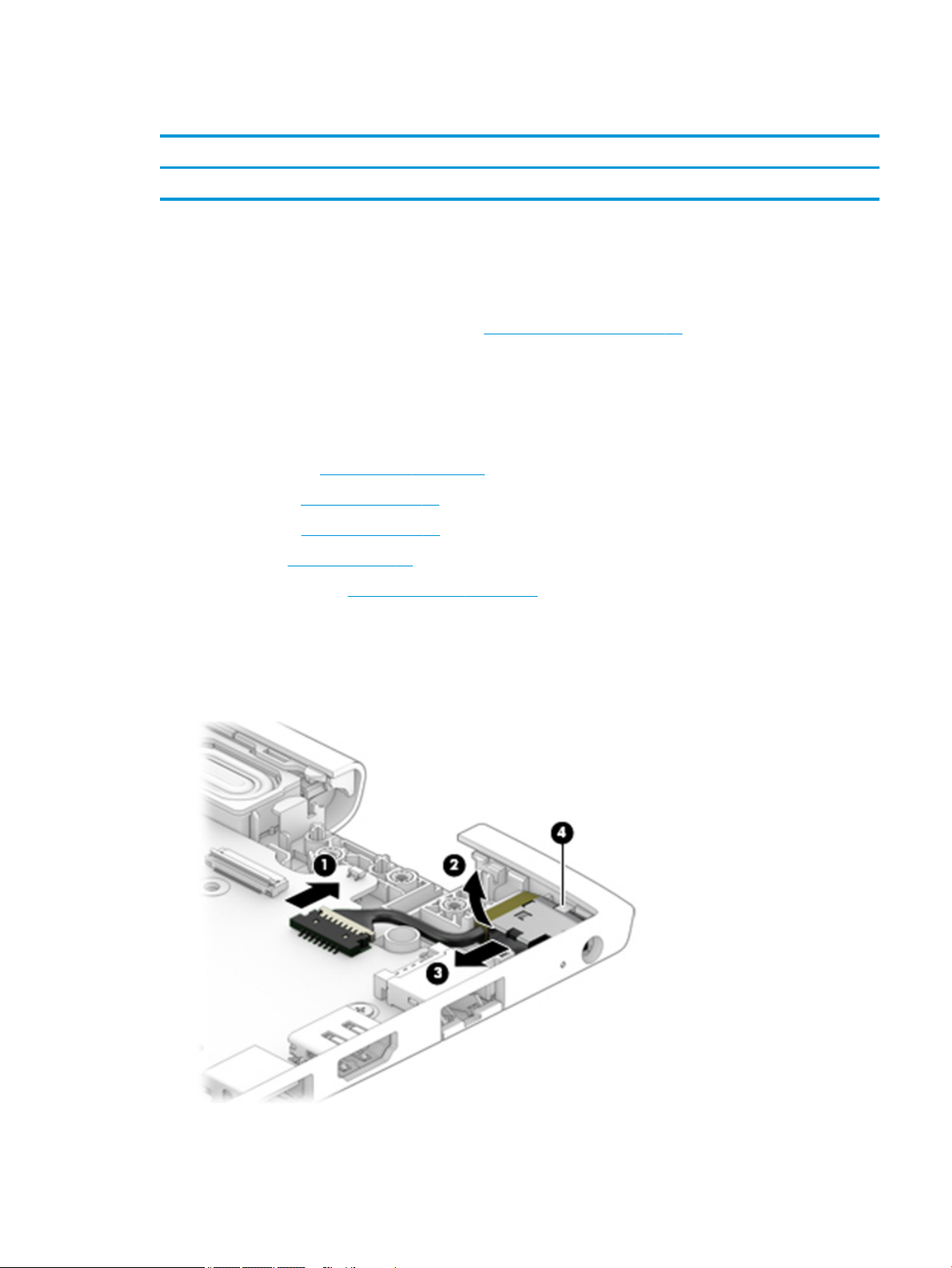

Power connector cable ...................................................................................................................... 79

7 Computer Setup (BIOS), TPM, and HP Sure Start ............................................................................................. 80

Using Computer Setup ......................................................................................................................................... 80

Starting Computer Setup .................................................................................................................. 80

Using a USB keyboard or USB mouse to start Computer Setup (BIOS) .......................... 80

Navigating and selecting in Computer Setup ................................................................................... 80

Restoring factory settings in Computer Setup ................................................................................. 81

Updating the BIOS ............................................................................................................................. 81

Determining the BIOS version ......................................................................................... 81

Downloading a BIOS update ........................................................................................... 82

Changing the boot order using the f9 prompt .................................................................................. 83

TPM BIOS settings (select products only) ........................................................................................................... 83

Using HP Sure Start (select products only) ......................................................................................................... 83

viii

8 Using HP PC Hardware Diagnostics ................................................................................................................ 84

Using HP PC Hardware Diagnostics Windows (select products only) ................................................................. 84

Downloading HP PC Hardware Diagnostics Windows ....................................................................... 84

Downloading the latest HP PC Hardware Diagnostics Windows version ....................... 85

Downloading HP Hardware Diagnostics Windows by product name or number

(select products only) ..................................................................................................... 85

Installing HP PC Hardware Diagnostics Windows ............................................................................. 85

Using HP PC Hardware Diagnostics UEFI ............................................................................................................. 85

Starting HP PC Hardware Diagnostics UEFI ....................................................................................... 86

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive .............................................. 86

Downloading the latest HP PC Hardware Diagnostics UEFI version .............................. 86

Downloading HP PC Hardware Diagnostics UEFI by product name or number

(select products only) ..................................................................................................... 86

Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) ............................................. 87

Downloading Remote HP PC Hardware Diagnostics UEFI ................................................................. 87

Downloading the latest Remote HP PC Hardware Diagnostics UEFI version ................. 87

Downloading Remote HP PC Hardware Diagnostics UEFI by product name or

number ............................................................................................................................ 87

Customizing Remote HP PC Hardware Diagnostics UEFI settings .................................................... 87

9 Backing up, restoring, and recovering ........................................................................................................... 89

Using Windows tools ........................................................................................................................................... 89

Creating HP Recovery media (select products only) ........................................................................................... 89

Using HP Recovery Manager to create recovery media .................................................................... 90

Before you begin ............................................................................................................. 90

Creating the recovery media ........................................................................................... 90

Using the HP Cloud Recovery Download Tool to create recovery media .......................................... 91

Restoring and recovery ........................................................................................................................................ 91

Restoring, resetting, and refreshing using Windows tools .............................................................. 91

Restoring using HP Recovery Manager and the HP Recovery partition ........................................... 91

Recovering using HP Recovery Manager ........................................................................................... 91

Recovering using the HP Recovery partition (select products only) ................................................ 92

Recovering using HP Recovery media ............................................................................................... 92

Changing the computer boot order ................................................................................................... 93

Removing the HP Recovery partition (select products only) ............................................................ 93

10 Specications ............................................................................................................................................ 94

Computer specications ...................................................................................................................................... 94

35.6-cm (14.0-in) display specications ............................................................................................................. 95

Solid-state drive specications ........................................................................................................................... 96

ix

11 Statement of memory volatility .................................................................................................................. 97

Nonvolatile memory usage ................................................................................................................................. 99

Questions and answers ..................................................................................................................................... 101

Using HP Sure Start (select models only) .......................................................................................................... 102

12 Power cord set requirements .................................................................................................................... 103

Requirements for all countries and regions ...................................................................................................... 103

Requirements for specic countries and regions ............................................................................................. 103

13 Recycling ................................................................................................................................................ 105

Index ........................................................................................................................................................... 106

x

1 Product description

Category Description

Product Name HP ProBook x360 440 G1 Notebook PC

Processors 8th generation, Intel® Core™ i7 processor, quad core (8-MB L3 cache, 15 W)

i7-8550U, 1.8 GHz/4.0 GHz; Intel UHD Graphics 620

8th generation, Intel Core i5 processors, quad core (6-MB L3 cache, 15 W)

i5-8350U, 1.7 GHz/3.6 GHz; Intel UHD Graphics 620

i5-8250U, 1.6 GHz/3.4 GHz; Intel UHD Graphics 620

7th generation, Intel Core i5 processors, dual core (3-MB L3 cache, 15 W)

i5-7200U, 2.5-GHz/3.1-GHz; Intel HD Graphics 620

8th generation, Intel Core i3 processor, dual core (4-MB L3 cache, 15 W)

i3-8130U, 2.2-GHz.3.4-GHz; Intel HD Graphics 620

Intel Pentium dual core processor (2-MB L3 cache, 15 W)

4415U, 2.3-GHz; Intel HD Graphics

Intel Celeron dual core processor (2-MB L3 cache, 15 W)

3865U, 1.8-GHz; Intel HD Graphics

Graphics Supports HD decode, DX12, HDMI 1.4b, HDCP 2.2 via HDMI up to 4K@30Hz, DP support 4K@60Hz on 7th/8th

Generation Celeron, i3, i5, and i7 processors

Integrated UMA Graphics GT1 and GT2

Integrated with shared video memory; dynamically allocated

Switchable discrete graphics

NVIDIA® GeForce® MX130 - 2-GB GDDR5

Supports CUDA, Optimus, PhysX, GPU Boost 2.0

Touch module/pen
output

Panel 35.6 cm (14.0-inch), UWVA, FHD (1920×1080), eDP, IPS, slim (3.0 mm), touch

Wacom AES Pen with Pen Loop (select models only)

HD camera, 220 nits, 45% CG

IR camera, 220 nits, 45% CG

HD camera with WWAN, 220 nits, 45% CG

IR camera with WWAN, 220 nits, 45% CG

IR camera with WWAN, eDP+PSR, 400 nits, 72% CG

Memory Two customer-accessible memory module slots supporting up to 32 GB of RAM

Supports dual-channel memory

1

Category Description

PC4, 2133-MHz, DDR4 SODIMMs (models with 8th generation Intel Core processors run at 2400 MHz)

Supports the following congurations:

● 32768 MB (16384 × 2; dual channel)

● 16384 MB (16384 × 1)

● 16384 MB (8192 × 2; dual channel)

● 12288 MB (8192 + 4096; dual channel)

● 8192 MB (8192 × 1)

● 8192 MB (4096 × 2; dual channel)

● 4096 MB (4096 × 1)

Primary M.2
storage

Audio/Visual Audio controls

Ethernet Realtek RTL8111HSH-CG 10/100/1000

Wireless Integrated WLAN options by way of wireless module (select models only)

M.2 2280 SSD (NGFF)

● 512 GB, PCIe, NVMe, TLC (not available with Celeron)

● 256 GB, PCIe, NVMe, value (not available with Celeron)

● 256 GB, SATA, TLC

● 128 GB, SATA, TLC

Integrated dual-array microphone

Integrated camera (720p HD) (supports Wide Dynamic Range [WDR])

IR camera (720p HD) (supports WDR)

Stereo speakers (2)

Headphone/microphone combo jack

S3/S4/S5 wake on LAN (AC mode and battery mode)

The following support S3/S4/S5 wake on LAN: embedded NIC

The following support S3/S4/S5 wake on LAN/HBMA (via out of band): HP Elite USB-C Dock G3, HP USB-C Dock
G4, HP USB-C Universal Dock, HP Thunderbolt Dock 120W G2, and HP USB-C Mini Dock

Support WiFi SAR (enabled in BIOS)

Supports HP Connection Optimizer with wi- load balancing

Supports the following wireless adapters via minicard connector:

● Realtek RTL8822BE 802.11AC 2x2 Wi-Fi + Bluetooth 4.2 Combination Adapter

● Intel Dual Band Wireless-AC 8265, 802.11ac, 2×2 Wi-Fi + Bluetooth 4.2 Combination Adapter (non-vPro)

Wireless Personal Area Network (PAN) Bluetooth

Bluetooth 4.2 supported using combo card

Integrated WWAN options by way of wireless module (select models only)

2 Chapter 1 Product description

Category Description

SIM module: Micro SIM/3FF (user accessible under service door)

WWAN cards are compatible with a programmable removable eSIM

Integrated WWAN options with dual antennas (M.2 30×42 socket USB2):

● Huawei HP It4132, LTE/HSPA+ w/GPS M.2

● Fibocom CAT9: Intel XMM™ 7360 LTE-Advanced

External media
card

Ports (Input/
output)

Docking Docking via USB Type-C

Keyboard/pointing
devices

Digital Media Reader Slot

Supports SDXC

USB 3.0 + powered port (left)

USB 3.0 port (right)

USB Type-C (PD+DP, USB 3.1 Gen 1, right)

HDMI 1.4b (right)

Headphone/microphone combo jack (left)

RJ-45 (Ethernet, right)

Multi-pin AC port (right)

Keyboard

HP Premium Keyboard

TouchPad

Full-sized, chiclet, spill-resistant keyboard (backlit or not backlit)

TouchPad requirements

Taps enabled by default

Power
requirements

On/o control by driver

Supports PTP with Miniport driver

Windows 10 gestures enabled by default: 2-nger scrolling and zoom enabled by default, OSD (enable/disable),
3-nger tap - Cortana, 3- nger ick - App switch, 4-nger tap - Action Center

Windows 10 gestures disabled by default: 3 nger ick, 2 nger rotate, momentum motion, 1 nger vertical
scroll

Battery

3-cell prismatic, 48-Wh, long-life, Li-ion battery

Supports HP Fast Charge technology: 90% in 90 minutes under S3/S4/S5

AC adapters

65-W Smart AC adapter, right angle, 4.5 mm (discrete only)

65-W Smart AC adapter, right angle, 4.5 mm – EM (discrete only)

65-W, straight AC adapter, USB Type-C

45-W Smart AC adapter, right angle, 4.5 mm (UMA only)

3

Category Description

45-W Smart AC adapter, right angle, 4.5 mm (UMA only) – Argentina

45-W, straight AC adapter, USB Type-C

Power cords

3-wire plug, 1.8 m

3-wire plug, 1.0 m

Duckhead power cord (C5NS), 1.8 m, premium (only available with USB Type-C AC adapters)

Duckhead power cord (C5NS), 1.0 m, premium (only available with USB Type-C AC adapters)

Duckhead power cord (C5NS)

Security Kensington Universal Security Slot - Micro Saver

Integrated ngerprint reader (select models only)

TPM 2.0 SLB9670 (Inneon; soldered down)

Hardware enforced rmware protection: HP Hardware Root of Trust

ANSSI Certied Hardware Root of Trust: Yes

Operating system Operating system version

Windows 10

Preinstalled

Windows 10 Home 64

Windows 10 Home 64 – Plus

Windows 10 Home 64 Single Language

Windows 10 Home 64 Single Language – Plus

Windows 10 Home 64 Chinese Market - CPPP

Windows 10 Home 64 High-end Chinese Market - CPPP

Windows 10 Home 64 StF MSNA for Higher Education

Windows 10 Home 64 StF MSNA for Higher Education - Strategic

Windows 10 Professional 64

Windows 10 Professional StF MSNA

Windows 10 Professional StF MSNA EM

Windows 10 Professional 64 StF MSNA - Standard

Windows 10 Professional 64 StF MSNA - Plus

Windows 10 Professional StF MSNA - Strategic

FreeDOS 2.0

Restore Media (DRDVD/SRDVD)

DRDVD Windows 10

Restore Media (OSDVD)

4 Chapter 1 Product description

Category Description

Windows 10 Professional 64

Certied

Microsoft WHQL

Web-only support

Windows 10 Enterprise

Windows 10 Enterprise 64 LTSB 1607

Serviceability End-user replaceable parts

AC adapter

M.2 solid-state drive

Memory module

WLAN module

WWAN module

WWAN SIM card

Keyboard

5

2 Components

Your computer features top-rated components. This chapter provides details about your components, where
they're located, and how they work.

Right

Component Description

(1) Volume button Controls speaker volume on the computer.

(2) USB Type-C SuperSpeed port

and DisplayPort

(3) USB SuperSpeed port Connects a USB device, such as a cell phone, camera, activity tracker, or

(4) HDMI port Connects an optional video or audio device, such as a high-denition television,

(5) RJ-45 (network) jack/status

lights

(6) Battery light When AC power is connected:

When the computer is on, connects and charges most USB devices that have a
Type-C connector, such as a cell phone, camera, activity tracker, or smartwatch,
and provides high-speed data transfer.

NOTE: Cables and/or adapters (purchased separately) may be required.

– and –

Connects a DisplayPort device that has a USB Type-C connector, providing
display output.

smartwatch, and provides high-speed data transfer.

any compatible digital or audio component, or a high-speed High Denition
Multimedia Interface (HDMI) device.

Connects a network cable.

● Green (right): The network is connected.

● Amber (left): Activity is occurring on the network.

● White: The battery charge is greater than 90 percent.

● Amber: The battery charge is from 0 to 90 percent.

6 Chapter 2 Components

● O: The battery is not charging.

When AC power is disconnected (battery not charging):

Left

Component Description

● Blinking amber: The battery has reached a low battery level. When the

battery has reached a critical battery level, the battery light begins
blinking rapidly.

● O: The battery is not charging.

(7) Power connector Connects an AC adapter.

Component Description

(1) Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a deterrent, but it may not

prevent the computer from being mishandled or stolen.

(2) Power button ● When the computer is o, press the button to turn on the computer.

● When the computer is on, press the button briey to initiate Sleep.

● When the computer is in the Sleep state, press the button briey to exit

Sleep.

● When the computer is in Hibernation, press the button briey to exit

Hibernation.

CAUTION: Pressing and holding down the power button results in the loss of

unsaved information.

If the computer has stopped responding and shutdown procedures are
ineective, press and hold the power button for at least 5 seconds to turn o
the computer.

To learn more about your power settings, see your power options.

▲ Right-click the Power meter icon and then select Power Options.

(3) Vent Enables airow to cool internal components.

NOTE: The computer fan starts up automatically to cool internal components

and prevent overheating. It is normal for the internal fan to cycle on and o
during routine operation.

Left 7

Component Description

(4) USB SuperSpeed powered port Connects and supplies power to a USB device, such as a cell phone, camera,

activity tracker, optical drive, or smartwatch, and provides high-speed data
transfer.

(5) Audio-out (headphone)/Audio-in

(microphone) combo jack

(6) MicroSD memory card reader Reads optional memory cards that store, manage, share, or access information.

(7) Drive light ● Blinking white: The hard drive is being accessed.

Connects optional powered stereo speakers, headphones, earbuds, a headset,
or a television audio cable. Also connects an optional headset microphone. This
jack does not support optional standalone microphones.

WARNING! To reduce the risk of personal injury, adjust the volume before

putting on headphones, earbuds, or a headset. For additional safety
information, refer to the Regulatory, Safety, and Environmental Notices.

To access this guide:

▲ Select the Start button, select HP Help and Support, and then select HP

Documentation.

‒ or –

▲ Select the Start button, select HP, and then select HP Documentation.

NOTE: When a device is connected to the jack, the computer speakers are

disabled.

To insert a card:

1. Hold the card label-side up, with the connectors facing the computer.

2. Insert the card into the memory card reader, and then press in on the card

until it is rmly seated.

To remove a card:

▲ Press in on the card, and then remove it from the memory card reader.

● Amber: HP 3D DriveGuard has temporarily parked the hard drive.

8 Chapter 2 Components

Display

Component Description

(1) WLAN antennas* (select products only) Send and receive wireless signals to communicate with wireless local

area networks (WLANs).

(2) WWAN antennas* (select products only) Send and receive wireless signals to communicate with wireless wide

area networks (WWANs).

(3) Camera(s) Allow(s) you to video chat, record video, and record still images.

Some cameras also allow a facial recognition logon to Windows,
instead of a password logon.

NOTE: Camera functions vary depending on the camera hardware

and software installed on your product.

(4) Internal microphones Record sound.

(5) Camera light On: The camera(s) are in use.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the
antennas free from obstructions.

For wireless regulatory notices, see the section of the Regulatory, Safety, and Environmental Notices that applies to your country or
region.

To access this guide:

▲ Select the Start button, select HP Help and Support, and then select HP Documentation.

‒ or –

▲ Select the Start button, select HP, and then select HP Documentation.

Display 9

Keyboard area

TouchPad

Component Description

(1) TouchPad zone Reads your nger gestures to move the pointer or activate

items on the screen.

(2) Left control zone Textured area that allows you to perform additional gestures.

(3) Right control zone Textured area that allows you to perform additional gestures.

10 Chapter 2 Components

Lights

Component Description

(1) Caps lock light On: Caps lock is on, which switches the key input to all capital

letters.

(2) Fn lock light On: The fn key is locked.

(3) Mute light ● On: Computer sound is o.

● O: Computer sound is on.

(4) Microphone mute light ● On: Microphone is o.

● O: Microphone is on.

(5) Num lk light On: Num lock is on.

(6) Wireless light On: An integrated wireless device, such as a wireless local area

network (WLAN) device and/or a Bluetooth® device, is on.

NOTE: On some models, the wireless light is amber when all

wireless devices are o.

Keyboard area 11

Speakers and ngerprint reader

Component Description

(1) Speakers (2) Produce sound.

(2) Fingerprint reader (select products only) Allows a ngerprint logon to Windows, instead of a password

logon.

12 Chapter 2 Components

Special keys

Component Description

(1) esc key Displays system information when pressed in combination with

(2) fn key Executes frequently used system functions when pressed in

the fn key.

combination with another key. Such key combinations are called
hot keys.

(3) Windows key Opens the Start menu.

NOTE: Pressing the Windows key again will close the Start

menu.

(4) Action keys Execute frequently used system functions.

See Action keys on page 14.

(5) Embedded numeric keypad A numeric keypad superimposed over the keyboard alphabet

keys. When num lk is pressed, the keypad can be used like an
external numeric keypad. Each key on the keypad performs the
function indicated by the icon in the upper-right corner of the
key.

NOTE: If the keypad function is active when the computer is

turned o, that function is reinstated when the computer is
turned back on.

(6) Windows application key Displays options for a selected object.

Keyboard area 13

Action keys

An action key performs the function indicated by the icon on the key. To determine which keys are on your
product, see Special keys on page 13.

▲ To use an action key, press and hold the key.

Icon Description

Switches the screen image among display devices connected to the system. For example, if a monitor is
connected to the computer, repeatedly pressing the key alternates the screen image from computer display
to monitor display to simultaneous display on both the computer and the monitor.

Decreases the screen brightness incrementally as long as you hold down the key.

Increases the screen brightness incrementally as long as you hold down the key.

Mutes or restores speaker sound.

Decreases speaker volume incrementally while you hold down the key.

Increases speaker volume incrementally while you hold down the key.

Mutes the microphone.

Turns the keyboard backlight o or on.

NOTE: To conserve battery power, turn o this feature.

Turns the embedded numeric keypad on and o.

Turns the wireless feature on or o.

NOTE: A wireless network must be set up before a wireless connection is possible.

Initiates Sleep, which saves your information in system memory. The display and other system components
turn o and power is conserved. To exit Sleep, briey press the power button.

CAUTION: To reduce the risk of information loss, save your work before initiating Sleep.

NOTE: The action key feature is enabled at the factory. You can disable this feature by pressing and holding

the fn key and the left shift key. The fn lock light will turn on. After you have disabled the action key feature,
you can still perform each function by pressing the fn key in combination with the appropriate action key.

14 Chapter 2 Components

Bottom

Component Description

(1) Service door release latch Releases the service door.

(2) Vents (2) Enable airow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal
for the internal fan to cycle on and o during routine
operation.

Bottom 15

Labels

The labels axed to the computer provide information you may need when you troubleshoot system
problems or travel internationally with the computer. Labels may be in paper form or imprinted on the
product.

IMPORTANT: Check the following locations for the labels described in this section: the bottom of the

computer, inside the battery bay, under the service door, on the back of the display, or on the bottom of a
tablet kickstand.

● Service label—Provides important information to identify your computer. When contacting support, you

may be asked for the serial number, the product number, or the model number. Locate this information
before you contact support.

Your service label will resemble one of the examples shown below. Refer to the illustration that most
closely matches the service label on your computer.

Component

(1) HP product name

(2) Model number

(3) Product ID

(4) Serial number

(5) Warranty period

Component

(1) HP product name

(2) Product ID

16 Chapter 2 Components

Component

(3) Serial number

(4) Warranty period

● Regulatory label(s)—Provide(s) regulatory information about the computer.

● Wireless certication label(s)—Provide(s) information about optional wireless devices and the approval

markings for the countries or regions in which the devices have been approved for use.

Labels 17

3 Illustrated parts catalog

Computer major components

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Labels on page 16 for details.

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(1) Display panel assembly, touch screen

NOTE: Displays are spared only at the subcomponent level.

(2) Keyboard (includes cable)

NOTE: For a detailed list of keyboard country codes, see Keyboard on page 40.

No backlight L28408-xxx

Backlit L28406-xxx

(3) TouchPad L28253-001

(4) Top cover

For use in models with UMA graphics memory L28268-001

For use in models with discrete graphics memory L28269-001

(5) I/O board L28252-001

(6) Fingerprint reader assembly L28254-001

(7) Speaker assembly L28271-001

(8) Battery, Li-ion (4-cell, 48 WHr, 4.21 Ah) L12791-855

(9) RTC battery not spared

(10) USB-C bracket L29057-001 (Bracket Kit)

Fan/heat sink assembly (includes replacement thermal material)

(11) Models with discrete graphics L28267-001

(12) Models with UMA graphics L28266-001

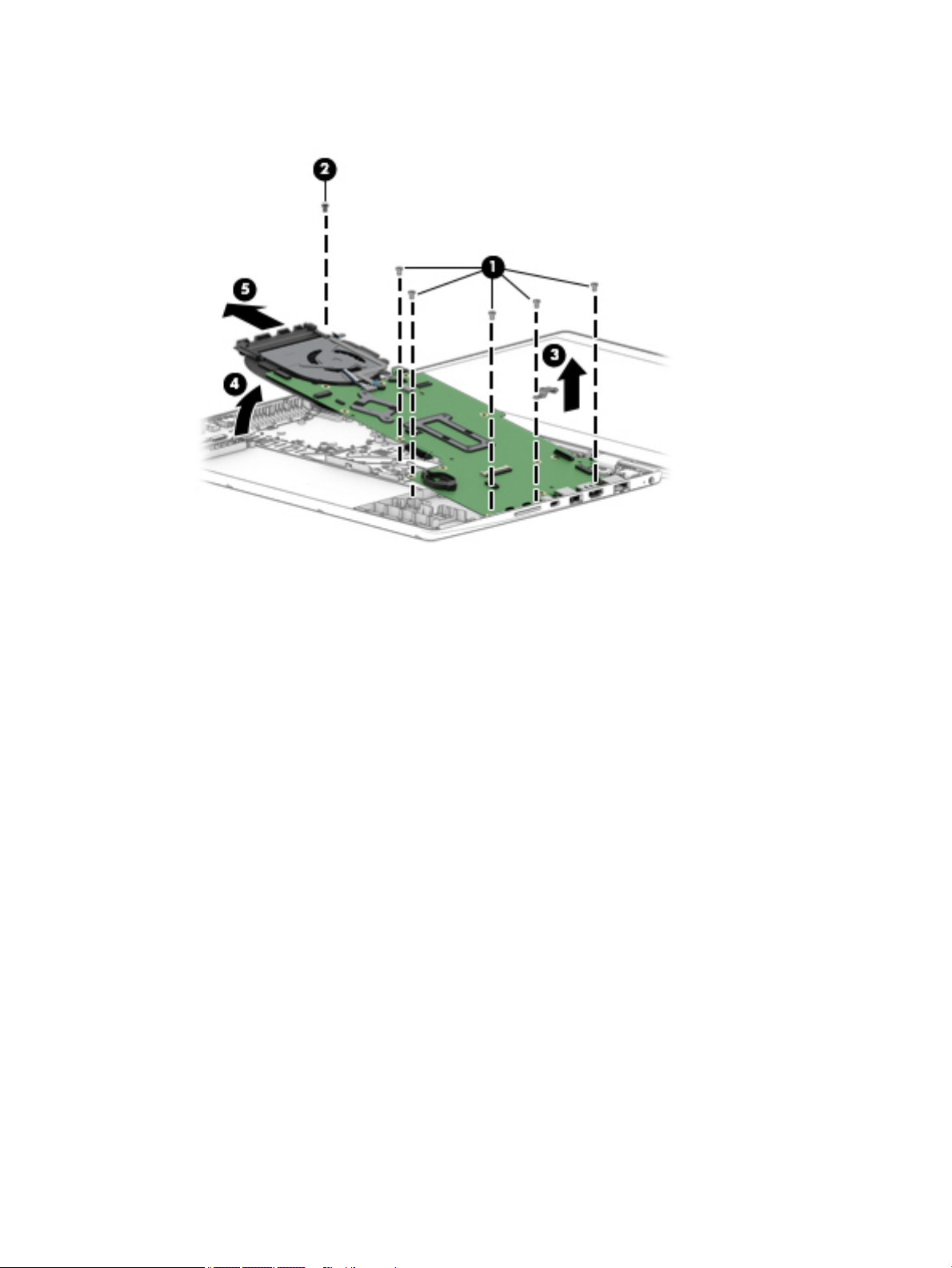

(13) System board (includes replacement thermal material)

All system boards use the following part numbers:

xxxxxx-001: Non-Windows operating system

xxxxxx-601: Windows 10 operating system

Models with UMA graphics:

● Intel Core i7-8550U processor L28242-xxx

● Intel Core i5-8350U processor L35766-xxx

● Intel Core i5-8250U processor (WWAN models) L28244-xxx

● Intel Core i5-8250U processor L28241-xxx

● Intel Core i3-8130U processor (WWAN models) L28243-xxx

● Intel Core i3-8130U processor L28239-xxx

● Intel Core i5-7200U processor L28240-xxx

● Intel Pentium 4415U processor L31173-xxx

● Intel Celeron 3865U processor L28238-xxx

Models with discrete graphics:

Computer major components 19

Item Description Spare part number

● Intel Core i7-8550U processor L28248-xxx

● Intel Core i5-8250U processor L28247-xxx

● Intel Core i3-8130U processor L28245-xxx

● Intel Core i5-7200U processor L28246-xxx

(14) WLAN module

Intel Dual Band Wireless-AC 8265, 802.11ac, 2×2 Wi-Fi + Bluetooth 4.2 combination adapter 851594-001

Realtek RTL8822BE 802.11AC 2x2 Wi-Fi + Bluetooth 4.2 combination adapter 915623-001

(15) WWAN module

Huawei HP It4132, LTE/HSPA+ w/GPS M.2 845710-001

Intel XMM 7360 LTE-Advanced 917823-001

(16) Power connector cable L28264-001

(17) Power button board L28251-001

(18) M.2 solid-state drive

512-GB, PCIe, TLC L28275-001

256-GB, PCIe L28274-001

256-GB, SATA-3, TLC L33505-001

128-GB, SATA-3 L28273-001

(19) Memory modules

16-GB (DDR4-2400) 865396-855

8-GB (DDR4-2400) 862398-855

4-GB (DDR4-2133) 820569-005

(20) Base enclosure L28262-001

(21) Service door

UMA models L29058-001

Discrete models L34117-001

20 Chapter 3 Illustrated parts catalog

Display components

Item Description Spare part number

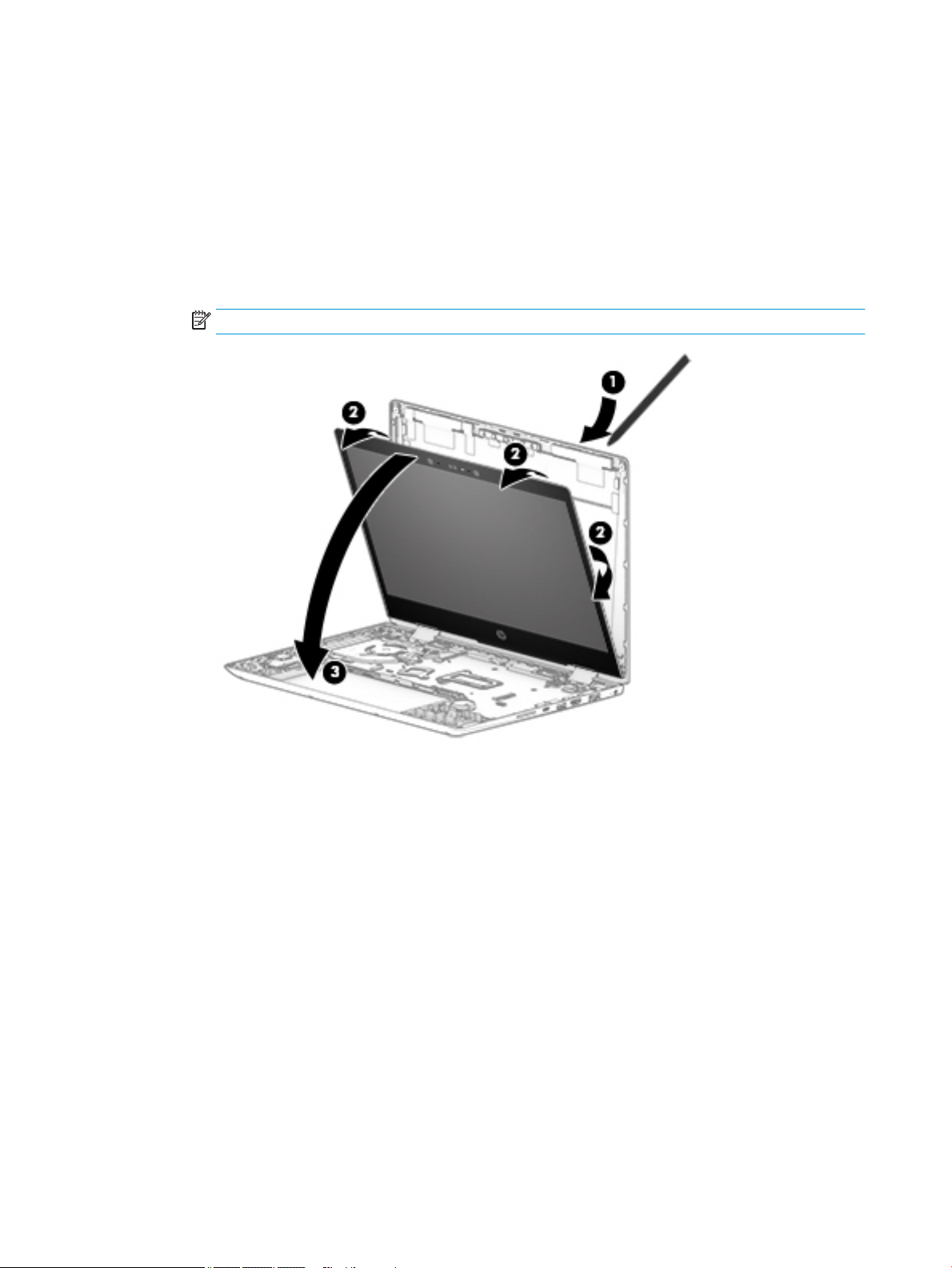

(1) Display panel kit (includes display panel, magnets, bezel, eDP cable)

HD camera L28255-001

HD+IR camera L28256-001

HD camera, coaxial L28257-001

HD+IR camera, coaxial L28258-001

HD+IR camera on WWA models L28259-001

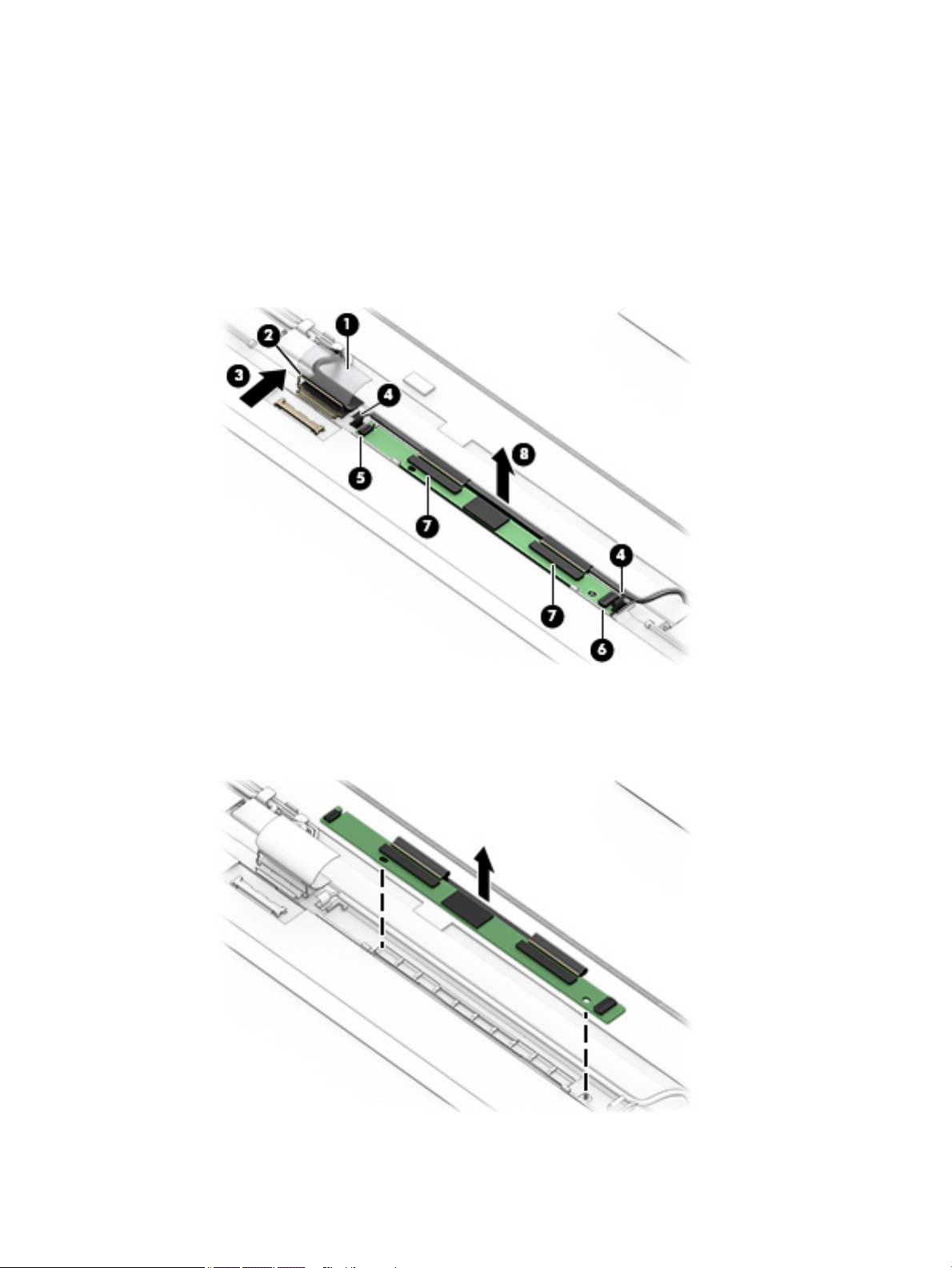

(2) Touch controller board (includes adhesive kit) L29890-001

(3) IR camera module (includes bezel adhesive) L28260-001

(4) HD camera module (includes bezel adhesive) L28261-001

Display components 21

Item Description Spare part number

(5) IR camera cable L31774-001 (Display Cable Kit)

(6) HD camera cable L31774-001 (Display Cable Kit)

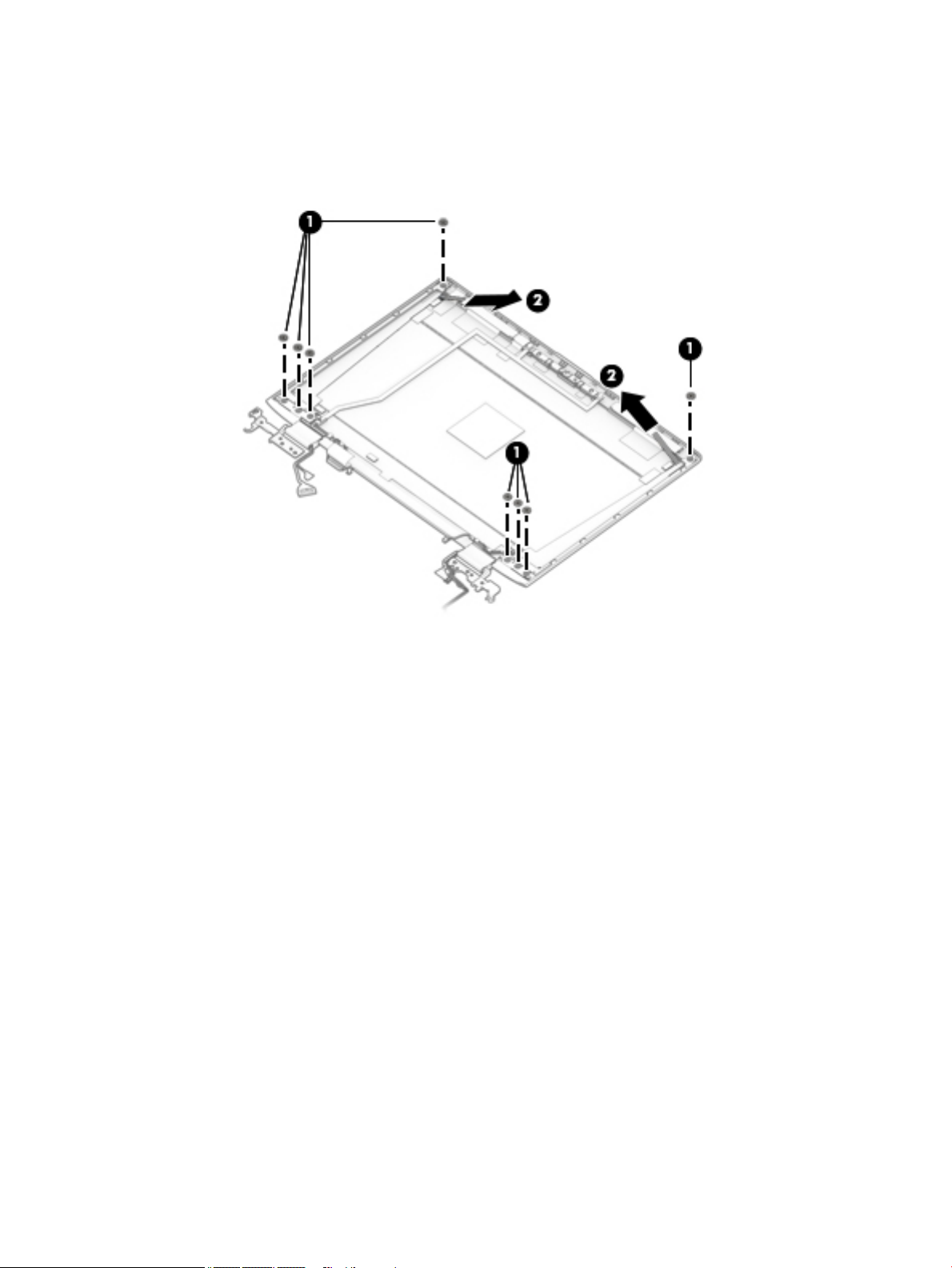

(7) Hinge Kit (includes left and right hinges and display adhesive kit) L28250-001

(8) WWAN antennas (includes adhesive kit) L29055-001

(9) WLAN antennas (includes adhesive kit) L29054-001

(10) eDP cable L31774-001 (Display Cable Kit)

(11) Display cable L31174-001 (Display Cable Kit)

(12) Display rear cover (includes bezel adhesive) L28249-001

(13) Hinge covers, left and right (includes adhesive kit) L29056-001

(14) Rubber antenna guide L31775-001 (Display Rubber Kit)

Cable Kit

Item Description Spare part number

Cable Kit, includes the following parts: L28263-001

(1) I/O board cable

(2) I/O board cable

(3) TouchPad cable

(4) Power button board cable

22 Chapter 3 Illustrated parts catalog

Display Cable Kit

Item Description Spare part number

Display Cable Kit, includes the following parts: L31174-001

(1) EDP cable

EDP coaxial cable

(2) Touch cable

(3) IR camera cable

(4) HD camera cable

(5) Right and left hinge adhesive

(6) Right and left bezel adhesive

Display Cable Kit 23

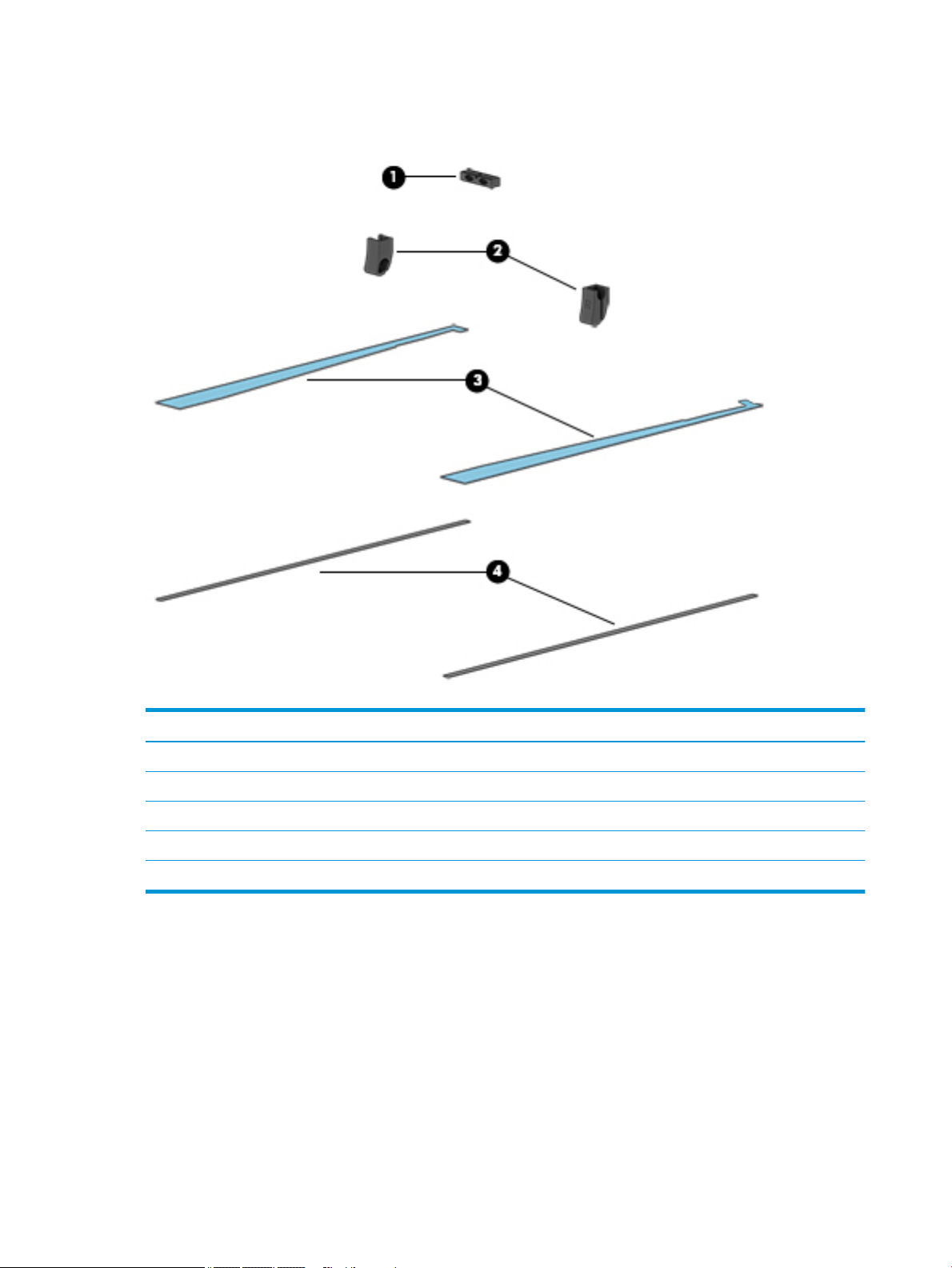

Display Rubber Kit

Item Description Spare part number

Display Rubber Kit, includes the following parts: L31175-001

(1) Antenna cable rubber guide

(2) Left and righer rubber hinge caps

(3) Right and left hinge adhesive

(4) Right and left bezel adhesive

24 Chapter 3 Illustrated parts catalog

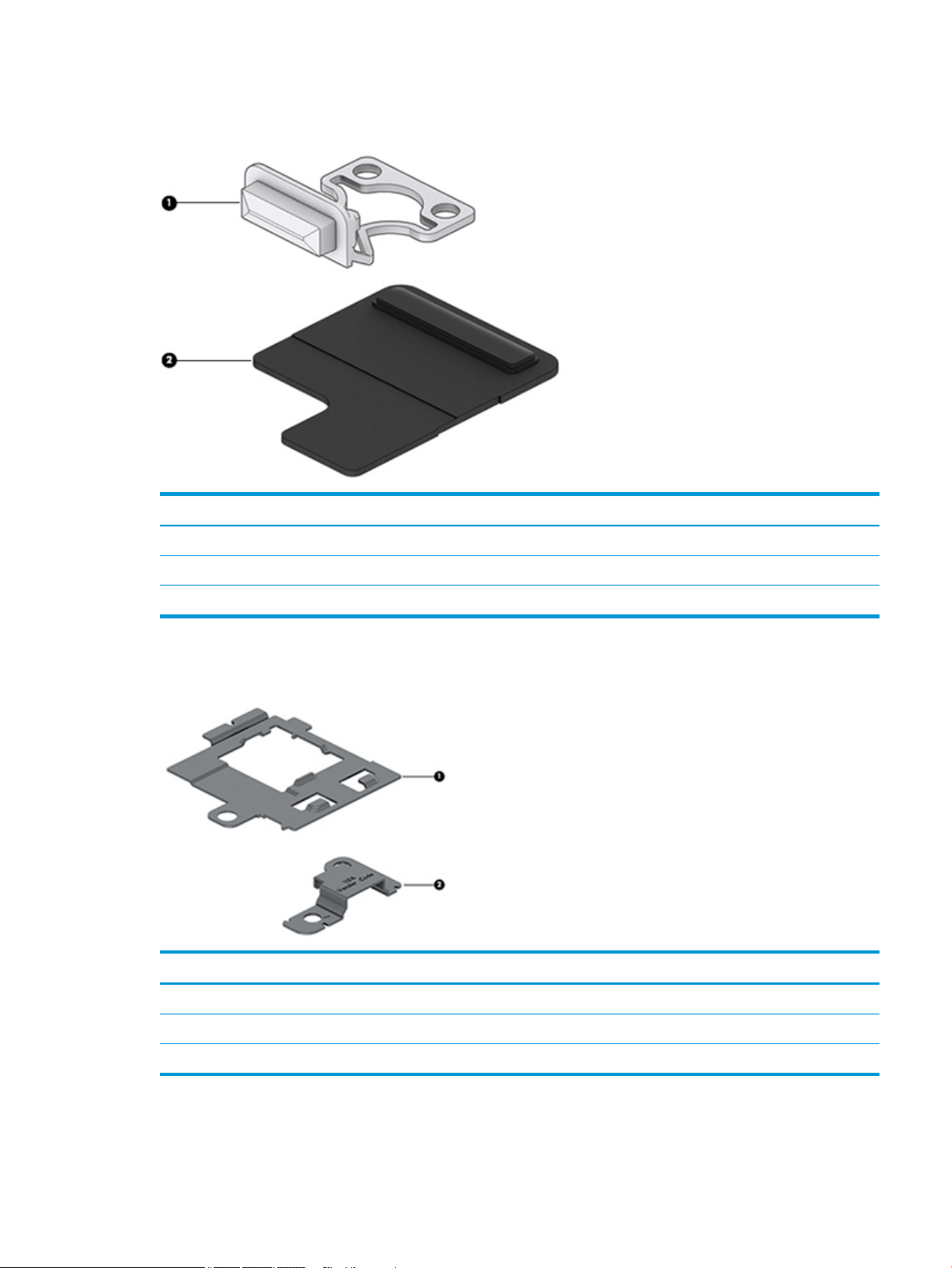

Plastics Kit

Item Description Spare part number

Plastics Kit, includes the following parts: L29889-001

(1) Power LED bar

(2) Fingerprint reader insert (for use in models without a ngerprint reader)

Bracket Kit

Item Description Spare part number

Bracket Kit, includes the following parts: L29057-001

(1) Fingerprint reader bracket

(2) USB reader bracket

Plastics Kit 25

Miscellaneous parts

Description Spare part number

AC adapters

65-W Smart AC power adapter, 4.5 mm barrel connector, S-3P 913691-850

65-W Smart AC power adapter, 4.5 mm barrel connector, RC 710412-001

45-W Smart AC power adapter, 4.5 mm barrel connector 741553-850

Power cord (C5, 1.0-m), for use in:

Argentina L19357-001

Australia L19358-001

Brazil L19359-001

Denmark L19360-001

Europe (Austria, Belgium, Finland, France, Germany, the Netherlands, Norway and Sweden) L19361-001

India L19363-001

Israel L19362-001

Italy L19364-001

North America L19367-001

The People’s Republic of China L19368-001

South Korea L19366-001

United Kingdom L19373-001

Active stylus 834590-001

Rubber Kit (includes speaker rubber, power button board sponge, and rubber WWAN insert; for use in

models without a WWAN module)

Screw Kit L28272-001

HP USB Laser Mouse 674318-001

HP Comfort Grip Wireless Mouse 691922-001

HP USB Travel Mouse 757770-001

Top load case 679921-001

Messenger bag 679922-001

Backpack 679923-001

HP keyed cable lock 840158-001

HP Smart AC Adapter dongle, 7.4 mm 734734-001

HP Elite USB-C Docking Station 844550-001

HP USB-C Mini Dock 935327-001

L28270-001

HP USB Travel Dock 844551-001

26 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

preliminary requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

● Flat-bladed screwdriver

● Phillips P0 and P1 screwdrivers

● Torx T8 screwdriver

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all accompanying

screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care

when handling the plastic parts. Apply pressure only at the points designated in the maintenance
instructions.

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the

reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat
the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught
or snagged by parts being removed or replaced. Handle ex cables with extreme care; these cables
tear easily.

Tools required 27

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is
o or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure
that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic elds, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine
the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many
cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a nger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be aected at all and can work perfectly throughout a normal
cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life
expectancy.

CAUTION: To prevent damage to the tablet when you are removing or installing internal components,

observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Before touching an electronic component, discharge static electricity by using the guidelines described in this
section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity aects the electrostatic voltage levels generated by
dierent activities.

CAUTION: A product can be degraded by as little as 700 V.

28 Chapter 4 Removal and replacement procedures preliminary requirements

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl oor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

● To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

● Place items on a grounded surface before removing items from their containers.

● Always be properly grounded when touching a component or assembly.

● Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

● Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized

equipment used for moving materials is wired to ground and that proper materials are selected to avoid
static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

● Cover the workstation with approved static-shielding material.

● Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and

equipment.

● Use conductive eld service tools, such as cutters, screw drivers, and vacuums.

● When xtures must directly contact dissipative surfaces, use xtures made only of static-safe materials.

● Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids

and Styrofoam.

● Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these

items only at static-free workstations.

Service considerations 29

● Avoid contact with pins, leads, or circuitry.

● Turn o power and input signals before inserting or removing connectors or test equipment.

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

● When seated, wear a wrist strap connected to a grounded system. Wrist straps are exible straps with a

minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap
snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips
to connect a wrist strap.

● When standing, use foot straps and a grounded oor mat. Foot straps (heel, toe, or boot straps) can be

used at standing workstations and are compatible with most types of shoes or boots. On conductive
oors or dissipative oor mats, use foot straps on both feet with a minimum of one megohm resistance
between the operator and ground. To be eective, the conductive must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

● Antistatic tape

● Antistatic smocks, aprons, and sleeve protectors

● Conductive bins and other assembly or soldering aids

● Nonconductive foam

● Conductive tabletop workstations with ground cords of one megohm resistance

● Static-dissipative tables or oor mats with hard ties to the ground

● Field service kits

● Static awareness labels

● Material-handling packages

● Nonconductive plastic bags, tubes, or boxes

● Metal tote boxes

● Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and oor mats.

Material Use Voltage protection level

Antistatic plastics Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

30 Chapter 4 Removal and replacement procedures preliminary requirements

5 Removal and replacement procedures for

Customer Self-Repair parts

CAUTION: The Customer Self-Repair program is not available in all locations. Installing a part not supported

by the Customer Self-Repair program may void your warranty. Check your warranty to determine if Customer
Self-Repair is supported in your location.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

Component replacement procedures

NOTE: Please read and follow the procedures described here to access and replace Customer Self-Repair

parts successfully.

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Labels on page 16 for details.

This chapter provides removal and replacement procedures for Customer Self-Repair parts.

There are as many as six screws that must be removed, replaced, or loosened when servicing Customer Self­Repair parts. Make special note of each screw size and location during removal and replacement.

Battery Safe mode

Before removing internal components, you must place the computer in “Battery Safe mode.” This mode
avoids short-circuits or system malfunction by removing power from internal components.

To place the computer in “Battery Safe mode,” follow these steps:

1. With the computer turned o and AC adapter connected, press the following key and button

combination: Windows key + Backspace key + Power button.

2. Turn the computer on to initiate “Battery Safe mode.”

3. After the computer powers o, disconnect the AC adapter.

In “Battery Safe mode,” the power button will not turn the computer on if the AC adapter is not connected.

To disengage “Battery Safe mode,” plug in the AC adapter and press the power button.

Component replacement procedures 31

Service doors

Description Spare part number

Service door (UMA models) L29058-001

Service door (Discrete models) L34117-001

The bottom of the computer has two service doors. The drive service door provides access to the hard drive
and M.2 solid-state drive. The main service door provides access to the memory modules, wireless modules,
and keyboard screws.

Before removing the service doors, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

Remove the service door:

1. Loosen the captive Phillips screw (1).

2. Lift the bottom of the door upward (2), and then remove the door from the computer (3).

Reverse these procedures to install the service door.

32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

Memory modules

Description Spare part number

16-GB (DDR4-2400) 865396-855

8-GB (DDR4-2400) 862398-855

4-GB (DDR4-2400) 820569-005

Update BIOS before adding memory modules

Before adding new memory, make sure you update the computer to the latest BIOS.

CAUTION: Failure to update the computer to the latest BIOS prior to installing new memory may result in

various system problems.

To update BIOS:

1. Navigate to www.hp.com.

2. Move the cursor over Support to display the pull-down menu, and then click Software & drivers.

3. Type your product name, number, or serial number, and then click Find.

4. Click BIOS, and then click Download.

5. Follow the on-screen instructions.

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the service door (Service doors on page 32).

Remove the memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

Component replacement procedures 33

2. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch to prevent incorrect insertion into the memory

module slot.

Reverse this procedure to install a memory module.

34 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

WLAN/Bluetooth combo card

The computer uses a card that provides both WLAN and Bluetooth functionality.

Description Spare part number

Intel Dual Band Wireless-AC 8265, 802.11ac, 2×2 Wi-Fi + Bluetooth 4.2 combination adapter 851594-001

Realtek RTL8822BE 802.11AC 2x2 Wi-Fi + Bluetooth 4.2 combination adapter 915623-001

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the service door (Service doors on page 32).

Remove the WLAN module:

1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”.

The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”. If the
computer is equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable connects to
the middle terminal on the WLAN module.

2. Remove the Phillips M2.0×4.0 screw (2) that secures the WLAN module to the computer. (The edge of

the module opposite the slot rises away from the computer.)

Component replacement procedures 35

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch to prevent incorrect insertion.

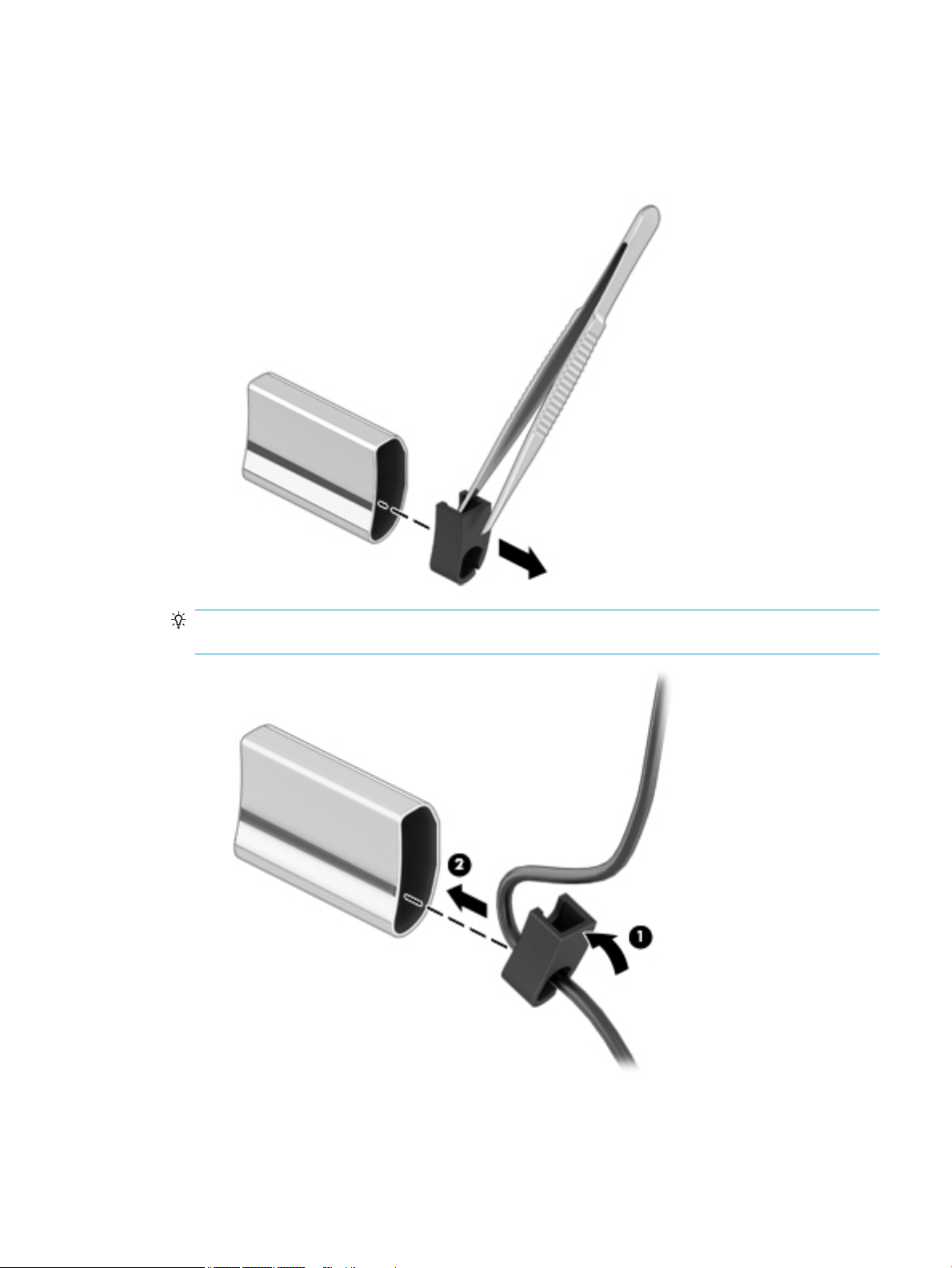

NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective

sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

36 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

WWAN module

NOTE: The WWAN module and the WLAN module are not interchangeable.

Description Spare part number

Huawei HP It4132, LTE/HSPA+ w/GPS M.2 845710-001

Intel XMM 7360 LTE-Advanced 917823-001

Before removing the WWAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the service door (Service doors on page 32).

Remove the WWAN module:

1. Disconnect the WWAN antenna cables (1) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module “Main” terminal. The blue

WWAN antenna cable is connected to the WWAN module “Aux” terminal.

2. Remove the Phillips M2.0×4.0 screw (2) that secures the WWAN module to the system board.

Component replacement procedures 37

3. Remove the WWAN module (3) by pulling the module away from the slot.

NOTE: WWAN modules are designed with a notch to prevent incorrect insertion.

NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the protective

sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WWAN module.

38 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

M.2 solid-state drive

Description Spare part number

512-GB, PCIe, TLC L28275-001

256-GB, PCIe L28274-001

256-GB, SATA-3, TLC L33505-001

128-GB, SATA-3 L28273-001

Before removing the solid-state drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the service door (Service doors on page 32).

Remove the solid-state drive:

1. Remove the Phillips M2.0×4.0 screw (1) that secures the solid-state drive to the computer. (The edge of

the module opposite the slot rises away from the computer.)

2. Remove the solid-state drive (2) by pulling the module away from the slot at an angle.

Reverse this procedure to install the solid-state drive.

Component replacement procedures 39

Keyboard

In this section, the rst table provides the main spare part number for the keyboards. The second table
provides the country codes.

Description Spare part number

Keyboard, no backlight L28408-xxx

Keyboard, backlit L28406-xxx

For use in country
or region

Belgium -A41 Iceland -DD1 Slovenia -BA1

Brazil -201 India -D61 South Korea -AD1

Bulgaria -261 Israel -BB1 Spain -071

Canada -DB1 Italy -061 Switzerland -BG1

Czech Republic
and Slovakia

Denmark, Finland, and
Norway

France -051 Northern Africa -FP1 Turkey -141

Germany -041 Portugal -131 Ukraine -BD1

Greece -151 Russia -251 United Kingdom -031

Hungary -211 Saudi Arabia -171 United States -001

Spare part
number

-FL1 Latin America -161 Taiwan -AB1

-DH1 The Netherlands -B31 Thailand -281

For use in country
or region

Spare part
number

For use in country
or region

Spare part
number

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the service door (Service doors on page 32).

Remove the keyboard:

1. Remove the two Phillips M2.5×5.0 screws that secure the keyboard to the computer (1).

40 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

2. Insert a tool into the access hole near the WLAN module in the upper left of the computer and push to

disengage the keyboard from the top cover (2).

3. Lift the top of the keyboard upward.

NOTE: A cable (or cables) connect the bottom of the keyboard to the system board. Make sure not to

prematurely pull the cables out of the system board connector(s).

4. Rotate the keyboard until it rests on the palm rest (1).

5. If applicable, disconnect the backlight cable from the system board ZIF connector.

6. Disconnect the keyboard cable from the system board reverse ZIF connector (3).

Component replacement procedures 41

7. Remove the keyboard (4).

Reverse this procedure to install the keyboard.

42 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts

6 Removal and replacement procedures for

Authorized Service Provider parts

CAUTION: Components described in this chapter should only be accessed by an authorized service provider.

Accessing these parts can damage the computer or void the warranty.

NOTE: HP continually improves and changes product parts. For complete and current information on

supported parts for your computer, go to http://partsurfer.hp.com, select your country or region, and then
follow the on-screen instructions.

Component replacement procedures

NOTE: Details about your computer, including model, serial number, product key, and length of warranty,

are on the service tag at the bottom of your computer. See Labels on page 16 for details.

This chapter provides removal and replacement procedures for Authorized Service Provider only parts.

There are as many as 55 screws that must be removed, replaced, or loosened when servicing Authorized
Service Provider only parts. Make special note of each screw size and location during removal and
replacement.

Display subcomponents (panel, cameras, touch control board)

NOTE: Display assemblies are spared at the subcomponent level only.

This section illustrates how to remove the display panel, camera modules, and touch control board without
removing the display from the computer. The Display assembly on page 62 section illustrates removing all
display subcomponents.

To remove the display assembly subcomponents, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

Remove the display assembly subcomponents:

1. Open the computer as far as possible.

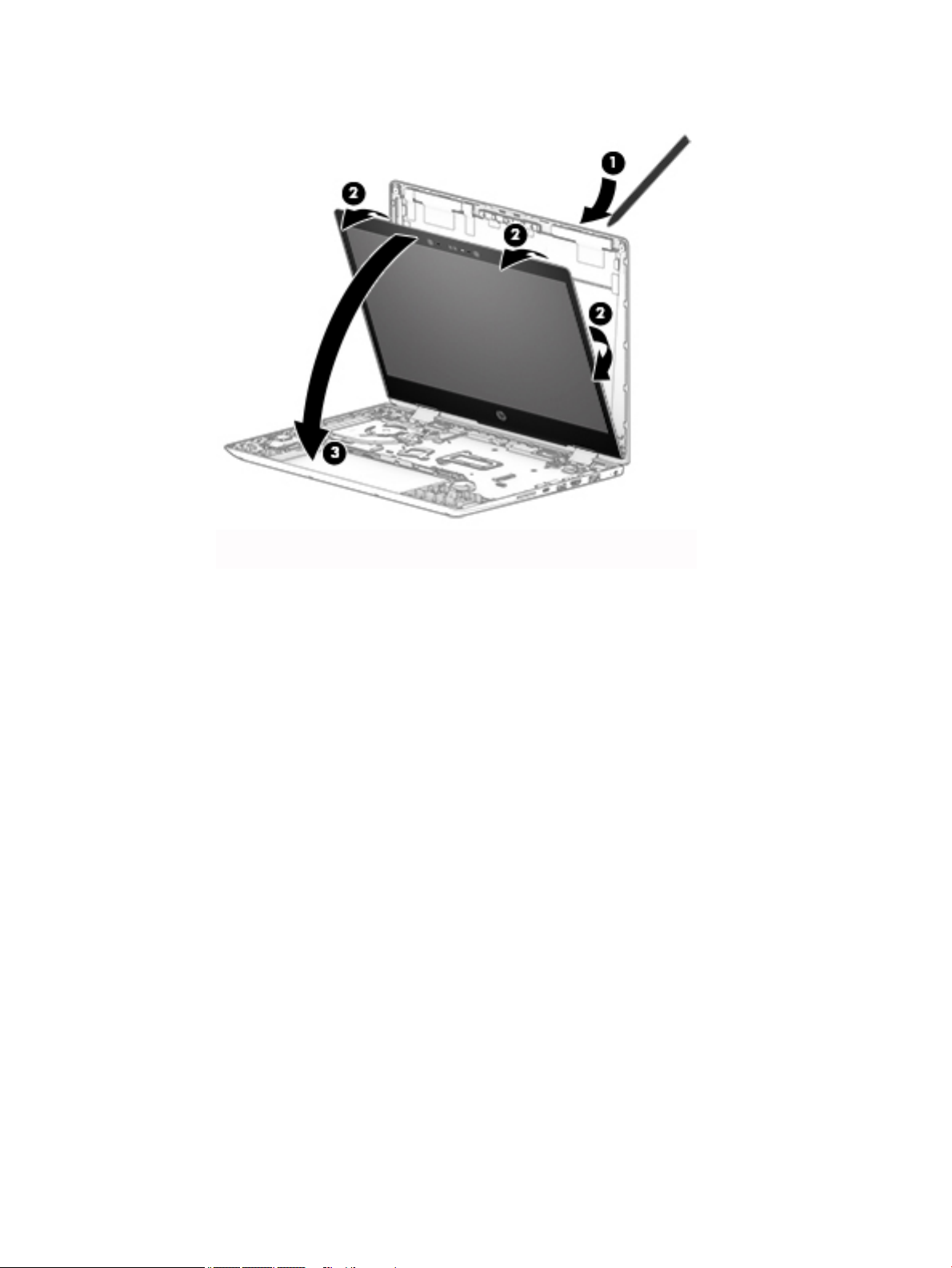

2. To remove the display panel:

a. Use a non-marking, non-conductive tool to disengage the panel from the top of the enclosure (1).

b. Starting at the top and working around, ex and pry to disengage the panel (2).

Component replacement procedures 43

c. Rotate the panel onto the keyboard (3).

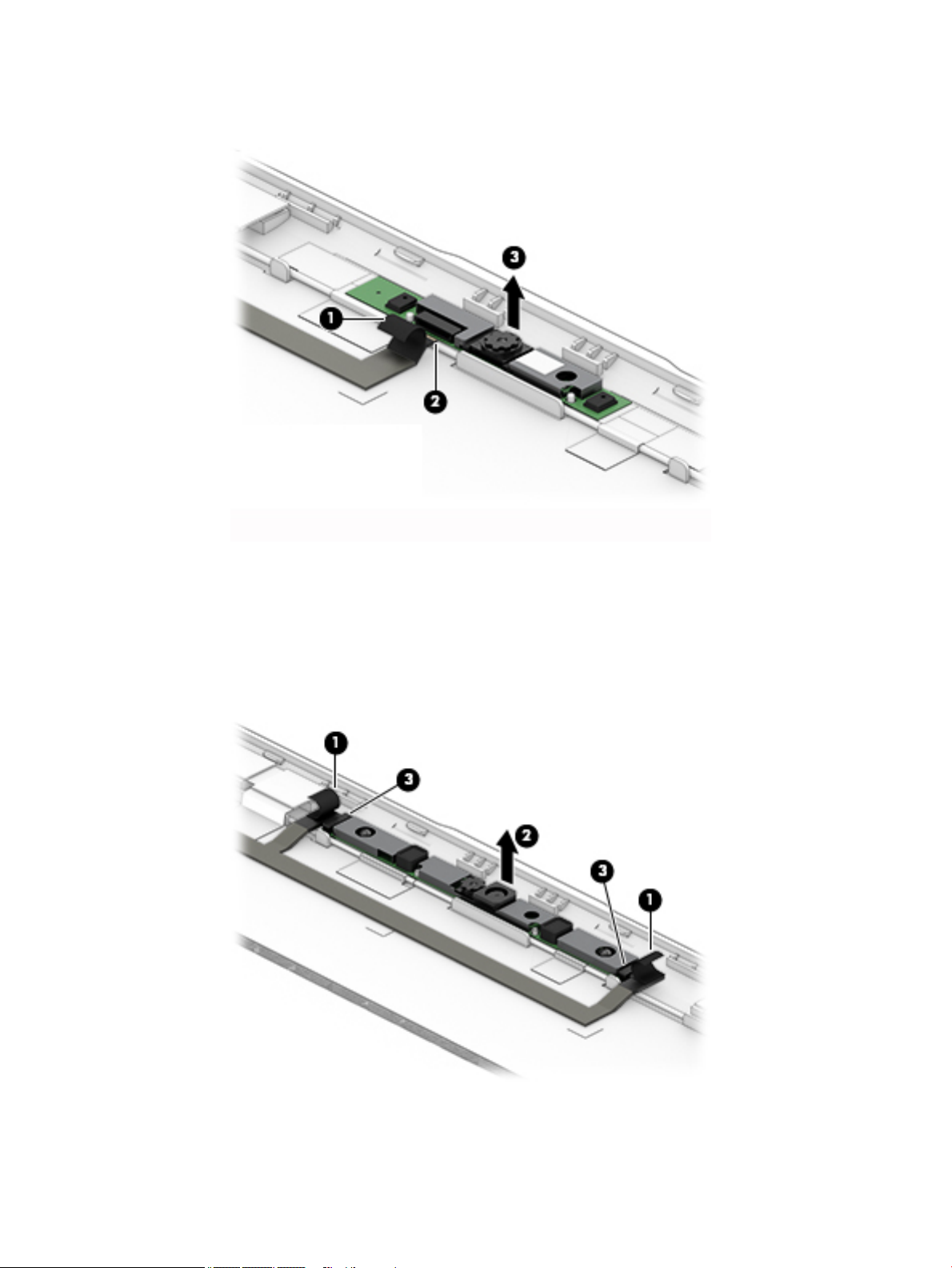

3. To remove the camera module:

HD camera

a. Position the display assembly with the top edge toward you.

b. Lift the tape from the connector on the camera module (1), and then disconnect the cable (2) from

the module.

44 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

c. Lift up to disengage the HD camera module from the adhesive that secures it to the display, and

then remove it from the display (3).

IR camera

a. Position the display assembly with the top edge toward you.

b. Lift the tape from the connectors on both ends of the camera module (1).

c. Lift up to disengage the IR camera module from the adhesive that secures it to the display (2).

d. Disconnect the cables (3) from both ends of the module.

4. To remove the display panel:

Component replacement procedures 45

a. Lift the tape from atop the connector on the bottom of the display panel (1), lift the connector

bracket (2), and then disconnect the display cable from the display (3).

b. Lift the tape from atop the connectors on both ends of the touch control board (4).

c. Disconnect the cables from the ZIF connector (5) and the reverse ZIF connector (6) on the touch

control board.

d. Disconnect the two at ribbon cables from the reverse ZIF connectors on the touch control board

(7).

e. Remove the cable that routes under the at ribbon cables (8).

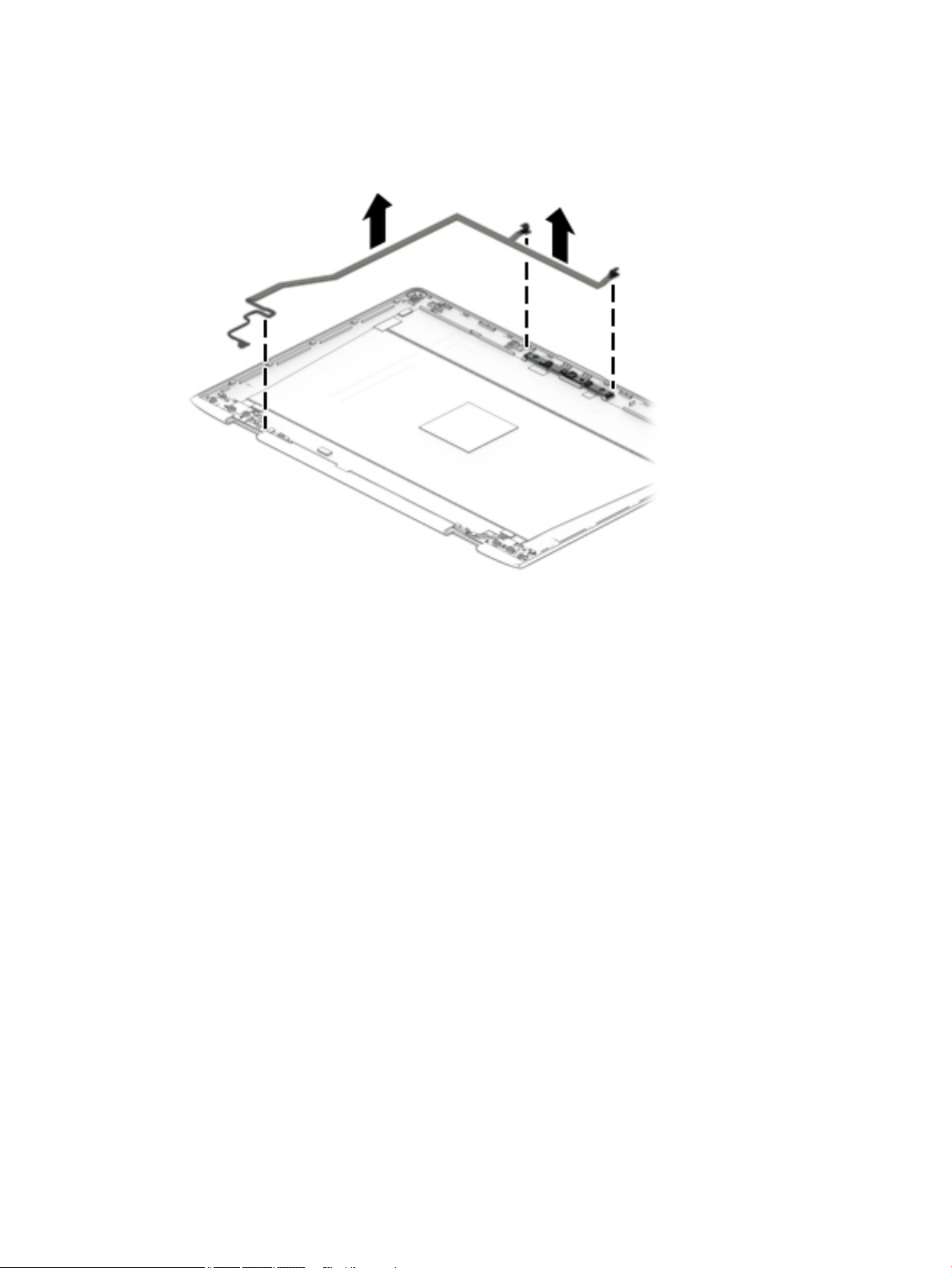

f. After disconnecting the cables from the touch control board, you can remove the display panel

from the display enclosure.

g. If you need to replace the touch control board, lift the board up to disengage the adhesive that

secures it, and then remove the board from the display.

Reverse this procedure to reassemble and install the display assembly components.

46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Top cover

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

5. Remove the following components:

Remove the top cover:

Description Spare part number

Top cover for use in models with UMA graphics memory L28268-001

Top cover for use in models with discrete graphics memory L28269-001

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

1. Position the computer upside-down with the front toward you.

2. Remove the seven Torx T8 2.5×6.0 screws from around the edges of the computer.

3. Position the computer upright and open it as far as possible.

4. Disconnect the TouchPad cable (1) and the ngerprint reader cable (2) from the ZIF connectors under

the keyboard.

Component replacement procedures 47

5. Remove the seven Torx T8 2.5×6.0 screws (3) that secure the top cover to the computer.

6. Use a tool to pry along the seam between the top cover and the computer chassis (1), and then remove

the top cover from the computer (2).

NOTE: The top cover may be secured very tightly to the computer.

Reverse this procedure to install the top cover.

48 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

TouchPad assembly

Description Spare part number

TouchPad assembly L28253-001

TouchPad assembly cable (included in Cable Kit) L28263-001

Before removing the TouchPad assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

Remove the TouchPad assembly:

1. Position the top cover upside-down.

2. Disconnect the cable from the ZIF connector on the TouchPad (1).

3. Remove the six broad head Phillips M2.0×3.0 screws (2) that secure the TouchPad to the top cover.

4. Lift the TouchPad o the top cover (3).

Reverse this procedure to install the TouchPad assembly.

Component replacement procedures 49

Fingerprint reader assembly

Description Spare part number

Fingerprint reader assembly L28254-001

Fingerprint reader bracket (included in Bracket Kit) L29057-001

Fingerprint reader insert (included in Plastics Kit; for use in models without a ngerprint reader) L29889-001

Before removing the ngerprint reader assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

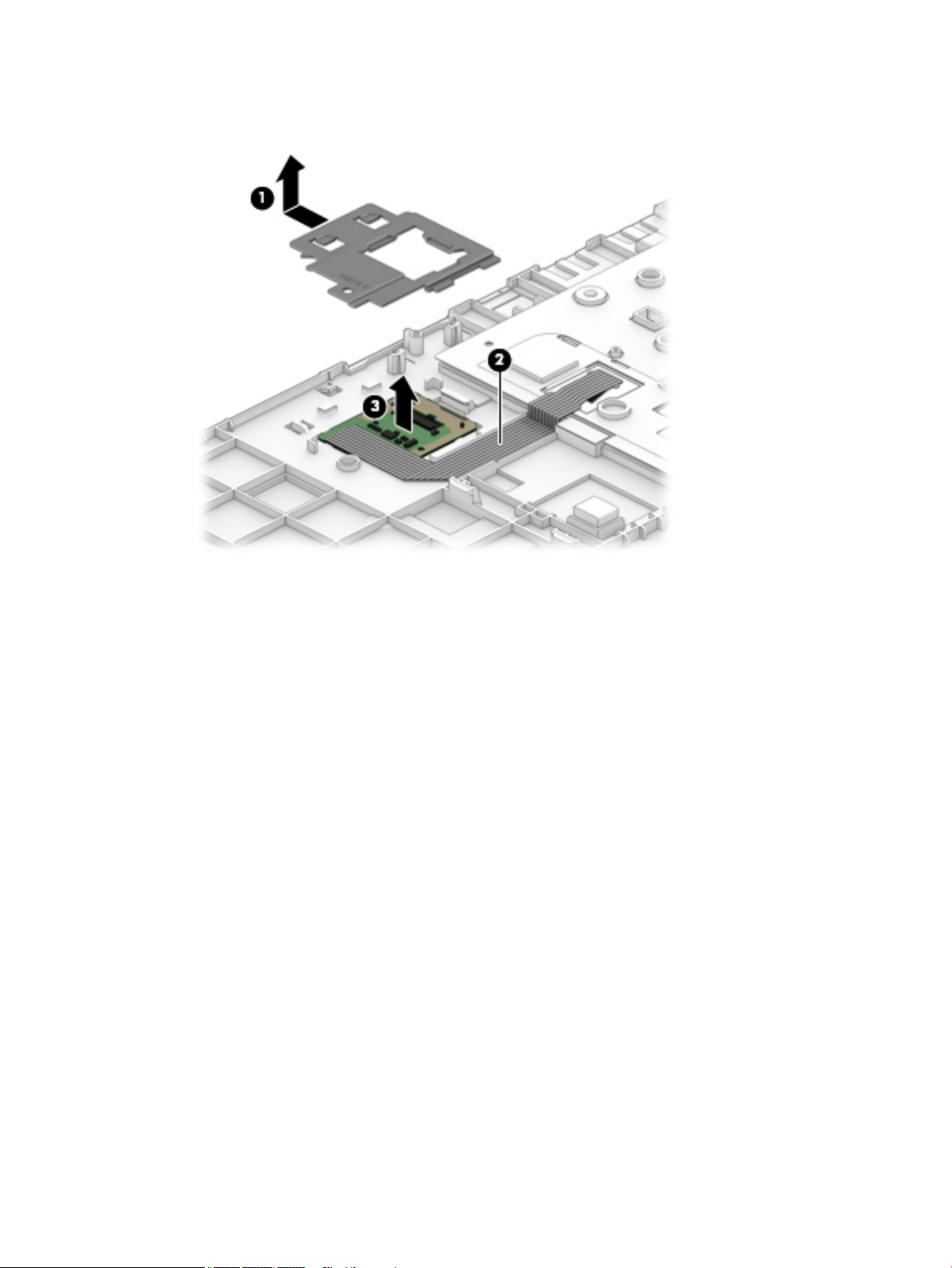

Remove the ngerprint reader assembly:

1. Position the top cover upside-down.

2. Slide the bracket toward the side of the top cover, and then lift it o the ngerprint reader board (1).

TIP: A tool may be required to push and disengage the bracket.

50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

3. Lift the ngerprint reader cable (2) and board (3) to disengage the adhesive that secures them to the top

cover, and then remove the board and cable assembly from the top cover.

Reverse this procedure to install the ngerprint reader assembly.

Component replacement procedures 51

Battery

Description Spare part number

Battery, 4-cell, 48 WHr, 4.21 Ah L12791-855

Before removing the battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

To remove the battery:

1. Position the computer upright on a at surface and open the display as far as possible.

2. Remove both I/O board cables from on top of the battery (1).

3. Remove the four Torx T8 2.5×4.0 screws (2) that secure the battery to the computer.

4. Rotate the bottom of the battery upward, and then lift the battery out of the computer (3).

Reverse this procedure to install the battery.

52 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

I/O board

Before removing the I/O board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

5. Remove the following components:

Description Spare part number

I/O board L28252-001

I/O board cables (included in Cable Kit) L28263-001

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

Remove the I/O board:

1. Remove the two Torx T8 2.5×4.0 screws (1) that secure the board to the computer.

2. Remove the I/O board from the computer (2).

Reverse this procedure to install the I/O board.

Component replacement procedures 53

RTC battery

Description Spare part number

RTC battery nto spared

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

5. Remove the following components:

computer on, and then shut it down through the operating system.

then unplugging the AC adapter from the computer.

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

Remove the RTC battery:

1. Use a tool to pry the battery out of the socket (1).

2. Remove the battery from the system board (2).

Reverse this procedure to install the RTC battery.

54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

System board

NOTE: All system board spare part kits include replacement thermal material.

All system boards use the following part numbers:

xxxxxx-001: Non-Windows operating systems

xxxxxx-601: Windows 10 operating system

Description Spare part number

System board with processor for use in models with UMA graphics:

Intel Core i7-8550U processor L28242-xxx

Intel Core i5-8350U processor L35766-xxx

Intel Core i5-8250U processor (WWAN models) L28244-xxx

Intel Core i5-8250U processor L28241-xxx

Intel Core i3-8130U processor (WWAN models) L28243-xxx

Intel Core i3-8130U processor L28239-xxx

Intel Core i5-7200U processor L28240-xxx

Intel Pentium 4415U processor L31173-xxx

Intel Celeron 3865U processor L28238-xxx

System board with processor for use in models with 2 GB of discrete graphics:

Intel Core i7-8550U processor L28248-xxx

Intel Core i5-8250U processor L28247-xxx

Intel Core i3-8130U processor L28245-xxx

Intel Core i5-7200U processor L28246-xxx

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover ( Top cover on page 47)

d. Battery (Battery on page 52)

Component replacement procedures 55

When replacing the system board, be sure to remove the following components (as applicable) from the
defective system board and install on the replacement system board:

● Memory modules (Memory modules on page 33)

● WLAN/Bluetooth module (WLAN/Bluetooth combo card on page 35)

● WWAN module (WWAN module on page 37)

● M.2 solid-state drive (M.2 solid-state drive on page 39)

● Fan/heat sink (Fan/heat sink assembly on page 58)

Remove the system board:

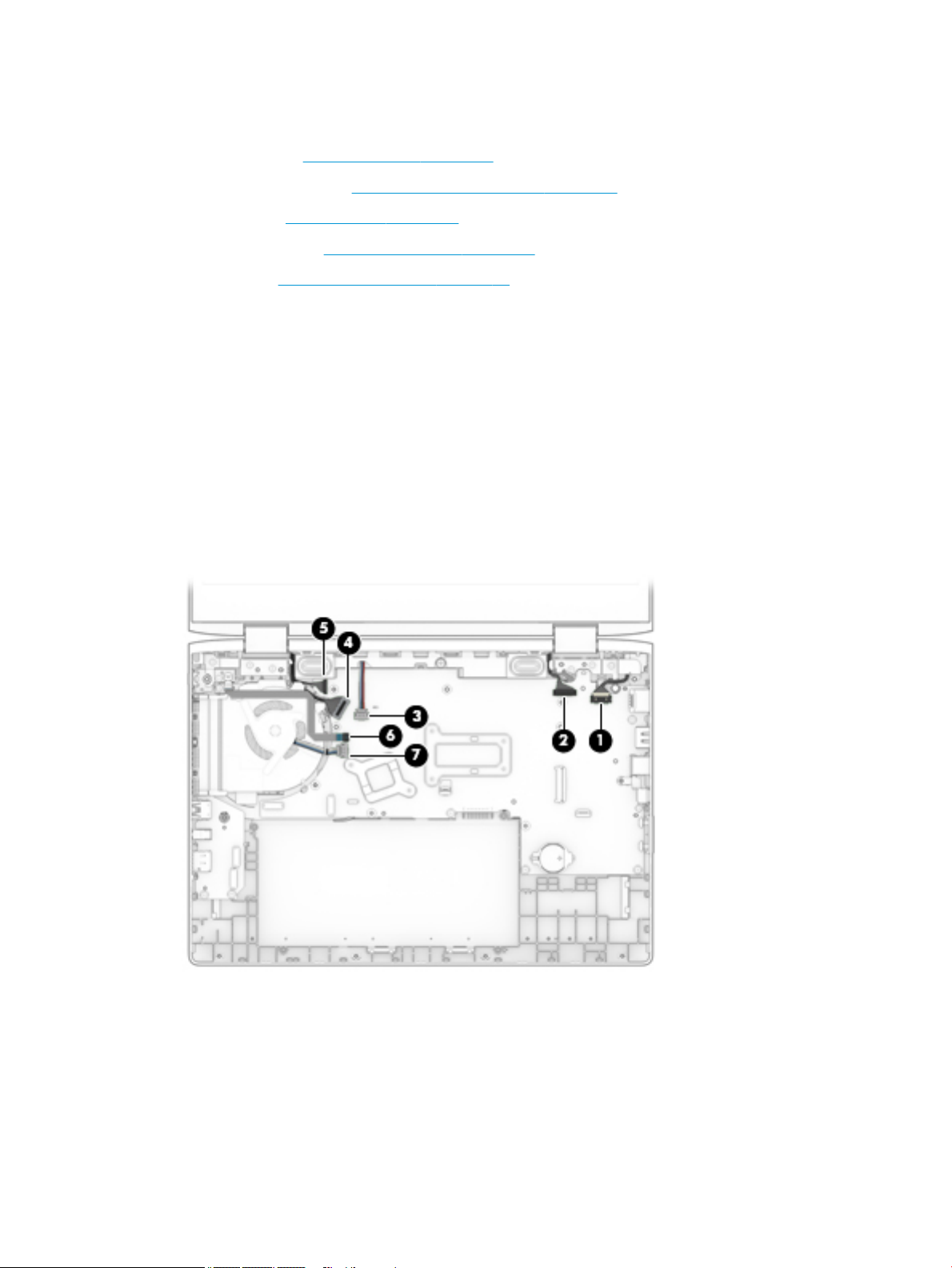

1. Disconnect the following cables from the system board:

(1): Power connector cable

(2): Display cable

(3): Speaker cable

(4): Display cable

(5): Display cable

(6): Power button board cable

(7): Fan cable

2. Remove the ve Torx T8 2.5×4.0 screws (1) that secure the system board to the computer.

3. Remove the Torx T8 2.5×4.0 screw (2) that secures the fan.

4. Lift the bracket from atop the USB-Type C port (3).

The USB bracket is available using spare part number L29057-001.

5. Rotate the left side of the system board upward (4).

56 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

6. Pull the system board away from the connectors on the side of the chassis to remove it from the

computer (5).

Reverse this procedure to install the system board.

Component replacement procedures 57

Fan/heat sink assembly

All fan/heat sink assembly spare part kits include replacement thermal material.

Description Spare part number

Fan/heat sink for use in models with UMA graphics L28266-001

Fan/heat sink for use in models with discrete graphics L28267-001

Before removing the fan/heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

e. System board (System board on page 55)

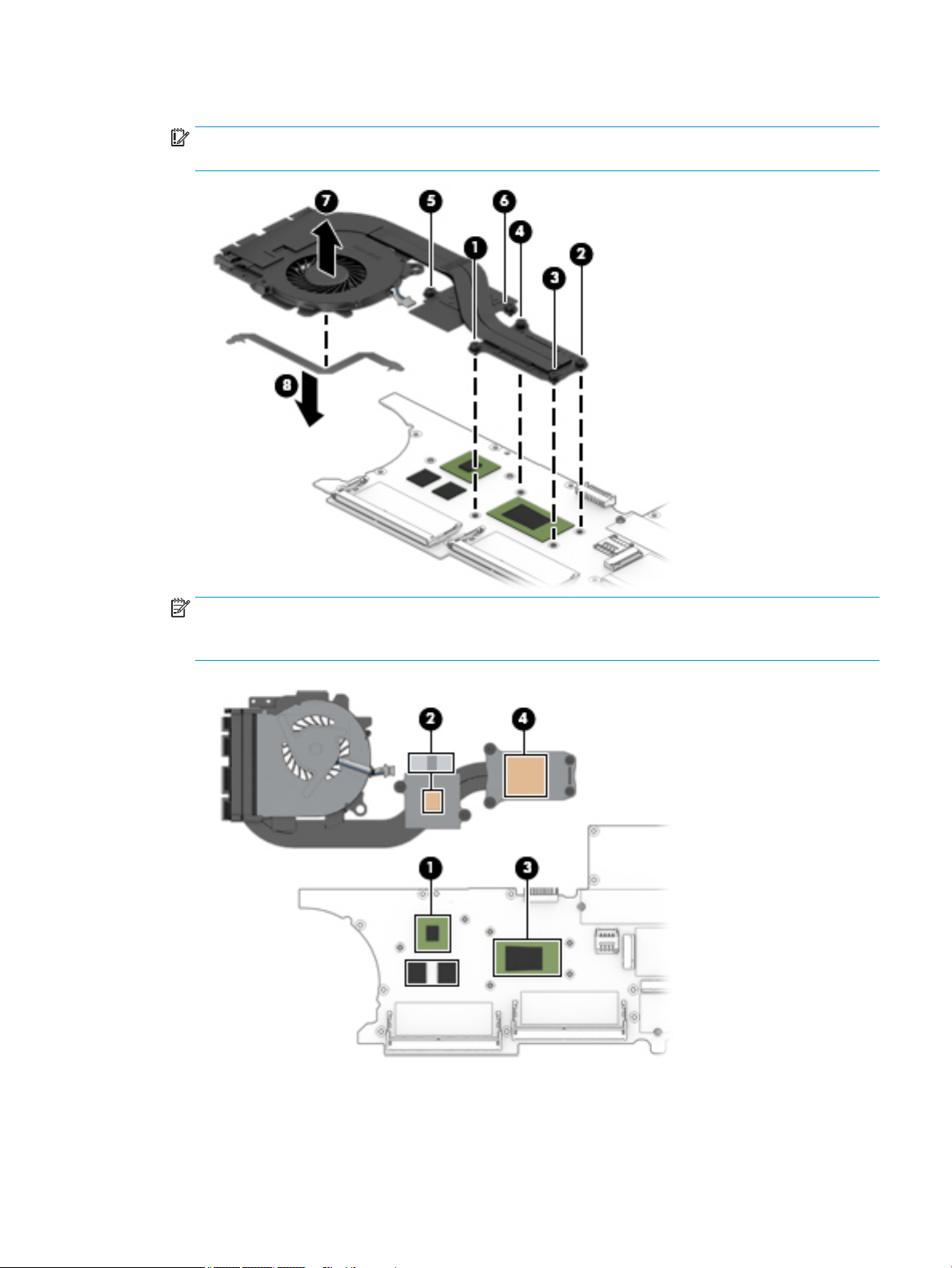

Remove the fan/heat sink assembly:

1. Position the system board upside down with the fan/heat sink facing you.

2. Discrete models: In the order indicated on the heat sink, loosen the six captive Phillips screws (1)-(6)

that secure the fan/heat sink to the system board.

58 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

3. Lift the fan/heat sink from the system board (7).

IMPORTANT: If replacing the fan/heat sink, be sure to remove the power button board cable that is

adhered to the fan (8) and reinstall with the new fan/heat sink.

NOTE: Thoroughly clean thermal material from the surfaces of the system board components (1)(3)

and the heat sink (2)(4) each time you remove the heat sink. All fan/heat sink and processor spare part
kits include thermal material.

4. UMA models: In the order indicated on the heat sink, loosen the four captive Phillips screws (1)-(4) that

secure the fan/heat sink to the system board.

Component replacement procedures 59

5. Lift the fan/heat sink from the system board (5).

IMPORTANT: If replacing the fan/heat sink, be sure to remove the power button board cable that is

adhered to the fan (6) and reinstall with the new fan/heat sink.

NOTE: Thoroughly clean thermal material from the surfaces of the system board component (1) and

the heat sink (2) each time you remove the fan/heat sink. All heat sink and processor spare part kits
include thermal material.

Reverse this procedure to install the fan/heat sink assembly.

60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Speaker assembly

Description Spare part number

Speaker assembly L28271-001

Before removing the speaker assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

e. System board (System board on page 55)

Remove the speaker assembly:

1. Remove the Phillips M2.0×5.0 screw (1) that secures the speaker assembly to the computer.

2. Rotate the speaker assembly out from under the tabs in the computer (2).

Reverse this procedure to install the speaker assembly.

Component replacement procedures 61

Display assembly

NOTE: Displays are spared only at the subcomponent level.

Before disassembling the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

Remove and disassemble the display assembly:

1. Remove the six Torx T8 2.5×6.0 screws (1) that secure the display assembly to the computer.

2. Disconnect the display cables from the system board (2).

3. Close the display assembly partially, to about 30 degrees (1).

62 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

4. Separate the display from the computer (2), making sure the cable releases from the computer near the

right hinge (3).

5. To remove the display panel:

a. Use a non-marking, non-conductive tool to disengage the panel from the top of the enclosure (1).

b. Starting at the top and working around, ex and pry to disengage the panel (2).

Component replacement procedures 63

c. Rotate the panel out of the display enclosure (3).

Touch panel display kits are available using the following spare part numbers:

L28255-001: Display with an HD camera

L28256-001: Display with an HD+IR camera

L28257-001: Display with an HD camera, coaxial

L28258-001: Display with an HD+IR camera, coaxial

L28259-001: Display with an HD+IR camera on models with WWAN

NOTE: The display will not be connected to the computer as shown in the following illustration.

6. If it is necessary to remove the touch control board:

a. Lift the tape from atop the connector on the bottom of the display panel (1), lift the connector

bracket (2), and the disconnect the display cable from the touch board (3).

b. Lift the tape from atop the connectors on both ends of the touch control board (4).

c. Disconnect the cables from the ZIF connector (5) and the reverse ZIF connector (6) on the touch

control board.

d. Disconnect the two at ribbon cables from the reverse ZIF connectors on the touch control board

(7).

64 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

e. Remove the cable that routes under the at ribbon cables (8).

f. After disconnecting the cables from the touch control board, you can remove the display panel

from the display enclosure.

g. Lift the board up to disengage the adhesive that secures it, and then remove the board from the

display.

The touch control board is available using spare part number L29890-001.

7. If it is necessary to remove the camera module:

HD camera

a. Position the display assembly with the top edge toward you.

b. Lift the tape from the connector on the camera module (1), and then disconnect the cable (2) from

the module.

Component replacement procedures 65

c. Lift up to disengage the HD camera module from the adhesive that secures it to the display (3).

The HD camera is available using spare part number L28261-001.

IR camera

a. Position the display assembly with the top edge toward you.

b. Lift the tape from the connectors on both ends of the camera module (1).

c. Lift up to disengage the IR camera module from the adhesive that secures it to the display (2).

d. Disconnect the cables (3) from both ends of the module.

The IR camera is available using spare part number L28260-001.

66 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

8. If it is necessary to remove the display hinge brackets:

a. Remove the eight Phillips M2.0×3.0 screws (1) that secure the hinge brackets to the computer.

b. Pulling toward the inside of the display, pull the adhesive tape out from underneath each hinge

bracket (2). The tape runs the entire length of the bracket.

c. Rotate the hinges to the closed position (1).

Component replacement procedures 67

d. Lift the brackets upward (2), and then pull the brackets free of the cables that extend from each

hinge (3).

The display hinge brackets are available using spare part number L28250-001.

TIP: When installing hinge brackets, secure the adhesive tape to the display enclosure as shown

in the following illustration. Be sure to remove the top adhesive backing before installing the
bracket on top of the tape.

68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

9. If it is necessary to remove the rubber piece from inside of the hinge cover, use a tweezer to pull the

rubber piece out on the hinge cover.

The hinge cover rubber pieces are available in the Display Rubber Kit using spare part number
L31175-001.

TIP: When replacing the hinge rubber piece, rst insert the cables into the hinge covers (1), and then

insert the rubber piece into the hinge cover (2).

Component replacement procedures 69

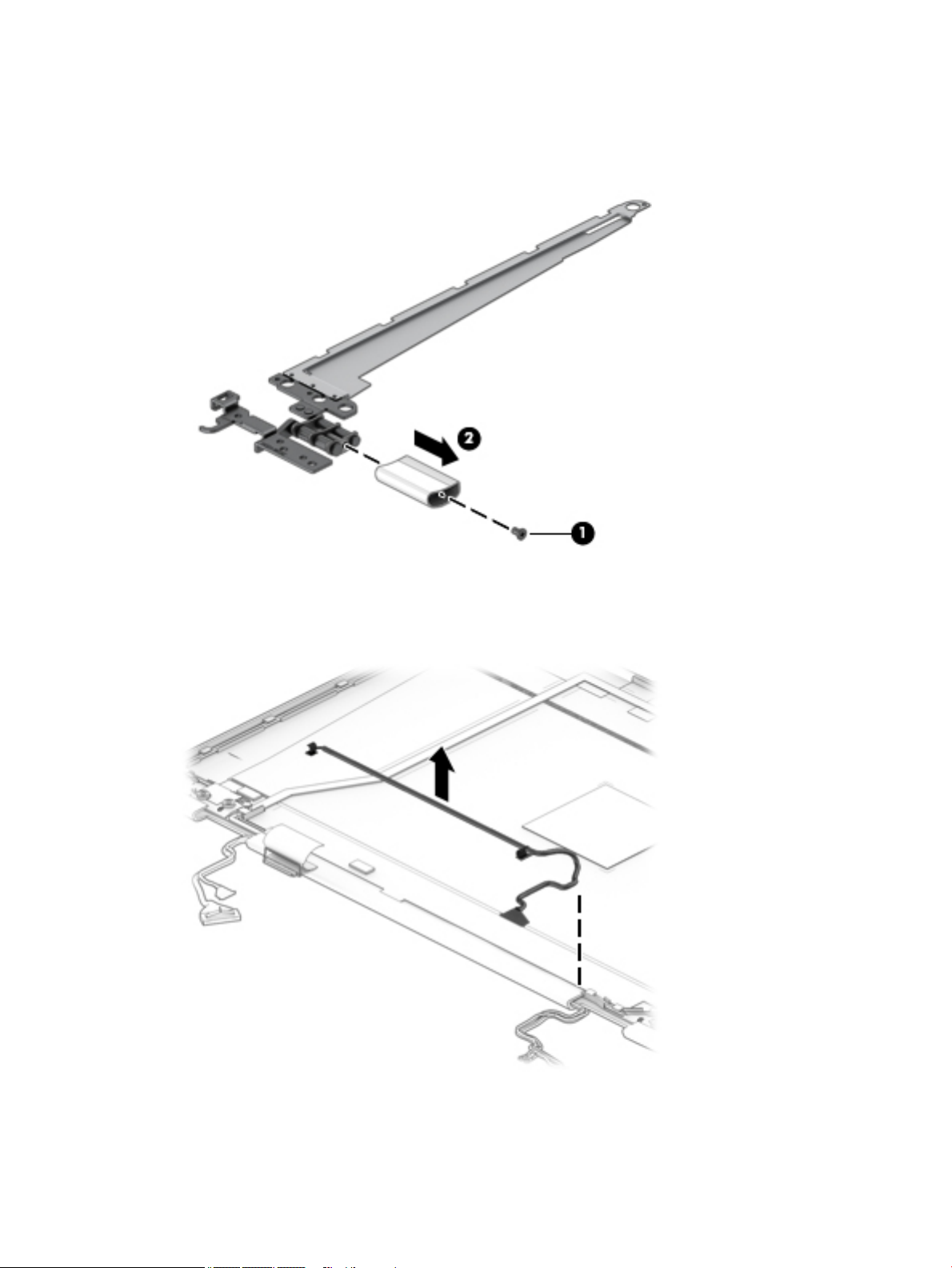

10. If it is necessary to remove the hinge cover, remove the Phillips M2.0×3.0 screw (1) from inside of each

hinge cover, and then pull the cover o the hinge (2).

The display hinge covers are available using spare part number L29056-001.

11. If it is necessary to replace the touch control cable, lift the cable o the display enclosure.

The touch control cable is available in the Display Cable Kit using spare part number L31174-001.

70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

12. If it is necessary to replace the WWAN antennas, peel the antennas from the display enclosure (1),

remove the cables from the hinges(2), remove the antenna alignment rubber piece (3), and then lift the
cables and antennas from the enclosure (4).

The WWAN antennas are available using spare part number L29055-001.

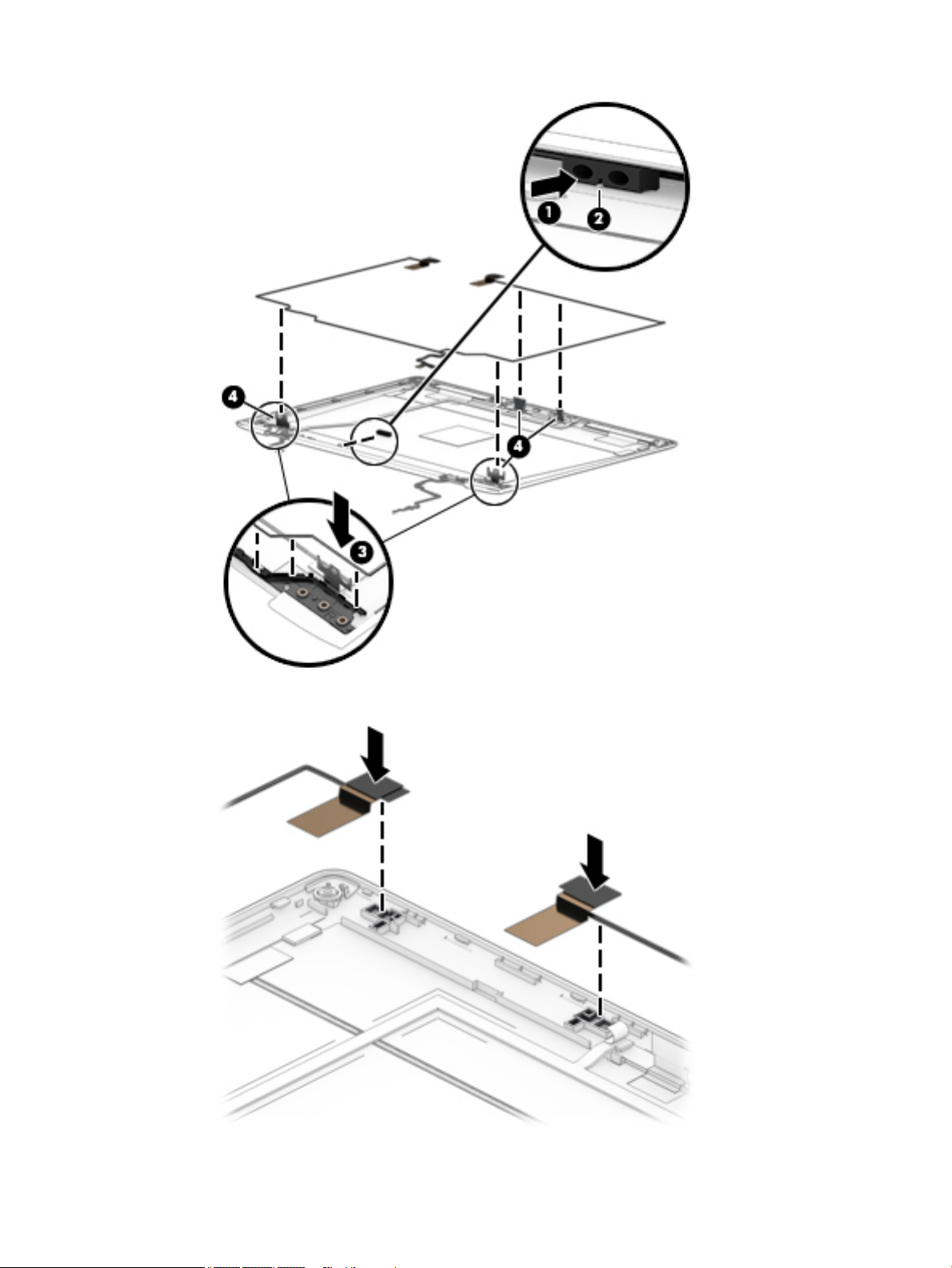

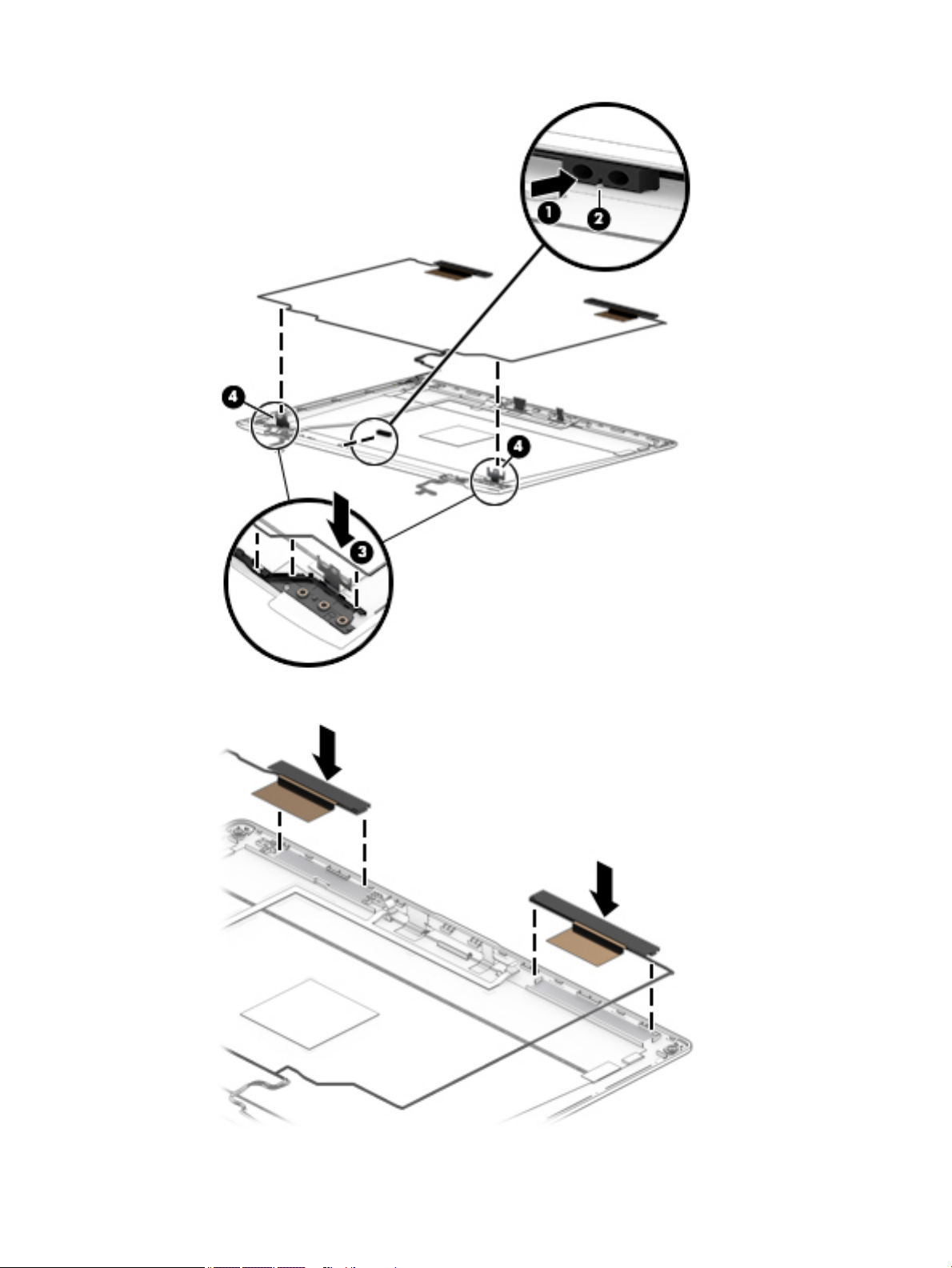

13. When installing WWAN antennas:

a. Insert the rubber alignment piece (1) into place with the notch facing the lip in the display

enclosure (2). Route the antenna cables (3) around the display hinges (4).

Component replacement procedures 71

b. Adhere the antennas to the top of the display enclosure.

72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

14. If it is necessary to replace the WLAN antennas, peel the antennas from the display enclosure (1),

remove the cables from the hinges(2), remove the antenna alignment rubber piece (3), and then lift the
cables and antennas from the enclosure (4).

The WLAN antennas are available using spare part number L29054-001.

15. When installing WLAN antennas:

a. Insert the rubber alignment piece (1) into place with the notch facing the lip in the display

enclosure (2). Route the antenna cables (3) around the display hinges (4).

Component replacement procedures 73

b. Adhere the antennas to the top of the display enclosure.

74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

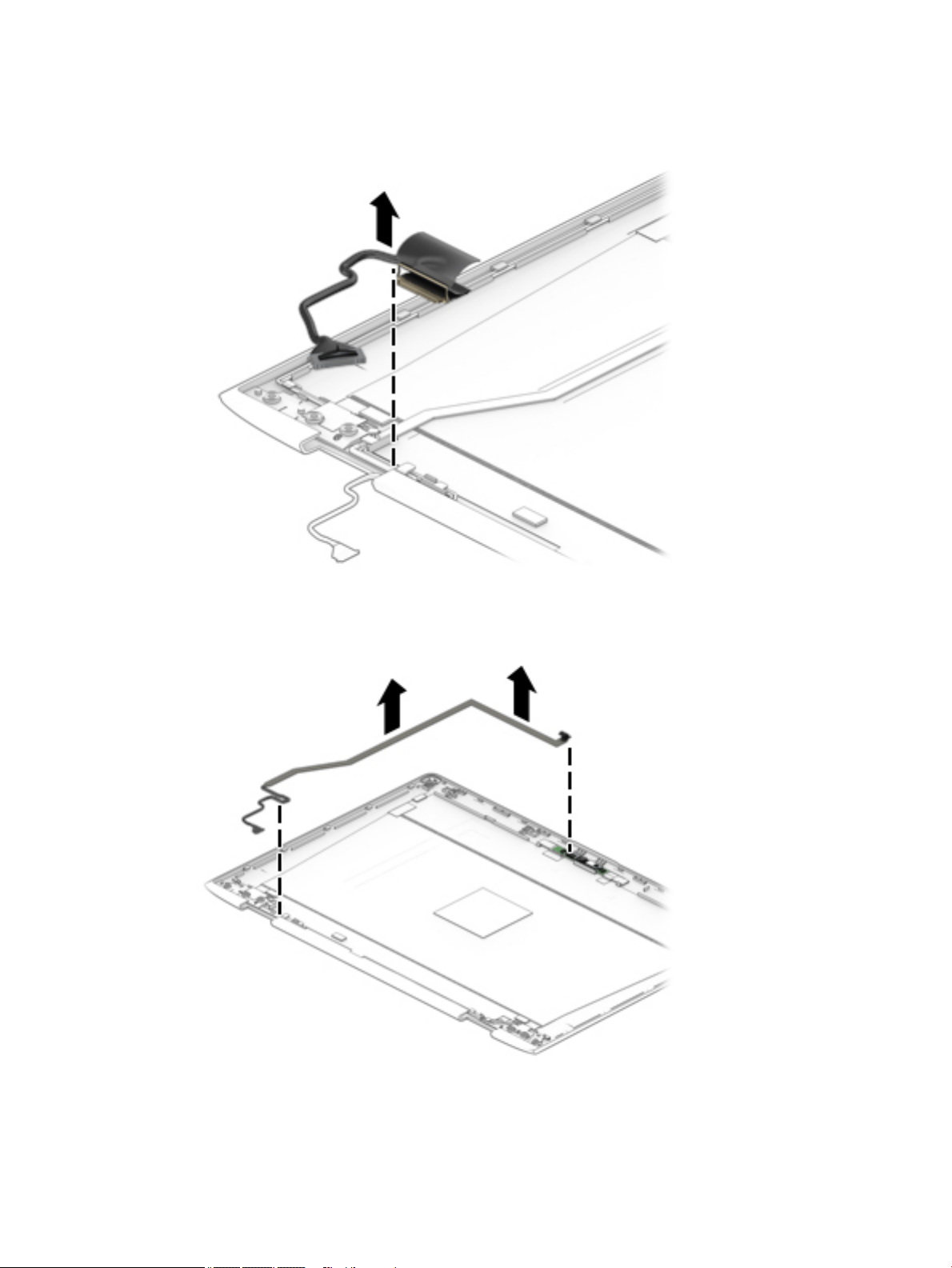

16. If it is necessary to replace the eDP cable, lift the cable from the display enclosure.

The eDP cable is available in the Display Cable Kit using spare part number L31174-001.

17. If it is necessary to remove or replace the HD camera cable, disconnect the cable from the camera

module, and then remove the cable from the display enclosure.

The HD camera cable is available in the Display Cable Kit using spare part number L31174-001.

Component replacement procedures 75

18. If it is necessary to remove or replace the IR camera cable, disconnect the cable from both ends of the

camera module, and then remove the cable from the display enclosure.

The IR camera cable is available in the Display Cable Kit using spare part number L31174-001.

The display enclosure is available using spare part number L28262-001.

Reverse this procedure to reassemble the touch display assembly.

76 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power button board

Description Spare part number

Power button board L28251-001

Power button board cable (included in Cable Kit) L28263-001

Before removing the power button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32)

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

e. Display assembly Display assembly on page 62)

Remove the power button board:

1. Disconnect the cable from the ZIF connector on the power button board (1).

2. Remove the Phillips M2.0×4.0 screw (2) that secures the board to the computer.

Component replacement procedures 77

3. Remove the board from the computer (3).

Reverse this procedure to install the power button board.

78 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Power connector cable

Description Spare part number

Power connector cable L28264-001

Before removing the power connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).

3. Disconnect all external devices connected to the computer.

4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and

then unplugging the AC adapter from the computer.

5. Remove the following components:

a. Service door (Service doors on page 32).

b. Keyboard (Keyboard on page 40)

c. Top cover (Top cover on page 47)

d. Battery (Battery on page 52)

e. Display assembly Display assembly on page 62)

Remove the power connector cable:

1. Disconnect the cable from the system board (1).

2. Lift the cable side of the connector upward (2), and the pull the connector (3) out from under the tab (4)

to remove it .

Reverse this procedure to install the power connector cable.

Component replacement procedures 79

7 Computer Setup (BIOS), TPM, and HP Sure

Start

Using Computer Setup

Computer Setup, or Basic Input/Output System (BIOS), controls communication between all the input and
output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Computer Setup
includes settings for the types of devices installed, the startup sequence of the computer, and the amount of
system and extended memory.

NOTE: Use extreme care when making changes in Computer Setup. Errors can prevent the computer from

operating properly.

Starting Computer Setup

▲ Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.

Using a USB keyboard or USB mouse to start Computer Setup (BIOS)

You can start Computer Setup by using a keyboard or mouse connected to a USB port, but you must rst
disable FastBoot.

1. Turn on or restart the computer, and when the HP logo appears, press f9 to enter the Boot Device

Options menu.

2. Clear the check box for Fast Boot.

3. To save your changes and exit, select the Save icon in the lower-right corner of the screen, and then

follow the on-screen instructions.

– or –

Select Main, select Save Changes and Exit, and then press enter.

Your changes go into eect when the computer restarts.

Navigating and selecting in Computer Setup

● To select a menu or a menu item, use the tab key and the keyboard arrow keys and then press enter, or

use a pointing device to select the item.

● To scroll up and down, select the up arrow or the down arrow in the upper-right corner of the screen, or

use the up arrow key or the down arrow key on the keyboard.

● To close open dialog boxes and return to the main Computer Setup screen, press esc, and then follow

the on-screen instructions.

80 Chapter 7 Computer Setup (BIOS), TPM, and HP Sure Start

To exit Computer Setup menus, choose one of the following methods:

● To exit Computer Setup menus without saving your changes:

Select the Exit icon in the lower-right corner of the screen, and then follow the on-screen instructions.

– or –

Select Main, select Ignore Changes and Exit, and then press enter.

● To save your changes and exit Computer Setup menus:

Select the Save icon in the lower-right corner of the screen, and then follow the on-screen instructions.

– or –

Select Main, select Save Changes and Exit, and then press enter.

Your changes go into eect when the computer restarts.

Restoring factory settings in Computer Setup

NOTE: Restoring defaults will not change the hard drive mode.

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

1. Start Computer Setup. See Starting Computer Setup on page 80.

2. Select Main, and then select Apply Factory Defaults and Exit.

NOTE: On select products, the selections may display Restore Defaults instead of Apply Factory

Defaults and Exit.

3. Follow the on-screen instructions.

4. To save your changes and exit, select the Save icon in the lower-right corner of the screen, and then

follow the on-screen instructions.

– or –

Select Main, select Save Changes and Exit, and then press enter.

Your changes go into eect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory settings.

Updating the BIOS

Updated versions of the BIOS may be available on the HP website.

Most BIOS updates on the HP website are packaged in compressed les called SoftPaqs.

Some download packages contain a le named Readme.txt, which contains information regarding installing
and troubleshooting the le.

Determining the BIOS version

To decide whether you need to update Computer Setup (BIOS), rst determine the BIOS version on your
computer.

BIOS version information (also known as ROM date and System BIOS) can be accessed by pressing fn+esc (if
you are already in Windows) or by using Computer Setup.

Using Computer Setup 81

1. Start Computer Setup. See Starting Computer Setup on page 80.

2. Select Main, and then select System Information.

3. To exit Computer Setup without saving your changes, select the Exit icon in the lower-right corner of the

screen, and then follow the on-screen instructions.

– or –

Select Main, select Ignore Changes and Exit, and then press enter.

To check for later BIOS versions, see Downloading a BIOS update on page 82.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download and

install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do
not download or install a BIOS update while the computer is running on battery power, docked in an optional
docking device, or connected to an optional power source. During the download and installation, follow these
instructions:

Do not disconnect power on the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

1. Type support in the taskbar search box, and then select the HP Support Assistant app.

– or –

Select the question mark icon in the taskbar.

2. Select Updates, and then select Check for updates and messages.

3. Follow the on-screen instructions.

4. At the download area, follow these steps:

a. Identify the most recent BIOS update and compare it to the BIOS version currently installed on your

computer. Make a note of the date, name, or other identier. You may need this information to
locate the update later, after it has been downloaded to your hard drive.

b. Follow the on-screen instructions to download your selection to the hard drive.

Make a note of the path to the location on your hard drive where the BIOS update is downloaded.
You will need to access this path when you are ready to install the update.

NOTE: If you connect your computer to a network, consult the network administrator before installing

any software updates, especially system BIOS updates.

BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the download
is complete. If no instructions are displayed, follow these steps:

1. Type file in the taskbar search box, and then select File Explorer.

2. Select your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder that contains the update.

4. Double-click the le that has an .exe extension (for example, lename.exe).

The BIOS installation begins.

5. Complete the installation by following the on-screen instructions.

82 Chapter 7 Computer Setup (BIOS), TPM, and HP Sure Start

NOTE: After a message on the screen reports a successful installation, you can delete the downloaded le

from your hard drive.

Changing the boot order using the f9 prompt

To dynamically choose a boot device for the current startup sequence, follow these steps:

1. Access the Boot Device Options menu:

● Turn on or restart the computer, and when the HP logo appears, press f9 to enter the Boot Device

Options menu.

2. Select a boot device, press enter, and then follow the on-screen instructions.

TPM BIOS settings (select products only)

IMPORTANT: Before enabling Trusted Platform Module (TPM) functionality on this system, you must ensure

that your intended use of TPM complies with relevant local laws, regulations and policies, and approvals or
licenses must be obtained if applicable. For any compliance issues arising from your operation/usage of TPM
which violates the above mentioned requirement, you shall bear all the liabilities wholly and solely. HP will
not be responsible for any related liabilities.

TPM provides additional security for your computer. You can modify the TPM settings in Computer Setup
(BIOS).

NOTE: If you change the TPM setting to Hidden, TPM is not visible in the operating system.

To access TPM settings in Computer Setup:

1. Start Computer Setup. See Starting Computer Setup on page 80.

2. Select Security, select TPM Embedded Security, and then follow the on-screen instructions.

Using HP Sure Start (select products only)

Select computer models are congured with HP Sure Start, a technology that monitors the computer's BIOS
for attacks or corruption. If the BIOS becomes corrupted or is attacked, HP Sure Start automatically restores
the BIOS to its previously safe state, without user intervention.

HP Sure Start is congured and already enabled so that most users can use the HP Sure Start default
conguration. The default conguration can be customized by advanced users.

To access the latest documentation on HP Sure Start, go to http://www.hp.com/support. Select Find your
product, and then follow the on-screen instructions.

TPM BIOS settings (select products only) 83

8 Using HP PC Hardware Diagnostics

Using HP PC Hardware Diagnostics Windows (select products only)

HP PC Hardware Diagnostics Windows is a Windows-based utility that allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs within the Windows
operating system in order to diagnose hardware failures.

If HP PC Hardware Diagnostics Windows is not installed on your computer, rst you must download and install
it. To download HP PC Hardware Diagnostics Windows, see Downloading HP PC Hardware Diagnostics

Windows on page 84.

After HP PC Hardware Diagnostics Windows is installed, follow these steps to access it from HP Help and
Support or HP Support Assistant.

1. To access HP PC Hardware Diagnostics Windows from HP Help and Support:

a. Select the Start button, and then select HP Help and Support.

b. Right-click HP PC Hardware Diagnostics Windows, select More, and then select Run as

administrator.

– or –

To access HP PC Hardware Diagnostics Windows from HP Support Assistant:

a. Type support in the taskbar search box, and then select the HP Support Assistant app.

– or –

Select the question mark icon in the taskbar.

b. Select Troubleshooting and xes.

c. Select Diagnostics, and then select HP PC Hardware Diagnostics Windows.

2. When the tool opens, select the type of diagnostic test you want to run, and then follow the on-screen

instructions.

NOTE: If you need to stop a diagnostic test at any time, select Cancel.

3. When HP PC Hardware Diagnostics Windows detects a failure that requires hardware replacement, a 24-

digit Failure ID code is generated. For assistance in correcting the problem, contact support, and then
provide the Failure ID code.

Downloading HP PC Hardware Diagnostics Windows

● The HP PC Hardware Diagnostics Windows download instructions are provided in English only.

● You must use a Windows computer to download this tool because only .exe les are provided.

84 Chapter 8 Using HP PC Hardware Diagnostics

Downloading the latest HP PC Hardware Diagnostics Windows version

To download HP PC Hardware Diagnostics Windows, follow these steps:

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics section, select Download, and then select a location on your

computer or a USB ash drive.

The tool is downloaded to the selected location.

Downloading HP Hardware Diagnostics Windows by product name or number (select products only)

NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the

product name or number.

To download HP PC Hardware Diagnostics Windows by product name or number, follow these steps:

1. Go to http://www.hp.com/support.

2. Select Get software and drivers, select your type of product, and then enter the product name or

number in the search box that is displayed.

3. In the HP PC Hardware Diagnostics section, select Download, and then select a location on your

computer or a USB ash drive.

The tool is downloaded to the selected location.

Installing HP PC Hardware Diagnostics Windows

To install HP PC Hardware Diagnostics Windows, follow these steps:

▲ Navigate to the folder on your computer or the ash drive where the .exe le was downloaded, double-

click the .exe le, and then follow the on-screen instructions.

Using HP PC Hardware Diagnostics UEFI

NOTE: For Windows 10 S computers, you must use a Windows computer and a USB ash drive to download

and create the HP UEFI support environment because only .exe les are provided. For more information, see

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive on page 86.

HP PC Hardware Diagnostics UEFI (Unied Extensible Firmware Interface) allows you to run diagnostic tests to
determine whether the computer hardware is functioning properly. The tool runs outside the operating
system so that it can isolate hardware failures from issues that are caused by the operating system or other
software components.

If your PC will not boot into Windows, you can use HP PC Hardware Diagnostics UEFI to diagnose hardware
issues.

When HP PC Hardware Diagnostics UEFI detects a failure that requires hardware replacement, a 24-digit
Failure ID code is generated. For assistance in correcting the problem, contact support, and provide the Failure
ID code.

NOTE: To start diagnostics on a convertible computer, your computer must be in notebook mode, and you

must use the attached keyboard.

NOTE: If you need to stop a diagnostic test, press esc.

Using HP PC Hardware Diagnostics UEFI 85

Starting HP PC Hardware Diagnostics UEFI

To start HP PC Hardware Diagnostics UEFI, follow these steps:

1. Turn on or restart the computer, and quickly press esc.

2. Press f2.

The BIOS searches three places for the diagnostic tools, in the following order:

a. Connected USB ash drive

NOTE: To download the HP PC Hardware Diagnostics UEFI tool to a USB ash drive, see

Downloading the latest HP PC Hardware Diagnostics UEFI version on page 86.

b. Hard drive

c. BIOS

3. When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the

on-screen instructions.

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive

Downloading HP PC Hardware Diagnostics UEFI to a USB ash drive can be useful in the following situations:

● HP PC Hardware Diagnostics UEFI is not included in the preinstall image.

● HP PC Hardware Diagnostics UEFI is not included in the HP Tool partition.

● The hard drive is damaged.

NOTE: The HP PC Hardware Diagnostics UEFI download instructions are provided in English only, and you

must use a Windows computer to download and create the HP UEFI support environment because only .exe
les are provided.

Downloading the latest HP PC Hardware Diagnostics UEFI version

To download the latest HP PC Hardware Diagnostics UEFI version to a USB ash drive:

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics UEFI section, select Download UEFI Diagnostics, and then select

Run.

Downloading HP PC Hardware Diagnostics UEFI by product name or number (select products only)

NOTE: For some products, it may be necessary to download the software to a USB ash drive by using the

product name or number.

To download HP PC Hardware Diagnostics UEFI by product name or number (select products only) to a USB
ash drive:

1. Go to http://www.hp.com/support.

2. Enter the product name or number, select your computer, and then select your operating system.

3. In the Diagnostics section, follow the on-screen instructions to select and download the specic UEFI

Diagnostics version for your computer.

86 Chapter 8 Using HP PC Hardware Diagnostics

Using Remote HP PC Hardware Diagnostics UEFI settings (select products only)

Remote HP PC Hardware Diagnostics UEFI is a rmware (BIOS) feature that downloads HP PC Hardware
Diagnostics UEFI to your computer. It can then execute the diagnostics on your computer, and it may upload
results to a precongured server. For more information on Remote HP PC Hardware Diagnostics UEFI, go to

http://www.hp.com/go/techcenter/pcdiags, and then select Find out more.

Downloading Remote HP PC Hardware Diagnostics UEFI

NOTE: HP Remote PC Hardware Diagnostics UEFI is also available as a Softpaq that can be downloaded to a

server.

Downloading the latest Remote HP PC Hardware Diagnostics UEFI version

To download the latest Remote HP PC Hardware Diagnostics UEFI version, follow these steps:

1. Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.

2. In the HP PC Hardware Diagnostics UEFI section, select Download Remote Diagnostics, and then select

Run.

Downloading Remote HP PC Hardware Diagnostics UEFI by product name or number

NOTE: For some products, it may be necessary to download the software by using the product name or

number.

To download HP Remote PC Hardware Diagnostics UEFI by product name or number, follow these steps:

1. Go to http://www.hp.com/support.

2. Select Get software and drivers, select your type of product, enter the product name or number in the

search box that is displayed, select your computer, and then select your operating system.

3. In the Diagnostics section, follow the on-screen instructions to select and download the Remote UEFI

version for the product.

Customizing Remote HP PC Hardware Diagnostics UEFI settings

Using the Remote HP PC Hardware Diagnostics setting in Computer Setup (BIOS), you can perform the
following customizations:

● Set a schedule for running diagnostics unattended. You can also start diagnostics immediately in

interactive mode by selecting Execute Remote HP PC Hardware Diagnostics.

● Set the location for downloading the diagnostic tools. This feature provides access to the tools from the

HP website or from a server that has been precongured for use. Your computer does not require the
traditional local storage (such as a disk drive or USB ash drive) to run remote diagnostics.

● Set a location for storing the test results. You can also set the user name and password settings used for

uploads.

● Display status information about the diagnostics run previously.

To customize Remote HP PC Hardware Diagnostics UEFI settings, follow these steps:

1. Turn on or restart the computer, and when the HP logo appears, press f10 to enter Computer Setup.

2. Select Advanced, and then select Settings.

Using Remote HP PC Hardware Diagnostics UEFI settings (select products only) 87

3. Make your customization selections.

4. Select Main, and then Save Changes and Exit to save your settings.

Your changes take eect when the computer restarts.

88 Chapter 8 Using HP PC Hardware Diagnostics

9 Backing up, restoring, and recovering

This chapter provides information about the following processes, which are standard procedure for most
products:

● Backing up your personal information—You can use Windows tools to back up your personal

information (see Using Windows tools on page 89).

● Creating a restore point—You can use Windows tools to create a restore point (see Using Windows
tools on page 89).

● Creating recovery media (select products only)—You can use HP Recovery Manager or HP Cloud

Recovery Download Tool (select products only) to create recovery media (see Creating HP Recovery

media (select products only) on page 89).

● Restoring and recovery—Windows oers several options for restoring from backup, refreshing the

computer, and resetting the computer to its original state (see Using Windows tools on page 89).

● Removing the Recovery Partition—To remove the Recovery partition to reclaim hard drive space

(select products only), select the Remove Recovery Partition option of HP Recovery Manager. For more
information, see Removing the HP Recovery partition (select products only) on page 93.

Using Windows tools

IMPORTANT: Windows is the only option that allows you to back up your personal information. Schedule

regular backups to avoid information loss.

You can use Windows tools to back up personal information and create system restore points and recovery
media, allowing you to restore from backup, refresh the computer, and reset the computer to its original
state.

NOTE: If computer storage is 32 GB or less, Microsoft System Restore is disabled by default.

For more information and steps, see the Get Help app.

▲ Select the Start button, and then select the Get Help app.

NOTE: You must be connected to the Internet to access the Get Help app.

Creating HP Recovery media (select products only)

After you have successfully set up the computer, use HP Recovery Manager to create a backup of the HP
Recovery partition on the computer. This backup is called HP Recovery media. In cases where the hard drive is
corrupted or has been replaced, the HP Recovery media can be used to reinstall the original operating system.

To check for the presence of the Recovery partition in addition to the Windows partition, right-click the Start
button, select File Explorer, and then select This PC.

NOTE: If your computer does not list the Recovery partition in addition to the Windows partition, contact

support to obtain recovery discs. Go to http://www.hp.com/support, select your country or region, and then
follow the on-screen instructions.

Using Windows tools 89

On select products, you can use the HP Cloud Recovery Download Tool to create HP Recovery media on a
bootable USB ash drive. For more information, see Using the HP Cloud Recovery Download Tool to create

recovery media on page 91.

Using HP Recovery Manager to create recovery media

NOTE: If you cannot create recovery media yourself, contact support to obtain recovery discs. Go to

http://www.hp.com/support, select your country or region, and then follow the on-screen instructions.

Before you begin

Before you begin, note the following:

● Only one set of recovery media can be created. Handle these recovery tools carefully, and keep them in a

safe place.

● HP Recovery Manager examines the computer and determines the required media storage capacity.

● To create recovery media, use one of the following options:

NOTE: If the computer does not have a recovery partition, HP Recovery Manager displays the Windows

Create a Recovery Drive feature. Follow the on-screen instructions to create a recovery image on a blank
USB ash drive or hard drive.

● If your computer has an optical drive with DVD writer capability, be sure to use only high-quality
blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not use rewritable discs such as CD±RW,
DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-ray) discs, which are not compatible
with HP Recovery Manager software.

● If your computer does not include an integrated optical drive with DVD writer capability, you can
use an external optical drive (purchased separately) to create recovery discs, as described above. If
an external optical drive is used, you must connect it directly to a USB port on the computer. It
cannot be connected to a USB port on an external device, such as a USB hub.

● To create a recovery ash drive, use a high-quality blank USB ash drive.

● Be sure that the computer is connected to AC power before you begin creating the recovery media.

● The creation process can take an hour or more. Do not interrupt this process.

● If necessary, you can exit the program before you have nished creating all of the recovery media. HP

Recovery Manager will nish the current DVD or ash drive. The next time you start HP Recovery
Manager, you will be prompted to continue.

Creating the recovery media

To create HP Recovery media using HP Recovery Manager:

IMPORTANT: For a tablet with a detachable keyboard, connect the tablet to the keyboard base before

beginning these steps.

1. Type recovery in the taskbar search box, and then select HP Recovery Manager.

2. Select Create recovery media, and then follow the on-screen instructions.

If you need to recover the system, see Recovering using HP Recovery Manager on page 91.

90 Chapter 9 Backing up, restoring, and recovering
