QuickSpecs

Overview

Microtower

MicrotowerMicrotower

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

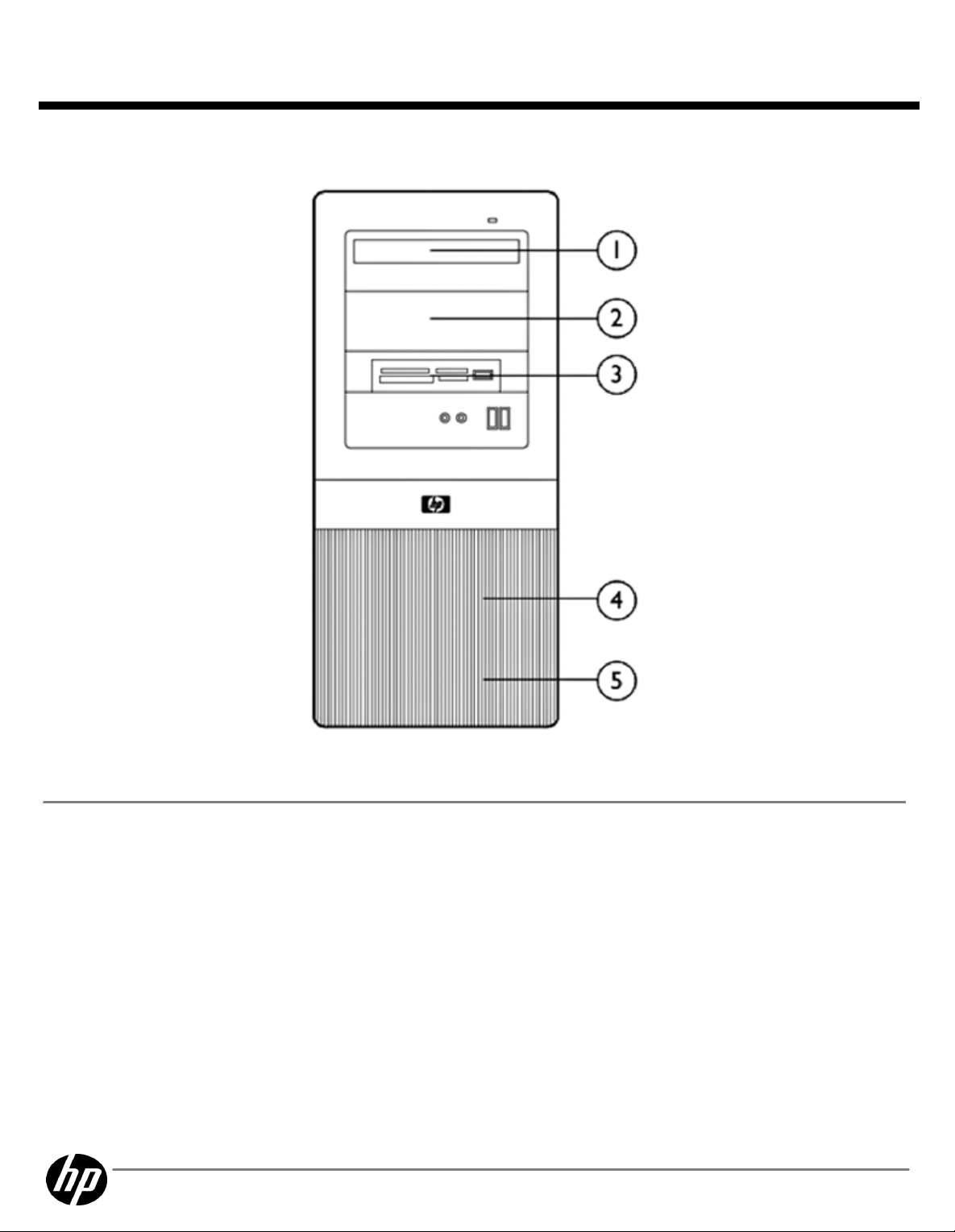

1.

(2) external 5.25" drive bays for optional optical drives

2.

Reset/recovery button

3.

(1) external 3.5" drive bay for optional media reader or Pocket Media drive

4.

Front I/O includes: (2) USB 2.0 ports, dedicated headphone output, microphone jack

5.

Standard efficiency Power Supply or optional energy efficient Power Supply

6.

Rear I/O includes: (4) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DVI-D and VGA video interfaces, microphone jack, audio in/out jacks

7.

(2) full-height PCI 2.3 slots, (1) PCIe x1 slot, (1) PCIe x16 slot

8.

(2) internal 3.5" hard drive bays

9.

PS/2 Scroll Mouse

10.

HP Standard Keyboard

11.

Monitor (sold separately)

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 1

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Overview

At A Glance

At A GlanceAt A Glance

Support for Intel® Core™ 2 Duo and Core™ 2 Quad processors, Intel Pentium® processors, Intel Celeron® processors Genuine Windows 7 versions, Genuine Windows Vista versions, Genuine Windows XP Professional available through downgrade rights from Windows 7 Professional, SuSE Linux Enterprise Desktop 11, or FreeDOS Intel G41 Express Chipset Legacy serial port support Intel I/O Controller Hub 7 (ICH7) Intel Graphics Media Accelerator X4500 with DX10 support PCI Express I/O bus Serial ATA controller Realtek 8111DL Gigabit Ethernet Controller Choice of hard drives and optical drives DDR3 SDRAM system memory Optional energy efficient power supply for Microtower Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply.

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 2

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

Processor and Speed

Processor and SpeedProcessor and Speed One of the following

Intel Celeron Processors:

Intel Celeron Processors:Intel Celeron Processors: Intel Celeron 440 Processor (2.0-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 450 Processor (2.2-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron Dual-Core Processors:

Intel Celeron Dual-Core Processors:

Intel Celeron Dual-Core Processors:Intel Celeron Dual-Core Processors: Intel Celeron E1500 Processor (2.2-GHz, 512K L2 cache, 800-MHz FSB) Intel Celeron E1600 Processor (2.4-GHz, 512K L2 cache, 800-MHz FSB) Intel Celeron E3200 Processor (2.4-GHz, 1-MB L2 cache, 800-MHz FSB) Intel Celeron E3300 Processor (2.5-GHz, 1-MB L2 cache, 800-MHz FSB) Intel Pentium Dual-Core Processors:

Intel Pentium Dual-Core Processors:

Intel Pentium Dual-Core Processors:Intel Pentium Dual-Core Processors: Intel Pentium E5300 Processor (2.6-GHz, 2-MB L2 cache, 800-MHz FSB) Intel Pentium E5400 Processor (2.7-GHz, 2-MB L2 cache, 800-MHz FSB) Intel Pentium E6300 Processor (2.8-GHz, 2-MB L2 cache, 1066-MHz FSB) Intel Core 2 Duo Processors:

Intel Core 2 Duo Processors:

Intel Core 2 Duo Processors:Intel Core 2 Duo Processors: Intel Core 2 Duo E7500 Processor (2.93-GHz, 3 MB L2 cache, 1066-MHz FSB) Intel Core 2 Duo E7600 Processor (3.06-GHz, 3 MB L2 cache, 1066-MHz FSB) Intel Core 2 Duo E8400 Processor (3.0-GHz, 6 MB L2 cache, 1333-MHz FSB) Intel Core 2 Duo E8500 Processor (3.16-GHz, 6-MB L2 cache, 1333-MHz FSB) Intel Core 2 Duo E8600 Processor (3.33-GHz, 6 MB L2 cache, 1333-MHz FSB) Intel Core 2 Quad Processors:

Intel Core 2 Quad Processors:

Intel Core 2 Quad Processors:Intel Core 2 Quad Processors: Intel Core 2 Quad Q8300 Processor (2.5-GHz, 4 MB L2 cache, 1333-MHz FSB) Intel Core 2 Quad Q8400 Processor (2.66-GHz, 4 MB L2 cache, 1333-MHz FSB) Intel Core 2 Quad Q9400 Processor (2.66-GHz, 6 MB L2 cache, 1333-MHz FSB) Intel Core 2 Quad Q9550 Processor (2.83-GHz, 12 MB L2 cache, 1333-MHz FSB) Intel Core 2 Quad Q9650 Processor (3.0-GHz, 12 MB L2 cache, 1333-MHz FSB)

NOTE:

Intel processor numbers are not a measure of performance. Processor numbers differentiate

NOTE:NOTE: features within each processor family, not across different processor families.

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 3

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

Operating Systems and

Operating Systems andOperating Systems and Application Software

Application Software

Application SoftwareApplication Software (availability varies by region)

Genuine Windows 7 Professional Edition (32-bit) Genuine Windows 7 Professional Edition (64-bit) Genuine Windows XP Professional available through downgrade rights from Windows 7 Professional Genuine Windows 7 Home Premium Edition (32-bit or 64-bit) Genuine Windows 7 Home Basic Edition (32-bit) Genuine Windows Vista Business (32-bit) Genuine Windows Vista Home Basic (32-bit) Genuine Windows XP Home Basic (China only) SuSE Linux Enterprise Desktop 11 Red Flag Linux (China only) FreeDOS

1

Certain Windows Vista product features require advanced or additional hardware. See

www.microsoft.com/windowsvista/getready/hardwarereqs.mspx www.microsoft.com/windowsvista/getready/capable.mspx

can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

2

System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the Windows 7 software and take full advantage of Windows 7 functionality. See

http://www.microsoft.com/windows/windows-7/

3

Windows 7 Professional disk may be included for future upgrade if desired. To qualify for this downgrade an end user must be a business (including governmental or educational institutions) and is expected to order at least 25 customer systems with the same custom image.

2007 Microsoft Office Ready PC Microsoft Office 2007 Basic Microsoft Office 2007 Small Business Microsoft Office 2007 Professional HP Recovery Manager

Mozilla Firefox for HP Virtual Solutions Hard Disk Partitioning Roxio Easy Media Creator 10 Core WinDVD 8 Core WinDVD BD for Blu-Ray McAfee Total Protection Anti-Virus PDF Complete HP Power Manager v2.0 (Edison) Credential Manager HP Total Care Advisor USB Port Disable Sun Java Runtime Environment Welcome Center SMB Offers

** Supporting software available with certain optical drive configurations *** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates. First update included. Subscription required for updates thereafter.

www.windowsvista.com/upgradeadvisor

2,3

1

**

***

2 2

2

1

and

for details. Windows Vista Upgrade Advisor

.

for details.

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 4

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

Hard Drives

Hard DrivesHard Drives

System Memory

System MemorySystem Memory

Storage

StorageStorage One or more of the following (see Storage section below)

–

160-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART 250-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART 320-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART 500-GB 7200 rpm Serial ATA 3.0-Gb/s NCQ, SMART

1-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 1GB) 2-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (2 x 1GB) 2-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 2GB) 3-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (1 x 1GB + 1 x 2GB) 4-GB DDR3 Synch DRAM PC3-10600 (1066/1333-MHz) Non-ECC (2 x 2GB)

NOTE:

Memory runs at maximum system supported speed of 1066 MHz, or at 800 MHz when

NOTE:NOTE: processor has 800-MHz FSB. For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

USB Pocket Media Drive (PMD) and Bay

USB Pocket Media Drive (PMD) and BayUSB Pocket Media Drive (PMD) and Bay HP 3.5-inch Pocket Media Drive Bay HP 320GB 3.5-inch Pocket Media Drive with Bay Diskette Drive

Diskette Drive

Diskette DriveDiskette Drive

1.44 MB Diskette Drive Media Reader

Media Reader

Media ReaderMedia Reader HP 22-in-1 Media Card Reader Optical Drives (Serial ATA)

Optical Drives (Serial ATA)

Optical Drives (Serial ATA)Optical Drives (Serial ATA) SATA DVD-ROM Drive SATA SuperMulti LightScribe DVD Writer HP SATA Blu-ray Writer

Input Devices

Input DevicesInput Devices

Keyboard – One of the following

Keyboard – One of the followingKeyboard – One of the following HP PS/2 Standard Keyboard HP USB PS/2 Washable Keyboard HP USB Standard Keyboard HP USB Mini Keyboard HP USB Smartcard Keyboard Mouse – One of the following

Mouse – One of the following

Mouse – One of the followingMouse – One of the following PS/2 2-Button Optical Scroll Mouse USB 2-Button Optical Scroll Mouse USB 2-Button Laser Mouse

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 5

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Standard Features and Configurable Components (availability may vary by country)

Audio

AudioAudio

Communication

CommunicationCommunication

Graphics

GraphicsGraphics

Realtek ALC662 High Definition audio codec Internal PC speaker HP USB Thin Powered Speakers

Realtek 8111DL GbE Ethernet Controller Intel Gigabit CT Desktop NIC LSI PCIe x1 56K International SoftModem

Intel Graphics Media Accelerator X4500 ATI Radeon HD 4350 (512MB) FH PCIe x16 Card ATI Radeon HD 4550 (256MB) DH PCIe x16 Graphics Card (available through January 2010) ATI Radeon HD 4550 (512MB) DH PCIe x16 Graphics Card (available after January 2010) ATI Radeon HD 4650 1GB Dual Head PCIe x16 Card NVIDIA GeForce G210 512MB ATX PCIe x16 NVIDIA GeForce GT230 1.5GB PCIe x16 Card NVIDIA GeForce 205 512MB ATX PCIe x16 NVIDIA GeForce 315 1GB ATX PCIex16 DMS-59 To Dual DVI Y-Cable Adapter

Miscellaneous

MiscellaneousMiscellaneous

Hood Sensor Port Control Cover HP Chassis Security Kit HP Parallel Port Adapter HP Serial Port Full Height Adapter HP Serial/Parallel PCI Card HP 1394a FireWire 400 PCI Card

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 6

QuickSpecs

System Details

Base Unit

Base UnitBase Unit

Slots

SlotsSlots

Micro ATX Microtower chassis, including power supply and front bezel; five (5) drive bays and four expansion slots Active type heatsink 92 x 92 x 25 mm chassis fan for Microtower chassis System board with Intel G41 Express chipset, Intel I/O Controller Hub 7 (ICH7), Realtek RTL8111DL Ethernet controller, Intel GMA X4500 graphics, and Realtek audio, (1) PCI Express x1 slots, (1) PCI Express x16 slot, (2) PCI, (2) DDR3 DIMM memory slots, (4) Serial ATA data connectors, (6) USB Ports (see USB support below), (1)VGA, (1)DVI-D port, (1) serial port in the rear IO Power cord

PCI

PCIPCI

Memory Expansion

Memory ExpansionMemory Expansion

NOTE:

For systems configured with more than 3 GB of memory and a 32-bit operating system, all

NOTE:NOTE: memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

One (1) PCI Express x1 slots on PCA One (1) PCI Express x16 slot on PCA (for graphic cards) Two (2) PCI slots on PCA

Two (2) DDR3 SDRAM DIMM slots (4 GB maximum memory support)

Bays

BaysBays

USB Support

USB SupportUSB Support

Interfaces

InterfacesInterfaces

(Legacy)

Internal

InternalInternal External

External

ExternalExternal

EHCI high-speed USB 2.0 controller Two (2) front ports; Four (4) rear ports

Four (4) internal ports on system board:

2 for front ports 2 for media card reader

One (1) PS/2 keyboard port One (1) PS/2 mouse port One (1) analog VGA video port One (1) DVI-D video port One (1) serial port One (1) line in; one (1) line out; one (1) microphone in One (1) RJ45 network port

Two (2) 3.5-inch Two (2) 5.25-inch; One (1) 3.5-inch

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 7

QuickSpecs

System Details

Weight & Dimensions

Weight & DimensionsWeight & Dimensions

Technology and Features

Technology and FeaturesTechnology and Features

Chassis

ChassisChassis

Chassis Dimensions

Chassis DimensionsChassis Dimensions (H x W x D)

Packaged Dimensions

Packaged DimensionsPackaged Dimensions (D x L x W)

System Weight

System WeightSystem Weight Shipping Weight

Shipping Weight

Shipping WeightShipping Weight

Memory Type

Memory TypeMemory Type

NOTE:

Memory runs at maximum system supported speed of 1066 MHz, or at 800 MHz when

NOTE:NOTE: processor has 800-MHz FSB. For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

Hard Drive Interfaces

Hard Drive InterfacesHard Drive Interfaces Supported

Supported

SupportedSupported

Front Panel

Front PanelFront Panel

Cooling Solutions

Cooling SolutionsCooling Solutions Supported

Supported

SupportedSupported

Slots Supported

Slots SupportedSlots Supported Front I/O

Front I/O

Front I/OFront I/O Rear I/O

Rear I/O

Rear I/ORear I/O

Drive Bays

Drive BaysDrive Bays

Internal Speaker

Internal SpeakerInternal Speaker Security

Security

SecuritySecurity

Power Supply

Power SupplyPower Supply

*Reset function will be set for China/Hong Kong/Korea; Recovery function will be set for all other regions.

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

15.14 x 7.27 x 16.36 in 385 x 185 x 416 mm

19.63 x 24.13 x 10.56 in

498.6 x 613 x 268.2 mm

16.66 lb (7.56 kg)

24.63 lb (11.17 kg)

PC3-10600 DDR3 SDRAM (1066/1333MHz) non-ECC Up to 4 GB system memory standard

Serial ATA, NCQ support

Power button Power On LED HDD Activity LED

Reset/recovery button (MT only) Power Supply Fan (variable speed) Active heatsink (variable speed) Chassis fan (variable speed) Four (4) full-height expansion slots Two (2) USB 2.0 ports, Headphone, Mic Standard Micro ATX I/O connectors, including four(4) USB 2.0 ports, serial

ports Two (2) 5.25-inch (13.335 cm) half height external

One (1) 3.5-inch (8.89 cm) half height external Two (2) 3.5-inch half height internal

Optional for APJ Padlock loop Kensington Lock Support Noble Universal Clamp Lock Cable Kit Port Control Cover supported 250W PFC HV immunity (410V/s) with a 115v/230v line switch (varies by

country/region) as Standard configuration , and 300W PFC HV immunity (410V/s) with a 115v/230v line switch and 300W 85% Efficiency power supply as option

*

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 8

QuickSpecs

System Details

Unit Environment and

Unit Environment andUnit Environment and Operating Conditions

Operating Conditions

Operating ConditionsOperating Conditions

General Unit Operating Guidelines

General Unit Operating GuidelinesGeneral Unit Operating Guidelines

Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range. Leave a 4 in (10.2 cm) clearance on all vented sides of the computer to permit the required airflow. Never restrict airflow into the computer by blocking any vents or air intakes. Do not stack computers on top of each other or place computers so near each other that they are subject to each other's re-circulated or preheated air. Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign matter can block the vents and limit the airflow. If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.

Temperature Range

Temperature RangeTemperature Range

Relative Humidity

Relative HumidityRelative Humidity

Maximum Altitude

Maximum AltitudeMaximum Altitude (unpressurized)

NOTE:

Operating temperature is de-rated 1.0 deg C per 1000 ft (300 m) to 7500 ft (2286 m) above

NOTE:NOTE: sea level, no direct sustained sunlight. Maximum rate of change is 7.5 deg C/Hr. The upper limit may be limited by the type and number of options installed.

Operating

OperatingOperating Non-operating

Non-operating

Non-operatingNon-operating Operating

Operating

OperatingOperating Non-operating

Non-operating

Non-operatingNon-operating Operating

Operating

OperatingOperating Non-operating

Non-operating

Non-operatingNon-operating

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

41° to 95° F (5° to 35° C)

-22° to 149° F (-30° to 65° C) 10% to 90% (non-condensing at ambient) 5% to 95% (non-condensing at ambient) 10,000 ft (3048 m) 30,000 ft (9144 m)

System Board

System BoardSystem Board

Processor

ProcessorProcessor

Chipset

ChipsetChipset

Front Side Bus Frequency

Front Side Bus FrequencyFront Side Bus Frequency Memory

Memory

MemoryMemory

Integrated Graphics

Integrated GraphicsIntegrated Graphics Audio

Audio

AudioAudio

LOM

LOMLOM Storage

Storage

StorageStorage Expansion Slots

Expansion Slots

Expansion SlotsExpansion Slots

BIOS

BIOSBIOS Industrial Standard

Industrial Standard

Industrial StandardIndustrial Standard

Rear I/O Ports

Rear I/O PortsRear I/O Ports

Socket T; LGA775 industry standard Micro ATX form factor Support single Intel Core 2 Duo and Core 2 Quad, Pentium dual-core, or

Celeron processors Intel G41 Express

Intel I/O Controller Hub 7 (ICH7) 800/1066/1333 MHz DDR3 SDRAM 2 x DIMM slots Intel Graphics Media Accelerator (GMA) X4500 Realtek ALC662 HD Audio compatible codec with two channel audio 3D

audio compliant with AC'97 rev. 2.3 Realtek RTL8111DL Four Serial ATA interfaces 1 x PCI Express x1 slots 1 x PCI Express x16 slot 2 X PCI SPI FLASH ROM PCIe compliant USB 2.0 1 x PS/2 keyboard port 1 x PS/2 mouse port 4 x USB 2.0 ports

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 9

QuickSpecs

System Details

On Board I/O Interfaces

On Board I/O InterfacesOn Board I/O Interfaces

Board Size

Board SizeBoard Size

Additional Features

Additional FeaturesAdditional Features

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

1 x RJ-45 10/100/1000 port 1 x serial port 1 x DVI-D video port 1 x DB 15-pin analog VGA port 3 x audio ports 1 x ATX power connector 1 x +12V power connector 1 x Floppy connector 1 x header (1 – 1x3) to support hood sensor 1x COM2 header 1x Parallel header 1 x Front panel connector, Switch, LED (ON/Flash/OFF) 2 x Fan headers for CPU, chassis, with voltage/fan speed control 1 x header (1 – 2x5, ) to support 2 USB 2.0 ports at front side 1 x header (1 – 2x5) to support USB Card Media Reader 1 x header (1 – 1x2) to support one touch reset 1 x header (1 –- 1x2) to support one touch recovery 1 x header to support 2 front (Headphone/Mic) audio ports Micro-ATX, PCB Size: 9.6 x 9.6 in (24.38 x 24.38 cm) 4-layer PCB with green color Bootable without keyboard, mouse or monitor Keyboard/mouse/USB wake up Support S3, S4 and S5 ACPI status Hardware monitor capability CPU fan speed control One button reset/recovery

*Reset function will be set for China/Hong Kong/Korea; Recovery function will be set for the other regions.

*

Network Interface

Network InterfaceNetwork Interface

Modem

ModemModem

Realtek 8111DL GbE Ethernet Controller Intel Gigabit CT Desktop NIC

LSI PCIe x1 56K International SoftModem

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 10

QuickSpecs

System Details

Power Supply

Power SupplyPower Supply

Model Standard Efficiency

Energy Efficient

Operating Voltage Range

Rated Voltage Range

Rated Line Frequency Operating Line Frequency Range Rated Input Current 115V/230V Line switch Rated Input Current with Energy Efficient

Power Supply Current Leakage

(NFPA 99) System Heat Dissipation

System Heat Dissipation with Energy Efficient* Power Supply

Power Supply Fan FEMP Standby Power Compliant

(<2W in S5 - Power Off) Power Consumption in ES Mode - Suspend

to RAM (S3) (Instantly Available PC) High voltage immunity China Telecom YD/T 993-2006 spec

*

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Microtower

MicrotowerMicrotower

250W PFC+HV 300W PFC+HV

N/A N/A

90 to 132VAC, or

180 to 264VAC

100 to 127VAC, or

200 to 240VAC

50/60 Hz 50/60 Hz 50/60 Hz

47 - 63 Hz 47 - 63 Hz 47 - 63 Hz

8A/4A 8A/4A 8A/4A

Yes Yes

N/A N/A

<3.5mA <3.5mA

48.5 W or 165.482

BTU/hr.(For 115V/60Hz)

48.2 W or 164.4584

BTU/hr. (For 30V/50Hz)

N/A N/A

80mm variable speed 80mm variable speed 80mm variable speed

0.45W (For 115V/60Hz)

0.53W (For 230V/50Hz) <3W <3W

up to 410V/s up to 410V/s

Yes Yes

90 to 132VAC, or

180 to 264VAC

100 to 127VAC, or

200 to 240VAC

50.4W or 171.9648

BTU/hr. (For115V/60Hz)

50.3W or 171.6236

BTU/hr.(For 230V/50Hz)

0.65W (For 115V/60Hz)

0.71W (For 230V/50Hz)

300W 85% Eff

300W standard efficiency

active PFC

300W 85% efficient

active PFC

90 - 264 VAC

100 - 240 VAC

N/A

8A/4A

<275 µA

43.1W or 147.0572BTU/hr. (For 115V/60Hz) 43.2W or

147.3984 BTU/hr. (For 230V/50Hz)

43.1W or 147.0572BTU/hr. (For 115V/60Hz) 43.2W or

147.3984 BTU/hr. (For 230V/50Hz)

0.17W (For 115V/60Hz)

0.37W (For 230V/50Hz) <2.7W

N/A N/A

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 11

QuickSpecs

System Details

System Environmental

System EnvironmentalSystem Environmental Specs

Specs

SpecsSpecs

Values are subject to change without notification and are for reference only. Performance of system, options, and ancillary equipment will vary depending on the system configuration. Levels presented do not account for non-HP/Compaq installed hardware.

Ambient Air Temperature

Ambient Air TemperatureAmbient Air Temperature

Humidity

HumidityHumidity

Altitude

AltitudeAltitude

Shock

ShockShock

Vibration

VibrationVibration

Acoustic Noise

Acoustic NoiseAcoustic Noise

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Operating

OperatingOperating

Storage

StorageStorage

Operating

OperatingOperating

Storage

StorageStorage

Operating

OperatingOperating

Non-Operating

Non-OperatingNon-Operating Listed are the levels of shock the product can withstand with No damage

being incurred. The values represent peak input acceleration during an 2~3 ms half-sine shock pulse, 11 ms trapezoidal shock pulse.

Non-Operating

Non-OperatingNon-Operating

Listed are the levels of vibration the product can withstand with No damage being incurred. The values represent a flat random vibration input acceleration profile across the given frequency range.

Operating

OperatingOperating

Non-Operating

Non-OperatingNon-Operating Listed are the declared A-WEIGHTED SOUND POWER LEVELS (LWAd) and

declared average desktop seated operator position A-WEIGHTED SOUND PRESSURE LEVELS (LpAm) when the product is operating in a 73.4°F (23°C) ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA

109). IDLE

IDLE

(Fixed disk drive

IDLEIDLE spinning)

FIXED DISK

FIXED DISKFIXED DISK write)

DVD-ROM

DVD-ROMDVD-ROM Reads)

(Random

(Sequential

Operating 41° to 95°F (5 to 35°C) (Test 0 to 104°F (40°C))

Storage: 90% RH @ 60°C for 12 hours (Noncondensing)

10% to 90% relative humidity (Rh), 35°C noncondensing

90% relative humidity (Rh), 60°C for 12 hours, non-condensing

0 to 10,000 feet (0 to 3048 meters) - This value may be limited by the type and number of options installed.

0 to 30,000 feet (0 to 9,144 meters)

35G's (Half-sine Shock) 30G's (Trapezoidal Shock)

Random vibration at 5Hz@0.00025G2/Hz, 10Hz@0.01G2/Hz, 100Hz@0.01G2/Hz, 300Hz@0.00001G2/Hz 5Hz to 300Hz, (0.25G's nominal).

~2.09Grms (5-500Hz), Non-Operational

LWAd = 4.3 Bels, Desktop Average LpAm = 32 dBA

LWAd = 4.4 Bels, Desktop Average LpAm = 33 dBA

LWAd = 5.5 Bels, Deskside Average LpAm = 44 dBA

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 12

QuickSpecs

System Details

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Service and Support

Service and SupportService and Support

On-site Warranty site, next business-day Global coverage non-restricted country will remain fully covered under the original warranty and service offering. Oneyear onsite and labor are not available in all countries.

NOTE 1

NOTE 1NOTE 1 warranty variations may be offered in your region.

NOTE 2

NOTE 2NOTE 2 HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.

NOTE 3

NOTE 3NOTE 3 qualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.

: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other

: On-site service may be provided pursuant to a service contract between HP and an authorized

: Technical telephone support applies only to HP-configured Compaq and third-party HP-

Note 1

: 1-1-1, 3-1-1, 3-3-3, 3-3-3 limited, 4-4-4, 5-5-5 limited warranty delivers on-

Note 2

service for parts and labor and includes free telephone support

ensures that any product purchased in one country and transferred to another

Note 3

24 x 7.

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 13

QuickSpecs

After-Market Options (availability may vary by country)

Communications

CommunicationsCommunications

Hard Disk Drives

Hard Disk DrivesHard Disk Drives

Removable Storage

Removable StorageRemovable Storage Devices

Devices

DevicesDevices

Input Devices

Input DevicesInput Devices

NICs

NICsNICs Intel Gigabit CT Desktop NIC Modems

Modems

ModemsModems LSI PCIe x1 56K International SoftModem

HP 500-GB SATA 3.0-Gb/s Hard Drive HP 320-GB SATA 3.0-Gb/s Hard Drive HP 250-GB SATA 3.0-Gb/s Hard Drive HP 160-GB SATA 3.0-Gb/s Hard Drive

HP 22-in-1 Media Card Reader

Keyboards

KeyboardsKeyboards HP PS/2 JB Standard Keyboard HP USB JB Standard Keyboard HP USB Smartcard Keyboard (Carbonite/Silver) Mice

Mice

MiceMice HP PS/2 2-Button Optical Scroll Mouse HP USB 2-Button Optical Scroll Mouse HP USB 2-Button Laser Mouse

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

FH969AA

FH970AA

KW347AA

FH963AA

PY278AA PY277AA

AR941AA

DT527A DT528A

ED707AA

EY703AA

DC172B

GW405AA

I/O Adapter

I/O AdapterI/O Adapter

Memory

MemoryMemory

Audio

AudioAudio

HP Serial/Parallel PCI Card HP Parallel Port Adapter HP 2nd Serial Port Adapter HP FireWire / IEEE 1394 PCI Card Belkin Serial to USB adapter

HP 1GB PC3-10600 (DDR3-1333) DIMM HP 2GB PC3-10600 (DDR3-1333) DIMM

HP Thin USB Powered Speakers

DA - 13494 Worldwide — Version 4 — November 29, 2010

KD062AA KD061AA

PA716A PA997A

EM449AA

AT023AA AT024AA

KK912AA

Page 14

QuickSpecs

After-Market Options (availability may vary by country)

Graphics

GraphicsGraphics

Optical Drives

Optical DrivesOptical Drives

Security

SecuritySecurity

ATI Radeon HD 4550 (256MB DH) PCIe x16 Graphics Card ATI Radeon HD 4550 (512MB) DH PCIe x16 Graphics Card ATI Radeon HD 4650 DP (1GB) PCIe x16 Graphics Card NVIDIA GeForce G210 HDMI (512MB) SH PCIe x16 Graphics Card NVIDIA GeForce GT230 1.5GB PCIe x16 Graphics Card Nvidia GeForce GT 315 PCIe x16 Card - China Only HP DMS59 DVI Dual-head Connector Cable HP DVI to DVI Cable

HP 16X/48X SATA DVD-ROM Drive BLK HP 16X SATA SuperMulti LightScribe DVD Drive BLK HP 16X SATA Blu-ray Writer BLK

HP Business PC Security Lock Kit HP/Kensington MicroSaver Security Cable Lock HP Chassis (dc) Security Kit

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

AT042AA SG764AA VN566AA VN565AA VH697AA

VR763AA

DL139A

DC198A

AR629AA AR630AA AR482AA

PV606AA

PC766A

AR639AA

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 15

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Memory

DDR SYNCH DRAM NON-ECC MEMORY

DDR SYNCH DRAM NON-ECC MEMORYDDR SYNCH DRAM NON-ECC MEMORY The Intel G41 Express chipset supports non-ECC DDR3 memory up to PC3-10600 (1333 MHz). However, the chipset runs this memory at a maximum clock rate of 1066 MHz, or at 800 MHz when processor has 800-MHz FSB. Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent all possible memory configurations.

CAUTION:

CAUTION:CAUTION: Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged in to an active AC outlet. Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

HP recommends dual-channel symmetric configurations for maximum performance.

HP recommends dual-channel symmetric configurations for maximum performance.HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal. If speeds are mixed, speed will default to the slowest DIMM.

STANDARD MEMORY

STANDARD MEMORYSTANDARD MEMORY 1-GB, 2-GB DDR3 SYNCH DRAM

OPTIONAL MEMORY UPGRADES

OPTIONAL MEMORY UPGRADESOPTIONAL MEMORY UPGRADES Supports up to 4-GB of DDR3 SYNCH DRAM. Not all memory configurations possible are represented below.

NOTE:

NOTE:NOTE: due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system.

You must shut down the computer and disconnect the power cord before adding or removing memory modules.

For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available

DIMM Size

DIMM SizeDIMM Size

1-GB 1-GB

2-GB (dual-channel symmetric)

2-GB 2-GB 3-GB 1-GB 2-GB

4-GB (dual-channel symmetric)

Slot 1 (White)

Slot 1 (White) Slot 2 (White)

Slot 1 (White)Slot 1 (White)

1-GB 1-GB

2-GB 2-GB

Slot 2 (White)

Slot 2 (White)Slot 2 (White)

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 16

QuickSpecs

Storage

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Drive Support

Drive SupportDrive Support Media Reader Diskette Drive USB Pocket Media Drive (PMD) DVD-ROM Drives SuperMulti LightScribe Drives Blu-Ray JB Writer

3.5" Serial ATA Hard Drives

HP Pro 2000 Microtower Business PC

HP Pro 2000 Microtower Business PCHP Pro 2000 Microtower Business PC

Maximum Quantity Supported

Maximum Quantity SupportedMaximum Quantity Supported

1 3 1 3 2 2 2 2 2

DA - 13494 Worldwide — Version 4 — November 29, 2010

Position Supported

Position SupportedPosition Supported

1, 2 1, 2 1, 2 1, 2 4, 5

Controller

ControllerController

Internal USB 2.0 port

FDD

Internal USB 2.0 port

SATA SATA SATA SATA

Page 17

QuickSpecs

Technical Specifications

Integrated Realtek

Integrated RealtekIntegrated Realtek ALC662-GR Audio

ALC662-GR Audio

ALC662-GR AudioALC662-GR Audio

Integrated Realtek

Integrated RealtekIntegrated Realtek 8111DL-VB-GR GbE

8111DL-VB-GR GbE

8111DL-VB-GR GbE8111DL-VB-GR GbE Ethernet Controller

Ethernet Controller

Ethernet ControllerEthernet Controller

Type

TypeType HD Audio compatible

HD Audio compatible

HD Audio compatibleHD Audio compatible codec

codec

codeccodec Sampling (DAC and ADC)

Sampling (DAC and ADC)

Sampling (DAC and ADC)Sampling (DAC and ADC) Audio Jacks

Audio Jacks

Audio JacksAudio Jacks

Power Support

Power SupportPower Support

Other

OtherOther

Connector

ConnectorConnector Controller

Controller

ControllerController Memory

Memory

MemoryMemory Data rates supported

Data rates supported

Data rates supportedData rates supported Compliance

Compliance

ComplianceCompliance

Bus architecture

Bus architectureBus architecture Data transfer mode

Data transfer mode

Data transfer modeData transfer mode Power requirement (LOM)

Power requirement (LOM)

Power requirement (LOM)Power requirement (LOM)

Network transfer rate

Network transfer rateNetwork transfer rate

Dimensions

DimensionsDimensions Power Management

Power Management

Power ManagementPower Management Connector

Connector

ConnectorConnector

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Integrated Yes

Supports 44.1/48/96 KHz Mic-In Line-In Line-Out / Headphone Out Digital: 3.3V Analog: 5V Meets Mircrosoft Windows Vista (WLP 3.08) Premium requirements

High-performance DACs with 98dB SNR (A-Weighting) ADCs with 90dB SNR (A-Weighting)

RJ45 Realtek 8111DL-VB-GR Gigabit Ethernet Controller Transmit/Receive on-chip buffer support

2.5GHz data rate with X1 link width. IEEE 802.1P, 802.1Q, 802.3, 802.3AB and 802.3u compliant, 802.3x flow

control PCI Express 1.1 DMA 1000mbps (TxRx) max.568mW

1000mbps (TxRx) idle.498mW 100mbps (TxRx) max.274mW 1000mbps (TxRx) idle.224mW 10mbps (TxRx) max.330mW 10mbps (TxRx) idle.155mW D3 hot with Link (10M) 155 mW D3 hot without Link 76 mW D3 cold with Link (10M) 109 mW D3 cold without Link with WoL 30 mW D3 cold without Link with WoL 3 mW

10/100/1000 Mbps over CAT.5 10 Mbps over CAT.3 7mm x 7mm ACPI rev 2.0, PCI PM rev 1.1, ASPM L0s/L1 RJ45

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 18

QuickSpecs

Technical Specifications

Intel Gigabit CT Desktop

Intel Gigabit CT DesktopIntel Gigabit CT Desktop NIC

NIC

NICNIC

Connector

ConnectorConnector Controller

Controller

ControllerController Memory

Memory

MemoryMemory Data rates supported

Data rates supported

Data rates supportedData rates supported Compliance

Compliance

ComplianceCompliance

Bus architecture

Bus architectureBus architecture Data path width

Data path width

Data path widthData path width Data transfer mode

Data transfer mode

Data transfer modeData transfer mode Hardware certifications

Hardware certifications

Hardware certificationsHardware certifications

Power requirement

Power requirementPower requirement Boot ROM support

Boot ROM support

Boot ROM supportBoot ROM support Network transfer rate

Network transfer rate

Network transfer rateNetwork transfer rate

Environmental

EnvironmentalEnvironmental

Dimensions

DimensionsDimensions Management capabilities

Management capabilities

Management capabilitiesManagement capabilities

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

RJ-45 Intel WG82574L Gigabit Ethernet Controller Integrated Dual 48K configurable transmit receive FIFO Buffers 10/100/1000 Mbps IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,

802.3x flow control PCI-E 1.0a X1, 250 MB/s, Bi-directional interface Bus-master DMA FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark

for European Union Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T Yes 10BASE-T (half-duplex) 10 Mbps 10BASE-T (full-duplex) 20 Mbps 100BASE-TX (half-duplex) 100 Mbps 100BASE-TX (full-duplex) 200 Mbps 1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus) Operating temperature

Operating temperature

Operating temperatureOperating temperature Operating humidity

Operating humidity

Operating humidityOperating humidity

4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm) WOL, PXE, DMI, WFM 2.0

32° to 131°F (0° to 55° C) 85% at 131° F (55° C)

LSI PCIe x1 56K

LSI PCIe x1 56KLSI PCIe x1 56K International SoftModem

International SoftModem

International SoftModemInternational SoftModem

Data Transmission

Data TransmissionData Transmission

Data Speeds

Data SpeedsData Speeds

Data Standards

Data StandardsData Standards

Fax Speeds

Fax SpeedsFax Speeds Fax Mode Capabilities

Fax Mode Capabilities

Fax Mode CapabilitiesFax Mode Capabilities Error Correction and

Error Correction and

Error Correction andError Correction and Data Compression

Data Compression

Data CompressionData Compression Power Management

Power Management

Power ManagementPower Management

Upgradeability

UpgradeabilityUpgradeability Video

Video

VideoVideo

Technology speeds: 56,000 Kbps maximum downstream data, controllerless

NOTE:

NOTE: NOTE: compatible modems at server sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during download transmissions.

(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/ 16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300

ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A, and Bell 103

14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2 V.44, 42bis, V.42 and MNP2-5

PCI Bus Power Management Interface Specification (PCI-PM) Revision 1.2, Appendix A. D0, D3hot, and D3cold. Wake on Ring state when in D3cold. If the power management event (PME) feature is enabled in D3cold, a modem can wake the system via WAKE# (WAKEN) or beacon. Meets PCI Express

1.1 standard. Driver upgradeable for future enhancements ITU-T V.80 video ready interface

56 Kbps technology refers to download speeds only and requires

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 19

QuickSpecs

Technical Specifications

Other

OtherOther

Operating Temperature

Operating TemperatureOperating Temperature Operating Humidity

Operating Humidity

Operating HumidityOperating Humidity Power

Power

PowerPower

Chipset

ChipsetChipset

Dimensions

Dimensions Dimensions

Connection

ConnectionConnection Other Features

Other Features

Other FeaturesOther Features

Safety

SafetySafety

EMC

EMCEMC

Telecom

TelecomTelecom

Other

OtherOther

(L X H)

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

TIA/EIA 602 standard AT command set Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a

UART-compatible interface Optional ring wakeup signal 32° to 158° F (0° to 70° C) 20% to 90%, non-condensing Requires a 3.3-V auxiliary power rail on PCI express bus Uses only one PCI express load (i.e., one grant/request pair), one shared

IRQ, one electrical load LSI SV92EX - Integrated PCI interface with 3.3-V tolerant buffers and

CardBus support Complies with PCI express low profile specifications-6.7 x 2.3 in (17.0 x 5.8

cm) and supports high- and low-profile brackets Single RJ-11 connector Digital line protection, call progress monitoring via on-board piezo device,

support for high profile and low profile brackets, PnP ID support UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,

NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark

FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN 61000-4-6, EN 61000-4-8

FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals Not available in Korea or the Republic of South Africa.

The SV92EX device is packaged in a 32-pin micro leadless chip carrier (MLCC). The SV92EX is fully compliant with the PCI Express revision 1.1 specification. WHQL approved; ASPM compliant.

HP Wireless 802.11

HP Wireless 802.11HP Wireless 802.11 b/g/n PCIe Card

b/g/n PCIe Card

b/g/n PCIe Cardb/g/n PCIe Card

DMS-59 to Dual DVI

DMS-59 to Dual DVIDMS-59 to Dual DVI Cable

Cable

CableCable

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/13112_div/13112_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12845_div/12845_div.html

(Worldwide)

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 20

QuickSpecs

Technical Specifications

Integrated Intel Graphics

Integrated Intel GraphicsIntegrated Intel Graphics Media Accelerator X4500

Media Accelerator X4500

Media Accelerator X4500Media Accelerator X4500

3D/2D Controller

3D/2D Controller3D/2D Controller VGA Controller

VGA Controller

VGA ControllerVGA Controller DVI

DVI

DVIDVI Bus Type

Bus Type

Bus TypeBus Type RAMDAC

RAMDAC

RAMDACRAMDAC Graphics Engine Clock

Graphics Engine Clock

Graphics Engine ClockGraphics Engine Clock Memory

Memory

MemoryMemory

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Microsoft DirectX® 10 based with support for Pixel Shader 3.0 Integrated Integrated PCI Express™ x16 Integrated, 350 MHz 667 MHz Graphics memory is shared with system memory. Graphics memory usage

varies depending on the amount of system memory installed, BIOS settings, operating system, and system load. 32 MB is pre-allocated for graphics use at system boot time. Additional memory can be allocated at boot time by the BIOS for PAVP (Protected Audio Video Playback) support for playback of protected video content. For Vista, use of PAVP heavy mode pre-allocates an additional 96MB.

Additional memory is allocated for graphics as needed using Intel's Dynamic Video Memory Technology (DVMT), to provide an optimal balance between graphics and system memory use.

Windows XP Memory Usage:

Windows XP Memory Usage:Windows XP Memory Usage:

Total System Memory (GB)

0.5

1

1.5 =>2.0

Total Graphics memory (MB)

128 256 512 768 1024 32

Pre-Allocated (MB)

32 96 32 32 32

DVMT (MB)

224 480 736 992

Windows Vista Memory Usage

Windows Vista Memory UsageWindows Vista Memory Usage Support for DVMT 5.0. The graphics driver will determine DVMT memory.

DVMT memory = Total GFX memory – Pre-allocated size and fixed memory = Pre-allocated memory.

Maximum Color Depth

Maximum Color DepthMaximum Color Depth Maximum Vertical Refresh

Maximum Vertical Refresh

Maximum Vertical RefreshMaximum Vertical Refresh Rate

Rate

RateRate Multi-display Support

Multi-display Support

Multi-display SupportMulti-display Support

Graphics/Video API

Graphics/Video APIGraphics/Video API Support

Support

SupportSupport

Resolutions Supported

Resolutions SupportedResolutions Supported

NOTE:

Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP.

NOTE:NOTE:

DA - 13494 Worldwide — Version 4 — November 29, 2010

32 bits/pixel 2048x1536@75Hz. Varies with mode and configuration. See table below.

Dual Independent monitor support facilitated via one VGA port and one DVI integrated on the back plane of the system board and presented as part of the rear I/O set of interfaces.

Microsoft DirectX® 10, OpenGL® 1.5 (OpenGL® 2.0 available in a driver update)

:

Page 21

QuickSpecs

Technical Specifications

Resolution

ResolutionResolution

640x480

800x600 1024x768 1280x720

1280x1024

1440x900

1600x1200 1680x1050 1920x1080 1920x1200 1920x1440 2048x1536

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital

NOTE:NOTE: connections

NVIDIA GeForce 205

NVIDIA GeForce 205NVIDIA GeForce 205 512MB PCIe x16 Card

512MB PCIe x16 Card

512MB PCIe x16 Card512MB PCIe x16 Card

NVIDIA GeForce 205 (512MB) PCIe x16 Graphics Controller display resolutions and refresh rates

NVIDIA GeForce 205 (512MB) PCIe x16 Graphics Controller display resolutions and refresh ratesNVIDIA GeForce 205 (512MB) PCIe x16 Graphics Controller display resolutions and refresh rates

NOTE:

Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP.

NOTE:NOTE:

Form Factor

Form FactorForm Factor Display max resolution

Display max resolution

Display max resolutionDisplay max resolution

Input/Output connectors

Input/Output connectorsInput/Output connectors Board configuration

Board configuration

Board configurationBoard configuration

Core power

Core powerCore power

Analog Resolution

Analog ResolutionAnalog Resolution

640 x 480 800 x 600

1024 x 768 1280 x 1024 1600 x 1200 1920 x 1080 1920 x 1200 1920 x 1440 2048 x 1536

Digital Resolution

Digital ResolutionDigital Resolution

640 x 480 800 x 600

1024 x 768 1280 x 1024

Maximum Refresh Rate (Hz)

Maximum Refresh Rate (Hz)Maximum Refresh Rate (Hz)

Analog Connection

Analog ConnectionAnalog Connection

85 60 85 60 85 60 85 60 85 60 75 60 85 60 75 60 85 85 85 75

ATX Full Height Analog VGA: 2048x1536x32bpp@85Hz

DVI: 1920 x 1200 x32bpp @60Hz DVI-I+VGA Specification

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer 30 W (Max board power)

Description

DescriptionDescription NVIDIA D10M1-20 (GT218-200-A3) 589 MHz 790 MHz 512 MB DDR3, 64-bit

Maximum Refresh Rate

Maximum Refresh RateMaximum Refresh Rate

Maximum Refresh Rate

Maximum Refresh RateMaximum Refresh Rate

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Digital Connection

Digital ConnectionDigital Connection

60-R 60-R

N/A N/A

85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz

60 Hz 60 Hz 60 Hz 60 Hz

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 22

QuickSpecs

Technical Specifications

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

1600 x 1200

1920 x 1200 1920 x 1440 2560 x 1600

* Reduced blanking timings used when connected to a single-link DVI monitor ** Requires a dual-link DVI capable monitor

NVIDIA GeForce 315

NVIDIA GeForce 315NVIDIA GeForce 315 1GB PCIe x16 Card

1GB PCIe x16 Card

1GB PCIe x16 Card1GB PCIe x16 Card

NVIDIA GeForce 315 (1GB) PCIe x16 Graphics Controller display resolutions and refresh rates

NVIDIA GeForce 315 (1GB) PCIe x16 Graphics Controller display resolutions and refresh ratesNVIDIA GeForce 315 (1GB) PCIe x16 Graphics Controller display resolutions and refresh rates

NOTE:

Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP.

NOTE:NOTE:

* Reduced blanking timings used when connected to a single-link DVI monitor ** Requires a dual-link DVI capable monitor

Form Factor

Form FactorForm Factor Display max resolution

Display max resolution

Display max resolutionDisplay max resolution

Input/Output connectors

Input/Output connectorsInput/Output connectors Board configuration

Board configuration

Board configurationBoard configuration

Core power

Core powerCore power

Analog Resolution

Analog ResolutionAnalog Resolution

640 x 480 800 x 600

1024 x 768 1280 x 1024 1600 x 1200 1920 x 1080 1920 x 1200 1920 x 1440 2048 x 1536

Digital Resolution

Digital ResolutionDigital Resolution

640 x 480 800 x 600

1024 x 768 1280 x 1024 1600 x 1200

1920 x 1200 1920 x 1440 2560 x 1600

** **

*

ATX Full Height Analog VGA: 2048x1536x32bpp@85Hz

DVI: 2560 x 1600 x32bpp @60Hz DVI-I +VGA Specification

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer 52 W (Max board power)

*

60 Hz 60 Hz 60 Hz 60 Hz

Description

DescriptionDescription D10M2-20 (GT216-200-A2) 625 MHz 790 MHz 1GB DDR3, 128-bit

Maximum Refresh Rate

Maximum Refresh RateMaximum Refresh Rate

85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz 85 Hz

Maximum Refresh Rate

Maximum Refresh RateMaximum Refresh Rate

60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz 60 Hz

NVIDIA G210 (512MB)

NVIDIA G210 (512MB)NVIDIA G210 (512MB) PCIe x16 Card

PCIe x16 Card

PCIe x16 CardPCIe x16 Card

Form Factor

Form FactorForm Factor

DA - 13494 Worldwide — Version 4 — November 29, 2010

ATX Full Height

Page 23

QuickSpecs

Technical Specifications

PCIe x16 Card

PCIe x16 CardPCIe x16 Card

Display max resolution

Display max resolutionDisplay max resolution

Input/Output connectors

Input/Output connectorsInput/Output connectors Board configuration

Board configuration

Board configurationBoard configuration

Compliance standards

Compliance standardsCompliance standards

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Analog VGA: 2048x1536x32bpp @ 75Hz &1920x1440x32bpp @ 75Hz DVI: 2560x1600x32bpp @ 75Hz HDMI: 1920x1200x32bpp @ 100Hz

Dual-Link DVI-I/VGA/HDMI Specification

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer EMC Emissions

FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for Home & Office Use CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment Canadian Standard ICES-003 is equivalent to CISPR22 Japanese VCCI Taiwanese Standard BSMI Australian C-Tick Korean (KCC)

:

Description

DescriptionDescription NVIDIA D10M1 600 MHz 500 MHz 512 MB DDR2, 192bit

EMC Immunity CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.

Core power

Core powerCore power

NVIDIA G210 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh rates

NVIDIA G210 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh ratesNVIDIA G210 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh rates

NOTE:

NOTE:NOTE:

Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP All standard VGA text/graphics modes are supported in addition to table below. All modes not highlighted are selectable Windows® desktop modes. Highlighted modes should not be selectable as Windows® desktop modes (they are for DirectX™) All modes up to and including 1600x1200 must support the video overlay at all refresh rates.

21 W (Max board power)

:

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 24

QuickSpecs

Technical Specifications

Analog Resolution

Analog ResolutionAnalog Resolution

640 x 480

800 x 600

848x480

1024 x 768

1152x864 1280x720 1280x768

1280 x 1024

1600 x 1200

1768x1344 1800x1440

1856x1392 1920 x 1080 1920 x 1200 1920 x 1440 2048 x 1536 2560 x 1600

Depth(bpp)

Depth(bpp)Depth(bpp)

16, 32

16, 32 60, 88 16, 32

16, 32 16, 32 16, 32 16, 32

16, 32

16, 32 60, 75 16, 32 16, 32 60, 75 16, 32 16, 32 16, 32 60, 75 16, 32 16, 32 60, 75

CRT Maximum Refresh Rate (Hz)

CRT Maximum Refresh Rate (Hz)CRT Maximum Refresh Rate (Hz)

60, 72, 75, 85, 90, 100, 120,

160

48, 56, 60, 70, 72, 75, 85, 90,

100, 120, 160

46, 60, 70, 72, 75, 85, 90, 100,

120

43, 47, 60, 70, 75, 80, 85, 100

60, 70, 75, 80, 85, 90, 100 60, 70, 75, 80, 85, 90, 100

43, 47, 60, 70, 74, 75, 85, 90,

100

52, 58, 60, 66, 70, 72, 75, 76,

85

60, 65, 75

60, 70, 75, 80, 85, 90, 100

60, 72, 75, 76 80, 85, 90, 100

60, 66, 70, 75

VGA AND DVI-A

VGA AND DVI-AVGA AND DVI-A

(ANALOG)

(ANALOG)(ANALOG)

X X X

X X X X X X

X X X X X X X X X X X X

X X X

X X X X X X X X X X X X X X X X X X X

NA

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

DVI-I (DIGITAL)

DVI-I (DIGITAL)DVI-I (DIGITAL)

X

HDMI

HDMIHDMI

NA NA NA

NVIDIA GeForce GT230

NVIDIA GeForce GT230NVIDIA GeForce GT230

1.5GB PCIe x16 Graphics

1.5GB PCIe x16 Graphics1.5GB PCIe x16 Graphics Card

Card

CardCard

Form Factor

Form FactorForm Factor Display max resolution

Display max resolution

Display max resolutionDisplay max resolution

Input/Output connectors

Input/Output connectorsInput/Output connectors Board configuration

Board configuration

Board configurationBoard configuration

Compliance standards

Compliance standardsCompliance standards

ATX Full Height Analog VGA: 2560x1600x32bpp @ 60Hz &1920x1440x32bpp @ 60Hz

DVI: 2560x1600x32bpp @ 60Hz HDMI: 2560x1600x32bpp @ 60Hz

Dual-Link DVI-I/VGA/HDMI Specification

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer EMC Emissions

FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for Home & Office Use CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment Canadian Standard ICES-003 is equivalent to CISPR22 Japanese VCCI Taiwanese Standard BSMI Australian C-Tick

:

Description

DescriptionDescription NVIDIA D10P1 500 MHz 500 MHz

1.5 GB DDR2, 192bit

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 25

QuickSpecs

Technical Specifications

Korean (KCC)

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

EMC Immunity CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.

Core power

Core powerCore power

NVIDIA GT230 (1.5 GB) PCIe x16 Graphics Controller display resolutions and refresh rates

NVIDIA GT230 (1.5 GB) PCIe x16 Graphics Controller display resolutions and refresh ratesNVIDIA GT230 (1.5 GB) PCIe x16 Graphics Controller display resolutions and refresh rates

NOTE:

NOTE:NOTE:

Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP All standard VGA text/graphics modes are supported in addition to table below. All modes not highlighted are selectable Windows® desktop modes. Highlighted modes should not be selectable as Windows® desktop modes (they are for DirectX™) All modes up to and including 1600x1200 must support the video overlay at all refresh rates.

Analog Resolution

Analog ResolutionAnalog Resolution

800 x 600

1024 x 768

1280x720

1280 x 1024

1400x 900 1600 x 1200 1920 x 1080 1920 x 1200 1920 x 1440 2048 x 1536 2560 x 1600

Depth(bpp)

Depth(bpp)Depth(bpp)

8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32 8, 16, 32

65 W (Max board power)

CRT Maximum Refresh Rate (Hz)

CRT Maximum Refresh Rate (Hz)CRT Maximum Refresh Rate (Hz)

- VGA AND DVI-A (ANALOG)

- VGA AND DVI-A (ANALOG)- VGA AND DVI-A (ANALOG)

72, 75

70, 75 50, 59, 60 60, 70, 75 59, 60, 75

59, 60

59, 60 59, 60 59, 60

:

CRT Maximum Refresh

CRT Maximum RefreshCRT Maximum Refresh

Rate (Hz) - DVI-I

Rate (Hz) - DVI-IRate (Hz) - DVI-I

(DIGITAL)

(DIGITAL)(DIGITAL) 59, 60, 72, 75 59, 60, 70, 75 50, 59, 60, 75

NA

60 60

60 60 60 60 60 60 60 60 60

59, 60

59, 59, 60 50, 59, 60

CRT Maximum Refresh

CRT Maximum RefreshCRT Maximum Refresh

Rate (Hz) - HDMI

Rate (Hz) - HDMIRate (Hz) - HDMI

NA NA

50, 59, 60

NA NA NA

ATI Radeon HD 4350

ATI Radeon HD 4350ATI Radeon HD 4350 HDMI (512MB) SH PCIe

HDMI (512MB) SH PCIe

HDMI (512MB) SH PCIeHDMI (512MB) SH PCIe x16 Graphics Card

x16 Graphics Card

x16 Graphics Cardx16 Graphics Card

Input/Output connectors

Input/Output connectorsInput/Output connectors Display max resolution

Display max resolution

Display max resolutionDisplay max resolution

Display support

Display supportDisplay support Bus type

Bus type

Bus typeBus type Board configuration

Board configuration

Board configurationBoard configuration

Languages supported

Languages supportedLanguages supported

Core power

Core powerCore power

DA - 13494 Worldwide — Version 4 — November 29, 2010

Dual-link DVI-I/VGA/HDMI Analog VGA: 1920x1200x32bpp @ 60Hz

DVI: 1920x1200x32bpp @ 60Hz HDMI: 1920x1200x32bpp @ 60Hz

Integrated 400 MHz RAMDAC PCI Express (x16 lanes) Specification

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish

23 W

a.

Description

DescriptionDescription RV710D2 600 MHz 500 MHz 512 MB DDR2, 64 bit wide

Page 26

QuickSpecs

Technical Specifications

Compliance standards

Compliance standardsCompliance standards

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

EMC Emissions

a.

FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for Home & Office Use

b.

CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment

c.

Canadian Standard ICES-003 is equivalent to CISPR22

d.

Japanese VCCI

e.

Taiwanese Standard BSMI

f.

Australian C-Tick

g.

Korean (KCC)

:

EMC Immunity CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.

ATI HD4350 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh rates

ATI HD4350 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh ratesATI HD4350 (512 MB) PCIe x16 Graphics Controller display resolutions and refresh rates

NOTE:

NOTE:NOTE:

Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP All standard VGA text/graphics modes are supported in addition to table below. All modes not highlighted are selectable Windows® desktop modes. Highlighted modes should not be selectable as Windows® desktop modes (they are for DirectX™)

All modes up to and including 1600x1200 must support the video overlay at all refresh rates.

Analog Resolution

Analog ResolutionAnalog Resolution

800 x 600

1024 x 768

1152x648 1152x864 1280x720 1280x768 1280x960

1280 x 1024

1440x900

1600 x 1200

1680x1050 1920 x 1080 1920 x 1200

Depth(bpp)

Depth(bpp)Depth(bpp)

16, 32 60, 75 60, 75 60, 75 16, 32 60, 75 60, 75 60, 75 16, 32 16, 32 16, 32 16, 32 16, 32 16, 32 60, 75 60, 75 60, 75 16, 32 16, 32 16, 32 16, 32 16, 32 59, 60 59, 60 59, 60

CRT Maximum Refresh Rate (Hz)

CRT Maximum Refresh Rate (Hz)CRT Maximum Refresh Rate (Hz)

- VGA AND DVI-A (ANALOG)

- VGA AND DVI-A (ANALOG)- VGA AND DVI-A (ANALOG)

:

CRT Maximum Refresh

CRT Maximum RefreshCRT Maximum Refresh

Rate (Hz) - DVI-I

Rate (Hz) - DVI-IRate (Hz) - DVI-I

(DIGITAL)

(DIGITAL)(DIGITAL)

NA NA NA NA

75 60 60 60

60 60 60 60 60 60 60 60 60

NA

60, 75 59, 60

60 50, 59, 60

60, 75 60, 75

59, 60

CRT Maximum Refresh

CRT Maximum RefreshCRT Maximum Refresh

Rate (Hz) - HDMI

Rate (Hz) - HDMIRate (Hz) - HDMI

59, 60

50, 59, 60

ATI Radeon HD

ATI Radeon HDATI Radeon HD 4550 (256MB DH)

4550 (256MB DH)

4550 (256MB DH)4550 (256MB DH) PCIe x16 Graphics

PCIe x16 Graphics

PCIe x16 GraphicsPCIe x16 Graphics Card

Card

CardCard

Input/Output

Input/OutputInput/Output connectors

connectors

connectorsconnectors Board display options

Board display options

Board display optionsBoard display options

Display max resolution

Display max resolutionDisplay max resolution

DA - 13494 Worldwide — Version 4 — November 29, 2010

DMS-59 S-video connector

Supports two displays via included DMS-59 to dual VGA cable or 2 DVI monitors via optional DMS-59 to dual DVI cable kit part number: DL139A. 4-pin mini-DIN S-video connector for TV output

1900 x 1200 digital, 2048 x 1536 analog

Page 27

QuickSpecs

Technical Specifications

Display support

Display supportDisplay support Bus type

Bus type

Bus typeBus type Maximum vertical

Maximum vertical

Maximum verticalMaximum vertical refresh rate

refresh rate

refresh raterefresh rate Board configuration

Board configuration

Board configurationBoard configuration

Languages supported

Languages supportedLanguages supported

Operating systems

Operating systemsOperating systems support

support

supportsupport

Core power

Core powerCore power Option kit contents

Option kit contents

Option kit contentsOption kit contents

Compliance standards

Compliance standardsCompliance standards

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Integrated 400 MHz RAMDAC PCI Express (x16 lanes) 85 Hz

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish

Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic 32*, Windows XP Professional or Windows XP Home 32*.

* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

requirements, visit:

Linux x86 and x86_64 distributions using XFree86 or X.Org

** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website:

http://www.hp.com/wwsolutions/linux/products/clients/

21 W

ATI Radeon HD 4550 DH PCIe x16 Graphics Card with full height bracket attached; DMS 59 to dual VGA Y cable; Software CD with graphics drivers; Low profile bracket to convert the card for using in a low profile chassis; Warranty documentation;

EMC Emissions

http://www.windowsvista.com/systemrequirements

:

Description

DescriptionDescription RV710 600 MHz 800 MHz 256 MB DDR2, 64 bit wide

. For Windows Vista system

**.

for support information

.

a.

FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices for Home & Office Use

b.

CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment

c.

Canadian Standard ICES-003 is equivalent to CISPR22

d.

Japanese VCCI

e.

Taiwanese Standard BSMI

f.

Australian C-Tick

g.

Korean (MIC)

EMC Immunity CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity Characteristics - Limits and Methods of Measurement.

DA - 13494 Worldwide — Version 4 — November 29, 2010

:

Page 28

QuickSpecs

Technical Specifications

ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates

ATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh ratesATI Radeon HD 4550 DH PCIe x16 Graphics Card display resolutions and refresh rates

NOTE:

Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP.

NOTE:NOTE:

Resolution

ResolutionResolution

640x480

800x600 1024x768 1280x720

1280x1024

1440x900

1600x1200 1680x1050 1920x1080 1920x1200 1920x1440 2048x1536 2560x1600

NOTE:

60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital

NOTE:NOTE: connections

....

Analog Connection

Analog ConnectionAnalog Connection

85 60 85 60 85 60 85 60 85 60 75 60 85 60 75 60 85 85 85 75

N/A N/A

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Maximum Refresh Rate (Hz)

Maximum Refresh Rate (Hz)Maximum Refresh Rate (Hz)

Digital Connection

Digital ConnectionDigital Connection

60-R 60-R

N/A N/A

ATI Radeon HD 4650

ATI Radeon HD 4650ATI Radeon HD 4650 (1GB DH) PCIe Graphics

(1GB DH) PCIe Graphics

(1GB DH) PCIe Graphics(1GB DH) PCIe Graphics Card

Card

CardCard

Bus type

Bus typeBus type Maximum vertical refresh

Maximum vertical refresh

Maximum vertical refreshMaximum vertical refresh rate

rate

raterate Display support

Display support

Display supportDisplay support Display max resolution

Display max resolution

Display max resolutionDisplay max resolution Board display options

Board display options

Board display optionsBoard display options

Board configuration

Board configurationBoard configuration

Maximum power

Maximum powerMaximum power Languages supported

Languages supported

Languages supportedLanguages supported

Operating systems

Operating systemsOperating systems support

support

supportsupport

PCI Express (x16 lanes) 85 Hz

Dual 400 MHz integrated RAMDACs 2560 x 1600 digital, 2048 x 1536 analog Supports two displays through any combination of two of the three output

ports. Specification

Specification

SpecificationSpecification Graphics Chip Core clock Memory clock Frame buffer 55 W 24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,

Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Thai, Turkish

Windows Vista Home Basic 32*, FreeDOS

* Certain Windows Vista product features require advanced or additional hardware. Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit:

http://www.windowsvista.com/upgradeadvisor

system requirements, visit:

http://www.windowsvista.com/systemrequirements

Linux x86 and x86_64 distributions using XFree86 or X.Org

Description

DescriptionDescription RV730Pro 600MHz 500 MHz 1 GB DDR2, 128 bit wide

. For Windows Vista

.

**

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 29

QuickSpecs

Technical Specifications

Core power

Core powerCore power Compliance standards

Compliance standards

Compliance standardsCompliance standards

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website:

http://www.hp.com/wwsolutions/linux/products/clients/

information.

55 W EMC Emissions

a) CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of measurement of radio disturbance characteristics of Information Technology Equipment

:

for support

HP PS/2 or USB Standard

HP PS/2 or USB StandardHP PS/2 or USB Standard Keyboard

Keyboard

KeyboardKeyboard

HP USB PS2 Washable

HP USB PS2 WashableHP USB PS2 Washable Keyboard

Keyboard

KeyboardKeyboard

HP USB Mini Keyboard

HP USB Mini KeyboardHP USB Mini Keyboard

HP USB Smart Card

HP USB Smart CardHP USB Smart Card Keyboard

Keyboard

KeyboardKeyboard

EMC Immunity CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/11880_div/11880_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/13395_div/13395_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/13237_div/13237_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12346_div/12346_div.html

(Worldwide)

:

HP USB 2-Button Laser

HP USB 2-Button LaserHP USB 2-Button Laser Mouse

Mouse

MouseMouse

HP PS/2 2-Button Optical

HP PS/2 2-Button OpticalHP PS/2 2-Button Optical Scroll Mouse

Scroll Mouse

Scroll MouseScroll Mouse

HP USB Optical Scroll

HP USB Optical ScrollHP USB Optical Scroll Mouse

Mouse

MouseMouse

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12912_div/12912_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12490_div/12490_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/11356_div/11356_div.html

(Worldwide)

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 30

QuickSpecs

Technical Specifications

Serial ATA 3.0-Gb/s Hard

Serial ATA 3.0-Gb/s HardSerial ATA 3.0-Gb/s Hard Drives (7200 rpm)

Drives (7200 rpm)

Drives (7200 rpm)Drives (7200 rpm)

SATA DVD-ROM Drive

SATA DVD-ROM DriveSATA DVD-ROM Drive

HP SATA SuperMulti

HP SATA SuperMultiHP SATA SuperMulti LightScribe Drive

LightScribe Drive

LightScribe DriveLightScribe Drive

HP 16X SATA

HP 16X SATAHP 16X SATA Blu-ray Writer

Blu-ray Writer

Blu-ray WriterBlu-ray Writer

160 GB

160 GB160 GB 250 GB

250 GB

250 GB250 GB 320 GB

320 GB

320 GB320 GB 500 GB

500 GB

500 GB500 GB

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12548_div/12548_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12739_div/12739_div.html

(Worldwide)

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/13321_div/13321_div.html

(Worldwide)

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

NOTE:

Please see the QuickSpecs for Technical Specifications and

NOTE:NOTE: additional information:

http://h18000.www1.hp.com/products/quickspecs/12229_div/12229_div. html

(Worldwide)

Port control cover

Port control coverPort control cover

Key Benefits

Key BenefitsKey Benefits

HP Chassis Security Kit

HP Chassis Security KitHP Chassis Security Kit

Key Benefits

Key BenefitsKey Benefits

Prevent access to or removal of internal components like memory, hard drive, and power supply, particularly designed for the education market.

Prevent access to ports at the back of your HP Compaq Business Desktop with a rear port controller cover.

Prevent access to rear ports Enhances security and convenience

Chassis Security Kit

Chassis Security KitChassis Security Kit

Protect your investment and help keep the system up and running by: Safeguarding the memory and hard drive with a metal bay filler Securing the power supply with two screws Preventing cable disconnection Locking down the front bezel so that internal components cannot be removed

Port control cover

Port control coverPort control cover

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 31

QuickSpecs

Technical Specifications

HP 2nd Serial Port

HP 2nd Serial PortHP 2nd Serial Port Adapter

Adapter

AdapterAdapter HP Parallel Port Adapter

HP Parallel Port Adapter

HP Parallel Port AdapterHP Parallel Port Adapter HP Serial/Parallel PCI

HP Serial/Parallel PCI

HP Serial/Parallel PCIHP Serial/Parallel PCI Card

Card

CardCard

HP 22-in-1 Media Card

HP 22-in-1 Media CardHP 22-in-1 Media Card Reader

Reader

ReaderReader

NOTE:

Please see the QuickSpecs for Technical Specifications and additional information:

NOTE:NOTE:

http://h18000.www1.hp.com/products/quickspecs/12396_div/12396_div.html

(Worldwide)

USB interface

USB interfaceUSB interface

Advance protocol support

Advance protocol supportAdvance protocol support

Supported media types

Supported media typesSupported media types

Mechanical

MechanicalMechanical

Environmental

EnvironmentalEnvironmental

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

USB 2.0 High-speed device via PCI card or pass -through via internal USB port of system board

Supports hardware ECC (Error Correction Code) function Supports hardware CRC (Cyclic Redundancy Check) function Supports MS 4-bit parallel transfer mode Supports MS-PRO 4-bit parallel transfer mode Supports SD 4-bit parallel transfer mode Supports high-speed 50 MHz SD 4-bit card (version 1.1) Support high-speed 52 MHz MMC 8-bit card (version 4.x)

Supports CompactFlash Card Type I (CF I), CompactFlash Card Type II (CF II), MicroDrive (MD) Supports 3.3V SmartMedia Card (SM), SmartMedia ROM (SM ROM), xD-Picture Card (xD) Supports Secure Digital Card (SD), Secure Digital ROM Card (SD ROM), miniSD, MultiMediaCard (MMC), Secure MultiMediaCard (Secure MMC), ROM Type MultiMediaCard (MMC ROM), Reduced Size MultiMediaCard (RS MMC), MultiMediaCard 4.0 (MMC Plus), Reduced Size MultiMediaCard 4.0 (MMC Mobile) Support Memory Stick (MS), Memory Stick ROM (MS ROM), MagicGate Memory Stick (MG), Memory Stick Select, Memory Stick Duo (MS Duo), Memory Stick PRO (MS-PRO), Memory Stick PRO Duo (MS PRO Duo)

Length

(3.5”)

LengthLength Width

Width

(3.5”)

WidthWidth Height

Height

(3.5”)

HeightHeight Length

Length

(5.25”)

LengthLength Width

Width

(5.25”)

WidthWidth Height

Height

(5.25”)

HeightHeight Operational

Operational

OperationalOperational environmental extremes

environmental extremes

environmental extremesenvironmental extremes

124.7 cm

101.6 cm

25.4 cm

171.6 cm

148.9 cm

42.7 cm Test Parameters/Conditions – Power applied,

unit operating on system ±5% nominal supply voltage. 10°C 10% R.H. = 24 hours 10°C 90% R.H. = 24 hours 20°C 90% R.H. = 24 hours 30°C 90% R.H. = 24 hours 40°C 90% R.H. = 24 hours 50°C 90% R.H. = 24 hours 50°C 10% R.H. = 24 hours

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 32

QuickSpecs

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

Technical Specifications

Storage environmental

Storage environmentalStorage environmental extremes

extremes

extremesextremes

Approvals

ApprovalsApprovals

Eco-Label Certifications &

Eco-Label Certifications &Eco-Label Certifications & declarations

declarations

declarationsdeclarations

Energy Consumption

Energy ConsumptionEnergy Consumption Normal Operation Sleep (Energy Star low

power mode) Off

Heat Dissipation

Heat DissipationHeat Dissipation Normal Operation Sleep Off

Declared Noise Emissions

Declared Noise EmissionsDeclared Noise Emissions (in accordance with

(in accordance with

(in accordance with(in accordance with ISO 7779 and ISO 9296)

ISO 7779 and ISO 9296)

ISO 7779 and ISO 9296)ISO 7779 and ISO 9296) System Fan Off

Idle Fixed Disk

(random writes) Batteries

Batteries

BatteriesBatteries

*

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

IT ECO declaration

115 VAC 230 VAC 100 VAC

36.972 W 36.610 W

2.0204 W 1.8217 W

1.0163 W 0.8287 W

115 VAC 230 VAC 100 VAC

126 BTU/hr 125 BTU/hr

7 BTU/hr 6 BTU/hr 3 BTU/hr 3 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Sound Power

(LWAd, bels)

This battery(s) in this product comply with EU Directive 2006/66/EC

USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design Guide V. 1.2 FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T

3.6

Test Parameters/Conditions 60°C @ 80% R.H. for 96 hours

-30°C @ 20% R.H. for 48 hours No power applied Delta °C < 1.0°C/min Delta % R.H. < 1.5% R.H./min

Sound Pressure

(LpAm, decibels)

23 24

NA NA

NA

NA NA NA

Additional Information

Additional InformationAdditional Information

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight Cadmium greater than 10ppm by weight

Battery size: CR2032 (coin cell) Battery type: Lithium Metal

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive 2002/95/EC.

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 33

QuickSpecs

Technical Specifications

This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043. This product contains 0% post consumer recycled plastic (by wt.) This product is 85% recyclable when properly disposed of at end of life.

Packaging Materials

External:

Internal:

The corrugated packaging material is made from 30% recycled content. The EPE - Expanded Polyethylene material is made from 0% recycled content.

RoHS Compliance

RoHS ComplianceRoHS Compliance

Material Usage

Material UsageMaterial Usage

Hewlett-Packard is committed to compliance with all applicable environmental laws and regulations, including the European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive).

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at:

http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html

Corrugated 4250 g Corrugated Carton 3855 g

EPE - Expanded Polyethylene 690 g

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

):

Asbestos Certain Azo Colorants Certain Brominated Flame Retardants - may not be used as flame retardants in plastics Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user. Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT) Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from most applications. Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 34

QuickSpecs

Technical Specifications

Packaging

PackagingPackaging

End-of-life Management

End-of-life ManagementEnd-of-life Management and Recycling

and Recycling

and Recyclingand Recycling

Hewlett-Packard

Hewlett-PackardHewlett-Packard Corporate Environmental

Corporate Environmental

Corporate EnvironmentalCorporate Environmental Information

Information

InformationInformation

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials. Eliminate the use of ozone-depleting substances (ODS) in packaging materials. Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in packaging materials. Use readily recyclable packaging materials such as paper and corrugated materials. Reduce size and weight of packages to improve transportation fuel efficiency. Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP's commitment to the environment: Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ecolabels.html

ISO 14001 certificates:

http://www.hp.com/hpinfo/globalcitizenship/environment/operations/envmanagement.html

http://www.hp.com/go/reuse-recycle

http://www.hp.com/go/recyclers

. These instructions may be used by

HP Pro 2000 Business PC

HP Pro 2000 Business PCHP Pro 2000 Business PC

or contact your nearest HP

All rights reserved. Microsoft, Windows, Windows Vista, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries. Intel, Core 2 Quad, Core 2 Duo, Pentium and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13494 Worldwide — Version 4 — November 29, 2010

Page 35

HP (Hewlett-Packard) PRO 2000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Standard Features and Configurable Components (availability may vary by country)

System Details

After-Market Options (availability may vary by country)

Memory

Storage

Technical Specifications
