Compaq Presario V6500 Notebook PC
Maintenance and Service Guide
Page 2
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
AMD, Athlon, Turion, and combinations
thereof, are trademarks of Advanced Micro
Devices, Inc. Bluetooth is a trademark owned
by its proprietor and used by Hewlett-Packard
Company under license. Intel and Core are
trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United
States and other countries. Microsoft,
Windows, and Windows Vista are either
trademarks or registered trademarks of
Microsoft Corporation in the United States
and/or other countries. SD Logo is a
trademark of its proprietor.
The information contained herein is subject to
change without notice. The only warranties
for HP products and services are set forth in
the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
Third Edition: July 2007
First Edition: April 2007
Document Part Number: 443430-003
Page 3
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC
adapter comply with the user-accessible surface temperature limits defined by the International Standard
for Safety of Information Technology Equipment (IEC 60950).
iii
Page 4
iv Safety warning notice
Page 5
Table of contents
1 Product description
2 External component identification
Top components ...................................................................................................................... 6
Display components .................................................................................................. 6
Buttons and speakers ................................................................................................. 7
Keys ........................................................................................................................ 8
Lights ....................................................................................................................... 9
TouchPad ............................................................................................................... 10
Front components ................................................................................................................... 11
Left-side components ............................................................................................................... 12
Rear component ..................................................................................................................... 13
Right-side components ............................................................................................................ 13
Bottom components ................................................................................................................ 14
3 Illustrated parts catalog
Serial number location ............................................................................................................ 15
Computer major components ................................................................................................... 16
Display assembly components ................................................................................................. 22
Plastics Kit ............................................................................................................................. 24
Cable Kit .............................................................................................................................. 25
Mass storage devices ............................................................................................................. 26
Miscellaneous parts ................................................................................................................ 27
Sequential part number listing .................................................................................................. 28
4 Removal and replacement procedures
Preliminary replacement requirements ....................................................................................... 35
Tools required ......................................................................................................... 35
Service considerations ............................................................................................. 35
Plastic parts ............................................................................................. 35
Cables and connectors ............................................................................. 36
Drive handling ......................................................................................... 36
Grounding guidelines .............................................................................................. 37
Electrostatic discharge damage .................................................................. 37
Packaging and transporting guidelines ........................................ 38
Workstation guidelines .............................................................. 38
Equipment guidelines ................................................................. 39
Unknown user password .......................................................................................... 40
v
Page 6
Component replacement procedures ........................................................................................ 41
Serial number ......................................................................................................... 41
Battery ................................................................................................................... 42
Hard drive ............................................................................................................. 43
Computer feet ......................................................................................................... 45
Memory module ...................................................................................................... 45
RTC battery ............................................................................................................ 47
WLAN module ........................................................................................................ 48
Optical drive .......................................................................................................... 51
Switch cover ........................................................................................................... 53
Keyboard ............................................................................................................... 55
Power button board ................................................................................................. 57
Display assembly .................................................................................................... 59
Top cover ............................................................................................................... 65
Bluetooth module .................................................................................................... 68
ExpressCard assembly ............................................................................................. 69
USB/power connector board .................................................................................... 71
System board ......................................................................................................... 72
Audio board ........................................................................................................... 75
Fan/heat sink assembly ........................................................................................... 76
Processor ............................................................................................................... 79
5 Setup Utility
Starting the Setup Utility .......................................................................................................... 81
Changing the language of the Setup Utility ............................................................................... 81
Navigating and selecting in the Setup Utility .............................................................................. 82
Displaying system information .................................................................................................. 82
Restoring default settings in the Setup Utility .............................................................................. 82
Using advanced Setup Utility features ....................................................................................... 83
Closing the Setup Utility .......................................................................................................... 83
Setup Utility menus ................................................................................................................. 84
6 Specifications
Computer specifications .......................................................................................................... 86
15.4-inch, WXGA, BrightView display specifications ................................................................. 87
Hard drive specifications ........................................................................................................ 88
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive specifications ................................ 89
System DMA specifications, Intel .............................................................................................. 90
System DMA specifications, AMD ............................................................................................ 91
System interrupt specifications, Intel .......................................................................................... 92
System interrupt specifications, AMD ........................................................................................ 93
System I/O address specifications, Intel .................................................................................... 94
System I/O address specifications, AMD .................................................................................. 96
System memory map specifications, Intel ................................................................................... 98
System memory map specifications, AMD ................................................................................. 99
7 Screw listing
Phillips PM2.0×5.0 captive screw .......................................................................................... 100
Phillips PM3.0×3.0 screw ..................................................................................................... 102
vi
Page 7
Phillips PM2.0×3.0 screw ..................................................................................................... 103
Phillips PM2.5×7.0 screw ..................................................................................................... 105
Phillips PM2.5×10.0 screw ................................................................................................... 108
Phillips PM2.5×4.0 screw ..................................................................................................... 109
Phillips PM2.5×3.0 screw ..................................................................................................... 113
Hex HM5.0×9.0 standoff ..................................................................................................... 114
Phillips PM2.0×2.0 screw ..................................................................................................... 115
Phillips PM2.0×7.0 screw ..................................................................................................... 116
Phillips PM2.5×5.0 captive screw .......................................................................................... 117
Phillips 2.5×4.0 captive screw ............................................................................................... 118
8 Backup and Recovery
Recovering system information ............................................................................................... 119
Backing up your information ................................................................................... 119
When to back up ................................................................................... 119
Back up suggestions ............................................................................... 120
Using system restore points ..................................................................................... 120
When to create restore points .................................................................. 120
Create a system restore point ................................................................... 120
Restore to a previous date and time .......................................................... 121
Creating recovery discs ......................................................................................... 121
Reinstalling software programs and drivers ............................................................... 122
Reinstalling preinstalled programs and drivers ........................................... 122
Reinstalling programs from discs .............................................................. 122
Performing a recovery ........................................................................................... 123
Recovering from the recovery discs ........................................................... 123
Recovering from the partition on the hard drive .......................................... 123
Deleting the recovery partition on the hard drive ....................................................... 124
Updating reinstalled software ................................................................................. 124
9 Connector pin assignments
Audio-out (headphone) ......................................................................................................... 125
Audio-in (microphone) .......................................................................................................... 125
External monitor ................................................................................................................... 126
RJ-11 (modem) ..................................................................................................................... 127
RJ-45 (network) .................................................................................................................... 127
S-Video-out .......................................................................................................................... 128
Universal Serial Bus .............................................................................................................. 128
10 Power cord set requirements
Requirements for all countries or regions ................................................................................. 129
Requirements for specific countries or regions .......................................................................... 130
11 Recycling
Battery ................................................................................................................................ 131
Display ............................................................................................................................... 131
Index ............................................................................................................................... 137
vii
Page 8
viii
Page 9
1
Product description
Category Description AMD models Full-featured
Intel models
Defeatured
Intel models
Product Name Compaq Presario V6500
Notebook PC
√ √ √
Processors Intel® Core™ 2 Duo processors
2.20-GHz processor, 4-MB L2 cache,
800-MHz front side bus (FSB)
√ √
2.00-GHz processor, 2-MB L2 cache,
800-MHz FSB
√ √
1.86-GHz processor, 1-MB L2 cache,
533-MHz (FSB
√ √
1.50-GHz processor, 2-MB L2 cache,
667-MHz FSB
√ √
Intel Core Duo processors
T7300 2.0-GHz processor, 4-MB L2
cache, 800-MHz FSB
√ √
T7100 1.8-GHz processor 2-MB L2
cache, 800-MHz FSB
√ √
T5250 1.5-GHz processor 2-MB L2
cache, 667-MHz FSB
√ √
AMD processors
Turion™ MK-38 (2.2-GHz, 512-MB L2
cache)
√
Turion TL-66 (2.3 -GHz, 1-MB L2
cache)
√
Turion TL-60 (2.0 -GHz, 1-MB L2
cache)
√
Turion TL-58 (1.9 -GHz, 1-MB L2
cache)
√
Turion TL-56 (1.8 -GHz, 1-MB L2
cache)
√
Athlon™ TK-53 (1.7-GHz. 512-MB L2
cache)
√
Chipset
Northbridge: Intel GM965 √√
1
Page 10
Category Description AMD models Full-featured
Intel models
Defeatured
Intel models
Southbridge: Intel ICH8m √ √
Northbridge/Southbridge: nVidia
MCP67M
√
Graphics Intel Extreme Graphics (Mobile
Intel Graphics Media Accelerator
X3100) UMA (integrated) with shared
video memory, and:
●
Up to 64 MB on computer models
with 512 MB of system RAM
●
or, Up to 256 MB on computer
models with 1024 MB or more of
system RAM
Memory size is a dynamic change.
√ √
UMA nVidia MCP67M with shared
video memory, and:
●
Up to 128 MB on computer
models with 512 MB of system
RAM
●
Up to 287 MB on computer
models with 1024 MB of system
RAM
●
Up to 559 MB on computer
models with 2048 MB of system
RAM
●
Up to 559 MB on computer
models with 4096 MB of system
RAM
Memory size is dynamically allocated.
√
Panel
15.4-inch, WXGA BrightView √ √ √
Memory
2 SODIMM slots √ √ √
Customer-accessible/upgradable √ √ √
Supports up to 4 GB of system RAM √ √ √
PC2-5300, 667-MHz, DDRII √ √ √
Supports the following configurations:
●
4096 (2048 × 2)
●
2048 (2048 × 1, 1024 × 2)
●
1536 (1024 + 512)
●
1024 (1024 × 1, 512 × 2)
●
512 (512 × 1)
√ √ √
Hard drives
Supports 9.5-mm, 2.5-inch hard drives √ √ √
Serial ATA √√√
2Chapter 1 Product description
Page 11
Category Description AMD models Full-featured
Intel models
Defeatured
Intel models
Supports the following drives:
●
250-GB, 5400-rpm
●
200-GB, 4200-rpm
●
160-GB, 5400-rpm
●
120-GB, 5400-rpm
●
80-GB, 5400-rpm
√ √ √
Optical drives
Fixed (removal of 1 screw required) √ √ √
Parallel ATA √ √ √
12.7-mm tray load √ √ √
Supports the following drives:
●
DVD±RW and CD-RW Super
Multi Double-Layer Combo Drive
with LightScribe
●
DVD±RW and CD-RW Super
Multi Double-Layer Combo Drive
●
DVD-CD/RW Combo Drive
√ √ √
Diskette drive
Supports external USB drive only √ √ √
Microphone
2 omnidirectional, dual-array
microphones, with beam-forming,
echo-cancellation, noise-suppression
software
√ √ √
Audio
HD audio - Realtek ALC861-VD-GR √ √
HD Audio - Conexant CX20549-12) √
Supports Windows Vista Premium
Logo requirements
√ √ √
Presario-branded Altec Lansing
speakers
√ √ √
Modem
56K V.92 data/fax modem √ √ √
Supports all world-wide certification
requirements
√ √ √
Modem cable not included √ √ √
Ethernet
Integrated Realtek 10/100 network
interface card (NIC)
√ √ √
Ethernet cable not included √ √ √
Wireless Integrated wireless local area
network (WLAN) options by
way of wireless module:
Intel PRO Wireless 3945 802.11a/b/
g and 802.11b/g with 2 antennae
integrated into the display assembly
√√
3
Page 12
Category Description AMD models Full-featured
Intel models
Defeatured
Intel models
Intel PRO Wireless 4965 802.11a/b/
g/n with 3 antennae integrated into
the display assembly @ 2.4 and 5.0
GHz
√ √
Intel WLAN + Bluetooth® √ √
Broadcom 4321AGN Wi-Fi Adapter
(802.11 a/b/g/ draft-n) + Bluetooth
w/2 antennas
√
Broadcom 4321AGN Wi-Fi Adapter
(802.11 a/b/g/ draft-n) w/2
antennas
√
External media card
One ExpressCard54 slot √ √ √
Digital Media Slot, supports SD, MMC,
SDIO, MS, MSpro, xD
√ √ √
Ports
Audio-in (mono microphone) √ √ √
Audio-out (stereo headphone) √ √ √
Consumer infrared √ √ √
RJ-11 (modem) √ √ √
RJ-45 (Ethernet, includes link and
activity lights)
√ √ √
S-Video-out √ √ √
USB (3) √ √
USB (1) √
VGA (Dsub 15-pin) √ √ √
1394 √ √
2-pin AC power √ √ √
Docking
Expansion port 3 supports HP xb3000
Notebook Expansion Base and
HP Notebook QuickDock
√ √ √
Keyboard/pointing
devices
14.1-inch keyboard √ √ √
TouchPad with 2 buttons and four-way
scroll (taps enabled as default)
√ √ √
Power requirements
12-cell 2.20-Ah Li-ion battery √ √ √
6-cell 2.55-Ah Li-ion battery √ √ √
6-cell 2.20-Ah Li-ion battery √ √ √
65-W AC adapter with localized cable
plug support (2-wire plug with ground
pin, supports 2-pin DC connector)
√ √ √
Security
Security cable slot √√√
4Chapter 1 Product description
Page 13
Category Description AMD models Full-featured
Intel models
Defeatured
Intel models
Operating system Preinstalled:
Free DOS √ √
Windows Vista™ Business (32-bit) √ √ √
Windows Vista Home Basic (32-bit) √ √ √
Windows Vista Premium (32- and 64-
bit)
√ √ √
Windows Vista Home Basic (32-bit) √ √
Serviceability End-user replaceable parts:
AC adapter √ √ √
Battery (system) √ √ √
Hard drive √ √ √
Memory module √ √ √
Optical drive √ √ √
WLAN module √√√
5
Page 14
2
External component identification
Top components
Display components
Item Component Description
(1)
Internal display switch* Turns off the display if the display is closed while the
computer is on.
(2)
Internal microphones (2) (select models only) Record sound.
NOTE: If there is a microphone icon next to each
microphone opening, the computer has internal
microphones.
*The location of the internal display switch varies by computer model.
6Chapter 2 External component identification
Page 15
Buttons and speakers
Item Component Description
(1)
Power button*
●
When the computer is off, press the button to turn on
the computer.
●
When the computer is on, press the button to shut down
the computer.
●
When the computer is in the Sleep state, press the
button briefly to exit Sleep.
●
When the computer is in Hibernation, press the button
briefly to exit Hibernation.
If the computer has stopped responding and Windows®
shutdown procedures are ineffective, press and hold the
power button for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Maintenance >
Power Options.
(2)
Speakers (2) Produce sound.
(3)
Media button
●
Opens the QuickPlay program (for models with
QuickPlay preinstalled).
●
Opens the DVDPlay program (for models with DVDPlay
preinstalled).
NOTE: If the computer has been set up to require a logon
password, you may be asked to log on to Windows.
QuickPlay or DVDPlay opens after you log on. Refer to the
QuickPlay or DVDPlay software Help for more information.
(4)
Volume mute button Mutes and restores speaker sound.
(5)
Volume scroll zone Adjusts speaker volume. Slide your finger to the left to
decrease volume and to the right to increase volume. You
can also tap the minus sign on the scroll zone to decrease
volume, or tap the plus sign on the scroll zone to increase
volume.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
Top components 7
Page 16
Keys
Item Component Function
(1)
esc key Displays system information when pressed in combination
with the fn key.
(2)
fn key Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3)
Windows logo key Displays the Windows Start menu.
(4)
Windows applications key Displays a shortcut menu for items beneath the pointer.
(5)
Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.
(6)
num lock key Enables numeric lock, turns on the embedded numeric
keypad, and turns on the num lock light.
(7)
Function keys Execute frequently used system functions when pressed in
combination with the fn key.
8Chapter 2 External component identification
Page 17
Lights
Item Component Description
(1)
Power lights (2)*
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(2)
Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available power
source has reached a low battery level or a critical
battery level.
●
Off: If the computer is plugged into an external power
source, the light is turned off when all batteries in the
computer are fully charged. If the computer is not
plugged into an external power source, the light stays
off until the battery reaches a low battery level.
(3)
Drive light Blinking: The hard drive or optical drive is being accessed.
(4)
Caps lock light On: Caps lock is on.
(5)
Volume mute light
●
Blue: Computer sound is turned on.
●
Amber: Computer sound is turned off.
(6)
Volume down light Blinking: The volume scroll zone is being used to decrease
speaker volume.
(7)
Volume up light Blinking: The volume scroll zone is being used to increase
speaker volume.
(8)
Num lock light On: Num lock is on or the embedded numeric keypad is
enabled.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
Top components 9
Page 18
TouchPad
Item Component Function
(1)
TouchPad light
●
Blue: TouchPad is enabled.
●
Amber: TouchPad is disabled.
(2)
TouchPad* Moves the pointer and selects or activates items on the
screen.
(3)
TouchPad horizontal scroll zone Scrolls left or right.
(4)
Left TouchPad button* Functions like the left button on an external mouse.
(5)
TouchPad on/off button Enables/disables the TouchPad.
(6)
TouchPad vertical scroll zone Scrolls up or down.
(7)
Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, select Start > Control Panel >
Hardware and Sound > Mouse.
10 Chapter 2 External component identification
Page 19
Front components
Item Component Function
(1)
Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(2)
Battery light
●
On: A battery is charging.
●
Blinking: A battery that is the only available power
source has reached a low battery level or a critical
battery level.
●
Off: If the computer is plugged into an external power
source, the light is turned off when all batteries in the
computer are fully charged. If the computer is not
plugged into an external power source, the light stays
off until the battery reaches a low battery level.
(3)
Drive light Blinking: The hard drive or optical drive is being accessed.
(4)
Wireless switch Turns the wireless feature on or off, but does not create a
wireless connection.
NOTE: To establish a wireless connection, a wireless
network must already be set up.
(5)
Wireless light
●
Blue: An integrated wireless device, such as a WLAN
device and/or a Bluetooth® device, is turned on.
●
Amber: An integrated wireless device is turned off.
(6)
Consumer infrared lens (select models only) Receives a signal from a remote control device, such as the
HP Remote Control.
(7)
Audio-in (microphone) Connects an optional computer headset microphone, stereo
array microphone, or monaural microphone.
(8)
Audio-out (headphone) jack Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television
audio.
Front components 11
Page 20
Left-side components
Item Component Function
(1)
S-Video-out jack Connects an optional S-Video device such as a television,
VCR, camcorder, overhead projector, or video capture
card.
(2)
External monitor port Connects an external VGA monitor or projector.
(3)
Expansion port 3 Connects the computer to an optional docking device or
expansion product.
NOTE: The computer has only one expansion port. The
term expansion port 3 describes the type of expansion port.
(4)
RJ-45 (network) jack Connects a network cable.
(5)
RJ-11 (modem) jack Connects a modem cable.
(6)
USB ports (1 or 2, depending on computer model) Connect optional USB devices.
(7)
1394 port (select models only) Connects an optional IEEE 1394 or 1394a device, such as
a camcorder.
(8)
Digital Media Slot (select models only) Supports the following optional digital card formats:
●
Memory Stick (MS)
●
Memory Stick Pro (MSP)
●
MultiMediaCard (MMC)
●
Secure Digital Input/Output (SD I/O)
●
Secure Digital (SD) Memory Card
●
xDPicture Card (XD)
●
xD-Picture Card (XD) Type H
●
xD-Picture Card (XD) Type M
12 Chapter 2 External component identification
Page 21
Rear component
Component Description
Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
Right-side components
Item Component Function
(1)
ExpressCard slot Supports optional ExpressCard/54 cards.
(2)
Optical drive Reads optical discs, and, on select models, also writes to
optical discs.
(3)
Optical drive light Blinking: The optical drive is being accessed.
(4)
USB port (select models only) Connects an optional USB device.
(5)
Power connector Connects an AC adapter.
(6)
Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being
mishandled or stolen.
Rear component 13
Page 22
Bottom components
Item Component Function
(1)
Battery bay Holds the battery.
(2)
Battery release latch Releases the battery from the battery bay.
(3)
Optical drive Reads optical discs and, on select models, also writes to
optical discs.
(4)
Memory/WLAN module compartment Contains the memory module slots, the WLAN module slot,
and the RTC battery.
NOTE: To prevent an unresponsive system, replace the
wireless module only with a wireless module authorized for
use in the computer by the governmental agency that
regulates wireless devices in your country or region. If you
replace the module and then receive a warning message,
remove the module to restore computer functionality, and
then contact technical support through Help and Support.
(5)
Vents (5) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool
internal components and prevent overheating. It is normal
for the internal fan to cycle on and off during routine
operation.
(6)
Hard drive bay Holds the hard drive.
14 Chapter 2 External component identification
Page 23
3
Illustrated parts catalog
Serial number location
When ordering parts or requesting information, provide the computer serial number and model number
located on the bottom of the computer.
Serial number location 15
Page 24
Computer major components
Item Description Spare part number
(1) 15.4-inch, WXGA, BrightView display assembly (includes microphones)
446485-001
16 Chapter 3 Illustrated parts catalog
Page 25
Item Description Spare part number
NOTE: See Display assembly components on page 22 for more display assembly spare
part information.
With plain top for computer models with AMD processors 455196-001
(2) Switch cover (includes LED board and cable)
For use in full-featured models 431425-001 and
451010-001
For use in defeatured models 455260-001
(3) Power button board (includes power button board cable)
431438-001
(4) Keyboards
Denmark, Finland, Norway, and Sweden 441428-DH1
France 441428-051
French Canada 441428-121
Italy 441428-061
South Korea 441428-AD1
Latin America 441428-161
The Netherlands and Europe 441428-B31
Saudi Arabia 441428-171
Spain 441428-071
Taiwan 441428-AB1
Thailand 441428-281
Turkey 441428-141
The United Kingdom 441428-031
The United States 441428-001
(5) Top cover for use in computer models with Intel processors (includes speakers, TouchPad
and cable)
446510-001 and
455514-001
For use in computer models with AMD processors:
●
Full-featured models
454170-001
●
Defeatured models
451407-001
(6) Fan/heat sink assembly (includes thermal material )
For use only in computer models with Intel processors 446522-001
For use only in computer models with AMD processors 449961-001
(7) ExpressCard assembly
431440-001
Plastics Kit (see Plastics Kit on page 24 for more Plastics Kit information):
438669-001
(8a)
ExpressCard slot bezel
(8b)
Hard drive cover (includes 2 captive screws, secured by C-clips)
Computer major components 17
Page 26
Item Description Spare part number
(8c)
Memory/WLAN module compartment cover (includes 3 captive screws, secured by C-clips)
HDMI port cover (not illustrated)
(9) Processors (include thermal material )
Intel Core 2 Duo processors:
●
2.20-GHz processor (4-MB L2 cache, 800-MHz FSB)
453771-001
●
2.00-GHz processor (2-MB L2 cache, 800-MHz FSB)
455515-001
●
1.86-GHz processor (1-MB L2 cache, 533-MHz FSB)
453773-001
●
1.50-GHz processor (2-MB L2 cache, 667-MHz FSB)
453772-001
Intel Core Duo processors:
●
T7300 2.00-GHz processor (4-MB L2 cache, 800-MHz FSB)
446478-001
●
T7100 1.80-GHz processor (2-MB L2 cache, 800-MHz FSB)
446479-001
● T5250 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB) 453033-001
AMD processors:
●
Turion MK-38 (2.2-GHz, 512-MB L2 cache)
449904-001
● Turion TL-66 (2.3-GHz, 1-MB L2 cache) 450804-001
●
Turion TL-60 (2.0-GHz, 1-MB L2 cache)
450803-001
●
Turion TL-58 (1.9-GHz, 1-MB L2 cache)
450802-001
●
Turion TL-56 (1.8-GHz, 1-MB L2 cache)
450801-001
●
Athlon TK-53 (1.7-GHz. 512-MB L2 cache)
451013-001
Processor bracket (not illustrated)
450370-001
(10) Bluetooth module (includes Bluetooth module cable)
412766-002
(11) System board (includes modem cable)
For use only in computer models with Intel processors 453770-001 and
446475-001
For use only in computer models with AMD processors:
●
In full-featured models equipped with UMA graphics subsystem memory
449901-001
●
In defeatured models
454167-001
(12) USB/power connector board (includes USB/power connector board cable)
447444-001
(13) Audio boards (include audio board cable)
For use only in computer models with Intel processors:
●
Equipped with consumer infrared
449453-001
●
Not equipped with consumer infrared
431443-001
For use only in computer models with AMD processors:
●
In full-featured models equipped with consumer infrared 454176-001
18 Chapter 3 Illustrated parts catalog
Page 27
Item Description Spare part number
● In defeatured models equipped with consumer infrared 449967-001
(14) Batteries
12-cell, 8.80-AH, Li-ion 451864-001
6-cell, 2.55-AH, Li-ion 446507-001
6-cell, 2.20-AH, Li-ion 446506-001
(15) Base enclosure (includes infrared lens and wireless on/off switch)
For use with full-featured computer models 448343-001
For use with defeatured models 454171-001
Rubber Kit (not illustrated; includes base enclosure rubber feet and display bezel screw
covers)
431431-001
(16) Optical drives (include bezel)
For use in computer models with Intel processors:
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe
446505-001
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive
446504-001
●
DVD/CD-RW Combo Drive
446503-001
For use in computer models with AMD processors:
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive
449934-001
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe
449936-001
● DVD/CD-RW Combo Drive 455076-001

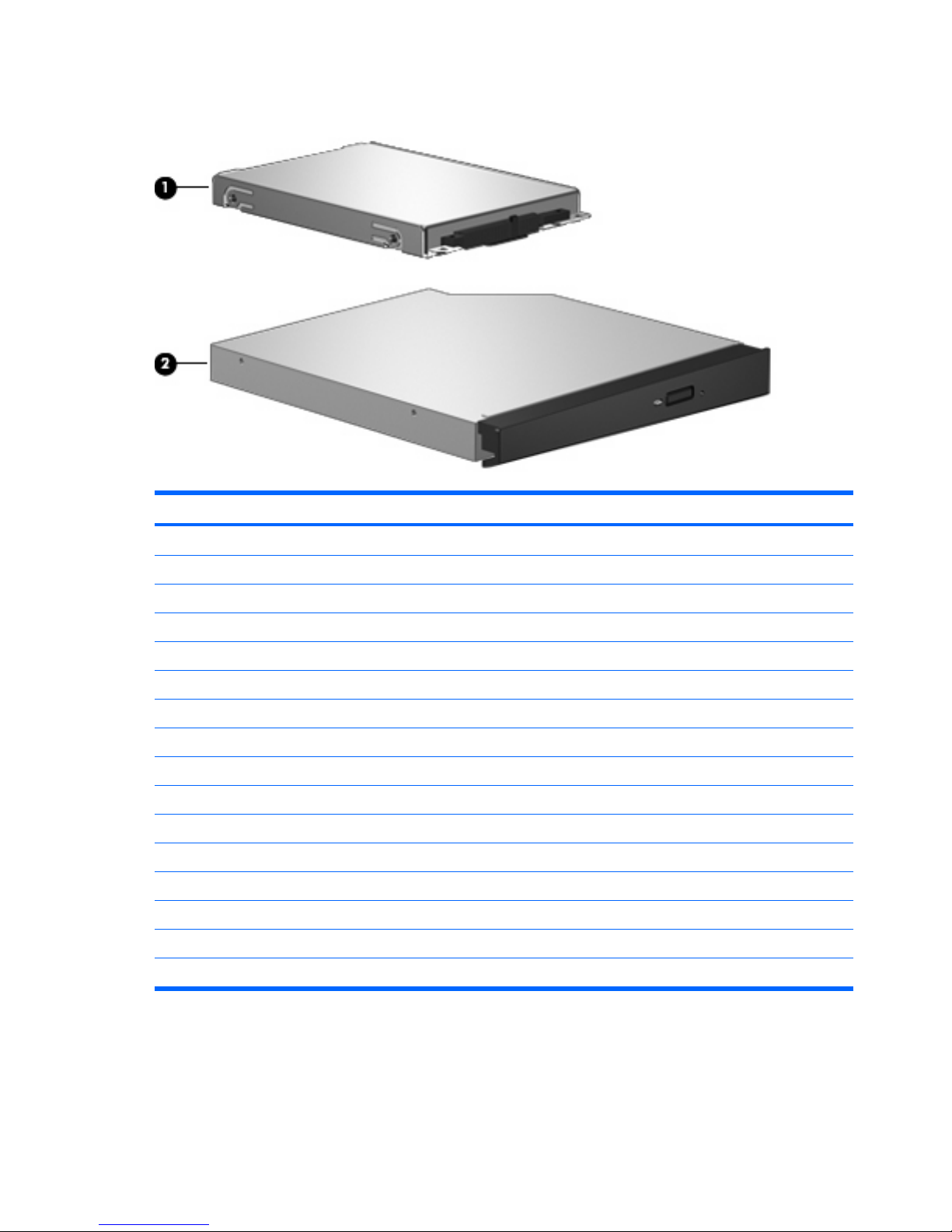

(17) Hard drives (include hard drive bracket)
250-GB, 5400-rpm 453775-001
200-GB, 4200-rpm 451863-001
160-GB, 5400-rpm 451862-001
120-GB, 5400-rpm 446498-001
80-GB, 5400-rpm 446497-001
60-GB, 5400-rpm 446496-001
(18) WLAN modules
Intel 802.11a/b/g/n WLAN modules:
●
For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,
Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican
Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India,
Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the
United States, Uruguay, Venezuela, and Vietnam
441086-001
●
For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the
Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece,
Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania,
Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland,
Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia,
441086-002 and
441087-002
Computer major components 19
Page 28
Item Description Spare part number
Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the
United Kingdom, and Uzbekistan
●
For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South
Korea
441086-003 and
441088-003
●
For use in Japan
441086-291 and
441089-291
●
For use in South Korea
441086-AD1
Intel 802.11a/b/g WLAN modules:
●
For use in Antigua & Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei,
Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India,
Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia,
Taiwan, the United States, and Vietnam
451861-001
●
For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the
Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El
Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland,
Ireland, Italy, Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta,
Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Romania,
Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri
Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and Uzbekistan
451861-002
●
For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru,
Qatar, South Korea, Uruguay, and Venezuela
451861-003
●
For use in Japan
451861-291
Broadcom 802.11b/g WLAN modules:
●
For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and
the United States
441090-001
● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,
Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia,
Bosnia & Herzegovina Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African
Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,
Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland,
France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti,
Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory
Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia,
Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands,
Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,
Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the
Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau,
Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the
Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and
Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon
Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia,
St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,
Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
441090-002
● For use in Japan 441090-291
20 Chapter 3 Illustrated parts catalog
Page 29
Item Description Spare part number
Intel 802.11b/g WLAN module for use in Thailand 451861-004
Broadcom 4311AG 802.11a/b/g modules:
● For use in the United States and Canada 441075-001
● For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic
region, and India
441075-002
Broadcom 4321AGN 802.11a/b/g/n modules:
●
For use in the United States and Canada
434661-001
●
For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic
region, and India
434661-002
(19) RTC battery (includes 2-sided tape)
446518-001 and
449729-001
(20) Memory modules (667-MHz, PC2-5300, 1-DIMM)
2048-MB 453774-001
1024-MB 446495-001
512-MB 446494-001
Cable Kit (not illustrated; see
Cable Kit on page 25 for more Cable Kit information)
446520-001
Computer major components 21
Page 30
Display assembly components
Item Description Spare part number
(1) Display bezel
For use in computers with Intel processors 433283-001 and
453328-001
For use in computer models with AMD processors:
●
Full-featured models
433284-002
●
Defeatured models
454169-001
(2) Display inverter (includes Mylar shield)
431391-001
(3) Display Hinge Kit (includes left and right display hinges)
433288-001
(4) Display panel (15.4-inch, WXGA, BrightView; includes display panel cable)
446480-001
(5) Wireless Antenna Kits
For use only with computer models equipped with an 802.11a/b/g/n WLAN module
(includes 3 wireless antenna transceivers and cables)
449728-001
For use only with computer models equipped with an 802.11a/b/g or 802.11b/g WLAN
module (includes 2 wireless antenna transceivers and cables)
449726-001
(6) Microphone
431393-001
(7) Display enclosure
For full-featured models 446488-001
For defeatured models 432920-002
22 Chapter 3 Illustrated parts catalog
Page 31
Item Description Spare part number
Display Cable Kit (not illustrated)
433287-001
Display Screw Kit (not illustrated)
431400-001
Display assembly components 23
Page 32
Plastics Kit
Item Description Spare part number
Plastics Kit:
438669-001
(1)
ExpressCard slot bezel
(2)
Hard drive cover (includes 2 captive screws, secured by C-clips)
(3)
Memory/WLAN module compartment cover (includes 3 captive screws, secured by C-clips)
24 Chapter 3 Illustrated parts catalog
Page 33

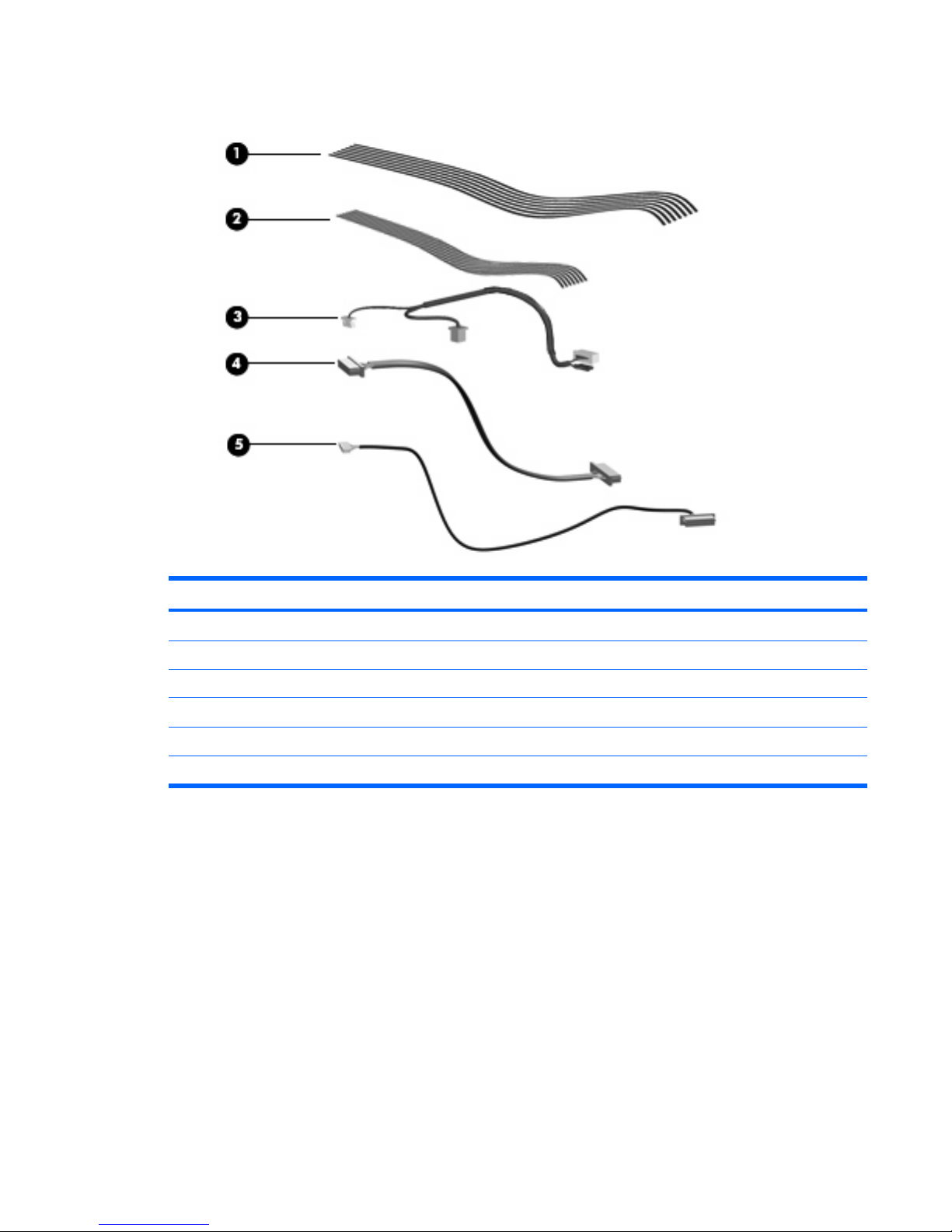

Cable Kit
Item Description Spare part number
Cable Kit:
446520-001
(1)
LED board cable
(2)
Power button board cable
(3)
USB/power connector board cable
(4)
Audio board cable
(5)
Bluetooth module cable
Cable Kit 25
Page 34
Mass storage devices
Item Description Spare part number
(1) Hard drives (include hard drive bracket)
250-GB, 5400-rpm 453775-001
200-GB, 4200-rpm 451863-001
160-GB, 5400-rpm 451862-001
120-GB, 5400-rpm 446498-001
80-GB, 5400-rpm 446497-001
60-GB, 5400-rpm 446496-001
(2) Optical drives (include bezel and bracket)
For use in computer models with Intel processors:
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe
446501-001
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive
446500-001
●
DVD/CD-RW Combo Drive
446499-001
For use in computer models with AMD:
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive
449934-001
●
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe
449936-001
●
DVD/CD-RW Combo Drive 455076-01
26 Chapter 3 Illustrated parts catalog
Page 35
Miscellaneous parts
Description Spare part number
AC adapters
90-W non-PFC AC adapter 432309-001
90-W PFC AC adapter 453198-001
65-W non-PFC AC adapter 402018-001
65-W PFC AC adapter 453199-001
ATSC/NTSC TV tuner antenna
439131-001
ATSC/NTSC/PAL TV tuner
439130-001
Composite video cable
407939-001
DVB-T tuner
412175-001
DVB-T wireless antenna adapter
412176-001
ExpressCard Kit (includes software CD)
445170-001
HP backpack
405527-001
HP carrying case
418162-001
HP Remote Control
435743-001
Infrared emitter with cable
439129-001
Label Kit for computer models with Intel processors
446525-001
Label Kit for computer models with AMD processors
449972-001
Optical wired mouse
436238-001
RF input adapter cable (without ferrite)
407940-001
USB digital drive
364727-002
Windows Vista remote control (fits inside ExpressCard slot)
439128-001
Windows Vista remote control (does not fit inside ExpressCard slot)
439254-001
Wired headset
371693-001
Wireless laser mouse with cable adapter
430958-001
Power cords:
Australia and New Zealand
394279-011
Belgium, Europe, Finland, France, Germany, Greece, the Netherlands, Norway, Portugal, Spain, and
Sweden
394279-021
Canada, French Canada, Latin America, Thailand, and the United States 394279-001
Denmark 394279-081
India 394279-D61
Israel 394279-BB1
Italy 394279-061
Miscellaneous parts 27
Page 36
Description Spare part number
Japan 394279-291
South Korea 394279-AD1
The People's Republic of China 394279-AA1
Switzerland 394279-BG1
Taiwan 394279-AB1
The United Kingdom and Hong Kong 394279-031
Screw Kit (see Screw listing on page 100 for more Screw Kit information)
●
Hex HM5.0×9.0 standoff
●
Phillips PM3.0×3.0 screw
●
Phillips PM2.5×10.0 screw
●
Phillips PM2.5×7.0 screw
●
Phillips PM2.5×5.0 captive screw
●
Phillips PM2.5×4.0 captive screw
●
Phillips PM2.5×4.0 screw
●
Phillips PM2.5×3.0 screw
●
Phillips PM2.0×7.0 screw
●
Phillips PM2.0×5.0 captive screw
●
Phillips PM2.0×3.0 screw
●
Phillips PM2.0×2.0 screw
434983-001
Sequential part number listing
Spare part
number
Description
364727-002 USB digital drive
371693-001 Wired headset with volume control
394279-001 Power cord for use in the United States
394279-011 Power cord for use in Australia
394279-021 Power cord for use in Europe
394279-031 Power cord for use in the United Kingdom
394279-061 Power cord for use in Italy
394279-081 Power cord for use in Denmark
394279-BG1 Power cord for use in Switzerland
394279-291 Power cord for use in Japan
28 Chapter 3 Illustrated parts catalog
Page 37
Spare part
number
Description
394279-AA1 Power cord for use in the People's Republic of China
394279-AB1 Power cord for use in Taiwan
394279-AD1 Power cord for use in South Korea
394279-BB1 Power cord for use in Israel
394279-D61 Power cord for use in India
402018-001 65-watt PFC AC adapter
405527-001 HP backpack
407939-001 Composite video cable
407940-001 RF input adapter cable (without ferrite)
412175-001 DVB-T tuner
412176-001 DVB-T antenna adapter
412766-001 Bluetooth module (includes Bluetooth module cable)
412766-002 Bluetooth module (includes Bluetooth module cable)
418162-001 HP carrying case
430958-001 Wireless laser mouse
431391-001 Display inverter (includes Mylar shield)
431393-001 Microphone
431400-001 Display Screw Kit (see Screw listing on page 100 for more Display Screw Kit information)
431425-001 Switch cover for use in full-featured models (includes LED board and cable)
431431-001 Rubber Kit (includes base enclosure rubber feet and display bezel screw covers)
431438-001 Power button board (includes power button board cable)
431440-001 ExpressCard assembly
431443-001 Audio board without infrared lens for computer models with Intel processors
432309-001 90-watt non-PFC AC adapter
432920-002 Display enclosure for defeatured models
433283-001 Display bezel for use only with computer models not equipped with microphones
433284-002 Display bezel for use in full-featured computer models with AMD processors
433287-001 Display Cable Kit
433288-001 Display Hinge Kit (includes left and right display hinges)
434661-001 Broadcom 4321AGN 802.11a/b/g/n module for use in the United States and Canada
434661-002 Broadcom 4321AGN 802.11a/b/g/n module for use in France, Germany, Italy, the Netherlands, Spain,
the United Kingdom, Nordic region, and India
434983-001 Screw Kit
436238-001 Optical wired mouse
Sequential part number listing 29
Page 38
Spare part
number
Description
438669-001 Plastics Kit (see Plastics Kit on page 24 for more Plastics Kit information)
439128-001 Windows Vista remote control (fits inside ExpressCard slot)
439129-001 Infrared emitter with cable
439130-001 ATSC/NTSC/PAL TV tuner
439131-001 ATSC/NTSC TV tuner antenna
439254-001 Windows Vista remote control (does not fit inside ExpressCard slot)
441075-001 Broadcom 4311AG 802.11a/b/g module for use in the United States and Canada
441075-002 Broadcom 4311AG 802.11a/b/g module for use in France, Germany, Italy, the Netherlands, Spain, the
United Kingdom, Nordic region, and India
441086-001 Intel 802.11a/b/g/n WLAN module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas,
Barbados, Bermuda, Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican
Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia,
Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay,
Venezuela, and Vietnam
441086-002 Intel 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria,
Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany,
Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg,
Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania,
Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden,
Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan
441086-003 Intel 802.11a/b/g/n WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic
of China, and South Korea
441086-291 Intel 802.11a/b/g/n WLAN module for use in Japan
441086-AD1 Intel 802.11a/b/g/n WLAN module for use in South Korea
441087-002 Intel 802.11a/b/g/n WLAN module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria,
Croatia, Cyprus, the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany,
Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg,
Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania,
Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden,
Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan
441088-003 Intel 802.11a/b/g/n WLAN module for use in Australia, New Zealand, Pakistan, the People's Republic
of China, and South Korea
441089-291 Intel 802.11a/b/g/n WLAN module for use in Japan
441090-001 Broadcom 802.11b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the
U.S. Virgin Islands, and the United States
441090-002 Broadcom 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua
& Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina
Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia,
Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo,
Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France,
French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe,
Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India,
Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait,
Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia,
Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania,
30 Chapter 3 Illustrated parts catalog
Page 39
Spare part
number
Description
Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia,
Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the
Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San
Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra
Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain,
Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland,
Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
441090-291 Broadcom 802.11b/g WLAN module for use in Japan
441428-001 Keyboard for use in the United States
441428-031 Keyboard for use in the United Kingdom
441428-051 Keyboard for use in France
441428-061 Keyboard for use in Italy
441428-071 Keyboard for use in Spain
441428-121 Keyboard for use in French Canada
441428-141 Keyboard for use in Turkey
441428-161 Keyboard for use in Latin America
441428-171 Keyboard for use in Saudi Arabia
441428-281 Keyboard for use in Thailand
441428-AB1 Keyboard for use in Taiwan
441428-AD1 Keyboard for use in Thailand
441428-B31 Keyboard for international use
441428-DH1 Keyboard for use in Finland, Norway, and Sweden
445170-001 ExpressCard Kit (includes software CD)
446475-001 System board for use in computer models with Intel processors
446478-001 Intel Core Duo T7300 2.0-GHz processor (4-MB L2 cache; includes thermal material)
446479-001 Intel Core Duo T7100 1.8-GHz processor (2-MB L2 cache; includes thermal material)
446480-001 15.4-inch, WXGA, SVA, TFT BrightView display panel (includes display panel cable)
446485-001 15.4-inch, WXGA, BrightView display assembly (includes microphones)
446488-001 Display enclosure for full-featured models
446494-001 512-MB memory module (667-MHz, PC2-5300, 1-DIMM)
446495-001 1024-MB memory module (667-MHz, PC2-5300, 1-DIMM)
446496-001 60-GB, 5400-rpm hard drive (includes hard drive bracket)
446497-001 80-GB, 5400-rpm hard drive (includes hard drive bracket)
446498-001 120-GB, 5400-rpm hard drive (includes hard drive bracket)
446503-001 DVD/CD-RW Combo Drive for use in computer models with Intel processors
Sequential part number listing 31
Page 40
Spare part
number
Description
446504-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive for use in computer models with Intel
processors
446505-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive for use in computer models with Intel
processors
446506-001 6-cell, 2.20-AH battery
446507-001 6-cell, 2.55-AH battery
446510-001 Top cover (includes speakers and TouchPad and cable)
446518-001 RTC battery (includes 2-sided tape)
446520-001 Cable Kit (see Cable Kit on page 25 for more Cable Kit information)
446522-001 Fan/heat sink assembly for use in computer models with Intel processors (includes thermal material)
446525-001 Label Kit for computer models with Intel processors
447444-001 USB/power connector board (includes USB/power connector board cable)
448343-001 Base enclosure for use in full-featured computer models (includes infrared lens and wireless on/off
switch)
449453-001 Audio board with infrared lens for use in computer models with Intel processors
449726-001 Wireless Antenna Kit for use only with computer models equipped with an 802.11a/b/g or 802.11b/g
WLAN module (includes 2 wireless antenna transceivers and cables)
449728-001 Wireless Antenna Kit for use only with computer models equipped with an 802.11a/b/g/n WLAN module
(includes 3 wireless antenna transceivers and cables)
449729-001 RTC battery
449901-001 System board for use only in computer models with AMD processors equipped with UMA graphics
subsystem memory
449904-001 AMD Turion MK-38 processor (2.2-GHz, 512-MB L2 cache)
449934-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive for use in computer models with AMD
processors
449936-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe for use in computer models
with AMD processors
449956-001 Cable Kit (see Cable Kit on page 25 for more Cable Kit information)
449961-001 Fan/heat sink assembly for use in computer models with AMD processors (includes thermal material)
449967-001 Audio board for use in defeatured computer models with AMD processors (includes audio connectors,
audio board cable, and infrared lens)
449972-001 Display Label Kit for computer models with AMD processors
450370-001 Processor bracket
450371-001 Processor bracket for use with 8.1 processors
450801-001 AMD Turion TL-56 processor (1.8-GHz, 1-MB L2 cache)
450802-001 AMD Turion TL-58 processor (1.9-GHz, 1-MB L2 cache)
450803-001 AMD Turion TL-60 processor (2.0-GHz, 1-MB L2 cache)
450804-001 AMD Turion TL-66 processor (2.3-GHz, 1-MB L2 cache)
32 Chapter 3 Illustrated parts catalog
Page 41
Spare part
number
Description
451010-001 Switch cover for use in full-featured models (includes LED board)
451013-001 AMD Athlon TK-53 processor (1.7-GHz. 512-MB L2 cache)
451407-001 Top cover for use in defeatured computer models with AMD processors (includes speakers and TouchPad
and cable)
451861-001 Intel 802.11a/b/g WLAN module for use in Antigua and Barbuda, Argentina, Australia, the Bahamas,
Barbados, Brunei, Canada, Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India,
Indonesia, Malaysia, Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United
States, and Vietnam
451861-002 Intel 802.11a/b/g WLAN module for use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda,
Brazil, Bulgaria, the Cayman Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt,
El Salvador, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy,
Jordan, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway,
Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia,
Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United Kingdom, and
Uzbekistan
451861-003 Intel 802.11a/b/g WLAN module for use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic
of China, Peru, Qatar, South Korea, Uruguay, and Venezuela
451861-004 Intel 802.11b/g WLAN module for use in Thailand
451861-291 Intel 802.11a/b/g WLAN module for use in Japan
451862-001 160-GB, 5400-rpm hard drive
451863-001 200-GB, 4200-rpm hard drive
451864-001 12-cell, 8.8-AH battery
453033-001 Intel Core Duo T5250 1.50-GHz processor (2-MB L2 cache, 533-MHz FSB; includes thermal material)
453198-001 90-watt, PFC AC adapter
453199-001 65-watt, PFC AC adapter
453328-001 Display bezel for use only with computer models equipped with microphones
453770-001 System board for use only in computer models with Intel processors
453771-001 Intel Core 2 Duo 2.20-GHz processor (4-MB L2 cache, 800-MHz FSB; includes thermal material)
453772-001 Intel Core 2 Duo 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB; includes thermal material)
453773-001 Intel Core 2 Duo 1.86-GHz processor (1-MB L2 cache, 533-MHz FSB; includes thermal material)
453774-001 2048-MB memory module (PC2-5300, 667-MHz, DDR2)
453775-001 250-GB, 5400-rpm hard drive
454167-001 System board for use only in defeatured computer models with AMD processors
454169-001 Display bezel for use in defeatured computer models with AMD processors
454170-001 Top cover for use in full-featured computer models with AMD processors (includes speakers and TouchPad
and cable)
454171-001 Base enclosure for use with defeatured computer models (includes infrared lens and wireless on/off
switch)
454176-001 Audio boards for use in full-featured computer models with AMD processors (includes audio board cable)
455076-001 DVD/CD-RW Combo Drive for use in computer models with AMD processors
Sequential part number listing 33
Page 42
Spare part
number
Description
455196-001 15.4-inch, WXGA, BrightView display assembly with plain top for computer models with AMD processors
(includes microphones)
455260-001 Switch cover for use in defeatured models (includes LED board)
455514-001 Top cover (includes TouchPad)
455515-001 Intel Core 2 Duo 2.00-GHz processor (2-MB L2 cache, 800-MHz FSB; includes thermal material)
34 Chapter 3 Illustrated parts catalog
Page 43
4
Removal and replacement
procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
●
Flat-bladed screwdriver
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly
and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when
handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Preliminary replacement requirements 35
Page 44
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat
or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In
all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme
care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer
is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be
sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
36 Chapter 4 Removal and replacement procedures
Page 45
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some protection,
but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you area ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines described in
this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 v 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
Preliminary replacement requirements 37
Page 46
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to
avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools
and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
38 Chapter 4 Removal and replacement procedures
Page 47
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can
be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm
resistance between the operator and ground. To be effective, the conductive strips must be worn in
contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material Use Voltage protection level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
Preliminary replacement requirements 39
Page 48
Unknown user password
If the computer you are servicing has an unknown user password, follow these steps to clear the password.
NOTE: These steps also clear CMOS.
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the RTC battery (see
RTC battery on page 47).
6.
Wait approximately 5 minutes.
7.
Replace the RTC battery and reassemble the computer.
8.
Connect AC power to the computer. Do not reinsert any batteries at this time.
9.
Turn on the computer.
All passwords and all CMOS settings have been cleared.
40 Chapter 4 Removal and replacement procedures
Page 49
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 87 screws and standoffs, in 13 different sizes, that must be removed, replaced, or
loosened when servicing the computer. Make special note of each screw and standoff size and location
during removal and replacement.
Serial number
Report the computer serial number to HP when requesting information or ordering spare parts. The serial
number is located on the bottom of the computer.
Component replacement procedures 41
Page 50
Battery
Description Spare part number
12-cell, 8.80-Ah Li-ion battery 451864-001
6-cell, 2.55-Ah Li-ion battery 446507-001
6-cell, 2.20-Ah Li-ion battery 446506-001
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Remove the battery:
1.
Turn the computer upside down on a flat surface.
2. Slide the battery release latch (1) to release the battery.
3. Pivot the battery (2) upward and remove it from the computer.
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the battery downward
until it is seated. The battery release latch automatically locks the battery into place.
42 Chapter 4 Removal and replacement procedures
Page 51
Hard drive
NOTE: All hard drive spare part kits include a hard drive bracket.
Description Spare part number
250-GB, 5400-rpm 453775-001
200-GB, 4200-rpm 451863-001
160-GB, 5400-rpm 451862-001
120-GB, 5400-rpm 446498-001
80-GB, 5400-rpm 446497-001
60-GB, 5400-rpm 446496-001
Before removing the hard drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
Remove the hard drive:
1. Loosen the two Phillips PM2.0×5.0 screws (1) that secure the hard drive cover to the computer.
2. Lift the right side of the hard drive cover (2), swing it to left, and remove the cover.
3.
Remove the hard drive cover.
NOTE: The hard drive cover is included in the Plastics Kit, spare part number 438669-001.
Component replacement procedures 43
Page 52
4. Use the Mylar tab (1) to lift the hard drive (2) until it disconnects from the computer.
5.
Remove the hard drive.
6. If it is necessary to remove the hard drive bracket, remove the four Phillips PM3.0×3.0 screws (1)
that secure the hard drive bracket to the hard drive.
7. Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
44 Chapter 4 Removal and replacement procedures
Page 53
Computer feet
Description Spare part number
Rubber Kit (includes base enclosure rubber feet and display bezel screw covers) 431431-001
The computer feet are adhesive-backed rubber pads. The feet attach to the base enclosure in the locations
illustrated below.
Memory module
Description Spare part number
2048-MB (PC2-5300, 667-MHz, 1-DIMM) 453774-001
1024-MB (PC2-5300, 667-MHz, 1-DIMM) 446495-001
512-MB (PC2-5300, 667-MHz, 1-DIMM) 446494-001
Before removing the memory module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
Remove the memory module:
1. Loosen the three Phillips PM2.0×5.0 screws (1) that secure the memory/WLAN module compartment
cover to the computer.
Component replacement procedures 45
Page 54
2. Lift the left side of the cover (2), swing it to the right, and remove the cover.
3.
Remove the memory/WLAN module compartment cover.
NOTE: The memory/WLAN module compartment cover is included in the Plastics Kit, spare part
number 438669-001.
4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.
(The edge of the module opposite the slot rises away from the computer.)
5. Remove the module (2) by pulling it away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the
memory module slot.
Reverse this procedure to install a memory module.
46 Chapter 4 Removal and replacement procedures
Page 55
RTC battery
NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords
and CMOS settings to be cleared.
Description Spare part number
RTC battery (includes 2-sided tape) 446518-001 and
449729-001
Before removing the RTC battery, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the memory/WLAN module compartment cover (see
Memory module on page 45).
Remove the RTC battery:
1. Disconnect the RTC battery cable (1) from the system board.
2. Remove the RTC battery (2).
NOTE: The RTC battery is secured to the computer by 2-sided tape. All replacement RTC battery
spare part kits include 2-sided tape.
Reverse this procedure to install the RTC battery.
Component replacement procedures 47
Page 56
WLAN module
Description Spare part number
Intel 802.11a/b/g/n WLAN modules:
●
For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,
Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador,
El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia,
Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay,
Venezuela, and Vietnam
441086-001
●
For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech
Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary,
Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta,
Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania,
Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka,
Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan
441086-002 and
441087-002
●
For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea
441086-003 and
441088-003
● For use in Japan 441086-291 and
441089-291
●
For use in South Korea
441086-AD1
Intel 802.11a/b/g WLAN modules:
●
For use in Antigua & Barbuda, Argentina, Australia, the Bahamas, Barbados, Brunei, Canada,
Chile, the Dominican Republic, Guam, Guatemala, Hong Kong, India, Indonesia, Malaysia,
Mexico, New Zealand, Panama, Paraguay, Saudi Arabia, Taiwan, the United States, and
Vietnam
451861-001
●
For use in Aruba, Austria, Azerbaijan, Bahrain, Belgium, Bermuda, Brazil, Bulgaria, the Cayman
Islands, Colombia, Croatia, Cyprus, the Czech Republic, Denmark, Egypt, El Salvador, Estonia,
Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Italy, Jordan, Latvia,
Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway,
Oman, the Philippines, Poland, Portugal, Romania, Russia, Serbia and Montenegro, Singapore,
Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, the United
Kingdom, and Uzbekistan
451861-002
●
For use in Ecuador, Haiti, Honduras, Pakistan, the People's Republic of China, Peru, Qatar, South
Korea, Uruguay, and Venezuela
451861-003
●
For use in Japan
451861-291
Broadcom 802.11b/g WLAN modules:
●
For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the
United States
441090-001
●
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados,
Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina Botswana,
Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon,
Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa
Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican
Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia,
Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras,
Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica,
Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the
Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
441090-002
48 Chapter 4 Removal and replacement procedures
Page 57
Description Spare part number
Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria,
Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China,
Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia,
Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and
Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent &
Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand,
Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the
United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam,
Yemen, Zaire, Zambia, and Zimbabwe
●
For use in Japan
441090-291
802.11b/g WLAN module for use in Thailand 451861-004
Broadcom 4311AG 802.11a/b/g modules:
●
For use in the United States and Canada
441075-001
● For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic region,
and India
441075-002
Broadcom 4321AGN 802.11a/b/g/n modules:
●
For use in the United States and Canada
434661-001
●
For use in France, Germany, Italy, the Netherlands, Spain, the United Kingdom, Nordic region,
and India
434661-002
Before removing the WLAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the memory/WLAN module compartment cover (see
Memory module on page 45).
Remove the WLAN module:
1. Disconnect the two WLAN antenna cables (1) from the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
gray WLAN antenna cable is connected to the WLAN module “Aux” terminal.
NOTE: Computer models equipped with an 802.11a/b/g/n WLAN module have an additional
wireless antenna cable (2), yellow in color.
2. Remove the two Phillips PM2.0×3.0 screws (3) that secure the WLAN module to the computer. (The
edge of the module opposite the slot rises away from the computer.)
Component replacement procedures 49
Page 58

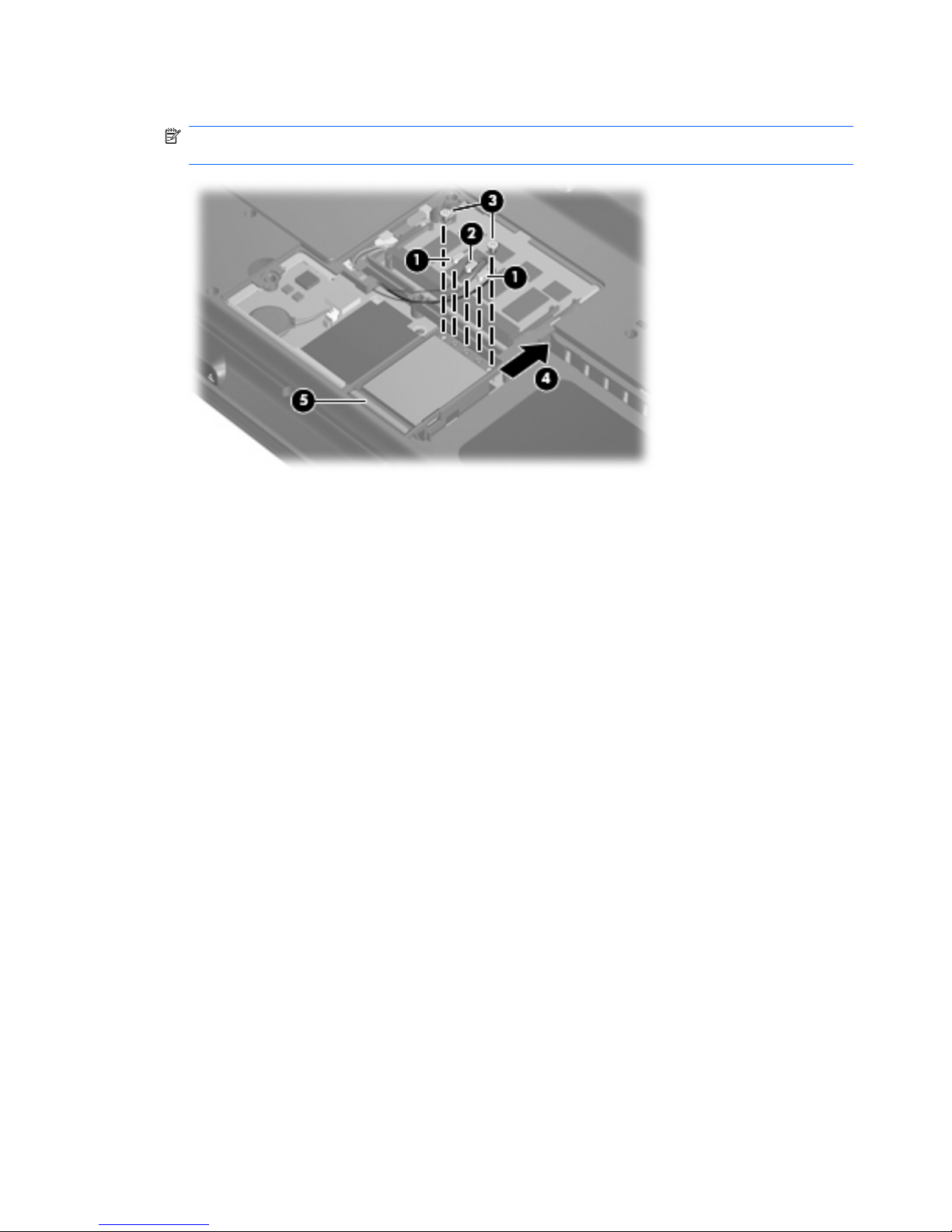

3. Remove the WLAN module (4) by pulling it away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (5) to prevent incorrect installation into the
WLAN module slot.
Reverse this procedure to install a WLAN module.
50 Chapter 4 Removal and replacement procedures
Page 59
Optical drive
NOTE: All optical drive spare part kits include an optical drive bezel.
Description Spare part number
For use in computer models with Intel processors:
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 446505-001
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 446504-001
DVD/CD-RW Combo Drive 446503-001
For use in computer models with AMD processors:
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 449934-001
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 449936-001
DVD/CD-RW Combo Drive 455076-001
Before removing the optical drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
Remove the optical drive:
1.
Position the computer with right side toward you.
2. Remove the Phillips PM2.5×7.0 screw (1) that secures the optical drive to the computer.
3. Insert a thin tool, such as a paper clip (2), into the disc tray release access. (The optical drive disc
tray is partially ejected from the optical drive.)
4. Use the disc tray frame to slide the optical drive (3) out of the computer.
Component replacement procedures 51
Page 60
5.
Remove the optical drive.
6.
If it is necessary to replace the optical drive bracket, position the optical drive with the optical drive
bracket toward you.
7. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
8. Remove the optical drive bracket (2).
Reverse the above procedure to reassemble and install the optical drive.
52 Chapter 4 Removal and replacement procedures
Page 61
Switch cover
Description Spare part number
Switch cover for use in full-featured computer models (includes LED board and cable) 431425-001 and
451010-001
Switch cover for use in defeatured computer models (includes LED board and cable) 455260-001
Before removing the switch cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
Remove the switch cover:
1. Remove the two Phillips PM2.5×10.0 screws (1) and the Phillips PM2.5×4.0 screw (2) that secure
the switch cover to the computer.
2.
Turn the computer display-side up, with the front toward you.
3.
Open the computer as far as possible.
Component replacement procedures 53
Page 62
4.
Lift the rear edge of the switch cover and swing it forward until it rests on the keyboard.
5. Release the zero insertion force (ZIF) connector (1) to which the LED board cable is connected, and
disconnect the cable (2) from the LED board.
6.
Remove the switch cover.
Reverse this procedure to install the switch cover.
54 Chapter 4 Removal and replacement procedures
Page 63
Keyboard
Description
For use in: Spare part
number
For use in: Spare part
number
Finland, Norway, and Sweden 441428-DH1 Saudi Arabia 441428-171
France 441428-051 Spain 441428-071
French Canada 441428-121 Taiwan 441428-AB1
International 441428-B31 Thailand 441428-281
Italy 441428-061 Turkey 441428-141
South Korea 441428-AD1 The United Kingdom 441428-031
Latin America 441428-161 The United States 441428-001
Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the switch cover (see
Switch cover on page 53).
Remove the keyboard:
1.
Turn the computer upside down, with the front toward you.
2.
Remove the three Phillips PM2.5×7.0 screws that secure the keyboard to the computer.
3.
Turn the computer display-side up, with the front toward you.
Component replacement procedures 55
Page 64
4.
Open the computer as far as possible.

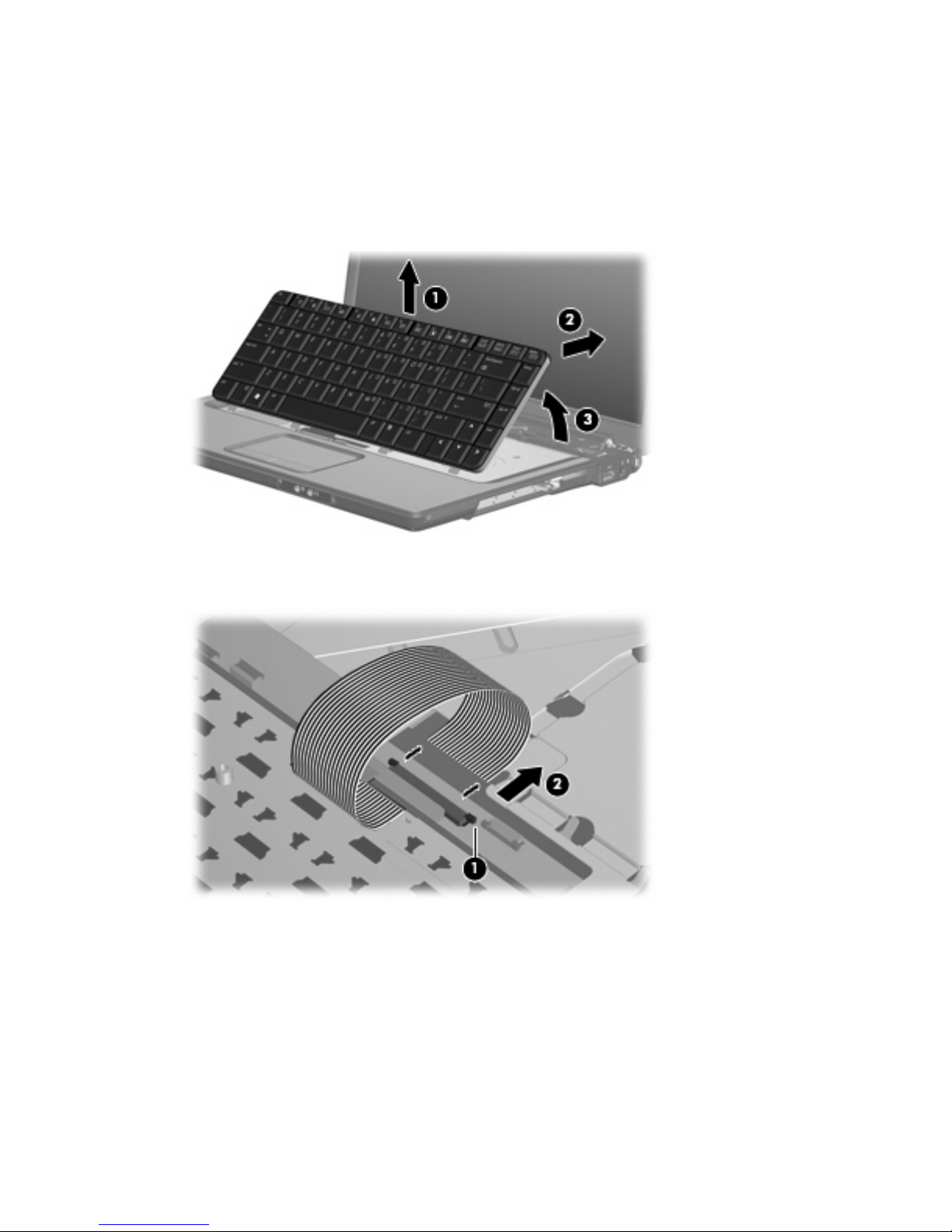

5. Lift the rear edge of the keyboard (1) until it rests at an angle.
6. Release the keyboard (2) by sliding it back to disengage the tabs on the front edge of the keyboard
from the top cover.
7. Swing the keyboard (3) up and forward until it rests on the palm rest.
8. Release the ZIF connector (1) to which the keyboard cable is attached, and disconnect the keyboard
cable (2) from the system board.
9.
Remove the keyboard.
Reverse this procedure to install the keyboard.
56 Chapter 4 Removal and replacement procedures
Page 65
Power button board
Description Spare part number
Power button board (includes power button board cable) 431438-001
Before removing the power button board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the switch cover (see
Switch cover on page 53).
6.
Remove the keyboard (see
Keyboard on page 55).
Remove the power button board:

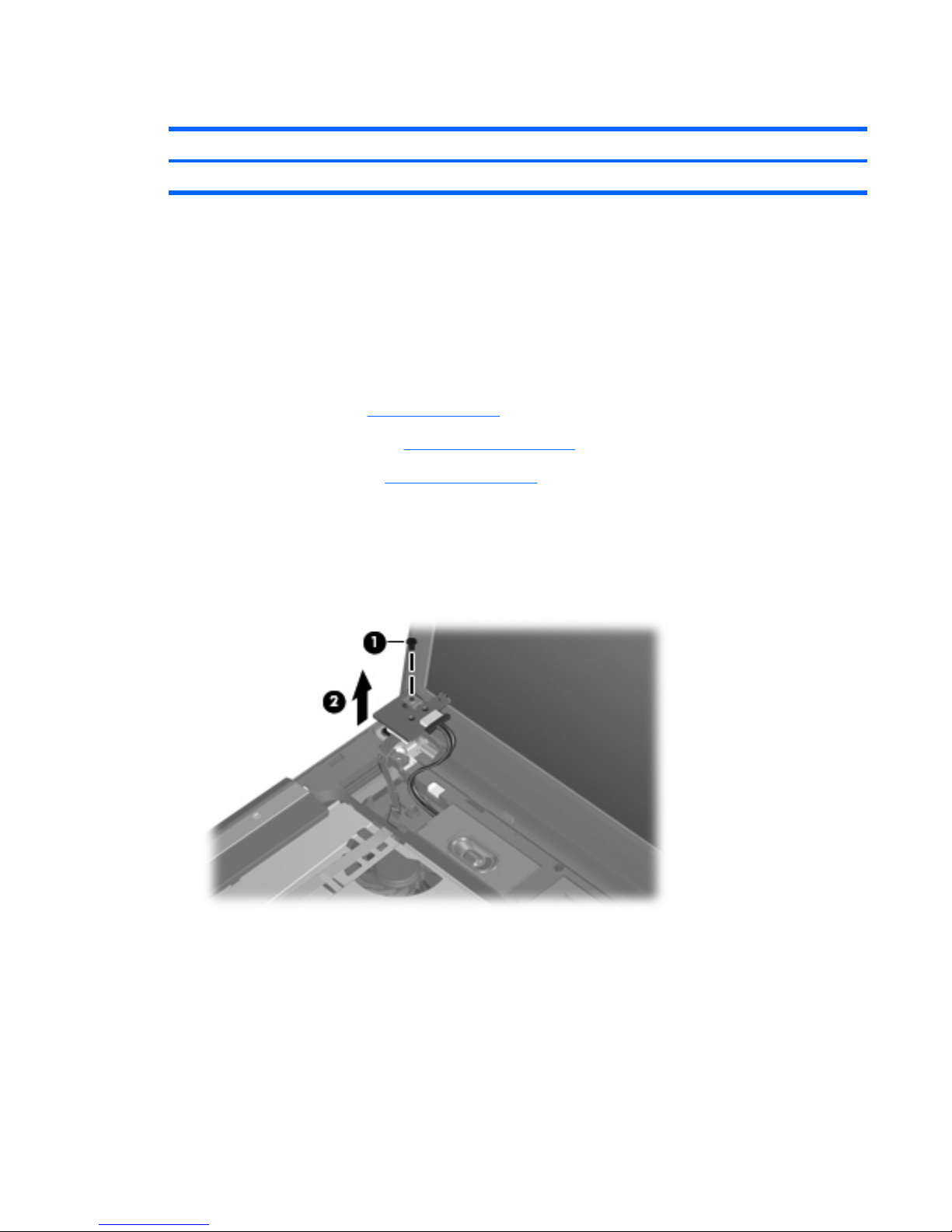

1. Remove the Phillips PM2.5×4.0 screw (1) that secures the power button board to the fan/heat sink
assembly.
2. Release the power button board (2) from the computer as far as the cables allow.
3. Disconnect the microphone cable (1) and the speaker cable (2) from the power button board.
4. Release the ZIF connector (3) to which the power button board cable is connected, and disconnect
the cable.
Component replacement procedures 57
Page 66

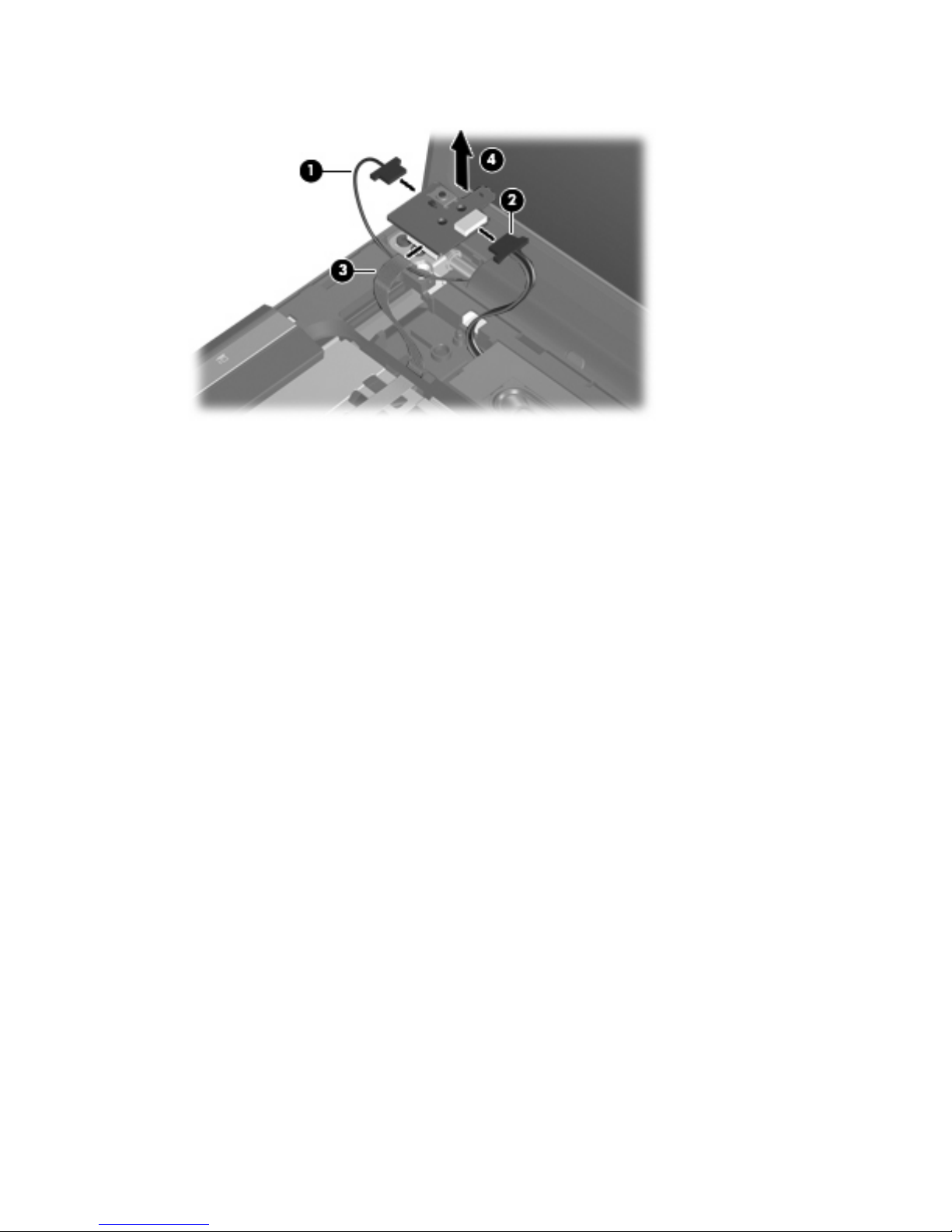

5. Remove the power button board (4).
Reverse this procedure to install the power button board.
58 Chapter 4 Removal and replacement procedures
Page 67
Display assembly
Description Spare part number
15.4-inch, WXGA, BrightView display assembly (includes microphones) 446485-001
15.4-inch, WXGA, BrightView display assembly with plain top for computer models with AMD
processors (includes microphones)
455196-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Disconnect the WLAN antenna cables from the WLAN module (see
WLAN module on page 48).
6.
Remove the following components:
a.
Switch cover (see
Switch cover on page 53)
b.
Keyboard (see
Keyboard on page 55)
Remove the display assembly:

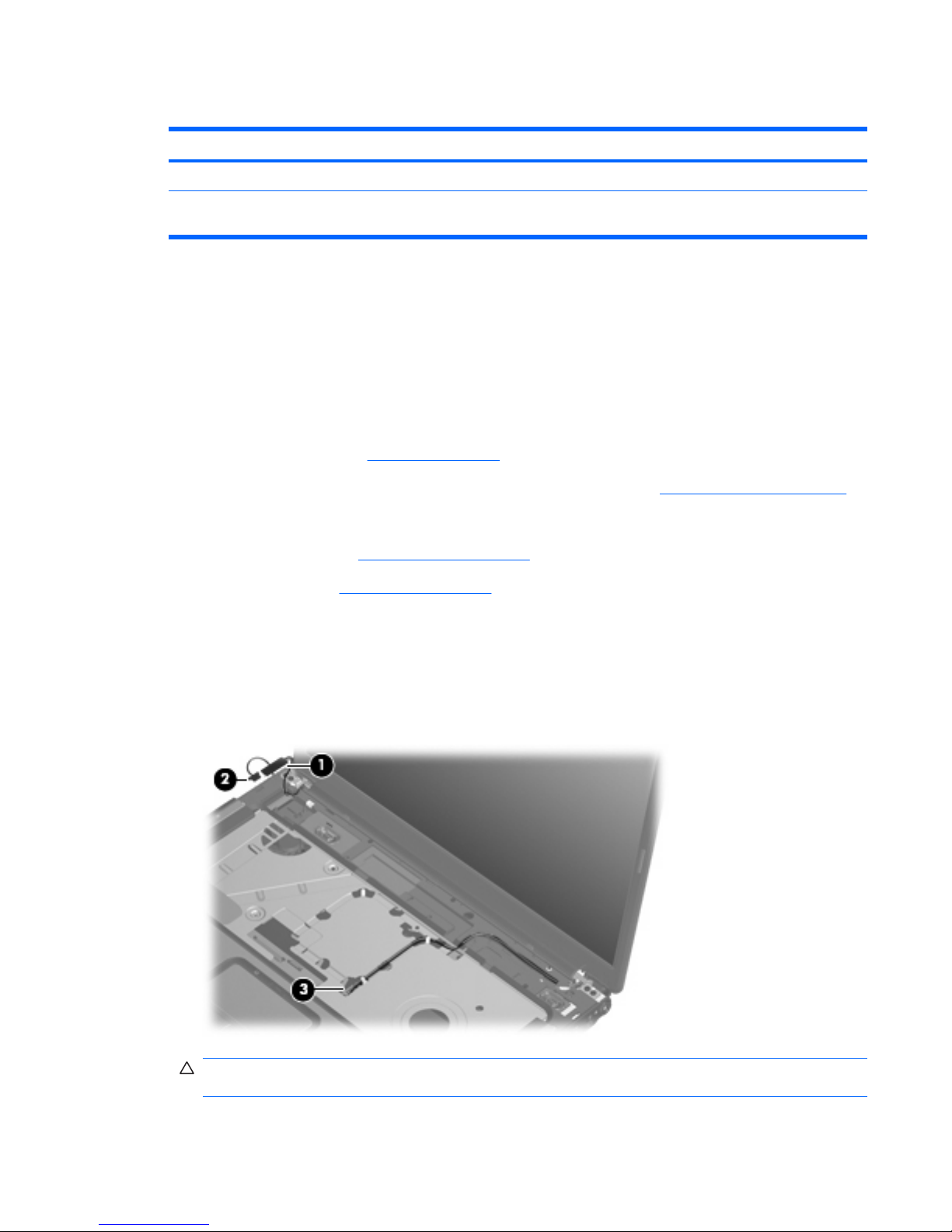

1. Disconnect the display panel cable (1) from the system board.
2. Disconnect the microphone cable (2) from the power button board.
3. Remove the wireless antenna cables (3) from the clips in the top cover.
CAUTION: Support the display assembly when removing the following screws. Failure to support
the display assembly can result in damage to the display assembly and other computer components.
Component replacement procedures 59
Page 68

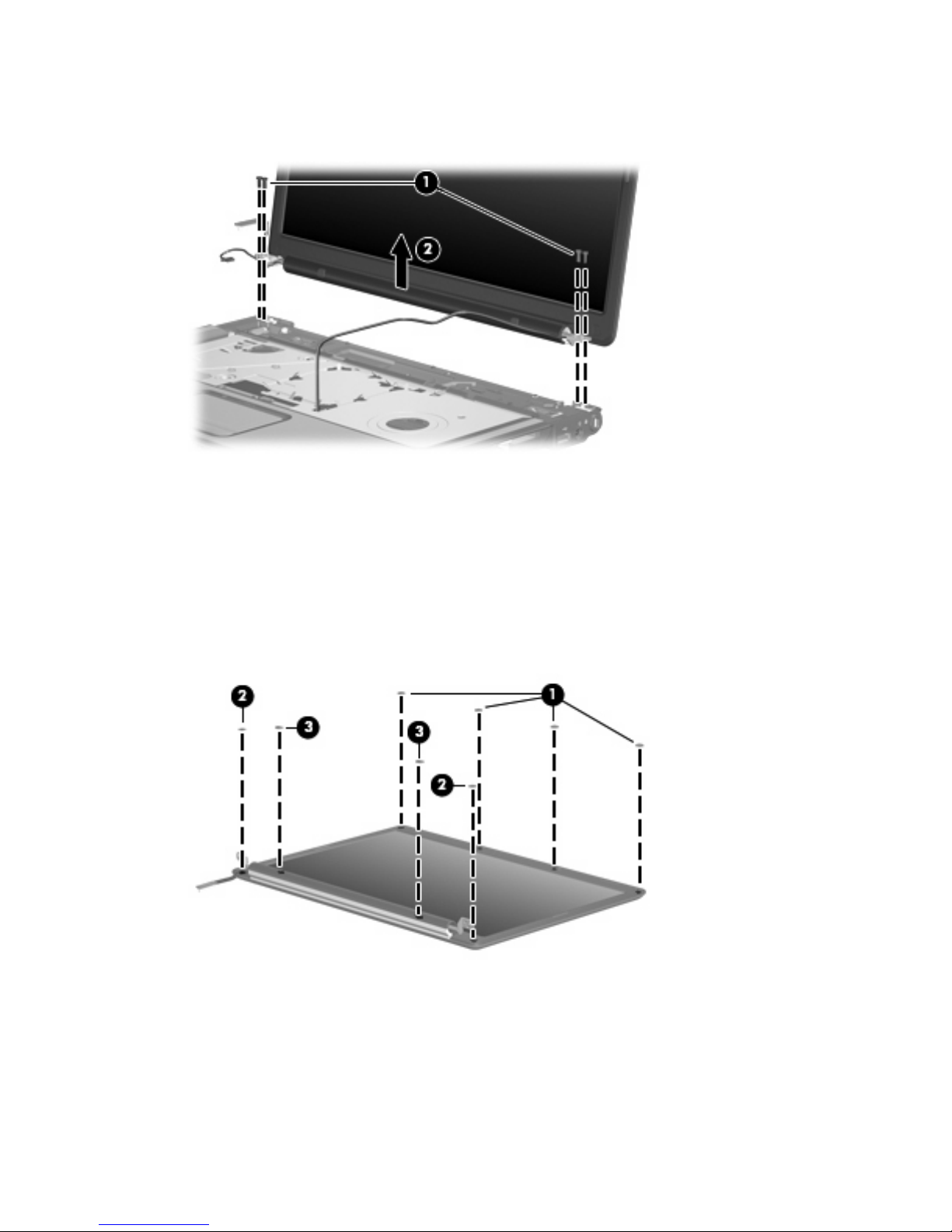

4. Remove the four Phillips PM2.5×7.0 screws (1) that secure the display assembly to the computer.
5. Remove the display assembly (2).
6.
If it is necessary to replace the display bezel or any of the display assembly internal components,
remove the following screw covers:
(1) Four covers on the top edge of the bezel
(2) Two covers on the lower bezel edges
(3) Two covers on the lower-inside edge of the bezel
The display rubber screw covers are included in the Display Screw Kit, spare part number
431400-001.
60 Chapter 4 Removal and replacement procedures
Page 69
7.

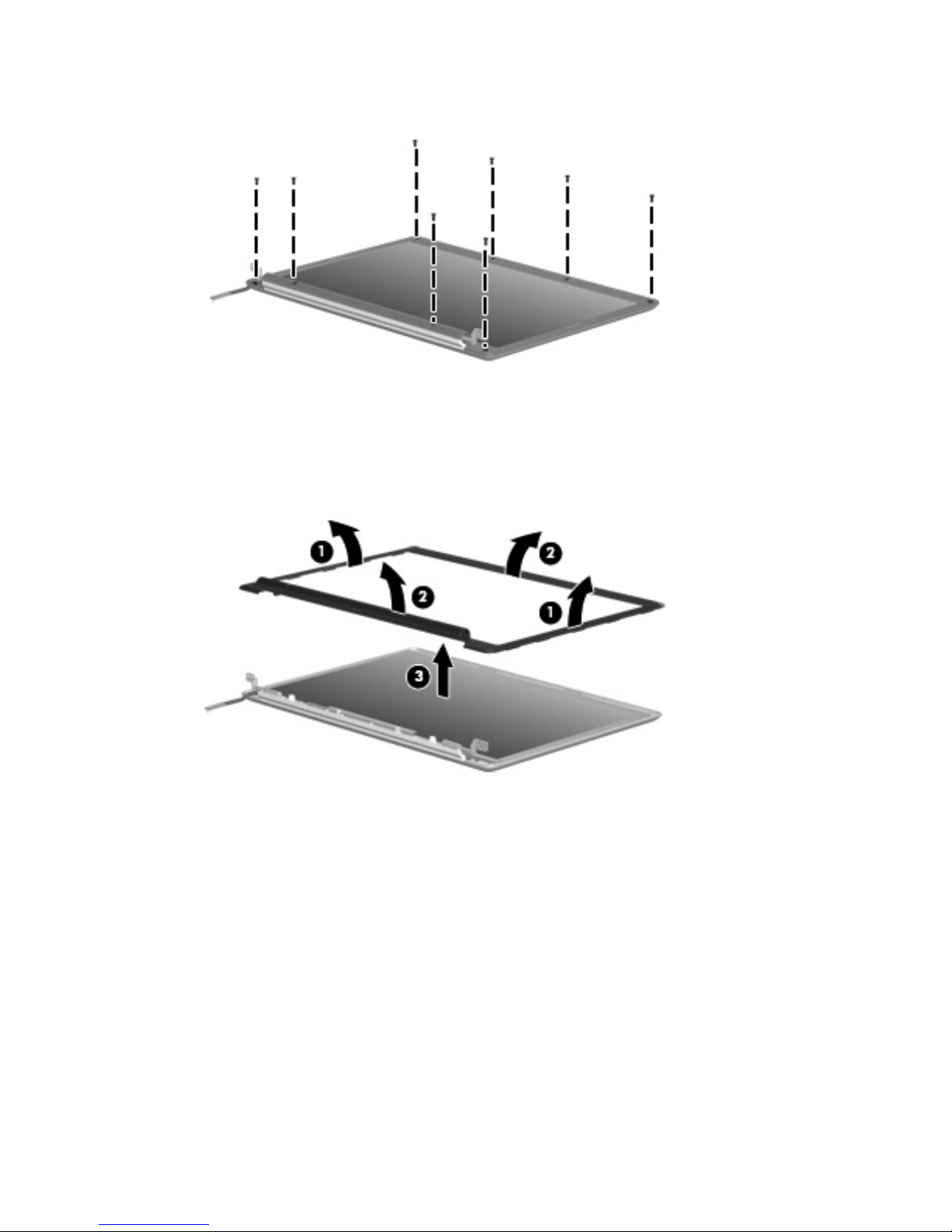

Remove the eight Phillips PM2.5×7.0 screws that secure the display bezel to the display assembly.
8. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display
bezel until the bezel disengages from the display enclosure.
9. Remove the display bezel (3). The display bezels are available using spare part numbers
433283-001 and 453328-001 for models with Intel processors, 433284-002 for full-featured
models with AMD processors, and 454169-002 for defeatured models with AMD processors.
10. If it is necessary to replace the display inverter, remove the inverter (1) from the display enclosure
as far as the display panel cable and the backlight cable allow.
Component replacement procedures 61
Page 70
11. Disconnect the display panel cable (2) and the backlight cable (3) from the inverter.
12.
Remove the display inverter. The display inverter is available using spare part number
431391-001.
13. If it is necessary to replace the display panel, remove the four Phillips PM2.5×4.0 screws (1) that
secure the display panel to the display enclosure.
14. Remove the display panel (2). The display panel is available using spare part number
446480-001.
15. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws (1) that
secure each display hinge to the display panel.
62 Chapter 4 Removal and replacement procedures
Page 71
16. Remove the display hinges (2). The display hinges are available using spare part number
433288-001.
17.
If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips
PM2.0×3.0 screw (1) that secures each transceiver to the display enclosure.
18. Release the retention tabs (2) built into the display enclosure that secure the wireless antenna cables
and remove the cables from the tabs.
19. Detach the wireless antenna transceivers (3) from the display enclosure. The wireless antenna
transceivers and cables are available using spare part numbers 449728-001 (for use only with
computer models equipped with an 802.11a/b/g/n WLAN module) and 449726-001 (for use only
with computer models equipped with an 802.11a/b/g or 802.11b/g WLAN module).
20.
Remove the wireless antenna transceivers and cables.
21. If it is necessary to replace the microphones and cables, release the retention tabs (1) built into the
display enclosure that secure the microphone cables to the display enclosure.
22. Remove the microphone receivers (2) from the clips in the display enclosure.
Component replacement procedures 63
Page 72
23. Remove the microphone cables (3) from the display enclosure. The microphones and cables are
available using spare part number 431393-001.
Reverse this procedure to reassemble and install the display assembly.
64 Chapter 4 Removal and replacement procedures
Page 73
Top cover
Description Spare part number
Top cover for use with computer models with Intel processors (includes speakers and TouchPad and
cable)
446510-001 and
455514-001
Top cover for use in computer models with AMD processors:
●
Full-featured models
454170-001
●
Defeatured models 451407-001
Before removing the top cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
Remove the top cover:
1.
Turn the computer upside down, with the front toward you.
2.

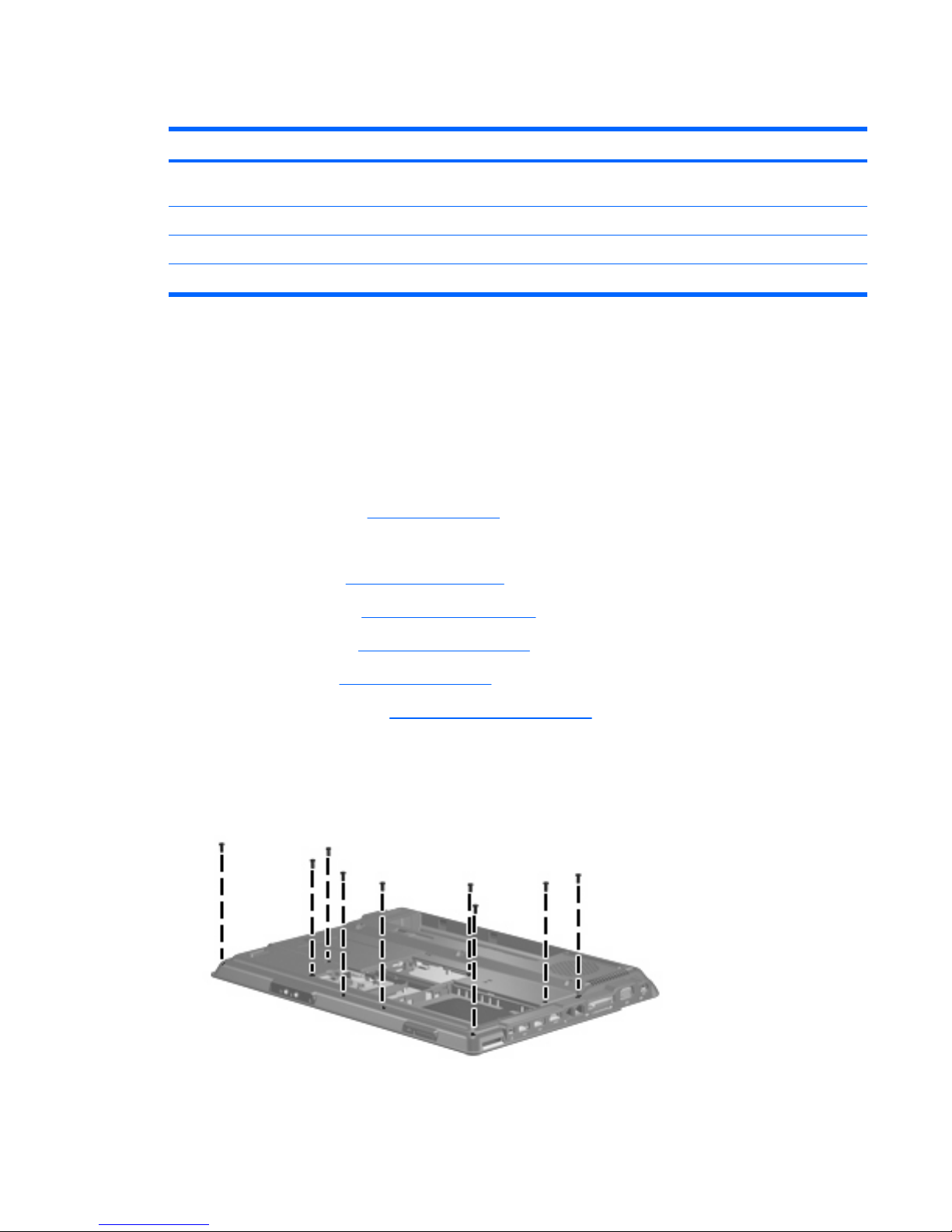

Remove the nine Phillips PM2.5×7.0 screws that secure the top cover to the computer.
Component replacement procedures 65
Page 74
3.
Remove the following screws:
(1) Three Phillips PM2.5×3.0 screws
(2) Six Phillips PM2.5×4.0 screws
(3) Two Hex HM5.0×9.0 screw locks
4.
Turn the computer right-side up, with the front toward you.
5. Release the ZIF cable (1) to which the TouchPad cable is connected, and disconnect the TouchPad
cable (2).
66 Chapter 4 Removal and replacement procedures
Page 75
6. Remove the two Phillips PM2.5×7.0 screws (1) and the two Phillips PM2.5×4.0 screws (2) that
secure the top cover to the base enclosure.
7. Lift the front edge of the top cover (1) until it disengages from the computer.
8. Remove the top cover (2).
Reverse this procedure to install the top cover.
Component replacement procedures 67
Page 76
Bluetooth module
Description Spare part number
Bluetooth module (includes Bluetooth module cable) 412766-002
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65).
Remove the Bluetooth module:

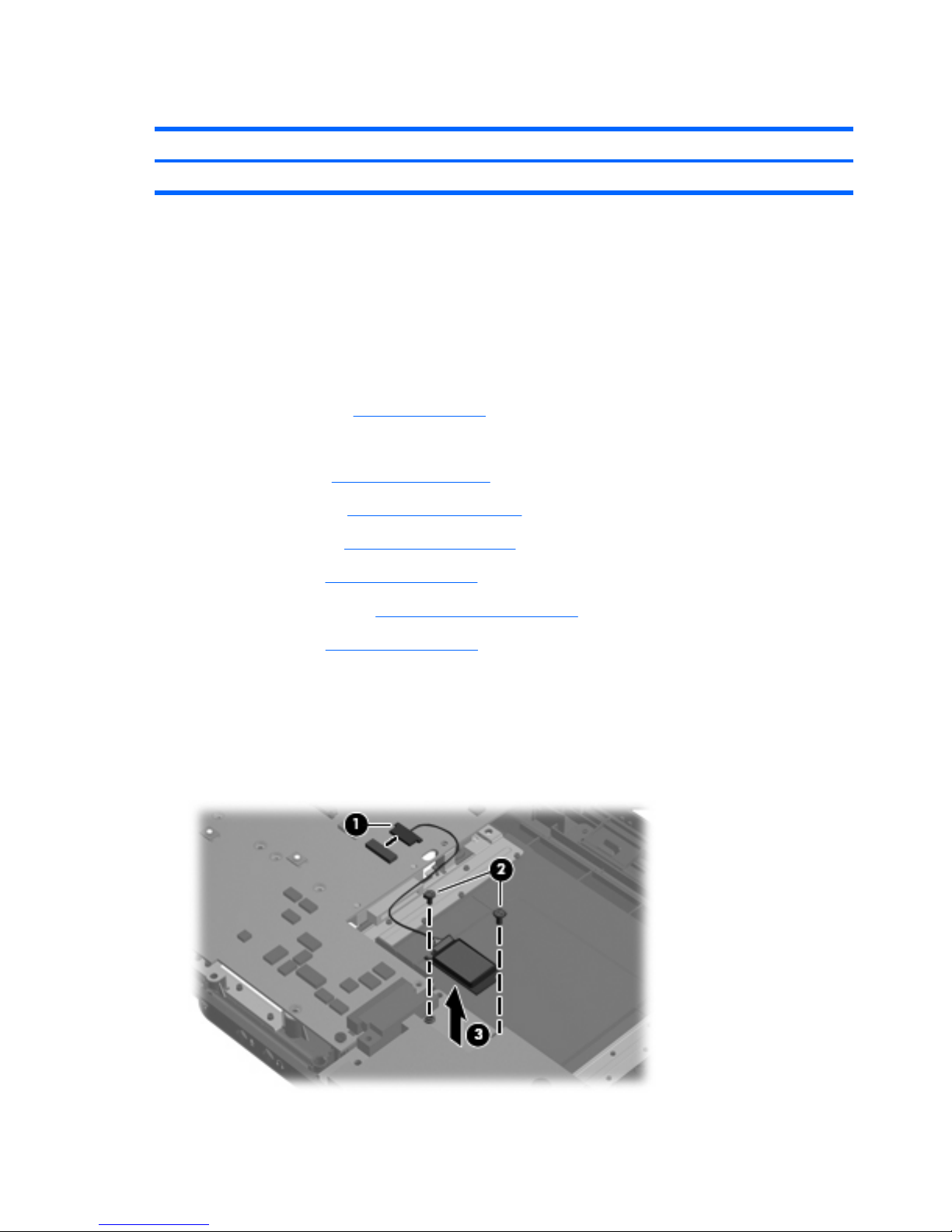

1. Disconnect the Bluetooth module cable (1) from the system board.
2. Remove the two Phillips PM2.0×2.0 screws (2) that secure the Bluetooth module to the system board.
3. Remove the Bluetooth module (3).
68 Chapter 4 Removal and replacement procedures
Page 77
Reverse this procedure to install the Bluetooth module.
ExpressCard assembly
Description Spare part number
ExpressCard assembly 431440-001
Before removing the ExpressCard assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65).
Remove the ExpressCard assembly:
1. Push in on the ExpressCard slot bezel (1) to release the bezel from the ExpressCard slot.
Component replacement procedures 69
Page 78

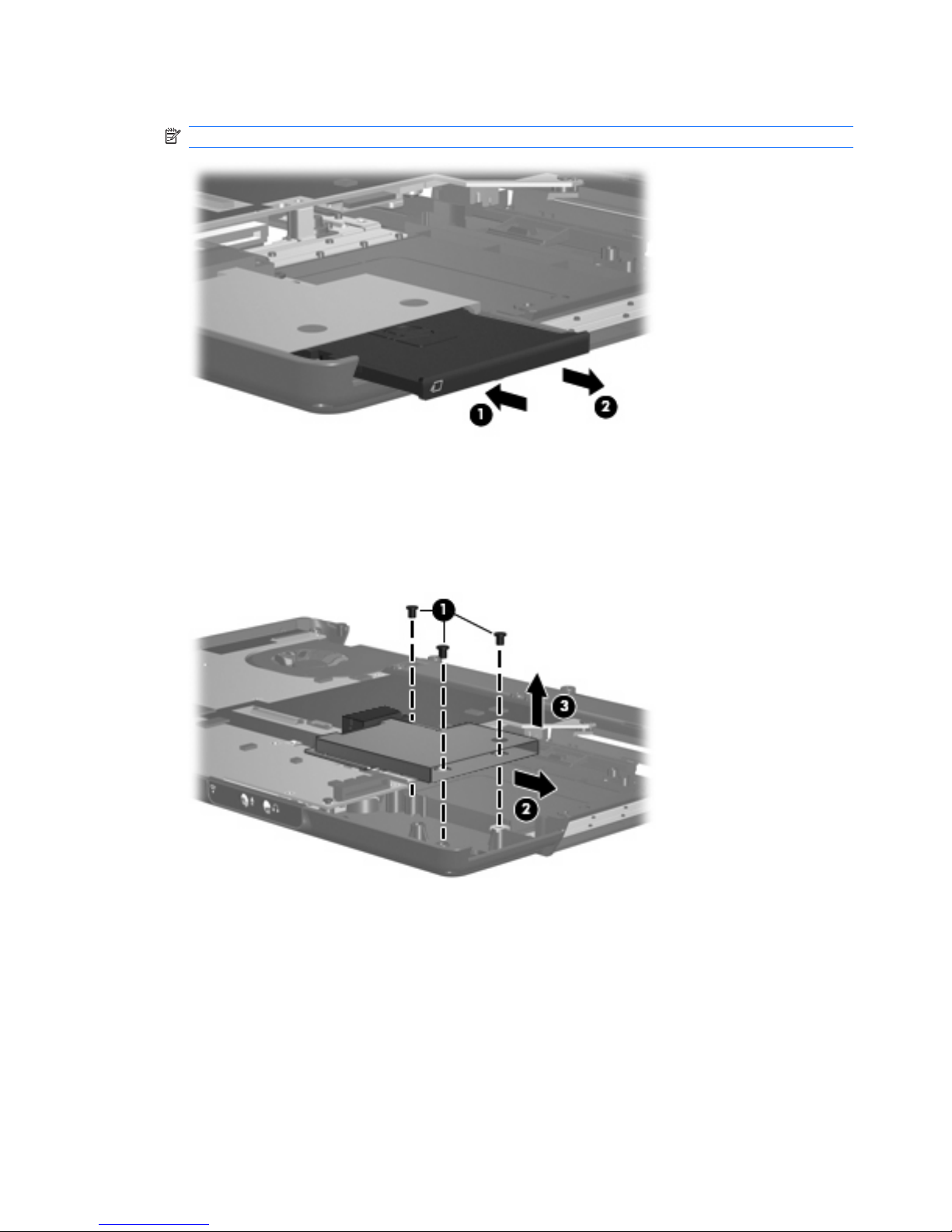

2. Remove the ExpressCard slot bezel (2) from the ExpressCard slot.
NOTE: The ExpressCard slot bezel is included in the Plastics Kit, spare part number 438669-001.
3. Remove the three Phillips PM2.5×4.0 screws (1) that secure the ExpressCard assembly to the system
board.
4. Disconnect the ExpressCard assembly (2) from the system board by sliding it to the right.
5. Remove the ExpressCard assembly (3).
Reverse this procedure to install the ExpressCard assembly.
70 Chapter 4 Removal and replacement procedures
Page 79
USB/power connector board
Description Spare part number
USB/power connector board (includes USB/power connector board cable) 447444-001
Before removing the USB/power connector board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65).
Remove the USB/power connector board:
1. Remove the two Phillips PM2.5×5.0 screws (1) that secure the USB/power connector board to the
computer.
2. Release the USB/power connector board (2) as far as the USB/power connector board cable allows.
Component replacement procedures 71
Page 80

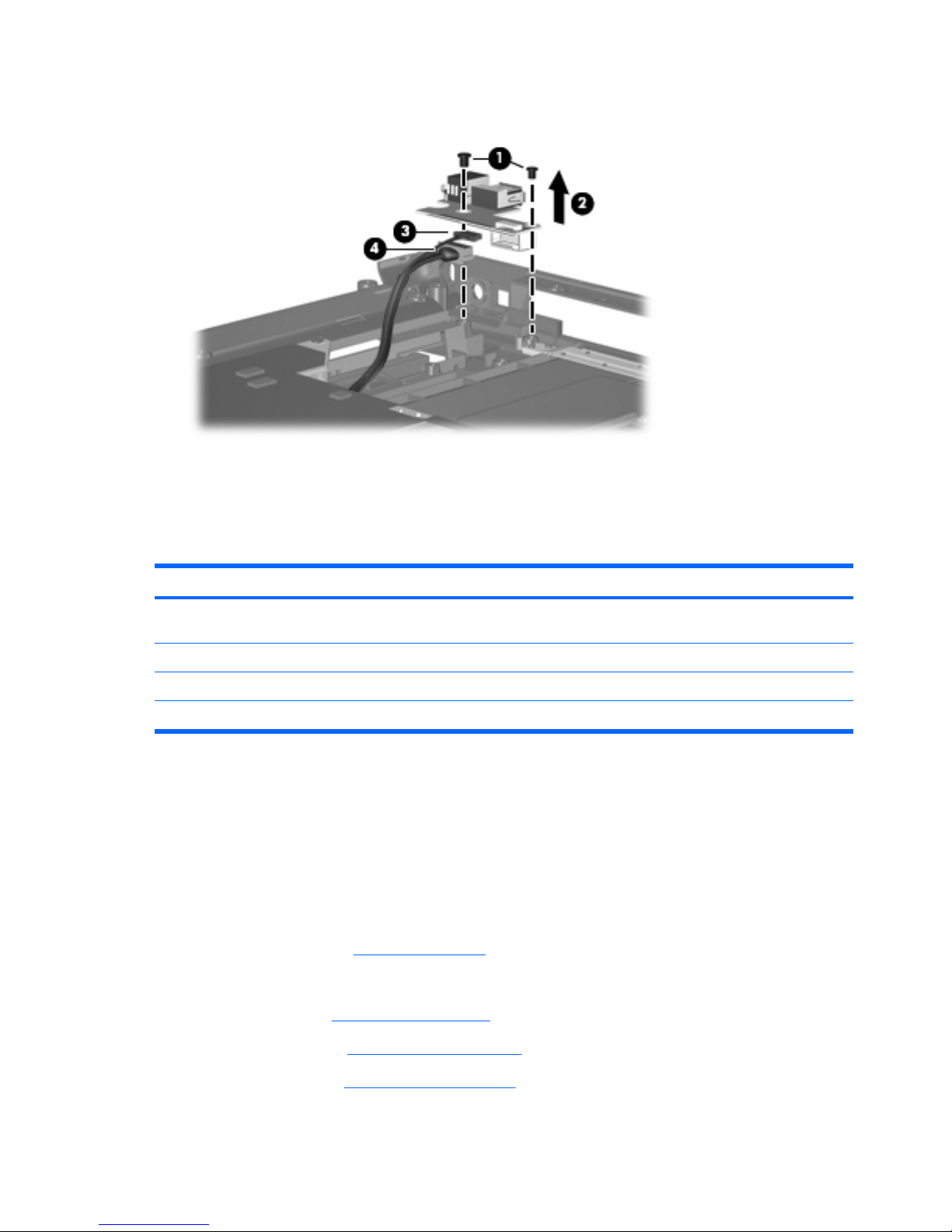

3. Disconnect the USB board cable (3) and the power connector board cable (4) from the USB/power
connector board.
4.
Remove the USB/power connector board.
Reverse this procedure to install the USB/power connector board.
System board
Description Spare part number
System board for use in computer models with Intel processors 446475-001 and
453770-001
System board for use only in computer models with AMD processors:
●
In full-featured models equipped with UMA graphics subsystem memory
449901-001
●
In defeatured models 454167-001
Before removing the system board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
72 Chapter 4 Removal and replacement procedures
Page 81
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65)
g.
Audio board (see
Audio board on page 75)
h.
USB/power connector board (see
USB/power connector board on page 71)
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
Memory modules (see
Memory module on page 45)
●
RTC battery (see
RTC battery on page 47)
●
WLAN module (see
WLAN module on page 48)
●
Bluetooth module (see
Bluetooth module on page 68)
●
ExpressCard assembly (see
ExpressCard assembly on page 69)
●
Fan/heat sink assembly (see
Fan/heat sink assembly on page 76)
●
Processor (see
Processor on page 79)
Remove the system board:
1. Remove the USB/power connector board cable (1) from the clips built into the base enclosure.
2. Remove the Phillips PM2.5×4.0 screw (2) and the Phillips PM2.0×7.0 screw (3) that secure the
system board to the base enclosure.
3. Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an
angle.
4. Disconnect the audio board cable (3) from the system board.
Component replacement procedures 73
Page 82
5. Release the system board (4) by sliding it to the right until the connectors on the left side of the system
board disengage from the base enclosure.
6.
Remove the system board.
7.
If it is necessary to replace the USB/power connector board cable, turn the system board upside
down with the front toward you.
8. Disconnect the power connector board cable (1) and the USB board cable (2) from the system
board.
Reverse the above procedure to install the system board and USB/power connector board cable.
74 Chapter 4 Removal and replacement procedures
Page 83
Audio board
Description Spare part number
For use only in computer models with Intel processors:
●
In models that include consumer infrared
449453-001
●
In models that do not include consumer infrared lens
431443-001
For use only in computer models with AMD processors:
●
In full-featured models equipped with consumer infrared
454176-001
●
In defeatured models equipped with consumer infrared 449967-001
Before removing the audio board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65).
Remove the audio board:
1. Remove the two Phillips PM2.5×4.0 screws (1) that secure the audio board to the computer.
2. Release the audio board (2) by sliding it back to disengage the audio connectors from the base
enclosure.
Component replacement procedures 75
Page 84

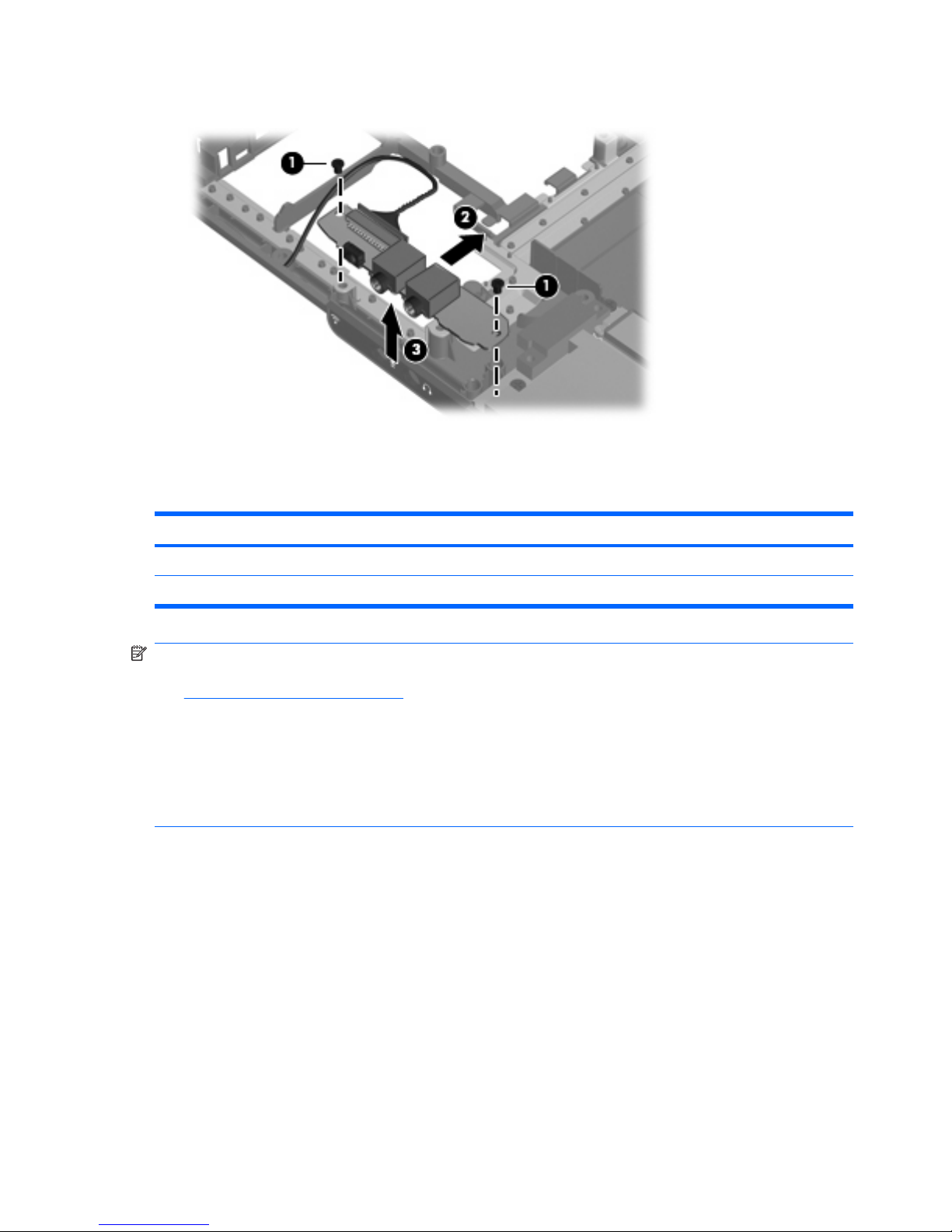

3. Remove the audio board (3) by lifting it straight up.
Reverse this procedure to install the audio board.
Fan/heat sink assembly
Description Spare part number
Fan/heat sink assembly for use in computer models with Intel processors (includes thermal material) 446522-001
Fan/heat sink assembly for use in computer models with AMD processors (includes thermal material) 449961-001
NOTE: When replacing the fan/heat sink assembly, be sure that the power button board is removed
from the defective fan/heat sink assembly and installed on the replacement fan/heat sink assembly.
See
Power button board on page 57 for power button board removal information.
NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the right side
and rear panel of the computer. The computer uses an electric fan for ventilation. The fan is controlled by
a temperature sensor and is designed to turn on automatically when high temperature conditions exist.
These conditions are affected by high external temperatures, system power consumption, power
management/battery conservation configurations, battery fast charging, and software applications.
Exhaust air is displaced through the ventilation grill located on the left side of the computer.
Before removing the fan/heat sink assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
76 Chapter 4 Removal and replacement procedures
Page 85
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65)
g.
Audio board (see
Audio board on page 75)
h.
USB/power connector board (see
USB/power connector board on page 71)
i.
System board (see
System board on page 72)
Remove the fan/heat sink assembly:
1.
Turn the system board upside down, with the expansion port 3 and external monitor port toward
you.
2. Disconnect the fan cable (1) from the system board.
3. Loosen the three Phillips PM2.5×5.0 captive screws (2) and the Phillips PM2.5×4.0 captive
screw (3) that secure the fan/heat sink assembly to the system board.
4. Remove the fan/heat sink assembly (4).
NOTE: Due to the adhesive quality of the thermal material located between the fan/heat sink
assembly and system board components, it may be necessary to move the fan/heat sink assembly
from side to side to detach the assembly.
Component replacement procedures 77
Page 86
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink
assembly (1) and (2), the processor (3), and the system board component (4) each time the fan/heat
sink assembly is removed. Thermal material must be installed on all surfaces before the fan/heat sink
assembly is reinstalled. Thermal material is included with all fan/heat sink assembly, system board, and
processor spare part kits.
Reverse this procedure to install the fan/heat sink assembly.
78 Chapter 4 Removal and replacement procedures
Page 87
Processor
NOTE: All processor spare part kits include thermal material.
Description Spare part number
Intel Core 2 Duo processors:
2.20-GHz processor (4-MB L2 cache, 800-MHz FSB)
453771-001
2.00-GHz processor (2-MB L2 cache, 800-MHz FSB) 455515-001
1.86-GHz processor (1-MB L2 cache, 533-MHz FSB) 453773-001
1.50-GHz processor (2-MB L2 cache, 667-MHz FSB) 453772-001
Intel Core Duo processors:
T7300 2.0-GHz processor (4-MB L2 cache)
446478-001
T7100 1.8-GHz processor (2-MB L2 cache) 446479-001
T5250 1.5-GHz processor (2-MB L2 cache) 453033-001
AMD processors:
Turion MK-38 (2.2-GHz, 512-MB L2 cache) 449904-001
Turion TL-66 (2.3 -GHz, 1-MB L2 cache) 450804-001
Turion TL-60 (2.0 -GHz, 1-MB L2 cache) 450803-001
Turion TL-58 (1.9 -GHz, 1-MB L2 cache) 450802-001
Turion TL-56 (1.8 -GHz, 1-MB L2 cache) 450801-001
Athlon TK-53 (1.7-GHz. 512-MB L2 cache) 451013-001
Processor bracket:
For use with 7.9 processors 450370-001
For use with 8.1 processors 450371-001
Before removing the processor, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see
Battery on page 42).
5.
Remove the following components:
a.
Hard drive (see
Hard drive on page 43)
b.
Optical drive (see
Optical drive on page 51)
c.
Switch cover (see
Switch cover on page 53)
Component replacement procedures 79
Page 88
d.
Keyboard (see
Keyboard on page 55)
e.
Display assembly (see
Display assembly on page 59)
f.
Top cover (see
Top cover on page 65)
g.
Audio board (see
Audio board on page 75)
h.
USB/power connector board (see
USB/power connector board on page 71)
i.
System board (see
System board on page 72)
j.
Fan/heat sink assembly (see
Fan/heat sink assembly on page 76)
Remove the processor:

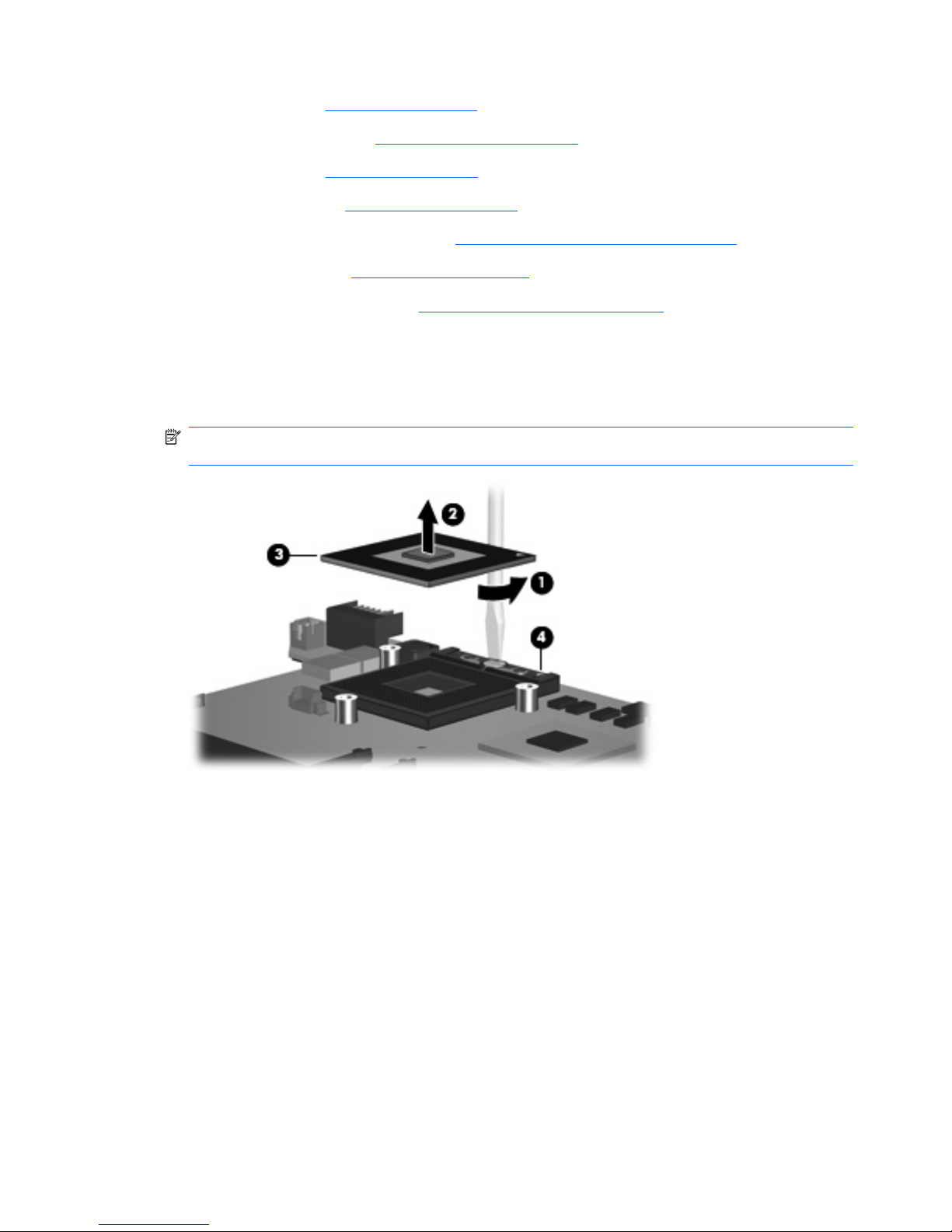

1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed
on the processor socket when you install the processor.
Reverse this procedure to install the processor.
80 Chapter 4 Removal and replacement procedures
Page 89
5
Setup Utility
Starting the Setup Utility
The Setup Utility is a ROM-based information and customization utility that can be used even when your
Windows operating system is not working or will not load.
NOTE: The fingerprint reader (select models only) does not work when accessing the Setup Utility.
The utility reports information about the computer and provides settings for startup, security, and other
preferences.
To start the Setup Utility:
1.
Turn on or restart the computer.
2.
Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left corner
of the screen, press f10.
Changing the language of the Setup Utility
The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is
not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1.
To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to
enter setup” is displayed in the lower-left corner of the screen.
2. Use the arrow keys to select System Configuration > Language, and then press enter.
3.
Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.
4.
When a confirmation prompt with your preference selected is displayed, press enter to save your
preference.
5.
To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the
screen.
Your preferences go into effect when the computer restarts in Windows.
Starting the Setup Utility 81
Page 90
Navigating and selecting in the Setup Utility
Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and
selection are by keystroke.
●
To choose a menu or a menu item, use the arrow keys.
●
To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use
either the arrow keys or f5 or f6.
●
To select an item, press enter.
●
To close a text box or return to the menu display, press esc.
●
To display additional navigation and selection information while the Setup Utility is open, press f1.
Displaying system information
The following procedure explains how to display system information in the Setup Utility. If the Setup Utility
is not open, begin at step 1. If the Setup Utility is open, begin at step 2.
1.
To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press to enter
setup” is displayed in the lower-left corner of the screen.
2. Access the system information by using the Main menu.
3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit
Discarding Changes, and then press enter. (The computer restarts in Windows.)
Restoring default settings in the Setup Utility
The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not
already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1.
To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press to enter
setup” is displayed in the lower-left corner of the screen.
2. Select Exit > Load Setup Defaults, and then press enter.
3.
When the Setup Confirmation is displayed, press enter to save your preferences.
4.
To set your preferences and exit the Setup Utility, press f10, and then follow the instructions on the
screen.
The Setup Utility default settings are set when you exit the Setup Utility and go into effect when the computer
restarts.
NOTE: Your password, security, and language settings are not changed when you restore the factory
default settings.
82 Chapter 5 Setup Utility
Page 91
Using advanced Setup Utility features
This chapter describes the Setup Utility features recommended for all users. For more information about
the Setup Utility features recommended for advanced users only, refer to Help and Support, which is
accessible only when the computer is in Windows.
The Setup Utility features available for advanced users include a hard drive self-test, a Network Service
Boot, and settings for boot order preferences.
The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time
the computer is started or restarted in Windows is the prompt for a Network Service Boot.
The “Press <ESC> to change boot order” message that is displayed in the lower-left corner of the screen
each time the computer is started or restarted in Windows is the prompt to change the boot order.
Closing the Setup Utility
You can close the Setup Utility with or without saving changes.
●
To close the Setup Utility and save your changes from the current session, use either of the following
procedures:
◦
Press f10, and then follow the instructions on the screen.
—or—
◦
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Saving Changes, and then press enter.
When you use the f10 procedure, you are offered an option to return to the Setup Utility. When
you use the Exit Saving Changes procedure, the Setup Utility closes when you press enter.
●
To close the Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow
keys to select Exit > Exit Discarding Changes, and then press enter.
After the Setup Utility closes, the computer restarts in Windows.
Using advanced Setup Utility features 83
Page 92
Setup Utility menus
The menu tables in this section provide an overview of Setup Utility options.
NOTE: Some of the Setup Utility menu items listed in this section may not be supported by your computer.
Main menu
Select To do this
System information
●
View and change the system time and date.
●
View identification information about the computer.
●
View specification information about the processor, memory
size, system BIOS, and keyboard controller version (select
models only).
Security menu
Select To do this
Administrator password Enter, change, or delete an administrator password.
Power-On Password Enter, change, or delete a power-on password.
System Configuration menu
Select To do this
Language Support Change the Setup Utility language.
Enhanced SATA support (select models only) Enable/disable enhanced SATA mode.
Boot Options Set the following boot options:
●
f10 and f12 Delay (sec.)―Set the delay for the f10 and
f12 functions of the Setup Utility in intervals of 5 seconds
each (0, 5, 10, 15, 20).
●
CD-ROM boot―Enable/disable boot from CD-ROM.
●
Floppy boot―Enable/disable boot from Floppy.
●
Internal Network Adapter boot―Enable/disable boot from
Internal Network Adapter.
●
Boot Order―Set the boot order for:
◦
USB Floppy
◦
ATAPI CD/DVD ROM Drive
◦
Hard drive
◦
USB Diskette on Key
◦
USB Hard drive
◦
Network adapter
84 Chapter 5 Setup Utility
Page 93
Select To do this
Button Sound (select models only) Enable/disable the Quick Launch Button tapping sound.
Video memory up to (select models only) Select the amount of video memory.
Diagnostics menu
Select To do this
Hard Disk Self Test Run a comprehensive self-test on the hard drive.
NOTE: On models with two hard drives, this menu option is
called the Primary Hard Disk Self Test.
Secondary Hard Disk Self Test (select models only) Run a comprehensive self-test on a secondary hard drive.
Setup Utility menus 85
Page 94
6
Specifications
Computer specifications
Metric U.S.
Dimensions
Height (front to back)
4.09 cm 1.61 in
Width 35.71 cm 14.06 in
Depth 25.71 cm 10.12 in
Weight (with optical drive, hard drive, and battery)
2.86 kg 6.31 lbs
Input power
Operating voltage
18.5 V dc —19.0 V dc
Operating current 3.5 A or 4.74 A
Temperature
Operating (not writing to optical disc)
0°C to 35°C 32°F to 95°F
Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 60°C -4°F to 140°F
Relative humidity
Operating
10% to 90%
Nonoperating 5% to 95%
Maximum altitude (unpressurized)
Operating (14.7 to 10.1 psia)
-15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft
Shock
Operating
125 g, 2 ms, half-sine
Nonoperating 200 g, 2 ms, half-sine
Random vibration
Operating
0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate
86 Chapter 6 Specifications
Page 95
Metric U.S.
Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this
range of temperatures.
15.4-inch, WXGA, BrightView display specifications
Metric U.S.
Dimensions
Height
20.7 cm 8.15 in
Width 33.1 cm 13.03 in
Diagonal 39.1 cm 15.39 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
150 nits (typical)
Pixel resolution
Pitch
0.259 × 0.259 mm
Format 1280 × 800
Configuration RGB vertical stripe
Backlight
Edge lit
Character display
80 × 25
Total power consumption
4 W
Viewing angle
+/-65° horizontal, +/-50° vertical (typical)
15.4-inch, WXGA, BrightView display specifications 87
Page 96
Hard drive specifications
250-GB* 200-GB* 160-GB* 120-GB* 80-GB*
Dimensions
Height
9.5 mm 9.5 mm 9.5 mm 9.5 mm 9.5 mm
Width 70 mm 70 mm 70 mm 70 mm 70 mm
Weight 102 g 102 g 102 g 102 g 102 g
Interface type
SATA SATA SATA SATA SATA
Transfer rate
Synchronous (maximum)
100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec
Security ATA security ATA security ATA security ATA security ATA security
Seek times (typical read, including setting)
Single track
3 ms 3 ms 3 ms 3 ms 3 ms
Average 13 ms 13 ms 13 ms 13 ms 13 ms
Maximum 24 ms 24 ms 24 ms 24 ms 24 ms
Logical blocks
488,379,125 390,706,000 312,560,480 234,433,260 156,280,320
Disk rotational speed
5400 rpm 4200 rpm 5400 rpm 5400 rpm 5400 rpm
Operating temperature
5°C to 55°C (41°F to 131°F)
NOTE: Certain restrictions and exclusions apply. Consult technical support for details.
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Accessible capacity is less. Actual drive specifications
may differ slightly.
88 Chapter 6 Specifications
Page 97
DVD±RW and CD-RW Super Multi Double-Layer
Combo Drive specifications
Applicable disc Read:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM,
CD-ROM XA, MIXED MODE CD, CD-I, CD-I
Bridge (Photo-CD, Video CD), Multisession CD
(Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW),
CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9,
DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM
Write:
CD-R and CD-RW
DVD+R, DVD+RW, DVD-R, DVDRW, DVD-RAM
Center hole diameter
1.5 cm (0.59 in)
Disc diameter
Standard disc
12 cm (4.72 in)
Mini disc 8 cm (3.15 in)
Disc thickness
1.2 mm (0.047 in)
Track pitch
0.74 μm
Access time
CD DVD
Random < 175 ms < 230 ms
Full stroke < 285 ms < 335 ms
Audio output level
Audio-out, 0.7 Vrms
Cache buffer
2 MB
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD 10,800 KB/sec
24X CD-R 3,600 KB/sec
16X CD-RW 2,400 KB/sec
8X DVD+R 10,800 KB/sec
4X DVD+RW 5,400 KB/sec
8X DVD-R 10,800 KB/sec
4X DVD-RW 5,400 KB/sec
2.4X DVD+R(9) 2,700 KB/sec
5X DVD-RAM 6,750 KB/sec
Transfer mode
Multiword DMA Mode
Startup time
< 15 seconds
Stop time
< 6 seconds
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive specifications 89
Page 98
System DMA specifications, Intel
Hardware DMA System function
DMA0 Not applicable
DMA1* Not applicable
DMA2* Not applicable
DMA3 Not applicable
DMA4 Direct memory access controller
DMA5* Available for PC Card
DMA6 Not assigned
DMA7 Not assigned
*PC Card controller can use DMA 1, 2, or 5.
90 Chapter 6 Specifications
Page 99
System DMA specifications, AMD
Hardware DMA System function
DMA4 Direct memory access controller
System DMA specifications, AMD 91
Page 100
System interrupt specifications, Intel
Hardware IRQ System function
IRQ0 System timer
IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard
IRQ2 Cascaded
IRQ3 Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD
IRQ4 COM1
IRQ5* Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax
Modem with SmartCP
IRQ6 Diskette drive
IRQ7* Parallel port
IRQ8 System CMOS/real-time clock
IRQ9* Microsoft ACPI-compliant system
IRQ10* Intel USB UHCI controller—24C2
Intel 82852/82855 GM/GME Graphic Controller
Realtek RTL8139 Family PCI Fast Ethernet Controller
IRQ11 Intel USB EHCI controller—24CD
Intel USB UHCI controller—24C4
Intel USB UHCI controller—24C7
Intel Pro/Wireless 2200BG
TI OHCI 1394 host controller
TI PCI1410 CardBus controller
IRQ12 Synaptics PS/2 TouchPad
IRQ13 Numeric data processor
IRQ14 Primary IDE channel
IRQ15 Secondary IDE channel
*Default configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.
NOTE: PC Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial port
may assert IRQ3 or IRQ4.
92 Chapter 6 Specifications
Loading...
