HP Pavilion w1084d Technical Specifications

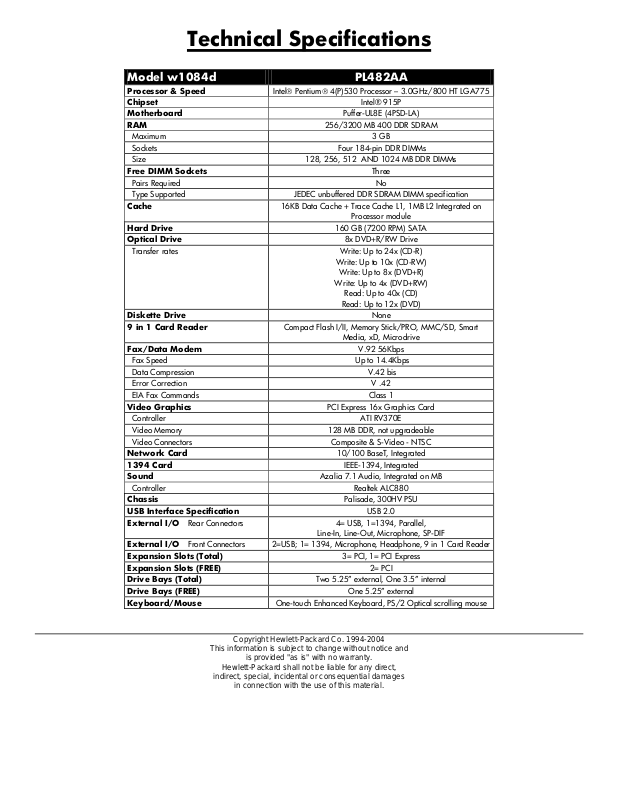

Technical Specifications
Model w1084d PL482AA
Processor & Speed Intel® Pentium® 4(P)530 Processor – 3.0GHz/800 HT LGA775
Chipset Intel® 915P
Motherboard Puffer-UL8E (4PSD-LA)
RAM 256/3200 MB 400 DDR SDRAM
Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated on
Processor module
Hard Drive 160 GB (7200 RPM) SATA
Optical Drive 8x DVD+R/RW Drive
Transfer rates
Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics PCI Express 16x Graphics Card
Controller ATI RV370E
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Palisade, 300HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel,
External I/O Front Connectors 2=USB; 1= 1394, Microphone, Headphone, 9 in 1 Card Reader
Expansion Slots (Total) 3= PCI, 1= PCI Express
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” internal
Drive Bays (FREE) One 5.25” external
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling mouse
Copyright Hewlett-Packard Co. 1994-2004
This information is subject to change without notice and
is provided "as is" with no warranty.
Hewlett-Packard shall not be liable for any direct,
indirect, special, incidental or consequential damages
in connection with the use of this material.
Write: Up to 24x (CD-R)
Write: Up to 10x (CD-RW)
Write: Up to 8x (DVD+R)
Write: Up to 4x (DVD+RW)
Read: Up to 40x (CD)
Read: Up to 12x (DVD)
Media, xD, Microdrive
Line-In, Line-Out, Microphone, SP-DIF
