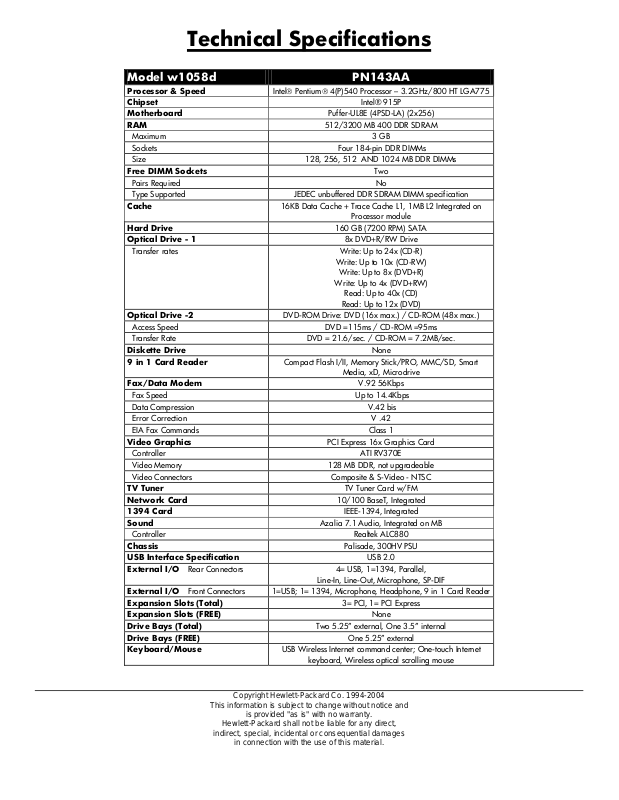

Technical Specifications

Model w1058d PN143AA

Processor & Speed Intel® Pentium® 4(P)540 Processor – 3.2GHz/800 HT LGA775
Chipset Intel® 915P
Motherboard Puffer-UL8E (4PSD-LA) (2x256)
RAM 512/3200 MB 400 DDR SDRAM

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Two
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated on

Processor module

Hard Drive 160 GB (7200 RPM) SATA
Optical Drive - 1 8x DVD+R/RW Drive

Transfer rates

Optical Drive -2 DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)
Access Speed DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Fax/Data Modem V.92 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics PCI Express 16x Graphics Card
Controller ATI RV370E
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - NTSC

TV Tuner TV Tuner Card w/FM
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Palisade, 300HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel,

External I/O Front Connectors 1=USB; 1= 1394, Microphone, Headphone, 9 in 1 Card Reader
Expansion Slots (Total) 3= PCI, 1= PCI Express
Expansion Slots (FREE) None
Drive Bays (Total) Two 5.25” external, One 3.5” internal
Drive Bays (FREE) One 5.25” external
Keyboard/Mouse USB Wireless Internet command center; One-touch Internet

keyboard, Wireless optical scrolling mouse

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Media, xD, Microdrive

Line-In, Line-Out, Microphone, SP-DIF
