HP PAVILION U700 User Manual

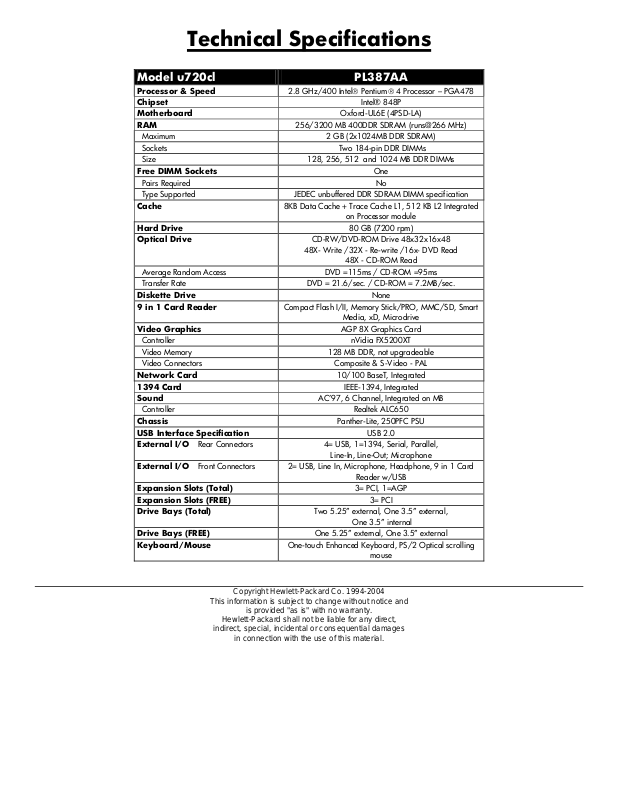

Technical Specifications

Model u720cl PL387AA

Processor & Speed 2.8 GHz/400 Intel® Pentium® 4 Processor – PGA478 Chipset Intel® 848P Motherboard Oxford-UL6E (4PSD-LA) RAM 256/3200 MB 400DDR SDRAM (runs@266 MHz)

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 and 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated

on Processor module

Hard Drive 80 GB (7200 rpm) Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read Average Random Access DVD =115ms / CD-ROM =95ms Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None 9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive Video Graphics AGP 8X Graphics Card Controller nVidia FX5200XT Video Memory 128 MB DDR, not upgradeable Video Connectors Composite & S-Video - PAL

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC650 Chassis Panther-Lite, 250PFC PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2= USB, Line In, Microphone, Headphone, 9 in 1 Card

Reader w/USB

Expansion Slots (Total) 3= PCI, 1=AGP Expansion Slots (FREE) 3= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

One 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
