HP pavilion tx2500 Service Manual

HP Pavilion tx2500 Entertainment PC
Maintenance and Service Guide
© Copyright 2008 Hewlett-Packard Development Company, L.P.
AMD, Athlon, Turion, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett­Packard Company under license. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides comprehensive information on identifying computer features, components, and spare parts; on troubleshooting computer problems; and on performing computer disassembly procedures.
First Edition: May 2008
Document Part Number: 488788-001
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Product description
2 External component identification
Top components ................................................................................................................................... 5
Display components ............................................................................................................ 5
Keys ..................................................................................................................................... 7
Pointing devices ................................................................................................................... 8
Front components ................................................................................................................................ 9
Left-side components ......................................................................................................................... 10
Right-side components ....................................................................................................................... 11
Rear components ............................................................................................................................... 12
Bottom components ........................................................................................................................... 13
3 Illustrated parts catalog

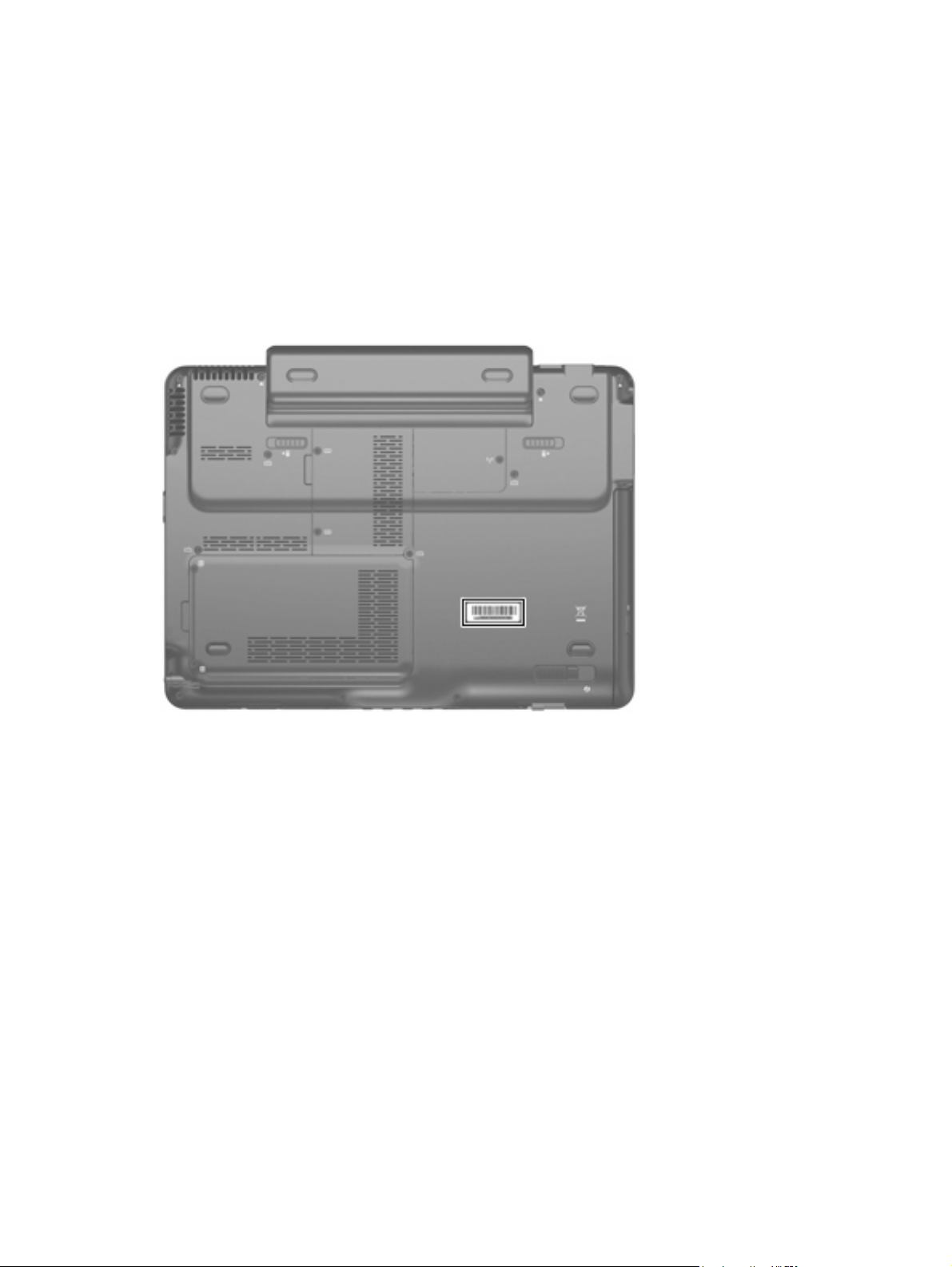

Serial number location ........................................................................................................................ 14
Computer major components ............................................................................................................. 15
Plastics Kit .......................................................................................................................................... 20
Mass storage devices ......................................................................................................................... 21
Miscellaneous parts ............................................................................................................................ 22
Sequential part number listing ............................................................................................................ 23
4 Removal and replacement procedures
Preliminary replacement requirements ............................................................................................... 29
Tools required .................................................................................................................... 29
Service considerations ....................................................................................................... 29
Plastic parts ....................................................................................................... 29
Cables and connectors ..................................................................................... 30
Drive handling ................................................................................................... 30
Grounding guidelines ......................................................................................................... 31
Electrostatic discharge damage ........................................................................ 31
Packaging and transporting guidelines ............................................. 32
Workstation guidelines ..................................................................... 32
Equipment guidelines ....................................................................... 33
Unknown user password ................................................................................................... 34
v
Component replacement procedures ................................................................................................. 35
Serial number .................................................................................................................... 35

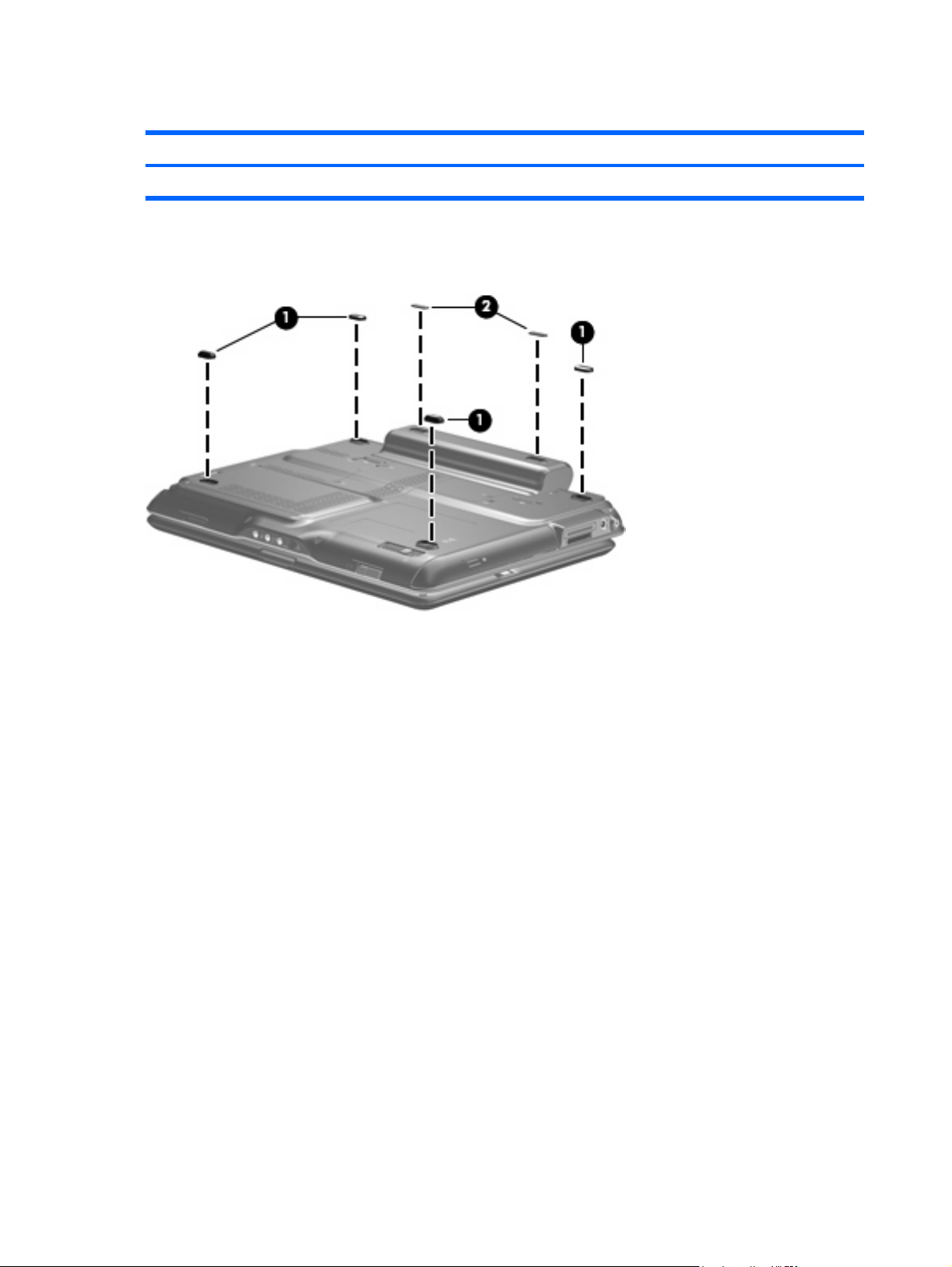

Computer feet .................................................................................................................... 36

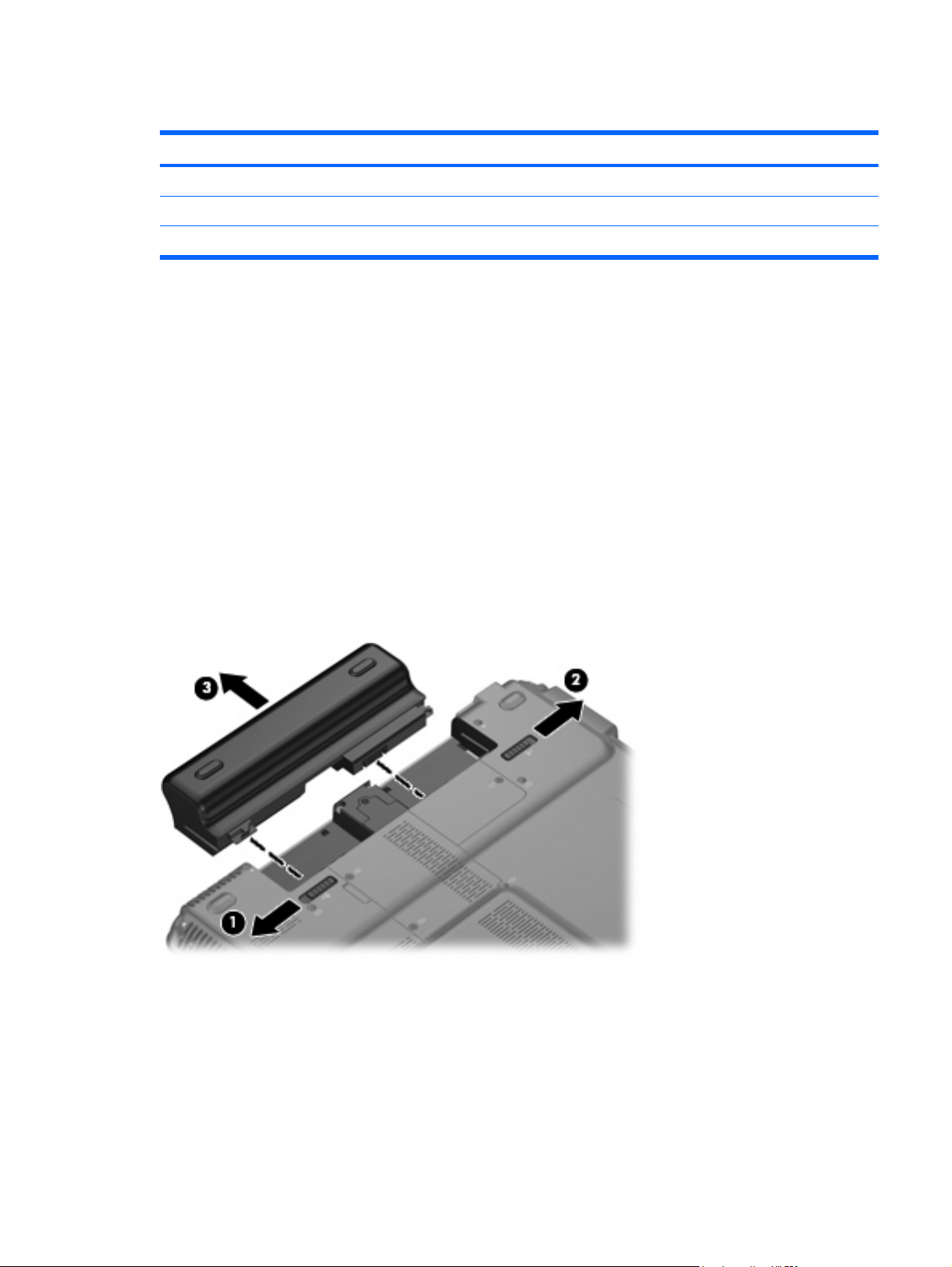

Battery ............................................................................................................................... 37

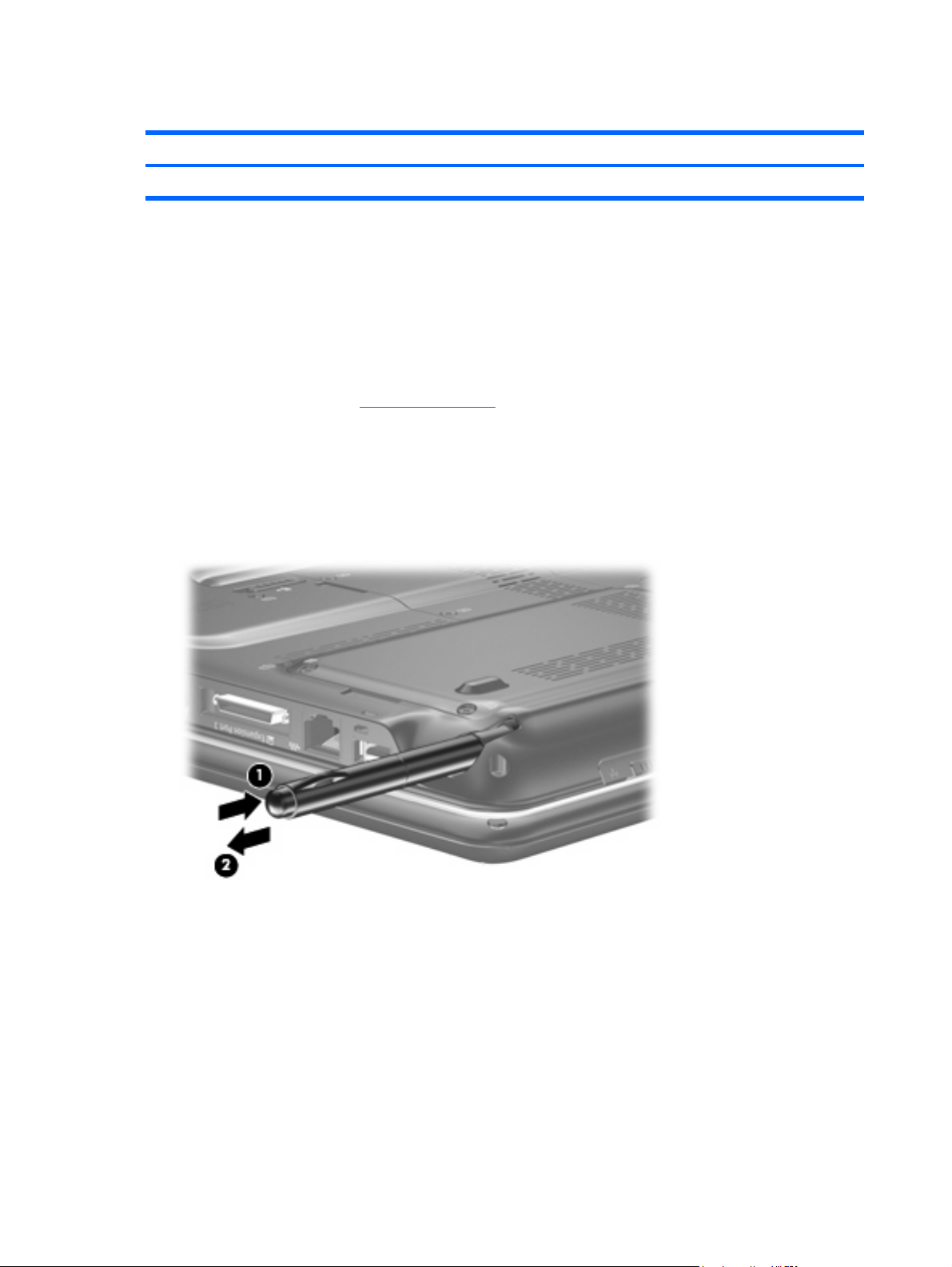

Pen .................................................................................................................................... 38

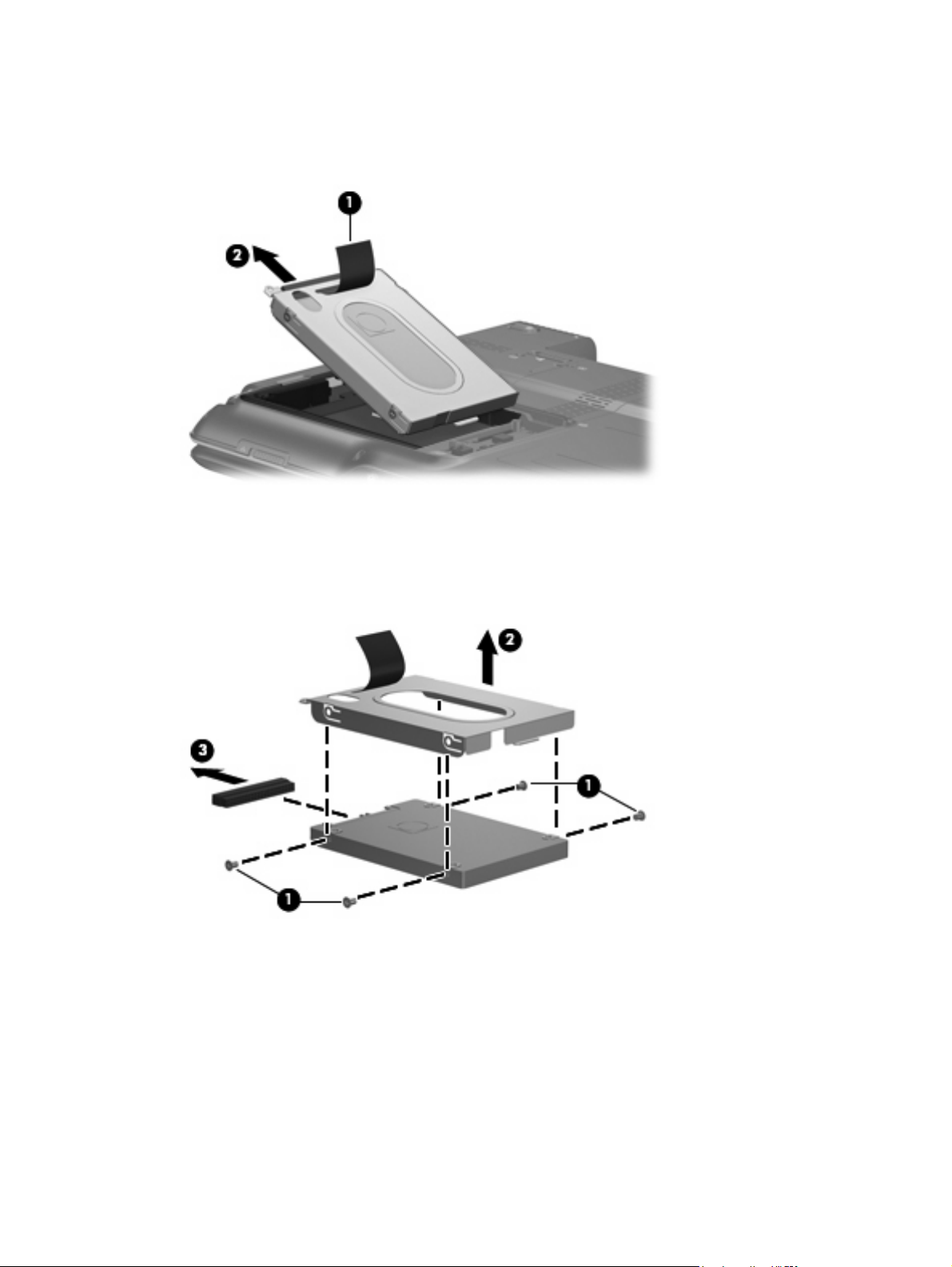

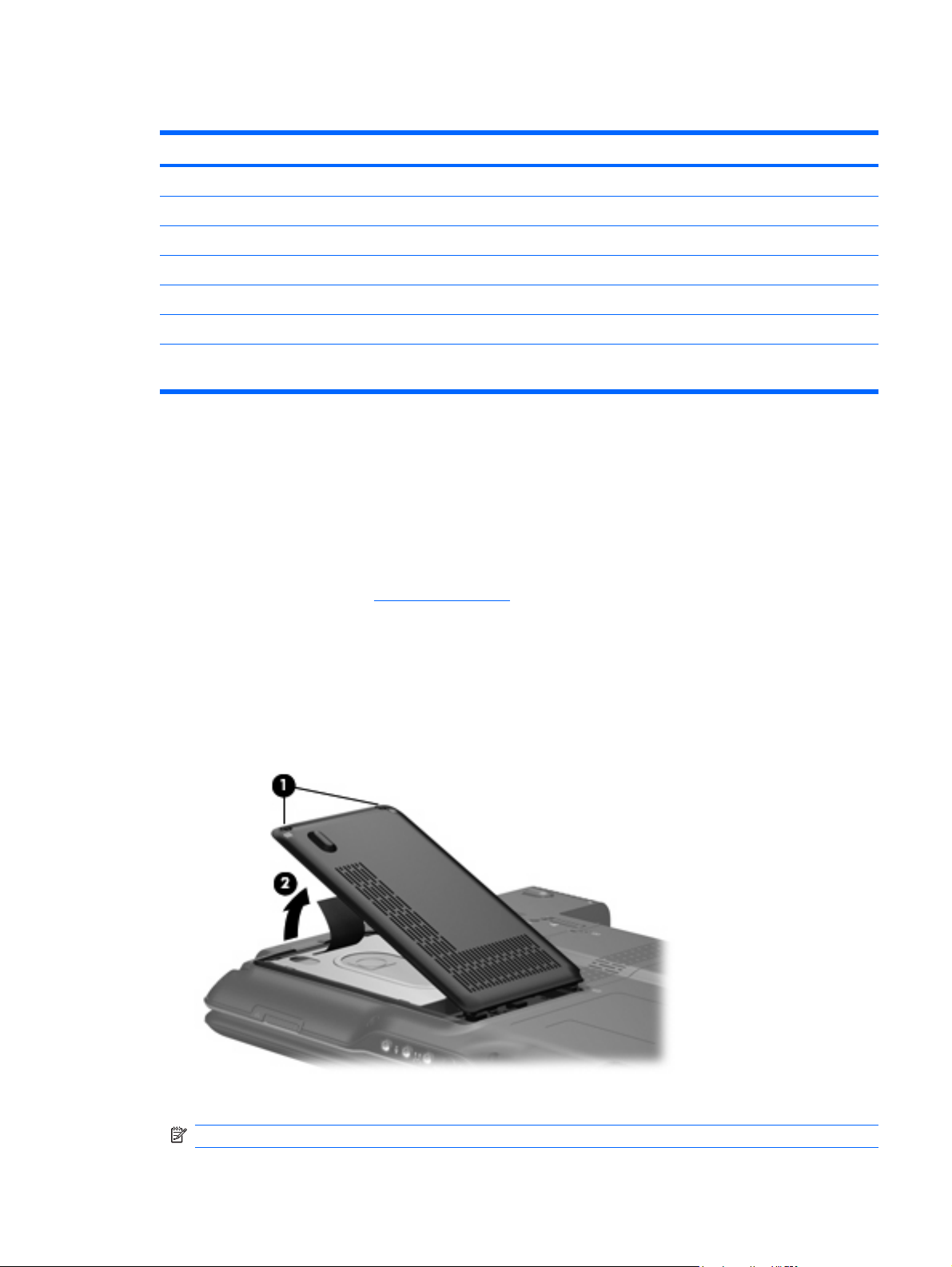

Hard drive .......................................................................................................................... 39

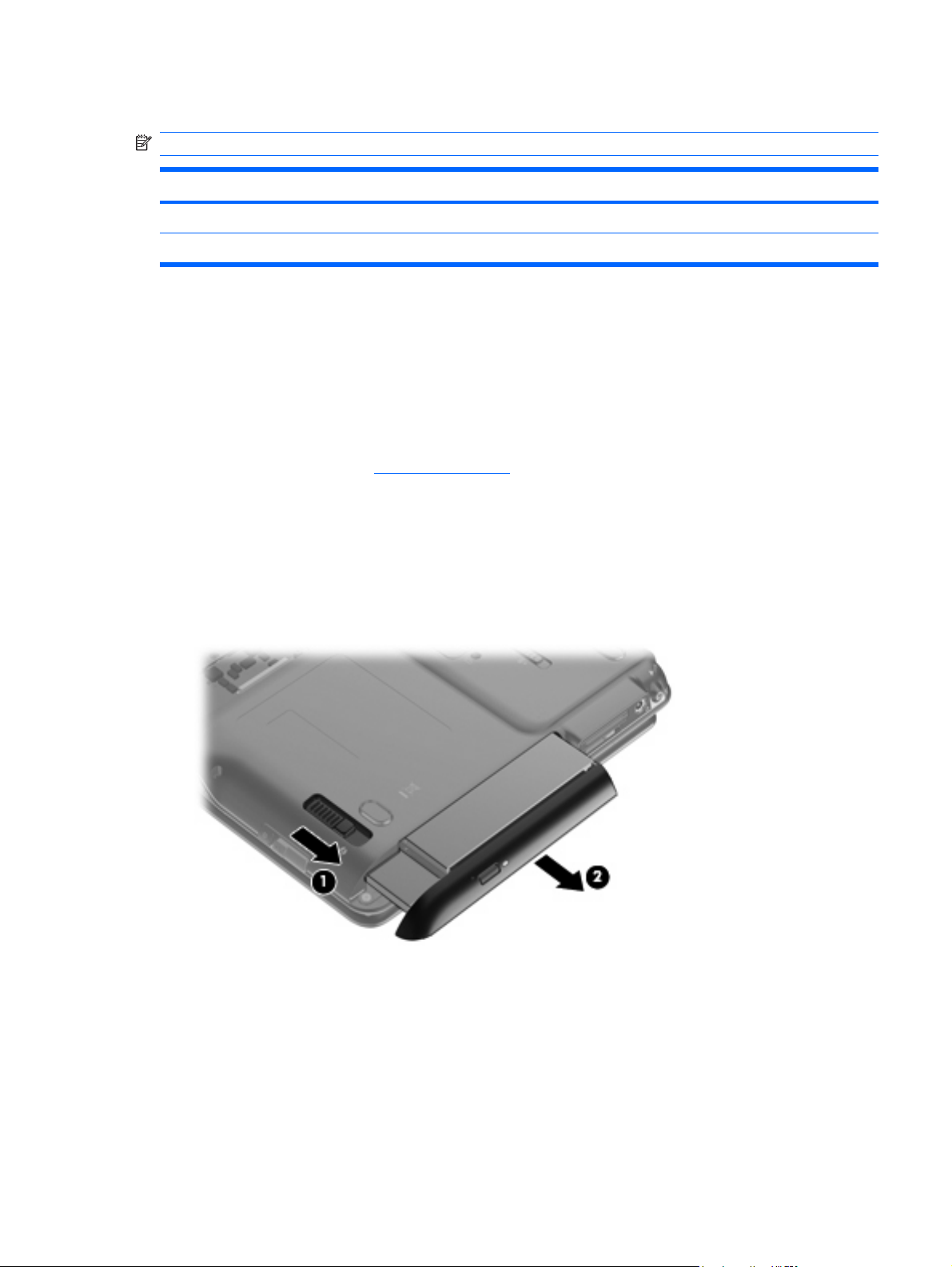

Optical drive ....................................................................................................................... 41

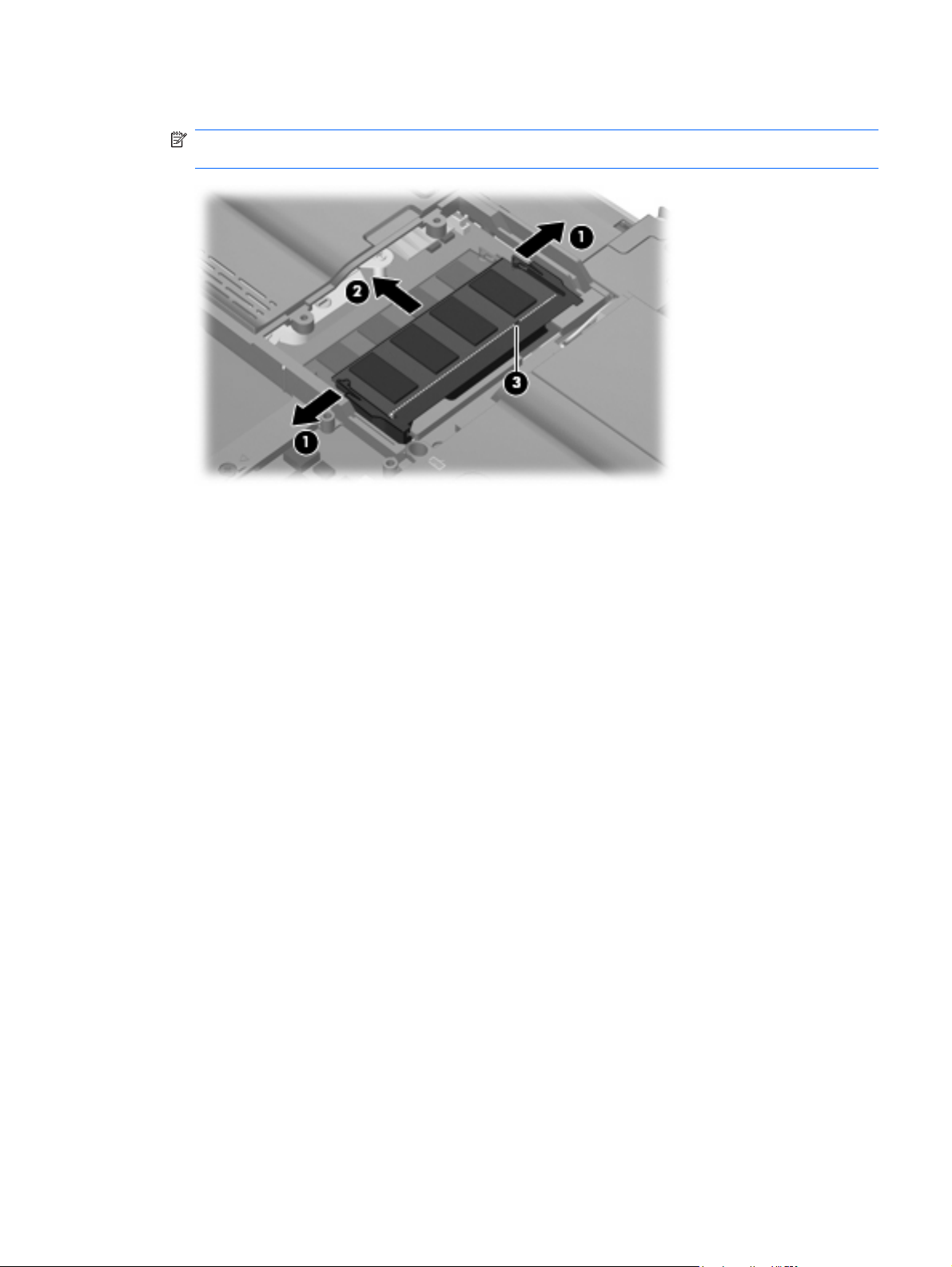

Memory module ................................................................................................................. 42
WLAN module .................................................................................................................... 44

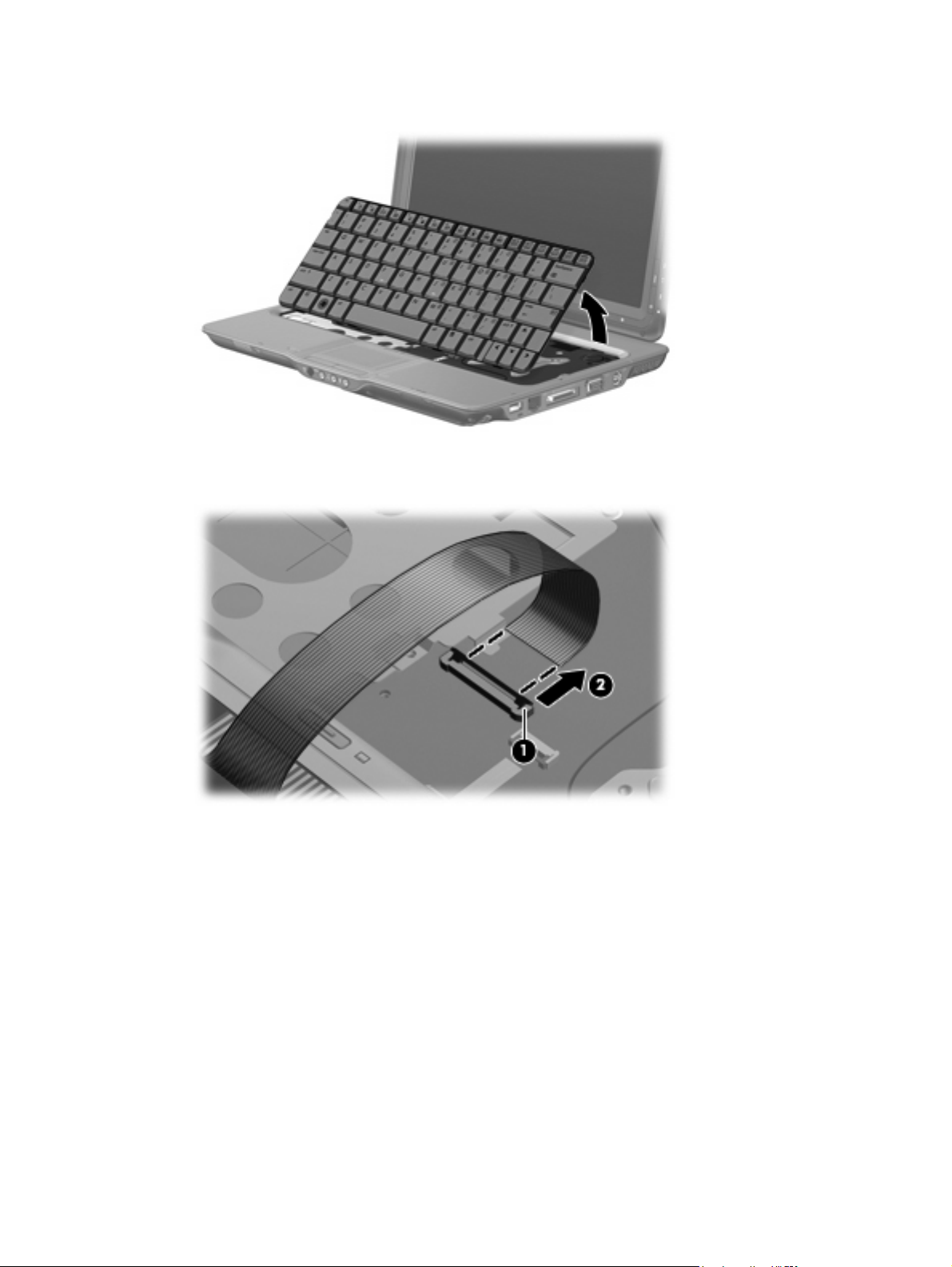

Keyboard ........................................................................................................................... 48

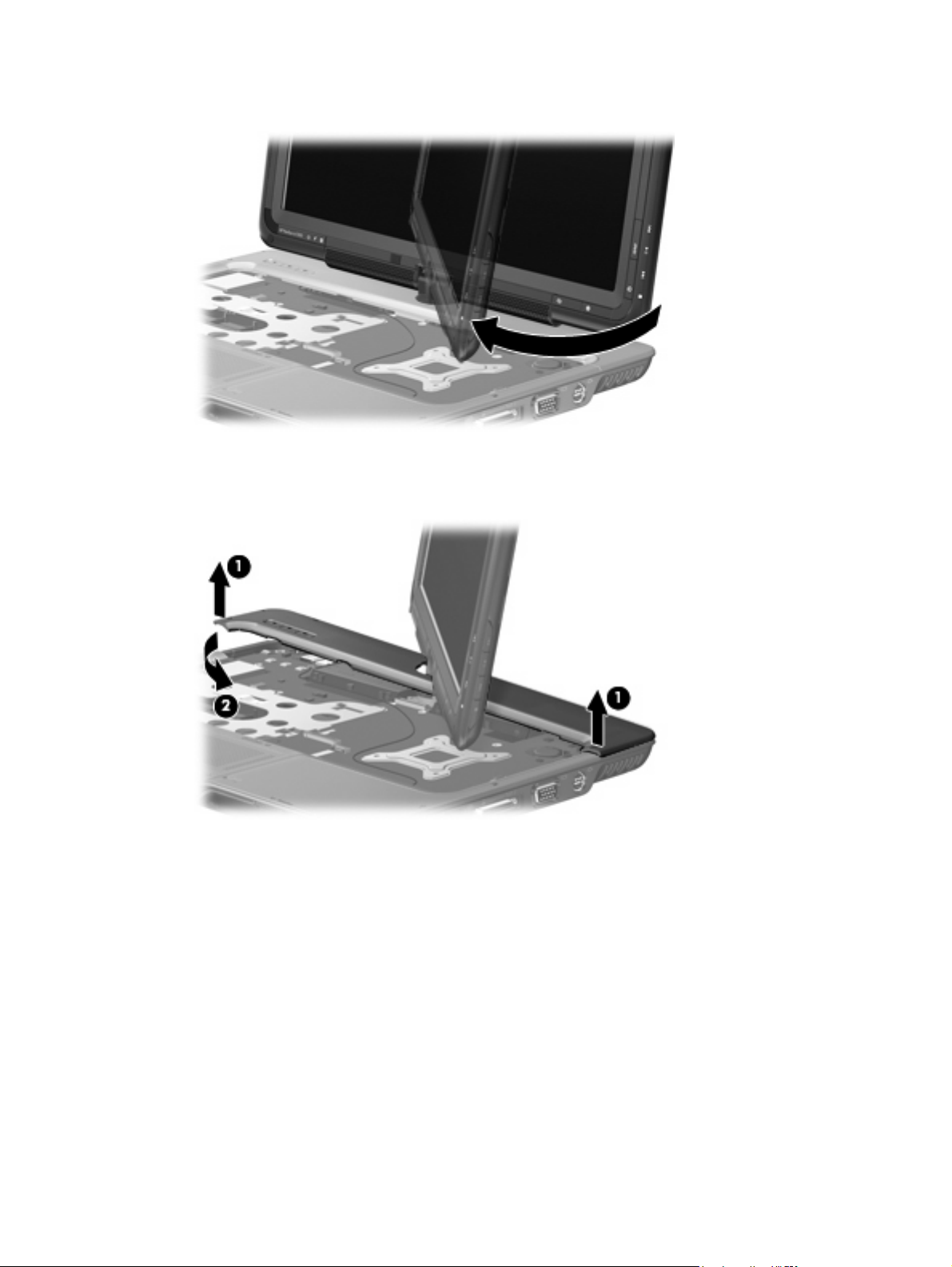

Switch cover ...................................................................................................................... 50

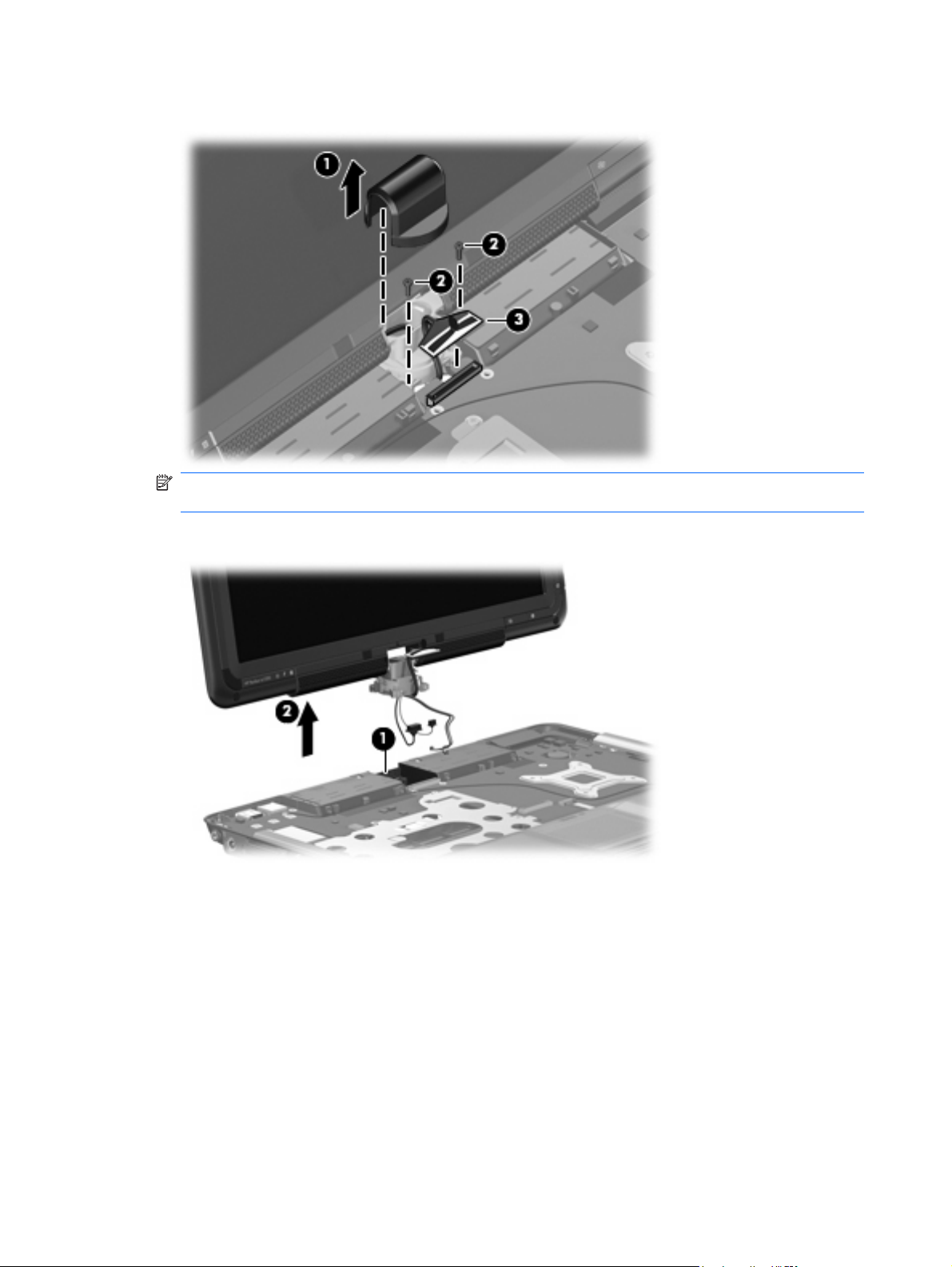

Display assembly ............................................................................................................... 52

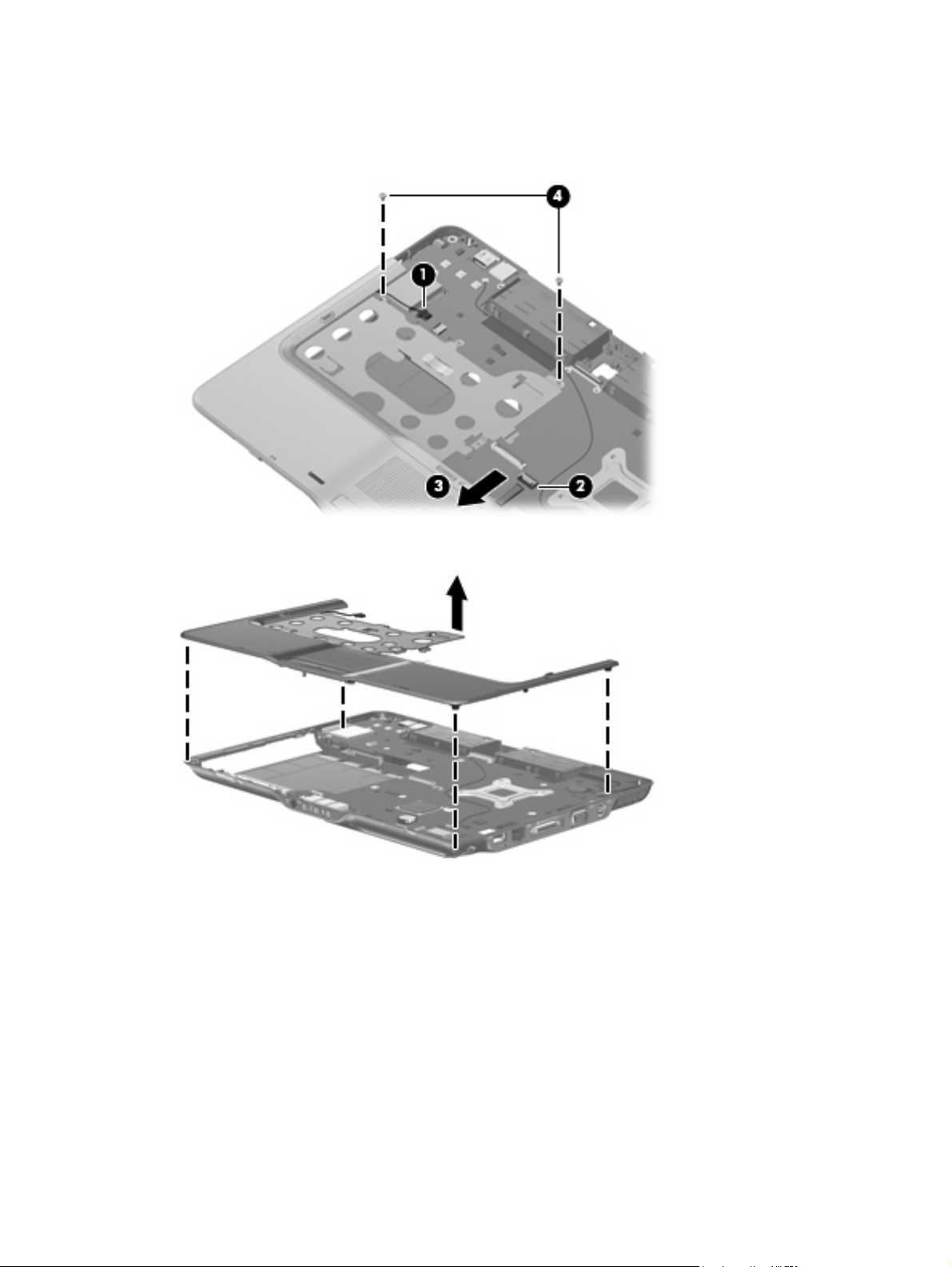

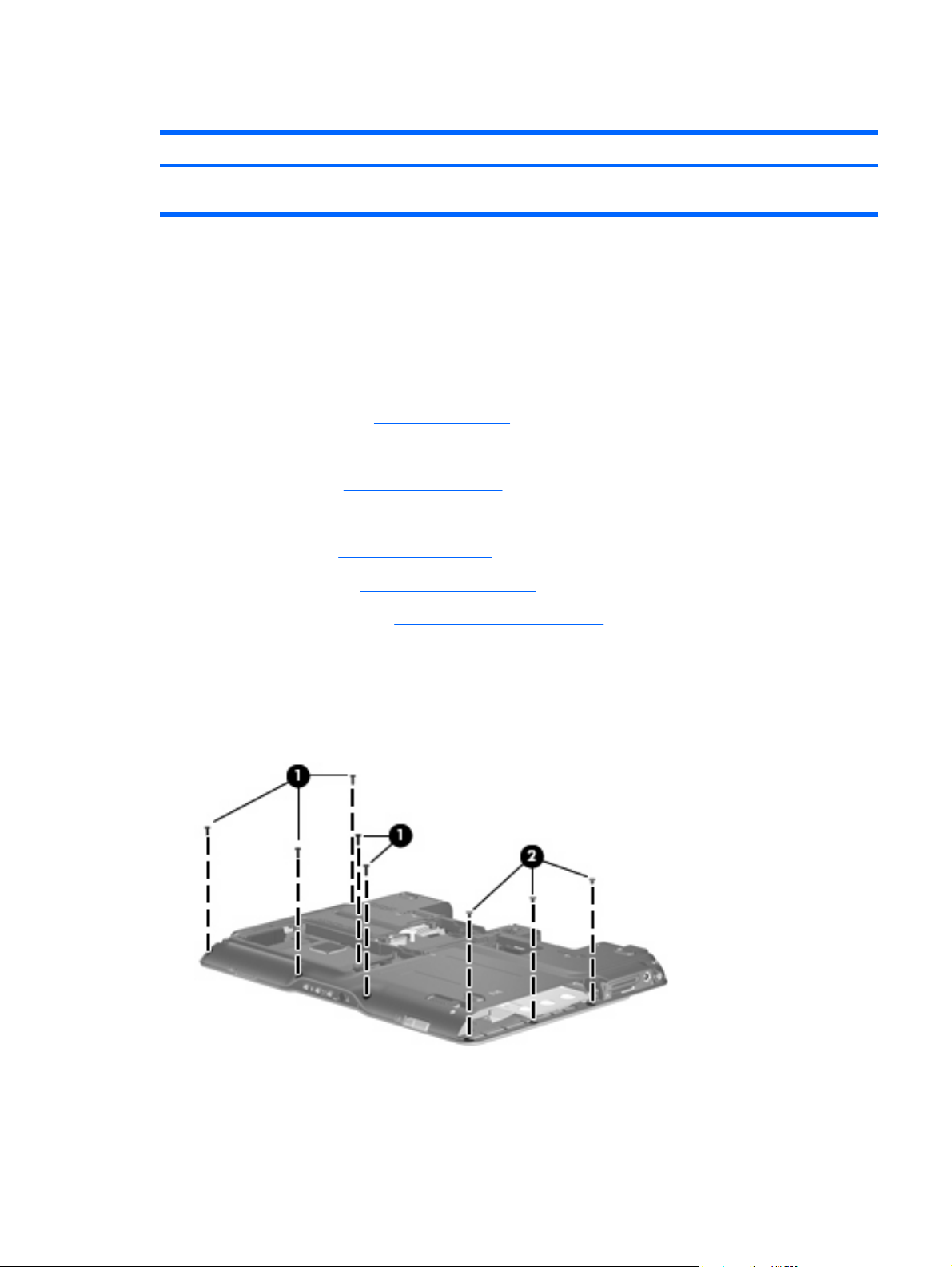

Top cover ........................................................................................................................... 55

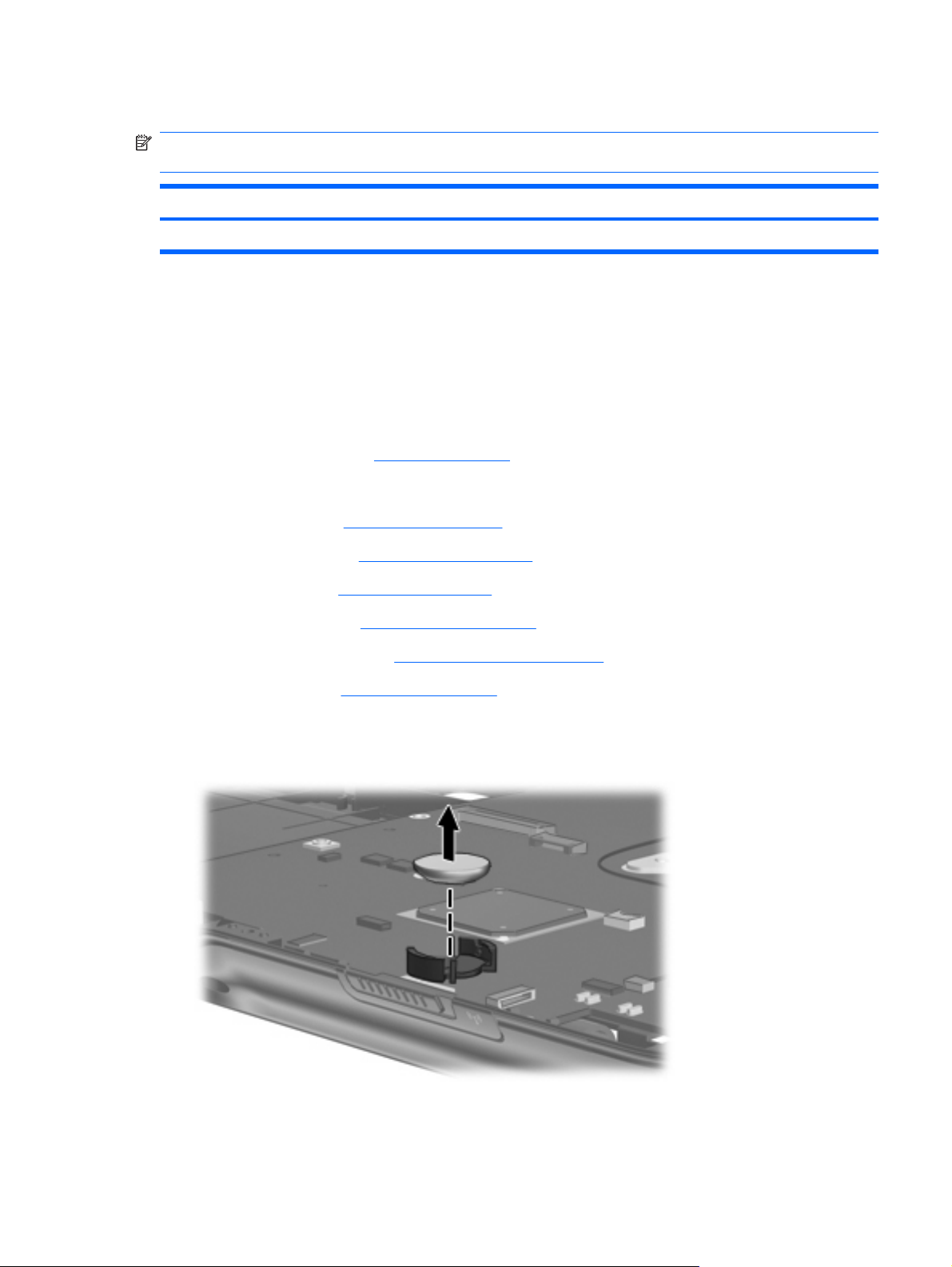

RTC battery ....................................................................................................................... 57

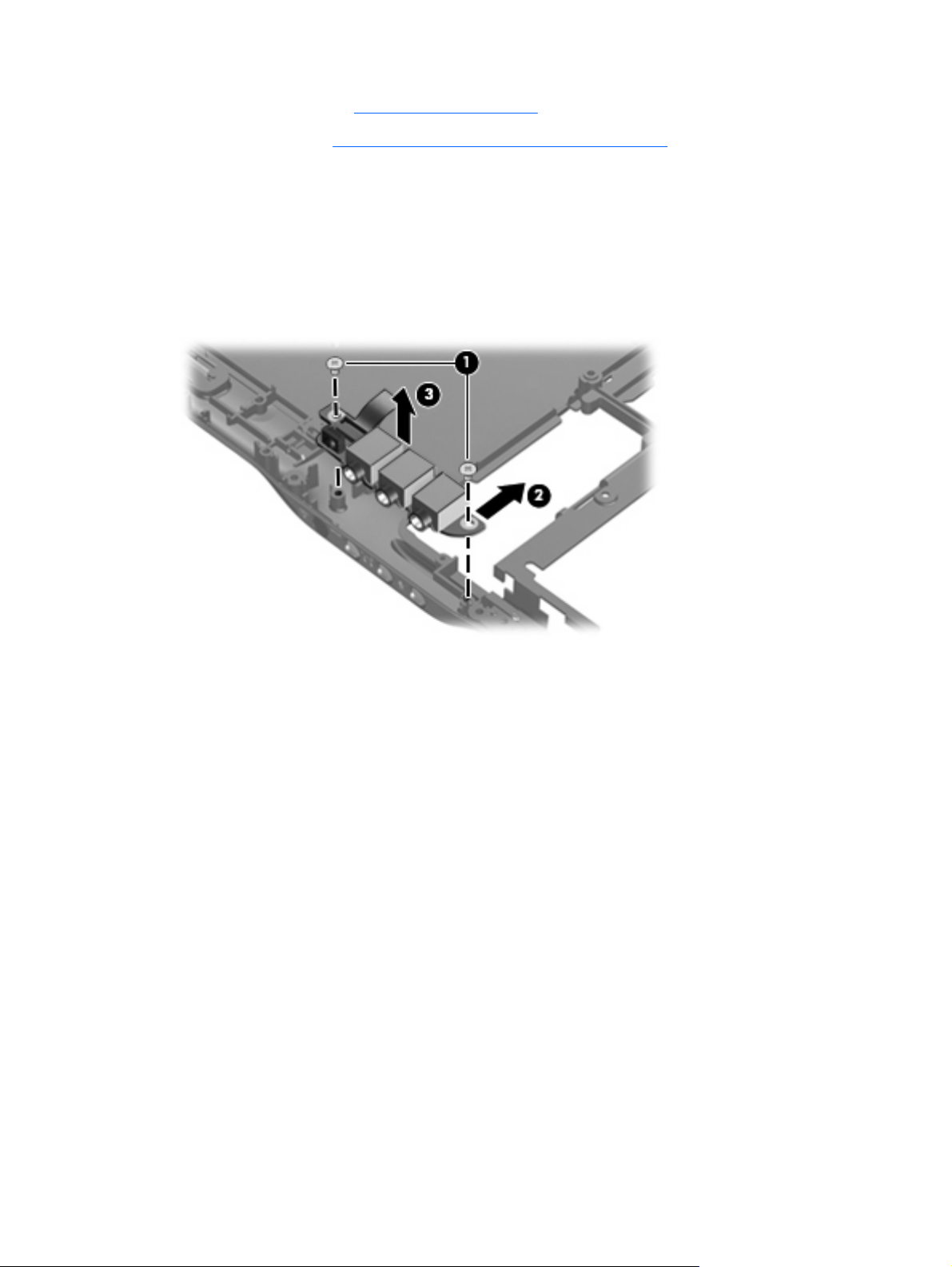

Power switch assembly ..................................................................................................... 58

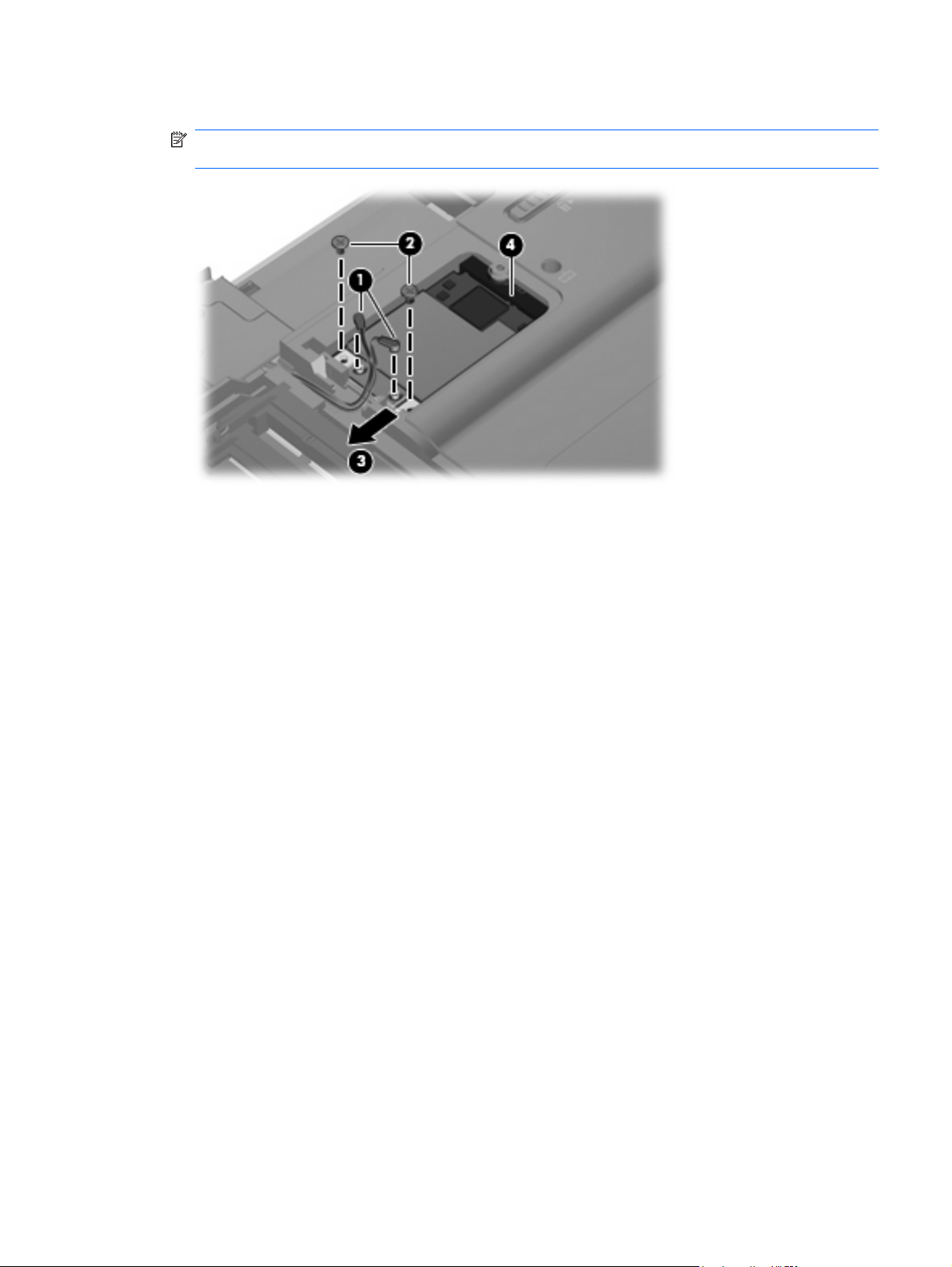

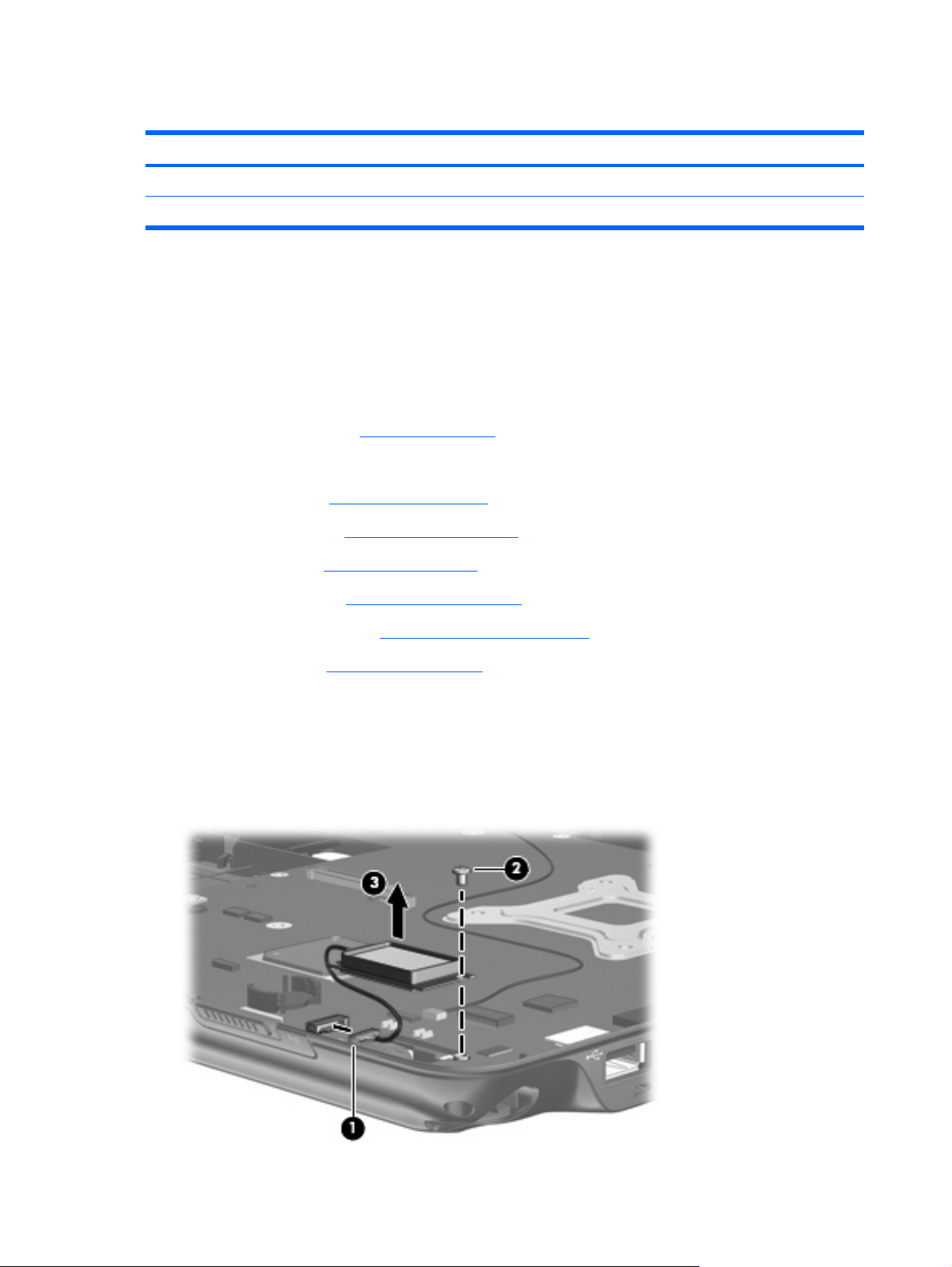

Bluetooth module ............................................................................................................... 60

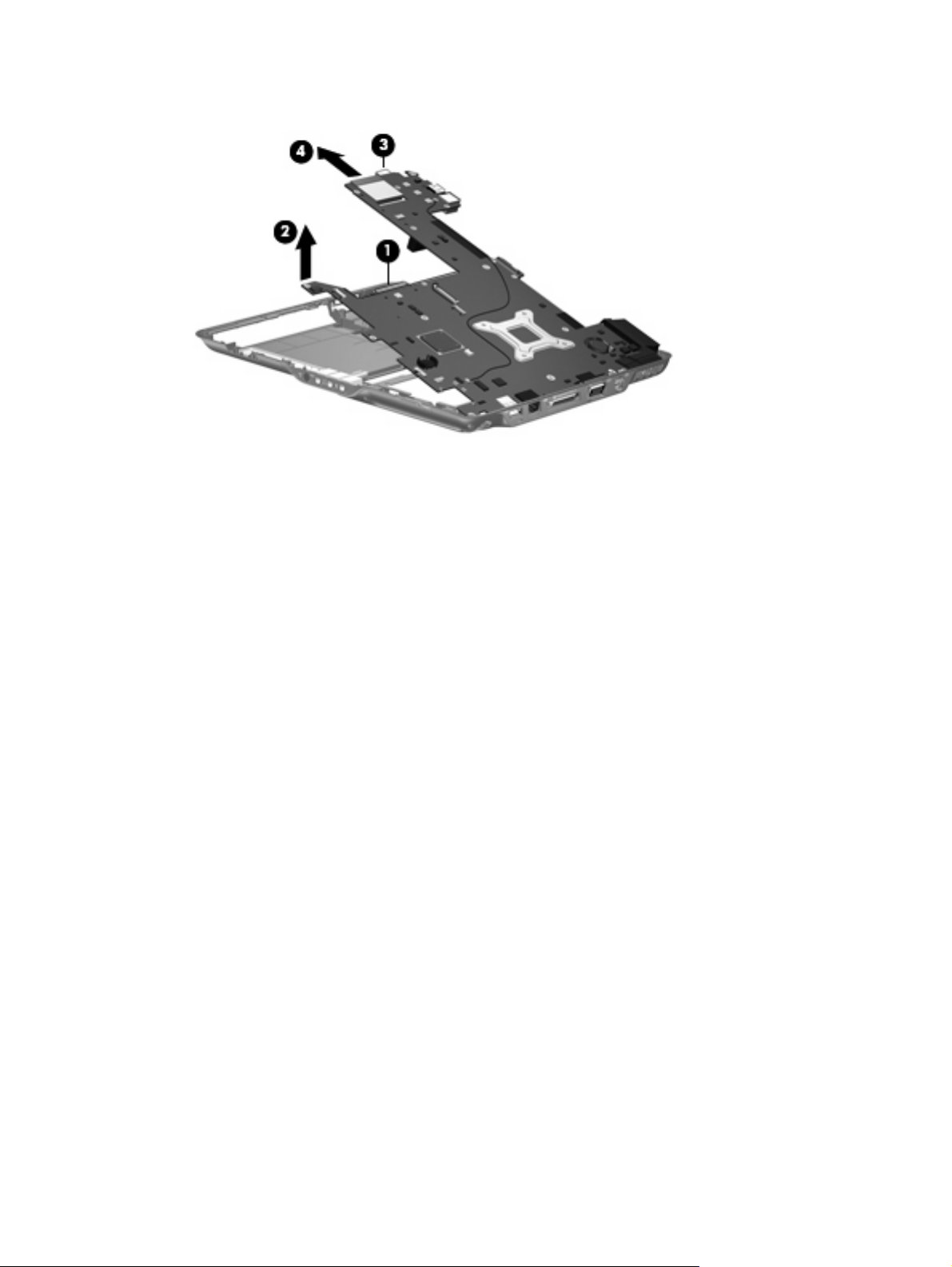

System board ..................................................................................................................... 61
Pen holder and pen eject assembly ................................................................................... 64

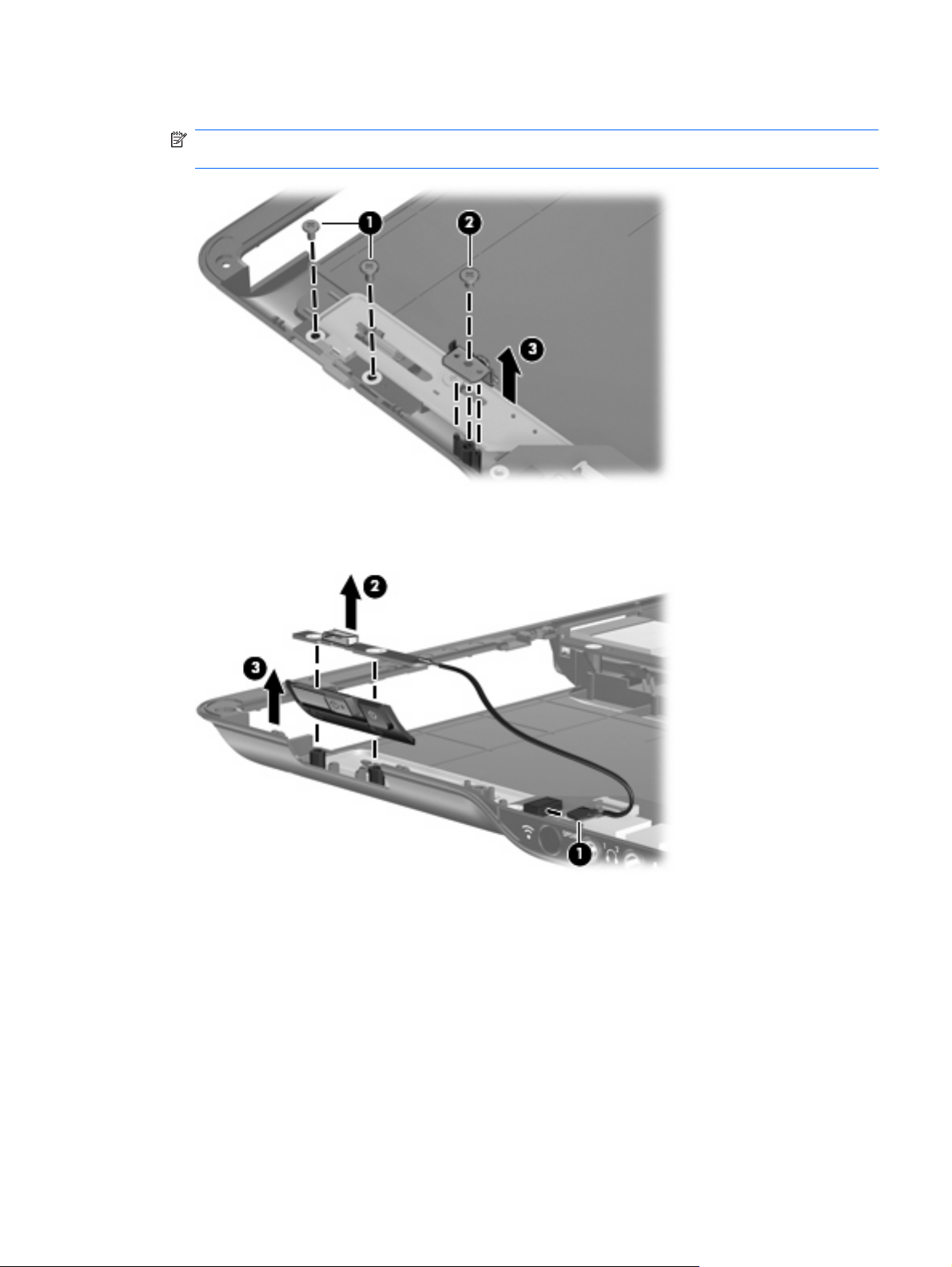

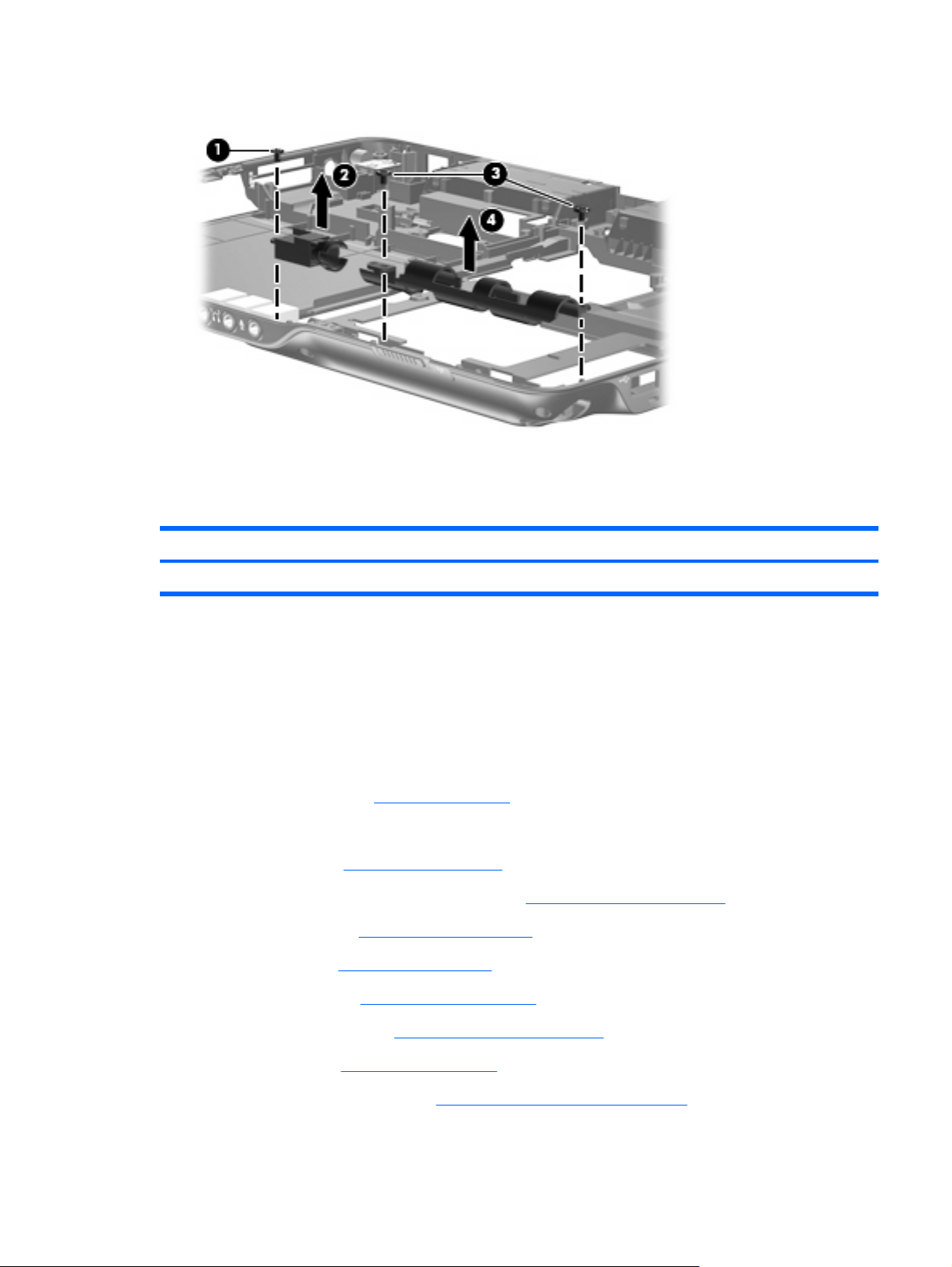

Audio/infrared board .......................................................................................................... 65

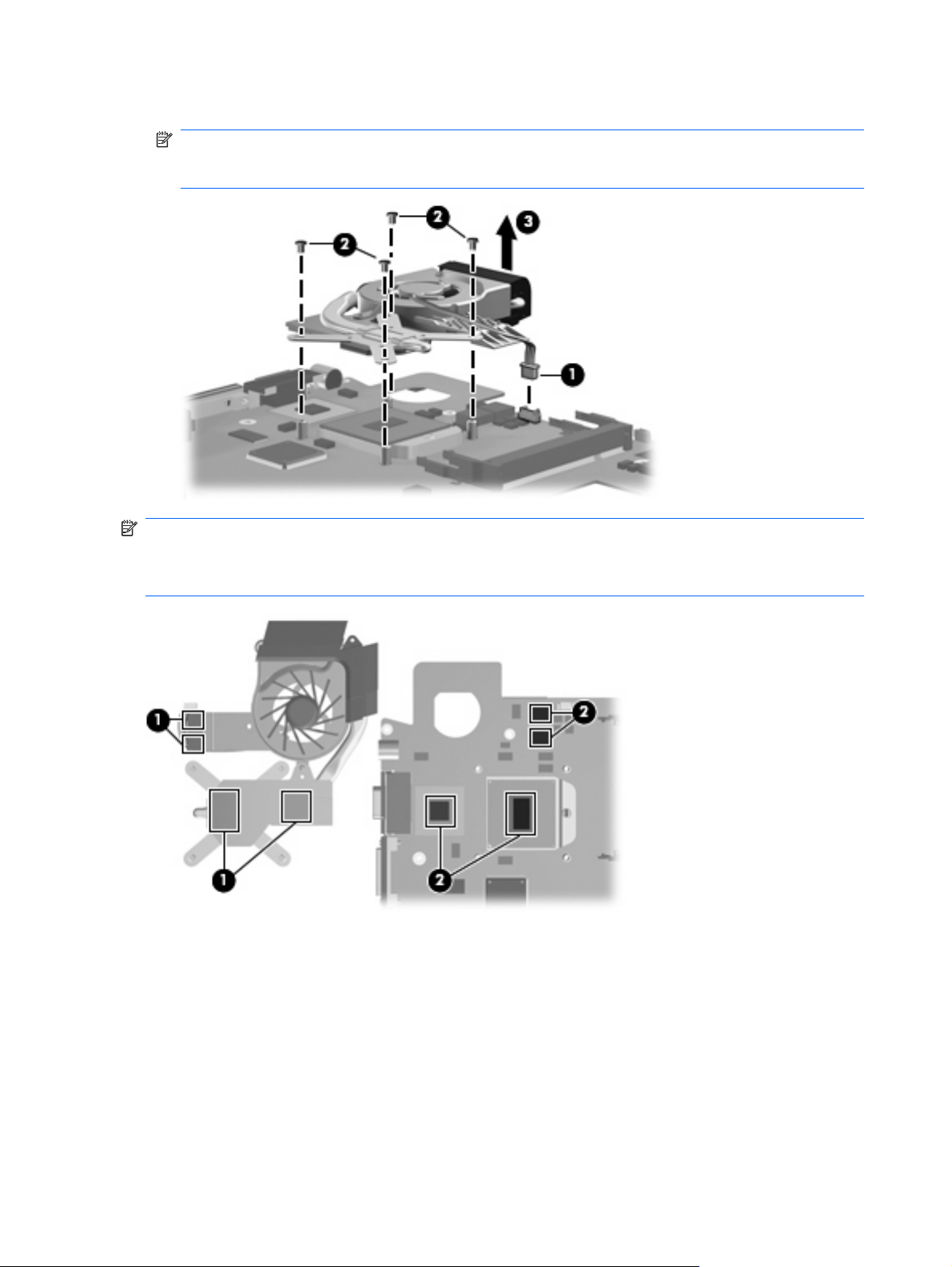

Fan/heat sink assembly ..................................................................................................... 67
Processor ........................................................................................................................... 69
5 Setup Utility
Starting the Setup Utility ..................................................................................................................... 71
Changing the language of the Setup Utility ........................................................................................ 72
Navigating and selecting in the Setup Utility ...................................................................................... 72
Displaying system information ............................................................................................................ 72
Restoring default settings in the Setup Utility ..................................................................................... 73
Using advanced Setup Utility features ............................................................................................... 73
Closing the Setup Utility ..................................................................................................................... 74
Setup Utility menus ............................................................................................................................ 74
6 Specifications
Computer specifications ..................................................................................................................... 76
12.1-inch, WXGA BrightView display specifications ........................................................................... 77
Hard drive specifications .................................................................................................................... 78
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications .................................. 79
System DMA specifications ................................................................................................................ 80
System interrupt specifications ........................................................................................................... 81
Main menu ......................................................................................................................... 74
Security menu .................................................................................................................... 74
System Configuration menu .............................................................................................. 75
Diagnostics menu .............................................................................................................. 75
vi
System I/O address specifications ..................................................................................................... 82
System memory map specifications ................................................................................................... 84

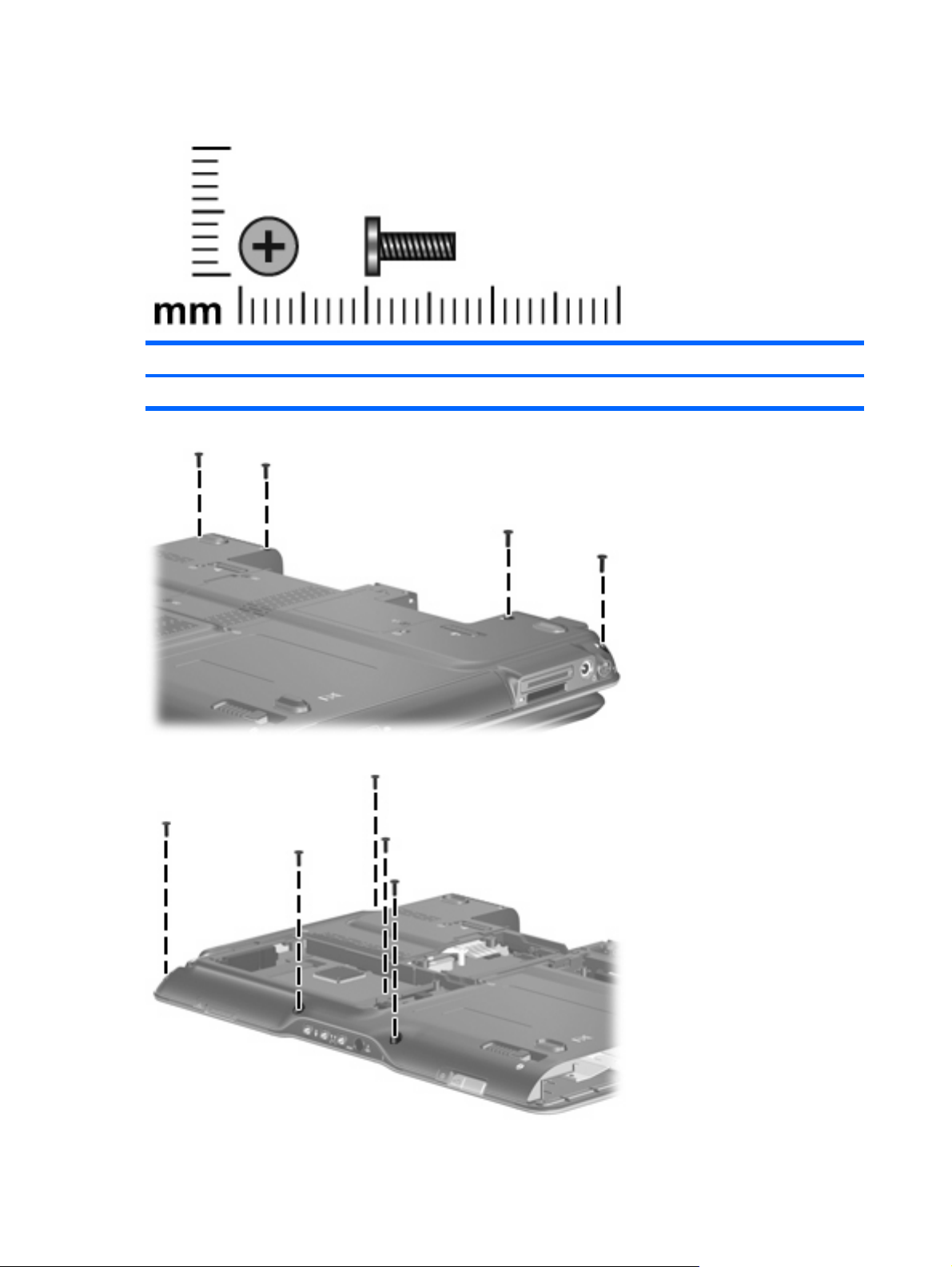

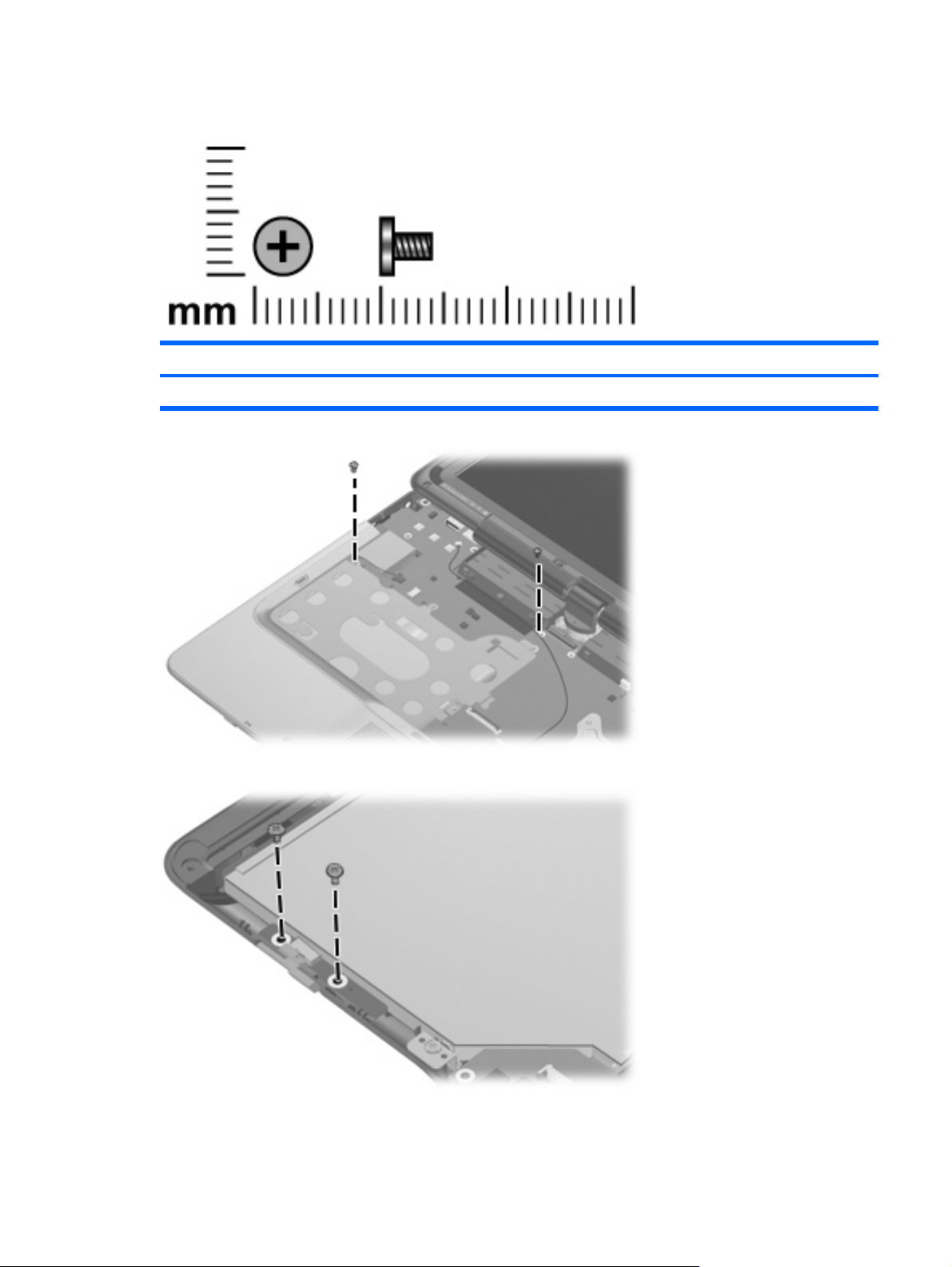

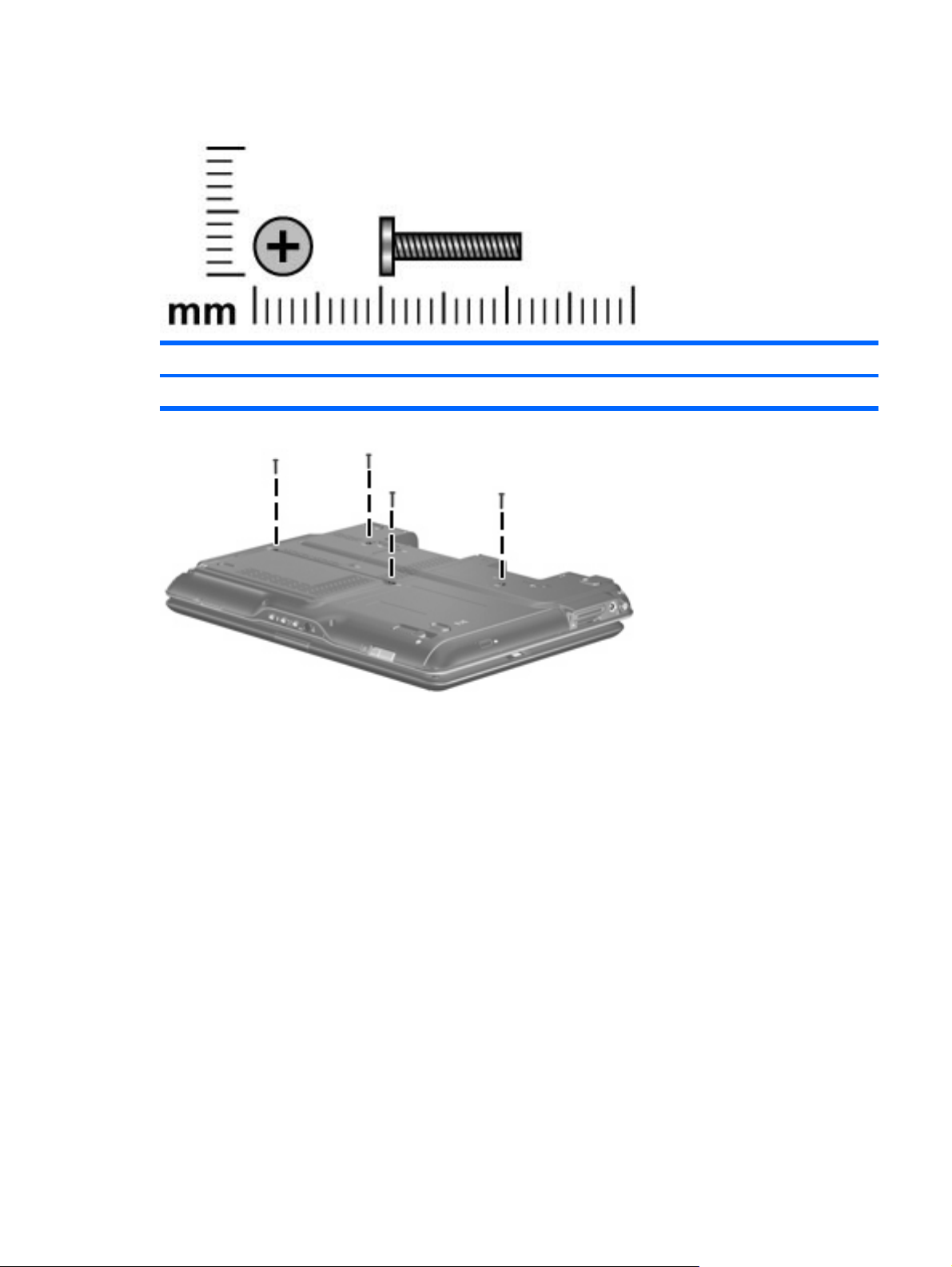

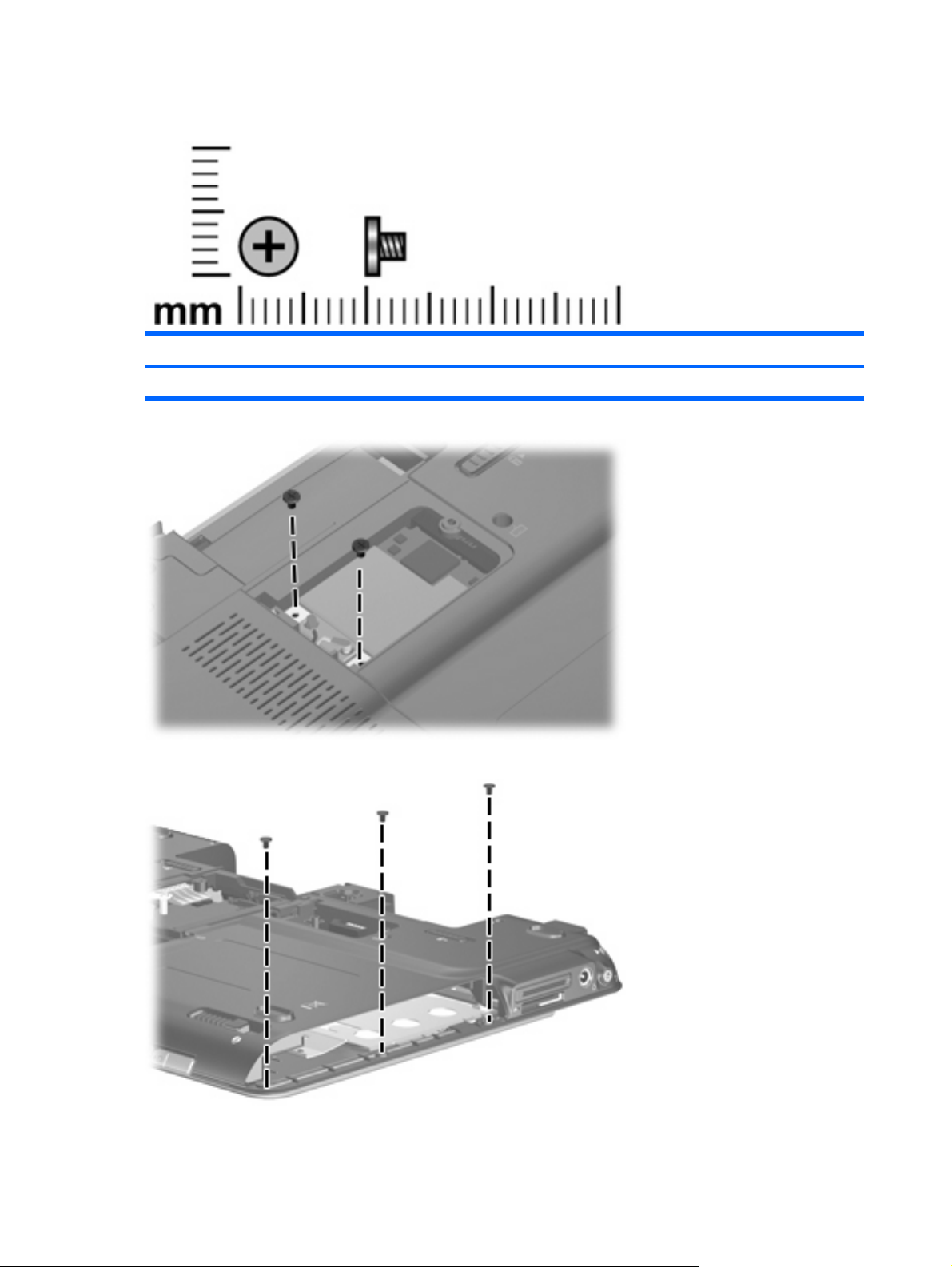

7 Screw listing

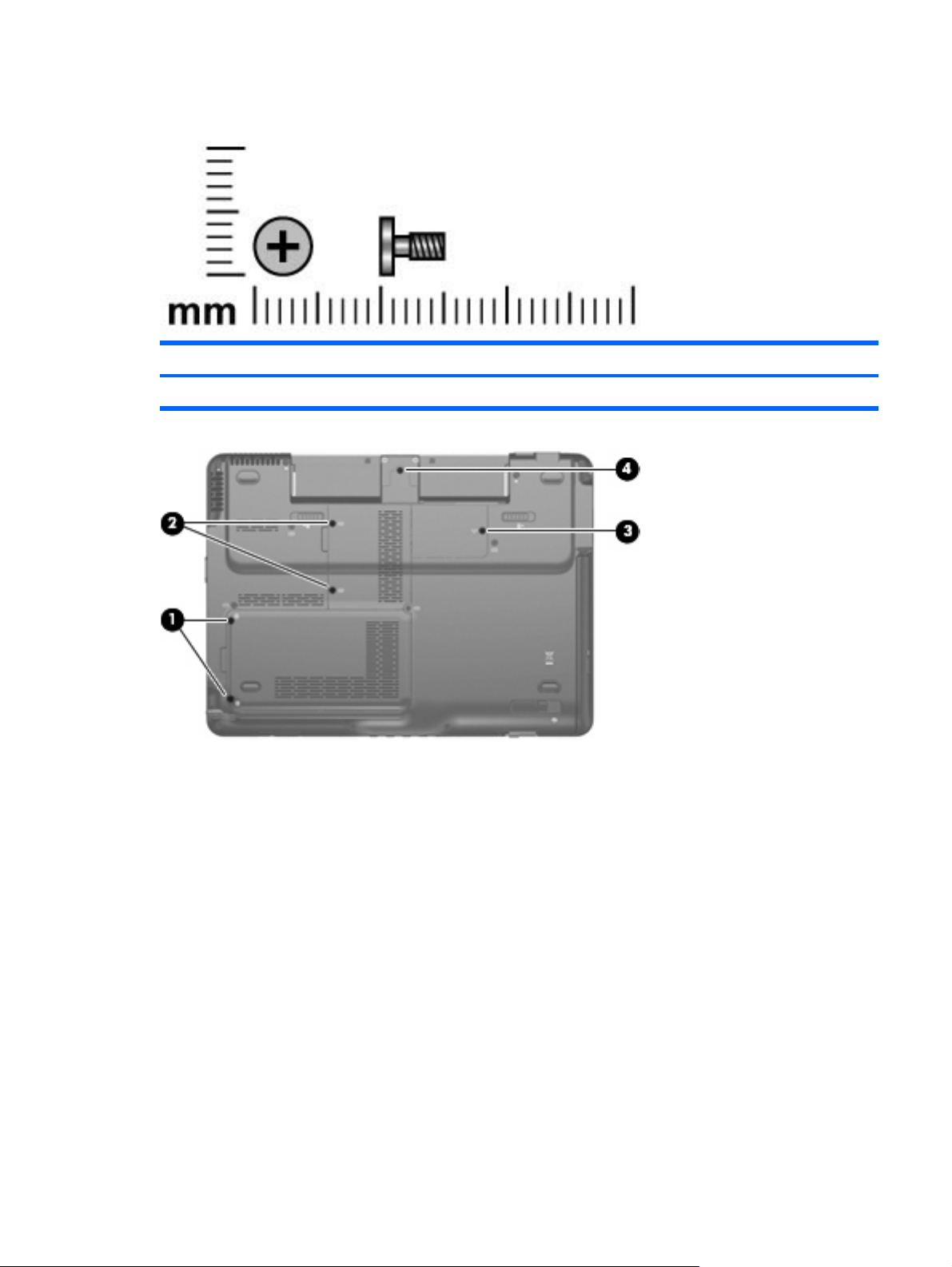

Phillips PM3.0×3.0 screw ................................................................................................................... 85
Phillips PM2.0×7.0 screw ................................................................................................................... 86
Phillips PM2.0×4.0 screw ................................................................................................................... 87
Phillips PM2.0×5.0 captive screw ....................................................................................................... 89
Black Phillips PM2.0×3.0 screw ......................................................................................................... 90
Phillips PM2.0×11.0 screw ................................................................................................................. 91
Phillips PM2.5×6.0 screw ................................................................................................................... 92
Silver Phillips PM2.0×3.0 screw ......................................................................................................... 93
8 Backup and recovery
Recovering system information .......................................................................................................... 94
Creating recovery discs ..................................................................................................... 94
Backing up your information .............................................................................................. 95
Using system restore points .............................................................................................. 96
Performing a recovery ....................................................................................................... 99
When to back up ............................................................................................... 95
Backup suggestions .......................................................................................... 96
When to create restore points ........................................................................... 96
Create a system restore point ........................................................................... 96
Restore to a previous date and time ................................................................. 98
Recovering from the recovery discs .................................................................. 99
Recovering from the partition on the hard drive ................................................ 99
9 Connector pin assignments
Audio-out (headphone) ..................................................................................................................... 100
Audio-in (microphone) ...................................................................................................................... 100
External monitor ............................................................................................................................... 101
RJ-11 (modem) ................................................................................................................................ 102
RJ-45 (network) ................................................................................................................................ 102
S-Video-out ...................................................................................................................................... 103
Universal Serial Bus ......................................................................................................................... 103
10 Power cord set requirements
Requirements for all countries or regions ......................................................................................... 104
Requirements for specific countries or regions ................................................................................ 105
11 Recycling
Battery .............................................................................................................................................. 106
Display .............................................................................................................................................. 107
vii
Index ................................................................................................................................................................. 112
viii

1 Product description

Category Description
Product Name HP Pavilion tx2500 Entertainment PC
Processors AMD Turion™ 64 Mobile Technology Ultra-Dual Core ZM-86 processor, 2.4-GHz,
2-MB L2 cache, 800-MHz front side bus (FSB)
AMD Turion 64 Mobile Technology Ultra-Dual Core ZM-82 processor, 2.2-GHz, 2-
MB L2 cache, 800-MHz FSB
AMD Turion 64 Mobile Technology Ultra-Dual Core ZM-80 processor, 2.0-GHz, 2-
MB L2 cache, 800-MHz FSB
AMD Turion 64 Mobile Technology Dual Core RM-70 processor, 2.0-GHz, 1-MB L2
cache, 800-MHz FSB
AMD Mobile Athlon™ Dual Core QL-60 processor, 1.9-GHz, 1-MB L2 cache, 667-
MHz FSB
Chipset ATI Northbridge: AMD M780G
ATI Southbridge: SB700
Graphics Unified memory architecture (UMA) graphics subsystem memory integrated with
system memory:
Up to 271-MB on computer models with 1024-MB to 2048-MB system memory
Up to 527-MB on computer models with 2048-MB or more of system memory
Graphics subsystem memory size is dynamic change
Panels 12.1-inch, WXGA (1280 × 800, 16:10 wide aspect ratio) BrightView with touch-
screen + Wacom digitizer
Typical brightness: 200 nits
Memory
4096-MB total system memory (2048 MB × 2, dual-channel)
2048-MB total system memory (2048 MB × 1, 1024 MB × 2, dual-channel)
1024-MB total system memory (1024 MB × 1, 512 MB × 2, dual-channel)
Two SODIMM slots
Customer accessible/upgradable
Dual-channel support
DDRII PC2-5300 (667 and 800 MHz)
1
Category Description
Hard drives
320-GB, 5400-rpm
250-GB, 5400-rpm
160-GB, 5400-rpm
120-GB, 5400-rpm
Optical drives
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive
Web camera Low-light VGA camera, fixed (no tilt), with activity light, 24 frames per second
Diskette drive Supports external USB drive only
Audio
Supports all 9.5-mm, 2.5-inch hard drives
Serial ATA
12.7-mm tray load
Parallel ATA
HD audio - Azalia techology
Supports Microsoft Gold requirements
Two omni-directional, dual-array microphones
Beam-forming, echo-cancellation, noise-suppression software
Pavilion-branded Altec Lansing speakers
Modem
Ethernet
Wireless Integrated wireless local area network (WLAN) options by way of wireless
Broadcom 4321AGN 802.11a/b/g/n + Bluetooth
Broadcom 4321AGN 802.11a/b/g/n
Broadcom 4311AG 802.11a/b/g + Bluetooth
Broadcom 4311AG 802.11a/b/g
Broadcom 4311G 802.11b/g + Bluetooth
Broadcom 4311G 802.11b/g
Broadcom BCM4312 802.11b/g + Bluetooth
Broadcom BCM4312 802.11b/g
External media card
Motorola 56K V.92 data/fax modem
Supports all world wide certification requirements
Modem cable is not included
Integrated Realtek 10/100/1000 (Gigabit Ethernet)
Ethernet cable included
module (includes two 2.4-GHz antennae in display assembly):
One ExpressCard/34 slot, requires slot bezel
2 Chapter 1 Product description
5-in-1 Digital Media Slot, supports SD, MMC, MS, MSpro, xD. With adapter (not
included), supports mini versions of SD, MMC, and MS Duo.
Category Description
Ports Audio-in (stereo microphone)
Audio-out (stereo headphone)
Audio-out (stereo headphone with S/PDIF)
Consumer infrared (one in computer base, one in display assembly)
eSATA
High-definition multimedia interface (HDMI) v1.3 supporting 1080p with high-
bandwidth digital content protection (HDCP) key
RJ-11 (modem)
RJ-45 (Ethernet), includes link and activity lights
S-Video-out (include component video support)
USB (3)
VGA (Dsub 15 pin) supporting 1600 × 1200 external resolution @ 75 Hz. Disabled
when connected to devices through the expansion port 3. Hot plug, unplug, and auto detect for correct output to wide-aspect and standard aspect video.
1394a
2-pin 65-W AC power
Docking Docking support through the expansion port 3. Supports the HP xb3000 Notebook
Expansion Base and the HP Notebook QuickDock.
Keyboard/pointing devices 12.1-inch keyboard with embedded numeric keypad
Taps enabled as default
TouchPad with 2 buttons and two-way scroll
Wacom 9.0-mm touch-screen pen
Power requirements 8-cell, 73-Wh, 2.55-Ah Li-ion battery
6-cell, 55-Wh, 2.55-Ah Li-ion battery
4-cell, 37-Wh, 2.55-Ah Li-ion battery
65-W AC adapter with localized cable plug support (2-wire plug with ground pin,
supports 2-pin DC connector)
Security Security cable slot
Fingerprint reader
Operating system Preinstalled:
Windows Vista® Business (32-bit)
Windows Vista Premium (32- and 64-bit)
Windows Vista Ultimate (64-bit)
Serviceability End-user replaceable parts:
AC adapter
Battery (system)
3
Category Description
Hard drive
Memory module
Optical drive
WLAN module
4 Chapter 1 Product description

2 External component identification

Top components

Display components

Item Component Function
(1) Internal microphones (2) Record sound.
(2) Display release latch Opens the computer.
(3) Integrated camera (select models only) Records video and captures still photographs.
(4) DVD button Launches the DVD playback feature of the QuickPlay
program.
(5) Media button Launches the QuickPlay program.
(6) Mobility Center button Opens Mobility Center.
(7) Rotate button Rotates the screen image clockwise into 4 orientations:
landscape primary, landscape secondary, portrait primary, and portrait secondary.
(8) Speakers (2) Produce sound.
(9) Convertible hinge Swivels the display and converts the computer from
traditional notebook mode into slate mode or vice versa.
Top components 5
Item Component Function
In slate mode, the display is rotated and folded flat, so that you can view content while carrying the computer.
(10) Drive light Blinking: The hard drive or optical drive is being
accessed.
(11) Battery light
(12) Power light
(13) Consumer infrared lens Receives a signal from the HP Remote Control.
(14) Internal display switch Turns off the display and initiates Sleep if the display is
(15) Fingerprint reader (select models only) Allows a fingerprint logon to Windows instead of a
(16) Wireless antennae (select models only) Send and receive signals from one or more wireless
On: A battery is charging.
Blinking: A battery that is the only available power
source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.
Off: If the computer is plugged into an external
power source, the light is turned off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.
On: The computer is on.
Blinking: The computer is in the Sleep state.
Off: The computer is off or in Hibernation.
closed while the power is on.
password logon.
devices. These antennae are not visible from the outside of the computer.
6 Chapter 2 External component identification

Keys

Item Component Function
(1) esc key Displays system information when pressed in
combination with the fn key.
(2) fn key Executes frequently used system functions when
pressed in combination with a function key or the esc key.
(3) Windows logo key Displays the Windows® Start menu.
(4) Windows applications key Displays a shortcut menu for items beneath the pointer.
(5) Embedded numeric keypad keys Can be used like the keys on an external numeric
(6) Function keys Execute frequently used system functions when
keypad.
pressed in combination with the fn key.
Top components 7

Pointing devices

Item Component Function
(1) TouchPad on/off button Enables/disables the TouchPad.
(2) TouchPad* Moves the pointer and selects or activates items on the
(3) Left TouchPad button* Functions like the left button on an external mouse.
screen.
(4) TouchPad light
(5) TouchPad vertical scroll zone Scrolls up or down.
(6) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel > Hardware and Sound > Mouse.
Blue: TouchPad is enabled.
Amber: TouchPad is disabled.
8 Chapter 2 External component identification

Front components

Item Component Function
(1) Display release latch Opens the computer.
(2) Power switch*
(3) Power light
(4) Consumer infrared lens Receives a signal from the HP Remote Control.
When the computer is off, slide the power switch
to the right to turn on the computer.
When the computer is on, slide the power switch
to the right to initiate Sleep.
When the computer is in the Sleep state, slide the
power switch to the right briefly to exit Sleep.
When the computer is in Hibernation, slide the
power switch to the right briefly to exit Hibernation.
If the computer has stopped responding and Windows shutdown procedures are not effective, slide the power switch to the right and hold for at least 5 seconds to turn off the computer.
To learn more about your power settings, select Start >
Control Panel > System and Maintenance > Power Options.
To learn more about Sleep or Hibernation, refer to the Power Management guide.
On: The computer is on.
Blinking: The computer is in the Sleep state.
Off: The computer is off or in Hibernation.
(5) Audio-out (headphone) S/PDIF jack Provides enhanced audio performance, including
surround sound and other high-end audio output.
(6) Audio-out (headphone) jack Produces sound when connected to optional powered
(7) Audio-in (microphone) jack Connects an optional computer headset microphone,
(8) Wireless switch Turns the wireless feature on or off, but does not create
stereo speakers, headphones, ear buds, a headset, or television audio.
stereo array microphone, or monaural microphone.
a wireless connection.
NOTE: A wireless network must be set up in order to
establish a wireless connection.
Front components 9
Item Component Function
(9) Wireless light
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help and Support.

Left-side components

Item Component Function
(1) Power connector Connects an AC adapter.
(2) ExpressCard slot Supports optional ExpressCard/34 cards.
Blue: An integrated wireless device, such as a
WLAN device and/or a Bluetooth® device, is turned on.
Amber: All wireless devices are turned off.
(3) Digital Media Slot Supports the following optional digital card formats:
Secure Digital (SD) Memory Card, MultiMediaCard (MMC), Memory Stick (MS), Memory Stick Pro (MSP), xD-Picture Card (XD), xD-Picture Card (XD) Type M.
(4) Digital Media Slot light On: A digital card is being accessed.
(5) Optical drive Reads optical discs and, on select models, also writes
to optical discs.
(6) Optical light Blinking: The optical drive is being accessed.
10 Chapter 2 External component identification

Right-side components

Item Component Function
(1) Previous/rewind button
(2) Play/pause button Plays or pauses media.
(3) Next/fast forward button
(4) Stop button Stops playback.
(5) Pen holder Stores the pen.
(6) USB port Connects an optional USB device.
(7) Pen tether hole Connects the pen tether.
(8) RJ-45 (network) jack Connects a network cable.
(9) Expansion port 3 Connects the computer to an optional docking device or
Plays the previous track or chapter when the
button is pressed once.
Rewinds media when the button is pressed
simultaneously with the fn key.
Plays the next track or chapter when the button is
pressed once.
Fast forwards media when pressed
simultaneously with the fn key.
an optional expansion product.
NOTE: The computer has only one expansion port.
The term expansion port 3 describes the type of expansion port.
(10) External monitor port Connects an external VGA monitor or projector.
(11) S-Video-out jack Connects an optional S-Video device such as a
(12) Vent Enables airflow to cool internal components.
television, VCR, camcorder, overhead projector, or video capture card.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
Right-side components 11

Rear components

Item Component Function
(1) Vent Enables airflow to cool internal components.
(2) RJ-11 (modem) jack Connects a modem cable.
(3) USB ports (2) Connect optional USB devices.
(4) Security cable slot Attaches an optional security cable to the computer.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
NOTE: The security cable is designed to act as a
deterrent, but it may not prevent the computer from being mishandled or stolen.
12 Chapter 2 External component identification

Bottom components

Item Component Function
(1) Vents (6) Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to
cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(2) Battery release latches (2) Releases the battery from the battery bay.
(3) Hard drive bay Holds the hard drive.
(4) Optical drive release latch Releases the optical drive from the drive bay.
(5) Memory module compartment Contains the memory module slots.
(6) WLAN module compartment Holds a WLAN module (select models only).
NOTE: To prevent an unresponsive system, replace
the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.
(7) Battery bay Holds the battery.
Bottom components 13

3 Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.
14 Chapter 3 Illustrated parts catalog

Computer major components

Item Description Spare part number
(1a) Display assemblies
12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera, fingerprint reader, microphones, and WLAN antenna cables
484751-001
Computer major components 15
Item Description Spare part number
12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera, microphones, and WLAN antenna cables
(1b) Display convertible hinge cover (included with display assembly)
(2a) Switch cover 464115-001
(2b) Switch cover trim (included with switch cover)
(3) Keyboards
Canada 484748-121
Denmark, Norway, and Sweden 484748-DH1
France 484748-051
Germany 484748-041
Israel 484748-BB1
Italy 484748-061
Japan 484748-291
Latin America 484748-161
The Netherlands 484748-B31
Display Rubber Kit (not illustrated, includes 8 display bezel rubber screw covers) 464824-001
Brazil 484748-201
484750-001
Portugal 484748-131
Russia 484748-251
Saudi Arabia 484748-171
South Korea 484748-AD1
Spain 484748-071
Taiwan 484748-AB1
Thailand 484748-281
Turkey 484748-141
The United Kingdom 484748-031
The United States and Canada 484748-001
(4) Top cover (includes TouchPad and TouchPad cable, caps lock light board and
cable, and top cover bumper pads)
(5) RTC battery 449729-001
(6) Bluetooth module 483113-001
Bluetooth module cable (not illustrated) 487697-001
Plastics Kit 487926-001
(7a) ExpressCard slot bezel
464111-001

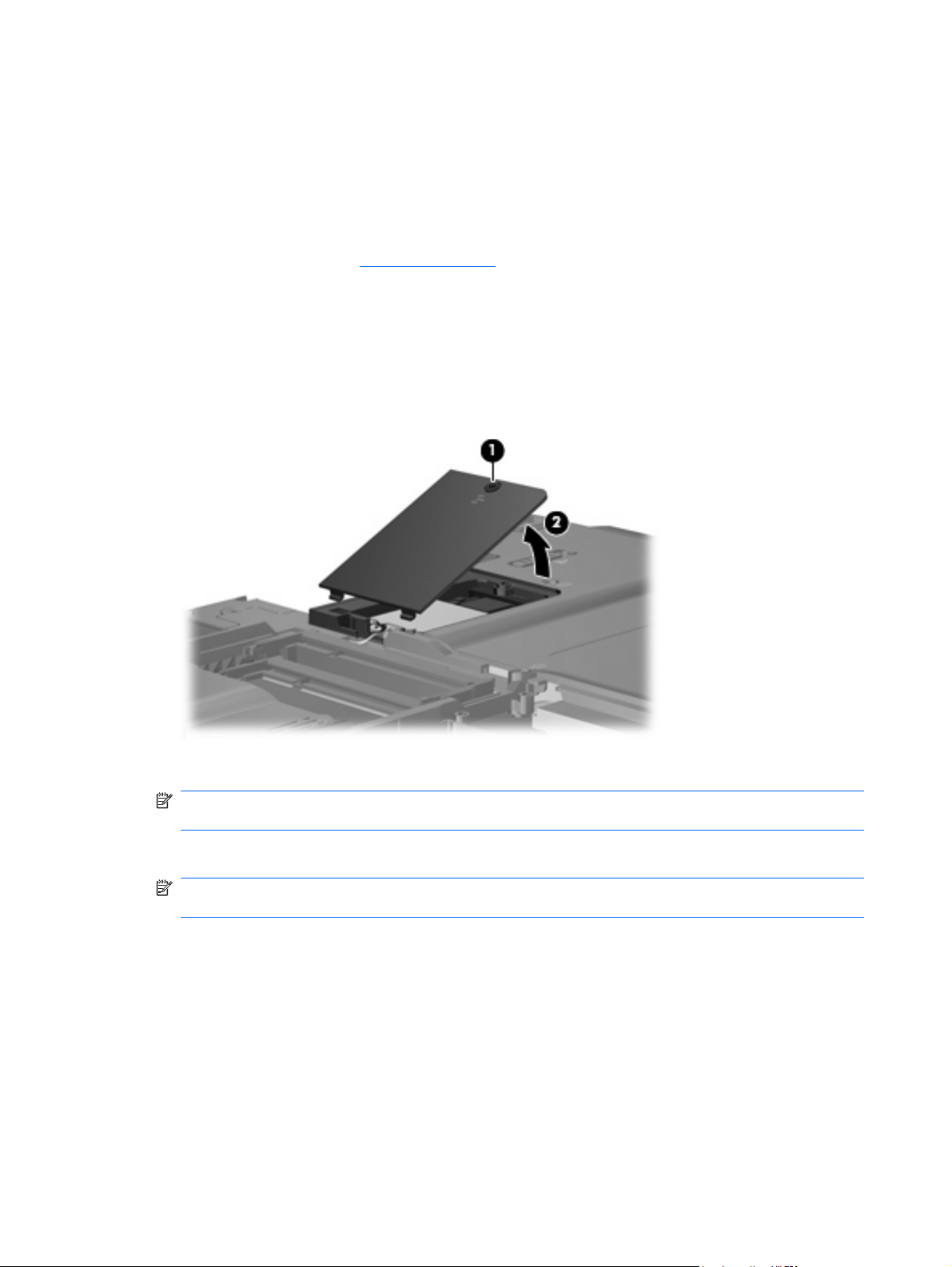

(7b) Memory module compartment cover (includes 2 captive screws, secured by C-clips)
16 Chapter 3 Illustrated parts catalog
Item Description Spare part number
(7c) WLAN module compartment cover (includes 1 captive screw, secured by a C-clip)
(7d) Hard drive cover (includes one rubber foot and 2 captive screws, secured by C-clips)
(7e) Display connector cover (includes 1 captive screw, secured by a C-clip)
(8a)
(8b) Power switch board actuator
(9a)
(9b) Pen holder
(10)

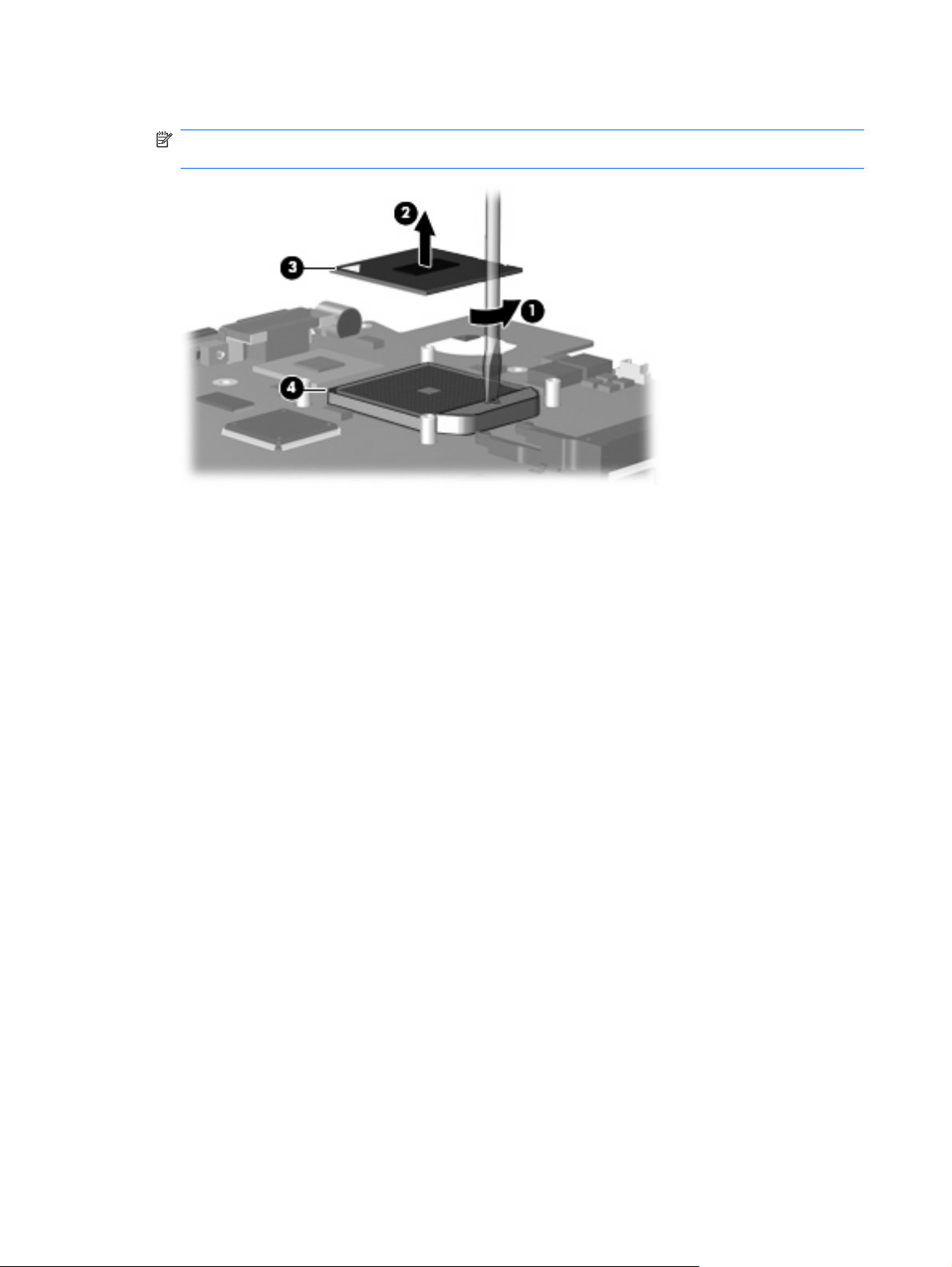

(11) Processors (include replacement thermal paste)
AMD Turion 64 Mobile Technology ZM-84 (2.3-GHz, 1-MB L2 cache, 800-MHz
AMD Turion 64 Mobile Technology ZM-82 (2.2-GHz, 1-MB L2 cache, 800-MHz
AMD Turion 64 Mobile Technology ZM-80 (2.1-GHz, 1-MB L2 cache, 800-MHz
AMD Turion 64 Mobile Technology RM-72 (2.1-GHz, 1-MB L2 cache, 800-MHz
AMD Turion 64 Mobile Technology RM-70 (2.0-GHz, 1-MB L2 cache, 800-MHz
Power switch assembly (includes power switch board cable and power switch board actuator)
Pen eject assembly (includes pen holder) 464113-001
System board (includes replacement thermal material) 480850-001
AMD Turion 64 Mobile Technology ZM-86 (2.4-GHz, 1-MB L2 cache, 800-MHz FSB)
FSB)
FSB)
FSB)
FSB)
FSB)
441142-001
480854-001
480853-001
480852-001
480851-001
496263-001
480857-001
AMD Athlon QL-62 (2.0-GHz, 512-KB L2 cache, 667-MHz FSB) 480855-001
AMD Athlon QL-60 (1.9-GHz, 512-KB L2 cache, 667-MHz FSB) 480856-001
(12) Audio/infrared board (includes audio/infrared board cable) 441144-001
(13) Fan/heat sink assembly (includes replacement thermal paste and thermal pads) 487925-001
(14) Pen 464146-001
(15) Optical drives (include bezel)
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 480865-001
(16) Base enclosure (includes optical drive release assembly, 2 battery release latches,
Rubber Feet Kit (not illustrated, includes base enclosure rubber feet) 464821-001
(17) Memory modules (1-DIMM, PC2-6400, 667-MHz, 800 DDR)
1024-MB 480860-001
512-MB 480859-001
(18) WLAN modules
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 480864-001
466437-001
and 4 rubber feet)
2048-MB 480861-001
Computer major components 17
Item Description Spare part number
Broadcom 4321AGN 802.11a/b/g/n WLAN modules:
For use in Canada, the Cayman Islands, Guam, Puerto Rico,
the U.S. Virgin Islands, and the United States
For use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
453730-001
453730-002
Broadcom 4311AG 802.11a/b/g WLAN modules:
For use in Japan
For use in Canada, the Cayman Islands, Guam, Puerto Rico,
the U.S. Virgin Islands, and the United States
For use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
453730-291
441075-001
441075-002
18 Chapter 3 Illustrated parts catalog
Item Description Spare part number
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
Broadcom 4311G 802.1b/g WLAN modules:
For use in Japan
For use in Canada, the Cayman Islands, Guam, Puerto Rico,
the U.S. Virgin Islands, and the United States
For use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
441075-291
Broadcom BCM4312 802.11b/g WLAN modules:
For use in Canada, the Cayman Islands, Guam, Puerto Rico,
the U.S. Virgin Islands, and the United States
For use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg,
459263-001
459263-002
Computer major components 19
Item Description Spare part number
Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
(19) Hard drives (all 5400-rpm; include hard drive bracket and hard drive connector)
400-GB 500141-001
320-GB 463643-003
250-GB 457061-003
160-GB 441128-003
120-GB 441127-003
Hard Drive Hardware Kit (not illustrated; includes hard drive bracket, hard drive
(20) Batteries
6-cell, 55-Ah, 2.55-Ah 441132-003
4-cell, 37-Ah, 2.55-Ah 441131-003

Plastics Kit

500-GB 497515-001
497744-001
connector, and hard drive screws)
8-cell, 73-Ah, 2.55-Ah 463650-003
20 Chapter 3 Illustrated parts catalog
Item Description Spare part number
Plastics Kit 487926-001
(1) ExpressCard slot bezel
(2) Hard drive cover (includes 1 rubber foot and 2 captive screws, secured by C-clips)
(3) Display connector cover (includes 1 captive screw, secured by a C-clip)
(4) WLAN module compartment cover (includes 1 captive screw, secured by a C-clip)
(5) Memory module compartment cover (includes 2 captive screws, secured by C-clips)

Mass storage devices

Item Description Spare part number
(1) Hard drives (all 5400-rpm) include frame and hard drive connector
400-GB 500141-001
320-GB 463463-003
250-GB 457061-003
160-GB 441128-003
120-GB 441127-003
Hard Drive Hardware Kit (includes hard drive bracket, hard drive connector, and
(2) Optical drives (include bezel and bracket)
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 480865-001
500-GB 497515-001
497744-001
hard drive screws)
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 480864-001
Mass storage devices 21

Miscellaneous parts

Description Spare part number
65-watt AC adapter 417220-001
ATSC/NTSC TV tuner antenna 455457-001
ATSC/NTSC TV tuner 455456-001
Audio/video cable 455459-001
Cat5E cable 454619-001
DVB-T TV tuner 412175-002
DVB-T TV tuner antenna 412176-003
DVB-T TV tuner antenna adapter 412176-001
HP backpack 405527-001
HP carrying case 418162-001
HP notebook protective sleeve 480105-001
Remote control (fits into ExpressCard slot) 465539-001
Infrared emitter with cable 439129-001
Optical wired mouse 436238-001
Power cords:
Argentina
Australia 490371-011
Brazil 490371-201
Denmark 490371-081
Europe 490371-021
India 490371-D61
Israel 490371-BB1
Italy 490371-061
Japan 490371-291
North America 490371-001
The People's Republic of China 490371-AA1
South Africa 490371-AR1
South Korea 490371-AD1
Switzerland 490371-111
Taiwan 490371-AB1
490371-D01
The United Kingdom 490371-031
22 Chapter 3 Illustrated parts catalog
Loading...
+ 94 hidden pages
