HP Pavilion HDX9200 User Manual

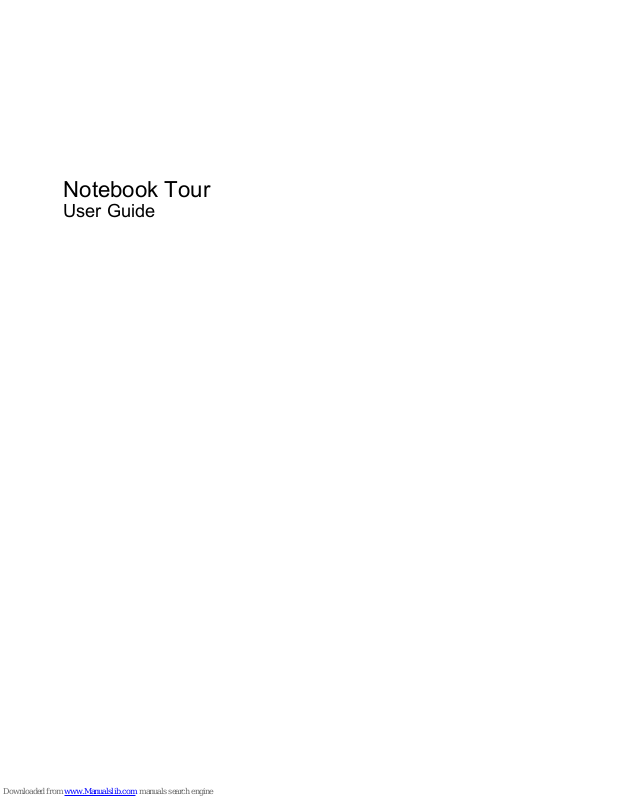

Notebook Tour
User Guide
© Copyright 2007 Hewlett-Packard
Development Company, L.P.
Microsoft and Windows are U.S. registered
trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. SD Logo is a
trademark of its proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: November 2007
Document Part Number: 459806-001
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
iii
iv Safety warning notice
Table of contents
1 Identifying hardware
2 Components
Product notice ...................................................................................................................................... 2
Display components ............................................................................................................................. 2
Top components ................................................................................................................................... 3
Top-left buttons and lights ................................................................................................... 3
Top-right buttons, lights, and fingerprint reader ................................................................... 4

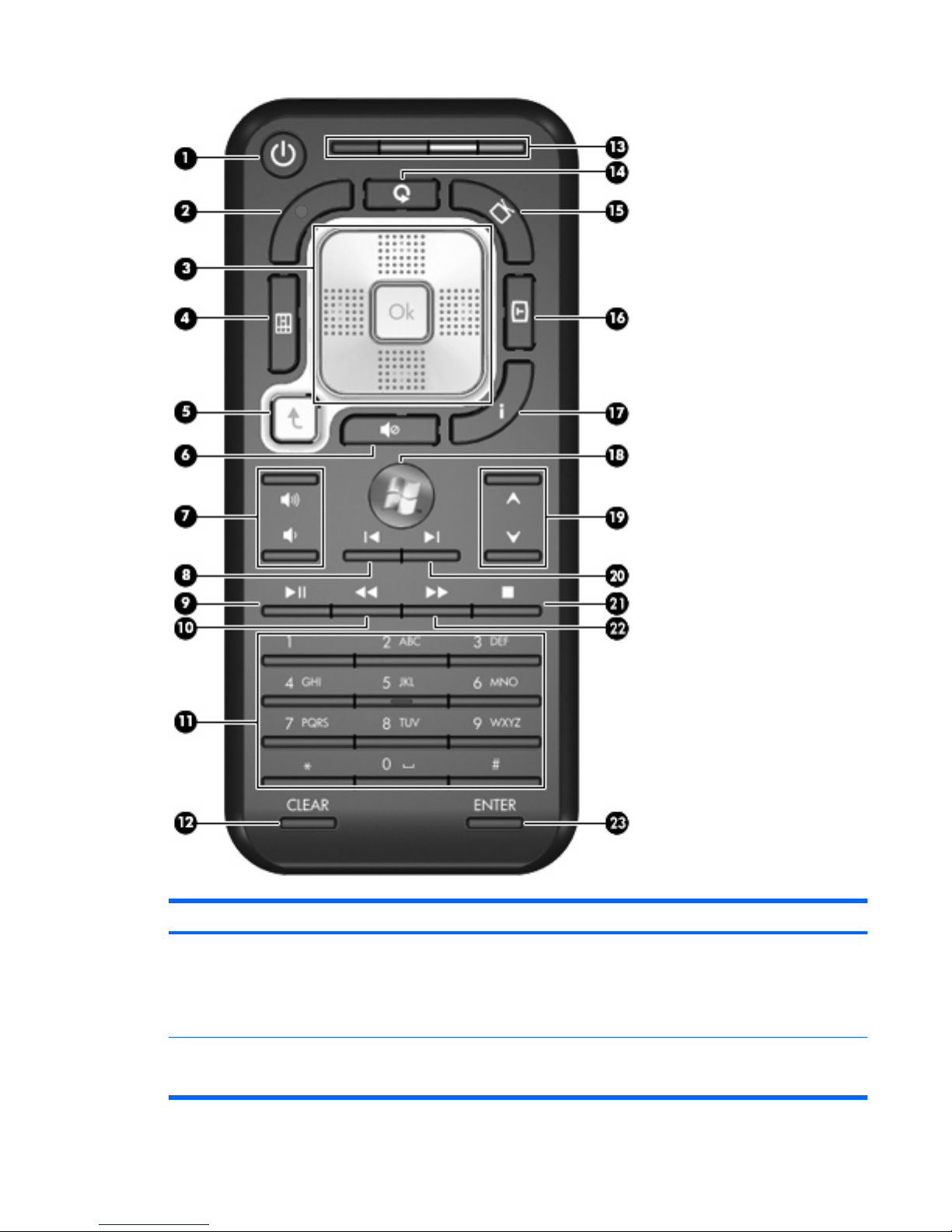

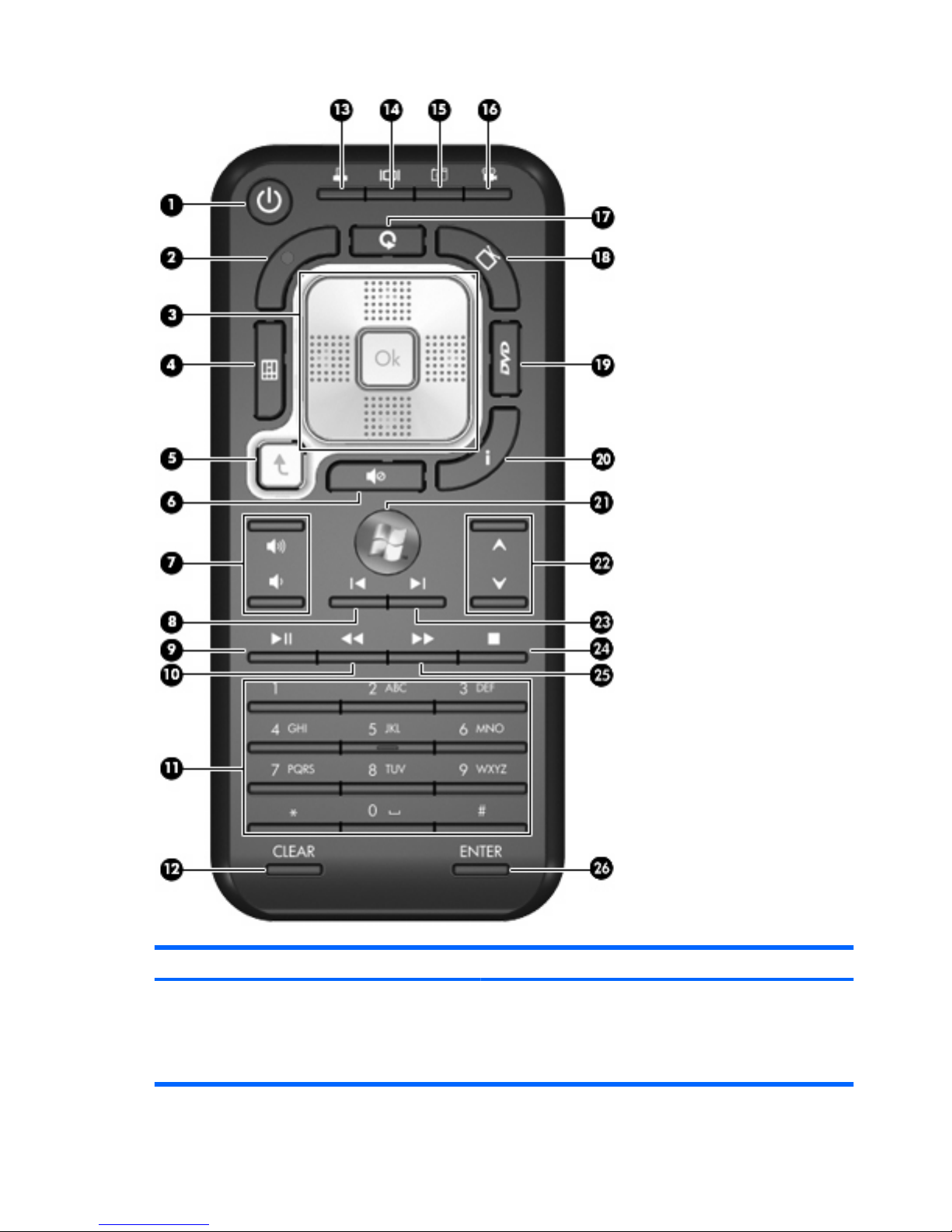

HP Dockable Media Center remote control ......................................................................... 5

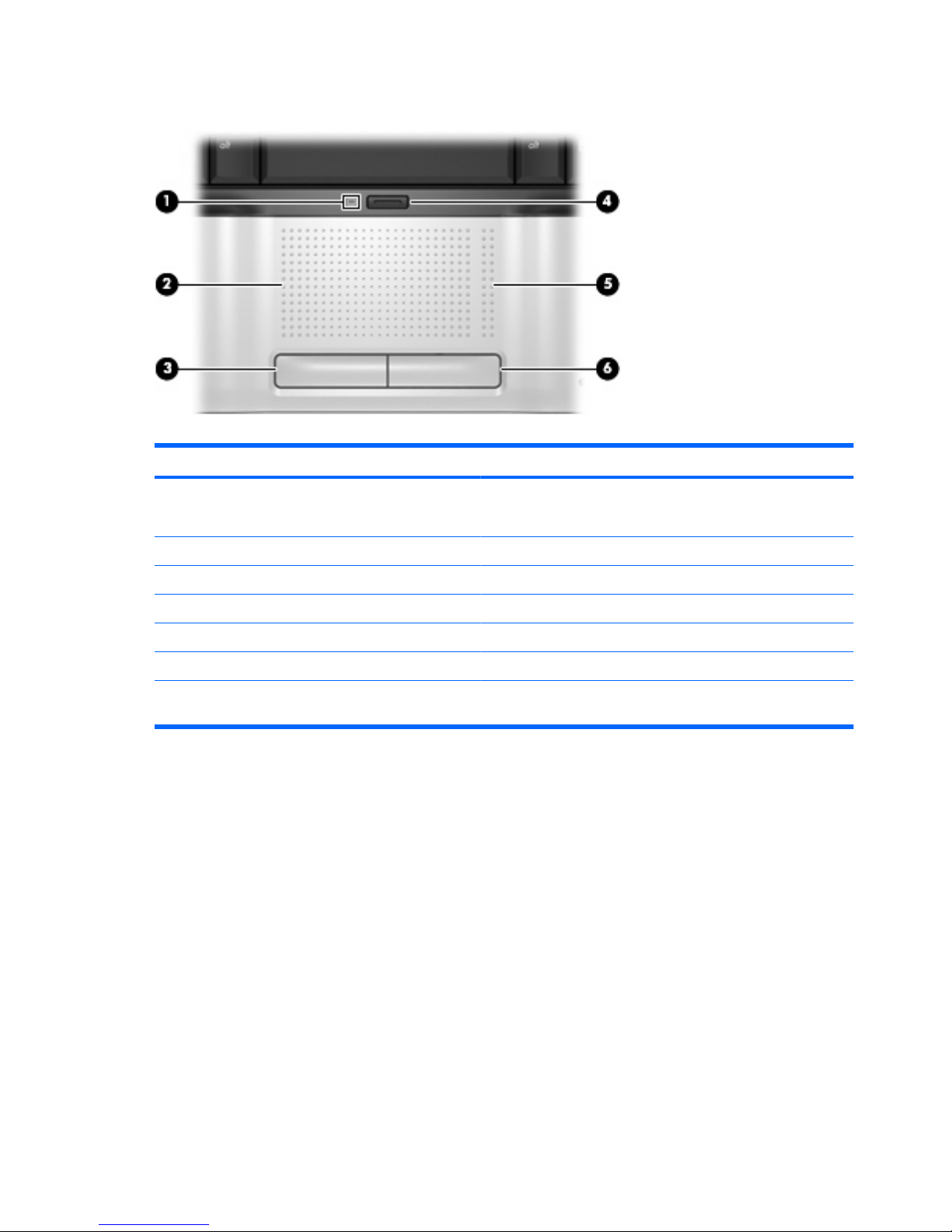

TouchPad .......................................................................................................................... 12

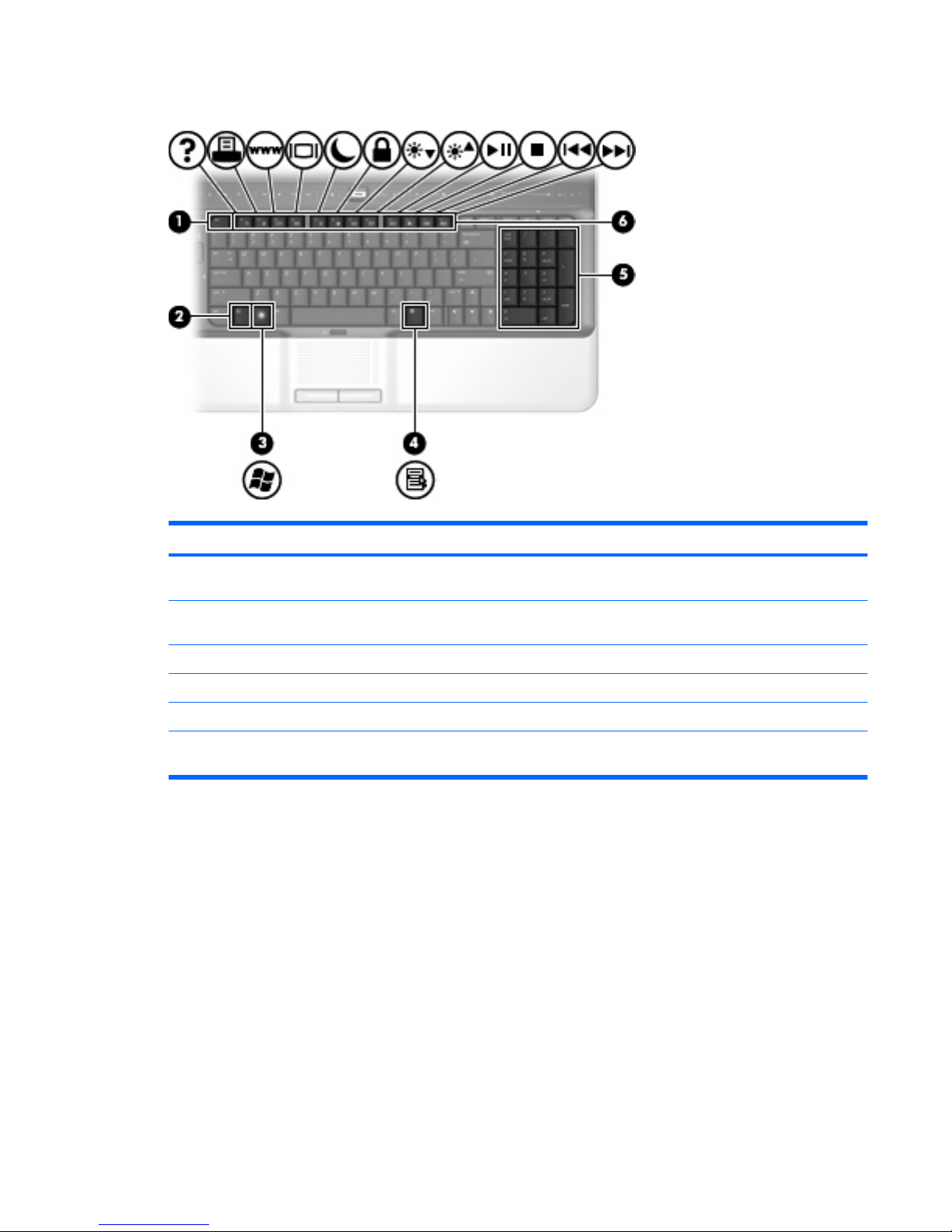

Keys ................................................................................................................................... 13

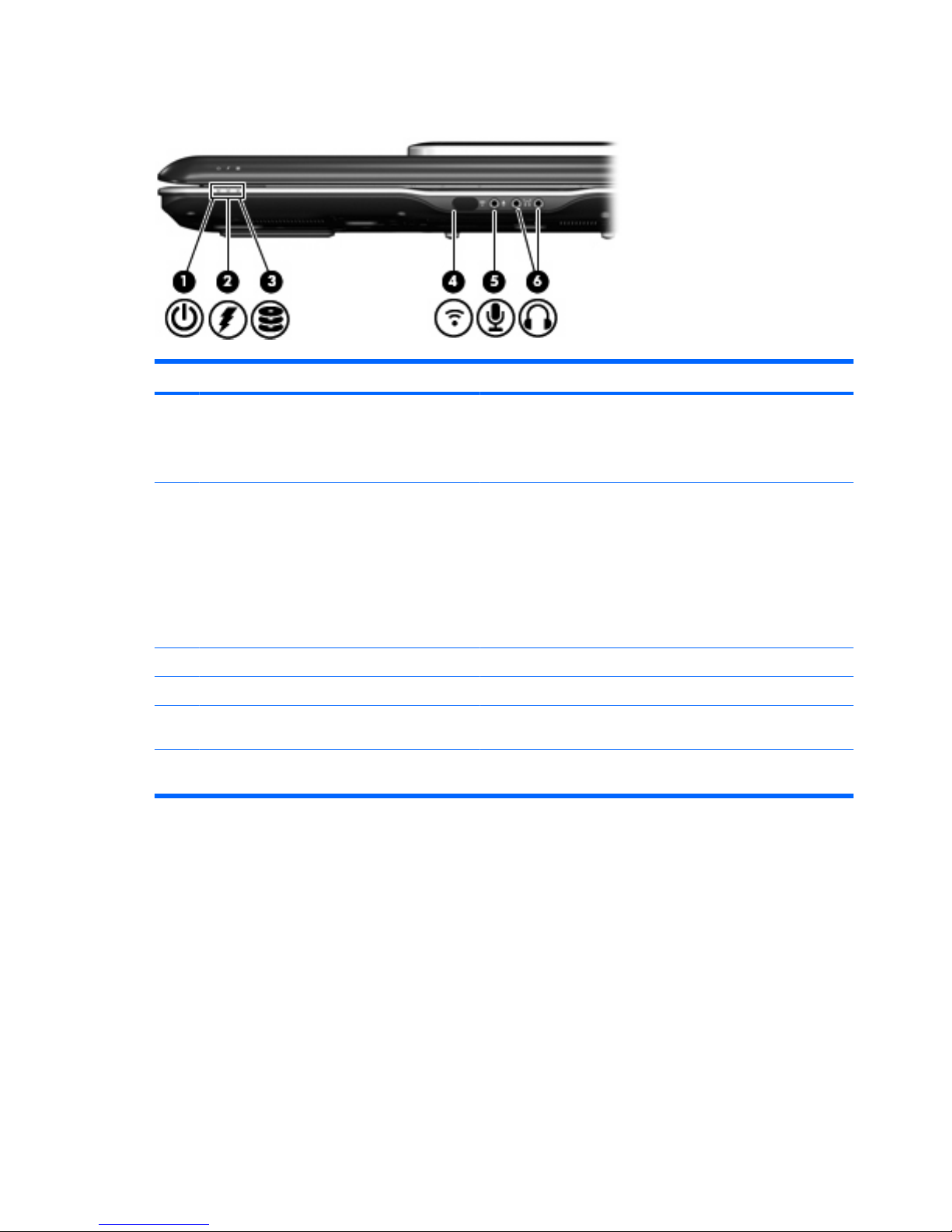

Front components .............................................................................................................................. 14

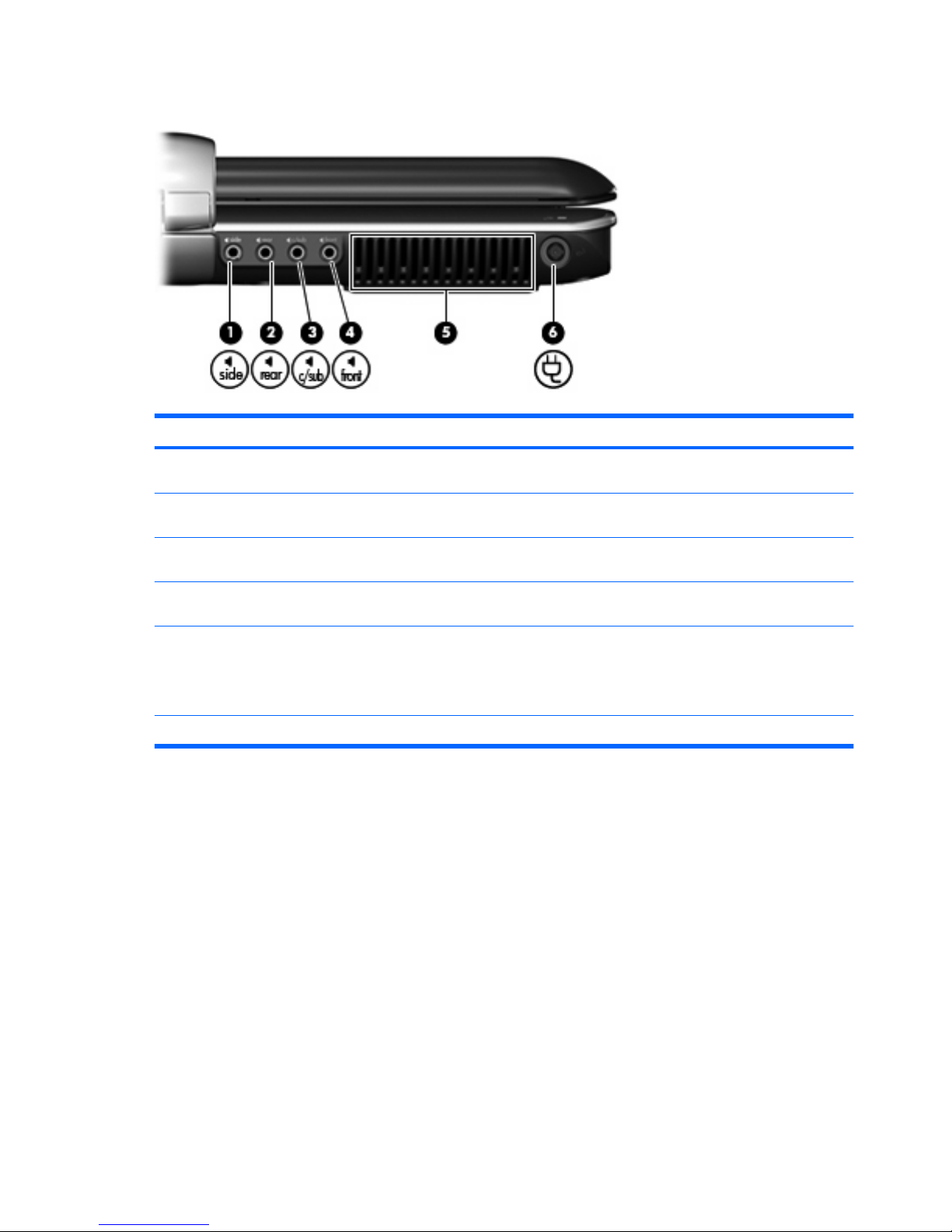

Rear components ............................................................................................................................... 15

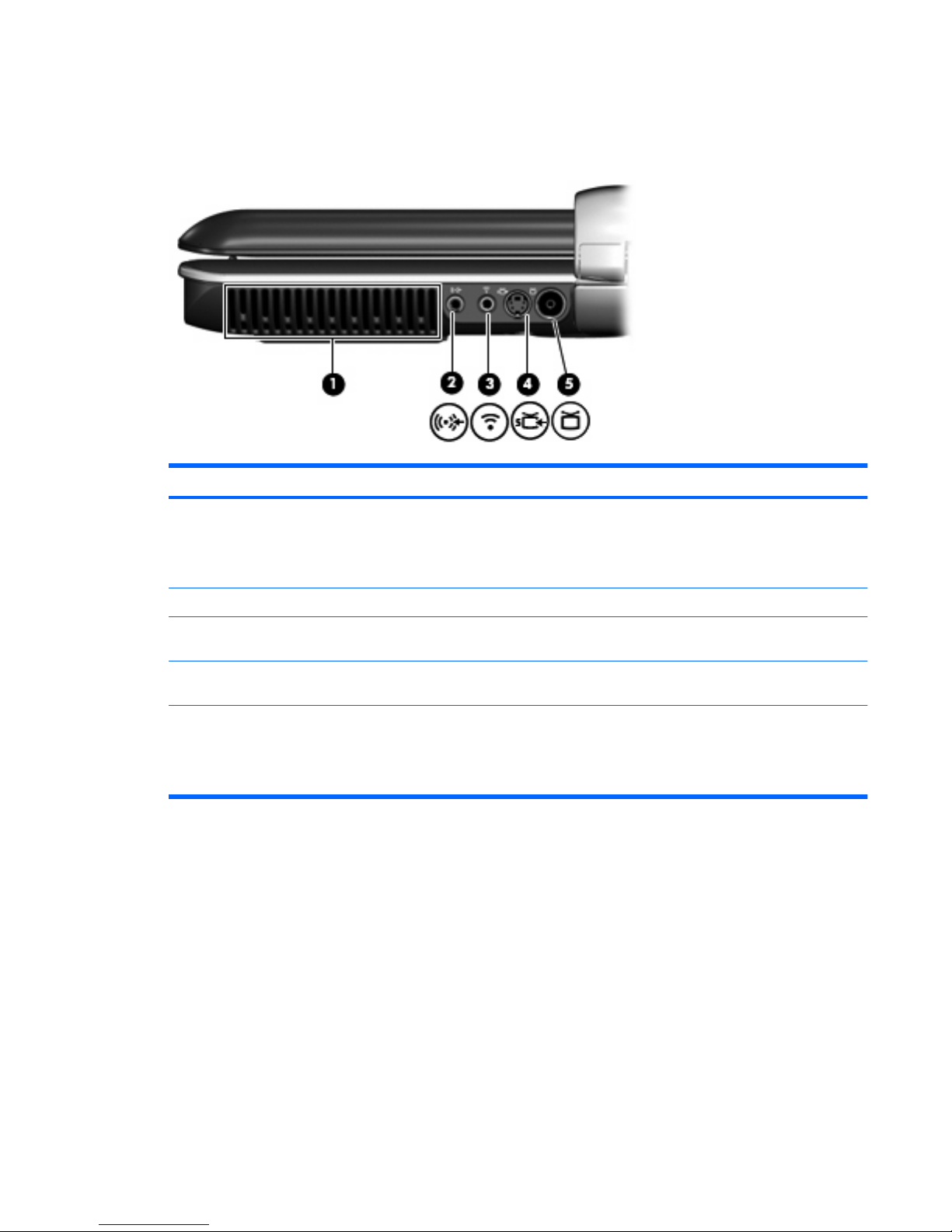

Rear left-side components ................................................................................................. 15
Rear right-side components ............................................................................................... 16

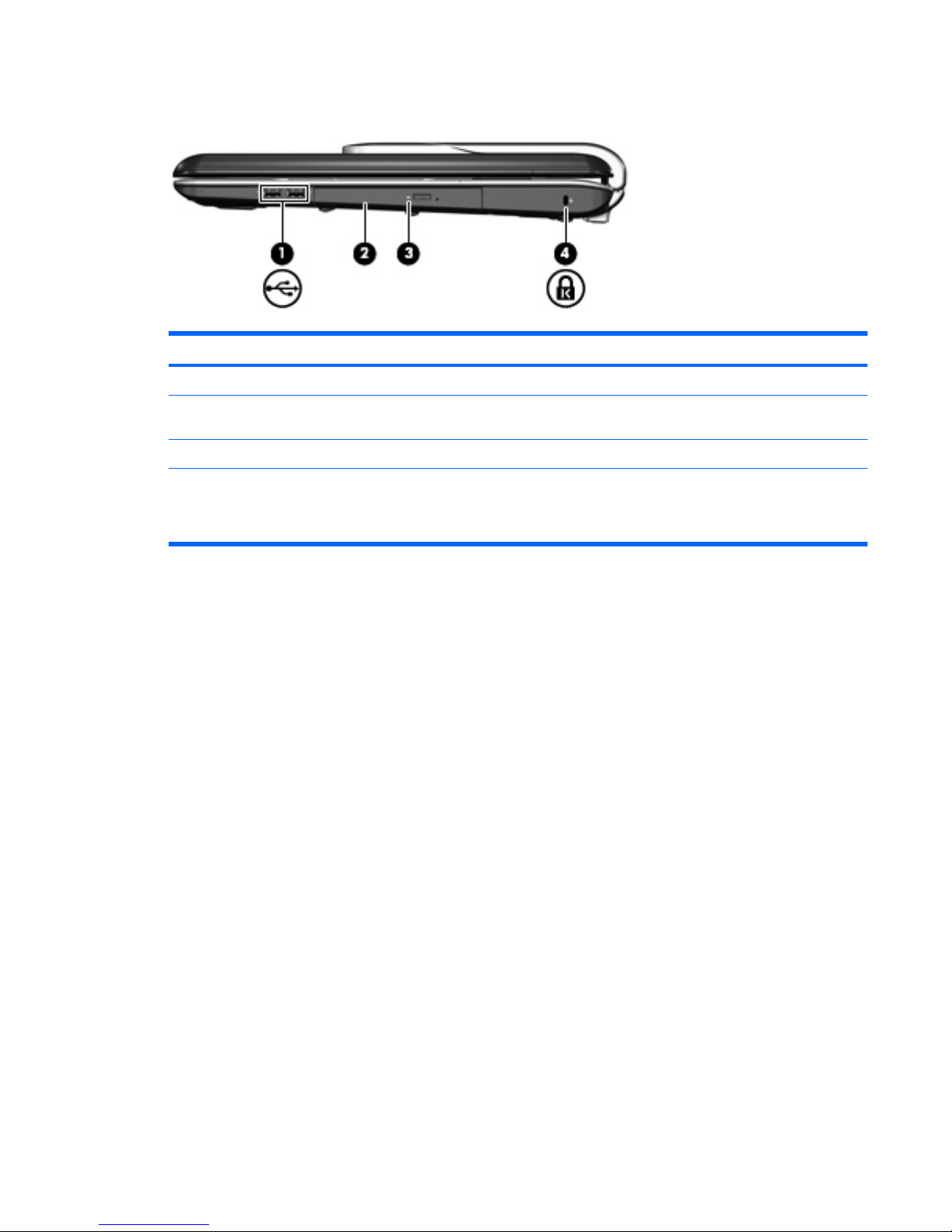

Right-side components ....................................................................................................................... 17

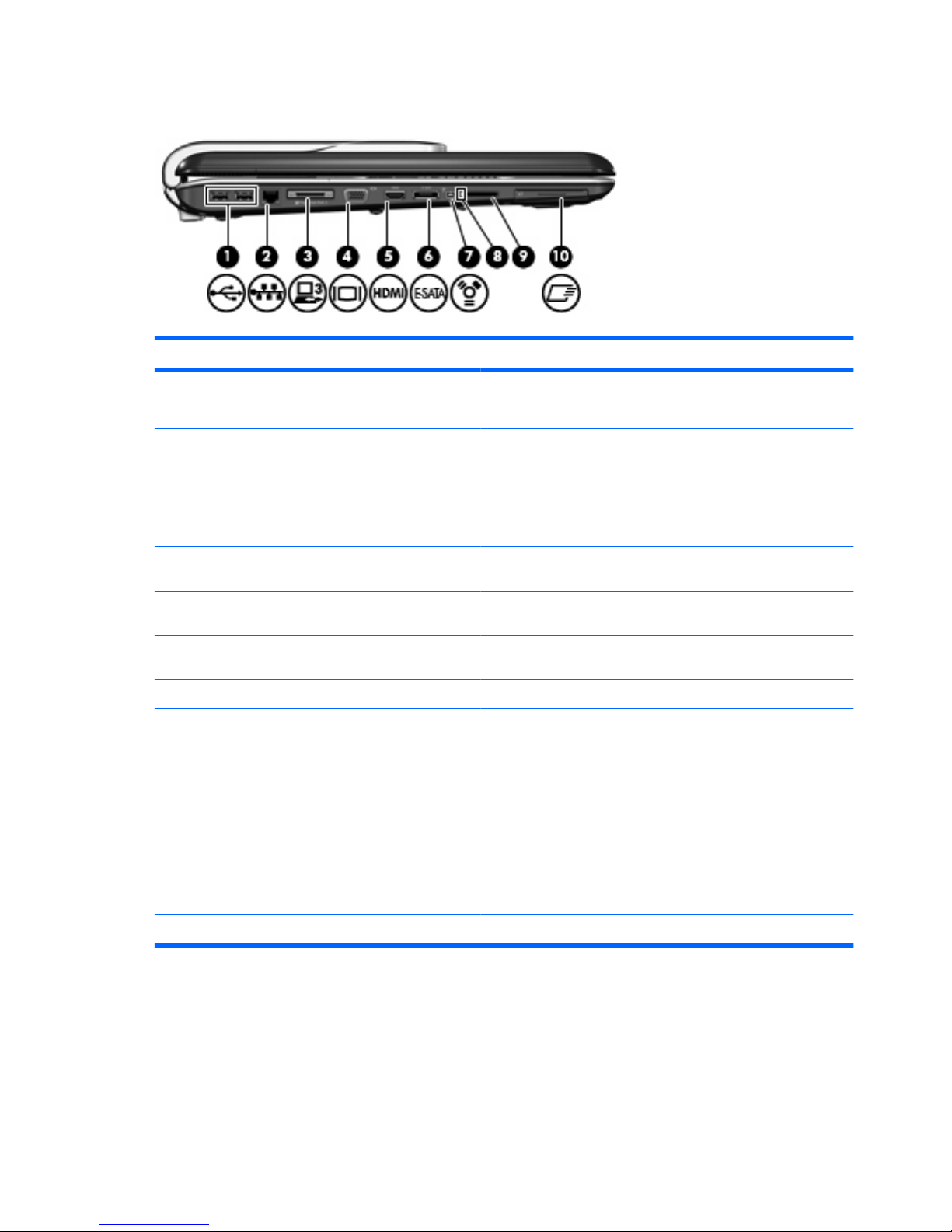

Left-side components ......................................................................................................................... 18

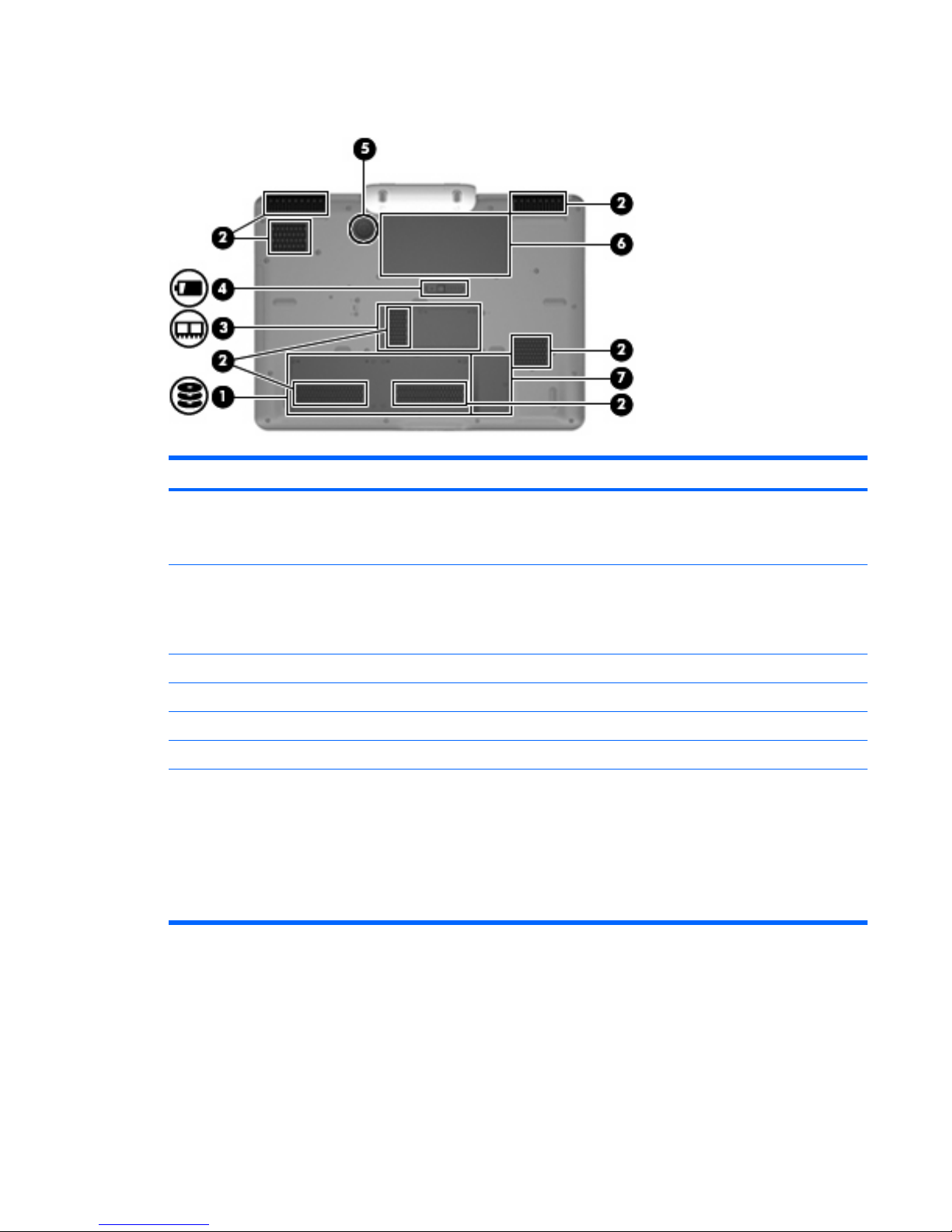

Bottom components ........................................................................................................................... 19

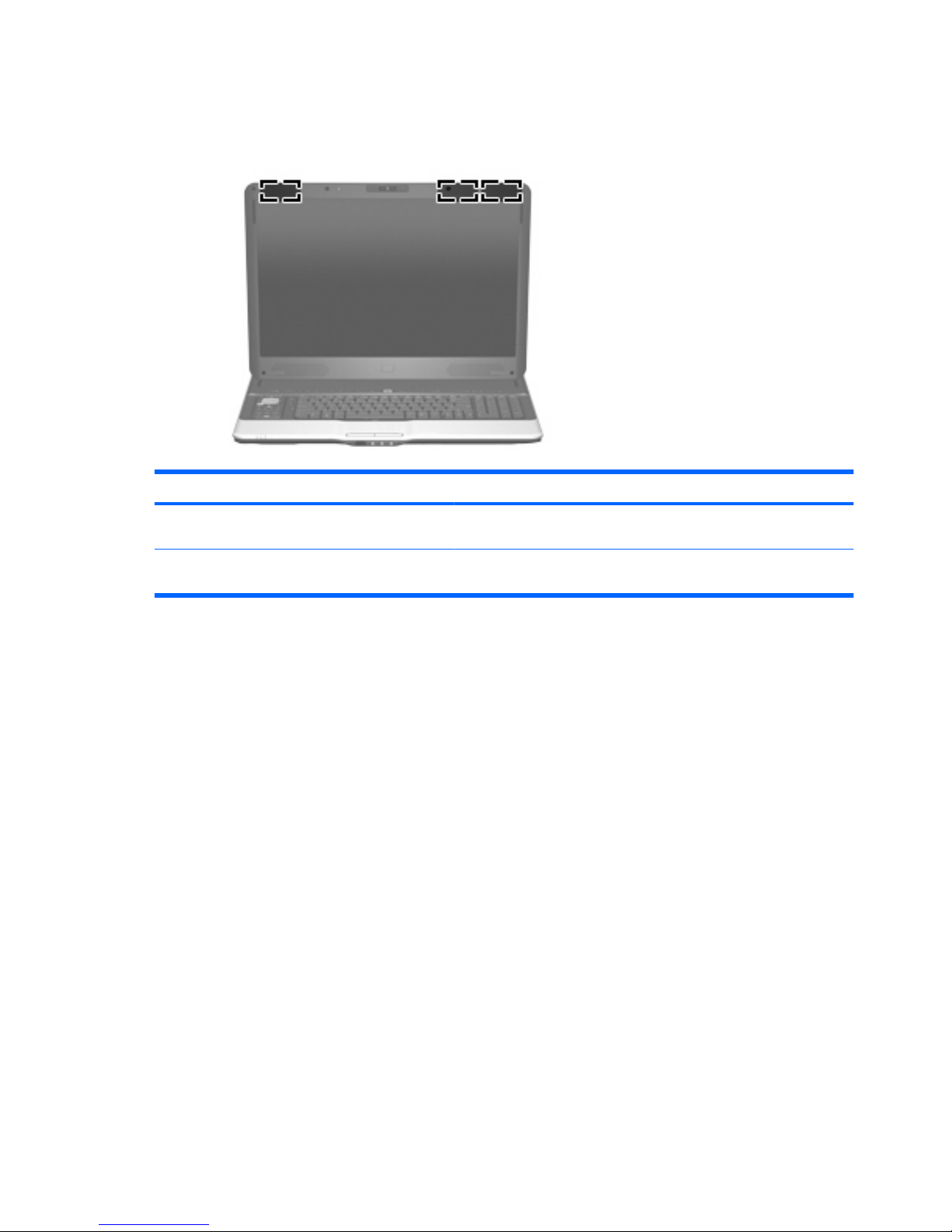

Wireless antennae .............................................................................................................................. 20

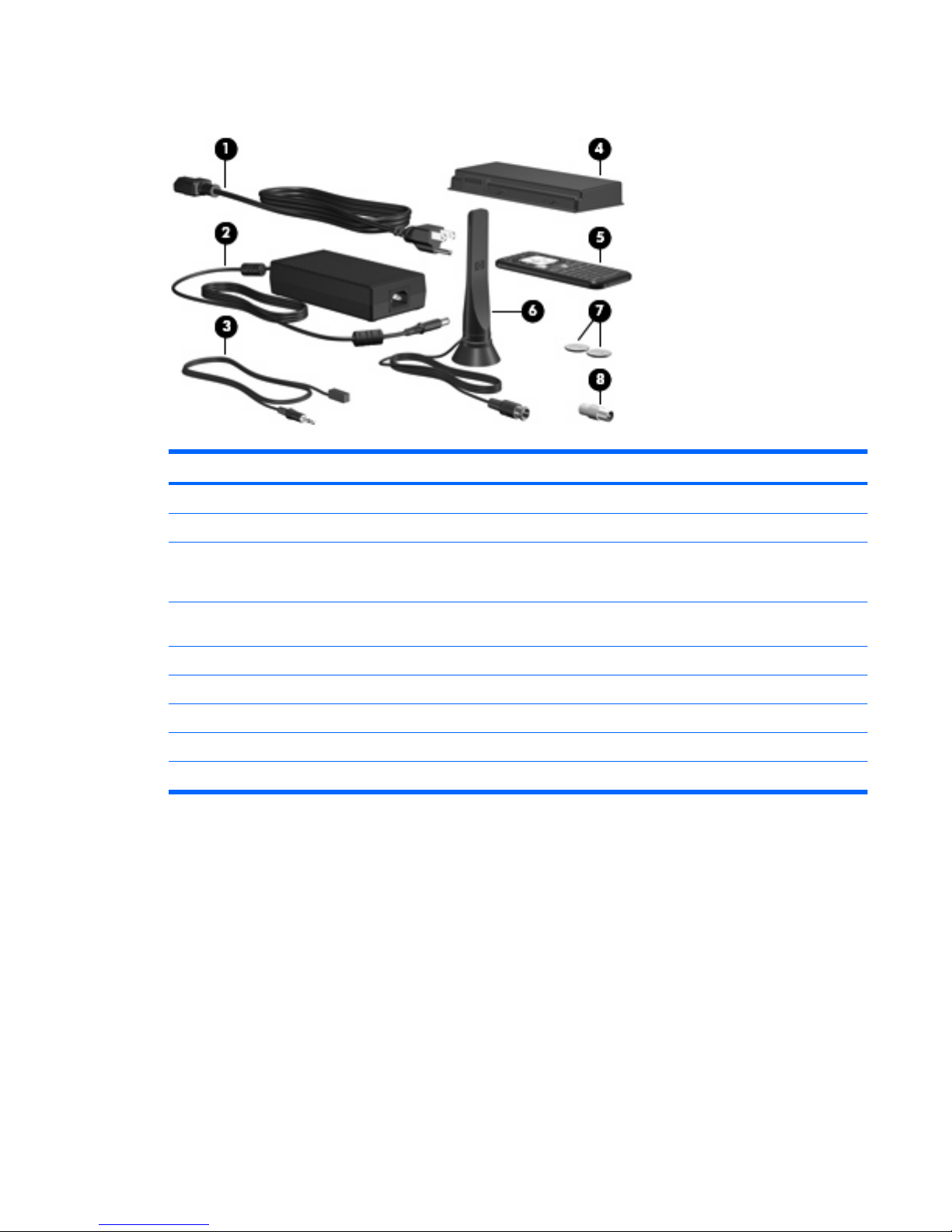

Additional hardware components ....................................................................................................... 21
3 Labels
Index ................................................................................................................................................................... 23
v
vi
1 Identifying hardware
To see a list of hardware installed in the computer, follow these steps:
1. Select Start > Computer > System properties.
2. In the left pane, click Device Manager.
You can also add hardware or modify device configurations using Device Manager.
NOTE: Windows® includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing applications, running
utilities, or changing Windows settings. Refer to Windows Help for more information.
1
2 Components
Product notice
This user guide describes features that are common to most models. Some features may not be
available on your computer.
Display components
Component Description
(1) Speakers (4) Produce sound.
(2) Internal microphones (2) Record sound.
NOTE: If there is a microphone icon next to each microphone
opening, your computer has internal microphones.
(3) HP Webcam light On: The integrated camera is in use.
(4) HP Webcam Records video and captures still photographs.
(5) HP Webcam rotator Tilts the camera vertically.
(6) Internal display switch Turns off the display if the display is closed while the computer is
on.
2 Chapter 2 Components
Top components
Top-left buttons and lights
Component Description
(1) Power button*
●
When the computer is off, press the button to turn on the
computer.
●
When the computer is on, press the button to initiate Sleep.
●
When the computer is in the Sleep state, press the button
briefly to exit Sleep.
●
When the computer is in Hibernation, press the button briefly
to exit Hibernation.
If the computer has stopped responding and Windows® shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, select Start > Control
Panel > System and Maintenance > Power Options.
(2) Power light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state.
●
Off: The computer is off or in Hibernation.
(3) Media button
●
Opens the QuickPlay program (for models with QuickPlay
preinstalled).
●
Opens the DVDPlay program (for models with DVDPlay
preinstalled).
NOTE: If the computer has been set up to require a logon
password, you may be asked to log on to Windows. QuickPlay or
DVDPlay opens after you log on. Refer to the QuickPlay or
DVDPlay software Help for more information.
Top components 3
Component Description
(4) DVD button Opens the DVD playback feature of the QuickPlay program.
NOTE: If the computer has been set up to require a logon
password, you may be asked to log on to Windows. QuickPlay
opens after you log on. Refer to the QuickPlay software Help for
more information.
(5) TV play button Opens the TV module within the QuickPlay program.
(6) Previous/rewind button
●
Plays the previous track or chapter when the button is pressed
once.
●
Rewinds media when the button is pressed simultaneously
with the fn key.
(7) Stop button Stops playback.
(8) Play/pause button Plays or pauses media.
(9) Next/fast forward button
●
Plays the next track or chapter when the button is pressed
once.
●
Fast forwards media when the button is pressed
simultaneously with the fn key.
(10) Theater mode button Dims the lights on the computer.
(11) Remote control eject button Ejects the remote control.
(12) Caps lock light On: Caps lock is on.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in Help
and Support.
Top-right buttons, lights, and fingerprint reader
Component Description
(1) Fingerprint reader Allows a fingerprint logon to Windows, instead of a password logon.
4 Chapter 2 Components
