HP Pavilion dv8-1000 User Manual

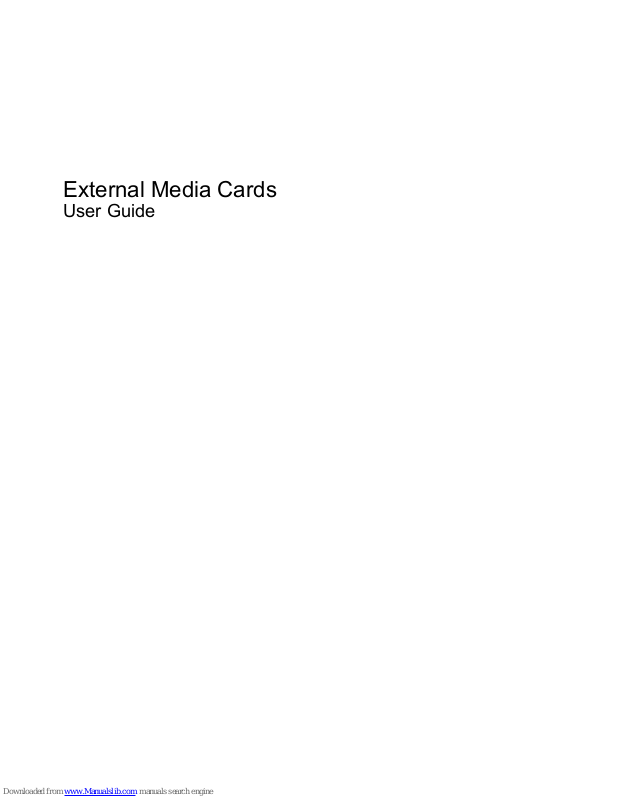

External Media Cards

User Guide

© Copyright 2009 Hewlett-Packard
Development Company, L.P.

SD Logo is a trademark of its proprietor.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

First Edition: August 2009

Document Part Number: 535986-001

Product notice

This user guide describes features that are
common to most models. Some features
may not be available on your computer.

Table of contents

1 Using Digital Media Slot cards

Inserting a digital card .......................................................................................................................... 2

Removing a digital card ........................................................................................................................ 3

2 Using ExpressCards

Configuring an ExpressCard ................................................................................................................ 4

Inserting an ExpressCard ..................................................................................................................... 5

Removing an ExpressCard .................................................................................................................. 6

Index ..................................................................................................................................................................... 7

iii

iv

1 Using Digital Media Slot cards

Optional digital cards provide secure data storage and convenient data sharing. These cards are often
used with digital media–equipped cameras and PDAs as well as with other computers.

The Digital Media Slot supports the following digital card formats:

●

Memory Stick (MS)

●

Memory Stick Pro (MSP)

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

xD-Picture Card (XD)

1

Inserting a digital card

CAUTION: To avoid damaging the digital card or the computer, do not insert any type of adapter into

the Digital Media Slot.

CAUTION: To prevent damage to the digital card connectors, use minimal force to insert a digital card.

1. Hold the digital card label-side up, with the connectors facing the computer.

2. Insert the card into the Digital Media Slot, and then push in on the card until it is firmly seated.

You will hear a sound when the device has been detected, and a menu of options may be displayed.

2 Chapter 1 Using Digital Media Slot cards

Removing a digital card

CAUTION: To prevent loss of data or an unresponsive system, use the following procedure to safely

remove the digital crad.

1. Save your information and close all programs associated with the digital card.

NOTE: To stop a data transfer, click Cancel in the operating system Copying window.

2. To remove a digital card:

a. Click the Safely Remove Hardware and Eject Media icon in the notification area, at far right

of the taskbar.

NOTE: To display the Safely Remove Hardware and Eject Media icon, click the Show

hidden icons icon (the arrow at the left side of the notification area).

b. Click the name of the digital card on the list.

NOTE: You are prompted that it is safe to remove the hardware device.

3. Press in on the digital card (1), and then remove the card from the slot (2).

Removing a digital card 3

2 Using ExpressCards

An ExpressCard is a high-performance PC Card that is inserted into the ExpressCard slot.

Like standard PC Cards, ExpressCards are designed to conform to the standard specifications of the
Personal Computer Memory Card International Association (PCMCIA).

Configuring an ExpressCard

Install only the software required for your device. If you are instructed by the ExpressCard manufacturer
to install device drivers:

●

Install only the device drivers for your operating system.

●

Do not install other software, such as card services, socket services, or enablers, supplied by the
ExpressCard manufacturer.

4 Chapter 2 Using ExpressCards

Inserting an ExpressCard

CAUTION: To prevent damage to the computer and external media cards, do not insert a PC Card

into an ExpressCard slot.

CAUTION: To prevent damage to the connectors:

Use minimal force when inserting an ExpressCard.

Do not move or transport the computer when an ExpressCard is in use.

The ExpressCard slot may contain a protective insert. To remove the insert:

1. Press in on the insert (1) to unlock it.

2. Pull the insert out of the slot (2).

To insert an ExpressCard:

1. Hold the card label-side up, with the connectors facing the computer.

2. Insert the card into the ExpressCard slot, and then push in on the card until it is firmly seated.

You will hear a sound when the device has been detected, and a menu of options may be displayed.

NOTE: The first time you insert an ExpressCard, a message is displayed in the notification area

to let you know the device is recognized by the computer.

NOTE: An inserted ExpressCard uses power even when idle. To conserve power, stop or remove an

ExpressCard when it is not in use.

Inserting an ExpressCard 5

Removing an ExpressCard

CAUTION: To prevent loss of data or an unresponsive system, use the following procedure to safely

remove the ExpressCard.

1. Save your information and close all programs associated with the ExpressCard.

NOTE: To stop a data transfer, click Cancel in the operating system Copying window.

2. To remove an ExpressCard:

a. Click the Safely Remove Hardware and Eject Media icon in the notification area, at far right

of the taskbar.

NOTE: To display the Safely Remove Hardware and Eject Media icon, click the Show

hidden icons icon (the arrow at the left side of the notification area).

b. Click the name of the ExpressCard in the list.

NOTE: You are prompted that it is safe to remove the hardware device.

3. Release and remove the ExpressCard:

a. Gently press in on the ExpressCard (1) to unlock it.

b. Pull the ExpressCard out of the slot (2).

6 Chapter 2 Using ExpressCards

Index

C

configuring ExpressCards 4

D

digital card

defined 1
inserting 2
removing 3
stopping 3

E

ExpressCard

configuring 4
defined 4
inserting 5
removing 6
removing insert 5
stopping 6

Index 7
