Hp PAVILION a610l Technical Specifications

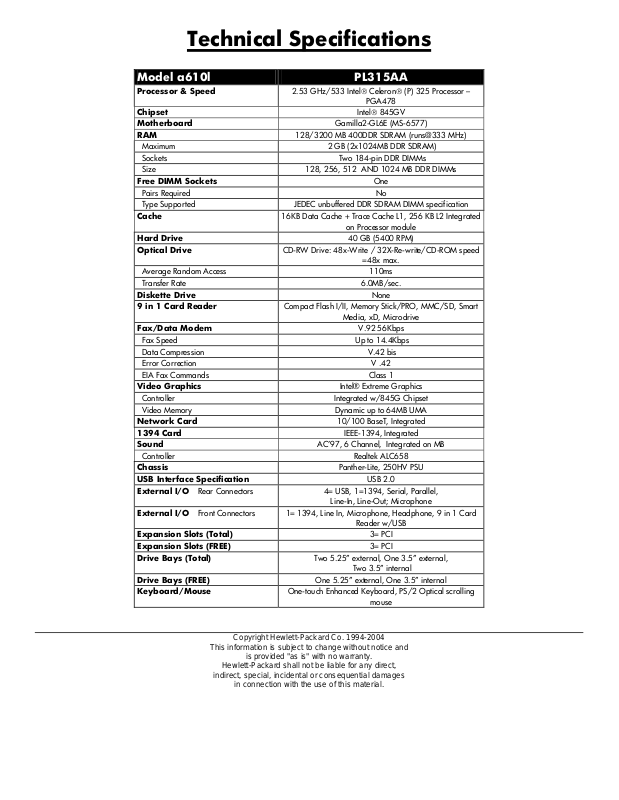

Technical Specifications

Model a610l PL315AA

Processor & Speed 2.53 GHz/533 Intel® Celeron® (P) 325 Processor –

PGA478

Chipset Intel® 845GV
Motherboard Gamilla2-GL6E (MS-6577)
RAM 128/3200 MB 400DDR SDRAM (runs@333 MHz)

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 16KB Data Cache + Trace Cache L1, 256 KB L2 Integrated

on Processor module

Hard Drive 40 GB (5400 RPM)
Optical Drive CD-RW Drive: 48x-Write / 32X-Re-write/CD-ROM speed

=48x max.
Average Random Access 110ms
Transfer Rate 6.0MB/sec.

Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Media, xD, Microdrive
Fax/Data Modem V.92 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/845G Chipset
Video Memory Dynamic up to 64MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Panther-Lite, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 1= 1394, Line In, Microphone, Headphone, 9 in 1 Card

Reader w/USB

Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 3= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
