HP Pavilion a609hk Technical Specifications

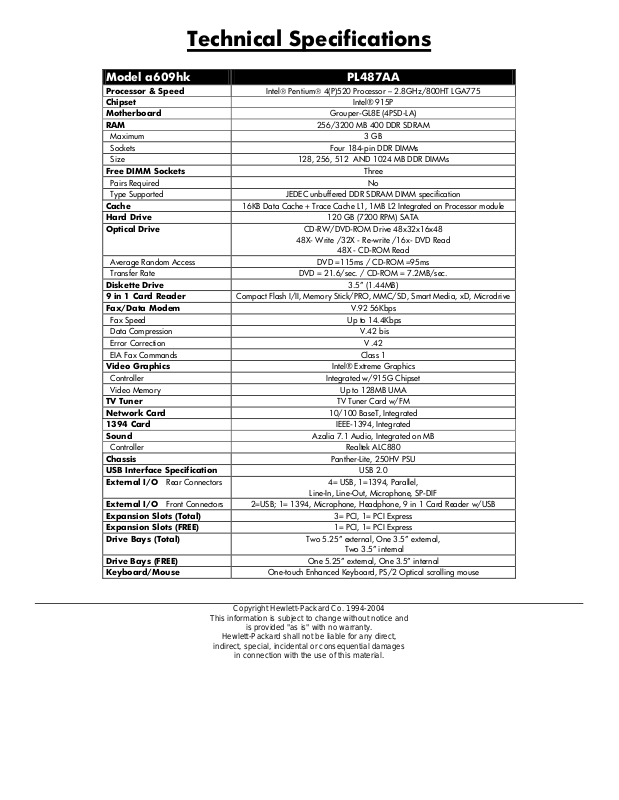

Technical Specifications

Model a609hk PL487AA

Processor & Speed Intel® Pentium® 4(P)520 Processor – 2.8GHz/800HT LGA775
Chipset Intel® 915P
Motherboard Grouper-GL8E (4PSD-LA)
RAM 256/3200 MB 400 DDR SDRAM

Maximum 3 GB
Sockets Four 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets Three
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 16KB Data Cache + Trace Cache L1, 1MB L2 Integrated on Processor module
Hard Drive 120 GB (7200 RPM) SATA
Optical Drive CD-RW/DVD-ROM Drive 48x32x16x48

48X- Write /32X - Re-write /16x- DVD Read

48X - CD-ROM Read
Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive 3.5” (1.44MB)
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart Media, xD, Microdrive
Fax/Data Modem V.92 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/915G Chipset
Video Memory Up to 128MB UMA

TV Tuner TV Tuner Card w/FM
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound Azalia 7.1 Audio, Integrated on MB
Controller Realtek ALC880
Chassis Panther-Lite, 250HV PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Parallel,

Line-In, Line-Out, Microphone, SP-DIF

External I/O Front Connectors 2=USB; 1= 1394, Microphone, Headphone, 9 in 1 Card Reader w/USB
Expansion Slots (Total) 3= PCI, 1= PCI Express
Expansion Slots (FREE) 1= PCI, 1= PCI Express
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling mouse
