HP Pavilion a600d User guide

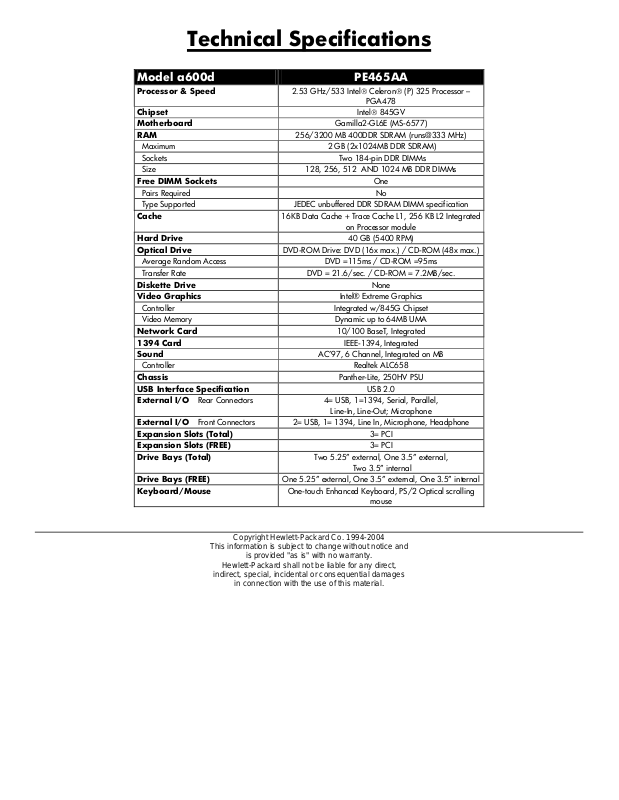

Technical Specifications

Model a600d PE465AA

Processor & Speed 2.53 GHz/533 Intel® Celeron® (P) 325 Processor –

PGA478

Chipset Intel® 845GV Motherboard Gamilla2-GL6E (MS-6577) RAM 256/3200 MB 400DDR SDRAM (runs@333 MHz)

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 16KB Data Cache + Trace Cache L1, 256 KB L2 Integrated

on Processor module

Hard Drive 40 GB (5400 RPM) Optical Drive DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)

Average Random Access DVD =115ms / CD-ROM =95ms Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive None Video Graphics Intel® Extreme Graphics

Controller Integrated w/845G Chipset Video Memory Dynamic up to 64MB UMA

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC658 Chassis Panther-Lite, 250HV PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2= USB, 1= 1394, Line In, Microphone, Headphone Expansion Slots (Total) 3= PCI Expansion Slots (FREE) 3= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5” internal Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse
