HP Pavilion a538hk Technical Specifications

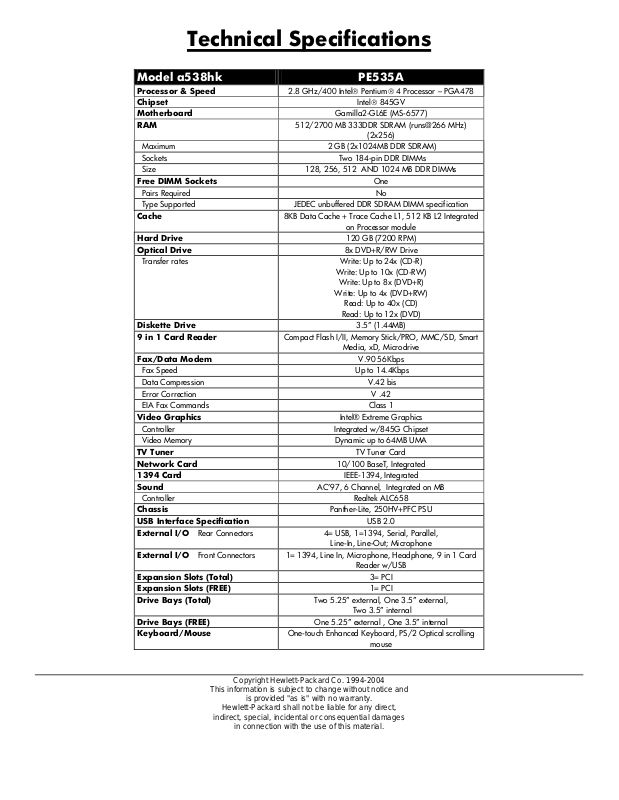

Technical Specifications

Model a538hk PE535A

Processor & Speed 2.8 GHz/400 Intel® Pentium® 4 Processor – PGA478
Chipset Intel® 845GV
Motherboard Gamilla2-GL6E (MS-6577)
RAM 512/2700 MB 333DDR SDRAM (runs@266 MHz)

(2x256)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 8KB Data Cache + Trace Cache L1, 512 KB L2 Integrated

on Processor module

Hard Drive 120 GB (7200 RPM)
Optical Drive 8x DVD+R/RW Drive

Transfer rates

Diskette Drive 3.5” (1.44MB)
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD, Smart

Fax/Data Modem V.90 56Kbps

Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics Intel® Extreme Graphics
Controller Integrated w/845G Chipset
Video Memory Dynamic up to 64MB UMA

TV Tuner TV Tuner Card
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC658
Chassis Panther-Lite, 250HV+PFC PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

External I/O Front Connectors 1= 1394, Line In, Microphone, Headphone, 9 in 1 Card

Expansion Slots (Total) 3= PCI
Expansion Slots (FREE) 1= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external , One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

Write: Up to 24x (CD-R)

Write: Up to 10x (CD-RW)

Write: Up to 8x (DVD+R)

Write: Up to 4x (DVD+RW)

Read: Up to 40x (CD)

Read: Up to 12x (DVD)

Media, xD, Microdrive

Line-In, Line-Out; Microphone

Reader w/USB

Two 3.5” internal

mouse
