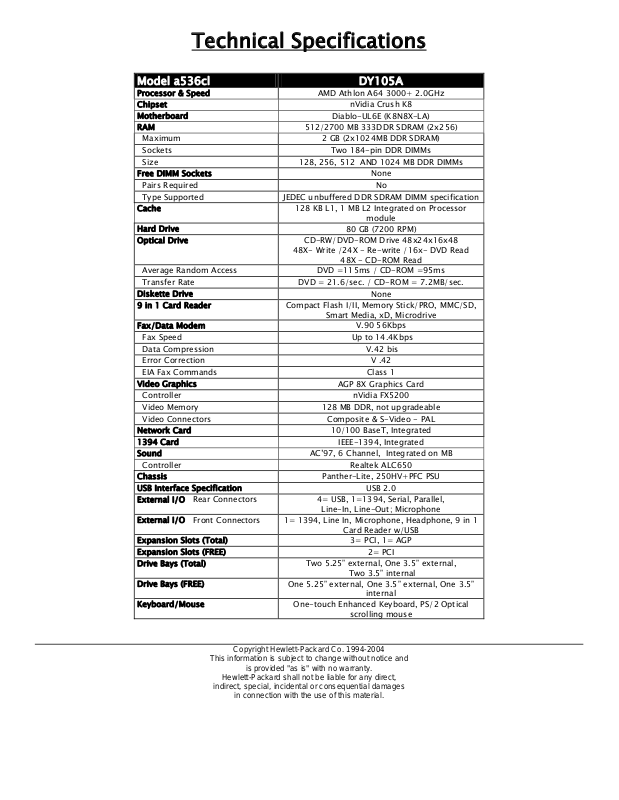

Technical Specifications

Model a536cl DY105A

Processor & Speed AMD Athlon A64 3000+ 2.0GHz
Chipset nVidia Crush K8
Motherboard Diablo-UL6E (K8N8X-LA)
RAM 512/2700 MB 333DDR SDRAM (2x256)
Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets None
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification
Cache 128 KB L1, 1 MB L2 Integrated on Processor

Hard Drive 80 GB (7200 RPM)
Optical Drive CD-RW/DVD-ROM Drive 48x24x16x48

48X- Write /24X - Re-write /16x- DVD Read

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.
Diskette Drive None
9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD,

Smart Media, xD, Microdrive

Fax/Data Modem V.90 56Kbps
Fax Speed Up to 14.4Kbps
Data Compression V.42 bis
Error Correction V .42
EIA Fax Commands Class 1
Video Graphics AGP 8X Graphics Card
Controller nVidia FX5200
Video Memory 128 MB DDR, not upgradeable
Video Connectors Composite & S-Video - PAL
Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650
Chassis Panther-Lite, 250HV+PFC PSU
USB Interface Specification USB 2.0
External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 1= 1394, Line In, Microphone, Headphone, 9 in 1

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 2= PCI
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5”

Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical

Copyright Hewlett-Packard Co. 1994-2004

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

module

48X - CD-ROM Read

Card Reader w/USB

Two 3.5” internal

internal

scrolling mouse
