HP Pavilion a508l Technical Data

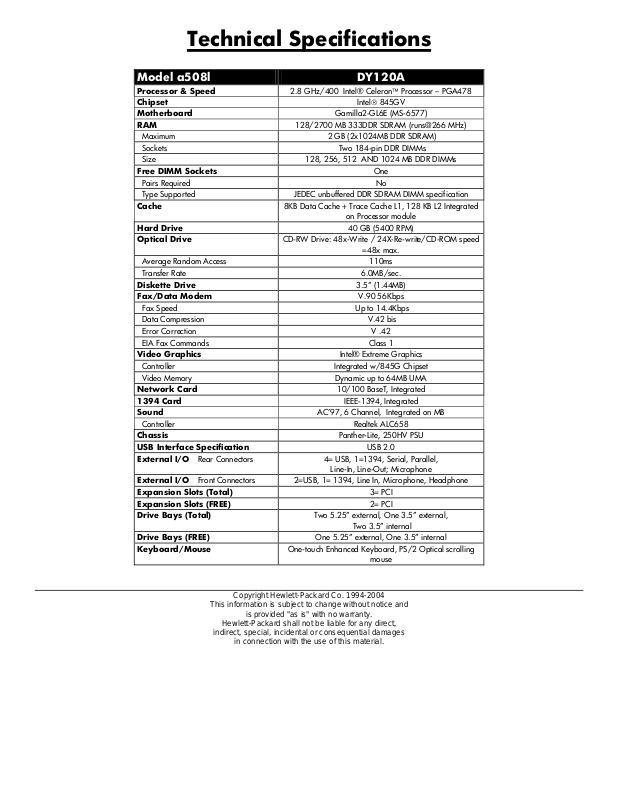

Technical Specifications

Model a508l DY120A

Processor & Speed 2.8 GHz/400 Intel® Celeron™ Processor – PGA478 Chipset Intel® 845GV Motherboard Gamilla2-GL6E (MS-6577) RAM 128/2700 MB 333DDR SDRAM (runs@266 MHz)

Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 8KB Data Cache + Trace Cache L1, 128 KB L2 Integrated

on Processor module

Hard Drive 40 GB (5400 RPM) Optical Drive CD-RW Drive: 48x-Write / 24X-Re-write/CD-ROM speed

=48x max. Average Random Access 110ms Transfer Rate 6.0MB/sec.

Diskette Drive 3.5” (1.44MB) Fax/Data Modem V.90 56Kbps

Fax Speed Up to 14.4Kbps Data Compression V.42 bis Error Correction V .42 EIA Fax Commands Class 1 Video Graphics Intel® Extreme Graphics Controller Integrated w/845G Chipset Video Memory Dynamic up to 64MB UMA

Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC658 Chassis Panther-Lite, 250HV PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

Line-In, Line-Out; Microphone

External I/O Front Connectors 2=USB, 1= 1394, Line In, Microphone, Headphone Expansion Slots (Total) 3= PCI Expansion Slots (FREE) 2= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse

This information is subject to change without notice and

indirect, special, incidental or consequential damages

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

in connection with the use of this material.
