HP Pavilion a408d User guide

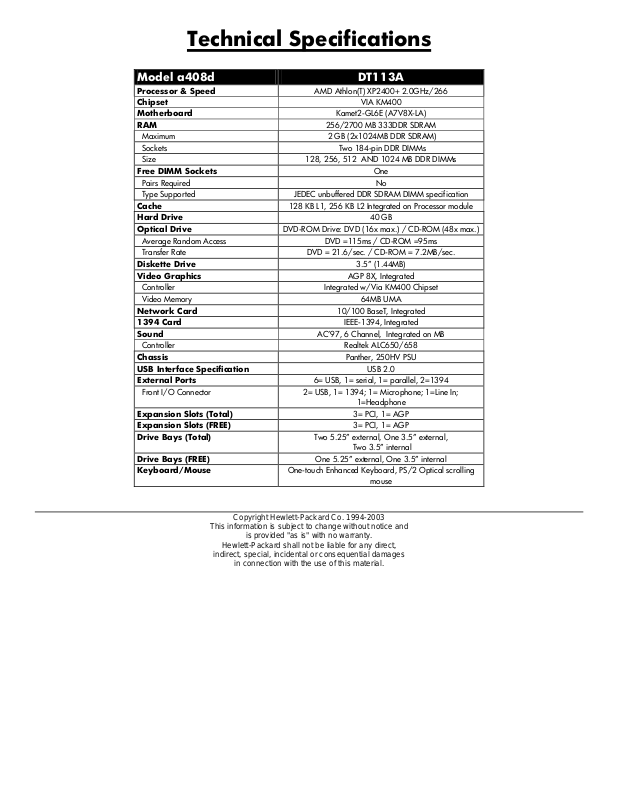

Technical Specifications

Model a408d DT113A

Processor & Speed AMD Athlon(T) XP2400+ 2.0GHz/266
Chipset VIA KM400
Motherboard Kamet2-GL6E (A7V8X-LA)
RAM 256/2700 MB 333DDR SDRAM

Maximum 2 GB (2x1024MB DDR SDRAM)
Sockets Two 184-pin DDR DIMMs
Size 128, 256, 512 AND 1024 MB DDR DIMMs
Free DIMM Sockets One
Pairs Required No
Type Supported JEDEC unbuffered DDR SDRAM DIMM specification

Cache 128 KB L1, 256 KB L2 Integrated on Processor module
Hard Drive 40 GB
Optical Drive DVD-ROM Drive: DVD (16x max.) / CD-ROM (48x max.)

Average Random Access DVD =115ms / CD-ROM =95ms
Transfer Rate DVD = 21.6/sec. / CD-ROM = 7.2MB/sec.

Diskette Drive 3.5” (1.44MB)
Video Graphics AGP 8X, Integrated

Controller Integrated w/Via KM400 Chipset
Video Memory 64MB UMA

Network Card 10/100 BaseT, Integrated
1394 Card IEEE-1394, Integrated
Sound AC’97, 6 Channel, Integrated on MB
Controller Realtek ALC650/658
Chassis Panther, 250HV PSU
USB Interface Specification USB 2.0
External Ports 6= USB, 1= serial, 1= parallel, 2=1394

Front I/O Connector 2= USB, 1= 1394; 1= Microphone; 1=Line In;

1=Headphone

Expansion Slots (Total) 3= PCI, 1= AGP
Expansion Slots (FREE) 3= PCI, 1= AGP
Drive Bays (Total) Two 5.25” external, One 3.5” external,

Two 3.5” internal

Drive Bays (FREE) One 5.25” external, One 3.5” internal
Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical scrolling

mouse

Copyright Hewlett-Packard Co. 1994-2003

This information is subject to change without notice and

indirect, special, incidental or consequential damages

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

in connection with the use of this material.
