HP Pavilion 15 440 G1 Schematics

5

4

3

2

1

U83 DIS (14"/15.6")

D D

C C

System BIOS
SPI ROM

B B

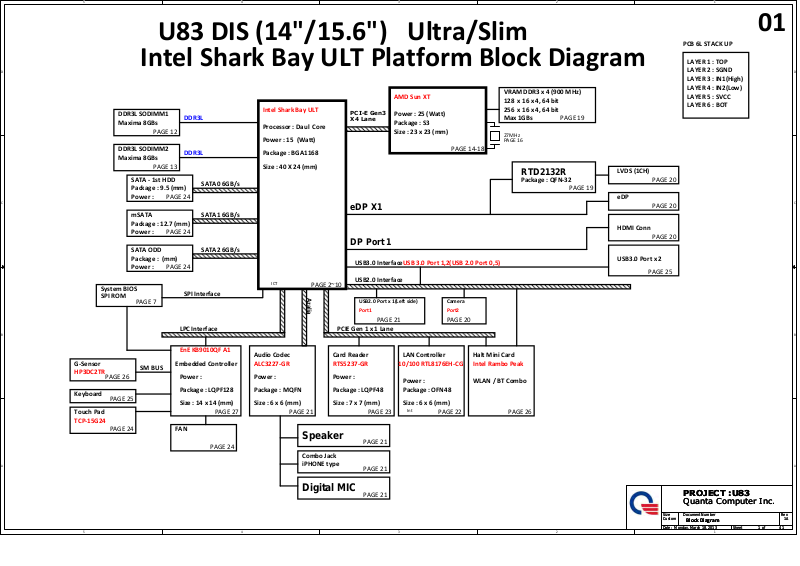

Intel Shark Bay ULT Platform Block Diagram

DDR3L SODIMM1
Maxima 8GBs

PAGE 12

DDR3L SODIMM2
Maxima 8GBs

PAGE 13

SATA - 1st HDD
Package : 9.5 (mm)
Power :

mSATA
Package : 12.7 (mm)
Power :

SATA ODD
Package : (mm)
Power :

PAGE 7

PAGE 24

PAGE 24

PAGE 24

DDR3L

DDR3L

SATA0 6GB/s

SATA1 6GB/s

SATA2 6GB/s

SPI Interface

Intel Shark Bay ULT

Processor : Daul Core

Power : 15 (Watt)

Package : BGA1168

Size : 40 X 24 (mm)

ICT

PAGE 2~10

Azalia

PCI-E Gen3
X4 Lane

eDP X1

DP Port 1

USB3.0 Interface

USB2.0 Interface

USB2.0 Port x 1(Left side)

Port1 Port2

PCIE Gen 1 x 1 LaneLPC Interface

PAGE 21

Ultra/Slim

AMD Sun XT

Power : 25 (Watt)
Package : S3
Size : 23 x 23 (mm)

PAGE 14-18

USB 3.0 Port 1,2(USB 2.0 Port 0,5)

Camera

PAGE 20

VRAM DDR3 x 4 (900 MHz)
128 x 16 x 4, 64 bit
256 x 16 x 4, 64 bit
Max 1GBs PAGE 19

27MHz
PAGE 16

RTD2132R

Package : QFN-32

PAGE 19

PCB 6L STACK UP

LAYER 1 : TOP
LAYER 2 : SGND
LAYER 3 : IN1(High)
LAYER 4 : IN2(Low)
LAYER 5 : SVCC
LAYER 6 : BOT

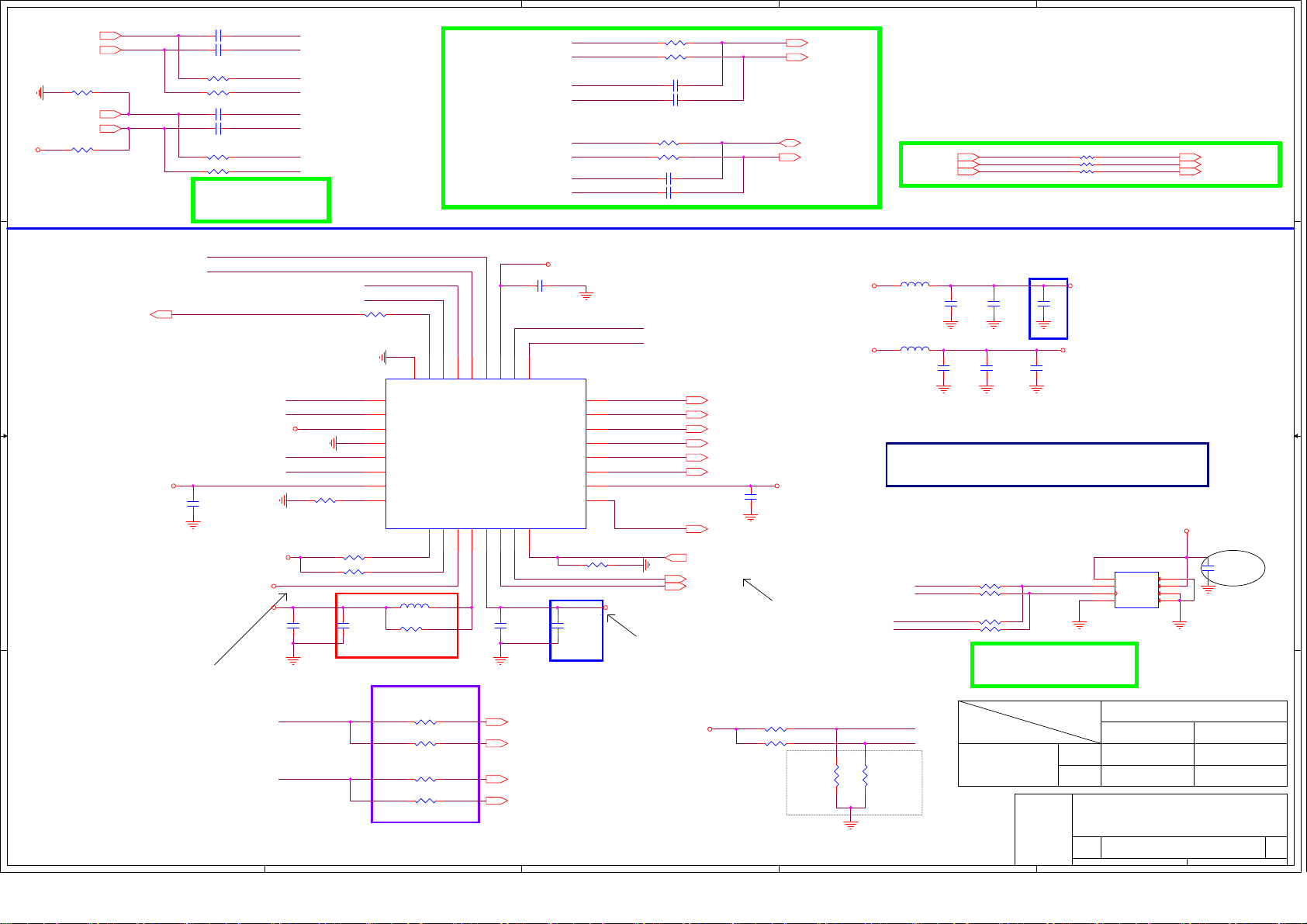

LVDS (1CH)

PAGE 20

eDP

PAGE 20

HDMI Conn

PAGE 20

USB3.0 Port x 2

PAGE 25

01

G-Sensor

HP3DC2TR

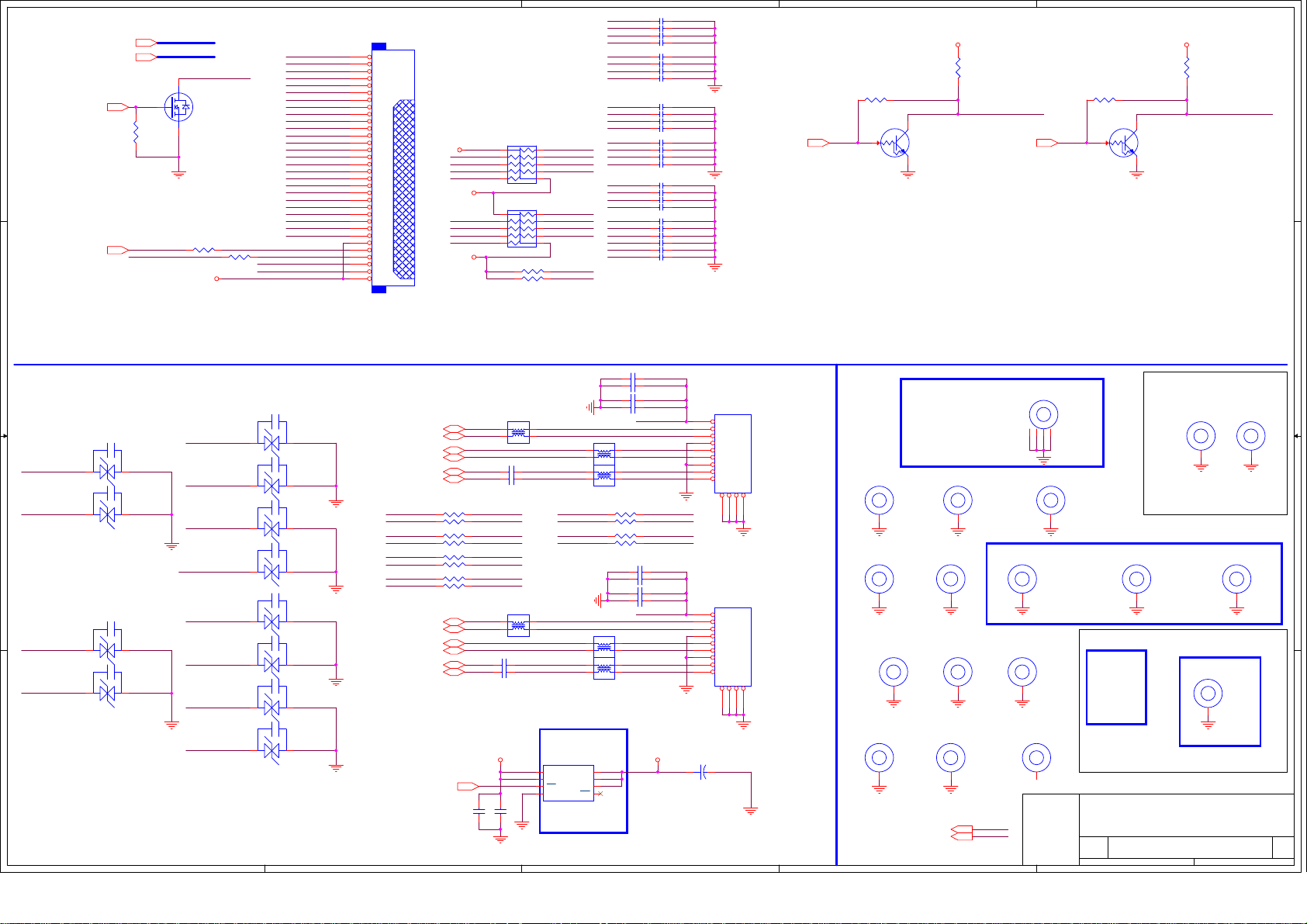

Keyboard

Touch Pad

PAGE 26

PAGE 25

SM BUS

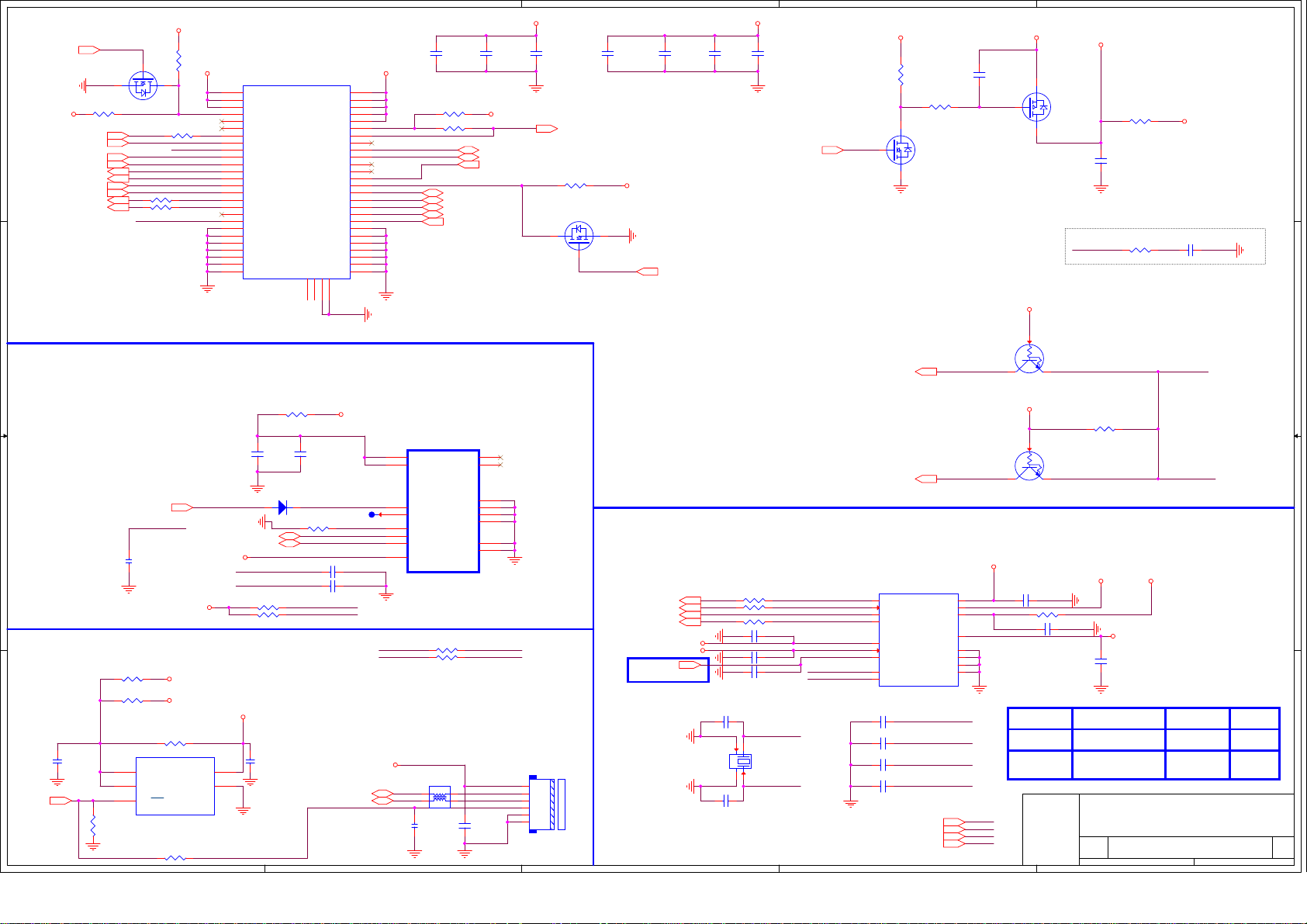

EnE KB9010QF A1

Embedded Controller

Power :

Package : LQPF128

Size : 14 x 14 (mm)

PAGE 27

Audio Codec

ALC3227-GR

Power :

Package : MQFN

Size : 6 x 6 (mm)

PAGE 21

Card Reader

RTS5237-GR

Power :

Package : LQPF48

Size : 7 x 7 (mm)

PAGE 23

LAN Controller

10/100 RTL8176EH-CG

Power :
Package : OFN48

Size : 6 x 6 (mm)

Int

PAGE 22

Halt Mini Card

Intel Rambo Peak

WLAN / BT Combo

PAGE 26

TCP-15G24

PAGE 24 FAN

eaker

Sp

PAGE 24

PAGE 21

Combo Jack

A A

5

4

iPHONE type

Digital MIC

PAGE 21

PAGE 21

PROJECT :U83

PROJECT :U83

PROJECT :U83

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

Block Diagram

Block Diagram

Block Diagram

Date: Sheet of

Date: Sheet of

3

2

Date: Sheet of

1

1A

1A

1A

1 41Monday, March 18, 2013

1 41Monday, March 18, 2013

1 41Monday, March 18, 2013

5

4

3

2

1

U19A

IN_D2#<21>
IN_D1#<21>
IN_D0#<21>
IN_CLK#<21>
IN_D2<21>
IN_D1<21>
IN_D0<21>

D D

eDP_COMPIO and ICOMPO signals should be shorted
ne

ar balls and routed with typical impedance <25 mohms

C C

IN_CLK<21>

EDP_DISP_UTIL<6>

INT_eDP_AUXP<20>
INT_eDP_AUXN<20>

INT_eDP_TXP0<20>

INT_eDP_TXN0<20>

DPB_LANE0_N
DPB_LANE1_N
DPB_LANE2_N
DPB_LANE3_N
DPB_LANE0_P
DPB_LANE1_P
DPB_LANE2_P
DPB_LANE3_P

eDP_RCOMP
EDP_DISP_UTIL

INT_eDP_AUXP
INT_eDP_AUXN

INT_eDP_TXP0

INT_eDP_TXN0

+VCCIOA_OUT

eDP_COMPIO and ICOMPO signals should be shorted
near balls and routed with typical impedance <25 mohms

C54

DDI1_TXN0

B58

DDI1_TXN1

B55

DDI1_TXN2

A57

DDI1_TXN3

C55

DDI1_TXP0

C58

DDI1_TXP1

A55

DDI1_TXP2

B57

DDI1_TXP3

C51

DDI2_TXN0

C53

DDI2_TXN1

C49

DDI2_TXN2

A53

DDI2_TXN3

C50

DDI2_TXP0

B54

DDI2_TXP1

B50

DDI2_TXP2

B53

DDI2_TXP3

D20

EDP_RCOMP

A43

EDP_DISP_UTIL

B45

EDP_AUXP

A45

EDP_AUXN

B46

eDP_TXP0

B47

eDP_TXP1

C46

eDP_TXP2

B49

eDP_TXP3

C45

eDP_TXN0

A47

eDP_TXN1

C47

eDP_TXN2

A49

eDP_TXN3

*HSW_ULT_DDR3L

R109 24.9/F_4

eDP_RCOMP

EC_PECI<28>

H_PROCHOT#<28,33>

eDP

R415 56.2/F_4

TP86

PCI EXPRESS* - GRAPHICS

TP89

TP91

R397 10K/F_4

PROC_DETECT#
CATERR#
EC_PECI

PROCHOT#

PROCPWRGD

U19B

D61

PROC_DETECT#

K61

CATERR#

N62

PECI

K63

PROCHOT#

C61

PROCPWRGD

*HSW_ULT_DDR3L

MISCTHERMALPWR MANAGEMENT

SM_DRAMRST#

SM_RCOMP0
SM_RCOMP1
SM_RCOMP2

DDR3JTAG & BPM

SM_PG_CNTL1

PRDY#
PREQ#

PROC_TCK
PROC_TMS

PROC_TRST#

PROC_TDI

PROC_TDO

BPM#0
BPM#1
BPM#2
BPM#3
BPM#4
BPM#5
BPM#6
BPM#7

AV15
AU60

AV60
AU61

AV61

J62
K62

E60
E61
E59

F63
F62

J60
H60
H61
H62
K59
H63
K60
J61

SM_DRAMRST#
SM_RCOMP_0

SM_RCOMP_1
SM_RCOMP_2

XDP_TCK0
XDP_TMS_CPU
XDP_TRST#_CPU

XDP_TDI_CPU
XDP_TDO_CPU

BPM#2
BPM#3
BPM#4
BPM#5
BPM#6
BPM#7

R184 0_4
R527 200/F_4

R528 121/F_4
R526 100/F_4

DDR_PG_CNTL <13>

TP21

XDP_PRDY#_CPU <11>

XDP_PREQ#_CPU <11>

TP25

XDP_TCK0 <11>
XDP_TMS_CPU <11>
XDP_TRST#_CPU <7,11>

XDP_TDI_CPU <11>

XDP_TDO_CPU <11>

XDP_BPM0 <11>

XDP_BPM1 <11>

TP90
TP17
TP24
TP20
TP28
TP22

+1.35VSUS

R183
470_4

02

DDR3_DRAMRST# <12,13>

Processor pull-up (CPU)

H_PROCHOT#

XDP_TDO_CPU

B B

DEL or not?

XDP_TMS_CPU
XDP_TDI_CPU

R419 62_4

+V1.05S_VCCST

R411 51_4
R410 *51_4
R412 *51_4

+V1.05S_VCCST

XDP_TRST#_CPU
XDP_TCK0

A A

5

4

3

R539 *51_4
R101 51_4

PROJECT :U83

PROJECT :U83

PROJECT :U83

Quanta Computer Inc.

Quanta Computer Inc.

Quanta Computer Inc.

Size Document Number Rev

Size Document Number Rev

Size Document Number Rev
Custom

Custom

Custom

ULT 1/9(eDP/DDI)

ULT 1/9(eDP/DDI)

ULT 1/9(eDP/DDI)

Date: Sheet of

Date: Sheet of

2

Date: Sheet

1

1A

1A

1A

of

2 41Thursday, March 14, 2013

2 41Thursday, March 14, 2013

2 41Thursday, March 14, 2013
