Page 1

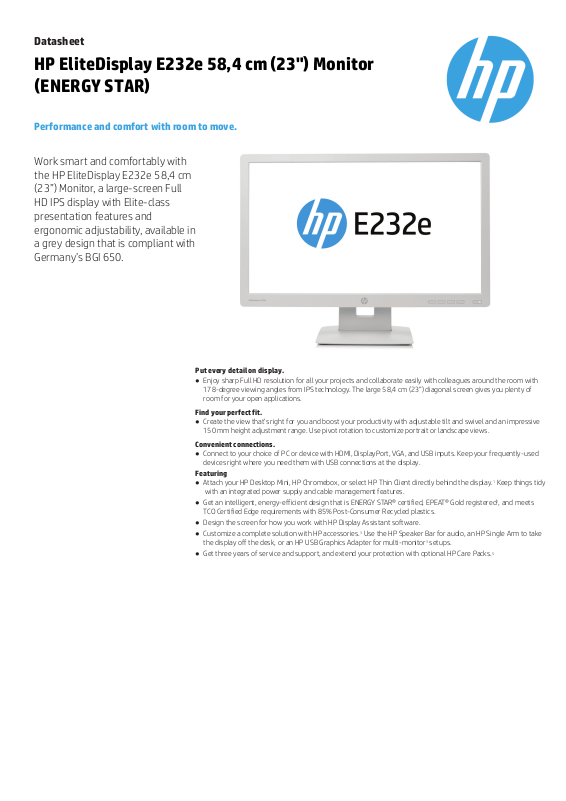

Datasheet
HP EliteDisplay E232e 58,4 cm (23") Monitor
(ENERGY STAR)
Performance and comfort with room to move.
Work smart and comfortably with
the HP EliteDisplay E232e 58,4 cm
(23”) Monitor, a large-screen Full
HD IPS display with Elite-class
presentation features and
ergonomic adjustability, available in
a grey design that is compliant with
Germany’s BGI 650.
Put every detail ondisplay.
Enjoy sharp Full HD resolution for all your projects and collaborate easily with colleagues around the room with
●
178-degree viewing angles from IPS technology. The large 58,4 cm (23”) diagonal screen gives you plenty of
room for your open applications.
Find your perfect fit.
Create the view that’s right for you and boost your productivity with adjustable tilt and swivel and an impressive
●
150 mm height adjustment range. Use pivot rotation to customize portrait or landscape views.
Convenient connections.
Connect to your choice of PC or device with HDMI, DisplayPort, VGA, and USB inputs. Keep your frequently-used
●
devices right where you need them with USB connections at the display.
Featuring
Attach your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind the display.1Keep things tidy
●
with an integrated power supply and cable management features.
Get an intelligent, energy-efficient design that is ENERGY STAR® certified, EPEAT® Gold registered2, and meets
●
TCO Certified Edge requirements with 85% Post-Consumer Recycled plastics.
Design the screen for how you work with HP Display Assistant software.
●
Customize a complete solution with HP accessories.3Use the HP Speaker Bar for audio, an HP Single Arm to take
●
the display off the desk, or an HP USB Graphics Adapter for multi-monitor3setups.
Get three years of service and support, and extend your protection with optional HP Care Packs.
●
5
Page 2
Datasheet
HP EliteDisplay E232e 58,4 cm (23") Monitor (ENERGY STAR) Specifications Table
Product Number N3C09AA; N3C09AT
Product Color Ergo Grey
Display size (diagonal) 58,4 cm (23”)
Display Type IPS w/LED backlight
Panel Active Area 509.184 x 286.416 mm;
Viewing Angle 178° horizontal; 178° vertical
Brightness 250 cd/m²
Contrast Ratio 1000:1 static; 5000000:1 dynamic
Response Ratio 7 ms gray to gray
Aspect Ratio 16:9
Native Resolution 1920 x 1080 @ 60 Hz
Resolutions Supported 1920 x 1080; 1680 x 1050; 1600 x 900; 1440 x 900; 1280 x 1024; 1280 x 800; 1280 x 720; 1024 x 768; 800 x 600; 640 x 480
Display Features Anti-glare; In plane switching; Language selection; LED Backlights; On-screen controls; Pivot rotation; Plug and Play; User programmable
User Controls Menu; Function ; Power
Input signal 1 VGA; 1 HDMI (with HDCP support); 1 DisplayPort 1.2 (with HDCP support)
Ports and Connectors 2 USB 2.0
Input power Input voltage: 100 to 240 VAC
Power consumption Panel Active Area: 509.184 x 286.416 mm; Power consumption Description: 35 W (maximum), 28 W (typical), 0.5 W (standby); Screen resolution: 1920 x
Dimensions with Stand (W x D
x H)
Dimensions without Stand (W
x D x H)
Weight 3.63 kg
Ergonomic features Tilt: -5 to +25°; Pivot rotation: 90°
Certification and Compliance CE; CB; KC/KCC; NOM; PSB; ICE; TUV-S; ISO 9241-307; EAC; UL; CSA; PSB; ISC; CCC; CEL; CECP; SEPA; TCO Certified Edge; ISC; VCCI; FCC; BSMI; Vietnam
Environmental Arsenic-free display glass; Mercury-free display backlighting; Low halogen
Energy Efficiency Compliance ENERGY STAR® certified
What's in the box Monitor; AC powercord; VGA cable; DisplayPort cable; USB cable; CD (includes User Guide, warranty, drivers)
Warranty 3-years limited warranty including 3 years of parts and labour. Certain restrictions and exclusions apply.
1
1
1
1
1080 @ 60 Hz
54.93 x 18.9 x 51.24 cm
54.93 x 4.96 x 33.69 cm
(Head only)
MEPS;Australian-New Zealand MEPS; WEEE
2
Page 3
Datasheet
HP EliteDisplay E232e 58,4 cm (23") Monitor (ENERGY STAR)
Accessories and services (not included)
HP Integrated Work Center
Stand for Ultra Slim Desktop
and Thin Client
HP Integrated Work Center 3
for Small Form Factor
HP Integrated Work Center
for Desktop Mini and Thin
Client
HP UHD USB Graphics
Adapter
The HP IntegratedWork Center Stand is designed to help maximize the use of limited desk space without compromising
performance or productivity by accommodating an HP Compaq 6005 Pro, or 8000 Series HP Ultra-slim Desktop PC or an
HP Thin Client and most HP 17 to 24-inch1(43.18 to 60.96 cm) diagonal LCD monitors (please refer to compatibility in the
Quick Spec) with VESA standard mounting brackets.
Product number: E8H16AA
Maximize your work space with the HP Integrated Work Center for Small Form Factors v3. Customize an “all-in-one”
solution by combining an HP Small Form Factor or Workstation with an LED monitor up to 24 diagonal inches.
1
Product number: F2P06AA
Make the mostof small work spaces with an HP IWC Desktop Mini/Thin Client that lets you create a compact desktop
solution by combining a display1with an HP Desktop Mini, HP Thin Client or HP Chromebox1and giving you convenient
front access to all of its inputs.
Product number: G1V61AA
Boost your productivity by extending or mirroring your desktop to a UHD display with the HP UHD USB Graphics Adapter.
Product number: N2U81AA
HP PC Mounting Bracket for
Monitors
HP 5 year Next business day
Onsite Standard Monitor
Hardware Support
Learn more at
www.hp.eu/hpoptions
Customize an altogether better solution with the HP PC Mounting Bracket for Monitors, which lets youattach your HP
Desktop Mini, HP Chromebox, or select HP Thin Client directly behind select HP Z Displays and EliteDisplays.
Product number: N6N00AA
Receive 5 years of next business day onsite repair from anHP-qualified technician for your computingdevice, if the issue
cannot be solved remotely.
Product number: U7935E
Page 4
Datasheet
HP EliteDisplay E232e 58,4 cm (23") Monitor (ENERGY STAR)
Messaging Footnotes
1
All specifications represent the typicalspecifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
2
External power supplies, power cords, cables andperipherals are not LowHalogen. Service parts obtained afterpurchase may not be Low Halogen.
3
Each sold separately.
4
Sold separately. Availability varies by region.
5
Sold separately. Service levels and response times forHP Care Packs mayvary depending onyour geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
www.hp.com/go/cpc. HP Services are governed bythe applicable HP terms and conditions of service providedor indicated to Customerat the time of purchase. Customer may have additional statutory rightsaccording to
applicable local laws, and such rights arenot in any way affected bythe HP terms and conditions of service orthe HP Limited Warranty provided with yourHP Product.
Technical specifications disclaimers
1
Requires HP PCMounting Bracket for Monitors, sold separately. See product QuickSpecs for exact PC andthin client compatibility.
2
EPEAT® registered where applicable. EPEAT registration varies bycountry. See www.epeat.net for registration status by country.
Learn more at
www.hp.eu/monitors
Engage HP Financial Services
Explore monthly payment options and technology refresh plans that can provide more flexibility to help you meet your IT goals. More information on www.hp.com/go/hpfs.
Sign up for updates
www.hp.com/go/getupdated
© Copyright 2015 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
4AA6-3132EEE, November 2015
