HP LTO Ultrium tape drives technical reference manual

LTO 4 FC, SCSI and SAS drives

volume 5: UNIX, Linux and OpenVMS configuration guide

Edition 1, May 2007

Legal and notice information

Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard. The information is provided “as is” without warranty of any kind and is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Revision history

Version Date Changes

Edition 1 May 2007 For LTO 4 FC, SCSI and SAS drives

This document is frequently revised and updated. To find out if there is a later version, please ask your HP OEM Representative.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide

Contents

Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Documents specific to HP LTO Ultrium drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Documentation map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Drives—general . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation and configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Maintenance and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Dealing with errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

LTO Ultrium features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

General documents and standardization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Purpose of this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

LTO Ultrium drives in a library. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

SAS drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Backup applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 HP (HP-UX) servers and workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Determining a suitable SCSI ID. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Adding stape and schgr (autoloader driver) to the kernel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Add device files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

What next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

3 HP (OpenVMS) servers and workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Determining attached devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

What next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4 HP (Tru64 5.1x) servers and workstations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Determining attached devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

What next?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

5 Linux (kernel 2.6.x) servers and workstations . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Determining the SCSI ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Configuring on Linux systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the seek and tell features of mt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

What next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

6 IBM (AIX) servers and workstations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Determining the SCSI ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Configuring the device files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 1

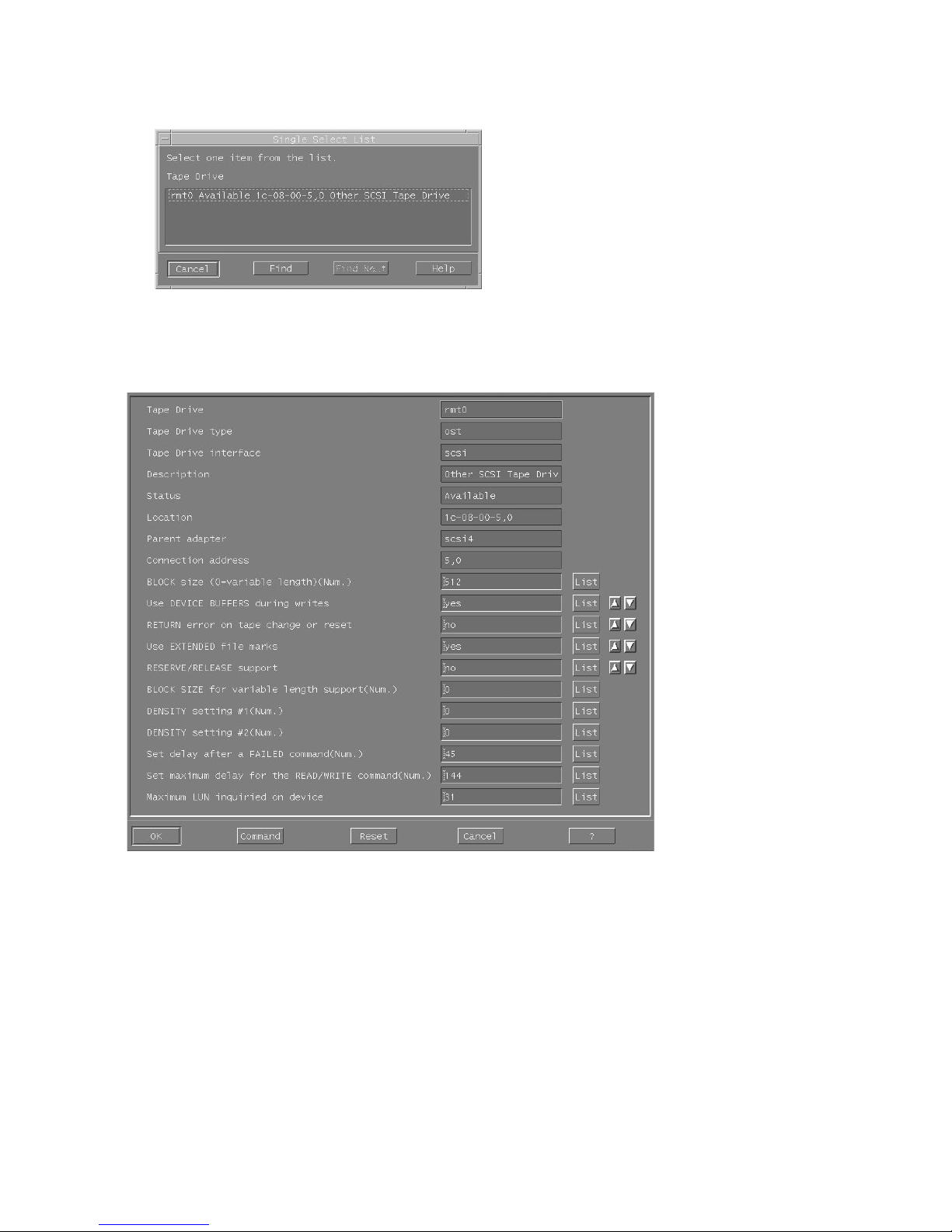

If you are using a graphics terminal running X-Windows . . . . . . . . . . . . . . . . . . . . . . . . . 27

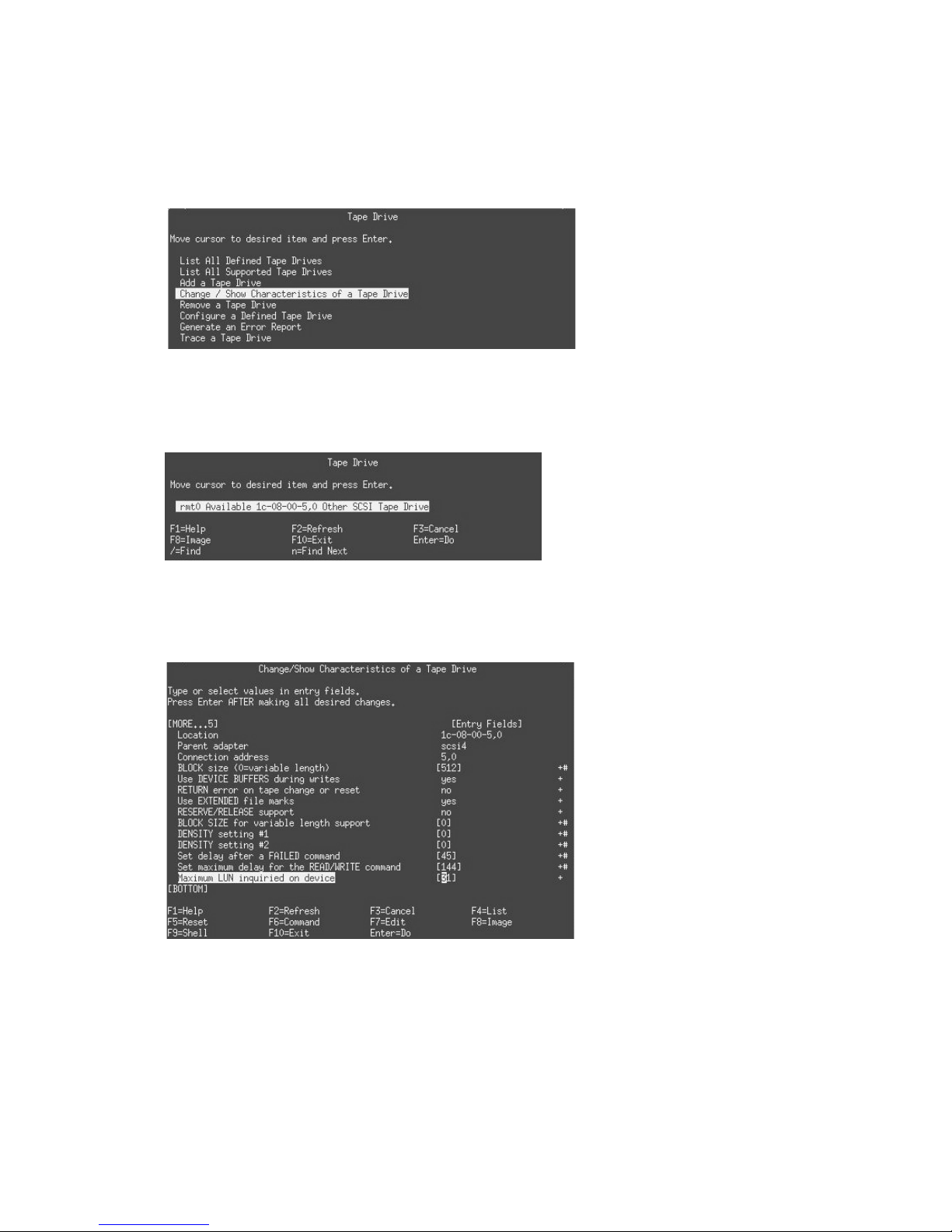

If you are using a non-graphics terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Device filenames under AIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7 Sun (Solaris 8, 9, 10) servers and workstations. . . . . . . . . . . . . . . . . . . . . . . . . 31

Fibre Channel drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Configuring the device files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

SCSI drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Determining the SCSI ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Configuring the device files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

HP-data values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

8 Verifying the installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Verifying the installation of the drive (UNIX) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

To verify the installation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Related documents

The following documents provide additional information:

Documents specific to HP LTO Ultrium drives

• Hardware Integration Guide, volume 1 of the HP LTO Ultrium Technical Reference Manual

• Software Integration Guide, volume 2 of the HP LTO Ultrium Technical Reference Manual

• Host Interface Guide, volume 3 of the HP LTO Ultrium Technical Reference Manual

• Specifications, volume 4 of the HP LTO Ultrium Technical Reference Manual

Please contact your HP supplier for copies.

• The features and benefits of HP LTO Ultrium drives are discussed in the HP Ultrium Technology

White Paper.

• For a general background to LTO technology and licensing, go to

http://www.lto-technology.com.

Documentation map

The following will help you locate information in the Technical Reference Manual. A reference like “

1 HW Integration: ch. 7” means Volume 1, Hardware Integration Guide, of the HP LTO Ultrium

Technical Reference Manual, chapter 7.

Drives—general

Connectors Front Panel LEDs Specifications

Installation and configuration

Connectors Determining the configuration External drives In Libraries In Servers In Tape Arrays Linux configuration Modes of Usage

FC Drives SCSI Drives SAS Drives

1 HW Integration: ch. 4 1 HW Integration: ch. 7

1 HW Integration: ch. 3 1 HW Integration: ch. 6

4 Specifications

FC Drives SCSI Drives SAS Drives

1 HW Integration: ch. 4 1 HW Integration: ch. 7

2 SW Integration: ch. 2

n/a 1 HW Integration: ch. 5

1 HW Integration: ch. 1

n/a 1 HW Integration: ch. 4

n/a 1 HW Integration: ch. 3 n/a

5 UNIX, Linux, OpenVMS Configuration

n/a 1 HW Integration: ch. 8 n/a

OpenVMS configuration

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 3

5 UNIX, Linux, OpenVMS Configuration

FC Drives SCSI Drives SAS Drives

Optimizing performance

UNIX configuration

Operation

External drives In Libraries In Servers In Tape Arrays

Cartridges

Cartridge Memory (LTO-CM) Cartridges Managing the use of cartridges Use of cartridges

n/a 1 HW Integration: ch. 8 n/a

2 SW Integration: ch. 4

5 UNIX, Linux, OpenVMS Configuration

FC Drives SCSI Drives SAS Drives

n/a 1 HW Integration: ch. 5

1 HW Integration: ch. 1

n/a 1 HW Integration: ch. 4

n/a 1 HW Integration: ch. 3 n/a

FC Drives SCSI Drives SAS Drives

2 SW Integration: ch. 5

1 HW Integration: ch. 5 1 HW Integration: ch. 9

2 SW Integration: ch. 1

2 SW Integration: ch. 3

Interface

FC, SCSI and SAS host interface guide Commands Error codes Implementation Interpreting sense data Messages Mode pages

—see the MODE SENSE command Pre-execution checks Responding to Sense Keys and ASC/Q Sense Keys and ASC/Q

—see REQUEST SENSE command Task management functions

FC Drives SCSI Drives SAS Drives

3 Host Interface

3 Host Interface: ch. 5

1 HW Integration: ch. 6 1 HW Integration: ch. 10

3 Host Interface: ch. 1

2 SW Integration: ch. 3

3 Host Interface: ch. 2

3 Host Interface: ch. 5

3 Host Interface: ch. 4

2 SW Integration: ch. 6

3 Host Interface: ch. 5

n/a 3 Host Interface: ch. 3

Maintenance and troubleshooting

FC Drives SCSI Drives SAS Drives

Cleaning

External drives In Libraries In Servers In Tape Arrays Monitoring drive and tape condition Software troubleshooting techniques

Dealing with errors

Error Codes Handling errors Logs—see the LOG SENSE command Recovering from write and read errors Software response to error correction Software response to logs

2 SW Integration: ch. 5 2 SW Integration: ch. 7

n/a 1 HW Integration: ch. 5

1 HW Integration: ch. 1

n/a 1 HW Integration: ch. 4

n/a 1 HW Integration: ch. 3 n/a

2 SW Integration: ch. 7

2 SW Integration: ch. 1

FC Drives SCSI Drives SAS Drives

1 HW Integration: ch. 6 1 HW Integration: ch. 10

2 SW Integration: ch. 5

3 Host Interface: ch. 4

2 SW Integration: ch. 7

2 SW Integration: ch. 3 2 SW Integration: ch. 3

TapeAlert log

LTO Ultrium features

Autoload Automation Control Interface (ACI) Cartridge Memory (LTO-CM)

Data Compression, managing OBDR and CD-ROM emulation Performance optimization

Performance, factors affecting Software design Supporting LTO Ultrium features

2 SW Integration: ch. 7

FC Drives SCSI Drives SAS Drives

1 HW Integration: ch. 2

2 SW Integration: ch. 5 2 SW Integration: ch. 5

2 SW Integration: ch. 7

n/a 1 HW Integration: ch. 8

2 SW Integration: ch. 1 2 SW Integration: ch. 4

2 SW Integration: ch. 1

2 SW Integration: ch. 5

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 5

General documents and standardization

See http://www.t10.org/t10_main.htm for INCITS SCSI Primary Commands—3 (SPC-3) and other specifications

Copies of documents of other standards bodies can be obtained from:

INCITS

ISO

ECMA

Global Engineering

Documents

11 West 42nd Street New York, NY 10036-8002 USA

CP 56 CH-1211 Geneva 20 Switzerland

114 Rue du Rhône CH-1204 Geneva Switzerland

2805 McGaw Irvine, CA 92714 USA

Tel: +41 22 849 6000

Web URL: http://www.ecma.ch

Tel: 800 854 7179 or 714 261 1455

1Introduction

Purpose of this manual

This manual provides basic information on configuring the drives with various operating systems. See the top-level release notes that accompany the drive for expected functionality and features.

LTO Ultrium drives are supported on the following platforms:

• HP (HP-UX) servers and workstations (Chapter 2)

• HP (OpenVMS) servers and workstations (Chapter 3)

• HP (Tru64 5.1x) servers and workstations (Chapter 4)

• IBM (AIX) servers and workstations (Chapter 6)

• Linux (kernel 2.6.x) servers and workstations (Chapter 5)

• Sun (Solaris 8, 9, 10) servers and workstations (Chapter 7)

For platforms not mentioned here, contact HP because there may be new connectivity details available that arrived after the release notes were published.

See Chapter 8 on page 37 for details of how to verify the installation.

LTO Ultrium drives in a library

Although LTO Ultrium drives may also be used in a library, instructions about installing device drivers for automatic robotics are not included in this manual.

SAS drives

SAS drives are only supported on Redhat and SLES Linux.

Backup applications

For optimum performance it is important to use a backup application that supports the drive’s features within your system’s configuration.

For details of which backup applications are supported with your tape drive and system, visit the HP Tape Compatibility website:

http://www.hp.com/products1/storage/compatibility/tapebackup/index.html

Follow the “Software compatibility” link then click a tick in the appropriate matrix to drill down into detailed application support information.

See the Getting Started Guide for more information about usage models.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 7

Introduction8

2 HP (HP-UX) servers and workstations

This chapter covers:

• HP servers and workstations: HP-UX 11i v1 (11.11), 11i v2 (11.23)

• HP servers: HP-UX 11i v3 (11.31)

Before you install your tape drive, log on to the HP web site, www.hp.com hardware enablement (HWE) patch bundle for your operating system. This ensures that you will have the correct device driver for your tape drive.

System Administration Management (SAM) tools have evolved with ongoing HP-UX version releases. As a result, the procedures for setting up with different HP-UX versions differ. They are described separately in this chapter.

HP-UX11i v3 and agile addressing

HP-UX11i v3 introduces agile addressing of devices. Agile addressing uses a different format of the device special file (dsf) to represent the tape drive—known as a persistent dsf. However HP-UX11i v3 retains support for the legacy dsf format as used in HP-UX11i v1 and 11i v2.

For more information about HP-UX releases including HP-UX11i v3 please refer to

www.docs.hp.com

Determining a suitable SCSI ID

The tape drive SCSI ID setting must be unique for the SCSI bus to which the drive is attached. In many cases the drive will be the only device on a SCSI bus setting of 3 is suitable. See the tape drive User Guide for details of how to alter the SCSI ID setting physically (usually accessible at the rear panel of the drive).

Scan the system to list the existing devices attached. From a shell window (hpterm/xterm), execute ioscan as follows:

, and download the latest

in which case the default SCSI ID

For HP-UX 11i v1, 11i v2 and 11i v3 (legacy format)

Enter the command:

% /sbin/ioscan -f

The output should look similar to the following (which shows SCSI drives):

Class I H/W Path Driver S/W State H/W Type Description ================================================================================= root 0 root CLAIMED BUS_NEXUS ioa 0 0 sba CLAIMED BUS_NEXUS System Bus Adapter (880) ba 0 0/0 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) OO 0 0/0/1/0 UsbOhci CLAIMED INTERFACE PCI SerialBus (10330035) OO 1 0/0/1/1 UsbOhci CLAIMED INTERFACE PCI SerialBus (10330035) OO 2 0/0/1/2 UsbEhci CLAIMED INTERFACE PCI SerialBus (103300e0) sideba 0 0/0/2/0 side_multi CLAIMED INTERFACE CMD IDE controller ext_bus 0 0/0/2/0.0 side CLAIMED INTERFACE IDE Primary Channel target 2 0/0/2/0.0.0 tgt CLAIMED DEVICE disk 1 0/0/2/0.0.0.0 sdisk CLAIMED DEVICE TEAC DV-28E-N

1. Note that HP does not support disk drives and tape drives sharing the same SCSI bus.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 9

ext_bus 1 0/0/2/0.1 side CLAIMED INTERFACE IDE Secondary Channel ba 1 0/1 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) ext_bus 2 0/1/1/0 c8xx CLAIMED INTERFACE SCSI C1010 Ultra160 Wide LVD target 0 0/1/1/0.0 tgt CLAIMED DEVICE disk 0 0/1/1/0.0.0 sdisk CLAIMED DEVICE HP 73.4GST373454LC ext_bus 3 0/1/1/1 c8xx CLAIMED INTERFACE SCSI C1010 Ultra160 Wide LVD lan 0 0/1/2/0 igelan CLAIMED INTERFACE HP PCI 1000Base-T Core ba 2 0/2 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) ext_bus 4 0/2/1/0 mpt CLAIMED INTERFACE SCSI Ultra320 A6961-60011 ext_bus 5 0/2/1/1 mpt CLAIMED INTERFACE SCSI Ultra320 A6961-60011 target 1 0/2/1/1.3 tgt CLAIMED DEVICE tape 1 0/2/1/1.3.0 stape CLAIMED DEVICE HP Ultrium 4-SCSI ba 3 0/3 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) ext_bus 6 0/3/1/0 c8xx CLAIMED INTERFACE SCSI C1010 Ultra160 Wide LVD A6829-60001 ext_bus 7 0/3/1/1 c8xx CLAIMED INTERFACE SCSI C1010 Ultra160 Wide LVD A6829-60001 ba 4 0/4 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) ba 5 0/6 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) ba 6 0/7 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) tty 0 0/7/1/0 asio0 CLAIMED INTERFACE PCI SimpleComm (103c1290) tty 1 0/7/1/1 asio0 CLAIMED INTERFACE PCI Serial (103c1048) unknown -1 0/7/2/0 UNCLAIMED UNKNOWN PCI Display (10025159) memory 0 8 memory CLAIMED MEMORY Memory ipmi 0 16 ipmi CLAIMED INTERFACE IPMI Controller processor 0 128 processor CLAIMED PROCESSOR Processor processor 1 129 processor CLAIMED PROCESSOR Processor

NOTE: If you are installing a SCSI drive onto a Storage Area Network (SAN), the fibre

channel/SCSI router will also appear in the list of attached devices.

For a particular SCSI device in the ioscan listing, the SCSI bus ID and the drive’s SCSI ID and LUN ID can be decoded from the H/W path (hardware path)/ For example:

Class I H/W Path Driver S/W State H/W Type Description tape 1 2/0/1.5.0 stape CLAIMED DEVICE HP Ultrium 2-SCSI

The H/W path for this tape drive is “2/0/1.5.0”.

• The SCSI bus ID is “2/0/1” (including all the numbers separated by “/”).

From the remaining “.5.0” portion:

• Tape drive SCSI ID = 5

• Tape drive SCSI LUN = 0

Fibre Channel drives have a slightly different format in ioscan output, similar to the following segment:

Class I H/W Path Driver S/W State H/W Type Description ============================================================================= ba 4 0/4 lba CLAIMED BUS_NEXUS Local PCI-X Bus Adapter (783) fc 2 0/4/1/0 fcd CLAIMED INTERFACE HP AB378-60001 4Gb Single Port

PCI/PCI-X Fibre Channel Adapter (FC Port 1) fcp 1 0/4/1/0.84 fcd_fcp CLAIMED INTERFACE FCP Domain ext_bus 6 0/4/1/0.84.3.255.0 fcd_vbus CLAIMED INTERFACE FCP Device Interface target 3 0/4/1/0.84.3.255.0.0 tgt CLAIMED DEVICE tape 2 0/4/1/0.84.3.255.0.0.0 stape CLAIMED DEVICE HP Ultrium 3-SCSI fcp 0 0/4/1/0.180 fcd_fcp CLAIMED INTERFACE FCP Domain ext_bus 10 0/4/1/0.180.2.255.0 fcd_vbus CLAIMED INTERFACE FCP Device Interface target 7 0/4/1/0.180.2.255.0.0 tgt CLAIMED DEVICE tape 9 0/4/1/0.180.2.255.0.0.0 stape CLAIMED DEVICE HP Ultrium 4-SCSI

HP (HP-UX) servers and workstations10

For 11i v3 (Agile I/O tree view)

Enter the command:

% ioscan -m lun

The output should look similar to the following1 (SCSI interface drives are shown in this example)

Class I Lun H/W Path Driver S/W State H/W Type Health Description ===================================================================================== disk 2 64000/0xfa00/0x0 esdisk CLAIMED DEVICE online HP 73.4GST373454LC 0/1/1/0.0x0.0x0 /dev/disk/disk2 /dev/rdisk/disk2 disk 3 64000/0xfa00/0x3 esdisk CLAIMED DEVICE online TEAC DV-28E-N 0/0/2/0.0.0x0.0x0 /dev/disk/disk3 /dev/rdisk/disk3 tape 5 64000/0xfa00/0xa estape CLAIMED DEVICE online HP DLT VS160 0/2/1/1.0x5.0x0 /dev/rtape/tape5_BEST /dev/rtape/tape5_BESTb /dev/rtape/tape5_BESTn /dev/rtape/tape5_BESTnb tape 9 64000/0xfa00/0x12 estape CLAIMED DEVICE online HP C5683A 0/1/1/1.0x2.0x0 /dev/rtape/tape9_BEST /dev/rtape/tape9_BESTb /dev/rtape/tape9_BESTn /dev/rtape/tape9_BESTnb tape 0 64000/0xfa00/0x16 estape CLAIMED DEVICE online HP Ultrium 2-SCSI 0/3/1/1.0x3.0x0 /dev/rtape/tape0_BEST /dev/rtape/tape0_BESTb /dev/rtape/tape0_BESTn /dev/rtape/tape0_BESTnb tape 12 64000/0xfa00/0x1a estape CLAIMED DEVICE online HP SDLT600 0/2/1/0.0x3.0x0 /dev/rtape/tape12_BEST /dev/rtape/tape12_BESTb /dev/rtape/tape12_BESTn /dev/rtape/tape12_BESTnb

For a particular SCSI device, you can decode the SCSI bus ID and the drive’s SCSI ID and LUN ID from the lunpath hardware path. For example:

Class I Lun H/W Path Driver S/W State H/W Type Health Description ===================================================================================== tape 0 64000/0xfa00/0x16 estape CLAIMED DEVICE online HP Ultrium 4-SCSI 0/3/1/1.0x3.0x0

The lunpath hardware path for the above tape drive is “0/3/1/1.0x3.0x0”.

• SCSI bus ID is “0/3/1/1” (including all the numbers separated by “/”).

From the remaining “0x3.0x0” portion:

• Tape drive SCSI ID = 3 (decimal value from hexadecimal 0x3)

• Tape drive SCSI LUN = 0 (decimal value from hexadecimal 0x0)

Fibre Channel drives have a slightly different format in ioscan output, similar to the following segment:

Class I Lun H/W Path Driver S/W State H/W Type Health Description ====================================================================== tape 10 64000/0xfa00/0x14 estape CLAIMED DEVICE online HP Ultrium 4-SCSI 0/4/1/0.0x50060b0000b7f3c8.0x0 /dev/rtape/tape10_BEST /dev/rtape/tape10_BESTb /dev/rtape/tape10_BESTn /dev/rtape/tape10_BESTnb

For a given FC device the FC bus ID, the World Wide Name (WWN) and the LUN ID can be decoded from the Lun H/W Path. For example:

1. Note that device files (such as /dev/rtape/tape9_BEST) may or may not be in place initially.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 11

The lunpath hardware path for the above tape drive is “0/4/1/0.0x50060b0000b7f3c8.0x0”.

• The FC bus ID is “0/4/1/0” (including all the numbers separated by “/”).

From the remaining “0x50060b0000b7f3c8.0x0” portion:

• Tape drive WWN (hexadecimal) = 0x50060b0000b7f3c8

• Tape drive SCSI LUN = 0x0 (hexadecimal SCSI-3 64-bit LUN identifier)

Adding stape and schgr (autoloader driver) to the kernel

For HP-UX 11i v1, 11i v2

If your tape drive or autoloader does not appear in ioscan listing or is listed with H/W Type “UNKNOWN” you may need to install the appropriate drivers.

Use the ‘sam’ utility. Sam runs as a mouse driven GUI (Figure 1) on a system with full graphics capability, or as a console text-based interface (Figure 2). If you use the text-based interface, use the Tab and arrow keys to navigate, and the Return key to select.

Figure 1 SAM GUI

HP (HP-UX) servers and workstations12

Figure 2 SAM text-based interface

For HP-UX 11i v1 (11.11)

1. Enter sam at the command line.

% sam

2. Select the following:

Kernel Configuration Drivers

3. Highlight the stape driver. If the driver has not been added to the kernel, both Current State

and Pending State will read “Out”.

4. Select the following:

Actions Add Driver to Kernel

The Pending State will now read “In”.

5. To add the new driver to the kernel, select:

Actions Create a New Kernel

The stape driver is added to the kernel.

6. If you are going to attach an autoloader, use a similar procedure to change

7. Reboot the system.

schgr to “static”.

For HP-UX 11i v2 (11.23)

1. Enter sam at the command line.

% sam

2. Select the following:

Kernel Configuration

Kernel Configuration (character mode)

Modules

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 13

3. Highlight the stape driver. If the driver has not been added to the kernel, both Current State

and Planned State will read “unused”.

4. Type “m” to modify the stape driver and “s” to set it to “static”. The Planned State will now read

“static”.

5. The stape driver is now added to the kernel.

6. If you are going to attach an autoloader, use a similar procedure to change

schgr to “static”.

7. Reboot the system.

For HP-UX 11i v3 (11.31)

1. Start up the SMH web-based interface.

% smh –w

This will attempt to launch a web browser. Mozilla browser1 is the default when HP-UX 11i v3 is installed.

2. From the SMH Tools page (see Figure 3), select Modules from the Kernel Configuration section.

Figure 3 SMH web-based interface (HP-UX11i v3)

3. In the Search box on the Kernel Configuration page, type

The search results list will include both not installed both Current State and Next Boot State will be shown as “unused”. A state of “static” indicates that the module is installed.

1. If Mozilla is being invoked for the first time you may be asked to agree to license terms for the software.

HP (HP-UX) servers and workstations14

stape and execute the search.

estape and stape modules. If either of these modules is

4. Select the estape module1 radio button. Its details will appear in a panel below the modules

list. From the right hand panel on the web page, click the Modify Module link.

5. On the Modify Kernel Module: estape page, for Next Boot State, select the “static” radio button.

Check the box entitled Backup to create a backup copy of the existing kernel (see Figure 4).

Figure 4 Adding

6. If you wish, type in a Reason for Change, such as “

1st 2007

7. Click the OK button at the Operation Successful page. Both

estape driver to the kernel

Initial estape installation May

” and then select the Modify tab.

estape and stape drivers will

now be shown with Next Boot State as “static”.

8. For autoloaders, use a similar procedure to prepare the

eschgr (with schgr) module.

9. From the right-hand panel on the Kernel Configuration page, click View Pending Changes and

reboot and proceed to reboot the system as directed.

10.Following the reboot, re-run SMH and search again for the driver as in step 3 above. Current

State and Next Boot State should both be listed as “static”.

Add device files

For HP-UX 11i v1, 11i v2

Use the sam utility to create device files. sam runs as a mouse driven GUI (see Figure 1 on page 12) on a system with full graphics capability, or as a console text-based interface (see Figure 2 on page

13). If you use the text-based interface, use the Tab and arrow keys to navigate, and the Return key

to select.

1. Enter

2. Select the following:

1. The estape and stape modules are linked, so it is sufficient to select the estape module alone for installation.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 15

sam at the command line:

% sam

Peripheral Devices

Tape Drives

sam will then scan the system for any tape drives connected.

For example, when an HP LTO Ultrium 4 drive is found, it will be displayed as something like:

Hardware Path Driver Description =========================================================== 8/0/2/0.3.0 stape HP Ultrium 4-SCSI

3. Highlight the drive and select the following from the tool bar:

Actions Create Device Files Create Default Device Files

This will create default device files for the drive. To view the device files that have been created, select:

Actions Create Device Files Show Device Files

4. When you have exited sam, run ioscan to see the tape drive:

%/sbin/ioscan –fnC tape

All default device files displayed have compression enabled.

NOTE: HP recommends the ‘Berkeley’ device files for most applications:

cXtYdZBESTnb = Berkeley, no rewind, best available density cXtYdZBESTb = Berkeley, with rewind, best available density

where:

X = card number Y = target number (drive SCSI ID) Z = LUN number

For HP-UX 11i v3 (HP-UX 11.31)

1. Start up the SMH web-based interface:

% smh –w

This will attempt to launch a web browser. Mozilla browser1 is the default when HP-UX 11i v3 is installed.

2. From the SMH Tools page (see Figure 3 on page 14), select Manage Peripheral Devices from

the Peripheral Devices section.

1. If Mozilla is being invoked for the first time you may be asked to agree to license terms for the software.

HP (HP-UX) servers and workstations16

3. Select tape from the Class drop down box on the HP-UX Peripheral Device Tool page. Select the

tape device (radio button) requiring device files from the resulting list. If device files are not already present this will be indicated under the Properties header (see Figure 5)

Figure 5 Selecting a tape device to create its device files (Agile View)

4. From the right-hand panel on the HP-UX Peripheral Device Tool page, click on Reinstall Device

Files. At the next page, click the Reinstall button. When the browser returns to the HP-UX

Peripheral Device Tool page, click the Refresh button one or more times until the list of device files appears under the Properties header.

What next?

Once device files have been created, you should confirm that your new tape drive is working properly. Chapter 8 on page 37 provides instructions on backing up and restoring a sample file to test your installation.

1. Depending on how SMH was last used the HP-UX Peripheral Device Tool page will display either the Agile View or the

Legacy View as described at the beginning of this chapter (page 9). To switch between these views use the Toggle Global Device View link on the right hand side of the HP-UX Peripheral Device Tool page. In this chapter, the Agile View

is assumed. The process is similar for the Legacy View.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 17

HP (HP-UX) servers and workstations18

3 HP (OpenVMS) servers and workstations

NOTE: Only SCSI drives are supported on Alpha Server systems.

Determining attached devices

After connecting the tape drive to your system, boot OpenVMS and check for the presence of the new tape device. Execute the following commands.

$ sho dev mk

Device Device Error Volume Free Trans Mnt Name Status Count Label Blocks Count Cnt MKD300: Online 0

↑ use this value in the next command line

$ sho dev MKD300/full

Magtape SIT058$MKD300:, device type HP Ultrium 4-SCSI, is online, file-oriented device, available to cluster, error logging is enabled, controller supports compaction (compaction disabled), device supports fastskip (per_io).

Error count 0 Operations completed 0 Owner process "" Owner UIC [SYSTEM] Owner process ID 00000000 Dev Prot S:RWPL,O:RWPL,G:R,W Reference count 0 Default buffer size 2048 Density default Format Normal-11

Volume status: no-unload on dismount, beginning-of-tape, odd parity.

What next?

You are now ready to begin using your tape drive. Please consult your OpenVMS system documentation for details.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 19

HP (OpenVMS) servers and workstations20

4 HP (Tru64 5.1x) servers and workstations

NOTE: Only SCSI drives are supported on Alpha Server systems.

Determining attached devices

After connecting the tape drive to your system, boot TRU64 and check for the presence of the new tape device. Execute the following commands

# hwmgr -scan scsi hwmgr: Scan request successfully initiated

# hwmgr -v d HWID: Device Name Mfg Model Location

--------------------------------------------------------------------

4: /dev/dmapi/dmapi 5: /dev/scp_scsi 6: /dev/kevm 149: /dev/disk/dsk0c COMPAQ BD03685A24 bus-2-targ-0-lun-0 150: /dev/disk/dsk1c COMPAQ BD03664553 bus-2-targ-1-lun-0 151: /dev/disk/cdrom0c TEAC CD-W216E bus-3-targ-0-lun-0 152: /dev/random 153: /dev/urandom 237: /dev/ntape/tape0 HP Ultrium 4-SCSI bus-1-targ-3-lun-0

What next?

Once device files have been created, you should confirm that your new tape drive is working properly. Please consult your Tru64 operating system documentation and Chapter 8 on page 37 for instructions on testing your installation.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 21

HP (Tru64 5.1x) servers and workstations22

5 Linux (kernel 2.6.x) servers and workstations

Determining the SCSI ID

Look at the output of dmesg to find out what SCSI channel number is used for each connection.

To find out the SCSI IDs in use on each channel, type:

cat /proc/scsi/scsi

This will produce output similar to the following for each device:

Attached Devices Host: SCSI0 Channel: 00 Id:00 Lun:00 Vendor: HP Model -----------Type: Direct-Access ANSI SCSI Revision 02

Look at the ID information to establish which IDs are in use.

Configuring on Linux systems

No changes are needed to support LTO Ultrium on Linux platforms, however you should ensure that you have the relevant drivers loaded.

To see the device drivers loaded currently, execute lsmod. This will give output similar to:

Module Size Used by sgm 4376 1 ide-scsi 7200 0 lockd 30792 1 sunrpc 53316 1 st 24656 0 sym53c8xx 52096 1 aic7xxx 136184 2

The lines of interest here are:

st The tape driver. Its presence shows that the tape driver is loaded.

sym53c8xx The SCSI chipset driver for the LSI Logic family of HBAs (amongst others).

aic7xxx The SCSI chipset driver for the Adaptec 7xxx chipset family (such as Adaptec

29160LP).

Latest SCSI controller drivers for Linux are available from the manufacturer’s web site.

In order to communicate with a tape device, the operating system needs to have drivers for the tape and the underlying transport mechanism (the host bus adaptor) loaded. Ensure that both are available as either loadable modules (for example, usable with insmod and visible with lsmod) or are statically built into your kernel.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 23

NOTE: To add drivers to the statically built kernel you need the Linux source code available on disk

and knowledge of how to use the kernel building tools that ship with various Linux distributions. This should not be attempted by novice users.

In order to determine if the drive has been detected by the tape driver at module load time, execute:

dmesg | grep "st"

This should find a number of lines. One should look like:

Detected SCSI tape st0 at scsi1, channel 0, id 5, lun 0

To load the tape driver module if it is not loaded as above, execute:

insmod st

to load it. This should happen naturally if your system is rebooted after attaching the drive.

When the ST driver module has been added, a list of tape device files will be created automatically. They reside in the /dev/ directory and have the syntax:

/dev/stp or dev/nstp

where:

Instance number of the device file (0 if only one drive is connected to the system)

p n Indicates this is a no-rewind driver

To enable large transfers under Linux (>64 KB per write), edit the file

/usr/src/linux/drivers/scsi/st_options.h and change the definition of ST_BUFFER_BLOCKS.

If you want requests to space to end of data (EOD) to be faster, you should also enable ST_FAST_MTEOM in the same file. After changing this file, rebuild the modules and install the new binary. At the very least, this requires:

make modules make modules_install

from the /usr/src/linux directory. See your kernel documentation.

Using the seek and tell features of mt

To use the seek and tell features of mt, you must tell the st driver that HP LTO Ultrium drives use logical block addressing:

mt -f <device file> stsetoptions scsi2logical

where /dev/stp is the device file.

Note however that this information is not preserved across reboots, so you need to execute this command each time the system comes up. The stinit utility offers a convenient way of handling this; see the relevant man page for more information. If you use this approach, set the manufacturer parameter to HP and the model to “Ultrium 4-SCSI”.

Linux (kernel 2.6.x) servers and workstations24

What next?

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 25

Linux (kernel 2.6.x) servers and workstations26

6 IBM (AIX) servers and workstations

Determining the SCSI ID

Before you configure your system to support LTO Ultrium drives, determine which SCSI ID to use. IDs must be unique for each device attached to the SCSI bus. To list existing devices, use the following:

% lsdev -C |grep SCSI

This produces output similar to:

scsi0 Available 00-00-0S Standard SCSI I/O Controller hdisk0 Available 10-60-00-0,0 16 Bit LVD SCSI Disk Drive rmt1 Defined 00-00-0S-2,0 Other SCSI Tape Drive

The SCSI ID is in the series 00-00-0S-X,0, where X is the SCSI ID. Review the list of existing SCSI IDs and choose an available ID to assign to the new tape drive.

Configuring the device files

To install an HP LTO Ultrium drive on an IBM workstation, create the appropriate device files for the drive. To change to variable block mode, use the following procedure:

If you are using a graphics terminal running X-Windows

1. At a Windows terminal, type:

smit tape

2. The following window is displayed:

If no device has been configured at this address before, select “add a tape drive” to set up the address.

Otherwise, select “change/show characteristics of a tape drive”

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 27

3. A pop-up window is displayed:

Select “ost” or “Other SCSI tape drive” as the tape drive you wish to change. If no device has been configured at this address before, choose connection addresses as

appropriate.

4. The following details are displayed:

Check the following values and change them if necessary:

•BLOCK Size = 0

• Use EXTENDED file marks = “no”

• RESERVE/RELEASE support = “yes”

• Set maximum delay for the READ/WRITE command = 1200 Click on the “DO” button to apply the changes.

IBM (AIX) servers and workstations28

If you are using a non-graphics terminal

1. At the command line type:

% smit -C tape

2. The following is displayed:

If no device has been configured at this address before, select “add a tape drive” to set up the address.

Otherwise, select “change/show characteristics of a tape drive”

3. A pop-up window is displayed:

Select “ost” or “Other SCSI tape drive” as the tape drive you wish to change. If no device has been configured at this address before, choose connection addresses as

appropriate.

4. The following details are displayed:

Check the following values and change them if necessary:

•BLOCK Size = 0

• Use EXTENDED file marks = “no”

• RESERVE/RELEASE support = “yes”

• Set maximum delay for the READ/WRITE command = 1200 Click on the “DO” button to apply the changes.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 29

HP LTO Ultrium drives will work with tar, cpio, backup, restore and dd.

Device filenames under AIX

Use device filenames as listed below for the combination of Rewind on Close, Retension on Open, and Compression that you want:

Filename Rewind on Close Retension on Open Compression

/dev/rmtn Yes No enabled /dev/rmtn.1 No No enabled /dev/rmtn.2 Yes Yes enabled /dev/rmtn.3 No Yes enabled /dev/rmtn.4 Yes No disabl ed /dev/rmtn.5 No No disabled /dev/rmtn.6 Yes Yes disabled /dev/rmtn.7 No Yes disabled

The n in the filename is the instance number assigned to the drive by the operating system, where 0 is the first device, 1 is the second and so on.

Rewind on Close Normally, the drive repositions the tape to BOT (Beginning of Tape) when the

device file is closed. Using the no rewind option is useful when creating and reading tapes that contain multiple files.

Retension on Open Retensioning consists of winding to EOT (End of Tape) and then rewinding to

BOT, in order to reduce errors. If this option is selected, the tape is positioned at BOT as part of the open process.

Compression Compression can be disabled or enabled.

IBM (AIX) servers and workstations30

7 Sun (Solaris 8, 9, 10) servers and workstations

Fibre Channel drives

Before configuring your system to support an HP LTO Ultrium drive, ensure that the drive is visible to the Sun system HBA by correctly zoning the fabric switch (if one is being used).

Configuring the device files

Before configuring FC-attached drives, ensure the operating system is updated with the latest recommended patches. On Solaris 8 and 9 you also need to install the Sun/StorageTek StorEdge SAN Foundation software from www.sun.com/download StorageTek SAN x.x).

When SAN configuration is complete, verify that the drive is visible to the HBA by typing:

% cfgadm -al

This should produce an output similar to:

... c3::50060b000xxxxxxx tape connected configured unknown ...

This indicates that the drive is configured and the device files built. In this example c3::50060b000xxxxxxx is the attachment point identifier with 50060b000xxxxxxx being the WWN of the drive port attached to the SAN and visible to the HBA.

(select the Storage Management link, then

If you do not see anything similar to the example above, recheck the SAN connections and the zoning configuration to ensure that the HBA and drive ports are visible to each other.

If the tape device shows as unconfigured, type the following:

% cfgadm -c configure c3::50060b000xxxxxxx

This will build the necessary device file in the /dev/rmt directory.

To verify the particular devices associated with a specific WWN then use the following command.

% ls -al /dev/rmt | grep 50060b000xxxxxxx

Replace 50060b000xxxxxxx with the appropriate WWN for the drive.

SCSI drives

Determining the SCSI ID

Before you configure your system to support an HP LTO Ultrium drive, determine which SCSI ID to use. IDs must be unique for each device on attached to the SCSI bus.

1. Use the modinfo command to identify SCSI controller drivers installed on the system:

# modinfo | grep "HBA Driver"

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 31

This produces output similar to the following:

106 780a0000 102b3 50 1 glm (GLM SCSI HBA Driver) 110 780b4000 1272c 228 1 qus (isp10160 HBA Driver)

For the adapter to which the new tape drive is attached, you need to determine what SCSI IDs

are already used.

2. Determine the SCSI IDs of existing devices attached to the SCSI controller:

For all adapters:

# dmesg | egrep ".*xxx.*target" | sort | uniq

where xxx = the type of adapter (esp, glm, fas, qus or isp), as appropriate.

For example, for an ESP-based adapter:

# dmesg | egrep ".*esp.*target" | sort | uniq

This produces a list similar to:

sd0 at esp0: target 0 lun 0 sd6 at esp0: target 6 lun 0

This indicates that SCSI IDs 0 and 6 are used for existing devices. SCSI ID 7 is generally used for

the adapter itself. Here, you would choose a SCSI ID from 1 to 5 for the new tape drive.

Configuring the device files

Determine the device file by typing:

# ls -l /dev/rmt/*m | grep "st@X"

where X is the SCSI ID. Identify the line for the tape drive. For example, if the drive was at SCSI ID 2, look for the line containing “st@2,0”. This might be as follows (but on a single line):

lrwxrwxrwx 1 root root 63 Mar 1 00:00 /dev/rmt/0m ../../devices/sbus@1f,0/espdma@e,8400000/esp@e, 8800000/st@2,0:m

Here you could use /dev/rmt/0m (shown underlined above) as the device file.

For optimal performance, ensure that you have the following minimum patch number:

Minimum patch

Solaris 8 108725-13 Solaris 9 Generic_122300-03 Solaris 10 Generic_118822-30

a. Patch levels are liable to change every 6 months or so, so these

“minimum” levels may quickly become out-of-date.

Upgrading to the minimum patch level will ensure that the necessary support for officially supported drives is included in the driver. You can view your existing patch level using the command “uname -a”. To access Solaris patch upgrades, you need to set up an Online Account with Sun. For additional information on changes to Solaris 8, 9 and 10 Software Update access, see SunSolve InfoDoc #83061 at

http://sunsolve.sun.com/search/document.do?assetkey=1-9-83061-1

Sun (Solaris 8, 9, 10) servers and workstations32

If for some reason you cannot upgrade to the minimum patch level, you can make the following file modifications to enhance performance:

1. In the file /kernel/drv/st.conf, after these lines:

#ident "@(#)st.conf 1.6 93/05/03 SMI"

Sun Microsystems, Inc.

add the following depending on which version of operating system you are installing (there are 6 significant spaces between HP and Ultrium in line 2):

for Solaris 8 without st patch:

tape-config-list =

"HP Ultrium 4","HP Ultrium LTO 4","HP_LTO_GEN_4"; HP_LTO_GEN_4 = 1,0x36,0,0xd639,4,0x00,0x42,0x44,0x46,3; name="st" class="scsi" target=X lun=0;

where X is the SCSI target address of the device you have attached.

for Solaris 9 and 10 (and 8 with st patch):

tape-config-list =

"HP Ultrium 4","HP Ultrium LTO 4","HP_LTO_GEN_4"; HP_LTO_GEN_4 = 2,0x3B,0,0x18659,4,0x00,0x42,0x44,0x46,3,60,1200, 600,1200,600,600,18000; name="st" class="scsi" target=X lun=0;

where X is the SCSI target address of the device you have attached. See “HP-data values” on page 34 below for the values of the parameters in these lines.

2. If you are replacing an existing tape device on the same SCSI ID, remove the contents of the

/dev/rmt directory as follows:

# cd /dev/rmt # rm *

3. Instead of rebooting the device, follow these steps.

a. Find the kernel module ID:

# modinfo | grep “st (“ 96 60dcc000 cdb0 33 1 st (SCSI Sequential Access Driver)

In this example the ID is 96.

b. Unload the kernel module:

# modunload -i 96

c. Load the kernel module back in:

# modload -p drv/st

d. Rebuild the device paths:

devfsadm -C devfsadm -i st

For further details, see “How do you load st.conf changes without rebooting,” Su nS olve document 18010, on

http://sunsolve.sun.com/search/document.do?assetkey=1-9-18010-1&searchclause=18010

This link is valid for registered SunSolve users with a valid Sun Service Plan.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 33

4. You should now be able to use the drive.

•Use /dev/rmt/Xcb if you require a compression rewind device file, where X is the relevant device address.

•Use /dev/rmt/Xcbn when you require a compression non-rewind device.

Once the device files have been created, you should confirm that your new tape drive is working properly. Chapter 8 on page 37 provides instructions on backing up and restoring a sample file to test your installation.

HP-data values

The values for HP_LTO_GEN_n and name, which provide normal LTO mode, have the following meanings:

The syntax for HP_LTO_GEN_n on Solaris 8/9/10 is:

<drive type> = <version>, <type>, <bsize>, <options>,

<no. of densities>, <density 0>, <density 1>, <density 2>,<density 3>, <default density>, <non-motion timeout>, <read/write timeout>, <rewind timeout>, <space timeout>, <load timeout>, <unload timeout>, <erase timeout>

where:

Parameter Value Meaning

<version> 1 or 2 Indicates the format of the following parameters.

<type> 0x36 or

0x3B

The value for an LTO Ultrium drive in /usr/include/sys/mtio.h. For Solaris 8, 0x36 indicates a type of MT_ISOTHER. Later versions of Solaris support the value

0x3B which indicates a type of MT_LTO.

<bsize> 0 Indicates variable block size.

<options> 0xd639

0x18659

This value is derived from constants provided in /usr/include/sys/scsi/targets/stdef.h. The value determines which operations the driver can perform with the attached device by using a unique value for each feature and then adding them together to form the options value. Supported features will vary with OS revision, and may include the following:

0x001 Device supports variable length records. 0x008 Device can backspace over files (as in the ‘mt bsf’

option).

0x010 Device supports backspace record (as in ‘mt bsr’). 0x020 Device requires a long time-out period for erase

functions.

0x040 Device will automatically determine the tape density. 0x0200 Device knows when end of data has been reached. 0x0400 Device driver is unloadable.

Sun (Solaris 8, 9, 10) servers and workstations34

Parameter Value Meaning

0x1000 Time-outs five times longer than normal. 0x4000 Driver buffers write requests and pre-acknowledges

success to application.

0x8000 Variable record size not limited to 64 KB.

0x10000 Device determines which of the two mode pages the

device supports for selecting or deselecting compression.

So 0xd639 indicates variable record length, bsf and bsr enabled,

long timeouts for erase, EOD recognition, Unloadable device driver,

5 x longer timeouts, buffer writes and pre-acknowledge success,

variable records not limited to 64 KB, auto-density over-ride and

MODE SELECT compression.

Similarly, 0x018659 indicates variable record length, bsf and bsr

enabled, automatic density determination, EOD recognition,

unloadable device driver, variable records not limited to 64 KB, and

device selection of mode pages for controlling compression.

<no. of

4 There are four densities following in the parameter list.

densities>

<density n> 0x00 Creates a device file with compression disabled. <density 3> 0x46 The density code for data compression enabled by default.

<default

3 Density 3 (0x46) is the default for Generation 4 drives.

density>

<X timeout> All timeouts are in seconds

Values for the parameters for name are as follows:

Parameter Value Meaning

target XX specifies the SCSI ID (target) of the device.

lun 0 Specifies the LUN for the device.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 35

Sun (Solaris 8, 9, 10) servers and workstations36

8 Verifying the installation

Verifying the installation of the drive (UNIX)

As part of the installation process, you will have installed the appropriate device driver for your UNIX system, and created device files to communicate with the tape drive.

This section describes how you can verify the installation has been performed correctly.

In outline, the procedure is as follows:

1. Check the tape drive responds to a rewind command.

2. Write test data to a tape.

3. Read the test data from the tape.

4. Compare the data read from the tape with the original data on disk.

To verify the installation:

1. Test the SCSI connection to the tape drive by performing a rewind:

a. If there is a tape cartridge already in the drive, remove it. b. Insert a new tape cartridge. c. Rewind the tape using the command line:

% mt -f <device file> rewind

For example, on HP-UX 11i v1 or 11i v2

% mt -f /dev/rmt/c4t3d0BESTnb

For example, on HP-UX 11i v3 (using a persistent device file):

% mt -f /dev/rtape/tape0_BESTnb rewind

If the command completes successfully, there will be no feedback. If it fails, you will see an error message on the console. There may be a reservation by another host, or a zone change, or the hardware installation may be faulty. Check the troubleshooting section of the User’s Guide for help in identifying the problem.

2. Write a sample file to tape, using ‘tar’:

% cd / % tar cvf <device file> <file>

The options to tar have the following meanings:

c Create a new archive (backup file) on the device. v Operate in verbose mode. f Specify the device file explicitly.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 37

The arguments follow the cvf options in the command line. Their values depend on the operating system; suggested values are given the appropriate operating system chapter.The arguments are as follows:

<device file> The name of the device file for the drive.

Example: /dev/rmt/c4t3d0BESTnb

<file> The name of the file to archive, prefixed with ‘./’.

Example: ./stand/vmunix

NOTE: Make sure you prefix the file name with ‘.’ when you back it up to tape. If you do not, the

restore operation in step 3 will overwrite the original copy on disk.

3. Read the file back from tape:

% cd /tmp % tar xvf <device file>

The ‘x’ option to tar here means “extract from the archive”. Use the same value for the <device file> argument as in step 2.

4. Compare the original with this retrieved file:

% cmp <original file> /tmp/<retrieved file>

This compares the files byte by byte. If they are the same, there should be no output, and this verifies that the installation is correct. The arguments are:

Example

Suppose you are verifying the installation of an HP LTO Ultrium tape drive on an HP-UX 11.X system. The procedure would be as follows.:

1. Use ioscan to obtain the tape drive device file options:

2. Change directory to root:

3. Back up /stand/vmunix to tape. For example:

4. Change to the temporary directory:

5. Extract the file from the tape. For example:

<original file> The name of the original file, prefixed with ‘/’.

Example: /stand/vmunix

<retrieved file> The name of the file retrieved from the archive.

Example: stand/vmunix

%/sbin/ioscan -fnC tape

Identify the Berkeley ‘no-rewind’ option, for example: /dev/rmt/c4t3d0BESTnb

% cd /

% tar cvf /dev/rmt/c4t3d0BESTnb ./stand/vmunix

Note the prefix of ‘.’ to the filename.

% cd /tmp

% tar xvf /dev/rmt/c4t3d0BESTnb

Verifying the installation38

6. Compare the original with the restored version:

% cmp /stand/vmunix /tmp/stand/vmunix

Note that the original filename is not prefixed with ‘.’.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 39

Verifying the installation40

Glossary

AT&T mode Berkeley and AT&T functional modes differ in “read-only” close functionality. In AT&T

mode, a device close operation will cause the tape to be repositioned just after next filemark on the tape (the start of the next file).

Berkeley mode Berkeley and AT&T functional modes differ in “read-only” close functionality. In

Berkeley mode the tape position will remain unchanged by a device close operation.

BOT Beginning Of Tape. The first point on the tape that can be accessed by the drive.

buffered mode A mode of data transfer in write operations that facilitates tape streaming. It is selected

by setting the Buffered Mode Field to 1 in the SCSI header.

compression A procedure in which data is transformed by the removal of redundant information in

order to reduce the number of bits required to represent the data. This is basically done by representing strings of bytes with codewords.

In LTO Ultrium drives, the data is compressed using the LTO-DC compression format which is based on ALDC (licensed from Stac/IBM) with two enhancements. One limits the increase in size of data that cannot be compressed that ALDC produces. The other is the use of embedded codewords.

MODE SELECT Parameter List

data transfer phase On a SCSI bus, devices put in requests to be able to transfer information. Once a

device is granted its request, it and the target to which it wants to send information can transfer the data using one of three protocols (assuming both devices support them): asynchronous, synchronous, and wide.

In asynchronous transfers, the target controls the flow of data. The initiator can only send data when the target has acknowledged receipt of the previous packet. All SCSI devices must support asynchronous transfer.

In synchronous data transfer, the initiator and target work in synchronization, allowing transmission of a packet of data to start before acknowledgment of the previous transmission.

In wide (16-bit) data transfer, two bytes are transferred at the same time instead of a single byte.

HP LTO Ultrium drives support asynchronous, synchronous and narrow (8-bit) wide transfers.

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 41

Fibre Channel Fibre Channel provides an inexpensive yet expandable means of quickly transferring

data between workstations, mainframes, supercomputers, desktop computers, storage devices, displays and other peripherals. Although it is called Fibre Channel, its architecture represents neither a channel nor a real network topology. It allows for an active intelligent interconnection scheme, called a fabric, to connect devices. All a Fibre Channel port has to do is to manage a simple point-to-point connection between itself and the fabric.

Several common ULPs (Upper Level Protocols) including IP and SCSI can run on Fibre Channel, merging high-speed I/O and network functionality in a single connectivity technology.

filemark A mark written by the host to the tape that can be searched for, often using the drive’s

fast-search capability. It does not necessarily separate files. It is up to the host to assign a meaning to the mark.

immediate mode A mode of responding to SCSI commands where the drive or other peripheral does not

wait until the command has finished before returning status information back to the host. For writing filemarks, Immediate mode can significantly improve the performance of systems that do not set the Immediate bit when sending a SCSI

WRITE FILEMARKS

command. On the other hand, data is not flushed to tape in response to a filemark command.

infinite flush By default, the buffer in the drive is flushed every 5 seconds. Infinite flush avoids

frequent starting and stopping of the mechanism when using a very slow application. It also avoids losing capacity through the flushing of partly written groups. On the other hand, infinite flush means that data can remain in the buffer for very long periods of time, and could be lost in the event of a power failure.

LUN Logical Unit Number. A unique number by which a device is identified on the SCSI

bus. A tape drive has a fixed LUN of 0. In an autoloader, the changer mechanism is LUN1.

SAN Storage Area Network. A dedicated, high-speed network that establishes a direct

connection between storage elements and servers. The hardware that connects workstations and servers to storage devices in a SAN is referred to as a fabric. The SAN fabric enables any-server-to-any-storage device connectivity through the use of Fibre Channel switching technology.

sequential access Sequential access devices store data sequentially in the order in which it is received.

Tape devices are the most common sequential access devices. Devices such as disk drives are direct access devices, where data is stored in blocks, not necessarily sequentially. Direct access allows speedy retrieval, but is significantly more costly.

Index

agile addressing 9 AIX 27 ANSI 3 asynchronous data transfer 41 AT&T mode 41

Berkeley mode 41 BOT 41 buffered mode 41

compression 41 confirming installation 37

data transfer 41 device files

AIX 30 IBM (AIX) 27

Sun workstations 32 direct access 42 documents, related 3 dsf formats 9

fibre channel 42 filemarks 42 filenames under AIX 30

HP Alpha 21 HP Tru64 21 HP-UX systems 9

determining attached devices 9

IBM (AIX) 27

determining SCSI ID 27

device files 27 immediate mode 42 infinite flush 42 installation, verifying 37

Linux 23

determining SCSI ID 23 LUN 42

mode

AT&T 41

Berkeley 41

immediate 42

OpenVMS servers and workstations

determining attached devices 19

persistent dsf 9

SAN 42 SCSI 3 SCSI ID, determining

IBM (AIX) 27

Linux 23

Sun workstations 31 sequential access 42 storage area network 42 Sun workstations

data values 34

determining SCSI ID 31

device files 32 synchronous data transfer 41 systems

HP-UX 9

Linux 23

HP LTO Ultrium 4 drives technical reference manual, volume 5: UNIX, Linux and OpenVMS configuration guide 43

verifying installation 37

wide data transfer 41

HP LTO-4 Technical Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
