HP LP2275w Service manual

22" LCD Color Monitor HP LP2275w

Service

Service

Service

Horizontal Frequency

30- 93 kHz

TABLE OF CONTENTS

Description Page Description Page

Table Of Contents.......…..............................…........1

Revision List.…..................................……......2

1. Monitor Specification............................………........4

2. LCD Monitor Description……………………….......5

3. Operation Instruction…………..............……...........6

3.1.General Instructions.........................….............6

3.2. Control Button…………….….........……...............6

3.3 Adjusting the Picture...........................…............7

4. Input/Output Specification......……………............12

4.1. Input Signal Connector............………................12

4.2. Factory Preset Display Modes......…..................15

4.3. Power Supply Requirements..............................15

5. Panel Specification.....………………..................16

5.1.General Feature…..........................................16

5.2. Optical Characteristics…………………………17

6. Block Diagram……...................………................18

6.1 Software Flow Chart……………………………...18

6.2. Electrical Block Diagram……………..….......20

7. Schematic……………......................................22

7.1 Main Board..……….......................................22

7.2 Power Board.…….……....................................31

7.3 Inverter Board……………………………………33

7.4 Key Board.……..……....................................35

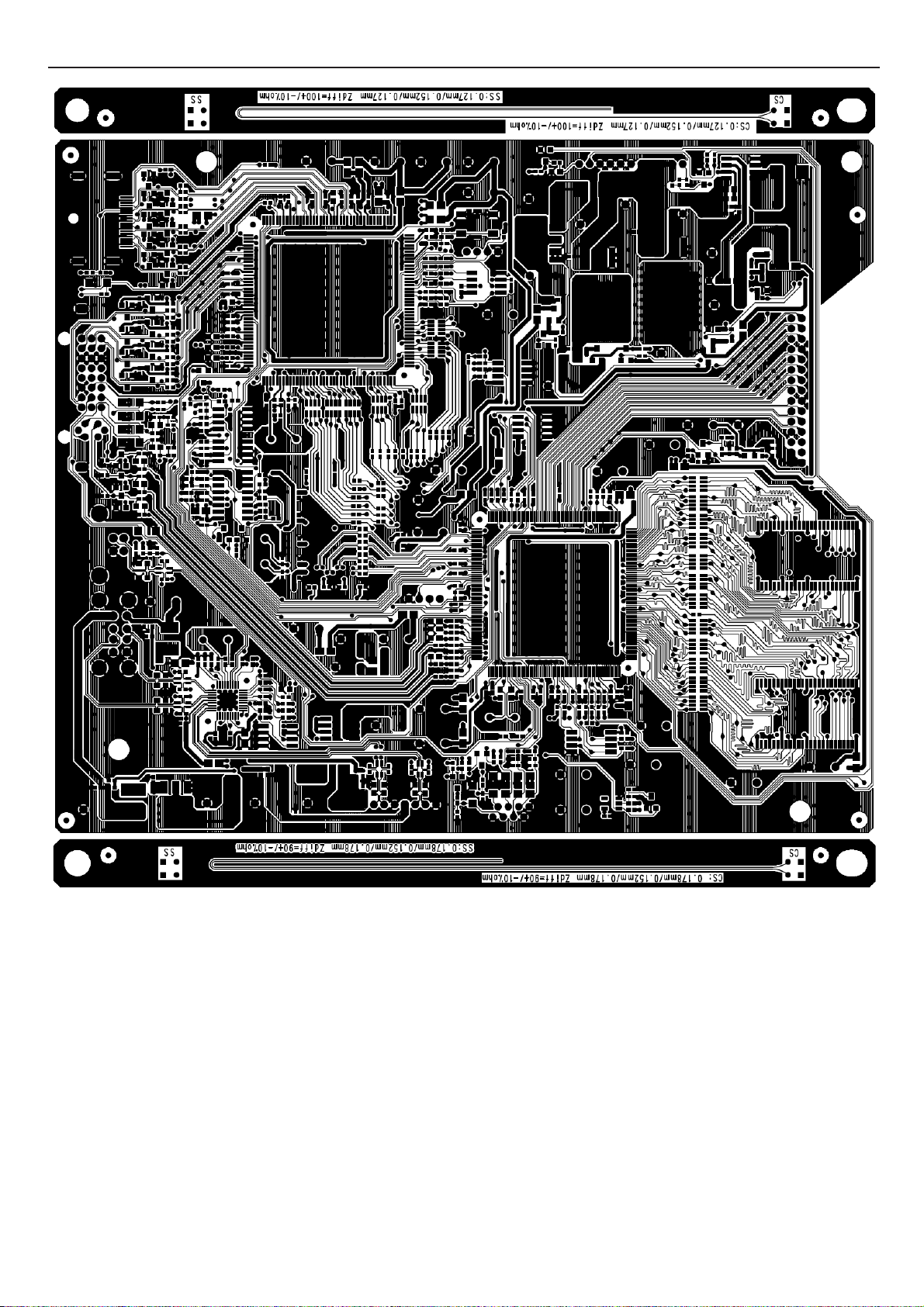

8.PCB Layout…...…….......................................36

8.1.Main Board………........................................36

8.2 Inverter Board.................................................38

8.3.Power Board…................................................39

8.4.Key Board………............….......................40

8.5.USB Board………............….......................41

9. Maintainability……….......................................42

9.1.Equipments and Tools Requirement..............42

9.2.Trouble Shooting………..............................43

10.White-Balance, Luminance adjustment...49

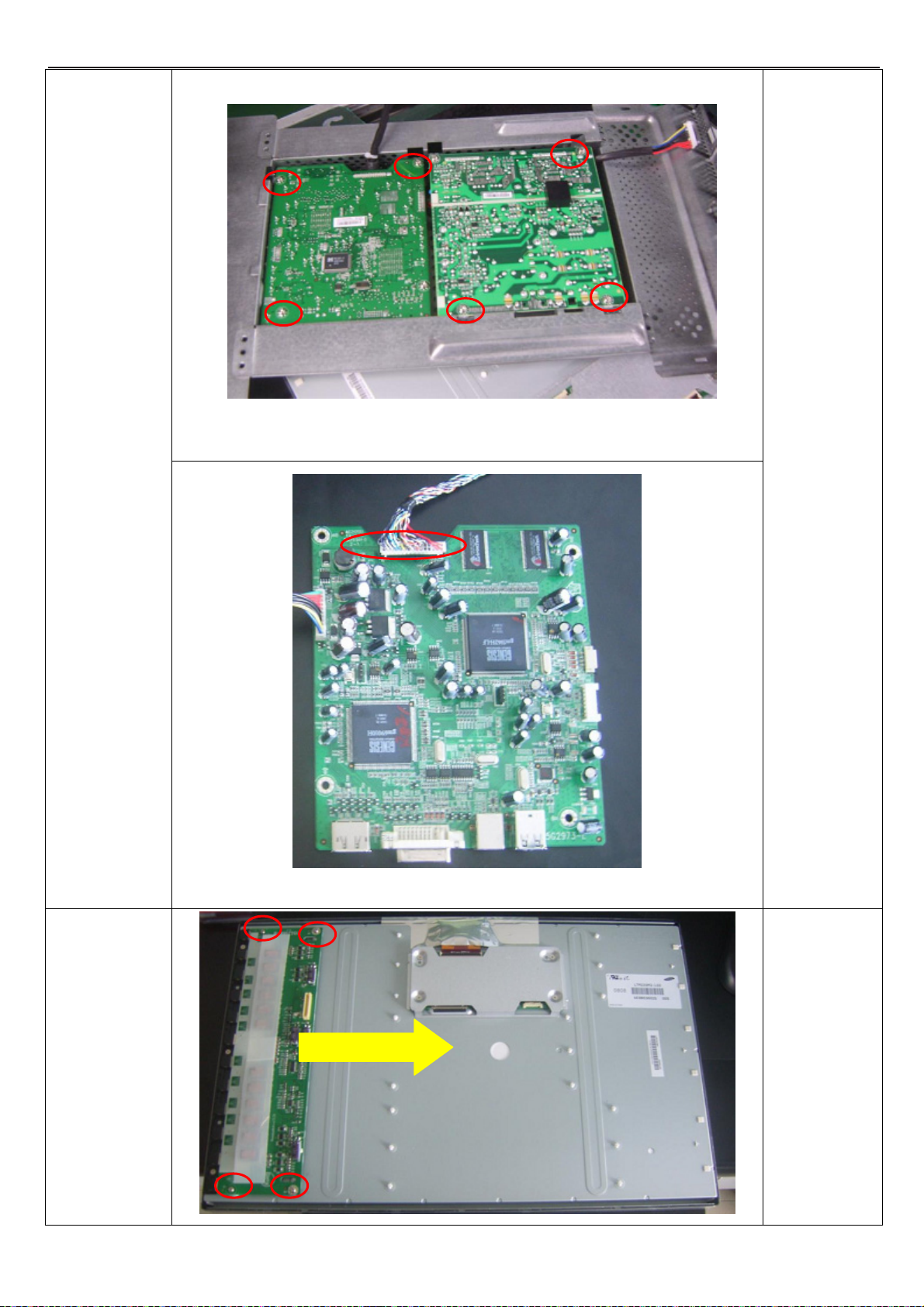

11.Mechanical Instructions………….…...….......51

12.Monitor Exploded View…….…………....….......56

13.BOM List……………….…………………………58

14. Different Parts List………………………………86

SAFETY NOTICE

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS

AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC

EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFOMER FOR THIS UNIT WHEN SERVICING

1

22" LCD Color Monitor HP LP2275w

Revision List

Version Date Revision History TPV Model Name

A00 Jun.-25-08 Initial release

A01 Aug.-19-2008 Add new BOM in item 14

TC8SGKDKW9HPEN

TC8SGKDBW9HFGN

TC8SGKDBW9HEGN

TC8SGKDLW9HPEN

TC8SGKDJW9HPEN

2

22" LCD Color Monitor HP LP2275w

ECN History

ECN No. Change Description Service

Deposition

Update Insam firmware version

Cut-in date SMR

SCR

AOC-LP2275w-001

SCR

AOC-LP2275w-002

SCR

AOC-LP2275w-004

SCR

AOC-LP2275w-006

fromV0.53 to V0.58, and matching

N/A Jul-29-08 A01

changed Safe-Lite firmware version

from SL0528 to SL0716

Update the Insam firmware from

N/A Jul-30-08 A01

SPG058 to SPG060 to fix this issue.

1. Re-layout the scalar board with the

PN changed from 715G2973-1 to

715G2973-2 to add the location of

R200.

2. Install R200 resistor (4.7K in
Item 13 Aug-20-08 A01

value).

3. At the same time, update Insam

firmware version from SPG058 to

SPG062, and keeping Safe-Lite

firmware version the same.

Change R852 on the inverter board

Item 13 Sep-10-08 A01

from 510 OHM to 270 OHM

SCR

AOC-LP2275w-007

SCR

AOC-LP2275w-008

change the FB902 on the power

board according to FEB

Change the screws with the longer

length and add glue to prevent hinge

screw loose

N/A Sep-15-08 A01

N/A Aug-12-2008 A01

3

22" LCD Color Monitor HP LP2275w

1. Monitor Specification

4

22" LCD Color Monitor HP LP2275w

(

2. LCD Monitor Description

The LCD Monitor will contain a main board, a power board, a key board and a USB board which house the flat panel

control logic, brightness control logic and DDC.

The power board will provide AC to DC Inverter voltage to drive the backlight of panel and the main board chips each

voltage.

Power Board

Include adapter board)

AC-IN

110V-240V

Monitor Block Diagram

CCFT Drive.

Main Board

Key board USB board

Flat Panel and

CCFL backlight

RS232 Connector

For white balance

adjustment in

factory mode

Video signal, DDC

HOST Computer

5

22" LCD Color Monitor HP LP2275w

3. Operation Instructions

3.1 General Instructions

Press the power button to turn the monitor on or off. The other control buttons are located at front of the panel. By

changing these settings, the picture can be adjusted to your personal performance.

The power cord should be connected and insert to adaptor.

-

Connect the video cable from the monitor to the computer VGA card.

-

Press the power button to turn on the monitor, the power indicator will light up to Green.

-

3.2 Control Button

6

22" LCD Color Monitor HP LP2275w

Using the On-Screen Display Menu

3.3 Adjust the Picture

The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions.

After changing an OSD menu item, and if the menu screen has these options, you may choose to:

● Cancel—to return to the previous menu level.

● Save and Return—to save all changes and return to the OSD Main Menu screen. This Save and

Return option is only active if you change a menu item.

● Reset—to change back to the previous setting.

7

22" LCD Color Monitor HP LP2275w

8

22" LCD Color Monitor HP LP2275w

9

22" LCD Color Monitor HP LP2275w

10

22" LCD Color Monitor HP LP2275w

11

22" LCD Color Monitor HP LP2275w

4. Input/Output Specification

4.1 Input Signal Connector

Pin Signal Pin Signal Pin

TMDS Data 2 -

1

2 TMDS Data 2 + 10 TMDS Data 1 + 18 TMDS Data 0 +

TMDS Data 2 / 4 Shield

3

TMDS Data 4 -

4

TMDS Data 4 +

5

DDC Clock

6

DDC Data

7

No Connect

8

TMDS Data 1 -

9

TMDS Data 1 / 3 Shield

11

TMDS Data 3 -

12

TMDS Data 3 +

13

+3.3/+5V Power (from PC)

14

Ground (Return for +5V)

15

Hot Plug Detect (connect internally

16

to pin-14)

DVI-D digital connector layout

TMDS Data 0 -

17

TMDS Data 0 / 5 Shield

19

TMDS Data 5 -

20

TMDS Data 5 +

21

TMDS Clock Shield

22

TMDS Clock +

23

TMDS Clock -

24

Signal

12

22" LCD Color Monitor HP LP2275w

PIN MNEMONIC SIGNAL

1 ML Lane 0 (p) Lane 0 +

2 GND Ground

3 ML Lane 0 (n) Lane 0 -

4 ML Lane 1 (p) Lane 1 +

5 GND Ground

6 ML Lane 1 (n) Lane 1 -

7 ML Lane 2 (p) Lane 2 +

8 GND Ground

9 ML Lane 2 (n) Lane 2 -

10 ML Lane 3 (p) Lane 3 +

11 GND Ground

12 ML Lane 3 (n) Lane 3 -

13 GND Ground

14 GND Ground

15 AUX CH (p) Aux Channel +

16 GND Ground

17 AUX CH (n) Aux Channel +

18 HPD Hot Plug Detect

19 Return Return

20 DP PWR Source Power Out (to sink)

DISPLAY-PORT DIGITAL Source connector

13

22" LCD Color Monitor HP LP2275w

PIN MNEMONIC SIGNAL

1 ML Lane 3 (n) Lane 3 -

2 GND Ground

3 ML Lane 3 (p) Lane 3 +

4 ML Lane 2 (n) Lane 2 -

5 GND Ground

6 ML Lane 2 (p) Lane 2 +

7 ML Lane 1 (n) Lane 1 -

8 GND Ground

9 ML Lane 1 (p) Lane 1 p

10 ML Lane 0 (n) Lane 0 -

11 GND Ground

12 ML Lane 0 (p) Lane 0 +

13 GND Ground

14 GND Ground

15 AUX CH (p) Aux Channel +

16 GND Ground

17 AUX CH (n) Aux Channel +

18 HPD Hot Plug Detect

19 Return Return

20 DP PWR Source Power In

DISPLAY-PORT DIGITAL SINK connector

14

22" LCD Color Monitor HP LP2275w

4.2 Factory Preset Display Modes

4.3 Power Supply Requirements

Parameter Range

AC Input Voltage 90 to 265V

AC Input Frequency 45 to 63 Hz

Inrush Current 50A MAX AT 220VAC and 30A AT 120VAC

Leakage Current 5 mA MAX at 120VAC

15

22" LCD Color Monitor HP LP2275w

5. Panel Specification

LTM1220M3-L02 is a Color Active Matrix Liquid Crystal Display (LCD)that uses amorphous silicon TFT （Thin Film

Transistor）as switching components。This model is composed of a TFT LCD panel, a driver circuit and a back light

unit.The resolution of a 22.0” is 1680 X 1050 and this model can display up to 16.7 million colors.

Features:

High contrast ratio,high aperture structure,high color gamut

Wide viewing anle

High speed reponse

WSXGA+(1680 x 1050 pixels)resolution

S-PVA(super patterened vertical alignment)mode

U-type 6CCFTS(Cold cathode fluorescent Tube)

DE (Data Enable)mode

LVDS(Low Voltage differential Signaling)interface(2pixel/clock)

ROHS compliance

Pb-free compliance

5.1 General Feature

Absolute Maximum Ratings

16

22" LCD Color Monitor HP LP2275w

5.2 Optical Characteristics

17

22" LCD Color Monitor HP LP2275w

6. Block diagram

6. 1 Software Flow Chart

1

Y

2

N

3

4

5

N

Y

6

N

7

8

Y

9

10

N

11

12

Y

13

N

N

Y

14

15

Y

N

16

Y

17

18

N

19

Y

18

22" LCD Color Monitor HP LP2275w

REMARK:

1) MCU initialize.

2) Is the EEprom blank?

3) Program the EEprom by default values.

4) Get the PWM value of brightness from EEprom.

5) Is the power key pressed?

6) Clear all global flags.

7) Are the AUTO and SELECT keys pressed?

8) Enter factory mode.

9) Save the power key status into EEprom.

Turn on the LED and set it to green color.

Scalar initialize.

10) In standby mode?

11) Update the lifetime of back light.

12) Check the analog port, are they’re any signals coming?

13) Does the scalar send out an interrupt request?

14) Wake up the scalar.

15) Are there any signals coming from analog port?

16) Display "No connection Check Signal Cable" message. And go into standby mode after the message

disappear.

17) Program the scalar to be able to show the coming mode.

18) Process the OSD display.

19) Read the keyboard. Is the power key pressed?

19

22" LCD Color Monitor HP LP2275w

6.2 Electrical Block Diagram

6.2.1 Scalar Board

PANEL Interface

CN403

SDRAM

EM636165TS-5G

U404

SDRAM

EM636165TS-5G

U405

Scalar GM5862H-LF PQFP-256

(Include: MCU, ADC, OSD etc)

U401

MST30D1-LF

U110

Crystal

14.318MHZ

X401

EEPROM

SST25LF040A

U402

DISPLAY PROTECION

GM69010

DVI CN101

DISPLAY PORT

19

CN102

EEPROM

U102& U103

22" LCD Color Monitor HP LP2275w

6.2.2 Inverter / Power Board

AC input

EMI filter

Bridge

Rectifier

and Filter

PFC Circuit

Start

Circuit

PWM

Control IC

PWM Control

IC

Transformer

Transformer

Rectifier

diodes

Rectifier

diodes

CN902

24V

CN903

5V

PS

L

a

m

p

LC

Resonance

Feedback

Over

Circuit

Voltage

Transformer

MOSFET

PWM

Control IC

24V

ON/OFF

ON/OFF

Control

DIM

21

22" LCD Color Monitor HP LP2275w

7. Schematic

7.1 Main Board

AVI-R_A

AVI-G_A

AVI-B_A

CN101
JACK

DATA2/4_SHLD

DDC_CLK

DDC_DATA

DATA1/3_SHLD

H_PLUG_DET

DATA0/5_SHLD

CLK_SHLD

C1

C2

ANA_Green

C3

C4

ANA_HY NC

ANA_GND

C5
C5

ANA_GND

TH1

31

DDC-DVI-SEL3

DDC-SDA_A
DDC-SCL_A

C111

0.1uF 16V

GND

1

C1114

10pF

DATA2­DATA2+

DATA4­DATA4+

VSYNC
DATA1­DATA1+

DATA3­DATA3+

DATA0­DATA0+

DATA5­DATA5+

ANA_Red

ANA_Blue

32

+5V

ZD102

TZMC5 V6

3

AVI-VS_A

AVI-HS_A

+5V

GND

CLK+
CLK-

TH2

DVI-5V_A

+3.3V

2

C117
NC

C1115

10pF

DC5V

D110
BAV99

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

1 2

DDC-SCL_A
DDC-SDA_A
AVI-VS_A

DVI-5V_A

DVI-I_A_ Cable_detect
HP_A

GND

1

2

DDC-DVI-SEL

ZD103
TZMC5V 6

1 2

GND

GND

1

ZD104

TZMC5 V6

D109
BAT54C

C112

0.1uF 16V

3

GND

AVI-R_A
AVI-G_A
AVI-B_A
AVI-HS_A

ZD101

TZMC5 V6

1 2

GND

+3.3V

2

D111
BAV99

C118
NC

1 2

GND

C1101

0.1uF 16V

1

ZD106

2

TZMC5V 6

C1105

0.1uF 16V

U101 74LV4053D

16

VCC

15

2Z

14

1Z

13

1Y1

12

1Y0

11

S1

10

S2

+3.3V

C113

0.1uF 16V

1

3

C119
NC

GND

2

D101
BAV99

3

3

D105

BAV99

1

GND

1

2Y1

2

2Y0

3

3Y1

4

3Z

5

3Y0

6

E

7

VEE

89

GNDS3

GND

2

D112
BAV99

R134

2K2 1/16W 5%

GND

NC
R101
R102

NC

R103 10K 1/16W 5%

1 2

For analog into IROM, hardware
U101 pin9 pull high

DDC-5V

3

R1118

4K7 1/16W 5%

GND

FB104 0R05 1/10W 5 %

FB105 0R05 1/ 10W 5%

ZD105
TZMC5V 6

1 2

C1102

0.1uF 16V

1

3

UART_RX 5
UA_TX/BS_4 5

3

2

C1106

0.1uF 16V

R129
NC

GND

2

D102
BAV99

D106

BAV99

1

AVI-SDA_A
DVI-SDA_A

DVI-SCL_A
AVI-SCL_A

FB101 60 OHM

1 2

1 2

FB102 60 OHM

1 2

60 OHM

FB103

R130

R131

NC

NC

C120
22pF

2K2 1/16W 5%

C1103

0.1uF 16V

1

2

75 OHM 1/16W

GND

(8 mil)

R135

2

D103
BAV99

3

3

D107

BAV99

1

C1107

0.1uF 16V

C1110

75 OHM 1/16W

R132 220R 1/16W 5%

R133 220R 1/16W 5%

C121
22pF

C1104

0.1uF 16V

GND

1

3

3

2

C1108

0.1uF 16V

R1117 475 OHM 1% 1/10W

C1112

C1113

2

D104
BAV99

D108
BAV99

1

DDC-5V

R112 4K7 1/16W 5%
R113 4K7 1/16W 5%

R114 0R05 1/16W
R115 0R05 1/16W
R116 47R 1/16W 5%
R117 47R 1/16W 5%

DDC-5V

R119 4K7 1/16W 5%
R120 4K7 1/16W 5%

R121 47R 1/16W 5%
R122 47R 1/16W 5%
R123 0R05 1/16W
R124 0R05 1/16W

R126
47R 1/16W 5%
R127
47R 1/16W 5%
R128
47R 1/16W 5%

75 OHM 1/16W

FB118

120 OHM

R104 10R 1/16W 5%
R105 10R 1/16W 5%

R106 10R 1/16W 5%
R107 10R 1/16W 5%

R108 10R 1/16W 5%
R109 10R 1/16W 5%

R110 10R 1/16W 5%
R111 10R 1/16W 5%

FB116

120 OHM

10K 1/16W 5%

EDID_WP

R125

10K 1/16W 5%

EDID_WP

C1109 0.1uF 16V

C114 0.01uF/25V

C115 0.01uF/25V

C116 0.01uF/25V

VSYNC 3

HSYNC 3

SL_RX2­SL_RX2+

SL_RX1­SL_RX1+

SL_RX0­SL_RX0+

SL_RXC+
SL_RXC-

+3.3V

970122

SL_DDC_SD A_DVI 5
SL_DDC_SC L_DVI 5

U102

R118

8

VCC

7

WP

6

SCL

M24C02-WMN6TP

U103

8

VCC

7

WP

6

SCL

M24C02-WMN6TP

DDC_SDA_VGA 3
DDC_SCL_VGA 3

RED+

GREEN+

BLUE+

+3.3V

SL_RX2- 5
SL_RX2+ 5

SL_RX1- 5
SL_RX1+ 5

SL_RX0- 5
SL_RX0+ 5

SL_RXC+ 5
SL_RXC- 5

C1090.1uF 16V

A0
A1
A2

GNDSDA

C1100.1uF 16V

A0
A1
A2

GNDSDA

SOG 3

RED+ 3

GREEN+ 3

BLUE+ 3

1
2
3
45

1
2
3
45

GND

GND

22

EDID_WP

HP_A

R136 22R 1/16W 5%

DVI-I_A_C able_detect

+5V

Q101

2N7002

SL_DVI_HPD 5

+5V

R137

4K7 1/16W 5%

CABLE_DET 3

+5V

+5V3,4,5,6, 8,10

+3.3V

+3.3V8,9

DVI_EDID_WP 3

T P V ( Top Victory Electronics Co . , Ltd. )

G2973-1-X-X-1-080603

絬 隔 瓜 絪 腹

Key Component

2.0 INPU T

Date

OEM MODEL Size

HP-Say id 22W

TPV MODEL

LP2275w G

PCB NAME

715G2973-G

of

210Tuesday, June 03, 2008

Sheet

C

Rev

称爹

>

<

称爹

22" LCD Color Monitor HP LP2275w

3.3_D

C428

C427

C426

0.1uF 16V

0.1uF 16V

0.1uF 16V

C443

C444

+

C442

100uF25V

0.1uF 16V

0.1uF 16V

+5V LV_O6

1
2
3
4

GND

C447

0.1uF 16V

GND

BLUE+2
SOG2
GREEN+2
RED+2

Ph_RX2+7
Ph_RX2-7
Ph_RX1+7
Ph_RX1-7
Ph_Rx0+7
Ph_RX0-7
Ph_RXC+7
Ph_RXC-7

R448

30K OHM 1/16W 5%

0.1uF 16V

R424

820K OHM 1/16W 5%

C453

0.1uF 16V

GND

SAFE-Lite hardware circuit Pin 106 and
107(VGA_DDC_SCL and VGA_DDC_SDA) need connect
with Insam Pin 165 and 166(GPIO 49 and 48).

UART_DO/BOOT3

3.3_A_RPLL

C445 5.6PF

C446 5.6PF

HSYNC2
VSYNC2

R404 84.5 OHM 1% 1/10W
R405 84.5 OHM 1% 1/10W
R406 84. 5 OHM 1% 1/10W

GND

R425
820K OHM 1/16W 5%

C452

VGA_DDC_SCL2
VGA_DDC_SDA2

GND

R401 10K 1/16W 5%

PH_DDC_SCL5
PH_DDC_SDA5

DDC_SCL_VGA2
DDC_SDA_VGA2

R449

30K OHM 1/16W 5%

/SRESET5

POWER_OFF_SL33
POWER_OFF_SL18

3.3_A_DVI

GND

DP_CAB_DET4

3.3_A_DVI

3.3_A_RPLL

3.3_A_ADC

X401

14.3181MHZ

TCLK

C448 0.1uF 16V

C449 0.1uF 16V

C450 0.1uF 16V

SPI_CSn/BOOT0

SPI_CLK/BOOT1

SPI_DO/BOOT2

/RST_GPIO2

GND

SPI_DI

1.8_A_DVI

1.8_A

R412
249R 1/10W 1%

131

VDD_DVI_18

139

VDD_DVI_18

147

VDD_DVI_18

197

VDD1_ADC_18

199

VDD_RPLL_18

203

AVDD_RPLL_33

176

VDDA_ADC_33

187

VDDA_ADC_33

190

VDDA_ADC_33

143

VDDA_DVI_33

135

VDDA_DVI_33

154

UART_DI

155

UART_DO/BOOT[3]

148

DDC_SCL_CH2

149

DDC_SDA_CH2

152

DDC_SCL_CH1

153

DDC_SDA_CH1

230

GPIO_0/DD C_SCL_0

231

GPIO_1/DDC_SDA_0

201

XTAL

202

TCLK

204

RESETn

168

HSYNC2

169

VSYNC2

172

HSYNC1

173

VSYNC1

175

BLUE2+

177

SOGMCSS2

178

GREEN2+

180

RED2+

182

BLUE-

183

GREEN-

184

RED-

186

BLUE1+

188

SOGMCSS1

189

GREEN1+

191

RED1+

133

RX2+

134

RX2-

136

RX1+

137

RX1-

141

RX0+

142

RX0-

144

RXC+

145

RXC-

130

REXT

215

GPIO_24/VDA[ 0]

216

GPIO_25/VDA[ 1]

217

GPIO_26/VDA[ 2]

218

GPIO_27/VDA[ 3]

219

GPIO_28/VDA[ 4]

220

GPIO_29/VDA[ 5]

221

GPIO_30/VDA[ 6]

222

GPIO_31/VDA[ 7]

223

VCLK

226

SPI_CSn/BOOT[0]

227

SPI_CLK/BOOT[1]

228

SPI_DI

229

SPI_DO/BOOT[2]

206

LBADC_IN3

207

LBADC_IN2

208

LBADC_IN1

210

JTAG_BS_EN

163

GPIO_3/JTAG_RESET

160

GPIO_4/JTAG_TDO

159

GPIO_5/JTAG_TDI

158

GPIO_6/JTAG_CLK

157

GPIO_7/JTAG_MODE

164

GPIO_2

165

GPIO_49/CEC [FLI5928H ]

166

GPIO_48/HPD [FLI5928H ]

232

ITU601_DE

233

ITU601_FLD

234

ITU601_CLK

237

ITU601_HS

238

ITU601_VS

239

ITU601_15/GPIO_47

240

ITU601_14/GPIO_46

248

ITU601_13/GPIO_45

249

ITU601_12/GPIO_44

250

ITU601_11/GPIO_43

251

ITU601_10/GPIO_42

252

ITU601_9/GPIO_41

253

ITU601_8/GPIO_40

254

ITU601_7/GPIO_39

255

ITU601_6/GPIO_38

256

ITU601_5/GPIO_37

2

ITU601_4/GPIO_36

3

ITU601_3/GPIO_35

4

ITU601_2/GPIO_34

5

ITU601_1/GPIO_33

6

ITU601_0/GPIO_32

VSS_RPLL

196

200

GND

3.3_D

1.8_D

7

26

30

35

46

66

113

CVDD_18

CVDD_18

65

123

CVDD_18

114

170

213

235

246

RVDD_33

CVDD_18

RVDD_33

RVDD_33

CVDD_18

CVDD_18

RVDD_33

RVDD_33

RVDD_33

CVDD_18

CVDD_18

GM5862H-LF

CRVSS

VSSA_DVI

VSSA_DVI

VSSA_DVI

VSSA_DVI

VSS_DVI

VSSA_ADC

VSSA_ADC

VSSA_ADC

VSSA_ADC

VSSA_ADC

VSS1_ADC

174

179

181

LBADC_RTN/GND

1

129

132

138

140

146

185

192

205

151

14

161

RVDD_33

CRVSS

25

3.3_A_LBADC

167

224

RVDD_33

RVDD_33

CRVSS

34

209

247

RVDD_33

RVDD_33

LBADC_VDD_ 33

CRVSS

CRVSS

CRVSS

CRVSS

47

57

67

73

3.3_A_LVDS

818283

95

107

AVDD_LV_33

AVDD_OUT_LV_33

AVDD_OUT_LV_33

AVDD_OUT_LV_33

GPO_9/PWM3/BOOT[7]
GPO_8/PWM2/BOOT[6]

GPIO_21/SDA_1(2W _MST)
GPIO_20/SCL_1 (2W_MST)
GPIO_19/SDA_0(2W _MST)
GPIO_18/SCL_0 (2W_MST)

GPO_7/SPDIF [FLI5928H]

GPO_6/MCLK_OUT[FLI 5928H]

GPO_5/I2S_WS[ FLI5928H]

GPO_4/I2S_CLK[ FLI5928H]

GPO_3/I2S_3[F LI5928H]
GPO_2/I2S_2[F LI5928H]
GPO_1/I2S_1[F LI5928H]
GPO_0/I2S_0[F LI5928H]

CRVSS

CRVSS

CRVSS

CRVSS

CRVSS

CRVSS

CRVSS

CRVSS

78

112

124

150

156

162

171

212

U401

GPIO_13/B7
GPIO_12/B6
GPIO_11/B5
GPIO_10/B4

CH0N_LV_O/ B3
CH0P_LV_O/B2
CH1N_LV_O/ B1
CH1P_LV_O/B0

CH2N_LV_O/ G7

CH2P_LV_O/G6
CLKN_LV_O/G5
CLKP_LV_O/G4

CH3N_LV_O/ G3

CH3P_LV_O/G2

CH0N_LV_E/G 1
CH0P_LV_E/G0
CH1N_LV_E/R 7
CH1P_LV_E/R 6
CH2N_LV_E/R 5
CH2P_LV_E/R 4
CLKN_LV_E/R 3
CLKP_LV_E/R2
CH3N_LV_E/R 1

CH3P_LV_E/R 0

GPIO_17/DVS
GPIO_16/DH S
GPIO_15/DEN

GPIO_14/DC LK

PPWR

PWM1/BOOT[5]
PWM0/BOOT[4]

GPIO_23/IN T0
GPIO_22/IN T1

DQ0_B
DQ1_B
DQ2_B
DQ3_B
DQ4_B
DQ5_B
DQ6_B
DQ7_B
DQ8_B

DQ9_B
DQ10_B
DQ11_B
DQ12_B
DQ13_B
DQ14_B
DQ15_B

DQ0_A

DQ1_A

DQ2_A

DQ3_A

DQ4_A

DQ5_A

DQ6_A

DQ7_A

DQ8_A

DQ9_A
DQ10_A
DQ11_A
DQ12_A
DQ13_A
DQ14_A
DQ15_A

SCAN_EN

VBUFC_RPLL

CRVSS

CRVSS

CRVSS

CRVSS

225

236

245

PBIAS

A10

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

DQM

MCLK

BA
RAS#
CAS#
WE#

NC

NC
NC
NC
NC
NC

AVSS_LV

AVSS_OUT_LV

AVSS_OUT_LV

94

106

111
110
109
108

105
104
103
102
101
100
99
98
97
96

93
92
91
90
89
88
87
86
85
84

118
117
116
115

79
80

244
243
242
241

214
211

122
121
120
119

55
54
53
52
51
50
49
48
64
63
62
61
60
59
58
56

16
15
13
12
11
10
9
8
24
23
22
21
20
19
18
17

45
44
43
42
41
40
39
38
37
36
33

68
32
31
29
28
27

76

126
77
75
74
72
71
70
69

195
194
193
128
127

125
198

DDC-DVI-SEL

LED_GRN
LED_AMB

LV_O0
LV_O1
LV_O2
LV_O3
LV_O4
LV_O5

LV_O7
LV_O8
LV_O9

LV_E0
LV_E1
LV_E2
LV_E3
LV_E4
LV_E5
LV_E6
LV_E7
LV_E8
LV_E9

R433 0R05 1/16W

R432
0R05 1/16W

GND

+1.8V_DVDD

FB401

120 OHM

DDC-DVI-SEL 2

HDCP_WP 5

LV0_O_G2P 6
LV0_O_G2N 6
LV1_O_G1P 6
LV1_O_G1N 6
LV2_O_G0P 6
LV2_O_G0N 6
O_CLKP 6
O_CLKN 6
LV3_O_R2P 6
LV3_O_R2N 6

LV0_E_G2P 6
LV0_E_G2N 6
LV1_E_G1P 6
LV1_E_G1N 6
LV2_E_G0P 6
LV2_E_G0N 6
E_CLKP 6
E_CLKN 6
LV3_E_R2P 6
LV3_E_R2N 6

CABLE_DET 2
SL_SOURCE 5
DVI_EDID_WP 2
SL_PD 5

PPWR_PANELPOWER CONTROL_ 6
PBIAS_ON_OFF/ BKLT_EN/PBIAS_ 8

BOOT7
BOOT6

PWM1/GPO_5_PANEL_ID /PWM_ 8
PWM0/ GPO _4_D IMMI NG/ PW M_ 8

GPIO_23/IN T0

DDC_SEL 5

MST_SD A

MST_SC L
GPIO19/SDA_2WIRE
GPIO18/SCL_2WIRE

RP401 27 OHM +-5% 1/16W

RP402 27 OHM +-5% 1/16W

RP403 27 OHM +-5% 1/16W

RP404 27 OHM +-5% 1/16W

RP405 27 OHM +-5% 1/16W

RP406 27 OHM +-5% 1/16W

RP407 27 OHM +-5% 1/16W

RP408 27 OHM +-5% 1/16W

RP409 27 OHM +-5% 1/16W

RP410 27 OHM +-5% 1/16W

RP411 27 OHM +-5% 1/16W

RP412 27 OHM +-5% 1/16W

+

C401

C402

100uF25V

0.1uF 16V

+1.8V_AVDD

3.3_D

R4502K7 OHM 1/16W 5%

TP403

TP

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

4

5

3

6

2

7

1

8

R431 0R05 1/16W

R452 27R OHM 1/16W 5%

C403

0.1uF 16V

120 OHM

120 OHM

R451

2K7 OHM 1/16W 5%

MST_SD A 5
MST_SC L 5

DQ_B_0
DQ_B_1
DQ_B_2
DQ_B_3
DQ_B_4
DQ_B_5
DQ_B_6
DQ_B_7

DQ_B_8
DQ_B_9
DQ_B_10
DQ_B_11
DQ_B_12
DQ_B_13
DQ_B_14
DQ_B_15

DQ_A_0
DQ_A_1
DQ_A_2
DQ_A_3
DQ_A_4
DQ_A_5
DQ_A_6
DQ_A_7

DQ_A_8
DQ_A_9
DQ_A_10
DQ_A_11
DQ_A_12
DQ_A_13
DQ_A_14
DQ_A_15

A10
A0
A1
A2
A3
A4
A5
A6

A7
A8
A9

1.8_D

C405

0.1uF 16V

C406

0.1uF 16V

C411

C412

0.1uF 16V

0.1uF 16V

1.8_A

C416

C415

0.1uF 16V

0.1uF 16V

GND

2K7 OHM 1/16W 5%

LED_GRN

2K7 OHM 1/16W 5%

LED_AMB

+1.8V_D VDD

+1.8V

DQ_B_[0.. 15] 9

+5V2,4,5,6,8,10

+3.3V8,9

+1.8V5,8

DQ_A_[0.. 15] 9

A[0..10] 9

BA 9
RAS# 9
CAS# 9
WE# 9
DQM 9
MCLK 9

C407

C408

0.1uF 16V

0.1uF 16V

1.8_A_DVI

C413

0.1uF 16V

GND

　э　矪筿　　皌竚

R434

3.3_D

R437

Q402

+1.8V_AVDD

+5V

+3.3V

+1.8V

C409

0.1uF 16V

GND

3.3_D

R435
0R05 1/16W

Q401

PMBS3906

R436 120R 1/16W 5%

R438
33R 1/16W 5%

PMBS3906

LED_A

R439 120R 1/16W 5%

LED_G

C404

0.1uF 16V

FB402

+

C410

100uF25V

FB403

+

C414

100uF25V

DQ_B_[0.. 15]

DQ_A_[0.. 15]

A[0..10]

+3.3V

GND

DDTC114TUA

+3.3V

120 OHM

+3.3V

120 OHM

120 OHM

FB408

120 OHM

100uF25V

R408 10K 1/16W 5%

R410 10K 1/ 16W 5%

R413 10K 1/16W 5%

R415 10K 1/16W 5%

R417 10K 1/16W 5%

R419 10K 1/16W 5%

R421 10K 1/16W 5%

R423 10K 1/16W 5%

C

N12

B

E

Component
top view

R429

10K 1/16W 5%

FB404

+

C417

100uF25V

GND

FB405

3.3_A_LBADC

+

C429

100uF25V

GND

FB407

120 OHM

+

C433

100uF25V

0.1uF 16V

GND

C438

+

C437

0.1uF 16V

BOOTST RAP

Lo
Lo

Lo

Hi

JP515
JP514

Hi
Lo

Hi

R407 NC

R409 NC

R411 NC

R414 NC

R416 NC

R418 NC

R420 NC

R422 NC

DNP

For U501 socket, use
SST25VF010-20-4C-SA

Standard flash

C454

220uF 25V

U402

1

CE#

2

SO

3

WP#

4

VSS

SST25LF040A-33-4C-S2AE

GND

C418

0.1uF 16V

C430

0.1uF 16V

FB406

C434

C435

0.1uF 16V

C439

0.1uF 16V

Lo 3-2
Hi 1- 2

Int ROM select
SPI as ROM

int ROM overlayed
w/ext ROM intROM
off

reserved

Reserved

BOOT7

BOOT6

PWM1/GPO_5_PANEL_ID /PWM_

PWM0/ GPO _4_D IMMI NG /PW M_

UART_DO/BOOT3

SPI_DO/BOOT2

SPI_CLK/BOOT1

SPI_CSn/BOOT0

0.1uF 16V

3.3_D

+

C455

0.1uF 16V

GND

8

VDD

7

HOLD#

6

SCK

5

SI

C419

0.1uF 16V

3.3_A_ADC

C478

C436

0.1uF 16V

C440

0.1uF 16V

C479

0.1uF 16V

1
2
3
4

C420

0.1uF 16V

3.3_A_LVDS

C441

0.1uF 16V

Reset

GND

GND

U403

E0
E1E2WC

VSS

M24C32-WMN6TP

R430
10K 1/16W 5%

SPI_CLK/BOOT1
SPI_DO/BOOT2

SPI_DI
SPI_CSn/BOOT0

C421

0.1uF 16V

+

C431

100uF25V

R403 12K 1/16W 5%

SW401

GND

JP513

JP512Hi

JP511

JP509

JP508
JP510
TCLK_SEL

ZD401

RLZ5.6B

ADD TEXT

CN402

KEYPAD

8
7
6
5
4
3
2
1

CONN

RLZ5.6B
ZD403

2K OHM 1/16W

VCC

SCL
SDA

C422

0.1uF 16V

3.3_A_RPLL

C432

0.1uF 16V

GND

3

4 2

NC

Xtal

DDC_ DV I

OCM 20-bit

standard SPI

GPIO_23/IN T0

1 2

3.3_D

R427

8
7
6
5

GND

Lo

12

RLZ5.6B
ZD404

2K OHM 1/16W

C423

0.1uF 16V

+5V

R402
6K2 OHM 1/16W 5%

1

56

GND

ext
Oscillator

DDC_V GA
(Default)

OCM 24 -bit

ATMEL

Lo

14.318 MHz

Lo

20

Lo
Hi

Hi

24

Lo

Hi

19.661

Hi

12

ZD402
RLZ5.6B

R447

2K7 OHM 1/16W 5%

LED_G
LED_A

RLZ5.6B

1 2

1 2

GND

R428

2K OHM 1/16W

C424

C425

0.1uF 16V

0.1uF 16V

+3.3V

CN401

CONN

TP401

TP

Hi

3.3_D

C451

0.1uF 16V

GND

ZD405

R453

GPIO18/SCL_2WIRE
GPIO19/SDA_2WIRE

FB409

120 OHM

23

T P V ( Top Victory Electronics Co . , Ltd. )

G2973-1-X-X-1-080603

絬 隔 瓜 絪 腹

Key Component

03. SCALER GM5862

Date

OEM MODE L Size

HP-Say id 22W

TPV MODEL

LP2275W G

PCB NAME

715G2973-1

Sheet

of

310Monday, June 02, 2008

Custom

Rev

称爹

>

<

称爹

22" LCD Color Monitor HP LP2275w

C104

0.1uF 16V

GND

1

2

D119
BAV99

3

2

C1122

0.1uF 16V

3

D117

BAV99

1

3

D116
BAV99

1

120 OHM

2

C1124

0.1uF 16V

FB119

3

R139 0R05 1/16W
C122 0.1uF 16V

C123 0.1uF 16V

D118
BAV99

1

+3.3 V

R140 10R 1/16W 5%

R141 10R 1/16W 5%
R142 10R 1/16W 5%

R143 10R 1/16W 5%
R144 10R 1/16W 5%

R145 10R 1/16W 5%
R146 10R 1/16W 5%

R147 10R 1/16W 5%

+3.3V

FB117

120 OHM

DPRX_HPD_OUT
DPRX_AUXN

DPRX_AUXP

DPRX_P0

DPRX_N0
DPRX_P1

DPRX_N1
DPRX_P2

DPRX_N2
DPRX_P3

DPRX_N3

DPRX_HPD_OUT 5
DPRX_AUXN 5

DPRX_AUXP 5

DPRX_P0 5

DPRX_N0 5
DPRX_P1 5

DPRX_N1 5
DPRX_P2 5

DPRX_N2 5
DPRX_P3 5

DPRX_N3 5

+5V

+5V2, 3,5,6,8,10

+3.3 V

+3.3V8,9

CN102

22

SHELL2

24

SHELL4

23

SHELL3

21

SHELL1

DP CONNECTOR

DP_PWR

Return

Hot Plug Detect

AUX_CH(n)

GND

AUX_CH(p)

GND
GND

ML_ Lane 0(n)

GND
ML_ Lane 0(p)
ML_ Lane 1(n)

GND
ML_ Lane 1(p)
ML_ Lane 2(n)

GND
ML_ Lane 2(p)
ML_ Lane 3(n)

GND
ML_ Lane 3(p)

C101

0.1uF 16V

+5V GND

20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

AGND

R138
NC

DAN

DAP

2

DNP

3

C105

0.1uF 16V

GND

GND

1

D113

BAV99

1

C102

0.1uF 16V

2

D120
BAV99

3

2

C106

0.1uF 16V

1

2

D121
BAV99

3

3

D114
BAV99

1

2

C107

0.1uF 16V

GND

3

D115

BAV99

1

C103

0.1uF 16V

1

2

D123
BAV99

3

2

C108

0.1uF 16V

ADD ESD protect 970105

Change the R148 to be 1M

DAP

1M 1/16W 5%

R150 10K 1/16W 5%

R148

+3.3V

DAN

DP_C AB_DET 3

R149

1M 1/16W 5%

AGND

DP Source Monitor

24

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G2973-1-X-X-1-080603

04 DP RX Inputs

Date

OEM MODEL Size

TPV MO D EL

PCB NAME

HP-Say id 22W

LP2275W G

715G2973-1

Sheet

of

410Monday, June 02, 2008

Rev

称爹

B

<

称爹

>

22" LCD Color Monitor HP LP2275w

+3.3V_SLR

+

+3.3V_SLR

GND

+

GND

R152
12K 1/16W 5%

SW101

3

1

56

4 2

NC

GND

Res e t

3.3V_DVDD_SLR

R154 NC

R155 4K7 1/16W 5%

R156 NC

R157 4K7 1/16W 5%

R159 NC

R160 NC

R161 NC

R162 4K7 1/16W 5%

R163 NC

R164 4K7 1/16W 5%

R165 NC

R166 4K7 1/16W 5%

R167 NC

R168 4K7 1/16W 5%

R170 NC

R171 4K7 1/16W 5%

R172 NC

R173 4K7 1/16W 5%

R174 NC

R175 4K7 1/16W 5%

R176 NC

R177 4K7 1/16W 5%

R181 NC

R182 NC

R183 NC

R184 4K7 1/16W 5%

GND

/SRESET3

GPIO11

AGND/ GND

AGND

Connect two grounds at single point.

All decoupling caps close to
respe ctive power pins

FB106

120 OHM

C125
C124
22uF

120 OHM
C134
22uF

+5V

GND

FB107

C135

0.1uF 16V

R153
6K2 OHM 1/16W 5%

SL_RESETn

C156

10nF16V

ぃ璶　ン

R186

4K7 1/16W 5%

GND

0.1uF 16V

0.1uF 16V

C136

0.1uF 16V

AA_INTR_OUT/BS_0

SPI_CSn/BS_1

SPI_CLK/BS_2

SPI_DO/BS_3

UA_TX/BS_4

ADATA20_O

ADATA19_O

ADATA18_O

ADATA15_O

BS_9

BS_10

ADATA16_O

ADATA17_O

R185

SL_SOURCE 3

AGND

3.3V_DVDD_SLR

C126

SAFE-Lite hardware circuit Pin 106 and
107(VGA_DDC_SCL and VGA_DDC_SDA) need con nect
with Insam Pin 165 and 166(GPIO 49 and 48 ).

AGND

NC

C129

C128

0.1uF 16V

C137

0.1uF 16V

C127

0.1uF 16V

C138

0.1uF 16V

0.1uF 16V

3.3V_AVDD_SLR

C139

0.1uF 16V

TP101

SL_RXC-2
SL_RXC+2

SL_RX0-2
SL_RX0+2

SL_RX1-2
SL_RX1+2

SL_RX2-2
SL_RX2+2

C130

0.1uF 16V

C140

0.1uF 16V

SL_DVI_HPD2

SL_DDC_SDA_DVI2
SL_DDC_SCL_DVI2

TP103

3.3V_AVDD_SLR

use DP port to ISP SAFE-Lite970102

VGA_DDC_SCL3
VGA_DDC_SDA3

3.3V_DVDD_SLR

R169

0R05 1/16W

C157

C158

10pF

10pF

X101

27.000MHz

R178 84.5 OHM 1% 1/10W

R180

84.5 OHM 1% 1/10W

SL_RESETn 7

SL_PD3

TP105

TP

AGND

C160

0.1uF 16V

R179 84.5 OHM 1% 1/10W

SL_RESETn

TP104

TP

C131

C132

C133

0.1uF 16V

0.1uF 16V

3.3V_AVDD_SLR

GPIO11

R158 249R 1/10W 1%

C159

0.1uF 16V

C161

0.1uF 16V

3.3V_DVDD_SLR

R187

0R05 1/16W

0.1uF 16V

3.3V_DVDD_SLR

R188

4K7 1/16W 5%

+1.8V_SLR

+1.8V_SLR

AGND

+

GND

+

GND

1.8V_AVDD_SLR

GND

GPIO32

FB108

120 OHM

C142

0.1uF 16V

C141
22uF

FB109

120 OHM

0.1uF 16V

C152
22uF

DPRX_HPD_OUT4

HPD

DDC_SDA_DVI
DDC_SCL_DVI

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120

1.8V_DVDD_SLR

C153

HDMI_CEC
GPIO_11
RVDD_3V3
CRVSS
DVDD_1V8
HDMI_RXCN
HDMI_RXCP
HDMI_VDDA_3V3
HDMI_RX0N
HDMI_RX0P
HDMI_VSSA
HDMI_DVDD_1V8
HDMI_VSSA
HDMI_RX1N
HDMI_RX1P
HDMI_VDDA_3V3
HDMI_RX2N
HDMI_RX2P
HDMI_VSSA
HDMI_DVDD_1V8
HDMI_REXT
HDMI_VSSA
CRVSS
DVDD_1V8
RVDD_3V3
VGA_DDC_SCL
VGA_DDC_SDA
AHSYNC_IN
AVSYNC_IN
ADC_AVDD_3V3
BLU_P
BLU_N
ADC_VSSA
GRN_P
GRN_N
ADC_VSSA
RED_P
RED_N
ADC_AVDD_3V3
ADC_VSSA

C145

C143

C144

0.1uF 16V

0.1uF 16V

0.1uF 16V

DPRX_AUXN4
DPRX_AUXP4

DPRX_P04
DPRX_N04
DPRX_P14
DPRX_N14
DPRX_P24
DPRX_N24
DPRX_P34
DPRX_N34

R151 270 OHM 1% 1/10W

0.1uF 16V

0.1uF 16V

1.8V_AVDD_SLR

C154

C155

0.1uF 16V

DPRX-HPD
DPRX-AUXN
DPRX-AUXP
DPRX-P0
DPRX-N0
DPRX-P1
DPRX-N1
DPRX-P2
DPRX-N2
DPRX-P3
DPRX-N3

AUX2SDA

AUX2SCL

80

CRVSS

GPIO_5

AUX_SCL

RVDD_3V3

HDMI_DDC_SCL

HDMI_DDC_SDA

GPIO_6/HDM I_HPD_OUT

GENESIS

DISPLAY PE RFECTION

TCLK

XTAL

RPLL_VSS

RPLL_DVDD_1V8

VBUFC_RPLL

ADC_DVDD_1V8

ADC_VSSD

127

126

125

124

123

122

121

TP102

CLOSE TO PIN

3.3V_DVDD_SLR

R1101
NC

R1102

0R05 1/16W

GND

0.1uF 16V

AGND

414243444546474849505152535455565758596061626364656667686970717273747576777879

VERFP

VREFC

VREFN

AUD_VSSA

AUDIO_IN _L2

AUDIO_IN_R2

DOPA_I2S_MUTE

RVDD_3V3

LBADC_IN1

DVDD_1V8

UART_TX/BS_4/GPO_5

UART_RX/GPO_4

SPI_DI/GPO_3

SPI_DO/BS_3/GPO_2
SPI_CLK/ BS_2/GPO_1
SPI_CSn/BS_1/GPO_0

INTR_OUT/BS_0

I2S_OPA_AUMCLK

DOPA_I2S_WS

DOPA_I2S_SCLK

DOPA_I2S_3
DOPA_I2S_2
DOPA_I2S_1

DOPA_I2S_0(DOPA_SPDI F)

RVDD_3V3
DOPA_CLK

DOPA_VS
DOPA_DE

DOPA_HS/GPO_19

DVDD_1V8
DOPA_29/GPO_18
DOPA_28/GPO_17
DOPA_27/GPO_16

DOPA_26/GPO_15/BS_5
DOPA_25/GPO_14/BS_6

DOPA_24/GPIO_13/BS_7

RVDD_3V3

DOPA_23/BS_12

DOPA_22/BS_11

CRVSS

DOPA_21/BS_10

DOPA_20/BS_9

DOPA_19/BS_8

160

159

158

157

156

155

BS_10

BS_9

ADATA0_O
ADATA1_O
ADATA2_O

ADATA3_O

ADATA4_O

ADATA5_O
ADATA6_O

ADATA7_O

ADATA8_O

ADATA9_O
ADATA10_O
ADATA11_O
ADATA12_O
ADATA13_O

ADATA14_O
ADATA15_O

IPCLK0_O

1

AVS_O

2

AHREF_DE_O

3

AHS_O

4

33 OHM +-5% 1/16W

1.8V_DVDD_SLR

FB110

120 OHM

C162

CRVSS

VSS

RESETn

TEST1

TEST0
I2C_SCL
I2C_SDA

GPIO_32

CRVSS

RP107

U104

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

8
7
6
5

3.3V_DVDD_SLR

gm69010-BD

ADATA17_O
ADATA16_O

FB111

120 OHM

1.8V_AVDD_SLR

GPIO32

ADATA19_O
ADATA18_O

1.8V_DVDD_SLR

C147

C146

C148

0.1uF 16V

0.1uF 16V

DPRX_VSSA

DPRX_VBUFC

DPRX_ML_L2P

DPRX_ML_L3P

DPRX_ML_L1N

DPRX_ML_L2N

DPRX_ML_L3N

DPRX_VDDA_1V8

DPRX_VDDA_1V8

DOPA_6

DOPA_5

DOPA_4

DOPA_3

DOPA_2

DOPA_1

DOPA_0

CRVSS

RPLL_AVDD_3V3

137

136

135

134

133

132

131

130

129

128

C151

C149

C150

0.1uF 16V

0.1uF 16V

0.1uF 16V

1.8V_DVDD_SLR_DPRX

CRVSS

DVDD_1V8

RVDD_3V3

AUD_VSSD

DPRX_VSSA

DPRX_VSSA

DPRX_AUXP

DPRX_REXT

DPRX_AUXN

AUDIO_IN _L1

DPRX_ML_L0P

DPRX_ML_L1P

DPRX_ML_L0N

DPRX_VDDA_1V8

DOPA_11

DOPA_10

DOPA_9

DOPA_8

RVDD_3V3

DOPA_7

142

141

140

139

138

AUDIO_IN_R1

AUD_VDDA_3V3

DPRX_HPD_OUT

DPRX_VDDA_1V8

DOPA_18

DOPA_17

DOPA_16

RVDD_3V3

GPIO_41

GPIO_40

DVDD_1V8

DOPA_15

CRVSS

DOPA_14

DOPA_13

DOPA_12

154

153

152

151

150

149

148

147

146

145

144

143

MSCL

MSDA

+

GND

1.8V_DVDD_SLR

ADATA23_O
ADATA22_O

ADATA21_O
ADATA20_O

IPCLK0 7
AVS 7
AHREF_D E 7
AHS 7

C163
22uF

UA_TX/BS_4
UART_RX

SPI_DO/BS_3
SPI_CLK/BS_2
SPI_CSn/BS_1

IPCLK0_O
AVS_O
AHREF_DE_O
AHS_O

1.8V_DVDD_SLR_DPRX

C164

0.1uF 16V

TEST1

TEST0
MST_SC L
MST_SD A

SPI_DI_SL

R189
22R 1/16W 5%

SPI_CSn/BS_1

SPI_DI_ SL

GND

MST_SCL 3
MST_SDA 3

AA_INTR_OUT/BS_0

ADATA23_O
ADATA22_O
ADATA21_O
ADATA20_O

ADATA19_O
ADATA18_O
ADATA17_O
ADATA16_O

ADATA15_O
ADATA14_O
ADATA13_O
ADATA12_O

ADATA11_O
ADATA10_O
ADATA9_O
ADATA8_O

ADATA7_O
ADATA6_O
ADATA5_O
ADATA4_O

ADATA3_O
ADATA2_O
ADATA1_O
ADATA0_O

The CKT is used
for isolate the
DP power

3.3V_DVDD_SLR

GND

SL_RESETn

33 OHM +-5% 1/16W

33 OHM +-5% 1/16W

33 OHM +-5% 1/16W

33 OHM +-5% 1/16W

33 OHM +-5% 1/16W

33 OHM +-5% 1/16W

R191
10K 1/16W 5%

1
2
3
4 5

RP101

1
2
3
4

RP102

1
2
3
4

RP103

1
2
3
4

RP104

1
2
3
4

RP105

1
2
3
4

RP106

1
2
3
4

U105

8

CE#

VDD

7

SO

HOLD#

6

WP#

SCK

VSS SI

SST25LF020A-33-4C-SAE

R197

4K7 1/16W 5%

AUX2SDA
DDC_SDA_DVI

AUX2SCL
DDC_SCL_DVI

03/28 change PIN defirm

8

ADATA23

7

ADATA22

6

ADATA21
ADATA20

5

8

ADATA19
ADATA18

7

ADATA17

6

ADATA16

5

CA101

NC/22pF/ 50V

ADATA15

8

ADATA14

7

ADATA13

6
5

ADATA12

8

ADATA11
ADATA10

7

ADATA9

6

ADATA8

5

NC/22pF/ 50V

ADATA7

8

ADATA6

7
6

ADATA5
ADATA4

5

ADATA3

8

ADATA2

7

ADATA1

6

ADATA0

5

NC/22pF/ 50V

CN103

1
2

UA_TX/BS_4

3

UART_RX

4

CONN

GND

Gprobe

+1.8V_SLR

+1.8V_SLR3,8

+3.3VSF

+3.3VSF8,9

+5V

+5V2, 3,4,6,8, 10

+3.3V

+3.3V8,9

+1.8V

+1.8V3,8

MSDA7
MSCL7

+

C165
22uF

R192
10K 1/16W 5%

GND

SPI_CLK/BS_2
SPI_DO/BS_3

3.3V_DVDD_SLR

R198
4K7 1/16W 5%

C167

C166

33pF

33pF

GND

54

CA103

54

CA105

54

03/28 change PIN defirm

817263

817263

CA104

54

817263

CA106

817263

54

C168

33pF

GND

54

GND

817263

NC/22pF/ 50V

817263

NC/22pF/ 50V

3.3V_DVDD_SLR

C169

33pF

GND

CA102

NC/22pF/ 50V

GND

GND

+5V

R190

10K 1/16W 5%

NM

MSDA
MSCL

3.3V_DVDD_SLR

U108

1

NC

2

E1

3

E2

4 5

VSS SDA

M24C04-WMN6TP

GND

R199 100R 1/16W 5%

R1100 100R 1/16W 5%

C170

C171

33pF

33pF

GND

GND

ADATA[16..23]

ADATA[16..23] 7

ADD Capacitor for EMI BACK UP 970131

ADATA[8..15]

ADATA[8..15] 7

ADATA[0..7]

UA_TX/BS_4 2
UART_RX 2

3.3V_DVDD_SLR

R193

R194

10K 1/16W 5%

10K 1/16W 5%

8

VCC

7

WC

R195 0R05 1/16W

6

SCL

R196 0R05 1/16W

U109

12

X0

14

X1

15

X2

11

X3

1

Y0

5

Y1

2

Y2

4

Y3

10

A

9

B

6

EN

7

VEE

16

VDD

74HC4052D

GND

ADATA[0..7] 7

T P V ( Top Victory Electronic s Co . , Ltd. )

G2973-1-X-X-1-080603

絬 隔 瓜 絪 腹

Key Component

05. GM69010

Date

3.3V_DVDD_SLR

U106

1

8

A0

VCC

2

7

A1

WP

3

6

A2

SCL

4 5

GND SDA

M24C02-WMN6TP

GND

HDCP_WP 3

MSCL
MSDA

+5V

R1103

R1104

10K 1/16W 5%

10K 1/16W 5%

13

R1105 0R05 1/16W

X

3

R1106 0R05 1/16W

Y

C172

C173

33pF

33pF

GND

GND

+5V

FB112

GND

8

120 OHM

C174

0.1uF 16V

GND

Bootstrap configuration:

BS_0 0 = XTAL TO DRIVE TCLK1 AND TCLK3
. 1 = TCLK PIN DRIVE TCLK1 OR TCLK3

BS_1 0 = INT MCU, SPI ROM
. 1 = TEST ACCESS

BS_2 0 = JTAG DISABLED
. 1 = JTAG ENABLED

BS_3 0 = SPI I/F ENABLED
. 1 = SPI I/F DISABLE

BS_4 0 = BOOT IROM TO TOP 32K
. 1 = BOOT FROM EXT ROM

BS_[7:5] DEFINE SLAVE I2C ADDR FOR R/W
. 000 = 0XC0, 0XC1
. 001 = 0XC2, 0XC3
. 010 = 0XC4, 0XC5
. 011 = 0XC6, 0XC7
. 100 = 0XE0, 0XE1
. 101 = 0XE2, 0XE3
. 110 = 0XE4, 0XE5
. 111 = 0XE6, 0XE7

BS_8 0 = EXT I2C PINS TO I2C SLAVE
. 1 = EXT I2C PINS TO I2C MASTER

BS_9 0 = TCLK12 IS TCLK1<-XTAL
. 1 = TCLK12 IS FROM IC_OSC

BS_10 0 = UART ENABLE
. 1 = UART USED AS GPO

BS_11 0 = DISABLE I2C MAST ON GPO_1/3
. 1 = ENABLE I2C MASTER ON GPO_1/3

BS_12 0 = OCM NORMAL BOOT IN IROM
. 1 = SHOW OCM RUN BIST OF IROM

R1107
4K7 1/16W 5%

Q102

PMBS3904

GND

OEM MOD EL Size

HP-Sayid 22W

TPV MOD EL

LP2275W G

715G2973-1

PCB NAME

510Monday, June 02, 2008

Sheet

of

PH_DDC_SD A 3

PH_DDC_SC L 3

R1108
4K7 1/16W 5%

AUX2SCL
AUX2SDA

DDC_SEL 3

Custom

Rev

<

称爹

>

称爹

25

22" LCD Color Monitor HP LP2275w

CN403

GND

30
28
26
24
22
20
18
16
14
12
10

8
6
4
2

( LV0_O_G2P )

RXO0­RXO1-

( LV1_O_G1P )
( LV2_O_G0P )

RXO2-

RXOC+

( O_CLKN )

RXO3+

( LV3_O_R2N )
( LV0_E_G2N )

RXE0+
RXE1-

( LV1_E_G1P )

( LV2_E_G0N )

RXE2+
RXEC+

( E_CLKN )

RXE3+

( LV3_E_R2N )

LV0_O_G2P3
LV0_O_G2N3
LV1_O_G1P3
LV1_O_G1N3
LV2_O_G0P3
LV2_O_G0N3

O_CLKP3

O_CLKN3
LV3_O_R2P3
LV3_O_R2N3

LV0_O_G2P
LV0_O_G2N
LV1_O_G1P
LV1_O_G1N
LV2_O_G0P
LV2_O_G0N
O_CLKP
O_CLKN
LV3_O_R2P
LV3_O_R2N

RXO0­RXO0+
RXO1­RXO1+
RXO2­RXO2+
RXOC­RXOC+
RXO3­RXO3+

+VLCD

+

C456
22uF

R440
300R OHM 1/16W 5%

C457

0.1uF 16V

C458

0.1uF 16V

+VLCD

CONN

29
27
25
23
21
19
17
15
13
11
9
7
5
3
1

( LV0_O_G2N )
( LV1_O_G1N )
( LV2_O_G0N )
( O_CLKP )
( LV3_O_R2P )
( LV0_E_G2P )

( LV1_E_G1N )
( LV2_E_G0P )
( E_CLKP )
( LV3_E_R2P )

RXO0+
RXO1+
RXO2+
RXOC­RXO3­RXE0-

RXE1+
RXE2­RXEC­RXE3-

LV0_E_G2P3
LV0_E_G2N3
LV1_E_G1P3
LV1_E_G1N3
LV2_E_G0P3
LV2_E_G0N3

E_CLKP3

E_CLKN3
LV3_E_R2P3
LV3_E_R2N3

LV0_E_G2P
LV0_E_G2N
LV1_E_G1P
LV1_E_G1N
LV2_E_G0P
LV2_E_G0N
E_CLKP
E_CLKN
LV3_E_R2P
LV3_E_R2N

+5V2,3,4,5, 8,10

RXE0­RXE0+
RXE1­RXE1+
RXE2­RXE2+
RXEC­RXEC+
RXE3­RXE3+ R 446

PPWR_PANELPOWERCONTROL_3

+5V

R441 47K 1/ 16W 5%

C459

0.1uF 16V

GND

C460

0.1uF 16V

+5V

R442

47K 1/16W 5%

Q403
PMBS3904

GND

47K 1/16W 5%

C461

0.1uF 16V

+VLCD

C462

0.22uF16V

GND

+5V

R443

Q404

0R05 1/ 16W

AO3401

+

C463
22uF

T P V ( Top Victory Electronics Co . , Ltd. )

Date

G2973-1-X-X-1-080603

06. Panel c onn

絬 隔 瓜 絪 腹

Key Component

OEM MODEL Size

TPV MODEL

PCB NAME

HP-Say id 22W

LP2275W G

715G2973-1

610Monday, J une 02, 2008

Sheet

of

Rev

称爹

B

<

称爹

>

26

22" LCD Color Monitor HP LP2275w

M_VTMDS

+

Pin39/Pin40
Pin67/Pin68

C194

C193
C192
22uF

0.1uF 16V

Pin89/Pin92
Pin95/Piin98

C197

C196
C195
22uF

0.1uF 16V

0.1uF 16V

Pin100/Pin99

C199
C198
22uF

0.1uF 16V

+3.3V_ MS

+2.5V

M_VPAD

C188
C187

+

22uF

0.1uF 16V

Pin86/Pin85

C191
C190
22uF

0.1uF 16V

Pin42/Pin41
Pin70/Pin69

C189

0.1uF 16V

M_VTMDS

M_VD D3. 3

M_VD DC

M_VPAD

2

5

18

39

42

11

26

VDD_ADC 3

VDD_ADC PLL3

GND

GND

19

12

6

67

VDD_PAD3

VDD_ADC 3

VDD_ADC 3

VDD_DC ore2.5

VDD_DC ore2.5

MST30D1-LF

GND

GND

GND

GND

GND

25

40

41

68

U110

VDD_MPLL3

7

ADC_HS

8

ADC_VS

9

B/Pb-

10

B/Pb+

13

G/Y-

14

G/Y+

15

SOG

20

R/Pr-

21

R/Pr+

33

D29

34

D28

35

D27

36

D26

37

D25

ADATA[16..23]5

ADATA[0..7]5

ADATA[16..23]

ADATA[0. .7]

ADATA[8..15]

SL_RESETn5

MSD A5
MSC L5

ADATA[8..15]5

ADATA23
ADATA22
ADATA21
ADATA20

ADATA19
ADATA18
ADATA17

ADATA16
ADATA15
ADATA14
ADATA13
ADATA12
ADATA11
ADATA10

ADATA9
ADATA8
ADATA7
ADATA6
ADATA5
ADATA4
ADATA3
ADATA2
ADATA1
ADATA0

R1136 0R05 1/16W
R1137 0R05 1/16W
R1138 0R05 1/16W
R1139 0R05 1/16W

R1140 0R05 1/16W
R1141 0R05 1/16W
R1142 0R05 1/16W
R1143 0R05 1/16W
R1120 0R05 1/16W
R1121 0R05 1/16W
R1122 0R05 1/16W
R1123 0R05 1/16W
R1124 0R05 1/16W
R1125 0R05 1/16W

R1126 0R05 1/16W
R1127 0R05 1/16W
R1128 0R05 1/16W
R1129 0R05 1/16W
R1130 0R05 1/16W
R1131 0R05 1/16W
R1132 0R05 1/16W
R1133 0R05 1/16W
R1134 0R05 1/16W
R1135 0R05 1/16W

AHS5
AVS5
AHREF_DE5
IPCLK05

R1109 0R05 1/16W

R1110 0R05 1/16W
R1112 0R05 1/16W

DVI_AHS
DVI_AVS
DVI_ADE
DVI_ACLK

38
43
44
45
46

47
48
49
50
51
52
53
54
55
56

57
58
59
60
61
62
63
64
65
66

29
30
31
32

71
72
73
74
75
76

77

81

79
80

78

D24
D23
D22
D21
D20

D19
D18
D17
D16
D15
D14
D13
D12
D11
D10

D9
D8
D7
D6
D5
D4
D3
D2
D1
D0

HSYNC
VSYNC
DE
VCLK

I2S_SD AT3
I2S_SD AT2
I2S_SD AT1
I2S_SD AT0
I2S_LRCK
I2S_BCLK

SPDIF_I N

RESET

I2C_SDAT
I2C_SCLK

IRQ0

GND

1

M_VTPLL

M_VTX

70

86

89

95

VDD_PAD3

VDD_TX2. 5

VDD_TX2. 5

VDD_TM DS3

Vref_TMDS

+3.3V_ MS

R1119

100

HPD

VDD_TPLL2. 5

CH0+

CH0-

CH1+

CH1-

CH2+

CH2­TXCK+
TXCK-

1K 1/16W 5%

82

R1113
NC

91
90
94
93
97
96
88
87

84

R1144 0R05 1/ 16W
R1145 0R05 1/ 16W
R1146 0R05 1/ 16W
R1147 0R05 1/ 16W
R1148 0R05 1/ 16W
R1149 0R05 1/ 16W
R1150 0R05 1/ 16W
R1151 0R05 1/ 16W

1K5 1/10W 1%

R1114

For TMDS swing.

X102

C177 0.1uF 16V

C178

0.1uF 16V

C175 22pF

12

C176 22pF

C179

0.1uF 16V

C180

0.1uF 16V

+3.3V_ MS

R1115
NC

Address: 7AH

R1116
0R05 1/16W

Address: 72H

3

XTAL_OUT

4

XTAL_IN

24

ADC_R mid

23

ADC_Vref -

22

ADC_Vref +

28

ID_Select ion

27

NC

83

Test _EN

17

DC_Test1

16

DC_Test0

GND

GND

GND

GND

GND

92

98

69

85

99

+3.3V_ MS

DVI_TX0+

Ph_RX0+ 3

DVI_TX0-

Ph_RX0- 3

DVI_TX1+

Ph_RX1+ 3

DVI_TX1-

Ph_RX1- 3

DVI_TX2+

Ph_RX2+ 3

DVI_TX2-

Ph_RX2- 3

DVI_CLK+

Ph_RXC+ 3

DVI_CLK-

Ph_RXC- 3

(I2C address )

1 2

120 OHM

FB113

M_VD D3 .3

+

0.1uF 16V

C182
C181
22uF

Pin11/Pin12
Pin18/Pin19
Pin26/Pin25

C185

C183

C184

0.1uF 16V

0.1uF 16V

Pin2/Pin1

+2.5 V

1 2

FB120

+2.5 V

1 2

FB121

+2.5 V

1 2

FB115

C186

0.1uF 16V

0.1uF 16V

120 OHM

120 OHM

120 OHM

+3.3V_MS

GND

1 2

120 OHM

FB114

M_VD DC

+

0.1uF 16V

M_VTX

+

M_VTPLL

+

+3.3V_ MS8

+2.5V8

27

T P V ( Top Victory Electronics Co . , Ltd. )

G2973-1-X-X-1-080603

絬 隔 瓜 絪 腹

Key Component

7. TTL to TMDS

Date

OEM MO DEL Size

HP-Say id 22W

TPV MODEL

L2275 G

715G2973-1

PCB NAME

710Monday, J une 02, 2008

Sheet

of

Custom

Rev

<

称爹

称爹

>
