HP LP2065, LP2465, LP1965 User Manual 2

HP LP1965 19", LP2065 20", and LP2465 24" LCD Monitors
User Guide
© 2005–2006 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and the Windows logo are trademarks of Microsoft Corporation in the U.S. and other countries.
Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. The information in this document is provided “as is” without warranty of any kind, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.
Third Edition (November 2006)
Document Part Number: 397376-003
About This Guide
This guide provides information on setting up the monitor, installing drivers, using the on-screen display menu, troubleshooting and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result
in bodily harm or loss of life.
CAUTION Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE Text set off in this manner provides important supplemental information.
ENWW
iii
ENWWiv About This Guide
Table of contents
1 Product Features
HP LP1965, LP2065, and LP2465 Models ........................................................................................... 1
2 Safety and Maintenance Guidelines
Important Safety Information ................................................................................................................. 3
Maintenance Guidelines ........................................................................................................................4
Cleaning the Monitor ............................................................................................................. 4
Shipping the Monitor .............................................................................................................4
3 Setting Up the Monitor
Installing the Monitor Pedestal Base .....................................................................................................5
Rear Components .................................................................................................................................. 6
Selecting the Signal Connectors and Cables ........................................................................................7
Connecting the Monitor ......................................................................................................................... 8
Adjusting the Monitor ...........................................................................................................................10
Turning on the Monitor ........................................................................................................................ 12
Connecting USB Devices .................................................................................................................... 13
Using the Accessory Rails ................................................................................................................... 14
Removing the Monitor Pedestal Base .................................................................................................14
Mounting the Monitor .......................................................................................................... 15
Locating the Rating Labels ..................................................................................................................17
4 Operating the Monitor
Software and Utilities ...........................................................................................................................19
The Information File ............................................................................................................19
The Image Color Matching File ........................................................................................... 19
Installing the .INF and .ICM Files ........................................................................................................ 20
Installing from the CD ......................................................................................................... 20
Downloading from the Worldwide Web .............................................................................. 20
Using the Auto-Adjustment Function ...................................................................................................21
Front Panel Controls ............................................................................................................................ 22
Adjusting the Monitor Settings ............................................................................................................. 23
Using the On-Screen Display Menu ................................................................................... 23
Using the HP Display Assistant Utility ................................................................................ 28
Identifying Monitor Conditions ............................................................................................................. 29
Sleep Timer Mode ............................................................................................................................... 29
HP Display LiteSaver ........................................................................................................................... 30
ENWW
OSD Menu Selections ........................................................................................24
Optimizing Digital Conversion ............................................................................ 28
v
Installing the HP Display LiteSaver Software ..................................................................... 30
sRGB Support ...................................................................................................................................... 31
Changing the Color Temperature ....................................................................................... 31
Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP .................... 32
Appendix A Troubleshooting
Solving Common Problems .................................................................................................................33
Using the Worldwide Web ................................................................................................................... 34
Preparing to Call Technical Support .................................................................................................... 34
Appendix B Technical Specifications
LP1965 Model ...................................................................................................................................... 37
LP2065 Model ...................................................................................................................................... 38
LP2465 Model ...................................................................................................................................... 39
Recognizing Preset Display Resolutions ............................................................................................. 40
Entering User Modes ...........................................................................................................................42
Energy Saver Feature ......................................................................................................................... 42
Appendix C Agency Regulatory Notices
Federal Communications Commission Notice .................................................................................... 43
Modifications .......................................................................................................................43
Cables .................................................................................................................................43
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 43
Canadian Notice ..................................................................................................................................44
Avis Canadien ...................................................................................................................................... 44
European Union Regulatory Notice .....................................................................................................44
German Ergonomics Notice ................................................................................................................ 45
Japanese Notice ..................................................................................................................................45
Korean Notice ......................................................................................................................................45
Power Cord Set Requirements ............................................................................................................ 45
Japanese Power Cord Requirements ................................................................................. 46
Product Environmental Notices ........................................................................................................... 46
Materials Disposal ............................................................................................................... 46
Disposal of Waste Equipment by Users in Private Household in the European Union ..... 46
Restriction of Hazardous Substances (RoHS) ................................................................... 46
Appendix D LCD Monitor Quality and Pixel Policy
vi
ENWW

1 Product Features

HP LP1965, LP2065, and LP2465 Models

The flat panel monitors have an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
LP1965 model, large 19-inch (48.3 cm) viewable area display with 1280 × 1024 resolution, plus
full-screen support for lower resolutions
LP2065 model, large 20.1-inch (51 cm) viewable area display with 1600 × 1200 resolution, plus
full-screen support for lower resolutions
LP2465 model, large 24-inch (61 cm) viewable area display with 1920 × 1200 resolution, plus
full-screen support for lower resolutions
Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side
Pivot capability to rotate display to portrait mode
Tilt, swivel, and height adjustment capabilities
Removable stand with quick release mechanism and VESA 100 mm mounting holes for flexible
mounting solutions
Video inputs support DVI analog and digital signal inputs
Two DVI-I to VGA signal cables and two DVI-D signal cables included (LP2065 and LP2465
models)
One DVI-I to VGA signal cable and one DVI-D signal cable included (LP1965 model only)
USB 2.0 hub with one upstream (connects to the computer) and four downstream (connects to
USB devices) ports
USB cable included to connect the monitor's USB hub to the USB connector on the computer
Accessory rail on monitor to accept optional mounted devices, such as an HP speaker bar
Plug and play capability if supported by the system.
On-Screen Display (OSD) adjustments in English, Dutch, French, German, Italian, Japanese,
and Spanish for ease of setup and screen optimization
Software and documentation CD that includes HP Display Assistant, Pivot Pro software, monitor
driver software, and product documentation
ENWW
Energy saver feature to meet requirements for reduced power consumption
HP LP1965, LP2065, and LP2465 Models 1
AssetControl
Compliant with the following regulated specifications:
European Union CE Directives
Swedish MPR II 1990
Swedish TCO Requirements
Chapter 1 Product Features 2
ENWW

2 Safety and Maintenance Guidelines

Important Safety Information

A power cord is included with the monitor. If another cord is used, use only a power source and connection appropriate for this monitor. For information on the correct power cord set to use with the monitor, refer to the Power Cord Set Requirements section in Appendix C.
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.
• Plug the power cord in a grounded (earth) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the Safety and Comfort Guide. It describes proper workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/ergo and/or on the documentation CD, if one is included with the monitor.
CAUTION For the protection of the monitor, as well as the computer, connect all power
cords for the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection fails.
ENWW
Important Safety Information 3

Maintenance Guidelines

To enhance the performance and extend the life of the monitor:
Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those
controls that are covered in the operating instructions. If the monitor is not operating properly or has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
Use only a power source and connection appropriate for this monitor, as indicated on the label/
back plate of the monitor.
Be sure the total ampere rating of the products connected to the outlet does not exceed the
current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for each device.
Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping
the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
Turn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use.
Slots and openings in the cabinet are provided for ventilation. These openings must not be
blocked or covered. Never push objects of any kind into cabinet slots or other openings.
Do not drop the monitor or place it on an unstable surface.
Do not allow anything to rest on the power cord. Do not walk on the cord.
Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
When removing the monitor base, you must lay the monitor face down on a soft area to prevent
it from getting scratched, defaced, or broken.

Cleaning the Monitor

1. Turn off the monitor and the computer.
2. Unplug the monitor from the wall outlet.
3. Clean the monitor plastics with a clean cloth dampened with water.
4. Clean the monitor screen with an antistatic screen cleaner.
CAUTION Do not use benzene, thinner, ammonia, or any other volatile substances to clean
the monitor or the screen. These chemicals may damage the cabinet finish as well as the screen.

Shipping the Monitor

Keep the original packing box in a storage area. You may need it later if you move or ship the monitor.
Chapter 2 Safety and Maintenance Guidelines 4
ENWW

3 Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below.
NOTE Be sure the master power switch, located on the rear panel of the monitor, is in the off
position. The master power switch turns off all power to the monitor.

Installing the Monitor Pedestal Base

NOTE Do not install the pedestal base if the monitor will be used on a wall, swing arm, or
other mounting fixture; instead see the section on Mounting the Monitor in this chapter.
1. Using both hands, position the monitor over the pedestal base.
CAUTION Do not touch the surface of the LCD panel. Pressure on the panel may
cause non-uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.
2. Press down firmly on the monitor to lock the pedestal base in place. When the base locks, it will
make a clicking sound.
Figure 3-1 Inserting the Monitor into the Pedestal Base
ENWW
NOTE Be sure the pedestal base is securely locked before continuing with the setup.
Installing the Monitor Pedestal Base 5

Rear Components

Figure 3-2 Rear Components
Component Function
1 Cable Lock Provision Provides slot for use with cable security locks.
2 Master Power Switch Turns off all power to the monitor.
3 AC Power Connector Connects the AC power cord to the monitor.
4 DVI-I Connectors Connects the DVI-I to VGA signal cable or DVI-D signal
cable to the monitor.
5 USB Upstream
Connector
6 USB Downstream
Connectors
7 USB Downstream
Connectors (side panel)
Connects the monitor USB hub to a host USB port/hub.
Connects optional USB devices to the monitor.
Connects optional USB devices to the monitor.
Chapter 3 Setting Up the Monitor 6
ENWW

Selecting the Signal Connectors and Cables

The monitor features two DVI-I connectors capable of supporting either analog or digital input.
The video mode supported by the DVI-I connector is determined by the video cable used.
For digital operation, use the DVI-D signal cable provided. Connect the DVI-D signal cable to a
DVI-I connector on the monitor and the other end to the DVI connector on the computer.
For analog operation, use the DVI-I to VGA signal cable provided. Connect the DVI-I to VGA
signal cable to a DVI-I connector on the monitor and the other end to the VGA connector on the computer.
The monitor will automatically determine which inputs have valid video signals. The inputs can be selected through the On-Screen Display (OSD) feature by pressing the Input Select button on the front panel.
Figure 3-3 Connecting the DVI-I to VGA Signal Cable
Figure 3-4 Connecting the DVI-D Signal Cable
ENWW
Selecting the Signal Connectors and Cables 7

Connecting the Monitor

1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Connect one end of the USB hub cable to the USB connector on the rear panel of the computer,
and the other end to the upstream USB connector on the monitor.
Figure 3-5 Connecting the USB Cable
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
• Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all times.
• Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.
Chapter 3 Setting Up the Monitor 8
ENWW
3. Connect one end of the power cable to the AC power connector on the back of the monitor, and
the other end to an electrical wall outlet.
Figure 3-6 Connecting the Power Cable
4. Place the cables through the cable management channel on the back of the monitor base.
ENWW
Figure 3-7 Using the Cable Management Feature
Connecting the Monitor 9

Adjusting the Monitor

1. Tilt the monitor's panel forward or backward to set it to a comfortable eye level.
Figure 3-8 Tilting the Monitor
NOTE The 24" model has a tilt range of -5 to +25 degrees.
2. Swivel the monitor to the left or right for the best viewing angle.
Figure 3-9 Swiveling the Monitor
10 Chapter 3 Setting Up the Monitor
ENWW
3. Adjust the monitor's height so that it is parallel to your eye height for a comfortable viewing
position.
WARNING! A lock-down/release button on the front of the column prevents the display
head of the 19" model from sliding up when the monitor is lifted. If the display head is locked in the lowest height position:
a. Make sure that the monitor is safely positioned on a stable surface.
b. Gently push down on the display head.
c. While pushing down the display head, press the lock-down/release button on the front of the column.
d. Guide the display head up to the desired height.
Figure 3-10 Adjusting the Height (LP2065 and LP2465 models)
NOTE The 19" model has a height adjustment range of 100 mm.
ENWW
Adjusting the Monitor 11
4. Pivot the monitor from landscape to portrait orientation viewing to adapt to your application.
Figure 3-11 Pivoting the Monitor
NOTE The 20" model (shown above) pivots counter-clockwise; the 19" and 24" models
pivot clockwise.
To view information on the screen in portrait mode, you will need to install the Pivot Pro software included on the software and documentation CD.

Turning on the Monitor

1. Press the power switch to turn on the computer.
2. Press the master power switch on the rear of the monitor.
3. Press the power button on the front of the monitor.
CAUTION Burn-in image damage may occur on monitors that display the same static image
on screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you should always activate a screen saver application or turn off the monitor when it is not in use for a prolonged period of time. Image retention is a condition that may occur on all LCD screens.
* A prolonged period of time is 12 consecutive hours of non-use.
12 Chapter 3 Setting Up the Monitor
ENWW

Connecting USB Devices

The monitor provides four USB connectors, two on the side panel and two on the rear panel, used to connect devices such as a digital camera, USB keyboard, or USB mouse.
NOTE You must connect the USB hub cable from the monitor to the computer to enable the
USB 2.0 ports on the monitor. Refer to Step 2 in Connecting the Monitor.
Figure 3-12 Connecting USB Devices
ENWW
Connecting USB Devices 13

Using the Accessory Rails

The monitor features accessory rails on the rear that may be used to mount optional devices, such as the HP speaker bar, to attach to the LCD. Refer to the documentation included with the optional device for detailed mounting instructions.
Figure 3-13 Using the Accessory Rails Feature

Removing the Monitor Pedestal Base

You can remove the monitor panel from the pedestal base to mount the panel on a wall, a swing arm, or other mounting fixture.
This monitor has a Quick Release mechanism that allows you to easily remove and replace the monitor panel to the pedestal base.
CAUTION Before beginning to disassemble the monitor, be sure the monitor is turned off
and the power and signal cables are both disconnected. If the monitor has a connected audio cable, disconnect it.
1. Disconnect and remove the signal and power cables from the back of the monitor.
2. Slide the quick release latch (1) on the pedestal base to the side (either right or left).
14 Chapter 3 Setting Up the Monitor
ENWW
3. Pull up on the monitor display head (2) to remove it from the base.
Figure 3-14 Removing the Monitor from the Pedestal Base

Mounting the Monitor

The HP Quick Release can be removed from the pedestal base and installed to a mounting fixture. It allows you to quickly and securely attach the monitor panel to the mounting fixture.
1. Remove the monitor panel from the pedestal base. Refer to Removing the Monitor Pedestal
Base steps in the previous section.
CAUTION This monitor supports the VESA industry standard 100 mm mounting holes.
To attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are required (not provided with the monitor). Longer screws should not be used because they may damage the monitor. It is important to verify that the manufacturer’s mounting solution is compliant with the VESA standard and is rated to support the weight of the monitor display panel. For best performance, it is important to use the power and video cables provided with the monitor.
2. Remove the Quick Release from the pedestal base by removing the four screws.
ENWW
Figure 3-15 Removing the HP Quick Release from the Pedestal Base
Removing the Monitor Pedestal Base 15
3. Mount the Quick Release to a swing arm or other mounting fixture using the four screws
removed from the Quick Release in the previous step.
Figure 3-16 Installing the Quick Release
CAUTION The Quick Release can also be installed directly to a wall to mount the
monitor panel. It is designed to support a maximum of up to 24 lbs. (10.9 kg). If you are mounting to a wall, HP recommends that you consult with a qualified engineering, architectural, or construction professional to determine the appropriate type and quantity of mounting fasteners required for your application and to ensure that the mounting solution is properly installed to support applied loads.
4. Insert the monitor panel into the Quick Release, and then press down firmly on the monitor to
lock it in place. When the Quick Release locks, it will make a clicking sound.
Figure 3-17 Inserting the Monitor Panel into the Quick Release
16 Chapter 3 Setting Up the Monitor
ENWW

Locating the Rating Labels

The rating labels on the monitor provide the spare part number, product number, and serial number. You may need these numbers when contacting HP about the monitor model. The rating labels are located on the rear panel of the monitor display head.

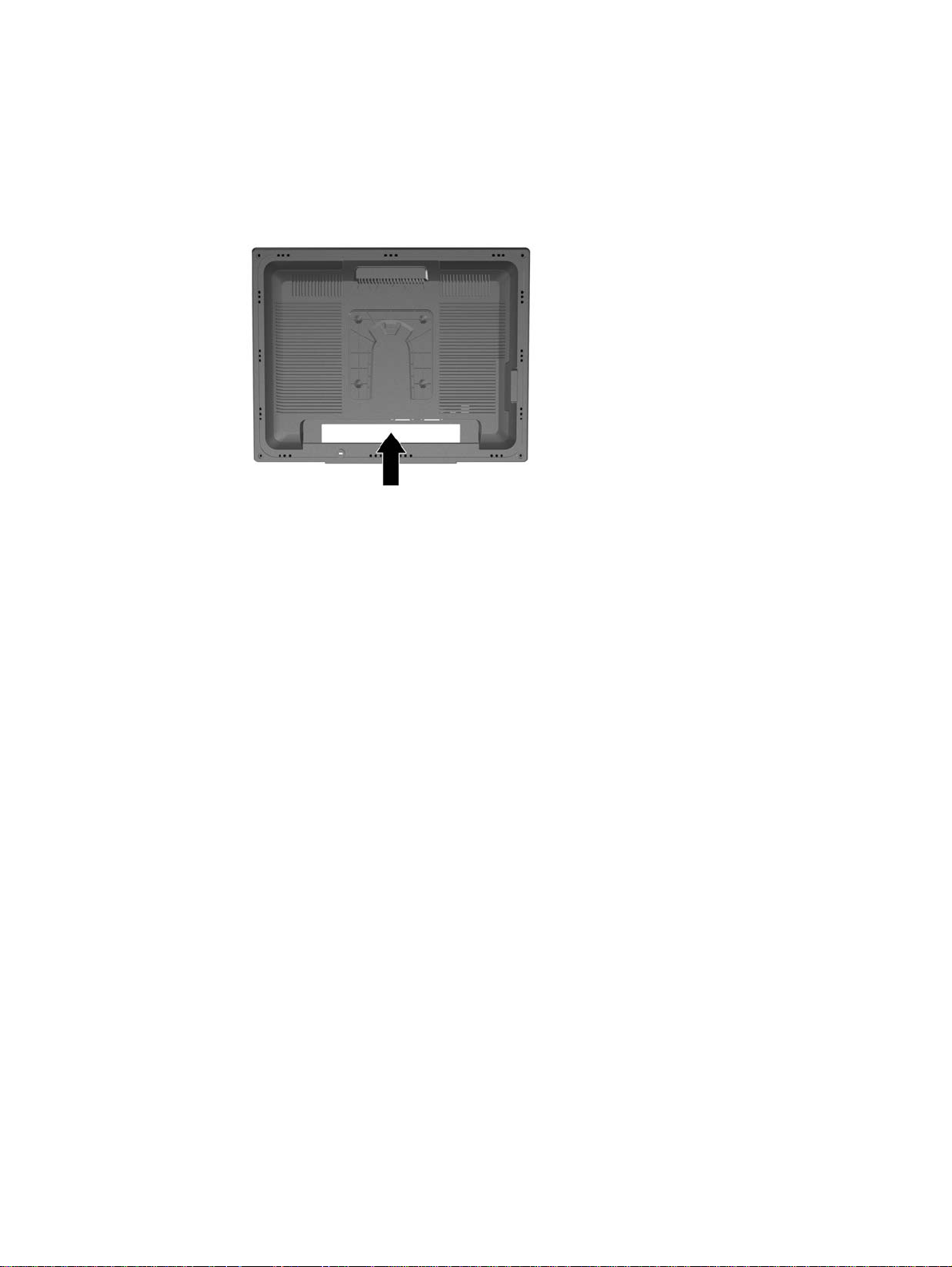

Figure 3-18 Locating the Rating Labels
ENWW
Locating the Rating Labels 17
ENWW18 Chapter 3 Setting Up the Monitor

4 Operating the Monitor

Software and Utilities

The CD that comes with the monitor contains files you can install on the computer:
an .INF (Information) file
an .ICM (Image Color Matching) file
auto-adjustment pattern utility
additional software for the monitor model
Adobe Reader is supplied on this CD and can be installed from the menu.
NOTE If the monitor does not include a CD, the .INF and .ICM files can be downloaded from
the HP monitors support Web site. See Downloading from the Worldwide Web in this chapter.

The Information File

The .INF file defines monitor resources used by Microsoft Windows operating systems to ensure monitor compatibility with the computer’s graphics adapter.
This monitor is Microsoft Windows Plug and Play compatible and the monitor will work correctly without installing the .INF file. Monitor Plug and Play compatibility requires that the computer’s graphic card is VESA DDC2–compliant and that the monitor connects directly to the graphics card. Plug and Play does not work through separate BNC type connectors or through distribution buffers/ boxes.

The Image Color Matching File

The .ICM files are data files that are used in conjunction with graphics programs to provide consistent color matching from monitor screen to printer, or from scanner to monitor screen. The .ICM file contains a monitor color system profile. This file is activated from within graphics programs that support this feature.
NOTE The ICM color profile is written in accordance with the International Color Consortium
(ICC) Profile Format specification.
ENWW
Software and Utilities 19

Installing the .INF and .ICM Files

After you determine that you need to update, you can install the .INF and .ICM files from the CD or download them.

Installing from the CD

To install the .INF and .ICM files on the computer from the CD:
1. Insert the CD in the computer CD-ROM drive. The CD menu is displayed.
2. View the Monitor Driver Software Readme file.
3. Select Install Monitor Driver Software.
4. Follow the on-screen instructions.
5. After the software has been installed, restart Windows.
6. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.
NOTE You may need to install the digitally signed monitor .INF and .ICM files manually from
the CD in the event of an installation error. Refer to the Monitor Driver Software Readme file on the CD.

Downloading from the Worldwide Web

To download the latest version of .INF and .ICM files from the HP monitors support Web site:
1. Refer to http://www.hp.com/support and select the country region.
2. Follow the links for the monitor to the support page and download page.
3. Ensure the system meets the requirements.
4. Download the software by following the instructions.
20 Chapter 4 Operating the Monitor
ENWW

Using the Auto-Adjustment Function

You can optimize the screen performance for the VGA (analog) input by using the -/Auto button on the monitor and the auto-adjustment pattern software utility on the CD provided.
Do not use this procedure if the monitor is using a DVI input. If the monitor is using a VGA (analog) input, this procedure can correct the following image quality conditions:
Fuzzy or unclear focus
Ghosting, streaking or shadowing effects
Faint vertical bars
Thin, horizontal scrolling lines
An off-center picture
To use the auto-adjustment feature:
1. Allow the monitor to warm up for 20 minutes before adjusting.
2. Press the -/Auto button on the monitor front panel.
You can also press the Menu/Select button, then select Auto-Adjustment from the OSD
Main Menu. Refer to Adjusting the Monitor Settings in this chapter.
If the result is not satisfactory, continue with the procedure.
3. Insert the CD in the disc drive. The CD menu is displayed.
4. Select Open Auto-Adjustment Software . The setup test pattern is displayed.
5. Press the -/Auto button on the monitor front panel to produce a stable, centered image.
6. Press the ESC key or any other key on the keyboard to exit the test pattern.
ENWW
Using the Auto-Adjustment Function 21

Front Panel Controls

Table 4-1 Monitor Front Panel Controls
Control Function
1 Menu/Select Opens, selects or exits the OSD menu.
2 (Minus)/Auto
3 + (Plus) Navigates forward through the OSD menu and increases
4 Input Select Selects the video input (DVI-I #1 or DVI-I #2).
5 Power LED Fully powered = Green.
6 Power Turns the monitor on or off.
Navigates backward through the OSD menu and
decreases adjustment levels.
When the OSD menu is inactive, activates the auto
adjustment feature to optimize the screen image.
adjustment levels.
Sleep mode = Amber.
Sleep Timer mode = Flashing Amber.
22 Chapter 4 Operating the Monitor
ENWW

Adjusting the Monitor Settings

The monitor settings can be adjusted from the On-Screen Display (OSD) menu or from the HP Display Assistant utility.

Using the On-Screen Display Menu

Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To access the OSD, do the following:
1. If the monitor is not already on, press the Power button to turn on the monitor.
2. To access the OSD Menu, press the Menu/Select button on the monitor’s front panel.
3. To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to
scroll up, or the (Minus)/Auto button to scroll in reverse.
4. To select an item from the OSD Menu, use the + or buttons to scroll to and highlight your
selection, then press the Menu/Select button to select that function.
5. Adjust the item using the + or buttons on the front panel to adjust the scale.
6. After adjusting the function, select Save and Return, or Cancel if you don’t want to save the
setting, then select Exit from the Main Menu.
NOTE If the buttons remain untouched for 10 seconds while displaying a menu, new
adjustments will be discarded and the settings will revert to previous settings and exit the menu.
ENWW
Adjusting the Monitor Settings 23
OSD Menu Selections
The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions. After changing an OSD menu item, and if the menu screen has these options, you may choose to:
Cancel—to return to the previous menu level.
Save and Return—to save all changes and return to the OSD Main Menu screen. This Save
and Return option is only active if you change a menu item. Reset—to change back to the previous setting.
Table 4-2 OSD Menu
Icon Main Menu Submenu Description
Brightness Adjusts the brightness level of the screen. The factory default
Contrast Adjustable scale Adjusts the contrast level of the screen. The factory default
Image Control Adjusts the screen image.
Auto Adjustment Automatically adjusts the screen image.
Horizontal Position Adjusts the position of the screen image left and right.
Vertical Position Adjusts the position of the screen image up and down.
Custom Scaling (not available on LP1965 model)
range is 50 or 90, depending on the model.
range is 80.
Selects the method on how displayed information on the monitor will be formatted. Select:
Fill to Screen—image fills the entire screen and may look
distorted or elongated because of non-proportional scaling of height and width
Fill to Aspect Ratio—image is sized to fit the screen and
maintains proportional image
One-to-one—disables video scaling, displays an image
that is smaller in size than the monitor’s capability and centers the image on the screen in the active viewing area
Color Selects the screen color. The factory default is 6500K or
24 Chapter 4 Operating the Monitor
Sharpness (not available on LP1965 model)
Clock Minimizes any vertical bars or strips
Clock Phase Adjusts the focus of the display. This adjustment allows you to
Adjusts the screen image to look sharper or soft.
NOTE If the one-to-one custom scaling menu is
selected, scaling is disabled and the sharpness feature will also be disabled.
visible on the screen background. Adjusting the Clock will also change the horizontal screen image.
remove any horizontal noise and clear or sharpen the image of characters.
Custom Color, depending on the model.
ENWW
Table 4-2 OSD Menu (continued)
Icon Main Menu Submenu Description
9300 K Changes to slightly blueish white.
6500 K Changes to slightly reddish white.
Custom Color Selects and adjusts your
R—sets your own red color levels
G—sets your
B—sets your own blue color levels
sRGB Sets your screen colors to adapt to the color standards used in
Language Selects the language in which the OSD menu is displayed. The
Management Selects the power management features of the monitor.
Power Saver Enables the power saving feature. Select:
Power On Recall Restores power to the monitor following an unexpected removal
the image technology industry.
factory default is English.
On
Off
The factory
of power. Select:
default is On.
On
Off
own color scales:
own green color levels
Mode Display
Power-On Status Display
The factory default is On.
Displays the resolution, refresh rate and on the screen each time the OSD Main Menu is accessed. Select:
On
Off
The
factory
default is On or Off, depending on the model.
Displays the operating status of the monitor each time the monitor is powered on. Select the location to display the status to:
Top
Middle
Bottom
Off
The
factory default is On or Off, depending on the model.
frequency information
ENWW
Adjusting the Monitor Settings 25
Table 4-2 OSD Menu (continued)
Icon Main Menu Submenu Description
DDC/CI Support Allows the computer to control some OSD menu features such
Sleep Timer Provides the timer adjustment menu options:
OSD Control Adjusts the position of the OSD menu on the screen.
Horizontal Position Changes the viewing position of the OSD menu to the left or
as brightness, contrast and color temperature. Set to:
On
Off
The factory default is On.
Set Current Time—sets the current time in hours and
minutes
Set Sleep Time—sets the time you want to place the
monitor in sleep mode
Set on Time—sets the time you want the monitor to wake
up from sleep mode
Timer—sets the Sleep Timer feature On or Off. The default
setting is Off
Sleep Now—immediately sets the monitor to enter sleep
mode
right area of the screen. The factory default range is 50.
Vertical Position Changes the viewing position of the OSD menu to the top or
OSD Timeout Sets the time duration in seconds that the OSD is visible after
OSD Transparency Adjust to view the background
Information Selects and displays important information about the monitor.
Current Settings Provides the current input video mode.
Recommended Settings Provides the recommended resolution mode and refresh rate
Serial Number Reports the serial number of the monitor. The serial number is
Version Reports the firmware version of the monitor.
Backlight hours Reports the total
Video Input Control
DVI-I#1 Selects DVI-I 1 input. This input accepts either analog or digital
bottom area of the screen. The factory default range is 50.
the last button is pressed. The factory default is 30 seconds.
information through the OSD.
for the monitor.
needed if contacting HP technical support.
hours of backlight operation.
Selects the default or primary video input signal when the monitor is connected to two active and valid video sources. The monitor will automatically determine the video format. The default input selection is DVI.
signals.
26 Chapter 4 Operating the Monitor
DVI–I#2 Selects DVI-I 2 input. This input accepts either analog or digital
signals.
ENWW
Table 4-2 OSD Menu (continued)
Icon Main Menu Submenu Description
Disable Input Auto- Keeps the monitor's video input selection at it's current setting. Switching This menu selection is visible if the video input control is set to
Enable Input Auto-switching.
Enable Input Auto- Automatically returns the monitor's video input to the default Switching auto-switching mode. This menu selection is visible if the video
input control is set to Disable Input Auto-switching.
Factory Reset Returns all OSD menu settings and Power-On Status Display
Exit Exits the OSD menu screen.
(for LP2465 model) settings to the factory default setting, except the Language and Power-On Status Display (for LP1965 and LP2065 models) settings.
ENWW
Adjusting the Monitor Settings 27
Optimizing Digital Conversion
This monitor contains advanced circuitry that allows the flat panel screen to function like a standard monitor. Two controls in the on-screen display can be adjusted to improve image performance: Clock and Clock Phase.
NOTE The Clock and Clock Phase controls are adjustable only when using an analog input.
These controls are not adjustable for digital inputs.
The Clock must first be set correctly since the Clock Phase settings are dependent on the main Clock setting. Use these controls only when the auto-adjustment function does not provide a satisfactory image.
Clock—Increases/decreases the value to minimize any vertical bars or stripes visible on the
screen background.
Clock Phase—Increases/decreases the value to minimize video distortion or video jitter.
NOTE When using the controls, you will obtain the best results by using the auto-adjustment
pattern software utility provided on the CD.
When adjusting the Clock and Clock Phase values, if the monitor images become distorted, continue adjusting the values until the distortion disappears. To restore the factory settings, select Yes from the Factory Reset menu in the on-screen display.

Using the HP Display Assistant Utility

HP Display Assistant, included on the software and documentation CD, is a software utility that guides you through the tuning process with easy to understand instructions and background patterns designed for each monitor control. It provides:
Accurate screen calibration through the use of step-by-step instruction Wizards to obtain the
best overall image quality.
Software control of the monitor image and color settings to eliminate dependence on the
monitor’s front panel buttons and On-Screen Display (OSD) menu.
Defined preset display settings for each individual user in a multi-user environment.
Multiple preset display settings for a single user based on content and ambient lighting.
Asset Management and Power Management capabilities that include remote control for
individual or a group of displays on the domain from a centralized console application.
The HP Display Assistant Utility has two modes of operation: Wizard and OSD mode. The preferred method of use is Wizard mode, which takes you through a step-by-step process to accurately calibrate the monitor. This method relies on a sequence of steps that will obtain the best display results when completed.
NOTE Refer to the HP Display Assistant user guide for additional information about the
software.
28 Chapter 4 Operating the Monitor
ENWW

Identifying Monitor Conditions

Special messages will appear on the monitor screen when identifying the following monitor conditions:
Input Signal Out of Range—Change resolution setting to 1280 × 1024 – 60Hz (LP1965 19"
model), 1600 × 1200 - 60Hz (LP2065 20" model), or 1920 × 1200 - 60 Hz (LP2465 24" model)— Indicates the monitor does not support the input signal because the resolution and/or refresh rate are set higher than the monitor supports.
No Input Signal—Indicates the monitor is not receiving a video signal from the PC on the
monitor video input connector. Check to determine if the PC or input signal source is off or in the power saving mode.
Multiple Inputs are ActiveUse the OSD to select the desired video input—Indicates the
monitor is connected to two video inputs. The monitor is trying to display both inputs, but after 10 seconds the monitor uses the default signal input.
Auto Adjustment is in Progress—Indicates the auto-adjustment function is active.
Monitor Going to Sleep—Indicates the screen display is entering a sleep mode.
Check Video Cable—Indicates the video cable is not properly connected to the computer.
OSD Lock—The OSD can be enabled or disabled by pressing and holding the Menu button on
the front panel for 10 seconds. If the OSD is locked, the warning message OSD Lock-Out displays for ten seconds.
If the OSD is locked, press and hold the Menu button for 10 seconds to unlock the OSD.
If the OSD is unlocked, press and hold the Menu button for 10 seconds to lock the OSD.

Sleep Timer Mode

The Sleep Timer mode is an energy-saving feature that enables you to set a time for the monitor to power on and off at the same time every day. This also extends the life of the backlight bulbs in the monitor. The Sleep Timer has five settings:
Set Current Time
Set Sleep Time
Set On Time
Timer: On/Off
Sleep Now
To set the timer:
1. Press the Menu button on the monitor front panel to display the Advanced Menu.
2. Scroll down and highlight Management.
ENWW
3. Press the Menu button to select Management.
4. Scroll down and highlight and select Sleep Timer > Set Current Time.
Identifying Monitor Conditions 29
NOTE You must set the current local time before you reset the time for Sleep Time or
On Time. Note that the time is displayed in a 24–hour clock format. For example, 1:15
p.m. is displayed as 13 hours 15 minutes.
5. Press the Menu button once to enter the adjustment mode for hours.
6. Press the - (Minus) or + (Plus) button to adjust the hour.
7. Press the Menu button again to enter the time for minutes.
8. Press the - (Minus) or + (Plus) button to adjust the minutes.
9. Press the Menu button to lock in the time chosen.
10. After setting the current time, the highlight automatically skips to Set Sleep Time hours. Repeat
steps 6 through 9 to set Sleep Time.
11. If you do not want to set Sleep Time, press the Menu button twice, then select Save and
Return to exit the menu.
12. After setting Sleep Time, the highlight automatically skips to Set On Time hours. Repeat steps
6 through 9 to set On Time.
13. Set the Timer mode to On to activate the Sleep Timer settings.
14. When you are finished, select Save and Return to exit the menu.
The fifth selection, Sleep Now, turns the monitor backlights off immediately and stays in sleep mode until the next On Time activates or a monitor button is pressed.

HP Display LiteSaver

HP Display LiteSaver is a software application, available on the CD, that increases monitor life and saves energy. It allows you to place the monitor into its low power sleep mode at predefined times by shutting down or reducing power to most internal circuits. This helps protect the LCD panel against image retention. Image retention can occur when the monitor is left on while displaying the same image for an extended period of time, leaving a shadow of the image on the screen.

Installing the HP Display LiteSaver Software

1. Insert the CD in the computer CD-ROM Drive. The CD menu is displayed.
2. Select Install HP Display LiteSaver Software.
3. After installing the software, click the HP Display LiteSaver icon in the Windows system tray or
right-click the icon and select Configure from the pop-up menu.
4. Select the following options to configure the HP Display LiteSaver features:
Table 4-3 HP Display LiteSaver Configuration Options
Select This Option To Do This
Enable Display LiteSaver Enables the HP Display LiteSaver functions; deselect to disable the HP Display
30 Chapter 4 Operating the Monitor
LiteSaver.
ENWW
Table 4-3 HP Display LiteSaver Configuration Options (continued)
Select This Option To Do This
Display Off Sets the time when the monitor automatically turns off. This does not affect
Display On Sets the time when the monitor automatically turns on. This does not affect
Activity Extension Sets the time in minutes before the monitor turns off if there is any keyboard or
Show 1 minute Display Off Notice Displays a popup message in the system tray 1 minute before the monitor is
Status Shows the time until the monitor is next due to be turned off by HP Display
OK Stores the current settings and minimizes HP Display LiteSaver to the System
Cancel Restores the previous settings and minimizes HP Display LiteSaver to the
Help Opens the online help file.
Exit Exits and closes the HP Display LiteSaver. It will no longer control the monitor
screen saver operation, which has priority over the HP Display LiteSaver.
screen saver operation, which has priority over the HP Display LiteSaver.
mouse activity after the Display Off time is reached. If the keyboard or mouse is used, then HP Display LiteSaver waits until the set amount of time before turning the display off again. Set to 0 to disable. If disabled, the monitor will turn off as soon as the Display Off time is reached, regardless of keyboard or mouse activity.
turned off by HP Display LiteSaver.
LiteSaver.
Tray.
System Tray. HP Display LiteSaver will continue to run.
power until it is next run.
View HP Display LiteSaver Readme on the CD for additional information on how to configure HP Display LiteSaver.

sRGB Support

The monitor is designed to support sRGB for color management, which adapts to the color standards used in the image technology industry.
To take advantage of the sRGB support, you will need to change the monitor’s color temperature to sRGB and install the sRGB color profile (ICM) file.
NOTE The sRGB color temperature preset will improve the color accuracy of sRGB images
on the computer monitor, but some color variation may still occur.

Changing the Color Temperature

1. Press the Menu button on the front panel of the monitor to launch the Main Menu of the OSD.
2. Select Advanced Menu to access all options in the Main Menu.
3. Select Color to display the Color Temperature menu.
4. Select sRGB.
5. Select Save and Return to exit the menu.
ENWW
sRGB Support 31

Installing the sRGB ICM File for Microsoft Windows 2000 and Windows XP

NOTE To complete the following procedure, you must be logged in as an administrator or a
member of the administrator’s group. If the computer is connected to a network, network policy settings may prevent you from completing this procedure. The sRGB ICM file does not support Windows 95 and Windows NT operating systems.
1. Click the Display icon in the Control Panel.
2. In the Display Properties windows, select the Settings tab, then click the Advanced button.
3. Select the Color Management tab, then click the Add button to open the Add Profile
Association dialog box.
4. Select the sRGB Color Space Profile.icm file, then click the Add button
5. To activate a color profile for the monitor, you must set it as the Default Monitor Profile. Select
sRGB Color Space Profile, then click Set as Default button.
6. Click Apply or OK.
32 Chapter 4 Operating the Monitor
ENWW

A Troubleshooting

Solving Common Problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions.
Problem Possible Cause Solution
Screen is blank. Power cord is disconnected. Connect the power cord.
Power switch on front panel of the monitor is turned off.
Master power switch on rear panel of the monitor is turned Off.
Video cable is improperly connected.
Screen blanking is active. Press any key on the keyboard or move the mouse to
Image appears blurred, indistinct, or too dark.
Image is not centered Position may need adjustment. Press the Menu button to access the OSD menu. Select
Check Video Cable is displayed on screen.
Out of Range. Set Monitor to 1280 × 1024 @ 60Hz is displayed on
screen. (LP1965 19" model)
Brightness and contrast are too low.
Monitor video cable is disconnected.
Video resolution and/or refresh rate are set higher than what the monitor supports.
Press the front panel power button.
Turn the master power switch to On.
Connect the video cable properly. Refer to Chapter 3,
Setting Up the Monitor for more information.
inactivate the screen blanking utility.
Press the —/Auto button on the front panel. If this does not correct the image, press the Menu button to open the Basic OSD Menu, and adjust the brightness and contrast scales as needed.
Image Control/Horizontal Position or Vertical Position to
adjust the horizontal or vertical position of the image.
Connect the DVI-D signal cable to the DVI-I connector on the computer, or the VGA to DVI-I cable to the DVI-I connector on the computer. Be sure that the computer power is off while connecting the video cable.
Restart the computer and enter Safe Mode. Change the settings to a supported setting (see Table B-4 LP1965
Model Factory Preset Modes). Restart the computer so
that the new settings take effect.
ENWW
Out of Range. Set Monitor to 1600 × 1200 @ 60Hz is displayed on
screen. (LP2065 20" model)
Out of Range. Set Monitor to 1920 × 1200 @ 60Hz is displayed on
screen. (LP2465 24" model)
Video resolution and/or refresh rate are set higher than what the monitor supports.
Video resolution and/or refresh rate are set higher than what the monitor supports.
Restart the computer and enter Safe Mode. Change the settings to a supported setting (see Table B-5 LP2065
Model Factory Preset Modes). Restart the computer so
that the new settings take effect.
Restart the computer and enter Safe Mode. Change the settings to a supported setting (see Table B-6 LP2465
Model Factory Preset Modes). Restart the computer so
that the new settings take effect.
Solving Common Problems 33
Problem Possible Cause Solution
HP Display LiteSaver doesn't turn off the monitor screen.
The monitor is off but it did The monitor's power saving Check the monitor's OSD menu setting for power saving not seem to enter into a control is disabled. enable/disable controls. The control should be set to low-power sleep mode. enable to allow the monitor to enter into low-power
The Activity Extension time has not elapsed.
The HP Display LiteSaver may not be compatible with the computer system. Some notebook computers are not compatible and the monitor power can not be controlled.
The default Activity Extension value is set to 10 minutes. The HP Display LiteSaver will wait to detect no input or movement from the keyboard or mouse for 10 consecutive minutes after the Display Off time has passed, before the monitor enters into low-power mode. For example, if the Display Off time is set to 5 minutes from the current time and the Activity Extension is set to 10 minutes, the HP Display LiteSaver will not actually turn off the display until 10 minutes of inactivity has elapsed, even though the Display Off time is 5 minutes from now.
Confirm that the HP Display LiteSaver is compatible with the system.
1. Right-click on the HP Display LiteSaver icon in the
system tray.
2. Select Power Off Display from the menu.
The monitor screen should turn off if the system is compatible. To turn the monitor back on, wait 5 seconds and move the mouse.
NOTE If the monitor did not turn off, then the
computer graphics driver is not compatible with the HP Display LiteSaver software.
modes.

Using the Worldwide Web

For the online access to technical support information, self-solve tools, online assistance, community forums of IT experts, broad mutlivendor knowledge base, monitoring and diagnostic tools, go to
http://www.hp.com/support

Preparing to Call Technical Support

If you cannot solve a problem using the trouble shooting tips in this section, you may need to call technical support. Have the following information available when you call:
The monitor
Monitor model number
Serial number for the monitor
Purchase date on invoice
Conditions under which the problem occurred
Error messages received
34 Appendix A Troubleshooting
ENWW
Hardware configuration
Hardware and software you are using
ENWW
Preparing to Call Technical Support 35
ENWW36 Appendix A Troubleshooting

B Technical Specifications

NOTE All performance specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's component manufacturers' typical level specifications for performance and actual performance may vary either higher or lower.

LP1965 Model

Table B-1 LP1965 Model Specifications
Display 19 inches 48.3 cm
Type TFT LCD
Viewable Image Size 19–inch diagonal 48.3 cm
Tilt -5 to 30°
Swivel -45 to 45°
Maximum Weight (Unpacked) 17.2 lbs. 7.8 kg
Dimensions (include base)
Height
Depth
Width
Maximum Graphic Resolution 1280 × 1024 (75 Hz) analog input
Text Mode 720 × 400
Dot Pitch 0.294 (H) × 0.294 (W) mm
Horizontal Frequency 24 to 83 kHz
Vertical Refresh Rate 48 to 76 Hz
Environmental Requirements Temperature
Operating Temperature
Storage Temperature
14.85 inches
8.78 inches
15.90 inches
1280 × 1024 (75 Hz) digital input
41 to 95° F 5 to 35° C
-4 to 140° F -20 to +60° C
377.16 mm
223.00 mm
403.90 mm
ENWW
Relative Humidity 20 to 80%
LP1965 Model 37
Table B-1 LP1965 Model Specifications (continued)
Power Source 100 — 240 VAC, 50/60 Hz
Altitude:
Operating
Storage
Power Consumption (maximum) <55 watts
Input Terminal Two DVI-I connectors with cables included.

LP2065 Model

Table B-2 LP2065 Model Specifications
Display
Type
Viewable Image Size 20–inch diagonal 51 cm
Tilt -5 to 30°
Swivel -45 to 45°
Maximum Weight (Unpacked) 20.3 lbs. 9.2 kg
Dimensions (include base)
Height
Depth
Width
0 to 12,000 feet 0 to 3657.6 m
0 to 40,000 feet 0 to 12192 m
20.1 inches
TFT LCD
16.7 inches
8.7 inches
17.4 inches
51 cm
425.0 mm
220.0 mm
443.0 mm
Maximum Graphic Resolution 1600 × 1200 (75 Hz) analog input
1600 × 1200 (60 Hz) digital input
Text Mode 720 × 400
Dot Pitch 0.258 (H) × 0.258 (W) mm
Horizontal Frequency 30 to 94 kHz
Vertical Refresh Rate 48 to 85 Hz
Environmental Requirements Temperature
Operating Temperature
Storage Temperature
Relative Humidity
Power Source 100 — 240 VAC, 50/60 Hz
Altitude:
Operating
Storage
41 to 95° F
-4 to 140° F
20 to 80%
0 to 12,000 feet
0 to 40,000 feet
5 to 35° C
-20 to +60° C
0 to 3657.6 m
0 to 12192 m
38 Appendix B Technical Specifications
ENWW
Table B-2 LP2065 Model Specifications (continued)
Power Consumption (maximum) <75 watts
Input Terminal Two DVI-I connectors with cables included.

LP2465 Model

Table B-3 LP2465 Model Specifications
Display 24.1 inches 61 cm
Type TFT LCD
Viewable Image Size 24–inch diagonal 61 cm
Tilt -5 to 25°
Swivel -45 to 45°
Maximum Weight (Unpacked) 23.4 lbs. 10.6 kg
Dimensions (include base)
Height
Depth
Width
Maximum Graphic Resolution 1920 × 1200 (60Hz) analog input
Text Mode 720 × 400
Dot Pitch 0.270 (H) × 0.270 (W) mm
Horizontal Frequency 30 to 94 kHz
Vertical Refresh Rate 48 to 85 Hz
Environmental Requirements Temperature
Operating Temperature
Storage Temperature
Relative Humidity 20 to 80%
Power Source 100 — 240 VAC, 50–60 Hz
Altitude:
Operating
Storage
17.3 inches
9.1 inches
22.0 inches
1920 × 1200 (60Hz) digital input
41 to 95° F 5 to 35° C
-4 to 140° F -20 to +60° C
0 to 12,000 feet 0 to 3657.6 m
0 to 40,000 feet 0 to 12192 m
440.0 mm
232.0 mm
558.4 mm
ENWW
Power Consumption (maximum) <110 watts
Input Terminal Two DVI-I connectors with cables included.
LP2465 Model 39

Recognizing Preset Display Resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognized these preset modes and they will appear properly sized and centered on the screen.
Table B-4 LP1965 Model Factory Preset Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1 640 × 480 31.5 60.0
2 640 × 480 37.9 73.0
3 640 × 480 37.5 75.0
4 720 × 400 31.5 70.0
5 800 × 600 37.9 60.0
6 800 × 600 48.1 72.0
7 800 × 600 46.9 75.0
8 832 × 624 49.7 75.0
9 1024 × 768 48.4 60.0
10 1024 × 768 56.5 70.0
11 1024 × 768 60.0 75.0
12 1152 × 870 68.7 75.0
13 1152 × 900 71.7 76.0
14 1280 × 1024 64.0 60.0
15 1280 × 1024 80.0 75.0
Table B-5 LP2065 Model Factory Preset Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1 640 × 480 31.5 59.9
2 640 × 480 37.5 75.0
3 640 × 480 43.3 85.0
4 720 × 400 31.5 70.1
5 800 × 600 37.9 60.3
6 800 × 600 53.7 85.1
7 832 × 624 49.7 74.6
8 1024 × 768 48.4 60.0
9 1024 × 768 60.0 75.0
10 1024 × 768 68.7 85.0
40 Appendix B Technical Specifications
ENWW
Table B-5 LP2065 Model Factory Preset Modes (continued)
11 1152 × 870 68.7 75.1
12 1152 × 900 61.8 66.0
13 1280 × 960 60.0 60.0
14 1280 × 1024 64.0 60.0
15 1280 × 1024 80.0 75.0
16 1280 × 1024 91.2 85.0
17 1600 × 1200 75.0 60.0
*18 1600 × 1200 93.8 75.0
* For analog inputs only.
Table B-6 LP2465 Model Factory Preset Modes
Preset Pixel Format Horz Freq (kHz) Vert Freq (Hz)
1 640 × 480 31.5 59.9
2 640 × 480 37.5 75.0
3 720 × 400 31.5 70.1
4 800 × 624 37.9 60.3
5 800 × 600 46.9 75.0
6 832 × 624 49.7 74.6
7 1024 × 768 48.4 60.0
8 1024 × 768 60.0 75.0
9 1024 × 768 68.7 85.0
10 1152 × 720 44.9 60.0
11 1152 × 870 68.7 75.1
12 1152 × 900 61.8 66.0
13 1280 × 768 47.4 60.0
14 1280 × 960 60.0 60.0
15 1280 × 1024 64.0 60.0
16 1280 × 1024 80.0 75.0
17 1280 × 1024 91.2 85.0
18 1600 × 1200 61.7 60.0
ENWW
19 1600 × 1200 75.0 60.0
*20 1600 × 1200 93.8 75.0
21 1680 × 1050 65.3 60.1
22 1920 × 108 67.2 60.0
Recognizing Preset Display Resolutions 41
Table B-6 LP2465 Model Factory Preset Modes (continued)
23 1920 × 1200 74.0 60.0
*24 1920 × 1200 74.6 60.0
*For analog inputs only.

Entering User Modes

The video controller signal may occasionally call for a mode that is not preset if:
You are not using a standard graphics adapter.
You are not using a preset mode.
It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display. Your changes can be made to any or all of these modes and saved in memory. The monitor automatically stores the new setting, then recognized the new mode just as it does a preset mode. In addition to the 15 factory preset modes for the LP1965 model, the 18 factory present modes for the LP2065 model, and the 24 factory preset modes for the LP2465 model, there are four user modes that can be entered and stored.

Energy Saver Feature

When the monitor is in its normal operating mode, the monitor uses less than 37 watts (LP1965 model) of power or 55 watts of power (LP2065 and LP2465 models) and the Power light is green.
The monitor also supports a reduced power state. The reduced power state will be entered into if the monitor detects the absence of either the horizontal sync signal and/or the vertical sync signal. Upon detecting the absence of these signals, the monitor screen is blanked, the backlight is turned off, and the power light is turned amber. When the monitor is in the reduced power state, the monitor will utilize less than 2 watts of power. There is a brief warm up period before the monitor will return to its normal operating mode.
Refer to the computer manual for instructions on setting energy saver features (sometimes called power management features).
NOTE The above power saver feature only works when connected to computers that have
energy saver features.
By selecting the settings in the monitor's Energy Saver utility, you can also program the monitor to enter into the reduced poser state at a predetermined time. When the monitor's Energy Saver utility causes the monitor to enter the reduced power state, the power light blinks amber.
42 Appendix B Technical Specifications
ENWW

C Agency Regulatory Notices

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio or television technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity for Products Marked with the FCC Logo (United States Only)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
ENWW
2. This device must accept any interference received, including interference that may cause
undesired operation.
Federal Communications Commission Notice 43
For questions regarding the product, contact: Hewlett Packard Company P. O. Box 692000, Mail Stop 530113 Houston, Texas 77269-2000 Or, call 1-800-HP-INVENT (1-800 474-6836)
For questions regarding this FCC declaration, contact: Hewlett Packard Company
P. O. Box 692000, Mail Stop 510101
Houston, Texas 77269-2000
Or, call (281) 514-3333
To identify this product, refer to the Part, Series, or Model number found on the product.

Canadian Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union Regulatory Notice

This product complies with the following EU Directives:
Low Voltage Directive 73/23/EEC
EMC Directive 89/336/EEC
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by Hewlett-Packard for this product or product family.
This compliance is indicated by the following conformity marking placed on the product:
This marking is valid for non-Telecom This marking is valide for EU non­products and EU harmonized Telecom harmonized Telecom products. products (e.g. Bluetooth)
44 Appendix C Agency Regulatory Notices
ENWW
*Notified body number (used only if applicable — refer to the product label).

German Ergonomics Notice

HP products which bear the “GS” approval mark, when forming part of a system comprising HP brand computers, keyboards and monitors that bear the “GS” approval mark, meet the applicable ergonomic requirements. The installation guides included with the products provide configuration information.

Japanese Notice

Korean Notice

Power Cord Set Requirements

The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the monitor to operate on input voltages between 100–120V or 200–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use in the country where you purchased the equipment.
If you need to obtain a power cord for a different country, you should purchase a power cord that is approved for use in that country.
The power cord must be rated for the product and for the voltage and current marked on the product's electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP service provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.
ENWW
German Ergonomics Notice 45

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.
CAUTION Do not use the power cord received with this product on any other products.

Product Environmental Notices

Materials Disposal

This HP product contains mercury in the fluorescent lamp in the display LCD that might require special handling at end-of-life.
Disposal of this material can be regulated because of environmental considerations. For disposal or recycling information, contact the local authorities or the Electronic Industries Alliance (EIA)
http://www.eiae.org.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling or waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact the local city office, the household waste disposal service or the shop where you purchased the product.

Restriction of Hazardous Substances (RoHS)

A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that manufacturers provide Material Content Declarations for certain categories of electronic products offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit
http://www.hp.com/go/jisc0950.
46 Appendix C Agency Regulatory Notices
ENWW

D LCD Monitor Quality and Pixel Policy

The TFT monitor uses high-precision technology, manufactured according to HP standards, to guarantee trouble-free performance. Nevertheless, the display may have cosmetic imperfections that appear as small bright or dark spots. This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.
A pixel consists of one red, one green, and one blue sub-pixel.
A defective whole pixel is always turned on (a bright spot on a dark background), or it is always
off (a dark spot on a bright background). The first is the more visible of the two.
A defective sub-pixel (dot defect) is less visible than a defective whole pixel and is small and
only visible on a specific background.
The HP display does not have more than:
3 bright dots.
5 dark dots.
5 total bright and dark dots.
No more than two adjacent (less than 2.5 mm edge-to-edge) defective pixels.
To locate defective pixels, the monitor should be viewed under normal operating conditions, in normal operating mode at a supported resolution and refresh rate, from a distance of approximately 50 cm (20 in).
HP expects that, over time, the industry will continue to improve its ability to produce LCDs with fewer cosmetic imperfections and HP will adjust guidelines as improvements are made.
ENWW
47
ENWW48 Appendix D LCD Monitor Quality and Pixel Policy
Loading...
