HP LD4730 User Manual

HP LD4730 and LD4730G LCD Ultra-slim Bezel Digital Signage Displays

User Guide

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Microsoft

, Windows®, and Windows Vista™ are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

First Edition (January 2012)

Document Part Number: 658943-001

About this guide

This guide provides information on setting up the display, installing drivers, using the On-Screen Display menu, troubleshooting, and technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in

damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

ENWW iii

iv About this guide ENWW

Table of contents

1 Product features ............................................................................................................................................. 1

HP Digital Signage Displays ................................................................................................................. 1

Accessories .......................................................................................................................................... 2

Optional accessories ............................................................................................................................ 2

2 Safety and maintenance guidelines .............................................................................................................. 3

Important safety information ................................................................................................................. 3

Maintenance guidelines ........................................................................................................................ 3

Cleaning the LD4730 ........................................................................................................... 5

Cleaning the LD4730G ........................................................................................................ 5

Shipping the display ............................................................................................................. 5

3 Setting up the display ..................................................................................................................................... 6

Unpacking ............................................................................................................................................ 6

Identifying display components ............................................................................................................ 7

Connecting the speakers (sold separately) ......................................................................... 8

Display control panel ........................................................................................................... 9

Identifying remote control buttons ...................................................................................... 10

Setting up the remote control ............................................................................ 11

Mounting a single display on a stand (Sold Separately) .................................................................... 12

Installing the HP LD4730 Frame System (Sold Separately) .............................................................. 12

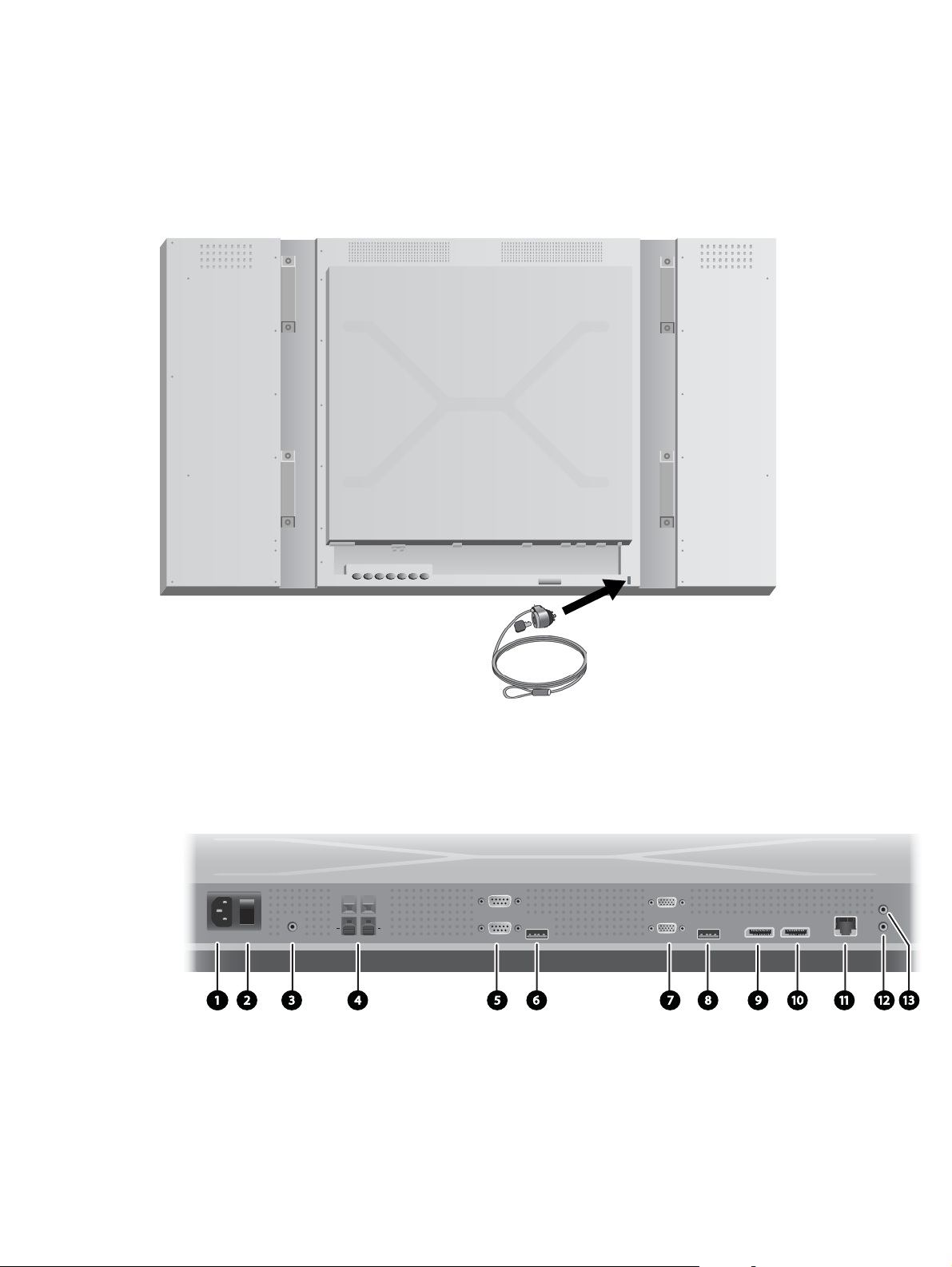

Securing the display ........................................................................................................................... 15

Connecting cables .............................................................................................................................. 15

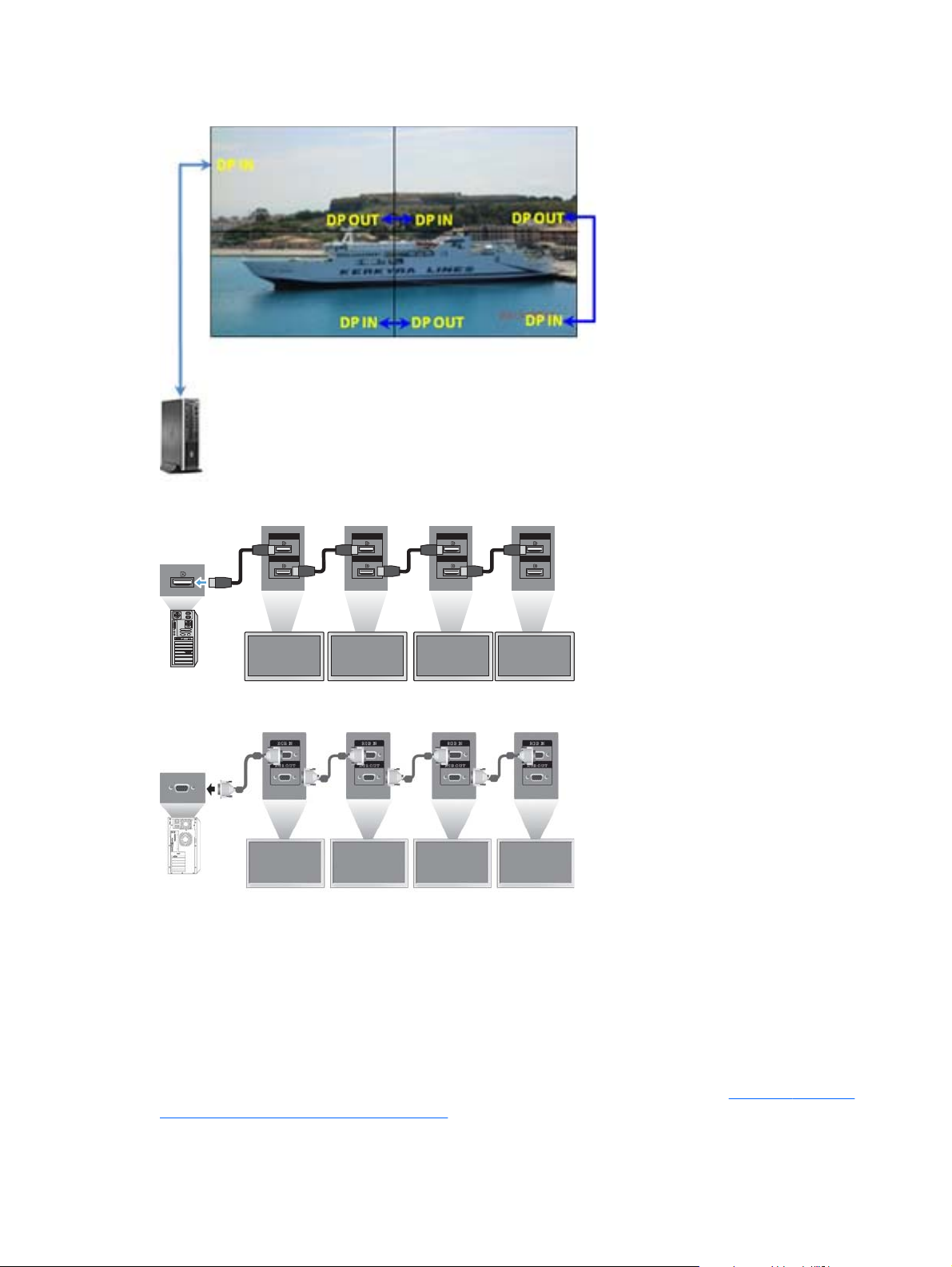

Connecting multiple displays to one player ........................................................................................ 22

Connecting multiple displays with Video Over Ethernet (VOE) ......................................... 22

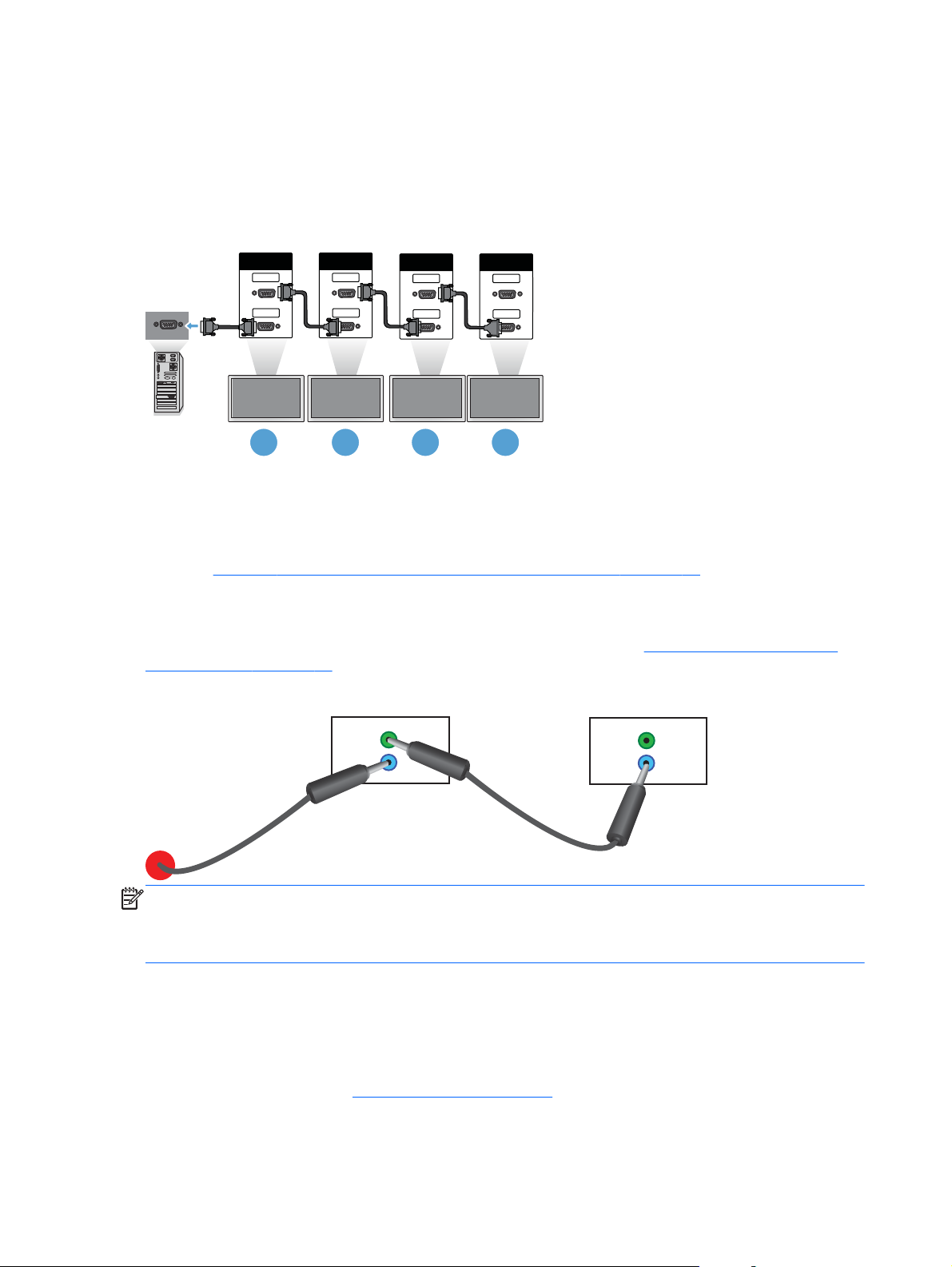

Connecting multiple displays with Tile Mode ..................................................................... 24

Mounting the display .......................................................................................................................... 27

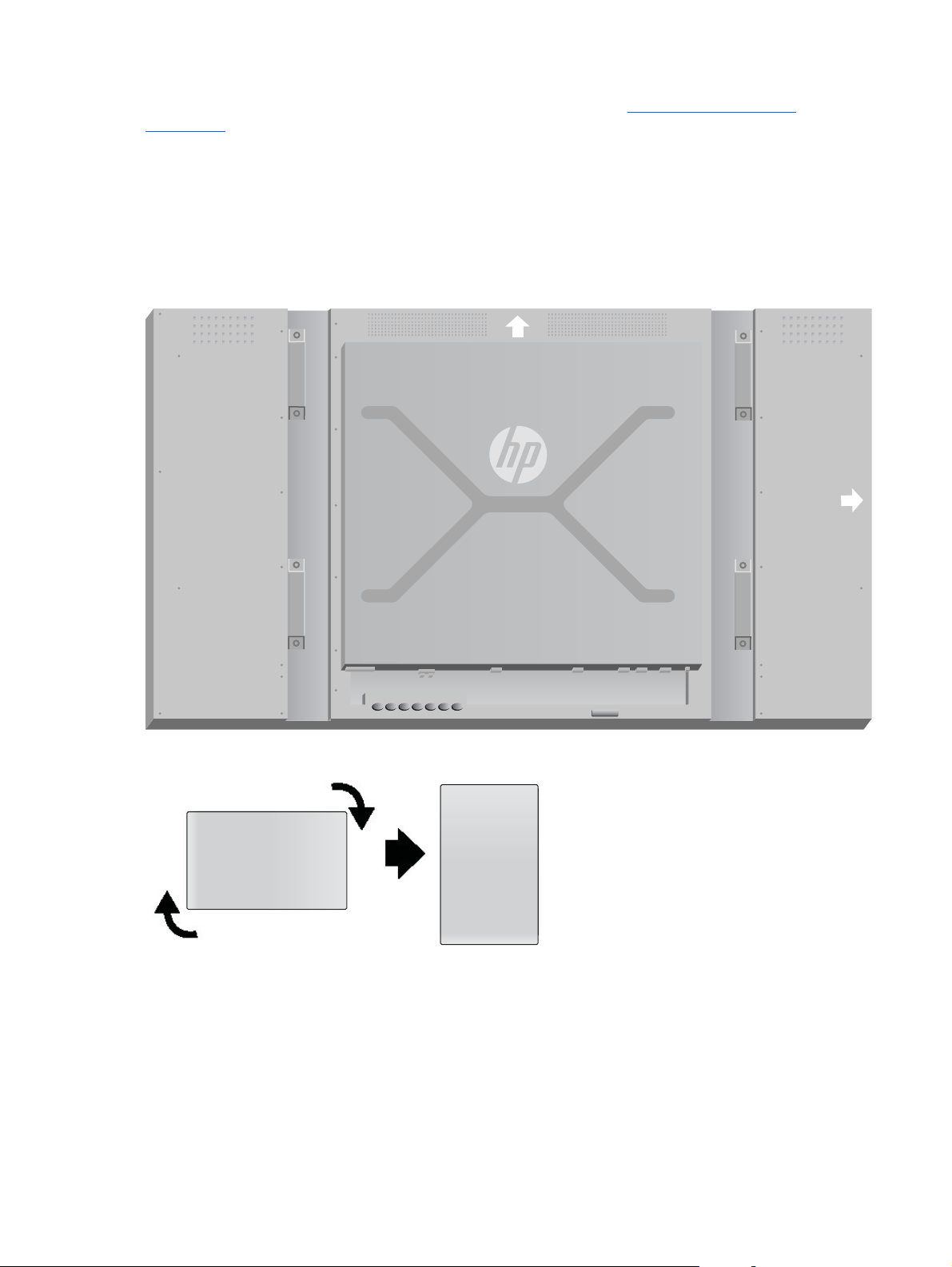

Mounting in portrait position ............................................................................................... 28

Considerations for wall mounting ....................................................................................... 28

Software and utilities .......................................................................................................................... 29

The information file ............................................................................................................ 29

The image color matching file ............................................................................................ 29

Installing the driver, .INF and .ICM files ............................................................................. 29

Installing from the CD ........................................................................................ 29

Downloading from the Web ............................................................................... 30

Installing management software ....................................................................... 30

ENWW v

4 Operating the display ................................................................................................................................... 31

Using the On-Screen Display menu ................................................................................................... 31

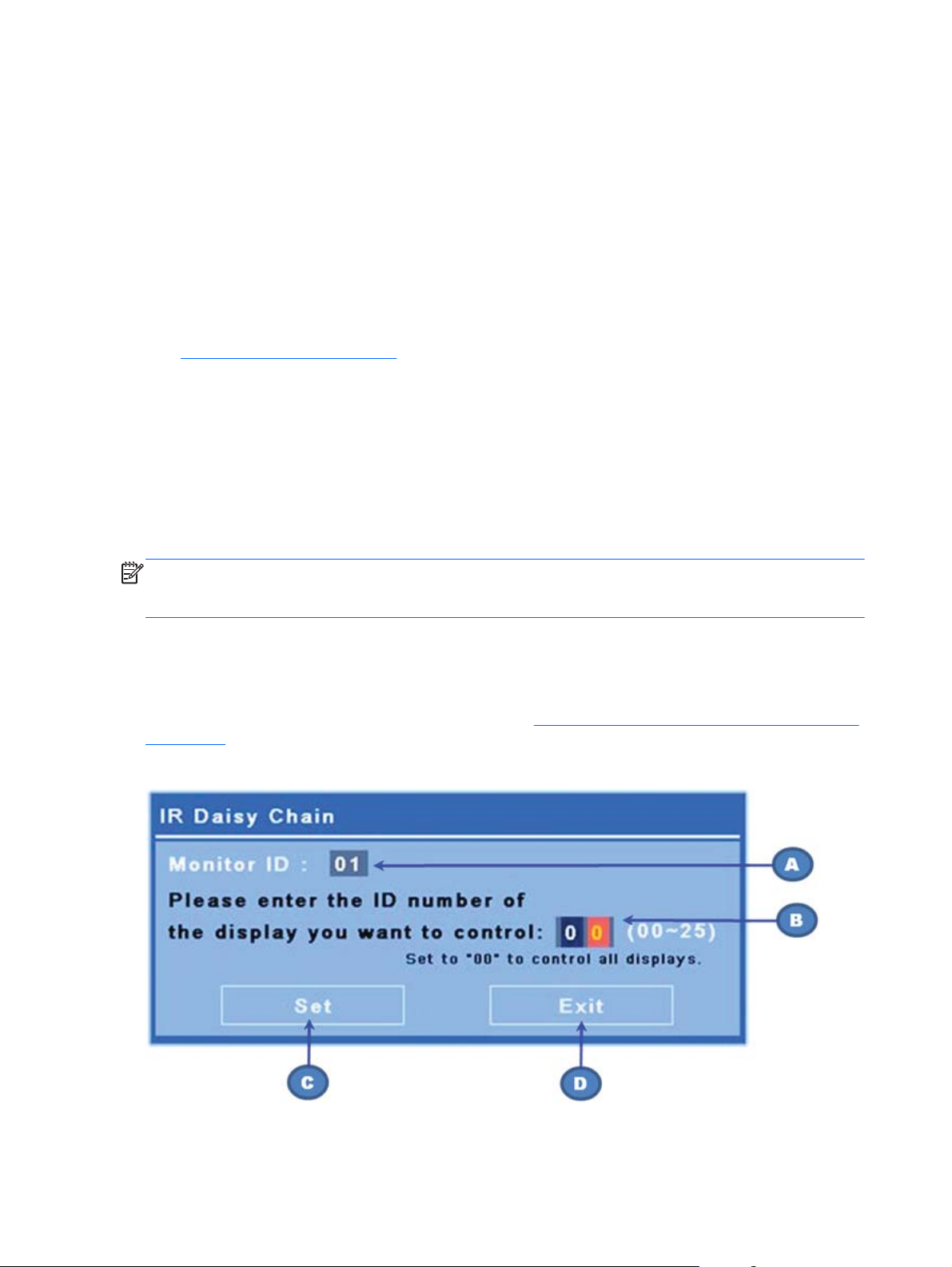

Controlling displays with IR Daisy Chain ........................................................................... 32

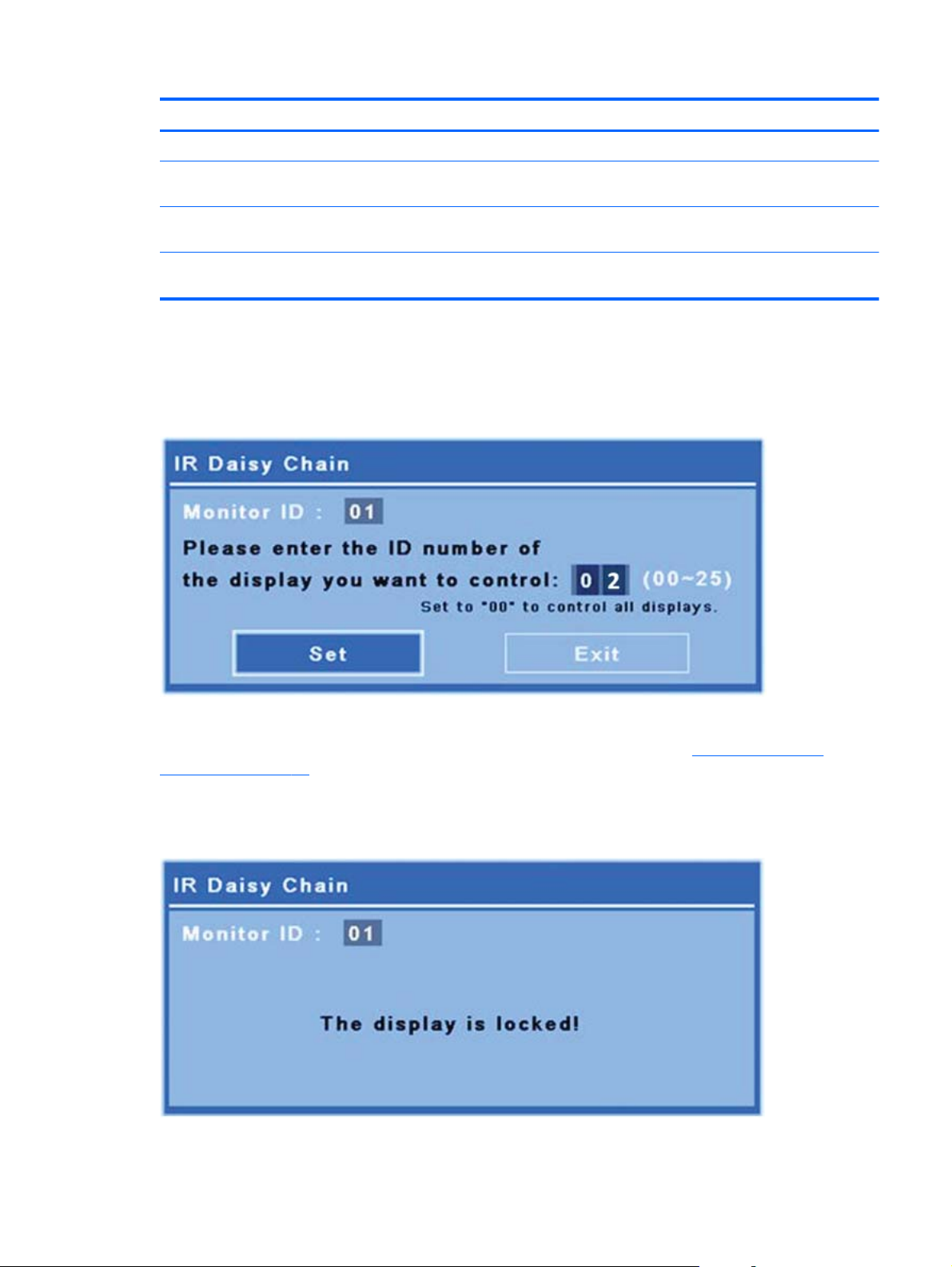

Setting up IR Daisy Chain ................................................................................. 32

Controlling displays with the IR remote control ................................................. 32

Navigating with the infrared remote control ....................................................................... 34

Navigating with the control panel ....................................................................................... 34

OSD menu selections ........................................................................................................ 35

Power On Delay ................................................................................................................. 44

Using Key Lock .................................................................................................................. 44

Setting the backlight level .................................................................................................. 44

Preventing and fixing ghost images ................................................................................... 44

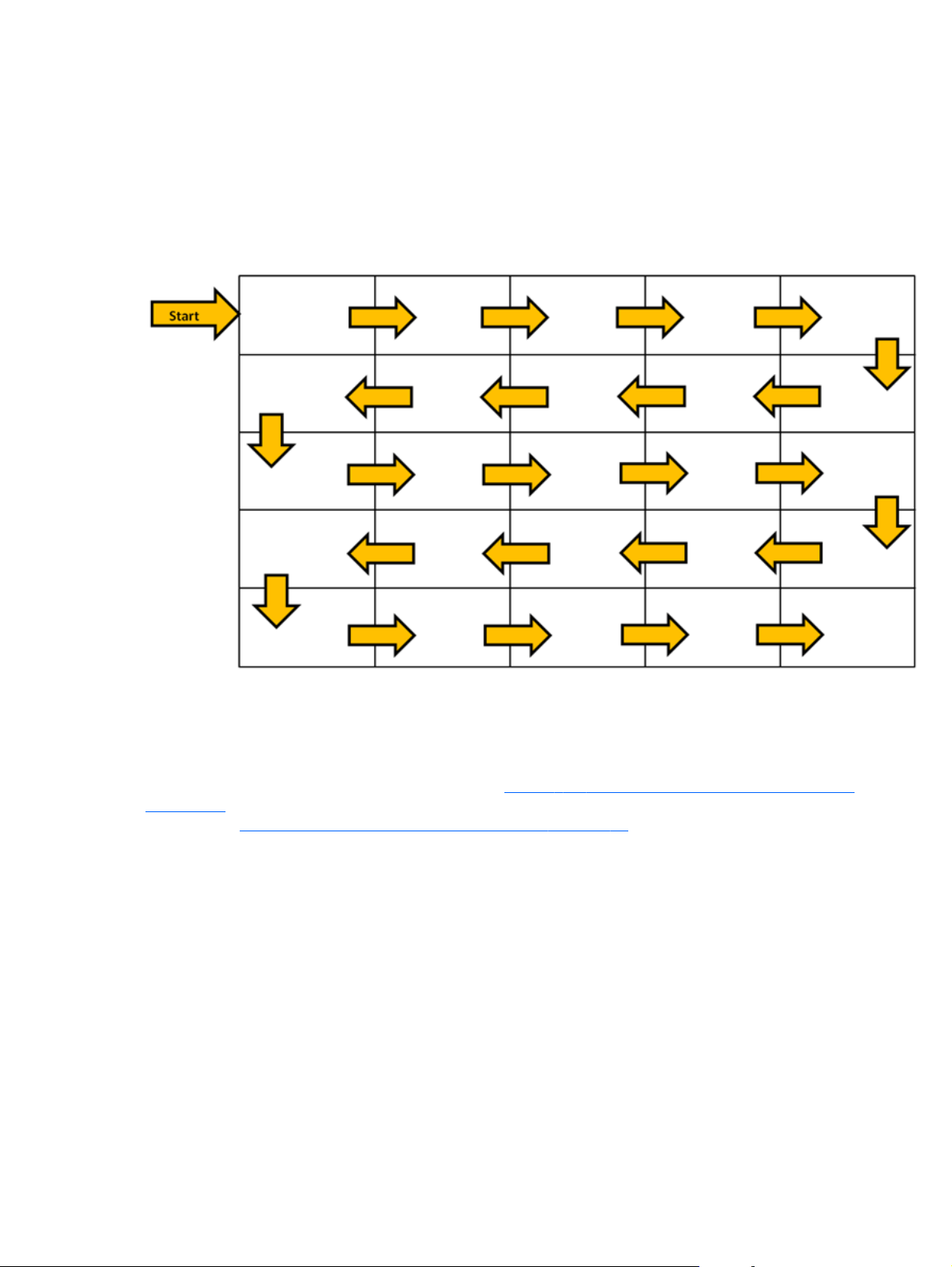

Using Tile Mode ................................................................................................................. 44

Optimizing analog images .................................................................................................................. 46

Tuning color ........................................................................................................................................ 47

Appendix A Troubleshooting .......................................................................................................................... 52

Solving common problems ................................................................................................................. 52

Using Online Technical Support ......................................................................................................... 53

Preparing to call technical support ..................................................................................................... 54

Appendix B Technical specifications ............................................................................................................ 55

HP Digital Signage Display ................................................................................................................ 55

Recognizing preset display resolutions .............................................................................................. 57

Preset display modes ........................................................................................................ 57

High definition video formats ............................................................................................. 58

Display quality and pixel policy ........................................................................................................... 59

Power indicator ................................................................................................................................... 59

Appendix C Agency regulatory notices ......................................................................................................... 60

Federal Communications Commission notice .................................................................................... 60

Modifications ...................................................................................................................... 60

Cables ................................................................................................................................ 60

Declaration of Conformity for products marked with the FCC logo (United States only) .................... 60

Canadian notice ................................................................................................................................. 61

Avis Canadien .................................................................................................................................... 61

European Union regulatory notice ...................................................................................................... 61

German ergonomics notice ................................................................................................................ 62

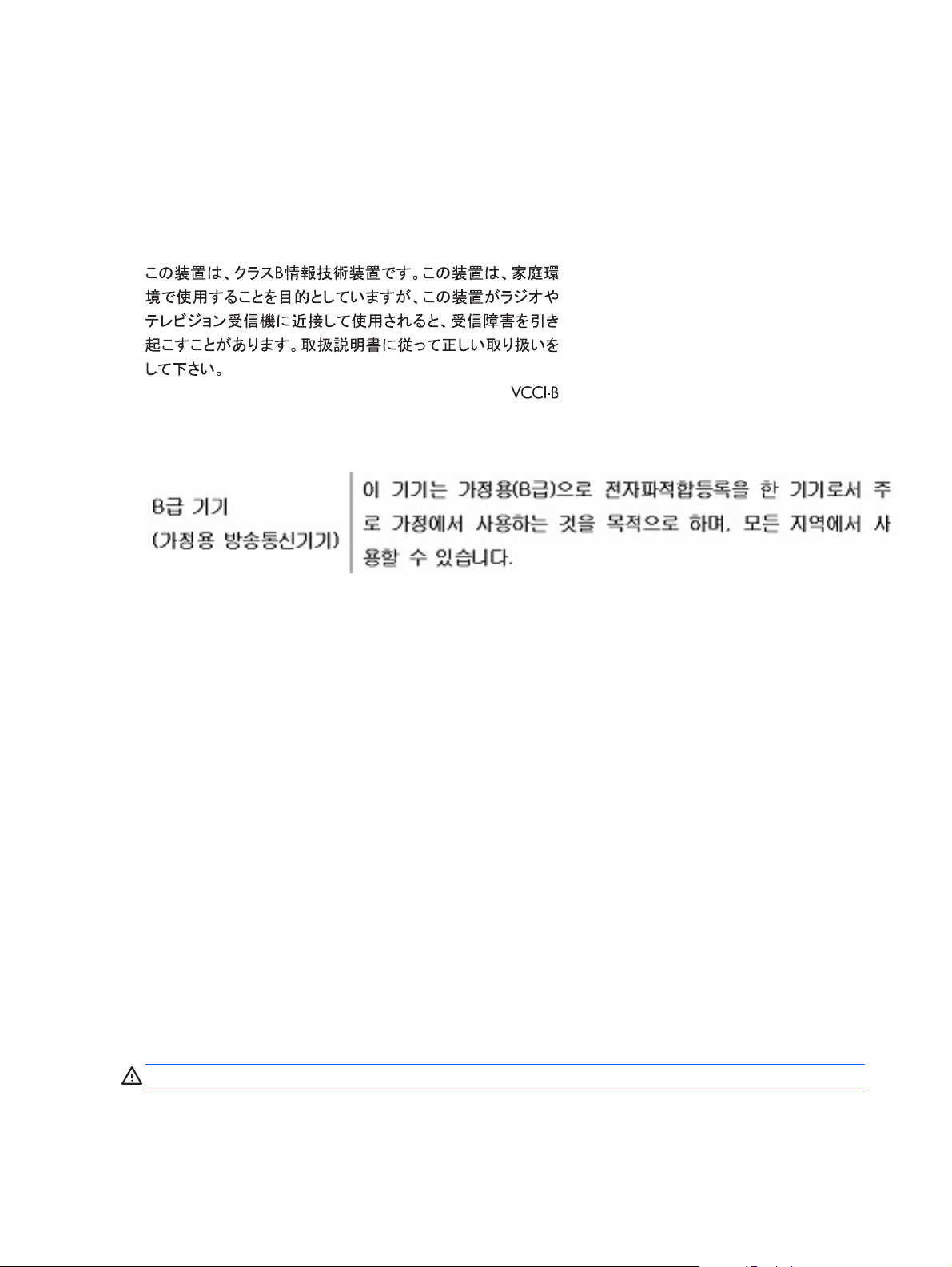

Japanese notice ................................................................................................................................. 62

Korean notice ..................................................................................................................................... 62

vi ENWW

Power cord set requirements ............................................................................................................. 62

Japanese power cord requirements .................................................................................. 62

Product environmental notices ........................................................................................................... 63

Disposal of waste equipment by users in private households in the European Union ...... 63

Chemical substances ......................................................................................................... 63

HP recycling program ........................................................................................................ 63

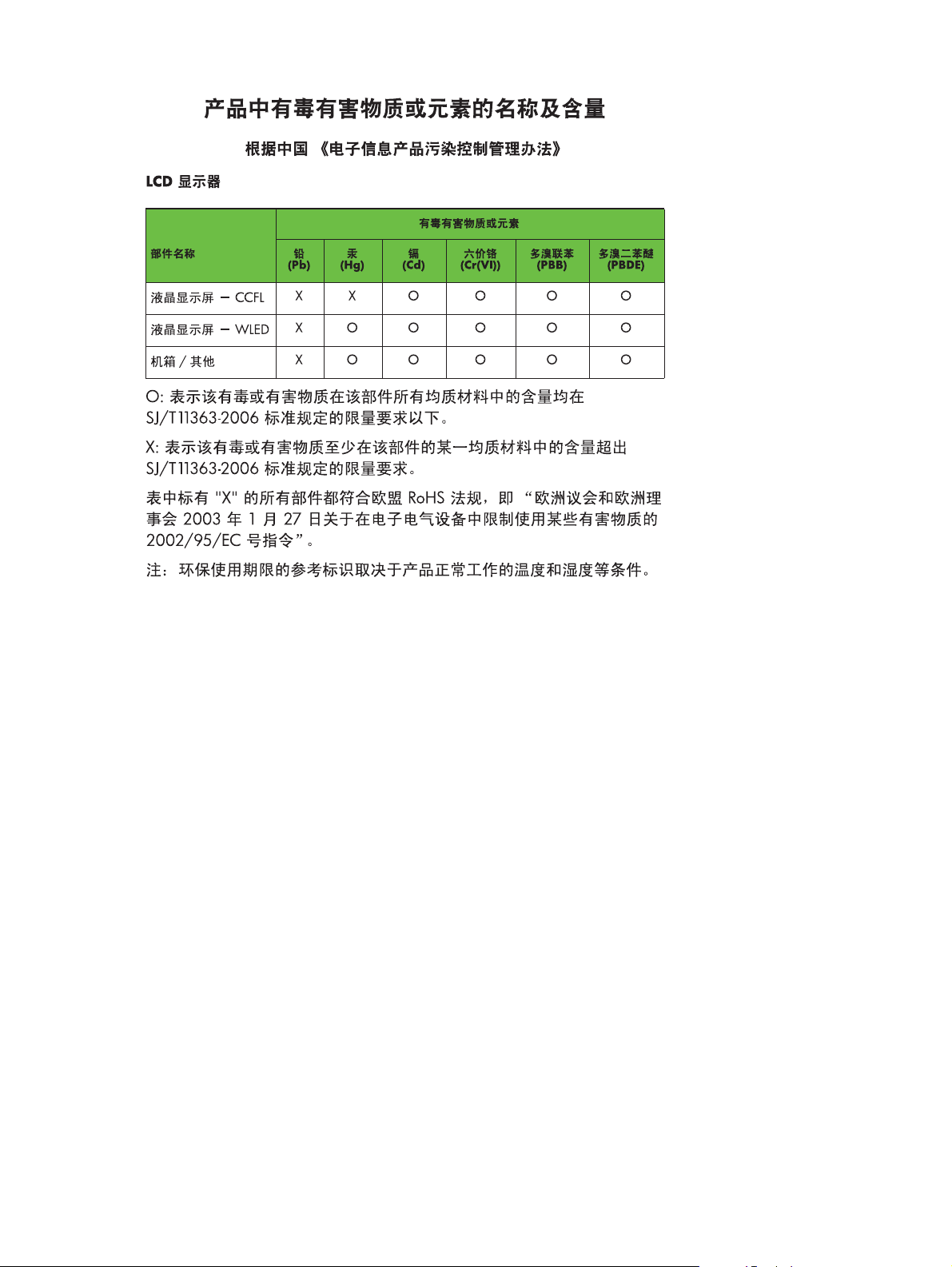

Restriction of Hazardous Substances (RoHS) ................................................................... 63

Turkey EEE regulation ....................................................................................................... 64

Ukraine Restriction of Hazardous Substances .................................................................. 64

ENWW vii

viii ENWW

1 Product features

HP Digital Signage Displays

The LD4730 and LD4730G digital signage displays have a wide-aspect active matrix thin-film transistor (TFT) panel. The displays' features include the following:

● 119 cm (47 inch) diagonal screen with 1366 x 768 native resolution

Ultra-slim bezel for minimal visual distraction and near-seamless tiling

●

Landscape and portrait wall mounting positions

●

● Video inputs for VGA, Video Over Ethernet, and DisplayPort

Audio input jack and external speaker ports

●

Infrared remote control

●

Remote, centralized control with HP Network Sign Manager

●

External IR Sensor for group or selected control of displays in a video wall

●

Tiling for video walls

●

Color matching and calibration for all displays in a video wall

●

Mercury-free LED backlight

●

Ambient light sensor and high brightness for energy savings and good visibility in any light

●

Local dimming for enhanced contrast in dark areas of the image

●

On-Screen Display (OSD) menu in several languages for ease of setup and screen optimization

●

● Screen adjustment buttons (Power On/Off, OSD Controls, MENU, and INPUT) on the back of

the display

Management software for stand-alone displays on or off a network

●

DDC/CI interface to allow control of the display from an attached PC

●

User controls to adjust Picture, Tile Mode, Timer, Energy Saving, Aspect Ratio, Audio, and

●

additional setup options

Plug and play capability if supported by the operating system

●

Security cable provision on rear panel to lock down the display and help prevent theft

●

High-bandwidth Digital Content Protection on the DisplayPort input

●

Temperature Sensor

●

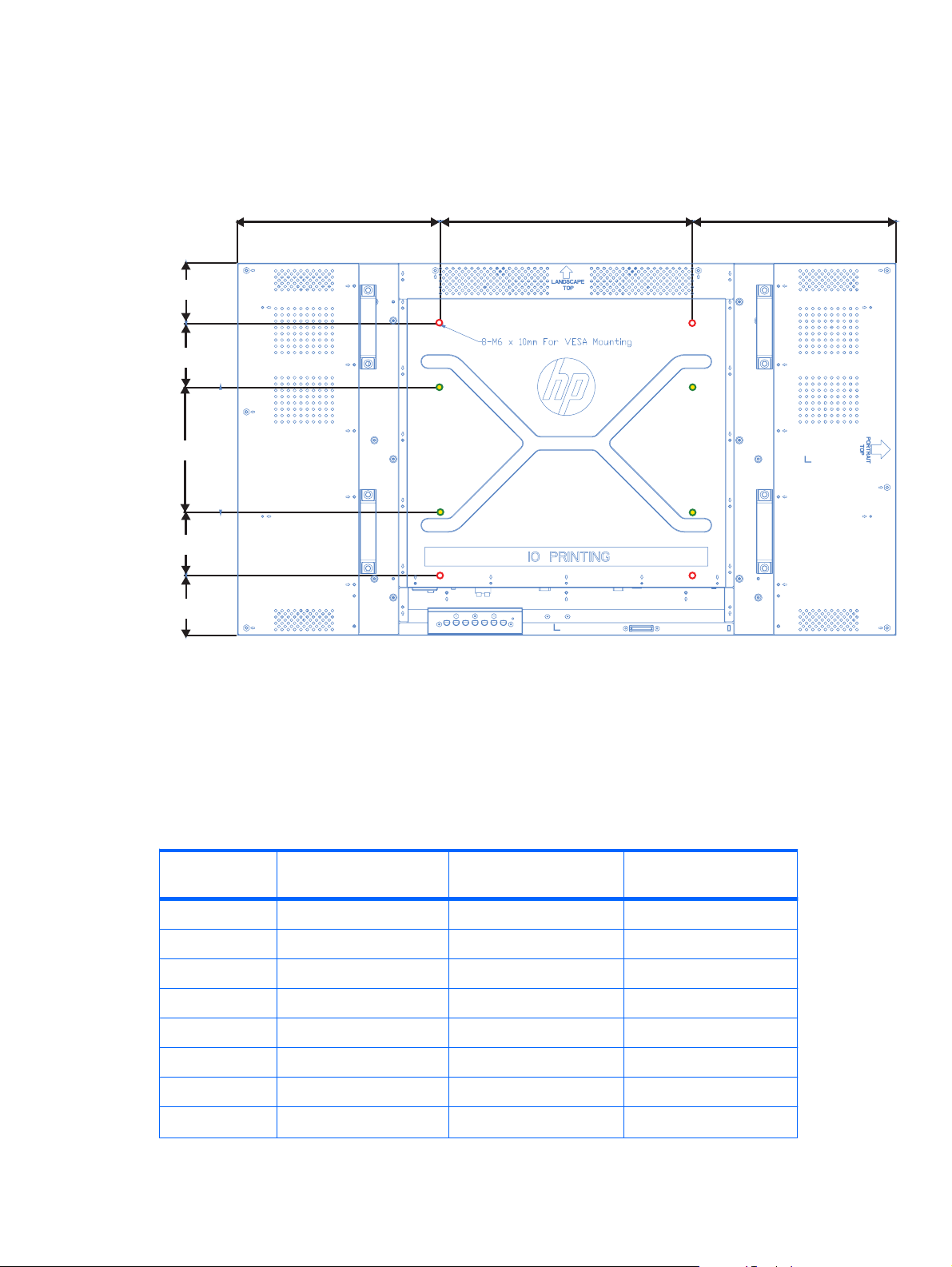

Support VESA compliant mounting interface with choice of 400 x 200 mm (15.74 x 7.87 in) and

●

400 x 400 mm (15.74 x 15.74 in) hole patterns

In addition, the LD4730G model features a protective glass overlay with an easy-to-clean coating.

ENWW HP Digital Signage Displays 1

Accessories

Software and documentation CD

●

Remote control

●

Power cord

●

DisplayPort cable

●

RGB (VGA) cable

●

External infrared sensor

●

Infrared daisy chain cable

●

Optional accessories

The following can be purchased separately:

Stand kit

●

Speakers kit

●

HP LD4730 Frame System

●

● HP DreamColor Display Calibration Solution

2 Chapter 1 Product features ENWW

2 Safety and maintenance guidelines

Important safety information

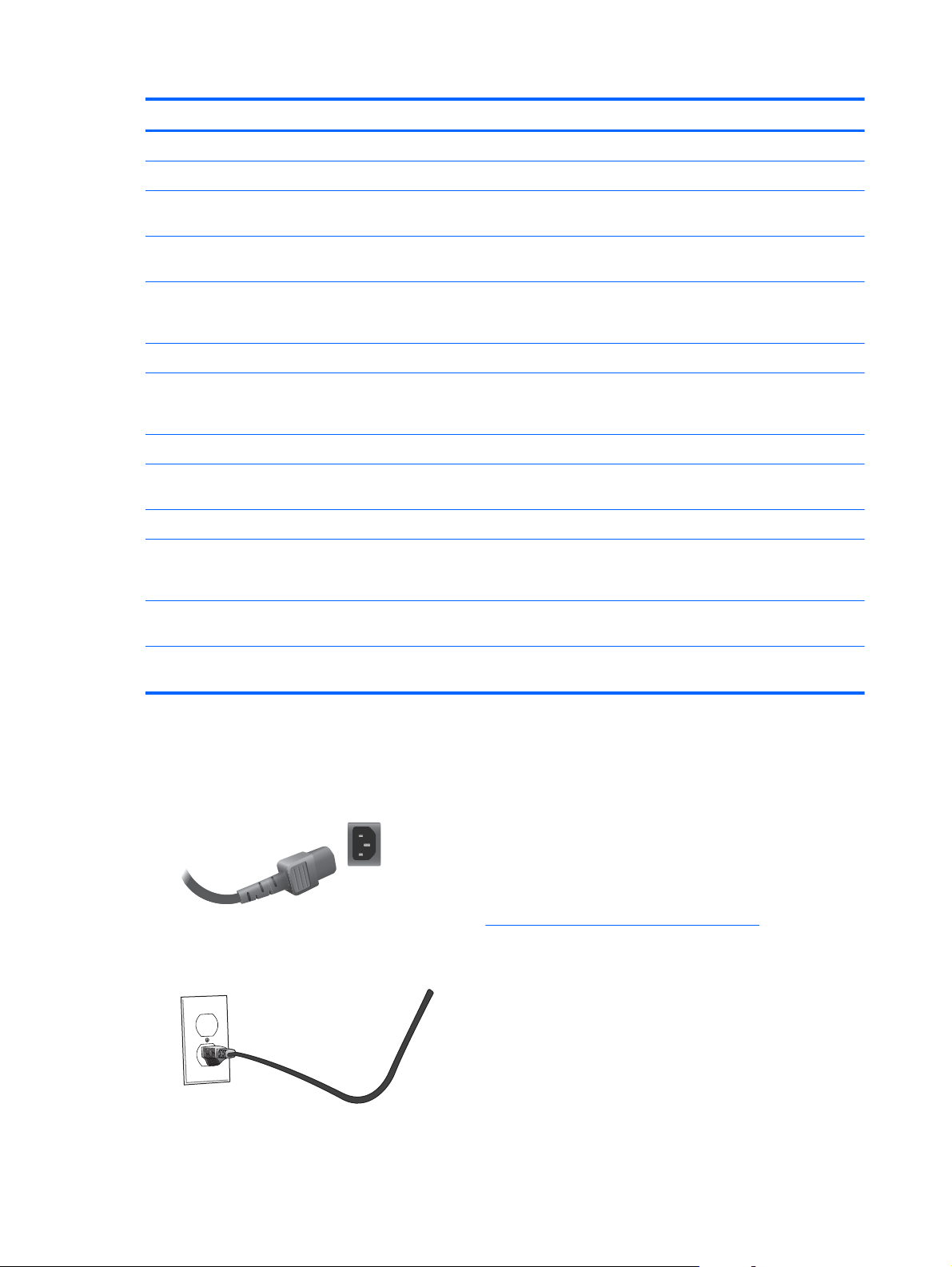

A power cord is included with the display. If another cord is used, use only a power source and connection appropriate for this display. For information on the correct power cord set to use with the display, refer to the

WARNING! To reduce the risk of electric shock or damage to the equipment:

• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.

• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.

• Disconnect power from the product by unplugging the power cord from the electrical outlet.

For your safety, do not place anything on power cords or cables. Arrange them so that no one can accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the electrical outlet, grasp the cord by the plug.

Power cord set requirements on page 62.

To reduce the risk of serious injury, read the workstation, setup, posture, and health and work habits for computer users, and provides important electrical and mechanical safety information. This guide is located on the Web at and/or on the documentation CD, if one is included with the display.

CAUTION: For the protection of the display, as well as the media player/computer, connect all

power cords for the media player/computer and its peripheral devices (such as a display, printer, scanner) to some form of surge protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips provide surge protection; the power strips must be specifically labeled as having this ability. Use a power strip whose manufacturer offers a Damage Replacement Policy so you can replace the equipment, if surge protection fails.

Use the appropriate and correctly sized furniture designed to properly support your display.

WARNING! Displays that are inappropriately situated on dressers, bookcases, shelves, desks,

speakers, chests, or carts can fall over and cause personal injury.

Care should be taken to route all cords and cables connected to the display so that they cannot be pulled, grabbed, or tripped over.

CAUTION: Do not place the device in a location where water may drip and/or splash on the device.

Do not place an object that contains water, such as a flower vase, on the device.

Maintenance guidelines

To enhance the performance and extend the life of the display:

Safety and Comfort Guide

. It describes proper

www.hp.com/ergo

Do not open the display cabinet or attempt to service this product yourself. Adjust only those

●

controls that are covered in the operating instructions. If the display is not operating properly or has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.

● Use only a power source and connection appropriate for this display, as indicated on the label/

back plate of the display.

ENWW Important safety information 3

Be sure the total ampere rating of the products connected to the outlet does not exceed the

●

current rating of the electrical outlet, and the total ampere rating of the products connected to the cord does not exceed the rating of the cord. Look on the power label to determine the ampere rating (AMPS or A) for each device.

● Install the display near an outlet that you can easily reach. Disconnect the display by grasping

the plug firmly and pulling it from the outlet. Never disconnect the display by pulling the cord.

Turn the display off when not in use. You can substantially increase the life expectancy of the

●

display by using a screen saver program and turning off the display when not in use.

CAUTION: Burn-in or image sticking might occur on displays which display the same static

image on the screen for prolonged periods of time. To avoid burn-in or image sticking and to prolong the life of the display, you should activate one of the four ISM selections in the OSD, activate a screen-saver application, periodically cycle between static information and moving images, or turn off the display when it is not in use for prolonged periods of time.

Slots and openings in the cabinet are provided for ventilation. These openings must not be

●

blocked or covered. Never push objects of any kind into cabinet slots or other openings.

Do not drop the display or place it on an unstable surface.

●

Do not allow anything to rest on the power cord. Do not walk on the cord.

●

Keep the display in a well-ventilated area, away from excessive light, heat or moisture.

●

When removing the display base, you must lay the display face down on a soft area to prevent it

●

from getting scratched, defaced, or broken.

4 Chapter 2 Safety and maintenance guidelines ENWW

Cleaning the LD4730

1. Turn off the display and unplug the power cord from the back of the unit.

2. Dust the display by wiping the screen and the cabinet with a soft, clean antistatic cloth.

3. For more difficult situations such as removing fingerprints or other substances from the display

screen, use a foam window cleaner with no petroleum derivatives or alternatively use a 50/50 mix of water and isopropyl alcohol sprayed onto a cloth to clean the screen surface. Make sure to protect against dripping any liquid under the bezel.

CAUTION: Never spray the cleaner directly on the screen surface. It might seep behind the bezel

and damage the electronics.

CAUTION: To clean the display screen or cabinet, do not use cleaners that contain any petroleum-

based materials such as benzene or thinner or any volatile substance. These chemicals might damage the display.

Cleaning the LD4730G

The protective glass on the LD4730G is extremely easy to clean. Most marks wipe off with a dry cloth. Use a foam window cleaner with no petroleum derivatives to remove more difficult substances. Avoid scrubbing with any abrasive materials or scraping, as this can scratch the glass.

Shipping the display

Keep the original packing box in a storage area. You might need it later if you move or ship the display.

ENWW Maintenance guidelines 5

3 Setting up the display

The display offers multiple connections for video and audio input. Analog video is input through the VGA port, while digital video can be input through either Video Over Ethernet (VOE) or DisplayPort.

Sound can be transmitted with accompanying video through VOE or DisplayPort. To play sound accompanying VGA video, use the audio connection.

Control data, such as power-on or input-select, can be sent through the infrared remote control, an attached media player/computer via RS-232, a networked media player/computer via Ethernet (use the HP Network Sign Manager software), or using the control panel buttons on the back of the display.

The displays can be mounted on a stand or a wall. The stand allows good access to the control panel.

With wall mounting, you can control the display with the remote or through software running on a media player/computer. The HP Network Sign Manager is designed for this purpose.

Displays can be set up in a tiled array. See sensor is particularly helpful for displays mounted in an array. Displays can be connected by their IR ports with the IR daisy chain Cable and be controlled either as a group or singularly using the remote control (See

Unpacking

CAUTION: Always use the handles on the back of the display to lift or move it. Avoid holding on to

the bezel or frame.

Care must be taken to avoid breaking or scratching the glass surface of the LD4730G model display. Size and weight make it advisable for two people to unpack it together. When laying it flat, either lay it on its back or on a padded, flat surface. When handling the display, always use the four handles on the back of the display and avoid placing hands on the bezel or frame to lift or move the display.

Using Tile Mode on page 44 for details. The external IR

Controlling displays with IR Daisy Chain on page 32for more details).

6 Chapter 3 Setting up the display ENWW

Identifying display components

654

The major components of the display and their functions are shown here.

Figure 3-1 Display components

Table 3-1 Major components

Component Function

1 Speaker installation: 4 holes

2 Stand installation: 4 holes

3 Handles: 4

4 Control panel with power and OSD navigation buttons

5 Power and data connectors

6 Remote control sensor and ambient light sensor

7 Security cable provision

ENWW Identifying display components 7

Connecting the speakers (sold separately)

1. Mount the speakers onto the display.

Figure 3-2 Mounting the speakers

2. Use the four Taptite D3 x 12 mm (0.47 in) screws to secure the speakers to the display.

Figure 3-3 Securing the speakers to the display

3. After installing the speakers, connect to the SPEAKER input terminal by connecting the proper

color match for the left and right speakers.

Figure 3-4 Connecting to the input terminal

8 Chapter 3 Setting up the display ENWW

Display control panel

This picture shows the controls on the back of the display. For details on using them, see Navigating

with the control panel on page 34.

Figure 3-5 Controls

INPUT MENU

Control Label Function

1 INPUT Select video input source (VGA, DisplayPort, VOE)

when not in OSD, Accept/Save a highlighted OSD choice when in OSD

2 MENU Invoke the On-Screen-Display Menu, Select

3 ▼ Select/Adjust OSD choice, navigate down

4 ▲ Select/Adjust OSD choice, navigate up

5 ◄ Select/Adjust OSD choice, navigate left

6 ► Select/Adjust OSD choice, navigate right

8 Power status, Green → Full Power, Red → Stand-by

highlighted entry, Exit OSD

Power display ON or OFF

mode, OFF → no power

ENWW Identifying display components 9

Identifying remote control buttons

Figure 3-6 Remote control buttons

MUTE

ghi

pqrs

INPUT

VOL

INFO

VGA

Label Function Description

MUTE Sound mute Turns the sound on or off

abc

jkl

tuv

Space

ENTER

PSM

TILE

def

mno

wxyz

DEL

EXIT

VOL+

VOE

Color CAL

Power on/off Turns the display on or off.

1 – 9 Number Press once to enter a number. Press repeatedly to enter a letter.

0 Zero or Space Press once to enter zero, second time to enter a space.

Period Decimal point or period.

Back or Delete Navigates backward, to the previous menu screen or delete text in text box.

DEL

INPUT Input Select video source (VGA, DisplayPort, VOE).

EXIT Exit Exits the on-screen menu. Unsaved changes will be lost.

▲◄►▼ Up/down/left/right arrows Allows navigation of the On-Screen Display menus and adjustment of the

system settings

VOL – Volume down (-) Adjusts the speaker volume down (when not in OSD)

VOL + Volume up (+) Adjusts the speaker volume up (when not in OSD)

ENTER Enter Accepts a highlighted selection or saves a setting.

10 Chapter 3 Setting up the display ENWW

Label Function Description

INFO Information Invokes the Information option of the OSD menu.

MENU Menu/Select Invokes the On-Screen-Display main menu, invokes submenus within the

OSD.

VGA VGA input select Selects VGA video input source for viewing.

PSM Picture submenu Invokes the Picture menu of the OSD.

VOE Video Over Ethernet input

select

DP DisplayPort input select Selects DisplayPort video input source for viewing.

TILE Tile mode Opens the Tile Mode submenu of the OSD.

Color CAL Color calibration Launches the color calibration process.

Setting up the remote control

Insert the batteries into the remote control as follows:

Figure 3-7 Inserting batteries

Selects VOE video input source for viewing.

1. Slide off the battery cover.

2. Insert the batteries with correct polarity (+/-).

3. Close the battery cover.

NOTE: To prevent environmental pollution, dispose of used batteries in accordance with your local

recycling guidelines.

ENWW Identifying display components 11

Mounting a single display on a stand (Sold Separately)

The stand kit is an optional accessory available from HP. It allows you to mount a single display in landscape position. To mount the display on the stand:

1. Remove the four M4 x 32 mm (1.26 in) screws and stand from the box.

Figure 3-8 Stand accessory contents

2. Place a soft cloth on the table and place the display with the screen facing downward. Connect

the stand as shown in the following figure.

Figure 3-9 Securing the stand to the display

The long side of the foot should face forward when the screen is upright.

Installing the HP LD4730 Frame System (Sold Separately)

The frame system creates a 10 mm border around one or more LD4730 displays, giving the edge a finished look. To frame a group of displays, you need as many kits as you have displays in a row or column, whichever is greater. For example, three kits will frame a 3 x 3 group, a 3 x 1 group, or a 1 x 3 group.

The frame kit includes four rails, one each for top, bottom, left and right. It also contains four interchangeable corner pieces and four interchangeable straight connectors.

The rails are labelled TOP for the top in landscape position, BOTTOM for the bottom in landscape position, RIGHT for your right side as you face the front of the screen, and LEFT for your left side as you face the front of the screen. All the screw holes match for the one rail that goes to each side; no force is needed. Attempting to attach the wrong rail could damage the bezel.

When you frame a single array, the numbers on the rails match at each corner:

12 Chapter 3 Setting up the display ENWW

To frame a single display, attach the top rail to the top of the display with three of the large (M4 x 10 mm) screws provided. The rail overlaps the bezel of the display. Attach the bottom, left, and right rails in the same manner, leaving the two small holes at each end open.

Figure 3-10 Attaching rails

Attach the four corner pieces with four small (M3 x 5 mm) screws each. These overlap the rails and secure their ends.

Figure 3-11 Attaching corners

ENWW Installing the HP LD4730 Frame System (Sold Separately) 13

Framing a group of displays is similar to framing a single display except that you will use some of the straight connectors to cover the gap between adjacent displays.

Figure 3-12 Framing an array

Attach corners and straight connectors after the rails are in place.

Figure 3-13 Attaching corners and connectors

When you frame an array, the peripheral displays can no longer move independently. For this reason, the following tasks may best be done before framing:

Color Calibration

●

Attaching all cables

●

Putting the main power switch in the ON (|) position

●

Horizontal, vertical and depth adjustment of all displays

●

14 Chapter 3 Setting up the display ENWW

Securing the display

Security cable provision—To help prevent theft, a security cable provision is available on the rear of

the display. The cable and lock required to connect to the display are available separately and can be purchased from HP.

Figure 3-14 Cable lock

Connecting cables

Figure 3-15 Connectors

R+L

ENWW Securing the display 15

Label Function

1 AC-IN Receives the power cord.

2 AC SWITCH Turns off or on power to entire device, controller as well as screen.

3 LINE-IN For an audio cable connected to the Line Out on a media player or computer

4 SPEAKER-OUT Audio output for bare-wire speaker connection to external speakers (sold

5 RS232-OUT, RS232–IN Serial port for control of the display. Takes a 9–pin, null-modem RS-232 cable

6 USB For a color-calibration device or firmware upgrade.

7 VGA-OUT, VGA-IN VGA input connects to a media player/computer or another display to support

8 SERVICE PORT Used by authorized service personnel only.

9 DP-IN DisplayPort input for digital video from a media player/computer. Connects to a

10 DP-OUT To connect to the DisplayPort input of another display in a chain.

11 Ethernet RJ45 connector for video and command data from a network. Takes an Ethernet

12 IR-IN Infrared input for the external IR sensor (included) or the output from the previous

13 IR-OUT Infrared output to connect to the next display in a daisy chain, for control of all

sound card. The plug should be a standard-sized, TRS-type with stereo capability.

separately).

connected to a controlling media player/computer or another digital signage display.

analog video and command data. VGA output supports chaining with VGA cables from display to display. The plug should be a 15–pin, D-Sub type.

media player/computer or another display in a chain.

cable connected to a LAN or WAN; a network router, hub or switch; or directly to a media player/computer.

display in a daisy chain (Blue Connector).

displays with a single IR remote control (Green Connector).

Follow these steps for connecting cables:

1. Connect the AC power cord to the receptacle on the rear of the display (1).

Figure 3-16 Power

Read the power-cord safety precautions in Important safety information on page 3, then plug the other end into an electrical outlet.

Figure 3-17 Connecting the power cord

16 Chapter 3 Setting up the display ENWW

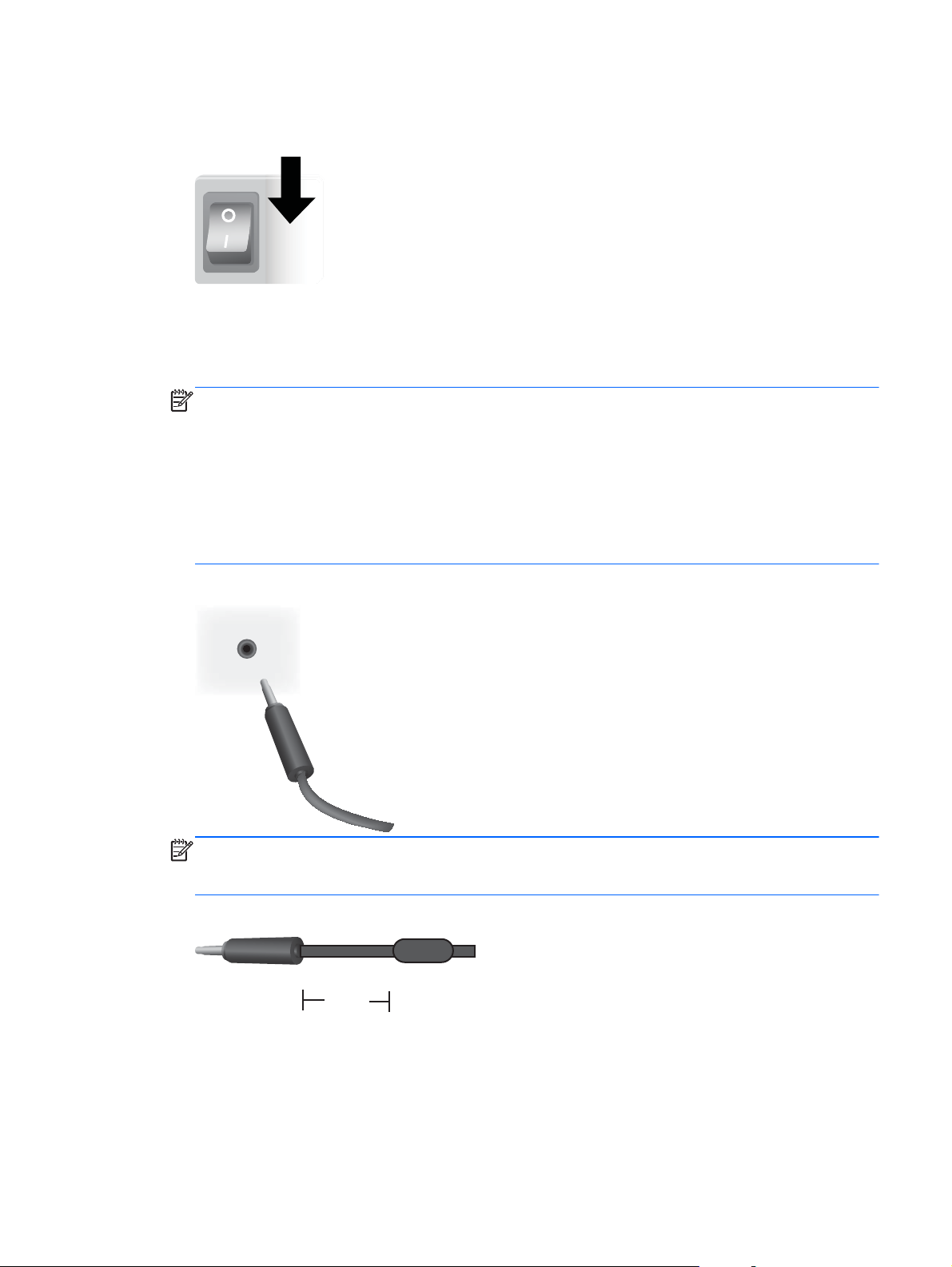

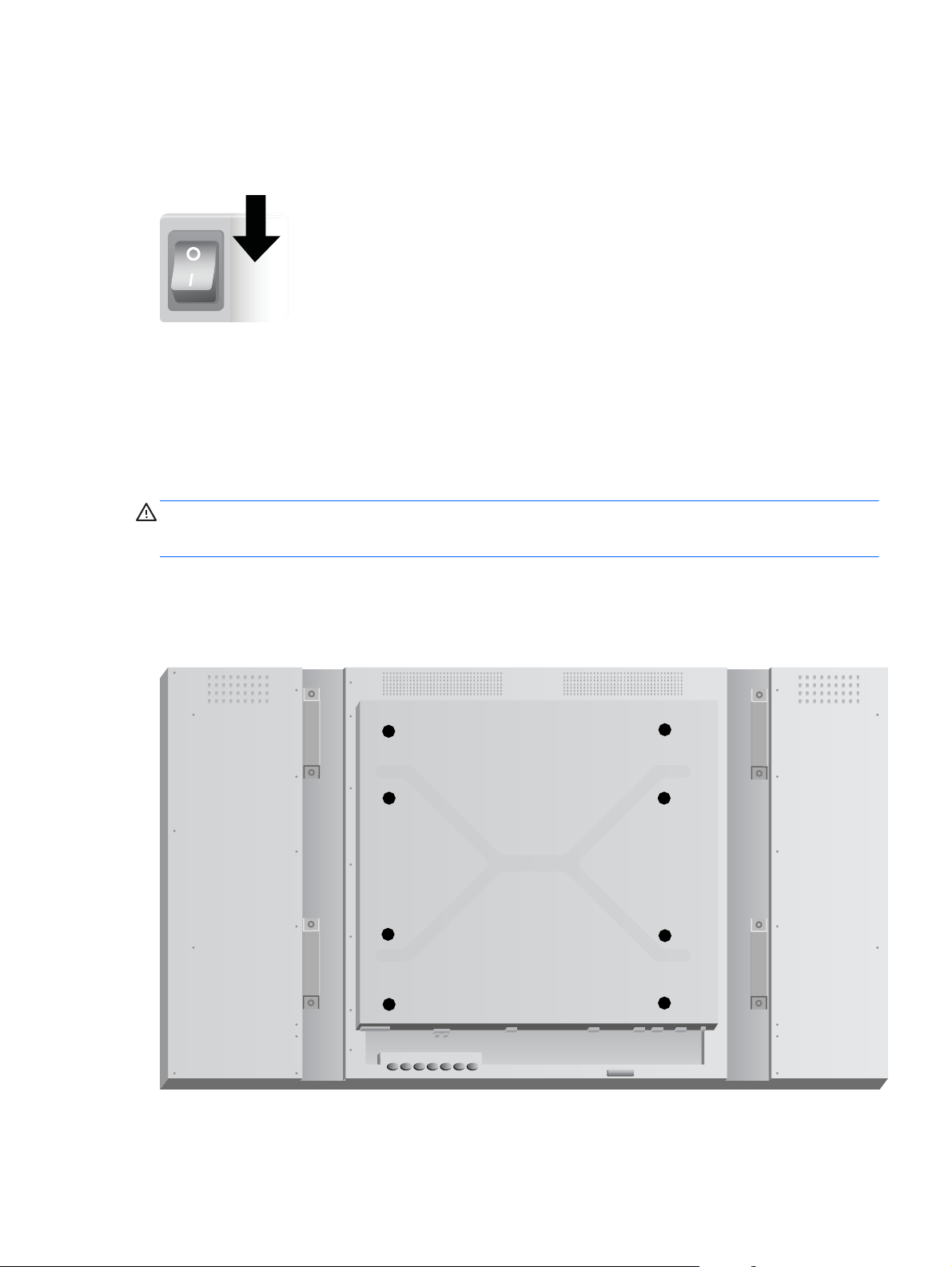

2. Put the master power switch (2) into the ON (|) position.

Figure 3-18 Turn On Power Switch

3. If you will be using the VGA input for video, and you want to play the audio feed through the

external speakers, connect one end of an audio cable (sold separately) to the Audio input jack (3) and the other end to the Line Out jack on the media player/computer.

NOTE: Before connecting to the AUDIO port on the display, verify what type of Audio Out

connection is available on the media player/computer sound card. The Line Out on a media player/computer is used to connect to speakers, including a built-in amplifier (AMP). For additional instructions, refer to the sound card manual.

If the Audio Out on the media player/computer sound card has only Speaker Out, reduce the media player/computer volume before connecting to the AUDIO port on the display.

If the Audio Out on the media player/computer sound card supports both Speaker Out and Line Out, choose Line Out.

Figure 3-19 Audio connection

NOTE: The ferrite core can be used to reduce electromagnetic waves when connecting an

audio cable. Fit the ferrite core to the audio cable. The ferrite core needs to be separated from the mold by 5 cm (2 in).

Figure 3-20 Using the ferrite core

5 cm

ENWW Connecting cables 17

4. If you will be employing the HP external speakers, the bare speaker wire should be connected to

the matching color coded speaker connector for the Right and Left speaker, as in

the speakers (sold separately) on page 8.

Figure 3-21 External speaker connections

5. If you want to remotely control and manage the display with the RS-232 Serial interface, attach

one end of an RS-232 cable to the RS-232 input (5) port (With the display lying on its face, the input port is below the output port) and connect the other end to the serial interface port of the media player/computer.

If you will be connecting more displays in a series (daisy chain), connect one end of a second RS-232 cable to the output (upper) port of the display and the other end of the RS-232 cable to the input port of the next display in the chain. (See

on page 22 for more details).

Figure 3-22 RS-232

Connecting multiple displays to one player

Connecting

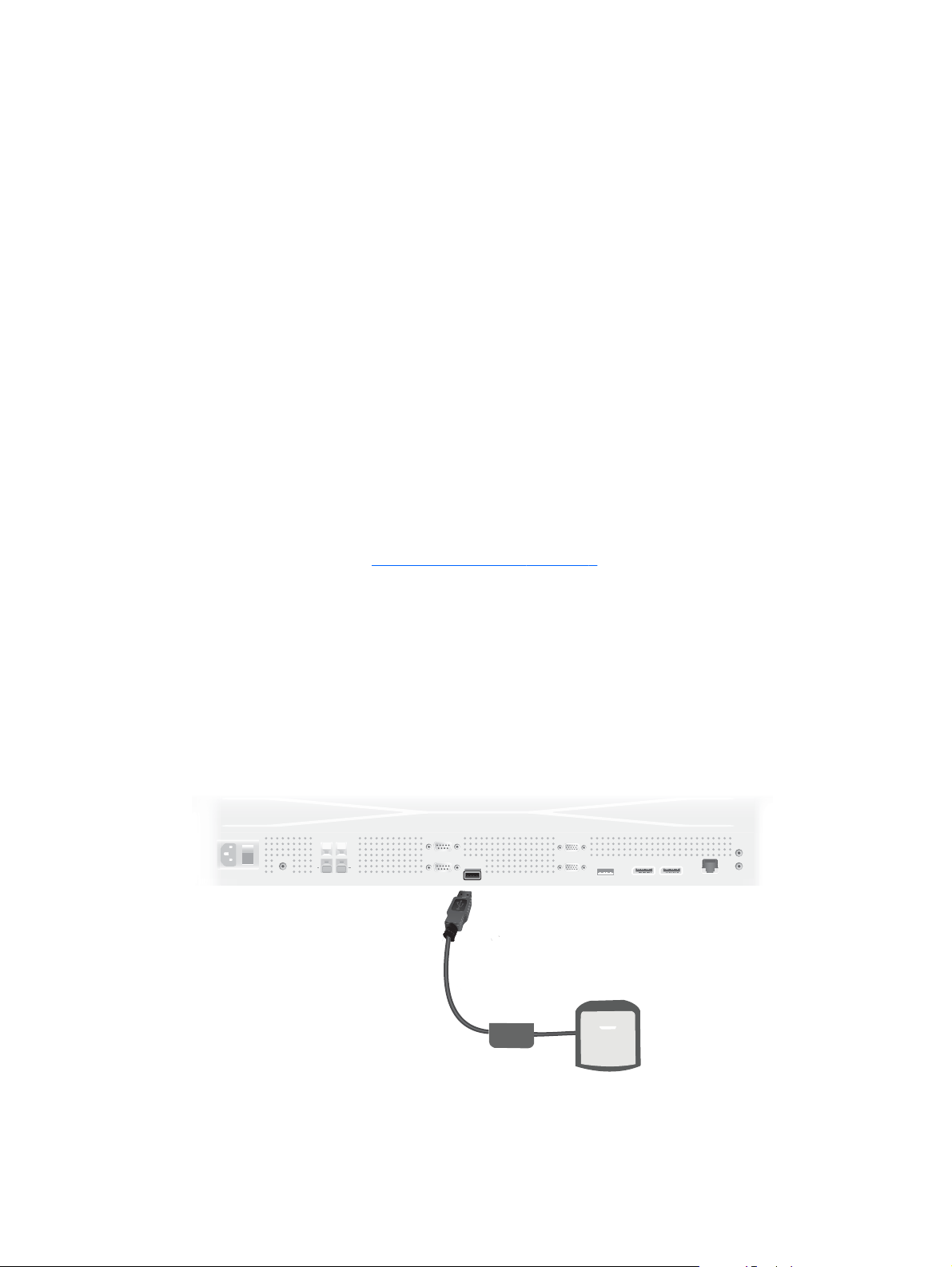

6. The USB port is for attaching a color-calibration device such as the HP DreamColor Display

Calibration Solution and is also used in the event of a firmware upgrade. Neither USB device is plugged in until the time of use. However, if access to the USB port (6) will be limited once the display is mounted, you can attach a USB extension cable now.

Figure 3-23 USB

18 Chapter 3 Setting up the display ENWW

7. If you will be using analog video, plug the VGA cable into the VGA input connector (7). Since the

VGA connection does not transmit audio, you may need to connect an audio cable as described in Step 1 (input is the lower of the two VGA connectors with the display on its face) and plug the other end of the VGA cable into the VGA adaptor on the media player/computer.

If you will be connecting this display to another display via VGA (daisy chain), plug a one end of a second VGA cable into the Output (upper) VGA connector (7) on the display and plug the other end of the VGA cable into the Input (lower) VGA connector of the next display in the chain.

Connecting multiple displays to one player on page 22 for more details.)

(See

Figure 3-24 VGA connection

Plug the free end of the VGA cable into a media player/computer or the previous display in a chain of displays.

8. If you want to send video over the DisplayPort, connect the DisplayPort cable to the DP IN port

on the display (9) and connect the other end of the DisplayPort cable to the DisplayPort adaptor of the media player/computer.

If you will be connecting this display to another display via DisplayPort (daisy chain), plug a one end of a second DisplayPort cable into the DP-Out connector (10) on the display and plug the other end of the DisplayPort cable into the DP-IN connector of the next display in the chain. (See

Connecting multiple displays to one player on page 22 for more details.)

Figure 3-25 DisplayPort

Connect the free end of the DisplayPort cable to the DisplayPort OUT port on the media player/ computer or previous display in a series.

NOTE: Since DisplayPort does not support RS-232 command data, you will also need to

connect either an RS-232 cable between the display and media player/computer or an Ethernet connection to the network or media player/computer to use HP Network Sign Manager to manage and control the display remotely.

ENWW Connecting cables 19

9. If you will be connecting the display to a network, plug your CAT-5 network cable into the

Ethernet port (11).

Figure 3-26 Ethernet

The Ethernet cable from the display can connect to a media player/computer, a router (switch), or an Intranet. A network connection enables the use of the Video Over Ethernet software to assign a media player to drive the display. The connection also allows the HP Network Sign Manager program, running on a networked media player/computer, to send command data.

Connect the Ethernet cable (not included) using one of the following connections:

Computer Direct Connection—Connect the LAN cable to the LAN port on the display and to

●

the LAN port on the media player/computer (1).

Router—Connect the LAN cable to the LAN port on the display and to a LAN port on the

●

router (2).

Intranet—Connect the LAN cable to the LAN port on the display and to the Intranet network

●

via an access point (3).

20 Chapter 3 Setting up the display ENWW

Figure 3-27 Connecting the Ethernet cable

1 2

10. If you want to use the external IR sensor, plug it into the IR-IN jack (12). The external sensor

makes using the remote easier, especially with displays mounted in a video wall.

Figure 3-28 Infrared sensor connection

Place the IR sensor facing where you want the remote to be.

ENWW Connecting cables 21

11. If you want to connect this display to another in an IR daisy chain, plug the included IR Daisy

Chain cable into the IR-OUT jack (13). The free end will plug into the IR-IN of the next display in the chain.

Figure 3-29 IR-OUT connection

Connecting multiple displays to one player

Multiple displays may be connected to a single media player/computer two different ways, using Video Over Ethernet or using Tile Mode with VGA or DisplayPort video inputs.

Connecting multiple displays with Video Over Ethernet (VOE)

To connect multiple displays to a single media player/computer, each display must be connected to the same network as the media player/computer. The input source of each display must be set to VOE. With VOE, displays are connected to media players/computer by establishing an Association between the media player/computer and one or more displays on the network with the VOE software that runs in the media player/computer. Up to 12 displays may be associated with a single media player/computer (See the with a single media player/computer, the displays may be mirrored (a single desktop image displays on all the displays simultaneously).

VOE Users Guide

for more detail). When multiple displays are associated

Figure 3-30 Mirrored displays

The image may be extended across all the displays simultaneously using the View Span “Display Resolution” dialog box.

22 Chapter 3 Setting up the display ENWW

Figure 3-31 Extended desktop

The displays may be treated by an application as though there were up to 12 individual displays connected to 12 graphic adaptor heads on the media player/computer.

Figure 3-32 Multiple independent displays

The association of up to 12 displays is the technical limit, and depending upon the complexity of the desktop image to be displayed (playing flash, or streaming video), the number of displays which can be associated with acceptable video performance may be less than 12 (See the

User Guide

ENWW Connecting multiple displays to one player 23

for more detail).

Video Over Ethernet

Connecting multiple displays with Tile Mode

The recommended cable routing for daisy chain in Tile Mode is to start with the upper left display and connect across the upper tier of displays going from left to right to the last display in that tier. Then cable from the upper right display to the display just below it and connect across from right to left to the last display on the left. Continue this back and forth, top to bottom cable route for all the tiers in the wall as indicated in the next figure.

Figure 3-33 Recommended cable routing for Tile Mode

Multiple displays (up to 25) may be connected to a single media player/computer using Tile Mode. Multiple displays in Tile Mode are only supported with either DisplayPort or VGA video input sources. When connecting the multiple displays, the media player/computer is connected to the first display only with either a DisplayPort or VGA connection to the media player/computer. All the subsequent displays are connected to each other via daisy chain using either the DP OUT connector from one display to the DP IN connector of the next display (

on page 25), or using the VGA OUT connector from one display to the VGA IN connector of the

next display ( connected with the same video source, either DisplayPort or VGA. When using Tile mode to connect multiple displays, only one desktop image may be displayed across all the tiled displays

Figure 3-36 Daisy chain connection -- VGA on page 25). All displays must be

Figure 3-35 Daisy chain connection – DisplayPort

24 Chapter 3 Setting up the display ENWW

Figure 3-34 Multiple displays with tile mode

Figure 3-35 Daisy chain connection – DisplayPort

Display In

Display Out

Display In

Display Out

Display In

Display Out

Display In

Display Out

Figure 3-36 Daisy chain connection -- VGA

To remotely manage and control multiple displays in Tile Mode when using either VGA or DisplayPort video source, either a RS-232 or Network connection may be used with the HP Network Sign Manager.

If using the RS-232 interface, the displays must be daisy chained with RS-232 cables. Attach one end of a RS-232 cable to the RS-232 Input connector of the first display and connect to the serial connector of the media player/computer. Then attach one end of an RS-232 cable to the RS-232 Output connector and the other end to the RS-232 Input connector of the next display and continue to connect the RS-232 cables between each display in the tiled matrix as shown in

Figure 3-37 Daisy

chain connection – RS232-C on page 26.

ENWW Connecting multiple displays to one player 25

If using a Network connection, just attach each display to a network hub or access point using a CAT-5 cable, and HP Network Sign Manager will locate each network attached display. The HP Network Sign Manager will allow users to select any display or assigned group of displays to manage and control. If the display is already attached to the network for VOE, there is no further action required. The HP Network Sign Manager will detect the displays via its search function (See the

Network Sign Manager Users Guide

for more details).

Figure 3-37 Daisy chain connection – RS232-C

RS-232C

(CONTROL)

OUT

RS-232C

(CONTROL)

OUT

RS-232C

(CONTROL)

OUT

RS-232C

(CONTROL)

OUT

1 2 3 4

Multiple displays may also be controlled and managed with the IR Remote Control. Since the LD4730/LD4730G primary use is for video walls, use of the External IR Sensor is needed to provide the best IR remote control responsiveness. Connect the supplied External IR Sensor to the IR IN (Blue) jack. Take one end of the supplied IR Daisy Chain Cable and connect it to the IR OUT (Green) jack of the display and connect the other end of the cable to the IR IN jack of the next display as shown in displays are connected, the user can issue any OSD command with the IR Remote Control to all the displays at once (for example, turn the displays ON or OFF, set Picture Mode to VIVID, etc.), or the user can indicate a single display in the wall to control by selecting the ID of the appropriate display and then issuing any OSD command with the IR Remote Control. See

remote control on page 34 for more detail.

Figure 3-38 Daisy chain connection – External IR Sensor

Figure 3-38 Daisy chain connection – External IR Sensor on page 26. Once all the

Navigating with the infrared

NOTE: The number of displays that can be connected by daisy chain to one media player/computer

might vary depending on the signal status and cable loss. If the signal status is good, and there is no cable loss, it is possible to connect up to twenty-five displays in a daisy chain from one media player/ computer.

If you are going to play video that is copy protected with High-bandwidth Digital Content Protection (HDCP), you must use DisplayPort as the video source, and you are limited to

a maximum of six

displays in the daisy chain which can support HDCP.

When using Tile Mode, the display ID can be set in the display OSD with the IR Remote Control, the display control panel, or for Network attached displays, the display ID can be set with the HP Network Sign Manager software (See

for more details).

Guide

Using Tile Mode on page 44 and the

HP Network Sign Manager User

26 Chapter 3 Setting up the display ENWW

After installing the cables, ensure that the power switch on all displays is in the on position (|). Turning the Power Switch ON does not turn the display on. This is especially important if you will be mounting the displays where access to the power switches is difficult.

Figure 3-39 Turn On Power Switch

The last step, after all the cables are connected and making sure the Power Switch is turned ON, is to plug the AC power cord into a power source.

Mounting the display

The display can be mounted on a wall or a stand. If the mounting hardware permits, it can be mounted in landscape or portrait orientation.

CAUTION: Always use the handles to lift the display, as the bezel is not meant to take its weight.

CAUTION: Two people are needed to safely mount the display.

This product supports a VESA FDMI (Video Electronics Standards Association Flat Display Mounting Interface)-compliant mounting device. The mounting devices can be purchased separately from HP. Two hole patterns are available, holes on 400 mm centers (1) and holes at 400 mm x 200 mm (2).

Figure 3-40 VESA mounting holes

It is recommended that the 400 mm x 400 mm mounting pattern be used whenever possible.

ENWW Mounting the display 27

The distances of each hole to the edges of the display are shown in Technical specifications

on page 55. The weight for your model can be found there as well; when mounting to a wall, ensure

that the supporting structure is strong enough for the listed weight.

Mounting in portrait position

When installing the display in the portrait position, rotate it clockwise based on its front. The display can be rotated in only one direction. Arrows on the back of the display indicate which side should be at the top in both portrait and landscape positions:

Figure 3-41 Up arrows

Figure 3-42 Installing portrait

The cable connectors will be on your left as you face the screen.

Considerations for wall mounting

When mounting displays in a video wall consider the following:

If all the displays are on one electrical circuit, you can avoid overload at power up by using the

●

Power On Delay option in the OSD menu (Option 2 → Time → Power On Delay).

Care should be taken to make sure that the displays are mounted so that they are just touching

●

and that there is no load bearing pressure between displays.

28 Chapter 3 Setting up the display ENWW

If access to the back of the display will be difficult, you can attach all cables to each display

●

before installation on the wall mount and turn the main power switch ON (|) before placing the display flush against the wall. You can perform any desired color calibration before mounting, or you can install a USB extension cable in the USB port to facilitate color calibration in the future.

● If you will be installing the HP LD4730 Framing System, do so after all displays have been

mounted and adjusted.

Software and utilities

HP displays are Plug-and-Play with Windows® XP, Windows Vista®, and Windows 7 operating systems, so you do not need to install the .INF file or the .ICM file for these operating systems. Software, utilities and documentation are provided on the CD that comes with the display. The most current versions of the following software and utilities can be downloaded from the following HP website for use with the displays as needed:

● Display driver firmware

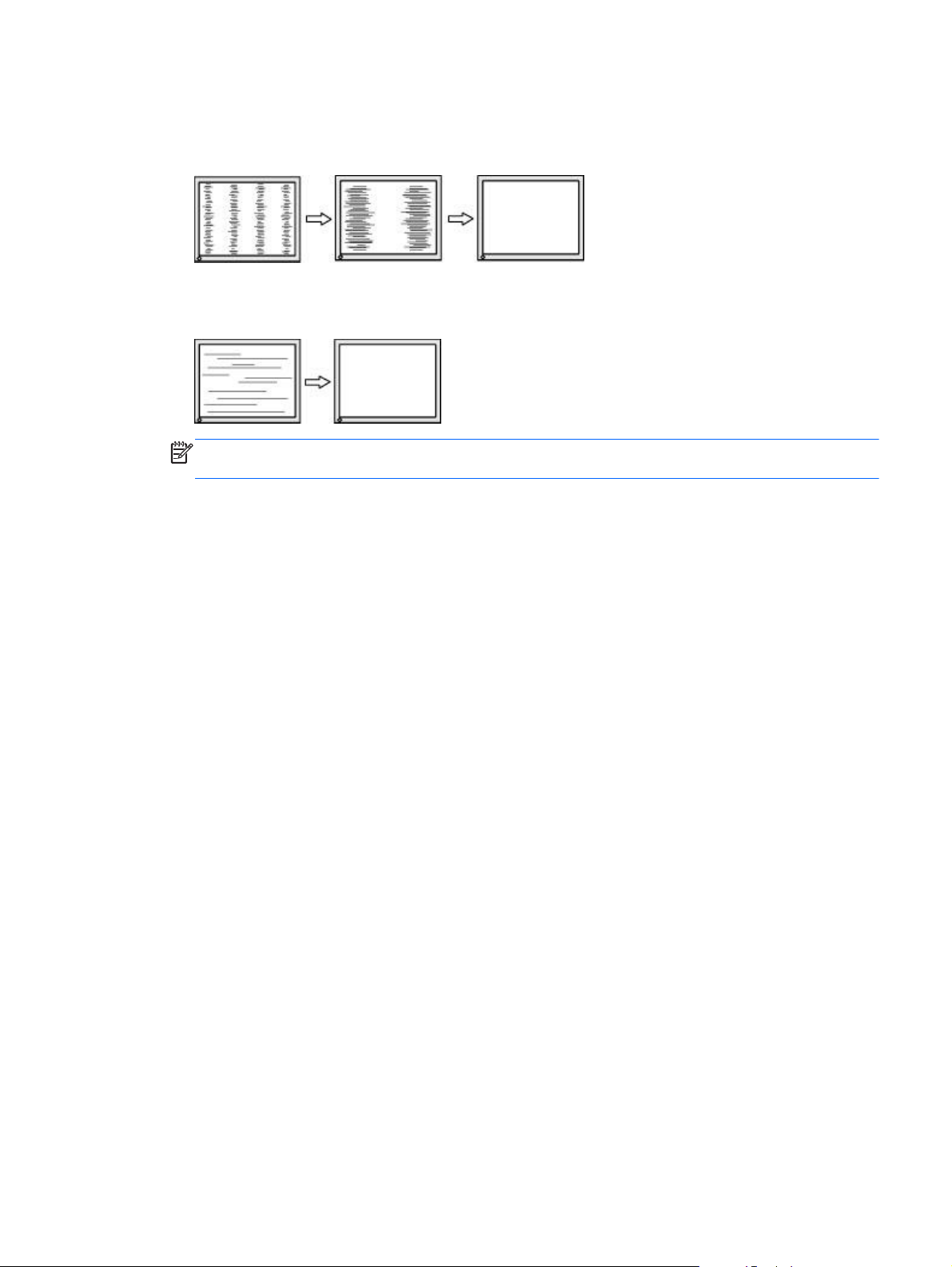

Auto-adjustment Pattern Utility — Optimizes the display of VGA input.

●

Supporting system files, .INF and .ICM

●

HP Network Sign Manager — Remote management and control software. Allows you to select

●

and control displays singly or in groups, remotely from a media player/computer connected by RS-232 or Ethernet.

Video Over Ethernet — Software that runs on the media player/computer which lets you

●

discover network connected displays, associate displays to any media player/computer attached to the network, and send video from the media player/computer to the associated display.

www.hp.com.

You can also install any of these from the CD that comes with the display.

The information file

The setup information, or .INF file, defines display resources used by Microsoft® Windows operating systems to ensure display compatibility with the media player/computer’s graphics adapter.

The image color matching file

The image color matching, or .ICM file, is a color data file that is used in conjunction with graphics applications to provide consistent color matching from display screen to printer, or from scanner to the display screen. The .ICM file is only activated from within the graphics applications that support this feature.

Installing the driver, .INF and .ICM files

The display driver firmware and the supporting system files are packaged together and installed with one download operation.

You can install the .INF and .ICM files from the CD or download them from the HP displays support website.

Installing from the CD

To install the .INF and .ICM files on the media player/computer from the CD:

1. Insert the CD in the media player/computer CD-ROM drive. The CD menu appears.

2. View the Display Driver Readme file.

ENWW Software and utilities 29

3. Select Install display driver software.

4. Follow the on-screen instructions.

5. Ensure that the proper resolution and refresh rates appear in the Windows Display control panel.

NOTE: You might need to install the digitally signed display .INF and .ICM files manually from the

CD in the event of an installation error. Refer to the instructions (in English only).

Downloading from the Web

To download the latest version of .INF and .ICM files from the HP displays support website:

Display Driver Readme

file on the CD for

1. Refer to

2. Follow the links for the display to the support page and download page.

3. Ensure the system meets the requirements.

4. Download the software by following the instructions.

www.hp.com/support and select the country/region.

Installing management software

Two programs are provided to manage displays. Video Over Ethernet allows you to assign media players on a network to displays on the same network. The HP Network Sign Manager provides remote management and control of digital signage displays. You can select and control individual displays, or you can group displays so that commands will control multiple displays simultaneously.

Install these programs from the CD, if a CD is provided with your display, by choosing the installation option from the menu that appears when you insert the CD into the media player/computer on which you want to run the software and then following the instructions. Alternatively, you can download the programs from

For details on using the applications, refer to the

Video Over Ethernet User Guide

display.

www.hp.com/support and then install from the downloaded package.

HP Network Sign Manager User Guide

(both available only in English) included on the CD provided with the

and the

30 Chapter 3 Setting up the display ENWW

4 Operating the display

The display can be operated with the infrared remote control, with the control panel buttons, or remotely by any network connected media player/computer using HP Network Sign Manager. The media player/computer running HP Network Sign Manager can be connected to the display directly with an Ethernet peer to peer connection or RS-232-C serial connection, or remotely via an intranet connection.

Operation with the remote or the control panel uses the On-Screen Display (OSD) menu. This chapter details the menu.

The display provides for more than one source of video input. It will scan the various inputs to find an active one and display that image. The default scan order is Video Over Ethernet, DisplayPort, VGA for any inputs that are connected to a video source. Using the OSD menu, you can prevent the display from switching inputs by disabling this function.

In order to send video over a network, you need to install the VOE software on the computer/media player which serves as the source. See the

If the display is not receiving any input, it will go into low power mode (“sleep”). You can send it into low-power mode using the power button on the back, the infrared remote control, or by scheduling sleep times. Scheduling is done through the OSD or management software. You can also prevent the display from sleeping.

Video Over Ethernet User Guide

for details.

Using the On-Screen Display menu

The on-screen display menu (OSD) lets you set a variety of parameters to control the display. Not all settings are applicable to all video sources and these will be greyed out (unselectable) where they don't apply. Auto Configuration, Clock Frequency, and Clock Phase apply only to VGA input.

Other settings store three values, one each for Video Over Ethernet, VGA and DisplayPort. These settings are:

Picture Mode

●

● Contrast

Brightness

●

Sharpness

●

Backlight

●

Resolution

●

Color Temperature

●

Speaker

●

Aspect Ratio

●

All other OSD settings need only be set once in order for the new value to apply regardless of the video source.

You can operate the OSD using the infrared remote control or the control panel on the back of the display.

ENWW Using the On-Screen Display menu 31

Controlling displays with IR Daisy Chain

The LD4730/LD4730G provides the capability of using IR Daisy Chain to enable selectable control of the displays locally, using the IR Remote Control when the displays are mounted in a video wall. You may control one display at a time by selecting the ID of the display, or you may control all the displays simultaneously by selecting an ID of “00”.

Setting up IR Daisy Chain

The following describes how to set up the displays for IR Daisy Chain

1. Insert the External IR Sensor into the IR IN (blue) jack at the back of the display

2. Using the included IR Daisy Chain Cable, connect all the displays in the video wall. See

Connecting cables on page 15 for details.

3. Using the IR Remote Control or the display control buttons, go to MENU → OPTION 2 → SET

MONITOR ID and set the unique ID number (number between 1 and 25) for each display in the video wall

4. Using the IR Remote Control or the display control buttons, go to MENU → OPTION 2 → IR

OUT and chose ENABLE for each of the displays in the video wall

5. Using the double sided tape, locate the External IR Sensor away in a spot where it will be easy

to point the IR Remote Control. It is recommended that the sensor be located at the top left or right of the video wall.

NOTE: Care should be taken to avoid locating the sensor next to the bottom of any of the displays

where the IR sensor of the display could sense the IR Remote Control or where the sensor might block the viewing area of any display.

Controlling displays with the IR remote control

Point the IR remote control at the External IR Sensor and press the MENU button. The IR Daisy Chain home menu will appear on each display, with the Monitor ID displayed so you can easily identify the display you want to issue the command to (

on page 32).

Figure 4-1 IR Daisy Chain home menu screen

32 Chapter 4 Operating the display ENWW

Menu Setting Function

A Monitor ID ID number assigned to the display in the SET MONITOR ID Dialog

B IR Daisy Chain Monitor ID Enter the ID number of the display you want to receive the IR

C Set Button Sets the display ID of the display you want to control and will lock

D Exit Button Exit the IR Daisy Chain dialog without setting the display ID to

commands or enter “00” to control all the displays simultaneously

out all the other displays from receiving the commands

receive commands

Enter the ID number of the display in the two digit window (following figure). Entering “00” in this window will allow all the displays in the daisy chain to receive the command. This may be useful when turning the displays ON or OFF, or setting the time schedule for the video wall.

Figure 4-2 Identify the display to control

Press the SET button to select the display ID number as the display you want to send commands. The LOCK message window will appear in all the other displays to indicate that they will not receive any commands from the IR remote control through the External IR Sensor (

Figure 4-3 IR Lock Message on page 33). The On-Screen Display Menu will appear in the display selected. Any

command, menu selection, or setting entered with the IR remote control will now be executed by the selected display.

Figure 4-3 IR Lock Message

ENWW Using the On-Screen Display menu 33

After a short period of time, the Lock message will disappear from the displays. At any time, you may press the INFO button on the IR remote control and the Lock message will reappear on the displays not selected to receive the IR commands:

Figure 4-4 Lock message from INFO command

Pressing the MENU key on the IR remote control will exit the IR daisy chain mode and unlock all the displays.

Navigating with the infrared remote control

The IR sensor is on the back of the display but will receive IR signals coming from the front. Point the remote control toward the bottom center of the screen. You can also use the external sensor provided, which makes the remote control very easy to use. This is especially true for displays in a video wall. If you have connected multiple displays with IR daisy chain, they will all respond to a key press of the remote. See

Controlling displays with IR Daisy Chain on page 32 for more details.

See

Identifying remote control buttons on page 10 for details on IR remote control buttons and their

functions.

Navigating with the control panel

If you have access to the control panel at the back of the display, you can use it to turn the screen on and off, and to open and navigate the OSD menu.

Figure 4-5 Display control panel

INPUT MENU

To change the video source, press the INPUT button, then select the desired source from the menu that opens on the screen.

To bring up the On-Screen Display menu, press the MENU button. Press it again to exit the OSD.

Once inside the menu,

Use the arrow buttons to highlight your choice. Use them to adjust settings as well.

●

To accept a highlighted selection or setting, press the INPUT button.

●

34 Chapter 4 Operating the display ENWW

To put the display into low power mode, press the power ( ) button. Press it again to restore full power.

The buttons can be disabled by pressing the left and right arrows buttons simultaneously and holding for 5 seconds. Repeat this procedure to enable the buttons again.

Single buttons can be disabled and enabled with the following 5–second key presses:

To enable/disable this: Hold these buttons:

Power button Right arrow and MENU buttons

IR remote control Left arrow and MENU buttons

MENU button Up and down arrows.

The LED indicates the power status:

● Green — full power

Red — low power (the screen is dark but the controller is listening for commands)

●

Off — no power

●

If the buttons remain untouched for 20 seconds after adjustments have been made but not saved, the current settings will be saved and the OSD menu will close. If the input source, resolution, aspect ratio or frequency changes while the OSD is active, the OSD will close without saving new settings.

OSD menu selections

The OSD menu contains six main menus:

Icon Menu Function description

Picture Set or change video characteristics such as, brightness, contrast, and

Audio Set or change the audio options.

Option 1

Option 2 Set or change display options such as OSD language, schedule, and ISM

resolution.

Set or change display options such as video source, aspect ratio, and network settings.

method.

ENWW Using the On-Screen Display menu 35

Icon Menu Function description

Color Calibration Launch the color calibration process.

Tile Mode Set or change the tiling options when this display is one of an array.

The following table lists the On-Screen Display (OSD) menu selections and their functional descriptions. Not all options apply to all types of input. For example, clock adjustment is only applicable to VGA input.

Level 1 Menu Level 2 Menu Level 3 Menu Description


Contrast Increase or decrease the difference between the light and dark

Brightness 0 — 100 scales adjusts the brightness of the screen.

Sharpness 0 — 10 scale makes the image crisper or softer. When you

Backlight Controls the brightness of the backlight, 0 – 100.

Picture Mode The three preset modes set the picture submenu options for

the following:

Vivid — For standard video.

●

Standard — For viewing images.

●

● Cinema — For movies.

If you prefer to set the picture submenu options yourself,

●

you will automatically switch to Expert 1

The default setting is Standard.

colors.

Adjustable scale, 0 – 100 with 100 being high contrast.

The default setting is 50.

change this setting, the change will show immediately so that you can judge where you want it to be.

The default setting is 5.

The default setting is 90.

Dynamic

Contrast

On — Allows the display to adjust the backlight for better

contrast, depending on the image.

Off — Does not allow the display to change the backlight level depending on the image.

The default setting is OFF.

36 Chapter 4 Operating the display ENWW

Level 1 Menu Level 2 Menu Level 3 Menu Description

Resolution Auto — allows the display to choose any supported resolution

Color

Temperature

Energy Saving Select from the following backlight brightness levels:

Adjust the shade of white the display produces.

that matches the input signal.

1280 x 768 pixels

1360 x 768 pixels

1366 x 768 pixels

The default setting is Auto.

9300 K — Slightly purplish white.

8000 K — Slightly bluish white

6500 K — Standard paper-white.

User - Set the R, G, B gain values yourself

The default setting is 9300.

Off — 100% light

●

Level 1 — 80% light

●

Level 2 — 60% light

●

● Level 3 — 40% light

The default setting is Off.

Local Dimming On — Allows the display to dynamically change brightness in

selected areas of the screen to enhance detail in both dark and bright parts of the image at once.

Off — No local dimming.

The default setting is Off.

Audio

Speaker On — Play sound through the attached speakers.

Audio Source Line-in — With analog video, choose this option to play sound

Balance Balances sound between the left and right speakers.

Volume Adjust the volume from 0 to 100.

The default setting is 50.

Off — Turn off attached speakers in order to use an external sound system.

The default setting is On.

from the audio input at the back of the display.

DisplayPort — With digital video, choose this option to play the sound accompanying the video.

VOE — With VOE for video, choose VOE for sound as well.

The default setting is VOE.

The default setting is 50; range is 0 – 100, with 0 being all sound from the left speaker.

ENWW Using the On-Screen Display menu 37

Level 1 Menu Level 2 Menu Level 3 Menu Description

Treble Adjust treble 0 – 100.

The default setting is 50.

Bass Adjust bass 0–100.

The default setting is 50.

Sound Mode Standard — Most natural audio.

Voice — Differentiates the human sound range from other sounds, which helps to make the human voices easier to hear.

The default setting is Standard.

Option 1

Source Select video source:

Aspect Ratio Select from the following image proportions:

16:9 — Widescreen mode.

●

1:1 — Picture format is 1:1 aspect ratio.

●

Original — Picture format is automatically set to 16:9 or

●

4:3 aspect ratio according to input signal.

4:3 — Picture format is 4:3 aspect ratio.

●

14:9 — Programs are viewed normally in 14:9 with black

●

bars added to the top and bottom. If the input is 4:3, it will be stretched horizontally.

Zoom — 4:3 programs are magnified until they fill the

●

16:9 screen. The top and bottom will be cut off.

Cinema Zoom — Picture format is 2.35:1 aspect ratio,

●

extending the picture horizontally with black bars added to the top and bottom.

The default setting is 16:9.

VGA — Analog video through the VGA port.

DisplayPort — Digital video through the DisplayPort

VOE — Digital video through the Ethernet port

The default setting is VOE.

Auto

Configuration

Clock Frequency Adjusts the controller's clock frequency from 0 to Dynamic.

Phase Adjusts the controller's clock phase from 0 to Dynamic. See

H.Position Adjustable scale, 0 to 100, moves the image right or left on the

V.Position Adjustable scale, 0 to 100, moves the image up or down on

Automatically adjusts picture position and minimizes image

instability (VGA input only)

See

Optimizing analog images on page 46 for details.

screen.

the screen.

38 Chapter 4 Operating the display ENWW

Level 1 Menu Level 2 Menu Level 3 Menu Description

Ambient Light

Sensor

Interface Select If the display will be controlled by software on a media player/

Auto Detection On — Allows the display to automatically detect a signal on

NSM Network If the display is controlled by software on a networked media

DHCP Dynamic Host Configuration Protocol

High — Frequently adjust the backlight based on input from

the sensor.

Low — Periodically adjust the backlight based on input from the sensor.

Off — Do not adjust the backlight based on input from the sensor.

The default setting is Off.

computer, select the type of cable connecting it to that media player/computer:

RS232 — for RS-232 cable.

Network — for Ethernet cable.

The default setting is Network.

any input source and show the image.

Off — Video source must be selected manually.

The default setting is On.

player/computer, it needs settings that tell the media player/ computer where to send command data:

Enable — Allows the network host computer to assign an IP Address to the display when it comes on line.

Disable — Allows you to assign a permanent IP Address and Subnet Mask.

The default setting is Enable.

IP Address The Internet Protocol address needed for a network

Subnet Mask A number specific to your network used in conjunction with the

WOL Wake-up On Low power

VOE Network If the display receives video data from a networked media

connection.

The default is 192.168.0.1

IP address.

The default is 255.255.255.0

Enable - Management software can change the display from low power (“sleep”) to full power.

Disable - Management software cannot change the display from low power to full power.

The default setting is Disable

player/computer, it needs settings that tell the media player/ computer where to send video data:

ENWW Using the On-Screen Display menu 39

Level 1 Menu Level 2 Menu Level 3 Menu Description

DHCP Dynamic Host Configuration Protocol

Enable — Allows the network host computer to assign an IP

Address to the display when it comes on line.

Disable — Allows you to assign a permanent IP Address and Subnet Mask.

The default setting is Enable.

IP Address The Internet Protocol address needed for a network

Subnet Mask A number specific to your network used in conjunction with the

VOE Setup These fields are recognized by the Video Over Ethernet

Option 2

Language Selects the language in which the OSD menu is displayed.

connection.

The default is 192.168.0.2

IP address.

The default is 255.255.255.0

software.

Display Name — Give this display a name up to 32 alphanumeric characters long for reference through the VOE software.

Display Location — Identify this display's physical location in a way meaningful to you. Use up to 32 alphanumeric characters.

Product Name — Automatically shows either LD4730 or LD4730G.

Player Name — The computer name of a computer/media player running VOE software whose output is to be played on this display. You can enter such a name. The VOE software will enter a name when it assigns a video source to this display.

The default setting is English.

OSD Mode Set the OSD orientation to match the display's orientation,

portrait or landscape.

The default setting is landscape.

TIME Clock Set the current date and time so that scheduled events

happen at the correct time.

Year: 2000 – 2099

Month: 1 – 12

Day: 1 – 31

Hour: 0 – 23

Minute: 0 – 59

Daylight saving time: ON/OFF

The default setting is Off.

40 Chapter 4 Operating the display ENWW

Level 1 Menu Level 2 Menu Level 3 Menu Description

Schedule You can schedule up to 7 On/Off times for the display to enter

Power On Delay Yes — To stagger the power-up of multiple displays on an

DPM Select Display Power Management Select

low power mode (screen is dark) or come out of low power to full power:

On — Set a time for the display to turn on full power.

Off — Set a time for display to “sleep.”

Input — Choose the input source to play at the ON time.

Select the frequency for this event:

Every Day — Play this event every day at the scheduled time.

Monday – Sunday choices: Play this event on the selected

days.

Every Week — If checked, the event will play on the selected days every week. If not checked, the event will play on the selected days for one week only.

electrical circuit, turn this option on. Each display will choose a delay either randomly or based on its tiling number.

No — No delay on power up.

The default setting is No.

On — The display will enter low power mode when there is no signal on the VGA and DP inputs.

Off — Prevents the display from entering low-power mode.

VGA Only — Equivalent to On when Auto Detect is on. When

Auto Detect is off, will enter low power mode when VGA is the selected video source and there is no signal on the VGA input, but will not enter low power mode when another source is selected.

The default setting is VGA Only.

Key Lock On – Disable the buttons at the back of the display.

Off — Enable the buttons at the back of the display.

The default setting is Off.

Set Monitor ID Assign a unique, two-digit number between 01 and 25 to this

display. You will see this number if you have daisy chained the IR ports of several displays. HP Network Sign Manager also uses it to communicate directly with the display.

The default setting is 01.

ENWW Using the On-Screen Display menu 41

Level 1 Menu Level 2 Menu Level 3 Menu Description

ISM Method To prevent the screen from retaining an image that remains

DDC/CI On — Allows an attached media player/computer to send

static for a long period of time, choose one of these relief methods:

● Orbiter— The image moves two pixels every two

minutes. Direction of movement is right, left, up, and then down, in a continuous cycle.

Inversion — Inverts the colors every 30 minutes. This

●

function can be used to fix a ghost or burned-in image.

White wash — Fills the screen with white. This function

●

can be used to fix a ghost or burned-in image. Press any key on the remote control to exit the White Wash function and return the screen to normal.

● Dot wash — Imposes black dots on the image, moving

them every 5 seconds.

● OFF — No remedy for image retention will be used.

The default setting is Off.

control commands to the display.

Off — Control of the display must be done manually, with the infrared remote control or the buttons on the back of the display.

The default setting is On.

Factory Reset Resets all OSD choices to their default factory settings.

User modes will be erased from memory.

Diagnostic Shows the following information:

Temperature in degrees Centigrade

Ambient light level in Lux

LED Failure: Yes/No

Operating time in hours

Information Shows the following:

Serial number

SW Version (MNT) — The version of the firmware driver

running on the display.

IP Address (VOE) — The IP Address of the network connection handling video data to the display.

MAC Address (VOE) — The Media Access Control address of the network connection handling video data to the display.

IP Address (NSM) — The IP Address of the network connection handling control data to the display.

MAC Address (NSM) — The Media Access Control address of the network connection handling control data to the display.

42 Chapter 4 Operating the display ENWW

Level 1 Menu Level 2 Menu Level 3 Menu Description

IR out Enable — Enable the external IR receiver and IR daisy-chain

Firmware Update Current Ver. — Shows the version number of firmware

Color Calibration

Result When calibration is complete, the display measures the

Color Calibration Enter — Enter the color calibration process.

support.

Disable — Disable the external IR receiver and IR daisy-chain support.

The default setting is Disable.

currently running on the display.

Detected Ver. — Shows the version number of firmware detected on a USB device plugged into the display.

Yes/No — Choose yes to upgrade firmware on this display.

Exit — Exit without calibrating color.

Tuning color on page 47 for details of the color

See calibration process.

following parameters with the new correction:

Luminance

Color Temperature

Gamma

R, G, and B coordinates in CIE X,Y color space

The number of hours since calibration is also shown. If the display has never been calibrated, that fact is shown.

Tile Mode

V Monitors Enter the number of displays in a column of your array.

H Position Enter this display's column number, counting left to right.

V Position Enter this display's row number, counting top to bottom.

Natural Mode On — Image will overlap the bezel. The result is as though the

Reset Returns all tile settings to their defaults.

H Monitors Enter the number of displays in a row of your array.

The range is 1 — 5 and the default is 1.

composite image was projected onto the video wall.

Off — Image will be contained in the viewing area. The result is as though the composite picture was cut into separate pieces laid close to each other.

See

Using Tile Mode on page 44 for more detail.

The default setting is Off.

ENWW Using the On-Screen Display menu 43

Power On Delay

Power on delay lets you stagger the initial current draw of multiple displays on one electrical circuit. Each display will compute its own delay time. If its V Monitors setting in the Tiling submenu is 1, the delay will be a random number between 0.5 and 2.5 seconds. If V Monitors is anything else, its delay will be (0.5 * V Position) seconds.

Using Key Lock

The buttons on the back of the panel can be disabled to prevent accidental changing of the settings. To do this, press the left and right arrows buttons simultaneously and hold for 5 seconds. The same procedure will enable the buttons again. If the buttons are not accessible, use the infrared remote control to enter the OSD menu, navigate to the Option 2 submenu, and turn the Key Lock option off or on.

Setting the backlight level

The OSD offers two setting which change the backlight level. The Backlight setting is a scale from 0 to 100. The Energy Saving setting is a choice of four levels, given as percents. Energy Saving imposes a ceiling on the Backlight level. For example, if Energy Saving is set to Level 2 (60%), the Backlight scale is effectively reduced to 0 to 60, since any setting above 60 will function as 60.

Preventing and fixing ghost images

Displaying a static image on the screen for a long time can result in “burn-in” or image retention. To avoid image retention, do not display a fixed image for long periods of time. Either turn the display off, use one of the image retention choices (ISM) in the OSD, or change the image. You can help to avoid or correct ghost images by using one of the ISM Method options:

1. Navigate to the Option 2 submenu and then to the ISM Method option.

2. Select one of the following menu options:

Orbiter — The image will move two pixels every two minutes, alternately moving left, right,

●

up, and down. Orbiter will remain on until changed in the ISM Method menu.

Inversion — This function can be used to fix a ghost or burned-in image. It will invert the

●

image colors every 30 minutes. The inversion function will remain on until changed in the ISM Method menu.

● White wash — This function can also be used to fix a ghost or burned-in image. This

function will fill the screen with solid white. This helps to remove permanent images burned into the screen. Pressing any key on the remote control will exit the White Wash function and return the screen to Normal.

Dot wash — Imposes a pattern of black dots on the image and moves them every 5

●

seconds.

OFF — Choose if you do not want the ISM function to be active. When the display is turned

●

off, the ISM setting is lost and will be OFF when the display is next turned on.

Using Tile Mode

Tile Mode lets you define an array of up to 25 displays showing a single image. The array need not

have the same number of columns as rows, and the displays can be in landscape or portrait orientation. Tile mode is designed for use with daisy chained displays receiving VGA or DisplayPort input. If the input source is Video Over Ethernet, each display must be sent the same image for tile mode to work. (See the

Video Over Ethernet User Guide

for details).

44 Chapter 4 Operating the display ENWW

Video signal strength will determine how many displays may be daisy chained together. Degradation of the video signal due to distance may limit the maximum number of displays to less than 25.

You can set up tiling through the OSD menu of each display in the array. That method is described here. You can also use HP Network Sign Manager for the same purpose. See the

Manager User Guide

On each display, enter the OSD and navigate to the Tile submenu. Set H Monitors to the number of columns in the array and V Monitors to the number of rows. Set H Position to the column number for this display, counting from left to right. Set V Position to the row number, counting from top to bottom.

Figure 4-6 Tile Mode numbering scheme

for details.

HP Network Sign

H1,V1 H1,V2 H1,V3 H1,V4 H1,V5

H2,V1 H2,V2 H2,V3 H2,V4 H2,V5

H3,V1 H3,V2 H3,V3 H3,V4 H3,V5

H4,V1 H4,V2 H4,V3 H4,V4 H4,V5

H5,V1 H5,V2 H5,V3 H5,V4 H5,V5

Each display in the tile mode array will receive the full image, but will display only its assigned part of the image based on its H Position and V Position.

Natural Mode allows the image to retain proportionality across the array by compensating for the width of the mullion (the distance between the active display area to the active display area of the adjacent display in the array). Set Natural Mode on or off, using the same setting for every display in the array.

If Natural Mode is off, the display shows the its entire portion of its assigned position within the active viewing area. If Natural Mode is on, each display will compensate for the mullion between the displays by eliminating that portion of its assigned image which would overlap the bezel. This results in a small part of the composite picture being invisible, as though blocked by the mullions between window panes.

Choose Natural Mode on if you want the composite to be correctly proportioned and off if you want every pixel visible. The difference can be seen in the following:

ENWW Using the On-Screen Display menu 45

Original image

Tiled with Natural Mode on, the red bar is hidden and the slope is displayed correctly.

Tiled with Natural Mode off,

Optimizing analog images

When using VGA as your video source, you can optimize the screen performance by using the Auto Configuration option in the OSD and the Auto-adjustment Pattern Utility software on the CD provided. (When the video source is one of the digital formats, the display adjusts itself and there is no user intervention.)

The procedure can correct the following image quality conditions:

Fuzzy or unclear focus

●

Ghosting, streaking or shadowing effects

●

Faint vertical bars

●

Thin, horizontal scrolling lines

●

Although the process will work with any image, it works best with the image in the Auto-adjustment Pattern Utility supplied on the CD that comes with the display.

To use the auto-adjustment feature:

1. Allow the display to warm up for 20 minutes before adjusting.

all bars are visible and the slope is disjointed.

2. Insert the CD in the disc drive. The CD menu appears.

3. Select Open auto-adjustment software. The setup test pattern appears.

4. You can launch the display's auto configuration process in two ways: by pressing the down

arrow on the back of the display while the OSD menu is inactive, or by selecting the Auto Configuration choice in the Option 1 menu of the OSD. Either way, the display will adjust itself.

If the result is not satisfactory, continue with the procedure.

46 Chapter 4 Operating the display ENWW

5. Navigate to Clock Frequency under the Option 1 submenu of the OSD. Increase or decrease

the value to minimize any vertical bars or stripes visible on the screen background.

Figure 4-7 Adjust frequency

6. Navigate to Phase. Increase or decrease the value to minimize video flickering or blurring.

Figure 4-8 Adjust phase

NOTE: The frequency must be adjusted before the phase, since the phase setting is

dependent on the frequency setting.

7. If the monitor images become distorted, continue adjusting the values until the distortion

disappears. To restore the factory settings, select Yes from the Factory Reset menu in the onscreen display (this will reset all other OSD choices as well). When you are satisfied, exit the OSD menu.

8. Press the ESC key or any other key on the keyboard to exit the test pattern.

Tuning color

The HP DreamColor Display Calibration Solution (purchased separately) can be used to calibrate the displays in a video wall to ensure that their output closely matches each other. This prevents visible differences in the composite image due to variations in color temperature, luminance, or gamut (the range of colors) among the displays. It can also be useful to calibrate displays that are not in a video wall but which should match each other, as when they are in the same room.

The HP LD4730 and LD4730G displays contain an internal color management engine and calibration processing hardware, allowing calibration without the use of an external computer; the colorimeter contained in the HP DreamColor Display Calibration Solution is all that is required.

Calibration is performed on each display in a video wall and can be done before or after the wall is assembled. It may be easier to calibrate the displays prior to wall assembly because the colorimeter must be connected to the USB port on the back of the display. Since you might want to recalibrate a video wall after it has been installed, HP recommends using scissor mounts or some other type that allows you to move each display out from the wall and access the USB port. For a permanent wall installation, a rack-mount USB extender facilitates access to the USB ports.

ENWW Tuning color 47

In preparing to calibrate a display or video wall, observe the following guidelines:

● Decide how bright you want the screen to be. During calibration, you will choose a target

luminance. This value incorporates both the brightness of the backlight and of the LCD at full white. As with the brightness control of a conventional monitor, the most pleasing setting depends on the environmental lighting.

The maximum luminance depends on the color temperature, because temperature is adjusted by decreasing light of certain colors. If you choose 9300K as your target color temperature for

calibration, you will be offered a luminance range from 200-500 cd/m temperature to 8000K, the offered range will be 200-450 cd/m it will be 200-400 cd/m

, and for color temperature 6500K

. If you set color

Total light output diminishes as a display ages. After one year of continuous use all day every day, the total light output an LD4730 or LD4730G is expected to have dropped by approximately 10%. With these considerations in mind, you will be able to choose a target luminance from the range offered.

● Warm up the display for at least one hour. This is required because the colorimetry of the image

is not stable until the display has reached uniform operating temperature. Even when the effect of warm-up is not apparent, it can impact the calibration results.

Ensure that there is no bright light shining directly onto the screen. Light reflecting off the display

●

onto the measuring sensor of the colorimeter will result in an incorrect calibration. If necessary, cover the display surface and colorimeter with a light-blocking cloth.

Clean the screen. Refer to

●

Set Energy Saving, Picture mode, Contrast, Brightness, Sharpness, Backlight, and Ambient

●

Cleaning the LD4730 on page 5 for specific instructions.

Light Sensor to their default values. Decide on the desired settings for Dynamic Contrast, Color Temperature and Local Dimming. Set these to the same value on every display in the video wall.

When calibrating a video wall, use the same colorimeter for all displays in the wall. Otherwise,

●

variation between colorimeters can jeopardize uniformity of the results.

To calibrate the display, follow these steps:

1. Plug the colorimeter into the USB port.

Figure 4-9 Plugging in the colorimeter

R+L

2. Navigate to the Color Calibration menu of the OSD. Use the Color Calibration option to Enter

the calibration process.

48 Chapter 4 Operating the display ENWW

3. The time since power-up will be shown. If the display has not yet warmed up for one hour, either

wait for the display to complete the warm up or exit calibration menu and return later. If at least one hour has passed since the display was last powered on, proceed to the next step.

4. Choose the desired color temperature from the color temperature options provided. This setting

must be the same for all displays in a video wall.

The native color temperature of the display is 9300° Kelvin (“9300K”). You can choose between 6500K, 8000K and 9300K. A lower color temperature results in a warmer picture, which may be more pleasing, depending on the environmental lighting in the area of the video wall. However, in order to lower the color temperature, blue light output must be restricted, which will reduce the maximum possible brightness.

After choosing a color temperature, click on Enter.

Choose the target luminance. The slider moves in increments of 10 cd/m

. Once you have set

the luminance, click on Enter to move to the next option.

NOTE: If the display cannot be calibrated to the target luminance, an error message will

appear indicating the luminance that could be achieved. Use that or a lower value as the target for the video wall, to ensure equal light output across the wall.

6. Open the colorimeter by rotating the ambient light filter away from the lens. Do this by pulling up

on the filter arm and then swinging it out of the way.

Figure 4-10 Rotating the filter

ENWW Tuning color 49

7. Hang the colorimeter over the top of the display and position it in the center of the target

displayed on-screen. To do this, drape the USB cable over the top of the display so that the counterweight is in back and the colorimeter in front.

Figure 4-11 Positioning the colorimeter

50 Chapter 4 Operating the display ENWW

8. Adjust the position of the counterweight so that the colorimeter is properly positioned and

maintains its position when released. To adjust the position of the counterweight on the USB cable, squeeze the release button and slide the weight.

Figure 4-12 Adjusting the counterweight

Alternatively, you can mount the colorimeter on a tripod and position it in front of the displayed target. If you use a tripod, position the colorimeter as close as possible to the screen and ensure that it is positioned perpendicular to the surface of the display.

9. Click on Enter to begin the calibration process. The display will now begin calibrating itself. If the

colorimeter is not connected to the USB port of the display, a “Device Connection Error” will appear. Connect the device and Retry.

If the colorimeter is not correctly aligned, a “Diffuser Position Error” will appear. Position the colorimeter perpendicular to the screen, with the lens (which was covered by the ambient light filter) against the screen, in the target being displayed. Then Retry.

Otherwise, you will see a message that the display is calibrating.

10. If you are calibrating a video wall, repeat these steps for each display.

To achieve the color temperature and luminance you specify, the display and colorimeter interact to display and measure a series of colors. Needed corrections are written into a look-up table which the display uses in daily operation.

To gauge the success of this process, the devices set brightness and contrast to 50, adjust the backlight to produce the target luminance, and measure the following parameters:

Luminance

●

Color Temperature

●

Gamma

●

R, G, and B Primaries in CIE X,Y color space.

●

If any of their targets for these can not be achieved, a “Color Calibration Fail” message will appear listing those parameters from the list that could not be adjusted properly.

When the process is finished, you can view the results with the Result option in the Color Calibration submenu. In addition to the parameters listed, you will also see the number of hours since calibration.

Following calibration, changes to settings that affect brightness or color may prompt a warning that lets you know the displays may no longer be showing the target luminance and color temperature. To preserve uniformity, make any such changes to all displays in the video wall. Also, leave the ambient light sensor off.

Once a wall has been calibrated, the calibration should be valid for 9000 hours, which is equivalent to one year of continuous use (no off time). If an individual display is replaced during that time, it may only be necessary to calibrate the replacement display(s).

ENWW Tuning color 51

A Troubleshooting

Solving common problems

The following table lists possible problems, the possible cause of each problem, and the recommended solutions.

Problem Possible cause Solution

No image is displayed.

Power is on, power indicator is green, but the screen appears extremely dark.

Power indicator is red.

Out of Range

message appears.

Power cord is not connected.

Screen needs adjustment.

Display is in power saving mode.

No video signal is active.

Input signal is out of frequency range.

Be sure the power cord is properly connected to the outlet.

Verify that the outlet has power to it.

●

Check that the fuse or breaker has not tripped or burned out.

●

See if the power switch is turned on.

Might need service.

Adjust brightness, backlight and contrast again.

Backlight might need repair.

Press power button (

Activate a signal source.

Turn off equipment and then back on.

Select an active input or set Auto Detection in the OSD menu to on.

The signal from the media player/computer (video card) is out of the vertical or horizontal frequency range of the display. Adjust the frequency range.

NOTE: Vertical Frequency — To enable the user to watch the display, the screen

image should change multiple times every second like a fluorescent lamp. The vertical frequency or refresh rate is the number of times the image displays per second. The unit is measured in Hz.

Horizontal Frequency — The horizontal interval is the time to display one vertical line. When 1 is divided by the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal frequency. The unit is measured in kHz.

) on the back of the display.

Check video cable message

appears.

OSD Lockout

message appears when pressing the Menu button.

The screen looks abnormal; screen position is wrong.

Signal cable is not connected.

Key Lock function is turned on.

Screen is out of adjustment.

The signal cable between the media player/computer and display is not connected.

Make sure that the signal cable is properly connected.

To unlock the menu, press the up and down arrows on the back of the display simultaneously and hold for 5 seconds.

Adjust the position using the OSD menu options H Position and V Position in the Option 1 menu.

Check that the video card resolution and frequency are supported by the display. If the frequency is out of range, set to the recommended resolution in the Control Panel → Display → Settings of the operating system.

52 Appendix A Troubleshooting ENWW

Problem Possible cause Solution

Lines appear on the background screen.

Horizontal noise appears or the characters look blurred.

The screen displays abnormally.

An after image appears when the display is turned off.

No sound. Audio cable not

Sound is too dull.

Sound is too low.

Screen has poor color resolution (16 colors).

Screen is out of adjustment.

Using an incorrect input signal.

Using a fixed image for too long a period of time.

connected.

Equalizer is not balanced.

Sound needs adjusting.

Color is not set correctly.

Adjust using the procedure described in

The proper input signal is not connected to the signal port. Connect the signal cable that matches with the source input signal.

If you used a fixed image for a long time, the pixels might be damaged. Use a screensaver or one of the functions in the ISM Method option of the OSD menu.

Check that the audio cable is properly connected.

Adjust the volume.

Check the Speaker and Audio Source settings in the OSD.

Check the audio settings for Balance, Treble, Bass, and Sound Mode.

Adjust the volume.

Set the number of colors to more than 24 bit (true color). Select Control Panel → (Personalization →) Display → Settings → Color quality in the operating system.

Optimizing analog images on page 46.

Screen color is unstable or mono colored.

Black spots appear on the screen.

The power is suddenly turned off.

Power Button Lockout

message appears.

Signal cable or video card connection is loose.

Black spots are characteristics of the LCD panel.

Sleep timer setting is turned on, or power is interrupted.

The sleep button on the back of the display is disabled.

Check the connection status of the signal cable, or reinsert the media player/computer video card.

Refer to

Check the Schedule submenu of the OSD.

Check the power control settings.

Press the MENU and right arrow buttons on the back of the display and hold for 5 seconds.

Display quality and pixel policy on page 59 for more details.

Using Online Technical Support

For online access to technical support information, self-solve tools, online assistance, community forums of IT experts, broad multi-vendor knowledge base, monitoring and diagnostic tools, go to

www.hp.com/support

ENWW Using Online Technical Support 53

Preparing to call technical support

If you cannot solve a problem using the troubleshooting tips in this section, you might need to call technical support. Contact your regional HP authorized service provider. Have the following information available when you call:

Display model number

●

Serial number for the display

●

Purchase date on invoice

●

● Conditions under which the problem occurred

Error messages received

●

Hardware configuration

●

● Hardware and software you are using

54 Appendix A Troubleshooting ENWW

B Technical specifications

NOTE: All performance specifications are provided by the component manufacturers. Performance

specifications represent the highest specification of all HP's component manufacturers' typical level specifications for performance; actual performance might vary either higher or lower.

HP Digital Signage Display

Table B-1 Specifications

HP LD4730 HP LD4730G

Display Size 120.24 cm (47.3 in) 120.64 cm (47.5 in)

Type TFT LCD panel with LED

Viewable image size 119.3 cm (46.9 in) 119.7 cm (47.1 in)

Pixel pitch 0.76125 x 0.76125 mm

Weight — maximum Without stand and

Dimensions

(W x H x D)

Bezel width Top and left sides in

speaker

With speaker 24.58 kg (54.19 lbs) 29.78 kg (65.65 lbs)

With stand 25.24 kg (55.64 lbs) 30.44 kg (67.11 lbs)

With stand and speaker

Without stand and speaker

With stand 104.68 x 66.47 x 29.83 cm

With Frame 106.05 x 60.53 x 9.55 cm

landscape orientation

Bottom and right sides in landscape orientation

backlight

(0.0299 x 0.0299 in)

23.82 kg (52.52 lbs) 29.02 k (63.98 lbs)

26.02 kg (57.36 lbs) 31.22 kg (68.832 lbs)

104.68 x 59.16 x 9 cm (41.21 x 23.29 x 3.54 in)

(41.21 x 26.16 x 11.7 in)

(41.75 x 23.83 x 3.75 in)

3.9 mm

2.4

TFT LCD panel with LED backlight

0.76125 x 0.76125 mm (0.0299 x 0.0299 in)

105.09 x 59.57 x 9.4 cm (41.37 x 23.45 x 3.7 in)

105.09 x 66.88 x 29.83 cm (41.37 x 26.33 x 11.7 in)

3.9 mm

2.4

Power Rated voltage AC 100-240 V~50/60 Hz 2 A

Japan: AC 100 V~50/60 Hz 2 A

Power consumption On mode 250 watts 250 watts

Sleep mode .5 watts .5 watts

Aspect ratio 16:9 16:9

Resolution — maximum

1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz

AC 100-240 V~50/60 Hz 2 A

Japan: AC 100 V~50/60 Hz 2 A

ENWW HP Digital Signage Display 55

Table B-1 Specifications (continued)

HP LD4730 HP LD4730G

Resolution —

1366 x 768 @ 60 Hz 1366 x 768 @ 60 Hz

recommended

Horizontal frequency 30 – 83 kHz 30 – 83 kHz

Vertical frequency 50 – 76 Hz 50 – 76 Hz

Synchronization type For VGA input, separate H

and V syncs are supported.

Video input

VGA, DisplayPort, Ethernet VGA, DisplayPort, Ethernet

For VGA input, separate H and V syncs are supported.

connectors

Other input

RS-232-C, USB, audio RS-232-C, USB, audio

connector

Environmental conditions

Contrast Ratio

Operating 0° to 40°C

Humidity 20% to 80%

Altitude 0–5,000 m (0–16,400 feet)

Storage –20° to 60°C

Humidity 5% to 95%

Altitude 0 – 12,192 m (0 – 40,000 feet)

0° to 40°C

Humidity 20% to 80%

Altitude 0–5,000 m (0– 16,400 feet)

–20° to 60°C

Humidity 5% to 95%

Altitude 0 – 12,192 m (0 – 40,000 feet)

1400:1 1400:1

(Typical)

Maximum Pixel Clock 160 MHz 160 MHz

Packed Weight 29.02 kg (63.98 lbs) 34.22 kg (75.44 lbs)

Packed Dimensions (L x W x H)

Typical Viewing

122.7 x 25.5 x 75.3 cm (48.3 x 10 x 29.7 in)

178 degrees 178 degrees

Angle (any direction)

Color Depth 24 bit 24 bit

Backlight Direct LED Direct LED

Backlight Lifetime

50,000 Hrs 50,000 Hrs

(Typ)

Tiled-array mullion 0.69 cm (0.27 in) 0.69 cm (0.27 in)

Luminance (Typical)

Impedance Audio amplifier AC

800 cd/m

>=10 K Ohm >=10 K Ohm

input

56 Appendix B Technical specifications ENWW

Locations of the VESA mounting holes are shown below. All units are mm.

Figure B-1 VESA mounting holes

96.6

100

200

100

95.1

322.7

400

324.2

Recognizing preset display resolutions

The display resolutions listed below are the most commonly used modes and are set as factory defaults. This display automatically recognizes these preset modes and they will appear properly sized and centered on the screen.

Preset display modes

Table B-2 Factory preset display modes

Preset Pixel format Horizontal frequency

(kHz)

1 640 x 480 31.469 59.940

2 640 x 480 37.861 72.809

3 640 x 480 37.500 75.000

4 720 x 400 31.469 70.087

5 800 x 600 37.879 60.317

6 800 x 600 48.077 72.188

7 800 x 600 46.875 75.000

8 832 x 624 49.726 74.551

Vertical Frequency (Hz)

ENWW Recognizing preset display resolutions 57

Table B-2 Factory preset display modes (continued)

Preset Pixel format Horizontal frequency

(kHz)

9 720 x 480 31.469 59.940

10 1024 x 768 48.363 60.004

11 1024 x 768 56.476 70.069

12 1024 x 768 60.023 75.029

13 1152 x 720 44.86 60.00

14 1152 x 870 68.68 75.06

15 1152 x 900 71.71 76.05

16 1280 x 720 45.00 59.94

17 1280 x 768 47.396 59.995

18 1280 x 800 49.702 59.810

19 1280 x 960 60.00 60.00

20 1280 x 1024 63.981 60.020

21 1280 x 1024 79.976 75.025

22 1366 x 768 47.712 59.790

23 1440 x 900 55.935 59.887

Vertical Frequency (Hz)

24 1440 x 900 55.469 59.901

25 1600 x 900 55.935 59.887

26 1600 x 1000 61.648 60.00

27 1600 x 1200 75.000 60.000

28 1680 x 1050 65.290 59.954

29 1920 x 1080 67.5 60.00

30 1920 x 1200 74.038 59.950

In addition to these preset modes, the display will store up to 20 user modes. User modes are lost when the OSD Factory Reset option is used. In addition to frequency and resolution, a user mode includes the Horizontal Position, Vertical Position, Clock, Clock Phase, and Auto Adjustment settings.

High definition video formats

Preset Timing Name Pixel Format Horz Freq

1 480i 720x480 15.734 59.940 13.500 480i

2 480p 720x480 31.469 59.940 27.000 480p

(kHz)

Vert Freq (Hz) Pixel Rate

(MHz)

OSD Display

3 720p60 1280x720 45.000 60.000 74.250 720p-60Hz

4 1080i60 1920x1080 33.750 60.000 74.250 1080i-60Hz

58 Appendix B Technical specifications ENWW

5 576i 720X576 15.625 50.000 13.500 576i

6 576p 720X576 31.250 50.000 27.000 576p

7 720p50 1280X720 37.500 50.000 74.250 720p-50Hz

8 1080i50 1920x1080 28.125 50.000 74.250 1080i-50Hz

9 1080p60 1920x1080 67.500 60.000 148.500 1080p-60Hz

10 1080p50 1920x1080 56.250 50.000 148.500 1080p-50Hz

Display quality and pixel policy

Defect Type Allowable Occurrences

Bright dot* None

Dark dot** Five maximum

*A bright dot is a pixel that is always on. If two of its three colors (RGB) are always on, that is also a bright dot.

**A dark dot is a pixel that is always off. If two of its three colors (RGB) are always off, that is also a dark dot.

Power indicator

Mode LED indicator light

Full power Green

Low power Red

Power off Off

ENWW Display quality and pixel policy 59

C Agency regulatory notices

Federal Communications Commission notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

●

Connect the equipment into an outlet on a circuit different from that to which the receiver is

●

connected.

Consult the dealer or an experienced radio or television technician for help.

●

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Hewlett Packard Company may void the user's authority to operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Declaration of Conformity for products marked with the FCC logo (United States only)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

For questions regarding the product, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 530113

Houston, Texas 77269-2000

Or, call 1-800-HP-INVENT (1-800 474-6836)

60 Appendix C Agency regulatory notices ENWW

For questions regarding this FCC declaration, contact:

Hewlett Packard Company

P. O. Box 692000, Mail Stop 510101

Houston, Texas 77269-2000

Or, call (281) 514-3333

To identify this product, refer to the Part, Series, or Model number found on the product.

Canadian notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

European Union regulatory notice

Products bearing the CE marking comply with the following EU Directives:

Low Voltage Directive 2006/95/EC

●

EMC Directive 2004/108/EC

●

Ecodesign Directive 2009/125/EC, where applicable

●

CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by HP.

Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family and available (in English only) either within the product documentation or at the following web site:

The compliance is indicated by one of the following conformity markings placed on the product:

www.hp.eu/certificates (type the product number in the search field).

For non-telecommunications products and for EU

harmonized telecommunications products, such as Bluetooth® within power class below 10 mW.

For EU non-harmonized telecommunications products (If applicable, a 4-digit notified body number is inserted between CE and !).

Please refer to the regulatory label provided on the product.

The point of contact for regulatory matters is: Hewlett-Packard GmbH, Dept./MS: HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, GERMANY.

ENWW Canadian notice 61

German ergonomics notice

HP products which bear the “GS” approval mark, when forming part of a system comprising HP brand computers, keyboards and monitors that bear the “GS” approval mark, meet the applicable ergonomic requirements. The installation guides included with the products provide configuration information.

Japanese notice

Korean notice

Power cord set requirements

The display power supply is provided with Automatic Line Switching (ALS). This feature allows the display to operate on input voltages between 100–120 V or 200–240 V.

The power cord set (flexible cord or wall plug) received with the display meets the requirements for use in the country where you purchased the equipment.

If you need to obtain a power cord for a different country, you should purchase a power cord that is approved for use in that country.

The power cord must be rated for the product and for the voltage and current marked on the product's electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8 m) and 12 feet (3.6 m). If you have questions about the type of power cord to use, contact an authorized HP service provider.

A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

Japanese power cord requirements

For use in Japan, use only the power cord received with this product.

CAUTION: Do not use the power cord received with this product on any other products.

62 Appendix C Agency regulatory notices ENWW

Product environmental notices

Disposal of waste equipment by users in private households in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling or waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact the local city office, the household waste disposal service or the shop where you purchased the product.

Chemical substances

HP is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and Council). A chemical information report for this product can be found at

www.hp.com/go/reach.

HP recycling program

HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, go to

Restriction of Hazardous Substances (RoHS)

A Japanese regulatory requirement, defined by specification JIS C 0950, 2005, mandates that manufacturers provide Material Content Declarations for certain categories of electronic products offered for sale after July 1, 2006. To view the JIS C 0950 material declaration for this product, visit

www.hp.com/go/jisc0950.

www.hp.com/recycle.

ENWW Product environmental notices 63

Turkey EEE regulation

In Conformity with the EEE Regulation

EEE Yönetmeliğine Uygundur

Ukraine Restriction of Hazardous Substances

Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних речовин в електричному та електронному обладнані, затвердженого постановою Кабінету Міністрів України від 3 грудня 2008 № 1057.

The equipment complies with requirements of the Technical Regulation, approved by the Resolution of Cabinet of Ministry of Ukraine as of December 3, 2008, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.

64 Appendix C Agency regulatory notices ENWW

HP LD4730 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product features

HP Digital Signage Displays

Accessories

Optional accessories

2 Safety and maintenance guidelines

Important safety information

Maintenance guidelines

Cleaning the LD4730

Cleaning the LD4730G

Shipping the display

3 Setting up the display

Unpacking

Identifying display components

Connecting the speakers (sold separately)

Display control panel

Identifying remote control buttons

Setting up the remote control

Mounting a single display on a stand (Sold Separately)

Installing the HP LD4730 Frame System (Sold Separately)

Securing the display

Connecting cables

Connecting multiple displays to one player

Connecting multiple displays with Video Over Ethernet (VOE)

Connecting multiple displays with Tile Mode

Mounting the display

Mounting in portrait position

Considerations for wall mounting

Software and utilities

The information file

The image color matching file

Installing the driver, .INF and .ICM files

Installing from the CD

Downloading from the Web

Installing management software

4 Operating the display

Using the On-Screen Display menu

Controlling displays with IR Daisy Chain

Setting up IR Daisy Chain

Controlling displays with the IR remote control

Navigating with the infrared remote control

Navigating with the control panel

OSD menu selections

Power On Delay

Using Key Lock

Setting the backlight level

Preventing and fixing ghost images

Using Tile Mode

Optimizing analog images

Tuning color

A Troubleshooting

Solving common problems

Using Online Technical Support

Preparing to call technical support

B Technical specifications

HP Digital Signage Display

Recognizing preset display resolutions

Preset display modes

High definition video formats

Display quality and pixel policy

Power indicator

C Agency regulatory notices

Federal Communications Commission notice

Modifications

Cables

Declaration of Conformity for products marked with the FCC logo (United States only)

Canadian notice

Avis Canadien

European Union regulatory notice

German ergonomics notice

Japanese notice

Korean notice

Power cord set requirements

Japanese power cord requirements

Product environmental notices

Disposal of waste equipment by users in private households in the European Union

Chemical substances
