HP L411a User Manual

OFFICEJET 100
User Guide
HP Officejet 100 (L411) Mobile Printer
User Guide
Copyright information
© 2013 Copyright Hewlett-Packard Development Company, L.P.
The information contained in this document is subject to change without notice.
All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission of Hewlett-Packard, except as allowed under copyright laws.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Acknowledgements
Bluetooth is a trademark owned by its proprietor and used by Hewlett­Packard Company under license.
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.
Windows, Windows XP, Windows Vista, Windows Mobile, and Windows 7 are U.S. registered trademarks of Microsoft Corporation.
Palm is a trademark of Palm, Inc.
Safety information
Always follow basic safety precautions when using this product to reduce risk of injury from fire or electric shock.
1. Read and understand all instructions in the documentation that comes with the printer.
2. Observe all warnings and instructions marked on the product.
3. Unplug this product from wall outlets before cleaning.
4. Do not install or use this product near water, or when you are wet.
5. Install the product securely on a stable surface.
6. Install the product in a protected location where no one can step on or trip over the line cord, and the line cord cannot be damaged.
7. If the product does not operate normally, see
8. There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
Solve a problem.

Contents

1 Get started
Accessibility ...............................................................................................................................7
Eco .............................................................................................................................................7
Understand the printer parts ......................................................................................................8
Front view ............................................................................................................................9
Back and side view ..............................................................................................................9
Printing supplies area ........................................................................................................10
Control Panel .....................................................................................................................10
Bottom view .......................................................................................................................11
Finding the printer model number ............................................................................................12
Select print media ....................................................................................................................12
Recommended papers for printing and copying ................................................................12
Recommended papers for photo printing ..........................................................................13
Tips for selecting and using media ....................................................................................14
Load media ..............................................................................................................................14
Load standard-size media .................................................................................................15
Load envelopes .................................................................................................................15
Load cards and photo paper ..............................................................................................16
Load custom-size media ....................................................................................................16
Install and use the battery .......................................................................................................17
Battery safety .....................................................................................................................17
Understand the battery ......................................................................................................18
Charge and use the battery ...............................................................................................18
Connect a memory device or camera ......................................................................................20
To connect a storage device .............................................................................................20
To connect a PictBridge-compatible camera .....................................................................20
To transfer photos to your computer .................................................................................20
Print from mobile phones .........................................................................................................20
Maintain the printer ..................................................................................................................21
Clean the printer ................................................................................................................21
Turn off the printer ...................................................................................................................21
2Print
Print documents .......................................................................................................................23
Print documents (Windows) ...............................................................................................23
Print documents (Mac OS X) .............................................................................................24
Print brochures ........................................................................................................................24
Print brochures (Windows) ................................................................................................24
Print brochures (Mac OS X) ...............................................................................................24
Print on envelopes ...................................................................................................................25
Print on envelopes (Windows) ...........................................................................................25
Print on envelopes (Mac OS X) .........................................................................................25
1
Print photos .............................................................................................................................26
Print photos on photo paper (Windows) ............................................................................26
Print photos on photo paper (Mac OS X) ..........................................................................26
Print on special and custom-size paper ...................................................................................27
Print on special or custom-size paper (Mac OS X) ............................................................27
Print borderless documents .....................................................................................................28
Print borderless documents (Windows) .............................................................................28
Print borderless documents (Mac OS X) ...........................................................................28
Print on both sides (duplexing) ................................................................................................29
To perform duplexing (Windows) .......................................................................................29
To perform duplexing (Mac OS X) .....................................................................................29
3 Work with ink cartridges
Information about ink cartridges ..............................................................................................31
Check the estimated ink levels ................................................................................................32
Handle the ink cartridges .........................................................................................................32
Replace the ink cartridges .......................................................................................................33
Print with a single ink cartridge ................................................................................................36
Store printing supplies .............................................................................................................36
Ink cartridge maintenance .......................................................................................................36
Align the ink cartridges ......................................................................................................36
Calibrate color ....................................................................................................................37
Clean the ink cartridges .....................................................................................................37
To clean ink cartridges automatically ..........................................................................37
4 Solve a problem
HP support ...............................................................................................................................39
Obtain electronic support ...................................................................................................39
HP support by phone .........................................................................................................40
Before you call .............................................................................................................40
Phone support period ..................................................................................................40
Telephone support numbers ........................................................................................41
After the phone support period ....................................................................................43
Troubleshooting tips and resources ........................................................................................43
Solve printing problems ...........................................................................................................43
The printer shuts down unexpectedly ................................................................................44
All printer lights are on or flashing .....................................................................................44
The printer is not responding (nothing prints) ....................................................................44
Printer does not accept ink cartridge .................................................................................45
Printer takes a long time to print ........................................................................................45
Blank or partial page printed ..............................................................................................46
Something on the page is missing or incorrect ..................................................................46
Placement of the text or graphics is wrong ........................................................................47
2
Contents
Poor print quality and unexpected printouts ............................................................................48
General tips .......................................................................................................................48
Meaningless characters print .............................................................................................49
Ink is smearing ...................................................................................................................50
Ink is not filling the text or graphics completely .................................................................51
Output is faded or dull colored ...........................................................................................51
Colors are printing as black and white ...............................................................................52
Wrong colors are printing ..................................................................................................52
Printout shows bleeding colors ..........................................................................................52
Colors do not line up correctly ...........................................................................................53
Streaks or lines in printouts ...............................................................................................53
Advanced ink cartridge maintenance ......................................................................................54
Clean the ink cartridge contacts ........................................................................................54
Clean the area around the ink nozzles ..............................................................................55
Replace the ink service module .........................................................................................57
Solve paper-feed problems .....................................................................................................57
Media is not supported for the printer ................................................................................57
Media is not picked up .......................................................................................................58
Media is not coming out correctly ......................................................................................58
Pages are skewing ............................................................................................................58
Multiple pages are being picked up ...................................................................................58
Troubleshoot installation issues ..............................................................................................58
Hardware installation suggestions .....................................................................................58
Software installation suggestions ......................................................................................59
Problems setting up Bluetooth wireless communication ...................................................60
Check the Bluetooth settings .......................................................................................60
Check the Bluetooth wireless signal ............................................................................60
Understand the printer information pages ...............................................................................60
Print printer information pages from the control panel .......................................................61
Print printer information pages from the software ..............................................................61
Clear jams ................................................................................................................................62
Clear a jam in the printer ...................................................................................................62
Tips for avoiding jams ........................................................................................................63
Control panel lights reference ..................................................................................................64
A Technical information
Warranty information ...............................................................................................................69
Hewlett-Packard limited warranty statement .....................................................................70
Ink cartridge warranty information .....................................................................................71
3
Printer specifications ...............................................................................................................72
Physical specifications .......................................................................................................72
Printer features and capacities ..........................................................................................72
Processor and memory specifications ...............................................................................72
System requirements .........................................................................................................72
Memory device specifications ............................................................................................73
Mobile phone printing information .....................................................................................73
Media specifications ..........................................................................................................74
Understand specifications for supported media ..........................................................74
Set minimum margins ..................................................................................................76
Guidelines for two-sided (duplex) printing ...................................................................76
Print resolution ...................................................................................................................77
Operating environment ......................................................................................................77
Electrical requirements ......................................................................................................77
Acoustic emission specification .........................................................................................77
Regulatory information ............................................................................................................78
Regulatory model number .................................................................................................78
FCC statement ...................................................................................................................79
Notice to users in Korea ....................................................................................................79
VCCI (Class B) compliance statement for users in Japan .................................................79
Notice to users in Japan about the power cord .................................................................80
Noise emission statement for Germany ............................................................................80
LED indicator statement ....................................................................................................80
Gloss of housing of peripheral devices for Germany .........................................................80
Regulatory information for wireless products ....................................................................80
Exposure to radio frequency radiation .........................................................................80
Notice to users in Brazil ...............................................................................................81
Notice to users in Canada ...........................................................................................81
Notice to users in Taiwan ............................................................................................81
European Union Regulatory Notice ...................................................................................81
Environmental product stewardship program ..........................................................................83
Paper use ..........................................................................................................................83
Plastics ..............................................................................................................................83
Material safety data sheets ................................................................................................83
Recycling program .............................................................................................................83
HP inkjet supplies recycling program ................................................................................83
Disposal of waste equipment by users in private households in the European Union ......84
Power consumption ...........................................................................................................85
Chemical Substances ........................................................................................................85
Battery information .............................................................................................................85

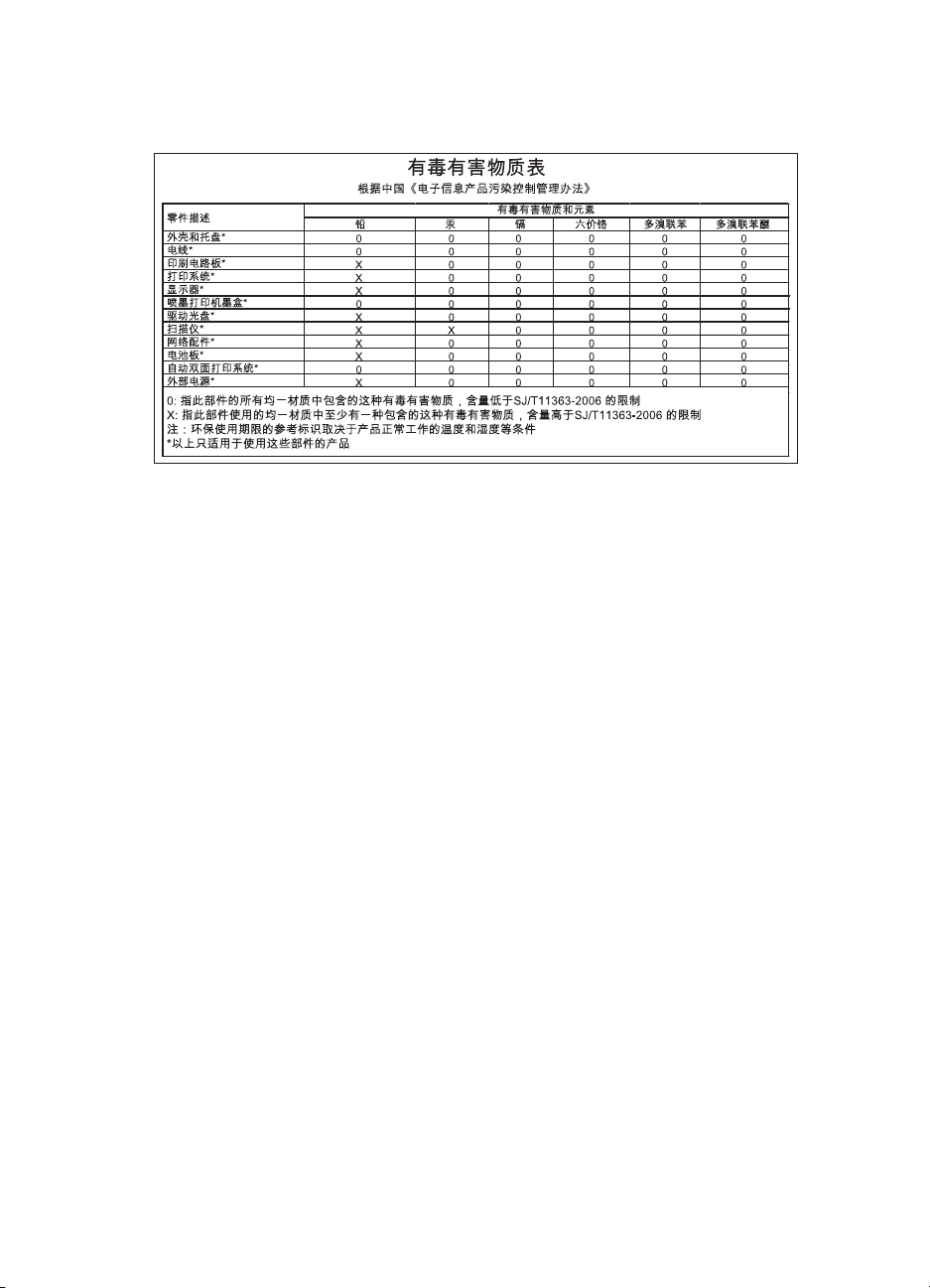

RoHS notices (China only) ................................................................................................86
Third-party licenses .................................................................................................................87
HP Officejet 100 (L411) Mobile Printer ..............................................................................87
B HP supplies and accessories
Order printing supplies online ..................................................................................................91
Accessories .............................................................................................................................91
Supplies ...................................................................................................................................91
Ink cartridges .....................................................................................................................91
HP media ...........................................................................................................................92
4
Contents
C Set up the printer for Bluetooth communication
Set up a Bluetooth wireless connection ...................................................................................93
Set Bluetooth security for the printer .......................................................................................93
Use a passkey to authenticate Bluetooth devices .............................................................94
Set the printer to be visible or not visible to Bluetooth devices .........................................94
To reset to factory default settings ....................................................................................94
D Printer management tools
Toolbox (Windows) ..................................................................................................................95
HP Utility (Mac OS X) ..............................................................................................................95
Toolbox software for PDAs (Microsoft Windows Mobile) .........................................................95
Uninstall and reinstall the HP software ....................................................................................95
Index............................................................................................................................................107
5
6

1 Get started

This guide provides details about how to use the printer and how to resolve problems.

Accessibility

Eco
Understand the printer parts Finding the printer model number
Select print media Load media
Install and use the battery Connect a memory device or camera
Print from mobile phones Maintain the printer
Turn off the printer
Accessibility
The printer provides a number of features that make it accessible for people with disabilities.
Visual
The HP software provided with the printer is accessible for users with visual impairments or low vision by using the operating system's accessibility options and features. The software also supports most assistive technology such as screen readers, Braille readers, and voice-to-text applications. For users who are color blind, colored buttons and tabs used in the HP software and on the printer control panel have simple text or icon labels that convey the appropriate action.
Mobility
For users with mobility impairments, the HP software functions can be executed through keyboard commands. The HP software also supports Microsoft® Windows® accessibility options such as StickyKeys, ToggleKeys, FilterKeys, and MouseKeys. The printer doors, buttons, paper trays, and paper guides can be operated by users with limited strength and reach.
Support
For more details about the accessibility of this printer and HP's commitment to product accessibility, visit HP's Web site at
For accessibility information for Mac OS X, visit the Apple Web site at accessibility.
www.hp.com/accessibility.
www.apple.com/
Eco
Hewlett-Packard is committed to providing quality products in an environmentally sound manner. Design for recycling has been incorporated into this product. For more information, see
Environmental product stewardship program.
Get started 7
Chapter 1
HP is committed to helping customers reduce their environmental footprint. HP has provided these features to help you focus on ways to assess and reduce the impact of your printing choices.
For more information about HP's environmental initiatives, visit globalcitizenship/environment/.
Manage power
To conserve electricity and extend the length of time you can use the printer while using battery power, the printer comes with the following features:
Sleep mode
Power usage is reduced while in Sleep mode. After initial setup of printer, the printer will enter Sleep mode after 10 minutes of inactivity. The time to Sleep mode cannot be changed.
Auto-Off
When Auto Power-Off is enabled, the printer will automatically turn off when the printer is using battery power and has been inactive for the configured period of time. You can change the Auto-Off setting from the HP printer software. Once you change the setting, the printer will maintain the setting that you choose.
Windows: Open Toolbox. (For more information, see
the Services tab, click Power Settings, and then select the preferred amount of time.
Mac OS X: Open HP Utility. (For more information, see
In the Printer Settings section, click Power Management, and then select the preferred amount of time.
In addition, try the following:
Turn off Bluetooth when not in use. To turn off Bluetooth, press the button on the printer’s control panel.
To maximize battery life and capacity, be sure to charge, use, and store the battery in places that meet the recommended temperature guidelines. For more information about using the battery, see
Conserve printing supplies
To conserve printing supplies such as ink and paper, try the following:
Change the print mode to a draft setting. Draft setting uses less ink.
Do not clean the ink cartridges unnecessarily. This wastes ink and shortens the life of the cartridges.
Reduce paper usage by printing on both sides of the paper. For more information,
Print on both sides (duplexing).
see
Install and use the battery.
www.hp.com/hpinfo/
Toolbox (Windows).) In
HP Utility (Mac OS X).)
(Bluetooth)

Understand the printer parts

Front view
Back and side view
Printing supplies area Control Panel
Bottom view
8 Get started

Front view

1 Media width guide – Adjusts to accommodate different media sizes.
2 Input tray – Holds the media. Remove media and close this tray when the printer is not
in use.
NOTE: If you are loading larger-size media, pull to extend the tray.
3 Narrow media guide – When sliding the media width guide to the right and against
narrow or small media, this guide automatically slides to the left slightly.
4 Front access cover – Provides access to the ink cartridges and for clearing paper jams.
This cover must be closed before printing can begin.
5 Output slot – Media exits the printer here.
6 Output door – Covers the output slot when the printer is not in use. Drops open
automatically when printer is turned on.

Back and side view

Understand the printer parts 9
Chapter 1
1 PictBridge/USB Host Port – Connects a PictBridge device, such as a digital camera or a
USB Flash drive.
2 Battery contact cover – Covers the battery contacts when the optional battery is not
installed.
3 USB port – Connect a USB cable here.
4 Battery slot – Install optional battery here.
5 Power connector – Connect the power cord here.

Printing supplies area

2
1
1 Front access cover – Provides access to the ink cartridges and for clearing paper jams.
2 Print cartridge latches – Lift these latches for easy removal and insertion of print
3 Print cartridge cradle compartments – Holds the print cartridges.

Control Panel

3
This cover must be closed before printing can begin.
cartridges.
10 Get started
1 Battery status light – Indicates battery status:
Red – Battery less than 10% charged
Amber – Battery 10% to 40% charged
Green – Battery 41% to 100% charged
Not lit if optional battery is not installed or detected.
2 Battery charging light – Lights up in amber when the battery is charging. Lights up
3 Left ink cartridge light – Blinks when the left ink cartridge is absent or functioning
4 Right ink cartridge light – Blinks when the right ink cartridge is absent or functioning
5
6
7
8
in red if the battery is faulty.
incorrectly. Turns on solid when the ink is low.
incorrectly. Turns on solid when the ink is low.
Bluetooth button and light – Turns Bluetooth device on or off. Lights up blue
when Bluetooth is turned on.
(Cancel button) – Cancels the current print job. Cancel time depends on the size
of the print job. Press this button only once to cancel a queued print job.
Resume button and light – Resumes a print job that is waiting or has been
interrupted (for example, when adding print media to the printer).
Lights up in amber when a print job is waiting, and blinks or turns on to show status or a need for intervention.
Power button and light – Turns the printer off or on.
Lights up in white when the printer is turned on, and blinks during printing, startup, shutdown, or other activity. This light also pulses when the printer is in sleep mode.

Bottom view

1 Cover of replaceable ink service module – Provides access to the ink service module.
2 Card holder – Holds a name card or business card.
(See Replace the ink service module.)
Understand the printer parts 11
Chapter 1

Finding the printer model number

In addition to the model name that appears on the front of the printer, this printer has a specific model number. You can use this number when obtaining support and to help determine which supplies or accessories are available for your printer.
The model number is printed on a label located inside the printer, near the ink cartridges area.

Select print media

The printer is designed to work well with most types of office media. It is best to test a variety of print media types before buying large quantities. Use HP media for optimum print quality. Visit the HP Web site at media.
HP recommends plain papers with the ColorLok logo for printing and copying of everyday documents. All papers with the ColorLok logo are independently tested to meet high standards of reliability and print quality, and produce documents with crisp, vivid color, bolder blacks and dry faster than ordinary plain papers. Look for papers with the ColorLok logo in a variety of weights and sizes from major paper manufacturers.
www.hp.com for more information about HP
This section contains the following topics:

Recommended papers for printing and copying

Recommended papers for photo printing
Tips for selecting and using media
Recommended papers for printing and copying
If you want the best print quality, HP recommends using HP papers that are specifically designed for the type of project you are printing.
Depending on your country/region, some of these papers might not be available.
HP Brochure Paper
HP Superior Inkjet Paper
HP Bright White Inkjet Paper
HP Printing Paper HP Printing Paper is a high-quality multifunction paper. It produces
These papers are glossy-coated or matte-coated on both sides for two-sided use. They are the perfect choice for near-photographic reproductions and business graphics for report covers, special presentations, brochures, mailers, and calendars.
HP Bright White Inkjet Paper delivers high-contrast colors and sharp text. It is opaque enough for two-sided color usage with no show­through, which makes it ideal for newsletters, reports, and flyers. It features ColorLok Technology for less smearing, bolder blacks and vivid colors.
documents that look and feel more substantial than documents printed on standard multipurpose or copy paper. It features ColorLok Technology for less smearing, bolder blacks and vivid colors. It is acid-free for longer lasting documents.
12 Get started
(continued)
HP Office Paper HP Office Paper is a high-quality multifunction paper. It is suitable for
HP Office Recycled Paper
HP Premium Presentation Paper
HP Professional Paper
HP Advanced Photo Paper
HP Everyday Photo Paper
HP Iron-On Transfers HP Iron-on Transfers (for color fabrics or for light or white fabrics) are
copies, drafts, memos and other everyday documents. It features ColorLok Technology for less smearing, bolder blacks and vivid colors. It is acid-free for longer lasting documents
HP Office Recycled Paper is a high-quality multifunction paper made with 30% recycled fiber. It features ColorLok Technology for less smearing, bolder blacks and vivid colors. It is acid-free for longer lasting documents.
These papers are heavy two-sided matte papers perfect for presentation, proposals, reports and newsletters. They are heavyweight for an impressive look and feel.
This thick photo paper features an instant-dry finish for easy handling without smudging. It resists water, smears, fingerprints, and humidity. Your prints have a look and feel comparable to a store processed photo. It is available in several sizes, including A4, 8.5 x 11 inch, 10 x 15 cm (4 x 6 inch), 13x18 cm (5 x 7 inch) and two finishes – glossy or soft gloss (satin matte). It is acid-free for longer lasting documents.
Print colorful, everyday snapshots at a low cost, using paper designed for casual photo printing. This affordable, photo paper dries quickly for easy handling. Get sharp, crisp images when you use this paper with any inkjet printer. Available in semi-gloss finish in 8.5 x 11 inch, A4, 4 x 6 inch and 10 x 15 cm. It is acid-free for longer lasting documents.
the ideal solution for creating custom T-shirts from your digital photos.
To order HP papers and other supplies, go to www.hp.com/buy/supplies. If prompted, select your country/region, follow the prompts to select your printer, and then click one of the shopping links on the page.
NOTE: At this time, some portions of the HP Web site are available in English only.

Recommended papers for photo printing

If you want the best print quality, HP recommends using HP papers that are specifically designed for the type of project you are printing.
Depending on your country/region, some of these papers might not be available.
HP Advanced Photo Paper
This thick photo paper features an instant-dry finish for easy handling without smudging. It resists water, smears, fingerprints, and humidity. Your prints have a look and feel comparable to a store processed photo. It is available in several sizes, including A4, 8.5 x 11 inch, 10 x 15 cm (4 x 6 inch), 13 x 18 cm (5 x 7 inch) and two finishes – glossy or soft gloss (satin matte). It is acid-free for longer lasting documents.
HP Everyday Photo Paper
Print colorful, everyday snapshots at a low cost, using paper designed for casual photo printing. This affordable, photo paper dries quickly for easy handling. Get sharp, crisp images when you use this paper with any inkjet printer. Available in semi-gloss finish in
Select print media 13
Chapter 1
8.5 x 11 inch, A4, 4 x 6 inch and 10 x 15 cm. It is acid-free for longer lasting
documents.
HP Photo Value Packs
HP Photo Value Packs conveniently package Original HP ink cartridges and HP Advanced Photo Paper to save you time and take the guesswork out of printing affordable professional photos with your HP printer. Original HP inks and HP Advanced Photo Paper have been designed to work together so your photos are long lasting and vivid, print after print. Great for printing out an entire vacation’s worth of photos or multiple prints to share.
To order HP papers and other supplies, go to select your country/region, follow the prompts to select your printer, and then click one of the shopping links on the page.
NOTE: At this time, some portions of the HP Web site are available in English only.

Tips for selecting and using media

For the best results, observe the following guidelines.
Always use media that conforms to the printer specifications. For more information,
Media specifications.
see
Load only one type of media at a time into a tray.
When loading the tray, make sure the media is loaded correctly. For more information, see
Do not overload the tray. For more information, see
To prevent jams, poor print quality, and other printing problems, avoid loading the following media in the tray:
Multipart forms Media that is damaged, curled, or wrinkled Media with cutouts or perforations Media that is heavily textured, embossed, or does not accept ink well Media that is too lightweight or stretches easily Media that contains staples or clips
Load media.
www.hp.com/buy/supplies. If prompted,
Media specifications.

Load media

This section provides instructions for loading media into the printer.
CAUTION: Use only media that is supported by the printer. For more information, see
This section contains the following topics:
Load standard-size media
Load envelopes
Load cards and photo paper
Load custom-size media
14 Get started
Media specifications.

Load standard-size media

To load media
Use these instructions to load standard media.
1. Lift the input tray.
2. Slide the paper width guide out as far as possible.
NOTE: If you are loading larger-sized media, pull the input tray to extend it.
3. Insert the plain paper print-side up and align it squarely against the paper guide.
4. Adjust the paper width guide so it fits snugly against the sides of the paper.

Load envelopes

To load envelopes
Use these instructions to load an envelope
1. Lift the input tray.
2. Slide the paper width guide out as far as possible.
NOTE: Do not load paper while the printer is printing.
NOTE: If you are loading larger-sized envelopes, pull the input tray to extend
it.
Load media 15
Chapter 1
3. Load envelopes according to the graphic in the tray.
NOTE: Do not load envelopes while the printer is printing.
4. Adjust the width guide so it fits snugly against the sides of the envelope.

Load cards and photo paper

To load cards and photo paper
Use these instructions to load photo paper.
1. Lift the input tray.
2. Slide the paper width guide out as far as possible.
NOTE: If you are loading larger-sized media, pull the input tray to extend it.
3. Insert the media print-side up and align it squarely against the paper guide. If the
photo paper has a tab along one edge, make sure the tab is pointing up.
NOTE: Do not load paper while the printer is printing.
4. Adjust the paper width guide so it fits snugly against the sides of the paper.

Load custom-size media

To load cards and photo paper
Use these instructions to load custom-size media.
CAUTION: Use only custom-size media that is supported by the printer. For more information, see
Media specifications.
16 Get started
1. Lift the input tray.
2. Slide the paper width guide out as far as possible.
NOTE: If you are loading larger-sized media, pull the input tray to extend it.
3. Insert the media print-side up and align it squarely against the paper guide.
NOTE: Do not load paper while the printer is printing.
4. Adjust the paper width guide so it fits snugly against the sides of the paper.

Install and use the battery

The lithium-ion rechargeable battery comes with the HP Officejet 100 Mobile Printer in some countries/regions and is available for purchase as an optional accessory in other countries/regions. For more information, see
This section contains the following topics:

Battery safety

Understand the battery Charge and use the battery
Battery safety
Use only the battery designed specifically for the printer. For more information, see HP supplies and accessories and Printer specifications.
When discarding a battery, contact your local waste disposal provider regarding local restrictions on the disposal or recycling of batteries. Though the lithium-ion rechargeable battery is mercury-free, it might require recycling or proper disposal at end-of-life. For more information, see
The battery might explode if incorrectly replaced or disposed of in fire. Do not short­circuit the battery.
To purchase a replacement battery, contact your local dealer or HP sales office. For more information, see
To avoid risk of fire, burns, or damage to the battery, do not allow a metal object to touch the battery contacts.
Do not disassemble the battery. The battery has no serviceable parts inside.
Handle a damaged or leaking battery with extreme care. If you come in contact with the electrolyte, wash the exposed area with soap and water. If it contacts the eye, flush the eye with water for 15 minutes and seek medical attention.
Do not charge, store, or use the battery in places where the temperature exceeds the limits specified in
HP supplies and accessories.
Operating environment.
HP supplies and accessories.
Recycling program.
Important notes
Take note of the following when charging or using the battery:
Charge the battery for 4 hours before using the battery for the first time. For subsequent charges, it takes approximately 3 hours to fully charge the battery.
The battery charge light is amber when the battery is charging. If it is red, the battery might be faulty and need to be replaced.
Install and use the battery 17
Chapter 1
The battery status light is green when the battery is 41-100% charged, amber when 10-40% charged, red when less than 10% charged, and blinks red when less than 2% charged. Charge the battery when the battery status light turns amber. If it turns red, charge the battery as soon as possible. The battery status is also displayed in Toolbox (Windows) and HP Utility (Mac OS X). If you are using a Microsoft Windows Mobile® device, you can use the Toolbox software for PDAs. For more information, see
If the battery is running low, either plug in the AC adapter to charge it or replace the battery with one that is charged.
A fully charged battery can print up to approximately 500 pages, depending on the complexity of print jobs.
By default, the printer turns itself off to conserve the battery if left idle for 15 minutes on battery power. You can configure this feature in Toolbox (Windows), HP Utility (Mac OS X), or the Toolbox software for PDAs (Windows Mobile). For more information, see
Prior to long-term storage, fully charge the battery. Do not leave the battery in a discharged (empty) state for more than 6 months.
To maximize battery life and capacity, charge, store, and use the battery in places that meet the guidelines specified in

Understand the battery

Printer management tools.
Printer management tools.
Operating environment.
1 Battery – Supplies power to the printer.
2 Battery release slider – Slides to release the battery.

Charge and use the battery

WARNING! Charge the battery for 4 hours before using the battery for the first
time. Because the battery is normally warm while it is charging, do not charge it in a briefcase or other confined space as this might cause the battery to overheat.
NOTE: The AC adapter is normally warm to the touch when plugged into an AC outlet.
NOTE: Bluetooth printing uses more battery power than wired printing. For information on checking the battery charge level, see
To install the battery
NOTE: You can install the battery with the printer turned on or off.
18 Get started
Install and use the battery.
1. Slide the battery into the battery slot at an angle, until the contacts on the battery
are flush with the contacts in the battery slot. The battery contact cover slides open.
2. Push the battery into the battery slot until the battery clicks into place.
3. Plug in the AC adapter and turn on the printer. Allow the battery to charge for four
hours before using the battery for the first time.
NOTE: After the first charge, the battery charge light is green when the battery is charging, and turns off when the battery is fully charged.
4. After the battery is fully charged, you can use the printer without connecting to the
AC power supply.
To remove the battery
Follow these instructions to remove the battery.
1. Slide the battery release slider in the direction of the arrow.
2. Remove the battery.
Install and use the battery 19
Chapter 1

Connect a memory device or camera

Using the USB port on the back of the printer, you can connect a USB storage device. You can also connect and print photos from a PictBridge-compatible camera. You can also transfer files from the storage device to your computer.
For more information about supported memory devices, see specifications.
This section covers the following topics:
To connect a storage device To connect a PictBridge-compatible camera

To transfer photos to your computer

To connect a storage device

Insert the USB storage device into the USB port on the back of the printer.
NOTE: If your USB device does not fit into this port due to size limitations, or if the connector on the device is shorter than 11 mm (0.43 in), you will need to purchase a USB extension cable in order to use your device with this port. For more information on supported USB devices, see

To connect a PictBridge-compatible camera

The printer supports standard PictBridge-compliant features. See your digital camera documentation for more information about using its PictBridge features.
1. Connect the camera to the printer with the USB cable provided with the camera. The printer and camera compare features, and the compatible features are displayed on the camera.
2. Navigate through the camera menus to execute the desired photo-printing features.
Memory device specifications.
Memory device
To transfer photos to your computer
NOTE: The printer driver lets your computer read memory devices inserted into
the printer as physical disk drives when you are connected with a USB cable. You can then access your photo files and print them with the software of your choice.
1. Insert the memory device into the USB port on the back of the printer.
2. Press
connected to the printer with a USB cable, the card then appears as a drive in Windows Explorer or on the Mac OS X desktop. You can then transfer the photo files to another drive on the computer or open and print your photographs with the software application of your choice.
(Cancel button) to cancel direct printing from the card. If your computer is

Print from mobile phones

If you have a mobile phone that supports Bluetooth, you can purchase software that allows you to print documents and photos from your phone.
20 Get started
NOTE: If you are using a mobile phone running Windows Mobile, you can use the HP software CD to install the printing software.
For a list of mobile phones and printing software, as well as information about obtaining the software, see
Mobile phone printing information.

Maintain the printer

The printer does not require scheduled maintenance, except for replacing the ink service module. For more information, see attempt, however, to keep the printer free of dust and debris. This cleaning keeps the printer in peak condition and might also make the diagnosis of problems easier.
WARNING! Turn off the printer and unplug the power cord before cleaning the printer. If using the optional battery, turn off the printer, unplug the power cord and remove the battery before cleaning.
This section covers the following topics:

Clean the printer

Clean the printer
When you clean the printer, follow these guidelines:
Clean the outside of the printer with a soft cloth moistened with mild detergent and water.
NOTE: Clean the printer only with water or water mixed with a mild detergent. Using other cleaners or alcohol can damage the printer.
Replace the ink service module. You should
Clean the inside of the front access cover with a dry, lint-free cloth.
CAUTION: Be careful not to touch the rollers. Skin oils on the rollers can cause print quality problems.

Turn off the printer

Turn off the printer by pressing the (Power) button located on the printer. Wait until the power light turns off before unplugging the power cord or turning off a power strip. If you turn the printer off incorrectly, the print carriage might not return to the correct position causing problems with the ink cartridges and print quality issues.
Turn off the printer 21
Chapter 1
22 Get started
2Print
Most print settings are automatically handled by the software application. Change the settings manually only when you want to change print quality, print on specific types of paper, or use special features. For more information about selecting the best print media for your documents, see
This section contains the following topics:
Print documents Print brochures
Print on envelopes
Print photos Print on special and custom-size paper
Print borderless documents Print on both sides (duplexing)

Print documents

NOTE: With certain types of paper, you can print on both sides of a sheet of paper
(called "two-sided printing" or "duplex printing"). For more information, see both sides (duplexing).
Follow the instructions for your operating system.

Print documents (Windows)

Print documents (Mac OS X)
Media specifications .
Print on
Print documents (Windows)
1. Load paper in the tray. For more information, see Load media.
2. On the File menu in the software application, click Print.
3. Select the printer you want to print to.
4. To change settings, click the button that opens the Properties dialog box. Depending on the software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Click a type of print task in the Printing Shortcuts list. The preset default settings
for the shortcuts are displayed.
6. If you change any settings on the Printing Shortcuts tab, you can save your custom settings as a new printing shortcut:
a. Select the shortcut, and then click Save As. b. To delete a shortcut, select the shortcut, and then click Delete.
TIP: You can change more options for the print job by using the features
available on the other tabs in the dialog box.
7. Click OK.
8. Click Print or OK to begin printing.

Print 23

Chapter 2

Print documents (Mac OS X)

1. Load paper in the tray. For more information, see Load media.
2. From the File menu in the software application, click Print.
3. Make sure the printer you want to use is selected.
4. Change the print settings for the option provided in the pop-up menus, as
appropriate for your project.
NOTE: Click the blue disclosure triangle next to the Printer selection to access these options.
5. Click Print to begin printing.

Print brochures

Follow the instructions for your operating system.

Print brochures (Windows)

Print brochures (Mac OS X)

Print brochures (Windows)
NOTE: To set print settings for all print jobs, make the changes in the HP software
provided with the printer. For more information on the HP software, see management tools.
1. Load paper in the tray. For more information, see Load media.
2. On the File menu in the software application, click Print.
3. Select the printer you want to use.
4. To change settings, click the button that opens the Properties dialog box. Depending on the software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. Select a borderless size from the Size drop-down menu. Select a brochure type from the Paper Type drop-down menu.
6. Change any other print settings.
Printer
TIP: You can change more options for the print job by using the features available on the other tabs in the dialog box.
7. Click Print to begin printing.
Print brochures (Mac OS X)
1. Load paper in the tray. For more information, see Load media.
2. From the File menu in the software application, click Print.
3. Make sure the printer you want to use is selected.
24 Print
4. Select Paper Type/Quality or Printer Features from the pop-up menu (located
below the Orientation setting), and then select the following settings:
Paper Type: the appropriate brochure paper type
Quality:Normal or Best
NOTE: Click the blue disclosure triangle next to the Printer selection to access these options.
5. Select any other print settings that you want, and then click Print to begin printing.

Print on envelopes

When selecting envelopes, avoid envelopes that have a very slick finish, self-stick adhesives, clasps, or windows. Also, avoid envelopes with thick, irregular, or curled edges, or areas that are wrinkled, torn, or otherwise damaged.
Make sure the envelopes you load in the printer are tightly constructed and that the folds are sharply creased.
NOTE: For more information about printing on envelopes, see the documentation available with the software program you are using.
Follow the instructions for your operating system.

Print on envelopes (Windows)

Print on envelopes (Mac OS X)

Print on envelopes (Windows)
1. Load envelopes in the tray. For more information, see Load media.
2. On the File menu in the software application, click Print.
3. Select the printer you want to print to.
4. To change settings, click the button that opens the Properties dialog box. Depending on the software application, this button might be called Properties,
Options, Printer Setup, Printer, or Preferences.
5. On the Features tab, change the orientation to Landscape.
6. In the Basic Options area, from the Size drop-down list, select More. Then, select
the appropriate envelope type.
TIP: You can change more options for the print job by using the features available on the other tabs in the dialog box.
7. Click OK, and then click Print or OK to begin printing.
Print on envelopes (Mac OS X)
1. Load envelopes in the tray. For more information, see Load media.
2. From the File menu in the software application, click Print.
3. Make sure the printer you want to use is selected.
Print on envelopes 25
Chapter 2
4. Select the appropriate envelope size in the Paper Size pop-up menu.
NOTE: Click the blue disclosure triangle next to the Printer selection to
access these options.
5. Select the appropriate Orientation option for the type of envelope you are using.
6. Select any other print settings that you want, and then click Print to begin printing.

Print photos

Do not leave unused photo paper in the input tray. The paper might start to curl, which could reduce the quality of the printout. Photo paper should be flat before printing.
Follow the instructions for your operating system.

Print photos on photo paper (Windows)

• Print photos on photo paper (Mac OS X)
Print photos on photo paper (Windows)
1. Load paper in the tray. For more information, see Load media.
2. On the File menu in the software application, click Print.
3. Select the printer you want to use.
4. To change settings, click the button that opens the Properties dialog box. Depending on the software application, this button might be called Properties, Options, Printer Setup, Printer, or Preferences.
5. If you want to print the photo in black and white, click the Features tab, and then select Print in Grayscale from the Color options.
6. Click OK, and then click Print or OK to begin printing.

Print photos on photo paper (Mac OS X)

1. Load paper in the tray. For more information, see Load media.
2. From the File menu in the software application, click Print.
3. Make sure the printer you want to use is selected.
4. Select Paper Type/Quality or Printer Features from the pop-up menu (located
below the Orientation setting), and then select the Paper Type and Quality settings you want to use.
NOTE: Click the blue disclosure triangle next to the Printer selection to access these options.
5. If necessary, click the disclosure triangle next to Color Options. Select any other print settings that you want, and then click Print to begin printing.
6. To automatically fix the image by automatically focusing the image and moderately adjusting image sharpness, use Photo Fix. To access Photo Fix, select Basic from the Photo Fix pop-up menu.
-Or­Select HP Real Life Technologies from the Feature Sets pop-up menu, and then
select Basic from the Photo Fix pop-up menu
26 Print
