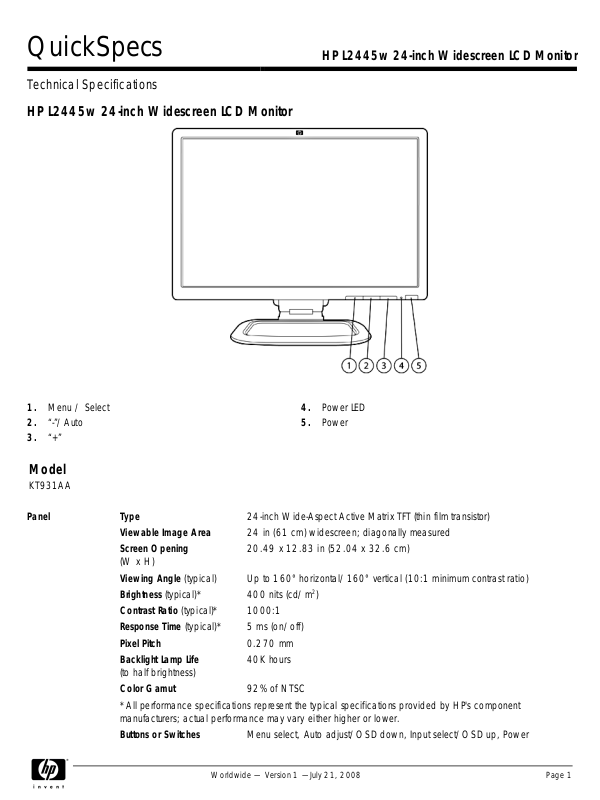

HP L2445w 24-inch Widescreen LCD Monitor
HP L2445w 24-inch Widescreen LCD
1. Menu / Select 4. Power LED
2. “-”/Auto 5. Power
3. “+”
Model
KT931AA
Panel
Type 24-inch Wide-Aspect Active Matrix TFT (thin film transistor) Viewable Image Area 24 in (61 cm) widescreen; diagonally measured Screen Opening
(W x H)
Viewing Angle (typical) Up to 160° horizontal/160° vertical (10:1 minimum contrast ratio) Brightness (typical)* 400 nits (cd/m2) Contrast Ratio (typical)* 1000:1 Response Time (typical)* 5 ms (on/off) Pixel Pitch 0.270 mm Backlight Lamp Life
(to half brightness) Color Gamut 92% of NTSC *All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower. Buttons or Switches Menu select, Auto adjust/OSD down, Input select/OSD up, Power
20.49 x 12.83 in (52.04 x 32.6 cm)
40K hours
QuickSpecs
Monitor
Technical Specifications
On Screen Display (OSD) Controls
Signal Interface/ Performance
Video/Other Inputs
Power
Buttons or Switches Menu select, Auto adjust/OSD down, Input select/OSD up, Power Languages English, French, German, Spanish, Italian, Netherlands, Japanese, S.
User Controls Brightness, contrast, positioning, color temperature (6500k, 9300k,
Horizontal Frequency 24 to 83 kHz (VGA input); 24 to 83 KHz (DVI input for modes with pixel
Vertical Frequency 50 to 76 Hz (VGA input); 50 to 76 Hz (DVI input for modes with pixel
Native Resolution 1920 x 1200 @ 60 Hz (WUXGA), 16.7 Million pixels Preset VESA Graphic Modes
(non-interlaced)
Text Mode 720 x 400 @ 70 Hz Mac Mode 1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz Maximum Pixel Clock Speed 200 MHz (analog input); 165 MHz (DVI input) User Programmable Modes Yes, 17 Anti-Glare Yes Anti-Static Yes Default Color Temperature 6500 K Plug and Play Yes Self Powered USB 2.0 Hub One upstream, four downstream ports (cable included) Input Signal VGA and DVI-D connectors; HDCP support Input Impedance 75 ohms ± 10% Sync Input TTL separate synch Video Cable one DVI-D to DVI-D and one 15-pin D-sub (VGA) Video Cable Lengths VGA 5.9 ft (1.8 m),
Input Power Auto-Sensing, 100 to 240 VAC, 50 +/-3 Hz to 60 +/-3 Hz) Frequency 47.5 to 63 Hz Typical Power Consumption 85 watts (without speaker/with 25% USB) Maximum 120 watts Power Saving < 2 watts standby; <1 watt off Power Cable Length 6.2 ft (1.9 m)
HP L2445w 24-inch Widescreen LCD
Chinese, and Brazilian Portuguese
custom), individual color control, serial number, display, clock, clock phase, monitor management (power saver, sleep), factory reset
clock less than 165 MHz)
clock less than 165 MHz)
1920 x 1200 @ 60 Hz 1680 x 1050 @ 60 Hz 1600 x 1000 @ 60 Hz 1440 x 900 @ 60 Hz 1280 x 1024 @ 60 Hz and 75 Hz 1280 x 960 @ 60 Hz 1024 x 768 @ 60 Hz and 75 Hz 800 x 600 @ 60 Hz and 75 Hz 640 x 480 @ 60 Hz and 75 Hz
DVI-D 6.6 ft (2.0 m)
QuickSpecs
Monitor
ENERGY
The monitor meets the ergonomic requirement of EN
-
ISO 13406
-
2 for flat
HP L2445w 24-inch Widescreen LCD
Technical Specifications
Mechanical
Environmental
Dimensions (H x W x D)
Weight
Tilt Range -5° to + 35° vertical Swivel Range -45° to + 45° Height Adjustable Yes, range 5.12 in (13.0 cm) Pivot Rotation Yes, 90° to portrait Base Attachable, ships attached Temperature - Operating 41° to 95° F (5° to 40° C) Temperature - Non-operating -29° to 140° F (-20° to 60° C) Humidity - Operating 20% to 80% non-condensing Humidity - Non-operating 5% to 95%, 38.7° C max wet-bulb Altitude - Operating +12,000 ft (3,658 m) Altitude - Non-operating +40,000 ft (12,192 m)
Energy Consumption
(in accordance with STAR® test method)
Normal Operation 46.33 watts 46.53 watts 47.10 watts Sleep 1.02 watts 1.05 watts 1.22 watts Off 0.64 watts 0.65 watts 0.82 watts
Heat Dissipation* AC Input Voltage at 100
Normal Operation 158.19 BTU/hr 158.87 BTU/hr 160.82 BTU/hr Sleep 3.48 BTU/hr 3.59 BTU/hr 4.17 BTU/hr Off 2.19 BTU/hr 2.22 BTU/hr 2.80 BTU/hr *NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
Longevity and Upgrading Upgradeability features contained in the product include:
Ergonomics
Unpacked w/stand 15.6 to 20.74 x 22.26 x 11.85 in
(39.66 to 52.68 x 56.55 x 30.1 cm)
Unpacked w/o stand (head only)
Packaged 18.3 x 26.18 x 11.22 in
Head Only 13.9 lb (6.3 kg) Unpacked 21.8 lb (9.88 kg) Packaged 28.22 lb (12.8 kg)
AC Input Voltage at 100 VAC +/- 5 VAC, 50 Hz +/- 3 Hz
VAC +/- 5 VAC, 50 Hz +/- 3 Hz
One upstream and four downstream USB ports
14.61 x 22.26 x 3.26 in (37.11 x 56.55 x 8.3 cm)
(46.5 x 66.5 x 28.5 cm)
AC Input Voltage at 115 VAC +/- 5 VAC, 60 Hz +/- 3 Hz
AC Input Voltage at 115 VAC +/- 5 VAC, 60 Hz +/- 3 Hz
AC Input Voltage at 230 VAC +/- 5 VAC, 50 Hz +/- 3 Hz
AC Input Voltage at 230 VAC +/- 5 VAC, 50 Hz +/- 3 Hz
QuickSpecs
Monitor
finishes must not be used on the external surface designed to be
HP L2445w 24-inch Widescreen LCD
Technical Specifications
panel displays.
Additional Information This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) Directive, 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive, 2002/96/EC.
Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
Display meets the requirement for low frequency electromagnetic fields per TCO, and prEN50279 A/B/C.
This product contains 0% recycled materials (by wt.)
This product is 95% recyclable when properly disposed of at end of life.
Packaging Materials
Corrugated Carton 0.765 kg HDPE Bag 0.03 kg Polystyrene 0.216 kg
Material Usage This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_sp ecifications.html
Asbestos Certain Azo Colorants Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium Chlorinated Hydrocarbons Chlorinated Paraffins Formaldehyde Halogenated Diphenyl Methanes Lead carbonates and sulfates Lead and Lead compounds Mercuric Oxide Batteries Nickel –
frequently handled or carried by the user.
Ozone Depleting Substances Polybrominated Biphenyls (PBBs) Polybrominated Biphenyl Ethers (PBBEs) Polybrominated Biphenyl Oxides (PBBOs) Polychlorinated Biphenyl (PCB) Polychlorinated Terphenyls (PCT)
QuickSpecs
Monitor
support to select HP
HP L2445w 24-inch Widescreen LCD
Technical Specifications
Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail
packaging has been voluntarily removed from most applications.
Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging HP follows these guidelines to decrease the environmental impact of
product packaging: Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly. Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
End-of-life Management and
Recycling
Hewlett-Packard Corporate
Environmental Information
Options
1
The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) depending upon the mounting configuration used. Please note this is
a total weight limit for all devices mounted, i.e. the combined weight of the monitor and a second device such an HP Compaq Thin Client cannot exceed 24 pounds. Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP recommends that you consult with a qualified engineering, architectural or construction professional to determine the appropriate type and quantity of mounting fasteners required for your application and to ensure that your mounting solution is properly installed to support applied loads.
HP Silver LCD Speaker Bar – Part number: EE418AA
HP LCD Monitor Quick Release – Part number EM870AA1
Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: www.hp.com/recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
For more information about HP’s commitment to the environment: Global Citizenship Report
www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
www.hp.com/hpinfo/globalcitizenship/environment
productdesign/ecolabels.html ISO 14001 certificates: www.hp.com/hpinfo/globalcitizenship/environment/ operations/envmanagement.html
Powered directly by the monitor or the PC, the Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio LCD monitors. Features include dual speakers with full sound range and external jack for headphones. Sold separately. For more information, refer to the HP Silver LCD Speaker Bar QuickSpecs.
An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows you to quickly and securely attach a flat panel monitor to a variety of stands, brackets, arms or wall mounts. For more information, refer to this product's QuickSpecs document.
QuickSpecs
Monitor
face (DDC/CI)
ducts and services are set forth
Technical Specifications
HP Security Lock—Part number PC766A
HP L2445w 24-inch Widescreen LCD
Combines aircraft-grade steel and Kevlar fiber to securely lock down your monitor and help prevent theft.
Other
Compatibility Compatible with platforms using the VESA standard video modes. Recommended for use with HP products.
Accessories Included Documentation kit, DVI-D to DVI-D video cable, 15-pin D-sub (VGA) video
cable, USB cable, and power cable
Software
User Guide Languages English, B. Portuguese, French, LA Spanish, Korean, S. Chinese, T. Chinese,
Warranty Languages English, Canadian French, LA Spanish, Brazilian Portuguese, Danish,
Color Carbonite VESA External Mounting Yes, standard 4 hole pattern, 100 mm Security Lock-Ready Yes, one security lock slot available
HP Display Assistant is a software utility that enables theft deterrence and allows monitor adjustment, color calibration, and security/asset management using the Display Data Channel Command Inter protocol of the connected PC.
HP Display LiteSaver allows you to schedule Sleep mode at preset times to heL protect the monitor against image retention, drastically lower power consumption and energy costs, and extend the lifespan of the monitor.
Pivot Pro software from Portrait Displays, Inc. interacts with your PC's native graphics driver to enable seamless portrait screen redraws with a simple mouse-click or keyboard command. Pivot Pro supports 90-degree portrait and landscape views. Language support is available in English, Japanese, French, German, Spanish, Italian, and Traditional and Simplified Chinese.
Bahasa, Japanese, Danish, Finnish, German, Norwegian, Spanish, Swedish, Greek, Polish, Russian, Slovenian, Turkish
German, Castilian Spanish, French, Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa Indonesian, Korean, T. Chinese, S. Chinese
Service and Warranty
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement options may include second business day on-site service, or next business day direct replacement, at HP's sole discretion.2 With direct replacement, HP will ship a replacement display product directly to you. Using the prepaid shipping labels provided, return your failed display to HP in the same packaging as the replacement. Certain restrictions and exclusions apply. For details see your product warranty or contact HP Customer Support.
