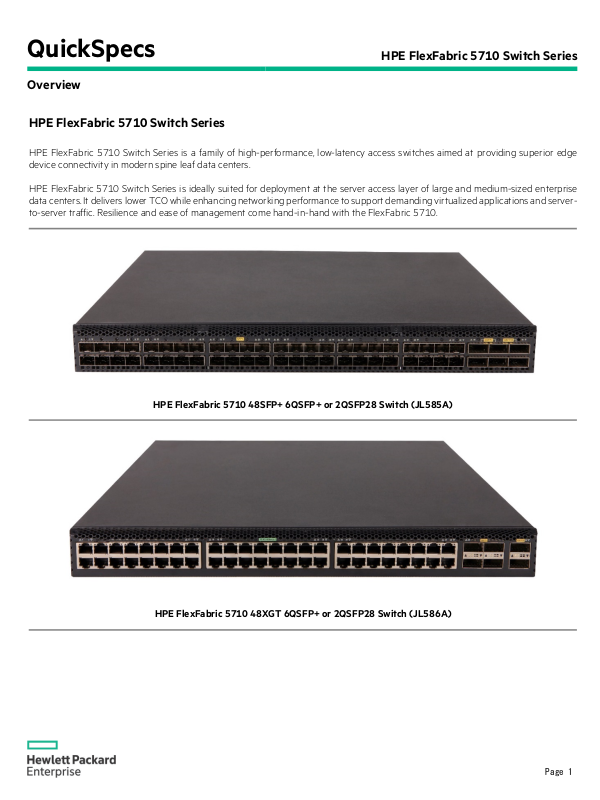

QuickSpecs
HPE FlexFabric 5710 Switch Series
Overview
1
HPE FlexFabric 5710 Switch Series
HPE FlexFabric 5710 Switch Series is a family of high
latency access switches aimed at providing superior edge
device connectivity in modern spine leaf data centers.
HPE FlexFabric 5710 Switch Series is ideally suited for deployment at t
sized enterprise
data centers. It delivers lower TCO while enhancing networking performance to support demanding virtualized applications and
-
to
HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch (JL585A)
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch (JL586A)
-performance, low-
he server access layer of large and medium-
-server traffic. Resilience and ease of management come hand-in-hand with the FlexFabric 5710.
server
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Overview
2
HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch (JL587A)
HPE FlexFabric 5710 24XGT 6QSFP+ or 2QSFP28 Switch (JL689A)
Models
HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch
JL585A
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch
JL586A
HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch
JL587A
HPE FlexFabric 5710 24XGT 6QSFP+ or 2QSFP28 Switch
JL689A
Key features
rack (ToR) switch aimed at expanding port connectivity while adding local
trol (PFC) IEEE
802.1Qbb, quantized congestion notification (QCN) IEEE 802.1Qau, enhanced transmission selection (ETS) IEEE 802.1Qaz,
and data center bridging capability exchange (DCBx) IEEE 802.1Qaz, and FCoE
• High-performance, low-latency data center top-of-
switching capacity
• HPE Intelligent Resilient Fabric (IRF) for virtualization and two-tier networks
• High 1/10GbE wirespeed ports with 40GbE and 100GbE uplinks
• Layer 2 and Layer 3 features with static routing and RIP
• Support converged applications with data center bridging (DCB) features such as priority-based flow con
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Standard Features
3
Features and benefits
Quality of Service (QoS)
Flow classification is based on DSCP field, MAC address, IP protocol type, source address, destination address, or
queue basis, including strict priority
pagation of QoS policy
and classification by the sending party based on access lists, community lists, and autonomous system paths in the
Border Gateway Protocol (BGP) thus helping to classify based on destination instead of source address.
Data center optimized
HPE FlexFabric 5710 Switch Series enables scaling of the server edge with 1GbE and 10GbE ToR deployments with high-
alone Layer 2 and
Layer 3 switches. The high server port density of the 5710 Switch is backed by 40GbE QSFP+ or 100GbE QSFP28 uplinks
ed
s for 10GbE) for very demanding enterprise
performance switching capacity and wirespeed packet
forwarding for demanding data center environments. Local switching capacity and packet forwarding enable the switch to
HPE FlexFabric 5710 physical switches
enables this switch
tier networks, which reduces cost and complexity.
bring native high stability, independent
process monitoring, and a restart. The OS also allows individual software modules to be upgraded for higher availability and
front
based flow control (PFC) IEEE 802.1Qbb, quantized congestion notification (QCN) IEEE
election (ETS) IEEE 802.1Qaz, and data center bridging capability exchange (DCBx) IEEE
port
Frame sizes of up to 10,000 bytes allow high-performance remote backup and disaster-recovery services to be enabled.
• Powerful QoS features
- Flexible classification
port number of an application.
- Feature queue scheduling
Flexible queuing and scheduling algorithms are configured on a per-port or per(SP), weighted round robin (WRR), SP+WRR, weighted fair queuing (WFQ), and SP+WFQ.
- QPPB
QoS Policy Propagation via BGP, often abbreviated to QPPB, is a mechanism that allows pro
• Versatile server connectivity
density 24- and 48-port solutions delivered in a 1RU form factor. These switches can be set up as stand-
to deliver the availability of needed bandwidth for demanding applications. Each 40GbE QSFP+ port can also be configur
as four 10GbE ports by using a 40GbE-to-10GbE splitter cable.
• High-performance switching
Cut-through and nonblocking architecture delivers low latency (1.5-2.5 μ
applications. HPE FlexFabric 5710 switches also deliver high-
participate in the network and enhance networking capacity available for servers.
• Higher scalability
HPE IRF technology simplifies the architecture of server access networks; up to 10
can be combined into one virtual switch configuration and are managed using a single IP address. HPE IRF
to deliver the unmatched scalability of virtualized switches and flatter two-
• Advanced modular operating system
Comware v7 network operating system’s modular design and multiple processes
supports enhanced serviceability functions like hitless software upgrades with In Service Software Upgrade (ISSU)
• Reversible airflow
It is enhanced for data center hot-cold aisle deployment with reversible airflow-for either front-to-back or back-toairflow.
• Redundant fans and power supplies
1+1 internal redundant and hot-pluggable power supplies and multiple fan trays enhance reliability and availability.
• Data Center Bridging (DCB) protocols
Provides support for priority-
802.1Qau, enhanced transmission s
802.1Qaz for converged applications.
• FCoE support
Provides support for Fibre Channel over Ethernet (FCoE) including Fibre Channel Forwarder (FCF), transit, and Nvirtualization (NPV)
• Jumbo frames
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Standard Features
4
Management and manageability
time session
Based Access Control (RBAC) provides multiple levels of access;
on rollback and multiple configurations on the flash provide ease of operation; remote visibility is provided with
sFlow® and Simple Network Management Protocol (SNMP) v1/v2/v3, and is fully supported in HPE Intelligent Management
Restricts access to critical configuration commands; offers multiple privilege levels with password protection; access control
In User Service (RADIUS) to link a custom list of CLI commands to an individual
and total reachability, no matter what happens
adjacent devices on a network, facilitating easy mapping by network
based wirespeed network monitoring and accounting with no impact on network performance; this
ther a variety of sophisticated network statistics and information for capacity planning and
ng to
reduce the number of log events generated
• Full-featured console
Provides a safe, easy-to-use CLI for configuring the module via SSH or a switch console; provides direct realvisibility
• Remote configuration and management
Is available through a secure CLI over Telnet and SSH; Roleconfigurati
Center (IMC)
• Management security
lists (ACLs) provide Telnet and SNMP access; local and remote syslog capabilities allow logging of access
• Command authorization
Leverages Remote Authentication Dialnetwork administrator’s login; an audit trail documents activity
• Troubleshooting
- Ingress and egress port monitoring
Enable network problem solving
- Traceroute and ping
Enable testing of network connectivity
• File copy
Allows users to copy switch files to and from a USB flash drive
• Support for multiple configuration files
• Dual flash images
Provides independent primary and secondary operating system files for backup while upgrading
• SNMPv1, v2c, and v3
Facilitate centralized discovery, monitoring, and safer management of networking devices
• Out-of-band interface
Isolates management traffic from user data plane traffic for complete isolation
in the data plane
• ISSU and hot patching
Provide hitless IRF-based software upgrades and hitless patching of the modular operating system
• Auto-configuration
Provides automatic configuration via DHCP auto-configuration, NETCONF, and Python scripting
• IPv6 over IPv4, 6to4, and ISATAP Tunnel
• RSPAN and ERSPAN
• Ethernet OAM (802.3ah) and Connectivity Fault Detection (CFD) (802.1ag)
• Symmetric load balancing for link aggregation and ECMP
• Layer 2 protocol tunneling (L2PT) support for virtual private networks (VPNs)
• Buffer monitoring
• Collaboration with VMware® controller and Nuage controller
• OVSDB QoS and OVSDB ACL
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advertises and receives management information from
management applications
• sFlow (RFC 3176)
Provides scalable ASICallows network operators to ga
real-time network monitoring purposes
• Logging
Provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filteri
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Standard Features
5
• Information center
Provides a central repository for system and network information; aggregates logs, traps, and debugging information
outputs the network information to multiple channels based
HPE IMC
Resiliency and high availability
Enables an HPE FlexFabric to deliver resilient, scalable, and secured data center network for physical and virtualized
HPE FlexFabric 5710 Switch Series in an HPE IRF configuration, allowing them to be configured
a single virtual switch with a single IP address; simplifies ToR and spine/leaf deployments and management,
without restarting the equipment, increasing network uptime and
-
Provides fast protection and recovery switching for Ethernet traffic
Layer 2 switching
Link Aggregation of up to 128 groups of 16 ports; support for Link Aggregation Control Protocol
time provides a fast, resilient environment that is ideal for the data
for IGMP snooping v1/v2/v3, Protocol Independent Multicast (PIM) snooping, Multicast Listener Discovery
82, DHCP Snooping Trust, and
DHCP Snooping Item Backup
generated by the system and maintains them in order of severity;
on user-defined rules
• Remote intelligent mirroring
Mirrors selected traffic to destination on same device or mirrors destination on different devices
• Puppet/Chef/YANG support
• Network management
centrally configures, updates, monitors, and troubleshoots
• HPE IRF technology
environment; groups up to 10
and managed as
reducing data center deployment and operating expenses
• IEEE 802.1w Rapid Convergence Spanning Tree Protocol
Increases network uptime through faster recovery from failed links
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
Provides high link availability in multiple VLAN environments by allowing Multiple Spanning Trees
• Hitless patch upgrades
Allows patches and new service features to be installed
facilitating maintenance
• Device Link Detection Protocol (DLDP)
Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP
based networks
• Smart Link and RRPP and load balancing among Smart Link multiple instances and RRPP multiple instances
• DRNI
Provides a resilient interconnect using multiple links among one or more nodes in a network
• ERPS
• ARP
Supports static, dynamic, and reverse ARP and ARP proxy
• Flow Control
IEEE 802.3x Flow Control provides intelligent congestion management via PAUSE frames
• Ethernet link aggregation
Provides IEEE 802.3ad
(LACP), LACP Local Forwarding First, and LACP Shortcenter
• Spanning Tree Protocol (STP)
STP (IEEE 802.1D), Rapid STP (RSTP, IEEE 802.1w), and Multiple STP (MSTP) (IEEE 802.1s)
• VLAN support
Provides support for 4094 VLANs based on port: VLAN mapping, Q-in-Q, and Selective Q-in-Q
• Internet Group Management Protocol (IGMP) support
Provides support
(MLD) snooping v1/v2, and IPv6 PIM snooping
• DHCP support at Layer 2
Provides full DHCP snooping support for DHCP Snooping Option 82, DHCP Relay Option
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Standard Features
6
Layer 3 services
Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection
es; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a
peration across
VXLAN L2 and L3 gateway support for up to 2K tunnels
Convergence
LLDP
Defines a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network
devices such as IP phones
Security
HPE FlexFabric 5710 Switch Series fully meets customer requirements in security design and provides a complete network security
solution. It provides the following network security features:
dress, or subnet, and source, destination TCP, or UDP port
Port security: Allows access only to specified MAC addresses, which can be learned or specified by the administrator
Packet filtering based on packet header fields from Layer 2 through Layer 4, including source MAC, destination MAC,
-
• Address Resolution Protocol (ARP)
of duplicate IP address
Layer 2 network
• Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP o
subnets
• Connectivity Fault Management (IEEE 802.1AG) and Ethernet in the First Mile (IEEE 802.3ah)
Provides additional monitoring that can be used for fast fault detection and recovery
• Virtual Extensible LAN (VXLAN)
-MED (Media Endpoint Discovery)
• ACLs
Provides IP Layer 3 filtering based on source, destination IP ad
number
• RADIUS/TACACS+
Eases switch management security administration by using a password authentication server
• Secure shell (SSH)
Encrypts transmitted data for safe remote CLI access over IP networks
• IEEE 802.1X and RADIUS network logins
Controls port-based access for authentication and accountability
• Terminal and user access control
• Hierarchical user management and password protection
• IP source guard
• Blackhole MAC address entries
• MAC learning limit
• MAC address and port number binding
• SSH 2.0
• Port isolation
- IEEE 802.1X-compliant user access authentication
-
- Local and RADIUS authentications
• Ethernet frame and upper-layer packet filtering and validity authentication:
- ACL
-
source IP (IPv4/IPv6), destination IP (IPv4/IPv6), port number, and protocol type
• Address Resolution Protocol (ARP) attack protection features such as ARP attack detection
- SNMPv3 encryption and authentication
RA guard, ND snooping and detection
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Standard Features
7
Layer 3 routing
only network design
IS, Virtual Router
Provides routing of IPv6 at media speed; supports static routing and RIPng
Warranty and support
1
See
for warranty and support information included with your product
purchase.
Software releases
T
; for details on the software releases available
with your product purchase, refer to http://www.hpe.com/networking/warrantysummary
• Equal-Cost Multipath (ECMP)
Enables multiple equal-cost links in a routing environment to increase link redundancy and scale bandwidth
• Layer 3 IPv4 routing
Provides routing of IPv4 at media speed; supports static routes, RIP, and RIPv2
• Dual IP stack
Maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-
• Bidirectional Forwarding Detection (BFD)
Enables link connectivity monitoring and reduces network convergence time for RIP, OSPF, BGP, ISRedundancy Protocol (VRRP), MPLS, and IRF
• Layer 3 IPv6 routing
-year warranty
http://www.hpe.com/networking/warrantysummary
o find software for your product, refer to http://www.hpe.com/networking/support
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
8
Build To Order:
BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution
Standard Switch Chassis
Rule #
Description
SKU
1, 2, 3, 4
HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch
JL585A
• 48 - 1/10GbE SFP/SFP+ ports (min=0 \ max=48 SFP/SFP+ Transceivers)
max=2 QSFP28 Transceivers) OR
(max=3 QSFP+
1, 3, 4
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch
JL586A
• 48 RJ45 1/10GBase-T Copper ports
max=2 QSFP28 Transceivers) OR
QSFP28 port (max=3 QSFP+
• 1U - Height
1, 2, 3, 4
HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch
JL587A
• 24 - 1/10GbE SFP/SFP+ ports (min=0 \ max=24 SFP/SFP+ Transceivers)
max=2 QSFP28 Transceivers) OR
100GbE QSFP28 port (max=3 QSFP+
• 1U - Height
1, 2, 3
HPE FlexFabric 5710 24XGT 6QSFP+ or 2QSFP28 Switch
JL689A
•
OR
100GbE QSFP28 port (max=3 QSFP+
• 1U - Height
• 6QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \
- A maximum of 3 - 40GbE QSFP+ ports and 1 - 100GbE QSFP28 port
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 4 Fan Tray
• 1U - Height
• 6QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \
- A maximum of 3 - 40GbE QSFP+ ports and 1 - 100GbE
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 5 Fan Tray
• 6QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \
- A maximum of 3 - 40GbE QSFP+ ports and 1 -
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 4 Fan Tray
24 - RJ45 1/10GBase-T Copper ports
• 6QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \ max=2 QSFP28 Transceivers)
- A maximum of 3 - 40GbE QSFP+ ports and 1 -
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 4 Fan Tray
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
9
Configuration Rules
Rule #
Description
SKU
1
The following Transceivers install into this Switch's SFP Management Port:
HPE X115 100M SFP LC FX Transceiver
JD102B
HPE X110 100M SFP LC LX Transceiver
JD120B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
2
The following Transceivers install into this Switch's SFP+ Ports:
HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver
JL737A
HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver
JL738A
HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver
JL739A
HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver
JL740A
HPE X120 1G SFP RJ45 T Transceiver
JD089B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
HPE X120 1G SFP LC SX Transceiver
JD118B
HPE X120 1G SFP LC LX Transceiver
JD119B
HPE X130 10G SFP+ LC SR Transceiver
JD092B
HPE X130 10G SFP+ LC LR Transceiver
JD094B
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable
JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable
JD096C
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL290A
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JL292A
3
The following Transceivers install into this switch's QSFP+ Ports:
HPE X140 40G QSFP+ MPO SR4 Transceiver
JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver
JG709A
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver
JL251A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver
JG661A
HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
JL286A
HPE QSFP/SFP+ Adapter Kit
655874-B21
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable
JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable
JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable
JG328A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JG329A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable
JG330A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JG331A
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
JL287A
HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
JL288A
HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
JL289A
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
10
4
The following 100G Transceivers install into this switch's QSFP+/QSFP28 Ports:
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver
JL274A
HPE X150 100G QSFP28 LC BiDi 100m MM Transceiver
JQ344A
HPE X150 100G QSFP28 eSR4 300m MM Transceiver
JH672A
HPE X150 100G QSFP28 MPO PSM4 500m SM Transceiver
JH420A
HPE X150 100G QSFP28 LC LR4 10km SM Transceiver
JL275A
HPE X150 100G QSFP28 CWDM4 2km SM Transceiver
JH673A
HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable
JL271A
HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable
JL272A
HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable
JL273A
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable
JL276A
HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable
JL277A
HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable
JL278A
NOTE:
OCA Only Model Selection Form HPE
HPE Flexfabric 5710 Switch Series
Rack Level Integration CTO Models
Standard Switch Chassis
Rule #
Description
SKU
1, 2, 3, 4, 5
HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch
JL585A
• 48 - 1/10GbE SFP/SFP+ ports (min=0 \ max=48 SFP/SFP+ Transceivers)
max=2 QSFP28 Transceivers) OR
100GbE QSFP28 port (max=3 QSFP+
1, 3, 4, 5
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch
JL586A
• 48 RJ45 1/10GBase-T Copper ports
max=2 QSFP28 Transceivers) OR
100GbE QSFP28 port (max=3 QSFP+
Offering > DataCenter Networking > FlexFabric Switches - Access:
• 6 QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \
- A maximum of 3 - 40GbE QSFP+ ports and 1 -
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 4 Fan Tray
• 1U - Height
• 6 QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \
- A maximum of 3 - 40GbE QSFP+ ports and 1 -
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 5 Fan Tray
•
1U - Height
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
11
1, 2, 3, 4, 5
HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch
JL587A
•
max=2 QSFP28 Transceivers) OR
100GbE QSFP28 port (max=3 QSFP+
1, 2, 3
HPE FlexFabric 5710 24XGT 6QSFP+ or 2QSFP28 Switch
JL689A
•
OR
100GbE QSFP28 port (max=3 QSFP+
• 1U - Height
Configuration Rules
Rule #
Description
SKU
1
The following Transceivers install into this Switch's SFP Management Port: (Use #0D1 or #B01
quoted to switch if switch is CTO) - if applicable
HPE X115 100M SFP LC FX Transceiver
JD102B
HPE X110 100M SFP LC LX Transceiver
JD120B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
2
The following Transceivers install into this Switch's SFP+ Ports: (Use #0D1 or #B01 quoted to
switch if switch is CTO) - if applicable
HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver
JL737A
HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver
JL738A
HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver
JL739A
HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver
JL740A
HPE X120 1G SFP RJ45 T Transceiver
JD089B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
HPE X120 1G SFP LC SX Transceiver
JD118B
HPE X120 1G SFP LC LX Transceiver
JD119B
HPE X130 10G SFP+ LC SR Transceiver
JD092B
HPE X130 10G SFP+ LC LR Transceiver
JD094B
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable
JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable
JD096C
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL290A
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JL292A
24 - 1/10GbE SFP/SFP+ ports (min=0 \ max=24 SFP/SFP+ Transceivers)
• 6QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \
- A maximum of 3 - 40GbE QSFP+ ports and 1 -
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 4 Fan Tray
•
1U - Height1U - Height
24 - RJ45 1/10GBase-T Copper ports
• 6QS+/2QS28 ports, configurable as follows:
- 6 - 40GbE QSFP+ ports (min=0 \ max=6 QSFP+ Transceivers) OR
- A maximum of 2 - 100GbE QSFP28 ports (min=0 \ max=2 QSFP28 Transceivers)
- A maximum of 3 - 40GbE QSFP+ ports and 1 -
& max=1 QSFP28 Transceivers)
• 1 - 100M/1G SFP management Port (min=0 \ max=1 SFP Transceiver)
• 1 Power Supply Required
• Must select min 4 Fan Tray
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
12
3
The following Transceivers install into this switch's QSFP+ Ports: (Use #0D1 or #B01 quoted to switch
if switch is CTO) - if applicable
HPE X140 40G QSFP+ MPO SR4 Transceiver
JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver
JG709A
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver
JL251A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver
JG661A
HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
JL286A
HPE QSFP/SFP+ Adapter Kit
655874-B21
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable
JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable
JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable
JG328A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JG329A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable
JG330A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JG331A
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
JL287A
HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
JL288A
HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
JL289A
4
The following 100G Transceivers install into this switch's QSFP+/QSFP28 Ports: (Use #0D1 or #B01
quoted to switch if switch is CTO) - if applicable
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver
JL274A
HPE X150 100G QSFP28 LC BiDi 100m MM Transceiver
JQ344A
HPE X150 100G QSFP28 eSR4 300m MM Transceiver
JH672A
HPE X150 100G QSFP28 MPO PSM4 500m SM Transceiver
JH420A
HPE X150 100G QSFP28 LC LR4 10km SM Transceiver
JL275A
HPE X150 100G QSFP28 CWDM4 2km SM Transceiver
JH673A
HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable
JL271A
HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable
JL272A
HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable
JL273A
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable
JL276A
HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable
JL277A
HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable
JL278A
5
If HPE CTO Switch Chassis is selected for Rack Level Integration, Then the Switch needs to integrate
(with #0D1) to the HPE Rack.
NOTE:
Clic UNB - If an option is ordered with #0D1/#B01, then the switch must have #0D1 option.
Transceivers
SFP Transceivers
Remarks
Description
SKU
HPE X115 100M SFP LC FX Transceiver
JD102B
HPE X110 100M SFP LC LX Transceiver
JD120B
HPE X120 1G SFP RJ45 T Transceiver
JD089B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
HPE X120 1G SFP LC SX Transceiver
JD118B
HPE X120 1G SFP LC LX Transceiver
JD119B
NOTES:
OCA Blue
The 48 ports chassis (fiber JL585A and copper JL586A) do NOT support 1G configuration on ports
29 to 36 included.
40 x 1x10GB ports
8 x 10GB ports only
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
13
SFP+ Transceivers
HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver
JL737A
HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver
JL738A
HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver
JL739A
HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver
JL740A
HPE X130 10G SFP+ LC SR Transceiver
JD092B
HPE X130 10G SFP+ LC LR Transceiver
JD094B
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable
JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable
JD096C
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL290A
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JL292A
QSFP+ Transceivers
HPE X140 40G QSFP+ MPO SR4 Transceiver
JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver
JG709A
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver
JL251A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver
JG661A
HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
JL286A
HPE QSFP/SFP+ Adapter Kit
655874-B21
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable
JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable
JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable
JG328A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JG329A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable
JG330A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JG331A
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
JL287A
HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
JL288A
HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
JL289A
QSFP28 Transceivers
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver
JL274A
HPE X150 100G QSFP28 LC BiDi 100m MM Transceiver
JQ344A
HPE X150 100G QSFP28 eSR4 300m MM Transceiver
JH672A
HPE X150 100G QSFP28 MPO PSM4 500m SM Transceiver
JH420A
HPE X150 100G QSFP28 LC LR4 10km SM Transceiver
JL275A
HPE X150 100G QSFP28 CWDM4 2km SM Transceiver
JH673A
HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable
JL271A
HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable
JL272A
HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable
JL273A
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable
JL276A
HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable
JL277A
HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable
JL278A
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
14
Internal Power Supplies
Rule #
Description
SKU
System (std 0 // max 2) User Selection (min 1 // max 2) per switch enclosure
1, 2, 3, 5
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply
JL589A
• includes 1 x c13, 250w
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply PDU NA, JP or TW
JL589A#B2B
•
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply PDU ROW
JL589A#B2C
•
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply United States 220 volt
JL589A#B2E
• NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply
JL589A#AC3
• No Localized Power Cord Selected
1, 2, 3, 6
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply
JL590A
• includes 1 x c13, 250w
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply PDU NA, JP or TW
JL590A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply PDU ROW
JL590A#B2C
• C15 PDU Jumper Cord (ROW)
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply United States 220 volt
JL590A#B2E
• NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply
JL590A#AC3
• No Localized Power Cord Selected
1, 2, 4, 5
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply
JL592A
•
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply PDU NA, JP or TW
JL592A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply PDU ROW
JL592A#B2C
• C15 PDU Jumper Cord (ROW)
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply United States 220 volt
JL592A#B2E
• NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply
JL592A#AC3
• No Localized Power Cord Selected
1, 2, 4, 6
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply
JL593A
• includes 1 x c13, 450w
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply PDU NA, JP or TW
JL593A#B2B
• C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply PDU ROW
JL593A#B2C
• C15 PDU Jumper Cord (ROW)
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply United States 220 volt
JL593A#B2E
• NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply
JL593A#AC3
• No Localized Power Cord Selected
1, 4, 5
HPE FlexFabric 5710 450W 48V Front-to-Back DC Power Supply
JL688A
includes y1 x c13, 450w
C15 PDU Jumper Cord (NA/MEX/TW/JP)
C15 PDU Jumper Cord (ROW)
includes 1 x c13, 450w
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Configuration
Information
15
Configuration Rules
Rule #
Description
SKU
1
If 2 power supplies are selected they must be the same SKU number.
2
Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord, #B2E and
#AC3. (See Localization Menu)
REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted
Power Cable option on the Switches/Routers.
3
This power supply is only supported on JL585A and JL587A.
4 This power supply is only supported on JL585A, JL586A, JL587A and JL589A.
5
If this Front to Back PSU is selected, then only allow customer to select the following FanTray under
Switch Enclosure Options Section:
JL594A - HPE X721 FB Fan Tray
6 If this Back to Front PSU is selected, then only allow customer to select the following FanTray under
Switch Enclos
JL595A - HPE X722 BF Fan Tray
NOTE:
Drop down under power supply should offer the following options and results:
Switch/Router/Power Supply to PDU Power Cord
#B2B in North America, Mexico, Taiwan, and Japan
or #B2C ROW. (Configura
Switch/Router/Power Supply to Wall Power Cord - Localized Option (Configurators Default for BTO
and Box Level CTO)
High Volt Switch/Router/Power Supply to Wall Power Cord
#B2E Option. (Offered only in North
America, Mexico, Taiwan, and Japan)
No Power Cord Selected
OCA Blue
The 450 Watt PSUs are supported in the SFP+ Switches but are not required.
Switch Options
Fan Trays
Remarks
Description
SKU
For JL585A, JL587A and JL689A System (std 0 // max 4) User Selection (min 4 // max 4) per switch
For JL586A System (std 0 // max 5) User Selection (min 5 // max 5) per switch
HPE FlexFabric X721 Front-to-Back Fan Tray
JL594A
HPE FlexFabric X722 Back-to-Front Fan Tray
JL595A
NOTE:
Fan Trays cannot be mixed in the same switch enclosure
This Fan Tray is only supported on JL585A, JL586A, JL587A, and JL689A
ure Options Section:
-
tors Default B2B or B2C for Rack Level CTO)
-
- #AC3 Option
NOTE:
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Related Options
16
HPE FlexFabric 5710 Switch Series accessories
Rule #
Description
SKU
HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch (JL585A)
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply
JL589A
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply
JL590A
1
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply
JL592A
1
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply
JL593A
HPE FlexFabric X721 Front-to-Back Fan Tray
JL594A
HPE FlexFabric X722 Back-to-Front Fan Tray
JL595A
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch (JL586A)
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply
JL592A
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply
JL593A
HPE FlexFabric X721 Front-to-Back Fan Tray
JL594A
HPE FlexFabric X722 Back-to-Front Fan Tray
JL595A
HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch (JL587A)
HPE FlexFabric 5710 250W Front-to-Back AC Power Supply
JL589A
HPE FlexFabric 5710 250W Back-to-Front AC Power Supply
JL590A
1
HPE FlexFabric 5710 450W Front-to-Back AC Power Supply
JL592A
1
HPE FlexFabric 5710 450W Back-to-Front AC Power Supply
JL593A
HPE FlexFabric X721 Front-to-Back Fan Tray
JL594A
HPE FlexFabric X722 Back-to-Front Fan Tray
JL595A
Configuration Rules
Rule #
Description
SKU
1 450W AC PSUs are compatible but not required. The 250W AC PSU and 450W AC PSU cannot be
installed in
type power supplies to
function properly.
Optics
Management ports
HPE X120 1G SFP RJ45 T Transceiver
JD089B
HPE X120 1G SFP LC SX Transceiver
JD118B
HPE X120 1G SFP LC LX Transceiver
JD119B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
Gigabit SFP+ transceivers
HPE X120 1G SFP RJ45 T Transceiver
JD089B
HPE X120 1G SFP LC SX Transceiver
JD118B
HPE X120 1G SFP LC LX Transceiver
JD119B
HPE X120 1G SFP LC LH100 Transceiver
JD103A
10-Gigabit SFP+ transceivers and cables
HPE X130 10G SFP+ LC SR Transceiver
JD092B
HPE X130 10G SFP+ LC LR Transceiver
JD094B
HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver
JL737A
HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver
JL738A
HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver
JL739A
HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver
JL740A
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable
JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable
JD096C
the same switch. For 1:1 redundancy this system requires two same-
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Related Options
17
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable
JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL290A
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JL292A
40-Gigabit QSFP+ transceivers and cables
HPE X140 40G QSFP+ MPO SR4 Transceiver
JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver
JG709A
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver
JL251A
HPE X140 40G QSFP+ LC ER4 40km SM Transceiver
JL306A
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver
JG661A
HPE X140 40G QSFP+ LC LR4L 2km SM Transceiver
JL286A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable
JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable
JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable
JG328A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable
JG329A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable
JG330A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable
JG331A
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable
JL287A
HPE X2A0 40G QSFP+ to QSFP+ 10m Active Optical Cable
JL288A
HPE X2A0 40G QSFP+ to QSFP+ 20m Active Optical Cable
JL289A
HPE QSFP/SFP+ Adapter Kit
655874-B21
100-Gigabit QSFP28 transceivers and cables
HPE X150 100G QSFP28 MPO SR4 100m MM Transceiver
JL274A
HPE X150 100G QSFP28 LC BiDi 100m MM Transceiver
JQ344A
HPE X150 100G QSFP28 eSR4 300m MM Transceiver
JH672A
HPE X150 100G QSFP28 MPO PSM4 500m SM Transceiver
JH420A
HPE X150 100G QSFP28 LC LR4 10km SM Transceiver
JL275A
HPE X150 100G QSFP28 LC SWDM4 100m MM Transceiver
JH419A
HPE X150 100G QSFP28 CWDM4 2km SM Transceiver
JH673A
HPE X240 100G QSFP28 to QSFP28 1m Direct Attach Copper Cable
JL271A
HPE X240 100G QSFP28 to QSFP28 3m Direct Attach Copper Cable
JL272A
HPE X240 100G QSFP28 to QSFP28 5m Direct Attach Copper Cable
JL273A
HPE X2A0 100G QSFP28 to QSFP28 7m Active Optical Cable
JL276A
HPE X2A0 100G QSFP28 to QSFP28 10m Active Optical Cable
JL277A
HPE X2A0 100G QSFP28 to QSFP28 20m Active Optical Cable
JL278A
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
18
HPE FlexFabric 5710 48SFP+ 6QSFP+ or 2QSFP28 Switch (JL585A)
I/O ports and slots
48 1/10G SFP+ ports
6 x 40GbE ports or 3 x 40GbE ports and 1 x 100G port or 2 x 100GbE port
Additional ports and
Management ports
1 10M/100M/1000MBASE-T copper port
1 SFP port
Console ports
1 mini USB console port
1 serial console port
Power supplies
2 power supply slots
For 1:1 redundancy this system requires two same-type power supplies to function properly.
Fan tray
4 fan tray slots
The customer must order fan trays, as they are not included with the switch. This system requires four
direction airflow fan trays to function properly. A failed fan tray must be replaced immediately. Fans
are hot swappable
Physical characteristics
Dimensions
44 mm x 440 mm x 400 mm (1.73 in. x 17.32 in. x 15.75 in.) (1U height)
Weight
10 kg (22.05 lb)
Memory and processor
1 GB flash, 4 GB SDRAM; packet buffer size: 12 MB
Performance
10 Gbps Latency
(64-byte packets)
Throughput
1071 Mpps
Routing/Switching capacity
1440 Gbps
Routing table size
16K entries (IPv4), 8K entries (IPv6)
MAC address table size
208K entries
ARP table Size
68K (1K static)
Reliability
MTBF (years)
135.90
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Acoustic
Low-speed fan: 52.5 dB; high-speed fan: 68.7 dB
Electrical
Frequency
50/60 Hz
Maximum heat dissipation
607 BTU/hr
AC voltage
100 VAC–240 VAC; Max. voltage: 264 VAC @ 50 Hz/60 Hz
Max. output power: 250W
NOTES:
Idle power is the actual power consumption of the device with no ports
connected.Maximum power rating and maximum heat dissipation are the
case theoretical maximum numbers provided for planning the
infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports
plugged in, and all modules populated.
Safety
UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; AS/NZS 60950-1; CNS 143361
Emissions
VCCI Class A; EN 55032 Class A; ICES-003 Class A; AS/NZS CISPR 32 Class A; EN 61000-3-2; EN 61000-
CNS 13438; KN32; TCVN 7189; Anatel Resolution
442; ETSI EN 300-386
slots
1 minimum power supply required (ordered separately).
Power supplies are hot swappable.
same-
characteristics
Max. output power: 250W / 450W depending on PSU selected
Idle power: 74W / 108W
worst-
3-3; FCC (CFR 47, Part 15) Class A; CISPR 32 Class A;
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
19
Immunity
ETSI EN 300 386; EN 55024; KN35; CISPR 24
Management
IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details
level descriptions and product numbers. For details about services and response times in
your area, please contact your local Hewlett Packard Enterprise sales office.
HPE FlexFabric 5710 48XGT 6QSFP+ or 2QSFP28 Switch (JL586A)
I/O ports and slots
40 x 1/10GBASE-T and 8 x 10GBASE-T ports
6 x 40GbE ports or 3 x 40GbE ports and 1 x 100G port or 2 x 100GbE port
Additional ports and
Management ports
1 10M/100M/1000MBASE-T copper port
1 SFP port
Console ports
1 mini USB console port
1 serial console port
Power supplies
2 power supply slots
For 1:1 redundancy this system requires two same-type power supplies to function properly.
Fan tray
5 fan tray slots
The customer must order fan trays, as they are not included with the switch. This system requires four
an trays to function properly. A failed fan tray must be replaced immediately. Fans
Physical characteristics
Dimensions
44 mm x 440 mm x 460 mm (1.73 in. x 17.32 in. x 18.11 in.) (1U height)
Weight
10 kg (22.05 lb)
Memory and processor
1 GB flash, 4 GB SDRAM; packet buffer size: 12 MB
Performance
10 Gbps Latency
(64-byte packets)
Throughput
1071 Mpps
Routing/Switching capacity
1440 Gbps
Routing table size
16K entries (IPv4), 8K entries (IPv6)
MAC address table size
208K entries
ARP table Size
68K (1K static)
Reliability
MTBF (years)
114.43
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Acoustic
Low-speed fan: 52.4 dB; high-speed fan: 68.6 dB
Electrical
Frequency
50/60 Hz
Maximum heat dissipation
900 BTU/hr
AC voltage
100–240 VAC; Max. voltage: 264 VAC @ 50Hz/60 Hz
Idle power: 108W
NOTES:
Idle power is the actual power consumption of the device with no ports
case
theoretical maximum numbers provided for planning the infrastructure
with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and
all modules populated.
slots
on the service-
1 minimum power supply required (ordered separately).
Power supplies are hot swappable.
characteristics
same-direction airflow f
are hot swappable
Max. output power: 450W
connected.
Maximum power rating and maximum heat dissipation are the worst-
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
20
Safety
UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; AS/NZS 60950-1; CNS 14336-1
Emissions
VCCI Class A; EN 55032 Class A; ICES-003 Class A; AS/NZS CISPR 32 Class A; EN 61000-3-2; EN 61000-
CISPR 32 Class A; CNS 13438; KN32; TCVN 7189; Anatel Resolution
442; ETSI EN 300-386
Immunity
ETSI EN 300 386; EN 55024; KN35; CISPR 24
Management
IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details
s in
your area, please contact your local Hewlett Packard Enterprise sales office.
HPE FlexFabric 5710 24SFP+ 6QSFP+ or 2QSFP28 Switch (JL587A)
I/O ports and slots
24 x 1/10G SFP+ ports
6 x 40GbE ports or 3 x 40GbE ports and 1 x 100G port or 2 x 100GbE port
Additional ports and
Management ports
1 10M/100M/1000MBASE-T copper port
1 SFP port
Console ports
1 mini USB console port
1 serial console port
Power supplies
2 power supply slots
For 1:1 redundancy this system requires two same-type power supplies to function properly.
Fan tray
4 fan tray slots
not included with the switch. This system requires four
direction airflow fan trays to function properly. A failed fan tray must be replaced immediately. Fans
are hot swappable
Physical characteristics
Dimensions
44 mm x 440 mm x 400 mm (1.73 in. x 17.32 in. x 15.75 in.) (1U height)
Weight
10 kg (22.05 lb)
Memory and processor
1 GB flash, 4 GB SDRAM; packet buffer size: 12 MB
Performance
10 Gbps Latency
(64-byte packets)
Throughput
714 Mpps
Routing/Switching capacity
960 Gbps
Routing table size
16K entries (IPv4), 8K entries (IPv6)
MAC address table size
208K entries
ARP table Size
68K (1K static)
Reliability
MTBF (years)
145.41
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Acoustic
Low-speed fan: 52.4 dB; high-speed fan: 68.7 dB
slots
3-3; FCC (CFR 47, Part 15) Class A;
on the service-level descriptions and product numbers. For details about services and response time
1 minimum power supply required (ordered separately).
Power supplies are hot swappable.
The customer must order fan trays, as they are
same-
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
21
Electrical
Frequency
50/60 Hz
Maximum heat dissipation
457 BTU/hr
AC voltage
100 VAC–240 VAC; Max. voltage: 264 VAC @ 50 Hz/60 Hz
Idle power: 74W / 108W
NOTES:
Idle power is the actual power consumption of the device with no ports
case
planning the infrastructure
with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and
all modules populated.
Safety
UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; AS/NZS 60950-1; CNS 143361
Emissions
VCCI Class A; EN 55032 Class A; ICES-003 Class A; AS/NZS CISPR 32 Class A; EN 61000-3-2; EN 61000-
3; FCC (CFR 47, Part 15) Class A; CISPR 32 Class A; CNS 13438; KN32; TCVN 7189; Anatel Resolution
442; ETSI EN 300-386
Immunity
ETSI EN 300 386; EN 55024; KN35; CISPR 24
Management
IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details
level descriptions and product numbers. For details about services and response times in
HPE FlexFabric 5710 24XGT 6QSFP+ or 2QSFP28 Switch (JL689A)
I/O ports and slots
24 x 1/10GBASE-T ports
6 x 40GbE ports or 3 x 40GbE ports and 1 x 100G port or 2 x 100GbE port
Additional ports and
Management ports
1 10M/100M/1000MBASE-T copper port
1 SFP port
Console ports
1 mini USB console port
1 serial console port
Power supplies
2 power supply slots
For 1:1 redundancy this system requires two same-type power supplies to function properly.
Fan tray
4 fan tray slots
The customer must order fan trays, as they are not included with the switch. This system requires four
direction airflow fan trays to function properly. A failed fan tray must be replaced immediately. Fans
are hot swappable
Physical characteristics
Dimensions
44 mm x 440 mm x 460 mm (1.73 in. x 17.32 in. x 18.11 in.) (1U height)
Weight
9.9 kg (21.83 lb)
Memory and processor
1 GB flash, 4 GB SDRAM; packet buffer size: 12 MB
characteristics
Max. output power: 250W / 450W depending on PSU selected
connected.
Maximum power rating and maximum heat dissipation are the worsttheoretical maximum numbers provided for
3-
on the serviceyour area, please contact your local Hewlett Packard Enterprise sales office.
slots
1 minimum power supply required (ordered separately).
Power supplies are hot swappable.
same-
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
22
Performance
10 Gbps Latency
(64-byte packets)
Throughput
714 Mpps
Routing/Switching
capacity
960 Gbps
Routing table size
16K entries (IPv4), 8K entries (IPv6)
MAC address table size
208K entries
ARP table Size
68K (1K static)
Reliability
MTBF (years)
43.12
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
Operating relative
10% to 90%, noncondensing
Acoustic
Low-speed fan: 52.7 dB; high-speed fan: 67.0 dB
Electrical
Frequency
50/60 Hz
Maximum heat dissipation
339 BTU/hr
AC voltage
100 VAC–240 VAC; Max. voltage: 264 VAC @ 50 Hz/60 Hz
Max. output power: 450W
NOTES:
Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure
ugged in, and
all modules populated.
Safety
UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; AS/NZS 60950-1; CNS 143361
Emissions
VCCI Class A; EN 55032 Class A; ICES-003 Class A; AS/NZS CISPR 32 Class A; EN 61000-3-2; EN 61000-
(CFR 47, Part 15) Class A; CISPR 32 Class A; CNS 13438; KN32; TCVN 7189; Anatel Resolution
442; ETSI EN 300-386
Immunity
ETSI EN 300 386; EN 55024; KN35; CISPR 24
Environmental
RoHS compliant
Management
IMC; CLI; out-of-band management; SNMP Manager; Telnet; FTP
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details
services and response times in
your area, please contact your local Hewlett Packard Enterprise sales office.
characteristics
humidity
3-3; FCC
on the service-level descriptions and product numbers. For details about
with fully loaded PoE (if equipped), 100% traffic, all ports pl
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
23
Standards and protocols (applies to all products in series)
General protocols
• RFC 2581 TCP Congestion Control
• IEEE 802.1ad Q-in-Q
• IEEE 802.1AX-2008 Link Aggregation IEEE 802.1D MAC Bridges
• IEEE 802.1p Priority IEEE 802.1Q VLANs
• IEEE 802.1Q VLANs
• IEEE 802.1Qau Quantized Congestion Notification (QCN)
• IEEE 802.1Qaz Enhanced Transmission Selection (ETS)
• IEEE 802.1Qaz Data Center Bridging Capability Exchange (DCBx)
• IEEE 802.1Qbb Priority-based Flow Control (PFC)
• IEEE 802.1s Multiple Spanning Trees
• IEEE 802.1w Rapid Reconfiguration of Spanning Tree
• IEEE 802.3ad LACP
• IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3ag Ethernet OAM
• IEEE 802.3ah EFM over Point to Point Fiber—EFMF
• IEEE 802.3x Flow Control
• RFC 768 UDP
• RFC 783 TFTP Protocol (revision 2)
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 854 TELNET
• RFC 856 TELNET
• RFC 868 Time Protocol
• RFC 896 Congestion Control in IP/TCP Internetworks
• RFC 950 Internet Standard Subnetting Procedure
• RFC 1027 Proxy ARP
• RFC 1058 RIPv1
• RFC 1091 Telnet Terminal-Type Option
• RFC 1141 Incremental updating of the Internet checksum
• RFC 1142 OSI IS-IS Intra-domain Routing Protocol
• RFC 1191 Path MTU discovery
• RFC 1213 Management Information Base for Network Management of TCP/IP-based internets
• RFC 1253 (OSPFv2)
• RFC 1531 Dynamic Host Configuration Protocol
• RFC 1533 DHCP Options and BOOTP Vendor Extensions
• RFC 1534 DHCP/BOOTP Interoperation
• RFC 1541 DHCP
• RFC 1542 Clarifications and Extensions for the Bootstrap Protocol
• RFC 1591 DNS (client only)
• RFC 1624 Incremental Internet Checksum
• RFC 1723 RIP v2
• RFC 1812 IPv4 Routing
• RFC 2030 Simple Network Time Protocol (SNTP) v4
• RFC 2131 DHCP
• RFC 2236 IGMP Snooping
• RFC 2338 VRRP
• RFC 2453 RIPv2
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
24
•
• RFC 2929 RADIUS Support DS for RADIUS
BGP
•
Device management
• Multiple configuration files Multiple software images SSHv1/SSHv2 TACACS/TACACS+
RFC 2644 Directed Broadcast Control
• RFC 2767 Dual Stacks IPv4 & IPv6
• RFC 2865 RADIUS
• RFC 2868 RADIUS Attributes for Tunnel Protocol Support
• RFC 2890 Key and Sequence Number Extensions to GRE
• RFC 3046 DHCP Relay Agent Information Option
• RFC 3411 An Architecture for Describing SNMP Management Frameworks
• RFC 3412 Message Processing and Dispatching for the SNMP
• RFC 3413 SNMP Applications
• RFC 3416 Protocol Operations for SNMP
• RFC 3417 Transport Mappings for the SNMP
• RFC 3418 Management Information Base (MIB) for the SNMP
• RFC 3768 VRRP
• RFC 4250 The SSH Protocol Assigned Numbers
• RFC 4251 The SSH Protocol Architecture
• RFC 4252 The SSH Authentication Protocol
• RFC 4253 The SSH Transport Layer Protocol
• RFC 4254 The SSH Connection Protocol
• RFC 4292 IP Forwarding Table MIB
• RFC 4293 Management Information Base for the IP
• RFC 4419 Diffie-Hellman Group Exchange for the SSH Transport Layer Protocol
• RFC 4594 Configuration Guidelines for DiffServ Service Classes
• RFC 4601 PIM-Sparse Mode (PIM-SM): Protocol Specification (Revised)
• RFC 4604 using IGMPv3 and MLD Protocol Version 2 (MLDv2) for Source-Specific Multicast
• RFC 4607 Source-Specific Multicast for IP
• RFC 4941 Privacy Extensions for Stateless Address Autoconfiguration in IPv6
• RFC 5340 OSPF for IPv6
• RFC 5905 Network Time Protocol Version 4: Protocol and Algorithms Specification
• RFC 1163 BGP
• RFC 1771 BGPv4
• RFC 1997 BGP Communities Attribute
• RFC 2918 Route Refresh Capability
• RFC 3392 Capabilities Advertisement with BGP-4
• RFC 4271 A Border Gateway Protocol 4 (BGP-4)
• RFC 4360 BGP Extended Communities Attribute
RFC 4456 BGP Route Reflection: An alternative to Full Mesh Internal BGP (IBGP)
• RFC 1157 SNMPv1/v2c
• RFC 1305 NTPv3
• RFC 1591 DNS (client)
• RFC 1902 (SNMPv2)
• RFC 1908 (SNMPv1/2 coexistence)
• RFC 2573 (SNMPv3 applications)
• RFC 2576 (coexistence between SNMPv1, v2, v3)
• RFC 2819 RMON
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
25
IPv6
• RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
OSPF
• RFC 4813 OSPF Link-Local Signaling
MIBs
• LLDP-MIB
• RFC 2080 RIPng for IPv6
• RFC 2460 IPv6 Specification
• RFC 2461 IPv6 Neighbor Discovery
• RFC 2462 IPv6 Stateless Address Autoconfiguration
• RFC 2463 ICMPv6
• RFC 2464 Transmission of IPv6 over Ethernet Networks
• RFC 2473 Generic Packet Tunneling in IPv6
• RFC 2545 Use of MP-BGP-4 for IPv6
• RFC 2563 ICMPv6
• RFC 2711 IPv6 Router Alert Option
• RFC 2740 OSPFv3 for IPv6
• RFC 2767 Dual stacks IPv4 & IPv6
• RFC 3315 DHCPv6 (client and relay)
• RFC 3484 Default Address Selection for IPv6
• RFC 3810 MLDv2 for IPv6
• RFC 4213 Basic Transition Mechanisms for IPv6 Hosts and Routers
• RFC 4291 IP Version 6 Addressing Architecture
• RFC 4443 ICMPv6
• RFC 4552 Authentication/Confidentiality for OSPFv3
• RFC 4862 IPv6 Stateless Address Autoconfiguration
• RFC 1587 OSPF NSSA
• RFC 2328 OSPFv2
• RFC 3101 OSPF NSSA
• RFC 3137 OSPF Stub Router Advertisement
• RFC 3623 Graceful OSPF Restart
• RFC 4811 OSPF Out-of-Band LSDB Resynchronization
• RFC 4812 OSPF Restart Signaling
• RFC 1213 MIB II
• RFC 1907 SNMPv2 MIB
• RFC 2571 SNMP Framework MIB
• RFC 2572 SNMP-MPD MIB
• RFC 2573 SNMP-Notification MIB
• RFC 2573 SNMP-Target MIB
• RFC 2574 SNMP USM MIB
• RFC 2737 Entity MIB (Version 2)
• RFC 3414 SNMP-User based-SM MIB
• RFC 3415 SNMP-View based-ACM MIB
• LLDP-EXT-DOT1-MIB
• LLDP-EXT-DOT3-MIB
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Technical Specifications
26
Network management
• RFC 3164 BSD Syslog Protocol
QoS/CoS
• RFC 3260 New Terminology and Clarifications for DiffServ
Security
• ACLs SSHv2
• RFC 2580 Conformance Statements for SMIv2
• IEEE 802.1p (CoS)
• RFC 2475 DiffServ Architecture
• RFC 2597 DiffServ Assured Forwarding (AF)
• RFC 3247 Supplemental Information for the New Definition of the Expedited Forwarding Per-Hop Behavior (EF PHB)
• RFC 1321 The MD5 Message-Digest Algorithm
• RFC 2818 HTTP Over TLS
• RFC 6192 Partial Support—Protecting the Router Control Plane
Page
QuickSpecs
HPE FlexFabric 5710 Switch Series
Summary of Changes
27
Date
Version History
Action
Description of Change
04-May-2020
Version 11
Changed
Configuration Information and Related Options sections were updated.
23-Mar-2020
Version 10
Changed
Configuration Information section was updated.
02-Dec-2019
Version 9
Changed
Configuration Information was updated.
New SKU was added.
04-Nov-2019
Version 8
Changed
Related Options was updated.
03-Sep-2019
Version 7
Changed
Related Options and Configuration Information were updated
New SKUs were added to Configuration Information and Related Options.
01-Jul-2019
Version 6
Changed
Overview, Standard Features, Configuration Information and Technical
New JL689A model was added.
03-Jun-2019
Version 5
Changed
Standard Features section was updated
13-May-2019
Version 4
Changed
The JL586A I/O ports and slots was updated.
02-Apr-2019
Version 3
Changed
Obsolete SKUs were removed.
Related option section was updated.
01-Oct-2018
Version 2
Changed
Recommended and Extended markings removed from the document.
06-Aug-2018
Version 1
New
New QuickSpecs
Sign up for updates
© Copyright 2020 Hewlett Packard Enterprise Development LP. The information contained herein is subject
ducts and services. Nothing herein should
be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for
party trademark(s) is/are property of their
a00045647enw - 16223 - Worldwide - V11 - 04-May-2020
Specification sections were updated.
New SKUs were added.
to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set
forth in the express warranty statements accompanying such pro
technical or editorial errors or omissions contained herein.
sFlow is a registered trademark of InMon Corp. VMware is a registered trademark or trademark of VMware,
Inc. in the United States and/or other jurisdictions. All other thirdrespective owner(s).
To learn more, visit: http://www.hpe.com/networking
Page
Loading...
