Webcam Overview

Congratulations on purchasing the HP Webcam HD 5210. Your webcam includes the following features:
1 Snapshot button
2 HP Instant Chat button
3 Video Record button
4 Integrated microphone
Please refer to the product label for the HP product number and serial number. This is useful information if you ever need to contact technical support.
5 Adjustable clip/stand
6 Product label
7 USB connector
HP Webcam HD 5210 User’s Guide 1

Software Overview

The CD that comes with your webcam includes the following software:
Webcam drivers. Enables your webcam to operate with optimum performance.
Video Chat Quick Launch. Helps you set up your chat application to communicate
with your webcam.
ArcSoft Magic-i™ Visual Effects. Enables you to apply special effects to your video
chats when used in conjunction with your instant messaging (IM) application.
ArcSoft WebCam Companion
snapshots, use your webcam as a video monitor, and apply a variety of special effects including masques and frames.
ArcSoft ShowBiz
®
video clips, transitions, and effects.
HP Webcam Control Center. Enables you to access all of your webcam functions from
a single location on your desktop.
The software on this CD is not available via web download. In North America and Europe, a replacement CD can be ordered on the web at www.hp.com/support.

System Requirements

®
. Enables you to record and edit videos, take
. Enables you to edit your videos and combine them with other
To use your webcam with the included software, your PC must meet the following minimum system requirements:
For 1920x1080 (1080p) preview, capture, edit, and playback in WebCam
Companion/Magic-i Visual Effects/ShowBiz
Windows
Windows 7
Intel
400 MB free hard drive space required for program installation
2 GB DDR RAM or above
VGA card with 64 MB or more
16-bit color display at 1024x768 with DirectX 3D support
DirectX 9.0 or above
USB 2.0 high speed
For 1280x720 (720p) preview, capture, edit, and playback in WebCam
®
XP (SP2 or SP3), Windows Vista® (32-bit or 64-bit), or
®
(32-bit or 64-bit)
®
Core™ i5 750 2.66 GHz or equivalent AMD CPU
Companion/Magic-i Visual Effects/ShowBiz
Windows XP (SP2 or SP3), Windows Vista (32-bit or 64-bit), or Windows 7
(32-bit or 64-bit)
Intel
®
Core™2 Quad 2.33 GHz or equivalent AMD CPU
2 HP Webcam HD 5210 User’s Guide
400 MB free hard drive space required for program installation
2 GB DDR RAM or above
VGA card with 64 MB or more
16-bit color display at 1024x768 with DirectX 3D support
DirectX 9.0 or above
USB 2.0 high speed
For 640x480 (VGA) preview, capture, edit, and playback in WebCam Companion/
Magic-i Visual Effects/ShowBiz
Windows XP (SP2 or SP3), Windows Vista (32-bit or 64-bit), or Windows 7
(32-bit or 64-bit)
Intel
400 MB free hard drive space required for program installation
1 GB DDR RAM or above
16-bit color display at 1024x768 with DirectX 3D support
DirectX 9.0 or above
USB 2.0 high speed
®
Pentium® IV Hyper-Threading 3.0 GHz or equivalent AMD CPU

Quality and Performance

Image quality and video performance are impacted by the following factors:
The amount of light on the subject
The webcam resolution setting
The performance of the PC
The bandwidth of the internet connection, especially for chat
If you are experiencing slow or choppy video or washed out color, try adding a small lamp to the area that will not be visible in the frame. This will light the viewing area of the webcam and help provide more lifelike video and more accurate color.
HP Webcam HD 5210 User’s Guide 3

Using the HP Webcam Control Center

All of the software utilities included with your HP Webcam can be accessed through the HP Webcam Control Center. Simply double-click the icon on your desktop to open the control center. From the Features tab, you can click an icon to select one of the following features:
Start a Video Chat – allows you to add live video to popular instant messaging
applications
Record Video – allows you to record and share video
Take a Photo – allows you to capture and share still photos
Monitor – allows you to set the webcam to record video whenever the camera
detects motion or a face
Webcam Gallery – displays all photos and videos you have captured and allows
you to edit and share them
Webcam Settings – allows you to change settings in order to optimize the
webcam’s functionality
The Applications tab provides direct access to each of the ArcSoft applications. The Help & Support tab links you to your User’s Guide, Online Support, and the HP online store.
4 HP Webcam HD 5210 User’s Guide

Starting a Video Chat

You can add live video to the most popular instant messaging (IM) applications (ISP connection required):
AOL
Google Video Chat™
Skype™
Windows Live
Ya hoo !
If there is not a link to your preferred chat application, you can either click Browse to find the application’s .exe file on your computer, or add the URL to a web application and then click
Go to.
1 To start a video chat, do either of
®
Instant Messenger™ (AIM®)
Messenger
®
Messenger
the following:
Press the HP Instant Chat
button on your webcam.
Double-click the HP Webcam Control Center icon on the Windows
desktop, and then click Video Chat .
2 Select the instant messaging (IM) application you want to use.
3 If prompted, follow the on-screen instructions to install and set up the IM application.
4 Follow the video chat steps in the IM application’s documentation.
NOTE: The Video Chat Quick Launch utility appears only during initial setup. The
next time you press the HP Instant Chat button, the selected IM application will open automatically.
To select a different IM application after initial setup, double-click the HP Webcam Control Center icon on your desktop, and then click Video Chat .
HP Webcam HD 5210 User’s Guide 5

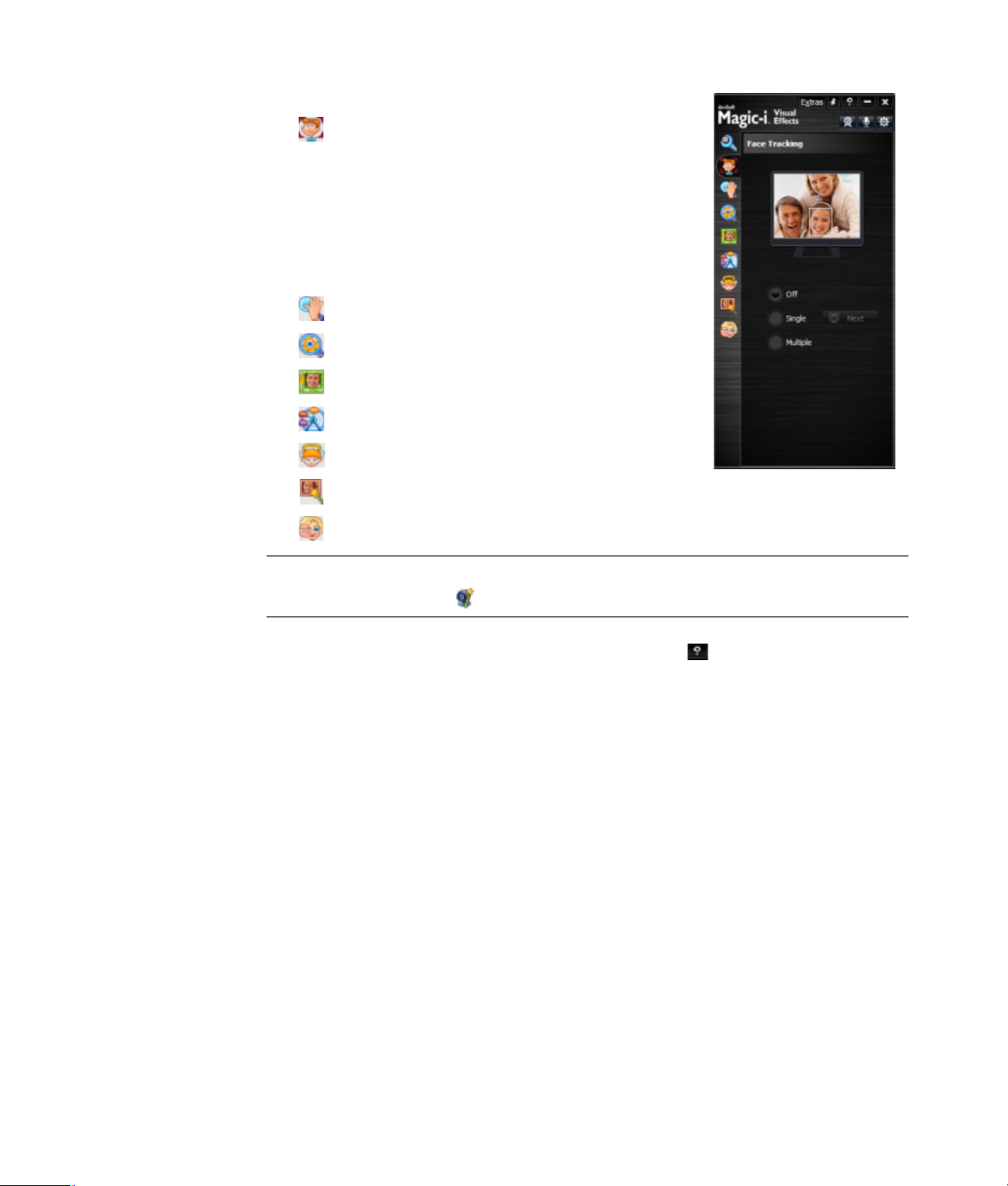

5 (Optional) Select the effects you want to apply:
Turn face tracking on and off.
To track one face, click Single.
To track more than one face, click Single to
select the first face, and then click Next to select the next face.
To find the best angle for a group image, click
Multiple.
Zoom in and out, or pan around the image.
Add fun house effects to your video.
Add a picture frame to the face on the screen.
Decorate your video with a theme.
Adopt a different persona by selecting an avatar.
Make your video brighter and sharper.
Combine your face with a masque template.
TIP: You can also open ArcSoft Magic-i Visual Effects by double-clicking ArcSoft Magic-i Visual Effects in the Windows System Tray.
To learn more about using effects in your chats, click Help in the upper-right corner of the ArcSoft Magic-i Visual Effects window.
6 HP Webcam HD 5210 User’s Guide

Recording a Video

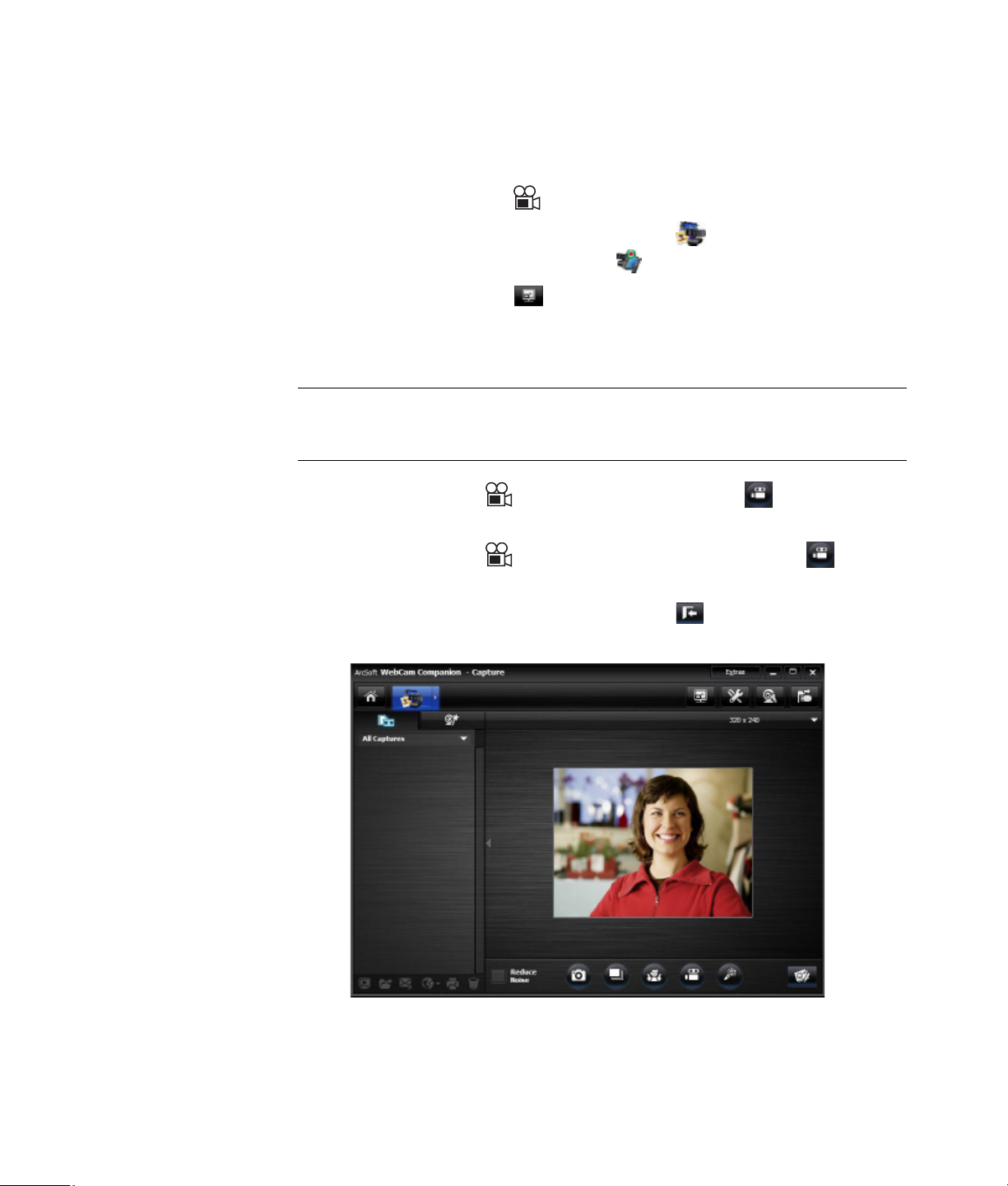

1 Do either of the following to open ArcSoft WebCam Companion and enter
capture mode:
Press the Video Record button on your webcam.
Double-click the HP Webcam Control Center icon on the Windows
desktop, and then click Record Video .
2 (Optional) Click Full Screen to record in full-screen mode.
3 (Optional) Click the resolution list below the icons in the upper-right corner, and select
the resolution setting you want to use for the recording. The default setting is 1280x720 (HD 720p), which provides optimum performance in most environments.
NOTE: Higher resolutions and/or poor lighting may slow down the frame rate and make the video jerky. For more information on resolution issues, see “Troubleshooting.”
4 Press the Video Record button or click Record Video to
begin recording.
5 Press the Video Record button again or click Stop Recording to stop
recording and save the video to your PC.
6 If you’re recording in full-screen mode, click the Exit icon on the right side of the
screen to return to partial-screen mode.
To learn more about using ArcSoft WebCam Companion, click Extras and select Application Help.
HP Webcam HD 5210 User’s Guide 7

Taking a Picture

1 Do either of the following to open ArcSoft WebCam Companion and enter
capture mode:
Press the Snapshot button on your webcam.
Double-click HP Webcam Control Center on the Windows desktop, and
then click Take a Photo .
2 Use capture mode to take either a single picture or a series of pictures:
To take a single picture, press the Snapshot button again or click
Take Picture .
To take a series of pictures, click Burst .
3 To edit, print, and share your pictures, hover over the Capture icon to expand
the menu, and click the Edit icon to enter edit mode.
To learn more about taking pictures with ArcSoft WebCam Companion, click Extras and select Application Help.
8 HP Webcam HD 5210 User’s Guide

Managing Videos and Pictures

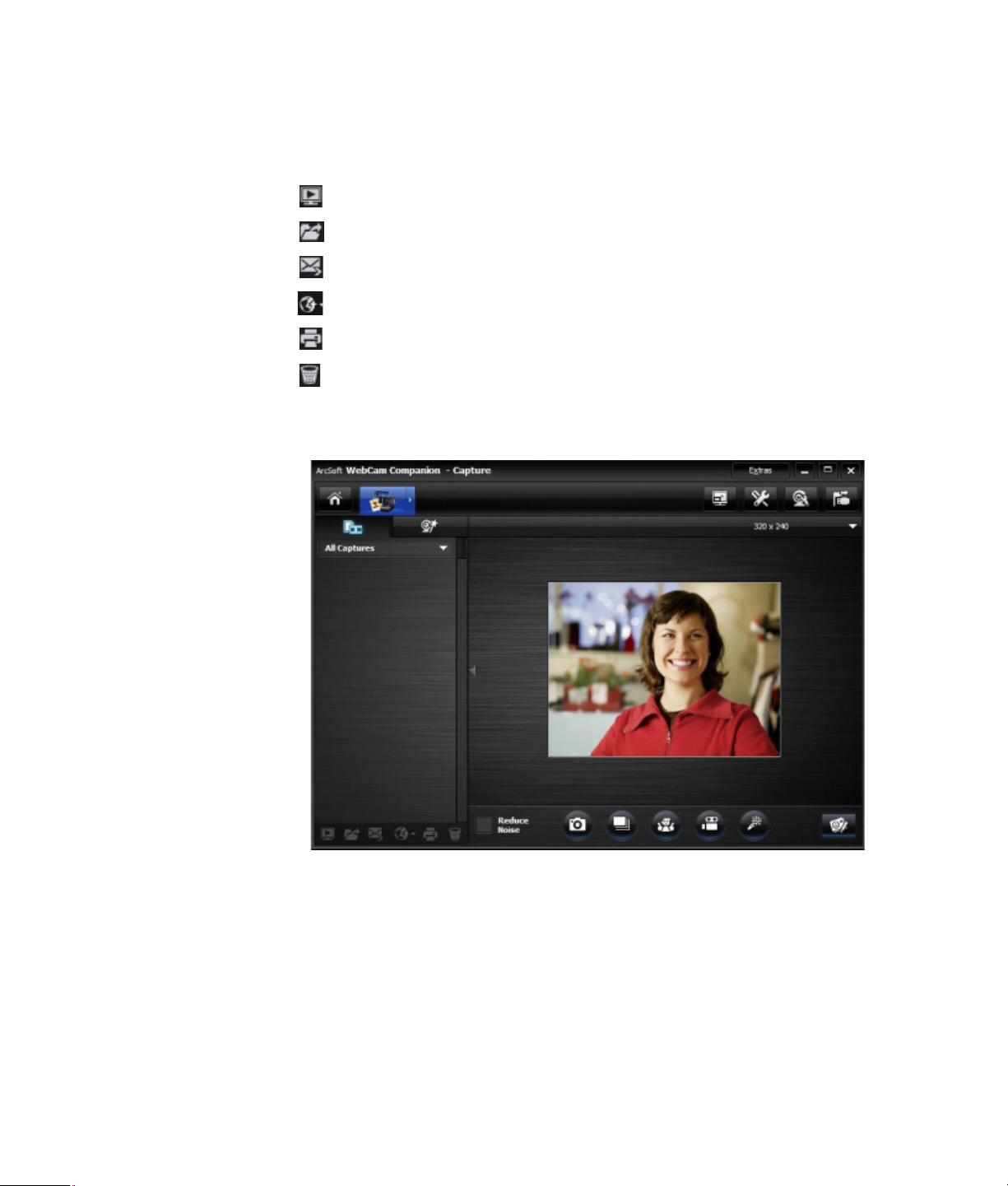

After you capture a video or take a picture, you can use the icons in the lower-left corner of the Capture screen to manage your pictures and videos. Click any of the following icons:
Preview a picture or video.
Locate a picture or video on your PC hard drive.
Send a picture or video as an e-mail attachment.
Upload a picture or video to YouTube, Flickr, Twitter, or Facebook.
Print the pictures you selected.
Delete the selected picture or video.
To learn more about using ArcSoft WebCam Companion, click Extras and select Application Help.
HP Webcam HD 5210 User’s Guide 9

Uploading a Picture or a Video

After you take a picture or record a video, follow these steps to post it on YouTube, Flickr, Twitter, or Facebook:
1 If you are in capture mode in ArcSoft WebCam Companion:
Click the Captures icon to display your pictures and videos.
Click the picture or video you want to upload.
Click the Upload icon and select either YouTube, Flickr, Twitter, or
Facebook.

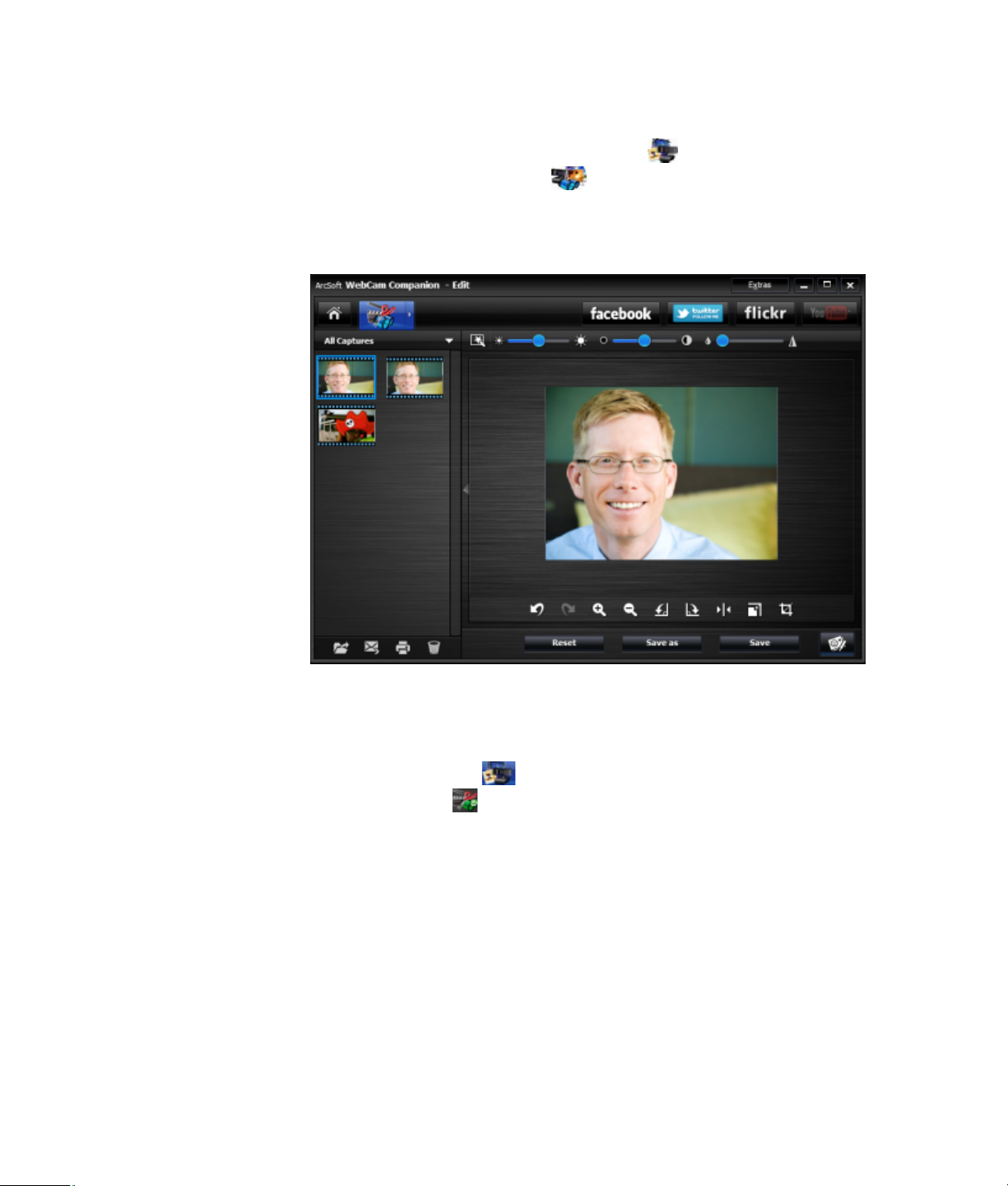

2 If you are in edit mode in ArcSoft WebCam Companion:
Click the picture or video you want to upload.
Use the buttons at the top right of the page to select either Facebook, Twitter,
Flickr, or YouTube.
3 Log into your account.
4 Follow the on-screen instructions to post the picture or video.
TIP: If ArcSoft WebCam Companion is closed, you can open it directly in edit mode.
Simply double-click the HP Webcam Control Center icon on the Windows
desktop, and then click Webcam Gallery .
10 HP Webcam HD 5210 User’s Guide

Applying Effects to a Video or Picture

Many of the ArcSoft Magic-i Visual Effects features are integrated into ArcSoft WebCam Companion, so that you can continue to enjoy the effects you use in your video chats while you capture videos and take pictures.
1 Double-click the HP Webcam Control Center icon on the Windows desktop.
2 Click either Record Video or Take a Photo .
3 Click the Effects tab.
4 Click any of the icons in the lower-left corner to apply an effect.
5 To turn off all effects, click No Effect .
To learn more about using effects in your chats, see “Using the HP Webcam Control Center.”
HP Webcam HD 5210 User’s Guide 11

Using Masques

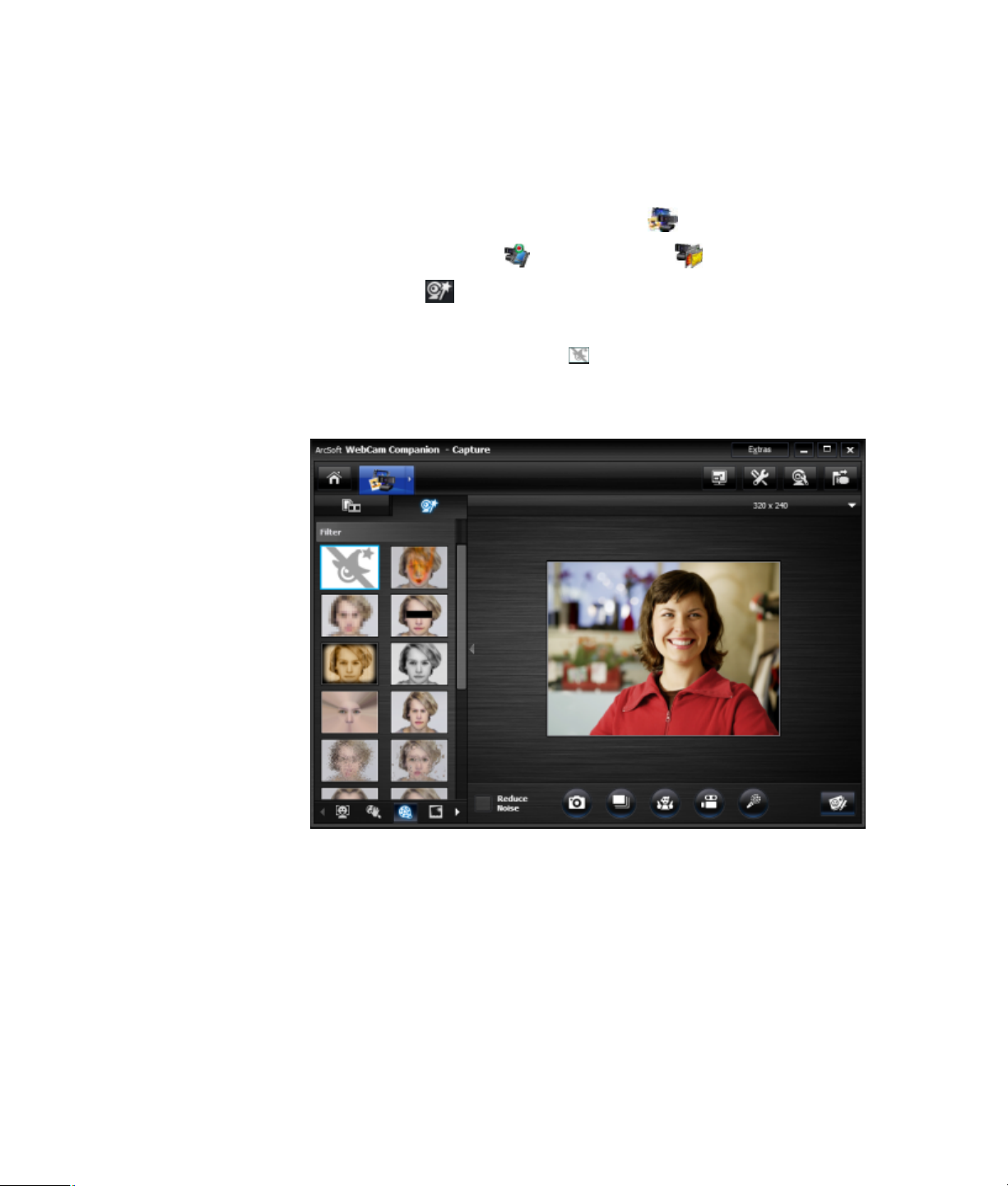

1 Double-click the HP Webcam Control Center icon on the Windows desktop,
and then click Take a Photo .
2 Hover over the Capture icon to expand the menu, and click the
Masque icon.
3 Select the masque you want to use.
4 (Optional) Click the icons above the preview image to adjust the image.
5 Press the Snapshot button again or click Take Picture to take the picture.
To learn more about using masques, click Extras and select Application Help.
12 HP Webcam HD 5210 User’s Guide

Using Fun Frame

1 Double-click the HP Webcam Control Center icon on the Windows desktop,
and then click Take a Photo .
2 Hover over the Capture icon to expand the menu, and then click the
Fun Frame icon.
3 (Optional) Click Customize, click Select Layout and select a layout, select the
frames you want to use, and then click OK.
4 Do either of the following:
Press the Snapshot button or click Take Picture to take the picture.
Click Start auto-snapshot with pose detection to let the software
detect a pose and take the picture. To adjust the pose sensitivity, drag the slider above the picture frame.
HP Webcam HD 5210 User’s Guide 13

Editing a Video

1 Double-click the HP Webcam Control Center icon on the Windows desktop,
and then click Webcam Gallery .
2 Click the video you want to edit.
To learn about specific editing functions, click Extras and select Application Help.

Advanced Editing

1 Hover over the Capture icon to expand the menu, and then click the
Advanced Editing icon.
2 Click the video you want to edit, and then drag and drop it into the Storyboard.
To learn about specific editing functions in ArcSoft ShowBiz, click Options and select Help.
14 HP Webcam HD 5210 User’s Guide

Using Your Webcam as a Video Monitor

With the Monitor feature, you can use your webcam as a security camera. If the webcam detects motion or a face, it records the activity on your PC hard drive. Additionally, you can set the Monitor feature to send a snapshot by e-mail or post a snapshot on an FTP site if it detects activity.
1 Double-click the HP Webcam Control Center icon on the Windows desktop.
2 Click Monitor .
3 Click Start Monitor to begin monitoring.
4 Click Stop Monitor to finish monitoring and save the video to your PC.
You can also specify motion regions for the application to focus on. Click the Enable Rectangle Motion Detection icon, and then click and drag to draw a rectangle
around the area you want the motion detector to work within.
To learn more about using ArcSoft WebCam Companion, click Extras and select
Application Help.
TIP: You can disable either the motion detection or face detection feature, but you cannot
turn them both off.
HP Webcam HD 5210 User’s Guide 15

Adjusting Webcam Settings

You can adjust most of your webcam’s settings in ArcSoft WebCam Companion.
1 Double-click the HP Webcam
Control Center icon on the
Windows desktop, and then click
Webcam Settings .
2 Click the WebCam Settings
icon near the top right corner of the screen, and then click Advanced.
3 On the Video Proc Amp tab do
either of the following:
To manually adjust a setting,
drag the slider for that setting.
To let the webcam auto-detect a
setting, place a check in the Auto check box to the right of that setting.
4 Click the Camera Control tab
and do any of the following:
To manually adjust the focus,
remove the check from the Auto Focus check box, and then drag the Focus slider.
To manually adjust the
exposure, remove the check from the Auto Exposure check box and then drag the
Exposure slider.
5 Click OK.
NOTE: To restore the factory settings, click Default.
To learn about customizing the Capture, Monitor, Fun Frame, and Masque settings in ArcSoft WebCam Companion, click Extras and select Application Help.
16 HP Webcam HD 5210 User’s Guide

Adjusting Additional Webcam Settings

You can change additional webcam settings in ArcSoft Magic-i Visual Effects.
1 If it is open, close the ArcSoft WebCam Companion window.
2 Double-click ArcSoft Magic-i Visual Effects in the Windows System Tray.
3 On the Webcam Settings tab, do any of the following:
Click System Setting , click the Private tab,
click Load Image , and then select an image to replace the webcam video when you want
privacy during a chat.
Click Private to replace the webcam video
with the image you selected in System Settings. When you’re done with the chat, click Private
again to reveal the video so that your webcam is ready to use the next time you want to use it.
Click Mute Microphone to turn off the
webcam microphone during a chat. When you’re done with the chat, click Mute Microphone
again to turn the microphone back on so that your webcam is ready to use the next time you want to use it.
Remove the check from the LED On check box to
turn off the status LED on the front of your webcam.
Place a check in the Video Off check box to
disable the webcam video during a chat. A blank screen replaces the video. When you’re done with the chat, remove the check to enable the video feature, so that your webcam is ready to use the next time you want to use it.
Drag the slider for the individual settings. To see additional settings, drag the scroll
bar on the right side of the ArcSoft Magic-i Visual Effects window.
Click Current Profile, enter a name, and then click Save to store the
current settings in a user profile.
To learn more about customizing webcam settings in ArcSoft Magic-i Visual Effects, click Help in the upper-right corner.
HP Webcam HD 5210 User’s Guide 17

Troubleshooting

Problem Solution
The video is jerky Many factors affect video quality, including lighting, PC processor speed and
memory, and Internet connection speed. If the video is jerky, you need to choose a lower resolution setting.
1 Double-click the HP Webcam Control Center icon on the
Windows desktop.
2 Click either Record Video or Take a Photo .
3 Click the resolution list below the icons in the upper-right corner, and select
a lower resolution setting.
There are lines interfering with the image
I don’t want to use ArcSoft Magic-i Visual Effects with my IM application
My webcam isn’t connected to my IM application
I want to turn off the autofocus feature
Right-click the Button Manager icon in the Windows System Tray and select the appropriate setting for your location: 60Hz or 50Hz. The interfering
lines should disappear.
Close ArcSoft Magic-i Visual Effects.
Double-click the HP Webcam Control Center icon on the Windows desktop, and then click Video Chat . If you have multiple IM applications
and you already set up all of your IM applications, select a different video device in your IM application. See your IM documentation for details.
1 Double-click the HP Webcam Control Center icon on the
Windows desktop, and then click Webcam Settings .
2 Click Advanced...
3 Click the Camera Control tab.
4 Remove the check from the Auto Focus check box.
5 Drag the Focus slider to manually adjust the focus.
6 Click OK or Apply.
18 HP Webcam HD 5210 User’s Guide
Problem Solution
The webcam buttons are not working properly
I hear an echo or feedback in the speakers
Look in the Windows System Tray for the HP Button Manager
icon. If you don’t see the HP Button Manager icon, then open the Start menu and click HP Button Manager to restart the application.
On Windows XP computers, check to see if the USB Video Device
application and ArcSoft WebCam Companion are both running. If so, close both of these applications, and then press the Snapshot button. To avoid this problem in the future, do not open the USB Video Device in My Computer. Instead, use the ArcSoft applications that came with your webcam.
On Windows XP computers (Classic view):
1 Click Start > Control Panel > Sounds and Audio Devices.
2 Click the Audio tab.
3 Under Sound playback, click Volume, and drag the Master Volume
slider to adjust the speaker volume.
4 Under Sound recording, click Volume, and drag the Microphone slider
to adjust the microphone volume.
On Windows Vista computers (Classic view) or Windows 7 computers (Large icons or Small icons view):
1 Open the Start menu and then click Control Panel > Sound.
2 Click the Playback tab.
The webcam audio is not synchronized with the webcam video
3 Select the Speaker you are using and then click Properties.
4 Click the Levels tab and drag the sliders to adjust the output level.
5 Click the Recording tab.
6 Select the Microphone you are using and then click Properties.
7 Click the Levels tab and drag the sliders to adjust the input level.
From the Video Capture screen, select the resolution list in the upper-right corner, and set the video resolution to 640x480 to synchronize the video and audio. After synchronizing the audio and video, try increasing the resolution to the next level. If the problem recurs, go back to the previous resolution setting.
HP Webcam HD 5210 User’s Guide 19
Problem Solution
I am having trouble using the webcam with Skype
1 Check for updates to make sure you installed the latest version of Skype.
2 Check the microphone setting in Audio Settings and the webcam setting
in Video Settings. They should be set to USB Video Device (Windows XP) or HP Webcam HD 5210 (LR374AA) (Windows Vista or Windows 7).
I see a blank screen with static when I run Skype
After you place the call, make sure the video device is set to USB Video Device (Windows XP) or HP Webcam HD 5210 (LR374AA) (Windows Vista or Windows 7).
The webcam microphone does not work with Skype
1 On the menu bar, select Call > Audio Settings.
2 Make sure the microphone device is set to USB Video Device
(Windows XP) or HP Webcam HD 5210 (LR374AA) (Windows Vista or Windows 7).
3 Drag the Microphone Volume slider towards High to increase the
volume level.
4 Click Save. Retry your call.
I have more than one USB Video Device option. Which one should I use?
You have more than one video device connected to your PC. Try selecting each option and then attempt to use your webcam. If the webcam works, you found the right option. If the webcam doesn’t work, try another option until you find the one associated with your webcam.
Still need help? Please refer to the warranty that came with your webcam for support phone numbers and Web site information.
20 HP Webcam HD 5210 User’s Guide
Loading...
