Unplug the computer and
B
A
B
A
A
B
A
B
B
A
B
A
A
A
B
1 2 3
ground yourself
Before doing any work inside
your computer, ground yourself
by touching a metal part of the
computer’s frame.
Remove side cover 1
BEFORE YOU BEGIN
Remove side cover 2
CD/DVD DRIVE
Remove connectors
1
Replace part
3 4
Your replacement kit may contain
more parts than needed for the part
you are replacing.
Remove part
2
Replace connectors
All connectors are keyed for
their intended location and
should not require excessive
force to plug in.
Remove connectors Remove part
1 2
HARD DRIVE
1
A
B
C
C
B
A
B
A
B
A
A
B
B
A
Replace part
3
Your replacement kit may contain
more parts than needed for the part
you are replacing.
Replace connectors
4
EXPANSION/RAID CARD
Lay down computer Remove connectors (if applicable) and remove part
1
2
All connectors are keyed for
their intended location and
should not require excessive
force to plug in.
Replace part and replace connectors (if applicable)
3
6-in-1 MEDIA READER
Remove connector Remove part
1
2
2 3
A
B
B
Replace part Replace connector
A
B
C
D
A
B
A
B
3 4
Your replacement kit may contain
more parts than needed for the part
you are replacing.

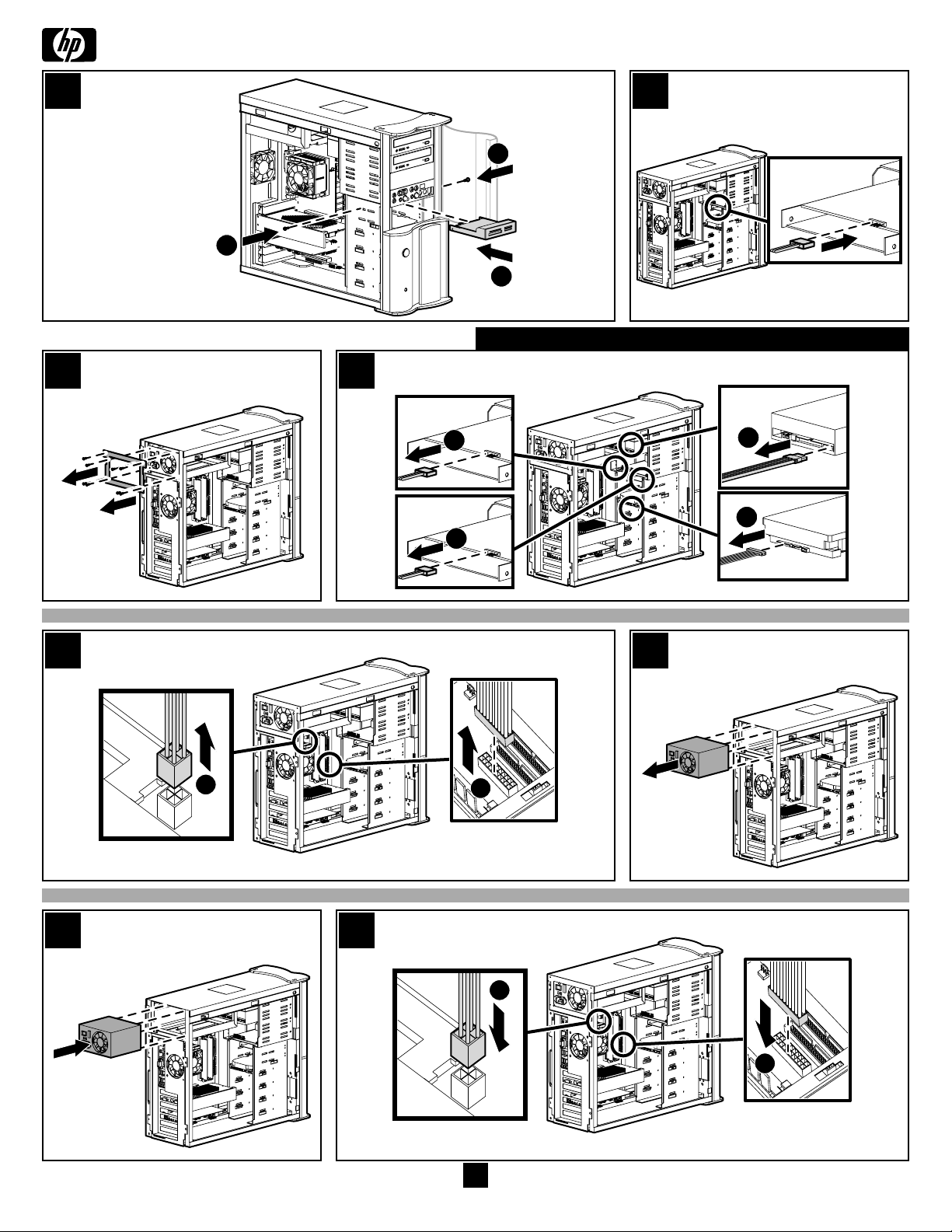

Remove power supply
1 2
bracket
Remove drive connectors
POWER SUPPLY
Remove system connectors
3
Replace power supply
5
Replace system connectors
6
Remove power supply
4
All connectors are keyed for their intended location
and should not require excessive force to plug in.
POWER SUPPLY
A
B
C
D
A
B
B
A
A
B
A
B
A
B
Replace drive connectors
7
All connectors are
keyed for their
intended location
and should not
require excessive
force to plug in.
SOUND BLASTER
Replace power supply
8
bracket
Remove connectors
1
Replace part
3 4
Your replacement kit may contain
more parts than needed for the part
you are replacing.
Remove part
2
Replace connectors
All connectors are keyed for
their intended location and
should not require excessive
force to plug in.
4
