QuickSpecs

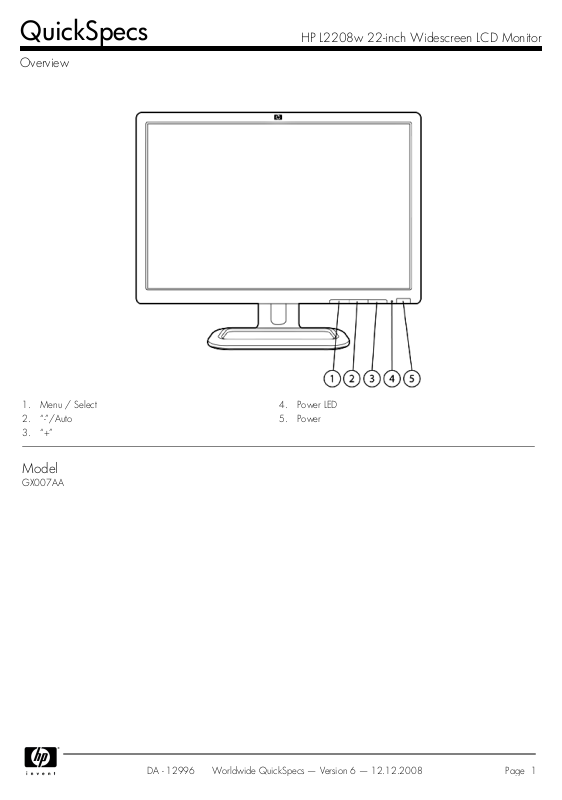

Overview

HP L2208w 22-inch Widescreen LCD Monitor

1.

Menu / Select

2.

“-”/Auto

3.

“+”

Model

GX007AA

4.

5.

Power LED
Power

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

Page 1

QuickSpecs

Technical Specifications

HP L2208w 22-inch Widescreen LCD Monitor

Panel

On Screen Display
Controls

Signal Interface/
Performance

Video/Other Inputs

Type
Viewable Image Area
Screen Opening
Panel Type
Aspect Ratio
Viewing Angle
Brightness
Contrast Ratio
Response Time
Pixel Pitch
Backlight Lamp Life

(to half brightness)

*All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.

(OSD)

Buttons or Switches
Languages

User Controls

Horizontal Frequency
Vertical Frequency
Native Resolution
Preset VESA Graphic

Modes

Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock

Speed
User Programmable

Modes
Anti-Glare
Anti-Static
Default Color Temperature
Plug and Play
Input Signal

(typical)*

(non-interlaced)

(WxH)

(typical)

(typical)*

(typical)*

22-inch Wide-Aspect Active Matrix TFT (thin film transistor)
22 in (55.9 cm) widescreen; diagonally measured

18.8 x 11.8 in (47.8 x 30.0 cm)
TN
16:10
Up to 160° horizontal/160° vertical (10:1 minimum contrast ratio)
300 nits (cd/m2)
1000:1
5 ms (on/off)

0.282 mm
30K hours

Input select/OSD UP, auto adjust/OSD down, OSD menu select, power
English, French, German, Spanish, Italian, Dutch, and Japanese, S. Chinese

Brazilian Portuguese
Brightness, contrast, positioning, color temperature (6500k, 9300k, custom),

individual color control, serial number, display, clock, clock phase, monitor
management, factory reset, etc

24 to 83 kHz (VGA input)
50 to 76 Hz (VGA input)
1680 x 1050 @ 60 Hz (WSXGA+), 1.76 Million pixels
1600 x 1000 @ 60 Hz
1440 x 900 @ 60 Hz
1280 x 1024 @ 60 Hz and 75 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 65 Hz
1024 x 768 @ 60 Hz and 75 Hz
800 x 600 @ 60 Hz and 75 Hz
640 x 480 @ 60 Hz and 75 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 76 Hz
165 MHz (analog input)

Yes, 15

Yes
Yes
6500 K
Yes
VGA connector

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

Page 2

QuickSpecs

Technical Specifications

HP L2208w 22-inch Widescreen LCD Monitor

Power

Mechanical

Environmental

Input Impedance
Sync Input
VGA Cable
VGA Cable Length
Input Power
Frequency
Typical Power

Consumption
Maximum
Power Saving
Power Cable Length
Dimensions

(H x W x D)

Weight

Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature – Operating
Temperature –

Non-operating
Humidity – Operating
Humidity –

Non-operating
Altitude – Operating
Altitude –

Non-operating

75 ohms ± 10%
TTL separate synch
15 pin D-sub VGA

5.9 ft (1.8 m)
Auto-Sensing, 100 to 240 VAC, 50 +/-3 Hz to 60 +/-3 Hz)

47.5 to 63 Hz
41 watts

< 50 watts
< 2 watts standby; <1 watt off

6.2 ft (1.9 m)
Unpacked w/stand

Unpacked w/o stand
(head only)

Packaged

Head Only
Unpacked
Packaged

-5° to + 25° vertical
No
No
No
Attachable, ships attached
41° to 95° F (5° to 35° C)

-29° to 140° F (-20° to 60° C)

20% to 80% non-condensing
5% to 95%, 38.7° C max wet-bulb

+12,000 ft (3,658 m)
+40,000 ft (12,192 m)

16.32 x 20.27 x 7.56 in
(41.46 x 51.48 x 19.2 cm)

13.59 x 19.72 x 2.36 in
(34.52 x 51.48 x 6.0 cm)

18.94 x 23.43 x 7.48 in
(48.1 x 59.5 x 19 cm)

10.36 lb (4.7 kg)

11.93 lb (5.41 kg)

16.54 lb (7.51 kg)

Environmental Data

Eco-Label Certifications
and Declarations

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:

ENERGY STAR®
IT ECO declaration
TCO 03
Taiwan Green Mark
CECP
EPEAT™ Silver

Page 3

QuickSpecs

Technical Specifications

HP L2208w 22-inch Widescreen LCD Monitor

Energy Consumption
(in accordance with
ENERGY STAR® test
method)

Normal Operation
Sleep
Off

Heat Dissipation

Normal Operation
Sleep
Off

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for
one hour.

Ergonomics

Additional Information

*

AC Input Voltage at 100
VAC +/- 5 VAC, 50 Hz
+/- 3 Hz

42.92 watts 42.88 watts 42.54 watts

0.735 watts

0.696 watts 0.729 watts 0.765 watts

AC Input Voltage at 100
VAC +/- 5 VAC, 50 Hz
+/- 3 Hz

146.45 BTU/hr 146.31 BTU/hr 145.15 BTU/hr

2.51 BTU/hr 2.76 BTU/hr 2.80 BTU/hr

2.37 BTU/hr 2.49 BTU/hr 2.61 BTU/hr

The monitor meets the ergonomic requirement of EN-ISO 13406-2 for flat
panel displays.

This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) Directive, 2002/95/EC.

AC Input Voltage at 115
VAC +/- 5 VAC, 60 Hz
+/- 3 Hz

0.81 watts

AC Input Voltage at 115
VAC +/- 5 VAC, 60 Hz
+/- 3 Hz

AC Input Voltage at 230
VAC +/- 5 VAC, 50 Hz
+/- 3 Hz

0.822 watts

AC Input Voltage at 230
VAC +/- 5 VAC, 50 Hz
+/- 3 Hz

Material Usage

This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive, 2002/96/EC.

This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the
Silver level, see:

Plastics parts weighing over 25 grams used in the product are marked per
ISO 11469 and ISO1043.

Display meets the requirement for low frequency electromagnetic fields per
TCO and prEN50279 A/B/C.

This product contains 0% recycled materials (by wt.)

This product is 95% recyclable when properly disposed of at end of life.

Packaging Materials

Corrugated Carton 1.375 kg
HDPE Bag 0.02 kg
Polystyrene 0.25 kg

This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the
Environment at

supplychain/gen_specifications.html

www.epeat.net

www.hp.com/hpinfo/globalcitizenship/environment/

.

Asbestos

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

Page 4

QuickSpecs

Technical Specifications

Packaging

HP L2208w 22-inch Widescreen LCD Monitor

Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

HP follows these guidelines to decrease the environmental impact of product
packaging:

End-of-life Management
and Recycling

Hewlett-Packard
Corporate Environmental
Information

Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.

Hewlett-Packard offers end-of-life HP product return and recycling programs in
many geographic areas. To recycle your product, please go to:

www.hp.com/recycle

returned to HP will be recycled, recovered or disposed of in a responsible
manner.

For more information about HP’s commitment to the environment:
Global Citizenship Report

www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

www.hp.com/hpinfo/globalcitizenship/environment

productdesign/ecolabels.html
ISO 14001 certificates:

or contact your nearest HP sales office. Products

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

Page 5

QuickSpecs

Technical Specifications

Options

Other

HP Silver LCD Speaker
Bar—Part number:
EE418AA

HP LCD Monitor Quick
Release—Part number
EM870AA*

HP Integrated Work
Center Stand - Part
number: GN783AA

HP Security Lock—Part
number PC766A

* The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) depending
upon the mounting configuration used. Please note this is a total weight limit for all devices mounted, i.e.
the combined weight of the monitor and a second device such an HP Compaq Thin Client cannot
exceed 24 pounds. Because mounting surfaces vary widely and the final mounting method and
configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP
recommends that you consult with a qualified engineering, architectural or construction professional to
determine the appropriate type and quantity of mounting fasteners required for your application and to
ensure that your mounting solution is properly installed to support applied loads.

Accessories Included

Software

User Guide Languages

Warranty Languages

Color
VESA External Mounting

Kensington Lock-Ready

HP L2208w 22-inch Widescreen LCD Monitor

www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html

Powered directly by the monitor or the PC, the Speaker Bar seamlessly
attaches to the monitor's lower bezel to bring full audio support to select HP
LCD monitors. Features include dual speakers with full sound range and
external jack for headphones. Sold separately. For more information, refer to
the HP Silver LCD Speaker Bar QuickSpecs.

An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows
you to quickly and securely attach a flat panel monitor to a variety of stands,
brackets, arms or wall mounts. For more information, refer to this product's
QuickSpecs document.

Allows mounting of a 17-, 19-, or 22-inch diagonal HP LCD monitor and an
HP Compaq dc7800 or dc7900 Ultra-slim Desktop PC or HP t5000 series
Thin Client on a single stand for the convenience of an "all-in-one" form
factor. Sold separately. For more information, refer to this product's
QuickSpecs document.

Combines aircraft-grade steel and Kevlar fiber to securely lock down your
monitor and help prevent theft.

VGA cable – connects the graphic card's VGA connector to the monitor's
VGA input; power cable

HP Display Assistant is a software utility that enables theft deterrence and
allows monitor adjustment, color calibration, and security/asset management
using the Display Data Channel Command Interface (DDC/CI) protocol of
the connected PC.

HP Display LiteSaver allows you to schedule Sleep mode at preset times to
help protect the monitor against image retention, drastically lower power
consumption and energy costs, and extend the lifespan of the monitor.

English, B. Portuguese, French, LA Spanish, Korean, S. Chinese, T. Chinese,
Bahasa, Japanese, Danish, Finnish, German, Norwegian, Spanish,
Swedish, Greek, Polish, Russian, Slovenian, Turkish

English, Canadian French, LA Spanish, Brazilian Portuguese, Danish,
German, Castilian Spanish, French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese, S. Chinese

Carbonite
Yes (One sets of Standard 4 hole pattern, 100 mm) Use of the top VESA 4

hole pattern will allow the user to set monitor head lower to the desk
surface

Yes, One Kensington slots available

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

Page 6

QuickSpecs

Technical Specifications

HP L2208w 22-inch Widescreen LCD Monitor

Certification and
Compliance

Compatibility

Service and Warranty

TCO'03, ISO 13406-2 VDT Guidelines Approval, CISPR Requirements, VCCI Approvals, MIC (Korean)
Requirements, CSA, Australian ACA Approval, “GS” Mark, TUV Approvals, CE Marking, FCC
Approval, ENERGY STAR® qualified, PC-2001 Certified, Microsoft® Windows® Certification
(Microsoft® Windows® 98, Microsoft Windows 2000, Microsoft Windows XP, and Windows Vista®),
EPEAT™ SIlver

Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.

Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement
options may include second business day on-site service, or next business day direct replacement, at HP's
sole discretion.* With direct replacement, HP will ship a replacement display product directly to you.
Using the prepaid shipping labels provided, return your failed display to HP in the same packaging as
the replacement. Certain restrictions and exclusions apply. For details see your product warranty or
contact HP Customer Support.

* HP Care Pack Services extend service contracts beyond the standard warranties. Service starts from
date of hardware purchase. To choose the right level of service for your HP product, use the HP Care
Pack Services Lookup Tool at:
information by product is available at:
for HP Care Packs may vary depending on your geographic location.

www.hp.com/go/lookuptool

www.hp.com/hps/carepack

. Additional HP Care Pack Services

. Service levels and response times

© Copyright 2008 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries. Windows
Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. ENERGY
STAR is a registered mark owned by the U.S. government.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

DA - 12996 Worldwide QuickSpecs — Version 6 — 12.12.2008

Page 7
