HP GP537AA User Manual

1.

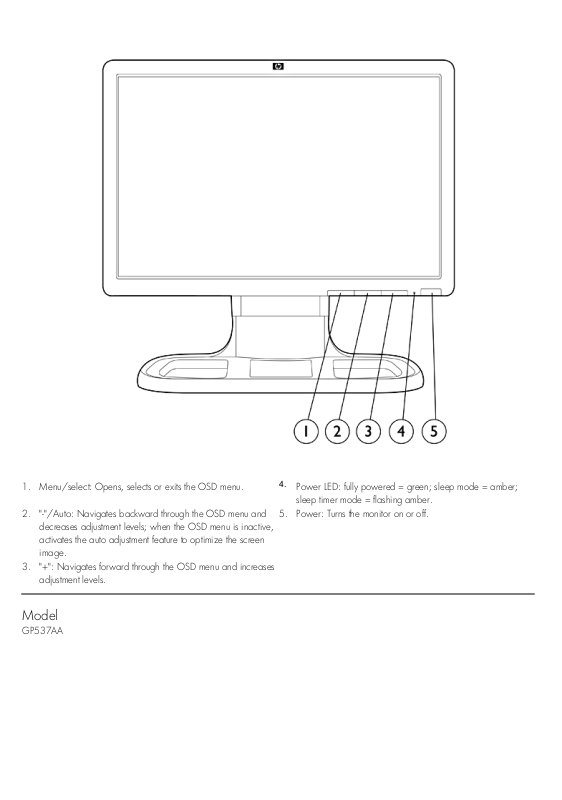

Menu/select

2.

"-"/Auto
decreases adjustment levels; when the OSD menu is inactive,
activates the auto adjustment feature to optimize the screen
image.

3.

"+"

: Navigates forward through the OSD menu and increases

adjustment levels.

: Opens, selects or exits the OSD menu.

: Navigates backward through the OSD menu and

Model

GP537AA

4.

Power LED
sleep timer mode = flashing amber.

5.

Power

: fully powered = green; sleep mode = amber;

: Turns the monitor on or off.

Panel

On Screen Display
Controls

Signal Interface/
Performance

Video Input

Power

Type
Viewable Image Area

(diagonal)
Screen Opening

(W x H)
Viewing Angle
Brightness
Contrast Ratio
Response Rate
Pixel Pitch
Backlight Lamp Life

(to half brightness)

* All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.

(OSD)

Buttons or Switches
Languages
User Controls

Horizontal Frequency
Vertical Frequency
Native Resolution
Preset VESA Graphic

Modes

Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock

Speed
User Programmable

Modes
Anti-Glare
Anti-Static
Default Color Temperature
Plug and Play
Self Powered USB 2.0

Hub
Input Signal
Input Impedance
Sync Input
VGA Cable
VGA Cable Length
Input Power
Frequency
Typical Power

Consumption
Maximum
Power Saving

(non-interlaced)

(typical)

(typical)

*

(typical)*1000:1

19-in (48.25-cm) Wide-Aspect Active Matrix TFT (thin film transistor)
19 in (48.25 cm) wide (WXGA+); diagonally measured

16.1 x 10.1 in (40.98 x 25.67 cm)

Up to 160° horizontal/160° vertical (10:1 minimum contrast ratio)
300 nits (cd/m2)

≤5 ms (on/off)

0.285 mm
50 K hours

Auto adjust/OSD down, OSD UP, OSD menu select, power
English, French, German, Spanish, Italian, Dutch, and Japanese, S. Chinese
Brightness, contrast, positioning, color temperature (6500k, 9300k, custom),

individual color control, serial number, display, clock, clock phase, monitor
management, factory reset, zoom

24 to 83 kHz
50 to 76 Hz
1440 x 900 @ 60 Hz
1280 x 1024 @ 60 Hz and 75 Hz
1024 x 768 @ 60 Hz and 75 Hz
800 x 600 @ 60 Hz and 75 Hz
640 x 480 @ 60 Hz and 75 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 66 Hz
140 MHz (analog input)

Yes, 10

Yes
Yes
6500 K
Yes
No

VGA
75 ohms ± 10%
TTL separate synch or Composite Sync
15 pin D-sub VGA

5.9 ft (1.8 m)
Auto-Sensing, 100 to 240 VAC, 50 +/-3 Hz to 60 +/-3 Hz)
45 to 63 Hz
37 watts

50 watts
2 watts standby;1 watt off

Mechanical

Environmental

Environmental Data

Power Cable Length
Dimensions

Weight

Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base and Stand
Temperature –

Operating
Temperature –

Non-operating
Humidity – Operating
Humidity –

Non-operating
Altitude – Operating
Altitude –

Non-operating
Eco-Label Certifications

and Declarations

(H x W x D)

6.2 ft (1.9 m)
Unpacked w/stand

lowered)
Unpacked w/stand

(stand raised)
Unpacked w/o stand

(head only)
Packaged

Unpacked
Head only
Packaged

-3° to + 20° vertical

-180° to 180° horizontal
Yes, 5.3 in (13.5 cm)
No
Detachable, ships attached
41° to 104° F (5° to 40° C)

-29° to 140° F (-34° to 60° C)

20% to 80% non-condensing
5% to 95%, 38.7° C max wet-bulb

+12,000 ft (3,658 m)
+40,000 ft (12,192 m)

This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these marks:

(stand

14.06 x 17.56 x 10.24 in
(35.7 x 44.6 x 26.02 cm)

19.37 x 17.56 x 10.24 in
(49.2 x 44.6 x 26.02 cm)

11.9 x 17.6 x 2.3 in
(30.1 x 44.6 x 5.9 cm)

16.57 x 22.13 x 13.54 in
(42.1 x 56.2 x 34.4 cm)

16.53 lb (7.5 kg)

9.3 lb (4.2 kg)

22.05 lb (10.0 kg)

ENERGY STAR®
US Federal Energy Management Program (FEMP)
IT ECO declaration
TCO 03
Taiwan Green Mark
CECP
EU Flower (2001/686/EC & 2001/687/EC)
GEEA

Energy Consumption
(in accordance with US
Energy Star test method)

Normal Operation
Sleep
Off
Heat Dissipation*
Normal Operation
Sleep
Off

*

Heat dissipation is calculated based on the measured watts, assuming the service level is attained for

one hour.

Ergonomics

Additional Information

AC Input Voltage at 100
VAC +/- 5 VAC, 50 Hz
+/- 3 Hz

36 watts 37 watts 37 watts
2 watts 2 watts 2 watts
1 watt 1 watt 1 watt
100 VAC, 50 Hz 115 VAC, 60 Hz 230 VAC, 50 Hz
123 BTU/hr 123 BTU/hr 123 BTU/hr

6.82 BTU/hr 6.82 BTU/hr 6.82 BTU/hr

3.41 BTU/hr 3.41 BTU/hr 3.41 BTU/hr

The monitor meets the ergonomic requirement of EN-ISO 13406-2 for flat
panel displays.

This HP product is designed to comply with the Waste Electrical and

AC Input Voltage at 115
VAC +/- 5 VAC, 60 Hz
+/- 3 Hz

AC Input Voltage at 230
VAC +/- 5 VAC, 50 Hz
+/- 3 Hz

Material Usage

Packaging

Electronic Equipment (WEEE) Directive, 2002/96/EC.

Plastics parts weighing over 25 grams used in the product are marked per
ISO 11469 and ISO1043.

Display meets the requirement for low frequency electromagnetic fields per
TCO and prEN50279 A/B/C.

This product contains 0% recycled materials (by wt.)

This product is 95% recyclable when properly disposed of at end of life.

Packaging Materials

Corrugated Carton – 0.96 kg
HDPE Bag – 0.09 kg
Polystyrene – 0.55 kg

This product does not contain any of the following substances in excess of
regulatory limits (refer to the HP General Specification for the Environment at:

www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html

Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as flame
retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface designed to
be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and certain
retail packaging has been voluntarily removed from most applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

HP follows these guidelines to decrease the environmental impact of product
packaging:

)

Eliminate the use of heavy metals such as lead, chromium, mercury and
cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in packaging
materials.
Design packaging materials for ease of disassembly.
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation fuel
efficiency.
Plastic packaging materials are marked according to ISO 11469 and

End-of-life Management
and Recycling

Hewlett-Packard
Corporate Environmental
Information

DIN 6120 standards.

Hewlett-Packard offers end-of-life HP product return and recycling programs in
many geographic areas. To recycle your product, please go to:

www.hp.com/recycle

returned to HP will be recycled, recovered or disposed of in a responsible
manner.

For more information about HP's commitment to the environment:
Global Citizenship Report

www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html

ISO 14001certificates:

www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html

or contact your nearest HP sales office. Products

Options

Other

Certification and
Compliance

Compatibility

Service and Warranty

HP Silver LCD Speaker
Bar—Part number:
EE418AA

Kensington Security
Lock—Part number
PC766A

Accessories Included

Software

User Guide Languages

Warranty Languages

Color
VESA External Mounting

Kensington Lock-ready
TCO'03, ISO 13406-2 VDT Guidelines Approval, CISPR Requirements, VCCI Approvals, MIC (Korean)

Requirements, CSA, Australian ACA Approval, "GS" Mark, TUV Approvals, CE Marking, FCC Approval,
ENERGY STAR® Qualified, PC-2001 Certified, Microsoft® Windows® Certification (Microsoft®
Windows® 98, Microsoft Windows 2000, Microsoft Windows XP, and Windows Vista®)

Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.

Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement
options may include second business day on-site service, or next business day direct replacement, at HP's
sole discretion. With direct replacement, HP will ship a replacement display product directly to you.
Using the prepaid shipping labels provided, return your failed display to HP in the same packaging as
the replacement. Certain restrictions and exclusions apply. For details see your product warranty or
contact HP Customer Support.

Powered directly by the connected PC, the Speaker Bar seamlessly attaches
to the monitor's lower bezel to bring full audio support to select HP flat panel
monitors. Features include dual speakers with full sound range and external
jack for headphones. Sold separately. For more information, refer to the HP
Speaker Bar QuickSpecs.

Combines aircraft-grade steel and Kevlar fiber to securely lock down your
monitor and help prevent theft.

VGA cable – connects the graphic card's VGA connector to the monitor's
VGA input

HP Display Assistant is a software utility that allows monitor adjustment and
color calibration using the Display Data Channel Command Interface
(DDC/CI) protocol of the connected PC.

HP Display LiteSaver allows you to schedule Sleep mode at preset times to
help protect the monitor against image retention, drastically lower power
consumption and energy costs, and extend the lifespan of the monitor.

English, B. Portuguese, French, LA Spanish, Korean, S. Chinese, T. Chinese,
Bahasa, Japanese, Danish, Finnish, German, Norwegian, Spanish, Swedish,
Greek, Polish, Russian, Slovenian, Turkish

English, Canadian French, LA Spanish, Brazilian Portuguese, Danish,
German, Castilian Spanish, French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese, S. Chinese

All carbonite
Yes (Two sets of Standard 4 hole pattern, 100 mm) Use of the top VESA 4

hole pattern will allow the user to set monitor head lower to the desk surface
Yes

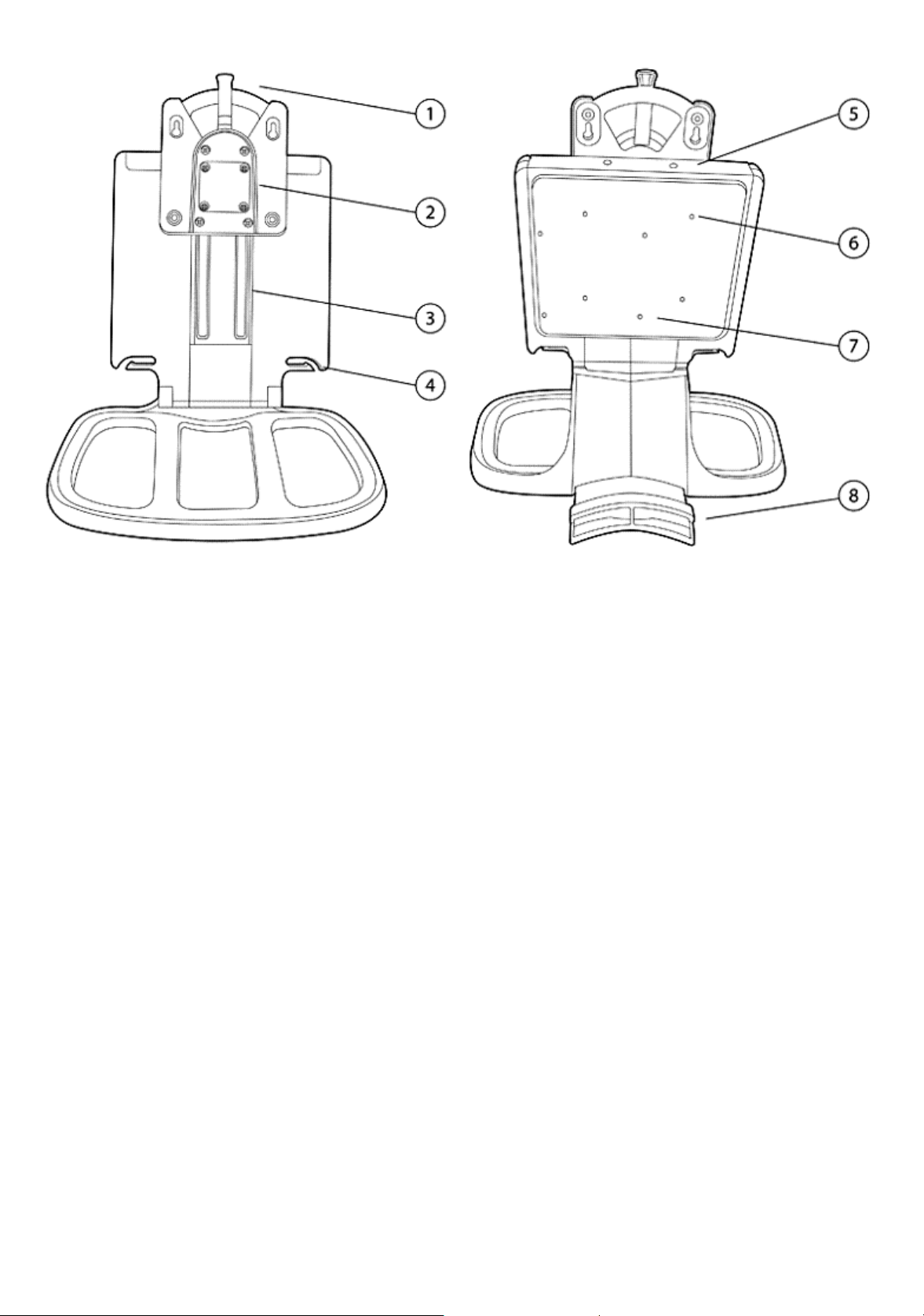

1.

HP Quick Release security screw

2.

Integrated HP Quick Release

3.

Height-adjustable monitor mount

4.

Integrated cable management slots

5.

Mounting bracket security screw installation points

6.

PC and thin client mounting bracket (unique four-hole pattern
for thin clients

7.

PC and thin client mounting bracket (unique four-hole pattern
for PCs

8.

Power supply support and rear cable management loops

Mechanical

Other

Supported weight
capacity

Tilt range
Swivel range
Height adjustable
Pivot rotation
Dimensions

Weight
Accessories included

User guide languages

Warranty languages
Color
VESA external mounting

Option kit contents

The Integrated Work Center Stand has been designed to support the weight of a 17-, 19-, or 19-inch
wide format monitor only.

(Unpackaged)

-3 to +20 degrees vertical tilt

-180° to + 180°
Yes, range: 5.3 in (13.5 cm)
No
Cable management slot in:

Cable management slot
out:

Unpackaged
Exclusive Integrated Work Center VGA video cable, HP dc7800 Ultra-slim

Desktop cable cover (rear port cover), PC mounting bracket, HP Quick
Release, documentation kit, and User CD

English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese,
Danish, Finnish, Greek, Japanese, Korean, Latin American Spanish,
Norwegian, Polish, Russian, Slovenian, Turkish, Swedish, Traditional
Chinese, Simplified Chinese

English, German, French, Italian, Spanish and Japanese
Carbonite
Yes (Standard 4 hole pattern, two separate 100 mm patterns on the

mounting bracket)
Integrated Work Center Stand and PC mounting bracket, Integrated Work

Center VGA video cable, HP Compaq dc7800 Ultra-slim Desktop cable
cover (rear cover), Quick Release bracket (to attach to back of monitor)

16.5 x 14.5 x 10.25 in (41.91 x 36.83 x

26.06 cm)

16.5 x 14.5 x 12.25 in (41.91 x 36.83 x

31.12 cm)

6.12 lbs (2.78 kg)

HP LCD Monitor Quick Release (included in IWC stand)

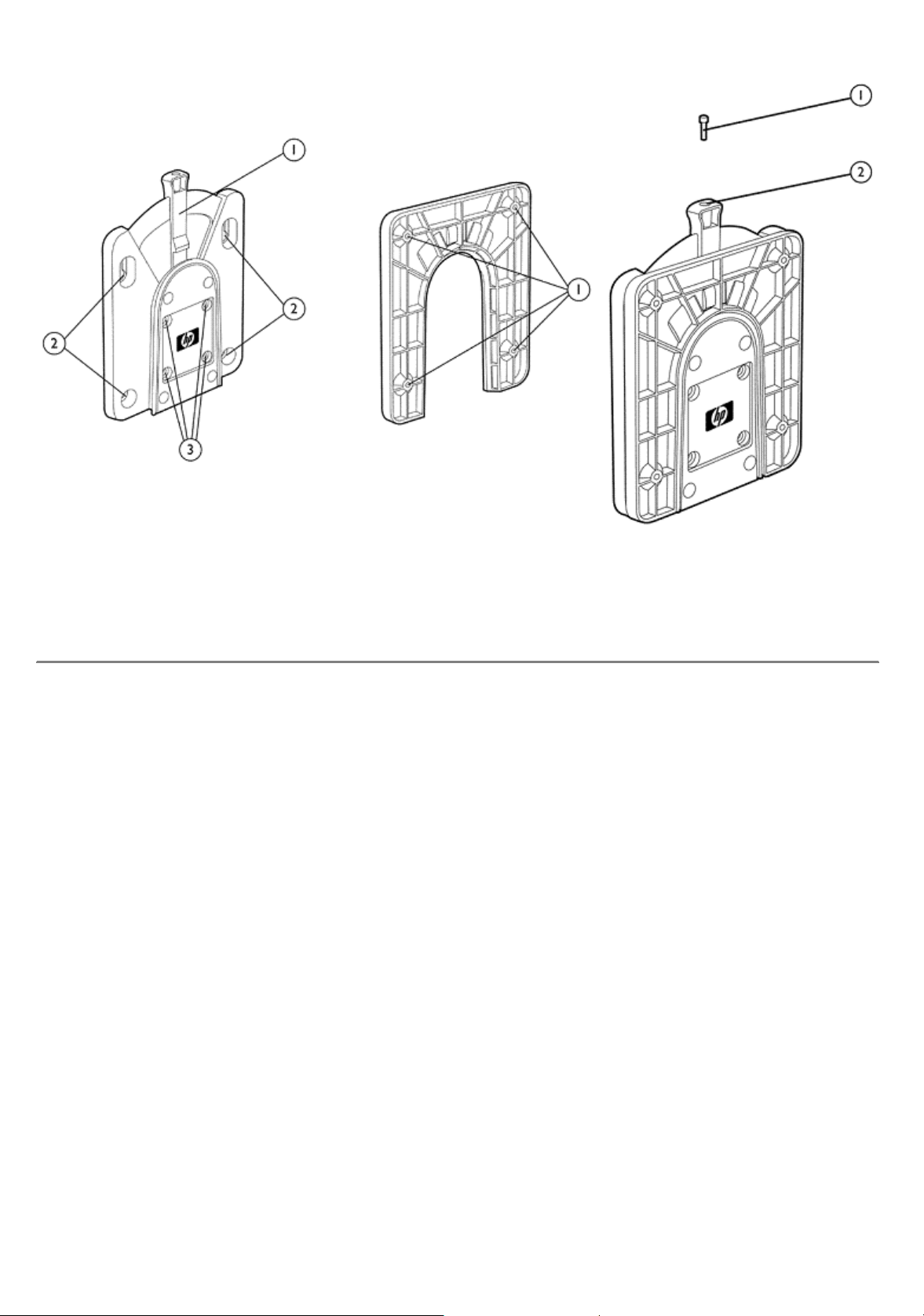

1.

Release/locking
Four 100 mm VESA mount screw holes

2.

Mounting holes for attachment to back

3.
of monitor stands

1.

Four 100 mm VESA mount screw holes1.Locking pin screw

2.

Locking pin hole on release/locking
arm

Mechanical

Additional components

Color

NOTE:
NOTE:
factory.
NOTE:
oriented downward.

Supported weight
capacity

No HP monitors allow positioning of a thin client product between a monitor screen and its stand.
The Quick Release device is not to be used between a monitor screen and its stand unless provided that way from the

Under no circumstances is the Quick Release device intended to be used in an orientation where the Release/Lock lever is

Dimensions

Weight

Carbonite

The HP LCD Monitor Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg)
depending upon the mounting configuration used. Please note this is a total weight limit for all devices
mounted, i.e. the combined weight of the monitor and a second device such as an HP Thin Client cannot
exceed 24 pounds. Because mounting surfaces vary widely and the final mounting method and
configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws). HP
recommends that you consult with a qualified engineering, architectural or construction professional to
determine the appropriate type and quantity of mounting fasteners required for your application and to
ensure that your mounting solution is properly installed to support applied loads.

(H x W x D)

Eight 10 mm mounting screws (for attachment to VESA compliant monitor mounts)
Eight 15.5 mm mounting screws (for attachment to HP Compaq t5000 Thin Client products)
Four 20 mm mounting screws (for attachment to back of select HP flat panel monitor stands)
One Quick Release "locking" screw

Packaged:
Unpackaged:
Packaged:
Unpackaged:

7.8 x 6.25 x 1.5 in (19.8 x 15.9 x 3.8 cm)

6.3 x 5.2 x 0.65 in (16 x 13.2 x 1.65 cm)

1.1 lb (0.49 kg)

0.82 lb (0.37 kg)

© Copyright 2008 Hewlett-Packard Development Company, L.P.

Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries. Windows
Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. ENERGY
STAR is a registered mark owned by the U.S. government.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
