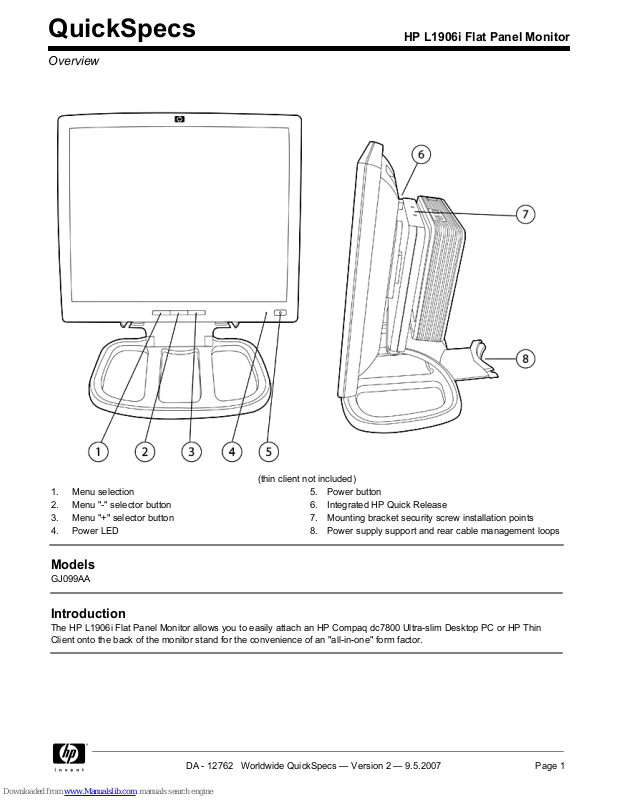

1.
Menu selection
5.
Power button
2.
Menu "-" selector button
6.
Integrated HP Quick Release
3.
Menu "+" selector button
7.
Mounting bracket security screw installation points
4.
Power LED
8.
Power supply support and rear cable management loops
Models
GJ099AA
Introduction
The HP L1906i Flat Panel Monitor allows you to easily attach an HP Compaq dc7800 Ultra-slim Desktop PC or HP Thin
Client onto the back of the monitor stand for the convenience of an "all-in-one" form factor.
QuickSpecs
HP L1906i Flat Panel Monitor
Overview
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 1
Page 2
Key features and benefits
Integrates your HP Compaq dc7800 Ultra-slim Desktop PC or HP Thin Client and an HP L1906i Flat Panel Monitor,
allowing you to conveniently put the entire compact system configuration at your fingertips, saving valuable desktop
space and making the most efficient use of space-constrained office environments
Cable management solution keeps the PC and monitor cables together and hidden from view
Vertical height adjustment allows the monitor to be adjusted for maximum user comfort
Entire unit swivels left to right with the touch of a finger which allows easy adjustability to accommodate multiple
viewers
Monitor mounting plate supports the attachment of either the HP Compaq dc7800 USDT chassis or HP Thin Client
QuickSpecs
HP L1906i Flat Panel Monitor
Overview
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 2
Page 3
Panel
Type
19-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
19 in (48.26 cm)
Screen Opening
(W x H)
14.8 x 11.9 in (37.6 x 30.1 cm)
Viewing Angle
(typical)*140 degrees horizontal/130 degrees vertical (10:1 minimum contrast
ratio)
Brightness
(typical)
*
270 nits (cd/m2)
Contrast Ratio
(typical)*500:1
Response Rate
5 ms (rise and fall)
Pixel Pitch
0.294 mm
* All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
On Screen Display
(OSD) Controls
Buttons or Switches
3-button OSD (menu, minus, plus); power on/off
Languages
English, French, German, Spanish, Italian, Dutch, Simplified Chinese
User Controls
Image Control (auto, horizontal, vertical)
Positioning (vertical and horizontal)
Color Temperature (6500k, 9300k, Custom)
Brightness
Contrast
Clock, Clock Phase
Monitor Management (power saver, sleep)
Factory Reset
Signal Interface/
Performance
Horizontal Frequency
30 to 83 kHz
Vertical Frequency
50 to 76 Hz
Native Resolution
1280 x 1024 @ 60 Hz (recommended)
Maximum Resolution
(Digital)
N/A
Preset VESA Graphic
Modes
(non-interlaced)
1280 x 1024 @ 60 Hz and 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, and 75 Hz
1152 x 870 @ 75 Hz (Mac)
1152 x 900 @ 76 Hz (Sun)
832 x 624 @ 75 Hz (Mac)
800 x 600 @ 60 Hz, 72 Hz, and 75 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60 Hz, 72 Hz, and 75 Hz
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 degrees Kelvin
Video Input
Plug and Play
Yes
Input Signal
15 pin D-sub (Analog VGA)
Input Impedance
75 ohms (2 % value change allowed)
Sync Input
TTL separate synch
Video Cable
Detachable 15-pin D-sub mini connector
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 3
Page 4
Video Cable Length
27 in (68.6 cm)
Power
Input Voltage
100 ~ 240 VAC
Nominal Current
< 0.50 Ampere
Frequency
50 ~ 60 Hz
Typical Power
Consumption
33 watts
Maximum
< 37 watts
Power Saving
< 2 watts
Power Cable Length
74.8 in (1.9 m); detachable
Mechanical
Dimensions
(H x W x D)
Unpacked with stand
20.1 x 16.6 x 10.3 in (51.1 x 42.2 x 26.2 cm)
Display Head only
14.3 x 16.6 x 2.3 in (36.2 x 42.2 x 5.9 cm)
Packaged
20.2 x 17.9 x 13.7 in (51.4 x 45.5 x 34.8 cm)
Weight
Unpacked
16.7 lb (7.6 kg)
Packaged
21.4 lb (9.7 kg)
Tilt Range
-3 to +20 degrees vertical tilt
Swivel Range
-180° to + 180°
Height Adjustable
Yes, range:5.1 in (13 cm)
Base and Stand
Detachable, attaches to monitor using HP Quick Release
Environmental
Temperature –
Operating
50° to 95° F (10° to 35° C) non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity –
Non-operating
5% to 90%
Altitude – Operating
0 to 12,000 ft (0 to 3,658 m)
Altitude –
Non-operating
0 to 40,000 ft (0 to 12,100 m)
Environmental Data
Eco-Label
Certifications and
Declarations
This product has received or is in the process of being certified to the
following approvals and may be labeled with one or more of these
marks:
ENERGY STAR®
IT ECO declaration
TCO 03
Energy Consumption
(in accordance with US
Energy Star test method)
AC Input Voltage at
100 VAC +/- 5 VAC, 50
Hz +/- 3 Hz
AC Input Voltage at
115 VAC +/- 5 VAC, 60
Hz +/- 3 Hz
AC Input Voltage at
230 VAC +/- 5 VAC, 50
Hz +/- 3 Hz
Normal Operation
31.2 watts
31 watts
30.7 watts
Sleep
2.65 watts 2.32 watts 2.45 watts
Off
0.58 watts 0.37 watts 0.40 watts
Heat Dissipation*
100 VAC, 50 Hz 115 VAC, 60 Hz 230 VAC, 50 Hz
Normal Operation
106.70 BTU/hr 106.02 BTU/hr 104.99 BTU/hr
Sleep
9.06 BTU/hr 7.93 BTU/hr 8.38 BTU/hr
Off
1.98 BTU/hr 1.27 BTU/hr 1.37 BTU/hr
* Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 4
Page 5
Ergonomics
The monitor meets the ergonomic requirement of EN-ISO 13406-2 for
flat panel displays.
Additional Information
This product is in compliance with the Restrictions of Hazardous
Substances (RoHS) Directive, 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and
Electronic Equipment (WEEE) Directive, 2002/96/EC.
Plastics parts weighing over 25 grams used in the product are marked
per ISO 11469 and ISO1043.
Display meets the requirement for low frequency electromagnetic fields
per MPR-II, TCO, and prEN50279 A/B/C.
Packaging Materials
Corrugated Carton – 0.800 kg
Bag LDPE – 0.037 kg
Film PP – 0.190 kg
Material Usage
This product does not contain any of the following substances in excess
of regulatory limits (refer to the HP General Specification for the
Environment at:
http://www.hp.com/hpinfo/globalcitizenship/environment/
supplychain/gen_specifications.html
Asbestos
Certain Azo Colorants
Certain Brominated Flame Retardants – may not be used as
flame retardants in plastics
Cadmium
Chlorinated Hydrocarbons
Chlorinated Paraffins
Formaldehyde
Halogenated Diphenyl Methanes
Lead carbonates and sulfates
Lead and Lead compounds
Mercuric Oxide Batteries
Nickel – finishes must not be used on the external surface
designed to be frequently handled or carried by the user.
Ozone Depleting Substances
Polybrominated Biphenyls (PBBs)
Polybrominated Biphenyl Ethers (PBBEs)
Polybrominated Biphenyl Oxides (PBBOs)
Polychlorinated Biphenyl (PCB)
Polychlorinated Terphenyls (PCT)
Polyvinyl Chloride (PVC) – except for wires and cables, and
certain retail packaging has been voluntarily removed from most
applications.
Radioactive Substances
Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging
HP follows these guidelines to decrease the environmental impact of
product packaging:
Eliminate the use of heavy metals such as lead, chromium,
mercury and cadmium in packaging materials.
Eliminate the use of ozone-depleting substances (ODS) in
packaging materials.
Design packaging materials for ease of disassembly.
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 5
Page 6
Maximize the use of post-consumer recycled content materials in
packaging materials.
Use readily recyclable packaging materials such as paper and
corrugated materials.
Reduce size and weight of packages to improve transportation
fuel efficiency.
Plastic packaging materials are marked according to ISO 11469
and DIN 6120 standards.
End-of-life
Management and
Recycling
Hewlett-Packard offers end-of-life HP product return and recycling
programs in many geographic areas. To recycle your product, please
go to:
http://www.hp.com/recycle
or contact your nearest HP sales
office. Products returned to HP will be recycled, recovered or disposed
of in a responsible manner.
Hewlett-Packard
Corporate
Environmental
Information
For more information about HP's commitment to the environment:
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/environment/
productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/
operations/envmanagement.html
Accessories Included
Exclusive Integrated Work Center VGA video cable, HP dc7800 Ultra-slim Desktop cable cover
(rear port cover), PC mounting bracket, HP Quick Release, documentation kit, and User CD
Options
HP Flat Panel Speaker
Bar – Part number:
EE418AA
Powered directly by the connected PC, the Speaker Bar seamlessly
attaches to the monitor's lower bezel to bring full audio support to select
HP flat panel monitors. Features include dual speakers with full sound
range and an external jack for headphones. Sold separately. For more
information, refer to the HP Flat Panel Speaker Bar QuickSpec.
Other
Software
HP Display LiteSaver feature allows you to schedule Sleep mode at
preset times to help protect the monitor against image retention,
drastically lower power consumption and energy costs, and extend the
lifespan of the monitor.
HP Display Assistant is a software utility that allows monitor adjustment
and color calibration using the Display Data Channel Command
Interface (DDC/CI) protocol of the connected PC.
User Guide Languages
English, Brazilian Portuguese, French, LA Spanish, Korean, Simplified
Chinese, Traditional Chinese, Japanese, Danish, Dutch, Finnish,
German, Italian, Norwegian, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
Americas
English, Canadian French
LA
Spanish, Brazilian Portuguese
EMEA
English, Danish, Dutch, Finnish, European
French, German, Italian, Norwegian, Castilian
Spanish, Swedish
Asia/Pacific
English, Bahasa, S. Chinese, T. Chinese,
Korean, Japanese, Chinese
Color
Carbonite/Silver
VESA External
Mounting
Yes (Standard 4 hole pattern, 100 mm on monitor; two additional 100
mm patterns on the mounting bracket))
Kensington Lock-ready
Yes, on monitor only
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 6
Page 7
Certification and
Compliance
ISO 13406-2 pixel defect guidelines, MPR-II, CISPR, VCCI, CSA (Canada), ACA (Australia), TUV
and GS Mark (German ergonomic), BSMI (Taiwan), CCC (China), MIC (South Korea), NOM
(Mexico), Eastern European approvals, CE Marking, FCC approval, ENERGY STAR® Qualified,
TCO '03 (emissions, ergonomics, environment), Microsoft® Windows® certified (Microsoft®
Windows® 2000, Microsoft Windows XP, and Windows Vista®), UL listed, GOST (Russia), SASO
(Saudi Arabia)
Compatibility
Compatible with platforms using the VESA standard video modes. Recommended for use with HP
products.
Service and Warranty
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support.
Replacement options may include second business day on-site service, or next business day
direct replacement, at HP's sole discretion*. With direct replacement, HP will ship a replacement
display product directly to you. Using the prepaid shipping labels provided, return your failed
display to HP in the same packaging as the replacement. Certain restrictions and exclusions
apply. For details see your product warranty or contact HP Customer Support.
* Service levels and response times for HP Care Packs may vary depending on your geographic
location. Restrictions and limitations apply. For details, visit
http://www.hp.com/go/carepack
.
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 7
Page 8
HP Compaq dc7800 Series Integrated Work Center Stand (included with L1906i)
1.
HP Quick Release security screw
5.
Mounting bracket security screw installation points
2.
Integrated HP Quick Release
6.
PC and thin client mounting bracket (unique four-hole
pattern for thin clients
3.
Height-adjustable monitor mount
7.
PC and thin client mounting bracket (unique four-hole
pattern for PCs
4.
Integrated cable management slots
8.
Power supply support and rear cable management loops
QuickSpecs
HP L1906i Flat Panel Monitor
Overview - HP Compaq dc7800 Series Integrated Work Center Stand (included with L1906i)
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 8
Page 9
Mechanical
Tilt range
-3 to +20 degrees vertical tilt
Swivel range
-180° to + 180°
Height adjustable
Yes, range: 5.3 in (13.5 cm)
Pivot rotation
No
Dimensions
(Unpackaged)
Cable management slot
in:
16.5 x 14.5 x 10.25 in (41.91 x 36.83 x 26.06
cm)
Cable management slot
out:
16.5 x 14.5 x 12.25 in (41.91 x 36.83 x 31.12
cm)
Weight
Unpackaged
6.12 lbs (2.78 kg)
Other
Accessories included
Exclusive Integrated Work Center VGA video cable, HP dc7800 Ultraslim Desktop cable cover (rear port cover), PC mounting bracket, HP
Quick Release, documentation kit, and User CD
User guide languages
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese,
Danish, Finnish, Greek, Japanese, Korean, Latin American Spanish,
Norwegian, Polish, Russian, Slovenian, Turkish, Swedish, Traditional
Chinese, Simplified Chinese
Warranty languages
English, German, French, Italian, Spanish and Japanese
Color
Carbonite
VESA external
mounting
Yes (Standard 4 hole pattern, two separate 100 mm patterns on the
mounting bracket)
Option kit contents
Integrated Work Center Stand and PC mounting bracket, Integrated
Work Center VGA video cable, HP Compaq dc7800 Ultra-slim Desktop
cable cover (rear cover), Quick Release bracket (to attach to back of
monitor)
Supported weight
capacity
The Integrated Work Center Stand has been designed to support the weight of a 17-, 19-, or 19inch wide format monitor only.
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications - HP Compaq dc7800 Series Integrated Work Center Stand
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 9
Page 10
HP Flat Panel Monitor Quick Release (included)
1.
Release/locking
1.
Four 100 mm VESA mount screw
holes
1.
Locking pin screw
2.
Four 100 mm VESA mount screw
holes
2.
Locking pin hole on release/locking
arm
3.
Mounting holes for attachment to
back of monitor stands
Introduction
The HP Quick Release, which ships standard with the HP LP1906i Flat Panel Monitor, is an easy to use, 100 mm VESAcompliant, flat panel monitor mounting solution that allows you to quickly and securely attach a flat panel monitor to a variety
of stands, brackets, arms or wall mounts. HP Quick Release can also be used for mounting any combination of devices that
are compatible with the 100 mm VESA Flat Display Mounting Interface Standard. The failsafe "Sure-Lock" mechanism snaps
the monitor (or mounted device) securely in place, and can be further secured with a theft-deterrent security screw.
QuickSpecs
HP L1906i Flat Panel Monitor
Overview - HP Flat Panel Monitor Quick Release (included)
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 10
Page 11
Mechanical
Dimensions
(H x W x D)
Packaged:
7.8 x 6.25 x 1.5 in (19.8 x 15.9 x 3.8 cm)
Unpackaged:
6.3 x 5.2 x 0.65 in (16 x 13.2 x 1.65 cm)
Weight
Packaged:
1.1 lb (0.49 kg)
Unpackaged:
0.82 lb (0.37 kg)
Additional components
Eight 10 mm mounting screws (for attachment to VESA compliant monitor mounts)
Eight 15.5 mm mounting screws (for attachment to HP Compaq t5000 Thin Client products)
Four 20 mm mounting screws (for attachment to back of select HP flat panel monitor
stands)
One Quick Release "locking" screw
Color
Carbonite
NOTES
:
No HP monitors allow positioning of a thin client product between a monitor screen and its
stand.
1.
The Quick Release device is not to be used between a monitor screen and its stand unless
provided that way from the factory.
2.
Under no circumstances is the Quick Release device intended to be used in an orientation
where the Release/Lock lever is oriented downward.
3.
Supported weight
capacity
The HP Flat Panel Monitor Quick Release has been designed to support a maximum of up to 24
lbs (10.9 kg) depending upon the mounting configuration used. Please note this is a total weight
limit for all devices mounted, i.e. the combined weight of the monitor and a second device such as
an HP Compaq t5000 Series Thin Client cannot exceed 24 pounds. Because mounting surfaces
vary widely and the final mounting method and configuration may vary, mounting fasteners are not
supplied (other than the VESA-compliant screws). HP recommends that you consult with a
qualified engineering, architectural or construction professional to determine the appropriate type
and quantity of mounting fasteners required for your application and to ensure that your mounting
solution is properly installed to support applied loads.
© 2007 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries. ENERGY STAR is a registered mark owned by the U.S. government. ENERGY STAR is a registered mark owned
by the U.S. government.
HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without
warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express
limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional
warranty. All performance specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower.
QuickSpecs
HP L1906i Flat Panel Monitor
Technical Specifications - HP Flat Panel Monitor Quick Release
DA - 12762 Worldwide QuickSpecs — Version 2 — 9.5.2007
Page 11
Loading...
