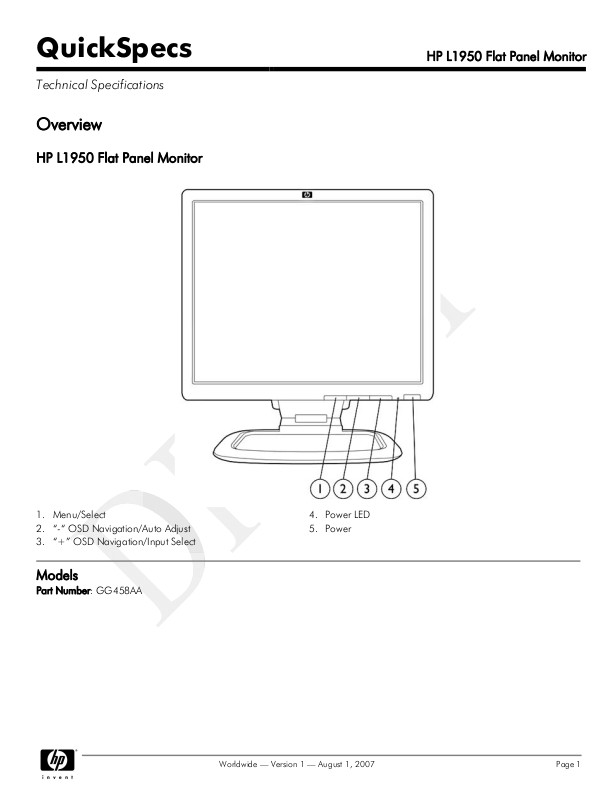

Page 1
QuickSpecs
Technical Specifications
Overview
HP L1950 Flat Panel Monitor
HP L1950 Flat Panel Monitor
1. Menu/Select 4. Power LED
2. “-“ OSD Navigation/Auto Adjust 5. Power
3. “+” OSD Navigation/Input Select
Models
Part Number: GG458AA
Worldwide — Version 1 — August 1, 2007 Page 1
Page 2
QuickSpecs
Technical Specifications
HP L1950 Flat Panel Monitor
Panel
Video/Other
Inputs
Type Active matrix, thin film transistor (TFT)
Viewable Image Area
(diagonal)
Screen Opening (WxH) 14.9 x 11.9 in (37.8 x 30.3 cm)
Viewing Angle (typical)* Up to 160° horizontal/160° vertical (10:1 contrast ratio)
Brightness (typical)* 300 nits (cd/m2)
Contrast Ratio (typical)* 800:1
Response Time (typical)* 5 ms (rise + fall)
Pixel Pitch 0.294 mm
Backlight Lamp Life (to half
brightness)
* All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Plug and Play Yes (supports VESA DDC2B and DDC/CI; PC2001 compliant)
USB 2.0 Hub Self-powered; two ports (cable included)
Input Signal Two connectors: one 15-pin mini D-sub analog VGA and one DVI-D
Input Impedance 75 ohms ± 2%
Sync Input Separate sync (HSYNC/VSYNC)
Video Cable 15-pin D-sub mini connector; detached
Video Cable Length 70.9 in/1.8 m; detached
19 in (48.25 cm)
40K hours
Signal Interface/
Performance
Horizontal Frequency 24 to 83 kHz
Vertical Frequency 50 to 77 Hz
1280 x 1024 @ 60 Hz (analog) Native Resolution
1280 x 1024 @ 60 Hz (digital)
Max Resolution (Analog) 1280 x 1024 @ 75 Hz
Max Resolution (Digital) 1280 x 1024 @ 75 Hz
Preset VESA Modes (non-
interlaced)
Preset SUN Mode 1152 x 900 @ 76 Hz
Fail Safe Mode Yes (limits out of range signal messages)
Max Pixel Clock Speed 140 MHz
User Programmable Modes Yes, 15
Anti-Glare Yes
Anti-Static Yes
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz Preset MAC Mode
1152 x 870 @75 Hz
Worldwide — Version 1 — August 1, 2007 Page 2
Page 3
QuickSpecs
Technical Specifications
AssetControl Yes (accessible on HP Compaq Business Desktops featuring HP Client
Default Color Temperature 6500° Kelvin
HP L1950 Flat Panel Monitor
Manager)
On Screen Display
(OSD) Controls
Power
Mechanical
Buttons and Switches 3-button OSD (menu, minus, plus); power on/off; second level OSD buttons
include dual-input switch, auto-adjust
Languages English, Spanish, French, German, Dutch, Italian, Simplified Chinese,
Japanese
User Controls Size and positioning, contrast, brightness, clock, clock phase, selectable color
temperature, serial number, mode displayed, sleep timer, input selection,
factory reset, individual color contrast, full-screen resolution
Power Supply Auto-ranging, 90 to 265 VAC; internal power supply
Input Power 100 ~ 240 VAC
Nominal Current 1.5 A maximum
Frequency 50 ~ 60 Hz
Average 30 watts
Power Saving Mode < 2 watts
Off Mode < 1 watts
Power Cable Length 74.8 in (1.9 m); detached
Dimensions (H x W x D)
Weight
Bezel Width 18 mm left and right, 18 mm top, and 27 mm bottom
Tilt Range
Swivel Range
Height Adjustable Yes (5.1 in/13.0 cm adjustment range)
Pivot Rotation
Base Ships attached and is removable (four screws)
Packaged 22.2 x 16.5 x 9.0 in (56.5 x 42.0 x 22.6 cm)
Unpacked with stand
(minimum)
Unpacked with stand
(maximum height)
Base area (footprint) 11.85 x 11.5 in (30.1 x 29.3 cm)
Panel only (without
stand)
Packaged 19.4 lb (8.8 kg)
Unpacked with stand 14.3 lb (6.5kg)
Panel Only (without
stand)
-5°to +35°
± 45°horizontal swivel
Yes, 90°into portrait orientation
14.9 x 16.30 x 11.9 in (37.8 x 41.4 x 30.1 cm)
20.0 x 16.3 x 11.9 in (50.8 x 41.4 x 30.1 cm)
16.3 x 13.7 x 2.3 in (41.4 x 34.7 x 5.8 cm)
8.6 lb (3.9 kg)
Environmental Temp. – Operating 41° to 95° F (5° to 35° C)
Worldwide — Version 1 — August 1, 2007 Page 3
Page 4
QuickSpecs
Technical Specifications
Temp. – Non-operating -4° to 140° F (-20° to 60° C)
Humidity – Operating 20% to 80%, non-condensing
Humidity – Non-operating 5% to 90%
Altitude – Operating 0 to 12,000 ft (0 to 3,658 m)
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
HP L1950 Flat Panel Monitor
Options HP Silver Flat Panel Speaker
Bar – Part number: EE418AA
HP Compaq dc 7800 Series
Ultra-slim Desktop
Integrated Work Center
Stand – Part number:
GN783AA
HP Flat Panel Monitor Quick
Other
Release – Part number
EM870AA
Accessories Included VGA cable, AC power cord, USB cable, user CD-ROM
Software HP Display LiteSaver feature allows you to schedule Sleep mode at preset
User Guide Languages English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese,
Warranty Languages English, Canadian French, LA Spanish, Brazilian Portuguese, Danish,
Cabinet Color Carbonite black and silver (two-tone)
VESA Mounting Support Yes (standard 4 hole pattern, 100 mm); base must first be removed
Kensington Lock Yes
i
Powered directly by the monitor or PC, the Speaker Bar seamlessly attaches to
the monitor's lower bezel to bring full audio support to select HP flat panel
monitors. Features include dual speakers with full sound range and external
jack for headphones. Sold separately. For more information, refer to the HP
Silver Flat Panel Speaker Bar QuickSpec.
Allows mounting of a 17- or 19-inch HP flat panel monitor and an HP
Compaq dc7800 Ultra-slim Desktop PC on a single stand for the
convenience of an "all-in-one" form factor. Sold separately. For more
information, refer to this product's QuickSpec document.
An easy-to-use, VESA-compliant, flat panel monitor mounting solution that
allows you to quickly and securely attach a flat panel monitor to a variety of
stands, brackets, arms or wall mounts. For more information, refer to this
product's QuickSpec document.
times to help protect the monitor against image retention, drastically lower
power consumption and energy costs, and extend the lifespan of the
monitor.
HP Display Assistant is a software utility that allows monitor adjustment and
color calibration using the Display Data Channel Command Interface
(DDC/CI) protocol of the connected PC.
Danish, Finnish, Greek, Japanese, Korean, Latin American Spanish,
Norwegian, Polish, Russian, Slovenian, Turkish, Swedish, Traditional
Chinese, Simplified Chinese
German, Castilian Spanish, French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese, Simplified Chinese
Certification and
Compliance
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE Approval, CISPR
Requirements, Eastern European Approvals, Energy Star Compliant, FCC Approval, German Ergonomic
(TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval, MPR-II
Compliant, PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO
03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Microsoft® Windows®
Certification, Windows Vista™ Certification
Worldwide — Version 1 — August 1, 2007 Page 4
Page 5
QuickSpecs
HP L1950 Flat Panel Monitor
Technical Specifications
Compatibility VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven compatible for
use with the HP L1950 Flat Panel Monitor. Recommended for use with HP products.
Service and
Warranty
© Copyright 2007 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
i
The HP Flat Panel Monitor Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) depending
upon the mounting configuration used. Please note this is a total weight limit for all devices mounted, i.e. the combined
weight of the monitor and a second device such as the HP Compaq t5000 Series Thin Client cannot exceed 24 pounds.
Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are
not supplied (other than the VESA-compliant screws). HP recommends that you consult with a qualified engineering,
architectural or construction professional to determine the appropriate type and quantity of mounting fasteners required for
your application and to ensure that your mounting solution is properly installed to support applied loads.
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support. Replacement
options may include second business day on-site service, or next business day direct replacement, at HP's
sole discretion. With direct replacement, HP will ship a replacement display product directly to you. Using
the prepaid shipping labels provided, return your failed display to HP in the same packaging as the
replacement. Certain restrictions and exclusions apply. For details see your product warranty or contact HP
Customer Support.
Worldwide — Version 1 — August 1, 2007 Page 5
