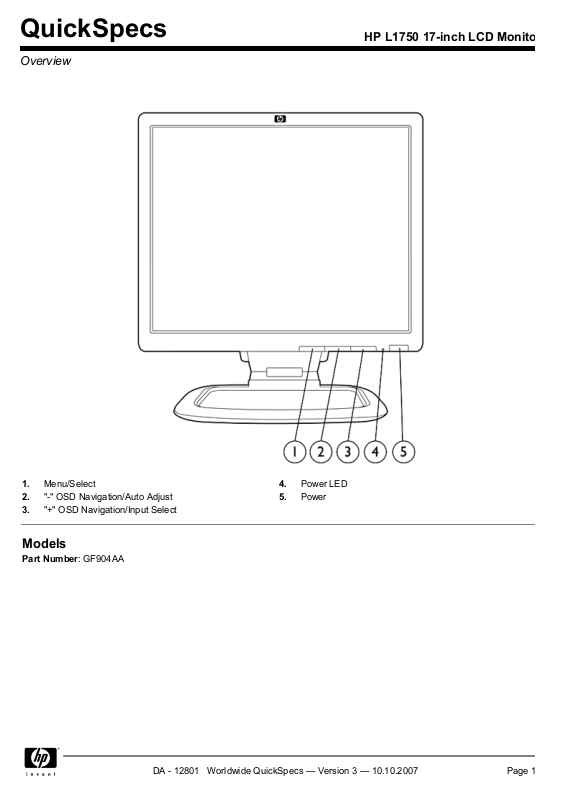

Page 1
QuickSpecs
Overview
HP L1750 17-inch LCD Monitor
1.
Menu/Select
2.
"-" OSD Navigation/Auto Adjust
3.
"+" OSD Navigation/Input Select
Models
Part Number
: GF904AA
4.
5.
Power LED
Power
DA - 12801 Worldwide QuickSpecs — Version 3 — 10.10.2007
Page 1
Page 2
QuickSpecs
Technical Specifications
HP L1750 17-inch LCD Monitor
Panel
Video/Other Inputs
Signal Interface/
Performance
On Screen Display
(OSD) Controls
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle
Brightness
Contrast Ratio
Response Time
(typical)*
Pixel Pitch
Backlight Lamp Life
half brightness)
* All performance specifications represent the typical specifications provided by HP's component
manufacturers; actual performance may vary either higher or lower.
Plug and Play
USB 2.0 Hub
Input Signal
Input Impedance
Sync Input
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Max Resolution
(Analog)
Max Resolution
Preset VESA Graphic
Modes
Preset MAC Mode
Preset SUN Mode
Fail Safe Mode
Max Pixel Clock Speed
User Programmable
Modes
Anti-Glare
Anti-Static
AssetControl
Default Color
Temperature
Buttons and Switches
(non-interlaced)
(typical)
(typical)
(typical)*800:1
(Digital)
Active matrix, thin film transistor (TFT)
17 in (43.2 cm)
13.4 x 10.7 in (33.9 x 27.2 cm)
Up to 160° horizontal/160° vertical (10:1 contrast ratio)
*
300 nits (cd/m2)
5 ms (rise + fall)
0.264 mm
(to
40K hours
Yes (supports VESA DDC2B and DDC/CI; PC2001 compliant)
Self-powered; two ports (cable included)
Two connectors: one 15-pin mini D-sub analog VGA and one DVI-D
75 ohms ± 2%
Separate sync (HSYNC/VSYNC)
15-pin D-sub mini connector; detached
70.9 in/1.8 m; detached
24 to 83 kHz
50 to 77 Hz
1280 x 1024 @ 60 Hz (analog)
1280 x 1024 @ 60 Hz (digital)
1280 x 1024 @ 75 Hz
1280 x 1024 @ 75 Hz
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Yes
Yes (accessible on HP Compaq Business Desktops featuring HP Client
Manager)
6500° K
3-button OSD (menu, minus, plus); power on/off; second-level OSD
buttons include dual-input switch, auto-adjust
DA - 12801 Worldwide QuickSpecs — Version 3 — 10.10.2007
Page 2
Page 3
QuickSpecs
Technical Specifications
HP L1750 17-inch LCD Monitor
Power
Mechanical
Environmental
Options
Languages
User Controls
Power Supply
Input Power
Nominal Current
Frequency
Average
Power Saving Mode
Off Mode
Power Cable Length
Dimensions
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
Temperature –
Non-operating
Humidity – Operating
Humidity –
Non-operating
Altitude – Operating
Altitude –
Non-operating
HP Silver LCD Speaker
Bar – Part number:
EE418AA
(H x W x D)
English, Spanish, French, German, Dutch, Italian, Simplified Chinese,
Japanese
Size and positioning, contrast, brightness, clock, clock phase, selectable
color temperature, serial number, mode displayed, sleep timer, input
selection, factory reset, individual color contrast, full-screen resolution
Auto-ranging, 90 to 265 VAC; internal power supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
30 watts
< 2 watts
< 1 watt
74.8 in (1.9 m); detached
Packaged
Unpacked with stand
(minimum height)
Unpacked with stand
(maximum height)
Base area
Panel only
stand)
Packaged
Unpacked with stand
Panel Only
stand)
19 mm left and right, 19 mm top, and 25 mm bottom
-5° to +35°
± 45° horizontal swivel
Yes (5.45 in/13.84 cm adjustment range)
Yes, 90° into portrait orientation
Ships attached and is removable (four screws)
41° to 95° F (5° to 35° C)
-4° to 140° F (-20° to 60° C)
20% to 80% non-condensing
5% to 90%
0 to 12,000 ft (0 to 3,658 m)
0 to 40,000 ft (0 to 12,192 m)
Powered directly by the monitor or PC, the Speaker Bar seamlessly
attaches to the monitor's lower bezel to bring full audio support to select
HP flat panel monitors. Features include dual speakers with full sound
range and external jack for headphones. Sold separately. For more
information, refer to the product's QuickSpec document.
(footprint)
(without
(without
14.9 x 21.1 x 9.2 in (37.8 x 53.7 x 23.4 cm)
13.8 x 14.9 x 11.9 in (35.1 x 37.7 x 30.1 cm)
19.3 x 14.9 x 11.9 in (49.0 x 37.7 x 30.1 cm)
11.54 x 11.85 in (29.3 x 30.2 cm)
12.5 x 14.9 x 2.2 in (31.6 x 37.7 x 5.7 cm)
18.5 lb (8.4 kg)
15.5 lb (7.0 kg)
9.0 lb (4.1 kg)
DA - 12801 Worldwide QuickSpecs — Version 3 — 10.10.2007
Page 3
Page 4
QuickSpecs
Technical Specifications
HP L1750 17-inch LCD Monitor
Other
Certification and
Compliance
Compatibility
Service and Warranty
HP Compaq dc 7800
Series Ultra-slim
Desktop Integrated
Work Center Stand –
Part number: GN783AA
HP LCD Monitor Quick
Release – Part number
EM870AA*
* The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg)
depending upon the mounting configuration used. Please note this is a total weight limit for all
devices mounted, i.e. the combined weight of the monitor and a second device such as the HP
Thin Client cannot exceed 24 pounds. Because mounting surfaces vary widely and the final
mounting method and configuration may vary, mounting fasteners are not supplied (other than the
VESA-compliant screws). HP recommends that you consult with a qualified engineering,
architectural or construction professional to determine the appropriate type and quantity of
mounting fasteners required for your application and to ensure that your mounting solution is
properly installed to support applied loads.
Accessories Included
Software
User Guide Languages
Warranty Languages
Cabinet Color
VESA Mounting
Support
Kensington Lock
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE
Approval, CISPR Requirements, Eastern European Approvals, ENERGY STAR® qualified, FCC
Approval, German Ergonomic (TUV and GS Mark), ISO 13406-2 Compliant (Pixel Defect
Guidelines), Mexican NOM Approval, MPR-II Compliant, PC2001 Compliant, PC99 Certified, S.
Korean MIC Approval, Taiwan BSMI Approval, TCO 03 (emissions, ergonomics, environment),
TUV-Ergo, UL Listed, VCCI Approvals, Microsoft® Windows® Certification, Windows Vista®
Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested and proven
compatible for use with the HP L1750 17-inch LCD Monitor. Recommended for use with HP
products.
Three years parts, labor, and on-site service. 24-hour, 90-day, toll-free technical support.
Replacement options may include second business day on-site service, or next business day
direct replacement, at HP's sole discretion*. With direct replacement, HP will ship a replacement
display product directly to you. Using the prepaid shipping labels provided, return your failed
display to HP in the same packaging as the replacement. Certain restrictions and exclusions
apply. For details see your product warranty or contact HP Customer Support.
* Service levels and response times for HP Care Packs may vary depending on your geographic
location. Restrictions and limitations apply. For details,
Allows mounting of a 17- or 19-inch HP flat panel monitor and an HP
Compaq dc7800 Ultra-slim Desktop PC on a single stand for the
convenience of an "all-in-one" form factor. Sold separately. For more
information, refer to this product's QuickSpec document.
An easy-to-use, VESA-compliant, flat panel monitor mounting solution
that allows you to quickly and securely attach a flat panel monitor to a
variety of stands, brackets, arms or wall mounts. For more information,
refer to this product's QuickSpec document.
VGA cable, AC power cord, USB cable, user CD-ROM
HP Display LiteSaver feature allows you to schedule Sleep mode at
preset times to help protect the monitor against image retention,
drastically lower power consumption and energy costs, and extend the
lifespan of the monitor.
HP Display Assistant is a software utility that allows monitor adjustment
and color calibration using the Display Data Channel Command
Interface (DDC/CI) protocol of the connected PC.
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese,
Danish, Finnish, Greek, Japanese, Korean, Latin American Spanish,
Norwegian, Polish, Russian, Slovenian, Turkish, Swedish, Traditional
Chinese, Simplified Chinese
English, Canadian French, LA Spanish, Brazilian Portuguese, Danish,
German, Castilian Spanish, French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese, Simplified Chinese
Carbonite black and silver (two-tone)
Yes (standard 4 hole pattern, 100 mm); base must first be removed
Yes
http://visit www.hp.com/go/carepack
.
DA - 12801 Worldwide QuickSpecs — Version 3 — 10.10.2007
Page 4
Page 5
QuickSpecs
HP L1750 17-inch LCD Monitor
Technical Specifications
© Copyright 2007 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are trademarks or registered trademarks of Microsoft Corporation in the U.S. and other countries.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other
countries. ENERGY STAR is a registered mark owned by the U.S. government.
The information contained herein is subject to change without notice. The only warranties for HP products and services are
set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed
as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 12801 Worldwide QuickSpecs — Version 3 — 10.10.2007
Page 5
